U-Net based Semantic Segmentation of Kidney and Kidney Tumours of

CT Images

Benjamin Bracke and Klaus Brinker

Hamm-Lippstadt University of Applied Sciences, Marker Allee 76-78, 59063 Hamm, Germany

Keywords:

Medical Image Segmentation, Semantic Segmentation, Kidney Tumours Segmentation, U-Net, Deep Learn-

ing, Transfer Learning, Hyperparameter Optimization.

Abstract:

Semantic segmentation of kidney tumours in medical image data is an important step for diagnosis as well as

in planning and monitoring of treatments. Morphological heterogeneity of kidneys and tumours in medical

image data is a major challenge for automatic segmentation methods, therefore segmentations are typically

performed manually by radiologists. In this paper, we use a state-of-the-art segmentation method based on the

deep learning U-Net architecture to propose a segmentation algorithm for automatic semantic segmentation

of kidneys and kidney tumours of 2D CT images. Therefore, we particularly focus on transfer learning of U-

Net architectures and provide an experimental evaluation of different hyperparameters for data augmentation,

various loss functions, U-Net encoders with varying complexity as well as different transfer learning strategies

to increase the segmentation accuracy. We have used the results of the evaluation to ﬁx the hyperparameters

of our ﬁnal segmentation algorithm, which has achieved a high segmentation accuracy for kidney pixels and a

lower segmentation accuracy for tumor pixels.

1 INTRODUCTION

In 2020, more than 430,000 kidney tumours were

diagnosed worldwide, nearly 40% resulted in death

(Sung et al., 2021). Medical imaging techniques such

as computed tomography (CT) play a central role in

the diagnosis of kidney tumours as well as in plan-

ning and monitoring of treatment steps. Currently,

analysing medical image data for precise localiza-

tion and segmentation of kidney- and kidney tumours

tissue is a manual and time-consuming process per-

formed by radiologists (S. Kevin Zhou, 2020). There-

fore, image segmentation techniques that can recog-

nize related features in medical image data and assign

a speciﬁc class (e.g. background, kidney or tumour)

to each pixel could support the work of radiologists by

automatically pre-segmenting the image data. How-

ever, the morphological heterogeneity of medical im-

age data has been a major challenge for automatic im-

age segmentation methods for a long time.

In recent years, major progress has been made

in machine learning, which has also led to new and

more powerful image segmentation methods based

on artiﬁcial neural networks (Litjens et al., 2017),

such as the deep learning U-Net architecture pre-

sented by Ronneberger et al. U-Nets are encoder-

decoder architectures based on fully Convolutional-

Neural-Networks (FCN) that combine a contractive

path for learnable feature extraction and an expansive

path with skip connections between encoder and de-

coder for learnable upscaling of the extracted features

(Ronneberger et al., 2015). In the past, U-Nets have

been successfully used for segmentation of medical

image data and in some applications have even been

able to achieve better segmentation accuracy than ra-

diologists (Litjens et al., 2017).

This paper picks up on the success of U-Nets and

aims to develop a segmentation algorithm for seman-

tic segmentation of kidney tissue and kidney tumours

tissue from 2D CT image data. To achieve this objec-

tive, we will focus on transfer learning of existing and

pre-trained U-Net architectures as well as on the opti-

mization of its so-called hyperparameters, which are

not trained automatically but have to be set manually.

Therefore, we investigate in detail how different hy-

perparameters related to the data augmentation, loss

function, U-Net encoders and transfer learning affect

the segmentation accuracy.

In the following, we ﬁrst introduce the considered

dataset as well as different methods considered in the

optimization of the U-Net hyperparameters. Then, the

effects of the introduced methods on the segmentation

accuracy are evaluated and discussed using empirical

experiments, while the best methods will be included

in our proposed segmentation algorithm. Finally, a

conclusion is given.

Bracke, B. and Brinker, K.

U-Net based Semantic Segmentation of Kidney and Kidney Tumours of CT Images.

DOI: 10.5220/0010770900003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 2: BIOIMAGING, pages 93-102

ISBN: 978-989-758-552-4; ISSN: 2184-4305

2 MATERIAL AND METHODS

In this section, we will start with a description of the

considered dataset and explain necessary adjustments

and pre-processing steps. Afterwards, we present dif-

ferent methods considered in the optimization of the

U-Net hyperparameters, which concern data augmen-

tation, a suitable loss function for segmentation tasks

and transfer learning of a U-Net architecture.

2.1 KiTS19 Dataset

The data used in this paper is derived from the ”Kid-

ney Tumor Segmentation 2019 (KiTS19)” dataset

(Heller et al., 2019), which was released as a train-

ing dataset as part of a Grand-Challenge

under the

creative commons license CC BY-NC-SA on March

15, 2019. It includes three-dimensional computed to-

mography images (CT volumes) of 210 patients who

underwent nephrectomy at the University of Min-

nesota Medical Center. This dataset provides three-

dimensional ground truth segmentations which assign

the voxels of a CT volume to either the ”kidney”, ”tu-

mour” or ”background” class, depending on the rep-

resented tissues. The CT volumes and segmentations

have a spatial resolution of 512x512 voxels along the

x- and y-dimensions, while the number of acquisition

slices (z-dimension) varies between patients.

2.2 Pre-processing

We conducted some adjustments and pre-processing

on the KiTS19 dataset, which are brieﬂy explained

in the following. Since this paper focuses on two-

dimensional semantic segmentation, individual trans-

verse CT images were extracted from the acquisition

slices of each patient’s three-dimensional CT volume.

As a result, a total of 45,424 individual CT images

were extracted from all 210 CT volumes, of which

the majority (≈64%) only contained the background

class. About 23.4% of the images contained the

classes background and kidney while approx. 11.5%

contained all classes background, kidney and tumour.

About 1.1% only contained the classes background

and tumour. The high number of CT images contain-

ing only the background class does not provide further

information about kidneys or tumours to the segmen-

tation algorithm and could instead negatively impact

training success and increase training run times. Con-

sequently, most of these CT images were removed

and only 1% (at least one image) per CT volume were

retained. As a result of this ﬁltering, only around 37%

(16,795) of the extracted CT images remain. As the

https://kits19.grand-challenge.org/

number of acquisition slices of the patient CT vol-

umes varies, the number of extractable CT images

differs per patient. As a result, patients with many CT

images would have a greater inﬂuence in training and

in evaluation than patients with fewer CT images. To

balance the inﬂuence of patients and avoid this bias,

each CT image was weighted by a speciﬁc parameter.

This parameter is equivalent to the inverse of the ex-

tracted and ﬁltered number of CT images of a patient.

During preprocessing, the intensity windows of the

CT images were ﬁrst clipped to [-125,225] Hounsﬁeld

units to achieve high contrast for the soft tissue of the

abdomen and then normalized to the interval [0,1].

Also, the resolution of the CT images were reduced

from 512x512 pixels to 256x256 pixels to decrease

the processing time in the training process. All CT

images were divided into training, validation, and test

data on the patient level. From a total of 210 patients,

74 patients (≈35%) were designated as test dataset,

116 patients (≈55%) as training dataset and 20 pa-

tients (≈10%) as validation dataset. Altogether, the

test dataset provides a total of 5,494 CT images, the

training dataset a total of 9,590 CT images, and the

validation dataset a total of 1,711 CT images.

2.3 Data Augmentation

A major limiting factor when training artiﬁcial neu-

ral networks is the amount of available training data.

The KiTS19 training dataset provides only a limited

number of training data and consequently only low

variability, which may lead to problems in training,

such as overﬁtting and an overall poor generaliza-

tion performance. Access to further training data

with ground truth segmentations matching the topic

of this paper is limited, so data augmentation tech-

niques are used to artiﬁcially increase the variability

of the training data by modifying them using various

transformations. For this purpose, a data augmenta-

tion pipeline was developed, which combines spatial

transformation methods like ﬂipping, rotation, elastic

transformation, grid distortion, crop or pad as well as

intensity transformations like brightness-, contrast-,

gamma adjustments, blurring, adding noise or com-

pression artefacts. Data augmentation is performed

dynamically for each CT image during the training

process. Which transformation methods are used for

data augmentation is determined randomly per image

with a probability of 50% per transformation method.

To prevent including only augmented images, the pro-

portion of data augmentation can be speciﬁed by a

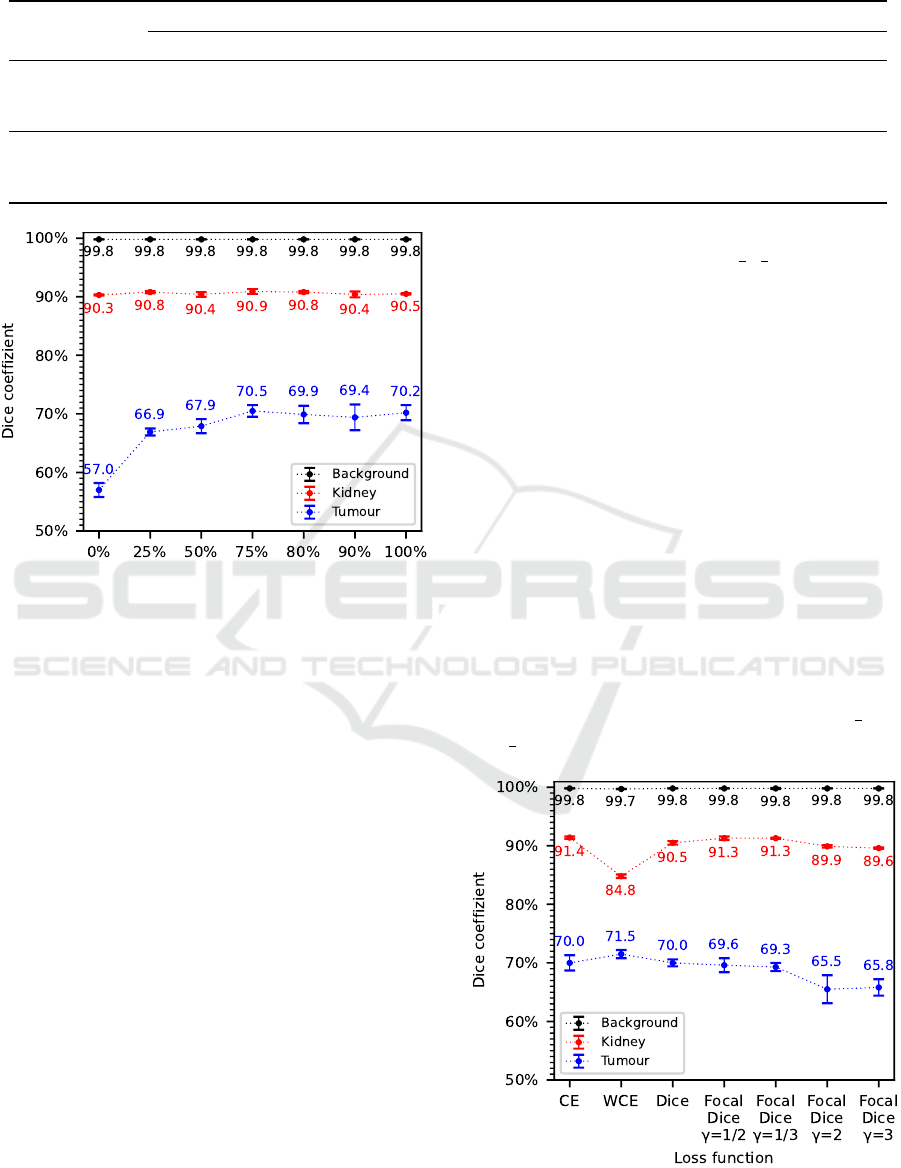

hyperparameter. We will empirically evaluate this hy-

perparameter to determine the best proportion of data

augmentation in terms of segmentation accuracy.

BIOIMAGING 2022 - 9th International Conference on Bioimaging

2.4 Loss Functions

Another important hyperparameter in training of ar-

tiﬁcial neural networks is the loss function, which

quantiﬁes the deviation between the networks predic-

tion and the ground truth and should be minimized

during the training process. A common problem in

medical image data segmentation is the handling of

class imbalances. The proportion of pixels that a kid-

ney or tumour represents in a CT image is usually

very small, resulting in a skewed distribution in favour

of background pixels. Under these circumstances, a

careful selection of a loss function that takes the un-

balanced pixel distribution of each class into account

is crucial. Therefore, we consider different loss func-

tions and empirically evaluate which loss function is

best suited in terms of segmentation accuracy for the

purpose of this paper.

2.4.1 Cross Entropy

When cross entropy (CE) is used as a loss function

for segmentation tasks, a loss is determined between

predictions (p) and ground truth (g) for each pixel

(i) and then averaged over all pixels (N). The cross

entropy does not consider the class imbalance prob-

lem mentioned earlier. Therefore, we also consider

a weighted cross entropy (WCE), which weights the

pixel losses of each class (c) differently. The weight-

ing parameters (w

) of each class are calculated using

the ”Median-Frequency-Balancing” (Eigen and Fer-

gus, 2014).

CE = −

∑

i=1

∑

c=1

i,c

· log(p

i,c

) (1)

WCE = −

∑

i=1

∑

c=1

· g

i,c

· log(p

i,c

) (2)

2.4.2 Dice Loss

We also investigate the dice loss (Sudre et al.,

2017) function based on the Sørensen-Dice coefﬁ-

cient (DSC), which characterises the overlap between

the prediction (p) and ground truth (g) and is there-

fore robust to different pixel proportions of the classes

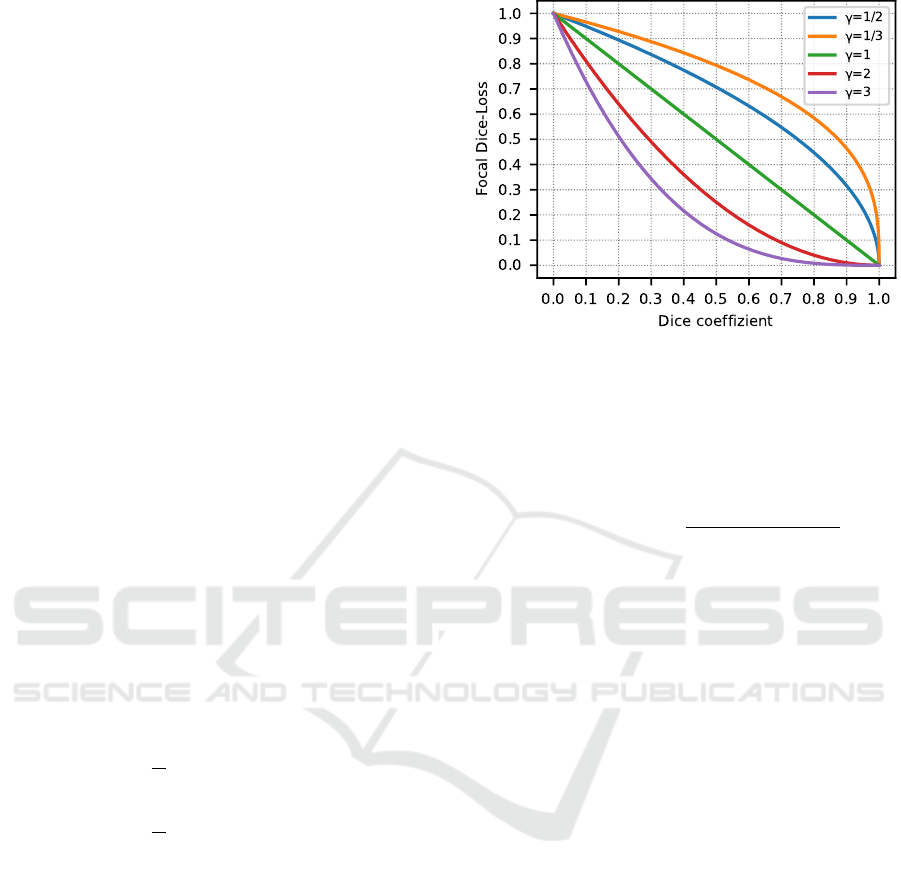

(c). Furthermore, we want to consider focusing of the

dice loss similar to the Focal-Tversky loss (Abraham

and Khan, 2018). Focusing is done by a γ-parameter,

which exponentiates the dice loss for each class re-

spectively. The effects of focusing are shown in Fig-

ure 1. Essentially, with a γ-value < 1, the loss is

higher for images with dice coefﬁcients > 0.5, which

allows focusing on images that are easy-to-segment

(Abraham and Khan, 2018). The opposite case is true

Figure 1: Focusing effects of the Focal-Dice loss compared

to the dice coefﬁcient. A focusing of γ = 1 corresponds to

the unfocused Dice loss.

for a γ-value > 1 and allows focusing on harder-to-

segment images. Both focusing cases will be empiri-

cally evaluated in this paper.

DSC

∑

i=1

i,c

∑

i=1

i,c

∑

i=1

i,c

(3)

Dice Loss =

∑

c=1

(1 − DSC

) (4)

Focal-Dice Loss =

∑

c=1

(1 − DSC

)

(5)

2.5 Transfer-learning

Due to the limited amount of training data, this pa-

per focuses on transfer learning and uses pre-trained

Convolutional-Neural-Networks as a base model for

the U-Net encoder. Which base model is best suited

as a U-Net encoder will be evaluated empirically. For

this purpose, we analyse how different variants of the

ResNet architecture (He et al., 2015) like ResNet18,

ResNet34, ResNet50 and ResNet101, which differ

mainly in complexity due to a different number of

convolutional layers, affect the segmentation accu-

racy. These pre-trained ResNet models have already

learned a general feature extraction representation

from the large ImageNet dataset, so only an optimiza-

tion of the feature extraction with respect to the ap-

plication ﬁeld of this paper is required by re-training

some layers. How far the optimization by re-training

certain layers affects the segmentation accuracy will

also be evaluated empirically. The U-Net decoder,

which is designed to expand symmetrically to the

stages of the ResNet architecture, is initialized ran-

domly and must therefore be retrained each time.

U-Net based Semantic Segmentation of Kidney and Kidney Tumours of CT Images

2.6 Implementation

The segmentation algorithm with the previously de-

scribed methods was implemented in Python 3.9.4,

with the help of the libraries Tensorﬂow 2.4.1 and

Numpy 1.20.1. The used U-Net architectures derive

from the library Segmentation Models 1.0.1

and data

augmentation was done with the libraries Albumenta-

tions 0.5.2 and OpenCV 4.5.2. The experiments for

evaluation were performed on an Ubuntu 18.04 server

with four Nvidia RTX 2080TI graphics cards, 128GB

memory and two Intel Xeon Silver 4110 CPUs.

3 EVALUATION

In this section, we evaluate how the different consid-

ered methods for the U-Net architecture and hyper-

parameters for training affect the segmentation accu-

racy. First, we describe the performed evaluation ap-

proach. Then, the evaluation results of the considered

methods and the results of the ﬁnal segmentation al-

gorithm are presented.

3.1 Approach

To determine how the different considered methods

for the U-Net architecture and training hyperparame-

ters affect the segmentation accuracy, several empir-

ical experiments are conducted. Testing all possible

combinations of the hyperparameters would be com-

putationally too extensive, so instead we followed a

stepwise approach.

For this purpose, all hyperparameters were ﬁrst set

manually as shown in Table 1. Starting from these

initial hyperparameters, only one hyperparameter was

evaluated at a time in sequential experiments. De-

pendencies between hyperparameters require careful

consideration of the experimental sequence. There-

fore, we ﬁrst evaluated the hyperparameter of the data

augmentation proportion to minimize early overﬁtting

effects during the experiments, especially when train-

ing more complex U-Net encoders. The hyperparam-

eter for the data augmentation proportion was then in-

cluded in the second experiment, in which we evalu-

ate the optimal loss function. Following the same ap-

proach, we decided to determine the optimal U-Net

encoder and the hyperparameters for transfer learn-

ing in the last two experiments. All evaluated hyper-

parameters were then combined to train a ﬁnal seg-

mentation algorithm. During the experiments, differ-

ent U-Net models were trained with a learning rate of

https://github.com/qubvel/segmentation models

Table 1: Initialization hyperparameters of the experiments.

Data Aug.

Proportion

Loss

Function

U-Net

Encoder

Re-Trained

Layers

0% Dice Loss ResNet34 from Stage 3

−5

, a batch size of 24 CT images and a relatively

short training period of 50 epochs to further reduce

the computational cost, Afterwards, the segmentation

accuracy for each model was evaluated using super-

vised pixel-based evaluation metrics over the entire

validation dataset. We mainly focused on the eval-

uation metrics dice coefﬁcient, recall and precision,

that consider the classiﬁcation cases of true positive

(TP), false positive (FP), and false negative (FN) of

each pixel in the segmented image with respect to the

ground truth image (Taha and Hanbury, 2015). To

minimize variations that may occur due to random in-

ﬂuences in the training process, each experiment was

repeated four times, and the mean and standard devi-

ation of the metrics were used for evaluation.

Dice coefﬁcient =

2T P

2T P + FP + FN

(6)

Recall =

T P

T P + FN

(7)

Precision =

T P

T P + FP

(8)

3.2 Hyperparameter Optimization

In the following, the evaluation results of each hyper-

parameter experiment are presented and it is brieﬂy

mentioned which hyperparameter is used for the fol-

lowing experiment. A more detailed discussion is

given in section 4.

3.2.1 Impact of Data Augmentation Proportion

The aim of the ﬁrst experiment was to determine

how different data augmentation proportions affect

the segmentation accuracy. For this purpose, sev-

eral U-Net models were trained using different data

augmentation proportions p∈[0%, 25%, 50%, 75%,

80%, 90%, 100%]. The data augmentation proportion

p=0% is equivalent to no data augmentation.

Considering the results of the evaluation metrics,

dice coefﬁcient in Figure 2 and recall in Table 2, a

clear trend can be seen. With increasing data augmen-

tation proportion from p=0% to p=75%, an improve-

ment in segmentation accuracy can be observed. This

improvement is particularly noticeable for the tumour

class, where an approximately 13.5% higher dice co-

efﬁcient and approximately 25.2% higher recall is

achieved. In contrast, only minor ﬂuctuations are ob-

served for the kidney and background classes, which

BIOIMAGING 2022 - 9th International Conference on Bioimaging

Table 2: Evaluation results of recall and precision for the analyzed data augmentation proportions.

Class

Data Augmentation Proportion

0% 25% 50% 75% 80% 90% 100%

Recall

Background 99.9% ±0.0 99.9% ±0.0 99.9% ±0.1 99.9% ±0.1 99.9% ±0.0 99.9% ±0.0 99.9% ±0.0

Kidney 87.3% ±0.4 87.7% ±0.5 87.1% ±1.0 88.1% ±0.8 88.0% ±0.6 87.2% ±1.1 87.2% ±0.4

Tumour 51.7% ±2.3 69.8% ±3.0 75.6% ±1.0 76.9% ±2.6 75.2% ±2.4 74.8% ±1.8 77.0% ±1.7

Precision

Background 99.7% ±0.0 99.8% ±0.0 99.8% ±0.0 99.8% ±0.0 99.8% ±0.0 99.8% ±0.0 99.8% ±0.0

Kidney 93.5% ±0.3 94.1% ±0.4 93.9% ±0.4 94.0% ±0.2 93.7% ±0.3 93.9% ±0.3 94.2% ±0.2

Tumour 63.7% ±0.9 64.3% ±2.3 61.7% ±1.9 65.4% ±3.1 65.3% ±0.9 64.8% ±3.3 64.5% ±2.1

Data Augmentation Proportion

Figure 2: Evaluation results of the dice coefﬁcient for the

analyzed data augmentation proportions.

show no clear improvement in segmentation accu-

racy. At even higher data augmentation proportions

of p>75%, no further improvement in segmentation

accuracy is noticeable for the tumour class. Rather, a

saturation of the dice coefﬁcient at around 70% and

for recall of around 75% to 77% is noticeable. There

are only minor ﬂuctuations in the evaluation results of

the precision metric with partly high standard devia-

tions, which do not indicate a clear trend.

According to these results, a data augmentation

proportion of p=75% is selected as a hyperparameter

for the following experiments as well as for the ﬁnal

segmentation algorithm.

3.2.2 Impact of Loss Function

The aim of the second experiment was to determine

the effect of different loss functions on the segmenta-

tion accuracy. For this purpose, various U-Net models

were trained using different loss functions in the train-

ing process. The inﬂuence of cross entropy versus

weighted cross entropy was evaluated with weighting

parameters of 0.02 for the background class, 1.0 for

the kidney class and 1.5 for the tumour class. We

also evaluated the inﬂuence of the dice loss on the

segmentation accuracy and whether focusing the dice

loss with varying γ-values of g∈[

, 2, 3] is useful.

The evaluation results of this experiment with re-

spect to the dice coefﬁcient are shown in Figure 3

as well as the results for recall and precision in Ta-

ble 3. Comparing the evaluation results of the loss

function cross entropy with those of the weighted

cross entropy, the weighted cross entropy achieves

higher recall results of about 3.9% for the kidney

class and about 7.5% for the tumour class. In con-

trast, the other evaluation metrics show a signiﬁcantly

worse segmentation accuracy of the weighted cross

entropy compared to the cross entropy. This is partic-

ularly noticeable in the dice coefﬁcient, which is ap-

proximately 6.6% lower for the kidney class, and for

the precision metric, which is approximately 15.8%

lower. For the tumour class, there is only a slight im-

provement of about 1.5% in the dice coefﬁcient with

the weighted cross entropy, but also a signiﬁcantly

lower precision of about 3.7%. Comparing the evalu-

ation results of the dice loss with the focused variants

of the dice loss to easy-to-segment images (γ =

and

γ =

), only slight differences in segmentation accu-

Figure 3: Evaluation results of the dice coefﬁcient for the

analyzed loss functions.

U-Net based Semantic Segmentation of Kidney and Kidney Tumours of CT Images

Table 3: Evaluation results of recall and precision for the analyzed loss functions.

Class

Loss

WCE

Loss

Dice

Loss

Focal-Dice Loss

γ =

γ = 2 γ = 3

Recall

Background 99.9% ±0.0 99.4% ±0.0 99.9% ±0.0 99.9% ±0.0 99.9% ±0.0 99.8% ±0.0 99.8% ±0.1

Kidney 89.0% ±0.3 92.9% ±0.7 87.4% ±1.0 88.4% ±0.7 88.4% ±0.4 87.3% ±0.4 86.6% ±0.2

Tumour 69.4% ±0.8 76.9% ±1.5 77.9% ±1.0 73.4% ±0.8 73.7% ±2.1 66.5% ±3.2 67.0% ±2.0

Precision

Background 99.8% ±0.0 99.9% ±0.0 99.8% ±0.0 99.8% ±0.0 99.8% ±0.0 99.7% ±0.0 99.7% ±0.0

Kidney 93.8% ±0.1 78.0% ±0.5 93.9% ±0.5 94.2% ±0.1 94.4% ±0.3 92.6% ±0.1 92.7% ±0.3

Tumour 70.5% ±1.8 66.8% ±0.7 63.6% ±1.3 66.1% ±2.4 65.4% ±1.4 64.6% ±1.7 64.6% ±1.5

racy can be observed. These are mainly evident in a

slightly better dice coefﬁcient, recall and precision of

the kidney class regarding the focused loss variants,

but also in a slightly worse dice coefﬁcient and recall

of the tumour class. In general, recall and precision

of the tumour class are more balanced for the focused

loss variants than for the normal dice loss. Focusing

on harder-to-segment images (γ = 2 and γ = 3) results

in a signiﬁcantly worse segmentation accuracy com-

pared to the normal dice loss, as evidenced by approx-

imately 4.3% lower dice coefﬁcient and the approxi-

mately 10% lower recall of the tumour class.

Considering the more balanced recall and preci-

sion results and the high dice coefﬁcient, the focused

dice loss on easy-to-segment images (γ =

) is chosen

as a hyperparameter for the following experiments as

well as for the ﬁnal segmentation algorithm.

3.2.3 Impact of U-Net Encoder

The aim of the third experiment was to determine the

effects of different U-Net encoders of varying com-

plexity in terms of segmentation accuracy. Therefore,

various U-Net models were trained using four differ-

ent Convolutional-Neural-Networks of the ResNet ar-

chitecture as a basis for the U-Net encoder, including

the ResNet18, ResNet34, ResNet50, and ResNet101.

Considering the results of the evaluation metrics

dice coefﬁcient in Figures 4 as well as recall and

precision in Table 4, a trend is noticeable that with

Table 4: Evaluation results of recall and precision for the

analysed U-Net encoders.

U-Net

Encoder

Background Kidney Tumour

Recall

ResNet18 99.9% ±0.0 87.7% ±1.1 66.4% ±2.2

ResNet34 99.9% ±0.0 88.1% ±1.0 75.5% ±1.8

ResNet50 99.9% ±0.0 88.8% ±0.7 74.4% ±3.4

ResNet101 99.9% ±0.0 89.6% ±0.7 79.9% ±1.6

Precision

ResNet18 99.8% ±0.1 94.4% ±0.4 67.0% ±3.4

ResNet34 99.8% ±0.0 94.5% ±0.2 65.3% ±2.6

ResNet50 99.8% ±0.0 93.9% ±0.3 69.9% ±2.0

ResNet101 99.8% ±0.0 94.6% ±0.3 70.9% ±1.8

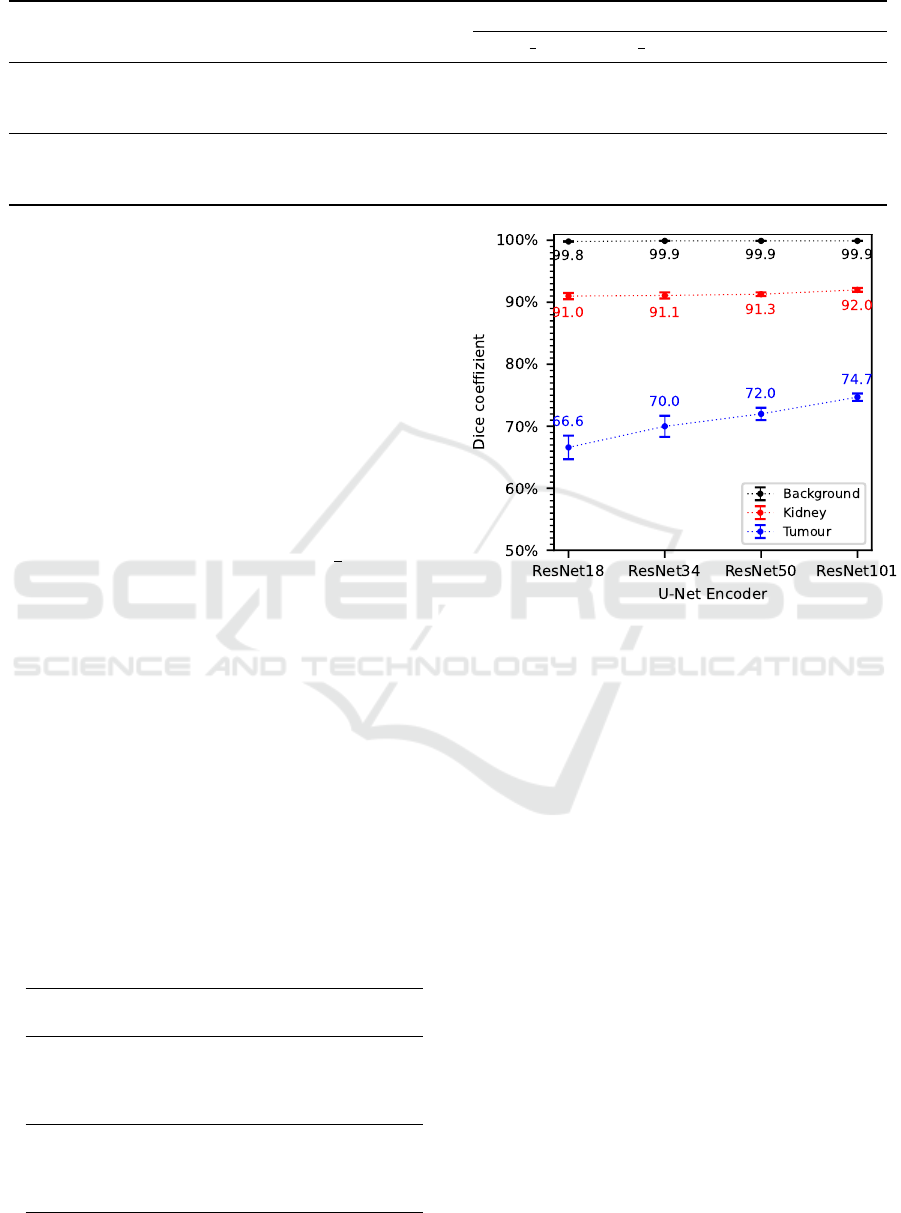

Figure 4: Evaluation results of the dice coefﬁcient for the

analysed U-Net encoders.

increasing complexity of the U-Net encoder an im-

provement in segmentation accuracy can be observed.

This improvement in segmentation accuracy is again

particularly noticeable in the tumour class, where the

dice coefﬁcient increased by an average of 2.7% with

increasing complexity of the U-Net encoder. Recall

improves by about 12.6% for the ResNet101 com-

pared to the ResNet18, whereas precision increases

by just 2.9%. For the kidney class, there is only a

slight improvement in segmentation accuracy with in-

creasing complexity of the U-Net encoder, while no

signiﬁcant changes occur for the background class.

According to these results, a U-Net encoder based

on the most complex ResNet101 architecture is cho-

sen as a basis for the following experiments as well as

for the ﬁnal segmentation algorithm.

3.2.4 Impact of Transfer-learning

The aim of the fourth experiment was to determine

how the optimization of the pre-trained U-Net en-

coder (ResNet101) by re-training different numbers

of layers affects the segmentation accuracy. To evalu-

ate this, various U-Net models were trained in which

BIOIMAGING 2022 - 9th International Conference on Bioimaging

Table 5: Evaluation results of recall and precision for different numbers of re-trained encoder layers.

Class

Re-Trained Encoder Layers from:

All Stage 1 Stage 2 Stage 3 Unit 1 Stage 3 Unit 12 Stage 4

Recall

Background 99.9% ±0.0 99.9% ±0.0 99.9% ±0.0 99.9% ±0.0 99.9% ±0.1 99.9% ±0.0

Kidney 91.5% ±0.8 91.4% ±0.5 91.3% ±1.0 90.0% ±0.2 90.0% ±0.2 89.5% ±0.5

Tumour 80.0% ±2.4 82.4% ±1.4 81.3% ±0.8 78.3% ±4.1 79.8% ±0.2 71.5% ±0.6

Precision

Background 99.9% ±0.0 99.9% ±0.0 99.9% ±0.0 99.8% ±0.1 99.9% ±0.0 99.8% ±0.0

Kidney 95.4% ±0.2 95.5% ±0.1 95.0% ±0.3 95.0% ±0.2 94.6% ±0.4 94.4% ±0.2

Tumour 76.8% ±2.1 75.3% ±0.2 75.8% ±3.3 72.4% ±1.5 63.6% ±3.1 68.4% ±3.3

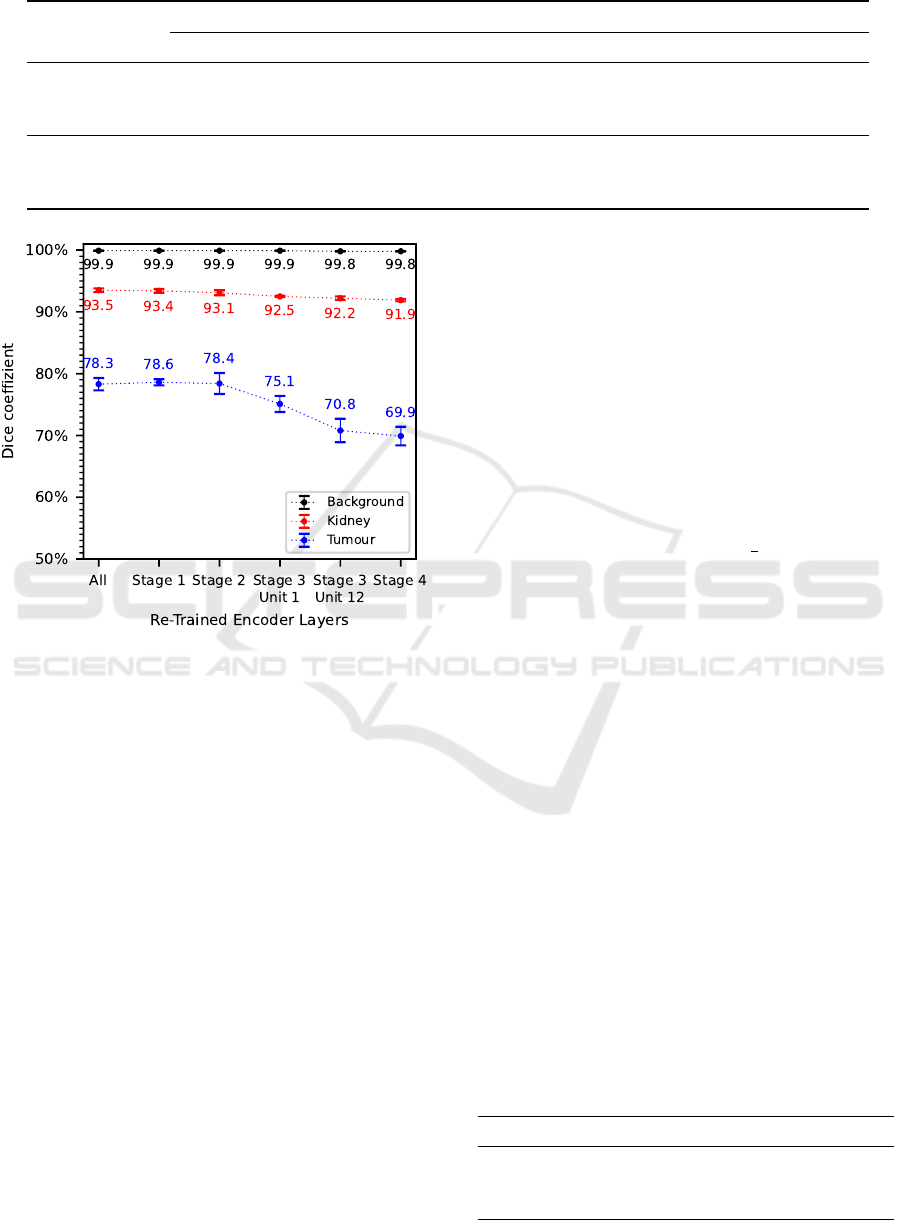

Figure 5: Evaluation results of dice coefﬁcient for different

numbers of re-trained encoder layers.

the neuron weights of several encoder layers were

frozen to prevent them from being adjusted during the

training process. First, a model is trained in which

all encoder layers are re-trained and then models in

which the encoder layers starting from ResNet-Stage

1, Stage 2, Stage 3 Unit 1 (Unit = Residual Block),

Stage 3 Unit 12 and Stage 4 are re-trained.

Considering the results of the evaluation metrics

dice coefﬁcient in Figure 5 as well as recall and preci-

sion in Table 5, a clear trend is noticeable. In general,

the segmentation accuracy decreases with decreasing

number of re-trained encoder layers. Larger differ-

ences occur in dice coefﬁcient and precision when

only the encoder layers from Stage 3 and above are

re-trained, whereas similar results are obtained when

all encoder layers or the encoder layers starting from

Stage 1 or 2 are re-trained. This trend is especially no-

ticeable in the tumour class, where an approximately

8.4% higher dice coefﬁcient and precision as well

as an approximately 8.5% higher recall are achieved

when all encoder layers are re-trained compared to re-

training only the encoder layers from Stage 4. For the

kidney class, this decreasing trend is only noticeable

to a minor degree while for the background class it is

hardly noticeable at all.

As a result, all encoder layers are re-trained for

transfer learning of the ﬁnal segmentation algorithm.

3.3 Final Segmentation Algorithm

The aim of the previously performed experiments was

to determine the optimal hyperparameters for the ﬁ-

nal segmentation algorithm as well as the ﬁnal train-

ing process. As a result, of our evaluation the ﬁnal

training should use a data augmentation proportion of

p=75% and a more focused variant of the dice loss

on easy-to-segment images (γ =

). Also, we de-

termined that the best transfer learning basis for the

ﬁnal segmentation algorithm should be a pre-trained

ResNet101 encoder, where all encoder layers should

be re-trained. The same hyperparameters for learning

rate and batch size were used in the ﬁnal training pro-

cess as in the previous experiments. Due to a lower

computational cost for the evaluation, the number of

training epochs of the experiments was limited to 50,

which was negligible for the ﬁnal training. Therefore,

the number of training epochs was extended to 150 to

beneﬁt from a longer training period. For the reasons

explained in section 3.1, the ﬁnal training process was

also repeated four times and segmentation accuracy

was evaluated using the averaged results of the evalu-

ation metrics over the entire test dataset.

The evaluation result of the ﬁnal segmentation al-

gorithm is presented in Table 6 as well as in the con-

fusion matrix in Figure 6. In addition, Figure 7 illus-

trates examples of the segmentation result. As can

be seen in the clear diagonal of the confusion ma-

trix, most of the pixels of the test dataset were seg-

Table 6: Evaluation results of dice coefﬁcient, recall and

precision for the ﬁnal segmentation algorithm.

Metric Background Kidney Tumour

Dice coeff.

99.9% ±0.0 94.7% ±0.1 84.5% ±0.4

Recall 99.9% ±0.0 94.8% ±0.1 81.2% ±1.0

Precision 99.9% ±0.0 94.6% ±0.3 88.1% ±0.4

U-Net based Semantic Segmentation of Kidney and Kidney Tumours of CT Images

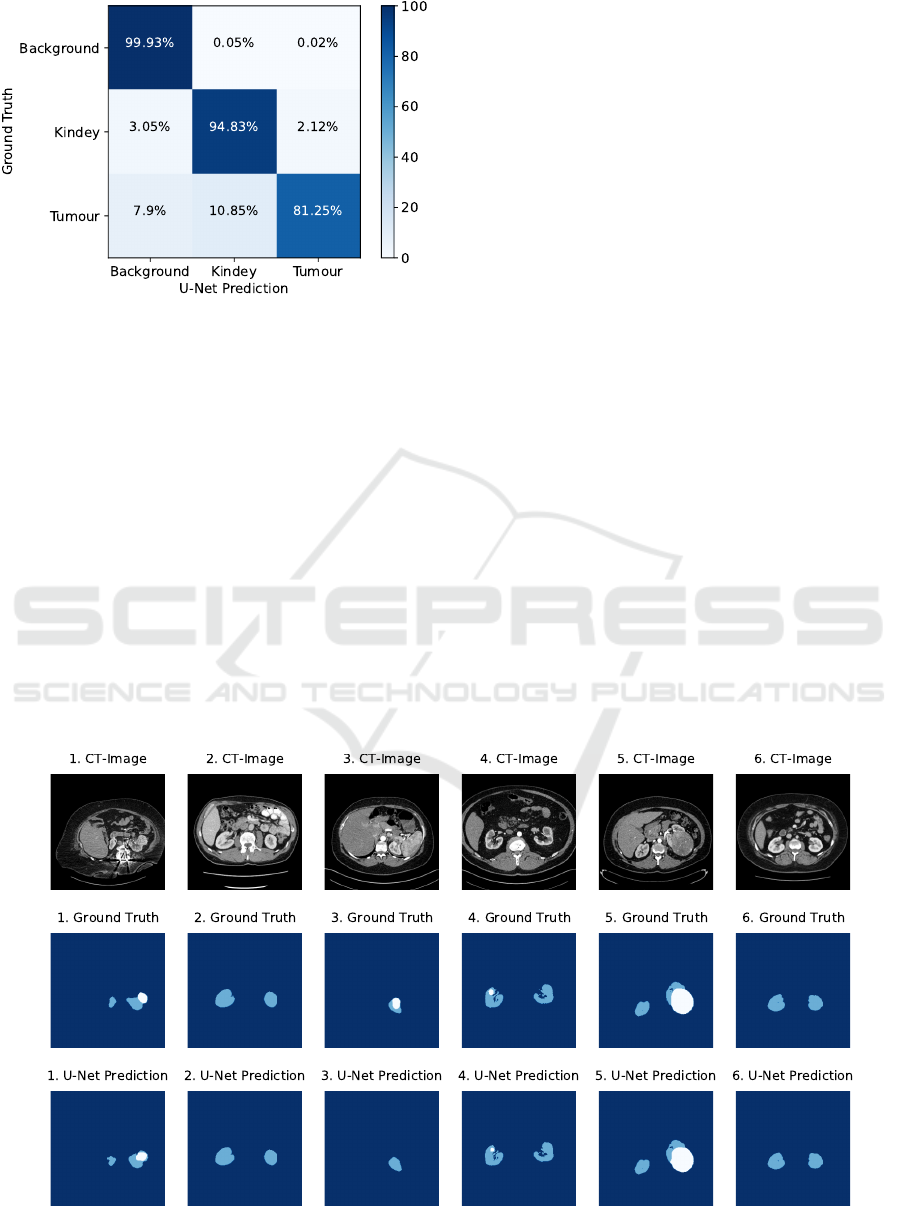

Figure 6: Normalized confusion matrix visualizing the seg-

mentation accuracy of the ﬁnal segmentation algorithm.

mented with high accuracy. However, signiﬁcant dif-

ferences in segmentation accuracy can be observed

for the individual classes. With approximately 99.9%

for the dice coefﬁcient, recall and precision, the ﬁ-

nal segmentation algorithm achieved a very high seg-

mentation accuracy for background pixels. A lower

segmentation accuracy of about 94% for the dice co-

efﬁcient, recall and precision was achieved for kid-

ney pixels. According to the confusion matrix, only

3.05% were incorrectly predicted as background pix-

els and 2.12% as tumour pixels. A signiﬁcantly lower

segmentation accuracy was achieved for tumour pix-

els, resulting in only about 81.25% correctly pre-

dicted tumour pixels. In contrast, the precision of

tumour pixels is signiﬁcantly higher with approxi-

mately 88.1%. According to the confusion matrix,

the ﬁnal segmentation algorithm misclassiﬁed a large

proportion of tumour pixels of about 10.85% as kid-

ney pixels and about 7.9% as background pixels.

4 DISCUSSION

The purpose of this paper was to develop a U-Net-

based segmentation algorithm for automated semantic

segmentation of kidneys and kidney tumours from 2D

medical CT images. Therefore, we mainly focused on

transfer learning and determined the optimal hyperpa-

rameters for the U-Net based segmentation algorithm

in various sequential experiments to increase the over-

all segmentation accuracy.

4.1 Data Augmentation Proportion

First, we experimented with the hyperparameter for a

different data augmentation proportion to investigate

the inﬂuence on the segmentation accuracy. The re-

sults have shown that with increasing data augmen-

tation proportion, a signiﬁcant improvement in seg-

mentation accuracy was achieved, especially for the

tumour class. This trend was noticeable up to a data

augmentation proportion of p=75%, after which no

further improvements in segmentation accuracy oc-

curred. The obtained results conﬁrm the previously

made assumption that the considered training dataset

provides only a low variability, which can be signif-

icantly increased by data augmentation and is there-

fore highly recommended. Data augmentation pro-

Figure 7: Examples of the segmentation results of the ﬁnal segmentation algorithm. Dark blue regions represent the back-

ground class, light blue regions the kidney class and white regions the tumor class.

BIOIMAGING 2022 - 9th International Conference on Bioimaging

100

portions of p>75% may have resulted in an excessive

variability of the training data, preventing further im-

provements in segmentation accuracy in the limited

number of training epochs of this experiment. Per-

haps increasing the number of training epochs would

produce larger differences. As a consequence of these

results, we decided to select a data augmentation pro-

portion of p=75% as hyperparameter for the following

experiments and for the ﬁnal segmentation algorithm.

4.2 Loss Function

Second, we considered different loss functions to in-

vestigate the impact on segmentation accuracy. Orig-

inally, we expected that the weighting parameters

would make the cross entropy more robust to unequal

pixel distributions of the classes and hence improve

the segmentation accuracy. Compared to the cross

entropy, signiﬁcantly higher recall values could be

achieved with the weighted cross entropy, but also

much lower precision and dice coefﬁcients, especially

for the kidney class. As a consequence of these am-

biguous results, no clear improvement of the segmen-

tation accuracy could be observed with the weighted

cross entropy compared to the cross entropy. Per-

haps the variation of the pixel distribution of a class

between the CT images is too large, so that a ﬁxed

weighting parameter often causes an over- or under-

weighting of the class, resulting in lower segmenta-

tion accuracy. Potentially, a dynamic weighting pa-

rameter that determines a weighting value for each

class per CT image could improve accuracy. We also

considered the dice loss and investigated whether it

is useful to focus the dice loss on harder- or easy-to-

segment images. Compared to the dice loss, focus-

ing on harder-to-segment images did not improve seg-

mentation accuracy. A possible reason for this could

be the early convergence of the loss function (Fig-

ure 1), which could lead to very small loss changes

towards the end of the training process, so that im-

provements in segmentation accuracy also converge.

This would also explain why focusing on easy-to-

segment images generally yields better results, as late

convergence towards the end of the training process

still leads to signiﬁcantly larger loss changes. Com-

pared to the dice loss, focusing on easy-to-segment

images produced comparable or even better results.

For the next experiments and the ﬁnal segmentation

algorithm, we selected the loss function that achieved

the highest possible segmentation accuracy over all

classes as well as the most balanced results across the

considered evaluation metrics, which was true for the

dice loss focusing on easy-to-segment images (γ =

4.3 U-Net Encoder

Third, we considered different U-Net encoder com-

plexities using the ResNet architecture to investigate

the inﬂuence on segmentation accuracy. The results

show that as the encoder complexity increases, the

segmentation accuracy also improves, especially for

the tumour class. One possible reason is that a high

encoder complexity can also learn a larger number

as well as more complex features from the image

data due to the larger number of convolutional layers,

which seems to have an overall positive effect on seg-

mentation accuracy. To investigate this effect in more

detail, it is recommended to consider even more com-

plex encoders, such as ResNet152. Due to the result-

ing increase in training time, no further investigations

were performed in this paper and the most complex

ResNet101 encoder for the U-Net architecture was se-

lected for the following experiments as well as for the

ﬁnal segmentation algorithm.

4.4 Transfer-learning

In the fourth experiment, we re-trained different pre-

trained encoder layers during transfer learning to in-

vestigate the inﬂuence on segmentation accuracy. In

general, the results showed that the segmentation ac-

curacy also decreased with a decreasing number of re-

trained encoder layers, especially for the tumor class.

In particular, the segmentation accuracy was signiﬁ-

cantly worse when only the encoder layers from stage

3 or onwards were re-trained. These results suggest

that the already learned features of the encoder de-

rived from the ImageNet dataset do not generalize

sufﬁciently to this medical image dataset, so further

optimization is required. This is especially true for

features in the encoder layers of stage 2 and above,

as inferior segmentation accuracy occurred primarily

when these encoder layers were not re-trained. We

decided to re-train all layers of the ResNet101 en-

coder for the ﬁnal segmentation algorithm to achieve

the best possible segmentation accuracy.

4.5 Final Segmentation Algorithm

Based on the previously evaluated hyperparameters,

we trained our proposed ﬁnal segmentation algo-

rithm. It achieves high segmentation accuracy for

background and kidney pixels, while segmentation

accuracy for tumour pixels is lower, especially with

respect to misclassiﬁcations as kidney pixels. A pos-

sible reason for the inferior segmentation accuracy of

the tumour class could be the signiﬁcantly lower oc-

currence of the tumour class in the training dataset.

U-Net based Semantic Segmentation of Kidney and Kidney Tumours of CT Images

101

Perhaps an adjustment or expansion, with equal pro-

portions of tumour and kidney classes, could im-

prove segmentation accuracy. Another possible rea-

son could be an insufﬁcient contrast between the pixel

intensities of the tumour and kidney class, which

would explain the more frequent confusion of tu-

mour pixels with kidney pixels. Perhaps further pre-

processing would be necessary to increase the con-

trast. In addition, further optimization of the hyperpa-

rameters, such as the learning rate, batch size, number

of training epochs or the use of different base mod-

els as the U-Net encoders, could further improve the

segmentation accuracy. Due to dependencies between

hyperparameters, a different order in hyperparameter

optimization could also affect segmentation accuracy,

making grid or random search a potentially better but

computationally more expensive alternative than se-

quential experiments. Moreover, including the third

dimension of CT volumes using 3D U-Nets could also

improve segmentation accuracy.

A statement about the medical suitability of the ﬁ-

nal segmentation algorithm could not be made. This

would require more test data as well as a compari-

son of the achieved segmentation accuracy with other

segmentation algorithms, e.g. with the results of the

KiTS19-Challenge participants. This comparison was

not made because the participants followed a differ-

ent, three-dimensional evaluation approach and used

a different test dataset whose ground truth annotations

are not publicly available.

5 CONCLUSION

In this paper, we presented a U-Net based segmen-

tation algorithm, for automatic semantic segmenta-

tion of kidneys and kidney tumours from 2D medical

CT images. For this purpose, we mainly focused on

transfer learning of a pre-trained U-Net architecture

and the optimization of its hyperparameters, which

include data augmentation, loss function, U-Net en-

coder complexity and transfer learning. Experimen-

tal results show that the segmentation accuracy can

be signiﬁcantly improved by extensive data augmen-

tation, a dice loss with focus on easy-to-segment im-

ages, a complex ResNet as U-Net encoder and the re-

training of many encoder layers during transfer learn-

ing. A ﬁnal segmentation algorithm could be trained

as a result of this hyperparameter evaluation, which

achieved a high segmentation accuracy for kidney

pixels (≈94% dice coefﬁcient), whereas the segmen-

tation accuracy for kidney tumour pixels was lower

(≈84% dice coefﬁcient) with an increased probabil-

ity of misclassiﬁcations as kidney pixels. Compar-

ing the results with other segmentation algorithms is

pending to further investigation. A promising direc-

tion for further research that might improve segmen-

tation accuracy is the use of more training data, addi-

tional hyperparameter optimizations, minimization of

hyperparameter dependencies as well as an adaptation

to a 3D U-Net-based approach.

ACKNOWLEDGEMENT

This work has been supported by the European Union

and the federal state of North-Rhine-Westphalia

(EFRE-0801303).

REFERENCES

Abraham, N. and Khan, N. M. (2018). A Novel Focal Tver-

sky loss function with improved Attention U-Net for

lesion segmentation.

Eigen, D. and Fergus, R. (2014). Predicting Depth, Surface

Normals and Semantic Labels with a Common Multi-

Scale Convolutional Architecture.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep Resid-

ual Learning for Image Recognition.

Heller, N., Sathianathen, N., Kalapara, A., Walczak, E.,

Moore, K., Kaluzniak, H., Rosenberg, J., Blake,

P., Rengel, Z., Oestreich, M., Dean, J., Tradewell,

M., Shah, A., Tejpaul, R., Edgerton, Z., Peterson,

M., Raza, S., Regmi, S., Papanikolopoulos, N., and

Weight, C. (2019). The KiTS19 Challenge Data: 300

Kidney Tumor Cases with Clinical Context, CT Se-

mantic Segmentations, and Surgical Outcomes.

Litjens, G., Kooi, T., Bejnordi, B. E., Setio, A. A. A.,

Ciompi, F., Ghafoorian, M., van der Laak, J. A. W. M.,

van Ginneken, B., and S

anchez, C. I. (2017). A survey

on deep learning in medical image analysis. Medical

Image Analysis, 42:60–88.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-Net:

Convolutional Networks for Biomedical Image Seg-

mentation.

S. Kevin Zhou (2020). Handbook of Medical Image Com-

puting and Computer Assisted Intervention. Elsevier.

Sudre, C. H., Li, W., Vercauteren, T., Ourselin, S., and Car-

doso, M. J. (2017). Generalised Dice overlap as a deep

learning loss function for highly unbalanced segmen-

tations.

Sung, H., Ferlay, J., Siegel, R. L., Laversanne, M., Soer-

jomataram, I., Jemal, A., and Bray, F. (2021). Global

Cancer Statistics 2020: GLOBOCAN Estimates of In-

cidence and Mortality Worldwide for 36 Cancers in

185 Countries. CA: A cancer journal for clinicians,

71(3):209–249.

Taha, A. A. and Hanbury, A. (2015). Metrics for evaluating

3D medical image segmentation: analysis, selection,

and tool. BMC Medical Imaging, 15(1):29.

BIOIMAGING 2022 - 9th International Conference on Bioimaging

102
