Anomaly Detection for Industrial Inspection using Convolutional

Autoencoder and Deep Feature-based One-class Classification

Jamal Saeedi

and Alessandro Giusti

Dalle Molle Institute for Artificial Intelligence (IDSIA USI-SUPSI), Lugano, Switzerland

Keywords: Anomaly Detection, Industrial Inspection, Convolutional Autoencoder, Deep Feature Embedding,

One-Class classification.

Abstract: Part-to-part and image-to-image variability pose a great challenge to automatic anomaly detection systems;

an additional challenge is applying deep learning methods on high-resolution images. Motivated by these

challenges together with the promising results of transfer learning for anomaly detection, this paper presents

a new approach combing the autoencoder-based method with one class deep feature classification.

Specifically, after training an autoencoder using only normal images, we compute error images or anomaly

maps between input and reconstructed images from the autoencoder. Then, we embed these anomaly maps

using a pre-trained convolutional neural network feature extractor. Having the embeddings from the anomaly

maps of training samples, we train a one-class classifier, k nearest neighbor, to compute an anomaly score for

an unseen sample. Finally, a simple threshold-based criterion is used to determine if the unseen sample is

anomalous or not. We compare the proposed algorithm with state-of-the-art methods on multiple challenging

datasets: one representing zipper cursors, acquired specifically for this work; and eight belonging to the

recently introduced MVTec dataset collection, representing various industrial anomaly detection tasks. We

find that the proposed approach outperforms alternatives in all cases, and we achieve the average precision

score of 94.77% and 96.35% for zipper cursors and MVTec datasets on average, respectively.

1 INTRODUCTION

Anomaly detection (AD) can be defined as the

identification of items or events that do not comply

with an expected pattern or to other items in a dataset.

For visual inspection tasks in the manufacturing

industry, often there are a few examples of defective

samples or it is unclear what kinds of defects may

appear. Therefore, it is a challenge to provide a large

enough dataset in which each sample is labeled as

either "normal" or "abnormal", as it is needed for

traditional supervised classification techniques

(Saeedi et al., 2021). Many relevant applications must

rely on semi-supervised algorithms for identifying

anomalous samples. Semi-supervised techniques

construct a model given only normal training samples

representing normal behavior and then test the unseen

sample by the learned model.

The objective of the project presented in this

paper is to automate the inspection process of zipper

https://orcid.org/0000-0002-3143-8107

https://orcid.org/0000-0003-1240-0768

cursors in the production lines using an image

acquisition system (IAS) and dedicated software

based on the semi-supervised pipeline. Here, we

assume that the object for inspection has a rigid shape

and we use a reference image for image registration

and alignment as a pre-processing step.

With the recent advances in deep neural networks,

reconstruction-based methods deploying autoencoder

(AE) have shown great potential for AD tasks. These

methods assume that normal and anomalous samples

could lead to significantly different embeddings and

therefore the corresponding reconstruction errors can

be used to distinguish normal and anomalous samples

(Jinwon and Sungzoon, 2019; Kingma and Welling,

2014). An AE is a neural network that is trained to

learn reconstructions that are close to its original

input.

The state-of-the-art methods based on deep

learning applying AE and its variations (Chao-Qing

et al., 2019), mostly considering public data-set with

Saeedi, J. and Giusti, A.

Anomaly Detection for Industrial Inspection using Convolutional Autoencoder and Deep Feature-based One-class Classiﬁcation.

DOI: 10.5220/0010780200003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

85-96

ISBN: 978-989-758-555-5; ISSN: 2184-4321

small dimensions for evaluation, e.g. MNIST

(LeCun, 1998) (28×28), Fashion-MNIST (Xiao et al.,

2017) (28×28), CIFAR-10 (Krizhevsky and Hinton,

2009) (32×32), ImageNet (Deng et al., 2009)

(224×224). However, the image dimension is rather

high in industrial inspection scenarios, e.g. MVTec

dataset (Bergmann et al., 2019a) (1024 ×1024).

Designing a proper AE with high-resolution images

results in a large network size. Training such a large

network is very time-consuming and there is a risk of

network overfitting due to the small number of

training samples in some cases.

Downsizing (Bergmann et al., 2019a), and patch-

wise inspection (Matsubara et al., 2018) are the two

pre-processing methods that have been applied to

address the size issue in the past, while both

approaches could be problematic for AD. In some

cases, the defect or anomaly is very small that could

be lost after downsizing. In addition, by applying

patches for inspection, we could miss defects that are

larger than the patch size. In this paper, we proposed

a new framework based on conditional patch-based

convolutional autoencoder (CPCAE) to address the

size issue. The proposed method applies both

downsizing and patch extraction to avoid the

aforementioned problems. Specifically, overlapping

patches are extracted from downsized images to train

the AE. Together with the patches, we give the

network the index of the patches in the image (i.e. the

patches’ location) as an auxiliary input. In this way,

each patch remembers where it is coming from in the

image. The idea comes from the recently developed

conditional variational autoencoder (VAE) (Pol et al.,

2019), in which the method was used for MNIST data

AD, and class labels (from 0 to 9) were considered as

a condition for training the VAE. For anomaly map

and score calculation for a test image, the procedure

is to apply the reverse of patch extraction and

upsizing for the AE’s output. The anomaly map is

then obtained using the difference of the input and

reconstructed images.

The AE-based methods detect anomalies by

comparing the input image to its reconstruction in

pixel space. This can result in poor AD performance

due to simple per-pixel comparisons and imperfect

reconstructions (Bergmann et al., 2019b, Nalisnick et

al., 2018). In this study, we have proposed a new

approach to incorporate transfer learning with the

AE-based AD method to avoid computing anomaly

scores using AE’s reconstruction error. Specifically,

we apply a one-class classifier to the anomaly maps

generated by AE to compute anomaly scores. One-

class classification using deep feature extracted from

a pre-trained convolutional neural network (CNN) is

a new trend in recent years for AD (Perera and Patel,

2019; Oza and Patel, 2019; Bergman et al., 2020),

which suggest that these feature spaces generalize

well for AD task and even simple baselines

outperform deep learning approaches (Kornblith et

al., 2019).

Motivated by the challenges mentioned for AD in

industrial inspection, shortcomings related to AE-

based method together with promising results with

transfer learning reported in recent works (Perera and

Patel, 2019; Oza and Patel, 2019; Ruff et al., 2018;

Bergman et al., 2020; Burlina et al., 2019), this paper

presents a new framework combining AE-based

method with one class deep feature classification.

Specifically, instead of computing anomaly scores

from anomaly maps obtained from a trained AE, we

embed the anomaly maps using a pre-trained CNN

(on Imagenet dataset) feature extractor. Having the

embedding from the anomaly maps of training

samples, we train a one-class classifier, e.g. k nearest

neighbor (k-NN) to compute anomaly score for

unseen samples. In this way, we leverage transfer

learning together with AE using a hybrid framework

to avoid problems due to simple per-pixel

comparisons or imperfect reconstructions of the AE-

based method.

We evaluate the proposed method extensively on

different datasets, including the zipper cursor dataset,

which has been acquired and introduced specifically

for this study, and a recently introduced MVTec AD

dataset which involves different types of industrial

inspection (Bergmann et al., 2019a). We show that

AE outperforms the state-of-the-art techniques when

combined with one-class deep feature classification

using the proposed framework.

Our main contributions are summarized as

follows:

• We propose a novel concept using CPCAE for

AD to tackle the challenges related to the high-

resolution images in industrial inspection

scenarios.

• We propose a hybrid framework based on

transfer learning to calculate anomaly scores

instead of AE’s reconstruction error. This new

method embeds anomaly maps computed by AE

using a pre-trained CNN feature extractor to train

a one-class classifier.

• We demonstrate state-of-the-art performance on

different datasets including zipper cursor and

MVTec anomaly detection datasets.

The remainder of this paper is organized as

follows. After a review of related work in Section 2,

the proposed method based on CPCAE and transfer

learning is discussed in Section 3. Section 4

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

demonstrates experimental results and discussion.

Finally, the conclusions and future works are given in

Section 5.

2 RELATED WORK

AD methods can be broadly categorized into

probabilistic, proximity-based, boundary-based,

reconstruction-based, and hybrid approaches, which

are shortly discussed in the following:

Probabilistic approaches, such as Gaussian mixture

models (Eskin, 2000) and kernel density estimation

(Xu et al., 2012) assume that the normal data follow

some statistical model. During the training, a

distribution function is being fitted on the features

extracted from the normal samples. Then, during the

test, those samples which are mapped to different

statistical representations are considered anomalous

(Kingma and Welling, 2014).

Proximity-based algorithms assume that the

proximity of an anomalous object to its nearest

neighbors significantly deviates from its proximity to

most of the other objects in the dataset. Given a set of

objects in feature space, a distance measure can be

used to compute the similarity between objects, and

then objects that are far from others can be regarded

as anomalies. These methods depend on the well-

defined similarity measure between two data points.

The basic proximity-based methods are the local

outlier factor (Breunig et al., 2000) and its variants

(Tang and He, 2017).

Boundary-based approaches, mainly involving

one-class support vector machines (SVM) (Scholkopf

et al., 2001) and support vector data description

(SVDD) (Tax et al., 2004), usually try to define a

boundary around the normal samples. Anomaly

sample is determined by their location to the

boundary. A recent trend in the boundary-based AD

methods is to utilize transfer learning techniques

using a pre-trained CNN network to extract

discriminative embedding vectors for classification

(Burlina et al., 2019;

Andrews et al, 2016; Nazaré et

al., 2018; Napoletano et al., 2018)

Reconstruction-based approaches assume that

anomalies cannot be compressed and therefore cannot

be efficiently reconstructed from their low

dimensional embeddings. In this category, principal

component analysis (Olive, 2017) and its variations

(Harrou et al., 2015; Baklouti et al., 2016) are widely

used. Besides, AE and VAE based methods also

belong to this category (Jinwon and Sungzoon, 2019;

Kingma and Welling, 2014).

Hybrid approaches utilize both reconstruction and

classification-based methods in a hybrid framework.

Specifically, these methods use AE to generate

feature embedding for training a one-class classifier

in which the latent space variables act as the

embedding. Kawachi et al. (2018) proposed an

assumption that the anomaly prior distribution is a

complementary set of the prior distribution of normal

samples in latent space. Based on this assumption, the

anomalous and the normal data have complementary

distributions which means that they can be separated

in the latent space, then it is possible to apply a one-

class classifier to detect anomalies. Similarly, Guo et

al. (2018) used the compressed hidden layer vector of

a trained AE on normal data to train a k-NN for AD.

In this paper, we aim to propose a better

discriminative embedding as compared to the AE’s

latent space variables for one-class classification. The

proposed method presented in this paper can be

considered as a hybrid approach as we utilize both AE

and classification-based approaches, which is fully

discussed in the next section.

3 PROPOSED METHOD

This section describes the core principles of our

proposed CPCAE method which is shown in Figure

1. We operate in a semi-supervised setup, where

examples of anomalous instances are not available.

Therefore, we train a model using only normal

samples which are initially registered and aligned.

The proposed method consists of two parts including

anomaly map generation using AE and anomaly score

calculation using deep feature one class classification

as shown in Figure 1. Using this hybrid framework,

we deploy both AE as well as transfer learning

combined with one class classification to improve the

AD results as compared to each method individually.

In the following sub-sections, we discuss the

proposed CPCAE method, and deep feature one-class

classification.

3.1 Conditional Patch-based

Convolutional Autoencoder

Autoencoders attempt to reconstruct an input image

x ∈ ℝ

××

through a bottleneck, mapping the

input image into a lower-dimensional space which is

called the latent space (Chao-Qing et al., 2019;

Bergmann et al., 2019b). An AE consists of an

encoder, 𝐸 : ℝ

××

→ℝ



, and a decoder, 𝐷 :

ℝ



→ ℝ

××

, where d indicates the latent space’s

Anomaly Detection for Industrial Inspection using Convolutional Autoencoder and Deep Feature-based One-class Classiﬁcation

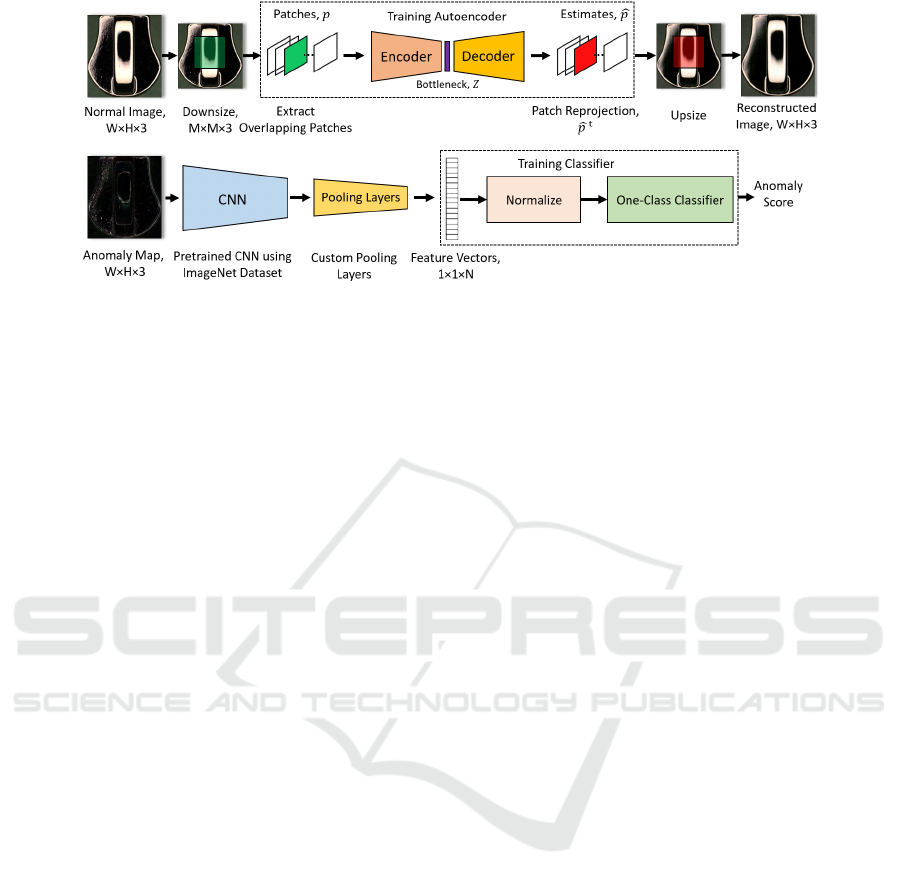

Figure 1: Block diagram of the proposed anomaly detection method (dashed lines show the steps involved in the training

step).

dimensionality and C, H, W represent the channels,

height, and width of the input image, respectively.

The overall process can be written as follows:

𝑥=𝐷𝐸

(

𝑥

)

=𝐷

(

𝑧

)

(1)

where z is the latent vector and 𝑥 the reconstruction

of the input. The functions 𝐸 and 𝐷 are

parameterized by CNNs.

For simplicity and computational speed, a per-

pixel error measure such as the L



loss is chosen to

force the AE to reconstruct its input:

𝐿



(

x,𝑥

)

=x

(

𝑐,ℎ,𝑤

)













−𝑥

(

𝑐,ℎ,𝑤

)





(2)

where x

(

𝑐,ℎ,𝑤

)

denotes the intensity value of image

x at the pixel

(

𝑐,ℎ,𝑤

)

. During evaluation, the per-

pixel ℓ



-distance of x and 𝑥 is compute to obtain a

residual map R

(

x,𝑥

)

∈ ℝ

××

For the AD task, AE is only trained on defect-free

samples. During the test, the AE is failed to

reconstruct defects that have not been seen during the

training. The reconstruction error, 𝐿



, of each test

data is then regarded as the anomaly score. Finally,

the data with a high anomaly score is defined as

anomalies.

There are two main issues for deploying AE for

the AD task in an industrial inspection scenario

including the high-resolution images and poor

performance due to simple per-pixel comparisons and

imperfect reconstructions (Bergmann et al., 2019b;

Nalisnick et al., 2018). In this paper, we address the

high resolution image issue by applying overlapping

patches along with conditional learning for AE,

which is discussed in this sub-section. In addition, we

propose a new approach to incorporate transfer

learning with the AE to avoid computing anomaly

scores using simple per-pixel comparisons, which is

discussed in the next sub-section.

We use downsizing and patch extraction to

resolve the high-resolution image problem for AE

modeling. It is assumed here that by downsizing the

input image to some extent, its normality (i.e. the

image details that represent normal class) are

preserved. After downsizing the input image,

overlapping patches are extracted to train the AE.

Together with the patches, the number of the patches

in the image (i.e. the patches’ location) is given to the

network as a conditional variable. The idea is to feed

both local (patches) and global (conditions)

information at the same time to the AE. The

conditional variables help the AE network to train

more efficiently and also to avoid reproducing small

defects given a defective test image to the network.

For anomaly map calculation given a test image, the

procedure is to apply the patch reprojection and

upsizing of the AE’s output. The anomaly map is then

obtained using the difference of the input and

reconstructed image.

The most common architecture utilized for AE in

AD is the convolutional layers followed by the

pooling layers and the fully connected layers in the

encoder side, and fully connected layers followed by

the convolutional layers and up-sampling in the

decoder side (Ribeiro et al., 2018). It is not

recommended to use convolutional layers without

dense layers for the AD task, because this type of

network is able to memorize the spatial information

of input and is somehow able to reconstruct the

defects given the test image. AE deploying only

convolutional layers fits better for other applications

like image segmentation and compression in which

detailed spatial information is very important for

encoding (Badrinarayanan et al., 2017; Yildirim et al.,

2018).

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

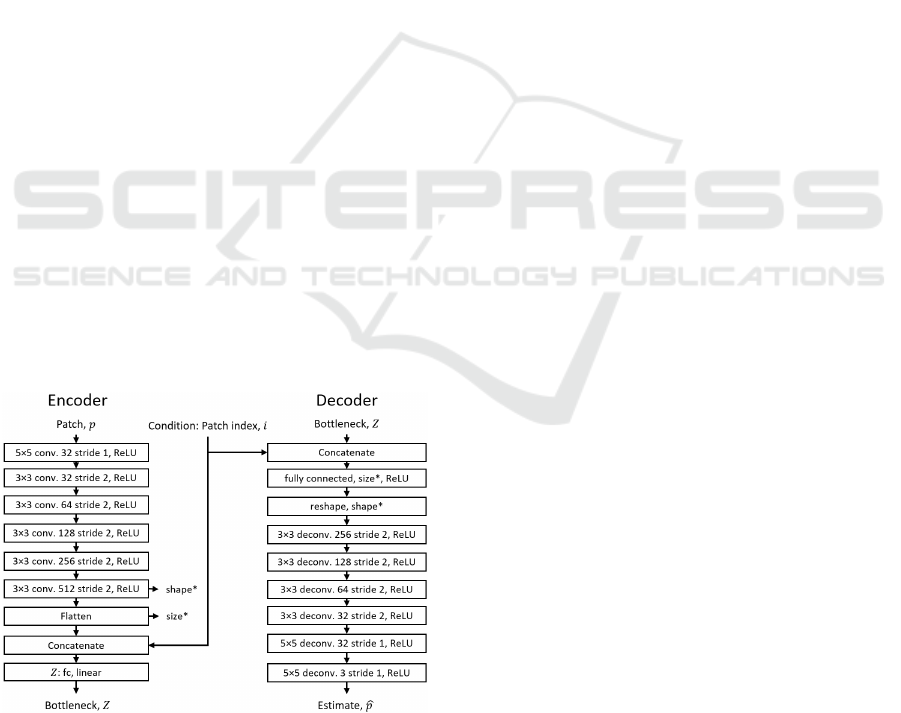

The proposed architecture for CPCAE is shown in

Figure 2. We utilize convolutional layers with the

stride in the encoder side and convolutional transpose

layers with the stride on the decoder side. The

convolutional (transpose) layers with the stride allow

the network to learn spatial subsampling (up-

sampling) from data, leading to a higher capacity of

transformation. In addition, we use concatenation in

the encoder part of AE to incorporate the new

conditional variable (the index of the patches, i.e.

patches’ number divided by total number of patches)

into our model. Similarly, the decoder is also

concatenated with the conditional vector.

The proposed CPCAE generates anomaly maps

to be used for training a one-class classifier in the

second step of the proposed hybrid method. The

challenge here is how to train the one-class classifier

using the training set already applied for the AE

training. One way to address this issue is to split the

training set into two parts to be separately used for

each step. However, since the training set in some

cases including the current project is too small,

splitting would decrease AE’s capability to learn

normal behavior. Another way is to train an AE using

sparse information of the training set to avoid

network overfitting and to preserve enough

information in anomaly maps for the classifier

training.

For a sparse autoencoder, in most cases, the loss

function is constructed by penalizing activations of

hidden layers so that only a few nodes can activate

when a single sample is fed into the network. 𝐿



and

𝐿



regularizations are widely used in deep learning,

and the main difference between them is that 𝐿



regularization tends to reduce the penalty

Figure 2: The architecture of proposed CPCAE for anomaly

map generation.

coefficients to zero, while 𝐿



regularization would

move coefficients near zero. More details can be

reached here (Chang et al., 2019). The loss function

using 𝐿



regularization is selected here as follows:

𝐿𝑜𝑠𝑠 = 𝐿



(

x,𝑥



)

+𝜆𝑎



()





(3)

the second term penalizes the absolute value of the

vector of activations 𝑎 in layer ℎ for sample 𝑖. A

hyperparameter 𝜆 is also used to control its effect on

the whole loss function.

3.2 Deep Feature-based

One-class Classification

In this sub-section, the second step of the proposed

method which involves feature extraction using a pre-

trained CNN model followed by a one class classifier

is explained. Specifically, the anomaly maps

generated using AE in the first step, are used to train

a one class classifier as shown in Figure 1. Using the

binary classification on top of the AE result, we

would like to leverage the transfer learning through

feature extraction via a pre-trained CNN network and

to avoid computing anomaly scores using simple per-

pixel comparisons of AE. The performance of many

supervised computer vision algorithms is improved

by transfer learning (Kornblith et al., 2019; Burlina et

al., 2019), i.e. by using discriminative embeddings

from the pre-trained networks. This is also true for

semi-supervised AD tasks as recent works suggest

that these feature spaces together with a one class

classifier outperform AE-based approaches (Nazaré

et al., 2018).

The second step of the proposed AD method takes

a set of anomaly maps generated by AE, 𝑋



𝑥



,𝑥



…𝑥



. It uses a pre-trained feature extractor

pre-trained on the Imagenet dataset, 𝐹 to extract

features from the entire training set, 𝑓



=𝐹

(

𝑥



)

. The

training set is now summarized as a set of embeddings

𝐹



= 𝑓



,𝑓



…𝑓



. The choice of deep network and

its depth are data-related and should be selected

experimentally. In this study, we use Xception

network just before the global pooling layer (Chollet,

2017). Xception can be considered as an extreme

Inception architecture (Szegedy et al., 2016), which

introduces the idea of depthwise separable

convolution. More mathematical details can be

reached here (Chollet, 2017). The global max pooling

layer is usually used on top of the last convolutional

layer of pre-trained networks to generate feature

embedding (Nazaré et al., 2018). Here, we apply a

new pooling layer to generate final image embedding

as shown in Figure 3. Since we feed the input image

Anomaly Detection for Industrial Inspection using Convolutional Autoencoder and Deep Feature-based One-class Classiﬁcation

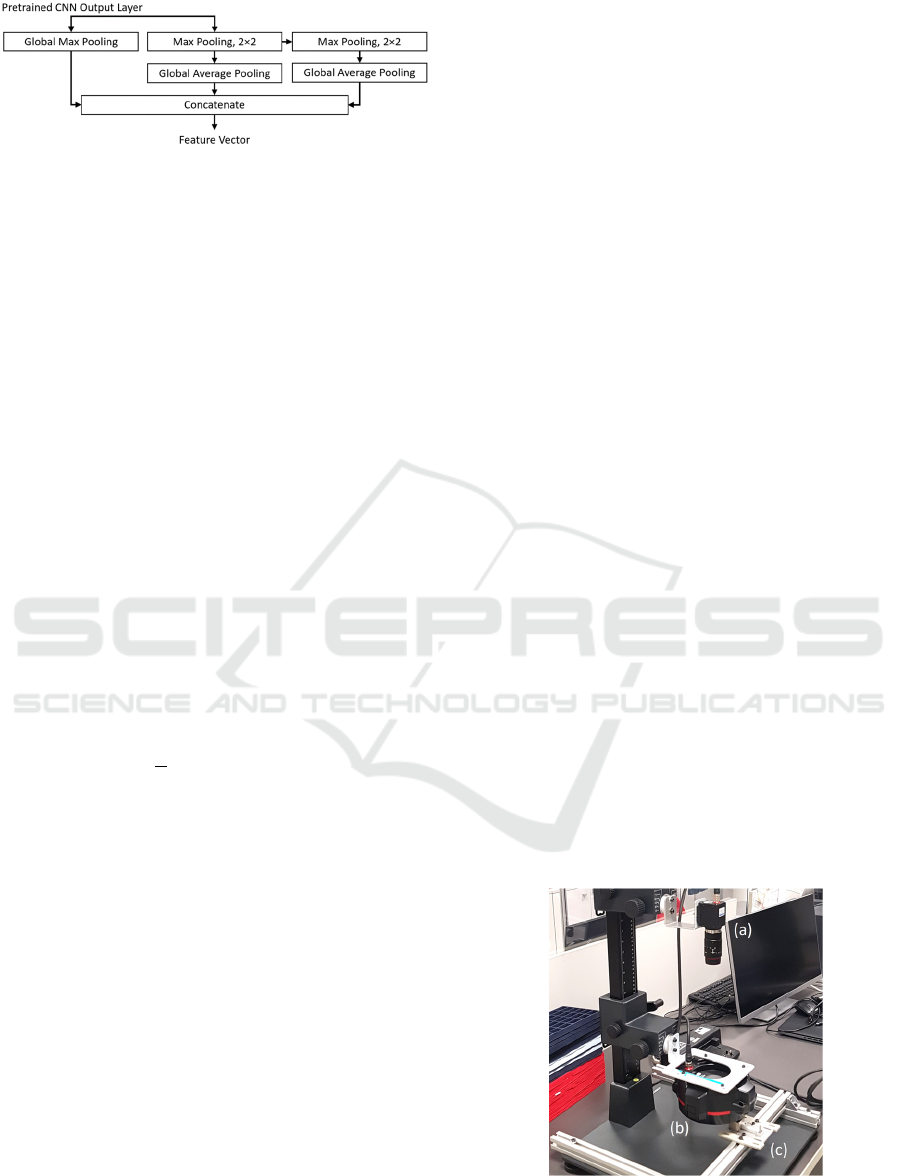

Figure 3: Proposed pooling layer used on top of the pre-

trained CNN network for feature extraction.

without downsizing into the pre- trained network, the

number of features after a global max-pooling layer are

very small to represent a high-resolution image. Using

the new pooling layer which consists of parallel and

cascade pollings along with concatenation, we have

three times more features as compared to the traditional

way to generate final embedding.

Having the image embedding after normalization

(mean removal and variance scaling), a suitable one-

class classifier such as one-class SVM (Scholkopf et

al., 2001), SVDD (Tax et al., 2004), or k-NN

(Bergman et al., 2020), can be trained on the

embeddings. In this study, k-NN is chosen as the

classifier which is widely applied for AD tasks

(Bergman et al., 2020; Nazaré et al., 2018; Guo et al.,

2018). The advantage of k-NN-based approaches is

that they do not need an assumption for the data

distribution and can be applied to different data types.

To detect if a new sample 𝑦 is anomalous, we first

extract its feature embedding using (7) and normalize

it. We then compute its k-NN distance and use it as

the anomaly score as follows:

𝑑

(

𝑦

)

𝑘



𝑓

−

𝑓







∈











(4)

𝑁



𝑓



 denotes the 𝑘 nearest embeddings to 𝑓



in the

training set 𝐹



. Euclidean distance is used here that

often achieves superior results on features extracted

by deep networks (Bergman et al., 2020), but other

distance measures can be similarly used. We

determine if an image 𝑦 is normal or anomalous by

confirming if the distance 𝑑(𝑦) is larger than a

threshold.

4 EXPERIMENTAL RESULTS

AND DISCUSSION

In this Section, the results of the proposed method for

the AD task is presented. In addition, it is discussed

how to collect data for zipper cursors and evaluate the

proposed framework as well as several state-of-the-

art approaches. In the following sub-sections, we

discuss the following: experimental setup, dataset,

evaluation metrics, evaluated methods, and AD

results.

4.1 Experimental Setup

The IAS used here is a CV-X series vision system

from KEYENCE, which is a multi-modes IAS. The

model for the camera, lens, and lighting system are as

follows: CA-H200MX, CA-LHR50, and CA-

DRM10X. We use a 2-megapixel camera that

generates images with 1600×1200 size. In the current

IAS system setup, we use a diffused ring light system

near to the object in which the object is illuminated

from a low angle by uniform diffuse light through the

light conduction plate. The IAS together with the

camera and lighting stand with fixture and holder is

shown in Figure 4.

4.2 Dataset

The zipper cursor dataset including six different types

selected here is summarized in Table 1. The

anomalies manifest themselves in the form of bubble,

residue, halo, and scratches. In addition to zipper

cursor dataset, we evaluate the proposed method on

the MVTec dataset (Bergmann et al., 2019a). The

MVTec dataset comprises 15 categories, however, we

only consider 8 of 15 categories, which have rigid

shapes that can be registered. Table 2 gives an

overview of each object’s category. The anomalies

consist of different types of defects such as scratches,

dents, contaminations, and various structural

changes. For all datasets, pixel values of all images

are normalized to [0, 1], and the images are cropped

to maximize the field of view. Figure 5 shows

different sets of zipper cursors and different

categories of MVTec datasets used for the analysis.

Figure 4: Image acquisition setup, (a) CV-X series vision

system from KEYENCE, (b) Lighting system, and (c)

Holder and fixture.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

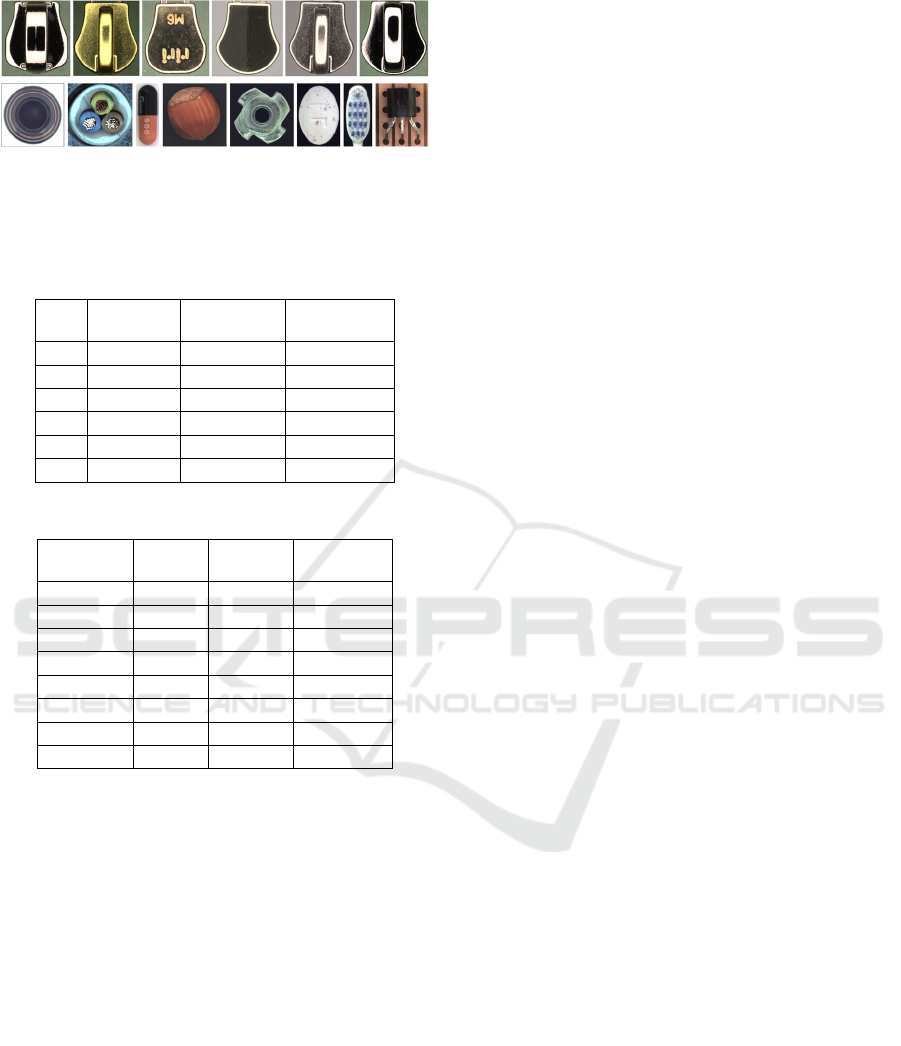

Figure 5: Anomaly detection dataset, first row, left to right:

zipper cursor dataset sets. #1 to #6. bottom row, left to right:

“Bottle”, “Cable”, “Capsule”, “Hazelnut”, “Metal Nut”,

“Pill”, “Toothbrush”, and “Transistor”.

Table 1: Statistical overview of the zipper cursor dataset.

Set # Train # Test

(normal)

# Test

(defective)

# 1 60 55 148

# 2 60 47 84

# 3 49 33 14

# 4 40 39 36

# 5 44 19 31

# 6 28 23 18

Table 2: Statistical overview of the MVTec AD dataset.

Set # Train # Test

(normal)

# Test

(defective)

Bottle 209 20 63

Cable 224 58 92

Capsule 219 23 109

Hazelnut 391 40 70

Metal Nut 220 22 93

Pill 267 26 141

Toothbrush 60 12 30

Transistor 213 60 40

4.3 Evaluation Metrics

Receiver operator characteristic (ROC) and

precision-recall (PR) curves are common metrics for

AD tasks which are defined over all possible decision

thresholds. It is also useful to quantitatively evaluate

the model performance using a single value rather

than comparing curves. The area under the ROC

curve (AUC) and average precision (AP) are the

common metrics that are obtained using ROC and PR

curves, respectively. AP summarizes a PR curve by a

sum of precisions at each threshold, multiplied by the

increase in recall, which is an approximation of the

area under the PR curve. Since AD task always has a

large skew in the class distribution, AP gives a more

accurate assessment of an algorithm’s performance

(Davis and Goadrich, 2006). In our experiments,

ROC curve, AUC, and AP were used to evaluate the

performance.

4.4 Evaluated Methods

We compare the proposed AD method with four

different approaches including AE (Bergmann et al.,

2019a), deep feature one class classifier (Perera and

Patel, 2019), variation (Steger et al., 2018) and

nearest neighbor (NN) approaches (Vaikundam et al,

2016). For the evaluation of the AE method, we use

the same AE architecture described in the paper for

the proposed method. For deep feature one classifier,

we use the implementation proposed in (Perera and

Patel, 2019), which applied a pre-trained CNN

network to the image and extract features using global

max pooling. After normalization, k-NN is used to

generate anomaly scores ( 𝑘=15 is used for

classifier). The variation is a baseline method, which

is based on statistics, mean and standard deviation,

computed from the normal training set. Anomaly

maps are then obtained by computing the distance of

each test pixel’s gray value to the computed pixel

mean relative to the computed standard deviation.

The anomaly score is obtained using the sum of

squares of pixels in the anomaly map. NN is another

baseline method in which the anomaly score is

obtained by computing the distance (usually 𝑙



)

between the test sample and its most similar image

inside the normal training set. It should be mentioned

that parameters tuning is performed for different

models included in the comparison to find the best

solution for them. Apart from the methods that have

been implemented for comparison, we also report

AUC results for the MVTec dataset from recently

published deep-learning-based methods consisting of

GeoTrans (Golan et al., 2018), GANomaly (Akcay et

al., 2018), VAE (Jinwon and Sungzoon, 2019),

AnoGAN (Schlegl et al., 2017), and AE applying

structural similarity index measure (SSIM)

(Bergmann et al., 2019b), taken directly from (Chao-

Qing et al., 2019) and (Bergmann et al., 2020).

4.5 Anomaly Detection Results

The first experiment is the two-dimensional tSNE

visualizations of the extracted features from the

anomaly maps as compared to the AE’s latent space

variables for normal and anomalous images in the test

set (Van der Maaten and Hinton, 2008). AE’s latent

space variables are also being used as image

embedding for AD in recent years (Kawachi et al.,

2018; Guo et al., 2018; Amarbayasgalan et al., 2018).

The tSNE visualizations are shown in Figure 6 for

zipper cursor and MVTec datasets. Qualitatively,

features extracted by the proposed method facilitate

better distinction between normal and anomalous

Anomaly Detection for Industrial Inspection using Convolutional Autoencoder and Deep Feature-based One-class Classiﬁcation

images as compared to the AE’s latent space

variables.

The second experiment presents the AD results of

the proposed method as well as the baselines and

deep-learning based approaches for zipper cursors

and MVTec datasets. Tables 3 and 4 show AUC and

AP metrics, and Figures 7 and 8 show the ROC

curves. It can be seen from the results that the

proposed hybrid framework outperformed state-of-

the-art methods in terms of different metrics,

specifically PR, which gives a more accurate picture

of an algorithm’s performance when there is a large

skew in the class distribution (Davis and Goadrich,

2006). The second best method on average is AE for

the zipper cursor dataset and deep feature

classification for the MVTec dataset. This is because

AE is able to generalize better on the zipper cursor

dataset which has simpler appearances as compared

to the MVTec dataset. The baseline approaches

including variation and NN methods could not

produce reliable results. In addition, the proposed

method outperformed recently published deep

learning-based methods in terms of AUC metric for

the MVTec dataset as shown in Table 4.

(a)

(b)

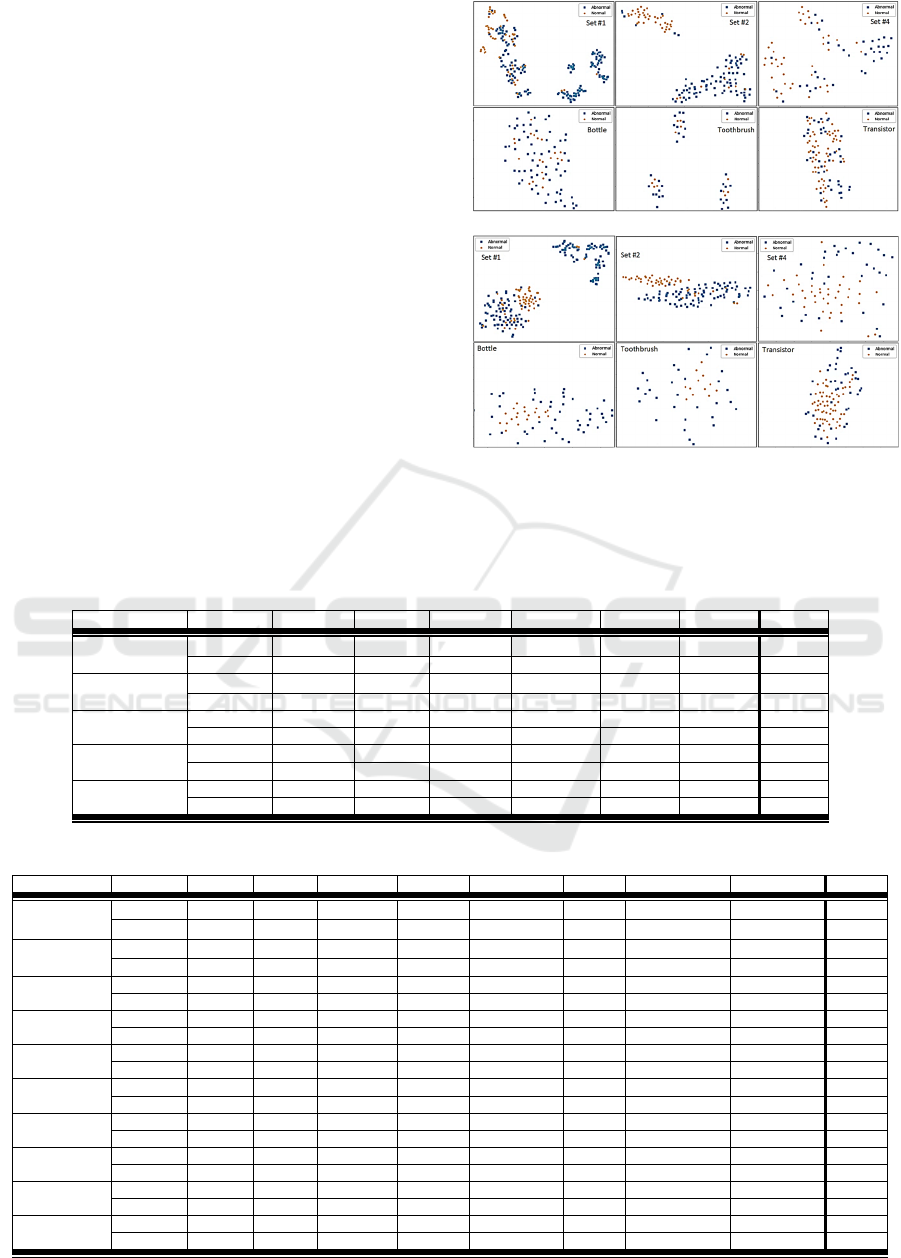

Figure 6: 2D t-SNE plots of the feature embedding obtained

using (a) the AE’s latent space representation and (b)

proposed embedding for different datasets, which are

mentioned in the corner of each plot.

Table 3: Anomaly detection results for the zipper cursor dataset.

Methods Metrics Set #1 Set #2 Set #3 Set #4 Set #5 Set #6 Mean

Proposed

AUC 95.67 96.90 95.20 88.08 94.64 96.10 94.43

AP 98.35 98.16 90.90 88.81 96.00 96.43 94.77

AE (L

)

AUC 87.81 95.59 92.21 77.54 78.48 91.11 87.12

AP 95.24 97.05 87.88 83.01 82.47 90.17 89.30

Deep Feature

AUC 85.32 95.77 80.81 74.97 62.15 93.77 82.13

AP 93.78 96.99 51.10 74.75 73.47 93.31 80.56

AUC 91.06 94.14 90.69 82.72 76.31 91.58 87.75

AP 96.36 96.50 86.51 85.94 79.88 92.83 89.67

Variation

AUC 91.32 93.45 91.13 77.06 73.53 81.76 84.70

AP 96.18 95.47 86.37 83.33 77.11 81.06 86.58

Table 4: Anomaly detection results for the MVTec dataset.

Methods Metrics Bottle Cable Ca

sule Hazelnut Metal Nut Pill Toothbrush Transisto

Mean

Proposed

AUC 99.71 87.73 86.39 95.87 79.28 86.74 100.0 93.06

91.09

AP 99.90 92.54 96.71 97.90 94.88 97.23 100.0 91.68

96.35

AE (L

)

AUC 89.77 82.70 54.89 85.23 59.45 79.85 76.68 86.35

75.31

AP 96.83 89.70 87.12 91.74 87.36 95.59 91.03 85.72

91.39

Deep Feature AUC 96.71 83.61 88.37 90.29 68.93 71.71 91.67 85.33 83.27

AP 98.90 90.45 96.40 95.01 90.21 92.38 96.85 85.51 93.89

AUC 81.02 81.30 69.78 52.83 60.16 63.66 95.84 81.12 68.12

AP 93.78 88.11 91.09 74.29 87.76 88.71 98.46 78.64 87.29

Variation

AUC 79.25 68.20 46.05 49.13 42.95 62.86 86.48 73.09 58.07

AP 93.12 77.88 83.08 70.93 79.20 87.56 94.36 75.15 81.96

GeoTrans AUC 74.4 78.3 67.0 63.0 35.9 63.0 97.2 86.9 63.60

AP * * * * * * * * *

GANomaly AUC 89.2 75.7 73.2 74.3 78.5 74.3 65.3 79.2 77.53

AP * * * * * * * * *

VAE AUC 89.7 65.4 52.6 87.8 57.6 76.9 69.3 62.6 71.66

AP * * * * * * * * *

AnoGAN AUC 62.0 38.3 30.6 69.8 32.0 77.6 74.9 54.9 51.71

AP * * * * * * * * *

AE (SSIM) AUC 83.4 47.8 86.0 91.6 60.3 83.0 78.4 72.5 75.35

AP * * * * * * * * *

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

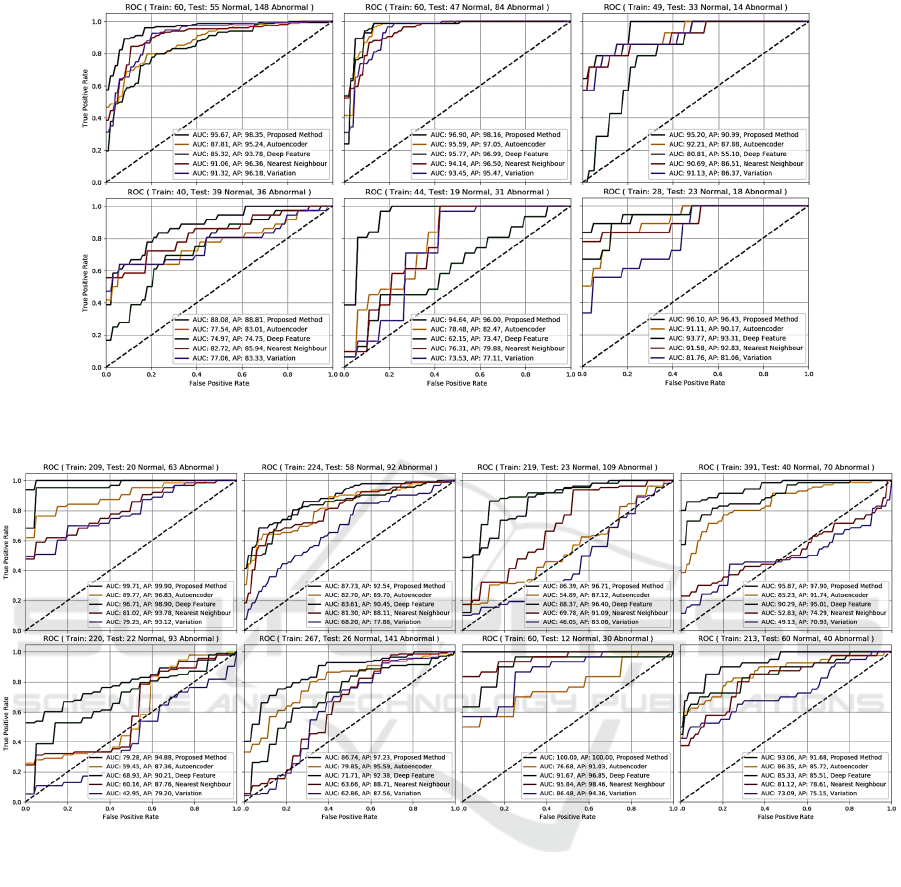

Figure 7: Comparison of ROC curves obtained for different methods and datasets, (top row, left to right): sets #1-3, (bottom

row, left to right): sets #4-6 of zipper cursor dataset.

Figure 8: Comparison of ROC curves obtained for different methods and datasets, (top row, left to right): Bottle, Cable,

Capsule, Hazelnut, (bottom row, left to right): Metal Nut, Pill, Toothbrush, Transistor of MVTec dataset.

For the zipper cursor dataset where there are not

enough samples for training, e.g. sets #4-6, the

performance of the proposed method along with other

approaches decline. For the MVTec dataset, good

performance can be observed on the “bottle”,

“toothbrush”, “hazelnut”, and “transistor”, while it

yields comparably poorer results for “metal nut”,

“cable”, and “pill”. This is because the latter objects

contain certain random variations on the objects’

surfaces, which prevents the model from learning

detailed information for most of the image pixels.

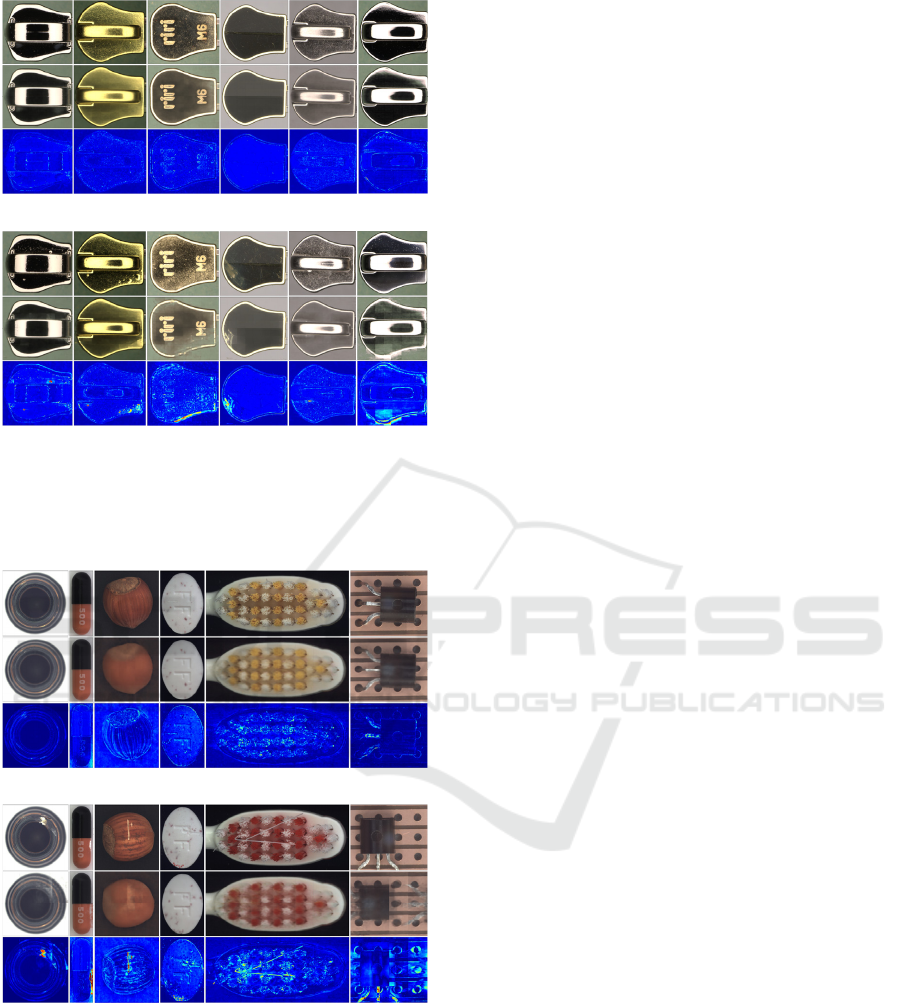

For the final experiment, we demonstrate the

reconstructed images and anomaly maps generated

using the proposed CPCAE method for some samples

of zipper cursor shown in Figure 9, and MVTec

datasets illustrated in Figure 10. For the zipper cursor

dataset, anomalies manifest themselves in the

different types of defects such as bubble, residue,

scratch, and halo as shown in Figure 9 (b), and for the

MVTec dataset, anomalies are consisting of broken,

crack, cut, color, contamination, and misplaced as

illustrated in Figure 10 (b). It can be seen from the

results that the proposed method fails to reconstruct

the defected regions, while it can generalize well to

reconstruct the normal unseen images within normal

specification ranges.

Anomaly Detection for Industrial Inspection using Convolutional Autoencoder and Deep Feature-based One-class Classiﬁcation

(a)

(b)

Figure 9: Anomaly detection results for (a) normal and (b)

defected samples, top to bottom: input image, reconstructed

image using AE, and anomaly map; left to right, sets #1 to

#6 of zipper cursor dataset.

(a)

(b)

Figure 10: Anomaly detection results for (a) normal and (b)

defected samples, top to bottom: input image, reconstructed

image using AE, and anomaly map; left to right, “Bottle”,

“Capsule”, “Hazelnut”, “Pill”, “Toothbrush” and

“Transistor” of MVTec dataset.

5 CONCLUSIONS AND FUTURE

WORKS

A novel framework for the semi-supervised anomaly

detection tasks is proposed here to introduce a method

for zipper cursors’ visual inspection. The proposed

method uses a conditional path-based convolutional

autoencoder to tackle the challenges related to the

high-resolution images in industrial inspection

scenarios. In addition, we use a binary classification

on top of the autoencoder result to leverage the

transfer learning through feature extraction via a pre-

trained CNN network and to avoid computing

anomaly scores using the simple per-pixel

comparisons of autoencoder. We demonstrate state-

of-the-art performance on different datasets,

including the zipper cursor dataset and the recently

introduced MVTec dataset.

For future work, we investigate other types of

deep learning frameworks, e.g. variational

autoencoder and generative adversarial network

instead of autoencoder applied in the proposed

method. In addition, regarding deep feature one-class

classification, we would like to explore different one-

class classifiers to improve the results.

ACKNOWLEDGEMENTS

This work has been supported by the Swiss

Innovation Agency (Innosuisse) project 27371.1 IP-

ICT. The authors would like to thank RIRI SA for

their assistance in preparing zipper cursor datasets

and their valuable feedback.

REFERENCES

Akcay, S., Atapour-Abarghouei, A., and Breckon, T. P.

(2018). GANomaly: Semi-Supervised Anomaly

Detection via Adversarial Training. In ACCV.

Andrews, J.T.A., Tanay, T., Morton, E.J., and Griffin, L.D.

(2016). Transfer Representation Learning for Anomaly

Detection. In Anomaly Detection Workshop at ICML.

Badrinarayanan V., Kendall A. and Cipolla R. (2017).

SegNet: A Deep Convolutional Encoder-Decoder

Architecture for Image Segmentation. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 39 (12): 2481-2495.

Baklouti, R., Mansouri, M., Nounou, M., Nounou, H., and

Hamida, A.B. (2016). Iterated robust kernel fuzzy

principal component analysis and application to fault

detection. Journal of Computational Science 15: 34–49

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

Bergman, L., Cohen, N., and Hoshen, Y. (2020). Deep

Nearest Neighbor Anomaly Detection. ArXiv,

abs/2002.10445.

Bergmann, P., Fauser, M., Sattlegger, D., and Steger, C.

(2019a). MVTec AD - A Comprehensive Real-World

Dataset for Unsupervised Anomaly Detection. IEEE

Conference on Computer Vision and Pattern

Recognition (CVPR), pages 9592-9600.

Bergmann, P., Fauser, M., Sattlegger, D., and Steger, C.

(2020). Uninformed students: Student-teacher anomaly

detection with discriminative latent embeddings. In

CVPR.

Bergmann, P., Lowe, S., Fauser, M., Sattlegger, D., and

Steger, C. (2019b). Improving Unsupervised Defect

Segmentation by Applying Structural Similarity to

Autoencoders. In Proceedings of the 14

International

Joint Conference on Computer Vision, Imaging and

Computer Graphics Theory and Applications, volume

5, pages 372–380

Breunig, M., Kriegel, H., Ng, R.T., Sander, J. (2000). LOF:

identifying density-based local outliers. International

Conference on Management of Data (SIGMOD), pages

93-104

Burlina, P., Joshi, N., and Wang, I. (2019). Where’s Wally

Now? Deep Generative and Discriminative

Embeddings for Novelty Detection. IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 11507-11516

Chang, S., Du, B., and Zhang, L., (2019). A Sparse

Autoencoder Based Hyperspectral Anomaly Detection

Algorithm Using Residual of Reconstruction Error.

IEEE International Geoscience and Remote Sensing

Symposium, pages 5488-5491

Chao-Qing, H., et al. (2019). Inverse-Transform

AutoEncoder for Anomaly Detection.” ArXiv

abs/1911.10676.

Chollet, F. (2017). Xception: Deep Learning with

Depthwise Separable Convolutions. IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 1800-1807

Davis, J., and Goadrich, M. (2006). The relationship

between precision recall and ROC curves. In

International Conference on Machine Learning

(ICML), pages 233–240

Deng, J. et al. (2009). Imagenet: A large-scale hierarchical

image database. IEEE Conference on Computer Vision

and Pattern Recognition CVPR. pages 248–255.

Eskin, E. (2000). Anomaly detection over noisy data using

learned probability distributions. In Proceedings of the

17th International Conference on Machine Learning,

pages 255-262.

Golan, I., and El-Yaniv, R. (2018). Deep anomaly detection

using geometric transformations. In NeurIPS.

Guo, J., Liu, G., Zuo, Y. and Wu, J. (2018). An Anomaly

Detection Framework Based on Autoencoder and

Nearest Neighbor. 15th International Conference on

Service Systems and Service Management (ICSSSM),

pages 1-6

Harrou, F., Kadri, F., Chaabane, S., Tahon, C., Sun, Y.

(2015). Improved principal component analysis for

anomaly detection: Application to an emergency

department. Computers & Industrial Engineering 88:

63–77

Jinwon, An., and Sungzoon, Cho. (2015). Variational

Autoencoder based Anomaly Detection using

Reconstruction Probability. SNU Data Mining Center,

Tech. Rep. Special Lecture on IE 2:1–18

Kawachi, Y., Koizumi, Y., and Harada, N. (2018).

Complementary set variational autoencoder for

supervised anomaly detection. IEEE International

Conference on Acoustics, Speech and Signal

Processing (ICASSP), pages 2366–2370.

Kingma, D. P., Welling, M. (2014). Auto-Encoding

Variational Bayes. International Conference on

Learning Representations (ICLR), pages 1-14

Kornblith, S., Shlens, J., and Le, Q. V. (2019). Do better

imagenet models transfer better? IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 2661-2671.

Krizhevsky, A., and Hinton, G. (2009). Learning multiple

layers of features from tiny images. Technical Report.

University of Toronto.

LeCun, Y. (1998). The mnist database of handwritten

digits. http://yann. lecun. com/exdb/mnist/

Matsubara, T., Hama, K., Tachibana, R., and Uehara, K.

(2018). Deep generative model using unregularized

score for anomaly detection with heterogeneous

complexity. arXiv preprint arXiv:1807.05800.

Nalisnick, E., Matsukawa, A., Whye The, Y., Gorur, D.,

and Lakshminarayanan, B. (2018). Do Deep Generative

Models Know What They Don’t Know? arXiv preprint

arXiv:1810.09136.

Napoletano, P., Piccoli, F., and Schettini, R. (2018).

Anomaly Detection in Nanofibrous Materials by CNN-

Based Self-Similarity. Sensors, 18 (1): 209

Nazaré, S. et al. (2018). Are pre-trained CNNs good feature

extractors for anomaly detection in surveillance

videos?” ArXiv abs/1811.08495.

Olive, D.J. (2017). Principal Component Analysis, Robust

Multivariate Analysis, Springer: 189–217.

Oza, P. and Patel, V. M. (2019). One-Class Convolutional

Neural Network. IEEE Signal Processing Letters, 26

(2): 277-281.

Perera, P., and Patel, V. M., (2019). Learning Deep

Features for One-Class Classification. IEEE

Transactions on Image Processing, 28 (11): 5450-5463.

Pol, A., Berger, V., Germain, C., Cerminara, G., and

Pierini, M., (2019). Anomaly Detection with

Conditional Variational Autoencoders. IEEE

International Conference On Machine Learning and

Applications (ICMLA), pages 1651-1657

Ribeiro, M., Lazzaretti, A. E., and Lopes, H. S. (2018). A

study of deep convolutional auto-encoders for anomaly

detection in videos. Pattern Recognition Letters, 105:

13-22,

Ruff, L., Görnitz, N., Deecke, L., Siddiqui, S.,

Vandermeulen, R.A., Binder, A., Müller, E., and Kloft,

M. (2018). Deep One-Class Classification. In

Proceedings of the 35th International Conference on

Machine Learning, volume 80, pages 4393-4402

Anomaly Detection for Industrial Inspection using Convolutional Autoencoder and Deep Feature-based One-class Classiﬁcation

Saeedi, J., Dotta, M., Galli, A. et al. (2021). Measurement

and inspection of electrical discharge machined steel

surfaces using deep neural networks. Machine Vision

and Applications 32, 21: 1-15

Schlegl, T., Seebock, P., Waldstein, S. M., Erfurth, U. S.,

and Langs, G. (2017). Unsupervised Anomaly

Detection with Generative Adversarial Networks to

Guide Marker Discovery. In International Conference

on Information Processing in Medical Imaging, pages

146–157.

Scholkopf, B., Platt, J.C., Shawe-Taylor, J.C., A.J. Smola,

and R.C. Williamson. (2001). Estimating the support of

a high-dimensional distribution. Neural Computing,

13(7): 1443–1471.

Steger, C., Ulrich, M., and Wiedemann, C. (2018). Machine

Vision Algorithms and Applications. Wiley-VCH,

Weinheim, 2

edition.

Szegedy, C., Vanhoucke, V., Ioffe, S., et al. (2016).

Rethinking the Inception Architecture for Computer

Vision. In Proceedings of the IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition, pages 2818–2826

Tang, B., He, H. (2017). A local density-based approach for

outlier detection, Neurocomputing, 241: 171–180

Tax, D.M.J., and Duin, R.P.W. (2004). Support vector data

description. Mach. Learn., 54(1): 45–66.

Vaikundam, S., Hung, T., and Chia, L.T. (2016). Anomaly

region detection and localization in metal surface

inspection. IEEE International Conference on Image

Processing (ICIP), pages 759-763

Van der Maaten, L. and Hinton, G. E. (2008). Visualizing

high-dimensional data using t-SNE. Journal of

Machine Learning Research 9:2579–2605

Xiao, H., Rasul, K., and Vollgraf, R. (2017). Fashion-mnist:

a novel image dataset for benchmarking machine

learning algorithms. arXiv preprint arXiv:1708.07747.

Xu, H., Caramanis, C., and Sanghavi, S. (2012). Robust

PCA via outlier pursuit. IEEE Transactions on

Information Theory, 58 (5): 3047-3064

Yildirim, O., Tan, R.S., Acharya, U. R., (2018). An

efficient compression of ECG signals using deep

convolutional autoencoders, Cognitive Systems

Research, volume 52, pages 198-211

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
