Video-based Detection and Tracking with Improved Re-Identification

Association for Pigs and Laying Hens in Farms

Qinghua Guo

, Yue Sun

, Lan Min

, Arjen van Putten

, Egbert Frank Knol

, Bram Visser

T. Bas Rodenburg

, J. Elizabeth Bolhuis

, Piter Bijma

and Peter H. N. de With

Department of Electrical Engineering, Eindhoven University of Technology, Eindhoven, The Netherlands

Department of Animals in Science and Society, Utrecht University, Utrecht, The Netherlands

Topigs Norsvin Research Center, Beuningen, The Netherlands

Hendrix Genetics, Boxmeer, The Netherlands

Department of Animal Sciences, Wageningen University & Research, Wageningen, The Netherlands

Keywords: Animal Detection, Animal Tracking, Multi-Object Tracking Models.

Abstract: It is important to detect negative behavior of animals for breeding in order to improve their health and welfare.

In this work, AI is employed to assist individual animal detection and tracking, which enables the future

analysis of behavior for individual animals. The study involves animal groups of pigs and laying hens. First,

two state-of-the-art deep learning-based Multi-Object Tracking (MOT) methods are investigated, namely

Joint Detection and Embedding (JDE) and FairMOT. Both models detect and track individual animals

automatically and continuously. Second, a weighted association algorithm is proposed, which is feasible for

both MOT methods to optimize the object re-identification (re-ID), thereby improving the tracking

performance. The proposed methods are evaluated on manually annotated datasets. The best tracking

performance on pigs is obtained by FairMOT with the weighted association, resulting in an IDF1 of 90.3%,

MOTA of 90.8%, MOTP of 83.7%, number of identity switches of 14, and an execution rate of 20.48 fps. For

the laying hens, FairMOT with the weighted association also achieves the best tracking performance, with an

IDF1 of 88.8%, MOTA of 86.8%, MOTP of 72.8%, number of identity switches of 2, and an execution rate

of 21.01 fps. These results show a promising high accuracy and robustness for the individual animal tracking.

1 INTRODUCTION

While the demand for animal products increases, the

people’s attention for animal health and welfare is

growing accordingly. Negative social interactions

among animals, such as tail-biting in pigs and

smothering in laying hens, threaten animal lives and

reduce feeding efficiency, thereby increasing the

ecological footprint of food production (Matthews, et

al., 2016). Early detection of such negative behavior

and interventions are essential, but challenging for

farm staff due to changes over time and variances in

environments, especially in large-scale farms

(Matthews, et al., 2016), (Matthews, et al., 2017). The

objective of the animal science community is to

develop a one-health solution that jointly links human,

animal, and environmental health (Kahn, 2017). To

facilitate efficient breeding for animals with minimal

occurrence of negative behavior, continuous

monitoring of animals at a large scale is desirable for

identifying damaging behavior. However, most

animals are raised in groups, which causes

inconvenience for observing individual animals.

Therefore, automated and continuous individual

tracking is needed.

In the past few years, several methods have been

developed for automated animal monitoring. Radio

frequency identification device (RFID) sensors have

been widely used for tracking animals, which require

the installation of RFID antennas at every location of

interest in the housing environment, which can be

deployed with tags, such as an ear tag for each pig

(Kapun, et al., 2018), (Maselyne, 2016). However,

sensors have risks of being destructed by the active

behavior of animals. In addition, for large-scale

commercial farms, RFIDs are expensive concerning

the installation and retrieval of tags. Another rising

field for animal tracking is based on videos, which are

contactless, and can be more simply implemented (e.g.

low-cost cameras) and maintained than RFID systems.

Several studies have investigated the three-

dimensional Kinect cameras monitoring from the top

view with depth sensors (Mallick, et al., 2014), (Kim,

et al., 2017). They are capable of monitoring animals

Guo, Q., Sun, Y., Min, L., van Putten, A., Knol, E., Visser, B., Rodenburg, T., Bolhuis, J., Bijma, P. and N. de With, P.

Video-based Detection and Tracking with Improved Re-Identiﬁcation Association for Pigs and Laying Hens in Farms.

DOI: 10.5220/0010788100003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

69-78

ISBN: 978-989-758-555-5; ISSN: 2184-4321

through generated point clouds, while the range of

depth sensors is too limited to address the entire area

of a big pen (Matthews, et al., 2017). Additionally, the

installation of top-view cameras could be difficult for

large-scale farms. Therefore, the most common

methods for monitoring animals are based on two-

dimensional RGB cameras.

Recent advances in Artificial Intelligence (AI)

provide radical new opportunities to monitor animal

behavior through inexpensive and scalable strategies.

The state-of-the-art Multi-Object Tracking (MOT)

methods in deep learning include both two-stage and

one-shot systems as shown in Figure 1. Two-stage

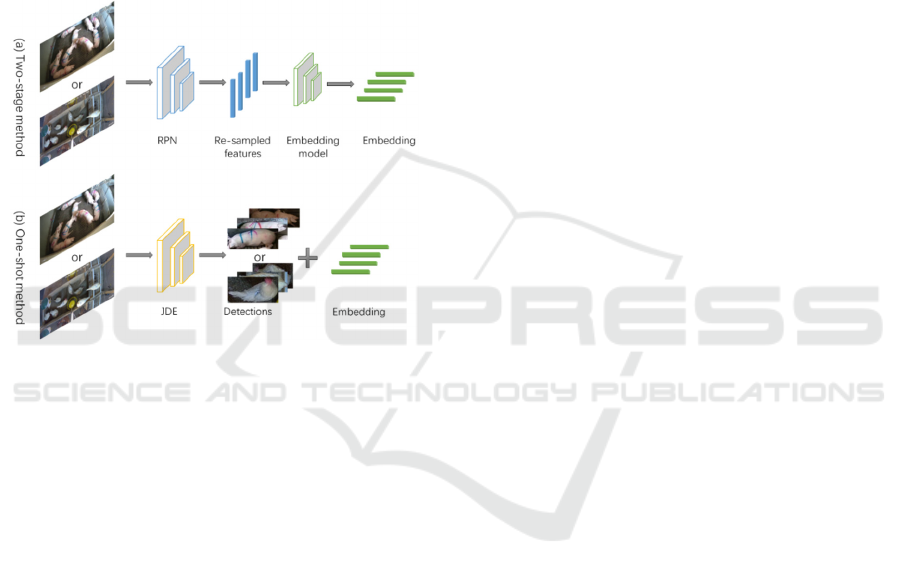

Figure 1: Layouts of both two-stage and one-shot tracking

methods (Wang, et al., 2020).

methods firstly employ detectors, such as Faster R-

CNN (Ren, et al., 2015) or YOLOv3 (Redmon et al.,

2018) to localize objects in video frames, and then

extract these features by an embedding model, such

as Fast R-CNN (Girshick, 2015) for embedding

learning. These two computations can adopt the most

suitable model individually, achieving good perform-

ance on public pedestrian datasets (Wang, et al.,

2020). However, separate detection and tracking

tasks incur critical challenges on computation

efficiency, while the execution time of embedding

increases as the number of identities grows, which

implies that two-stage methods are not optimal for

real-time MOT in practice. To reduce computing time

and enhance tracking efficiency, one-shot methods

are proposed. Compared with two-stage tracking

methods, one-shot methods combine object detection

and embedding feature learning into a single deep

network to reduce computation cost. In this way,

detected objects and related appearance embeddings

are learnt simultaneously in the network. The

execution of the entire MOT procedure draws more

attention than focusing on an association step only.

Our research aims at developing a 2D camera-

based solution that leverages the state-of-the-art deep

learning techniques for the automated detection and

tracking of every individual pig/laying hen that is

kept in large groups. In this work, we propose two

one-shot video-based automated approaches for

detecting and tracking individual pigs and laying

hens. The first method is based on joint detection and

embedding (JDE) network (Wang, et al., 2020),

which is based on a one-shot concept of joint

detection and tracking procedure. The second method

FairMOT (Zhang, et al., 2020) is a network derived

from the JDE by adding a re-ID embedding branch

and addressing fairness issues to improve tracking

performance. The proposed methods are evaluated

using state-of-the-art metrics that provide multiple

perspectives for assessing MOT (Heindl, 2017).

Our contributions to the improvement of the

datasets are: (1) a pig dataset is manually annotated

on 3,706 video frames including pigs with and

without sprayed color marks, and (2) a laying hen

dataset is created, containing 1,124 annotated frames

of both white and brown laying hens. We apply two

state-of-the-art methods to track individual objects

for the two types of animals. Further contributions

from the algorithmic side are as follows. An online

association strategy is proposed based on animal

characteristics, which efficiently reduces identity

switches and enhances the tracking performance, for

both JDE and FairMOT methods. Moreover,

regarding the JDE, new clusters of anchor boxes are

also learnt for each specific animal dataset, and the

object numbers are constrained on each frame.

The sequel of this paper is as follows. Section 2.1

describes the data acquisition workflow, followed by

Section 2.2 on the annotation method. Section 2.3

introduces the network architecture of the proposed

methods. Section 2.4 describes the evaluation

metrics, enabling visualization of the tracking

performance. Section 3 illustrates experimental

results, divided into Section 3.1 for pigs and Section

3.2 for laying hens. Section 4 discusses the findings

of problems and the relevant future work accordingly.

Section 5 discusses and concludes this paper.

2 METHODS

2.1 Dataset Description

2.1.1 Pig Dataset

All video recordings of pigs are collected at Volmer

farm, Topigs Norsvin, Germany. Figure 2(a) shows a

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

sample frame illustrating the scene of the video

recording. Pigs from in total eight pens are recorded,

where each pen contains 10 or 11 pigs with or without

sprayed color marks on the bodies. The group

composition of the pigs usually remains unchanged

unless situations of for example, sickness or injury

occur. Most pens are set up with one single camera,

while several remaining pens are equipped with

double cameras. All the cameras film from the side

views towards the pen’s ground, covering the entire

pen. The cameras used for recording are LOREX

4KSDAI168 with an image resolution of 1,280 ×

720 pixels, and a frame rate of 15 fps. Pig videos are

recorded continuously on a 24/7 basis, and each video

is automatically generated and stored per hour.

2.1.2 Laying Hen Dataset

The videos of laying hens are collected at the farm of

Utrecht University, the Netherlands. Figure 2(b)

shows a sample frame illustrating the scene of the

video recording. Laying hens from in total 24 pens are

recorded, where each pen contains 8-10 laying hens.

White and brown chickens are separated in different

pens. The grouping of laying hens usually remains

unchanged unless situations of e.g., sickness or injury

occur. All pens are equipped with double cameras.

The cameras film from the top and side views towards

the pen’s ground, coving the entire pen. The cameras

used for recording are RLK8-800B4 with an image

resolution of 2,304×1296 pixels, and a frame rate of

15 or 20 fps. Laying hens videos are recorded

continuously during daytime.

2.2 Data Annotation

Video segments showing active animal movements

are selected, followed by annotating the animal

location in each video frame with consistent identity

association for every animal. Computer Vision

Annotation Tool (CVAT) (Intel, 2018) is used to label

object location and also the situation of occluded

objects. CVAT supports to save the frame ID,

identity, bounding box location and size of the object.

2.3 Network Architecture Overview

2.3.1 Joint Detection and Embedding (JDE)

JDE network adopts DarkNet-53 (Redmon, et al.,

2018) as the backbone network. It is based on Feature

Pyramid Network (FPN) (Lin, et al., 2017), which

provides possibilities to predict from multiple scales.

As shown in Figure 3, at the beginning, the input

video frames are transmitted forward through the

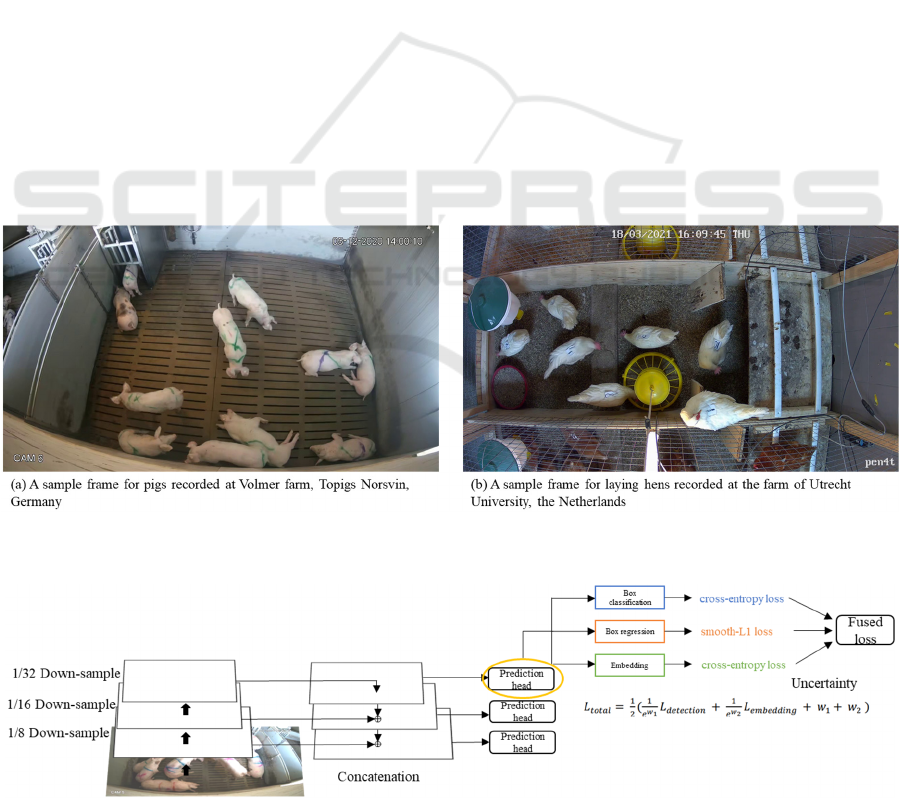

Figure 2: Sample frames for (a) pigs recorded at Volmer farm, Topigs Norsvin, Germany, and (b) laying lens recorded at the

farm of Utrecht University, the Netherlands.

Figure 3: Explanation of JDE network architecture and prediction heads (Wang, et al., 2020).

Video-based Detection and Tracking with Improved Re-Identiﬁcation Association for Pigs and Laying Hens in Farms

backbone to obtain feature maps at three scales of

down-sampling of 1/32, 1/16 and 1/8. The feature

map, which supplies multi-task learning: box

classification, box regression and embedding learning.

The detection branch of JDE is based on the standard

Region Proposal Network (RPN) (Ren, et al., 2015)

map with the smallest size is up-sampled and fused

with the feature map from the second smallest scale

by a skip connection, similarly for other scales.

Prediction heads are added to the fused feature maps

at all scales. Each prediction head includes several

convolutional layers and outputs a dense prediction

with two modifications. First, we apply k-means

clustering to the training dataset to recalculate 12

anchors, where each scale has 4 anchors. For the

widely used pedestrian datasets in MOT, a filter

condition is normally applied to constrain the object

aspect ratio of 1:3 (width : height). We remove this

constraint because more deformations are expected in

the animal datasets. Second, we set the IoU threshold

to distinguish foreground from background regions.

In this way, false alarms can be suppressed especially

for occluded cases. As depicted in Figure 3, the

detection branch is covering two tasks:

foreground/background classification with a cross-

entropy loss, and bounding-box regression with a

smooth L1 loss.

The learning procedure of appearance embedding

in JDE is to derive a small distance measure for

detected bounding boxes with the same identity,

while bounding boxes with different identities have a

large distance. JDE compares three types of loss

functions to achieve this goal. The triplet loss

(Schroff, et al., 2015) is feasible, but the training is

unstable and its convergence is slow. A smooth upper

bound of triplet loss (Sohn, 2016) is presented to

alleviate issues caused by the triplet loss. It is similar

to the cross-entropy loss, where all negative classes

participate in the loss computation. However, the

smooth upper bound of the triplet loss only considers

sampled negative classes in the mini-batch. The

experimental results with pedestrian datasets show

that the cross-entropy loss gives the best results.

Hence, the appearance embedding learning of JDE is

based on using cross-entropy.

The way for combining detection loss and

embedding loss is automatic loss balancing (Kendall,

et al., 2018), based on the concept of task-

independent uncertainty, which is calculated by

𝐿







𝑒





𝐿





𝑒





𝐿



 𝑤



 𝑤





(1)

where w

and w

are learnable parameters.

JDE adopts a simple and fast online association

algorithm. Each tracklet consists of an appearance

state and a motion state. The appearance affinity

matrix is calculated by cosine similarity and the

motion affinity matrix is computed using the

Mahalanobis distance. A buffer pool is set for

potential tracklets to the following association. For

each frame, there are computations between all

detections and tracklets in the buffer pool. The

Hungarian algorithm (Kuhn, 1955) solves the linear

assignment to output matched tracks, unmatched

tracks and detections. A Kalman filter (Welch, et al.,

1995) is used to update and predict the locations in

the current frame from the existing tracklets.

Improved Re-identification Association:

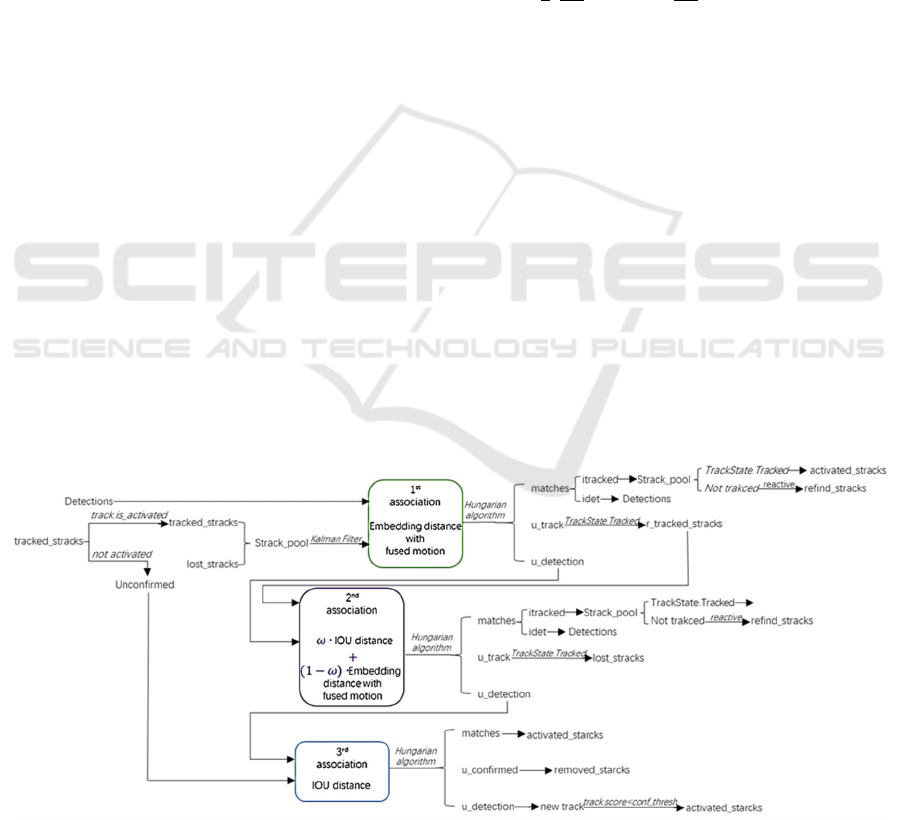

Figure 4 describes the workflow of an online

association strategy. This procedure has three

Figure 4: The online association strategy deployed both in JDE and FairMOT. We improve the second association with the

weighted IoU distance and embedding distance with fused motion, instead of only considering the IoU distance at the second

association in JDE and FairMOT.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

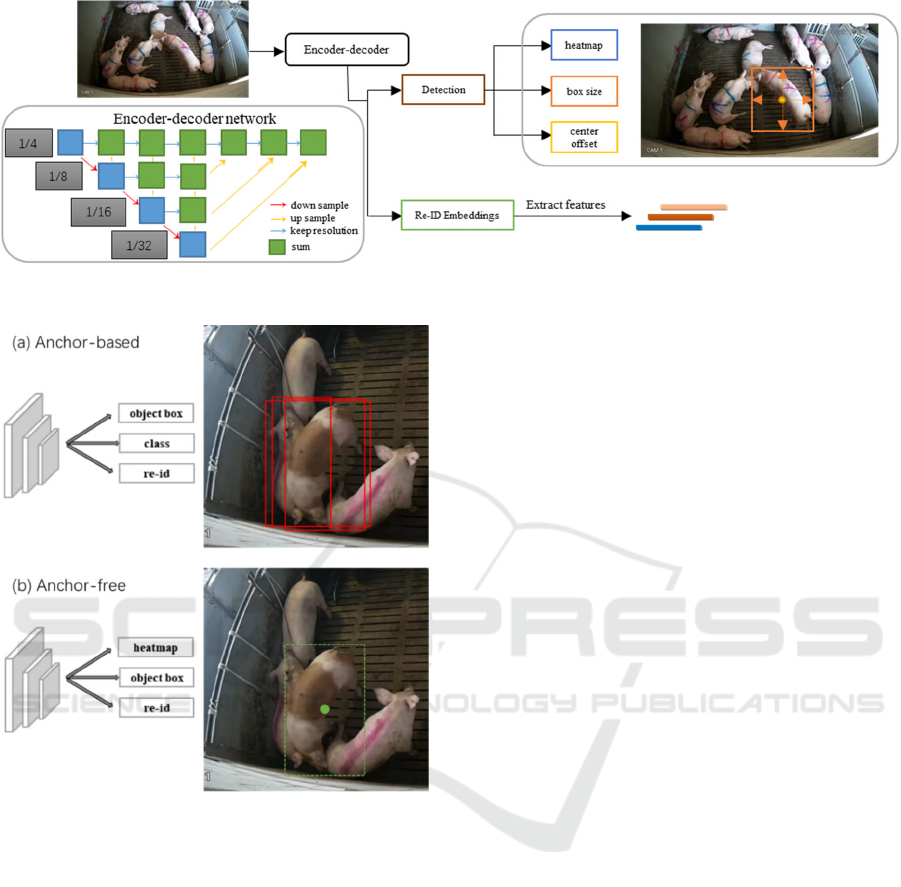

Figure 5: Explanation of the FairMOT (Zhang, et al., 2020) network architecture and prediction heads.

Figure 6: Comparison between (a) anchor-based (JDE) and

(b) anchor-free method (FairMOT) (Zhang, et al., 2020).

association steps in total. The first association is

related to the embedding distance with fused motion.

After calculating by the Hungarian algorithm

(Kuhn, 1955), the unmatched tracks and detections

are further imported to the second association. We

introduce an improved strategy, which considers the

weighted distance between the IoU and fused

embedding with motion, instead of only relying on

the IoU distance after the first embedding comparison.

Because animal behavior is faster and more

deformable than pedestrians, the comparison of

appearance embeddings is more reliable. In the third

ID association step, the IoU distance is adopted to

handle the unconfirmed tracks, which are usually

tracks with only one initial frame. A buffer pool is

used for storing lost tracks, and the tracks are

removed when they have been lost for more than a

certain frame count (threshold). Finally, the outputs

combine all followed tracks, activated tracks and

refined tracks.

In addition, we present a way to limit object

numbers in each frame by Non-Maximum

Suppression (NMS) (Neubeck, et al., 2006).

According to the amount of objects for tracking, we

keep the same amount of NMS indices.

2.3.2 FairMOT

The backbone network used in FairMOT is ResNet-

34, which trades-off tracking performance and

computing time. To fuse multi-layer features like JDE,

a developed version of Deep Layer Aggregation

(DLA) (Zhou, et al., 2019) is attached to the backbone

as shown in Figure 5. The development adds more

skip connections between multiple scales, which is

similar to the FPN. Moreover, there are deformable

convolution layers in all up-sampling stages, which

enables dynamic adjustment among object scales and

poses. The entire network is called DLA-34.

Compared with JDE, FairMOT addresses three

unfair issues caused by anchors, features, and feature

dimensions. Figure 6 illustrates the unfairness caused

by the anchor-based method in JDE. As shown in

Figure 6(a), all active anchors around the object

center are considered as candidates of Re-ID features.

These adjacent anchors have high possibilities to be

confirmed as the same identities if their IoU value is

large enough, which results in suboptimal extracted

features. For instance, Figure 6(a) shows that three

anchors are predicted as the same identity. FairMOT

solves this unfairness by extracting the Re-ID feature

only from the center of the object (see Figure 6(b)).

In addition, FairMOT improves the setting of the

feature dimension, while the performance is higher

when the network learns lower-dimensional features.

Video-based Detection and Tracking with Improved Re-Identiﬁcation Association for Pigs and Laying Hens in Farms

The detection module in FairMOT is based on the

CenterNet, but also combined with anchor-free

methods. It leaves out the steps for computing clusters

from all bounding boxes. As can be observed in Figure

5, three parallel heads contribute to the detection

branch. The heatmap head predicts the locations of the

object centers with a focal loss. The box-offset head

and the box-size head are responsible for more accurate

localization and estimating the height and width of the

target box, optimized by the L1 loss.

As shown in Figure , FairMOT introduces a re-ID

branch to generate object features, aiming at

distinguishing different objects. The re-ID features

are extracted from the feature map, which are derived

from a convolution layer with 128 kernels based on

the backbone network.

The automated loss balancing and online

association strategy in FairMOT are the same as used

in the JDE network. We explore a weighted strategy

in the FairMOT approach, which is expected to

reduce the identity switches during tracking.

2.4 Evaluation Metrics

The proposed methods are evaluated using the metrics

derived from the MOT challenge based on a pedestrian

dataset (Dendorfer, et al., 2019), combined

with

evaluation metrics used in JDE (Wang, et al., 2020)

and FairMOT methods (Zhang, et al., 2020),

(Bernardin, et al., 2008). These metrics are employed

and listed in Table 1 and supplemented with the IDF1

metric (Ristani, et al., 2016) to evaluate the overall

tracking performance. Table 1 illustrates all terms for

evaluating MOT systems. The upward arrow means a

higher value of this term is desired and the downward

arrow indicates that a result of a lower value is better.

Table 1: Evaluation metrics for the proposed methods.

Metric Description

MOTA↑

Multi-Object Tracking Accuracy.

This measure combines three error

sources: false positives, missed

targets, and identity switches.

MOTP↑

Multi-Object Tracking Precision.

The misalignment between the

annotated and the predicted bounding

boxes.

MT↑, PT, ML↓

Number of mostly tracked, partially

tracked, and mostly lost trajectories.

IDF1↑

ID F1 score. The ratio of correctly

identified detections over the average

number of ground-truth and

computed detections.

IDs↓ Number of identity switches.

FPS↑ Runtime, frame per second.

Table 2: Summary of training data information for pigs.

Rec. date Sprayed marks No. of pens No. of identities No. of frames No. of bounding boxes

20200820 no 8 87 1,737

36,019

20201205 yes 6 66 600

20210105 yes 6 65 561

20210205 yes 3 33 303

20210305 yes 1 10 101

Overall

with:without

= 10:11

24 261 3,302

Table 3: Summary of testing data information for pigs.

Rec. No. Rec. date

Sprayed

marks

No. of

identities

Duration

(min : s)

No. of

frames

Bounding

oxes

Conditions

R1_pig 20210205 yes 11 3:20 101 1,111

Limited active movements;

Pigs are not too close to each othe

R2_pig 20210415 yes 11 3:20 101 1,111

Partial active movements;

one pig is mostly occluded in a few

seconds

R3_pig 20210420 no 11 3:20 101 1,111

Partial active movements;

some

airs of

s are ver

R4_pig 20210420 no 11 3:20 101 1,111

Partial active movements;

several

s are stacked to

ethe

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

Table 4: Comparison between the original association method and the proposed weighted strategy on the pig dataset.

Testing Method Association IDF1↑ MOTA↑ IDs↓

All testing

data

JDE

Original 82.0 90.1 54

Weighted 82.9 89.9 36

Fair-

MOT

Original 89.7 90.8 18

Weighted 90.3 90.8 14

Table 5: Comparison of tracking results from JDE and FairMOT on the pig testing set.

Method Test recording IDF1↑ MOTA↑ MOTP↑ GT MT↑ PT ML↓ IDs↓ FPS↑

JDE

R1_pig 82.8 93.5 85.5 11 11 0 0 7 15.98

pig 88.9 92.0 79.1 11 11 0 0 5 15.83

81.5 89.7 78.4 11 11 0 0 6 15.93

78.4 84.4 78.8 11 9 2 0 18 15.70

Overall 82.9 89.9 80.5 44 42 2 0 36 15.86

FairMOT

pig 91.2 94.4 87.8 11 11 0 0 2 20.57

pig 94.3 90.5 82.2 11 10 1 0 1 20.41

pig 88.1 87.3 81.8 11 10 1 0 4 20.50

87.8 91.1 82.7 11 11 00 7 20.42

Overall 90.3 90.8 83.7 44 42 2 0 14 20.48

3 EXPERIMENTAL RESULTS

3.1 Pig Experiments

3.1.1 Dataset Description

Our manually annotated datasets of pigs are divided

into two parts, which are the training dataset

described in Table 2, and the testing dataset from

Table 3. Pig videos are recorded at a frame rate of 15

fps. A frame step of 30 frames (2 seconds) is taken

during annotation to output one frame. All images are

selected from daytime in an uncontrolled farming

environment. The training dataset shown in Table 2

consists of 3,302 frames including 36,019 annotated

bounding boxes from 24 pens in 5 days, of which the

recording dates are separated from each other for at

least one month. The frame ratio between pigs

with/without sprayed color marks is about 10/11.

Four videos with the same length and the same

number of pigs are used for testing as depicted in

Table 3. For evaluating the generalizability of our

models, videos in various conditions are selected

according to the activity levels of pig movements,

occlusion or occurrence of group stacking.

3.1.2 Implementation Details

The backbone network of JDE is DarkNet-53 (Redmon,

et al., 2018). Twelve clusters of anchor boxes are

derived from all training bounding boxes by a k-means

clustering method. Three key parameters are

determined - learning rate, batch size and epoch by

smartly choosing the training parameters based on

controlled experiments, to yield the best convergence

and the highest accuracy. The training model is based

on a learning rate of 0.001, optimizing under standard

SGD. The training is performed for 30 epochs with a

batch size of unity. The input video frames are resized

to 1,088× 608 pixels.

The backbone network of FairMOT is DLA-34

(Zhang, et al., 2020). The initialized weights are pre-

trained on the pedestrian dataset (Zhang, et al., 2020)

by the DLA-34 network. The training model starts

with a learning rate of 0.0001, optimized with the

Adam optimizer. The training is performed for 50

epochs with a batch size of 2. The input video frames

are also resized to 1,088 × 608 pixels.

All the experiments are carried out on a GeForce

GTX 1080 GPU and an Xeon E5-1650 v4 CPU.

3.1.3 Results on Improving re-ID

We assess the models on all testing data with JDE and

FairMOT methods. Table 4 shows a comparison

between the original association method and the

proposed weighted association strategy, where the

results of IDF1, MOTA and ID switches are shown.

The value of MOTA decreases by 0.2 percent by the

weighted association. However, the weighted

strategy outperforms the original association, as

Video-based Detection and Tracking with Improved Re-Identiﬁcation Association for Pigs and Laying Hens in Farms

shown by the other two metrics. The overall results of

FairMOT are better than JDE, especially with respect

to identity switches.

Table 4 demonstrates that the weighted

association is effective. Hence, the following

evaluations are all on the models with the weighted

association step. Evaluation metrics on separate test

recordings are then calculated (see Table 5). Most

results show that FairMOT outperforms JDE,

especially in terms of the execution time (FairMOT

executes about 5 fps faster than JDE). The average

values of IDF1 and MOTA are increased relatively by

7.4% and 0.7%. Another essential term in MOT refers

to the identity switches, where the obtained result of

FairMOT is lower than half of that achieved by JDE.

3.2 Laying Hen Experiments

3.2.1 Dataset Description

The laying hen dataset includes the training dataset

(see Table 6 for details) and the testing dataset (see

Table 7 for details). Laying hen videos are recorded

at a frame rate of 15 or 20 fps. A frame step of 15 or

20 frames (1 second) is chosen to output one

annotated frame. All images are selected from

daytime with uncontrolled environmental conditions.

The training dataset as shown in Table 6 consists of

2,563 frames including 21,708 annotated bounding

boxes from 8 pens in 4 days. The frame ratio between

white/brown laying hens is around 7/10. Two videos

with the same length and the same number of laying

hens are used for testing, as shown in Table 7. For

evaluating the generalizability of the proposed

models, videos in different conditions are selected

according to feather color, activity levels of laying

hen movements and occlusion occurrences.

3.2.2 Implementation Details

The experimental settings of laying hen training on

JDE are similar to the training pig data, except for the

learning rate, which is set to 0.0001.

The training procedure for the laying hen dataset

on FairMOT is also similar to training pig data, but

performed for 100 epochs.

3.2.3 Results on Improving re-ID

The proposed models are evaluated on the testing data.

Table 8 provides a comparison between the original

association method and the proposed weighted

association strategy, where the results illustrate the

values of IDF1, MOTA and ID switches. The results

demonstrate that the weighted strategy is feasible to

improve the tracking results for both models.

The performances of two tracking methods are

improved by applying the weighted association, as

shown in Table 8. Hence, the following evaluations

are based on the models with the weighted association

Table 6: Summary of training data property for the laying hens.

Rec. date Color No. of pens No. of identities No. of frames No. of bounding boxes

20210308 brown 1 10 288

21,708

20210318 white, brown 2 88 1,085

20210321 white, brown 2 19 196

20210720 brown 3 35 994

Overall white:brown= 7 : 10 8 152 2,563

Table 7: Summary of testing data property for laying hens.

Rec. No. Rec. date Color

No. of

identities

Duration

(min : s)

No. of

frames

Bounding

oxes

Conditions

R1_hen 20210318 white 9 2:30 151 1,359

Mostly active movements;

hens fl

several times.

R2_hen 20210720 brown 9 2:30 151 1,359

Partial active movements;

One hen is com

letel

occlude

Table 8: Comparison between original association method and the proposed weighted strategy on the laying hen dataset.

Testing Method Association IDF1↑ MOTA↑ IDs↓

All testing

data

JDE

Ori

inal 83.7 84.7 5

Weighted 83.1 85.1 5

FairMOT

Original 87.1 86.5 4

Weighte

88.8 86.8 2

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

Table 9: Comparison of tracking results from JDE and FairMOT on laying hen testing set.

Method Test recording IDF1↑ MOTA↑ MOTP↑ GT MT↑ PT ML↓ IDs↓ FPS↑

JDE

hen 84.0 85.5 77.6 9 9 0 0 2 18.16

R2_hen 82.2 84.8 83.7 9 8 0 1 3 18.16

Overall 83.1 85.1 80.6 18 17 0 1 5 18.16

FairMOT

hen 85.1 87.2 78.5 9900 2 21.01

hen 92.8 86.4 77.5 9 8 0 1 0 21.01

Overall 88.8 86.8 72.8 18 17 0 1 2 21.01

algorithm. The evaluation metrics on separate test

recordings are obtained (see Table 9), where for most

metrics, FairMOT outperforms JDE, especially in

terms of the execution time (FairMOT is about 3 fps

faster than JDE). The average values of IDF1 and

MOTA are relatively increased by 5.7% and 1.7%.

Again, the number of identity switches from

FairMOT is less than half of that with JDE. Especially,

FairMOT achieves zero identity switches for the

second recording. It can be observed that the

execution time of FairMOT is lower than for JDE,

which is beneficial for real-time multi-object tracking.

If more data is added, we still expect similar results,

but with more reliability in the comparison.

4 DISCUSSION AND

CONCLUSION

In this paper, we investigate two state-of-the-art

automated multi-object tracking methods on animal

datasets. Manual annotation of two types of animals

are collected: 3,706 frames of pigs with / without

sprayed body marks, and 2,865 frames of white /

brown laying hens. The models are evaluated on 4 pig

videos, each lasting 3 minutes and 20 seconds, and 2

laying hen videos, each lasting 2 minutes and 30

seconds. Each recording has different challenging

conditions such as occlusion, active and high-speed

movements. In this way, the generalization and

robustness of the tracking models are evaluated. The

execution time on JDE is 15~18 fps, while FairMOT

can achieve more than 20 fps. We have proposed a

weighted association strategy to improve the

association algorithm of animal re-ID, which

increases the performance of IDF1 by 1.7% at most,

MOTA by 0.4% at most and reduces the identity

switches by 18 at most.

Overall, the evaluation metrics of JDE on the pig

dataset result in an IDF1 of 82.9%, MOTA of 89.9%,

MOTP of 80.5%, number of identity switches of 36

and a rate of 15.86 fps. FairMOT deployed on the pig

dataset results in an IDF1 of 90.3%, MOTA of 90.8%,

MOTP of 83.7%, number of identity switches of 14

and an execution speed of 20.48 fps.

For the laying hen dataset, JDE leads to an IDF1

of 83.1%, MOTA of 85.1%, MOTP of 80.6%,

number of identity switches of 5 and a execution

speed of 18.16 fps. FairMOT yields an IDF1 of 88.8%,

MOTA of 86.8%, MOTP of 72.8%, number of

identity switches of 2 and an execution speed of 21.01

fps.

Considering the manual annotation effort, the

procedure for collecting appropriate annotation is

rather slow. However, better performance is expected

when training on more available data is possible.

Considering the difference in moving speed of

animals, we have adopted an annotation step of 2

seconds for pigs and 1 second for laying hens to

improve annotation efficiency. Continuous

annotation is expected to yield a more precise

tracking system. Additionally, our ultimate goal is to

achieve good real-time animal tracking, so longer

video recordings in different conditions are required

to be annotated for both model development and more

thorough evaluation. After achieving sufficient

tracking performance, we will also optimize and

trade-off the execution time of the system.

The adopted backbone network in JDE is

DarkNet-53 for object detection, which is based on

the third version of YOLO. In recent years, YOLO

has already been developed and implemented into

Version 5. Future work will involve to incorporate the

latest YOLOv5 into the JDE model in order to verify

its efficiency. Similar work should also be performed

for the FairMOT architecture.

ACKNOWLEDGEMENTS

This publication is part of the project IMAGEN [P18-

19 project 1] of the research programme Perspectief,

which is financed by the Dutch Research Council

(NWO).

Video-based Detection and Tracking with Improved Re-Identiﬁcation Association for Pigs and Laying Hens in Farms

REFERENCES

Bernardin, K., & Stiefelhagen , R. (2008). Evaluating

Multiple Object Tracking Performance: The CLEAR

MOT Metrics. EURASIP Journal on Image and Video

Processing, 2008, 1-10.

Chung, M. K., Lee L. Eckhardt, & Lin Y. Chen. (2020).

Lifestyle and Risk Factor Modification for Reduction of

Atrial Fibrillation: A Scientific Statement From the

American Heart Association. Circulation. doi:10.1161/

CIR.0000000000000748

Costa, Madalena, Goldberger, Ary L, Peng, & C.-K. (2002,

7). Multiscale Entropy Analysis of Complex Physiologic

Time Series. Phys. Rev. Lett., 89(6), 068102. Retrieved

from https://link.aps.org/doi/ 10.1103/PhysRevLett.89.0

68102

Dendorfer, P., Osep, A., & Leal-Taixé, L. (n.d.). CVPR 2019

Tracking Challenge Results. Retrieved from

https://motchallenge.net/

FG, C., Aliot E, & Botto GL. (2008). Delayed rhythm control

of atrial fibrillation may be a cause of failure to prevent

recurrences: reasons for change to active antiarrhythmic

treatment at the time of the first detected episode.

Europace. doi:10.1093/europace/eum276

Girshick, R. (2015). Fast R-CNN. ICCV 2015.

Goldberger, A., Amaral, L., Glass, L., & Hausdorff, J. (2017,

2 1). AF Classification from a Short Single Lead ECG

Recording - The PhysioNet Computing in Cardiology

Challenge 2017. (PhysioBank, PhysioToolkit, and

PhysioNet) Retrieved from https://physionet.org/

content/challenge-2017/1.0.0/

Griffin, D. W., & Jae S. Lim. (1984). Signal Estimation from

Modified Short-Time Fourier Transform. IEEE

Transactions on Acoustics, Speech, and Signal

Processing, 236-243.

Heindl, C. (2017). Benchmark multiple object trackers

(MOT) in Python. Retrieved from https://github.com/

cheind/py-motmetrics

Intel. (2018). Powerful and efficient Computer Vision

Annotation Tool (CVAT).

Kahn, L. H. (2017). Perspective: The one-health way.

Nature, 543, S47.

Kapun, A., Felix, A., & Eva, G. (2018). Activity analysis to

detect lameness in pigs with a UHF-RFID system. 10th

International Livestock Environment Symposium.

Kendall, A., Gal, Y., & Cipolla, R. (2018). Multi-Task

Learning Using Uncertainty to Weigh Losses for Scene

Geometry and Semantics. CVPR.

Kim, J., Chung, Y., Choi, Y., Sa, J., Kim, H., Chung, Y., . . .

Kim, H. (2017). Depth-Based Detection of Standing-Pigs

in Moving Noise Environments. Sensors, 17(12), 2757.

Kuhn, H. W. (1955). The hungarian method for the

assignment problem. In Naval Research Logistics

Quarterly (pp. 83-97).

Lee, G. R., Ralf Gommers, Filip Wasilewski, Kai Wohlfahrt,

& Aaron O’Leary. (2019). PyWavelets: A Python

package for wavelet analysis. Journal of Open Source

Software, 4(36), 1237. doi:https://doi.org/ 10.21105/

joss.01237

Lin, T.-Y., Dollár, P., Girshick, R., He, K., Hariharan, B., &

Belongie, S. (2017). Feature Pyramid Networks for

Object Detection. CVPR 2017.

Lip, G., L. Fauchier, & S.B. Freedman. (2016). Atrial

fibrillation. Nat Rev Dis Primers 2. doi:https:

//doi.org/10.1038/nrdp.2016.16

Mallick, T., Das, P. P., & Majumdar, A. K. (2014).

Characterizations of Noise in Kinect Depth Images: A

Review. IEEE Sensors Journal, 14

(6), 1731-1740.

Maselyne, J. (2016). Measuring the drinking behaviour of

individual pigs housed in group using radio frequency

identification (RFID). Animal, 1557-1556.

Matthews, S. G., Miller, A., James, C., Llias, K., & Thomas,

P. (2016). Early detection of health and welfare

compromises through automated detection of

behavioural changes in pigs. The Veterinary Journal,

217, 43-51.

Matthews, S., A.L., M., & Thomas, P. (2017). Automated

tracking to measure behavioural changes in pigs for

health and welfare monitoring. Scientific Reports, 7.

Munger, T. M., Li-Qun Wu, & Win K. Shen. (2014). Atrial

fibrillation. Journal of Biomedical Research.

doi:10.7555/jbr.28.20130191

Neubeck, A., & Gool, L. V. (2006). Efficient non-maximum

suppression. IEEE.

Page, R. L., W E Wilkinson, W K Clair, E A McCarthy, & E

L Pritchett. (1994). Asymptomatic arrhythmias in

patients with symptomatic paroxysmal atrial fibrillation

and paroxysmal supraventricular tachycardia.

Circulation.

doi:https://doi.org/10.1161/01.CIR.89.1.224

Redmon, J., & Farhadi, A. (2018). Yolov3: An incremental

improvement.

Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster R-

CNN: Towards Real-Time Object Detection with Region

Proposal Networks. In Advances in Neural Information

Processing Systems (pp. 91-99).

Ristani, E., Solera, F., Zou, R., Cucchiara, R., & Tomasi, C.

(2016). Performance Measures and a Data Set for Multi-

Target, Multi-Camera Tracking. ECCV 2016.

Schroff, F., Kalenichenko, D., & Philbin, J. (2015). FaceNet:

A Unified Embedding for Face Recognition and

Clustering. CVPR.

Sejdić, E., Igor Djurović, & Jin Jiang. (2009). Time-

frequency feature representation using energy

concentration: An overview of recent advances. Digital

Signal Processing, 19 (1): 153–183.

doi:https://doi.org/10.1016/j.dsp.2007.12.004

Sohn, K. (2016). Improved Deep Metric Learning with

Multi-class N-pair Loss Objective. NIPS.

T.Inouye. (1991). Quantification of EEG irregularity by use

of the entropy of the power spectrum. Electroencepha-

lography and clinical neurophysiology, 79(3), 204-210.

Wang, Z., Zheng, L., Liu, Y., Li, Y., & Wang, S. (2020).

Towards Real-Time Multi-Object Tracking. 2020

European Conference on Computer Vision.

Welch, G., & Bishop, G. (1995). An introduction to the

kalman filter.

Zhang, Y., Wang, C., Xinggang, W., Wenjun, Z., & Wenyu,

L. (2020). FairMOT: On the Fairness of Detection and

Re-Identification in Multiple Object Tracking. 2020

Conference on Computer Vision and Pattern

Recognition.

Zhou, X., Wang, D., & Krähenbühl, P. (2019). Objects as

Points. arXiv.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications
