3D Map Generation with Shape and Appearance Information

Taro Yamada

and Shuichi Enokida

Kyushu Institute of Technology, Iizuka-shi, Fukuoka, Japan

Keywords: Robotics, Visual SLAM, Semantic Segmentation.

Abstract: It is clear from the numerous reports of recent years that interest in the research and development of

autonomous mobile robots is growing and that a key requirement for the successful development of such self-

directed machines is effective estimations of the navigable domain. Furthermore, in view of the differing

characteristics of their physical performance capabilities relative to specific applications, specific estimations

must be made for each robot. The effective assessment of a domain that permits successful robot navigation

of a densely occupied indoor space requires the generation of a fine-grained three-dimensional (3D) map to

facilitate its safe movements. This, in turn, requires the provision of appearance information as well as space

shape ascertainment. To addresFs these issues, we herein propose a practical Semantic Simultaneous

Localization and Mapping (Semantic SLAM) method capable of yielding labeled 3D maps. This method

generates maps by class-labeling images obtained via semantic segmentation of 3D point groups obtained

with Real-Time Appearance-Based Mapping (RTAB-Map).

1 INTRODUCTION

Interest in the research and development of

autonomous mobile robots has rapidly grown in

recent years because such machines promise to

reduce the human burdens needed to perform routine

functions such as providing cleaning and security

services at train stations, shopping malls, and other

public facilities. However, for a robot to move

autonomously in an actual environment, a key

requirement is its ability to effectively estimate its

navigable domain, and this ability will vary

depending on the robot’s size, suspension capability,

and other factors. Accordingly, such estimations must

be determined for each robot.

It is also necessary to consider the robot body

structure in order to facilitate safe navigation and to

determine efficient routes. This is particularly true

when it is necessary for a robot to navigate a densely

occupied indoor space, in which case its ability to

make a detailed determination of the most proximate

environment is essential. Such environmental

recognition information may involve using

appearance information to distinguish objects, states,

and material properties based on appearances.

https://www.kyutech.ac.jp

One means of obtaining such appearance

information is semantic segmentation, which is a

method that may also facilitate the recognition of

objects and materials at the pixel level from images

of the robot’s environment. However, because

appearance information is two-dimensional (2D),

even if a step is present in front of a door, as shown

in Fig. 1, it will be identified as a single domain.

In contrast, shape information can be more

immediately useful because it yields fine-grained

three-dimensional (3D) information, thus permitting

recognition of steps and slopes. As a result, the

obtained shape information can ensure the

recognition of steps and other 3D objects, and

ascertainments based on that capacity are thus

applicable to navigable domains.

However, shape information cannot, by itself,

identify domain states or materials. Accordingly, in

the present study, as a process for estimating

navigable domains of robots that considers their

physical structure, we herein propose a Semantic

Simultaneous Localization and Mapping (Semantic

SLAM) method capable of generating labeled 3D

maps and obtaining both shape and appearance

information simultaneously.

Yamada, T. and Enokida, S.

3D Map Generation with Shape and Appearance Information.

DOI: 10.5220/0010812900003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

743-748

ISBN: 978-989-758-555-5; ISSN: 2184-4321

743

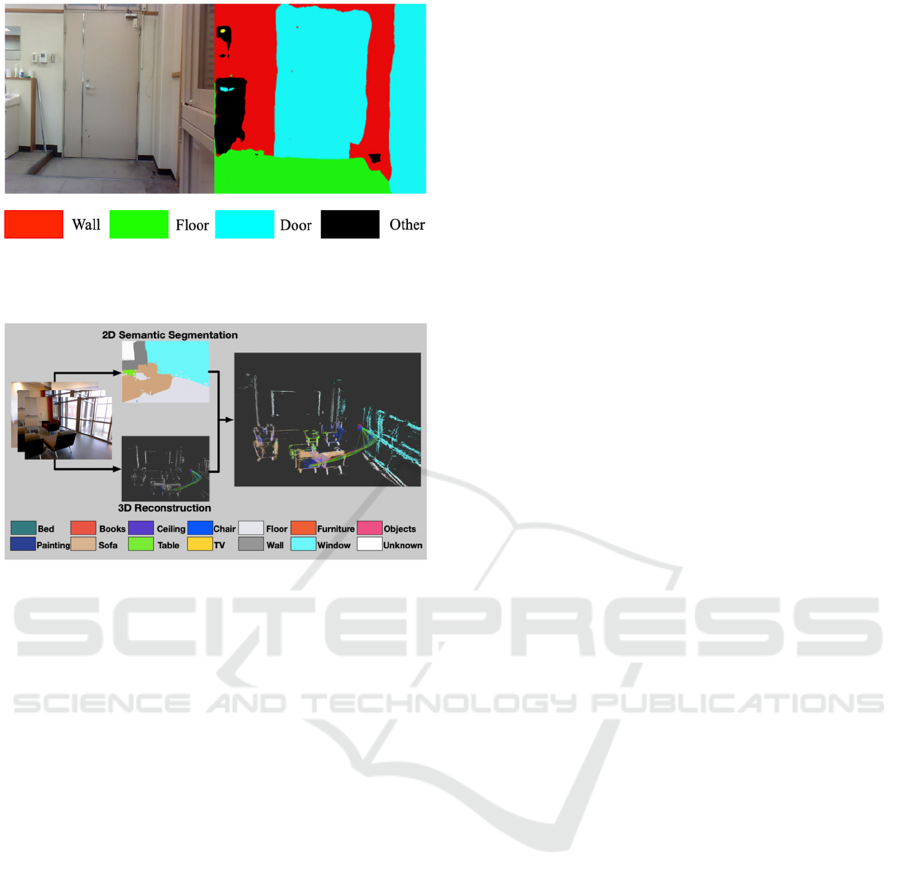

Figure 1: Identifying a floor with a step as a continuous

single-level domain.

Figure 2: Result shown in Li et al.

2 RELEVANT STUDIES

SLAM studies with labeled 3D point group class

information have been performed by numerous

researchers in recent years, and the resulting methods

can be separated into two main categories.

In one category, the objects in the image are first

distinguished, after which image-based mapping is

then added to generate the 3D point group. One

method belonging to this category, which was

proposed by Li et al, produces semantic segmentation

output using a convolutional neural network (CNN)

and Large-Scale Direct Monocular-SLAM (LSD-

SLAM), thereby producing results such as those

shown in Fig. 2.

Another method in this category, also proposed by

Liu et al, incorporates object detection by Single Shot

MultiBox Detector (SSD) into ORB(Oriented FAST

and Rotated BRIEF)- SLAM2 to generate 3D point

groups. However, since both of these methods

employ a camera as a sensor, they are strongly

affected by camera parameter divergence, light

reflection, halation, and other such effects, and

neither can generate dense point groups. As a result,

they are unsuitable for autonomous mobile robot

obstacle avoidance or navigation.

To resolve these problems, the method proposed

in Ref, which uses an RGB-D camera as the sensor,

combines the use of Real-Time Appearance-Based

Mapping (RTAB-Map) and the YOLOv2 single-

stage real-time object detection model to perform

highly accurate real-time detection. More specifically,

the method uses RTAB-Map to generate high-density

broad-ranging labeled 3D maps. Meanwhile,

YOLOv2 object detection enables labeling of bags,

mugs, cars, and other such objects – but not walls,

floors, or other such domains.

The second category comprises methods in which

directly labeled 3D point groups are generated with

PointNet or some other deep learning process.

However, it must be noted that identification methods

based on 3D point groups are far more difficult than

image-based recognition methods and generally lead

to network construction complexity. Additionally, the

necessity of using complete 3D point groups as

network input makes those methods inappropriate for

online mapping with SLAM, while the inability of

this method type to consider appearance information

also makes it difficult to distinguish between doors

and walls, earthen and flooring surfaces, and other

planar surface states.

In contrast, in conjunction with a method for

labeling of high-density expansive 3D point groups

generated via an RGB-D camera, our proposed

SLAM method enables the generation of 3D maps

capable of fine-grained discernment of the robot’s

environment through the use of close real-time

semantic segmentation capable of recognizing both

domain and object content.

3 3D MAP GENERATION WITH

SHAPE AND APPEARANCE

INFORMATION

3.1 Shape Information Acquisition

with RTAB-Map

RTAB-Map is an open-source library available since

2013. Its current expanded range of functions enables

the generation of high-density, high-resolution maps

in correspondence with arrays of stereo and RGB-D

cameras and light detection and ranging (LiDAR)

sensors to provide practical SLAM. Figure 3 shows

the main nodes of RTAB-Map, which consists

essentially of a basic structure with mounted memory

processing referred to as Graph-base SLAM.

Inputs, which are synchronized and transferred to

the graph-based SLAM, consist of camera input

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

744

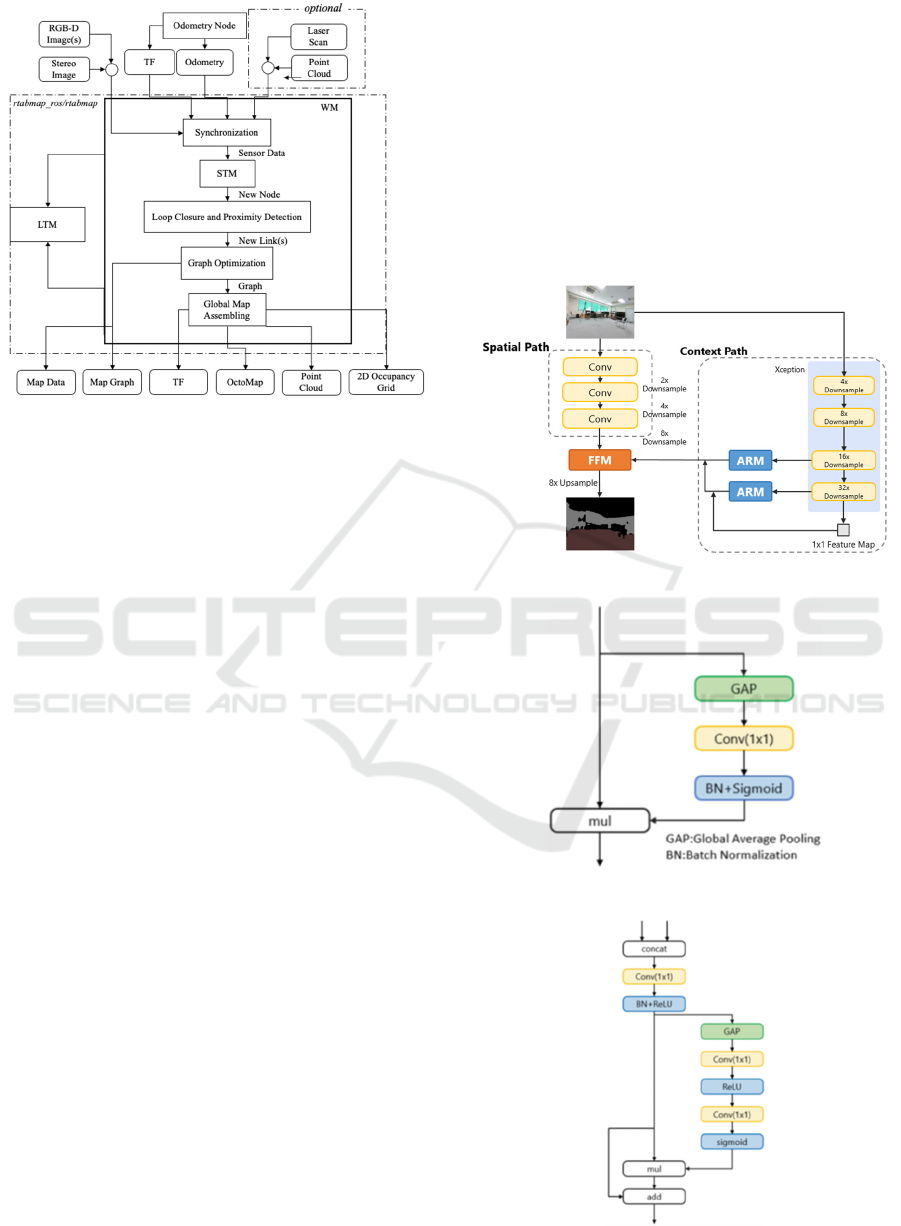

Figure 3: RTAB-Map main node schematic.

including the calibration message, transform(TF)

defining the sensor positioning relative to the robot,

odometry from a freely selected source, and

(optionally) 2D LiDAR laser scans or 3D point clouds.

The map structure of the graph-based SLAM

algorithm is graphic with linked nodes. An adjacent

link with a node is generated by the Short-Term

Memory(STM) from the synchronized input, loop

closure input produced by an image-based bag-of-

words, and/or a new link added by laser scan-based

proximity detection.

The constructed graph is optimized and output as

a 3D point cloud or an occupancy grid map by the

global map assembly module. Additionally, a

memory management function is mounted on the

RTAB-Map, and the number of nodes used for loop

closure detection is limited by working memory

(WM) and long-term memory (LTM) memory

management, thus maintaining real-time performance

even if the map grows to a large-scale size.

3.2 Appearance Information

Acquisition by Semantic

Segmentation

For appearance information, a Bilateral Segmentation

Network (BiSeNet) was used to provide real-time

semantic segmentation. BiSeNet is designed to

resolve the tradeoff between real-time and output

image precision.

As shown by its network schematic in Fig. 4,

BiSeNet is characterized by its use of two paths. In the

spatial path, a features map holding spatial information

is generated by three convolution layers (stride=2),

while in the context path, multiple reduced-size feature

maps are output by the Xception module. A features

map bearing contextual information is output by their

passage through an attention refinement module (Fig.

5) holding global average pooling.

Lower- and higher-level feature maps obtained in

the spatial and context paths, respectively, are

efficiently combined in the feature fusion module

(Fig. 6) to facilitate high-precision semantic

segmentation. This method yielded a 68.4% mean

intersection-over-union (IOU) at a rate of 105 frames

per second (FPS) for Cityscapes test data.

Figure 4: BiSeNet schematic.

Figure 5: ARM schematic.

Figure 6: FFM schematic.

3D Map Generation with Shape and Appearance Information

745

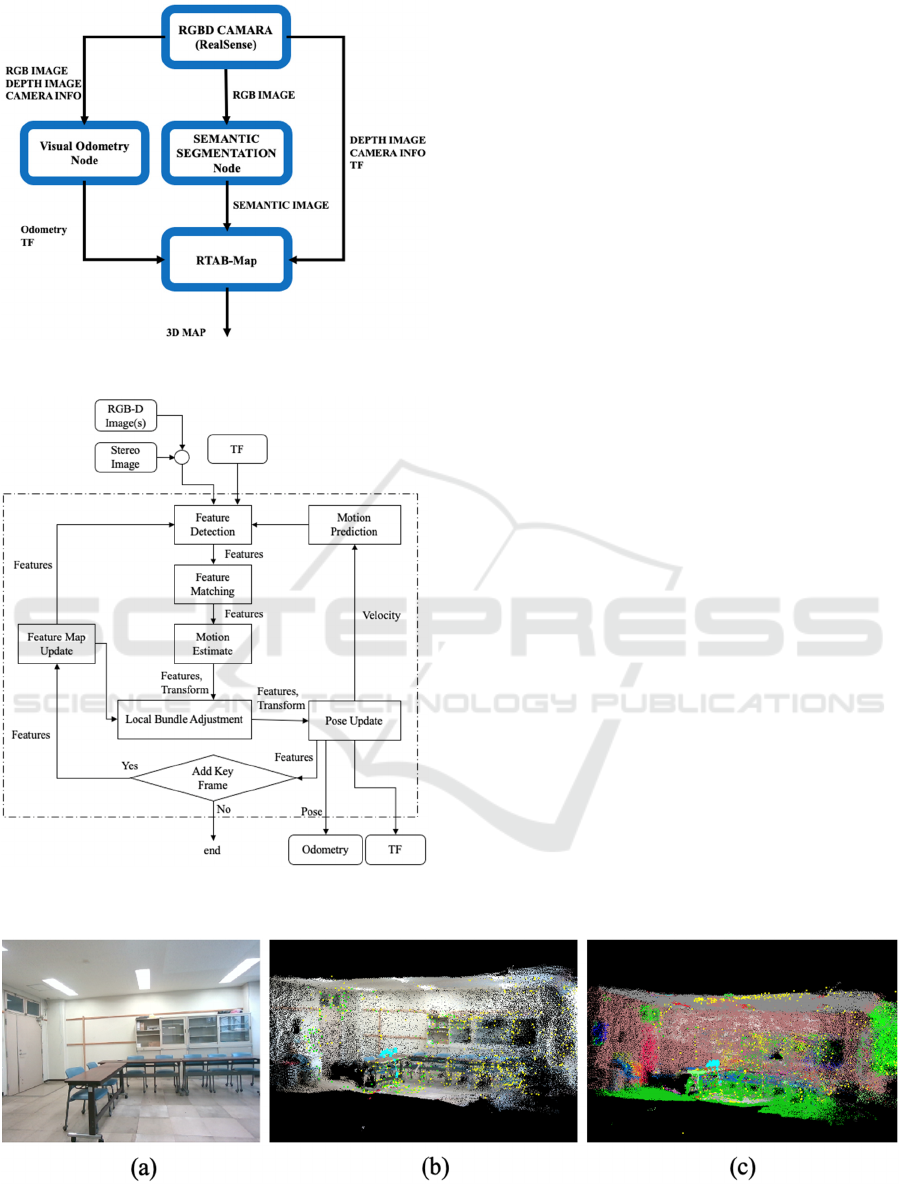

Figure 7: ROS composition used in the present study.

Figure 8: Visual odometry node schematic.

3.3 Shape and Appearance

Information Integration

In the present study, we constructed an internodal

communication system using the Robot Operating

System (ROS) composition shown schematically in

Fig. 7. For odometry input to RTAB-Map, we use

the visual odometry provided by the RTAB-Map

library, as shown schematically in Fig. 8.

The feature point is first extracted from the input

image (feature detection), after which the Binary

Robust Independent Elementary Features (BRIEF)

descriptor of the detected feature is then compared

with the feature map, and matched (feature

matching) by nearest-neighbor search.

When a corresponding point is computed, the

current rate of frame conversion on the feature map

is calculated (motion estimate) using Perspective-n-

Point (PnP) packaged with OpenCV. Finally, the

total number of key frame features on the feature

map is optimized (local bundle adjustment) with g

which is an open-source C++ framework for

optimizing graph-based nonlinear error functions,

and the odometry is updated (pose update).

The feature points extracted after input by the

visual odometry node are reused to generate the

image vector for loop closure detection at the

RTAB-Map main node. Next, a visual-based

odometry estimation and an RGB image-based loop

closure are performed. Here, it should be noted that

the semantic segmentation output image is only used

for 3D point group coloring and that all inputs to the

RTAB-Map nodes in the present study are unified at

30 FPS and synchronized completely using ROS

time stamps.

Figure 9: (a) Movement ascertainment environment, (b) pre-existent RTAB-Map output, (c) output of RTAB-Map labeled

with a semantic segmentation output image.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

746

4 MOVEMENT

ASCERTAINMENT

The proposed method was implemented with an Intel

RealSense D455 as the RGB-D camera. ADE20K was

used as the training data for semantic segmentation.

ADE20K provides images and pixel-level annotations

of various scenes and objects, and classifies 150 classes.

odometry of RTAB-Map. F2M provided by the library

was used. Figure 9 shows a room mapping result

produced via this method, and Fig. 10 shows the

mapping result produced by walking one lap around a

corridor (97.0m) and returning to the starting position.

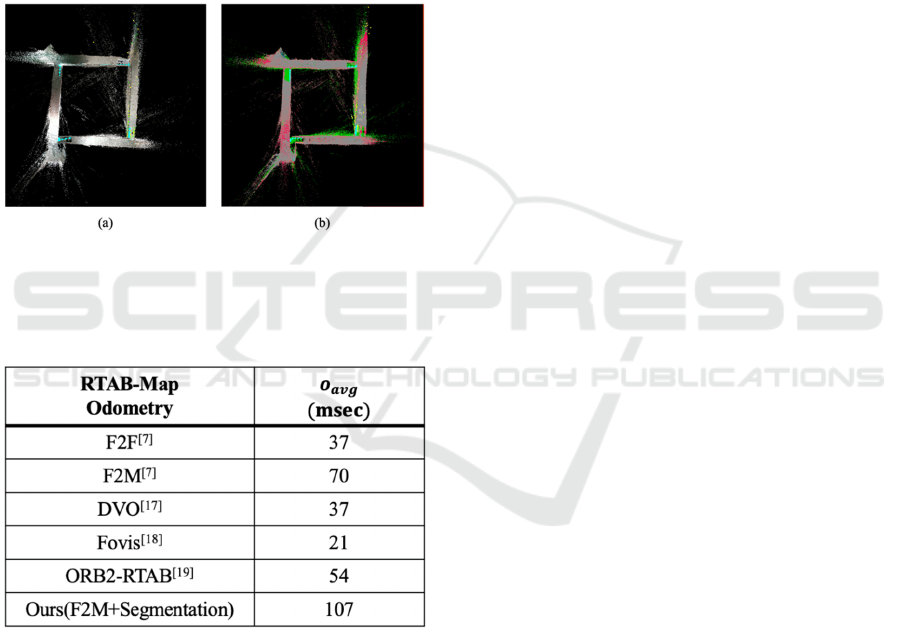

Figure 10: Output with loop closure detection: (a) pre-

existent RTAB-Map, (b) RTAB-Map output labeled with a

semantic segmentation output image.

Table 1: Processing speed in the odometry approach

The processing speeds of other odometry

approaches are shown in Table 1. Table 1 shows that

although the processing time of the proposed method

is longer (107msc) than that of the conventional F2M

method (70msc), the proposed method retains a

certain degree of real-time performance and

odometry is functional. Correct loop closure detection

by operation ascertainment of the proposed method

shown in Fig. 10 was also confirmed.

Comparison with Relevant Studies. The map point

group completed by the method proposed in Li et al.

was only semi-dense because its generation was

based on LSD-SLAM. In contrast, it was possible to

complete a high-density map in this study because it

was generated based on RTAB-Map formation.

Additionally, despite the large scale of the map, the

real-time function was well maintained as a result of

the mounted memory management function.

The method proposed by Mao et al. labels the

object detected by YOLOv2 on the 3D map generated

by RTAB-Map. In contrast, the present method

utilizes semantic segmentation rather than object

detection, and thus permits labeling of floor, ceiling,

wall, and other domains as well as content objects.

However, a problem remains, as the present study

confirmed the presence of 3D points with semantic

segmentation for objects yielding indistinct object

boundary demarcation, which can prevent correct

labeling.

When using the direct segmentation of 3D point

groups described in PointNet, as proposed by Qi et al,

it is difficult to distinguish between doors and walls

or other regions on a given plane. In contrast, the

present study confirmed that doors and walls could be

correctly distinguished using our proposed method,

as shown in Fig. 9(c).

5 CONCLUSION

Herein, we proposed a SLAM method that uses

labeled 3D point group data obtained using an RGB-

D camera and verified its operation. For generating a

labeled 3D map, we implemented BiSeNet real-time

semantic segmentation to perform classification in

2D images and used corresponding depth imaging to

label 3D point groups in RTAB-Map.

The use of RTAB-Map enabled long-term high-

precision Semantic SLAM, but when performing

object labeling, the inter-object boundaries were

sometimes indistinct, which could prevent correct

labeling. Accordingly, our future studies will focus on

enhancing semantic labeling while giving

consideration to edge information and 3D point group

clustering. It is also considered likely that higher

resolution could be gained by inputting semantic

segmentation output images in visual odometry and

by canceling feature points representing noise

extracted from mobile objects in odometric

estimations and loop closure detections. Furthermore,

we may also consider improvements to robot

navigable domain estimation and travel route

planning with the labeled 3D maps.

3D Map Generation with Shape and Appearance Information

747

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Number JP18H01463.

REFERENCES

Junji EGUCHI and Koichi OZAKI, “Extraction

Method of Travelable Area by Using of 3D-laser

Scanner - Development of Autonomous Mobile Robot

for Urban Area”, Transactions of the Society of

Instrument and Control Engineers, Vol52, No3,

152/159,2016.

Hideaki Suzuki, Akihisa Oya, Shinichi Yuda, “Obstacle

Avoidance of Mobile Robot Considering 3D Shape of

Environment”, Robomec , 1998.

X. Li and R. Belaroussi, “Semi-dense 3d semantic. mapping

from monocular slam”, Computer Vision and Pattern

Recognition, 2016.

W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed and

C. Y. Fu, et al, SSD: Single Shot MultiBox Detector.

European Conference on Computer Vision, Springer

International Publishing, 21–37, 2016.

Mingyuan Mao, Hewei Zhang, Simeng Li, and Baochang

Zhang, “SEMANTIC-RTAB-MAP (SRM): A semantic

SLAM system with CNNs on depth images”,

Mathematical Foundations of Computing, 2019.

R. Q. Charles, H. Su, K. Mo and L. J. Guibas, “Pointnet:

Deep learning on point sets for 3d classification and

segmentation”, IEEE Conference on Computer Vision

and Pattern Recognition, 2017.

M. Labbé and F. Michaud, “RTAB-Map as an Open-Source

Lidar and Visual SLAM Library for Large-Scale and

Long-Term Online Operation,” in Journal of Field

Robotics, vol. 36, no. 2, pp. 416–446, 2019.

M. Labbé and F. Michaud, “Long-term online multi-session

graph-based SPLAM with memory management,” in

Autonomous Robots, vol. 42, no. 6, pp. 1133-1150,

2018.

M. Labbé and F. Michaud, “Online Global Loop Closure

Detection for Large-Scale Multi-Session Graph-Based

SLAM,” in Proceedings of the IEEE/RSJ International

Conference on Intelligent Robots and Systems, 2014.

M. Labbé and F. Michaud, “Appearance-Based Loop

Closure Detection for Online Large-Scale and Long-

Term Operation,” in IEEE Transactions on Robotics,

vol. 29, no. 3, pp. 734-745, 2013.

M. Labbé and F. Michaud, “Memory management for real-

time appearance-based loop closure detection,” in

Proceedings of the IEEE/RSJ International Conference

on Intelligent Robots and Systems, pp. 1271–1276,

2011.

Changqian Yu et al, “BiSeNet: Bilateral segmentation

network for real-time semantic segmentation”,

European Conference on Computer Vision, pp. 325-341,

2018.

Chollet, F. “Xception: Deep Learning with Depthwise

Separable Convolutions”, IEEE Conference on

Computer Vision and Pattern Recognition, 2017.

Marius Cordts, Mohamed Omran, Sebastian Ramos, Timo

Rehfeld, Markus Enzweiler, Rodrigo Benenson, Uwe

Franke, Stefan Roth, and Bernt Schiele. “The cityscapes

dataset for semantic urban scene understanding”. In

Proceed- ings of the IEEE conference on computer

vision and pattern recognition, pages 3213–3223, 2016.

Kummerle, R., Grisetti, G., Strasdat, H., Konolige, K., and

Burgard, W. “g2o: A general framework for graph

optimization”. In Proceedings IEEE International

Conference on Robotics and Automation, pages 3607–

3613, 2011.

Bolei Zhou, Hang Zhao, Xavier Puig, Tete Xiao , Sanja

Fidler, Adela Barriuso and Antonio

Torralba, ”Semantic Understanding of Scenes through

the ADE20K Dataset”, International Journal on

Computer Vision , 2018.

Kerl, C., Sturm, J., and Cremers, D., “Dense visual SLAM

for RGB-D cameras”, In Proceedings IEEE/RSJ

International Conference on Intelligent Robots and

Systems, pages 2100–2106, 2013.

Huang, A. S., Bachrach, A., Henry, P., Krainin, M.,

Maturana, D., Fox, D., and Roy, N., “Visual odometry

and mapping for autonomous flight using an RGB-D

camera”, In Proceedings International Symposium on

Robotics Research, 2011.

Mur-Artal, R. and Tard ́os, J. D., “ORB-SLAM2: An open-

source SLAM system for monocular, stereo and RGB-

D cameras”, IEEE Transactions on Robotics,

33(5):1255–1262, 2017.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

748
