Experimental Security Analysis of Connected Pacemakers

Guillaume Bour

1 a

, Marie Elisabeth Gaup Moe

2 b

and Ravishankar Borgaonkar

1 c

SINTEF Digital, Strindvegen 4, Trondheim, Norway

Department of Information Security and Communication Technology,

NTNU - Norwegian University of Science and Technology, Trondheim, Norway

Keywords:

Pacemaker, Connected IMD, Medical Device, Cyber Security, Home Monitoring Device Security.

Abstract:

Medical devices and their connectivity capabilities are providing a variety of beneﬁts to the healthcare domain,

including remote monitoring, automated alerts, and improved patient outcomes. However, these medical

devices introduce a range of new potential cyber security risks when connected to the Internet, affecting

the patient or the healthcare infrastructure. In this paper, we systematically analyze the security issues of

connected pacemakers. In particular, we use a black box testing methodology against a commercial pacemaker

device and the network infrastructure. Our main objective is to understand how the data is sent from a bedside

monitor in the patient’s home to the backend server hosted by the pacemaker manufacturer, and whether or

not this data is protected from a cyber security perspective. To do so, we leveraged several hardware related

vulnerabilities found in the bedside monitor to obtain the ﬁrmware of the device and then reverse engineered

the proprietary communication protocol. We demonstrate how vulnerabilities in this protocol can be leveraged

to allow an attacker to perform a man-in-the-middle attack on the pacemaker.

1 INTRODUCTION

Implantable Medical Devices (IMD) in the form of

modern pacemakers are not a new medical innova-

tion but the evolution of technology from the ﬁfties

and sixties. In the seventies “on-demand” pacemak-

ers were developed that would sense the patient’s

cardiac activity and adjust the pacing to it. These

pacemakers could be remotely programmed through a

radio-frequency telemetry link. The ﬁrst pacemakers

driven by microprocessors appeared in the nineties.

These devices were able to detect cardiac events and

could adapt their internal pacing based on the pa-

tient’s needs. The ﬁrst connected pacemakers ap-

peared in the early 2000s, with the addition of an

external device that would connect wirelessly to the

pacemaker and upload its data to a remote server via

the Internet, thus reducing the need for patients to go

to the clinic for a check-up. Today, this remote con-

nectivity is getting more and more popular in use. An

external device, sometimes called a “bedside moni-

tor”, which we in this paper will refer to as the Home

Monitoring Unit (HMU), is used to gather the pace-

https://orcid.org/0000-0003-4456-6279

https://orcid.org/0000-0003-1786-1133

https://orcid.org/0000-0003-2874-3650

maker’s data and upload it to a remote server accessi-

ble to the clinician through a web interface.

Patients’ safety has always been a key priority

in medical devices. Pacemakers are built with “fail-

safe” modes which they will switch to in case some-

thing goes wrong with its programming, to keep the

pacemaker generating a constant pulse until the pa-

tient gets seen by a pacemaker technician that can re-

program the device.

Cyber security of medical devices, on the other

hand, has not been paid much attention by researchers

or publicly debated until the last decade. The health-

care domain is however not spared by cyber crimi-

nals, and attacks like the WannaCry ransomware that

struck the world in May 2017 has shown that hospitals

and medical devices are at risk for being infected via

collateral damage even if the attack was not speciﬁ-

cally targeted towards them, and that a cyber attack

can have a real impact on human lives.

Connected devices in the form of wearables like

the Apple Watch or the Fitbit have become increas-

ingly popular, and by extension, we are getting used

to having access to close to live data on our health.

This trend highlights the need for data protection

for all the devices that monitor our health, including

IMDs. Medical data is indeed an interesting target for

Bour, G., Moe, M. and Borgaonkar, R.

Experimental Security Analysis of Connected Pacemakers.

DOI: 10.5220/0010816900003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 1: BIODEVICES, pages 35-45

ISBN: 978-989-758-552-4; ISSN: 2184-4305

criminals, who can monetize it by selling it to other

criminals on underground forums. As detailed in an

article by Robbie Richards Richards (2015), “Crim-

inal attacks are now the number one cause of secu-

rity breaches in healthcare, increasing 125% since

2010.” With medical devices being more and more

connected, the attack surface is growing, and it is thus

important to design the devices with security in mind

and not to rely on “security by obscurity” or “bolt-

on security”, which tends to be often the case when

security comes as an afterthought.

Over the past three years, we have been analyz-

ing the security of the pacemaker ecosystem of one of

the main vendors on the market today. We looked at

three different generations of HMU devices and com-

pared their security to document the state-of-the-art

and to see how security implementation in these de-

vices evolved over time.

Our results suggest that, even if the overall secu-

rity of the devices has improved, the medical device

manufacturers are still lagging behind and fail to im-

plement some common security practices.

The paper is organized as follows. Section 2 pro-

vides the background of our work, including a de-

scription of the principle of the pacemaker and its

ecosystem, along with the interactions between its

different components. Here we also review the rel-

evant related work and the threat model used in our

research. In Section 3 we outline the methodology

used along with the setup used to perform the secu-

rity analysis. Section 4 presents our main ﬁndings,

from a hardware, network, and devices management

perspective. Section 5 provides a discussion of the re-

sults along with mitigations. Section 6 concludes the

paper.

2 BACKGROUND

2.1 The Pacemaker Ecosystem

Pacemakers and Implantable Cardioverter Deﬁbril-

lator (ICD) are active implantable medical devices,

which are deﬁned in the Norwegian regulatory frame-

work Justis- og beredskapsdepartementet, Helse- og

omsorgsdepartementet (2005) as “Any active medi-

cal device which is intended to be totally or partially

introduced, surgically or medically, into the human

body or by medical intervention into a natural oriﬁce,

and which is intended to remain after the procedure.”

Both pacemakers and ICDs are battery-powered de-

vices surgically implanted in a patient to treat a heart

related condition. They differ in the conditions they

are treating, as ICDs are not only capable of continu-

ous monitoring the heart rhythm and pacing the heart

with electrical pulses, but also to deliver an electrical

shock to the heart if required. In this paper, because

both ICDs and pacemakers are similar devices from

the cyber security point of view, they will both be re-

ferred to as pacemakers.

Pacemakers are constructed to last for around 10

years varying on their usage, before having to be re-

placed due to the battery running out. The devices

are able to deliver pacing when required and in a

way that is adapted to each patient. This means that

the clinician needs a way to program the device in a

non-invasive way for the patient. As previously men-

tioned, a RF-telemetry link was introduced to the de-

vices in the 70s to program some parameters in the

pacemaker. Since then, pacemakers have evolved into

complex embedded devices, driven by a microcon-

troller. Once implanted, they are not standalone de-

vices which are left there for ten years waiting to be

replaced, but take place in an ecosystem that allows

for monitoring the devices and also the patients’ con-

dition.

The Home Monitoring Unit is an example of a

communication device that enables this remote reg-

ular monitoring by connecting wirelessly to the pace-

maker, reading and transmitting data from it. Figure 1

presents the pacemaker ecosystem.

Vendor’s servers

Doctor

Programmer

HMU

Pacemaker

Patient

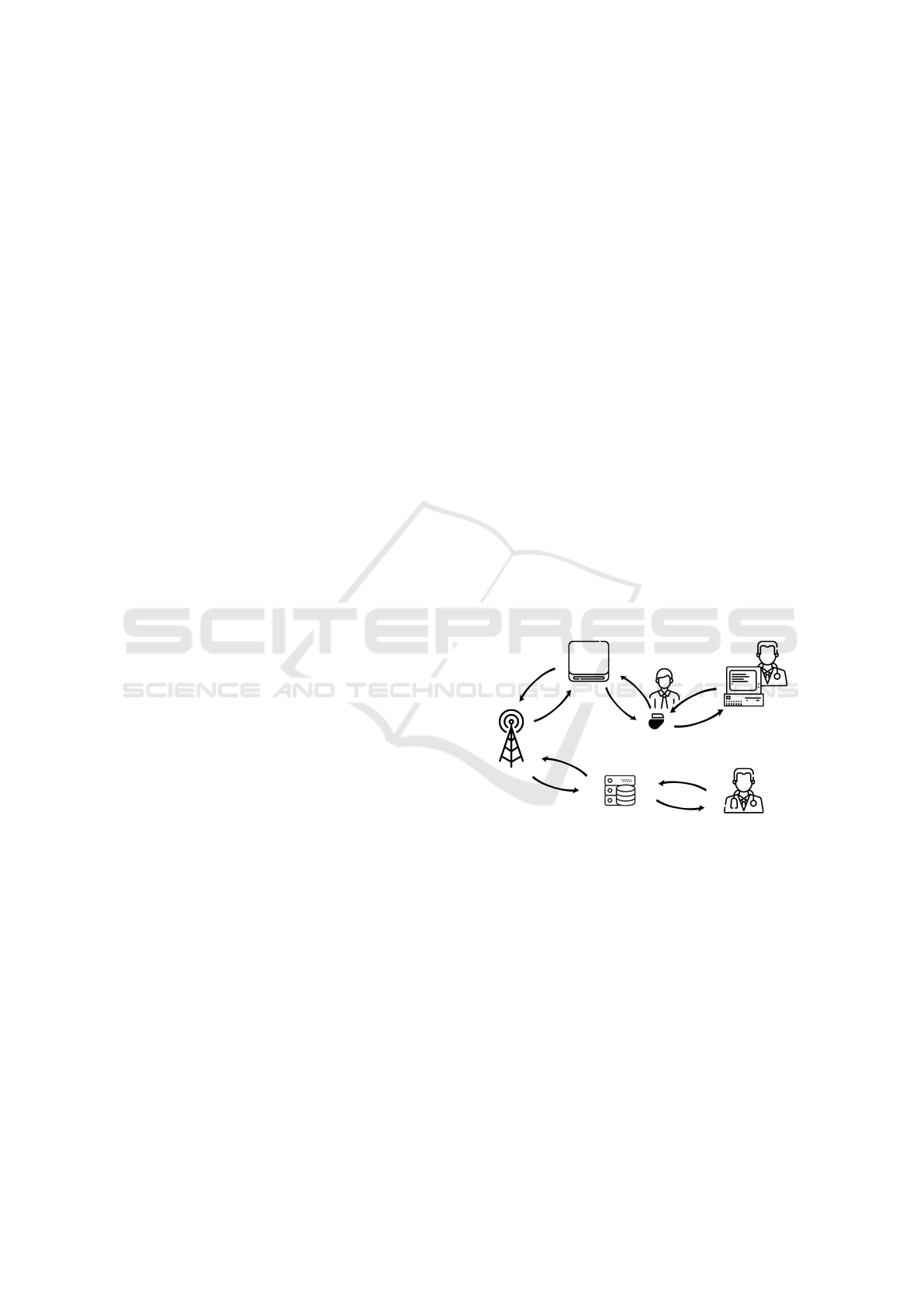

Figure 1: Diagram of the vendor’s pacemaker ecosys-

tem Bour (2019).

The Pacemaker. Implanted in the patient’s body,

this is the main device of the ecosystem. As already

explained, it generates an electric impulse that helps

regulate the heart rhythm.

The Programmer. The programmer is an external

computer used by a clinician to program the pace-

maker. Programming the pacemaker is achieved wire-

lessly by placing the programming head of the pro-

grammer in close proximity of the pacemaker. While

old pacemakers used to communicate with the pro-

grammer over the 175 kHz band, newer ones tend to

use 402-405 MHz Medical Implant Communications

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

(MICS) band Savci et al. (2005). The communica-

tion of the pacemaker with the programmer is trig-

gered by applying a magnetic ﬁeld on the implant,

causing a magnetic switch inside it to close Halperin

et al. (2008). This magnetic ﬁeld is emitted by the

programming head. It is to be noted that pacemakers

from different vendors require different programmers

due to differences in communication protocols, and

that a programmer of a speciﬁc vendor usually sup-

ports several pacemakers/ICD devices from the same

vendor.

The Home Monitoring Unit. The HMU is a router-

like device in charge of collecting telemetry data from

the implant and transmit it. The device is paired with a

pacemaker, placed in the patient’s home and receives

the data sent by the pacemaker at a pre-conﬁgured

time (for instance every night at 2:00). The HMU also

communicates with the pacemaker over the 402-405

MICS band, which allows for longer range communi-

cations than the 175 kHz band. This data is then sent

to a backend server, usually owned by the pacemaker

manufacturers. Similarly to the programmer, pace-

makers from different manufacturers requires differ-

ent HMUs. Some newer pacemakers communicate

over Bluetooth Low Energy with an app installed on

the patient’s smartphone, eliminating the need for an

external HMU device.

The Operator’s Network. In order to transmit the

data to the backend server, the HMU needs connectiv-

ity. To achieve that without having to rely on patients’

internet connection and also for ease of use, manufac-

turers usually have contracts with Telecom operators.

That way, the HMUs are shipped with a SIM card to

access the GSM or 3G networks, or with access to

the internet through telephone lines for older versions.

The HMU either connects directly to the server which

is exposed on the public Internet or connects to a Vir-

tual Private Mobile Network (VPMN) which gives it

access to the server. This implementation varies with

vendors.

Vendor’s Backend Infrastructure. This infrastruc-

ture is used to receive data sent by the HMU, process

it and make it accessible to the clinician through an

online platform. Alerts may also be triggered if some-

thing looks irregular, for instance, if no data has been

uploaded in a while for a given HMU, or if there is a

problem with the patient’s condition. This allows the

clinician to call in the patient for a follow-up checkup

if necessary.

2.2 Pacemaker Security Related

Research

While wireless communication technology has been

a feature of pacemakers since the seventies, security

researchers have only been taking an interest in this

topic for around 15 years. In 2008, Halperin et al.

published the ﬁrst research paper describing a security

attack against a commercial pacemaker Halperin et al.

(2008). Their research targeted the communication

between the pacemaker and its programmer. Using

Software-Deﬁned-Radio (SDR), they partially reverse

engineered the communication protocol in use and,

with that knowledge, were able not only to eavesdrop

and decode the communication, but also to perform

data replay attacks. They were able to interrogate the

pacemaker to reveal the patient’s data containing per-

sonal information such as patient’s name, diagnosis,

etc. They were also able to change parameters of the

pacemaker, such as the patient’s name, implantation

date, or even therapies (that includes turning off all

therapies). Finally, and more frightening, they were

able to trigger a shock on the ICD, which could have

fatal consequences on a real patient if delivered at an

inappropriate time. They thus highlighted the sever-

ity of the lack of security mechanisms for implantable

medical devices.

In more recent research from 2016, Marin et al.

carried out similar research on the latest generation of

pacemakers Marin et al. (2016). Their research high-

lights several weaknesses in the communication pro-

tocol and shows that a weak adversary can perform

attacks even with low capabilities. Three kinds of

attacks were performed. First, the researchers man-

aged to access private patient information from the

telemetry information, even though some obfuscation

technique was done by the manufacturer. Secondly,

they performed Denial-of-Service attacks. By keep-

ing the device in “interrogation” mode, they were able

to send messages to the device over a long-range com-

munication channel and thus drastically reduce the

implant battery life. Finally, they found that there is

no mechanism against replay attacks and that an ad-

versary without any knowledge of the protocol could

simply replay captured messages and spoof the pro-

grammer.

A report exposing vulnerabilities in the pacemak-

ers and HMUs manufactured by St. Jude (now Ab-

bot) was published by Muddy Waters Capital LLC

in 2016 Block (2016). Amongst the vulnerabilities

that were presented was a way to perform a battery-

draining attack on the pacemakers or forcing them to

pace at a rhythm that would be potentially fatal for the

patient. These attacks were carried out by ﬁrst com-

Experimental Security Analysis of Connected Pacemakers

promising the HMU, which was then used to attack

the pacemaker. Even if no attack has been publicly

reported exploiting these vulnerabilities, the disclo-

sure of this report had a potentially severe impact on

the 260 000 HMUs deployed in patients’ homes at the

time. As a result, the vendor issued a ﬁrmware update

at the beginning of 2017 to mitigate the vulnerabili-

ties.

In 2017, Rios and Butts evaluated the security

of the pacemaker ecosystems of the four major ven-

dors Rios and Butts (2017). They presented several

weaknesses, in the programmers, the pacemaker im-

plants, and the HMUs. Weaknesses include vulner-

able third-party software, lack of authentication be-

tween devices, unencrypted ﬁlesystems and ﬁrmware,

removable hard-drives, and unsigned ﬁrmware. The

conclusion is that the whole industry is quite imma-

ture in terms of cyber security. They highlight that

this is not only the case for one unique vendor but

that all vendors are impacted.

2.3 Threat Model

In this paper, we aim at understanding the evolution

of the security measures in the pacemaker ecosystem

and to evaluate its current maturity. In our research,

we have considered two classes of adversaries:

With Physical Access to an HMU. It is possible to

buy these devices online, sometimes at the low price

range of $20 - $50. Since these are much easier to

obtain (compared to a programmer), one can afford to

experiment with them without the fear of breaking an

expensive device.

Capable of Setting up a Fake Base Station (FBS).

Such an attacker has access to Software Deﬁned Ra-

dio equipment, which is also affordable. The HackRF

One

manufactured by Great Scott Gadgets costs

around $350.

The two main assets that we want to look at in

this research are the patient’s safety and privacy. As a

consequence, we study the impact of different attacks

on the patient’s treatment and how it could be inter-

fered with, directly or indirectly. Regarding the pa-

tient’s privacy, we look at what attacks would enable

an attacker to access any kind of private data about

the patient.

As mentioned in the introduction of this paper,

motivations to attack the pacemaker ecosystem vary.

Attacks against the patients’ privacy are mostly driven

by ﬁnancial motives, in order to monetize the medical

data on the black market. These attacks can have a

big impact if they can be leveraged at a large scale.

See https://greatscottgadgets.com/hackrf/

Safety related attacks could also be motivated by ﬁ-

nancial proﬁt, for example we can imagine that an

adversary could leverage a vulnerability in an extor-

tion attempt by threatening a patient or maybe even

a medical device manufacturer asking for a ransom.

Targeted attacks against a single individual in order

to harm or kill are less likely, except if it is a person

of high interest. In both cases, one can imagine that

we are facing organized crime or a nation-state threat

actor. However, we cannot exclude single opportunis-

tic attackers.

3 METHODOLOGY AND

EXPERIMENTAL

ENVIRONMENT

3.1 Black Box Testing Methodology and

Target

Our research focused on the Home Monitoring Unit,

more speciﬁcally, two main attack vectors were stud-

ied: physical and network. In both cases, a black box

testing methodology was followed, as the tested com-

ponents were proprietary hardware and software of

which we had very little knowledge. In order to be

as close to a real-world scenario as possible, we used

commercial off-the-shelf (COTS) equipment when-

ever possible, and tried to keep the cost of an attack

as low as possible.

The targeted devices from our lab were acquired

second hand and are all BIOTRONIK’s devices. This

manufacturer was chosen because no prior security

research had been published for this particular pace-

maker brand, and no known vulnerabilities had previ-

ously been disclosed for its devices. Devices in our

research project include three different generations of

the HMU:

V1: From the early 2000, one of the ﬁrst HMUs on

the market, using the GSM network for connec-

tivity. This version is not used anymore.

V2: From the 2010s, in two models: one using the

plain old telephone service for its connectivity, the

other one using the GSM network. This version is

not commercially available anymore, but is still in

use.

V3: From 2016, using the 3G network. This is the

current commercially available version.

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

3.2 Testing Setups

To perform hardware testing, as previously men-

tioned, we used a combination of several COTS

equipment: The shikra to interface with low-level

data interfaces via USB, a logic analyzer (useful to

detect non standard baud rate), the JTAGulator to

identify the pinout of the JTAG interface (it does so

by trying all possible permutations). Once the pins

were known, we used a Raspberry Pi zero as our

UART/JTAG/SPI connector.

From a network perspective, we used two different

setups:

• We developed a modem emulator to interact with

the Telephone Line version of the HMU (V2).

• A Fake Base Station (based on OpenBTS) to in-

teract with the GSM (V2) and 3G (V3) versions

of the HMUs. In addition, a network jammer was

used to prevent the HMU from connecting via the

3G network, forcing a so-called downgrade at-

tack. A virtual machine was set up to emulate the

backend server of the manufacturer (as shown in

Figure 2).

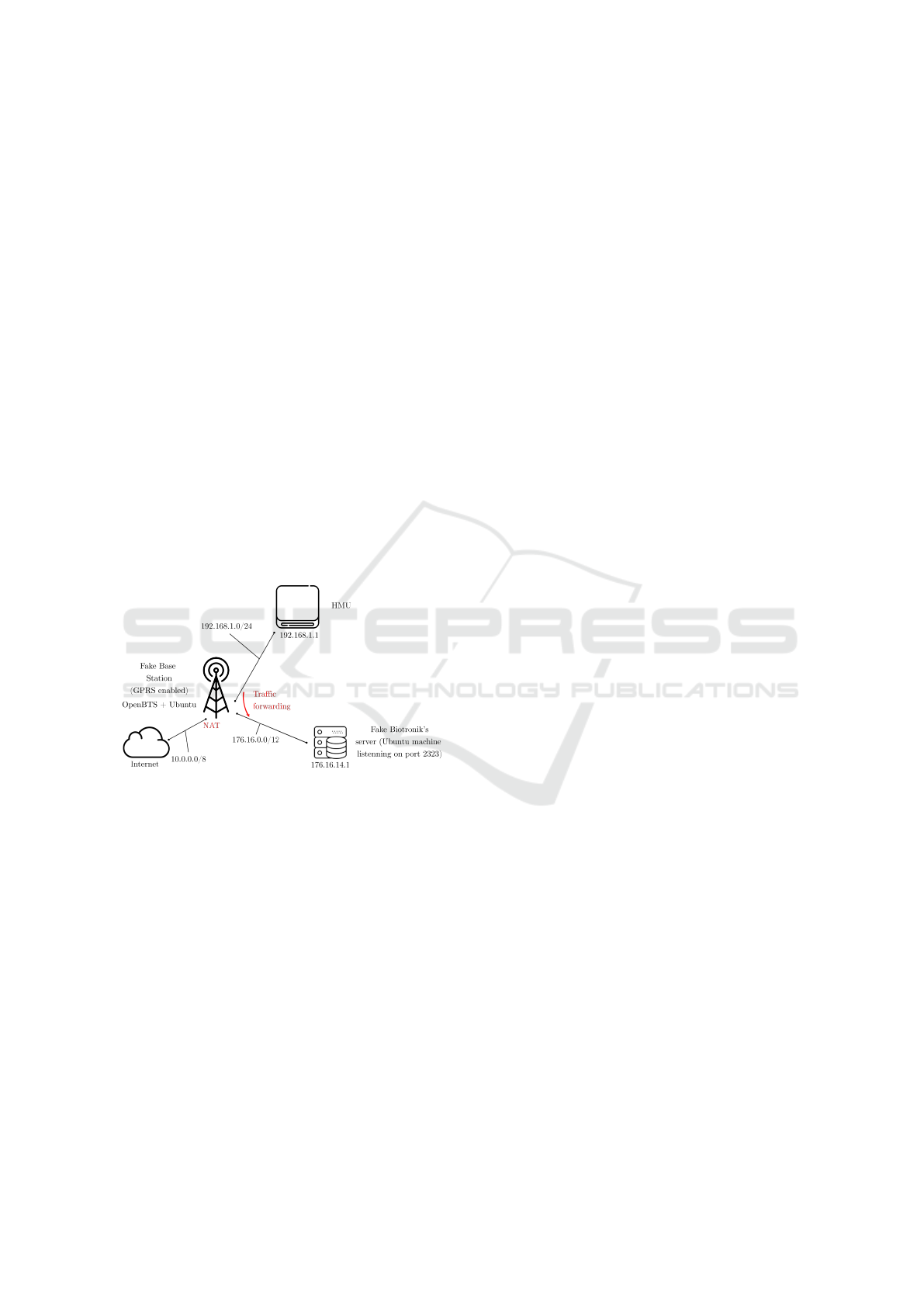

Figure 2: Network diagram of the emulated network.

3.3 Ethical Considerations

Given that the devices available in our lab have been

acquired on the second-hand market, and that some

of them were not new, they could have contained po-

tentially sensitive data. This data has been systemati-

cally redacted from this paper and from previous pub-

lications. The Norwegian Centre for Research Data

(NSD) was notiﬁed at the beginning of our project,

and approved our patient data protection plan.

As the vulnerabilities discovered in the pacemaker

ecosystem during our research could have had a po-

tential impact on patients’ safety and security, our

ﬁndings were kept under embargo for one year. Dur-

ing this time the research ﬁndings were shared with

the vendor (BIOTRONIK) in the form of a vulnera-

bility report. The vendor cooperated according to a

coordinated vulnerability disclosure process and ap-

propriately analyzed and validated our report. They

then shared their responses to each reported vulner-

ability, and we discussed each point in detail. Dur-

ing these discussions, they also provided sufﬁcient in-

formation to conﬁrm that patient harm arising from

the vulnerabilities is very unlikely. BIOTRONIK rec-

ommends that healthcare providers and patients con-

tinue to use the investigated devices as intended and

follow device labelling. The coordinated vulnerabil-

ity disclosure process also involved the German Fed-

eral Ofﬁce for Information Security (BSI), the Ger-

man Federal Institute for Drugs and Medical Devices

(BfArM), the US Cyber Security and Infrastructure

Security Agency (CISA) and the US Food and Drug

Administration (FDA). As a result of this process,

CISA issued an advisory CISA (2020).

4 SECURITY ANALYSIS OF THE

HMU

Our main objective with this project was to better

understand how the data is sent from the HMU to

the vendor’s backend servers, what kind of vulnera-

bilities exist on this part of the ecosystem and how

they could be exploited to potentially impact patient’s

safety and/or privacy. In the following sections, we

explore two classes of attack: the ﬁrst focuses on

exploiting hardware vulnerabilities to compromise a

Home Monitoring Unit, and the second on how an

attacker can exploit vulnerabilities on the home mon-

itoring unit to gain access to the backend infrastruc-

ture.

4.1 Hardware Security Analysis

During the hardware analysis, we found several vul-

nerabilities:

Debug Interfaces Available. On all HMU versions

analyzed, we were able to discover the UART and

JTAG interfaces. On versions 1 and 2 the pins were

not labelled, making it harder to determine the JTAG

interface. On the latest version, however, pins were

labelled. On all versions, the UART interface seemed

disabled, and it was not possible to interact with it.

The JTAG interface on the other hand was enabled

and it is possible to fully control the microcontroller

using it. That includes dumping the contents of the

Random Access Memory (RAM) as well as the Flash

Memory, which gave access to the ﬁrmware of the de-

vice.

Experimental Security Analysis of Connected Pacemakers

Credentials Are Sent in Clear Text to the Modem.

When analyzing the version 2 of the HMU, we were

able to eavesdrop the communication between the

microcontroller and the modem as the pins of the

modem were exposed on the PCB. This allowed us

to get access to the credentials used by the device to

connect to the manufacturer’s Virtual Private Mobile

Network (VPMN), since these were sent in clear text.

Firmware Is Not Encrypted, Nor Obfuscated.

Once the ﬁrmware was dumped via the JTAG in-

terface, reverse-engineering revealed that it was not

encrypted or protected in any way. There was no

trace of obfuscation of the code. On the contrary,

log strings used by the device were explicit enough

to ease the process of reverse engineering. This

made it possible to create a script to easily fetch the

credentials previously acquired via eavesdropping

on the communication channel directly from the

ﬁrmware, along with other credentials used by the

device to connect to the backend server hosted by the

manufacturer.

Memory Is Not Encrypted. The memory is not en-

crypted either, meaning that anyone with physical ac-

cess to the HMU can copy it via the JTAG interface

and access the data going through the HMU, includ-

ing the patient’s data.

Hard-coded Credentials and Cryptographic Keys.

The credentials used by the devices to connect to

the network and backend servers are hard-coded and

stays the same for each connection attempt, we ob-

served however that they are unique for every device

(two different HMUs will use different credentials).

On the latest version they are stored on the external

ﬂash which is not encrypted and whose content can

be read via the Serial Peripheral Interface (SPI).

Cryptographic material such as DES and AES keys

used in the proprietary protocol is also stored in a

similar way.

Unencrypted Communication with the Pacemaker.

Even though we have not done exhaustive research

at this interface due to limited access to working

compatible pacemakers in our lab, we found that

there is no encryption of the data exchanged between

the pacemaker and the HMU. That means that

attackers who can intercept the radio signal from the

pacemaker (the radio band is already known) can also

access the patient’s data.

Leveraging the hardware vulnerabilities exposed

above and the raw network data obtained through

the modem and server spooﬁng, we were able to re-

verse engineer the proprietary communication proto-

col used by the HMU to send the pacemaker data to

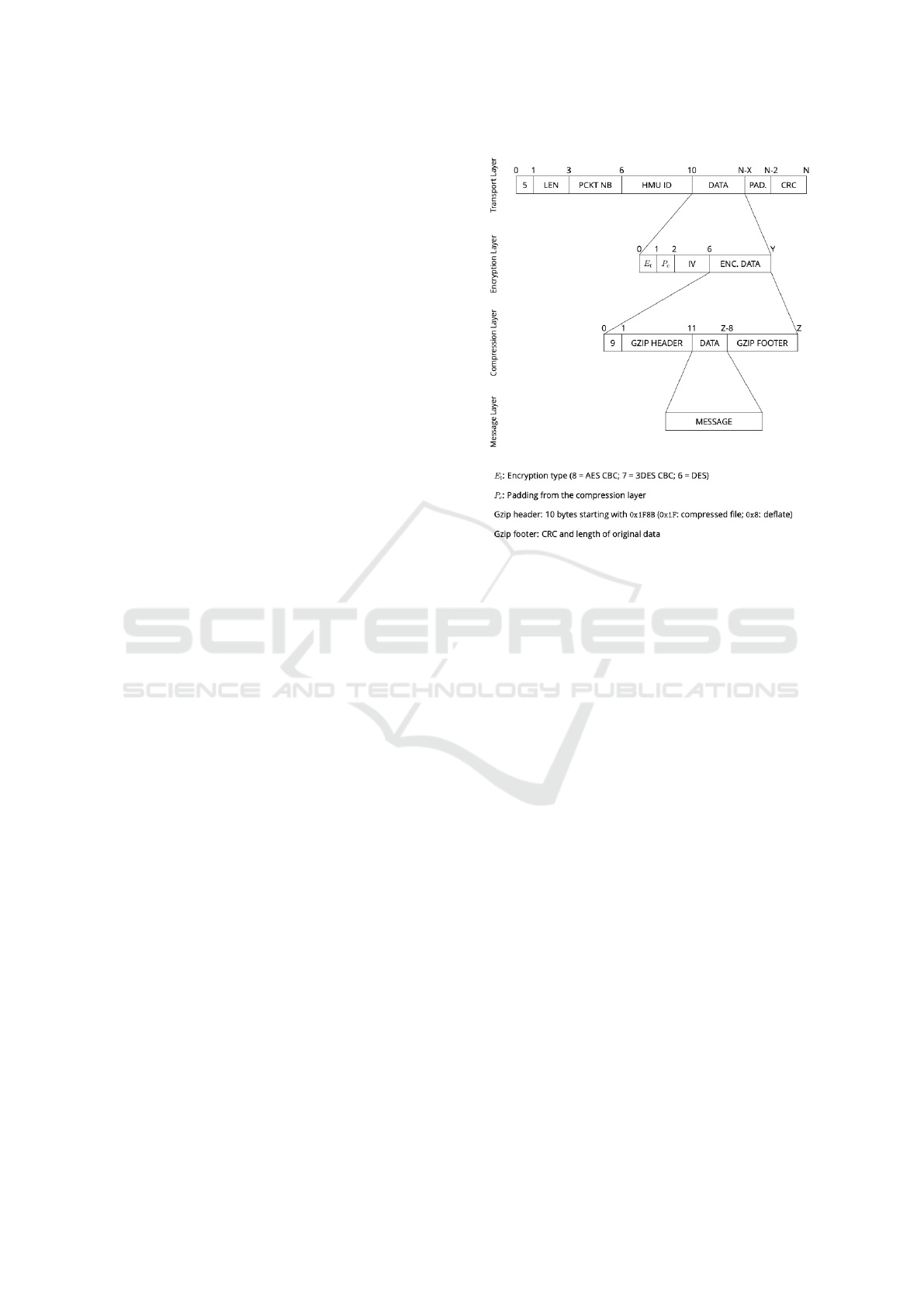

Figure 3: Structure of the communication protocol’s packet.

the backend server. The detailed structure of a data

packet is presented in Figure 3.

4.2 Network Security Analysis

When analyzing the security of the communication

link between the HMU and the backend server, we

identiﬁed several weaknesses in the communication

protocol.

No Mutual Authentication. We were able to spoof

the backend server and trick the HMU into sending

its data to us, highlighting the lack of mutual authen-

tication between the backend server and the HMU on

the ﬁrst two versions. We did so at two different lev-

els: ﬁrst at the modem level on the Telephone line

version, where we spoofed both the modem and the

backend server, and at the network level, where we

used a virtual machine, connected to the same net-

work as our OpenBTS machine, with the proper IP

address requested by the HMU, to respond to the TCP

request of the HMU (see Figure 2). The data obtained

was encrypted for the most part. However, credentials

to connect to the service were sent in cleartext before

switching to the encrypted communication.

Usage of a Proprietary Protocol over an Insecure

Transport Protocol. The version 2 and 3 of the

HMU use both GPRS and SMS to send data. On

both channels, the data is sent using the proprietary

protocol presented in section 4.1 on top of TCP. This

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

protocol packs, compresses (when using GPRS) and

encrypts the data.

Broken or Risky Algorithm. In the case of patient

data, the proprietary protocol uses AES CBC as the

encryption algorithm, however single DES is used in

the case of log data going over SMS. DES is a broken

algorithm from a security perspective, and log data

can thus easily be obtained by an attacker that is able

to set up a Fake Base Station in the proximity of the

HMU. An attacker having had physical access once

to the HMU can also perform the same attack on pa-

tient data by getting hold of the AES key. The keys

(AES and DES) were however random and unique per

device.

Credentials Reuse. The credentials used to connect

the VPMN and the backend services are the same and

are sent unencrypted in both cases. They are thus very

easy to obtain.

By chaining several of the vulnerabilities, we were

able to weaponize the second version of the HMU.

With physical access to the device, an attacker can in-

stall a physical device with a wireless communication

interface inside of it (the inside of the HMU casing is

big enough to add a RaspberryPi zero), and that way

gain remote access to the device. This allows an at-

tacker to not only eavesdrop on all communications

between the HMU and the backend server, but also

to act as a Man-in-the-Middle, the proprietary pro-

tocol being known. Such an adversary can also get

access to all the data sent by the pacemaker to the

HMU. This would enable an attacker to modify the

pacemaker telemetry data in order to hide a possible

problem, or to create a problem by deleting or modi-

fying pacemaker alerts and warnings that were meant

to be sent to the backend server.

4.3 Credentials & SIM Cards Validity

The HMU has two sets of credentials: the ﬁrst to

connect to the network and access the manufacturer

VPMN; the second to connect to the service on the

backend server. To verify the validity of the creden-

tials, we used them on a phone with the HMU SIM

card and manually entered the settings in order to con-

nect to the VPMN. However, when using the version

2 HMU’s SIM card, we were unable to connect be-

cause the SIM card was not valid anymore.

It turned out that using a SIM card from an old

ﬁrst version HMU on a newer second version HMU

worked: we were able to connect to the VPMN and

obtain an IP address inside the VPMN. To ensure we

were in the right network, a successful ping request

was sent to the server hosting the telemetry collection

service. No other testing was performed as this was

outside of our research scope and could potentially

interfere with the manufacturer’s service.

The VPMN is an additional security measure,

even if this is not its main purpose. It prevents the

patient data telemetry servers from being publicly ex-

posed to the Internet, something that for instance pro-

tects against Denial-of-Service attacks. However, as

shown in our research this protection can be bypassed

by an attacker who acquires an old device with a valid

SIM card, highlighting the need for proper decommis-

sioning procedures for old devices.

4.4 Attack Scenarios

In this subsection, we will describe two attack scenar-

ios against the HMU and more generally against the

whole pacemaker ecosystem. Figure 4 and 5 present

the attack trees for these scenarios. Arrows indicate a

requirement. An arc between several arrows indicates

an “AND” condition while single arrows indicate an

“OR” condition.

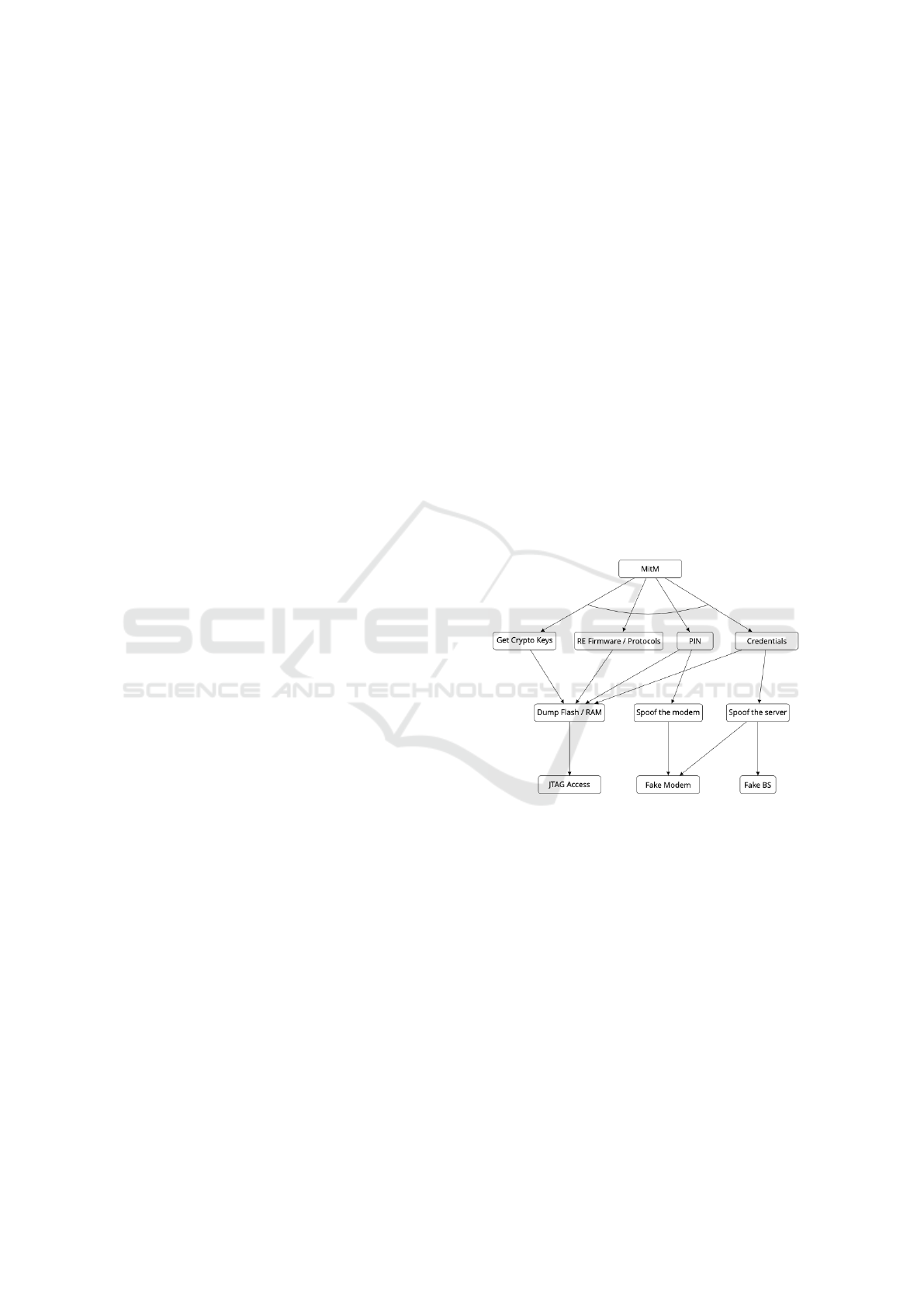

Figure 4: Attack tree for the “MitM” scenario.

The ﬁrst scenario is the Man in the Middle pre-

sented in Figure 4. Given the vulnerabilities described

earlier, an attacker can spoof the identity of the HMU

for the backend server and vice-versa. This means

that an adversary can have full control over the in-

formation that is sent between these two entities. In

order to target a patient an attacker could for instance

constantly send good reports, suppressing any alerts

or warnings from the pacemaker. This could trick a

clinician into thinking that the patient is doing great

while in reality, the patient might be in urgent need of

a check-up, for example, due to the pacemaker battery

running out. Having an HMU would thus be more

dangerous than having no home monitoring enabled,

due to a false sense of security and potentially fewer

clinic visits.

Experimental Security Analysis of Connected Pacemakers

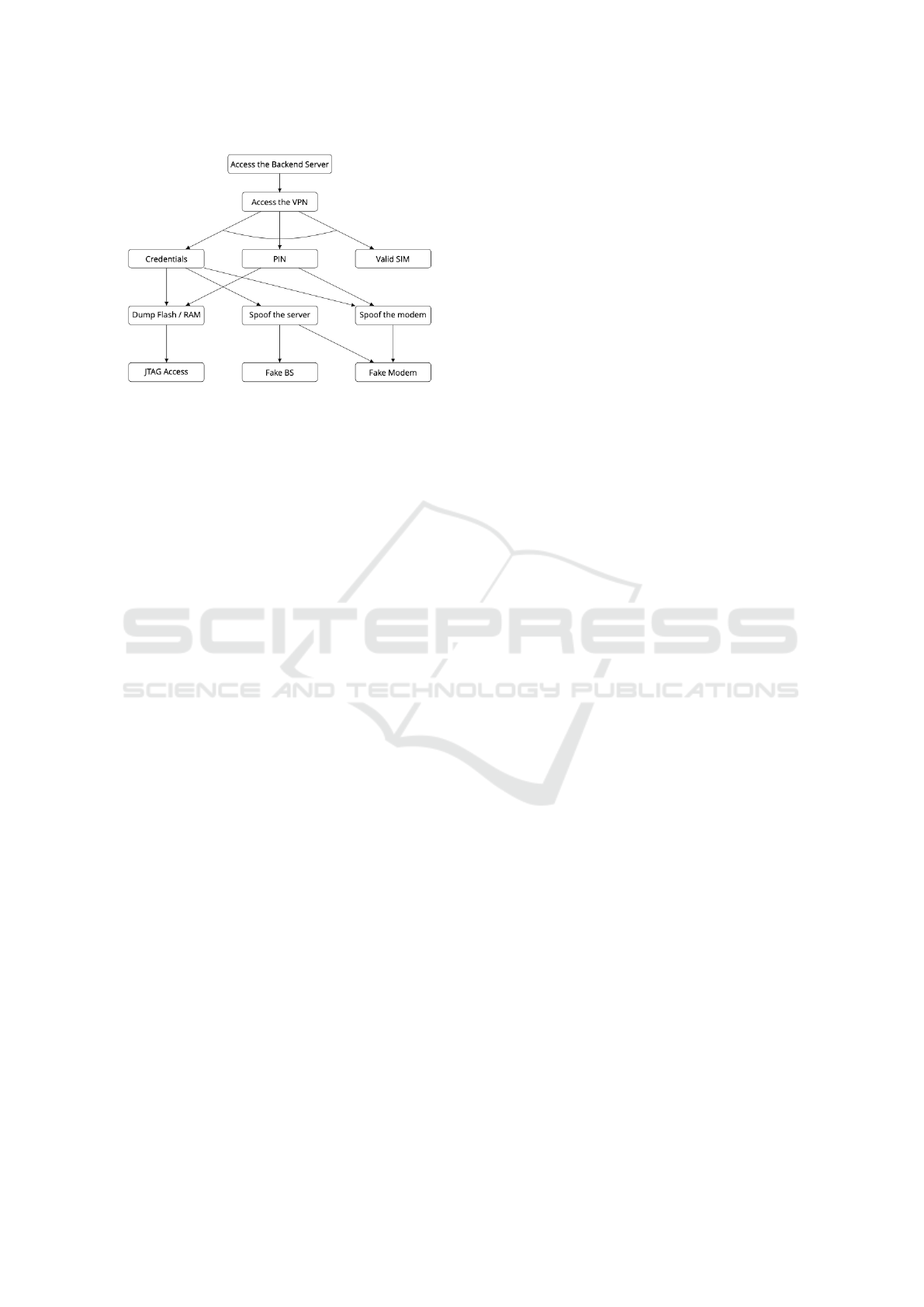

Figure 5: Attack tree for the “Unauthorized access to the

backend server” scenario.

The second scenario can be described as Unautho-

rized access to the backend server and is presented in

Figure 5. We believe that this is possible with both

versions of the HMU, given that the attacker can ac-

cess credentials that are still valid. The attack tree is

only showing the GSM attack tree, the attack tree for

the T-Line would be similar but easier since it only

requires a working telephone line and no valid PIN

or SIM. If an attacker can access the Virtual Private

Network (VPN) with their computer using the cre-

dentials of the HMU, they would have direct access

to the backend server (and all machines that reside in

the same private network unless proper network seg-

mentation with security monitoring is in place). If any

of these machines are compromised, the result could

be a signiﬁcant data leak of personal data. Second-

hand HMUs can be bought for a very low price on the

internet, some come with their SIM cards still valid as

we have demonstrated in our research, thus enabling

an attacker to perform such an attack.

5 DISCUSSION

5.1 Results from the Security Analysis

Our research conﬁrms what was highlighted by Rios

and Butts: the industry is overall still quite immature

when it comes to cybersecurity Rios and Butts (2017).

Indeed, from a hardware point of view, an attacker

with physical access to a device can easily get access

to patients’ data with no need for extensive knowledge

or expensive equipment. From our observations, best

security practices were not applied when it comes to

hardware security given our ﬁndings of vulnerabilities

that can all be described as commonly found in em-

bedded devices. From a network perspective, several

weaknesses have been identiﬁed in the protocol that

is used by the HMU to communicate with the back-

end server, such as the credentials sent in clear text

over TCP, the usage of a weak cipher to send data us-

ing SMS or the lack of mutual authentication in the

second version of the HMU.

On balance, it is also important to highlight

that there is a notable evolution in terms of secu-

rity between the versions. The latest version of the

HMU seems to implement mutual authentication and

stronger cryptographic ciphers than the previous ver-

sions. We can also point out that even though the

second version has been found to have several weak-

nesses and vulnerabilities, the telemetry data was al-

ready encrypted using AES CBC with the keys being

randomly generated and unique per device.

5.2 On the Trade-offs in the Medical

Industry

When designing IMDs, there are several security ob-

jectives to have in mind. These are the regular six

following properties: Conﬁdentiality, Integrity, Avail-

ability, Non-repudiation, Authorization and Authen-

tication. One also needs to consider the two modes

under which these security properties have to be

respected: normal operation mode and emergency

mode. In the normal operation mode, the patient is in

a state where it is reasonable to assume strict control

of which devices can interact with the IMD, and it is

feasible to implement strong access control, through

the mean of cryptographic protocols for instance. Ca-

mara et al. explain that ideally, the device should not

be detectable by unauthorized parties in this mode,

and should “ignore data requests or device repro-

gramming commands” Camara et al. (2015). In emer-

gency mode, even though the previously mentioned

security objectives are important, it is vital that the

device be accessible, for example if the patient is to

undergo an emergency procedure for which the pace-

maker must be deactivated.

It is thus a challenge for manufacturers to develop

devices that fulﬁll all these characteristics. Zheng et

al. highlight the trade-offs that come with the pace-

maker ecosystem Zheng et al. (2017). The ﬁrst one

is related to the emergency mode: security vs acces-

sibility. Indeed, the pacemaker purpose is to save

the patient’s life and should not be an obstacle dur-

ing an emergency surgery. The second trade-off is,

emergency access vs secure checkup access. Secur-

ing the regular access while having an emergency ac-

cess, which is almost like a security backdoor, is a

challenge, especially when one must also take into

account the battery life of the device. This leads to

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

the third trade-off which is limited resources vs strong

cryptography. Indeed, to secure the device, one need

to implement strong cryptography which require in-

tense processing power, this conﬂicts with the with

low power capabilities and the long battery life time

required by the implanted devices. This can even be

abused by an attacker that launches Denial of Service

(DoS) attacks in the form of constant wireless com-

munication requests to draw the device battery, lead-

ing to a premature pacemaker battery depletion which

requires surgery and thus setting the patient’s life at

higher risk from complications.

5.3 Mitigations & Defense Mechanisms

As mentioned in the previous section, building safe

and secure medical devices means facing several

trade-offs. Several solutions have been proposed to

solve the problem of having a secure access to the de-

vice while allowing access in emergency situations.

Zheng et al. wrote a review Zheng et al. (2016) of the

different mechanisms that could be used:

External Proxy-based Solutions. This idea was ﬁrst

proposed by Denning et al., and consists, as the name

indicates, in having an external device called the

Communication Cloakers to protect the implant Den-

ning et al. (2008). This external device is caried by the

patient and protects the implant from attacks in the

everyday life. In an emergency situation, when the

clinician doesn’t have access to the distributed key,

they can simply remove the proxy. However, this also

means that if patients forget or lose their proxy device,

their implant becomes vulnerable to attacks again.

Biometric-based Access Control. This type of solu-

tions uses patients’ biometric features in order to pro-

vide access. For instance, the Heart-to-Heart (H2H)

scheme Rostami et al. (2013) makes sure that the

pacemaker can only be accessed by a programmer in

physical contact with the patient by using ECG sig-

nals to generate the crypto material to establish a se-

cure wireless communication. Other solutions might

use different biometric features, such as ﬁngerprints,

iris or even voice Zheng et al. (2018).

Proximity-based Security Schemes. In these

schemes, the proximity of the device is used to

determine whether or not a functionality is available.

For instance, changing the device settings, which

is a critical operation, requires close proximity (a

few centimeters) while home monitoring is allowed

up to 10m. If some authentication scheme such as

Ultrasonic-AC Rasmussen et al. (2009) combine

proximity and security credentials, others can be

based on magnetic ﬁelds or short-range communica-

tion protocol. This is in fact what is currently used to

secure pacemakers. It has however been proven to be

vulnerable if the attacker uses strong magnetic ﬁelds

or simply use powerful and sensitive transceivers and

high gain antennas Marin et al. (2016).

Key Distribution Supporting Emergency Access.

These schemes rely on cryptography to achieve

secure access in normal situations while also keeping

an emergency access. This includes symmetric

cryptography, in which the key is distributed to

authorized devices. For emergency situations, it is

proposed that the key is carried by the patient, either

with a smart card, on a bracelet or simply tattooed

on the skin (with UV ink for instance) Schechter

(2010). Public key cryptography can also be used.

However, in the case of an emergency situation,

the programmer needs to contact a trusted party

to obtain the certiﬁcate that can be used to derive

a symmetric key, and this requires access to the

Internet. In addition, public key cryptography is not

compatible with the low energy requirements of the

pacemakers. Finally, it is possible to use biometric

features to generate keys, as already explained for

biometric-based solutions.

In their review, Zheng et al. also suggest possi-

ble solutions to address the resource constraints of

IMDs Zheng et al. (2016).

Lightweight Cryptography. In order to preserve

the implant energy, manufacturers need to use

lightweight cryptography protocols. Marin et al. pro-

pose a key agreement protocol that is an alternative to

the proposal of Halperin et al., that was to add a stan-

dard symmetric key authentication and encryption be-

tween the ICD and the programmer, thus requiring the

key to be safely stored on the programmer and open-

ing the door to it being leaked. Marin et al. propose

a semi-ofﬂine protocol: the IMD is in charge of com-

puting a new key for the new period. To do so, the

programmers need to contact the vendor to obtain the

key for the period. That way, if the programmer is

lost, or not in use anymore, it will not receive any

updated key, and thus the ecosystem goes back to a

secure state when the key is changed. Even though

the new key computation is expensive for the IMD,

this is a rare event and is thus not a problem.

Energy Harvesting. Another way to protect medical

devices is through energy harvesting. Halperin et al.

propose zero-power defenses for IMDs. These de-

fenses includes detection of attacks, prevention of at-

tacks and a key exchange mechanism. As a detection

mechanism, they propose to add a way to make the

patient aware that there is something out of the or-

dinary happening, by for instance playing a “beep”

Experimental Security Analysis of Connected Pacemakers

if the security is disabled on the implant. The zero-

power idea is to use a piezo-element driven by wire-

less communication (thus alerting a patient that wire-

less communication is happening).

Separate Security Unit. Last but not least, the usage

of a separate security unit that would be in charge of

the security can mitigate the impact on the battery of

the implant. This is for instance something that can be

pushed to the external proxy device proposed above.

Moving away from the communication channel,

another area that needs improvements is the software

security. Li et al. propose a way to improve the trust-

worthiness of medical device software with formal

veriﬁcation methods Li et al. (2013). They applied

their approach to the ﬁrmware of a pacemaker and

“demonstrated its ability to detect a range of software

vulnerabilities that compromise security and safety.”

The idea behind formal veriﬁcation is not only to

check for common vulnerabilities such as buffer over-

ﬂows, use after free, etc. but also to go from the de-

vice speciﬁcations to veriﬁable properties. This can

be for example the voltage of the pacing for a pace-

maker in a given conﬁguration. This approach allows

to verify real-world properties.

The healthcare domain has recently been plagued

with cyber attacks in the form of ransomware attacks,

where the intrusion often comes as a result of poor

practices related to software patching and software

inventory management. One mitigation that might

help IT staff in deciding which software security up-

dates that needs to be applied for securing medical

devices is the introduction of a Software Bill of Ma-

terials (SBOM), where the manufacturer declares all

software components in a device. In 2018 the FDA

published a Medical Device Safety Action Plan where

one of the proposed actions was to require medical

device manufacturers to include an SBOM as part of

their premarket submissions.

Securing devices to which an attacker might have

physical access is hard. As mentioned in the Mi-

crosoft’s Ten immutable Laws of Security, “If a bad

guy has unrestricted physical access to your com-

puter, it’s not your computer anymore.” This is even

more true for embedded medical devices, which usu-

ally do not come with as strong security defense

mechanisms as computers. Indeed, adding strong

hardware security to medical devices such as the

Home Monitoring Unit also has a cost, and manufac-

turers might have to make a choice between security

and costs, given that the money that is invested in the

security of an HMU is not used for developing treat-

ment functionality, which saves lives. In addition to

this, there is also the race to market and the strict cer-

tiﬁcation process that does not allow to easily make

changes to an already approved design.

The industry is unfortunately not yet at the point

where we can expect very strong cyber security in

medical devices. As demonstrated by our research,

basic security practices remains to be applied. A

ﬁrst step towards a more secure pacemaker ecosystem

is the implementation of well-known best practices

for hardware security, which, if they will not protect

against all attackers, can surely raise the cost of an at-

tack, and simply discourage many attackers. Guides

such the Secure Design Best Practice Guide by the

IoT Security Foundation IoT (2020) gives a checklist

of security measures to be adapted to a product, al-

ready during the design phase. When it comes to se-

curing the ﬁrmware, the OWASP foundations offers a

project for Embedded Application Security OWASP

(2020) that should be taken into account.

6 CONCLUSION

In this paper, we presented the results of our research

regarding the security of the pacemaker ecosystem of

the medical device manufacturer BIOTRONIK, and

the evolution of the security between the different ver-

sions of their Home Monitoring Units. We analyzed

different versions of the devices and discovered vul-

nerabilities in all of them. While we conﬁrm that the

medical device manufacturing industry is still imma-

ture when it comes to the implementation of hardware

security, we also point out that there is an evolution

towards a safer ecosystem. We noticed improvements

in the protocol used to communicate with the back-

end infrastructure between the older and newer gen-

erations of devices. Our ﬁndings were reported to the

vendor in a coordinated vulnerability disclosure pro-

cess, resulting in an ofﬁcial security advisory, and will

hopefully be used as input to improving the security

of future devices.

ACKNOWLEDGEMENTS

We would like to thank Anniken Wium Lie with whom

we collaborated on the network aspects of the project.

We very much appreciate the contributions of Éireann

Leverett that did some of the initial hardware testing

to discover the HMU debug interfaces. Finally, we

are grateful to Snorre Aunet and Ingulf Helland from

NTNU who took time to help us solder a connector

on the HMU.

This work was partially funded by Reinforcing

the Health Data Infrastructure in Mobility and As-

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

surance through Data Democratization, a ﬁve-year

project (grant number 28885) under the Norwegian

IKTPLUSS-IKT and Digital Innovation programme.

The authors gratefully acknowledge the ﬁnancial sup-

port from the Research Council of Norway.

REFERENCES

Block, C. C. (2016). Muddy waters report - st. jude medical,

inc. Technical report, Muddy Waters Capital LLC.

Bour, G. N. (2019). Security analysis of the pacemaker

home monitoring unit: A blackbox approach. Mas-

ter’s thesis, NTNU.

Camara, C., Peris-Lopez, P., and Tapiador, J. E. (2015). Se-

curity and privacy issues in implantable medical de-

vices: A comprehensive survey. Journal of biomedi-

cal informatics, 55:272–289.

CISA (2020). ICS Medical Advisory (ICSMA-20-

170-05). https://us-cert.cisa.gov/ics/advisories/

icsma-20-170-05. [Online; accessed 30-Sep-2021].

Denning, T., Fu, K., and Kohno, T. (2008). Absence makes

the heart grow fonder: New directions for implantable

medical device security. In HotSec.

Halperin, D., Heydt-Benjamin, T. S., Ransford, B., Clark,

S. S., Defend, B., Morgan, W., Fu, K., Kohno, T., and

Maisel, W. H. (2008). Pacemakers and implantable

cardiac deﬁbrillators: Software radio attacks and zero-

power defenses. In 2008 IEEE Symposium on Security

and Privacy (sp 2008), pages 129–142. IEEE.

IoT (2020). Secure design best practice guide. [Online].

Justis- og beredskapsdepartementet, Helse- og omsorgsde-

partementet (2005). Forskrift om medisinsk utstyr.

https://lovdata.no/dokument/SF/forskrift/

2005-12-15-1690/%2FT1%2Ftextsection1-5#/T1/

textsection1-5.

Li, C., Raghunathan, A., and Jha, N. K. (2013). Improving

the trustworthiness of medical device software with

formal veriﬁcation methods. IEEE Embedded Systems

Letters, 5(3):50–53.

Marin, E., Singelée, D., Garcia, F. D., Chothia, T., Willems,

R., and Preneel, B. (2016). On the (in) security of

the latest generation implantable cardiac deﬁbrillators

and how to secure them. In Proceedings of the 32nd

annual conference on computer security applications,

pages 226–236.

OWASP (2020). OWASP embedded application security.

[Online].

Rasmussen, K. B., Castelluccia, C., Heydt-Benjamin, T. S.,

and Capkun, S. (2009). Proximity-based access con-

trol for implantable medical devices. In Proceedings

of the 16th ACM conference on Computer and com-

munications security, pages 410–419.

Richards, R. (2015). Healthcare data breaches cost $6 bil-

lion a year (infographic)t. [Online; posted 16 Novem-

ber 2015].

Rios, B. and Butts, J. (2017). Security evaluation of the

implantable cardiac device ecosystem architecture and

implementation interdependencies.

Rostami, M., Juels, A., and Koushanfar, F. (2013). Heart-

to-heart (h2h) authentication for implanted medical

devices. In Proceedings of the 2013 ACM SIGSAC

conference on Computer & communications security,

pages 1099–1112.

Savci, H. S., Sula, A., Wang, Z., Dogan, N. S., and Ar-

vas, E. (2005). Mics transceivers: regulatory stan-

dards and applications [medical implant communica-

tions service]. In Proceedings. IEEE SoutheastCon,

2005., pages 179–182. IEEE.

Schechter, S. (2010). Security that is meant to be skin

deep using ultraviolet micropigmentation to store

emergency-access keys for implantable medical de-

vices.

Zheng, G., Shankaran, R., Orgun, M. A., Qiao, L., and

Saleem, K. (2016). Ideas and challenges for secur-

ing wireless implantable medical devices: A review.

IEEE Sensors Journal, 17(3):562–576.

Zheng, G., Yang, W., Valli, C., Qiao, L., Shankaran, R.,

Orgun, M. A., and Mukhopadhyay, S. C. (2018).

Finger-to-heart (f2h): Authentication for wireless im-

plantable medical devices. IEEE journal of biomedi-

cal and health informatics, 23(4):1546–1557.

Zheng, G., Zhang, G., Yang, W., Valli, C., Shankaran, R.,

and Orgun, M. A. (2017). From wannacry to wan-

nadie: Security trade-offs and design for implantable

medical devices. In 2017 17th International Sympo-

sium on Communications and Information Technolo-

gies (ISCIT), pages 1–5. IEEE.

Experimental Security Analysis of Connected Pacemakers
