MOD SLAM: Mixed Method for a More Robust SLAM

without Loop Closing

Thomas Belos

1 a

, Pascal Monasse

1 b

and Eva Dokladalova

2 c

LIGM, Ecole des Ponts ParisTech, Universit

e Gustave Eiffel, CNRS, F-77454 Marne-la-Vall

ee, France

LIGM, Universit

e Gustave Eiffel, CNRS, ESIEE Paris, F-77454 Marne-la-Vall

ee, France

Keywords:

SLAM, Simultaneous Localizaton and Mapping, Odometry, Drift, Robust, Online, ORB, DSO, Photometric,

Features, Indirect, Direct, Mixed, Hybrid.

Abstract:

In recent years, the state-of-the-art of monocular SLAM has seen remarkable advances in reducing errors and

improving robustness. At the same time, this quality of results can be obtained in real-time on small CPUs.

However, most algorithms have a high failure rate out-of-the-box. Systematic error such as drift remains

still signiﬁcant even for the best algorithms. This can be handled by a global measure as a loop closure, but

it penalizes online data processing. We propose a mixed SLAM, based on ORB-SLAM2 and DSO: MOD

SLAM. It is a fusion of photometric and feature-based methods, without being a simple copy of both. We

propose a decision system to predict at each frame which optimization will produce the minimum drift so

that only one will be selected to save computational time and resources. We propose a new implementation

of the map that is equipped with the ability to actively work with DSO and ORB points at the same time.

Our experimental results show that this method increases the overall robustness and reduces the drift without

compromising the computational resources. Contrary to the best state-of-the-art algorithms, MOD SLAM can

handle 100% of KITTI, TUM, and random phone videos, without any conﬁguration change.

1 INTRODUCTION

Boosted by the automotive industry and robotics ap-

plications, visual monocular Simultaneous Localisa-

tion and Mapping (SLAM) algorithms have made re-

markable progress in terms of robustness, accuracy

and of computation cost reduction (Engel et al., 2017;

Ferrera et al., 2021; Forster et al., 2017). Today, the

state-of-the-art algorithms run on embedded CPUs

in real-time and are being used extensively in many

emerging applications such as navigation for drones

(von Stumberg et al., 2017), self-driving cars (Sin-

gandhupe and La, 2019), 3D modeling of urban en-

vironments, and more (Lothe et al., 2009).

Despite this progress, the robustness and gener-

ated drift issues have still not been resolved (Chahine

and Pradalier, 2018). Mainly due to the map, which

will always contain a certain amount of gauges free-

dom (Strasdat et al., 2010), as the measured pixels

2D positions are discrete numbers. This drift prop-

https://orcid.org/0000-0002-2172-5962

https://orcid.org/0000-0001-9167-7882

https://orcid.org/0000-0003-1765-7394

agates and worsens through the various optimization

processes, especially during the gradient descent, and

produces the loss of consistency of the results.

It is known that this drift signiﬁcantly penalizes

direct methods based on photometric optimization

which are otherwise very efﬁcient (Engel et al., 2017).

On the other hand, feature-based methods, which are

less affected by this phenomenon, can however have

a strong drift in poorly textured environments (Mur-

Artal and Tard

os, 2017).

In general, to solve this issue a global correction

such as loop closure is exploited (G

alvez-L

opez and

Tard

os, 2012). However, the loop closure burdens the

computing requirements of the online SLAM, and be-

comes impossible if a loop doesn’t exist in the trajec-

tory.

In this paper, we introduce a new mixed SLAM

method (Figure 1) that we call Mixed ORB-SLAM2

and DSO (a.k.a. MOD SLAM). The principle of

MOD SLAM consists in a mix of the currently most

popular state-of-the-art methods: feature-based ORB-

SLAM2 (Mur-Artal and Tard

os, 2017) and direct

method DSO (Gao et al., 2018). MOD SLAM relies

on a new decision system allowing to predict in ad-

Belos, T., Monasse, P. and Dokladalova, E.

MOD SLAM: Mixed Method for a More Robust SLAM without Loop Closing.

DOI: 10.5220/0010833600003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

691-701

ISBN: 978-989-758-555-5; ISSN: 2184-4321

691

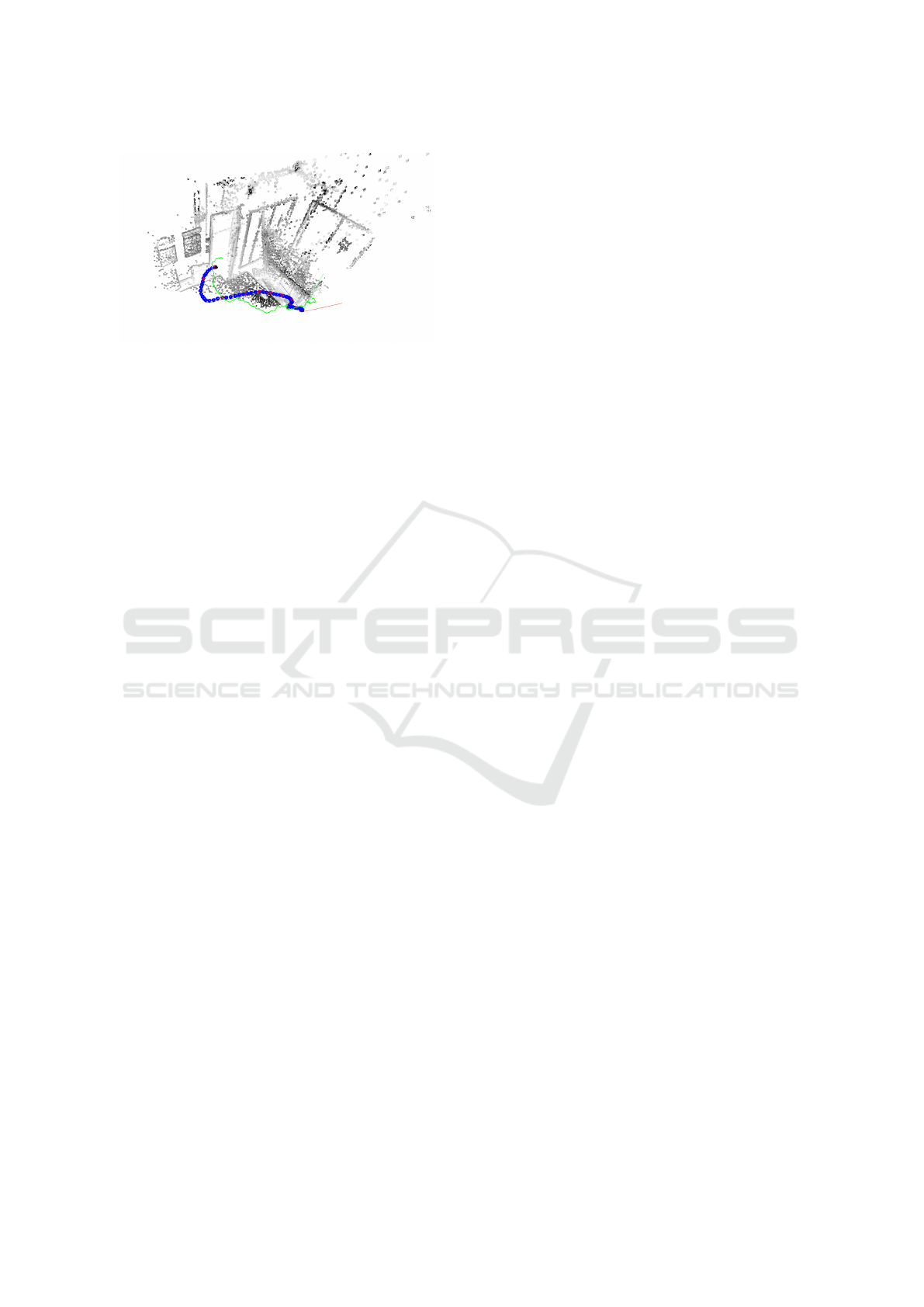

Figure 1: Screenshot of MOD SLAM software during

an execution. The estimated trajectory is blue. The

groundtruth is green.

vance which optimization will produce minimal drift.

To ensure minimal required computing effort, MOD

SLAM uses an original map that has the ability to

actively work with ORB-SLAM2 and DSO informa-

tion at the same time, without running both methods

in parallel. We show on public datasets and on our

smartphone datasets that this method improves the ro-

bustness and reduces the drift without increasing the

computation resources.

The remaining part of this paper is organized as

follows. Sections 1.1 and 1.2 introduce the related

work and our contribution. Section 2 brieﬂy describes

ORB-SLAM2 and DSO procesing pipelines and prin-

ciples. Section 3 presents the principles of the MOD

SLAM method. The experimental results are col-

lected and discussed in section 4. Finally, the last

section is dedicated to the outline of conclusions and

future work.

1.1 Related Work

Visual SLAM and odometry methods include both

camera pose estimation and 3D scene reconstruction

algorithms. We can distinguish four main classes.

Indirect SLAM. (also known as feature-based

SLAM) proceeds by extracting salient image fea-

ture sets and matching them by using feature speciﬁc

descriptors. The optimization of the camera poses

and the 3D points are done by minimizing the re-

projection error using the 2D-3D matches. A typical

example is Parallel Tracking and Mapping for Small

AR Workspaces (Klein and Murray, 2007) by Klein et

al. that has inspired numerous indirect SLAM meth-

ods. This is the case of ORB-SLAM2 (Mur-Artal

and Tard

os, 2017) (improved ORB-SLAM (Mur-

Artal et al., 2015)) by Mur-Artal et al. which is cur-

rently one of reference state of the art indirect method

equipped with a loop closure system and has relocal-

ization capabilities. The drawback is relatively high

computing time and the need for robust estimation

techniques. If ORB-SLAM2 is known to perform

well on KITTI odometry car dataset (Geiger et al.,

2012), it can fail to handle the videos of TUM Dataset

(Engel et al., 2016) with low texture information.

Direct SLAM. (also known as photometric

optimization-based SLAM) methods estimate motion

and structure by optimizing directly error measure

at pixel intensities level. Dense direct method like

DTAM (Newcombe et al., 2011) estimates dense

depth map and optimizes error by using all image

pixels. These kinds of methods generally need a big

amount of resources and a GPU. Whereas sparse

direct methods as (Gao et al., 2018) by Engel et al.

performs an optimization based on a subset of interest

points in the images. Contrary to ORB interest points,

DSO interest points do not need repeatability, but

they are required to be photometrically trackable.

This method track a huge number of points very

precisely, with very low CPU load, resulting in a

good quality point cloud. Despite these advantages,

direct methods suffer from drift problem in dynamic

and fast motion scenes. It needs perfect internal and

photometric calibration and good image quality.

Semi-Direct SLAM. is an in-between direct and in-

direct SLAM. We can cite SVO (Forster et al., 2014;

Forster et al., 2017) by Forster et al. as the state of the

art semi-direct method example. It photometrically

tracks and matches the features, but still minimizes

the re-projection error. Its alternative CNN-SVO by

Yan Loo et al. (Loo et al., 2019) aims to improve

monocular SLAM without closing loop, by sustain-

ing SVO with deep learning estimation. The authors

succeeded to reduce signiﬁcantly the drift, but at the

price of GPU support. Notice that CNN-SVO is one

of the few articles which evaluate on monocular ORB-

SLAM2 without closing loop.

Mixed Methods. are based on tight coupling of di-

rect and feature-based methods. Hun Lee et al. (Lee

and Civera, 2018) proposed Loosely-Coupled Semi-

Direct Monocular SLAM which runs ORB-SLAM2

and DSO in parallel. The authors execute a standard

DSO, and forward the marginalized frame to a new

ORB SLAM with loop closure. The principal beneﬁt

of their system is to have a photometric SLAM with

loop closure. However, without loop closure, they see

no improvement over regular ORB-SLAM2, proba-

bly because ORB-SLAM2 is always taking the lead

(Section 4.4).

The aim of this paper is to propose a new mixed

ORB-SLAM2 and DSO method, similar in general

principle to (Lee and Civera, 2018). The main

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

692

Get New

Frame

Pose

Estimation

Track Local Map

& Refine pose

Local B.A.

New Points

Creations

Points

culling

KeyFrames

Culling

Pose & Light

Estimation

Track

Immature Points

Local B.A.

Activate/Remove

Immature Points

Marginalisation

Need

KeyFrame

Immature Points

creation

a. ORB-SLAM2

b. DSO

Get New

Frame

Pose

Estimation

Decision

Mixed Pose

Estimation

Get New

Frame

Track Local Map

& Refine Pose

B.A. and

KeyFrame

Decision

New KeyFrame

& B.A.

Frame

XYZ ORB

Points

Inverse Depth

DSO Points

Frame

MIXED MAP

...

Need

KeyFrame

Global B.A.

c. Mixed Method

Temporal Activation Data Flow

... Photometric operation ...

Feature-based

operation

Hybrid Pose Estimation (Fig. )

Mixed KeyFrame

and B.A. (Fig. )

Figure 2: a. ORB-SLAM2 pipeline without loop closure; b. DSO pipeline; c. MOD SLAM pipeline.

means is to reimplement DSO and ORB-SLAM2

more closely (Figure 2). In this sense, we have a

unique shared map and never run both ORB-SLAM2

and DSO in parallel. Instead, we deﬁne an estimation

method allowing to predict the drift measure and to

minimize it frame by frame.

1.2 Contributions

The principal aims of this paper is to increase the ro-

bustness, and to produce the minimal drift of ORB-

SLAM2 and DSO, by introducing a new original

mixed SLAM. The main contributions of our method

are the following:

• We deﬁne a novel SLAM architecture which

is ORB-SLAM2-based (Mur-Artal and Tard

os,

2017) and DSO-based, with a mixed map provid-

ing a ﬂuid and consistent sharing of the data (in-

cluding frame camera pose and 3d points coordi-

nates) between ORB-SLAM2 and DSO.

• We formulate and evaluate a decision method,

allowing to predict in advance which of ORB-

SLAM2 or DSO will be more robust, at each step

of the SLAM.

• We show in this paper that, by mixing ORB-

SLAM2 and DSO, MOD SLAM can handle 100

percent of the videos, reduce the drift (without us-

ing the loop closure) on KITTI dataset (Geiger

et al., 2012) and on our own phone dataset.

2 ORB-SLAM2 AND DSO

PIPELINES

The left part of ﬁgure 2 shows the ORB-SLAM2 and

DSO pipelines. This section intends to give some def-

initions, and to describe brieﬂy the pipelines of ORB-

SLAM2 and DSO, necessary to understand the fol-

lowing description of MOD SLAM.

2.1 Deﬁnitions

Immature Point. Initial and temporary status of a

3D point, before deciding whether it is an inlier or

outlier. At keyframe creation of DSO, newly detected

interest points are mapped as 3D points (with un-

known depth) and classiﬁed as immature. At the next

keyframe creation, immature points become inlier or

outlier. Outliers can be discarded as there is no loop

closing, hence no chance to become inliers later.

Local Map, Active Points and Frames. The local

map is a subgraph of the map containing all the active

points and frames. The active frames contain the cur-

rent frame and some previous frames, based on covis-

ibility. The active points are all the 3D points visible

in at least one active frame. The local map is updated

during the local map tracking (Section 3.2.4). Only

active points are tracked on the new frames and only

the local map is bundle adjusted during keyframe cre-

ation.

MOD SLAM: Mixed Method for a More Robust SLAM without Loop Closing

693

2.2 Indirect Pipeline: ORB-SLAM2

At each new frame, a pose estimation is performed:

tentative matches between 2D ORB interest points

and 3D points are found. The descriptor of the 3D

point is the coordinate-wise median of the descrip-

tors of ORB points having given birth to it. A best to

second-best descriptor distance ratio is compared to

a threshold to ignore ambiguous 2D/3D point corre-

spondences. The sum of squared residuals of point

projections is then minimized, as a function of the

frame pose (rotation and translation), where at each

iteration a large residual removes the correspondence

from the next energy computation, which can be rein-

serted at a future iteration if its residual becomes

small again.

From this initial pose, numerous new 2D/3D cor-

respondences can be found by descriptor comparison

because the search is restricted to the neighborhood of

the 3D point projection. The same minimization with

all new correspondences allows reﬁning the pose.

When a new keyframe is needed, duplicate 3D

points are merged (culling), new 3D points may be

created by triangulation with matching ORB points in

previous keyframe, and a local bundle adjustment is

performed, with variables the new keyframe pose and

the positions of 3D points. Finally, the new keyframe

is compared to the previous two keyframes to check

whether the middle one is redundant, in which case it

loses its status of keyframe.

2.3 Direct Pipeline: DSO

A photometric energy minimization is performed wrt

pose and light change parameters. Immature points,

3D points with still unknown depth, generated by the

DSO interest points in the preceding keyframe, are

then tracked in the new frame. The success of this

tracking is then used to decide whether to activate the

3D point as mature or to remove it. A local bundle

adjustment is then performed and the marginalisation

can ﬁx some previous keyframes: they are removed

from the local map. Finally, the new keyframe gener-

ates from its 2D interest points immature 3D points.

3 MIXED METHOD

Our mixed method is a fusion of ORB-SLAM2 (Mur-

Artal and Tard

os, 2017) and DSO (Engel et al., 2017).

The pipeline shown in ﬁgure 2 borrows modules from

both, though both run paths are exclusive: Two func-

tions predict in advance if it is best to use photometric

or feature based method to minimize drift. The ﬁrst

Frame

Covisiblity

Frame

Interst Point

3D Point

Visibility

Association

Reference

Unique Pose Unique Pose

Figure 3: High level representation of the edges in the map

graph.

chooses between tracking with ORB and reﬁning with

DSO, or the contrary, and the second one whether to

use an ORB or a DSO bundle adjustment.

3.1 Map

3.1.1 Mixed Map Structure

Our map is a non-oriented graph, whereas DSO and

ORB maps are oriented graphs, with edges going

from the frames to points. The nodes are:

• The frames including: their camera pose, image,

DSO interest points, ORB interest points and their

respective descriptors, their internal and photo-

metric calibrations. . .

• The 3D ORB points with their position, median

binary descriptor, uncertainty.

• The 3D DSO points with their position repre-

sented with inverse depth parametrization (Civera

et al., 2008), Hessian.

For each frame, the pose estimation is unique. All

poses and 3D points, whether issued from ORB or

DSO, use the same coordinate system.

The edges of the graph represented in ﬁgure 3 are:

• Between frames: The covisibility edge between

frames when they see the same points.

• Between Frame and 3D ORB Point:

– Used for the correspondence of the ORB-

SLAM 3D Points with the ORB interest points

– Used when the point is assumed visible inside

the frame according to the camera pose, but is

not matched with an interest point. This allows

knowing the number frames in which the point

is visible but not matched.

• Between Frame and 3D DSO Point:

– When the DSO point is extracted from the

frame, and mapped, hence each DSO point has

only one such edge.

– Used when the point is assumed visible inside

the frame, to track the point and to bundle ad-

just photometrically.

– Used when the point position is relative to its

reference camera, so that the point needs to

move with the camera pose.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

694

Try Predict

Pose

Pose & Light

Prediction

Track

Local Map

Track

Immature

ORB-Based Pose Estimation

DSO-Based Pose Estimation

Try Refine

Pose

Failure

Try Refine

Pose

Track Local

Map

Estimate

Light

Pose

Estimation

Decision

Figure 4: Mixed pose estimation.

3.1.2 Information Transmission

The map is mixed, as it can store, use and transmit

information independently of their representation. It

ensures the consistent storage and transmission of the

information.

DSO and ORB-SLAM2 share and reuse their data

through this map. They have common frame structure

and information (including the camera pose). Option-

ally, DSO points can be used in ORB part, and ORB

points can be used in DSO part.

3.2 Mixed Pose Estimation

The mixed pose estimator represented in the ﬁgure

4 works in 3 steps: deciding the pose estimation

method, estimating the pose, tracking and reﬁning the

local map.

3.2.1 Pose Estimation Decision

The role is to decide in advance which of the two pose

methods will produce the less drift:

• An ORB pose prediction reﬁned with DSO, then

reﬁned with ORB in the local map tracking.

• A DSO pose prediction reﬁned with ORB in the

local map tracking.

MOD SLAM use the covariance matrices of the

last estimated poses to make the decision, as they

are an indicator of the uncertainty of DSO and ORB-

SLAM2 methods.

cov

i|orb

= (J

)

−1

cov

i|dso

= H

−1

(1)

where J

is the last i

ORB-SLAM2 pose estimator

Jacobian, and H

is the last i

DSO pose estimator

Hessian.

and H

are computed for the same pose, with

points in the same coordinates system. Hence, cov

i|orb

and cov

i|dso

use the same quantity, and are compara-

ble.

As ORB-SLAM2 and DSO have different rep-

resentations of rotation, MOD SLAM uses the vec-

tor containing the variance of the translation of the

pose [x, y, z]. The variance of x (noted cov

orb|x,x

and

cov

dso|x,x

) appears in the diagonal of the covariance

matrices cov

orb

and cov

dso

i|orb

= [cov

i|orb|x,x

;cov

i|orb|y,y

;cov

i|orb|z,z

]

i|dso

= [cov

i|dso|x,x

;cov

i|dso|y,y

;cov

i|dso|z,z

]

(2)

where u

orb

and u

dso

are the vectors containing the

variance of the translation part of the pose. ku

orb

k and

dso

k are uncertainty estimates for ORB and DSO.

We observe that when ku

orb

k or ku

dso

k becomes

high, it is likely to remain high in the next frames.

For robustness, the covariance over N preceding

keyframes is considered :

orb

∑

i=1

i|orb

dso

∑

i=1

i|dso

(3)

The algorithm take a decision by comparing

orb

k and kv

dso

k. We introduce a parameter w

a weight which will inﬂuence the decision. A weight

below one will favor DSO tracking, and above one

will favor ORB tracking. (see the table 5 for our cho-

sen value of the parameters).

decision =

(

orb, if ku

orb

k < w

× ku

dso

dso, otherwise

(4)

3.2.2 DSO-based Pose Estimation

The DSO-Based Pose Estimator works unmodiﬁed. A

batch of motion guesses is computed by perturbing in

different ways the motion of the previous frame. For

each, a photometric pose estimation is done. The esti-

mator will keep the pose with the lowest photometric

RMSE.

This pose estimation is followed by an optional

ORB reﬁnement, inside the local map tracking (Sec-

tion 3.2.4). Therefore, this tracking method is still

mixed.

On most of the images, this yields fast a pre-

cise pose estimation. However, the estimation is not

always the best, especially on video like the Kitti

dataset where the photometric error of the tracked

points is often high.

3.2.3 ORB-based Pose Estimation

The ORB-Based Pose Estimation is a combination of

the ORB-SLAM2 pose estimation, and DSO pose op-

timization:

1. First, the SLAM will try to track with a constant

velocity motion model using only ORB points,

2. If the number of tracked points is too low, try to

track with a standard PnP model.

MOD SLAM: Mixed Method for a More Robust SLAM without Loop Closing

695

3. If the number of tracked points is still below a

threshold, ORB tracking is considered a failure,

and it falls back to a DSO-Based Pose Prediction.

4. Then MOD-SLAM tries to reﬁne with DSO, by

minimizing the photometric error using only the

DSO points. The reﬁned camera is accepted only

if the ratio of inliers points r

dso

(with a photo-

metric error below a threshold, Table 5) is low

enough. In all cases, DSO reﬁnement will com-

pute and store the light change.

As observed in section 3.2.2, DSO Pose estima-

tor does not always return the best result. Still, when

DSO ﬁnds a good initial motion, it generally results

in a more precise camera position than ORB. The idea

behind our ORB-Based Pose Prediction is to feed the

DSO pose optimizer directly a good motion found by

ORB, to ﬁnd the most precise camera pose.

When the DSO reﬁnement is not accepted, the

assumption is that DSO was too weak, and that it

would have added a lot of drift. When ORB failed,

the SLAM switches to a DSO-based pose estimation,

because of the ability of the DSO coarse pose estima-

tor to almost always ﬁnd a pose, with a decent quality

despite the drift.

3.2.4 Local Map Tracking

After each pose estimation, MOD SLAM tracks the

ORB local map like a standard ORB-SLAM2. The

active ORB 3D points are re-projected into the current

frame, to make 2D-3D matches. New active ORB 3D

points are computed, according to the previous neigh-

bor frames. Then, the algorithm can choose between

just computing the covariance of the ORB-SLAM2

pose estimator, or reﬁning by indirectly optimizing

the pose of the camera. When DSO was not used

to reﬁne or track, ORB based reﬁnement is launched,

as the result is likely to improve. Otherwise, MOD

SLAM uses the inlier ratio of photometric points r

orb

(Table 5) as an indicator of the quality of the DSO

pose estimator. If it is higher than a threshold, MOD

SLAM reﬁnes with ORB, else computes only the co-

variance matrix of ORB.

3.3 Mixed Keyframe Creation and

Bundle Adjustment

The mixed keyframe creation and bundle adjustment

choice pipeline is represented in the ﬁgure 5.

3.3.1 Bundle Adjustment Decision

Bundle Adjustment decision has a huge impact on the

drift.

Activate Points

Marginalisation

Create Immature

Points

Activate &

Create Immature

Points

Local

KeyFrames

Culling

DSO Keyframe

creation

Bundle Adjust

ORB

KeyFrame

Decision

ORB Keyframe

creation

Bundle

Adjustment

Decision

Only If selected

ORB DSO

Need ORB

Keyframe

Need DSO

Keyframe

DSO

KeyFrame

Decision

Figure 5: Mixed Keyframe creation and Bundle Adjust-

ment.

1. If the number of points tracked by ORB is too low,

only DSO can give a good result, even if it can be

also weak.

2. If the ratio of photometric outliers points higher

than a ﬁxed threshold r

, ORB is favored.

3. The bundle adjustment method is chosen by com-

paring the number of inliers tracked by DSO and

by ORB. We introduce a weight w

which will

inﬂuence this decision (see the table 5 for the pa-

rameters).

3.3.2 Keyframe Creation

Two different pipelines are used to create ORB-

SLAM2 and DSO key frame. If a DSO bundle ad-

justment is requested, MOD SLAM try ﬁrst to create a

DSO key frame, then a ORB-SLAM2 key frame. And

if an ORB-SLAM2 bundle adjustment is requested,

MOD SLAM tries ﬁrst to create an ORB-SLAM2 key

frame, then a DSO key frame.

ORB-SLAM2 and DSO key frames are created

based on their own criteria: for ORB-SLAM2, it is

based on the number of tracked points, whereas for

DSO it is based on the optical ﬂow.

Let t

and a

be the number of tracked ORB points

and active ORB 3D points at time n. The original

ORB condition for keyframe creation is a

< t

× 0.9

wheras MOD SLAM condition is t

< exp(log(a

) ×

0.975). This gives almost the same result for a low

number of points, but MOD SLAM condition pro-

duces fewer keyframes for a high number of points.

High movement of the pose or high residual will pro-

duce a DSO keyframe.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

696

DSO key frames creation remains unchanged.

ORB-SLAM2 key frame creation keeps the same

method, but use the same principle of immature point

as DSO, with a stricter new point ﬁltering, based on

the covariance of the coordinates of the point.

During the keyframe creation, only the B.A. of the

chosen type will be run. Therefore, it is possible to

choose a B.A. of a type, but to not choose to create

a keyframe of this type. In this case, no B.A. will be

executed. DSO and ORB have their own local map. It

means that DSO will bundle adjust its own local map

and ORB its own local map.

ORB bundle adjustment consists of a Levenberg-

Marquardt optimization of the reprojection error of

the active map. DSO bundle adjustment consists of a

Gauss-Newton optimization of the photometric error

on a window of 6 frames with their points.

4 RESULTS

Our SLAM library and MOD SLAM source code

used to obtain the results below are ready to be re-

leased upon publication of the article.

4.1 Parameters

The table 5 represent the parameters that we choose

for MOD SLAM, compared to those of ORB-SLAM2

and DSO. Note that these parameters have not been

strongly tuned. They have been chosen as a compro-

mise with speed and accuracy. The original ORB-

SLAM2 implementation uses 2000 points for the

KITTI dataset, and 1000 points for the TUM dataset,

whereas we use 1250 for both. The original DSO has

two modes: the normal mode with a desired density of

2000 points (used for the evaluation), and a fast mode

with a desired density of 800 points. We choose to

use the same parameters as the fast mode of DSO.

4.2 Results and Performance

KITTI. KITTI Odometry dataset (Geiger et al.,

2012) is made of multiple stereo car sequences, from

1 to 8 minutes, taken with a resolution of 1241x376

at 10 fps. Only the grayscale left images of the stereo

pair have been used for the evaluation. The table 1

shows the result on the KITTI dataset. In most cases,

we get the best of ORB-SLAM2 and DSO. We ob-

served for some videos a signiﬁcant reduction of the

drift. Some trajectories have been plotted in the ﬁg-

ure 6. Even if our SLAM is a mix of ORB and DSO,

each computation is never done twice in an indirect or

a direct manner. On an i9-10900 with 20 threads, the

SLAM needs 5% of CPU usage to run in real-time

on KITTI dataset, and only 2 GB of RAM with the

biggest video of KITTI comprising 4541 frames.

Table 1: Absolute Trajectory Error on KITTI datasets

(Geiger et al., 2012). The last line is the number of times

a method has given the best result. ORB-SLAM2 has been

evaluated without loop closure, so we obtained different re-

sults from the original paper, but7 almost the same result as

CNN-SVO (Loo et al., 2019).

Ours ORB. DSO

00 105m 67m 114m

01 12m x x

02 43m 43m 120m

03 1.8m 1.0m 2.1m

04 1.1m 0.9m 1.5m

05 40m 43m 52m

06 44m 49m 59m

07 16m 17m 17m

08 54m 58m 111m

09 39m 60m 63m

10 11m 9m 16m

Best 7 6 0

TUM. TUM Monocular Visual Odometry Dataset

(Engel et al., 2016) is made of multiple grayscale

monocular interior sequences. The images have been

captured with a resolution of 1280x1024 reduced to

640x480 at runtime, at 30 fps. The dataset contains

precise internal and photometric calibration. ORB-

SLAM2 failed in almost half of the videos, whereas

DSO and MOD SLAM ran successfully on all the

videos. The results between DSO and MOD SLAM

are tight. MOD SLAM could not improve more the

result of DSO as it already gave almost perfect re-

sults. On an i9-10900 (10 cores, 20 threads, 2.8 to 5.2

GHz), the SLAM needs 20% of CPU usage to run in

real-time on TUM dataset.

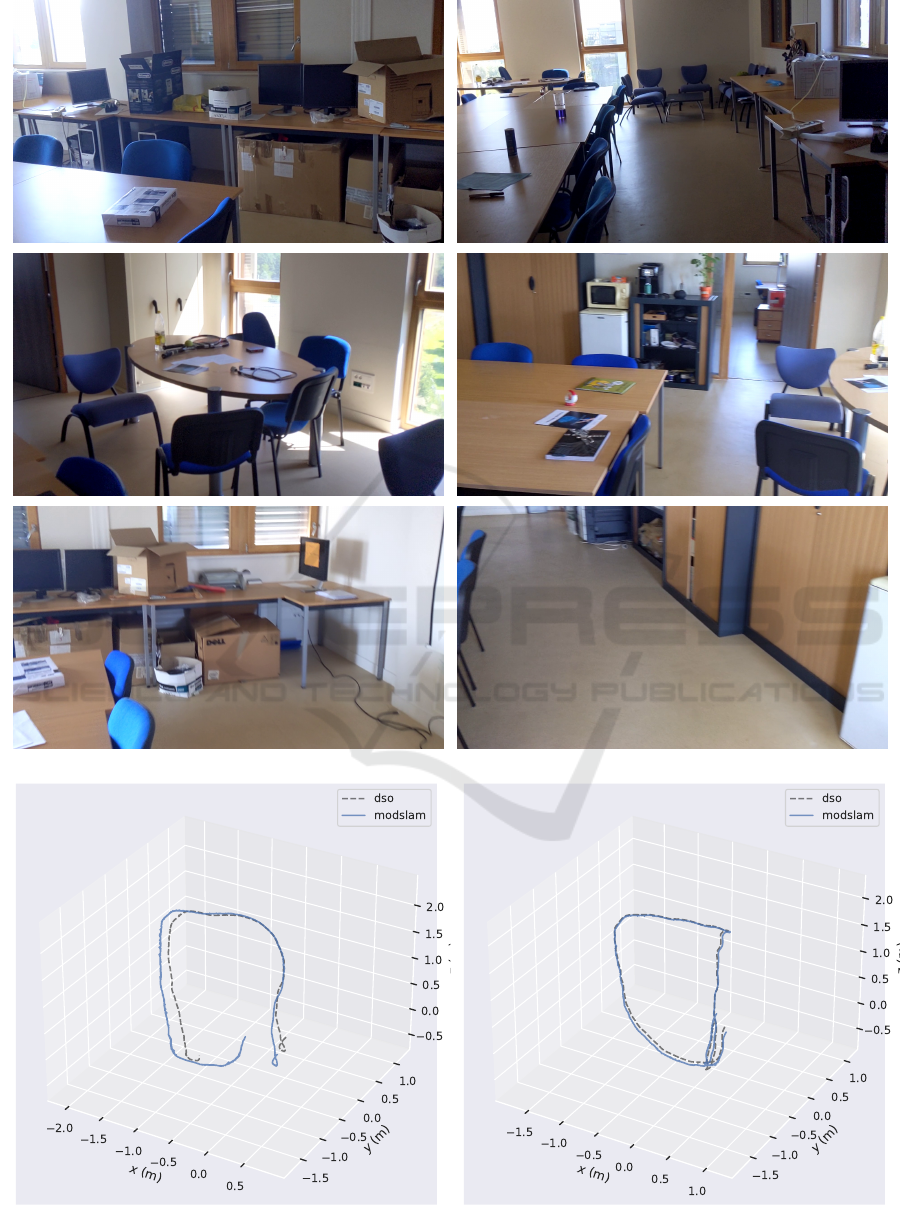

Smartphone Videos. Using a Google Pixel 3a cam-

era, we have ﬁlmed perfect loops inside a room, at a

resolution of 1920x1080 downsampled to 640x360.

The camera was calibrated with the OpenCV library

(Bradski, 2000) and a chessboard. We have run the

three SLAM methods on each video to evaluate the

drift generated by each method. The results are plot-

ted in the ﬁgure 7. ORB-SLAM2 got lost on all the

videos. Observe how the loop closes: MOD SLAM

and DSO get almost the same result, excepting for

some videos where we can observe a small improve-

ment for MOD SLAM.

Robustness. Table 2 shows that MOD SLAM is the

only method that can run on all the videos, without

MOD SLAM: Mixed Method for a More Robust SLAM without Loop Closing

697

changing any parameters, while still keeping the ac-

curacy of ORB on KITTI, and the density of the gen-

erated point cloud of DSO on TUM dataset (Figure 1).

Table 2: Number of success on TUM Monocular Dataset

(Engel et al., 2016), KITTI dataset (Geiger et al., 2012),

and our own smartphone videos.

Ours ORB. DSO

TUM 50 50 (100%) 28 (56%) 50 (100%)

KITTI 11 11 (100%) 10 (91%) 10 (91%)

P3 5 5 (100%) 0 (0%) 5 (100%)

Total 66 66 (100%) 38 (58%) 65 (98%)

4.3 Ablation Study

Table 3: Decision effect in our MOD SLAM methods. Each

value is an average of the absolute trajectory error in the

KITTI dataset with a Forced ORB/Forced DSO on Mixed

Tracking/Mapping decision. An empty case means that the

ATE is averaged with all the possibilities (ORB / DSO /

Mixed).

Tracking Mapping Averaged ATE on KITTI

ORB 62m

ORB 65m

DSO 46m

DSO 52m

Mixed 39m

Mixed 36m

MOD-SLAM uses multiple decision systems to

predict which of ORB-SLAM2 and DSO will perform

best. To make these decisions in advance, it is neces-

sary to evaluate the robustness of ORB-SLAM2 and

DSO. SLAM internal measurement, such as the co-

variance matrices, or the number of inliers, can be

tested to ﬁnd the most robust method. The table 3

evaluates the impact of the decision of MOD SLAM

on the ﬁnal result. We have tested to favor ORB-

SLAM2 then DSO during the tracking decision, and

the mapping decision. We averaged the absolute tra-

jectory error on the KITTI dataset in the table 3. We

observe clearly that both tracking and bundle adjust-

ment conditions have a big impact on the ﬁnal results.

Table 4 is an example of parameter study. It

shows the impact of an outlier ratio threshold dur-

ing the tracking (vertical axis) and the bundle adjust-

ment (horizontal axis). A threshold of 0 means that

the SLAM always selects ORB, and a threshold of

15 means that the SLAM always selects DSO. The

SLAM seems to perform better with an in-between

threshold of 7.5, suggesting that the SLAM gives bet-

ter result in a mixed manner.

Table 4: ATE w.r.t. DSO outliers ratio threshold for tracking

and BA decision on KITTI 08 (meters).

Outliers Ratio Threshold

For the bundle adjustment decision

Outliers Ratio Threshold

For the tracking decision

0 1,875 3,75 5,625 7,5 9,375 11,25 13,125 15

0 140m 124m 111m 87m 86m 85m 108m 96m 103m

1,875 136m 116m 112m 90m 91m 87m 107m 105m 107m

3,75 98m 98m 96m 96m 92m 94m 103m 106m 101m

5,625 123m 115m 114m 96m 87m 91m 104m 116m 114m

7,5 124m 118m 104m 88m 75m 99m 115m 116m 108m

9,375 130m 111m 94m 81m 80m 97m 103m 112m 108m

11,25 148m 128m 98m 85m 82m 97m 100m 103m 99m

13,125 168m 141m 103m 94m 91m 93m 84m 96m 102m

15 209m 170m 119m 97m 92m 91m 85m 96m 101m

A treshold of 0 means always select ORB

A treshold of 15 means always select DSO

4.4 Discussion

ORB-SLAM2 has a lot of trouble handling the TUM

dataset and our videos. Weird camera movement may

be responsible, for instance when the camera goes un-

der a desktop table on the TUM dataset. Also some

images do not contain enough reliable ORB points,

as the ﬁlmed surfaces are too ﬂat. On the contrary,

DSO gives the worst result on KITTI dataset, proba-

bly because the photometric optimization has trouble

handling the big motion and the noisy images.

MOD SLAM did not fail on any video, contrary to

ORB-SLAM2 and DSO, despite using the same pa-

rameter set for all the datasets (which have not been

strongly tuned). Hence, it proves the robustness of

MOD SLAM.

The method (Lee and Civera, 2018) mentioned in

the introduction runs a full version of DSO and ORB-

SLAM2, side by side, with two separate maps. It al-

lows having the loop closure and BA system of ORB-

SLAM2 with DSO, in the cost of multiplying by 2 the

computational CPU and RAM resources. But it shows

no robustness and no drift improvement on videos

without a loop as one method is always privileged.

On the other hand, MOD SLAM uses one unique

map, and has to choose the tracking method at each

frame (Figure 2). The computational resources do not

increase: a reﬁnement by the complementary method

(ORB-SLAM2 or DSO) is done, which is fast since

the pose is already close to the solution. Contrary to

(Lee and Civera, 2018), MOD SLAM has proven to

be more robust and to yield lower drift.

5 CONCLUSION

Our ﬂexible map has permitted the creation of a

mixed ORB-SLAM2/DSO architecture. We have

shown with the result on the KITTI dataset (Table 1)

and on our own dataset the potential of MOD SLAM

compared to the original ORB-SLAM2 and DSO: on

most videos, MOD SLAM succeeds in giving the best

of the two methods. Observe that on KITTI 01, MOD

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

698

Table 5: Parameters used for the evaluation. N.A. = Non-applicable.

Method Ours DSO ORB

Point Density

Number of ORB Corner 1250 N.A. 2000

Desired DSO Point Density 800 2000 N.A.

Number of DSO Corner 600 1500 N.A.

DSO Bundle Adjustment

Iteration 4 6 N.A.

Optimization Window Size 6 7 N.A.

ORB Bundle Adjustment

Iteration 5 N.A. 0 to 5

Reﬁnement Iteration 0 N.A. 0 to 10

Pose Estimation Decision (Section 3.2.1)

Covariance weight w

0.75 N.A. N.A.

Average Window Size N 7 N.A. N.A.

Pose Estimation and reﬁnement (Section 3.2.3 and Section 3.2.4)

Inliers Ratio r

dso

0.85 N.A. N.A.

Inliers Ratio r

orb

0.85 N.A. N.A.

Bundle Adjustment Decision (Section 3.3.1)

Outliers Ratio r

0.15 N.A. N.A.

Number of point weight w

0.0125 N.A. N.A.

Figure 6: Kitti (Geiger et al., 2012) Trajectories 08 and 09.

SLAM is the only method able to process the full

video, and that on KITTI 09 the error is drastically

lower.

A ﬁner decision function would have the potential

to still lower the drift. Therefore, our future works

include to work on the decisions functions.

ACKNOWLEDGMENTS

We thank Pierre-Alain Langlois for assistance with

using OpenMP, Ceres, and other C++ libraries; Ab-

derahmane Bedouhene for comments that greatly im-

proved the paper; and Thomas Daumain for double

checking the results. This work has been supported

by the project UrbanVision. Initiated in 2018, Urban-

Vision is a project of the I-SITE FUTURE, a French

initiative to answer the challenges of sustainable city.

MOD SLAM: Mixed Method for a More Robust SLAM without Loop Closing

699

REFERENCES

Bradski, G. (2000). The OpenCV Library. Dr. Dobb’s Jour-

nal of Software Tools.

Chahine, G. and Pradalier, C. (2018). Survey of monoc-

ular SLAM algorithms in natural environments. In

2018 15th Conference on Computer and Robot Vision

(CRV), pages 345–352.

Civera, J., Davison, A. J., and Montiel, J. M. (2008). Inverse

depth parametrization for monocular SLAM. IEEE

transactions on robotics, 24(5):932–945.

Engel, J., Koltun, V., and Cremers, D. (2017). Direct sparse

odometry. IEEE transactions on pattern analysis and

machine intelligence, 40(3):611–625.

Engel, J., Usenko, V., and Cremers, D. (2016). A photo-

metrically calibrated benchmark for monocular visual

odometry. In arXiv:1607.02555.

Ferrera, M., Eudes, A., Moras, J., Sanfourche, M., and

Besnerais, G. L. (2021). OV

SLAM : A fully online

and versatile visual slam for real-time applications.

Forster, C., Pizzoli, M., and Scaramuzza, D. (2014). SVO:

Fast semi-direct monocular visual odometry. In 2014

IEEE international conference on robotics and au-

tomation (ICRA), pages 15–22. IEEE.

Forster, C., Zhang, Z., Gassner, M., Werlberger, M., and

Scaramuzza, D. (2017). SVO: Semidirect visual

odometry for monocular and multicamera systems.

IEEE Transactions on Robotics, 33(2):249–265.

alvez-L

opez, D. and Tard

os, J. D. (2012). Bags of binary

words for fast place recognition in image sequences.

IEEE Transactions on Robotics, 28(5):1188–1197.

Gao, X., Wang, R., Demmel, N., and Cremers, D. (2018).

LDSO: Direct sparse odometry with loop closure. In

2018 IEEE/RSJ International Conference on Intelli-

gent Robots and Systems (IROS), pages 2198–2204.

IEEE.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the KITTI vision benchmark

suite. In Conference on Computer Vision and Pattern

Recognition (CVPR).

Klein, G. and Murray, D. (2007). Parallel tracking and map-

ping for small AR workspaces. In 2007 6th IEEE

and ACM international symposium on mixed and aug-

mented reality, pages 225–234. IEEE.

Lee, S. H. and Civera, J. (2018). Loosely-coupled semi-

direct monocular ”slam”. IEEE Robotics and Automa-

tion Letters, 4(2):399–406.

Loo, S. Y., Amiri, A. J., Mashohor, S., Tang, S. H.,

and Zhang, H. (2019). CNN-SVO: Improving the

mapping in semi-direct visual odometry using single-

image depth prediction. In 2019 International Con-

ference on Robotics and Automation (ICRA), pages

5218–5223. IEEE.

Lothe, P., Bourgeois, S., Dekeyser, F., Royer, E., and

Dhome, M. (2009). Towards geographical refer-

encing of monocular SLAM reconstruction using 3d

city models: Application to real-time accurate vision-

based localization. In 2009 IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 2882–

2889.

Mur-Artal, R., Montiel, J. M. M., and Tardos, J. D.

(2015). ORB-SLAM: a versatile and accurate monoc-

ular SLAM system. IEEE transactions on robotics,

31(5):1147–1163.

Mur-Artal, R. and Tard

os, J. D. (2017). ORB-SLAM2:

An open-source SLAM system for monocular, stereo,

and RGB-d cameras. IEEE Transactions on Robotics,

33(5):1255–1262.

Newcombe, R. A., Lovegrove, S. J., and Davison, A. J.

(2011). DTAM: Dense tracking and mapping in real-

time. In 2011 international conference on computer

vision, pages 2320–2327. IEEE.

Singandhupe, A. and La, H. M. (2019). A review of SLAM

techniques and security in autonomous driving. In

2019 Third IEEE International Conference on Robotic

Computing (IRC), pages 602–607.

Strasdat, H., Montiel, J., and Davison, A. J. (2010). Scale

drift-aware large scale monocular SLAM. Robotics:

Science and Systems VI, 2(3):7.

von Stumberg, L., Usenko, V., Engel, J., St

uckler, J., and

Cremers, D. (2017). From monocular SLAM to au-

tonomous drone exploration. In 2017 European Con-

ference on Mobile Robots (ECMR), pages 1–8.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

700

Figure 7: Trajectories of videos taken with a Google Pixel 3a. The videos end at the same place they started. The closer the

two trajectory ends, the lower the drift. ORB-SLAM2 got lost on all the videos.

MOD SLAM: Mixed Method for a More Robust SLAM without Loop Closing

701
