Evaluation of Deep Learning based 3D-Point-Cloud Processing

Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-Streams

Tobias Bolten

, Felix Lentzen

, Regina Pohle-Fr

ohlich

and Klaus D. T

onnies

Institute of Pattern Recognition, Niederrhein University of Applied Sciences, Reinarzstr. 49, Krefeld, Germany

Department of Simulation and Graphics, University of Magdeburg, Universit

atsplatz 2, Magdeburg, Germany

Keywords:

Semantic Segmentation, 3D Space-time Event Cloud, PointNet++, Dynamic Vision Sensor.

Abstract:

Dynamic Vision Sensors are neuromorphic inspired cameras with pixels that operate independently and asyn-

chronously from each other triggered by illumination changes within the scene. The output of these sensors

is a stream with a sparse spatial but high temporal representation of triggered events occurring at a variable

rate. Many prior approaches convert the stream into other representations, such as classic 2D frames, to adapt

known computer vision techniques. However, the sensor output is natively and directly interpretable as a 3D

space-time event cloud without this lossy conversion. Therefore, we propose the processing utilizing 3D point

cloud approaches.

We provide an evaluation of different deep neural network structures for semantic segmentation of these 3D

space-time point clouds, based on PointNet++(Qi et al., 2017b) and three published successor variants. This

evaluation on a publicly available dataset includes experiments in terms of different data preprocessing, the

optimization of network meta-parameters and a comparison to the results obtained by a 2D frame-conversion

based CNN-baseline. In summary, the 3D-based processing achieves better results in terms of quality, network

size and required runtime.

1 INTRODUCTION

Dynamic Vision Sensors (DVS) are biologically-

inspired chips, originating from the research ﬁeld of

neuromorphic engineering, that have a fundamentally

different output paradigm compared to classical im-

agers. These classical CCD or CMOS sensors are typ-

ically operating at a ﬁxed output speed (frames per

second) independent of the captured scene. In con-

trast, a DVS which is also called silicon retina, cap-

tures the scene in terms of changes rather than record-

ing the entire scene at regular intervals.

The pixels of a DVS work independently and

asynchronously from each other and are triggered

by local brightness changes above a deﬁned thresh-

old (Gallego et al., 2020). This leads to a data-

driven output at a highly variable datarate, depend-

ing on the changes in the scene. An activation of one

DVS-pixel is called an “event” and encodes its posi-

tion in the pixel array (x, y), a highly accurate times-

tamp of triggering t and the polarity p indicating the

sign of brightness change. Dynamic Vision Sensors

offer several positive features compared to conven-

tional cameras, such as high temporal resolution, high

dynamic range, low power consumption and a non-

redundant output (Gallego et al., 2020). These sensor

properties provide an interesting opportunity to use

DVSs in outdoor measurement scenarios.

In this work, we address the challenges arising for

the generation of an event-wise semantic segmenta-

tion for DVS sensor data based on recordings in such

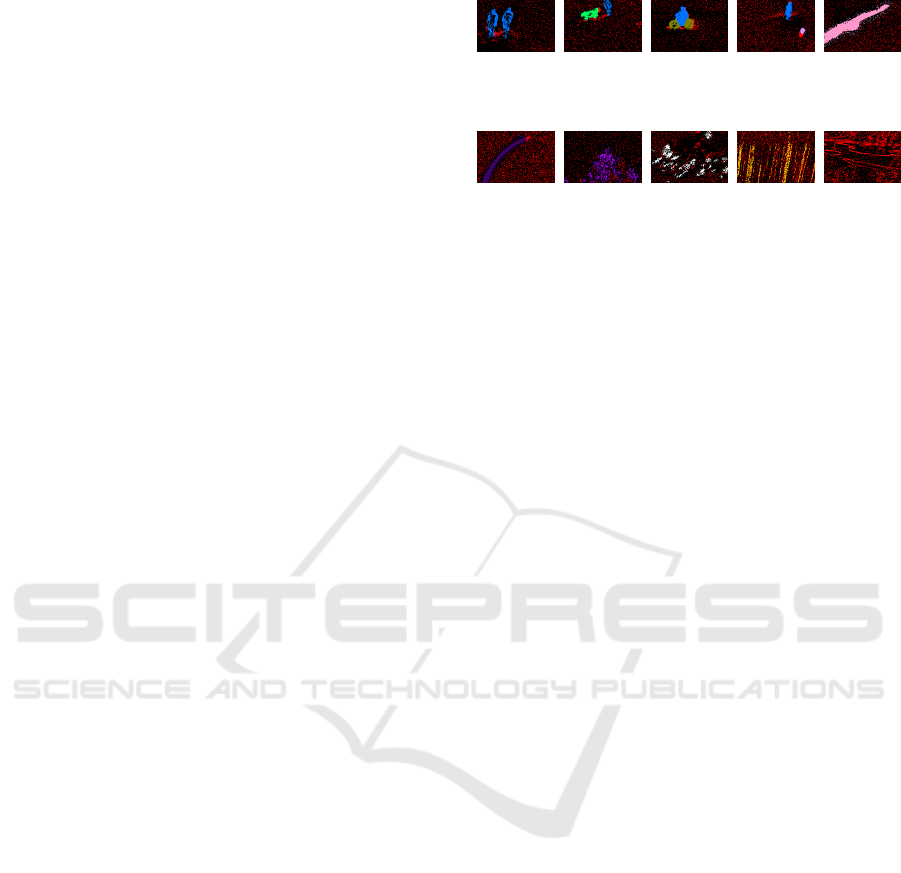

an outdoor scenario. For this purpose, the publicly

available DVS-OUTLAB (Bolten et al., 2021) dataset

is utilized. This dataset contains recordings of a long-

time monitoring of an urban public area including

multi-class labels. The data is challenging as it in-

cludes objects at different scales and artifacts due to

sensor noise and environmental inﬂuences.

The DVS output paradigm leads to the fact that

long-established computer vision methods are not di-

rectly applicable to the provided event stream. To

avoid the common conversion of the event stream

into classical 2D frames, we propose analogously to

(Wang et al., 2019) the use of 3D point cloud based

deep learning networks. We do this on the belief that

frame encodings only insufﬁciently preserve the in-

168

Bolten, T., Lentzen, F., Pohle-Fröhlich, R. and Tönnies, K.

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor Event-streams.

DOI: 10.5220/0010864700003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

168-179

ISBN: 978-989-758-555-5; ISSN: 2184-4321

herent sensor properties. We summarize our main

contributions, extending previous work like (Wang

et al., 2019), as follows:

• analytical and quantitative comparison of differ-

ent input and network parameters for a 3D Point-

Net++ (Qi et al., 2017b) based semantic event

stream segmentation

• the extension of this analysis to three enhanced

point cloud based network structures, which try to

improve the plain PointNet++

• the comparison of the achieved results utilizing

these 3D point cloud deep neural network struc-

tures to an event-to-frame based 2D-CNN base-

line in terms of quality and runtime.

Furthermore, the exact network conﬁgurations of

the trained models as well as pre-trained weights and

other supplemental material is available at http://dnt.

kr.hsnr.de/DVS-3DSemSeg/ to support further devel-

opments and comparisons.

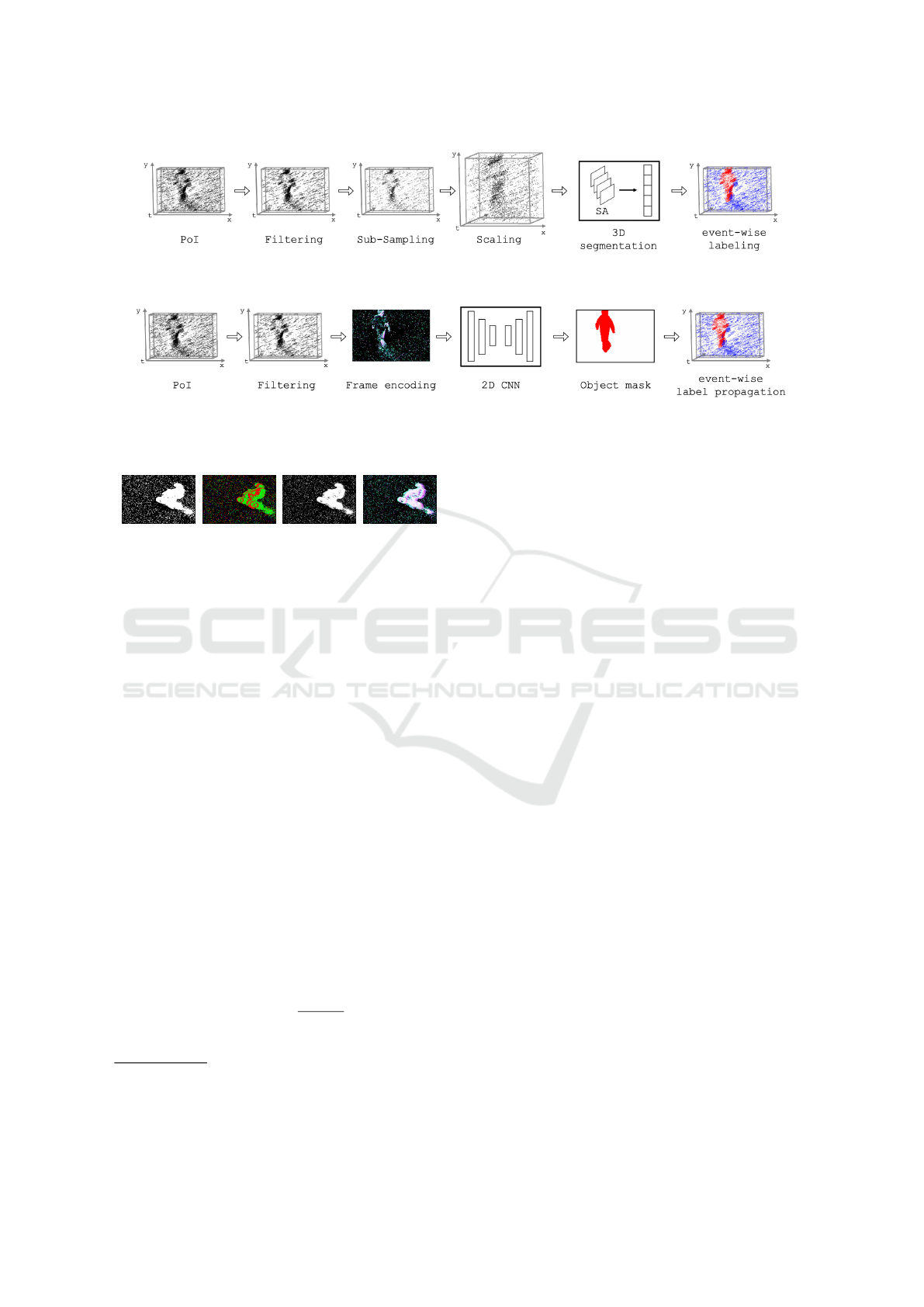

The rest of this paper is structured as follows.

Section 2 summarizes related work and their concept

of used event encoding. A description of the evalu-

ated network structures follows in Section 3. Section

4 describes the used processing pipelines in detail,

presents the obtained results and provides a compar-

ison of the results. Finally, a short summary is given

in Section 5.

2 RELATED WORK

In many event-based processing applications the

event stream is transformed into alternative represen-

tations (Gallego et al., 2020). Many of these applica-

tions use a conversion of the event stream into clas-

sic 2D frames, as this is a simple way of conversion

that also allows the use of established computer vi-

sion techniques. However, this conversion is gener-

ally also associated with a loss of information (e.g.

the dense time resolution) of the stream. Recently,

there is a tendency towards graph- or point-cloud-

based methods noticeable, which try to minimize this

information loss in the event encoding.

Frame-based Conversion Approaches. Common

techniques for generating frames from DVS event

streams are based on considering (a) a ﬁxed number

of events or (b) the selection of a time window of ﬁxed

length. Depending on the focus of the application,

different encoding rules are used, which try to pre-

serve different aspects of the underlying event stream.

Usually, the frames generated in this way are then an-

alyzed using well-known 2D network structures and

computer vision techniques.

For example, in (Chen et al., 2019a) three dif-

ferent frame encodings are presented, each of which

is intended to represent another characteristic of the

data stream like the event frequency, timestamp in-

formation or time-continuous aspects. These frames,

as well as composited multi-channel combinations of

them, are subsequently processed by a 2D object de-

tection approach. In (Wan et al., 2021) a new frame

encoding called “neighborhood suppression time sur-

face” is introduced to address issues related to ar-

eas with highly different event densities, whereas in

(Jiang et al., 2019) the special DAVIS sensor prop-

erty of being able to record classical intensity im-

ages in combination with derived event-frame encod-

ings is exploited. All approaches mentioned here

are subsequently based on the use of the well known

YOLO (Redmon et al., 2016) based 2D object detec-

tor framework.

In (Damien. et al., 2019) three frames are gen-

erated by accumulating the events in different time

windows with lengths of 40ms, 100ms and 200ms to

be able to detect objects with different speeds. These

frames are subsequently processed in parallel by a

SSD and Faster-RCNN (Ren et al., 2017) based pro-

cessing pipeline.

Graph-based Processing. Using graphs the spatio-

temporal relations between the events can be de-

scribed without leaving the asynchronicity and spar-

sity of the events. In (Zhou et al., 2020), all events are

mapped into an image before the graph is created. The

2D graph derived from the image is then converted

into a 3D graph for further processing. However, this

initialization is very time-consuming. In (Bi et al.,

2020), a 3D graph is built directly. For saving compu-

tation time, the complete event stream is divided into

short temporal sections so that only few events are

considered for the respective graph construction. Dif-

ferent ﬁltering algorithms are used in (Bi et al., 2019;

Chen et al., 2020; Wang et al., 2021) for substantial

event reduction prior to their analysis. Compared to

applications such as gesture or gait classiﬁcation, our

data contains artifacts from the environment (such as

rain) and the size of objects varied largely. Hence, it

was difﬁcult to decide which events to remove and we

did not consider these approaches further.

Point-cloud based Processing. In contrast to the

previously mentioned approaches, the event stream

can also be considered as an unordered point cloud.

Since each event is described at least by its (x, y) co-

ordinate and the timestamp t, a 3D space-time event

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-streams

169

cloud is created automatically without any further

processing steps. The dense time information is pre-

served in this interpretation and converted into geo-

metric information. Subsequently, network architec-

tures speciﬁcally designed for unordered point clouds

can be used for processing. In (Wang et al., 2019),

PointNet and PointNet++ are ﬁrst applied on event

streams to classify hand gestures, utilizing a rolling

buffer mechanism to the event stream. The data in the

buffer is then down sampled for classiﬁcation. A spe-

cial feature is, that previous classiﬁcation results are

used in deciding the current classiﬁcation by continu-

ous averaging. In contrast to (Wang et al., 2019), we

use PointNet++ for semantic segmentation. As clas-

siﬁcation here occurs at the event level, the idea of the

sliding window cannot be adopted.

3 PROPOSED METHODS

In the following, the basic concepts of the evaluated

3D point cloud networks, as well as the applied 2D-

CNN comparison method are outlined.

PointNet++ Hierarchical feature learning (Qi et al.,

2017b)

PointNet++ builds upon the PointNet (Qi et al.,

2017a) framework by the same authors, which

was the ﬁrst neural network to be successfully di-

rectly applied to point clouds. First of all, it uses

max-pooling as a symmetric function to make the

network invariant towards input point ordering.

The MLPs used for feature extraction are shared,

resulting in a relatively small network. After ex-

tracting geometric features, an MLP is trained for

either classiﬁcation or segmentation.

PointNet++ expands the network by hierarchical

processing. It recursively applies Farthest Point

Sampling (FPS) to select representative points to-

gether with small PointNet feature extractors ap-

plied on the local neighborhood of each represen-

tative point (Set Abstraction (SA) Layer), which

helps capturing not only global geometric features

but also neighborhood information. Due to the

consecutive sampling, an interpolation is needed

to produce point-wise features for segmentation

(Feature Propagation (FP) Layer).

The following networks aim to utilize the relation-

ships (e.g. distances, directions) of the points in-

stead of processing each point independently.

A-CNN Annularly Convolutional Neural Network

(Komarichev et al., 2019)

The main concept of A-CNN is to apply a con-

volution to the point clouds, leveraging their re-

lationships. Therefore, a method for ordering the

points is needed. The authors project every point

inside a local neighborhood into an approximated

tangential plane at the representative point. In the

plane, angles can be calculated and used for or-

dering. Then, a one-dimensional convolution can

be applied.

LSANet Feature Learning by Local Spatial Aware

Layers (Chen et al., 2019b)

In LSANet, the process of abstraction and lo-

cal feature learning is accompanied by a paral-

lel branch which learns so called spatial distribu-

tion weights from the coordinates of all points in

a local neighborhood. These implement the con-

cept of attention in neural networks, which means

that some parts of the input are considered to be

more important than others. The attention mask

is multiplied element-wise with the features. In

LSANet, the attention weights are based on the

coordinates, thus on the geometric properties of a

local region, which should enable the network to

better learn details of the structures.

SpiderCNN Parameterized Convolutional Filters

(Xu et al., 2018)

The authors of SpiderCNN do not try to order the

point cloud like in A-CNN. Instead, they adapt the

ﬁlter to support unordered input. In classical dis-

crete convolution, only discrete weights for each

position, deﬁned by the kernel size, are needed.

The positions of the neighboring points are not

known in point clouds, so instead of deﬁning dis-

crete weights, a function is used that calculates a

weight based on the coordinates of a point. Dur-

ing the learning phase parameters of the function

generating the weights are learned instead of the

weights themselves. The structure differs from

PointNet++, as the point cloud is not sampled and

therefore no interpolation is needed.

PointNet++ was selected because it represents the

pioneering fundament work for the direct application

of neural networks to point clouds and many other

methods use it as a basis (compare to (Guo et al.,

2021) for a comprehensive method review). The se-

lected further methods were chosen because (a) they

each aim at an improvement compared to the vanilla

PointNet++ and (b) their reference implementations

are also freely available.

Frame-based Baseline as Comparison. As a base-

line comparison of the afore-mentioned 3D point

cloud processing networks we also evaluated a tra-

ditional 2D convolutional neural network (CNN) ap-

proach applied on event-frame encodings generated

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

170

by means of DVS-stream to frame conversion.

For further processing and fair comparison a

pixel-precise labeling is required on these event-

frames (compare to following section 4.3). Estab-

lished state-of-the-art CNN structures such as U-Net

(Ronneberger et al., 2015) or Mask-R-CNN (He et al.,

2017) are well suited methods for generating this se-

mantic frame segmentation.

However, several comparative studies have found

that Mask-R-CNN is able to learn a better and more

robust prediction. This has been shown in medical

image processing, which is the original application

domain of U-Net, as detailed in (Alfaro et al., 2019;

Vuola et al., 2019; Durkee et al., 2021) - but also for

other application domains (Zhao et al., 2018; Quoc

et al., 2020).

Therefore, we utilized a Mask-R-CNN structure

for the performed comparison in this work. The pre-

dicted object masks are subsequently considered on

the level of a semantic segmentation.

4 EXPERIMENTS

We ﬁrst brieﬂy introduce the dataset used, followed

by a detailed description of the respective 3D or 2D

processing pipelines. This is followed by the quantita-

tive analysis of the obtained results, which is divided

into multiple parts: (a) the optimization of the base

PointNet++ network in terms of input and network

parameters, (b) the evaluation of 3D PointNet++ suc-

cessor network variants and (c) the comparison of the

obtained results including the 2D frame-based base-

line.

4.1 Dataset

In contrast to the long-established frame-based com-

puter vision, the set of publicly available datasets is

smaller in the event-based vision ﬁeld. This becomes

even more noticeable focusing on a speciﬁc applica-

tion domain, such as long-time monitoring scenarios.

Related to the development of advanced vehicle

driver-assistance systems larger event-based monitor-

ing datasets are available. The datasets DDD17 (Bi-

nas et al., 2017) and DDD20 (Hu et al., 2020) can

be listed as examples. Despite the fact that these

datasets are composed of many hours of real-world

DVS recordings, these datasets cannot directly be

used for the purpose of semantic segmentation due to

the lack of appropriate semantic labeling. The GEN1

dataset (de Tournemire et al., 2020) also provides

recordings in the automotive application domain. In

this case, object annotations are given for the two

(a)

PERSON

(b) DOG

(c)

BICYCLE

(d)

SPORTS-

BALL

(e) BIRD

(f) INSECT (g) TREE

CROWN

(h) TREE

SHADOW

(i) RAIN (j) BACK-

GROUND

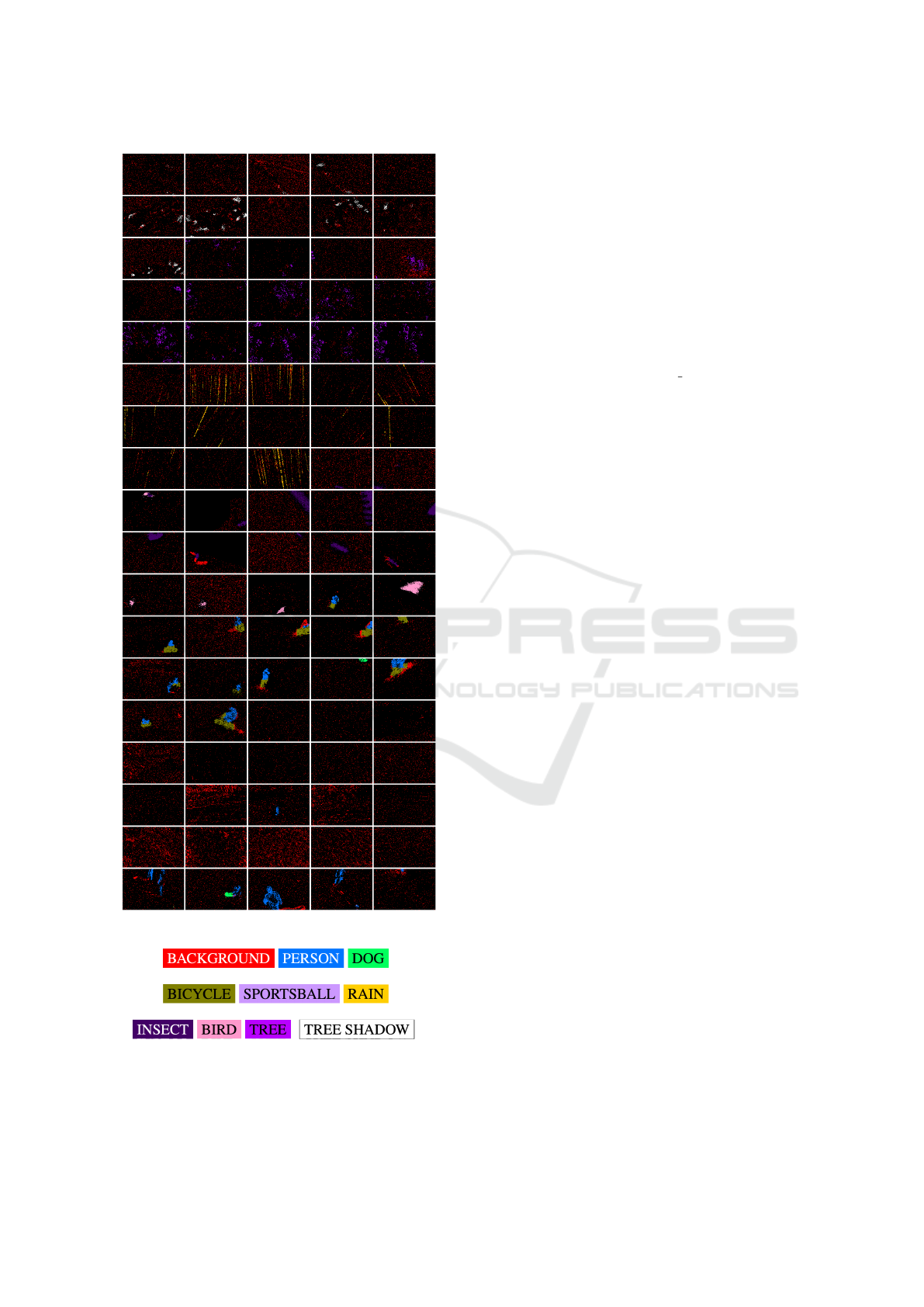

Figure 1: False-color label examples of included classes

in DVS-OUTLAB (projected from 60ms event-stream snip-

pets into 2D frame, modiﬁed from (Bolten et al., 2021), best

viewed in color).

classes person and car. However, these annotations

were carried out in the form of bounding boxes and

not on the level of a semantic segmentation.

Miao et al. offer with (Miao et al., 2019) another

dataset addressing a related scenario of pedestrian de-

tection. However, this dataset consists of only 12

short recordings with an average length of about 30

seconds and furthermore offering only bounding-box

labels for the two classes of background and person.

Hence, a meaningful evaluation of the proposed meth-

ods on these datasets does not appear to be purpose-

ful.

Therefore, the provided semantic labeling from

the DVS-OUTLAB dataset (Bolten et al., 2021) were

selected for this work. This dataset contains DVS

recordings of three CeleX4 neuromorphic sensors

(Guo et al., 2017) form a performed multi-sensor

long-time monitoring of an urban public outdoor

space. These recordings provide a spatial resolution

of 768 × 512 pixels. Furthermore the DVS-OUTLAB

dataset includes a semantic per-event-labeling for 10

classes in about ≈ 47k regions of interest (see Fig-

ure 1), partitioned in train/test and evaluation sets.

This labeling includes different challenges in the form

of environmental inﬂuences and plain sensor back-

ground noise in addition to various objects included

at very different sizes through their perspective dis-

tances.

4.2 Point Cloud Representations and

Processing Pipeline

Prior work applying 3D point cloud processing tech-

niques on DVS event data processes temporal win-

dows of the stream that includes the entire spatial

resolution of the sensor. In (Wang et al., 2019) the

used DVS128 sensor offers a spatial resolution of

128px × 128px, whereas the CeleX4 sensor record-

ings used in this work have a spatial resolution of

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-streams

171

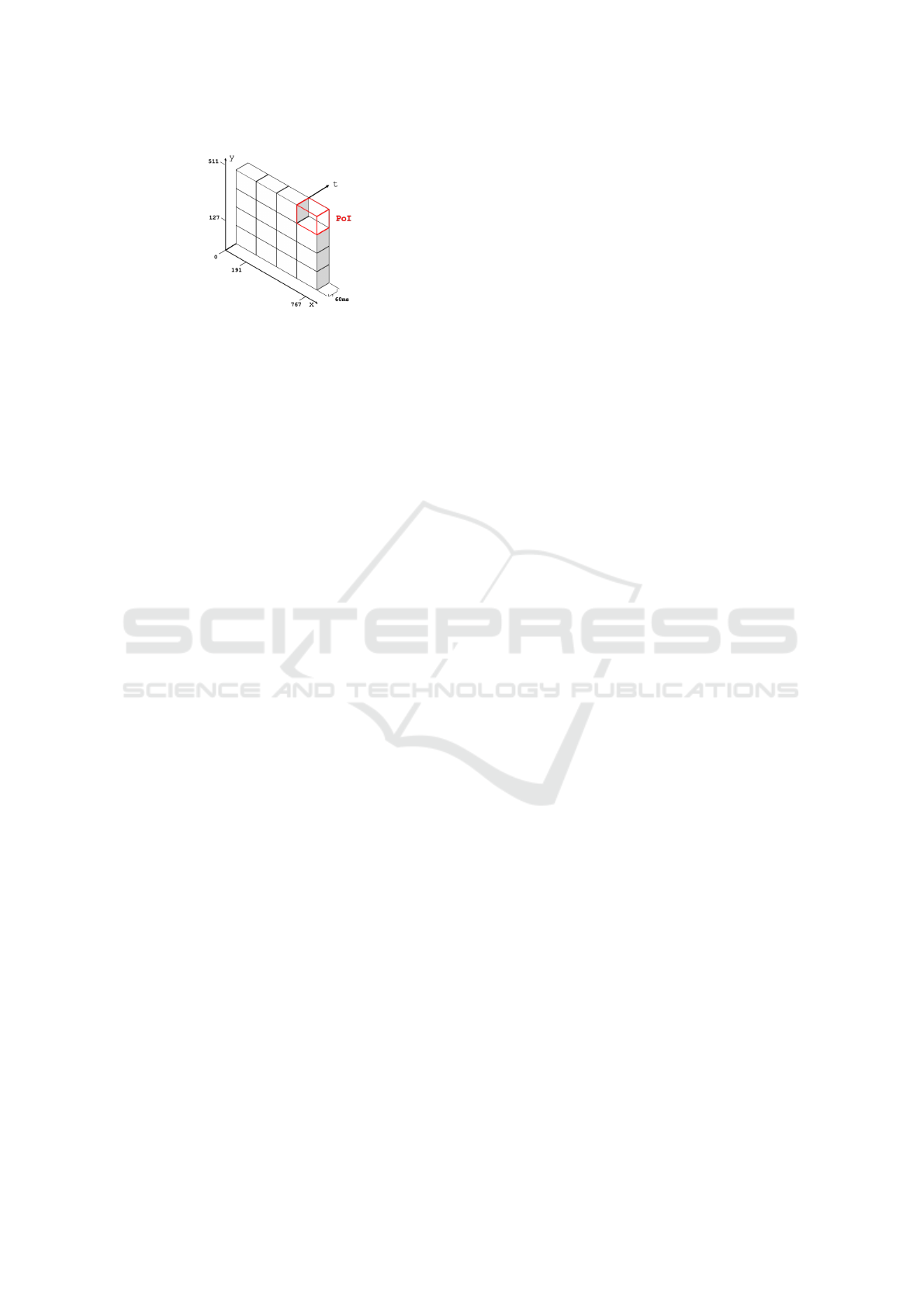

Figure 2: Patch-of-Interest (PoI): Data selection within

DVS-OUTLAB.

768px × 512px. This considerably higher resolution

leads to a signiﬁcantly higher number of possible

events per temporal window of the same length.

Over the entire recordings used in (Wang et al.,

2019), the mean event count per 60ms time window

is approximately 3175 events. Considering the DVS-

OUTLAB database used here, this mean count per

60ms time window is about 30 times higher at about

≈ 97k events. Therefore, we decided to apply spatial

patching in addition to the temporal windowing. We

patch the provided stream data into 16 equal patches

of size 192px ×128px × 60ms, as illustrated in Figure

2. This divide and conquer approach allows to keep

smaller objects and ﬁner structures intact in the subse-

quent ﬁltering and sampling steps to generate the ﬁnal

point clouds, since the mean event count per patch is

lowered to around 7.5k events.

To generate a point cloud per patch, the follow-

ing preprocessing steps are carried out (compare with

Figure 3a for clariﬁcation):

1. Spatio-temporal ﬁltering: As reported by the

DVS-OUTLAB authors, the provided database

contains a high amount of sensor background

noise. Analogously to their analysis of different

spatio-temporal ﬁlters (Bolten et al., 2021), we

also apply a ﬁltering in the ﬁrst processing stage.

The event stream is ﬁltered by removing each

event that is not supported by at least one other

event at the same spatial (x, y) coordinate within

its preceding 10ms. The selection of this ﬁlter

is based on the aforementioned ﬁlter analysis in

(Bolten et al., 2021), as it reduced background

noise by about 50% while keeping the highest pro-

portion of other class events compared to other

considered spatio-temporal ﬁlter variants.

2. Subsampling: A requirement for the application

of PointNet++ and the other 3D network variants

is that the event count given as input must be

constant. Hence, a uniform random subsampling

of the time-ﬁltered events is performed such that

each event has equal probability of appearance.

After applying the previous time ﬁltering step, the

average event count per patch is approximately

4.8k events. Based on this event count evaluation,

n = 4096 events was selected as suitable subsam-

pling target. For patches with fewer events, copies

of randomly selected events are inserted until the

required number is reached. Due to the usage of

max-pooling in the point cloud network process-

ing logic the inﬂuence of these duplicates is neg-

ligible.

3. Spatio-temporal scaling: Subsequently, the en-

tire patch of 192px × 128px × 60ms is shifted into

the coordinate origin so that the upper left bound-

ary point of the patch is located at x = 0, y = 0, t =

0. This leads to the following 3D space time point

cloud deﬁnition:

native

= {e

= (x

, y

) | (1)

∈ T, i = 1, . . . , 4096,

∈ N : 0 ≤ x

< 192,

∈ N : 0 ≤ y

< 128,

∈ R : 0 ≤ t

< 60.0}

where T is the current temporal event stream win-

dow of 60ms.

In addition, two other variants were considered

within the experiments in which the 3D event co-

ordinates were rescaled accordingly on the time

axis or on all three axes:

tScaled

= {e

= (x

, y

) | (2)

∈ T, i = 1, . . . , 4096,

∈ N : 0 ≤ x

< 192,

∈ N : 0 ≤ y

< 128,

∈ R : 0 ≤ t

< 1.0}

cube

= {e

= (x

, y

) | (3)

∈ T, i = 1, . . . , 4096,

, y

∈ R : −1 ≤ x

, y

≤ 1}

A semantic segmentation is then generated from

these point clouds using the network structures, cre-

ating an event-wise labeling.

4.3 Frame-based Representations and

Processing Pipeline

To ensure fair comparability to the 3D-PointCloud

methods, the frame-based Mask-R-CNN analysis is

based on input data that has been pre-processed in

the same manner. This means that the generated in-

put frame representations originated from the same

DVS event-stream temporal sections and patches

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

172

(a) 3D based PointCloud processing

(b) 2D frame based CNN processing

Figure 3: Visualization of performed processing steps per Patch-Of-Interest (PoI).

(a) Binary (b) Polarity (c) Frequency (d) MTC

Figure 4: Examples of different frame encodings (best

viewed in color).

of 192px × 128px × 60ms, which were also spatio-

temporally pre-ﬁltered with the same threshold pa-

rameter of 10ms.

These patches are encoded into frame representa-

tions according to the following description (compare

to examples in Figure 4):

Binary representation

The frame pixel at (x, y) is set to white if a cor-

responding event with the same spatial coordinate

exists in the patched DVS data.

Polarity representation

The frame pixel at (x,y) encodes the polarity of the

latest event that occurred at that spatial position.

The direction of brightness change is encoded by

the following colors: (a) decrease in red, (b) no

change in blue and (c) increase in green.

Frequency representation

The frame pixel at (x,y) encodes the normalized

count of event occurrences at that spatial position

as proposed by Chen et al. in (Chen et al., 2019a):

σ(n) = 255 · 2 ·



1 + e

−n

− 0.5



(4)

where n denotes the count of occurred events

The utilized CeleX4 sensor determines the polarity of

an event based on its transmitted gray value within software,

this can also lead to events with “no brightness” changes.

within the considered time window at the evalu-

ated frame coordinate.

The frequency of occurrence of events within a

time interval represents an indication of whether

the event is noise or a valid event. Assuming that

moving objects trigger a larger number of events,

this encoding leads to a higher weighting of the

edges whereas noise is reduced assuming advan-

tages for subsequent signal-processing.

MTC “Merged-Three-Channel” representation

In this frame representation, which was also pro-

posed by Chen et al. in (Chen et al., 2019a),

different one channel encodings are merged in a

three channel RGB image. This follows the at-

tempt to encode different aspects of the event do-

main and to obtain a large amount of available in-

formation in the encoding. These encodings are

based on:

Frequency (B-channel): This is the integration

of the previously described encoding as one chan-

nel of the merged representation.

Surface-Of-Active-Events (SAE, G-channel):

An advantage of the DVS technology is the high

time-resolution of the event stream. The goal of

the SAE-channel encoding is to include this char-

acteristic into the frame representation. Here, the

pixel values are directly dependent on the corre-

sponding timestamp of the events.

This allows that the pixel value and its gradient

includes information about the moving direction

and speed within the event stream.

Leaky-Integrate-And-Fire neuron model (LIF,

R-channel): In this encoding, realizing some

kind of memory surface, each pixel is interpreted

as a neuron with its own membrane potential (MP)

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-streams

173

with a ﬁxed decay rate. The triggered events will

increase the corresponding MB and will cause a

ﬁring of the neuron if a threshold is exceeded. The

ﬁring rate determines the pixel value in the frame

encoding.

This encoding allows the inclusion of time-

continuous aspects of the event stream into the

encoding. For a detailed description and imple-

mentation details refer to (Chen et al., 2019a).

Including these aspects in the frame encoding al-

lows for a fair comparison to the 3D methods, since

many characteristics of the events streams are in-

tended to be included.

For each of these frame encodings different Mask-

R-CNNs were trained from scratch with derived 2D

instance labels of the DVS-OUTLAB train-set utiliz-

ing the network implementation of (Abdulla, 2017).

To compare the obtained results with the point

cloud approaches, the 2D label masks generated by

Mask-R-CNN were propagated back to the original

event stream. Every event receives the label of the

corresponding spatial position of the predicted object

mask, thus generating an event-wise labeling (com-

pare to the last illustrated steps in Figure 3b).

4.4 Evaluation Metrics

In the evaluation process, a confusion matrix was built

and standard metrics for segmentation were derived.

Those were Intersection-over-Union, precision, recall

and F1-Score, each computed per-class. For effective

comparison across different setups despite the num-

ber of 10 classes, we derived some summary metrics

from the F1-Scores. Therefor, a weighted-average F1-

Score was computed by weighting the F1-Score of

each class by the number of its samples to account for

class imbalances. As the background-noise class was

particularly dominating, this metric was also com-

puted for merged classes listed below to provide an

overview on the average performance that is less in-

ﬂuence by this imbalance:

• BACKGROUND

• Objects: PERSON, DOG, BICYCLE and SPORTSBALL

• Environmental inﬂuences: RAIN, TREE, INSECT,

BIRD and TREE_SHADOW

4.5 Network Training

The hyper parameters of the networks were left at the

defaults where possible. For the 3D point cloud net-

works this includes the Adam optimizer with a learn-

ing rate of 0.001 and a learning rate decay by 0.7 ev-

ery 200, 000 samples. The batch size was set to 16

Table 1: PointNet++ input and network parameter optimiza-

tion results shown as WeightedF1 results

Conﬁg

Back-

ground

Objects

Env-Inﬂu

ences

Over-All

(a) PointNet++ Layer-experiments

3 Layer 0.952 0.741 0.755 0.9

4 Layer 0.953 0.721 0.763 0.9

5 Layer 0.954 0.737 0.775 0.904

6 Layer 0.955 0.723 0.781 0.905

(b) PointNet++ Point-Count-experiments

n = 512 0.948 0.704 0.732 0.89

n = 1024 0.952 0.741 0.755 0.9

n = 2048 0.958 0.746 0.806 0.914

n = 3072 0.959 0.75 0.805 0.915

cube

0.958 0.746 0.806 0.914

tScaled

0.966 0.817 0.849 0.933

native

0.968 0.806 0.863 0.936

(d) PointNet++ Spatio-Temporal-Scaling-experiments

weight

= 1 0.968 0.806 0.863 0.936

weight

= 3.2 0.966 0.807 0.858 0.934

weight

= 20 0.96 0.788 0.814 0.92

point clouds. Except for randomly shufﬂing the input

point order each epoch, no data augmentation meth-

ods were applied. The random shufﬂe is also impor-

tant for the correct function of the local neighborhood

building process in PointNet++.

In case of the 2D Mask-R-CNN training the de-

fault learning rate was reduced by the factor of 2 to

0.0005 to prevent the explosion of the trained weights,

which especially tends to occurs with smaller batch

sizes, as in our case of three images. For training, the

Keras SGD optimizer was used with a momentum of

0.9 and data augmentation was not applied.

For all experiments the proposed train, validation

and test splits of the DVS-OUTLAB dataset were

used and the training process was carried out on an

NVIDIA Quadro RTX6000 GPU.

4.6 PointNet++ Results

For the main experiments, we determined some key

aspects to test with the PointNet++ architecture and

ranked them according to their expected inﬂuence.

These aspects were:

1. Number of layers

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

174

Table 2: Achieved WeightedF1 results by applying 3D net-

work variants and 2D-Mask-R-CNN baseline.

Conﬁg

Back-

ground

Objects

Env-Inﬂu

ences

Over-All

(a) 3D Network variants

PointNet++ 0.966 0.817 0.849 0.933

A-CNN 0.968 0.823 0.862 0.938

LSANet 0.968 0.826 0.857 0.936

SpiderCNN 0.952 0.724 0.735 0.895

(b) Mask-R-CNN @ ResNet-50 Backbone

Binary 0.949 0.821 0.843 0.911

Polarity 0.953 0.844 0.873 0.922

Frequency 0.952 0.828 0.863 0.918

MTC 0.953 0.848 0.87 0.923

Binary 0.947 0.816 0.835 0.907

Polarity 0.953 0.842 0.875 0.923

Frequency 0.952 0.833 0.861 0.918

MTC 0.95 0.844 0.862 0.918

(a) Equal weight

(b) Higher weight

weight

Figure 5: Visualization of neighborhood by forcing higher

temporal weights in distance calculation.

2. Number of points sampled in the ﬁrst SA-layer

3. Variation of spatio-temporal scaling

4. Forcing local neighborhoods to have more or less

temporal components

Each aspect was tested separately, i.e. other as-

pects were always ﬁxed. We used a greedy strategy.

Parameters were estimated in the order given above

and then used for computing the best value of the next

parameter in this list.

The number of layers applies to the SA Layers

and equally to the FP Layers. It was chosen from

{3, 4, 5, 6}. Starting point was the default model for

semantic segmentation provided by the authors of

PointNet++, which was adapted to a different num-

ber of layers. The S

cube

scaling was chosen for the

ﬁrst tests because PointNet++ authors also mentioned

such a normalization in (Qi et al., 2017a) and (Qi

et al., 2017b). We found that the number of layers

has a negligible inﬂuence. Therefore, we chose the

smallest and fastest version with 3 layers for subse-

quent experiments.

In the following, the number of points sampled by

FPS in the ﬁrst SA layer was changed. In addition to

the default of 1024 points, 512, 2048 and 3072 points

were tested. The number of points in the later layers

was not changed. Whereas increasing the point num-

ber from 512 over 1024 to 2048 had a signiﬁcant in-

ﬂuence, the gain from sampling 3072 points was very

small, while almost 50% more time was needed for

inference, so 2048 points were selected for the next

tests.

Next, we tested the other spatio-temporal scalings

(see Section 4.2). Therefore, the radii of the SA layers

were adapted to the longest axis. Due to the shorter

time axis, the full time interval was allowed for neigh-

borhood building. It could be shown that both other

spatio-temporal scalings, applying either the S

tScaled

or the S

native

scaling, achieve a substantially better

performance than the previous conﬁguration.

The idea of treating the spatial and temporal axes

differently in a radius selection due to different res-

olution was also mentioned in (Bi et al., 2019). It

seemed reasonable to test it on the present dataset,

since the temporal axis was always far shorter than

the spatial axes but had a signiﬁcantly higher reso-

lution. Thus, the time component received a higher

weight in the Euclidean distance measure. The effect

is shown in Figure 5 in three levels. First, all axes

have the same weight, which leads to a sphere cover-

ing the whole time axis when it is shorter like in the

present dataset. Second and third, the sphere is com-

pressed with respect to the the time axis. Tests have

shown that reducing the time span had almost no in-

ﬂuence at ﬁrst when setting the time axis weight to

3.2, which leads to equal proportions with respect to

spatial and temporal axes. It reduces the performance

when shrinking the time interval too drastically, set-

ting the weight to 20. This supports the initial argu-

ment that keeping all available information is beneﬁ-

cial for algorithm performance.

Table 1 shows the F1-Scores of the aforemen-

tioned experiments for the grouped classes.

For fur-

ther clariﬁcation, qualitative results of the segmen-

tations are given in Figure 6. Here, the processed

Patches-Of-Interest are projected into 2D frames and

the resulting labeling is represented by false colors.

The detailed network conﬁgurations and pre-trained

weights are available online. In addition, unweighted per-

class F1 scores are also available.

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-streams

175

Table 3: Network parameter and runtime comparison with batch size of one (Intel Xeon Gold 6226R CPU, NVIDIA Quadro

RTX6000).

Conﬁg #Trainable

Parameters

Conﬁg Avg. Inference

time [ms]

(a) 3D PointNet++ network parameters

PointNet++(*, 3L) 437,930

PointNet++(*, 4L) 967,594

PointNet++(*, 5L) 2,418,602

PointNet++(*, 6L) 7,285,162

(b) 3D PointNet++ runtimes

PointNet++(512, 3L) 13.3 +/- 0.5

PointNet++(1024, 3L) 23.1 +/- 0.4

PointNet++(2048, 3L) 43.0 +/- 0.7

PointNet++(3072, 3L) 62.7 +/- 1.2

LSANet(*, 3L) 556,810

SpiderCNN(*, 3L) 1,080,798

A-CNN(*, 3L) 2,113,706

(d) 3D Network variant runtimes

LSANet(2048, 3L) 43.5 +/- 1.0

SpiderCNN(*, 3L) 37.6 +/- 0.9

A-CNN(2048, 3L) 41.3 +/- 0.9

(e) Mask-R-CNN 2D-baseline parameters

MRCNN(ResNet50) 44,646,734

MRCNN(ResNet101) 63,664,974

(f) Mask-R-CNN 2D-baseline runtimes

MRCNN(ResNet50) 114.9 +/- 4.2

MRCNN(ResNet101) 127.1 +/- 4.1

4.7 3D Network Variant Results and

Baseline Comparison

The two network variants A-CNN and LSANet can

both outperform PointNet++ by a slight margin, espe-

cially in the important non-background classes. Con-

sidering the fact that the inference time nearly stayed

the same, they offer good alternatives to the bare

PointNet++ architecture. In contrast, SpiderCNN de-

livers much worse results, pointing out the effective-

ness of the set abstraction architecture of the other ap-

proaches, since SpiderCNN uses a different approach

without sampling and interpolation. Table 2 and 3

summarize the results and runtimes.

The Binary frame encoding achieves the worst re-

sults in the 2D-Mask-R-CNN comparison, regardless

of the utilization of ResNet 50 or 101 as network

backbone. This is understandable since this encod-

ing preserves the lowest amount of information. The

3-channel frame encodings Polarity and MTC show

signiﬁcantly better results for non-background classes

compared to the Frequency encoding (compare to Ta-

ble 2b,c).

The results utilizing Polarity or MTC encodings

are comparable to each other, but are overall worse

than the bare PointNet++ results. It should be noted

that the PointNet++ used for comparison has about

101 or 145 times fewer trainable weights depending

on the used backbone and is up to a factor of ≈ 2.95

times faster at inference (compare to Table 3a,e and

3b,f).

5 CONCLUSION

The conducted experiments and their presented re-

sults clearly reveal that an interpretation of the DVS

event stream in the form of 3D space-time event

clouds is a promising way. The obtained seman-

tic segmentations using Deep Learning based meth-

ods for the processing of unordered 3D point clouds

achieves better results in terms of quality and runtime

compared to a 2D-frame encoded CNN-baseline ap-

proach. This conﬁrms the presumed advantages of

the 3D point cloud representation of the DVS stream,

as this representation results almost natively and pre-

serves the properties of the data stream better than 2D

frame conversion encodings.

However, the point cloud representations with

= (x

, y

) used in this work consider just the

spatio-temporal components of the event stream. One

aspect for further research may therefore be the con-

sideration of additional features, such as the event po-

larity, in this representation.

Currently, each patch of the event stream is pro-

cessed independently. As a result, the temporal con-

tinuity at the boundaries of the patches is not prop-

erly considered. Therefore, the extension of point

cloud based processing to include recurrent structures

(Fan and Yang, 2019) or LSTM structures (Min et al.,

2020) is another promising extension.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

176

(a) Labeled Patches-Of-Interest projected into 2D frames

(b) False-color legend

Figure 6: False-color examples for PointNet++ semantic

segmentation results (best viewed in color).

ACKNOWLEDGEMENTS

This work was supported by the European Re-

gional Development Fund under grant number EFRE-

0801082 as part of the project “plsm” (https://plsm-

project.com/).

REFERENCES

Abdulla, W. (2017). Mask R-CNN for object detection and

instance segmentation on keras and tensorﬂow. https:

//github.com/matterport/Mask RCNN.

Alfaro, E., Fonseca, X. B., Albornoz, E. M., Mart

ınez,

C. E., and Ramrez, S. C. (2019). A brief analysis

of U-Net and Mask R-CNN for skin lesion segmen-

tation. In 2019 IEEE International Work Conference

on Bioinspired Intelligence (IWOBI), pages 000123–

000126.

Bi, Y., Chadha, A., Abbas, A., Bourtsoulatze, E., and An-

dreopoulos, Y. (2019). Graph-based object classiﬁca-

tion for neuromorphic vision sensing. In Proceedings

of the IEEE/CVF International Conference on Com-

puter Vision (ICCV).

Bi, Y., Chadha, A., Abbas, A., Bourtsoulatze, E., and An-

dreopoulos, Y. (2020). Graph-based spatio-temporal

feature learning for neuromorphic vision sensing.

IEEE Transactions on Image Processing, 29:9084–

9098.

Binas, J., Neil, D., Liu, S.-C., and Delbruck, T. (2017).

DDD17: End-to-end davis driving dataset. In

ICML’17 Workshop on Machine Learning for Au-

tonomous Vehicles (MLAV 2017).

Bolten, T., Pohle-Fr

ohlich, R., and T

onnies, K. D. (2021).

DVS-OUTLAB: A neuromorphic event-based long

time monitoring dataset for real-world outdoor sce-

narios. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR)

Workshops, pages 1348–1357.

Chen, G., Cao, H., Ye, C., Zhang, Z., Liu, X., Mo, X., Qu,

Z., Conradt, J., R

ohrbein, F., and Knoll, A. (2019a).

Multi-cue event information fusion for pedestrian de-

tection with neuromorphic vision sensors. Frontiers

in Neurorobotics, 13:10.

Chen, J., Meng, J., Wang, X., and Yuan, J. (2020). Dynamic

graph CNN for event-camera based gesture recogni-

tion. In 2020 IEEE International Symposium on Cir-

cuits and Systems (ISCAS), pages 1–5.

Chen, L., Li, X., Fan, D., Cheng, M., Wang, K., and Lu, S.

(2019b). LSANet: Feature learning on point sets by

local spatial aware layer. arXiv, abs/1905.05442.

Damien., J., Hubert., K., and Frederic., C. (2019). Con-

volutional neural network for detection and classiﬁca-

tion with event-based data. In Proceedings of the 14th

International Joint Conference on Computer Vision,

Imaging and Computer Graphics Theory and Applica-

tions - Volume 5: VISAPP,, pages 200–208. INSTICC,

SciTePress.

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-streams

177

de Tournemire, P., Nitti, D., Perot, E., Migliore, D., and

Sironi, A. (2020). A large scale event-based detection

dataset for automotive. arXiv, abs/2001.08499.

Durkee, M. S., Abraham, R., Ai, J., Fuhrman, J. D., Clark,

M. R., and Giger, M. L. (2021). Comparing Mask

R-CNN and U-Net architectures for robust automatic

segmentation of immune cells in immunoﬂuorescence

images of lupus nephritis biopsies. In Imaging, Ma-

nipulation, and Analysis of Biomolecules, Cells, and

Tissues XIX, volume 11647, page 116470X. Interna-

tional Society for Optics and Photonics.

Fan, H. and Yang, Y. (2019). PointRNN: Point recurrent

neural network for moving point cloud processing.

arXiv, 1910.08287.

Gallego, G., Delbruck, T., Orchard, G. M., Bartolozzi,

C., Taba, B., Censi, A., Leutenegger, S., Davison,

A., Conradt, J., Daniilidis, K., and Scaramuzza, D.

(2020). Event-based vision: A survey. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence.

Guo, M., Huang, J., and Chen, S. (2017). Live demon-

stration: A 768 × 640 pixels 200meps dynamic vi-

sion sensor. In 2017 IEEE International Symposium

on Circuits and Systems (ISCAS), pages 1–1.

Guo, Y., Wang, H., Hu, Q., Liu, H., Liu, L., and Ben-

namoun, M. (2021). Deep learning for 3d point

clouds: A survey. IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence, 43(12):4338–4364.

He, K., Gkioxari, G., Dollar, P., and Girshick, R. (2017).

Mask R-CNN. In Proceedings of the IEEE Interna-

tional Conference on Computer Vision (ICCV).

Hu, Y., Binas, J., Neil, D., Liu, S.-C., and Delbruck, T.

(2020). DDD20 end-to-end event camera driving

dataset: Fusing frames and events with deep learn-

ing for improved steering prediction. In 2020 IEEE

23rd International Conference on Intelligent Trans-

portation Systems (ITSC), pages 1–6.

Jiang, Z., Xia, P., Huang, K., Stechele, W., Chen, G., Bing,

Z., and Knoll, A. (2019). Mixed frame-/event-driven

fast pedestrian detection. In 2019 International Con-

ference on Robotics and Automation (ICRA), pages

8332–8338.

Komarichev, A., Zhong, Z., and Hua, J. (2019). A-CNN:

Annularly convolutional neural networks on point

clouds. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 7421–7430.

Miao, S., Chen, G., Ning, X., Zi, Y., Ren, K., Bing, Z.,

and Knoll, A. (2019). Neuromorphic vision datasets

for pedestrian detection, action recognition, and fall

detection. Frontiers in Neurorobotics, 13:38.

Min, Y., Zhang, Y., Chai, X., and Chen, X. (2020). An

efﬁcient PointLSTM for point clouds based gesture

recognition. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition

(CVPR).

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017a). Point-

Net: Deep learning on point sets for 3d classiﬁcation

and segmentation. In 2017 IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

77–85.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). Point-

Net++: Deep hierarchical feature learning on point

sets in a metric space. In Proceedings of the 31st Inter-

national Conference on Neural Information Process-

ing Systems, NIPS’17, pages 5105–5114, Red Hook,

NY, USA. Curran Associates Inc.

Quoc, T. T. P., Linh, T. T., and Minh, T. N. T. (2020).

Comparing U-Net convolutional network with Mask

R-CNN in agricultural area segmentation on satellite

images. In 2020 7th NAFOSTED Conference on In-

formation and Computer Science (NICS), pages 124–

129.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time ob-

ject detection. In 2016 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 779–

788.

Ren, S., He, K., Girshick, R., and Sun, J. (2017). Faster

R-CNN: Towards real-time object detection with re-

gion proposal networks. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 39(6):1137–

1149.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

Net: Convolutional networks for biomedical image

segmentation. In Navab, N., Hornegger, J., Wells,

W. M., and Frangi, A. F., editors, Medical Image Com-

puting and Computer-Assisted Intervention – MICCAI

2015, pages 234–241, Cham. Springer International

Publishing.

Vuola, A. O., Akram, S. U., and Kannala, J. (2019). Mask-

RCNN and U-Net ensembled for nuclei segmenta-

tion. In 2019 IEEE 16th International Symposium on

Biomedical Imaging (ISBI 2019), pages 208–212.

Wan, J., Xia, M., Huang, Z., Tian, L., Zheng, X., Chang, V.,

Zhu, Y., and Wang, H. (2021). Event-based pedestrian

detection using dynamic vision sensors. Electronics,

10(8).

Wang, Q., Zhang, Y., Yuan, J., and Lu, Y. (2019). Space-

time event clouds for gesture recognition: From RGB

cameras to event cameras. In 2019 IEEE Winter Con-

ference on Applications of Computer Vision (WACV),

pages 1826–1835.

Wang, Y., Zhang, X., Shen, Y., Du, B., Zhao, G.,

Cui Lizhen, L. C., and Wen, H. (2021). Event-

stream representation for human gaits identiﬁcation

using deep neural networks. IEEE Transactions on

Pattern Analysis and Machine Intelligence.

Xu, Y., Fan, T., Xu, M., Zeng, L., and Qiao, Y. (2018). Spi-

derCNN: Deep learning on point sets with parameter-

ized convolutional ﬁlters. In Ferrari, V., Hebert, M.,

Sminchisescu, C., and Weiss, Y., editors, Computer

Vision – ECCV 2018, pages 90–105, Cham. Springer

International Publishing.

Zhao, T., Yang, Y., Niu, H., Wang, D., and Chen, Y.

(2018). Comparing U-Net convolutional network with

Mask R-CNN in the performances of pomegranate

tree canopy segmentation. In Multispectral, Hyper-

spectral, and Ultraspectral Remote Sensing Technol-

ogy, Techniques and Applications VII, volume SPIE

10780, page 107801J. International Society for Optics

and Photonics.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

178

Zhou, Y., Gallego, G., Lu, X., Liu, S., and Shen, S.

(2020). Event-based motion segmentation with spatio-

temporal graph cuts. arXiv, abs/2012.08730.

Evaluation of Deep Learning based 3D-Point-Cloud Processing Techniques for Semantic Segmentation of Neuromorphic Vision Sensor

Event-streams

179
