DeIDNER Model: A Neural Network Named Entity Recognition

Model for Use in the De-identification of Clinical Notes

Mahanazuddin Syed

, Kevin Sexton

, Melody Greer

, Shorabuddin Syed

, Joseph VanScoy

Farhan Kawsar

, Erica Olson

, Karan Patel

, Jake Erwin

, Sudeepa Bhattacharyya

Meredith Zozus

and Fred Prior

Department of Biomedical Informatics, University of Arkansas for Medical Sciences, Little Rock, AR, U.S.A.

College of Medicine, University of Arkansas for Medical Sciences, Little Rock, AR, U.S.A.

Department of Biological Sciences and Arkansas Biosciences Institute, Arkansas State University, Jonesboro, AR, U.S.A.

Department of Population Health Sciences, University of Texas Health Science Center at San Antonio,

San Antonio, TX, U.S.A.

Keywords: Clinical Named Entity Recognition, Deep Learning, De-identification, Word Embeddings, and Natural

Language Processing.

Abstract: Clinical named entity recognition (NER) is an essential building block for many downstream natural language

processing (NLP) applications such as information extraction and de-identification. Recently, deep learning

(DL) methods that utilize word embeddings have become popular in clinical NLP tasks. However, there has

been little work on evaluating and combining the word embeddings trained from different domains. The goal

of this study is to improve the performance of NER in clinical discharge summaries by developing a DL

model that combines different embeddings and investigate the combination of standard and contextual

embeddings from the general and clinical domains. We developed: 1) A human-annotated high-quality

internal corpus with discharge summaries and 2) A NER model with an input embedding layer that combines

different embeddings: standard word embeddings, context-based word embeddings, a character-level word

embedding using a convolutional neural network (CNN), and an external knowledge sources along with word

features as one-hot vectors. Embedding was followed by bidirectional long short-term memory (Bi-LSTM)

and conditional random field (CRF) layers. The proposed model reaches or overcomes state-of-the-art

performance on two publicly available data sets and an F1 score of 94.31% on an internal corpus. After

incorporating mixed-domain clinically pre-trained contextual embeddings, the F1 score further improved to

95.36% on the internal corpus. This study demonstrated an efficient way of combining different embeddings

that will improve the recognition performance aiding the downstream de-identification of clinical notes.

1 INTRODUCTION

Named entity recognition (NER) is an important step

in any natural language processing (NLP) task.

Clinical NER, i.e., NER applied to unstructured data

in medical records, has received much more attention

recently (Catelli et al., 2020). Clinical NER allows

recognizing and labeling entities in the clinical text,

which is an essential building block for many

downstream NLP applications such as information

https://orcid.org/0000-0002-8978-1565

https://orcid.org/0000-0002-1460-9867

https://orcid.org/0000-0002-4761-5972

https://orcid.org/0000-0002-9332-1684

https://orcid.org/0000-0002-6314-5683

extraction from and de-identification of entities in

clinical narratives.

Early clinical NER systems often relied on rule-

based techniques, which heavily depend on

dictionaries or ontologies (Liu et al., 2017). Later, a

number of machine learning (ML), deep learning

(DL), and hybrid models emerged and provided

improved performance (Syeda et al., 2021; S. Wu et

al., 2020). A major challenge with these later models

is access to a corpus of labeled data for training,

640

Syed, M., Sexton, K., Greer, M., Syed, S., VanScoy, J., Kawsar, F., Olson, E., Patel, K., Erwin, J., Bhattacharyya, S., Zozus, M. and Prior, F.

DeIDNER Model: A Neural Network Named Entity Recognition Model for Use in the De-identiﬁcation of Clinical Notes.

DOI: 10.5220/0010884500003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 640-647

ISBN: 978-989-758-552-4; ISSN: 2184-4305

testing, and evaluating the models (Syed, Syed, et al.,

2021). To promote the development and evaluation of

clinical NER systems, workshops like Informatics for

Integrating Biology and the Bedside (I2B2) have

released open access labeled corpora (Stubbs &

Uzuner, 2015). In addition, several studies devoted a

significant amount of resources to developing corpora

for domain-specific clinical NER tasks (Syed, Al-

Shukri, et al., 2021). Models trained on such domain-

specific corpora demonstrate improved accuracy in

named entity recognition and model peformance

(Habibi, Weber, Neves, Wiegandt, & Leser, 2017).

However, because of privacy concerns, these data sets

are either not publicly released or contain synthetic

identifiers affecting the generalizability of the

models.

Recently, DL-based NER algorithms have been

proposed for solving a wide range of text mining and

NLP tasks (Luo et al., 2018; Y. Wu, Jiang, Xu, Zhi,

& Xu, 2018). They have a significant advantage over

traditional ML methods as DL techniques do not

require extensive feature engineering (Burns, Li, &

Peng, 2019). The core concept of such DL methods is

to compute distributed representations of words, i.e.,

word embeddings, in the form of vectors (Li, Sun,

Han, & Li, 2020). Early word embedding models

such as Word2Vec (Mikolov, Chen, Corrado, &

Dean, 2013), GloVe (Pennington, Socher, &

Manning, 2014), and fastText (Bojanowski, Grave,

Joulin, & Mikolov, 2017) have demonstrated good

performance in many NLP tasks. However, these

models are context-free generating a single word

embedding representation for each word not adjusted

to the surrounding context. More recent word

embedding models such as Bidirectional Encoder

Representations from Transformers (BERT) (Devlin,

2019), embeddings from language models (ELMo)

(Peters et al., 2018), and FLAIR (Akbik, Blythe, &

Vollgraf, 2018) addresses this deficiency by adjusting

the context of the word based on the surroundings

(Khattak et al., 2019). The major difference between

above contextual word embedding models is that

BERT uses vocabulary that contains words and

subwords extracted from general domain and

generally needs to be updated when pre-trained to

specific domain, whereas FLAIR and ELMo uses

sequence of characters to build word-level

embeddings and independent of such vocabulary

(Tai, Kung, Dong, Comiter, & Kuo, 2020).

In addition to word embeddings, combining

character-level word embeddings have proven to be

critical for NER tasks. In the context of combining

word embeddings along with character-level word

embeddings, Lample et al.(Lample, Ballesteros,

Subramanian, Kawakami, & Dyer, 2016) used long

short-term memory (LSTM) character-level word

embeddings whereas Ma and Hovy (Ma & Hovy,

2016) used convolutional neural networks (CNN).

Zhai et al. (Zhai, Nguyen, & Verspoor, 2018) further

confirmed the choice of LSTM or CNN character-

level word embeddings in Bi-LSTM CRF model did

not have clear positive effect on the pefromance,

however CNN shows advantage in reducing training

complexity and was recommended.

To date, the most successful DL model for NER

is a bidirectional long short-term memory (Bi-LSTM)

with conditional random field (CRF) architecture first

proposed by Huang et al. (Huang, Xu, & Yu, 2015)

Several recent studies have applied off-the-shelf

general domain, pre-trained clinical embeddings, and

mixed-domain embeddings methods as input to NER

models (Alsentzer et al., 2019; Catelli, Casola, De

Pietro, Fujita, & Esposito, 2021). However, very few

studies have explored the full potential of combining

these embeddings, especially in identifying the

entities related to de-identification from clinical

narratives. Jiang et al. (Jiang, Sanger, & Liu, 2019)

demonstrated the combination of the standard word

embeddings (Word2Vec), contextual embeddings

(FLAIR and ELMo), and semantic embeddings to

identify clinical entities such as treatments, problems,

and tests. However, above study utilized Word2Vec

standard word embeddings, but not GloVe, which is

a superior standard word embeddings method and

uses word co-occurrence matrix in generating quality

word representations (Min, Zeng, Chen, Chen, &

Jiang, 2017). In addition, above study did not utilize

additional character-level word embedding and

instead rely on FLAIR and ELMo character-based

architecture. Augmenting the embeddings with an

additional character-level word embedding using a

CNN architecture could play a complementary role in

fully exploiting the potential of different embeddings

and improve the overall performance.

This study describes our NER model, which

addresses the limitation of earlier studies in

combining different embeddings, and its potential to

generate accurate named entities that will aid in the

de-identification of medical texts and other

downstream clinical NLP tasks. Our main

contributions include the following:

 Carefully preparing a human-annotated corpus

with hospital discharge summaries to train and

evaluate the model for generalizability.

 We present an innovative DL NER model,

DeIDNER, specifically useful for generating

named entities that will be used in a larger model

to de-identify clinical texts (e.g., discharge

DeIDNER Model: A Neural Network Named Entity Recognition Model for Use in the De-identiﬁcation of Clinical Notes

641

summaries). The model comprises of an input

embedding layer that combines: standard word

embeddings (GloVe), context based word

embeddings (FLAIR) , a character-level word

embedding using a CNN, and external knowledge

bases along with word features as one-hot vectors

followed by Bi-LSTM CRF layers.

 A detailed systematic analysis is performed on the

effect of mixed-domain clinical pre-trained

contextual embeddings on the internal corpus.

2 MATERIALS AND METHODS

2.1 Data Sets

This study was conducted with University of

Arkansas for Medical Sciences (UAMS) institutional

review board approval (IRB #228649). This study

used three datasets, two of which are publicly

available (CoNLL-2003 data and 2014 I2B2

challenge datasets), and an internally generated

corpus. The internal corpus was developed from our

previous work, and consists of 500 discharge

summary notes. The named entity labels in the

internal corpus include: PERSON, LOCATION,

ORGANIZATION, DATE, AGE, ID, and PHONE

which are in BIO (Begin, Inside, Outside) notation

format.

2.2 Neural Network Model

Architecture

Figure 1 gives the main structure of our model that

consists of 1) input embeddings layer with all

different word embeddings, and 2) a recurrent neural

network (RNN) layer that takes concatenated

embeddings from the input layer, and finally 3) a CRF

layer that obtains a globally optimal chain of labels

for a given sequence considering the correlations

between adjacent tags.

2.2.1 Input Embeddings Layer

This layer is used to generate word embeddings in

order to fit the text stream to our neural network

model. The word embeddings capture semantic and

syntactic meanings of words based on their

surrounding words, and are widely used in many NLP

tasks. This layer consists of four different

embeddings: 1) Standard word embeddings using

GloVe, 2) Contextualized word embeddings using

FLAIR, 3) Character level word embeddings using

CNN, and 4) Semantic embeddings as one-hot

vectors.

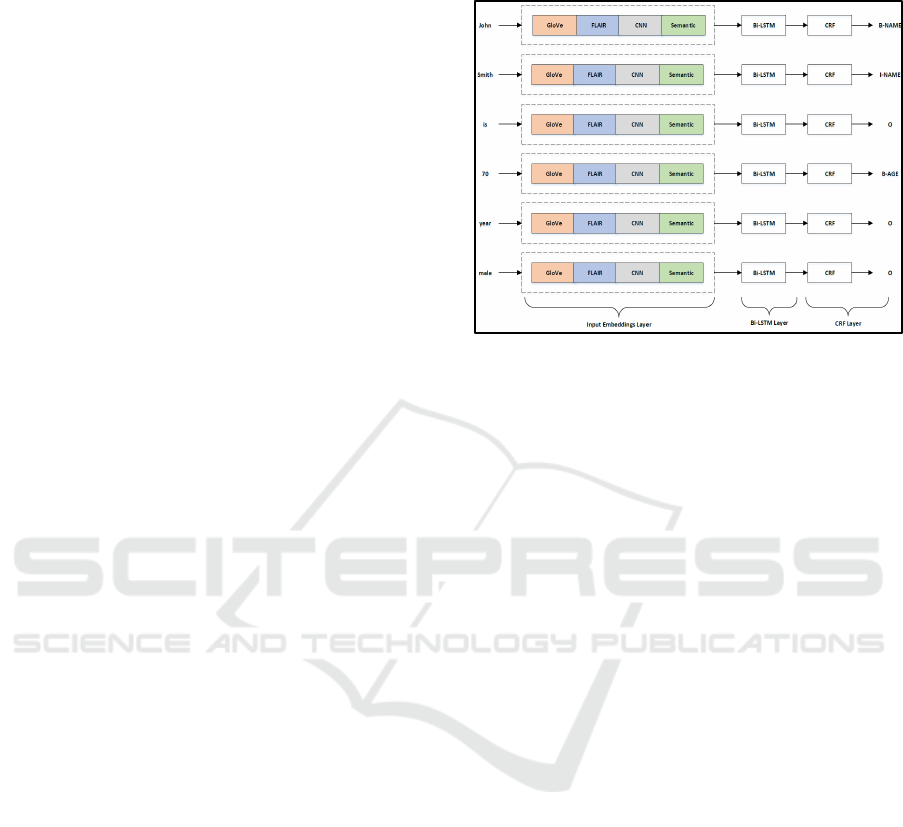

Figure 1: Details of the model architecture with input

embeddings layer, Bi-LSTM layer, and followed by output

CRF layer.

1. Standard Word Embeddings: For standard

word embeddings, we have used Stanford’s pre-

trained GloVe (Pennington et al., 2014) with 100-

dimensional word embeddings to generate vector

representation of the input words. GloVe pre-

trained embeddings on an out-of-domain corpus

provide broad vocabulary coverage. In addition,

GloVe embeddings tend to perform better where

context is not important.

2. Context-based Word Embeddings: FLAIR

embeddings, a context-dependent word

representation, were used to generate vector

representations of a word based on its context in a

sentence. The experiment performed by Habibi et

al. (Habibi et al., 2017) showed that word

embeddings trained on biomedical corpora

improve the model’s performance. Thus, we have

experimented with two different FLAIR

embeddings in our model based on the data-set:

• A base version of FLAIR embeddings for two

public data-sets evaluation and

• A pre-trained version of FLAIR trained on

12,000 discharge summaries from the UAMS

Electronic Health Record (EHR) system

separate from 500 discharge summaries used

for evaluation. We followed the method Akbik

et al. (Akbik et al., 2018) introduced to train

the FLAIR base model with similar parameter

settings: learning rate 0.1, batch size 32,

dropout 0.5, patience number 6, and 250

epochs. This pre-trained version was used

only against the internal corpus evaluation.

HEALTHINF 2022 - 15th International Conference on Health Informatics

642

3. Character-level Word Embeddings: Apart from

the word-level embeddings, character-level word

embeddings contain rich structural information of

an entity and are widely used in many NLP tasks.

To provide character-level morphological

information and alleviate out of vocabulary

problems, we generated character-level word

embeddings using a CNN adopted from Zhang et

al. (Zhang, Zhao, & LeCun, 2015) with all the

default settings.

4. Semantic One-hot Vector Embeddings: Due to

the complexity of the clinical domain, integrating

external knowledge sources into deep learning

models has shown improved results in clinical

NLP tasks. Here, we employed a one-hot vector

representation for each type of external

knowledge sources and lexical word feature. The

external knowledge sources are adopted from the

Neamatullah et al. (Neamatullah et al., 2008)

study including common first names, last names,

geo locations, and selected list of medical terms

compiled from Unified Medical Language System

(UMLS) thesaurus.

Finally, all the different embeddings are combined

with a simple concatenation method before feeding it

to the deep neural network model.

2.2.2 Neural Network Model and CRF

Layer

To date, most state-of-the-art sequential text data

algorithms have used LSTM (Yu, Si, Hu, & Zhang,

2019). However, conventional LSTMs are only able

to make use of a previous context. To overcome this

limitation, we adopted the Bi-LSTM proposed by

Huang et al. (Huang et al., 2015), which can leverage

the context information in both forward and backward

directions.

= σ (W

+ W

t−1

+ W

t−1

+ b

) (1

)

= σ(W

+ W

t−1

+ W

t−1

+ b

) (2

)

= f

t−1

+ i

tanh(W

+ W

t−1

+ b

) (3

)

= σ(W

+ W

t−1

+ W

+ b

) (4

)

= o

tanh(c

) (5

)

where σ is the logistic sigmoid function, x

is the input

vector at time t and h

is the hidden state vector.

Weights W

, W

and bias constants b

, b

are the parameters to be learned. x=(x

, x

……,

) is the input sequence that can be fed into a

classification layer for many classification tasks. As

shown in Figure 1, the output from the input

embeddings layer which is a concatenation of the

different types of embeddings described in the

previous sections is given as input to the Bi-LSTM

layer.

Finally, the last layer is a CRF layer that utilizes

hidden states from the word-level Bi-LSTM and uses

neighbor tag information in predicting the current tag.

Again, it has been shown that CRFs can produce

better tagging accuracy.

3 EXPERIMENTS AND

EVALUATION

This section outlines the experiments performed to

validate and evaluate the proposed model separately

against internal corpus and public data-sets. We used

the following configuration for all the experiments:

learning rate 0.1, batch size 32, dropout 0.5, patience

number 5, and the number of epochs was 150.

3.1 Experiments on Public Data-sets

In this experimental setup, we evaluate our proposed

model, DeIDNER by combining all four different

embeddings described earlier; namely (1) standard

word embeddings using GloVe, (2) base version of

FLAIR contextual embeddings, (3) character-level

word embeddings using a CNN, and (4) semantic

one-hot vector embeddings.

This experiment was to verify and demonstrate

the effectiveness of the developed model using

domain agnostic or general embeddings. Specifically,

against two publicly available data sets, CoNLL-2003

and I2B2 2014, to benchmark and compare the

performance with state-of-the-art models that used

above public datasets.

3.2 Experiments on Internal Corpus

In this experimental setup, we evaluate our proposed

model, DeIDNER, by first using base version of

FLAIR and then mixed-domain clinically pre-trained

FLAIR with other three different embeddings

described earlier.

In all the experiments, we used the training set

(70%) to learn model parameters, the validation set

(10%) to select optimal hyper-parameters, and the test

set (20%) to report the final results.

DeIDNER Model: A Neural Network Named Entity Recognition Model for Use in the De-identiﬁcation of Clinical Notes

643

3.3 Evaluation

For evaluating the model, we used the most common

evaluation metrics for multi-class classification tasks:

precision, recall, and F1 score. In addition, the

performance of the model was assessed by a five-fold

cross-validation approach. In order to obtain

comparable and reproducible results, we followed the

CoNLL-2003 model evaluation methodology at the

entity level exact match and reporting the metrics

after repeating the procedure five times and averaging

the results.

Precision = P = C/M (6

)

Recall = R = C/N (7

)

F1 Score = 2PR / (P+R) (8

)

M = total number of predicted entities in the

sequence.

N = total number of ground truth entities in the

sequence.

C = total number of correct entities.

A Tesla (NVIDIA Corporation) graphics

processing unit was used to conduct the experiment.

The source code was written in Pytorch 1.8 (GPU-

enabled version) for Python 3.6.

4 RESULTS

4.1 Public Data-Set

Table 1&2 summarizes the performance of the

proposed model against the public data-sets. Our

proposed model reaches or overcomes state-of-the-art

performance on two publicly available data sets,

CoNLL-2003 and I2B2 2014.

The proposed model DeIDNER using general

domain embeddings achieved an F1 score of 93.25%

on CoNLL-2003 corpus and 94.89% on I2B2 2014

test data sets.

4.2 Internal Corpus

As shown in Table 3, the proposed model with

general domain embeddings achieved an F1 score of

94.31%. The experimental setup with mixed-domain

clinically pre-trained FLAIR embeddings yielded an

improved F1 score of 95.36%. This clearly

demonstrates the importance of mixed-domain

clinically pre-trained word embeddings. The 5-fold

cross validation of aforementioned best model against

the internal gold corpus reported F1 score range of

94.85% - 95.36% with mean confidence interval (CI

= 95%) was 95.19 ± 0.36.

Figures 2, show confusion matrix of our best

performing model that combines all four embeddings

on the internal corpus. The performance for DATE

entity was best, and the worst for LOCATION

followed by ORGANIZATION.

5 DISCUSSION

In this study, we investigated a DL based approach

for clinical NER specifically focused on entities

important for a clinical free de-identification task. We

systematically analyzed the contributions of different

embeddings in the input embeddings layer and the

effect of mixed-domain clinically pre-trained

Table 1: DeIDNER model performance on CoNLL-2003 data set along with best published method in literature as baseline.

Model F1 Score (%) Precision (%) Recall (%)

Akbik et al. (Akbik et al., 2018) 93.09 - -

DeIDNER 93.25 92.99 93.50

Table 2: DeIDNER model performance on I2B2 2014 data set along with best published method in literature as baseline.

Model F1 Score (%) Precision (%) Recall (%)

Catelli et al.

(

Catelli et al., 2021

)

94.80 95.52 94.09

DeIDNER 94.89 95.96 93.84

Table 3: DeIDNER model performance on internal corpus with and without mixed-domain pre-training.

Model F1 Score (%) Precision (%) Recall (%)

DeIDNER (without mixe

-domain pre-trainin

)

94.31 93.86 93.37

DeIDNER (with mixed-domain pre-training)

95.36 96.23 94.51

HEALTHINF 2022 - 15th International Conference on Health Informatics

644

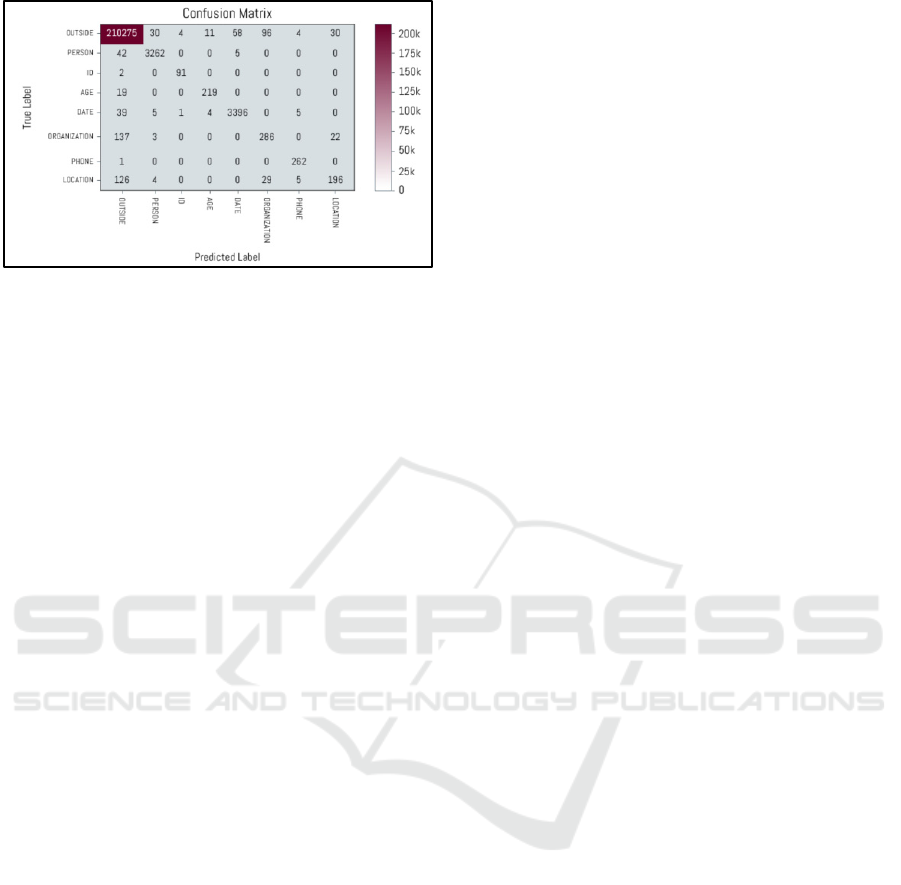

Figure 2: Confusion matrix of our best performing model

that combines all four embeddings on the internal corpus.

embeddings. We also demonstrated the

generalizability of the model on the clinical corpus

that we generated from discharge summary

documents. Our methodology and findings are

significant for future work in clinical NLP research.

The success of a NER model relies on how the text

is represented and integrated in the input layer with

different embeddings. Analysis by Akbik et al.

(Akbik et al., 2018) demonstrated that combining

standard word embeddings with contextual

embeddings improves the performance of the NER

models. In addition, Luo et al. (Luo et al., 2018)

combined word embeddings with character-level

embeddings and produced promising results. In our

study, we demonstrated an effective way to

incorporate different embeddings each representing

different characteristics of knowledge contained in

the corpora being analyzed. The results from our

experiment against the two publicly available data-

sets showed that our model is competitive compared

to other methods in literature that used above data.

Many previous studies have demonstrated

improved performance in the clinical NER models

when using domain-specific embeddings, but not in

entities that are non-clinical in nature like de-

identification (Alsentzer et al., 2019; Catelli et al.,

2021). However, in our experiments against the

internal corpus, we have achieved an F1 score of

94.31% using general embeddings and improved F1

score of 95.36% when mixed-domain clinically pre-

trained embeddings are used. This was an interesting

finding and we wanted to further validate the F1 score

improvement is statistically significant between the

proposed models with and without mixed-domain

clinically pre-trained embeddings, we performed a

5x2cv paired t-test (Dietterich, 1998). The results

showed that the improvement of F-measure between

DeIDNER model without pre-training and DeIDNER

with mixed-domain clinical pre-training were

statistically significant (P value < 0.05).

We conducted an analysis of errors in our

proposed system. We observed that most errors

occurred in entities that are long combined texts. For

instance, in a LOCATION entity “4301 W Markham

Street”, only part of it “W Markham Street” was

predicted as a LOCATION. Another problem was

ambiguities in the text. For instance, “St Louis” was

predicted as ORGANIZATION instead of

LOCATION. These errors are likely due to a lack of

training data.

This research study has some inherent limitations.

First, although we focused on different combinations

of embeddings, we have not exhausted all individual

embedding methods. For instance, standard word

embeddings can be accomplished using many

approaches, e.g., word2vec, FastText. We only used

GloVe embeddings, as we believe this approach is

more robust for generating standard embeddings.

Similar to standard embeddings, we also did not

exhaustively research the more recent context-based

embeddings models but chose FLAIR which is the

current state-of-the-art model and do not depend on

vocabulary like BERT based variants. Finally, we

used concatenation method to combine all the

embeddings, which was simple and straightforward

way of combining knowledge from different corpora.

However, in our future work, we plan to explore

ensemble method of combining the embeddings and

evaluate the performance of downstream de-

identification algorithms using the entities from our

work.

6 CONCLUSIONS

In this paper, we proposed a unique deep learning

method, combining multiple word embeddings that

include both standard word embeddings and

contextual word embeddings trained on clinical

discharge summaries to improve recognition of

named entities. The mixed-domain clinically pre-

trained model achieved a best F1 score of 95.36%,

which offers potential for further utilization in NLP

research. The knowledge generated here may

contribute to the downstream tasks, especially the de-

identification of clinical narratives and has generated

new insights relevant to the pre-processing stage of

biomedical NLP end models.

DeIDNER Model: A Neural Network Named Entity Recognition Model for Use in the De-identiﬁcation of Clinical Notes

645

ACKNOWLEDGEMENTS

This study was supported in part by the Translational

Research Institute (TRI), grant UL1 TR003107

received from the National Center for Advancing

Translational Sciences of the National Institutes of

Health (NIH) and award AWD00053499, Supporting

High Performance Computing in Clinical

Informatics. The content of this manuscript is solely

the responsibility of the authors and does not

necessarily represent the official views of the NIH.

REFERENCES

Akbik, A., Blythe, D., & Vollgraf, R. (2018). Contextual

String Embeddings for Sequence Labeling.

Alsentzer, E., Murphy, J., Boag, W., Weng, W.-H., Jin, D.,

Naumann, T., & McDermott, M. (2019). Publicly

Available Clinical BERT Embeddings.

Bojanowski, P., Grave, E., Joulin, A., & Mikolov, T.

(2017). Enriching word vectors with subword

information. Transactions of the Association for

Computational Linguistics, 5, 135-146.

Burns, G. A., Li, X., & Peng, N. (2019). Building deep

learning models for evidence classification from the

open access biomedical literature. Database : the

journal of biological databases and curation, 2019,

baz034. doi: 10.1093/database/baz034

Catelli, R., Casola, V., De Pietro, G., Fujita, H., & Esposito,

M. (2021). Combining contextualized word

representation and sub-document level analysis through

Bi-LSTM+CRF architecture for clinical de-

identification. Knowledge-Based Systems, 213, 106649.

doi: https://doi.org/10.1016/j.knosys.2020.106649

Catelli, R., Gargiulo, F., Casola, V., De Pietro, G., Fujita,

H., & Esposito, M. (2020). Crosslingual named entity

recognition for clinical de-identification applied to a

COVID-19 Italian data set. Applied soft computing, 97,

106779-106779. doi: 10.1016/j.asoc.2020.106779

Devlin, J. e. a. (2019). Bert: pre-training of deep

bidirectional transformers for language understanding.

In: Proceedings of the 2019 Conference of the North

American Chapter of the Association for

Computational Linguistics: Human Language

Technologies, Volume 1 (Long and Short Papers),

Minneapolis, MN, USA. pp. 4171–4186. Association

for Computational Linguistics. https://

www.aclweb.org/anthology/N19-1423.

Dietterich, T. G. (1998). Approximate statistical tests for

comparing supervised classification learning

algorithms. Neural Comput., 10(7), 1895–1923. doi:

10.1162/089976698300017197

Habibi, M., Weber, L., Neves, M., Wiegandt, D. L., &

Leser, U. (2017). Deep learning with word embeddings

improves biomedical named entity recognition.

Bioinformatics, 33(14), i37-i48. doi: 10.1093/

bioinformatics/btx228

Huang, Z., Xu, W., & Yu, K. (2015). Bidirectional LSTM-

CRF Models for Sequence Tagging.

Jiang, M., Sanger, T., & Liu, X. (2019). Combining

Contextualized Embeddings and Prior Knowledge for

Clinical Named Entity Recognition: Evaluation Study.

JMIR Med Inform, 7(4), e14850. doi: 10.2196/14850

Khattak, F. K., Jeblee, S., Pou-Prom, C., Abdalla, M.,

Meaney, C., & Rudzicz, F. (2019). A survey of word

embeddings for clinical text. Journal of Biomedical

Informatics: X, 4, 100057. doi: https://doi.org/10.1016/

j.yjbinx.2019.100057

Lample, G., Ballesteros, M., Subramanian, S., Kawakami,

K., & Dyer, C. (2016). Neural Architectures for Named

Entity Recognition.

Li, J., Sun, A., Han, R., & Li, C. (2020). A Survey on Deep

Learning for Named Entity Recognition. IEEE

Transactions on Knowledge and Data Engineering, PP,

1-1. doi: 10.1109/TKDE.2020.2981314

Liu, Z., Yang, M., Wang, X., Chen, Q., Tang, B., Wang, Z.,

& Xu, H. (2017). Entity recognition from clinical texts

via recurrent neural network. BMC Med Inform Decis

Mak, 17(Suppl 2), 67-67. doi: 10.1186/s12911-017-

0468-7

Luo, L., Yang, Z., Yang, P., Zhang, Y., Wang, L., Wang, J.,

& Lin, H. (2018). A neural network approach to

chemical and gene/protein entity recognition in patents.

Journal of Cheminformatics, 10(1), 65. doi: 10.1186/

s13321-018-0318-3

Ma, X., & Hovy, E. (2016). End-to-end Sequence Labeling

via Bi-directional LSTM-CNNs-CRF.

Mikolov, T., Chen, K., Corrado, G., & Dean, J. (2013).

Efficient Estimation of Word Representations in Vector

Space. http://arxiv.org/abs/1301.3781

Min, X., Zeng, W., Chen, N., Chen, T., & Jiang, R. (2017).

Chromatin accessibility prediction via convolutional

long short-term memory networks with k-mer

embedding. Bioinformatics, 33(14), i92-i101. doi:

10.1093/bioinformatics/btx234

Neamatullah, I., Douglass, M. M., Lehman, L.-w. H.,

Reisner, A., Villarroel, M., Long, W. J., . . . Clifford, G.

D. (2008). Automated de-identification of free-text

medical records. BMC Med Inform Decis Mak, 8(1), 32.

doi: 10.1186/1472-6947-8-32

Pennington, J., Socher, R., & Manning, C. (2014). Glove:

Global Vectors for Word Representation (Vol. 14).

Peters, M., Neumann, M., Iyyer, M., Gardner, M., Clark,

C., Lee, K., & Zettlemoyer, L. (2018). Deep

contextualized word representations.

Stubbs, A., & Uzuner, Ö. (2015). Annotating longitudinal

clinical narratives for de-identification: The 2014

i2b2/UTHealth corpus. J Biomed Inform, 58

Suppl(Suppl), S20-S29. doi: 10.1016/j.jbi.2015.07.020

Syed, M., Al-Shukri, S., Syed, S., Sexton, K., Greer, M. L.,

Zozus, M., Prior, F. (2021). DeIDNER Corpus:

Annotation of Clinical Discharge Summary Notes for

Named Entity Recognition Using BRAT Tool. Stud

Health Technol Inform, 281, 432-436. doi: 10.3233/

shti210195

Syed, M., Syed, S., Sexton, K., Syeda, H. B., Garza, M.,

Zozus, M., Prior, F. (2021). Application of Machine

HEALTHINF 2022 - 15th International Conference on Health Informatics

646

Learning in Intensive Care Unit (ICU) Settings Using

MIMIC Dataset: Systematic Review. Informatics

(MDPI), 8(1). doi: 10.3390/informatics8010016

Syeda, H. B., Syed, M., Sexton, K. W., Syed, S., Begum,

S., Syed, F., Yu, F., Jr. (2021). Role of Machine

Learning Techniques to Tackle the COVID-19 Crisis:

Systematic Review. JMIR Med Inform, 9(1), e23811.

doi: 10.2196/23811

Tai, W., Kung, H., Dong, X., Comiter, M., & Kuo, C.-F.

(2020). exBERT: Extending Pre-trained Models with

Domain-specific Vocabulary Under Constrained

Training Resources.

Wu, S., Roberts, K., Datta, S., Du, J., Ji, Z., Si, Y., . . . Xu,

H. (2020). Deep learning in clinical natural language

processing: a methodical review. J Am Med Inform

Assoc, 27(3), 457-470. doi: 10.1093/jamia/ocz200

Wu, Y., Jiang, M., Xu, J., Zhi, D., & Xu, H. (2018). Clinical

Named Entity Recognition Using Deep Learning

Models. AMIA Annu Symp Proc, 2017, 1812-1819.

Retrieved from https://pubmed.ncbi.nlm.nih.gov/

29854252

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5977567/

Yu, Y., Si, X., Hu, C., & Zhang, J. (2019). A Review of

Recurrent Neural Networks: LSTM Cells and Network

Architectures. Neural Comput, 31(7), 1235-1270. doi:

10.1162/neco_a_01199

Zhai, Z., Nguyen, D., & Verspoor, K. (2018). Comparing

CNN and LSTM character-level embeddings in

BiLSTM-CRF models for chemical and disease named

entity recognition.

Zhang, X., Zhao, J., & LeCun, Y. (2015). Character-level

convolutional networks for text classification. Paper

presented at the Proceedings of the 28th International

Conference on Neural Information Processing Systems

- Volume 1, Montreal, Canada.

DeIDNER Model: A Neural Network Named Entity Recognition Model for Use in the De-identiﬁcation of Clinical Notes

647
