AutoCNN-MSCD: An Autodesigned CNN Framework for Detecting

Multi-skin Cancer Diseases over Dermoscopic Images

Robert Brodin, Palawat Busaranuvong and Chun-Kit Ngan

Data Science Program, Worcester Polytechnic Institute, Worcester, MA, U.S.A.

Keywords: Convolutional Neural Network, Skin Cancer Detection, Automatic Architecture Design, Dermoscopic Image.

Abstract: We enhance and customize the automatically evolving genetic-based CNN (AE-CNN) framework to develop

an auto-designed CNN (AutoCNN) pipeline to dynamically generate an optimal CNN model to assist

physicians in detecting multi-skin cancer diseases (MSCD) over dermatoscopic images. Specifically, the

contributions of this work are three-fold: (1) integrate the pre-processing module into the existing AE-CNN

framework to sanitize and diversify dermatoscopic images; (2) enhance the evaluation algorithm of the

framework to improve the model selection process by using the k-fold cross-validation; and (3) conduct the

experimental study to present the accuracy results that the CNN model constructed by AutoCNN outperforms

the model by AE-CNN to detect and classify MSCD.

1 INTRODUCTION

Skin Cancer is one of the fastest-growing diseases in

the United States, and most commonly is the

abnormal growth of skin cells with the ability to

spread to neighboring cells or other parts of the body.

According to the American Academy of Dermatology

Association (AADA, 2021), there are approximately

9,500 people in the U.S. diagnosed with skin cancer

every day (i.e., an average of 3.3 million Americans

per year). Despite this, if skin cancer can be detected

and diagnosed early, the five-year survival rate for

patients is expected to be 98 percent (ACS, 2021). To

support physicians to detect and diagnose skin cancer

early in its development for patients, dermatoscopy

(DermNet, 2021) is a widely used technique, as

dermatoscopic images have an immense potential for

the detection of a suspicious mole at an early stage of

development. However, for physicians to detect and

classify a skin cancer early into a specific type (e.g.,

melanoma, melanocytic nevus, basal cell carcinoma,

actinic keratosis, and benign keratosis) on

dermatoscopic images is very challenging due to

various subjective and time-intensive interpretations.

To address the above issues, convolutional neural

networks (CNNs) have played an important role to

speed up the early detection of skin cancer through

dermatoscopic image classification. In a study

comparing the detection accuracy of CNNs with

trained dermatologists, CNNs were found to be

72.1% accurate, as opposed to 65.56%-66% with

trained dermatologists (Chan, S., 2020). Using this

state-of-the-art technology to support the early

detection of skin cancers, physicians have a more

effective and efficient way to treat their patients. The

more effective and efficient detection and diagnosis

of skin cancer improves the survival rate of patients.

Therefore, we are motivated to study and explore this

technology to address the detection of skin cancer.

Presently, the construction of CNN architectures

to conduct the early detection of skin cancers can be

broadly divided into two categories: single and

ensemble. Built on domain knowledge and the

available datasets, single hand-crafted CNNs

(Albelwi, S, 2016; Nasr-Esfahani, E., 2016; Le, T.T.,

2017; Stefan Jianu, S.R., 2019; Ashraf Ottom, M.

2019; Rundo, F., 2019; Fu’adah, Y.N., 2020) are the

manually-designed static architectures that require

researchers to possess significant medical domain

knowledge and deep CNN design experience to

develop and implement the network. With

considerable domain expertise, the best CNN

architecture constructed by this approach delivers a

certain promising detection performance on the

dataset originated from homogeneous data sources.

However, due to its insufficient and imbalanced data

to train the network, the architecture may not behave

well for unseen types of data images from

heterogeneous data sources, as in many cases, the

Brodin, R., Busaranuvong, P. and Ngan, C.

AutoCNN-MSCD: An Autodesigned CNN Framework for Detecting Multi-skin Cancer Diseases over Dermoscopic Images.

DOI: 10.5220/0010893400003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

607-615

ISBN: 978-989-758-555-5; ISSN: 2184-4321

607

network is not able to learn enough representative

instances for each class label (i.e., skin cancer types)

to extract the distinctive image features for the

classification. In addition, those heterogeneous

datasets may exhibit different data variations and

characteristics that the hand-crafted CNNs may not be

able to provide promising detection performance.

To address these issues, ensemble CNN

architectures have been developed. Specifically, they

are hybrid CNN architectures (Aldwgeri, A., 2019;

Mahbod, A., 2019; Al Mamun, Md., 2021) that

combine different single CNN models, which have

been pre-trained on a large number of images and

adapted to their diverse variations to extract more

unique features from the domain-specific images.

Models that conduct ensemble learning deliver a better

classification performance than that of single CNN

models only. Currently, there are several well-known

pre-trained CNN models, such as VGGNet (Simonyan,

K., 2015), GoogleNet (Szegedy, C., 2015), and ResNet

(He, K., 2016), which are pre-trained on ImageNet

(ImageNet, 2021) and CIFAR (Krizhevsky, A., 2009).

However, to identify the best possible combination of

those pre-trained CNN models is challenging due to a

large number of different possible model combinations

with the high computational learning cost. In addition,

even though learning the best model combination

among all the possible pre-trained CNNs is a dynamic

process, those pre-trained CNN models are still in the

static architectures that may lack the adaptability for

diverse image variations (e.g., skin cancer images).

Those pre-trained CNN models may perform

significantly worse with heterogeneous data sources

not encountered before.

To bridge the above gaps, (Sun, Y., 2020) have

developed an automatically evolving genetic-based

CNN (AE-CNN) framework to dynamically design

and construct an optimal CNN architecture on any

available image dataset without requiring any manual

intervention. The experimental results show that the

CNN architecture generated from the framework

outperforms the above state-of-the-art CNNs’ peer

competitors in terms of the classification accuracy

performance. However, the AE-CNN framework that

generates an optimal architecture is not fully designed

for skin cancer detection and classification and does

not consider two crucial components: (1) pre-

processing the raw images (e.g., lesion segmentation,

image augmentation, etc.,) and (2) selecting the best

CNN model based upon the entire training dataset

instead of a separated validation dataset only. To

mitigate the above shortcomings, we enhance and

customize AE-CNN to develop and implement an

auto-designed CNN (AutoCNN) framework that

enables domain users to dynamically generate an

optimal CNN architecture on their available datasets

to assist physicians in early detecting multi-skin

cancer diseases (MSCD) over dermatoscopic images.

Specifically, the contributions of this work are three-

fold: (1) integrate the pre-processing module into AE-

CNN to sanitize and diversify dermatoscopic images,

(2) enhance the evaluation algorithm of AE-CNN to

improve the model selection process by using the k-

fold cross-validation (Sanjay, M., 2018) on the entire

training dataset, and (3) conduct an experimental

study, using the 25,331 dermatoscopic images

provided by the 2019 International Skin Imaging

Collaboration (ISIC, 2019), to present the

classification accuracy. From the results, we can

conclude that the CNN model constructed by

AutoCNN outperforms the model constructed by AE-

CNN to detect and classify MSCD. The source code

will be available to the public after the acceptance.

The remainder of the paper is organized as

follows. First, we briefly describe the AE-CNN

framework in Section 2. In Section 3, we illustrate our

enhanced AutoCNN framework and its workflow.

We also demonstrate and explain our pipelines of

both skin cancer image segmentation and its

augmentation in Section 4 and 5, respectively. In

Section 6, we discuss and summarize the

experimental study and results. In Section 7, we

conclude and briefly outline our future work.

2 AE-CNN FRAMEWORK

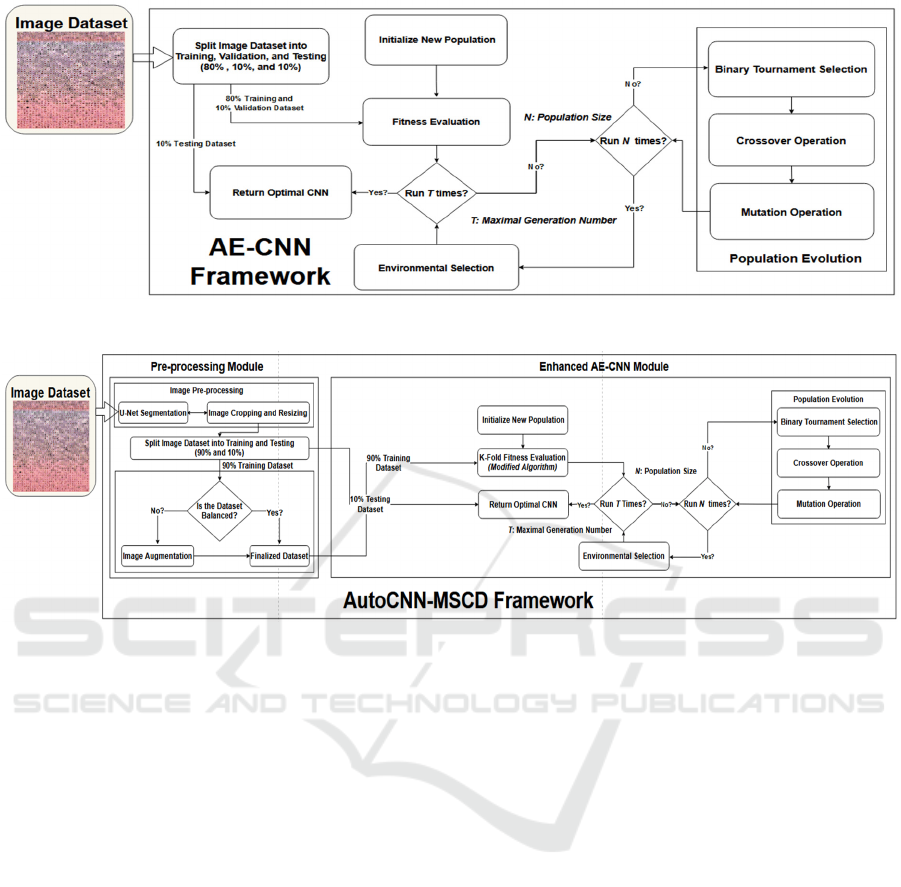

Fig. 1 is the AE-CNN framework. First, the size of

the population N, i.e., the total number of individual

CNN architectures in each generation, is predefined.

Note that each CNN individual in each generation is

trained on 80% of the ISIC-2019 image dataset and

validated on 10% of the dataset in the fitness

evaluation module in our experimental study. Each

CNN individual of a generation in the population N

takes part in the evolutionary process of the genetic

algorithm with the maximal generation number of T.

During the population evolutionary process, a new

CNN offspring is generated from its selected parents

with the crossover and mutation operations, while the

parents are selected by the binary tournament

selection. After the fitness of the generated offspring

has been evaluated, a new population is selected with

the environmental selection operation from the

current operation that contains the current individuals

and the generated offspring, and the parents survive

into the next evolutionary process, the next

generation. Towards the end, the framework

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

608

Figure 1: Automatically Evolving CNN (AE-CNN) Framework.

Figure 2: Autodesigned CNN Framework for Multi-Skin Cancer Diseases (AutoCNN-MSCD) Detection.

generates T * N CNN models, from which the best

CNN architecture is selected among all the possible

CNN candidates in terms of their classification

accuracy performance. The best CNN model

generated by AE-CNN is then compared with the best

model constructed by AutoCNN. Both CNN models

are tested on the same 10% of the image dataset for

performance evaluation.

3 AutoCNN-MSCD FRAMEWORK

Fig 2. is the AutoCNN framework, which is the

enhanced version of AE-CNN to detect MSCD. The

framework is composed of two main modules: Pre-

processing and Enhanced AE-CNN. In the pre-

processing module, there are three sub-modules

including Image Resizing (IR), U-Net Segmentation

(Ronneberger, O., 2015), and Image Cropping (IC).

First, the framework loads the raw images of each class

label into the IR sub-module to resize each image. The

resized images are then passed to the U-Net sub-

module that performs the semantic segmentation

process to locate the position of skin lesions on the

images. After that, the skin lesions on the images are

cropped and resized again. The cropped and resized

images per class label are randomly split into 90% for

training and 10% for testing. Each skin cancer class in

the 90% training dataset is iterated through and the

number of images is counted. If the quantities are not

balanced among all the classes, then image

augmentation is conducted to generate enough images

for each of the classes. The goal is to ensure that each

CNN model per generation gets trained equally on each

class of skin cancer. The 10% testing dataset is not

augmented to prevent data leakage and overfitting

problems. After the images are segmented and

augmented, they are loaded into the enhanced AE-

CNN module. The main difference between the

original AE-CNN framework and the enhanced AE-

CNN module is that the original AE-CNN framework

evaluates each CNN model only on a specific portion

of the original dataset. The accuracy calculated is not

fully complete, whereas the enhanced AE-CNN

module assesses the performance of each CNN

individual by using 10-fold cross-validation. 10-fold

cross-validation gives a more accurate performance of

the best CNN model among all possible candidates

(Gholamiangonabadi, D., 2020; Shaban, M., 2020).

AutoCNN-MSCD: An Autodesigned CNN Framework for Detecting Multi-skin Cancer Diseases over Dermoscopic Images

609

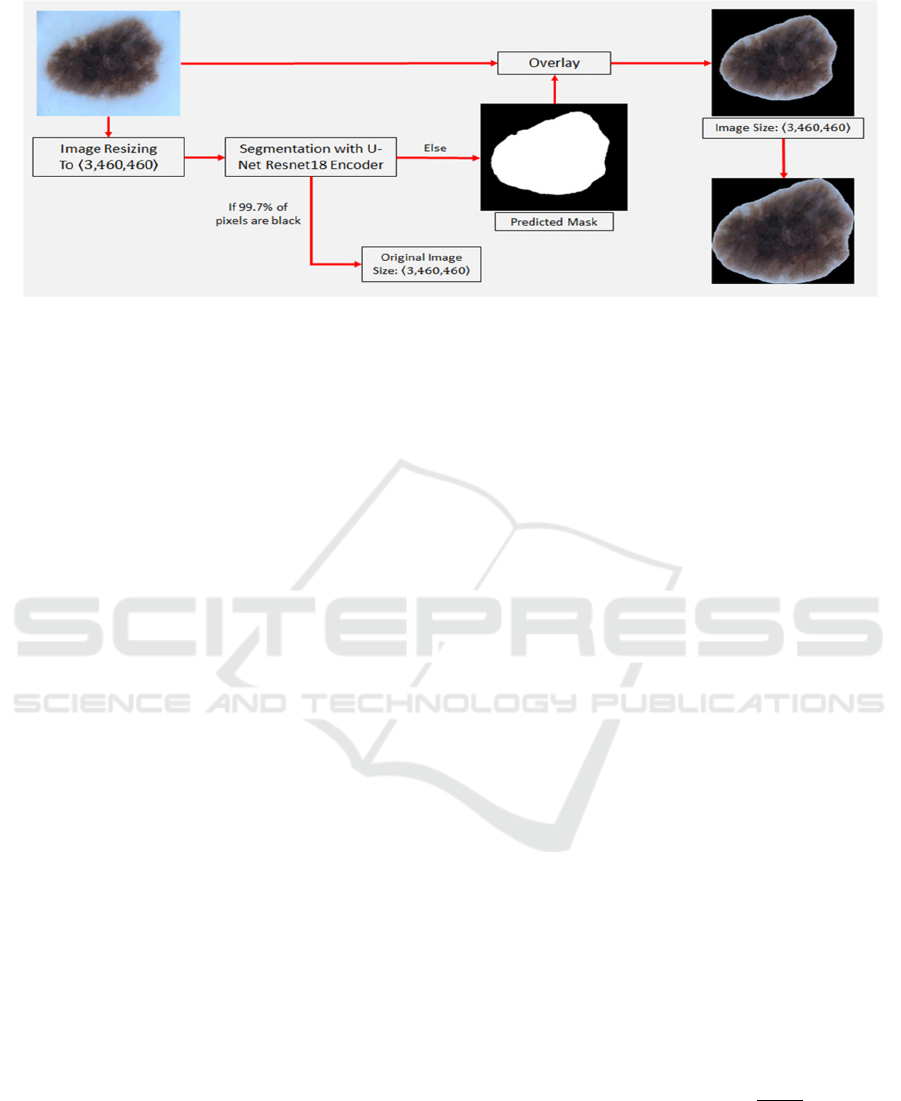

Figure 3: Image Pre-processing Module.

4 IMAGE PRE-PROCESSING

MODULE

In this section, we describe and explain the pre-

processing module in more detail. Some images may

have a lesion at the center/border or some may have a

tiny tumor on a specific spot of the photo, which is

very difficult for a CNN model to detect. Therefore,

we have developed and implemented the image pre-

processing module to locate a lesion on each image

and then crop the area not including the lesion from

the image. Each CNN model can learn each type of

lesions more precisely rather than learning its

surrounding background with noise.

Our image pre-processing pipeline is shown in Fig

3. First, each skin cancer image is resized to 460 x

460 pixels in the RGB channels. After that, the

resized images are passed to the U-Net architecture

with the ResNet18 encoder to obtain the predicted

mask of each image lesion. The predicted mask is

then overlayed on top of the resized images. This

overlayed image is cropped and resized again so that

the lesion is in the middle of the image. However,

since some predicted masks are almost completely

dark, i.e., more than 99.7% of the mask is entirely

occupied by the black pixels, the original image is

then used for the downstream process without

performing the segmentation. In this case, a mask

cannot provide any information about the lesion on

the image other than a completely dark photo.

4.1 U-Net Architecture with ResNet18

Encoder

In the image pre-processing module, we use the U-

Net architecture to perform the skin lesion semantic

segmentation task, because the U-Net architecture,

with several plain convolutional layers, is originally

designed and developed for biomedical image

segmentation. Despite this, it is not completely used

for skin cancer segmentations. Due to the flexibility

of the FastAI library (FastAI, 2021), we have

replaced the down-sampling section of the original U-

Net encoder with another state-of-the-art CNN

architecture, ResNet. The ResNet network is selected

because of its advantage of being able to skip

connections to prevent overfitting, to avoid a

vanishing gradient, and to extract more important

features than the plain convolutional layers. The

enhanced U-Net decoder is similar to the basic U-Net

decoder, which also has cross-connections. The main

difference is that instead of up-sampling by using

transpose convolutions, FastAI applies a newly

developed method, i.e., pixel shuffle or sub-pixel

convolution with ICNRN initialization, which is used

in the image’s super-resolution (Shi, W., 2016).

To train and evaluate the enhanced U-Net with a

ResNet encoder, we use the ISIC-2018 dataset (ISIC,

2018), which contains 2,594 training images with

their corresponding ground-truth masks, because the

ISIC-2019 dataset does not contain ground-truth

masks. Specifically, we use 90% of the images for

training and 10% for testing. During the training

process, we select two different ResNet backbones,

i.e., ResNet18 and ResNet34. Note that our

framework can flexibly apply to any backbones based

upon the image sources and variety. The evaluation

metric is the Dice Coefficient (DC) score computed

by using this equation: DC Score =

|∩|

||||

, where G is

a set of ground truth images, P is a set of segmented

images, |G| and |P| are the number of images in each

set, and |G∩P| is the number of intercepted images.

The DC score measures the similarity of the ground

truth images and the predicted images by the U-Net

with the two ResNet encoders.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

610

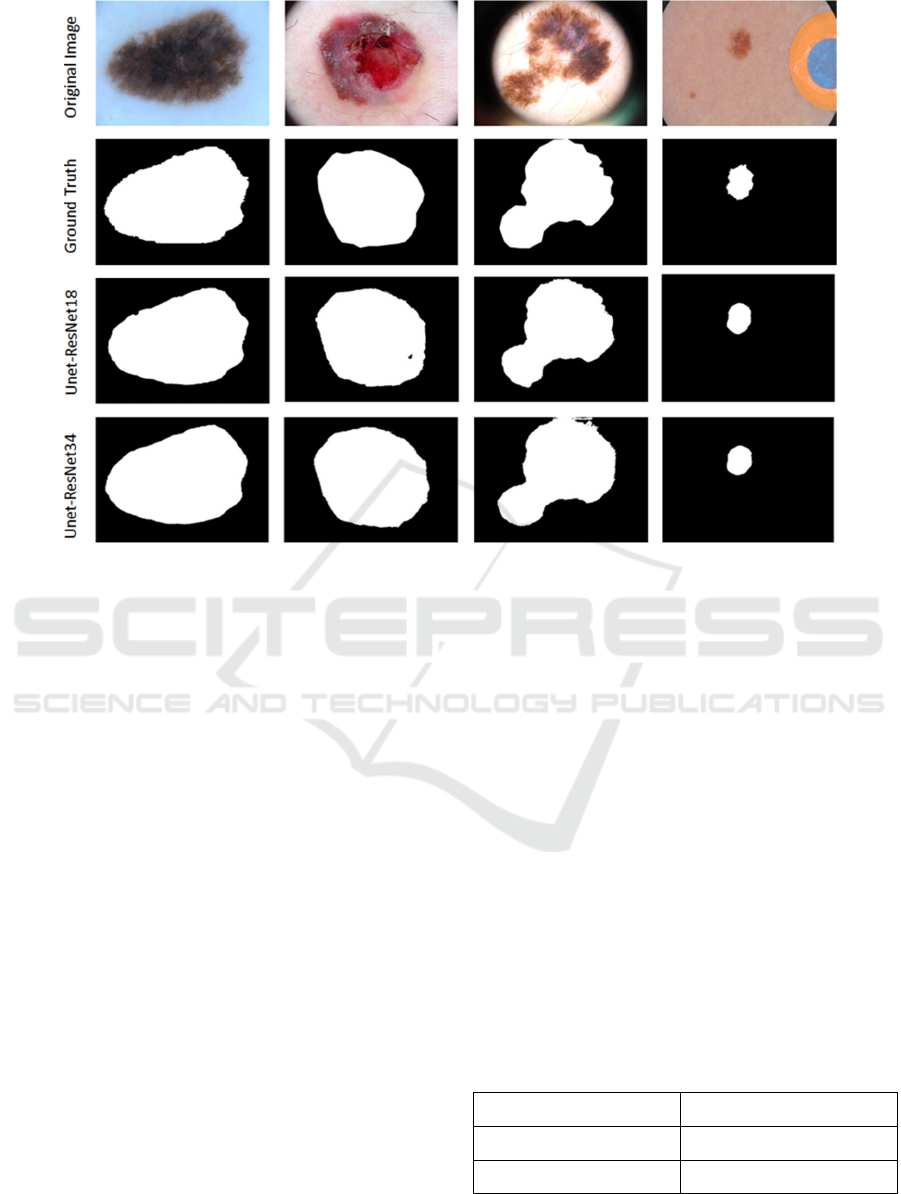

Figure 4: Skin Lesion Semantic Segmentation and Ground Truth on the ISIC-2018 Testing Dataset.

The U-Net training procedure is as follows: (1)

apply the pretrained weights of the ResNet encoder

and freeze the encoder weights, (2) train the weights

of the U-Net decoder with the Adam optimizer with

the batch size of 8 and the learning rate of 0.001 for

10 epochs, and (3) unfreeze the weights of the

encoder section and continue training the whole

network with the same optimizer but using a smaller

learning rate for 10 epochs. To reduce the overfitting

of training the whole network, we apply the early

stopping by truncating the training process when the

validation DC score is not improved for three epochs

and take the optimal weights from the epoch with the

highest validation score.

Fig. 4 shows some examples of the U-Net

semantic segmentation on the ISIC-2018 testing

dataset, in which we cannot find a big difference

between the ResNet34 and ResNet18 backbones, in

terms of their segmentation capability. Table 1 also

shows the segmentation results on the ISIC-2018

testing images, where we observe that the DC score

of the ResNet34 encoder is slightly better than that of

the ResNet18 encoder. Note that the size of a lesion

is relatively big in each image and the position of the

lesion is mostly at the center of the images in the

ISIC-2018 dataset. On the contrary, the ISIC-2019

skin cancer images contain eight different types of

lesions (including melanoma, melanocytic nevus,

basal cell carcinoma, actinic keratosis, benign

keratosis, dermatofibroma, vascular lesion, and

squamous cell carcinoma) and their locations are not

always at the center/border of the images. Because of

this, we evaluate the U-Net architecture with both

ResNet encoders to see which one is more capable of

handling this problem. We found that the U-Net

architecture with ResNet34 and ResNet18 encoders

both can detect the edges of the majority of lesions on

the ISIC-2019 images. However, for the small lesions

on the images, the U-Net with the ResNet18 encoder

can still detect the lesions, while the U-Net with the

ResNet34 encoder fails to capture any lesion on the

images. Some examples are shown in Fig. 5. Due to

the performance of the ResNet18 encoder, which can

spot small lesions on the image, and its DC score

which is slightly lower than that of the ResNet34

encoder, we decide to integrate it into our U-Net

architecture.

Table 1: Dice Coefficient Score on Testing Images.

Encoder Name Dice Coefficient Score

U-Net with RestNet18 0.864

U-Net with RestNet34 0.878

AutoCNN-MSCD: An Autodesigned CNN Framework for Detecting Multi-skin Cancer Diseases over Dermoscopic Images

611

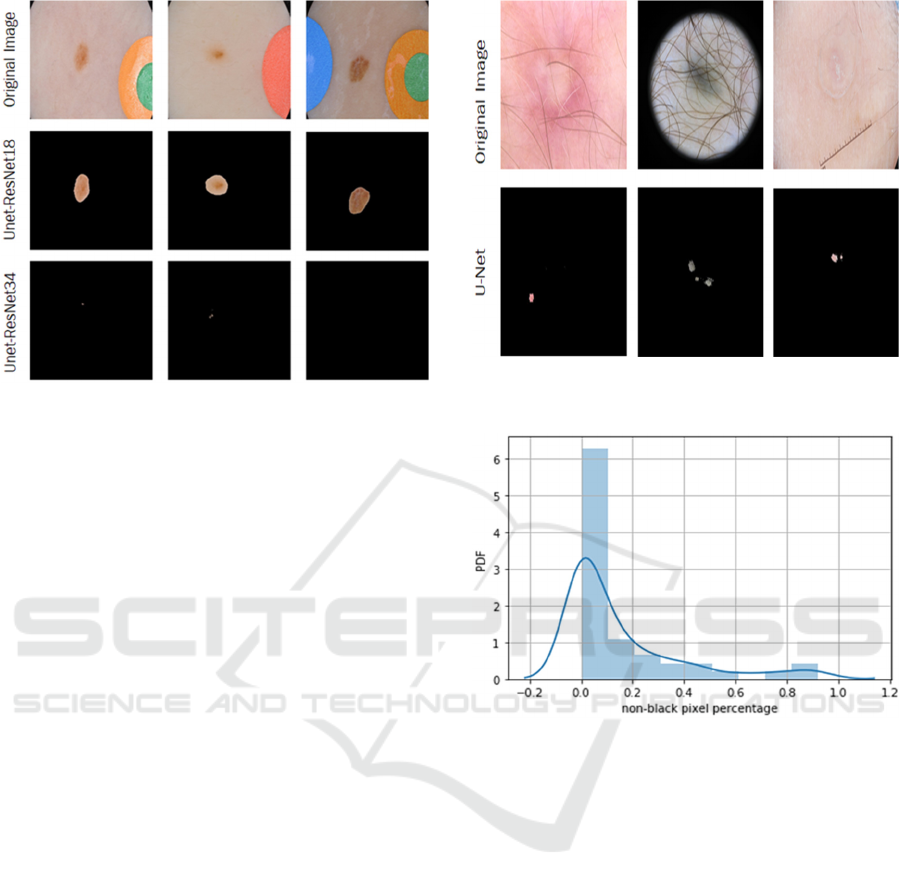

Figure 5: Examples that the U-Net with ResNet34 Encoder

Fails to Detect a Lesion on the ISIC-2019 images.

4.2 Threshold Determination to Use

Original Images for CNN Training

Although the ResNet18 encoder can perform better

than the ResNet34 encoder for spotting small lesions

on images, it still cannot detect irregular and

unobvious lesions on images shown in Fig. 6. Note

that among 25,531 ISIC-2019 images, there are 45

images that the ResNet18 encoder cannot detect that

results in generating almost completely dark

segmented images. For those images, we do not

perform the segmentation because there is no

advantage of using those completely dark images to

train our CNN models. Instead, we just resize those

original images as the same size as the other

segmented images.

To make the pipeline automatically identify this

type of image, shown in Fig. 6, which cannot be

detected by the ResNet18 encoder, we need to set a

proper threshold as a cut-off point. First, we analyze

the characteristics of those 45 images, as a base, by

computing the percentage of the non-black pixels in

those images. The percentage distribution is shown in

Fig. 7 that the mean value is 0.153%, the median

value is 0.030%, and the standard deviation (SD) is

0.236%. As the distribution is more right-skewed,

most of the images have very small non-black pixels.

To detect those image outliers, we decide to select a

threshold using the average of Median + SD (0.27%)

and Mean + SD (0.39%), i.e., 0.3%, in the dataset. It

means that if a segmented image contains the

percentages of the black pixels at least 99.7% or

more, we use its original image for the down-

streaming processes for the CNN training.

Figure 6: Examples that the U-Net with the ResNet18

Encoder Fails to Detect a Lesion on the ISIC-2019 images.

Figure 7: Distribution Plot of Non-black Pixel Percentage.

5 IMAGE AUGMENTATION

MODULE

The collected images that AE-CNN and AutoCNN

are evaluated on is the ISIC-2019 skin cancer dataset,

which includes eight different skin cancer diseases.

The types of skin cancer are melanoma, melanocytic

nevus, basal cell carcinoma, actinic keratosis, benign

keratosis, dermatofibroma, vascular lesion, and

squamous cell carcinoma. The number of images in

each disease class varies from 250 to 10,000 images

that the augmentation is needed to make the image

balance among the classes to improve the

performance of CNN models. Our image

augmentation pipeline first finds the class with the

largest number of images and then augments the

images in each other class until it equals the number

of images of the largest class. Our pipeline includes

four different image augmentation methods, shearing,

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

612

flipping, random contrast, and random noise,

conducted in sequence, shown in Table 2. Note that

the augmentation pipeline is programmed in Python

using a combination of two libraries, Augmentor

(Bloice, M.D., 2020) and Albumentations

(Albumentations Team, 2021). Both libraries have

different types of image augmentations and are

applied in different ways. The Augmentor library

used in the augmentation pipeline is to perform the

shearing, flipping, and random contrast operations,

while the Albumentations library is used to apply the

random noise augmentation. The number of

augmentations needed is calculated for each class and

the functions of these specific augmentations are

called to produce the new images.

Table 2: Image Augmentation Techniques.

Method Probability Parameters

Shearing 1.0

Max_shear_left = 25

Max_shear_right = 25

Flipping 0.8 NA

Random

Contrast

0.8

Min_factor = 0.9

Max_factor = 1.0

Random Noise 1.0

Mode = 's&p'

Amount = 0.02

In our setting, for each randomly selected image,

there are at least two or up to four augmentation

methods being used that depends on the probability

of that method being set. First, an image from each

other class is randomly selected and then the shearing

augmentation is conducted on the image due to the

100% probability of occurring. After that, the image

may or may not be conducted on the flipping

augmentation because of its 80% probability

happening. This process continues for the other two

augmentations in order. Each augmentation function

also has its own specific parameters. Flipping has no

parameters. Shearing has a max rotation to the left

and a max rotation to the right, e.g., the max angles

are not more than 25 degrees in each rotation.

Random contrast has the minimum and maximum

factor parameters (e.g., 0.9 and 1.0 respectively),

which corresponds to the lower and upper bound of

how much contrast is contained in an image. Random

noise has two parameters: "mode" decides what type

of noises is applied (e.g., salt and pepper (s&p)) and

"amount" determines the percentage of image pixels

containing noise (e.g., 0.02). After the process is

completed for each other class, the augmented images

are moved into their own class folders.

6 EXPERIMENTAL RESULTS

AND DISCUSSION

Based upon the classification accuracy performance

among all the eight skin cancer diseases in the 10%

validation dataset performed by each CNN individual

among all the 15 generations in the AE-CNN

framework, we find that the 3

individual in the 14

generation, shown in the Table 3 configuration, has

the highest validation accuracy with 67.12%. This

CNN model is composed of six main units in order,

where DBU is a DenseNetUnit, RBU is a

ResNetUnit, and APL is an Average Pooling Layer.

In each unit, there is its own specific configuration.

For example, the 1

DBU has three feature filters (F)

with the input dimension (I) 32 x 32 pixels. After an

image is passed through the 1

DBU, there are three

corresponding feature maps generated as the outputs.

The size of each feature map (O) is 16 x 16 pixels.

Table 3: Best CNN Model Configuration from AE-CNN.

DBU DBU DBU RBU RBU APL

F: 3

I: 32x32

O: 16x16

F: 6

I: 16x16

O: 12x12

F: 12

I: 12x12

O: 32x32

F: 3

I: 32x32

O: 32x32

F: 1

I: 32x32

O: 1x8

Average

Pooling

Likewise, using the 10-fold cross-validation

accuracy of each CNN model in AutoCNN, we notice

that the 2

individual in the 15

generation, shown in

the Table 4 configuration, has the highest accuracy

(70.82%) on the 90% training dataset. This CNN

model is constructed by seven main units in order.

Table 4: Best CNN Model Configuration from AutoCNN.

RBU DBU RBU RBU DBU RBU APL

F: 4

I: 32x32

O: 39x39

F: 8

I: 39x39

O: 24x24

F: 16

I: 24x24

O: 16x16

F: 3

I: 16x16

O: 32x32

F: 4

I: 32x32

O: 32x32

F: 1

I: 32x32

O: 1x8

Average

Pooling

Both individuals above are selected and evaluated

on the testing dataset. Note that the main reason why

only five individuals in 15 generations in each

framework are executed is that we lack the

computational hardware to execute both AE-CNN

and AutoCNN frameworks. We used the WPI Turing

Research Cluster (WPI, 2018), which limits each job

to a certain number of resources over a certain amount

of time. To run both frameworks to generate and train

each CNN individual, our jobs are limited to two

NVIDIA P100 graphics cards, 2 Intel CPUs, and

approximately 50 gigabytes of memory. Due to these

AutoCNN-MSCD: An Autodesigned CNN Framework for Detecting Multi-skin Cancer Diseases over Dermoscopic Images

613

limitations, we are only able to generate and train five

CNN models among all the 15 generations. These

computation limitations cause both frameworks to

take a significant amount of time to run to

completion, approximately one week each. If we had

accessed to more resources, we would have been able

to run more individuals and more generations to

obtain a higher-performing CNN model. Despite

these, once the best CNN model is obtained, the skin

cancer detection is very fast. The testing result shown

in Table 5 suggests that the best CNN model of

AutoCNN outperforms the best of AE-CNN by about

5.23% for eight different classes of skin cancer

diseases. AutoCNN has higher accuracy, because of

the image pre-processing module and the k-fold

cross-validation approach. Our results have shown a

promising improvement in AutoCNN.

Table 5: Testing Accuracy of AE-CNN and AutoCNN Best

Generation

Model Generation Individual Accuracy

AE-CNN 14 3 0.6642

AutoCNN 15 2 0.7165

7 CONCLUSIONS AND FUTURE

WORK

To the best of our knowledge, this is the first paper

written to enhance and customize genetic-based AE-

CNN to develop and implement an AutoCNN

framework that enables domain users to dynamically

generate an optimal CNN architecture on their

available datasets to assist physicians in early

detecting MSCD over dermatoscopic images.

Specifically, the contributions of this work are three-

fold: (1) integrate the pre-processing module into AE-

CNN to sanitize and diversify dermatoscopic images,

(2) enhance the evaluation algorithm of AE-CNN to

improve the model selection process by using the k-

fold cross-validation on the entire training dataset,

and (3) conduct an experimental study, using the

25,331 dermatoscopic images provided by ISIC-

2019, to present the classification accuracy. From the

results, we can conclude that the CNN model

constructed by AutoCNN outperforms the model

constructed by AE-CNN to detect and classify

MSCD. However, there are still several important

research challenges that we would like to investigate

into the performance of AutoCNN concerning

MSCD. Specifically, how the metadata of each

image, including the patient's age, gender, and lesion

location, can impact the classification accuracy of

CNN models. We are also interested in how Deep-Q

learning algorithms can improve the speed of

generating CNN architectures, as well as how the

framework can be enhanced to provide a user-friendly

interface for domain users to easily operate it.

ACKNOWLEDGEMENTS

This work has been partially supported by the 2020

Early Research Experience in E-Term (EREE)

Program at Worcester Polytechnic Institute.

REFERENCES

Albelwi, S. and Mahmood, A. (2016). Automated Optimal

Architecture of Deep Convolutional Neural Networks

for Image Recognition. The 15

IEEE International

Conference on Machine Learning and Applications.

doi: 10.1109/ICMLA.2016.0018.

Aldwgeri, A. and Abubacker, N.F. (2019). Ensemble of

Deep Convolutional Neural Network for Skin Lesion

Classification in Dermoscopy Images. In: Badioze

Zaman H. et al. (eds) Advances in Visual Informatics.

IVIC 2019. Lecture Notes in Computer Science, vol

11870. Springer, Cham. https://doi.org/10.1007/978-3-

030-34032-2_20.

Al Mamun, Md. and Uddin, M.S. (2021). Hybrid

Methodologies for Segmentation and Classification of

Skin Diseases: A Study. Journal of Computer and

Communications, 9, 67-84. doi: 10.4236/jcc.2021.94

005.

Albumentations Team. (2021). Fast image augmentation

library and an easy-to-use wrapper around other

libraries. https://github.com/albumentations-team/

albumentations.

American Academy of Dermatology Association (AADA).

(2021). Skin Caner. https://www.aad.org/media/stats-

skin-cancer.

American Cancer Society (ACS). (2021). Survival Rates

for Melanoma Skin Cancer. https://www.cancer.org/

cancer/melanoma-skin-cancer/detection-diagnosis-

staging/survival-rates-for-melanoma-skin-cancer-by-

stage.html.

Ashraf Ottom, M. (2019). Convolutional Neural Network

for Diagnosing Skin Cancer. The International Journal

of Advanced Computer Science and Applications, Vol.

10, No. 7.

Bloice, M. D. (2020). Image augmentation library in Python

for machine learning. https://github.com/mdbloice/

Augmentor.

Chan, S., Reddy, V., Myers, B., Thibodeaux, Q.,

Brownstone, N., & Liao, W. (2020). Machine Learning

in Dermatology: Current Applications, Opportunities,

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

614

and Limitations. Dermatology and therapy, 10(3), 365–

386. https://doi.org/10.1007/s13555-020-00372-0.

DermNet. (2021). Introduction to Dermoscopy.

https://dermnetnz.org/cme/dermoscopy-course/introdu

ction-to-dermoscopy/.

FastAI. (2021). https://docs.fast.ai/.

Fu’adah, Y.N., Caecar Pratiwi1, NK., Adnan Pramudito1,

M., and Nur Ibrahim, N. (2020). Convolutional Neural

Network for Automatic Skin Cancer Classification

System. doi:10.1088/1757-899X/982/1/012005.

Gholamiangonabadi, D., Kiselov, N., & Grolinger, K.

(2020). Deep Neural Networks for Human Activity

Recognition With Wearable Sensors: Leave-One-

Subject-Out Cross-Validation for Model Selection.

IEEE Access. doi: 10.1109/ACCESS.2020.3010715.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep

Residual Learning for Image Recognition. The IEEE

Conference on Computer Vision and Pattern

Recognition (CVPR). doi: 10.1109/CVPR.2016.90.

ImageNet. (2021). https://www.image-net.org/index.php.

ISIC. (2018). Skin Lesion Analysis Towards Melanoma

Detection. https://challenge2018.isic-archive.com/.

ISIC. (2019). Skin Lesion Analysis Towards Melanoma

Detection. https://challenge2019.isic-archive.com/.

Krizhevsky, A. (2009). https://www.cs.toronto.edu/~kriz/

cifar.html.

Le, T.T. & Nguyen, H.Q. (2017). Automatic Skin Lesion

Analysis Towards Melanoma Detection. The 21

Asia

Pacific Symposium on Intelligent and Evolutionary

Systems. doi:10.1109/IESYS.2017.8233570.

Mahbod, A., Schaefer, G., Wang, C., Ecker, R., & I.

Ellinge, I. (2019). Skin Lesion Classification Using

Hybrid Deep Neural Networks. The IEEE International

Conference on Acoustics, Speech and Signal

Processing (ICASSP). doi: 10.1109/ICASSP.2019.86

83352.

Nasr-Esfahani, E., et al. (2016). Melanoma Detection by

Analysis of Clinical Images Using Convolutional

Neural Network. The 38

Annual International

Conference of the IEEE Engineering in Medicine and

Biology Society (EMBC). doi: 10.1109/EMBC.2016.7

590963.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-Net:

Convolutional Networks for Biomedical Image

Segmentation. The 18th International Conference on

Medical Image Computing and Computer Assisted

Intervention. doi:10.1007/978-3-319-24574-4_28.

Rundo, F., Banna, G.L., Conoci, S. (2019). Bio-Inspired

Deep-CNN Pipeline for Skin Cancer Early Diagnosis.

Computation 2019, 7, 44. https://doi.org/10.3390/

computation7030044.

Sanjay, M. (2018). Why and how to Cross Validate a

Model?. https://towardsdatascience.com/why-and-

how-to-cross-validate-a-model-d6424b45261f.

Shaban, M. (2020). Deep Convolutional Neural Network

for Parkinson’s Disease Based Handwriting Screening.

The IEEE 17

International Symposium on Biomedical

Imaging Workshops. doi: 10.1109/ISBIWorkshops502

23.2020.9153407.

Shi, W., et al. (2016). Real-Time Single Image and Video

Super-Resolution Using an Efficient Sub-Pixel

Convolutional Neural Network. The IEEE Conference

on Computer Vision and Pattern Recognition.

doi:10.1109/CVPR.2016.207.

Simonyan, K. and A. Zisserman, A. (2015). Very Deep

Convolutional Networks for Large-Scale Image

Recognition. The International Conference on Learning

Representations.

Stefan Jianu, S.R., et al. (2019). Automatic Diagnosis of

Skin Cancer Using Neural Networks. The 11

International Symposium on Advanced Topics in

Electrical Engineering. doi: 10.1109/ATEE.2019.87

24938.

Sun, Y., Xue, B., Zhang, M. and Yen, G.G. (2020).

Completely Automated CNN Architecture Design

Based on Blocks. The IEEE Transactions on Neural

Networks and Learning Systems, vol. 31, no. 4, pp.

1242-1254. doi: 10.1109/TNNLS.2019.2919608.

Szegedy, C., et al. (2015). Going Deeper with

Convolutions. The IEEE Conference on Computer

Vision and Pattern Recognition.

Worcester Polytechnic Institute (WPI). (2018). High

Performance Computing. https://arc.wpi.edu/

computing/hpc-clusters/.

AutoCNN-MSCD: An Autodesigned CNN Framework for Detecting Multi-skin Cancer Diseases over Dermoscopic Images

615
