Detecting Object States vs Detecting Objects: A New Dataset and a

Quantitative Experimental Study

Filippos Gouidis

1,2 a

, Theodore Patkos

, Antonis Argyros

1,2 b

and Dimitris Plexousakis

1,2 c

Institute of Computer Science, Foundation for Research and Technology, Hellas, Greece

Computer Science Department, University of Crete, Hellas, Greece

Keywords:

State Estimation, Object Detection, Object Dataset.

Abstract:

The detection of object states in images (State Detection - SD) is a problem of both theoretical and practical

importance and it is tightly interwoven with other important computer vision problems, such as action recog-

nition and affordance detection. It is also highly relevant to any entity that needs to reason and act in dynamic

domains, such as robotic systems and intelligent agents. Despite its importance, up to now, the research on this

problem has been limited. In this paper, we attempt a systematic study of the SD problem. First, we introduce

the Object State Detection Dataset (OSDD), a new publicly available dataset consisting of more than 19,000

annotations for 18 object categories and 9 state classes. Second, using a standard deep learning framework

used for Object Detection (OD), we conduct a number of appropriately designed experiments, towards an in-

depth study of the behavior of the SD problem. This study enables the setup of a baseline on the performance

of SD, as well as its relative performance in comparison to OD, in a variety of scenarios. Overall, the exper-

imental outcomes conﬁrm that SD is harder than OD and that tailored SD methods need to be developed for

addressing effectively this signiﬁcant problem.

1 INTRODUCTION

The detection of object states in images is a problem

of both theoretical and practical importance. By ob-

ject state we refer to a condition of that object at a

particular moment in time. Some object states are mu-

tually exclusive (e.g., open/closed), while others may

hold simultaneously (e.g., open, ﬁlled, lifted). The

transition from one state to another is, typically, the

result of an action being performed upon the object.

The state(s) in which an object can be found deter-

mine(s) to a large degree its behavior in the context of

its interaction with other objects and entities.

Apart from being a challenging task bearing some

unique characteristics, object state detection (SD) is a

key visual competence, as the successful interaction

of an agent with its environment depends critically on

its ability to solve this problem. SD is also closely re-

lated to other important computer vision and AI prob-

lems, such as action recognition and planning. Sur-

prisingly, the amount of research on this subject re-

https://orcid.org/0000-0002-9539-8749

https://orcid.org/0000-0001-8230-3192

https://orcid.org/0000-0002-0863-8266

Figure 1: Each row contains objects of the same state and

each column contains objects of the same class. The vari-

ance of visual appearance is signiﬁcantly greater for objects

of the same state than for objects of the same category.

mains low, especially when juxtaposed with the vast

research effort that has been invested over the last

years in related computer vision problems, such as

object detection and image classiﬁcation.

There are several arguments that attest the signif-

icance of a solution to the SD problem. First, the de-

tection of states is critical for decision making. In

dynamic worlds, the conditions for stopping an action

590

Gouidis, F., Patkos, T., Argyros, A. and Plexousakis, D.

Detecting Object States vs Detecting Objects: A New Dataset and a Quantitative Experimental Study.

DOI: 10.5220/0010898400003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

590-600

ISBN: 978-989-758-555-5; ISSN: 2184-4321

Figure 2: A small sample of the proposed OSDD dataset.

is state-dependent. For example, in order for a glass

to be ﬁlled without an overﬂow its ﬁlled state must

be recognized or even predicted on time. Actually, in

many cases, miss-classifying the object state could be

equally or even more detrimental as miss-classifying

its category (e.g., recognizing a bottle as a jar vs. rec-

ognizing a ﬁlled bottle as an empty bottle). Second,

inferring correctly the states of objects could facilitate

signiﬁcantly the recognition of actions. Conversely,

the recognition of an action can provide cues about

the states of objects which were affected by the ac-

tion. SD is also relevant to another active and impor-

tant research area, that of object affordances recog-

nition. The inference of object affordances depends

critically on their current state. For example, many

different kinds of objects

could be used for carrying

liquids, provided that they are empty. In this case,

inferring the state of the candidate container is more

important that recognizing its class.

At a ﬁrst glance, SD appears to be just a special

case of object detection (OD). As an example, one

could specialize a “box” detector to come up with an

“open box” detector. This idea could explain the low

levels of research activity devoted to SD, per se. How-

ever, such an approach lacks scalability as the space

of all object categories times the number of their pos-

sible states is huge. Moreover, there exist some im-

portant differences between the SD and OD problems.

First, the intra-class variation for object states is vastly

Bottles, pots, plates, cups, vases amongst others.

Table 1: Objects and states in OSDD. Rows corre-

spond clusters of object categories that may appear in

the same set of states. Columns correspond to ﬁve pairs

(P1-P5) of mutually exclusive states. P1: Open/Close,

P2: Empty/Containing Liquid (CL), P3: Empty/Containing

Solid (CS), P4: Plugged/Unplugged, P5: Folded/Unfolded.

Object

Pair

P1 P2 P3 P4 P5

Bottle, Jar, Tub 3 3 3 7 7

Book, Drawer, Door 3 7 7 7 7

Basket, Box 3 7 3 7 7

Cup, Mug, Glass, Bowl 7 3 3 7 7

Phone, Charger, Socket 7 7 7 3 7

Towel, Shirt, Newspaper 7 7 7 7 3

greater than the one for objects classes. For example,

objects that are visually very dissimilar such as books,

bottles, boxes and drawers, may belong to the same

state class (open). Figure 1 presents analogous exam-

ples. Moreover, the inter-class boundaries for the SD

problem may hinge on minute details. For example,

a slightly lifted cap is the only difference between an

open and a closed bottle. Another special aspect of

SD has to do with the fact that an object may possess,

simultaneously, several non mutually exclusive states

(e.g., an open, ﬁlled glass). Furthermore, considering

the problem of SD under a broader perspective which

also includes videos as input, we can attest the dy-

namic nature of object states. For example, a “ﬁlled”

cup may become “empty” in seconds in contrast to its

object category which remains ﬁxed.

Motivated by the previous observations and argu-

ments which point towards the signiﬁcance and the

special characteristics of SD, as well as the limited

study upon the subject, we investigate the SD prob-

lem in more detail. First, we provide a new dataset,

the Object States Detection Dataset (OSDD), consist-

ing of everyday household objects appearing in a va-

riety of different states. Given the small number of re-

lated datasets, we believe that OSDD could be useful

to anyone interested in the problem of SD. Second, we

conduct a number of carefully devised experiments in

order to examine the performance of OD and SD on

OSDD. The experimental evaluation exposes the per-

formance of solutions to the OD and SD problems,

conﬁrming that SD is harder than OD and attesting

the need for robust and performant solutions to the

SD problem.

2 RELATED WORK

We review existing approaches to the OD and SD

problems. For OD the literature is vast and its de-

tailed review is beyond the scope of this paper. There-

Detecting Object States vs Detecting Objects: A New Dataset and a Quantitative Experimental Study

591

Table 2: Number of annotations for the different object-state combinations.

Open Closed Empty CL CS Plugged Unplugged Folded Unfolded Total

basket 122 336 458

book 316 679 995

bottle 891 923 420 803 238 3275

bowl 809 146 790 1745

box 518 291 184 337 1330

charger 235 376 611

cup 432 139 220 791

door 271 481 752

drawer 468 484 952

glass 523 363 215 1101

jar 356 295 176 111 369 1307

mug 541 160 269 970

newspaper 322 135 457

phone 205 743 948

shirt 139 187 326

socket 486 1016 1502

towel 320 197 517

tub 276 153 136 416 981

Total 3096 3306 3343 1722 3190 926 2135 781 519 19018

Table 3: OSDD and existing object states datasets, in numbers.

Dataset Images/Videos Annotations States Objects Task View

OSDD (ours, proposed) 13,744 images 19,018 9 18 SD 3rd person

(Isola et al., 2015) 63,440 images 63,440 18 NA SC Egocentric

(Liu et al., 2017) 809 videos 330,000 21 25 SD & AR Egocentric

(Fire and Zhu, 2017) 490 Videos 180,374 17 13 SD & AR 3rd person

(Alayrac et al., 2017) 630 Videos 19,949 7 5 SD & AR 3rd person

fore, we restrict ourselves to an overview of the main

classes of approaches that follow the more recent,

state-of-art deep-learning paradigm. We also provide

pointers to existing object states datasets and we iden-

tify the contributions of this work.

Object Detection: Deep learning-based object detec-

tion frameworks can be categorized into two groups:

(i) one-stage detectors, such as YOLO (Redmon

and Farhadi, 2017) and SSD (Liu et al., 2016)

and (ii) two-stage detectors, such as Region-based

CNN (R-CNN) (Girshick, 2015) and Pyramid Net-

works (Lin et al., 2017a). Two-stage detectors use a

proposal generator to create a sparse set of propos-

als in order to extract features from each proposal

which are followed by region classiﬁers that make

predictions about the category of the proposed region,

whereas one-stage detectors generate categorical pre-

dictions of objects on each location of the feature

maps omitting the cascaded region classiﬁcation pro-

cedure. Two-stage detectors are typically more per-

formant and achieve state-of-the-art results on the ma-

jority of the public benchmarks, while one-stage de-

tectors are characterized by computational efﬁciency

and are used more widely for real-time OD. Some

other highly inﬂuential works in the ﬁeld are (He

et al., 2016), (Huang et al., 2017), (He et al., 2017)

and (Lin et al., 2017b).

State Detection: The research that has been con-

ducted in SD has treated the problem using either

videos or images as input. In the ﬁrst case, the

problem of SD usually serves as a stepping stone to

achieve action recognition.

In (Alayrac et al., 2017), SD is studied in the con-

text of videos containing manipulation actions per-

formed upon 7 classes of objects. The authors for-

mulate SD as a discriminative clustering problem and

attempt to address it by optimization methods. (Liu

et al., 2017) represent state-altering actions as con-

current and sequential object ﬂuents (states) and uti-

lize a beam search algorithm for ﬂuent detection and

action recognition. In a similar vein, (Aboubakr et al.,

2019) explores state detection in tandem with action

recognition. The method is based on the learning of

appearance models of objects and their states from

video frames which are used in conjunction with a

state transition matrix which maps action labels into

a pre-state and a post-state. In (Isola et al., 2015), the

states and transformations of objects/scenes on im-

age collections are studied, and the learned state rep-

resentations are extended to different object classes.

(Fire and Zhu, 2015; Fire and Zhu, 2017) examines

the causal relations between human actions and ob-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

592

Table 4: The experimental details of the different scenarios.

Columns show the scenario name, number of involved ob-

jects, number of involved states (ME: mutually exclusive),

number of trained networks, number of performed experi-

ments, target problem.

Scenario

Obj.

States

Nets

Exp.

Tasks

OOOS 1 2 ME 28 28 SD

MOOS 3-6 2 ME 5 5 SD

OOMS 1 3-5 8 8 SD

MOMS 18 9 1 1 SD

ODS 18 9 1 1 OD

TOOS 2 2 ME 28 7 SD, OD

SDG 3-9 2 ME 0 5 SD

ject ﬂuent changes. (Fathi and Rehg, 2013) developed

a weakly supervised method to recognize actions and

states of manipulated objects before and after the ac-

tion proposing a weakly supervised method for learn-

ing the object and material states that are necessary

for recognizing daily actions. (Wang et al., 2016)

designed a Siamese network to model precondition

states, effect states and their associate actions. (Berta-

sius and Torresani, 2020) leveraged the semantic and

compositional structure of language by training a vi-

sual detector to predict a contextualized word em-

bedding of the object and its associated narration en-

abling object representation learning where concepts

relate to a semantic language metric.

Overall, previous works dealt with the SD prob-

lem mostly by employing egocentric videos. These

are less challenging than 3rd person-view input due

to the higher resolution in which objects are imaged

and the lack of considerable clutter/occlusions. Addi-

tionally, in the majority of the cases, SD is considered

a means for achieving AR and not as a goal on its

own right, thus the studies of the SD problem are of a

limited scope.

Object States Datasets: Currently, there are only

a few object states datasets available to the research

community. The MIT-States dataset (Isola et al.,

2015) is composed of 63,440 images involving 115

attribute classes and 245 object categories and is suit-

able for state classiﬁcation (SC). However, the dataset

contains segmented images of objects in white back-

ground so they are far from being natural. Addition-

ally, most of the 115 reported attributes constitute ob-

ject properties that are not necessarily object states.

(Liu et al., 2017) presents a dataset consisting of 809

videos covering 21 state classes and 25 object cate-

gories. The scope of the dataset is SD and action

recognition (AR). The dataset presented in (Alayrac

et al., 2017) contains 630 videos concerning 7 state

classes and 5 object categories, also suited for SD and

AR. Finally, (Fire and Zhu, 2017) proposes a RGBD

Table 5: Aggregate results for scenarios OOOS, MOOS,

OOMS and MOMS. Row 1: weighted AP, row 2: percent-

age of experiments in which this scenario achieved best AP,

row 3: percentage of experiments in which this scenario

achieved worst AP, row 4: Average mAP , row 5: Aver-

age AP@50:5:95. Blue/red font indicates best/worst per-

formance in a line.

Metric OOOS MOOS OOMS MOMS

Weighted AP 68.4 63.2 54.3 46.6

Best perf. (%) 58.0 38.0 2.0 2.0

Worst perf. (%) 6.0 6.0 14.0 74.0

Avg mAP 62.3 56.5.0 46.8 38.4

Avg AP@50:5:95 40.5 39.7 29.1 23.7

video dataset for causal reasoning spanning 13 object

and 17 state categories.

In general, the existing SD datasets lack the diver-

sity that characterizes the OD datasets, which can be

attributed to the fact that they have been created with-

out having the task of SD as a primary goal.

Our Contribution: We introduce OSDD, a new

states dataset of 13,744 images and 19,018 states an-

notations. The dataset involves 18 object categories

that may appear in 9 different state classes. The

images of the dataset are characterised by a great

variety regarding viewing angles, background and

foreground scene settings, object sizes and object-

state combinations. These characteristics render the

dataset more challenging than most of the existing

datasets which contain a much more limited diversity

with respect to the aforementioned characteristics.

Moreover, OSDD could be proven useful for those

who want to assess the performance of approaches

addressing the tasks of zero-shot and few-shot recog-

nition.

In addition, we provide an extensive quantitative,

experimental evaluation of several aspects of the SD

problem. We conduct 55 different experiments in-

cluding 71 differently trained networks in the context

of 7 scenarios of varied settings which allows us to

draw valuable insights about the nature of SD and its

relation to OD. OSDD and the associated experiments

set useful baselines for assessing progress on the topic

of SD. To the best of our knowledge, our work is the

ﬁrst in which such a thorough investigation of the SD

task is performed.

3 THE OBJECT STATES

DETECTION DATASET (OSDD)

The proposed Objects States Detection Dataset

(OSDD)

consists of images depicting everyday

https://socola.ics.forth.gr/tools/

Detecting Object States vs Detecting Objects: A New Dataset and a Quantitative Experimental Study

593

Table 6: Experimental results for the AP metric averaged

at the level of states for the OOOS, MOOS, OOMS and

MOMS scenarios. Each row corresponds to a different

state. Blue/red font indicates best/worst performance for

the given state.

State OOOS MOOS OOMS MOMS

Open 68.7 67.4 52.4 49.9

Closed 69.2 62.2 62.4 48.2

Empty(vs CL) 70.0 67.6 58.3 56.4

Filled 49.9 40.4 38.4 25.0

Empty(vs CS) 73.0 69.8 58.3 56.4

Occupied 64.8 56.0 53.6 37.2

Folded 57.3 62.0 NA 39.5

Unfolded 37.0 39.9 NA 22.7

Connected 60.3 49.2 NA 24.8

Unconnected 84.9 78.5 NA 66.1

household objects in a number of different states.

The ground-truth annotations involve the labels and

bounding boxes spanning 18 object categories and 9

state classes. The object categories are: bottle, jar,

tub, book, drawer, door, cup, mug, glass, bowl, basket,

box, phone, charger, socket, towel, shirt and newspa-

per. The 9 state classes are: open, close, empty, con-

taining something liquid (CL), containing something

solid (CS), plugged, unplugged, folded and unfolded.

The states are grouped in 5 pairs of mutually ex-

clusive states. Table 1 shows which cluster of objects

is relevant to which pair of mutually exclusive (ME)

states. Table 2 provides an overview of the dataset

contents. For all object categories (rows) and states

(columns), we report the number of annotations.

The images were obtained by selecting

video frames from the something-something V2

Dataset (Mahdisoltani et al., 2018). Speciﬁcally,

images containing visually salient objects and states

of the aforementioned categories were captured and

annotated with bounding-boxes and ground truth

labels referring to the corresponding object categories

and state classes. Overall, the dataset contains 13,744

images and 19,018 annotations obtained by selecting

the ﬁrst, last and middle frames of 9,015 videos,

after checking that each of them contains salient

information. There are more annotations than images

because (a) in a certain image there may be more than

one objects or/and (b) a certain object is annotated

for all the non-exclusive states it appears in.

The dataset annotation was performed based on

the Computer Vision Annotation Tool (CVAT)

. In or-

der to handle properly ambiguous situations and safe-

guard from erroneous annotations, each image was

examined at least ﬁve times. Overall, the annotation

process required approximately 350 person hours.

https://github.com/openvinotoolkit/cvat

Table 7: Experimental Results for the AP metric averaged

at the level of states for the OOOS, MOOS, OOMS and

MOMS scenarios. Each row corresponds to a different ob-

ject. Blue/red font indicates best/worst performance for the

given object.

Object OOOS MOOS OOMS MOMS

bottle 61.9 50.0 40.2 32.4

tub 74.8 48.1 47.0 18.9

cup 70.8 73.2 66.5 64.7

mug 78.0 80.3 82.6 71.4

jar 50.8 59.3 36.0 30.6

glass 64.2 62.6 55.9 50.0

bowl 75.5 77.3 71.5 68.0

box 73.4 71.2 59.6 62.9

basket 58.6 65.6 NA 55.2

book 74.7 63.9 NA 62.0

door 45.9 45.4 NA 30.7

shirt 40.4 33.3 NA 22.8

newspaper 40.5 45.8 NA 14.5

towel 54.7 62.4 NA 44.1

drawer 73.8 66.5 NA 58.5

phone 79.2 79.2 NA 70.0

charger 69.5 38.7 NA 35.2

socket 80.3 75.8 NA 51.9

3.1 OSDD vs Existing Object States

Datasets

Table 3 summarizes information regarding the exist-

ing SD datasets. The dataset that is most similar to

OSDD is the one presented in (Isola et al., 2015).

However, the two datasets differ in a number of ways.

First, the images in our dataset are snapshots of video

tracklets that show objects manipulations, whereas

the images in (Isola et al., 2015) stem from scrap-

ping. Moreover, the majority of images in (Isola et al.,

2015) are cropped containing a single object, whereas

OSDD images contain objects in context (e.g., other

objects, background, etc).

Another important remark regarding the existing

datasets, is that in the case of (Liu et al., 2017), (Fire

and Zhu, 2017) and (Alayrac et al., 2017), annotations

were provided for adjacent video frames, whereas in

our case they involve the ﬁrst, middle and last frames

of 9,015 videos. Thus, although they appear to pro-

vide many more annotations, they are much less di-

verse than OSDD due to the similarity between many

of the annotated frames.

In summary, the aspects that distinguish OSDD

from the existing datasets are its greater diversity

regarding objects and states appearance, the greater

background/foreground variation and the greater di-

versity of viewpoints which results in a vast variety

of object sizes and viewing angles. These character-

istics make it unique for studying SD in challenging,

realistic scenarios.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

594

Table 8: Experimental results for the OOOS, MOOS, OOMS and MOMS scenarios. First number in each cell corresponds

to the mAP metric and second number corresponds to the AP@50:5:95 metric respectively. The metrics are calculated at the

level of each object pairs for the OOOS and MOOS scenarios, at the level of each object for the OOMS scenario and at the

level of all objects for the MOMS scenario respectively. Blue/red font indicates best/worst performance between the OOOS

and MOOS scenarios.

Object Pair OOOS MOOS OOMS MOMS

bottle

P1 71.5 / 48.0 67.7 / 46.8

40.4 / 25.3

38.4 / 23.7

P2 38.0 / 26.3 24.4 / 15.1

P3 68.6 / 43.8 43.8 / 30.1

jar

P1 50.0 / 25.8 67.2 / 49.8

33.9 / 22.3P2 35.8 / 25.0 52.2 / 33.7

P3 51.8 / 33.4 52.6 / 38.9

tub

P1 83.0 / 59.1 57.5 / 42.4

41.9 / 23.2P2 44.5 / 25.3 66.6 / 37.5

P3 64.2 / 39.7 29.4 / 20.6

box

P1 73.0 / 53.4 61.1 / 46.2

56.7 / 20.7

P3 67.2 / 43.8 60.4 / 45.0

glass

P2 60.1 / 41.5 52.4 / 34.9

46.8 / 32.9

P3 57.9 / 41.0 63.7 / 47.7

cup

P2 59.9 / 41.6 54.5 / 36.6

53.5 / 36.5

P3 62.2 / 47.8 75.0 / 60.0

mug

P2 56.1 / 36.6 56.4 / 36.9

64.8 / 50.1

P3 64.6 / 45.8 73.7 / 56.3

bowl

P2 57.0 / 40.6 78.7 / 64.5

54.9 / 35.5P3 74.9 / 52.4 59.8 / 41.8

basket P3 55.6 / 29.1 53.6 / 41.6 NA

phone P4 61.7 / 40.6 64.2 / 40.6 NA

charger P4 68.6 / 42.2 38.1 / 21.4 NA

socket P4 76.2 / 39.3 71.0 / 36.1 NA

book P1 64.2 / 44.3 57.0 / 42.7 NA

door P1 42.1 / 23.9 39.1 / 23.8 NA

drawer P1 75.6 / 43.9 68.9 / 45.8 NA

newspaper P5 35.7 / 23.5 43.7 / 29.8 NA

towel P5 53.9 / 35.5 61.5 / 41.6 NA

shirt P5 41.8 / 22.5 36.5 / 25.6 NA

Weighted Average 62.3 / 40.5 56.5 / 39.7 46.8 / 29.1 38.4 / 23.7

Table 9: Experimental results for the MOMS and ODS sce-

narios. See text for details.

Metric MOMS ODS

AP@50:5:95 23.7 30.9

mAP 38.4 48.8

4 EXPERIMENTAL EVALUATION

OD has been studied extensively and it is one of the

most prominent cases where the standard deep learn-

ing approach, i.e. the training of special architectures

of Deep Neural Networks with appropriately anno-

tated datasets, has been proven exceptionally advanta-

geous in comparison to traditional techniques involv-

ing hand-crafted image features. We choose to follow

the same approach for solving SD, since it allows to

assess our intuition regarding the nature of OD and

SD, both directly and indirectly. Speciﬁcally, we can

observe how the performance of SD variants changes

as the complexity of the problem at hand varies, and

check whether this behavior is congruent to the one

that is expected for OD variants when undergo a sim-

ilar complexity shift. Equally importantly, by test-

ing SD under the same experimental conditions (i.e.,

identical training samples and network architectures)

that were used for an OD problem, we can compare

directly the performances obtained for the two tasks.

Training Conﬁguration: The network we

are using in our experimental evaluation is

Yolov4 (Bochkovskiy et al., 2020), one of the

most popular CNNs for OD. We opted for using this

network because it it can be easily ﬁne-tuned, it has

been utilized with much success in a wide variety

of settings and exhibits SoA performance in OD.

Consequently, we follow the typical procedure for

the deployment of a network tailored for OD, i.e.,

we split the set of the annotated image samples into

training, validation and testing parts.

In order to accelerate the training phase and boost

the performance, we follow the common practice of

Detecting Object States vs Detecting Objects: A New Dataset and a Quantitative Experimental Study

595

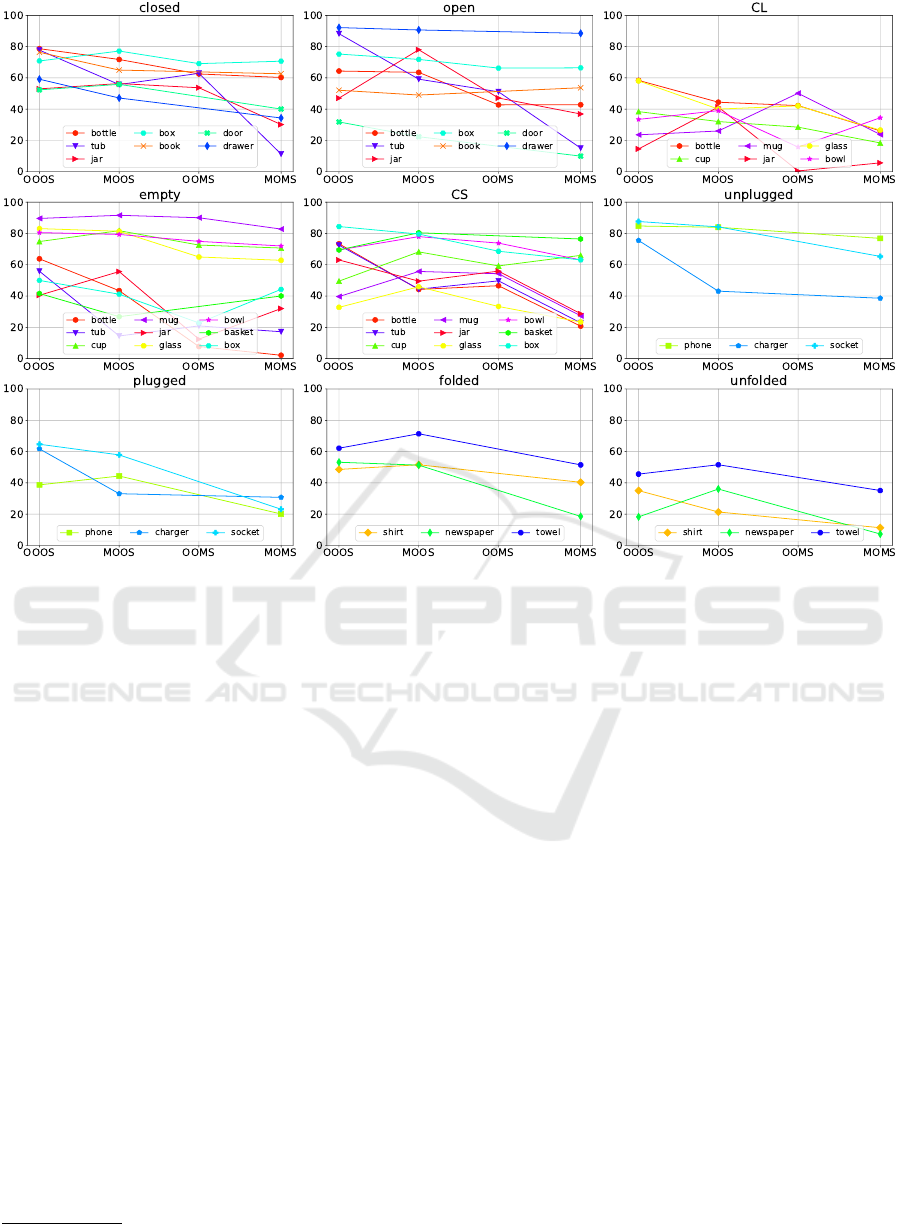

Figure 3: AP for the OOOS, MOOS, OOMS and MOMS scenarios, for each object state in OSDD.

using pre-trained weights at the start of the training

phase of every network. Speciﬁcally, the weights

used are obtained after training with MS-COCO

dataset (Lin et al., 2014).

We also employ data augmentation by horizon-

tally ﬂipping all frames in a batch with a probability

of 0.5. The number of training epochs is set equal to

the product of 2,000 to the number of the categories

of the corresponding sub-task

. We used the Adam

optimizer with an initial learning rate of 0.001 and an

early stopping policy of 50 epochs.

Evaluation Metrics: Given an image as an input,

the solution of the SD problem produces the bound-

ing box of each detected object and the set of state

classes, in which that object belongs. For a detec-

tion to be considered correct, the set of states must

be identical to the ground truth and the overlap be-

tween the ground truth and the detected bounding

boxes must be greater than a certain threshold, which,

following common practices, we set to 50%. More-

over, predictions having conﬁdence lower than 50%

are rejected. Our analyses are based on three standard

performance metrics used for assessing OD tasks:

AP, AP@50:5:95 and mAP. AP is calculated for each

object-state combination in each experiment instance,

whereas AP@50:5:95 and mAP are calculated per ex-

https://github.com/AlexeyAB/darknet

periment instance as in (Padilla et al., 2020).

Experimental Scenarios: For the purposes of the

evaluation, we devise 7 different scenarios, each one

involving different assumptions regarding the object

categories and states which are to be detected. The

details of the scenarios are presented in Table 4. In

the rest of this section, we describe each scenario, we

explain the rationale behind it along with the hypothe-

ses that we want to test, and present the experimental

results we obtained and the conclusions that we draw.

4.1 The OOOS, MOOS, OOMS and

MOMS Scenarios

Aiming to explore how the approach fares as the com-

plexity of the problem scales, we devise 4 different

SD experimental scenarios. The adjustable settings

for the scenarios concern the number of different ob-

ject categories involved and the number of possible

states for each object category. Speciﬁcally, the tested

SD scenarios are deﬁned as follows:

• OOOS (One Object One State Pair): Involves

the detection of an object’s state, assuming the

object class is known, i.e. the corresponding net-

work has been trained exclusively on objects be-

longing to this class, and the possible states for the

object are two and mutually exclusive (M.E.).

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

596

Table 10: Experimental results for the TOOS Scenario. Each row corresponds to a different objects/states combinations. First

number in each cell corresponds to the mAP metric and second number corresponds to the AP@50:5:95 metric respectively.

Blue/red font indicates best/worst performance achieved for the given objects/states combination.

Scenario Details Results

Object 1 Object 2 State 1 State 1 CS1 CS 2 ST CO1 CO2 OB

bottle jar open closed 19.5 /13.3 9.0 /5.4 27.2 /17.6 26.7 /18.1 69.7 /45.5 67.3 /45.5

bottle jar empty CL 7.7 /5.0 1.5 /0.7 35.2 /20.7 52.1 /28.0 38.2 /20.9 58.8 /33.4

cup glass empty CL 2.4 /1.6 2.6 /1.8 55.0 /39.4 59.2 /43.2 49.8 /26.9 79.8 /44.6

cup glass empty CS 4.4 /3.0 10.6 /7.4 59.7 /43.3 37.3 /24.1 56.1 /28.1 75.4 /54.6

charger phone plugged unplugged 5.7 /3.3 4.7 /3.0 49.4 /28.3 49.9 /30.8 67.0 /33.8 81.7 /45.9

shirt towel unfolded folded 19.7 /14.4 13.0 /7.2 32.5 /19.2 45.4 /28.3 51.4 /27.3 60.3 /37.4

newspaper towel unfolded folded 0.3 /0.2 3.6 /2.4 77.1 /58.6 72.4 /51.0 41.0 /21.6 84.4 /54.4

bowl mug empty CL 5.2 /3.5 18.6 /11.5 50.1 /32.3 34.1 /25.2 61.5 /37.9 83.9 /67.2

bowl mug empty CS 6.8 /4.8 21.5 /14.0 46.0 /35.0 14.3 /9.2 67.6 /39.6 77.7 /48.6

door drawer open closed 1.5 /1.0 1.5 /0.6 19.8 /10.5 16.7 /7.6 61.3 /39.5 67.3 /39.9

glass mug empty CL 1.1 /0.7 0.8 /0.6 74.8 /52.6 72.1 /56.1 54.1 /38.4 85.3 /56.5

glass mug empty CS 3.3 /2.4 2.9 /2.2 55.4 /42.1 43.7 /31.6 61.8 /43.7 78.4 /53.8

Weighted Average mAP 8.5 6.4 53.3 49.0 48.0 72.5

Best perf (%) 0.0 0.0 0.0 0.0 14.3 85.7

Worst perf. (%) 42.9 57.1 0.0 0.0 0.0 0.0

Weighted Average AP@50:5:95 5.8 4.0 29.2 32.5 31.9 45.1

Best perf. (%) 0.0 0.0 14.3 0.0 14.3 71.4

Worst perf. (%) 42.9 57.1 0.0 0.0 0.0 0.0

• MOOS (Many Objects One State Pair): in-

volves the detection of an object’s state when its

class is not known, i.e. the number of object

classes upon which the corresponding network

has been trained is more than one, and the pos-

sible states for the objects are two and M.E.

• OOMS (One Object Many States): involves the

detection of an object’s state(s) assuming the ob-

ject class is known and the possible states for the

object are more than two and not necessarily M.E.

• MOMS (Many Objects Many States): Detec-

tion of an object’s state when its class is not

known beforehand and the possible states for each

class of object could be more than two and not

necessarily M.E.

The obtained results are summarized in Tables 5-8

and Figure 3. It can be veriﬁed that the best perfor-

mance is obtained in the OOOS scenario, while the

worst in the MOMS scenario. This is expected, as

from a single object and state pair (OOOS) we move

into the far more complex scenario of multiple objects

and multiple state pairs (MOMS). However, we also

observe that performances in MOOS are considerably

better that performances in OOMS. Thus, when de-

parting from the baseline OOOS scenario and increas-

ing the complexity of the problem either in the direc-

tion of adding more objects (MOOS) or in the direc-

tion of adding more states (OOMS), we observe that

the addition of more states makes the problem consid-

erably harder.

Table 11: Object/state combinations in the TOOS scenario.

See text for details.

State 1 State 2

Object 1 (A) O

, S

(B) O

, S

Object 2 (C) O

, S

(D) O

, S

Table 12: Dataset splits in each setting of the TOOS sce-

nario. A, B, C and D are deﬁned in Table 11. See text for

details.

Setting Training Testing Task

Cross States 1 (CS1) A, D B, C SD

Cross States 2 (CS2) B, C A, D SD

States (ST) A, B, C, D A, B, C, D SD

Cross Objects 1 (CO1) A, D B, C OD

Cross Objects 2 (CO2) B, C A, D OD

Objects (OB) A, B, C, D A, B, C, D OD

4.2 Object Detection Scenario (ODS) vs

MOMS

The Object Detection Scenario (ODS) deals with the

detection of object categories, using the same settings

used for the MOMS scenario. Essentially, it is about

the same data, processed with the same network ar-

chitectures, with the exception that in ODS we seek

for the object categories, while in MOMS we seek for

the object states.

The performances of the detectors for the two sce-

narios are presented in Table 9. We observe that the

performance in OD is better than that achieved in SD.

The better ODS performance is obtained despite the

fact that ODS has to deal with double the number

of categories (18) compared to MOMS (9). Further-

Detecting Object States vs Detecting Objects: A New Dataset and a Quantitative Experimental Study

597

more, the existence of visually similar pairs of ob-

jects (bottle-jar, cup-glass, towel-shirt) increase the

difﬁculty of the OD task. Overall, the comparison

between the performances of the two scenarios sup-

ports strongly the notion that SD is a harder problem

to solve than OD.

4.3 The Two Objects One State Pair

(TOOS) Scenario

In the context of the Two Objects One State Pair

(TOOS) scenario, we train and test for images in

which there are two different types of objects appear-

ing in either one of two mutually exclusively states.

Speciﬁcally, let O

and O

be the two objects and S

and S

the two states. The situation is illustrated in

Table 12. We deﬁne six different cases, depending on

which subset of data is used for training, which for

testing and what task is solved. All these splits have

been employed in 12 different object/states combina-

tions. The rationale behind these experiments is to

compare directly the learning capacity of the detectors

for object classes and object categories, when trained

and tested on exactly the same base of data.

Table 10 summarizes the obtained results. The

performance in CS1 and CS2 (aiming for states) is

signiﬁcantly inferior to the one observed in cases CO1

and CO2 (aiming for objects). The poor performance

in this case can be explained by the fact that the

detectors learn principally the visual features of the

object category and not the ones of the state class.

In other words, the category of an object is visually

much more salient than its state. Additionally, the

performance in ST is lower than the performance on

OB. This evidence supports the hypothesis that SD is

harder than OD.

4.4 State Detection Generalization

(SDG) Scenario

In the State Detection Generalization Scenario

(SDG), we examine the generalization capacity of the

state detectors. Speciﬁcally, in the context of this sce-

nario, state detectors which have been trained for in-

stances of one particular object category and a pair of

two mutually exclusive states are tested on instances

of other categories of objects that appear on either one

of the same two mutually exclusively states. As an

example, we check whether an SD method trained on

bottles to detect whether they are ﬁlled or empty, is

used to check whether a glass is ﬁlled or empty. In

this case, we expect that the detectors will be able to

generalize better for objects that are visually similar

to the object class for the states of which they have

been trained.

The results for this scenario for the state pairs P1-

P5 are shown in Tables 13-16. The obtained results

corroborate the intuition that the performance of a

state detector increases along with the visual similar-

ity between the objects classes of the trained and the

tested samples. In more detail, the performances are

high for speciﬁc cases of great visual similarity and

mediocre or poor for the rest of the cases. The fact

that the state detectors can only generalize for certain

cases makes probable that the state detectors will ex-

hibit poor performance when encountering new types

of objects.

5 SUMMARY AND FUTURE

WORK

In this paper, we have introduced a new dataset of ob-

ject states and conducted an extensive series of ex-

periments over it in order to compare the SD and OD

tasks. Overall, the experimental results indicate the

signiﬁcant differences of the SD and OD tasks. SD is

more challenging than OD. Moreover, the results ob-

tained for more than a single pair of state classes can

be considered mediocre to poor. In this case, better

performance could be obtained if a number of OOOS

or MOOS detectors are employed simultaneously but

the scalability issues of this approach limit its practi-

cal use.

Regarding future work, there are a number of steps

worth exploring. First, a more ﬁne-grained catego-

rization of the states would be more convenient es-

pecially for SDs used in the context of AR. More-

over, an experimental evaluation using a two-stage

SoA object detector, such as Faster-RCNN (Ren et al.,

2015), could provide additional insights with respect

to the similarities and differences between SD and

OD. The utilization of semantic embeddings, which

have been used with great success in challenging

problems such as Zero-Shot recognition, is another

avenue that seems promising. Another interesting av-

enue of research would be to examine how the group-

ing of objects according to common sense criteria

affects the performance of the state detectors. Ob-

viously, the main goal is to come up with a novel

method for SD which will cope with this important

and difﬁcult problem in realistic conditions.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

598

Table 13: Experimental results for the SDG scenario, for the mutually exclusive states pair P1. The ﬁrst number in each cell

corresponds to the mAP metric and the second to the AP@50:5:95 metric respectively.

Trained

Tested

Book Bottle Box Door Drawer Jar Tub

book 64.2 /44.3 1.2 /0.6 22.3 /16.7 3.4 /2.0 1.1 /0.5 2.3 /1.4 9.9 /5.4

bottle 11.7 /6.9 71.5 /48.0 5.6 /3.8 0.0 /0.0 0.9 /0.8 46.3 /30.4 14.1 /9.3

box 35.1 /22.8 4.1 /2.7 73.0 /53.4 5.1 /1.7 28.9 /13.6 11.0 /6.7 59.5 /42.7

door 2.6 /1.6 0.1 /0.0 4.0 /1.6 42.1 /23.9 5.1 /1.5 0.0 /0.0 0.7 /0.5

drawer 17.4 /7.4 0.1 /0.0 9.8 /4.6 8.2 /5.0 75.6 /43.9 0.0 /0.0 0.0 /0.0

jar 1.7 /1.0 14.0 /7.1 1.9 /1.1 0.0 /0.0 0.4 /0.1 50.0 /25.8 21.2 /11.0

tub 4.8 /2.4 2.1 /1.3 15.9 /10.6 0.2 /0.1 4.6 /2.0 26.7 /19.0 83.0 /59.1

Table 14: Experimental results for the SDG scenario, for the mutually exclusive states pair P2.

Trained

Tested

bottle bowl cup glass jar mug

bottle 38.0 /26.3 1.6 /0.9 7.0 /4.2 5.7 /3.3 19.1 /11.3 2.0 /1.4

bowl 0.5 /0.4 57.0 /40.6 35.4 /25.5 13.1 /9.2 9.6 /6.9 29.9 /17.2

cup 1.1 /0.8 46.8 /33.1 59.9 /41.6 34.9 /25.5 25.3 /17.7 63.3 /47.5

glass 1.3 /0.8 20.6 /15.9 33.5 /25.3 60.1 /41.5 19.7 /14.9 14.4 /7.7

jar 10.7 /5.1 2.4 /1.2 4.0 /2.1 26.3 /13.6 35.8 /25.0 5.6 /2.6

mug 0.4 /0.2 46.3 /32.8 52.1 /35.7 31.3 /20.2 15.4 /10.0 56.1 /36.6

Table 15: Experimental results for the SDG scenario, for the mutually exclusive states pair P3.

Trained

Tested

basket bottle bowl box cup glass jar mug tub

basket 55.6 /29.1 17.4 /10.0 22.4 /15.7 29.9 /20.5 17.4 /12.6 10.2 /5.8 10.3 /7.4 16.2 /10.4 23.6 /13.2

bottle 5.5 /3.4 68.6 /43.8 15.3 /8.9 4.0 /2.6 32.9 /22.3 31.0 /20.1 41.4 /27.6 11.9 /6.4 17.9 /10.1

bowl 46.1 /34.8 8.7 /4.8 74.9 /52.4 5.7 /2.3 49.7 /37.7 16.6 /10.4 13.9 /8.9 32.1 /17.9 30.1 /20.1

box 42.2 /21.3 17.5 /9.1 42.8 /18.9 67.2 /43.8 47.2 /22.0 18.9 /9.5 20.5 /10.4 17.2 /9.0 39.4 /18.5

cup 37.1 /23.5 7.4 /5.1 47.7 /31.2 8.2 /4.2 62.2 /47.8 43.0 /29.1 21.4 /15.1 65.0 /41.5 19.8 /13.1

glass 17.4 /10.4 10.4 /4.6 25.7 /15.2 3.1 /1.5 41.4 /25.0 57.9 /41.0 17.9 /10.1 24.5 /12.7 11.9 /7.1

jar 9.2 /5.5 24.0 /16.4 21.1 /15.3 15.0 /9.4 22.5 /14.7 22.0 /14.8 51.8 /33.4 14.1 /9.7 20.5 /11.7

mug 16.2 /11.3 11.6 /7.3 55.1 /37.9 0.7 /0.6 61.0 /42.9 28.9 /19.3 12.3 /8.2 64.6 /45.8 15.6 /10.1

tub 31.8 /18.5 27.2 /15.8 64.9 /38.2 19.5 /10.1 44.6 /30.8 21.8 /12.6 31.1 /18.4 27.2 /14.5 64.2 /39.7

Table 16: Experimental results for the SDG scenario, for the mutually exclusive states pair P4 (left table) and P5 (right table).

Trained

Tested

charger phone socket

Trained

Tested

newspaper shirt towel

charger 68.6 /42.2 12.6 /7.8 3.1 /0.7 newspaper 35.7 /23.5 6.9 /4.3 12.2 /8.0

phone 22.4 /9.5 61.7 /40.6 0.0 /0.0 shirt 11.0 /5.1 41.8 /22.5 25.5 /18.5

socket 4.0 /0.9 0.0 /0.0 76.2 /39.3 towel 19.7 /12.7 34.0 /23.5 53.9 /35.5

ACKNOWLEDGEMENTS

This project has received funding from the Hellenic

Foundation for Research and Innovation (HFRI) and

the General Secretariat for Research and Technology

(GSRT), under grant agreement No 188.

REFERENCES

Aboubakr, N., Crowley, J. L., and Ronfard, R.

(2019). Recognizing Manipulation Actions from

State-Transformations.

Alayrac, J.-B., Sivic, J., Laptev, I., and Lacoste-Julien, S.

(2017). Joint Discovery of Object States and Manipu-

lation Actions. In International Conference on Com-

puter Vision (ICCV).

Bertasius, G. and Torresani, L. (2020). COBE: Contextual-

ized Object Embeddings from Narrated Instructional

Video. pages 1–14.

Bochkovskiy, A., Wang, C.-Y., and Liao, H.-Y. M. (2020).

Yolov4: Optimal speed and accuracy of object detec-

tion. arXiv preprint arXiv:2004.10934.

Fathi, A. and Rehg, J. M. (2013). Modeling actions through

state changes. Proceedings of the IEEE Computer

Detecting Object States vs Detecting Objects: A New Dataset and a Quantitative Experimental Study

599

Society Conference on Computer Vision and Pattern

Recognition, pages 2579–2586.

Fire, A. and Zhu, S. C. (2015). Learning perceptual causal-

ity from video. ACM Transactions on Intelligent Sys-

tems and Technology, 7(2).

Fire, A. and Zhu, S.-C. (2017). Inferring hidden statuses

and actions in video by causal reasoning. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition Workshops, pages 48–56.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

international conference on computer vision, pages

1440–1448.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In Proceedings of the IEEE international

conference on computer vision, pages 2961–2969.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Huang, G., Liu, Z., Van Der Maaten, L., and Weinberger,

K. Q. (2017). Densely connected convolutional net-

works. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 4700–

4708.

Isola, P., Lim, J. J., and Adelson, E. H. (2015). Discovering

states and transformations in image collections. Pro-

ceedings of the IEEE Computer Society Conference

on Computer Vision and Pattern Recognition, 07-12-

June:1383–1391.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017a). Feature pyramid networks

for object detection. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2117–2125.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017b). Focal loss for dense object detection. In

Proceedings of the IEEE international conference on

computer vision, pages 2980–2988.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Doll

ar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean conference on computer vision, pages 740–755.

Springer.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37. Springer.

Liu, Y., Wei, P., and Zhu, S. C. (2017). Jointly Recogniz-

ing Object Fluents and Tasks in Egocentric Videos.

Proceedings of the IEEE International Conference on

Computer Vision, 2017-Octob:2943–2951.

Mahdisoltani, F., Berger, G., Gharbieh, W., Fleet, D.,

and Memisevic, R. (2018). On the effectiveness of

task granularity for transfer learning. arXiv preprint

arXiv:1804.09235.

Padilla, R., Netto, S. L., and da Silva, E. A. (2020). A sur-

vey on performance metrics for object-detection algo-

rithms. In 2020 International Conference on Systems,

Signals and Image Processing (IWSSIP), pages 237–

242. IEEE.

Redmon, J. and Farhadi, A. (2017). Yolo9000: better, faster,

stronger. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 7263–

7271.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. Advances in neural information

processing systems, 28:91–99.

Wang, X., Farhadi, A., and Gupta, A. (2016). Actions˜

transformations. In Proceedings of the IEEE con-

ference on Computer Vision and Pattern Recognition,

pages 2658–2667.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

600
