A Subset of Acoustic Features for Machine Learning-based and

Statistical Approaches in Speech Emotion Recognition

Giovanni Costantini

, Valerio Cesarini

and Daniele Casali

Department of Electronic Engineering, University of Rome Tor Vergata, Italy

Keywords: Emotions, Speech, Machine Learning, Arousal, Valence, Categorical, Dimensional.

Abstract: In this paper, a selection of acoustic features, derived from literature and experiments, is presented for emotion

recognition. Additionally, a new speech dataset is built by recording the free speech of six subjects in a

retirement home, as part of a pilot project for the care of the elder called E-Linus. The dataset is employed

along with another widely used set (Emovo) for testing the effectiveness of the selected features in automatic

emotion recognition. Thus, two different machine learning algorithms, namely a multi-class SVM and Naïve

Bayes, are used. Due to the unbalanced and preliminary nature of the retirement home dataset, a statistical

method based on logical variables is also employed on it. The 24 features prove their effectiveness by yielding

sufficient accuracy results for the machine learning-based approach on the Emovo dataset. On the other hand,

the proposed statistical method is the only one yielding sufficient accuracy and no noticeable bias when testing

on the more unbalanced retirement home dataset.

1 INTRODUCTION

A rigorous and universally accepted definition of

emotion does not currently exist. In general, we can

say that it is an internal state that is somewhat more

ancestral than feeling, but still rather complex, which

depends on external events but also on the way in

which the subject interprets and responds to these

events. Given the strong subjective value, it is

difficult to describe the emotional state objectively,

and to associate it with clear external manifestations

of this state. Particularly useful for this purpose are

the studies of Plutchik and Ekman (Plutchik, 1970,

1991, Ekman, 1999). Works of study and description

of emotions can be divided into two large groups: on

the one hand, those in which it is assumed that there

is a set of basic functions and that all the others are in

some way attributable to some variant or combination

of the emotions of base. However, there is no

agreement on which and how many basic emotions

are. This is what we call the categorical model. The

other set of theories, called the dimensional model, is

based on the assumption that what we call "emotion"

is actually a combination of two or more independent

https://orcid.org/0000-0001-8675-5532

https://orcid.org/0000-0002-8305-3604

https://orcid.org/0000-0001-8800-728X

factors. The key aspect is that these factors, called

dimensions, can vary continuously, giving rise to an

infinite amount of different shades. In this study, the

categorical model is considered along with principles

based on the Dimensional (or Circular Complex)

model to derive some acoustic features able to

differentiate emotions. The paper is organized as

follows: in the following section a description of the

categorical and dimensional models for speech

emotions is given; Section 3 describes the datasets,

Section 4 the acoustic features and classification

method and Section 5 presents the experimental

results. Finally, a discussion and conclusions section

ends the paper.

2 MODELS OF EMOTIONAL

SPEECH

In this work, we use the Categorical Model: we

assume that emotions are a well-defined set of

reactions to well-defined situations. Reactions innate

and in some way encoded in our own organism,

Costantini, G., Cesarini, V. and Casali, D.

A Subset of Acoustic Features for Machine Learning-based and Statistical Approaches in Speech Emotion Recognition.

DOI: 10.5220/0010912500003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 4: BIOSIGNALS, pages 257-264

ISBN: 978-989-758-552-4; ISSN: 2184-4305

257

which allow us to respond immediately, without

going through the mediation of the cerebral cortex.

This range of theories, as argued by Plutchik or

Ekman, affirm that emotions derive from “universal”

purposes, i.e., related to the survival of the species

(Palmero Cantero et al., 2011). The exact number and

type of basic emotions that are considered can vary

from author to author. In our work, the emotions

considered are fear, anger, joy and sadness. The

neutral state is also considered.

Fear is the emotion felt in front of a danger that

the subject is not considered able to face, and

therefore prepares himself to escape. The breathing

rate increases, as does the heartbeat, in order to bring

greater oxygenation to the muscles. The sympathetic

system is activated. A tremor can also be found at the

vocal level, both in the form of pitch and intensity

oscillations and, mostly, with characteristic

interruptions on the emission of the utterance.

Anger occurs when there is a danger that the

subject believes he can face: in this case, the

individual is not predisposed to escape, but to attack.

The reaction is in many respects similar to that of fear,

due to the activation of the sympathetic system, but

the pitch of the voice tends to be more stable, the

tremor less pronounced, and the volume stronger.

Joy occurs when there is no danger but rather the

prospect of gain where, however, a certain physical

effort is still required. Therefore, many of the

characteristics of the two emotions described above

are found. The difference from anger and fear is that

in this case the situation is perceived as positive and

pleasant.

Sadness, unlike the three emotions considered

above, occurs when there is no immediate need for

physical effort or a high reaction rate. Muscles relax,

breathing is slow. The subject is resigned and does

not prepare for either attack or flight, but passively

accepts the events that are happening.

Other emotions are considered by some authors,

for example disgust or contempt. Surprise is an

emotion that, depending on the case, can be

associated with joy, anger, or fear, but which has

some traits, especially regarding the facial

expression, which would lead to consider it an

emotion in its own right.

The Categorical Model has the advantage of being

very close to our usual way of describing emotions,

and at the same time easily applicable in classification

systems such as neural networks and, more generally,

machine learning. However, its rigidity makes it

unsuitable for a systematic approach that can

consider, in a scientific way, all the various nuances

between different emotions. For example, serenity

cannot be assimilated to joy, but not even to sadness.

For these reasons, an alternative, more

quantitative model has been proposed, the so-called

Dimensional Model that involves one, two or three

different dimensions that are judged sufficient to

quantify an emotion (Scherer 1984, 2001; Sander et

al., 2004, 2005; Watson et al., 1988; Schlosberg 1941,

1954; Wundt, 1896, Osgood et al., 1957; Russell,

1980; Cowie, 2000; Devillers et al., 2005; Devillers

et al., 2005). The most complex version of this model

is based on three parameters that qualify emotions:

 Arousal: the grade of excitation in the subject.

High values are associated to “strong” feelings

like those experienced with anger.

 Valence: the quality of the associated feeling,

which is referred to the way the subject reacts to a

certain situation: if it goes towards his

expectations, the valence is positive, otherwise it

is negative.

 Insecurity: the grade of uncertainty that the

subject experiences about his own state of mind.

High values, like those associated to sadness, are

related to a feeling of dubiety and anxiety.

Although we did experiment on this very model, it is

not suitable for machine learning-based analyses as it

is. It is also worth noting that the choice of categorical

of dimensional model for describing emotions may

affect the completeness of the description, as some

parameters cannot be shared between models

(Parada-Cabaleiro et al., 2018). This explains our

need to find a reliable set of features, which can be

based on some principles underlined by the

Dimensional model, as will be explained in the

“Methods” section.

3 MATERIALS

Two datasets of emotional speech, recorde in Italian,

have been considered for the present study. The first

one is Emovo (Costantini et al., 2014) which consists

of a carefully recorded set of utterances by six actors

who were asked to read the same sentences

expressing different emotions. It is well balanced

with 84 recordings per emotion.

The second dataset is part of a pilot project called

E-Linus and is still in the preliminar phase of its

construction. The E-Linus project, supported by the

Lazio Region in 2021, aims to develop an Active &

Independent Living solution that operates through a

network of non-invasive IoT devices. The goal is to

build a new framework that integrates Artificial

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

258

Intelligence algorithms in a system of "Multimodal

Detection of mental states", identifying states of

isolation and depression in the elderly and improving

the level of home care. More info on E-Linus can be

found in the Acknowledgements section.

A voice recording framework has been

established in a retirement home, where the free

speech of five different subjects is being recorded in

time. However, it’s common for the subjects not to be

experiencing strong emotions, due to their life

conditions in the recovery home, as confirmed by

psychologists who are part of the project. Thus, a

huge unbalance towards “Neutral”-labeled emotions

can be observed, and no reliable recordings of “Fear”

being experienced have been collected. Due to the

different nature of the two sets, Emovo has been

chosen in order to also test the goodness of our

methods on a balanced and widely used dataset. Table

1 shows the number of instances for each emotion in

each dataset.

Table 1: Number of total instances for every emotion in

each dataset.

Emovo Retirement Home

Joy 84 20

Anger 84 27

Sadness 84 87

Fear 84 0

Neutral 84 676

Total 420 810

4 METHODS

4.1 Acoustic Features

Taking into consideration a categorical model where

each emotion corresponds to a “class”, our first aim

was to identify a generalized and optimal feature set

for the automatic identification of emotions. Said

features are acoustic properties of the voice signal,

and span from prosodic attributes to considerations on

the spectral and cepstral domains (Bogert et al.,

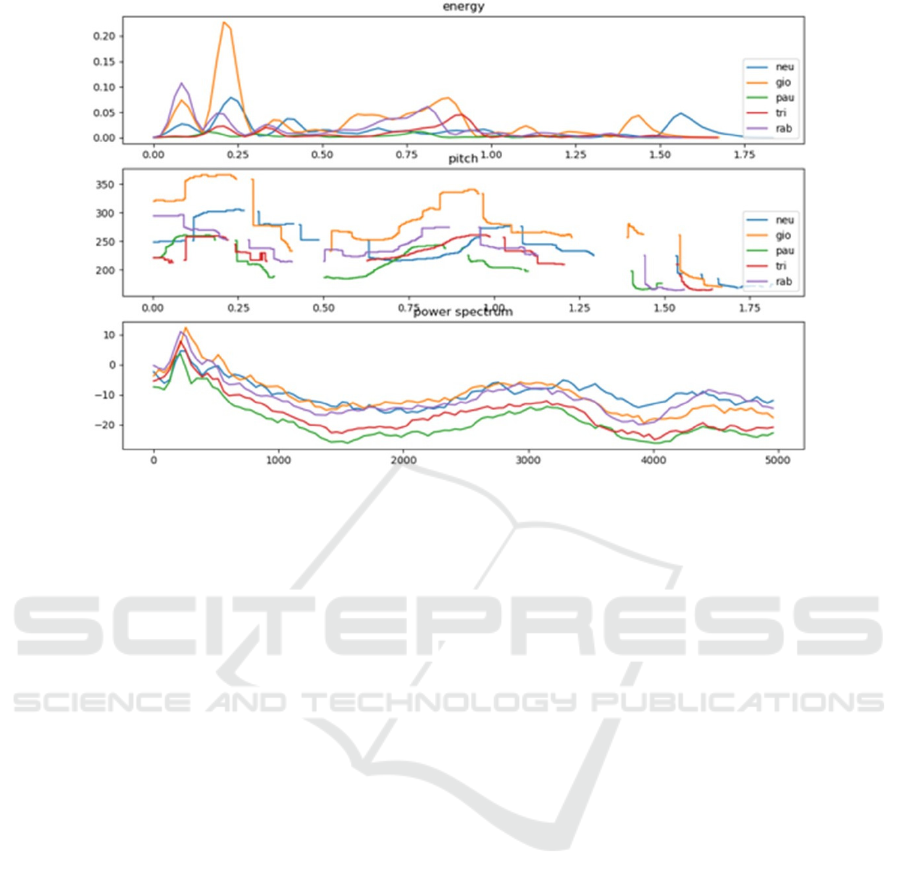

1963). In order to give a first idea of how emotions

are in fact related to acoustic features of the voice,

three diagrams are shown in Figure 2, based on an

actress enunciating the same sentence with five

different emotions. The sentence is in Italian: “I vigili

sono muniti di pistola”. The energy vs. time (seconds

are shown in the abscissa), the pitch of the sound and,

at the bottom, the power spectrum are shown. In the

first diagram (energy) the peaks correspond to the

syllables: it is possible to note that in anger they are

closer together, while in the neutral and in sadness

they are very far apart. This is confirmed by literature

(Katarina et al., 2016) and shows how prosodic

features are related to the emotion. In the second plot,

we can see joy bringing much higher pitch, while it

becomes much lower in sadness. The last plot shows

how the frequency content (spectrum) of the voice,

although still obeying to a similar power law, is due

to change when different emotions are experienced.

As an example, the high-mid frequency content when

expressing a neutral state is much higher than that

when fear is present.

Despite the categorical model being useful to

actually describe the emotions as speech-related

“classes”, the Dimensional model comes to help

when searching for concrete and quantifiable

parameters for emotion recognition. The three-

dimensional model is based on arousal, valence and

insecurity, which impose thresholds that allow an

emotion to be categorized. The three dimensions can

be associated to artifacts that can be heard in the

voice: this leads to the possibility of describing

similar indexes as arousal, valence and insecurity

with the use of acoustic features.

High arousal level (as in joy, fear, anger) is

generally characterized by higher sound pressure and

fast tempi, but also presence of vibrato (Jansens et al.,

1997). This basically means that energy and pitch are

relevant features for emotion recognition, which

anticipates most of the attributes that we chose to

consider as a selected set.

Valence is also reflected in voice quality: we can

describe voices with adjectives as tense, breathy, etc.

These kinds of parameters are mainly related to the

intensity of the harmonics and, in general, to the

shape of the power spectrum. Some of the most used

parameters to describe voice quality are the

Hammargberg index (Hammargberg et al., 1980) and

the spectral slope, which has been shown to be related

to stress (Shukla et al., 2011). Another feature that is

related to the spectral slope is the Hi to Low

frequency ratio of energy within the spectrum.

Moreover, studies on dysphonia showed that features

related to the cepstral domain (Alpan et al., 2009),

namely the Cepstral Peak Prominence, or CPP, and

the the Rahmonics-to-Noise Ratio, can be a measure

of voice quality especially regarding “breathiness”.

Cepstrum is the inverse transform of the logarithm of

the square module of the Fourier transform of the

signal. It is a reliable way of measuring pitch and

intelligibility of the fundamental frequency.

A set of features is dedicated to the measure of

speech and articulation rate, as well as duration and

number of silences, which are shown to be related to

A Subset of Acoustic Features for Machine Learning-based and Statistical Approaches in Speech Emotion Recognition

259

Figure 1: Energy and pitch vs. time and power spectrum of an actress pronouncing the same sentence “I vigili sono muniti di

pistola” with five different emotions. Legend: “neu” (blue) = neutral; “gio” (yellow) = happiness; “pau” (green) = fear; “tri”

(red) = sadness; “rab” (purple) = anger.

anxiety (Heman-Ackah et al., 2016).

Finally, consideration in the energy domain

regarding the spoken and silent time, and general

features regarding articulation and prosody are also

considered (Mencattini et al., 2014).

24 features have been selected for the extraction,

considered sufficient to summarize all information

regarding prosodic, pitch-related and spectral features

of emotional speech as shown in Figure 1.

An array of custom Python scripts (Van Rossum

and Drake, 2009) has been used to extract the

following features:

1. pm: pitch mean, i.e., the average of the pitch

calculated over the entire range of the vocal

signal.

2. pv: pitch variance, representing the variance that

characterizes the pitch within the emotional

expression.

3. pr: pitch range (max-min) calculated over the

entire range of the vocal signal.

4. dpm: delta pitch mean, mean value of the

derivative of the pitch.

5. dpv: delta pitch variance, which is the variance of

the derivative of the pitch.

6. dpr: delta pitch range, range of the derivative of

the pitch.

7. fin: ratio between the last pitch and the pitch

mean. It is a parameter that affects the valence: a

sad person, for example, tends to lower the pitch

of the voice in the final part of the sentences and,

therefore, the fin parameter will have a lower

value.

8. sprate: speech rate, which is a prosodic parameter

indicative of the speed of speech.

9. arate: articulation rate, similar to speech rate with

all silences cut out before measurement.

10. sdm: silence duration mean, which is the average

duration of silences (in seconds) occurring during

speech.

11. sdv: silence duration variance.

12. sdt: standard deviation of the silence duration.

13. ns: number of silences. 14. hilow: high

frequency to low frequency ratio. It divides the

spectrum into two bands (high frequency band

from 0 to 2000Hz, low frequency band from

2000Hz to 5000Hz) and calculates the ratio

between the average energy.

15. ham: Hammarberg index, as the difference

between the amplitude in dB of the spectral peak

in the 2000-5000Hz range and the one in the 0-

2000Hz range.

16. slope: angular coefficient of the linear regression

line of the power spectrum.

17. jittastd: standard deviation of the Jitter.

18. enm: mean of the energy in the whole signal.

19. enstd: standard deviation of the energy.

20. cppm: average value of CPP (Cepstral Peak

Prominence), which is the distance in dB between

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

260

the peak of the cepstrum and the linear regression

line of the cepstrum.

22. cppsm: average value of the CPP filtered with a

moving average filter.

23. cppsv: variance of the CPP filtered with a moving

average filter.

24. rbrm: average value of the Rahmonics to Noise

Ratio, i.e, the difference in dB between the peak

of the cepstrum and its average value.

For all features that involve Cepstrum, it has been

calculated on 23.2ms windows, at 10ms intervals.

The way in which these parameters are related to

emotions can be guessed from the graph in Figure 2,

where the difference in standard deviations of the

average value of each parameter in all the recordings

of the same actress with respect to the average value

of the neutral is shown. It can be seen, for example,

how the articulation rate increases significantly (more

than six standard deviations from the average) when

experiencing fear.

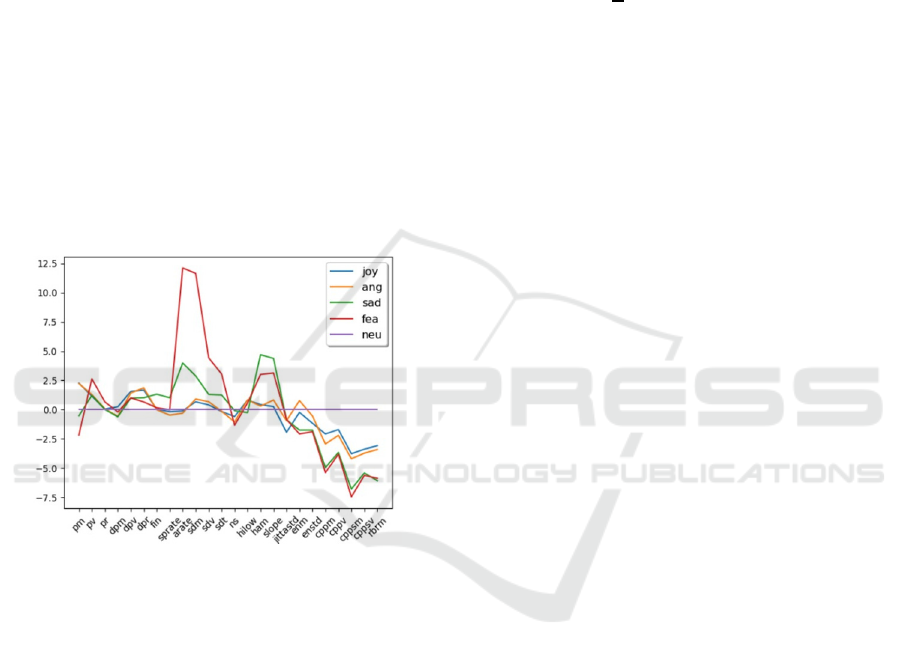

Figure 2: Difference between the average of each feature

for each emotion and the average of the neutral, measured

in standard deviations. See Figure 1 for the Legend.

4.2 Machine Learning Approach

The 24 features, extracted as numbers, have been

used associated to labelled data in the training of two

different machine learning algorithms. The

environment chosen is Weka by the University of

Waikato (Eibe et al, 2016), and the algorithms have

been chosen based on considerations of the state-of-

the-art for speech and emotion analysis.

The first algorithm employed is a multi-class

SVM with a soft-margins linear kernel (Cortes and

Vapnik, 1995). This translates to the following

optimization problem: for a binary classification, let

=1 and y

=-1 be the two possible target functions,

each representing a class. With x being the data

points, the aim of the classifier is to find the best

hyperplane for linear separation of the data. Since our

SVM has a linear kernel, no higher-dimensional

projections are required. However, a “penalty”

parameter C (Wainer, 2016) can be introduced in

order to allow for outliers to fall outside of the

“correct” classification margins. This allows the

classifier to be more generalized, and prevents

overfit. The final optimization can be expressed as:

𝐶

𝑤





𝑛

max(0,1−𝑦



𝐻)







(1)

Where 𝐻=𝑤



𝑥−𝑏 represents the usual

maximum margin hyperplane function, with n being

the number of samples, w being the normal vector to

the hyperplane and b determines the offset.

Support Vector Machines have often proved

themselves as very effective in solving complex

problems, like that of audio classification, with scarce

datasets. Specifically, many studies have successfully

employed SVM classifiers for speech and audio

classification (Cesarini et al., 2021; Sellam and

Jagadeesan, 2014; Asci et al., 2020, Suppa et al.,

2020, Suppa et al., 2021). Although it’s an originally

binary classifier, multi-class approaches are possible

for SVM’s implementing a one-vs-one comparison

for each pair of classes, which is then unified thanks

to a majority voting mechanism.

The other algorithm of choice was the Naïve

Bayes (Webb, 2011), which is purely based on

probability and outputs the predicted class focusing

on the posterior probability calculated with Bayes’

theorem with the assumption that the features are

unrelated.

4.3 Statistical Approach

Machine learning models rely heavily on large

amounts of training data. Although they have proven

their effectiveness in many speech analysis tasks, the

complexity of a multi-class problem like the

identification of emotions led us to explore another

approach not based on learning.

A subset of macroscopic logical variables has

been obtained from the 24 numerical features, based

on the three-dimensional model with the aim to

parametrize Arousal, Valence and Insecurity, along

with other utility variables. Each variable is based on

thresholds of Z-scores (number of standard deviations

from the mean) with respect to neutral and is deemed

“True” when all the considered features are above a

certain Z-score threshold.

The variables are labelled as: aro, ins, pos, neg,

dep.

A Subset of Acoustic Features for Machine Learning-based and Statistical Approaches in Speech Emotion Recognition

261

Based on the dimensional model, emotions are

calculated from the five variables hierarchically as

such:

 Anger: aro=True, neg=True.

 Sadness: dep=True, att=False.

 Happiness: aro=True, pos=True.

 Fear: ins=True.

 Neutral: none of the above conditions are met.

Note that this occurs whenever features cannot

overcome the thresholds of a sufficient amount of

standard deviations, which is in line with a neutral

state representing both the case when no specific

emotion is experienced, and when the strength of

the feeling is too mild.

5 EXPERIMENTAL RESULTS

5.1 Retirement Home Dataset

We first show the results of the two machine learning

approaches and the statistical one obtained on the

dataset collected during the project in retirement

homes. The accuracy for both machine learning

algorithms has been obtained by means of a 10-fold

cross-validation, by averaging the test performances

over each of the ten folds. The results are shown in

Tables 2, 3 and 4.

Table 2: Confusion matrix for classification with SVM on

the free-speech dataset. The emotions identified by the

operators are shown on the lines, the emotion recognized by

the system are in the columns.

Joy Anger Sad. Fear Neut.

Joy 0% 0% 0% 0% 100%

Anger 0% 0% 0% 0% 100%

Sadness 0% 0% 12% 0% 88%

Neutral 0% 0% 0% 0% 100%

Table 3: Confusion matrix for classification with Bayesian

classifier on the free-speech dataset.

Joy Anger Sadness Fear Neutral

Joy 70% 5% 5% 0% 20%

Anger 19% 48% 15% 0% 19%

Sadness 7% 9% 45% 0% 39%

Neutral 27% 16% 12% 0% 45%

Unweighted mean accuracy is 69.7% for the

SVM, 45.6% for the Naïve Bayes and 66.3% for the

statistical approach. However, it is evident upon

examination of the confusion matrices that the SVM

classifier is biased towards the neutral class, and the

accuracy value is in turn biased by the huge unbalance

Table 4: Confusion matrix for classification with manual

selection of thresholds for the free-speech dataset.

Joy Anger Sad. Fear Neut.

Joy 70% 10% 0% 0% 20%

Anger 7% 59% 15% 0% 19%

Sadness 2% 7% 62% 1% 28%

Neutral 6% 4% 23% 1% 67%

of training examples pertaining to said class.

5.2 Emovo Dataset

We tested the same machine learning system on the

Emovo database; however, due to the profoundly

different nature of the two databases, especially with

respect to vocal tasks, age and strength of the

emotions, no preliminary results of the statistical

model can be shown, as the model itself should be

revised and studied deeper.

It is worth noting that all of these aspects do

influence the general quality of the voice and of the

features that can be extracted from it (Saggio and

Costantini, 2020).

The mean accuracy achieved with the SVM

classifier is 73%, while that obtained with the Naïve

Bayes is 74.5%. Table 5 and Table 6 show confusion

matrices.

Table 5: Confusion matrix for classification with SVM for

the Emovo dataset. Accuracy is 73%.

Joy Anger Sad. Fear Neut.

Joy 63% 15% 2% 14% 6%

Anger 20% 63% 5% 7% 5%

Sadness 0% 0% 88% 2% 10%

Fear 12% 15% 11% 62% 0%

Neutral 3% 0% 7% 10% 80%

Table 6: Confusion matrix for classification with Bayesian

classifier for the Emovo dataset. Accuracy is 74.5%.

Joy Anger Sad. Fear Neut.

Joy 67% 19% 1% 7% 6%

Anger 18% 75% 4% 2% 1%

Sadness 2% 0% 81% 7% 10%

Fear 18% 8% 10% 63% 1%

Neutral 7% 2% 1% 2% 87%

6 DISCUSSION AND

CONCLUSIONS

A set of 24 acoustic features has been built, by

selecting the attributes based on literature on speech

emotion recognition and psychology.

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

262

Moreover, a pilot project involving the care for

elders in retirement homes led to the preliminary

construction of a speech emotion dataset of free

speech for five elder subjects. Said dataset, still in the

very early stages, is unbalanced towards the “neutral”

class, and presents a general trend of mild emotions

experienced by the subjects, possibly due to their

psycho-physical conditions and to the environment.

Thus, along with a dual machine learning based-

approach training on the 24 features, a statistical

approach is preliminarily experimented on the

retirement home dataset, where learning is not

optimal due to the nature of the set.

On the other hand, the well-known Emovo dataset

is considered for the test of the effectiveness of the 24

features, in the sole machine learning environment.

Experimental results show that the machine

learning models, although generally desirable for

performance, are almost inapplicable to the

retirement home dataset. In fact, the SVM approach

reached a sufficient unweighted mean accuracy, but it

appears to be heavily biased on the neutral class.

Weighted accuracy, in fact, falls to 28% which is just

slightly better than random guessing (over 5 classes).

On the other hand, the Naïve Bayes classifier, despite

not being biased, brings to a measly 45.6%. The

statistical model, in the end, yielded the best results

with an unweighted mean accuracy of 66.3%, and a

comparable weighted mean accuracy of 64.5%.

On the other hand, the 24 features appear as a

partially reliable set for the balanced Emovo dataset,

with 73% and 74.5% accuracies for the SVM and

Naïve Bayes classifiers, and no noticeable biases.

A well-defined, concise, dataset-independent set

of acoustic features is desirable for the future of

speech emotion recognition (Tahon and Devillers,

2016), and, since the introduction of models like the

circum-complex and three-dimensional one, it’s

reasonable to try and build the feature set upon it.

Preliminary results show that the feature set is

sufficiently effective for a machine learning based

approach. However, a refinement of the very features

and a possible enlargement of the emotion/class pool

is foreseeable. Besides, other datasets (Parada-

Cabaleiro et al., 2020) exist which we consider of

relevance regarding the quality of the recordings,

expressed emotions and homogeneity, and testing our

methods on those is definitely something to focus on,

especially for the improvement of preliminary and yet

unexplored methods like the statistical one.

On the other hand, the pilot study involving elders

in retirement homes is hopefully going to expand,

with the collection of more data by more subjects.

Preliminary analyses show that heavily unbalanced

datasets like that can benefit from the introduction of

a purely statistical method based on the

reconstruction of circumplex dimensions with the 24

extracted features.

ACKNOWLEDGEMENTS

This work has been supported in part by VoiceWise

within the E-Linus project. More info about the

project can be found at: https://datawizard.it/e-linus-

integrazione-sociale-anziani/.

REFERENCES

Alpan, A., Schoentgen, J., Maryn, Y., Grenez, F., Murphy,

P. (2009). Cepstral analysis of vocal dysperiodicities in

disordered connected speech. Proceedings of the

Annual Conference of the International Speech

Communication Association, INTERSPEECH. 959-

962.

Asci, F., Costantini, G., Di Leo ,P., Zampogna ,A.,

Ruoppolo ,G., Berardelli ,A., Saggio ,G., Suppa ,A.

(2020). Machine-Learning Analysis of Voice Samples

Recorded through Smartphones: The Combined Effect

of Ageing and Gender. Sensors. 20(18):5022. https://

doi.org/10.3390/s20185022

Bogert, B.P., Healy, M.J.R., Tukey J.W. (1963). The

Quefrency Alanysis [sic] of Time Series for Echoes:

Cepstrum, Pseudo Autocovariance, Cross-Cepstrum

and Saphe Cracking, Proceedings of the Symposium on

Time Series Analysis.

Cesarini, V., Casiddu, N., Porfirione, C., Massazza, G.,

Saggio, G., Costantini, G. (2021). A Machine Learning-

Based Voice Analysis for the Detection of Dysphagia

Biomarkers, In: 2021 IEEE MetroInd4.0&IoT.

Chandran R., Abaza S., Lyons M, Divi K., Lott

V., Johnson, J., & Hillenbrand, J. (2014). Quantifying

the cepstral peak prominence, a measure of dysphonia.

Journal of Voice: Official Journal of the Voice

Foundation, 28(6), 783–788.

Cortes, Corinna; Vapnik, Vladimir N. (1995). "Support-

vector networks" (PDF). Machine Learning.

Costantini, G., Iaderola, I., Paoloni, A., & Todisco, M.

(2014). Emovo Corpus: an Italian Emotional Speech

Database. In Proceedings of the Ninth International

Conference on Language Resources and Evaluation

(LREC'14)-

Cowie, R. (2000). Describing the emotional states

expressed in speech. In: Proceedings of ISCA ITRW on

Speech and Emotion: Developing a Conceptual

Framework for Research, pp. 224–231.

Devillers, L. - Vidrascu, L. - Lamel, L. (2005). Challenges

in real-life emotion annotation and machine learning

based detection. Neural Networks, 18, 407–422.

Eibe F., Hall, M. and Witten, I. (2016). The WEKA

Workbench. Online Appendix for Data Mining:

A Subset of Acoustic Features for Machine Learning-based and Statistical Approaches in Speech Emotion Recognition

263

Practical Machine Learning Tools and Techniques,

Morgan Kaufmann, Fourth Edition, 2016.

Ekman, P. (1999). Basic emotions. In: T. Dalgleish - M. J.

Power (Eds.), Handbook of cognition and emotion,

John Wiley and Sons Ltd, New York, pp. 301–320.

Hammargberg, Britta, et al. (1980). Perceptual and acoustic

correlates of abnormal voice qualities. Acta oto-

laryngologica, vol. 90, no 1–6, p. 441–451.

Heman-Ackah, Y. D., Sataloff, R. T., Laureyns, G., Lurie,

D., Michael, D. D., Heuer, R., Rubin, A., Eller,

Harrigan, J.A., Wilson, K., Rosenthal, R. (2016).

Detecting State and Trait Anxiety from Auditory and

Visual Cues: A Meta-Analysis, Personality and Social

Psychology Bulletin, 30, 1, (56-66).

Jansens, S., Bloothooft, G., de Krom, G., (1997). Perception

and acoustics of emotions in singing. In: Proceedings

of the 5th Eurospeech.

Katarina, B., Jouvet, D., Delais-Roussarie, E. (2016).

Prosodic parameters and prosodic structures of French

emotional data. 644-648. Speech Prosody.

Mencattini, A., Martinelli, E., Costantini, G., Todisco, M.,

Basile, B., Bozzali, M., Di Natale, C. (2014). Speech

emotion recognition using amplitude modulation

parameters and a combined feature selection procedure.

Knowledge-based Systems, vol. 63, p. 68-81, ISSN:

0950-7051, doi: 10.1016/j.knosys.2014.03.019

Osgood, C. E. - Suci, G. J. - Tannenbaum, P. H. (1957). The

measurement of meaning, University of Illinois Press,

Urbana, USA.

Palmero Cantero, F. - Guerrero Rodríguez, C. - Gómez

Iñiguez, C. - Carpi Ballester, A. - GORAYEB, R. (Eds.)

(2011). Manual de teorías emocionales y

motivacionales, Publicacions de la Universitat Jaume I.

Parada-Cabaleiro ,E., Costantini ,G., Batliner ,A., Baird ,A.,

Schuller ,B.W. (2018). Categorical vs dimensional

perception of Italian emotional speech. In: Proceedings

of the Annual Conference of the International Speech

Communication Association, INTERSPEECH.

Parada-Cabaleiro, E., Costantini, G., Batliner, A., Schmitt,

M., & Schuller, B.W. (2020). DEMoS: an Italian

emotional speech corpus: Elicitation methods, machine

learning, and perception. Language Resources and

Evaluation, ISSN: 1574-020X.

Plutchik, R. (1970). Emotion, evolution and adaptative

processes. In: Feelings and Emotions: The Loyola

Symposium, Academic Press, New York.

Plutchik, R. (1991). The Emotions, University Press of

America, New York.

Plutchik, R. (2001). The Nature of Emotions. American

Scientist, 89 (4), 344–350.

Russell, J. A. (1980). A Circumplex Model of Affect.

Journal of Personality and Social Psychology.

Saggio G, Costantini G (2020). Worldwide Healthy Adult

Voice Baseline Parameters: A Comprehensive Review.

Journal of Voice, ISSN: 0892- 1997

Sander, D. - Grandjean, D. - Scherer, K. (2005). A Systems

Approach to Appraisal Mechanisms in emotion. Neural

Networks 18, 317–352.

Scherer, K. R. - Wranik, T. - Sangsue, J. - Tran, V. -

Scherer, U. (2004). Emotions in Everyday Life:

Probability of Occurrence, Risk Factors, Appraisal and

Reaction Patterns.

Social Science Information.

Scherer, K. R. (1984). Emotion as a multicomponent

process: a model and some cross-cultural data. Review

Personality and Social Psychology, 5, 37–63.

Scherer, K. R. (2001). Appraisal considered as a process of

multi-level sequential checking. In: K. Scherer - A.

Schorr - T. Johnstone (Eds.), Appraisal Processes in

emotion: theory, methods, research.

Schlosberg, H. (1941). A Scale for the Judgement of facial

expressions. Journal of experimental psychology.

Schlosberg, H. (1954). Three Dimensions of Emotion.

Psychological Review, 61 (2), 81–88.

Sellam, V., Jagadeesan, J. (2014). Classification of Normal

and Pathological Voice Using SVM and RBFNN.

Journal of Signal and Information Processing.

Shukla, S., Dandapat, S., Prasanna, S.R.M. (2011): Spectral

slope based analysis and classification of stressed

speech. International Journal of Speech Technology,

14(3), 245–258

Suppa, A., Asci, F., Saggio, G., Marsili, L., Casali, D.,

Zarezadeh, Z., Ruoppolo, G., Berardelli, A., Costantini,

G. (2020). Voice analysis in adductor spasmodic

dysphonia: Objective diagnosis and response to

botulinum toxin. Parkinsonisms and Related Disorders,

ISSN: 1353-8020

Suppa A, Asci F, Saggio G, Di Leo P, Zarezadeh Z,

Ferrazzano G, Ruoppolo G, Berardelli A, Costantini G

(2021). Voice Analysis with Machine Learning: One

Step Closer to an Objective Diagnosis of Essential

Tremor. Movement Disorders, vol. 36, p. 1401-1410,

doi: http://dx.doi.org/10.1002/mds.28508

Tahon, M., Devillers, L. (2016). Towards a Small Set of

Robust Acoustic Features for Emotion Recognition:

Challenges. IEEE/ACM Transactions on Audio, Speech

and Language Processing.

Van Rossum, G., Drake, F. L. (2009). Python 3 Reference

Manual. Scotts Valley, CA: CreateSpace.

Wainer, Jacques (2016). Coefficients in Support Vector

Machine, URL (version: 2016-11-25):

stats.stackexchange.com/q/247895.

Watson, D. - Clark, L. A. - Tellegen, A. (1988).

Development and validation of brief measures of

positive and negative affect: the panas scales. Journal

of personality and social psychology, 54 (6), 1063–

1070.

Webb G.I. (2011). Naïve Bayes. In: Sammut C., Webb G.I.

(eds) Encyclopedia of Machine Learning.

Wundt, W. (1896). Grundriss Der Psychologie, Verlag Von

Wilhelm Engelmann, Leipzig.

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

264
