Privacy Notiﬁcations for Transparency in Fitness Apps

Mirco Baseniak

, Tom Lorenz

and Ina Schiering

Faculty of Computer Science, Ostfalia University of Applied Sciences, Wolfenb

uttel, Germany

Keywords:

Fitness App, mHealth, Privacy, Privacy Notiﬁcation, User Study.

Abstract:

mHealth applications including ﬁtness apps are an important trend. To monitor ﬁtness activities a broad range

of personal data is processed typically including location data and vital signs. For some of these applications

it is not transparent which data is processed. To foster transparency and intervenability in mobile applications

the concept of privacy notiﬁcations is an opportunity to provide users with information about processed data

during the use of the application. In the context of a ﬁtness app a concept for privacy notiﬁcations is proposed

and evaluated in a user study.

1 INTRODUCTION

The use of ﬁtness apps and digital platforms for mo-

tivating and monitoring physical activities is a sig-

niﬁcant trend during the last years (Salzwedel et al.,

2017; Armstrong and Richter, 2021; Shaw et al.,

2021). Especially during the pandemic the use of

such mHealth applications gained importance (Parker

et al., 2021). Beside the use of ﬁtness apps in the con-

text of leisure activities, the use in healthcare is pro-

moted by recent legal regulations as the digital care

act in Germany, that allows physicians to prescribe

certiﬁed health apps to patients (Heidel and Hagist,

2020).

Mulder (Mulder, 2019) analyzed privacy policies

of health apps and emphasized that it is difﬁcult to get

concrete information about the processing of personal

data from these policies. Based on the investigation of

network communication of health apps Grundy et al.

(Grundy et al., 2017) analyzed data ﬂows based on or-

ganizational structures including app families and so-

cial media networks and reported signiﬁcant security

and privacy issues.

To foster transparency concerning processing of

personal data and privacy beside static data protection

policies also dynamic concepts as for example privacy

dashboards were proposed (Murmann and Fischer-

ubner, 2017; Raschke et al., 2017) which focus on

visualizing processing of personal data and data trans-

fers for applications on computers. For mobile appli-

https://orcid.org/0000-0003-2599-864X

https://orcid.org/0000-0001-9594-7683

https://orcid.org/0000-0002-7864-5437

cations and especially apps which act as companions

in daily activities such as sports, a privacy dashboard

could be nevertheless helpful. But since personal data

as location data and potentially also vital signs are

collected and processed on a permanent basis addi-

tional notiﬁcations could remind users of their con-

ﬁguration concerning data processing. In the context

of mobile health applications the concept of privacy

notiﬁcations was proposed by Murmann (Murmann,

2019) to foster transparency. A privacy notiﬁcation

notiﬁes users about personal data processing which is

considered relevant for them and is typically triggered

in the context of an event.

Based on this general approach of privacy notiﬁ-

cations a concept for ﬁtness apps based on the user

interface of the open source ﬁtness app OpenTracks

is developed. The perception of users concerning

usability of the proposed privacy notiﬁcations was

investigated in the context of an anonymous online

user study where a usage scenario and accompanying

questionnaires are employed.

2 RELATED WORK

Despite the fact that health-related information is con-

sidered as sensitive data, mHealth applications incor-

porate signiﬁcant security and privacy issues (Papa-

georgiou et al., 2018). For ﬁtness apps, location data

is a central basis for activity tracking. Especially loca-

tion data poses the risk of re-identiﬁcation of individ-

uals based on speciﬁc locations as place of residence,

workplace resp. locations of schools, etc. Privacy

Baseniak, M., Lorenz, T. and Schiering, I.

Privacy Notiﬁcations for Transparency in Fitness Apps.

DOI: 10.5220/0010912600003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 705-710

ISBN: 978-989-758-552-4; ISSN: 2184-4305

705

Figure 1: Examples of privacy notiﬁcations concerning

location accuracy representing different criticalities, i.e.

warning and information.

risks of location data and approaches for addressing

these risks are broadly investigated (Krumm, 2009;

Primault et al., 2019). The use of mobile devices

and ﬁtness and health apps are already investigated

in several studies incorporating also privacy concerns

of users (Wiesner et al., 2018; Shaw et al., 2021).

Although users state that they have privacy con-

cerns, they are not willing to take adequate counter-

measures and accept often privacy risks in the context

of concrete applications (Vervier et al., 2017). This

so called privacy paradox (Coopamootoo and Groß,

2017) expresses the divergence between privacy atti-

tudes and privacy behavior.

Beyond static privacy policies several approaches

were investigated to foster transparency of process-

ing of personal data during the use of the application

and allow for intervenability by users (Murmann and

Fischer-H

ubner, 2017). Since in the context of mo-

bile applications the usability of such dashboards is

limited, in this context privacy notiﬁcations were pro-

posed (Murmann, 2019; Jackson and Wang, 2018).

Although this is in general a promising approach such

notiﬁcations are often perceived as annoying by users

(Micallef et al., 2017).

Hence to address privacy concerns of users, the

concept of privacy notiﬁcations is be considered as

an interesting privacy enhancing technology fostering

transparency. In the context of a case study it could

be investigated which amount of notiﬁcations is con-

sidered as helpful or annoying.

3 CONCEPT FOR PRIVACY

NOTIFICATIONS

The concept for privacy notiﬁcations proposed here is

based on the user interface of the open source ﬁtness

app OpenTracks

. We suppose that a typical ﬁtness

app processes the following types of data and allows

to share this data e.g. with a physician or a trainer:

• type of activity

https://opentracksapp.com/

• duration of activity

• distance

• speed

• location data (GPS)

• vital signs

Data sharing implies typically that the corresponding

data is synchronized with a cloud service. Speciﬁc as-

pects concerning this cloud service are not considered

here. The focus is on privacy notiﬁcations.

Since users prefer to be informed concerning all

stated categories but on the other hand a huge amount

of notiﬁcations is not considered helpful (Murmann,

2019) and notiﬁcations have only a low priority for

users (Micallef et al., 2017), the number of notiﬁca-

tions should be restricted. To end this, the notiﬁca-

tions need to be in a casual relation to an activity and

should be triggered at the beginning of an activity or

after an activity. It is assumed that the attention to

additional information of users at the beginning of an

activity is low when the information is not directly as-

sociated with intended activity, notiﬁcations are trig-

gered after the activity. Some types of privacy notiﬁ-

cations could be deactivated by users.

Privacy notiﬁcations (see Figure 1) present the

subject, then the criticality (e.g. warning, informa-

tion) is visualized by an icon and a short text in a color

associated with the criticality. Afterwards a summary

of the notiﬁcation is presented and users are able to

choose whether they want more detailed information

or change the conﬁguration concerning this aspect. To

allow users to review privacy notiﬁcations also later,

to get an overview about data processing and trans-

fer in the context of past activities and intervene by

changing conﬁgurations, an overview of past privacy

notiﬁcations can be reviewed by users (see Figure 2).

4 METHODOLOGY OF THE

USER STUDY

To evaluate the concept of privacy notiﬁcations in a

user study, study participants followed a given us-

age scenario in an online web application which

presents screen shots and asks for predeﬁned interac-

tion accompanied by anonymous questionnaires. Par-

ticipants were provided a link to the web applica-

tion and questionnaires which could be used on their

smartphones, tablets ot computers online via a web

browser. Before the start they were provided with an

information sheet about the study. There was no re-

muneration for participants.

HEALTHINF 2022 - 15th International Conference on Health Informatics

706

Figure 2: Overview of past privacy notiﬁcations about data synchronization, location tracking and location accuracy, buttons

for detailed information and deactivating speciﬁc privacy notiﬁcations are highlighted.

Figure 3: Excerpt from the scenario showing a screen shot of tracking during running activity, conﬁguration of data syn-

chronization, privacy notiﬁcations, conﬁguration of location accuracy, deactivation of speciﬁc privacy notiﬁcations and an

overview about tracked activities.

The structure of the anonymous online study con-

sisting of a scenario and corresponding questionnaires

is summarized in the following:

1. Online questionnaire concerning demographic

data, technical competencies and the frequency of

sporting activities, the use of ﬁtness trackers and

the general privacy perception.

2. Introduction of users to the scenario: The general

scenario and the context is described. Also the

interaction with the web application is explained.

Intended interaction with buttons or check boxes

is highlighted by orange rectangles.

3. Users follow the web-based scenario: A runner

tracks sporting activities on a regular basis. To

this end the tracking during activities and changes

Privacy Notiﬁcations for Transparency in Fitness Apps

707

of conﬁguration are presented. In a tracking

phase users start tracking and several screen shots

show that the user is running a certain amount of

time. Afterwards the user stops the tracking and

a screen with an overview is presented. In addi-

tion privacy notiﬁcations are shown where appli-

cable. In conﬁguration phases based on screen

shots users conﬁgure the processing of personal

data and data synchronization with an external

service. Users experience the following phases

(see Figure 3):

(a) Tracking without data synchronization (no pri-

vacy notiﬁcations)

(b) Conﬁguration of data synchronization with an

external service

notiﬁcations about data synchronization includ-

ing location and location accuracy)

(d) Conﬁguration of privacy notiﬁcations (deacti-

vation of one notiﬁcation)

(e) Tracking with additional smart watch (privacy

notiﬁcations about data synchronization of vital

signs and location accuracy)

4. Online questionnaire: Usability of privacy noti-

ﬁcation based on System usability scale (SUS)

(Brooke et al., 1996).

5. Online questionnaire: Users should report

whether they feel distracted, supported by the no-

tiﬁcations, if they are understandable and if the

point in time and the frequency are considered ad-

equate.

6. Online questionnaire: Users should state which

conﬁguration of data synchronization and accu-

racy of location tracking they would have chosen.

The time needed to follow the scenario and answer the

questionnaires is approximately 30 minutes for partic-

ipants.

5 RESULTS

5.1 Demographics of Participants

Participants for the user study were recruited among

sports groups, students and in the personal environ-

ment. 51 persons started the study, but only 27 (53%)

completed the whole study. It can be assumed that

this reﬂects the relatively high amount of time needed.

Since participation was online and anonymous, it was

not possible to ask for speciﬁc reasons why they did

not ﬁnish the study. There were 20 (74%) male and 7

(26%) female participants.

Figure 4: Frequency of activities and age.

The majority of participants 70% (19/27) reported

to perform sporting activities on a regular basis. Fig-

ure 4 gives an overview of gender, age and frequency

of sporting activities of these 19 participants. The fre-

quency of sporting activities ranges between once per

month and almost every day. On average participants

do sports several times per week. Among the partici-

pants performing sports 79% (15/19) use a ﬁtness app

and 74% (14/19) also a smart watch. Concerning the

importance of privacy ranging from 1 not important to

5 very important, participants reported the following

(see Table 1):

Table 1: Importance of privacy as stated by participants.

importance number of

of privacy participants

1 (not important) 0

2 (slightly important) 5

3 (moderately important) 10

4 (important) 10

5 (very important) 2

5.2 Perception of Privacy Notiﬁcations

The participants reported on average that privacy no-

tiﬁcation were understandable and the perceived dis-

traction was relatively low. Most of the partici-

pants (17/27) considered the notiﬁcations as in gen-

eral helpful. They stated short texts are preferred that

are easily understandable. Figure 5 gives an overview

of the perceived support from the privacy notiﬁca-

tions, gender and sporting activities.

In addition, the general usability of the privacy

notiﬁcations presented in the scenario was measured

with the SUS questionnaire (Brooke et al., 1996).

The SUS score evaluated according to (Bangor et al.,

2009) is 68,8% which is there considered as good.

That privacy notiﬁcations were triggered after the

activity was in general perceived as reasonable. Fig-

ure 6 gives an overview of the distribution of the an-

HEALTHINF 2022 - 15th International Conference on Health Informatics

708

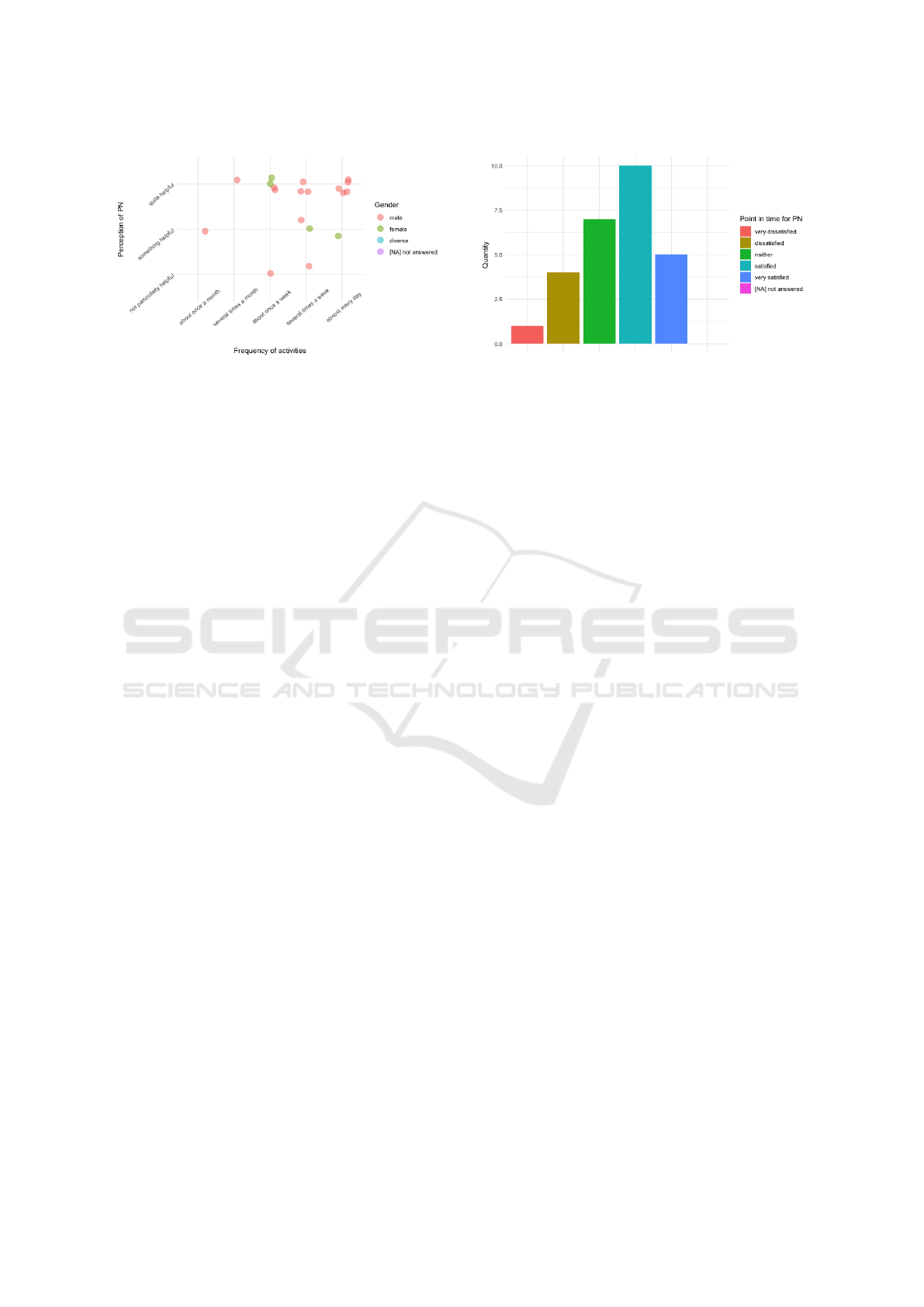

Figure 5: Perception of privacy notiﬁcations.

swers and shows that a wide range of opinions was

determined here. As alternative points in time it was

proposed to trigger them a certain period after the

activity e.g. after a shower. Since ﬁtness apps are

used beside tracking of activities also for the review-

ing of activities also this was proposed as an alterna-

tive point in time for triggering privacy notiﬁcations

since there is more time to read them.

Participants reported also on average that the

amount of notiﬁcations was considered slightly too

much. The range of answers was between far too

much and adequate, whereas no participants stated

that there were insufﬁciently many notiﬁcations. Par-

ticipants that consider privacy important in general

perceive the amount of privacy notiﬁcations as ade-

quate.

Concerning the subjects of privacy notiﬁcations

41% (11/27) wanted to be informed about unknown

personal data, 59% (16/27) about sensitive personal

data, 37% about all personal data and 26% (7/27)

about all data which is processed.

According to the questions after the scenarios

about how the participants would conﬁgure data syn-

chronization themselves, 74% (20/27) would share

the type of activity, 81% (22/27) the duration of the

activity, 81% (22/27) the distance, 78% (21/27) infor-

mation about speed, 67% (18/27) location data and

59% (16/27) information about vital signs. Concern-

ing the accuracy of location tracking (13/27) would

stick to 50m (recommended) whereas (12/27) would

prefer maximal accuracy (10m).

6 DISCUSSION AND

CONCLUSION

The user study shows that the proposed concept of

privacy notiﬁcations was in general perceived as help-

ful in the context of ﬁtness apps.

Figure 6: Point in time for privacy notiﬁcations.

Although participants were interested in a broad

range of privacy related information, the amount of

notiﬁcations was in general considered as a critical

factor. Hence privacy notiﬁcations should be easily

conﬁgurable and mainly information concerning crit-

ical aspects should be presented per default. To be

perceived as helpful the text of privacy notiﬁcations

needs to be concise and understandable for a broad

range of users. Additional details can be presented

on demand. The principle task of the application (e.g.

ﬁtness monitoring) must still be in the focus of the

user.

Privacy notiﬁcations have great potential to foster

transparency and intervenability in the context of mo-

bile applications and wearables. The results of this

study are in line with general usability investigations

in this area (Micallef et al., 2017). The contribution

of the presented study is the investigation in the spe-

ciﬁc usage scenario ﬁtness monitoring which corre-

sponds with users personal interests. To address the

gap between privacy attitude and privacy perception

the study was based on a typical usage scenario. In

addition further investigations based on implementa-

tions would be interesting.

REFERENCES

Armstrong, M. and Richter, F. (2021). Info-

graphic: Smartphone as personal trainer.

https://www.statista.com/chart/24702/gcs-share-

smartphone-users-regularly-use-ﬁtness-apps/ [Last

accessed on 2021-11-08].

Bangor, A., Kortum, P., and Miller, J. (2009). Determining

what individual sus scores mean: Adding an adjective

rating scale. Journal of Usability Studies, 4(3):114–

123.

Brooke, J. et al. (1996). Sus-a quick and dirty usability

scale. Usability evaluation in industry, 189(194):4–7.

Coopamootoo, K. P. and Groß, T. (2017). Why privacy

is all but forgotten. Proc. Priv. Enhancing Tech-

Privacy Notiﬁcations for Transparency in Fitness Apps

709

nol., 2017(4):97–118. https://doi.org/10.1515/popets-

2017-0040.

Grundy, Q., Held, F. P., and Bero, L. A. (2017). Trac-

ing the potential ﬂow of consumer data: A net-

work analysis of prominent health and ﬁtness apps.

Journal of Medical Internet Research, 19(6):e7347.

https://doi.org/10.2196/jmir.7347.

Heidel, A. and Hagist, C. (2020). Potential beneﬁts and

risks resulting from the introduction of health apps

and wearables into the german statutory health care

system: Scoping review. JMIR mHealth and uHealth,

8(9):e16444. https://doi.org/10.2196/16444.

Jackson, C. B. and Wang, Y. (2018). Addressing the pri-

vacy paradox through personalized privacy notiﬁca-

tions. Proceedings of the ACM on interactive, mo-

bile, wearable and ubiquitous technologies, 2(2):1–

25. https://doi.org/10.1145/3214271.

Krumm, J. (2009). A survey of computational loca-

tion privacy. Personal and Ubiquitous Computing,

13(6):391–399. https://doi.org/10.1007/s00779-008-

0212-5.

Micallef, N., Just, M., Baillie, L., and Alharby, M.

(2017). Stop annoying me! an empirical investi-

gation of the usability of app privacy notiﬁcations.

In Proceedings of the 29th Australian Conference

on Computer-Human Interaction, pages 371–375.

https://doi.org/10.1145/3152771.3156139.

Mulder, T. (2019). Health apps, their privacy policies and

the gdpr. European Journal of Law and Technology,

10(1).

Murmann, P. (2019). Eliciting design guidelines

for privacy notiﬁcations in mhealth environ-

ments. International Journal of Mobile Human

Computer Interaction (IJMHCI), 11(4):66–83.

https://doi.org/10.4018/IJMHCI.2019100106.

Murmann, P. and Fischer-H

ubner, S. (2017).

Tools for achieving usable ex post trans-

parency: A survey. IEEE Access.

https://doi.org/10.1109/ACCESS.2017.2765539.

Papageorgiou, A., Strigkos, M., Politou, E.,

Alepis, E., Solanas, A., and Patsakis, C.

(2018). Security and privacy analysis of mo-

bile health applications: The alarming state

of practice. IEEE Access, 6:9390–9403.

https://doi.org/10.1109/ACCESS.2018.2799522.

Parker, K., Uddin, R., Ridgers, N. D., Brown, H., Veitch,

J., Salmon, J., Timperio, A., Sahlqvist, S., Cas-

sar, S., Toffoletti, K., Maddison, R., and Arun-

dell, L. (2021). The use of digital platforms for

adults’ and adolescents’ physical activity during the

covid-19 pandemic (our life at home): Survey study.

Journal of Medical Internet Research, 23(2):e23389.

https://doi.org/10.2196/23389.

Primault, V., Boutet, A., Mokhtar, S. B., and Brunie,

L. (2019). The long road to computational

location privacy: A survey. IEEE Commu-

nications Surveys Tutorials, 21(3):2772–2793.

https://doi.org/10.1109/COMST.2018.2873950.

Raschke, P., K

upper, A., Drozd, O., and Kirrane, S. (2017).

Designing a GDPR-compliant and usable privacy

dashboard, pages 221–236.

Salzwedel, A., Rabe, S., Zahn, T., Neuwirth, J., Eich-

ler, S., Haubold, K., Wachholz, A., Reibis, R., and

oller, H. (2017). User interest in digital health

technologies to encourage physical activity: Results

of a survey in students and staff of a german uni-

versity. JMIR mHealth and uHealth, 5(4):e7192.

https://doi.org/10.2196/mhealth.7192.

Shaw, M. P., Satchell, L. P., Thompson, S., Harper, E. T.,

Balsalobre-Fern

andez, C., and Peart, D. J. (2021).

Smartphone and tablet software apps to collect data

in sport and exercise settings: Cross-sectional in-

ternational survey. JMIR mHealth and uHealth,

9(5):e21763. https://doi.org/10.2196/21763.

Vervier, L., Zeissig, E.-M., Lidynia, C., and Zieﬂe,

M. (2017). Perceptions of digital footprints

and the value of privacy. In Proceedings

of the 2nd International Conference on Inter-

net of Things, Big Data and Security - Volume

1: IoTBDS,, pages 80–91. INSTICC, SciTePress.

https://doi.org/10.5220/0006301000800091.

Wiesner, M., Zowalla, R., Suleder, J., Westers, M.,

and Pobiruchin, M. (2018). Technology adop-

tion, motivational aspects, and privacy concerns of

wearables in the german running community: ﬁeld

study. JMIR mHealth and uHealth, 6(12):e201.

https://doi.org/10.2196/mhealth.9623.

HEALTHINF 2022 - 15th International Conference on Health Informatics

710
