1 INTRODUCTION

Information visualization (InfoVis) is widely used as

part of various data analysis and presentation work-

ﬂows, with a strong interest demonstrated within

and beyond the academic environment (Fekete et al.,

2008). In order to reach the goals intended by

the users or the audience of such visualization ap-

proaches, design choices have to be made with respect

to the task, data, and limitations of human perception

and cognition (Carpendale, 2003; Amar and Stasko,

2005; Munzner, 2015). All of these concerns are

valid and relevant within the area of sentiment visu-

alization, which is concerned with (interactive) visual

representation of sentiments, emotions, opinions, and

stances. While these concepts are not exactly identi-

cal (Munezero et al., 2014), they are related and are

often used interchangeably as part of practical appli-

cations dealing with detection and analysis of subjec-

tivity. The main modality of interest for such analyses

https://orcid.org/0000-0002-1907-7820

https://orcid.org/0000-0002-6160-3687

https://orcid.org/0000-0001-7938-6732

https://orcid.org/0000-0002-0519-2537

is text data, and the possible data sources and appli-

cations include customer reviews, social media posts,

etc. Various computational approaches have been pro-

posed to detect and categorize sentiment in such data.

The typical task is to classify the polarity/valence of

a given text item (sentence, document, etc.) as neg-

ative, neutral, or positive, although further alterna-

tives exist with regard to the categories (e.g., emotions

such as anger), scope of analysis, etc. (Mohammad,

2016). The visualization techniques complementing

such computational analyses have also been discussed

in the literature (Shamim et al., 2015; Kucher et al.,

2018). However, the previous works on sentiment vi-

sualization have been limited with respect to the evi-

dence on usability (Frøkjær et al., 2000) of such tech-

niques for speciﬁc tasks. Discovering the respective

evidence from empirical data would be an InfoVis

evaluation task (Isenberg et al., 2013).

In this work

, we aim to address the research

gap on sentiment visualization evaluation by col-

lecting and analyzing the evidence of the us-

ability of common design alternatives for partic-

ular user tasks. More speciﬁcally, we focus on

Based on a thesis project (Bouchama, 2021).

Kucher, K., Bouchama, S., Ebert, A. and Kerren, A.

Task-based Evaluation of Sentiment Visualization Techniques.

DOI: 10.5220/0010916400003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 3: IVAPP, pages

187-194

ISBN: 978-989-758-555-5; ISSN: 2184-4321

187

the questions of effectiveness and efﬁciency of

visual metaphors/representations and visual vari-

ables/channels for visual encoding of sentiment and

emotions. These research questions are relevant to

the basic choices affecting the design of visualization

techniques. To answer them, we design and conduct

a task-based within-subject user study involving vi-

sual representations of sentiment, while taking the er-

ror rate and task completion time into account. The

study was carried out online, and the responses and

free-form feedback were collected from 50 partici-

pants in May–June 2021. The ﬁndings of our work

can be applied for choosing sentiment visualization

strategies for communicating the results of computa-

tional and/or manual sentiment analysis methods.

2 RELATED WORK

In this section, we discuss the important concepts and

previous works relevant to the problem of evaluating

sentiment visualization.

2.1 Visual Representations

The choice of particular visual representa-

tions/metaphors is dependent on the context of

their usage. As G

org et al. discuss, there are multiple

different visual representations available—from

simple and complex over to univariate and mul-

tivariate representations, with theoretical design

considerations and empirical evidence suggesting the

feasibility (and usability) of particular representations

for particular tasks (G

org et al., 2007). Common

visual representations are, for example, bar charts,

scatter plots, pie charts, line charts, etc.

Visual representations make use of low-level

graphic elements (marks) and visual variables to con-

vey the information to the user. Visual variables rep-

resent attributes of graphical marks that are easily

processed by the human (G

org et al., 2007). Bertin

deﬁnes the following seven visual variables: posi-

tion, form, orientation, color, texture, value, and

size (Bertin, 2011). These variables are distin-

guished perceptually without the use of cognitive

steps in contrast to comparing written numbers, for

instance (G

org et al., 2007). However, choosing the

right visual variables depends on the underlying data

that is to be visualized. Munzner discusses two im-

portant principles for using visual channels and rep-

resentations: expressiveness, meaning that the encod-

ing should aim to represent all the information present

in the data, without misleading the user; and effective-

ness, meaning that the importance of the data attribute

should match the saliency/noticeability of the visual

channel (Munzner, 2015). These considerations will

play an important role in this work.

2.2 Sentiment Visualization Techniques

The existing sentiment visualization techniques have

been discussed in the literature in the respective re-

views and surveys (Boumaiza, 2015; Shamim et al.,

2015; Kucher et al., 2018) as well as in the larger

context of text visualization, visual text analytics,

and social media visual analytics (Kucher and Ker-

ren, 2015; Chen et al., 2017; Alharbi and Laramee,

2019). The prior research establishes several catego-

rizations of such sentiment visualization techniques,

which typically include the dimension of the source

data domain (such as customer reviews or social me-

dia posts), the dimension of sentiment categories or

quantitative values (e.g., positive vs negative, a list

of basic emotions, etc.), and the choice of visual rep-

resentations used by the respective technique. Com-

mon visual representations such as bar charts and line

charts can be used for these purposes, but also novel

metaphors (Shamim et al., 2015). Furthermore, some

of the existing surveys discuss the choice of visual

variables for representing the actual sentiment cate-

gories or values. Kucher et al. report that the ma-

jority of techniques in their survey use the visual

variable of color for this purpose, followed by posi-

tion/orientation and size/area (Kucher et al., 2018).

Whether a particular combination of the visual repre-

sentation and visual variable ﬁts the user tasks asso-

ciated with sentiment visualization is then the ques-

tion to answer—and in order to provide the respec-

tive guidelines not only from the position of general-

purpose information visualization principles, but sen-

timent visualization in particular, there is a need to

collect further empirical evidence, as discussed next.

2.3 Evaluation of InfoVis Approaches

Evaluation is typically mentioned in visualization re-

search as an umbrella term for various forms of

validation, ranging from use cases and domain ex-

pert reviews to longitudinal case studies and con-

trolled lab experiments (Carpendale, 2008; Lam et al.,

2012; Isenberg et al., 2013; Elmqvist and Yi, 2015).

In human-computer interaction (Ebert et al., 2012),

“evaluation” (focusing on estimating the usability and

collecting user feedback for mainly formative pur-

poses as part of an iterative design-implementation-

validation process) is sometimes contrasted to “ex-

periment” (typically summative purposes and a con-

trolled environment) (Purchase, 2012).

IVAPP 2022 - 13th International Conference on Information Visualization Theory and Applications

188

Regarding examples of existing evaluations of

sentiment visualization, for instance, Diakopoulos et

al. discuss the feedback of the target audience (jour-

nalists) of their tool Vox Civitas focusing on the

perceived effectiveness and usefulness (Diakopoulos

et al., 2010). Zhao et al. complement a more open-

ended participatory study with a crowdsourced task-

based study for their emotion visualization approach

PEARL, providing empirical data on the usability of

the tool for particular tasks (Zhao et al., 2014).

Prior results covering multiple techniques and rep-

resentations for sentiment visualization are limited,

though. The review by Boumaiza includes multiple

techniques, but does not provide a systematic catego-

rization or comparison (Boumaiza, 2015). The work

by Shamim et al. reveals ﬁndings on the usability

of opinion mining systems’ visualizations (Shamim

et al., 2015). They classify 11 techniques accord-

ing to the visual metaphor, including bar charts,

rose plot variations, etc. Their work compares tech-

niques concerning different metrics such as being eye-

pleasing, easy-to-understand, user-friendly, etc. They

conducted a questionnaire survey, and data was col-

lected via this questionnaire and through seminars.

They conclude that simple, easy-to-understand, low-

dimensional visualizations are rated higher than the

others. Shamim et al. rank the top ﬁve representations

included in their study as follows, according to the

users’ preferences: bar chart, glowing bar, treemap,

line graph, and pie chart. These results are interest-

ing, but while they are based on the reported pref-

erences, they do not provide evidence about the us-

ability (Frøkjær et al., 2000) of such representations

for user tasks in the context of sentiment visualiza-

tion. In our study, we aim to focus on two aspects

of usability: effectiveness and efﬁciency. As dis-

cussed by Frøkjær et al., effectiveness is assessed by

determining accuracy and completeness with which

users achieve certain goals; for instance, this could be

achieved by measuring the error rate of user responses

compared to the ground truth data available to the ex-

perimenter (Purchase, 2012). Efﬁciency is calculated

by the relation between the accuracy and complete-

ness with regard to the resources used to complete the

task, for instance, the task completion time. These

aspects are taken into account as we continue the dis-

cussion of particular user tasks for our study.

3 STUDY DESIGN

In this section, we describe the experimental design

of our study, including the particular user tasks, visual

representations, datasets, and implementation details.

3.1 User Tasks and Alternatives

Our within-subject study was targeted at the general

public to facilitate the generalizability of the ﬁndings

and to increase the potential number of participants.

This required all the tasks and visualizations to be in-

tuitive to the average user, whose level of visualiza-

tion literacy might be limited. The design of our study

was inspired by the previous work on task-based eval-

uation of common visual representations (Saket et al.,

2019), and it involved several user tasks related to

sentiment visualization in our case. To visualize senti-

ment and emotion, we used several sentiment analysis

datasets depending on the task. Based on these visual-

izations, we came up with different survey questions

for each plot. The particular choice of the tasks was

based on the work by Amar et al., who proposed a set

of ten low-level analysis tasks that describe users’ ac-

tivities while using visualization tools to understand

their data (Amar and Stasko, 2005). In our study, we

focused on a subset of seven tasks relevant to senti-

ment visualization and common visual encodings:

• Find Anomalies: e.g., Does the data look abnor-

mal?

• Find Clusters: e.g., How many clusters can you

identify in this plot?

• Find Correlation: e.g., Is there a (weak/strong)

correlation between sentiment intensity and time?

• Compute a Derived Value: e.g., What is the sum

of all negative and neutral sentiments in the pie

chart?

• Find Extremum: e.g., What sentiment has the

highest/lowest value?

• Filter: e.g., How many emotional states can you

identify between time step X and Y?

• Retrieve Value: e.g., Which emotion has green

color in this plot?

To address the research questions of our work, we

aimed to propose the study participants to solve these

tasks while using various combinations of visual rep-

resentations and visual variables. In particular, we

focused on the following ﬁve standard visual repre-

sentations: scatter plots, histogram charts, bar charts

(besides histograms), line charts, and pie charts. Vi-

sual variables associated with representation of sen-

timent/emotion data were thus considered in relation

to a particular encoding and data. Finally, we should

mention that interaction was beyond our particular re-

search questions for this study, and thus the respective

tasks were designed for static visualizations only.

Task-based Evaluation of Sentiment Visualization Techniques

189

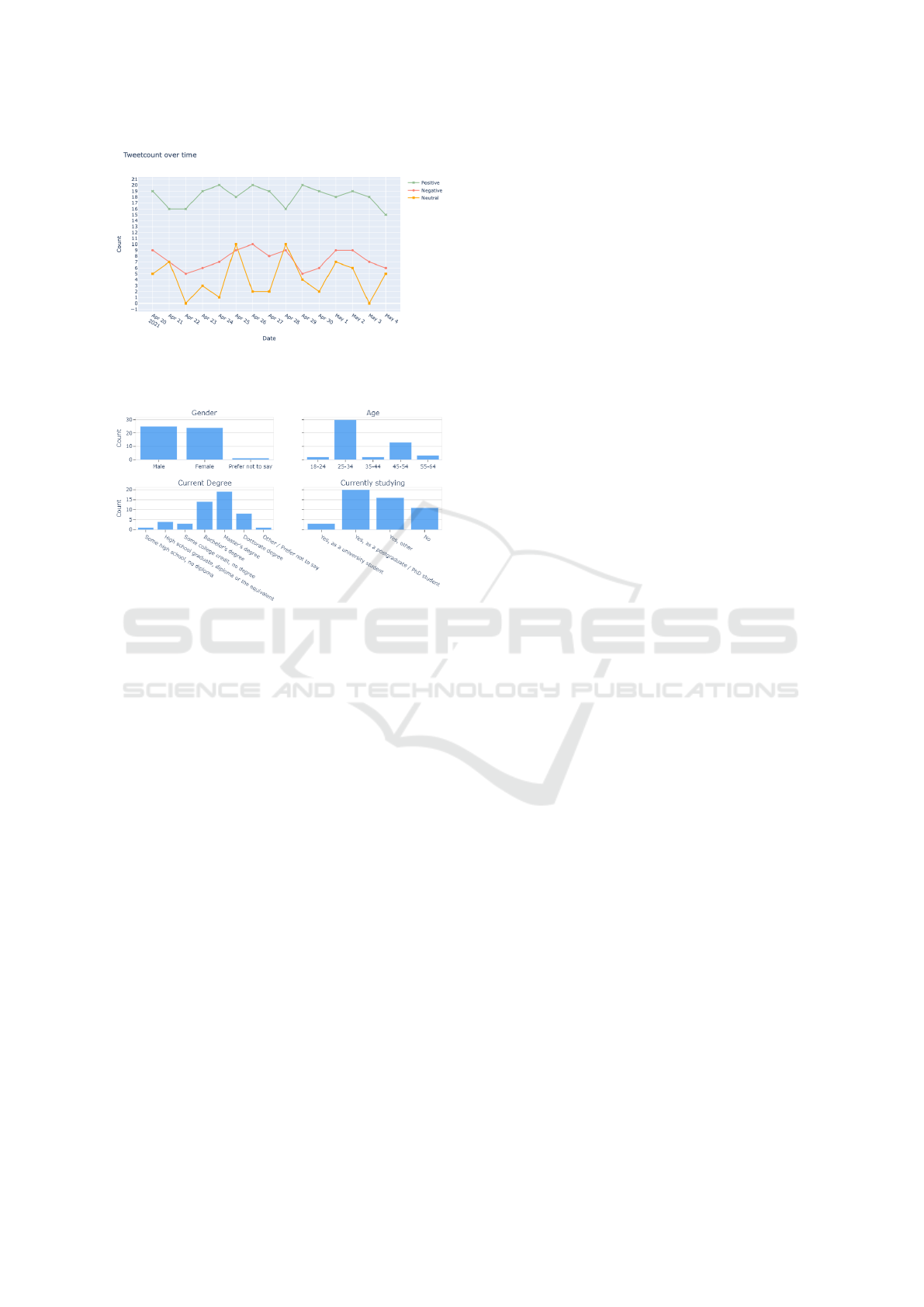

Figure 1: One of the study tasks with the question text How

many neutral tweets were posted between Apr 26 and Apr

28? and answer options 18, 14, 10, and Don’t know.

Figure 2: Responses for the demographic questions.

3.2 Data and Implementation

Our study used two datasets introduced in the prior

works as the basis for generating the visualizations for

particular representations and tasks. The ﬁrst dataset

is a subset of Amazon reviews (Nibras, 2019), which

includes prices, reviews, and scores for cell phone

items. The second dataset is a Twitter dataset (Mo-

hammad et al., 2018a; Mohammad et al., 2018b),

which consists of three different subsets. The ﬁrst

subset consists of tweets with a sentiment/intensity

score between 0 and 1. The second subset consists of

tweets categorized by one of seven different intensity

classes, from very negative emotional state can be in-

ferred to very positive emotional state can be inferred.

The last subset classiﬁes each tweet into eleven ﬁne-

grained subjectivity categories (emotions and further

aspects of subjectivity): anger, anticipation, disgust,

fear, joy, love, optimism, pessimism, sadness, sur-

prise, and trust. Based on these datasets and the

considerations discussed above, 26 unique plots were

generated in total (see an example in Figure 1), and

these were used for 28 questions (several plots were

re-used for different tasks, e.g., extremum vs retrieve).

To facilitate the accessibility of this study targeted

at the general public, a decision was made to imple-

ment it as an online tool, which could be used from

most web browsers on most platforms. The partic-

ular visualizations were implemented in Python and

exported as static ﬁgures. For most visualizations,

Plotly for Python, Bokeh, and Matplotlib were used,

and for the data handling, pandas was used. The

online survey itself was implemented with an open-

source JavaScript library survey.js and deployed as a

DigitalOcean web application using React.js.

In order to test the feasibility of both the survey

questions/tasks and the technical implementation, a

pilot study was run with three invited participants

with no visualization knowledge. Based on their feed-

back, the implementation was adjusted and technical

issues were resolved. Afterwards, the online survey

and the respective instruction pages were made avail-

able online for the general public and invitations were

sent out through several university mailing lists. The

results of the study are presented next.

4 STUDY RESULTS

In this section, we focus on the user participation, par-

ticular task results, and the reported feedback.

4.1 Overview

The online questionnaire was run between May 12

and June 6, 2021, and the results include the re-

sponses from 50 participants. They were informed

on the start page that the participation was fully vol-

untary and could be withdrawn at any time, while

their answers and response times would be recorded

for future use. Participants were able to contact one

of the authors for any further information regarding

the study. No personal information except for the de-

mographic question responses was recorded, and no

compensation was offered to the participants.

The initial demographic question responses are

summarized in Figure 2. Next, most participants re-

ported that they had limited (18 participants) or no (14

participants) experience with visualization; 47 partic-

ipants reported no color blindness issues, while the

other 3 participants reported mild issues; 35 partici-

pants took the survey on their computer or tablet, and

the other 15 participants took it on their phones.

The participants were then asked to solve three

warm-up questions and were warned that the answers

and response times would be recorded afterwards.

The responses for the next 28 single-choice questions,

which were designed according to the considerations

discussed in Section 3 and displayed to the partici-

pants in a shufﬂed order to minimize learning effects,

are discussed in the following subsection.

IVAPP 2022 - 13th International Conference on Information Visualization Theory and Applications

190

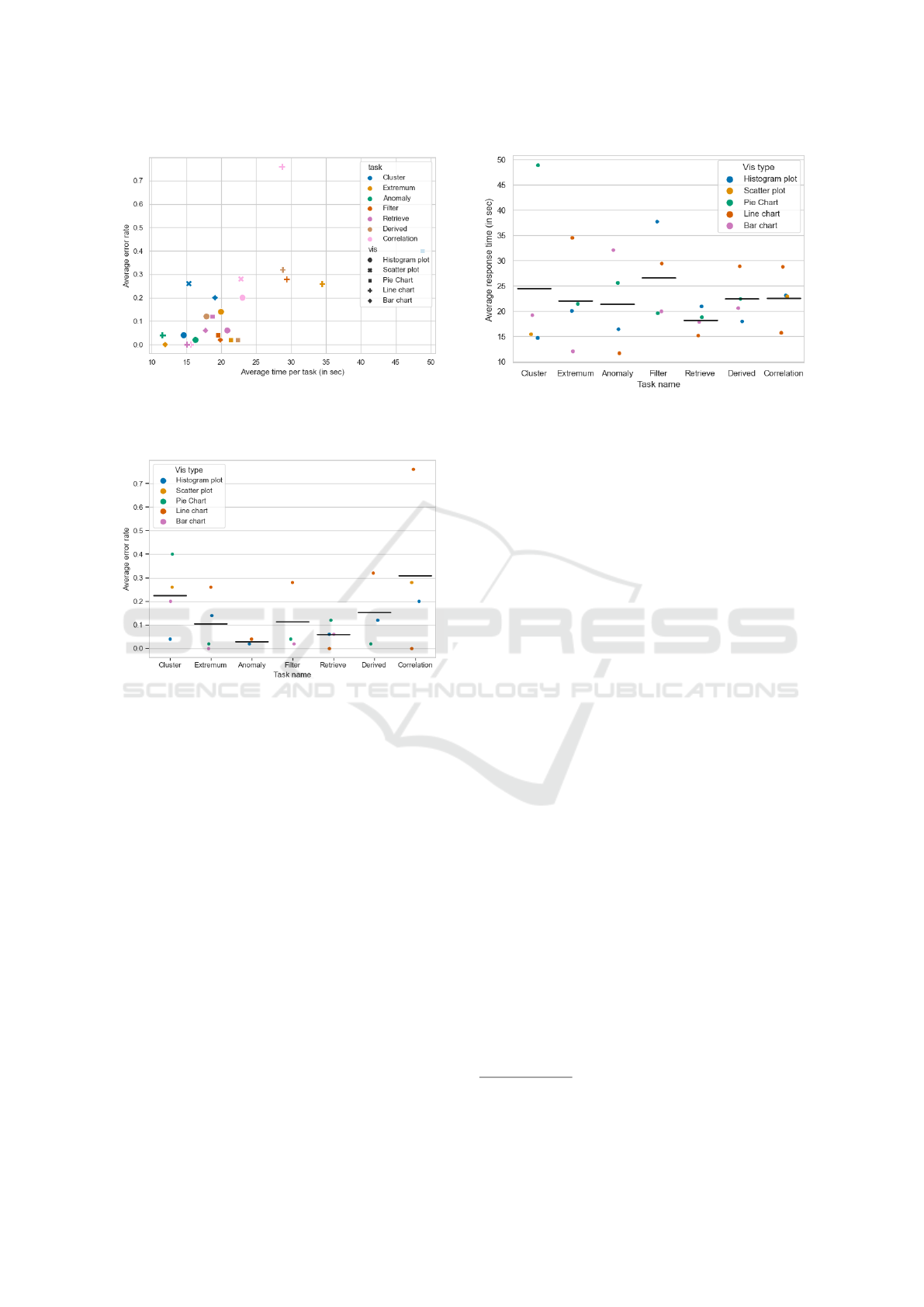

Figure 3: Average time per task vs. the average error rate

per task. The task name is encoded using color and visual

representation as the marker shape.

Figure 4: Different task types vs. the average error rate per

task. Color encodes the representation. The horizontal lines

represent the mean of the average error rates per task.

4.2 User Task Results

The majority of participants answered ≈90% of the

questions right. The average total time spent by par-

ticipant is ≈10 minutes, and the average response

time is ≈20 seconds per question. Figure 3 visu-

alizes the distribution of the average error rate and

time per task. The question with the lowest error rate

(0%) is What phone brand has the lowest average rat-

ing? (the extremum task / a bar chart), and it also has

second-lowest response time (≈12 seconds).

Figure 4 focuses on different task types vs. the

average error rate. There is only one outlier here: a

question from the correlation task (From the above

graph, can you tell that there is a (weak) correlation

between ratings and the number of reviews?) with a

line chart. This may be due to the fact that this ques-

tion was rather hard to be answered by the general

audience. Participants were the most effective in the

following tasks, sorted from most to least effective:

Figure 5: Average response time per task with representa-

tion encoded with color. The horizontal lines represent the

mean of the average response times per task.

retrieve, extremum, ﬁlter, derived, cluster, and corre-

lation. The anomaly detection task is left out here be-

cause it was represented by only two questions, which

might not be sufﬁcient to estimate its effectiveness.

Figure 5 demonstrates the average response time

per task. The clustering task has a question with the

highest average response time of ≈48 seconds. The

fastest response time is observed from the anomaly

task using a line chart (≈12 seconds). Without the

outlier of the cluster task, pie charts also tend to be

around the average response time of 22 seconds. Sim-

ilar can be observed for histogram plots. Regarding

the task results in relation to the demographic infor-

mation discussed above, our data suggests that the

gender of participants neither had an inﬂuence on re-

sponse time nor the correctness rate. The results for

the educational status and device type are mixed, too.

4.3 User Preferences and Feedback

The ﬁnal part of the study included several questions

about the participants’ conﬁdence and preferences. 38

participants reported moderate or high conﬁdence re-

garding their responses. Next, the participants were

asked to rank the visual representations from easiest

to hardest to work with, in their opinion

. The results

for this question were somewhat heterogeneous, with

4 responses supporting the ranking of (bar charts, his-

tograms, line charts, pie charts), 3 responses for three

different rankings, and 2 or 1 responses for other rank-

ings. The next question was about the color coding

used in the user tasks. 36 participants stated that some

colors were easier to work with than others, 10 stated

that they did not perceive a difference in efﬁciency,

Scatter plots were not included here as they were only

used in two tasks in the study.

Task-based Evaluation of Sentiment Visualization Techniques

191

and 3 stated they did not know, while one participant

skipped this question. The next multi-choice ques-

tion was What color (in general) would you ﬁnd best

for identifying positive and negative emotions? with

several proposed combinations as well as the Don’t

know and Other. Here, 46 participants stated that

their color preference is Green for positive and red

for negative sentiment; 4 participants chose white for

positive and black for negative; 4 participants stated

other preferences, and two of them wrote afterwards:

“I don’t care as long as it’s consistent over all plots”

and “Green for Positive, Black for Negative. Not as

intuitive, but looking better on a screen.”.

As part of the ﬁnal free-text remarks, we recorded

the following responses, among others:

• “Didn’t understand the usage of question 41 [pre-

ferred ranking of representations, see above] ini-

tially and didn’t ﬁnd a way to correct it. Correct

order would be 1: Bar Chart, 2: Pie Chart, 3:

Line Chart, 4: Histogram Chart. Also, a small vi-

sualization at this point would help tremendously

to recap which was which. In the question about

what was looking odd in the pie chart, I missed the

option ’only one text was white, the others black’.”

• “Having to look at and deal with pie charts is a

cruel and unusual punishment.”

• “In general it was a good survey. When I was

using my phone for the ﬁrst attempt I misclicked

and wanted to go back, but there is no ’previous’

button. It’s very quick shift between questions, I

wasn’t very sure that it registered the answer I

chose.”

5 DISCUSSION

In this section, we discuss the outcomes and limita-

tions of our study, which might provide guidance on

the design of sentiment visualization approaches and

inspiration for further research on this topic.

5.1 Study Outcomes

By analyzing the results from a different perspective

(see Figure 6), we can note that the users were most

effective with the following representations (in de-

creasing order): bar chart, histogram plot, pie chart,

line chart, and scatter plot. However, we should note

that the survey questions only included two scatter

plots. Thus, the observation of the effectiveness of

that particular representation might not be reliable.

By investigating Figure 5, it is clear which tasks

seem to be answered with shorter response times,

Figure 6: Average error rate per question categorized by

representation. The horizontal lines represent the mean of

the average error rates per representation.

Figure 7: Average response time per question categorized

by representation. The horizontal lines represent the mean

of the average error rates per representation.

thus being more efﬁcient than others in the context of

sentiment visualization. The simpler tasks regarding

the average response time in ascending order are re-

trieve, anomaly (note: used in two questions only),

extremum, derived, correlation, cluster, and ﬁlter.

With a similar approach, we get the most efﬁcient

representations from Figure 7 (in descending order):

scatter plot (note: used in two questions only), bar

chart, histogram plot, line chart, and pie chart. To

get to a more ﬁne-grained analysis of efﬁciency, we

take a look at some speciﬁc questions. The question

which took the participants the longest to answer is

from the cluster task, What are the three main clus-

ters of emotional states? using a pie chart, with an

average response time of 48.6 seconds.

For the efﬁciency of visual variables, we observe

similar patterns as with effectiveness. Users tend to

identify the polarity of sentiments faster when we

used green for positive and red for negative emo-

tion. In terms of neutral polarity, we could not iden-

IVAPP 2022 - 13th International Conference on Information Visualization Theory and Applications

192

tify differences in efﬁciency. However, many partic-

ipants noticed graphs where polarity seemed to have

a “wrong” color. This means that they had expected

that some sentiments should have another color than

the one used. As we used many different colors in our

graphs, there is no clear correlation between a particu-

lar color encoding and other less/more efﬁcient visual

channels. We thus come to the following conclusion

with regard to channels, ordered from most to least

efﬁcient: color, bar size, and point position.

As our survey also showed some interesting re-

sults on user satisfaction (Frøkjær et al., 2000), pref-

erences, and free-form user feedback, we also take

some short notes on these results. First of all, most

of the participants stated that they were moderately or

very conﬁdent in answering the questionnaire. The

free-form feedback for the technical implementation

and contents of the survey was overall very positive,

and only a few statements were made about some con-

fusing design choices. Regarding the preferences for

particular colors, many users stated that they found it

easier to work with green/red and light blue colors for

positive, negative, and neutral emotions. Only a mi-

nority stated that color did not inﬂuence their perfor-

mance and satisfaction. Thus, we suggest consider-

ing this color scheme for sentiments/emotions (while

keeping color blindness concerns in mind).

It is also interesting to notice that the participants

identiﬁed the polarity of the sentiments/emotions of

surprise and trust differently. Only 11 participants re-

garded these two sentiments as positive, while 36 par-

ticipants stated that only one of these sentiments have

positive polarity and the other neutral polarity. 28 par-

ticipants stated that trust has positive, and 12 stated

that this sentiment has neutral polarity. It clearly

shows that every participant deﬁnes the polarity of

these categories differently.

5.2 Limitations and Open Challenges

There are some limitations of our work which can be

taken into account for further research efforts. First of

all, the implementation of the study as an online sur-

vey rather than an experiment in a controlled lab set-

ting might have implications for the reliability and re-

producibility of the results (Fekete and Freire, 2020).

We aimed to mitigate some potential issues by intro-

ducing several mandatory warm-up questions before

the main time-tracked part of the study. Several mi-

nor technical issues were reported, for example, sev-

eral participants had issues with the ranking question

interface, which might have affected the reported re-

sults on the users’ preferences to some extent.

The participants in this study were asked to com-

plete tasks using static visualizations only. We en-

courage further research on the effectiveness and ef-

ﬁciency of sentiment visualization techniques while

taking interactivity (Munzner, 2015) into account.

The number of visual marks shown in the visualiza-

tions in this study was also limited to a rather small

number, as it could require increased duration and

complexity of the study. Future research should look

at how the data point cardinality affects the users’ per-

formance in the context of sentiment visualization.

This could involve replication of this study with larger

datasets, larger numbers of unique plots and ques-

tions, but also a larger number of participants. Em-

pirical data concerning further representations, poten-

tially involving additional visual variables/channels

and even 3D representations, would also be valuable.

Finally, we should remember the concern dis-

cussed by Isenberg et al. about the evaluation of com-

plex visualization / visual analysis approaches, which

cannot be reduced to controlled experiments focus-

ing on individual visual representations and low-level

interactions (Isenberg et al., 2013). This challenge

is still open with regard to sentiment visualization

problems—thus, further evaluation of such complex

and feature-rich approaches and solutions that involve

sentiment and emotion data visualization (with the re-

sults and guidelines highlighted in this work in mind)

remains as another opportunity for future research.

6 CONCLUSIONS

This study investigated effectiveness and efﬁciency

of common visual representations and variables for

various user tasks in the speciﬁc context of senti-

ment visualization. We conducted an online task-

based within-subject user study with 50 participants

from the general audience. The study involved static

sentiment visualizations with several common visual

representations and seven user tasks, resulting in 28

questions and further input on users’ preferences and

feedback. After the analysis of the results, we dis-

cussed how different visual variables and representa-

tions inﬂuence the mentioned usability measures, and

we also outlined design recommendations and oppor-

tunities for further research on this topic.

ACKNOWLEDGEMENTS

This research has been partially supported by the

funding of the Center for Data Intensive Sciences and

Applications (DISA) at Linnaeus University. The au-

thors would also like to thank the study participants.

Task-based Evaluation of Sentiment Visualization Techniques

193

REFERENCES

Alharbi, M. and Laramee, R. S. (2019). SoS TextVis:

An extended survey of surveys on text visualization.

Computers, 8(1).

Amar, R. A. and Stasko, J. T. (2005). Knowledge pre-

cepts for design and evaluation of information visu-

alizations. IEEE Transactions on Visualization and

Computer Graphics, 11(4):432–442.

Bertin, J. (2011). Semiology of Graphics: Diagrams, Net-

works, Maps. ESRI Press. Translated by W. J. Berg.

Bouchama, S. (2021). Task-based evaluation of sentiment

visualization techniques. Master’s thesis, Linnaeus

University.

Boumaiza, A. (2015). A survey on sentiment analysis and

visualization. Journal of Emerging Technologies in

Web Intelligence, 7(1):35–43.

Carpendale, S. (2003). Considering visual variables as a

basis for information visualisation. Technical Report

2001-693-16, University of Calgary.

Carpendale, S. (2008). Evaluating information visualiza-

tions. In Information Visualization: Human-Centered

Issues and Perspectives, volume 4950 of LNCS, pages

19–45. Springer.

Chen, S., Lin, L., and Yuan, X. (2017). Social media visual

analytics. Computer Graphics Forum, 36(3):563–587.

Diakopoulos, N., Naaman, M., and Kivran-Swaine, F.

(2010). Diamonds in the rough: Social media visual

analytics for journalistic inquiry. In Proceedings of

the IEEE Symposium on Visual Analytics Science and

Technology, VAST ’10, pages 115–122. IEEE.

Ebert, A., Gershon, N. D., and van der Veer, G. C. (2012).

Human-computer interaction. KI — K

unstliche Intel-

ligenz, 26(2):121–126.

Elmqvist, N. and Yi, J. S. (2015). Patterns for visualization

evaluation. Information Visualization, 14(3):250–269.

Fekete, J.-D. and Freire, J. (2020). Exploring reproducibil-

ity in visualization. IEEE Computer Graphics and Ap-

plications, 40(5):108–119.

Fekete, J.-D., van Wijk, J. J., Stasko, J. T., and North,

C. (2008). The value of information visualization.

In Information Visualization: Human-Centered Issues

and Perspectives, volume 4950 of LNCS, pages 1–18.

Springer.

Frøkjær, E., Hertzum, M., and Hornbæk, K. (2000). Mea-

suring usability: Are effectiveness, efﬁciency, and sat-

isfaction really correlated? In Proceedings of the

SIGCHI Conference on Human Factors in Computing

Systems, CHI ’00, pages 345–352. ACM.

org, C., Pohl, M., Qeli, E., and Xu, K. (2007). Visual rep-

resentations. In Human-Centered Visualization Envi-

ronments: GI-Dagstuhl Research Seminar, Dagstuhl

Castle, Germany, March 5–8, 2006, Revised Lectures,

volume 4417 of LNCS, pages 163–230. Springer.

Isenberg, T., Isenberg, P., Chen, J., Sedlmair, M., and

oller, T. (2013). A systematic review on the prac-

tice of evaluating visualization. IEEE Transactions on

Visualization and Computer Graphics, 19(12):2818–

2827.

Kucher, K. and Kerren, A. (2015). Text visualization tech-

niques: Taxonomy, visual survey, and community in-

sights. In Proceedings of the IEEE Paciﬁc Visual-

ization Symposium, PaciﬁcVis ’15, pages 117–121.

IEEE.

Kucher, K., Paradis, C., and Kerren, A. (2018). The state of

the art in sentiment visualization. Computer Graphics

Forum, 37(1):71–96.

Lam, H., Bertini, E., Isenberg, P., Plaisant, C., and Carpen-

dale, S. (2012). Empirical studies in information vi-

sualization: Seven scenarios. IEEE Transactions on

Visualization and Computer Graphics, 18(9):1520–

1536.

Mohammad, S. M. (2016). Sentiment analysis: Detecting

valence, emotions, and other affectual states from text.

In Meiselman, H. L., editor, Emotion Measurement,

pages 201–237. Woodhead Publishing.

Mohammad, S. M., Bravo-Marquez, F., Salameh, M., and

Kiritchenko, S. (2018a). SemEval-2018 Task 1: Af-

fect in tweets. In Proceedings of the International

Workshop on Semantic Evaluation, SemEval-2018.

Mohammad, S. M., Bravo-Marquez, F., Salameh,

M., and Kiritchenko, S. (2018b). SemEval-

2018 Task 1: Affect in tweets (AIT-2018).

https://competitions.codalab.org/competitions/17751.

Last accessed: November 8, 2021.

Munezero, M., Montero, C. S., Sutinen, E., and Pajunen,

J. (2014). Are they different? Affect, feeling, emo-

tion, sentiment, and opinion detection in text. IEEE

Transactions on Affective Computing, 5(2):101–111.

Munzner, T. (2015). Visualization Analysis & Design. CRC

Press/Taylor & Francis Group.

Nibras, G. (2019). (Un)locked cell phone

ratings and reviews on Amazon.

https://www.kaggle.com/grikomsn/amazon-cell-

phones-reviews/version/1. Last accessed: November

8, 2021.

Purchase, H. C. (2012). Experimental Human-Computer

Interaction: A Practical Guide with Visual Examples.

Cambridge University Press.

Saket, B., Endert, A., and Demiralp, C¸ . (2019). Task-

based effectiveness of basic visualizations. IEEE

Transactions on Visualization and Computer Graph-

ics, 25(7):2505–2512.

Shamim, A., Balakrishnan, V., and Tahir, M. (2015). Evalu-

ation of opinion visualization techniques. Information

Visualization, 14(4):339–358.

Zhao, J., Gou, L., Wang, F., and Zhou, M. (2014). PEARL:

An interactive visual analytic tool for understanding

personal emotion style derived from social media. In

Proceedings of the IEEE Conference on Visual Ana-

lytics Science and Technology, VAST ’14, pages 203–

212. IEEE.

IVAPP 2022 - 13th International Conference on Information Visualization Theory and Applications

194
