Don’t Miss the Fine Print! An Enhanced Framework to Extract Text

from Low Resolution Images

Pranay Dugar

, Aditya Vikram

2,∗

, Anirban Chatterjee

, Kunal Banerjee

1 a

and Vijay Agneeswaran

Walmart Global Tech, Bangalore, India

Flipkart, Bangalore, India

Keywords:

Scene Text Recognition, Super-resolution, Text Extraction, Convolution Neural Network.

Abstract:

Scene Text Recognition (STR) enables processing and understanding of the text in the wild. However, road-

blocks like natural degradation, blur, and uneven lighting in the captured images result in poor accuracy during

detection and recognition. Previous approaches have introduced Super-Resolution (SR) as a processing step

between detection and recognition; however, post enhancement, there is a signiﬁcant drop in the quality of the

reconstructed text in the image. This drop is especially signiﬁcant in the healthcare domain because any loss

in accuracy can be detrimental. This paper will quantitatively show the drop in quality of the text in an image

from the existing SR techniques across multiple optimization-based and GAN-based models. We propose a

new loss function for training and an improved deep neural network architecture to address these shortcomings

and recover text with sharp boundaries in the SR images. We also show that the Peak Signal-to-Noise Ratio

(PSNR) and the Structural Similarity Index Measure (SSIM) scores are not effective metrics for identifying

the quality of the text in an SR image. Extensive experiments show that our model achieves better accuracy

and visual improvements against state-of-the-art methods in terms of text recognition accuracy. We plan to

add our module on SR in the near future to our already deployed solution for text extraction from product

images for our company.

1 INTRODUCTION

Textual information contained in images can bolster

the semantic understanding of real-world data. Ex-

tracting text from an image has many applications,

especially in the retail industry, such as, determin-

ing brand name, ingredients, price and country of

origin of a product and detecting profanity. Gener-

ally, this task follows a two-step procedure. First,

localize the text contained in an image using ei-

ther a character-based or a word-based model. Sec-

ond, identify the text in the localized region using a

sequence-to-sequence model. These tasks are chal-

lenging due to the image degradation, image com-

plexities, and diversity in sizes, shapes, and orien-

tations of texts. Recent text extraction models have

performed impressively on clear text but show a sig-

niﬁcant decline in accuracy when recognizing text in

https://orcid.org/0000-0002-0605-630X

∗

Work done during internship at Walmart Global Tech,

India, when the author was a student at Indian Institute of

Science.

low-resolution images (Ye et al., 2020; Feng et al.,

2019; Baek et al., 2019).

Over the years, various deep learning models have

been designed to improve the quality of the images,

and the items present in these images based on the use

cases. Super-Resolution (SR) is one such technique

used to improve the quality of an image by increasing

its resolution while retaining edge consistency, creat-

ing a High-Resolution (HR) image from its Low Res-

olution (LR) counterpart. Various SR methods have

been suggested based on deep neural architectures

which show great promise. However, on attempting

to utilize these models on the task of text extraction,

it was observed that the image lost the clarity of text

even though the overall image became sharper than

the original.

In this paper, we attempt to address some of these

problems. The signiﬁcant contributions of our work

are:

• An approach to generate synthetic LR-HR paired

data that is generalizable to real case scenarios for

product images.

664

Dugar, P., Vikram, A., Chatterjee, A., Banerjee, K. and Agneeswaran, V.

Don’t Miss the Fine Print! An Enhanced Framework to Extract Text from Low Resolution Images.

DOI: 10.5220/0010971100003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

664-671

ISBN: 978-989-758-555-5; ISSN: 2184-4321

• A variation of perceptual loss termed recogni-

tion loss that effectively deblurs and sharpens the

boundaries of the texts in the image while preserv-

ing textual characteristics.

• An improvised multi-loss function composed of

detection and recognition losses as well as image

features.

• Qualitative and quantitative view of how PSNR

and SSIM (Hor

e and Ziou, 2010) are not good

measures of image quality post super-resolution

for textual details.

• Visually and analytically superior results for

text super-resolution as compared to existing ap-

proaches.

It is worth noting that we plan to add our super-

resolution solution shortly into our current deploy-

ment for text extraction from product images (Dugar

et al., 2021), which has been in production for a year

within Walmart.

The paper is organized as follows. In Section 2,

we cover related work along with our motivation.

Section 3 presents our methodology. The experimen-

tal results can be found in Section 4. Some of the ad-

ditional application areas of our method are described

in Section 5. The paper is concluded in Section 6.

2 RELATED WORK AND

MOTIVATION

Text extraction from scene images is a widely stud-

ied topic. Many accurate and efﬁcient methods that

extract textual information from scene images have

been proven effective in different constrained scenar-

ios. The focus of many of the recent works (Wei Liu

and Han, 2016; Liu et al., 2018; Luo et al., 2019)

has been on natural scenes, which address challenges

due to the high diversity of texts in blur, orientation,

shape, and low-resolution. Traditionally, the problem

to extract text from a low-resolution image is thought

to have two primary aspects: super-resolution and text

recognition.

Super-resolution aims to output a high-resolution

image that exhibits consistency with the correspond-

ing low-resolution image. Traditional approaches,

such as bilinear, bicubic or designed ﬁltering, are

based on the assumption that the neighbouring pixels

exhibit similar colours and produce the output by in-

terpolating colours between neighbouring pixels. In

the deep learning era, one of the most common ap-

proaches to address this problem is to map it to a re-

gression problem, where we design a complex non-

linear function that outputs the high-resolution im-

age on being fed the low-resolution image as an in-

put (Dong et al., 2016; Kim et al., 2016; Ledig et al.,

2017). Then the textual information is extracted from

the high-resolution image.

As far as the text recognition is concerned, there is

literature that adopts a bottom-up fashion (Jaderberg

et al., 2014) that detects individual characters ﬁrst and

then combines these into a word, or a top-down fash-

ion (Jaderberg et al., 2015a) that treats the word im-

age region as a whole and addresses it as a multi-

class image classiﬁcation problem. Based on the fact

that the scene texts generally appear in character se-

quences in scene text images, CRNN (Shi et al., 2017)

maps it to a sequence recognition problem and lever-

ages the Recurrent Neural Network (RNN) to model

the sequential features. Recently, attention mecha-

nism has gained importance in text recognition liter-

ature (Luo et al., 2019). ASTER (Shi et al., 2019)

addresses the problem with oriented or curved texts

using Spatial Transformer Network (STN) (Jaderberg

et al., 2015b), which is followed by text recognition

using an attentional sequence-to-sequence model.

However, the main difﬁculty of recognising LR

text is that the optical degradation blurs the charac-

ters’ shape, which impedes the methods mentioned

above to exhibit optimal performance while extract-

ing text from many low-resolution images. In this

work, we experiment with different kinds of loss func-

tions, such as a variant of the perceptual loss, and an

improvised multi-loss function combining both detec-

tion and recognition losses to get over the problem of

blurring of character shapes.

3 METHODOLOGY

3.1 Data Collection and Annotation

The efﬁcacy of the neural networks to approximate

any function depends heavily on the dataset used to

train the model. Previous approaches have generated

a paired LR-HR dataset by downsampling the HR im-

ages using the existing interpolation methods such as

linear, bicubic, and nearest-neighbour interpolation.

However, we cannot take such a dataset as a sam-

ple representative of the natural scene text datasets.

A single down-sample formulation generates all the

LR images, and the model only learns the inverse of

the downsampling function to generate the SR im-

ages. Recently, the authors of (Wang et al., 2020; Cai

et al., 2019; Zhang et al., 2019) have suggested us-

ing images taken by a digital camera at different focal

lengths to create an ideal paired LR-HR dataset for

Don’t Miss the Fine Print! An Enhanced Framework to Extract Text from Low Resolution Images

665

Figure 1: Architecture diagram representing the complete ﬂow of model training.

image super-resolution. However, this is not a feasi-

ble approach to generate large-scale datasets required

to train models.

We devised an approach to generate a suitable LR-

HR pair for any large dataset to circumvent these chal-

lenges. Our proposal involves a two-stage interpola-

tion method to generate a synthetic dataset that can

mimic the natural scene text datasets. For a paired

2× LR-HR, we ﬁrst downsample the original im-

age to one-fourth of its original dimensions, followed

by its upsampling to one-half of its original dimen-

sions. Different interpolation techniques were ran-

domly chosen for both downsampling and upsam-

pling to introduce more randomness in the dataset.

We use in-built interpolation methods in the Torchvi-

sion library (i.e. linear, bicubic, nearest, box, Ham-

ming, and Lanczos) for both downsampling and up-

sampling of the images. Further, for training the

model in batch mode, we create image patches of size

400 pixels × 400 pixels of the HR image and 200 pix-

els × 200 pixels for the LR image.

3.2 Loss Functions

Despite high PSNR values, pixel value based loss

functions like Mean Squared Error (MSE), Mean Ab-

solute Error (MAE) fail to generate images with high-

level attributes, such as, textures. However, the exist-

ing perceptual loss function by (Johnson et al., 2016)

uses a pre-trained model to calculate the differences

between the target and the output image in the fea-

ture space of the neural network, and generates high

texture quality images, but fails to do justice with the

reconstruction of the texts in the generated SR image.

Recognition Loss. We add this new loss to the fam-

ily of perceptual losses that focuses entirely on re-

constructing high-quality texts with sharp boundaries

and ﬁne edges in the SR image. We leverage the

feature maps generated by the fourth convolutional

block of the pre-trained encoder of the text recog-

nition ASTER model (Shi et al., 2019). We deﬁne

Recognition Loss as the MSE between these feature

maps of the generated SR image and the original HR

image. Note that our experiments have conﬁrmed that

the recognition loss adapts well with various text ex-

traction use-cases, and the reconstructed text is of bet-

ter quality than all other existing techniques.

rec

= ||Ψ

) − Ψ

)||

(1)

where Ψ is the feature map obtained as an output

of the n-th block of the ASTER’s encoder model.

Through multiple iterations, we found that output of

the 4-th block works the best for text recognition re-

lated purposes.

Gradient Loss. Taking inspiration from

HOG (Dalal and Triggs, 2005), we propose Gradient

Loss to ensure that the model can better detect edges

and corners in the images. The gradient is calculated

along each channel, followed by the mean across

channels to negate abnormalities across different

image channels. Finally, MAE was used to calculate

the gradient loss between the SR and the HR image

pairs.

grad

= ||∆I

− ∆I

(2)

Here, ∆ represents the cumulative gradient of the

image and is calculated as shown below in equation 3.

∆I =

2 × channels

∑

channels

(δI

width

+ δI

height

) (3)

where, δ is the gradient of the image along its

height/width, and is calculated as per the (Dalal and

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

666

Triggs, 2005). Please note that δ has the same di-

mensions as the image on which it is calculated, i.e.,

(width, height, channels) while ∆ has the dimension

(width, height, 1).

Detection Loss. This loss is proposed to ensure that

the model can detect the precise locations of all the

texts in an image with higher accuracy. A pre-trained

CRAFT model (Baek et al., 2019) was used to gen-

erate the locations of the texts in the SR image gen-

erated by the model and the original HR. We use the

predicted coordinates of the SR and the HR images to

create two mask images consisting of detected regions

being masked out using equation 4 for each pixel. An

MSE across the two masks is taken as the ﬁnal loss

value. Thus, the loss is a pixel-wise MSE where each

location represents if that pixel is part of text or not.

img mask(p) =

(

1, if p in detected box

0, otherwise

(4)

det

∑

||HR mask(p) − SR mask(p)||

(5)

where, P is the total number of pixels in the image,

summation taken over every individual pixel p,

HR mask is the detection mask created for HR image

and SR mask is the detection mask created for SR

image.

Overall loss for the task is deﬁned as:

TotalLoss = λ

rec

+ λ

det

+ λ

grad

+ λ

vgg

+ λ

mse

(6)

where, λ values are [1e − 2, 6e − 5, 1e − 4, 2e − 4,

6e − 3, 1e − 0] in the same order. Except Total Varia-

tion (TV) Loss, which is measured only on the output

SR image, every other loss functions takes into ac-

count both the HR image and the SR image. L

vgg

the perceptual loss calculated on VGG19.

Our high-level architecture diagram is shown in

Figure 1. We start with a HR image from the dataset

that we down-sample using the in-built methods in

Torchvision library to obtain its corresponding LR

image. This LR image is then fed into our super-

resolution model to generate the SR image. The HR

and the SR images are passed as inputs to the detec-

tion model followed by the recognition model. We

collect the losses L

detection

, L

recognition

and L

gradient

compute their weighted sum termed as L

total

and use

it to train our super-resolution model.

4 EXPERIMENTAL RESULTS

As in any super-resolution framework, there are two

ways to gauge the performance of a model: visual per-

ception and analytical scores. Through the following

sections, we will cover these two aspects of our model

in detail.

4.1 Dataset

As the focus of our model is to improve the text in an

image, we perform experiments on datasets designed

for the task of text extraction from images. These are

open-source datasets such as ICDAR2013 (Karatzas

et al., 2013), ICDAR2015 (Karatzas et al., 2015) and

SVT (Wang et al., 2011). These three datasets provide

word-level ground truth boxes of text in an image. We

use these ground truth boxes as the area of consid-

eration for our model in terms of visual perception

and the ground truth text for analytical scoring met-

rics. A small caveat, though, is that the ground truth

provided does not comprise all the words in the im-

age but only the signiﬁcant ones that are more clearly

visible. The design of our model is such that it im-

proves not only these signiﬁcant words but also the

non-signiﬁcant words (small/slightly blurred). How-

ever, due to the lack of ground truth, we will see

the improvement for these non-signiﬁcant words only

through visual perception. We downsample the im-

ages from the three datasets for creating a LR im-

age dataset, and the original images act as the HR

ground truth images. We compare our model against

some state-of-the-art super-resolution models such as

DNCNN (Zhang et al., 2017), IMDN (Hui et al.,

2019) and ESRGAN (Wang et al., 2018).

4.2 Visual Perception

A super-resolution model is only as good as the

amount of ﬁner details that it can improve. The ex-

isting approaches perform effectively in terms of im-

proving the quality of the overall image. However, as

seen in Figure 2, the character boundaries get blurred

after super-resolution in these models. Standard met-

rics used to verify the quality of super-resolution

models are the PSNR and the SSIM scores (Hor

e and

Ziou, 2010). However, as shown in Table 1, these

metrics do not do justice in terms of the quality of the

characters in the image. Some existing models give a

higher value for PSNR and SSIM scores, but the im-

ages tell a different story. Of the six PSNR and SSIM

scores for the three datasets, our model performs best

only for the SSIM score for SVT dataset.

Don’t Miss the Fine Print! An Enhanced Framework to Extract Text from Low Resolution Images

667

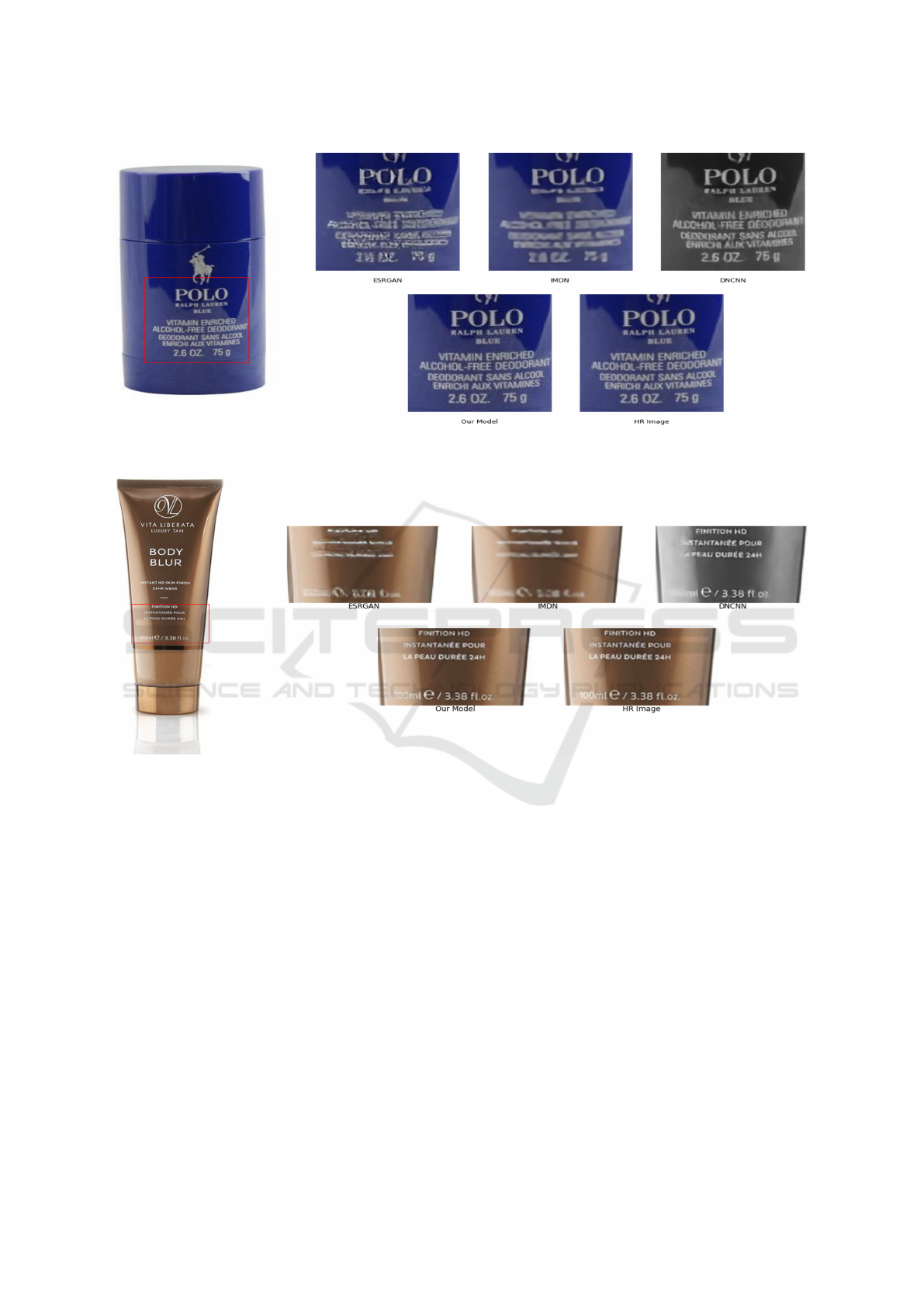

Figure 2: Super-resolution outputs for a product image with clear text by various models with the given HR reference image

as input. The models names have been speciﬁed below the images.

Figure 3: Super-resolution outputs for a product image with small text by various models with the given HR reference image

as input. The models names have been speciﬁed below the images.

The quality of the text drops even further while

considering the words that are not signiﬁcant. This

drop can be seen clearly in Figure 3. Though not en-

tirely accurate, our model gives much better character

boundaries than the existing models. Since visually it

is clear that the model is performing signiﬁcantly bet-

ter and that PSNR and SSIM scores are not effective

measures, we performed a more rigorous analysis to

show that the model is signiﬁcantly better in terms of

text recognition.

To reduce the chance of misinterpretation, we

had asked three annotators to independently check

the images produced by the competition (ESR-

GAN (Wang et al., 2018), IMDN (Hui et al., 2019),

DNCNN (Zhang et al., 2017)) and ours to identify the

one from which understanding the text was the easiest

– this was a blind process, i.e., the annotators did not

know which method produced which output. For this

experiment, we had chosen 20 images from each of

the datasets: ICDAR2013, ICDAR2015 and SVT. We

found that in ∼75% of the cases, the images produced

by our method was declared the winner in spite of

having lower SSIM and PSNR scores, as mentioned

in Table 1. Kindly, note that the images in Figure 2

and Figure 3 are sample images which depict these

results.

4.3 Text Recognition Analysis

From the SR images generated from different mod-

els, using the ground truth boxes provided in the

dataset, the text areas are cropped and sent through

the text recognition model deﬁned in (Dugar et al.,

2021). First, we compare the accuracy – a direct

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

668

Table 1: PSNR and SSIM scores of various models compared against our model. Note that the scores are averaged over only

the regions of the ground truth boxes used in text recognition as these represent our areas of concern.

Model

ICDAR2013 ICDAR2015 SVT

PSNR SSIM PSNR SSIM PSNR SSIM

ESRGAN 29.432 0.827 29.338 0.826 30.458 0.839

IMDN 32.266 0.881 32.170 0.881 33.383 0.895

DNCNN 32.022 0.897 32.017 0.897 32.464 0.910

Our Model 29.236 0.882 29.122 0.881 32.545 0.928

Table 2: Normalised Edit Distance (Norm ED) of text and accuracy of an exact match for images generated from the two

models (our model: Text SR Image and generic model: IMDN SR Image); we also provide these scores for the High-

Resolution (HR) image for reference. Note that we use the same text recognition model in all three cases.

Dataset Score Type

HR Image Text SR Image IMDN SR Image

ICDAR2013 Norm ED 0.954 0.928 0.919

Accuracy 0.903 0.876 0.833

ICDAR2015 Norm ED 0.972 0.958 0.938

Accuracy 0.908 0.890 0.836

SVT Norm ED 0.930 0.921 0.848

Accuracy 0.827 0.821 0.721

match of ground truth word, and normalised edit dis-

tance (Marzal and Vidal, 1993) – a character level

comparison, of the backbone IMDN model against

the model trained by our approach. For reference,

these were both compared against the accuracy score

on HR images, and we present the results in Table 2.

The model trained by our approach gets closer to the

accuracy score for the HR images.

The results motivated us to compare our model

against other state-of-the-art super-resolution models.

Table 3 shows the performance of various models on

the given datasets. On all the datasets, our model per-

forms signiﬁcantly better than these models in terms

of text recognition.

Though the PSNR and the SSIM scores of our

model are lower than that of the existing models, it

still achieves a better result in both visual and analyt-

ical terms.

5 ADDITIONAL APPLICATION

AREAS

The technology described here is generic enough to

be applied to various other application areas beyond

what we report on product images here and in (Dugar

et al., 2021) albeit with some domain-speciﬁc ﬁnetun-

ing. We note a couple of such application areas here.

5.1 Healthcare

Walmart is devoted to serving its customers by deliv-

ering goods and merchandise at affordable prices and

Figure 4: Extracting manufacturing and expiry dates from a

medicine bottle. Note that the font, size and color of these

dates are blurrier from the rest of the label, and also not

aligned.

by facilitating healthier lifestyles. In addition to sell-

ing medicines at our stores, Walmart Health (Staff,

2019a) now provides primary, urgent and preven-

tive healthcare services in some of our supercenters.

While selling or administering medicine, one must be

very careful about its expiry date to prevent harmful

effects. Moreover, getting the ingredients wrong for a

medicine may also endanger human lives. Therefore,

unlike standard product images, the tolerance level of

making a false prediction is close to zero in health-

care. Extracting the dates, especially, can be much

more challenging because these are added to the la-

bels at a later stage and are often more obscure than

the rest of the text; an example of the same can be

found in Figure 4. Our solution can be helpful in

this domain with some small improvements, such as,

adding the names of the drugs and their constituents

Don’t Miss the Fine Print! An Enhanced Framework to Extract Text from Low Resolution Images

669

Table 3: Accuracy and Normalised Edit Distance for text recognition from images generated by our model against images

from other state-of-the-art super-resolution models.

Model

ICDAR2013 ICDAR2015 SVT

Accuracy NormED Accuracy NormED Accuracy NormED

ESRGAN 0.808 0.881 0.814 0.905 0.684 0.817

IMDN 0.833 0.919 0.836 0.938 0.721 0.848

DNCNN 0.853 0.919 0.863 0.945 0.726 0.853

Our Model 0.876 0.928 0.890 0.958 0.821 0.921

into our dictionary because these names do not appear

in regular text.

5.2 Edge Devices

Figure 5: Extracting information about products on display.

This information may help in identifying low or out-of-

stock products, and/or notifying damaged products.

Recently, Walmart has given away smartphones

with built-in apps to 740K associates to help them

in their day to day activities in various ways (Staff,

2021b). We can further leverage these devices for in-

ventory management and quality checks; for exam-

ple, an associate may take a picture and notify the

warehouse administration upon detecting a damaged

product. However, the cameras mounted on the smart-

phones may not be of high deﬁnition, or the pictures

may be taken from a distance, or there can be jerky

hand movements – all of which may lead to low qual-

ity, tiny or blurry images. Similarly, the surveillance

cameras placed on top of the aisles in Walmart stores

and clubs may also be re-purposed to additionally

gather information on products that are low or out-

of-stock and identify damaged goods (Staff, 2019b);

however, these images may again be of low quality.

Our SR based solution may also contribute in such

cases as shown in Figure 5. Another potential use case

can be reading road signs for autonomous cars; Wal-

mart has been looking in this space for supply chain

management (Staff, 2020), especially for the last mile

delivery (Staff, 2021a).

6 CONCLUSION

This paper proves the importance of the scene text

image super-resolution for text detection and recog-

nition. We have proposed an alternative way to gen-

erate the synthetic paired LR-HR dataset that mimics

the actual data compared to the simple bicubic down-

sampling of the HR images. We have demonstrated

that the model trained on our dataset is superior to

the models trained on images generated by bicubic

downsampling to handle scene text images in the wild

through a series of experiments. To handle scene text

image super-resolution, we have proposed Recogni-

tion Loss and an improvised architecture that enables

the model to reconstruct the texts with clear bound-

aries and sharp edges in real-time. Our method out-

performs multiple SR methods by a signiﬁcant mar-

gin. However, it also shows that we are still far from

decoding the highly degraded low-resolution scene

texts, and the ﬁeld requires more effort to solve the

same.

In the future, we plan to include more diverse

scene text image datasets across multiple languages

and with different alignments to train the model bet-

ter. We will also try to develop an improved loss func-

tion that will possibly outperform our current bench-

marks. Introducing vision transformers into the scene

text super-resolution domain may further push the

performance, and hence we aim to investigate these

models as well.

REFERENCES

Baek, Y., Lee, B., Han, D., Yun, S., and Lee, H. (2019).

Character region awareness for text detection. In

CVPR, pages 9365–9374.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

670

Cai, J., Zeng, H., Yong, H., Cao, Z., and Zhang, L. (2019).

Toward real-world single image super-resolution: A

new benchmark and a new model. In ICCV, pages

3086–3095.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In CVPR, pages 886–

893.

Dong, C., Loy, C. C., He, K., and Tang, X. (2016). Image

super-resolution using deep convolutional networks.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 38:295–307.

Dugar, P., Bhat, R. S., Tarsode, A. S., Dutta, U., Banerjee,

K., Chatterjee, A., and Agneeswaran, V. S. (2021).

From pixels to words: A scalable journey of text in-

formation from product images to retail catalog. In

CIKM, pages 3787–3795.

Feng, W., He, W., Yin, F., Zhang, X.-Y., and Liu, C.-L.

(2019). Textdragon: An end-to-end framework for ar-

bitrary shaped text spotting. In 2019 IEEE/CVF In-

ternational Conference on Computer Vision (ICCV),

pages 9075–9084.

Hor

e, A. and Ziou, D. (2010). Image quality metrics: Psnr

vs. ssim. In 2010 20th International Conference on

Pattern Recognition, pages 2366–2369.

Hui, Z., Gao, X., Yang, Y., and Wang, X. (2019).

Lightweight image super-resolution with information

multi-distillation network. In MM, pages 2024–2032.

Jaderberg, M., Simonyan, K., Vedaldi, A., and Zisserman,

A. (2015a). Reading text in the wild with convolu-

tional neural networks. International Journal of Com-

puter Vision, 116:1–20.

Jaderberg, M., Simonyan, K., Zisserman, A., and

Kavukcuoglu, K. (2015b). Spatial transformer net-

works. In NIPS, pages 2017–2025.

Jaderberg, M., Vedaldi, A., and Zisserman, A. (2014). Deep

features for text spotting. In ECCV, pages 512–528.

Johnson, J., Alahi, A., and Fei-Fei, L. (2016). Perceptual

losses for real-time style transfer and super-resolution.

In ECCV, pages 694–711.

Karatzas, D., Gomez-Bigorda, L., Nicolaou, A., Ghosh, S.,

Bagdanov, A., Iwamura, M., Matas, J., Neumann, L.,

Chandrasekhar, V. R., Lu, S., et al. (2015). Icdar 2015

competition on robust reading. In 2015 13th Interna-

tional Conference on Document Analysis and Recog-

nition (ICDAR), pages 1156–1160. IEEE.

Karatzas, D., Shafait, F., Uchida, S., Iwamura, M., Bigorda,

L. G. i., Mestre, S. R., Mas, J., Mota, D. F., Almaz

an,

J. A., and de las Heras, L. P. (2013). Icdar 2013 robust

reading competition. In ICDAR, pages 1484–1493.

Kim, J., Lee, J. K., and Lee, K. M. (2016). Accurate image

super-resolution using very deep convolutional net-

works. In CVPR, pages 1646–1654.

Ledig, C., Theis, L., Husz

ar, F., Caballero, J., Cunning-

ham, A., Acosta, A., Aitken, A., Tejani, A., Totz, J.,

Wang, Z., and Shi, W. (2017). Photo-realistic single

image super-resolution using a generative adversarial

network. In CVPR, pages 105–114.

Liu, Z., Li, Y., Ren, F., Goh, W., and Yu, H. (2018).

Squeezedtext: A real-time scene text recognition by

binary convolutional encoder-decoder network. In

AAAI, pages 7194–7201.

Luo, C., Jin, L., and Sun, Z. (2019). Moran: A multi-object

rectiﬁed attention network for scene text recognition.

Pattern Recognition, 90:109–118.

Marzal, A. and Vidal, E. (1993). Computation of normal-

ized edit distance and applications. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

15(9):926–932.

Shi, B., Bai, X., and Yao, C. (2017). An end-to-end train-

able neural network for image-based sequence recog-

nition and its application to scene text recognition.

IEEE Trans. Pattern Anal. Mach. Intell., 39(11):2298–

2304.

Shi, B., Yang, M., Wang, X., Lyu, P., Yao, C., and Bai, X.

(2019). Aster: An attentional scene text recognizer

with ﬂexible rectiﬁcation. IEEE Trans. Pattern Anal.

Mach. Intell., 41(9):2035–2048.

Staff, W. (2019a). Walmart health. Accessed: 2021-17-09.

Staff, W. (2019b). Walmart’s new intelligent retail lab

shows a glimpse into the future of retail, irl. Accessed:

2021-17-09.

Staff, W. (2020). Walmart and gatik go driverless in

arkansas and expand self-driving car pilot to a second

location. Accessed: 2021-17-09.

Staff, W. (2021a). Walmart invests in cruise, the all-electric

self-driving company. Accessed: 2021-17-09.

Staff, W. (2021b). Walmart unveils all-in-one associate

app, me@walmart, and gives 740,000 associates a

new samsung smartphone. Accessed: 2021-17-09.

Wang, K., Babenko, B., and Belongie, S. (2011). End-to-

end scene text recognition. In 2011 International Con-

ference on Computer Vision, pages 1457–1464.

Wang, W., Xie, E., Liu, X., Wang, W., Liang, D., Shen, C.,

and Bai, X. (2020). Scene text image super-resolution

in the wild. In ECCV, pages 650–666.

Wang, X., Yu, K., Wu, S., Gu, J., Liu, Y., Dong, C., Qiao,

Y., and Loy, C. C. (2018). Esrgan: Enhanced super-

resolution generative adversarial networks. In The

European Conference on Computer Vision Workshops

(ECCVW).

Wei Liu, Chaofeng Chen, K.-Y. K. W. Z. S. and Han, J.

(2016). Star-net: A spatial attention residue network

for scene text recognition. In BMVC, pages 43.1–

43.13.

Ye, J., Chen, Z., Liu, J., and Du, B. (2020). Textfusenet:

Scene text detection with richer fused features. In IJ-

CAI, pages 516–522.

Zhang, K., Zuo, W., Chen, Y., Meng, D., and Zhang, L.

(2017). Beyond a gaussian denoiser: Residual learn-

ing of deep cnn for image denoising. IEEE Transac-

tions on Image Processing, 26(7):3142–3155.

Zhang, X., Chen, Q., Ng, R., and Koltun, V. (2019). Zoom

to learn, learn to zoom. In CVPR, pages 3762–3770.

Don’t Miss the Fine Print! An Enhanced Framework to Extract Text from Low Resolution Images

671
