Development of a Serious Game to Improve Decision-making Skills of

Martial Arts Referees

Andr

e Salmhofer, Lucian Gutica-Florescu, Dominik Hoelbling

, Roland Breiteneder,

Rene Baranyi

and Thomas Grechenig

Research Group for Industrial Software (INSO), Vienna University of Technology, Vienna, Austria

Keywords:

Decision-making Training, Serious Game, Digital Game-based Learning, Referees, Judges, Martial Arts.

Abstract:

While sports referees need to cover a wide spectrum of demands depending on the characteristics of the judged

sport, the outstanding responsibility they are associated with, is the task of decision-making. The focus of

martial arts referees lies in perception and cognitive processing to detect, categorize and evaluate fast-moving

techniques performed within a short period. To accumulate the training intensity required to reach expert

level, recent research suggests complementing competitive experience with a video-based training approach.

By combining the beneﬁts of video-based training with motivational game elements, the study aimed to de-

velop a video-based serious game to train intuitive decision-making processes of martial arts referees through

immediate feedback. The training platform called JudgED comprises two modules: (a) a serious game to

train decision-making processes and (b) a content and administration interface to manage, prepare, annotate

and augment the video content used in the serious game. To evaluate the effectiveness of the serious game, a

method to measure the players’ decision accuracy and reaction time is proposed.

1 INTRODUCTION

While referees need to cover a wide spectrum of skills

encompassing perception, physical ﬁtness, and inter-

action with athletes, the characteristic responsibility

referees are connoted with, is the responsibility of

decision-making (MacMahon and Strauß, 2014). As

athletes in martial arts can perform a sequence of fast-

moving techniques within a short period, referees are

required to derive appropriate decisions from mem-

ory, by combining their perception of the athletes’

movement with their prior experience and the rules

of the sport (Carlsson et al., 2020).

Investigating the task of decision-making in de-

tail discloses a complex social-cognitive process in-

ﬂuenced by various external constraints speciﬁc to the

ofﬁciated sport (Kittel et al., 2021). To cope with

the complexity of this task, referees need to combine

declarative knowledge covering the rules of the sport

and procedural knowledge acquired by practical ex-

perience (Mascarenhas et al., 2006). If referees are

not trained appropriately, the complexity of this pro-

cess can cause decision errors having the potential to

https://orcid.org/0000-0001-7099-2576

https://orcid.org/0000-0002-0088-9140

inﬂuence the outcome of competitions or tournaments

(MacMahon and Strauß, 2014).

1.1 Decision-making Process

Decisions are derived by traversing a sequence of so-

cial information processing steps comprising percep-

tion, categorization, memory processing, and infor-

mation integration (Bless et al., 2004). While all four

steps are essential to derive a proper decision, the em-

phasis of each step depends on the characteristics of

the judged situation (Plessner and Haar, 2006).

Schweizer et al. outline the importance of the

categorization step for judging foul/no-foul situations

in soccer (Schweizer et al., 2011). By referring to

Brunswik’s Lens model (Brunswik, 1952), they claim

that categorizations are inﬂuenced by multiple cues,

where only relevant cues are contributing to the ac-

curacy of the decision. To integrate cues and derive

decisions under high time pressure, intuitive process-

ing is applied rather than deliberate processing.

1.2 Lack of Decision-making Training

The impact on competition outcomes and its associ-

ated economic consequences led to an increased in-

Salmhofer, A., Gutica-Florescu, L., Hoelbling, D., Breiteneder, R., Baranyi, R. and Grechenig, T.

Development of a Serious Game to Improve Decision-making Skills of Martial Arts Referees.

DOI: 10.5220/0011382800003321

In Proceedings of the 10th International Conference on Sport Sciences Research and Technology Support (icSPORTS 2022), pages 29-40

ISBN: 978-989-758-610-1; ISSN: 2184-3201

vestigation of referees’ decisions (Kittel et al., 2021;

Larkin et al., 2011). While the literature speciﬁes

a variety of approaches to develop decision-making

skills of referees, direct participation in sports com-

petitions is acknowledged to be an ideal method to

acquire these skills (MacMahon et al., 2007). Based

on skill development frameworks like the 10,000-

hour rule of deliberate practice (Ericsson et al., 1993),

solely relying on on-ﬁeld experience might not accu-

mulate enough training intensity to reach expert level

in decision-making (Larkin et al., 2018).

1.3 Video-based Training Approach

A potential solution to compensate for the lack of

training time caused by the limited number of com-

petitive events is the application of video-based train-

ing programs (Kittel et al., 2021). These allow the

accumulation of practical training intensity, which

would hardly be achievable by solely judging real-

life competitions (Larkin et al., 2018). The trend in

research towards the development and evaluation of

well-grounded video-based decision-making training

programs emerged over the past 17 years (Kittel et al.,

2021).

Recent research conﬁrms the effectiveness of

video-based training platforms for referees in vari-

ous sports (Mascarenhas et al., 2005; Schweizer et al.,

2011; Put et al., 2016; Larkin et al., 2018). Although

no training platform is available to improve decision-

making skills of martial arts referees, the positive

effects of video-based training approaches might be

transferable to martial arts refereeing as well.

1.4 Serious Games

While several deﬁnitions of the term serious game ex-

ist, Michael and Chen (2005) describe it as games,

whose primary goal is education rather than entertain-

ment. The serious game developed in this work can be

classiﬁed in the sub-category of digital game-based

learning, which aims to foster knowledge and skills

by utilizing challenges and associated achievements

(Qian and Clark, 2016).

1.5 Design Considerations

The design of the serious game was based on the

decision-making framework described above and the

implications drawn by Schweizer et al. (2011) and

Brand et al. (2009) to train intuitive decision-making

processes of soccer referees by the principles of Hog-

arth’s learning approach (Hogarth, 2008). This sug-

gests that intuitions can be trained in representative

environments by providing relevant and immediate

feedback. Assuming the similarities to foul/no-foul

judgments in soccer, these theoretical considerations

might apply to decision-making in martial arts refer-

eeing as well.

The scope of this study is to (a) design and develop

a serious game to train intuitive decision-making pro-

cesses of martial arts referees by enabling the judg-

ment of numerous representative ﬁght videos and

providing immediate feedback, (b) ensure the pre-

cise recording of user inputs in accordance with the

progress of the streaming video, (c) deﬁne a proce-

dure to measure the referees’ in-game performance,

and (d) propose a setup for evaluating the effective-

ness of the serious game.

2 METHODS

The serious game was designed and developed ac-

cording to the method of prototyping, which allowed

to produce artifacts demonstrating relevant aspects of

the target system in early phases of the software de-

velopment life cycle (Floyd, 1984). Initially gathered

requirements were reﬁned by conducting two itera-

tions of exploratory prototyping based on mock-ups

of the user interface. Subsequently, the system was

developed in multiple iterations including the activi-

ties of requirements engineering, design, implementa-

tion, test, and deployment. Throughout all iterations,

feedback was gathered from domain experts compris-

ing two former professional athletes in kickboxing

and karate kumite, as well as seven ofﬁcially licensed

kickboxing referees. Depending on the maturity of

the developed system, reviewed artifacts comprised

low-ﬁdelity or high-ﬁdelity prototypes.

Requirements Engineering: Requirements were

gathered by conducting semi-structured interviews

(Adams, 2015) of domain experts in kickboxing and

karate kumite. While initial requirements were re-

trieved at the beginning of the project, the list of re-

quirements was gradually extended and reﬁned based

on feedback retrieved during the iterative develop-

ment cycles.

Design and Implementation: The frontend of the

prototype was developed by exerting component-

based software engineering (Xia Cai et al., 2000).

The backend was developed following a resource-

oriented architecture (Overdick, 2007). Endpoints

were designed according to principles of API com-

position and API aggregation (Baldini et al., 2017),

which allowed to keep the client-side code slim by

icSPORTS 2022 - 10th International Conference on Sport Sciences Research and Technology Support

hiding the complexity in the backend. Particularly,

the system’s architecture was achieved by applying

the MERN stack (Subramanian, 2019) comprising the

technologies MongoDB, Express, React, and NodeJS.

The video content platform Vimeo

was used to store

and stream the training videos.

Test: The developed features were manually tested

by applying a combination of black box and white

box tests (Jamil et al., 2016). While white-box test-

ing was used to verify the correctness of self-written

code, black-box testing was used to cross-check fea-

tures developed by other team members. Thus, ev-

ery feature went through two internal test stages be-

fore it was deployed to gather feedback from domain

experts, who accepted or rejected the developed fea-

tures.

Deployment: The break-down of requirements into

small tasks resulted in short lead times, which

supported an incremental development process (Pe-

tersen, 2010). This allowed performing frequent de-

ployments by using an automatized CI/CD pipeline

(Shahin et al., 2017), which enabled the collection of

early and recurring feedback from domain experts.

3 RESULTS

This section presents the artifacts and procedures con-

tributing to the development and evaluation of the

training platform JudgED. After enumerating high-

level requirements and the building blocks of the sys-

tem, the functionality of the training platform is dis-

cussed. Subsequently, a mechanism to precisely cap-

ture and calculate performance data is described, be-

fore an evaluation approach is proposed.

3.1 Requirements List

The requirements engineering process resulted in a set

of functional and non-functional requirements. Ta-

ble 1 enumerates the identiﬁed high-level require-

ments, which are classiﬁed in the categories of con-

tent and administration (C) and serious game (G). The

sections 3.4 and 3.5 describe the functionality of the

training platform by referring to the related require-

ments.

https://vimeo.com/

Table 1: High-level requirements classiﬁed in content and

administration (C

) and serious game (G

ID Description

Upload videos

Deﬁne and annotate video scenes

Compile video scenes in playlists

Conﬁgure feedback and playback modes

Release playlists for players

Video scene status management

Performance monitoring dashboard

Statistical performance evaluation

Assessment of video scenes

Immediate feedback and slow-motion

Personal performance dashboard

User performance comparison

3.2 Main Modules

The training platform comprises two modules: (a)

the serious game used by referees to improve their

decision-making skills and (b) a content and adminis-

tration interface enabling experienced referees to pre-

pare, manage and annotate the training videos used in

the game. While the content and administration mod-

ule is only provided as a web application, the serious

game is additionally accessible by an Android app.

3.3 Entity Structure

To structure and prepare the content for the play-

ers, the training platform comprises the main enti-

ties videos, video scenes, playlists, courses, and users.

The training material is based upon uploaded videos

of ﬁght scenes. Due to the reason that many video

ﬁles include an entire bout, the footage can be sliced

into multiple short video scenes corresponding to ﬁght

sequences to be judged by the users. To arrange video

scenes according to didactic requirements, they are

compiled in form of playlists. To release speciﬁc

playlists to a certain group of referees, the course en-

tity combines playlists and users. Users assigned to a

course can access all playlists included in the course

for a deﬁned period. Figure 1 visualizes the involved

entities and their relationships with each other.

3.4 Content & Administration Module

The content and administration module includes func-

tions to prepare and organize the video scenes used

as training material in the serious game. It provides

functions to upload videos, deﬁne video scenes, com-

pose playlists, and create courses. The subsequent

sections describe the functionalities in the context of

the involved entities.

Development of a Serious Game to Improve Decision-making Skills of Martial Arts Referees

Figure 1: Relation between entities of the training platform.

3.4.1 Videos

Implemented Requirements: C

A video corresponds to raw footage containing ﬁght

situations involving two athletes in a certain disci-

pline. The system provides the functionality to up-

load videos along with basic metadata. While most

of the metadata serves for identiﬁcation purposes, the

ﬁelds association and discipline determine constraints

applicable to the extractable video scenes. Figure 2

shows the video upload screen including the upload

area and the metadata ﬁelds.

Figure 2: Upload of video including descriptive metadata.

3.4.2 Video Scenes

Implemented Requirements: C

, C

Once a video is uploaded to the system, multiple

video scenes can be extracted. A video scene is a par-

tition of an already uploaded video, annotated with a

list of decisions appearing in the deﬁned time range.

It corresponds to a ﬁght situation that can be judged

by the players of the serious game. Video scenes serve

(i) as the basis to render the video content in the se-

rious game and (ii) as a reference to determine the

Table 2: Constraints in terms of admissible duration, deci-

sion values, and number of decisions (#) for deﬁning video

scenes in kickboxing (KB) and karate (KT) disciplines.

Discipline Length Decision #

KB Point ﬁghting 4-15 s 0-3, W/E 1, 2

KB Light contact 45-90 s 0-3, W/E 1+

KB Kick light 45-90 s 0-3, W/E 1+

KB Full contact 45-90 s 0, 1, W 1+

KB Low kick 45-90 s 0, 1, W 1+

KB K1 Style 45-90 s 0, 1, W 1+

KT Kumite 4-15 s 0-3, W/E 1, 2

correctness of player inputs for presenting feedback

and enabling statistical evaluations.

Structure and Constraints: The allowed conﬁgu-

rations for duration and decisions of a video scene are

determined by the discipline inherited from the up-

loaded video. While video scenes of Point Stop disci-

plines can include one decision and an optional con-

current decision, video scenes of Running Time disci-

plines can contain arbitrarily many deﬁned decisions.

Table 2 summarizes the admissible duration of video

scenes as well as the number of allowed decisions and

their spectrum of accepted decision values by disci-

pline. An exceptional case is posed by decisions de-

ﬁned with value 0, which are used to mark sensitive

situations for which no referee input is expected. For

simpliﬁcation reasons, no distinction is made between

warning and exit decisions (W and E).

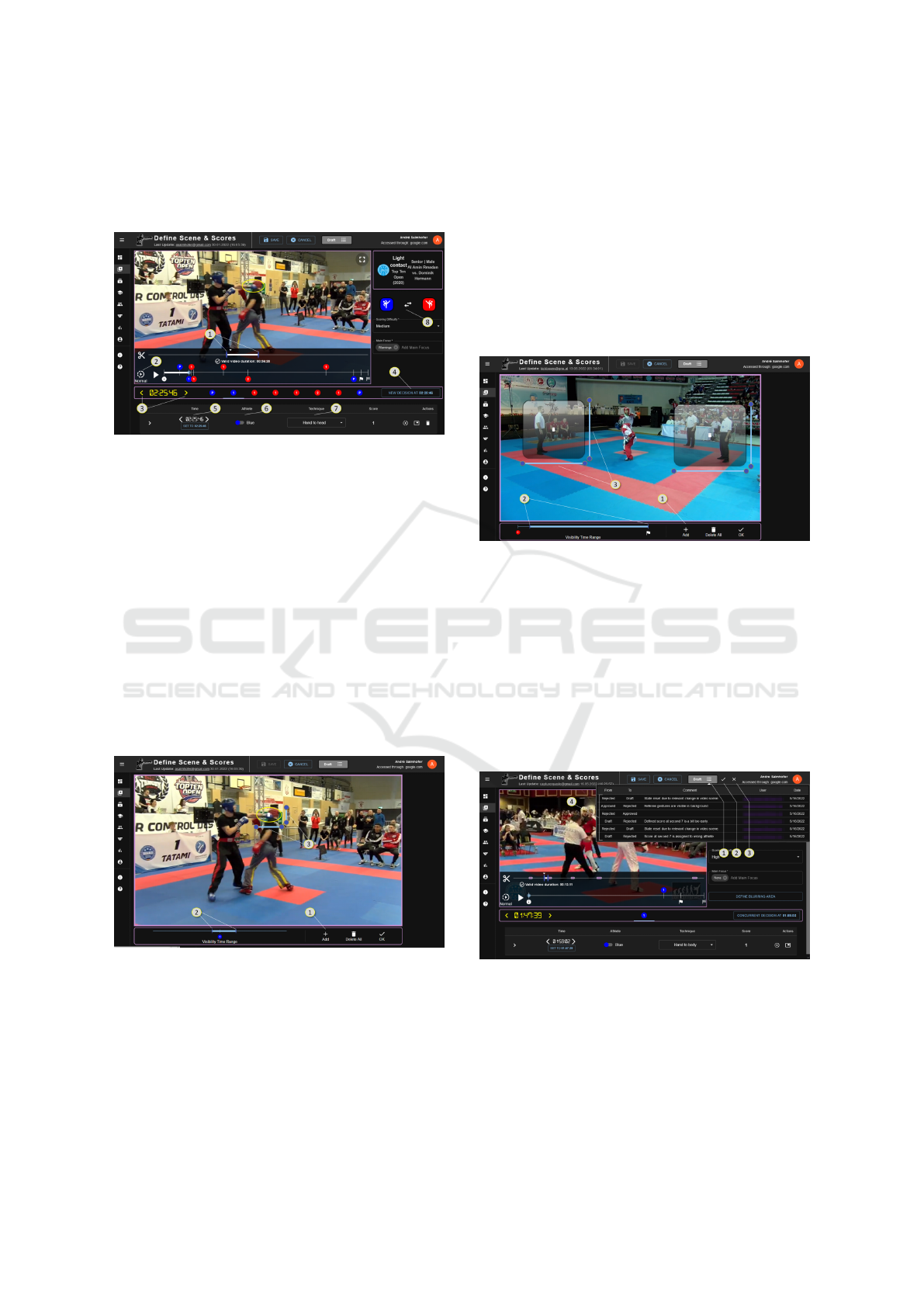

Time Range & Decisions: Figure 3 depicts the

screen where video scenes can be deﬁned. The time

range of the video scene is conﬁgured by deﬁning the

start and end time in the context of the uploaded video

(1). The process of deﬁning a decision is triggered by

watching the video and searching for the approximate

point in time of the occurring event. To easier scan

the video scene, the speed can be toggled between

normal mode and a 30 percent slow-motion (2). To

precisely seek the exact frame of the occurring deci-

sion, the frame-by-frame function forwards/rewinds

the video in steps of 0.02 seconds (3). New decisions

are added by automatically adopting the point in time

of the identiﬁed video frame (4). Each decision con-

sists of the exact point in time of the decision (5), the

technique determining the decision score or penalty

(7), and the athlete (red or blue) to which the decision

is attributed (6). The ﬁrst and the last second cannot

be utilized to deﬁne decisions, which allows players

of the serious game a reaction time of three seconds

by appending a trailing period of two seconds at the

end of each video scene. The position of the red and

blue athletes is conﬁgurable (8) based on the athletes’

icSPORTS 2022 - 10th International Conference on Sport Sciences Research and Technology Support

position at the start of the video scene. This setting

provides the basis to assign decisions to the respective

athlete and arranges the position of the red and blue

scoreboard shown to the player in the serious game.

Figure 3: Deﬁnition of video scene and occurring decisions.

Highlighting: Apart from the basic decision anno-

tations, information-rich areas can be highlighted for

each deﬁned decision separately. Figure 4 shows the

highlighting drawing screen for a selected decision

within the video scene. A highlighting can consist

of multiple ellipses added in the context of 0.5 sec-

onds of the deﬁned decision (1). Within this time

frame, the visibility period of the highlighting can be

adjusted according to the characteristics of the situa-

tion (2). Each ellipse can be positioned and resized to

emphasize important techniques (3). The highlighting

is displayed as an overlay in the slow-motion feed-

back presented to the player in the serious game after

judging the video scene, which aims to increase the

player’s understanding of the decision.

Figure 4: Deﬁnition of highlighting for a deﬁned decision.

Preview: To review the correct timing as well as the

conﬁguration of the optional highlighting, a preview

function is available. The preview shows a 30 percent

slow-motion 0.5 s before and 0.5 s after the deﬁned

decision, which corresponds to the slow-motion feed-

back shown to the player.

Blurring: The usage of footage from real-world

competitions poses a problem, as gesticulating refer-

ees might be visible in the video. To not inﬂuence the

players in the serious game, referees can be covered

by adding multiple blurring rectangles (1) for the vis-

ibility period of the gesture (2) as shown in Figure 5.

Each rectangle can be positioned and resized to en-

sure the referee’s gesture is covered (3). While the

blurring rectangle is semi-transparent in the deﬁnition

screen to ease conﬁguration, it is displayed opaquely

for the player of the serious game.

Figure 5: Covering decision-revealing gestures of referees.

Status Management: The training platform has a

simple status management for keeping track of the

quality of video scenes. A created video scene is ini-

tially in status DRAFT until it is reviewed by another

user with proper permissions, who can change the sta-

tus to either APPROVED or REJECTED. Changing

relevant ﬁelds of a video scene automatically resets

the status to DRAFT. Figure 6 shows the current sta-

tus (1), the functions to approve (2) or reject (3) the

video scene as well as the status history (4).

Figure 6: Status management of a video scene.

3.4.3 Playlists

Implemented Requirements: C

, C

Playlists serve as a container to compile multiple

video scenes according to given didactic or organiza-

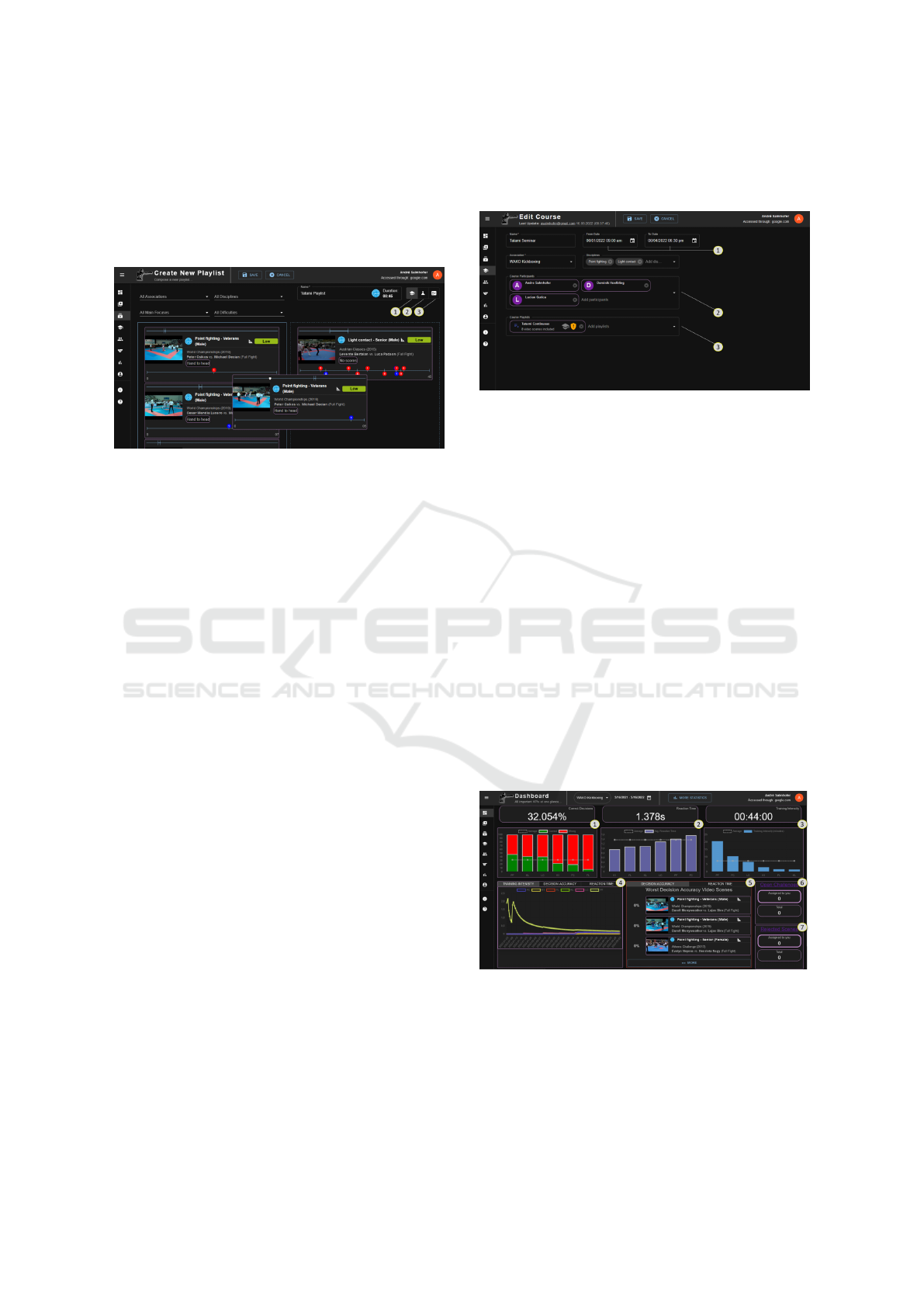

tional requirements. Figure 7 shows the screen where

Development of a Serious Game to Improve Decision-making Skills of Martial Arts Referees

playlists can be created by dragging and dropping

video scenes. A playlist can be conﬁgured with re-

spect to allowed repetitions, playback order, and the

extent of displayed feedback. These characteristics

are determined by the playlist’s mode which can take

the values regular (1), lab (2) or exam (3).

Figure 7: Playlist creation by drag and drop of video scenes.

Regular Playlists: Regular playlists can be played

arbitrarily often, whereas the included video scenes

appear in random order leading to a non-uniform dis-

tribution of judged video scenes. The full extent of

feedback is shown after each judged video scene and

the slow-motion replay can be repeatedly watched by

the player. This kind of playlist is intended to be used

for regular training sessions in non-scientiﬁc setups.

Lab Playlists: Similar to regular playlists, lab

playlists can be played arbitrarily often, and included

video scenes appear in random order. However, repe-

titions only appear as soon as all video scenes in the

playlist were played through, leading to a uniform dis-

tribution. Feedback is shown after each judged video

scene, but the slow-motion replay is not repeatable

(i.e. non-repetitive). This kind of playlist is intended

to be used for intervention periods in ﬁeld experi-

ments.

Exam Playlists: Video scenes included in exam

playlists are presented in the deﬁned sequence. Each

video scene in the playlist can only be judged once.

Neither feedback nor a slow-motion replay is pro-

vided after the judged video scene. This playlist is

intended to be used for pre-, post-, and retention-tests

in ﬁeld experiments.

3.4.4 Courses

Implemented Requirements: C

Courses serve as organizational units to release se-

lected playlists (3) to a certain audience (2) for a de-

ﬁned period (1). Course participants (i.e. players) can

access all playlists included in the course for the de-

ﬁned period. Figure 8 shows the screen to conﬁgure a

course.

Figure 8: Course deﬁnition including playlists and players.

3.4.5 Dashboard

Implemented Requirements: C

Depending on the role of the administrative user, the

dashboard contains slightly different widgets. While

course organizers see statistics and charts restricted

to their administered courses, administrators are able

to see statistics of all players in the system. Figure 9

shows the dashboard of the administrator role display-

ing the average decision accuracy (1), reaction time

(2), and training intensity (3) overall and for each dis-

cipline separately. The development of these metrics

over time is visualized by a line chart (4). To detect

problematic video scenes, a list of worst-rated video

scenes concerning players’ decision accuracy and re-

action time is shown (5). In addition, the number of

challenged video scenes (6) and the number of video

scenes that were rejected during the quality review

process (7) are displayed.

Figure 9: Administrator dashboard with performance data.

3.4.6 Statistical Performance Evaluation

Implemented Requirements: C

To allow the evaluation of the players’ performance in

scientiﬁc or course settings, the training platform pro-

icSPORTS 2022 - 10th International Conference on Sport Sciences Research and Technology Support

vides functions to generate charts for decision accu-

racy and reaction time on various aggregation levels.

Figure 10 shows a chart for the metric reaction time

(1) aggregated by discipline (2). Statistics can be gen-

erated as bar charts (3) or as line charts (4) showing

the development of the selected metric over time. To

reﬁne the charts, various ﬁlter criteria can be applied

(5).

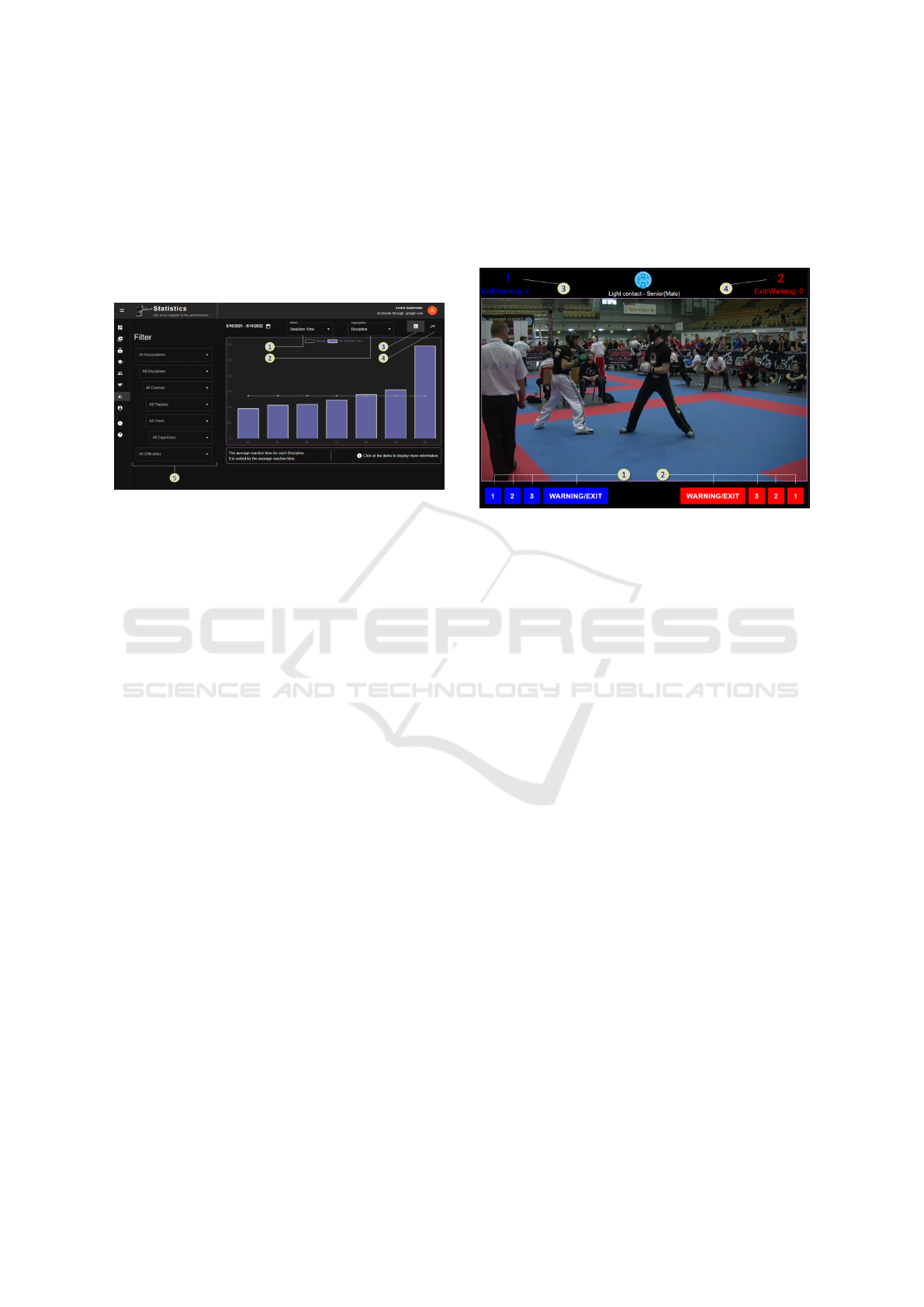

Figure 10: Chart showing the reaction time by discipline.

3.5 Serious Game Module

Based on the playlists prepared in the administration

and content module, the serious game provides the

actual functionalities aiming to improve the decision-

making skills of martial arts referees. The serious

game is additionally provided as an Android mobile

application optimized for ten-inch tablets. Making

judgments on a touchscreen might reduce the time be-

tween the detection of the decision and the actual user

input, as the mouse cursor does not need to be moved

to the respective button on the scoreboard.

The subsequent sections provide more insights

into the mechanics of the serious game.

3.5.1 Serious Game Mechanics

Players in the serious game are confronted with a se-

ries of ﬁght situations in the form of video scenes. By

using a discipline-speciﬁc scoreboard, the task of the

user is to judge the occurring events in real-time as

accurate and fast as possible. After each video scene,

the user receives feedback on the correctness of their

decisions. To increase the users’ motivation to train

with the serious game, personal statistics, rankings,

and comparisons with other players are available.

3.5.2 Judge Scene

Implemented Requirements: G

Training sessions are initiated by selecting an avail-

able playlist, which redirects the player to an included

video scene. Figure 11 shows the progressing video

scene, for which the player is requested to judge oc-

curring events in real-time. By using a discipline-

speciﬁc scoreboard (1 and 2), decisions are attributed

to either the blue (3) or the red athlete (4). Depending

on the conﬁguration of the video scene, potentially

revealing referee gestures are blurred.

Figure 11: Video scene to be judged by the player.

3.5.3 Immediate Feedback

Implemented Requirements: G

At the end of each video scene, feedback about the

judgment(s) is presented based on the comparison of

the player’s inputs with the deﬁned decisions in the

video scene (see Figure 12). For each decision de-

ﬁned in the video scene (1) a 30 percent slow-motion

sequence starting 0.5 seconds before and ending 0.5

seconds after the time of the deﬁned decision is shown

to the player. In addition, the feedback comprises the

player’s decision (2), the correct decision (3), the re-

action time (4), the correctness indication (5), and the

applied technique (6).

To increase the player’s understanding of the re-

vealed decision, the slow-motion sequence optionally

highlights information-rich areas relevant for detect-

ing the cause of the respective decision (7). In case

of disagreement with the expert-deﬁned decisions, the

player can challenge them by entering a comment (8).

The review ends with a summary of the perfor-

mance of the judged video scene as depicted in Fig-

ure 13. The summary shows the overall decision ac-

curacy for the video scene as well as the visualiza-

tion of the deﬁned decisions and player decisions on a

timeline (1 and 2). In addition, it also provides feed-

back about redundant decisions (3), which were not

presented in the detailed decision-speciﬁc feedback

before.

Development of a Serious Game to Improve Decision-making Skills of Martial Arts Referees

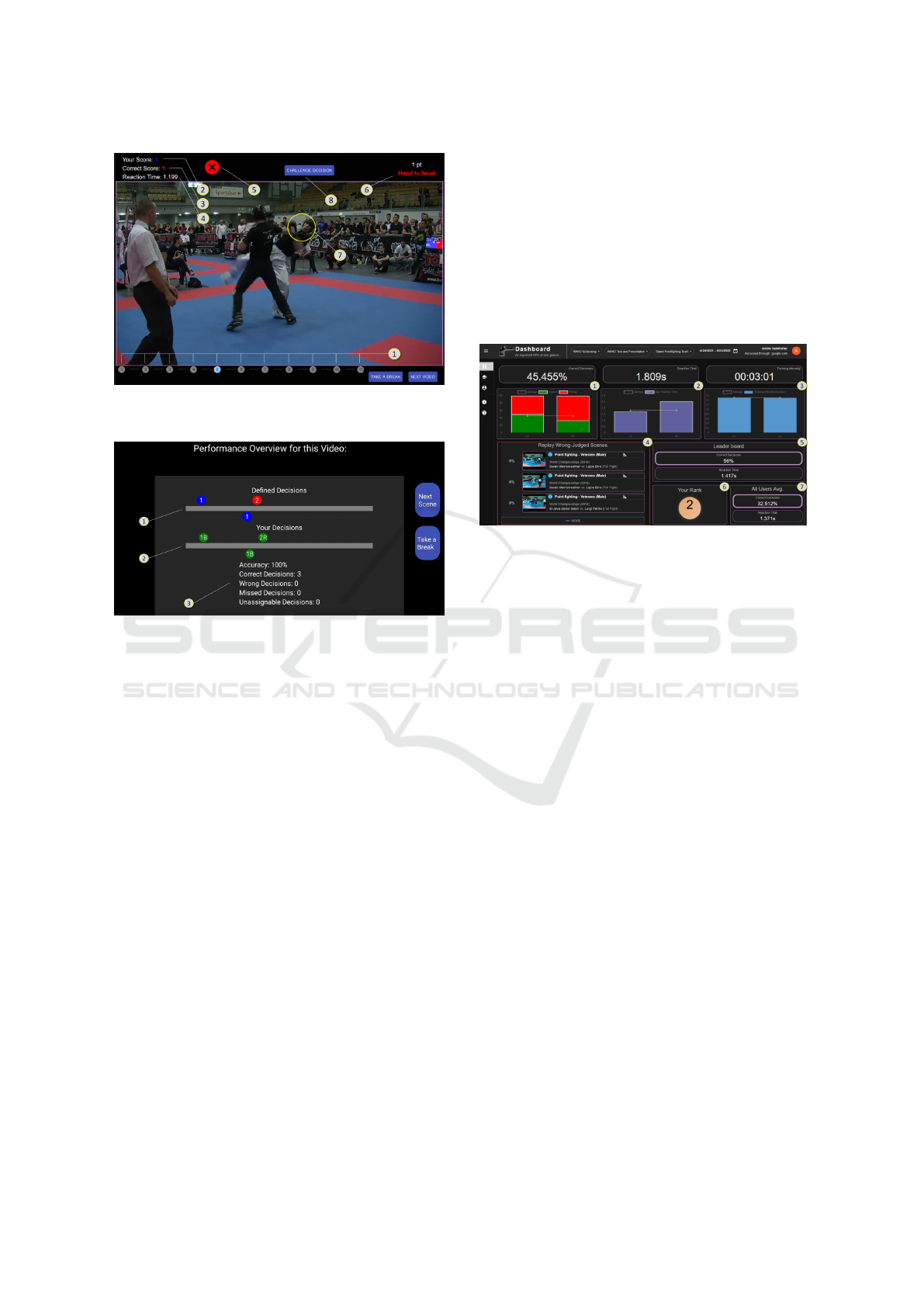

Figure 12: Feedback about the player’s decision(s) after

judging the video scene.

Figure 13: Holistic feedback about the judged video scene.

3.5.4 Dashboard & Game Elements

Implemented Requirements: G

, G

The purpose of the dashboard shown in Figure 14 is

to compactly inform the players about their judgment

performance and to increase their motivation to train

with the serious game.

Performance Elements: Performance data is pro-

vided in terms of average decision accuracy (1), reac-

tion time (2), and training intensity (3) overall and for

each discipline separately.

Competitive Elements: To increase the motivation

of the players and to enable the comparison with other

players in the serious game, the dashboard displays a

leader board (5), the player’s rank (6), and the aver-

age performance data of all players (7). While the

leader board shows the performance data of the best

performing referee, the own rank indicates the rank of

the currently signed-in player. Both leader board and

own rank are calculated according to the metric of de-

cision accuracy. To avoid a high ﬂuctuation in the

elements of the leader board and rank, players with

less than 50 decisions are excluded, as too little per-

formance data is recorded to calculate a reasonable

performance indication.

Replay: The dashboard enumerates all video scenes

for which no single decision was judged correctly by

the signed-in player (4). These video scenes are the

only ones, which can be selectively replayed. They

disappear from the list as soon as they reach a decision

accuracy greater than zero percent.

Figure 14: Game dashboard including personal perfor-

mance data and comparison with other players.

3.6 Precise Data Recording

While the player judges the video scenes according to

the occurring events, the inputs are logged in the sys-

tem, which allows to create statistics and draw con-

clusions about the player’s performance. Particularly,

the following data is logged for each judged video

scene: (i) user ID, (ii) video scene ID, (iii) playlist ID,

(iv) course ID, (v) date and time of the judgment, and

(vi) a list of player decisions comprising input time,

decision and athlete.

This information provides the basis to calculate

results concerning the correctness and reaction time

of decisions. To obtain accurate results, the player

decisions must be precisely recorded in accordance

with the progress of the streaming video. This is

ensured by the provided functionalities of the client-

side player library used to render and interact with the

video stream. There exist two basic approaches to re-

trieve the current progress of the the video stream: (i)

by listening for timeupdate events triggered every 250

ms or (ii) by calling the function getCurrentTime() on

demand.

Depending on the capabilities of the client-side li-

brary, either the ﬁrst or the second version is used to

determine the progress of the streaming video. While

the web version of the serious game uses the second

method to precisely determine the current progress of

the video stream whenever the player makes a deci-

sion, the mobile version relies on the ﬁrst version,

icSPORTS 2022 - 10th International Conference on Sport Sciences Research and Technology Support

which comes with a maximum inaccuracy of 250

ms. This allows the general statement that the serious

game can record the point in time of the player’s deci-

sions in accordance with the progress of the streaming

video by tolerating a maximum deviation of 250 ms.

3.7 Performance Metrics & Calculation

As a prerequisite to providing proper feedback to the

user as well as to statistically evaluate the players’

performance data, the correctness, as well as the re-

action time of the players’ decisions, is determined.

While decision accuracy is deﬁned as the ratio be-

tween correct and incorrect decisions, the reaction

time of a decision is the time difference between the

player decision and the deﬁned decision in the respec-

tive video scene.

To calculate these metrics, the player decisions are

compared to the deﬁned decisions of the judged video

scene. In case the video scene contains multiple de-

cisions, this poses a complex task, as it is not always

unambiguous which player input was meant for which

deﬁned decision. To perform this correlation, an algo-

rithm was developed, which matches player decisions

to deﬁned decisions based on a deﬁned set of rules.

3.7.1 Deﬁnitions

To describe the functionality of the correlation pro-

cess, basic terms used throughout the algorithm need

to be deﬁned in advance.

Deﬁned Decisions D: A list consisting of all deci-

sions included in the video scene deﬁned by an expert

referee. Each deﬁned decision D

is identiﬁed by the

properties time, athlete and value.

Player Decisions P : A list consisting of decisions

inputted by the player of the serious game while

watching the video scene. Each player decision P

is identiﬁed by the properties time, athlete and value.

Matching M : A matching is a tuple correlating a

player decision P

to a deﬁned decision D

. It also

contains the reaction time as well as the correctness

of the decision.

Unassignable Decision P

: A list of elements con-

sisting of a subset of player decisions, which were not

assignable to any deﬁned decision.

Missed Decision D

: A list of elements consist-

ing of a subset of deﬁned decisions, which were not

assignable to any player decision.

Maximum Decision Time T

max

: The maximum al-

lowed time difference between player decision and

deﬁned decision (deﬁned as three seconds). Player

decisions exceeding this time are not considered as

matching candidates.

3.7.2 Consideration for Choosing T

max

To consider a player’s decision as correct, it needs to

be performed within the maximum decision time of

three seconds from the occurring event in the video

scene. The comparable study in the sport of soc-

cer conducted by Schweizer et al. (2011) used a time

range of ﬁve seconds. Compared to the referred study,

where the participants used a mouse as an input de-

vice, the current work’s test setup proposes to use the

mobile version of the serious game. In this case, the

player decisions are indicated by taping on the respec-

tive scoreboard element on the touchscreen. Thus, a

maximum decision time of three seconds was consid-

ered sufﬁcient for the serious game in this work.

3.7.3 Correctness Evaluation

Player decisions are only considered to be correct in

case (i) they are judged within the Maximum Decision

Time, (ii) the player decisions are made in the same

order as the deﬁned decisions, and (iii) the athlete and

decision value are matching.

A necessary condition to evaluate a player deci-

sion as correct is its occurrence in the list of matchings

M . Decisions included in this list already fulﬁll the

conditions (i) and (ii) mentioned above. Thus, the ﬁrst

step is to generate the list of matchings M according

to the process described in the subsequent section.

3.7.4 Decision Matching

1. Basic Matching: The list of matched decisions

M is generated by comparing player decisions in P

with deﬁned decisions in D. Player decisions are

attempted to be matched with deﬁned decisions ful-

ﬁlling the correctness condition, whereas the search

space for eligible player decisions is limited by the

Maximum Decision Time constraint. In case no

matching candidate fulﬁlling the correctness condi-

tion is found, the deﬁned decision is correlated to the

closest player decision. Already matched player de-

cisions are not eligible candidates for further correla-

tions.

A special situation is represented by deﬁned de-

cisions with the value zero, which demand no explicit

player input to be correct. In case the deﬁned decision

is deﬁned as zero and no assignable player inputs are

found, the deﬁned decision is correlated with a syn-

thesized player decision constructed by adopting the

Development of a Serious Game to Improve Decision-making Skills of Martial Arts Referees

time, athlete, and value properties of the deﬁned deci-

sion.

2. Conﬂicts Detection: Solely performing the basic

matching described above, might lead to cases where

the correct order condition of decisions is violated,

which poses a conﬂict. A conﬂict is reﬂected by a

constellation in M , in which a player decision’s time

parameter is smaller than the player decision’s time

parameter corresponding to one of its preceding de-

ﬁned decisions.

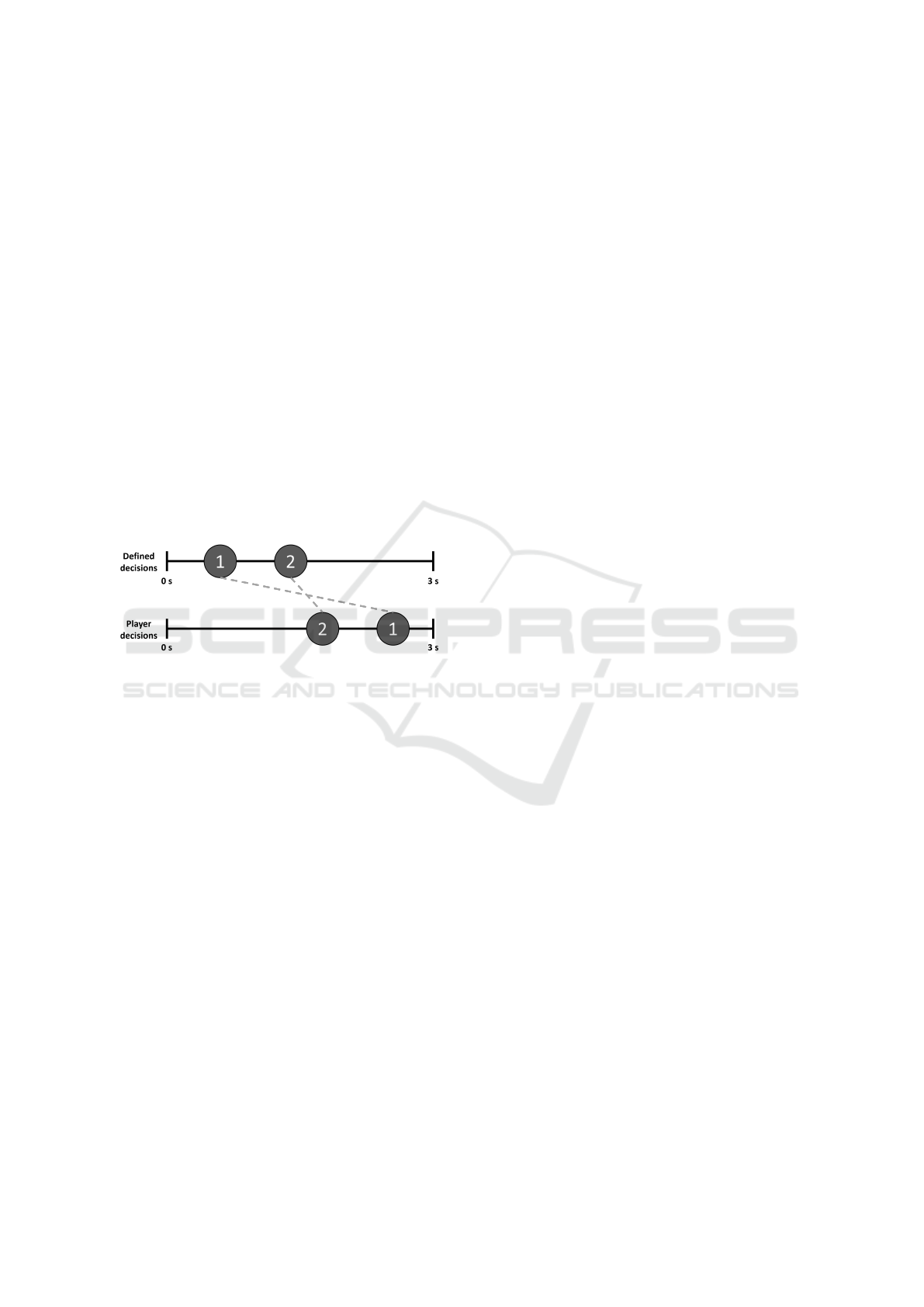

By illustrating the relations between deﬁned deci-

sions and player decisions on a time scale, a conﬂict

can be visually imagined by an intersection of con-

nections representing matchings. Figure 15 shows an

example posing a conﬂict between the matching M

1,2

and M

2,1

. Formally, two matchings M

and M

are

involved in a conﬂict, in case the conditions Equa-

tion 1 to Equation 5 are met. Where M

i j

represents

the matching of a deﬁned decision at index i in D

with a player decision at index j in P .

Figure 15: Conﬂict indicated by intersection of matchings.

As already considered by Equation 5 in the formal

deﬁnition of a conﬂict, a special case poses the situ-

ation in which multiple deﬁned decisions are closely

spaced within a speciﬁc period (i.e. within delta time

deﬁned as 0.3 seconds). For a consecutive sequence

of deﬁned decisions that is within delta time, the vio-

lation of the order does not cause a conﬂict. This ex-

ception was introduced as the insistence on the judg-

ment order in such cases might be too strict.

P[b].time − D[y].time < maxtime (1)

P[y].time − D[a].time < maxtime (2)

D[a].time < D[x].time (3)

P[b].time > D[y].time (4)

D[x].time − D[a].time > deltatime (5)

3. Conﬂict Resolution: To maintain the order of

decisions condition, identiﬁed conﬂicts in M need to

be removed. A conﬂict is resolved by inspecting the

matchings involved in the conﬂict and deciding which

one to keep and which one to refuse. Besides remov-

ing the refused matching from M , its deﬁned deci-

sion is added to the list of missed decisions D

and its

player decision to the list of unassignable decisions

. The process of conﬂict resolution is applied to all

conﬂicts until the matching list is conﬂict-free.

The criteria to decide which conﬂicting matching

to keep and which one to refuse is determined ac-

cording to the level of assumed obviousness of the

decisions involved in the matching. A deﬁned deci-

sion having a higher value is considered more obvi-

ous and thus more likely to be correctly spotted by

the player while assessing the video scene. For con-

ﬂicts involving deﬁned decisions of equal score val-

ues, the matching involving an earlier deﬁned deci-

sion is kept. Equation 6 and Equation 7 showcase the

hierarchy of priorities for kickboxing disciplines and

karate kumite respectively. While the numbers in the

expressions correspond to the score values of a de-

ﬁned decisions, C1 (category 1), C2 (category 2), and

Warning/Exit represent penalty classes of the respec-

tive sport.

3 > Warning/Exit > 2 > 1 (6)

3 > C2 > C1 > 2 > 1 (7)

4. Outcome: The main outcome of the matching

algorithm is the set of matched decisions M , where

each player decision is correlated to a deﬁned deci-

sion, according to the deﬁned time and order mainte-

nance constraints. In addition, the sets of missed de-

cisions D

and unassignable decisions P

is emerging

from this algorithm. While all decisions in D

and P

have no reaction time and are incorrect by default, the

elements in M contain information about their cor-

rectness and reaction time.

3.8 Proposed Effectiveness Evaluation

The serious game is proposed to be scrutinized in

terms of efﬁcacy and motivation. To achieve this, a

two-tiered approach consisting of a ﬁeld experiment

and a questionnaire is suggested.

3.8.1 Performance Evaluation

To evaluate the effectiveness of the serious game with

regard to its ability to improve the decision-making

processes of martial arts referees, the conduction of a

icSPORTS 2022 - 10th International Conference on Sport Sciences Research and Technology Support

ﬁeld experiment in form of a pretest-posttest control

group design (Crano et al., 2014) is proposed. To test

the development of the training effects over time, a re-

tention test conducted three weeks after the interven-

tion is suggested. To allow participants to familiarize

themselves with the mechanics of the serious game, a

short familiarization phase for both the control and in-

tervention group before the conduction of the pre-test

is recommended.

The recommendations of All et al. (2021) con-

cerning group assignment and test design should be

considered in order to increase internal validity and

avoid pre-test effects. Accordingly, the assignment

of participants into intervention and control groups

should be performed by blocked randomization with

respect to experience. Pre-, post-, and retention tests

should be created in parallel versions, whereas the

comparability is enabled by the same average difﬁ-

culty of the tests. The average difﬁculty is determined

by expert referees, not participating in the experiment,

based on the rating of each video scene on a ﬁve-point

scale covering values from very low to very high.

All phases of the ﬁeld experiment can be exclu-

sively performed in the serious game by compiling

separate playlists. While pre-, post- and retention-

tests are performed without feedback (i.e. playlist

mode Exam), the intervention period is proposed to be

conducted with immediate, non-repetitive feedback

(i.e. playlist mode Lab). It is proposed to perform

all phases of the experiment on a 10-inch tablet with

a touch screen.

3.8.2 Motivation Evaluation

The quality of a serious game is also determined

by its ability to intrinsically motivate players as a

prerequisite to achieve the desired learning outcome

(All et al., 2014). Therefore, the conduction of a

post-experimental questionnaire is proposed by utiliz-

ing questions from the Intrinsic Motivation Inventory

scale

3.9 Summary of Outcomes

The presented training platform comprises a serious

game module to train referees’ decision-making skills

as well as a content and administration module to pre-

pare and organize training sessions. After providing

a method to precisely capture the player decisions in

accordance with the progress of the streaming video,

a procedure to determine the accuracy and reaction

time of decisions was introduced. To evaluate the ef-

https://selfdeterminationtheory.org/

intrinsic-motivation-inventory/

fectiveness of the serious game in future studies, an

evaluation setup was proposed by taking both perfor-

mance and motivational aspects into account.

3.10 Limitations

The video scenes used in the serious game only partly

reﬂect the constraints occurring in real-life competi-

tions such as perspective, crowd noise, and sources of

stress. The utilization of ﬁrst-person videos or the ap-

plication of virtual reality might contribute to a more

representative training approach leading to a higher

ecological validity by better incorporating perceptual

information appearing in real-life competitions (Kit-

tel et al., 2021).

The serious game relies on a sufﬁciently high in-

ternet bandwidth to stream the video scenes to be

judged. Deviating internet quality might affect the

rendering of videos and thus decrease the compara-

bility of performance data among referees.

4 CONCLUSION

As evidenced by referee training programs in other

sports (Schweizer et al., 2011; Mascarenhas et al.,

2005; Larkin et al., 2018), the complementary ap-

plication of a video-based training approach has the

potential to accumulate practical experience, which

would hardly be possible by solely participating in

competitive events. By designing a novel train-

ing platform for martial arts refereeing according to

conclusions from theoretically grounded frameworks,

training with the serious game is expected to have

the potential to improve the intuitive decision-making

processes of martial arts referees in terms of deci-

sion accuracy and reaction time. Future studies need

to be conducted to evaluate the acceptance, effec-

tiveness, and ability to transfer the gained decision-

making skills to real-world competitions.

Apart from its application in scientiﬁc studies, the

serious game might be used to complement classical

educational settings. Due to the integrated adminis-

trative functionality to deﬁne video scenes and make

them available for certain users, training supervisors

can selectively tailor the training content and provide

the serious game as a practical intervention in sem-

inars and referee education. Especially in pandemic

times, the possibility of practically training decision-

making skills locally independent might be beneﬁcial.

Development of a Serious Game to Improve Decision-making Skills of Martial Arts Referees

REFERENCES

Adams, W. C. (2015). Conducting Semi-Structured Inter-

views. In Handbook of Practical Program Evaluation,

pages 492–505. John Wiley & Sons, Ltd.

All, A., Castellar, E. N. P., and Looy, J. V. (2021). Digi-

tal Game-Based Learning effectiveness assessment: Re-

ﬂections on study design. Computers & Education,

167:104160.

All, A., Nunez Castellar, E. P., and Van Looy, J. (2014).

Measuring Effectiveness in Digital Game-Based Learn-

ing: A Methodological Review. International Journal of

Serious Games, 1(2):3–20.

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah, R.,

Slominski, A., and Suter, P. (2017). Serverless Comput-

ing: Current Trends and Open Problems. In Research

Advances in Cloud Computing, pages 1–20. Springer.

Bless, H., Fiedler, K., and Strack, F. (2004). Social cogni-

tion: How individuals construct social reality. Psychol-

ogy Press. Pages: xi, 235.

Brand, R., Plessner, H., and Schweizer, G. (2009). Concep-

tual considerations about the development of a decision-

making training method for expert soccer referees. In

Perspectives on cognition and action in sport, pages S.

181–190. Hauppauge, NY: Nova Science.

Brunswik, E. (1952). The conceptual framework of psychol-

ogy. Univ. Chicago Press.

Carlsson, T., Berglez, J., Koivisto Persson, S., and Carls-

son, M. (2020). The impact of video review in karate ku-

mite during a Premier League competition. International

Journal of Performance Analysis in Sport, 20(5):846–

856.

Crano, W. D., Brewer, M. B., and Lac, A. (2014). Designing

Experiments - Variations on Basics. In Principles and

methods of social research, pages 83–100. Routledge.

Section: 5.

Ericsson, K. A., Krampe, R. T., and Tesch-R

omer, C.

(1993). The role of deliberate practice in the acqui-

sition of expert performance. Psychological Review,

100(3):363–406.

Floyd, C. (1984). A Systematic Look at Prototyping.

In Budde, R., Kuhlenkamp, K., Mathiassen, L., and

ullighoven, H., editors, Approaches to Prototyping,

pages 1–18. Springer Berlin Heidelberg.

Hogarth, R. M. (2008). On the learning of intuition. In

Intuition in judgment and decision making., pages 91–

105. Lawrence Erlbaum Associates Publishers.

Jamil, M. A., Arif, M., Abubakar, N. S. A., and Ahmad,

A. (2016). Software Testing Techniques: A Literature

Review. In 2016 6th International Conference on Infor-

mation and Communication Technology for The Muslim

World (ICT4M), pages 177–182. IEEE.

Kittel, A., Cunningham, I., Larkin, P., Hawkey, M., and

Rix-Li

evre, G. (2021). Decision-making training in

sporting ofﬁcials: Past, present and future. Psychology

of Sport and Exercise, 56:102003.

Larkin, P., Berry, J., Dawson, B., and Lay, B. (2011). Per-

ceptual and decision-making skills of Australian football

umpires. International Journal of Performance Analysis

in Sport, 11(3):427–437.

Larkin, P., Mesagno, C., Berry, J., Spittle, M., and Harvey,

J. (2018). Video-based training to improve perceptual-

cognitive decision-making performance of Australian

football umpires. Journal of sports sciences, 36(3):239–

246.

MacMahon, C., Helsen, W. F., Starkes, J. L., and Weston,

M. (2007). Decision-making skills and deliberate prac-

tice in elite association football referees. Journal of

Sports Sciences, 25(1):65–78.

MacMahon, C. and Strauß, B. (2014). The psychology of

decision making in sport ofﬁcals. In An introduction to

sport and exercise psychology, pages 223–235. London:

Routledge.

Mascarenhas, D., O’Hare, D., and Plessner, H. (2006). The

psychological and performance demands of association

football refereeing. International Journal of Sport Psy-

chology, 37:99–120.

Mascarenhas, D. R., Collins, D., Mortimer, P. W., and Mor-

ris, B. (2005). Training accurate and coherent decision

making in rugby union referees. The Sport Psychologist,

19(2):131–147.

Michael, D. R. and Chen, S. L. (2005). Serious games:

Games that educate, train, and inform. Muska &

Lipman/Premier-Trade.

Overdick, H. (2007). The Resource-Oriented Architecture.

In 2007 IEEE Congress on Services (Services 2007),

pages 340–347. IEEE.

Petersen, K. (2010). An Empirical Study of Lead-Times

in Incremental and Agile Software Development. In

New Modeling Concepts for Today’s Software Processes,

pages 345–356. Springer Berlin Heidelberg.

Plessner, H. and Haar, T. (2006). Sports performance judg-

ments from a social cognitive perspective. Psychology of

Sport and Exercise, 7(6):555–575.

Put, K., Wagemans, J., Spitz, J., Williams, A. M., and

Helsen, W. F. (2016). Using web-based training to en-

hance perceptual-cognitive skills in complex dynamic

offside events. Journal of Sports Sciences, 34(2):181–

189.

Qian, M. and Clark, K. R. (2016). Game-based Learn-

ing and 21st century skills: A review of recent research.

Computers in Human Behavior, 63:50–58.

Schweizer, G., Plessner, H., Kahlert, D., and Brand, R.

(2011). A video-based training method for improving

soccer referees’ intuitive decision-making skills. Jour-

nal of Applied Sport Psychology, 23(4):429–442.

Shahin, M., Ali Babar, M., and Zhu, L. (2017). Continu-

ous Integration, Delivery and Deployment: A Systematic

Review on Approaches, Tools, Challenges and Practices.

IEEE Access, 5:3909–3943.

Subramanian, V. (2019). Pro MERN Stack: Full Stack

Web App Development with Mongo, Express, React, and

Node. Apress.

Xia Cai, Lyu, M., Kam-Fai Wong, and Roy Ko

(2000). Component-based software engineering: tech-

nologies, development frameworks, and quality assur-

ance schemes. In Proceedings Seventh Asia-Paciﬁc Soft-

ware Engeering Conference. APSEC 2000, pages 372–

379. IEEE Comput. Soc.

icSPORTS 2022 - 10th International Conference on Sport Sciences Research and Technology Support
