Building Eurostat Knowledge Graph

Alexandros Vassiliades

1 a

, Nick Bassiliades

1 b

, Georgios Meditskos

1 c

and Kimon Spiliopoulos

School of Informatics, Aristotle University of Thessaloniki, Greece

Quantos Statistics and Information Systems, Athens, Greece

Keywords:

Ontology, Eurostat, OECD, Knowledge Graphs.

Abstract:

The evolution of Knowledge Graphs (KGs) has encouraged developers to create more and more context related

KGs. This advance is extremely important because Artiﬁcial Intelligence (AI) applications can access domain

speciﬁc information in a machine understandable format. In this paper, we present the conceptual model

and semantics of the OWL ontology developed to capture information about the Eurostat website. The KG

also contains some knowledge from the Organisation for Economic Co-operation and Development (OECD)

website. We also describe how we constructed the ontology schema in order to capture all the data in Eurostat

and some of the data in OECD, such as, articles, datasets, and internal connections between them, among

others. Moreover, we show how we populated the KG with an automated process, resulting into a KG with

more than 820K triples.

1 INTRODUCTION

The evolution of Knowledge Graphs (KGs) in the last

twenty years allowed developers to construct context

related KGs (i.e., KGs that can be used only in spe-

ciﬁc environments). The creation of context related

KGs seems to be the next step for allowing KGs to be-

come the main knowledge representation mechanism

for the Web. Our focus is on representing statistical

concepts through a high-level representation with sta-

tistical articles and statistical datasets, among others.

The idea of statistical KGs has been given great at-

tention recently and even generic techniques on how

to create a statistical KG were developed (Otte et al.,

2022; Smith et al., 2007; Capadisli et al., 2015).

The main idea of this paper is to build innovative

semantic approaches to improve data processing and

data services, for the information in the Eurostat web-

site

. The three main objectives which were pursued:

• Increasing the discoverability and accessibility of

data available for analytical purposes.

• Strengthening Eurostat position within the Com-

mission as a provider of statistical data and ser-

vices for its internal users.

https://orcid.org/0000-0003-4569-503X

https://orcid.org/0000-0001-6035-1038

https://orcid.org/0000-0003-4242-5245

https://ec.europa.eu/eurostat

• Improving the methods for extracting information

from unstructured data sources – especially data

available on the web.

To realise the above, data processing and discov-

ery services need to be further developed. In the cur-

rent scenario, Eurostat publishes its (open) statisti-

cal datasets on its own portal, along with descriptive

metadata, which enable users to access and consult

data, but also understand the content and the mean-

ing of the data, the expected quality, the formats, the

data collection method etc. To further support users

when accessing and taking beneﬁt of these data – in

other words: searching, discovering, combining and

analysing – the deployment of advanced data services,

including faceted search, guided query builders, as

well as services for data exploration and visual data

browsing, needs to be deployed. The aforementioned

objectives are part of the NLP4Stat project

which is

an attempt to translate the information in the Euro-

stat website, into a Linked Open Data counterpart and

demonstrate the advantages of doing so.

The problem we are addressing in this paper is

how information from websites can be translated into

a KG. We rise the question if a generic method could

be developed for this purpose. We also support that

we have reached a point where, information from very

big websites as the one of Eurostat or Organisation for

https://github.com/eurostat/NLP4Stat

128

Vassiliades, A., Bassiliades, N., Meditskos, G. and Spiliopoulos, K.

Building Eurostat Knowledge Graph.

DOI: 10.5220/0011527100003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 128-135

ISBN: 978-989-758-614-9; ISSN: 2184-3228

Economic Co-operation and Development (OECD)

can henceforth be translated into KGs.

In this paper we present the Eurostat KG, which

constitutes one of the most complete and large KGs

(i.e. in regards to quantity of triples), for represent-

ing statistical concepts through a high-level represen-

tation with statistical articles and statistical datasets.

More speciﬁcally, the Eurostat KG contains most

of the information from the Eurostat website and

some information from the OECD website, informa-

tion about articles, datasets, interconnections between

them, relations with external sources, and information

for various classiﬁcations for the articles and datasets,

among others. Therefore, we show how we developed

the schema of the KG, and how we captured the data

that we used to infer the schema. At this moment the

KG contains approximately 820K triples.

The main contributions of this paper are: (i) the

Eurostat KG which is one of the biggest, in regards to

quantity of triples, and complete KGs for the domain

of representing statistical concepts through a high-

level representation with statistical articles and statis-

tical datasets, and (ii) an integration mechanism that

takes the information from the Eurostat and OECD

website (after the data has been scraped), and popu-

lates the KG. For better understanding of the impor-

tance of the Eurostat KG, we demonstrate a use case

in which we can present how the information from the

KG can assist a user in a real-life scenario.

The rest of this paper is organized as follows. In

Section 2, we present related work on similar KGs.

Next, in Section 3 we describe the data we used to

extract the conceptual schema of the ontology and

to populate the respective KG, we present the ontol-

ogy schema, how it was populated, and in the end we

present a use case scenario. We conclude the paper,

with Section 4, where we give a discussion over the

results and some future work directions.

2 RELATED WORK

In this section we present some KGs in the area of

statistics, which can be considered close to our work.

The Statistical Data and Metadata eXchange

(SDMX) (Sembiring and Uluwiyah, 2015), can be

considered as the closest relative to our study. SDMX

aims at standardising and modernising the mecha-

nisms and processes for the exchange of statistical

data and metadata among international organisations

and their member countries. Basically, SDMX offers

a new standard format in the data dissemination activ-

https://www.oecd.org/

ities particularly in the exchange of statistical data and

metadata though the Web. The main difference is that

SDMX is an information exchange protocol for sta-

tistical data, while our Eurostat KG is maybe one of

the most complete KGs which contain concepts and

knowledge about statistics. Similar is the Core Ontol-

ogy for Ofﬁcial Statistics

(COOS), as its main pur-

pose is to serve as an integration model for the core set

of ModernStats (Franck et al., 2018) standards backed

by elements of well-known standard vocabularies.

STATO

is a general-purpose statistics KG. Its

aim is to provide coverage for processes such as sta-

tistical tests, their conditions of application, and infor-

mation needed or resulting from statistical methods,

such as probability distributions, variables, spread and

variation metrics. STATO also covers aspects of ex-

perimental design and description of plots and graph-

ical representations commonly used to provide visual

cues of data distribution or layout and to assist review

of the results. The difference with our Eurostat KG, is

that we offer more knowledge, apart from information

for statistical articles and dataset which contain the in-

formation refered in STATO. Moreover, we offer vari-

ous classiﬁcations for the articles and the datasets, and

connections between articles and articles with dataset,

that could reveal information for the statistical meth-

ods that was not captured in the ﬁrst place.

STATO has been developed to interoperate with

other Open Biological and Biomedical Ontologies

(OBO) Foundry ontologies (Smith et al., 2007), hence

relies on the Basic Formal Ontology (BFO) (Arp

et al., 2015) as a top level KG and uses the Ontol-

ogy for Biomedical Investigations (OBI) as a mid-

level KG (Bandrowski et al., 2016). Therefore, an-

other group of KGs that can be considered in the area

of statistical KGs, are the OBI ontology and the On-

tology of Biological and Clinical Statistics (OBCS)

(Zheng et al., 2014). These KGs contain some statis-

tical concepts for the clinical domain. It is clear that

we do not offer the same information with the afore-

mentioned KGs, as we offer a KG that represents sta-

tistical concepts through a high-level representation

with statistical articles and statistical datasets.

3 EUROSTAT KNOWLEDGE

GRAPH

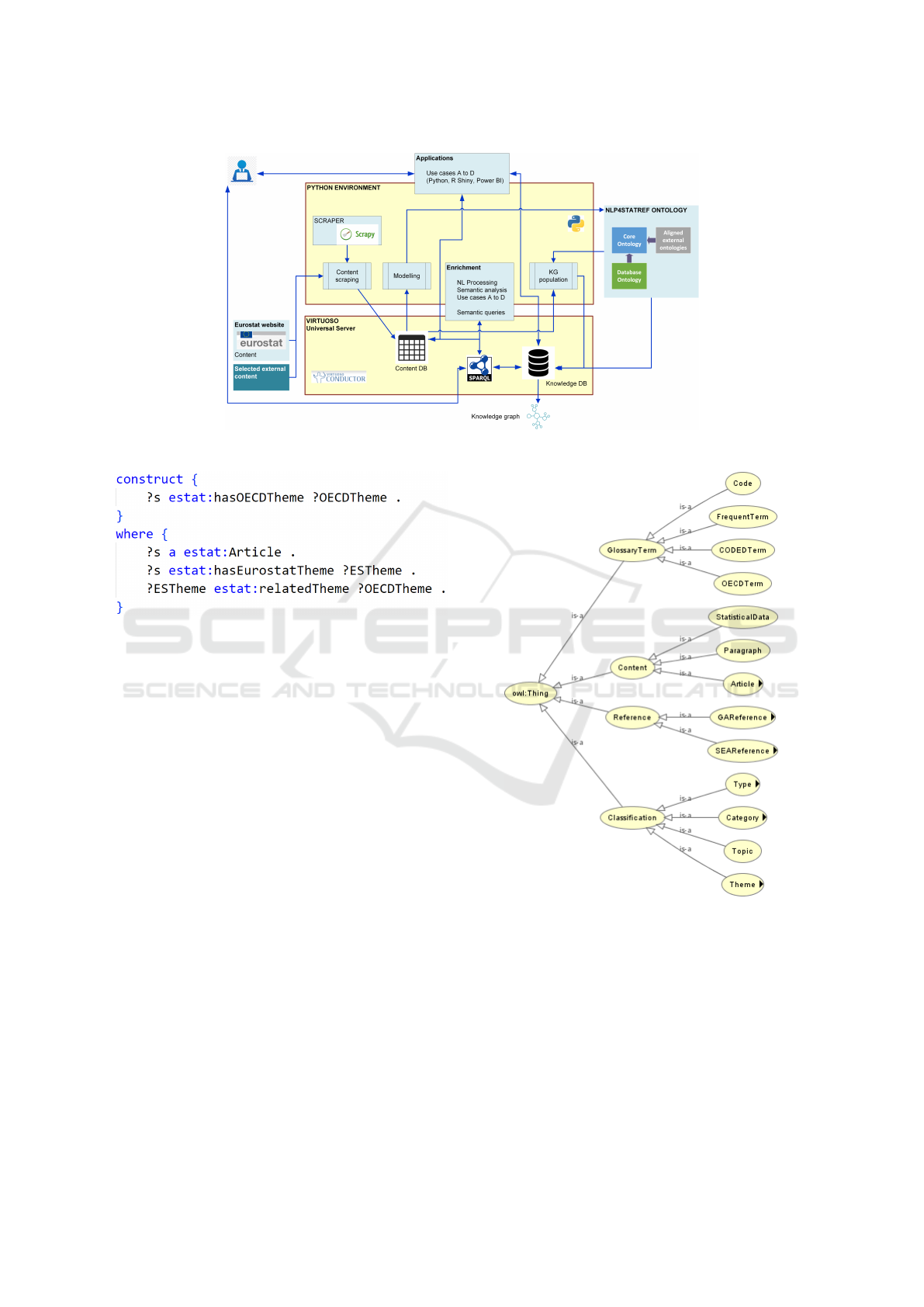

Figure 1, displays an overview of the architecture as

well as the ﬂowchart of the information among its

parts. The architecture for building the KG consists

https://linked-statistics.github.io/COOS/coos.html

http://stato-ontology.org/

Building Eurostat Knowledge Graph

129

of three parts: the Virtuoso OpenLink Server (OS)

that hosts the content (relational) database and the

knowledge database (knowledge graph), a set of KG-

exploiting applications and the Python environment

where all the scripts for scraping information from

the Eurostat and external websites and transforming

relational content to a knowledge graph are executed.

The Python environment is used to extract, ma-

nipulate and store the data, using a connection to the

Virtuoso database. Connecting and querying from

Python to Virtuoso is done at different stages: (i) to

interact with the Content database, from the scraper

or the use case applications, (ii) to communicate with

the Eurostat KG, when populating it from the Content

database or when the Eurostat KG is augmented by

the enrichment mechanisms.

Figure 1 exhibits the information and functional-

ity workﬂow. Content from the Eurostat and external

websites (e.g. OECD) is scraped using Scrapy within

Python scripts, and the result of the scraping popu-

lates the Content database, which is a relational one.

The Eurostat KG is then populated by extracting data

from the relational tables, using SQL, and creating

RDF triples, according to the Eurostat ontology. The

content and knowledge DBs are enriched (beyond the

scraped content) using various mechanisms. Most of

them are inspired by the Use Cases (Section 3.5) and

involve various NLP and statistical methods. Further-

more, the KG has been enriched via some SPARQL

CONSTRUCT queries that interconnect articles with

Eurostat and OECD themes (see Figure 2). Finally,

the user interacts with the KG either via applications

build on top, using Python or other environments, or

directly via the SPARQL endpoint

3.1 Inventory of Eurostat Knowledge

and Information Resources

The data was scraped from the Eurostat

and OECD

sites and are stored into the (private) content DB,

which contains 66 different tables, with information

about categorizations, topics, terminology, named en-

tities (i.e., words that refer to real life entities), links

between, glossaries, and information about statistical

articles and datasets, among others.

The most important information exists in the ar-

ticles and datasets that exist in the SQL database.

The data about the articles which was scraped from

the Eurostat website was separated into two big cate-

gories, the ﬁrst one is called Statistics Explained Ar-

ticles and the second one Glossary Articles.

• Statistics Explained Articles are ofﬁcial Eurostat

http://lod.csd.auth.gr:8890/conductor/

articles, presented in the Eurostat website contain-

ing statistical topics in an easily understandable

way. Together, the articles make up an encyclo-

pedia of European statistics for everyone, com-

pleted by a statistical glossary clarifying all terms

used and by numerous links to further information

and the latest data and metadata, a portal for occa-

sional and regular users. An example of such an

article related to agriculture can be found here

• Glossary Articles cover all statistical and general

terms in Statistics Explained in need of a deﬁni-

tion or explanation. Because it is quite large, it

may be easier to consult instead one of the focused

thematic glossaries from the clickable overview

below; they are organised according to statistical

themes, preceded by a list of abbreviations and

further supplemented by special-topic glossaries.

An example of such an article related to social

protection can be found here

Currently there are 892 Statistics Explained Ar-

ticles and 1314 Glossary Articles. For each one of

them the content DB contains their title, abstract, and

paragraphs. Moreover, it contains references between

them. For instance, an article for agriculture will

point to other similar articles that are related to agri-

culture, either glossary or statistics explained articles.

The content DB also contains information about

the datasets, such as, information about the taxon-

omy, the titles, and the url that points to the data of

the dataset. An example of a dataset related to con-

sumers - monthly data can be found here

3.2 Inside Eurostat Knowledge Graph

In this subsection we will analyze in detail the pur-

pose of each class and property in the KG. Currently,

there are 1856 classes where the 1811 classes rep-

resent datasets, 37 properties - either object type or

data type properties, 307419 explicit and 827395 im-

plicit triples. The source ﬁles of the KG can be found

here

. In Figure 3, we can see the upper part of the

ontology scheme. Notice that when we constructed

the schema of the KG, ontology engineering meth-

ods where considered (Iqbal et al., 2013; Kendall and

McGuinness, 2019). One can notice that there are 4

https://ec.europa.eu/eurostat/statistics-explained/

index.php?title=Performance of the agricultural sector

https://ec.europa.eu/eurostat/statistics-explained/

index.php?title=Glossary:Social protection

https://ec.europa.eu/eurostat/estat-navtree-

portlet-prod/BulkDownloadListing?sort=1&ﬁle=data

%2Fei bsco m.tsv.gz

https://github.com/eurostat/NLP4Stat

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

130

Figure 1: Overview of the method to create the Eurostat KG.

Figure 2: An example of a SPARQL CONSTRUCT query

that interconnects articles with Eurostat and OECD themes.

main classes in the ontology scheme, the Glossary-

Term class, the Content class, the Reference class, and

the Classiﬁcation class. The namespaces chosen for

this ontology are:

• estat: for the Eurostat ontology entities (i.e.,

classes and properties).

• estatdata: for the instances of the ontology that

were extracted from the Eurostat website.

• oecd: for the instances of the ontology that were

extracted from the OECD website.

The GlossaryTerm class refers to the various glos-

saries that exist in the Eurostat and OECD websites.

This class has the subclasses:

(i) The class FrequentTerm which contains all the

frequent terms that exist in Eurostat and OECD

articles, discovered during the topic modelling en-

richment task.

(ii) The class CODEDTerm which contains informa-

tion for the Eurostat terms, i.e. it contains infor-

mation about their title, abstract, content, url, in-

terconnection with other terms, the date they were

created and/or updated, and their related theme

(themes is a classiﬁcation scheme of Eurostat).

Figure 3: Upper part of the ontology scheme.

(iii) The class OECDTerm which contains information

for the OECD terms, i.e. information about their

title, abstract, content, url, interconnection with

other terms, date they were created and/or up-

dated, and related theme (themes is a classiﬁca-

tion of OECD). Notice that in both cases terms

are descriptions of some statistical concepts.

(iv) The class Code contains information about the

codes given to the datasets (i.e., unique ids).

Building Eurostat Knowledge Graph

131

GlossaryTerm instances are connected to each

other through the property relatedTerm, mostly due to

their common theme(s). Moreover, the other classes

are connected though the property hasGlossaryTerm

with the class GlossaryTerm, which is a super-

property with sub-properties hasCode, hasCOD-

EDTerm, hasOECDTerm, and hasFrequentTerm.

Terms are descriptions of some statistical con-

cepts. Themes are a classiﬁcation that characterizes

the articles, given by Eurostat. Moreover, OECD

themes are related with Eurostat themes, which cre-

ates a linking between OECD and Eurostat articles.

Codes are the unique identity codes that Eurostat

gives to its datasets. Frequent terms are words that

refer to named entities (i.e., words that refer to real-

life entities, such as locations, persons, etc.).

In Figure 4, one can see a more detailed analysis

of the class Reference. The class Reference is further

analyzed to the classes SEAReference which are the

references related to Statistics Explained Articles, and

the class GARerefence which are the reference related

to the Glossary Articles. Each reference can be either

an internal reference, which means that it can point to

another article or dataset inside Eurostat or OECD, or

external which means that it can point to an external

source, for example Wikipedia

. The leaf classes that

we can see both for SEAReference and GARerefence

are a classiﬁcation of the type of reference given by

Eurostat, based on the type of the source that the ref-

erence points to. For example, the Legislation sub-

class of SEARerefence refers to external or internal

links that contain legal information.

We provide two examples with an external (Figure

5) and an internal (Figure 6) reference for an Statistics

Explained Article to ease the understanding of these

type of reference. More speciﬁcally, Figure 5 shows

how an article from the Eurostat website, is related

through a reference with an external URL (i.e., a URL

that is not part of the Eurostat website). On the other

hand, Figure 6 shows how an article from the Eurostat

website, is related through a reference with another

article from Eurostat website. Notice the example is

generic and no speciﬁc ids are given to the instances.

Figure 8 depicts a detailed analysis of the class

Content. The Content class is one of the most im-

portant classes of the ontology as it represents knowl-

edge about the Statistics Explained and Glossary Ar-

ticles. Additionally, it represents knowledge about the

datasets. For the articles, we represented their titles,

their abstract, their content, their url in the Eurostat

website, their internal or external relations, and the

dates that they were created and updated. For the

Statistics Explained Articles we have also represented

https://en.wikipedia.org/wiki/Main Page

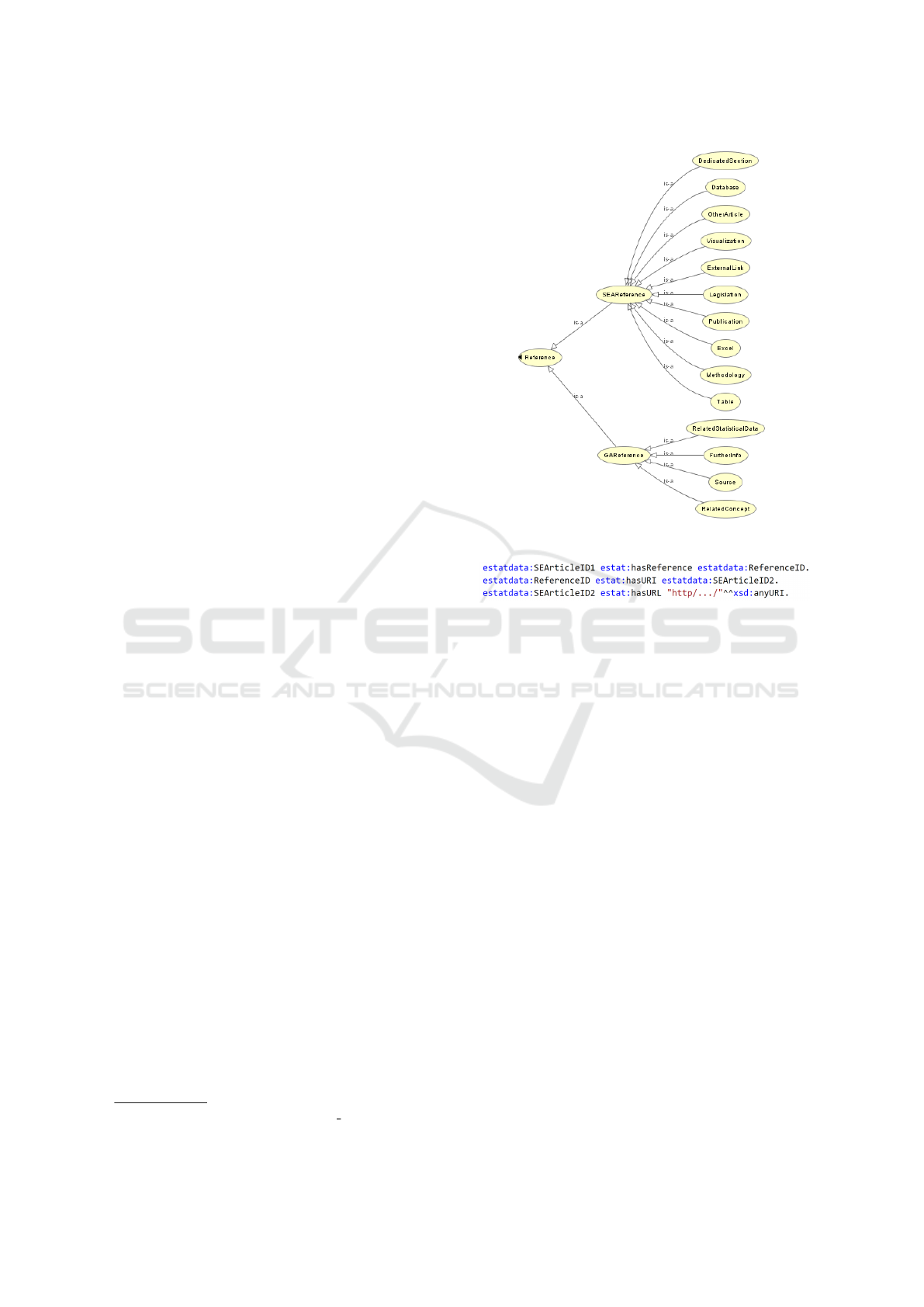

Figure 4: Analysis of the Reference class.

Figure 5: Format for external reference.

the knowledge that exists for their paragraphs, and if

the article are considered by Eurostat as a background

article or not. Background articles is a classiﬁcation

that Eurostat gives to its Statistics Explained Articles

considering their importance (i.e., the quality of in-

formation they contain). On the other hand, for the

datasets we created a taxonomy where the leaf nodes

are the datasets, and the intermediate are categories

that Eurostat has asserted to its datasets. Figure 7,

shows part of the datasets taxonomy.

Apart from the taxonomy the datasets have infor-

mation about their title, their description, their code

(a unique id that Eurostat gives to each dataset), and

their url in the Eurostat website.

Finally, Figure 9 shows the detailed analysis of the

class Classiﬁcation. The Classiﬁcation class, mostly

contains information about the various classiﬁcations

that Eurostat assigns to its entities. For instance, the

class Category represents information about the cate-

gorization that Eurostat assigns to its articles. Similar

is the class Topic which represents information about

the topics that the articles have. The class Type has

information about the type of information that an ar-

ticle contains. For example, if is lexical or not (i.e.,

it contains text or some equations). The class Theme

represents information about the Eurostat and OECD

themes. The themes are also a classiﬁcation that char-

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

132

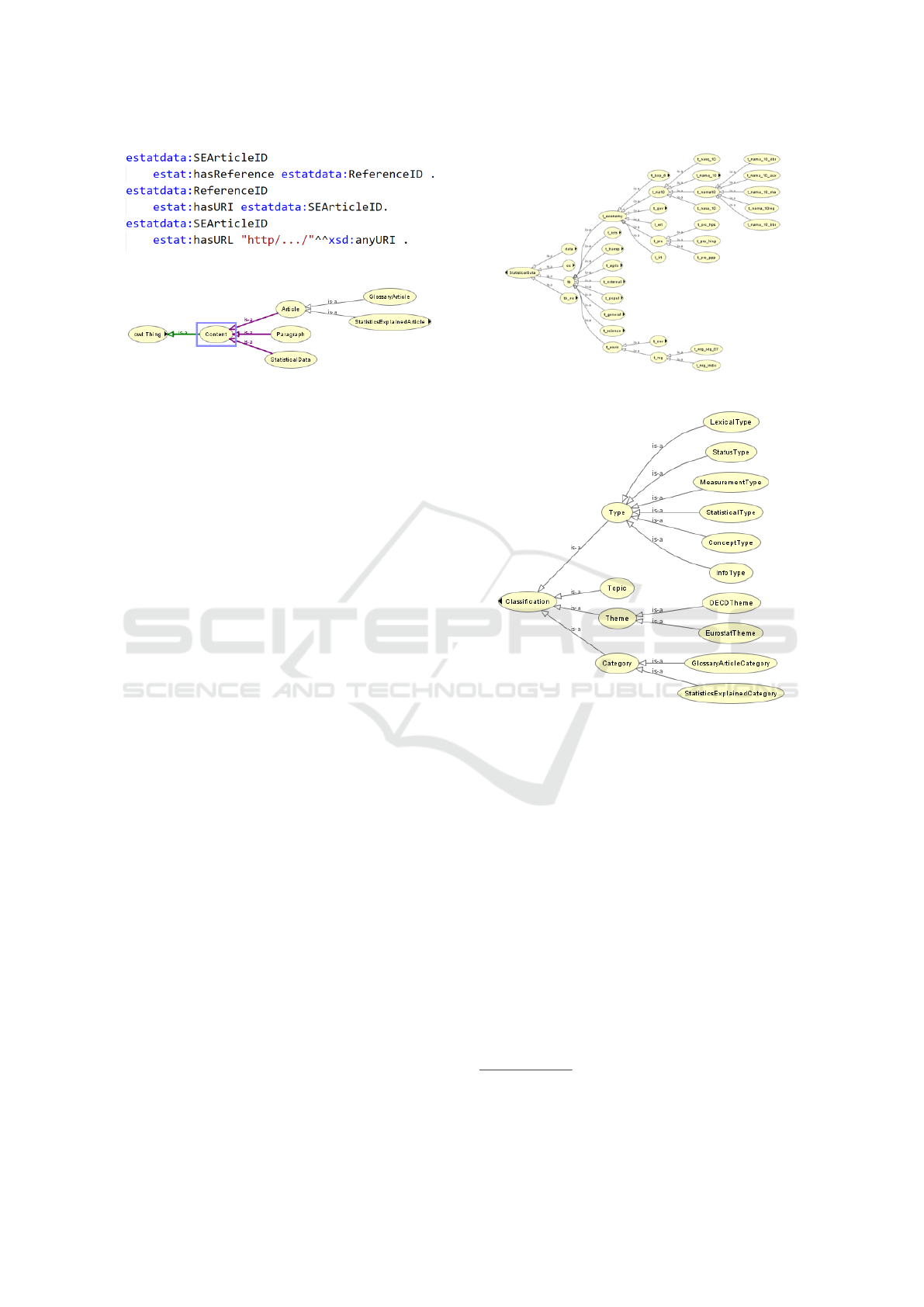

Figure 6: Format for internal reference.

Figure 7: Analysis of the Content class.

acterizes the articles, the only difference is that the

themes of OECD are related with themes from Euro-

stat, this is achieved with the property relatedTheme.

The Classiﬁcation class is connected with other

classes through property hasClassiﬁcation which has

the following sub-properties hasCategory (this prop-

erty also has sub-properties the hasCategoryOfGlos-

saryArticle and hasCategoryOfStatisticExplainedAr-

ticle), hasTheme (this property also has a sub-

property hasOECDTheme), hasTopic, and hasType.

3.3 Populating Eurostat

The population of the KG was performed after

the construction of the ontology schema, and in-

tegrates all the information from the SQL knowl-

edge database, that is associated with the classes pre-

sented in Subsection 3.2, into the KG. The integration

was performed with 4 Python scripts we have devel-

oped that map the information from SQL knowledge

database to the KG (i.e., it translates the information

existing in the relational tables into RDF).

The ﬁrst script, inserts knowledge about the Statis-

tic Explained and Glossary Articles. Next, the second

script inserts knowledge about the glossaries of Euro-

stat and OECD, and the references of the articles. The

third script inserts knowledge about OECD. Finally,

the fourth script inserts knowledge about the terms,

topics and the classiﬁcations that enriched the knowl-

edge graph via semantic analysis and natural language

processing techniques, such as Topic Modeling using

LDA. The result is a KG with 307419 explicit and

827395 implicit triples that were inferred based on

RDFS Plus semantics.

3.4 Alignment with External Ontologies

The Eurostat ontology is aligned with various popular

external vocabularies to provide interoperability with

Figure 8: Part of the datasets taxonomy.

Figure 9: Analysis of the Classiﬁcation class.

other knowledge graphs and ontologies. The align-

ment is in the form of mappings axiomatized using

the predicates rdfs:subClassOf, rdfs:subPropertyOf,

owl:equivalentClass, owl:equivalentProperty, and

skos:closeMatch. The external vocabularies are:

(i) Data Catalog Vocabulary (DCAT)

, (ii) Simple

Knowledge Organization System (SKOS) (Isaac and

Summers, 2009), (iii) DCMI Metadata Terms

, (iv)

Schema.org (Guha et al., 2016), (v) FOAF Vocabu-

lary (FOAF) (Amith et al., 2020), and (vi) RDF Data

Cube Vocabulary (Cyganiak et al., 2014).

3.5 Use Case

The Eurostat KG was constructed as part of the

NLP4StatRef project of Eurostat. The NLP4StatRef

project, was established to capture four major Use

Cases (A - D). Due to space restrictions we concen-

dcat:http://www.w3.org/ns/dcat

https://www.ndl.go.jp/jp/dlib/standards/translation/

dcmi-terms.htm

Building Eurostat Knowledge Graph

133

trate only to Use Case A in detail. Use Case A tries

users experience to interact, interconnect, and re-use

the content and data existing in the Eurostat website,

through a variety of services including faceted search,

guided query builders, as well as services for data ex-

ploration and visual data browsing.

Query Builder: This is a semantic extension search

tool in which the extraction of the information is done

from the titles, contents and annotations of the Euro-

stat articles. The GUI features auto-completion, con-

cepts suggestion, resource type selection (eg., SE ar-

ticle, SE Glossary article, related articles) and also

a term understood in an expression. The aim of the

tool is to propose to the user related concepts to the

one they are enquiring. Based on this knowledge, we

suggest polysemous meanings, more generic or more

speciﬁc concepts, and/or related concepts following a

selection of relations. In this way, this tool goes fur-

ther than what the search bar of the Eurostat website

does currently. Below we show how the search results

enhance with the use of the Eurostat KG.

• We load the SE Glossary articles data from the

knowledge database, in particular, IDs, titles deﬁ-

nitions and URLs.

• Similarly, we load the required information from

the SE articles, i.e. IDs, titles and URLs, para-

graph titles and paragraph contents.

• The result is a list of named texts with as many

elements as the texts processed (4292 in the latest

run). The elements are themselves lists containing

the stemmed terms in each text, the original terms

and the URLs where the terms were found.

• The next step is to create three dictionaries, cor-

responding to 2-, 3- and 4-grams. The keys in

n-grams are (n-1) tuples of stemmed tokens. For

each key in a dictionary, the value is another

(nested) dictionary with the original terms, their

counts and the relevant URLs. In the end, the

counts are used to calculate probabilities. The

example in Figure 10 shows the three values in

the key ‘collect’, ‘european’,’statist’ in the 4-gram

dictionary, corresponding to the continuations:

‘accidents’, ‘system’ and income’, with probabil-

ities 0.714, 0.143 and 0.143, respectively.

Figure 10: Query Builder search results without the use of

Eurostat KG.

Our tool receives input directly from the KG with

SPARQL queries. It accepts content from both SE ar-

ticles and SE Glossary articles and returns very rich

’suggestions’, based on n-grams and special dictio-

naries. The use of SPARQL queries over the KG in-

stead of SQL queries over the relational content DB

offered signiﬁcant (over 75%) performance improve-

ment over the query execution time (see Figure 11).

Figure 11: Query Builder search results using Eurostat KG.

Faceted Search: This tool provides options to the

user to search along conceptual dimensions / slices

of the results. The current faceted search tool of the

Eurostat’s web site allows only to search for three

facets, namely Themes, Collections and publication

year. Our tool extends the above facets along hier-

archies, such as the alignment of the themes / sub-

themes taxonomy with the categories tagging. Also,

it provides more facets, such as continent - countries,

content types, and organisations (e.g. OECD). In the

SQL version of the tool only related Statistics Ex-

plained articles were shown, whereas using the KG

and SPARQL queries we were able to group the re-

sources which are related to the results (SE articles)

in SE articles, Glossary articles, Publications, Legis-

lation and Others.

The user interface elements are shown in the fol-

lowing Figure 12. These elements are linked by inter-

actions so that the options available reﬂect the current

selections. The output is a list of the ﬁltered articles,

optionally together with the related articles and links.

The example below shows only the ﬁrst SE article

found, together with its related data assets, in groups.

Figure 12: Faceted Search results using Eurostat KG.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

134

4 DISCUSSION

KGs allow the representation of information from

websites into a machine understandable format and,

consequently, the exploitation of semantics, i.e., rela-

tions that connect entities in the KG with methods that

are closer to human thinking. The exploitation of se-

mantics can give great aid to question-answering sys-

tems, or to data-driven models trained on them. Also,

the translation of data into KGs automatically allows

the interconnection and re-usability of the translated

data. This is a great advantage, especially in the do-

main related KGs, as many systems can access and

use the data which are in the cloud of KGs.

In this paper we presented the Eurostat KG that

contains most of the information from the Eurostat

and OECD websites, such as information about arti-

cles and datasets, interconnections between them and

external sources, and information for various classi-

ﬁcations for the articles and datasets, among others.

We described how we developed the schema of the

ontology, how we captured the data that we used to

infer the schema, and how we populated the KG with

the aforementioned information.

The creation of the Eurostat KG offers the fol-

lowing: (i) Increases the discoverability and acces-

sibility of data available for analytical purposes, (ii)

Strengthens Eurostat position within the Commission

as a provider of statistical data and services for its in-

ternal users, and (iii) Improves the methods for ex-

tracting information from unstructured data sources –

especially data available on the web.

As for future work, we plan to create a visu-

alization mechanism that will project pieces of the

KG. Moreover, we will link the KG with more ex-

ternal knowledge, for instance from DBpedia and/or

ConceptNet, and furthermore with other knowledge

graphs e.g. from the EU Open Data portal

or to

extend the current KG with more knowledge coming

from related statistical agencies in Europe or world-

wide, the Euro SDMX Registry

or the RAMON

Metadata Server

ACKNOWLEDGEMENT

The NLP4StatRef project was funded from Eurostat

Framework Contract N° 2018.0088, Lot 1: Method-

ological support, in Speciﬁc contract N° 000068 -

NLP4StatRef: “Methodological support on advanced

https://data.europa.eu/en

https://webgate.ec.europa.eu/sdmxregistry/

https://ec.europa.eu/eurostat/ramon

methods for accessing, ingesting and linking textual

information using semantic analysis and natural lan-

guage processing”. We are grateful for the help and

feedback provided by the European Commission’s of-

ﬁcers responsible for the project: M

aty

as M

esz

aros

(Eurostat), Jacopo Grazini (DG DIGIT), Jean-Marc

Museux (Eurostat) and Martin Karlberg (Eurostat).

REFERENCES

Amith, M., Fujimoto, K., Mauldin, R., and Tao, C.

(2020). Friend of a friend with beneﬁts ontology

(foaf+): extending a social network ontology for pub-

lic health. BMC Medical Informatics and Decision

Making, 20(10):1–14.

Arp, R., Smith, B., and Spear, A. D. (2015). Building on-

tologies with basic formal ontology. Mit Press.

Bandrowski, A. et al. (2016). The ontology for biomedical

investigations. PloS one, 11(4):e0154556.

Capadisli, S., Auer, S., and Ngonga Ngomo, A.-C. (2015).

Linked sdmx data. Semantic Web, 6(2):105–112.

Cyganiak, R., Reynolds, D., and Tennison, J. (2014). The

rdf data cube vocabulary.

Franck, C., Manuel, S., Mauro, B., Francesco, A., and

Giuseppina, R. (2018). Modernstats standards sup-

porting the implementation and sharing of statistical

services.

Guha, R. V., Brickley, D., and Macbeth, S. (2016). Schema.

org: evolution of structured data on the web. Commu-

nications of the ACM, 59(2):44–51.

Iqbal, R. et al. (2013). An analysis of ontology engineering

methodologies: A literature review. Research jour-

nal of applied sciences, engineering and technology,

6(16):2993–3000.

Isaac, A. and Summers, E. (2009). Skos simple knowledge

organization system. Primer, World Wide Web Con-

sortium (W3C), 7.

Kendall, E. F. and McGuinness, D. L. (2019). Ontology

engineering. Synthesis Lectures on The Semantic Web:

Theory and Technology, 9(1):1–102.

Otte, J. N., Beverley, J., and Ruttenberg, A. (2022).

Bfo: Basic formal ontology. Applied ontology,

(Preprint):1–27.

Sembiring, J. and Uluwiyah, A. (2015). Data and meta-

data exchange design with sdmx format using web

service for interoperability statistical data. TELKOM-

NIKA Indonesian Journal of Electrical Engineering,

14(2):343–352.

Smith, B. et al. (2007). The obo foundry: coordinated evo-

lution of ontologies to support biomedical data inte-

gration. Nature biotechnology, 25(11):1251–1255.

Zheng, J., Harris, M. R., Masci, A. M., Lin, Y., Hero, A.,

Smith, B., and He, Y. (2014). Obcs: The ontology of

biological and clinical statistics. In Proc. Fifth Inter-

national Conf. on Biomedical Ontology, volume 1327.

Building Eurostat Knowledge Graph

135
