Performance Analysis of the OpenCL Environment

on Mobile Platforms

Przemysław Falkowski-Gilski

and Maciej Plewka

Faculty of Electronics, Telecommunications and Informatics, Gdansk University of Technology,

Narutowicza 11/12, Gdansk, Poland

Keywords: Android OS, Mobile Devices, Multimedia Content, OpenCL, OpenGL, UX (User Experience).

Abstract: Today’s smartphones have more and more features that so far were only assigned to personal computers.

Every year these devices are composed of better and more efficient components. Everything indicates that

modern smartphones are replacing ordinary computers in various activities. High computing power is required

for tasks such as image processing, speech recognition and object detection. This paper analyses the

performance of the OpenCL (Open Compute Language) environment on mobile devices, which is a library

dedicated to high-speed parallel computing. This paper examines how smartphones can access a library that,

as it turned out, is not officially supported on the Android platform, and briefly describes the evaluated library.

As a part of the study, this API (Application Programming Interface) was tested in the context of the achieved

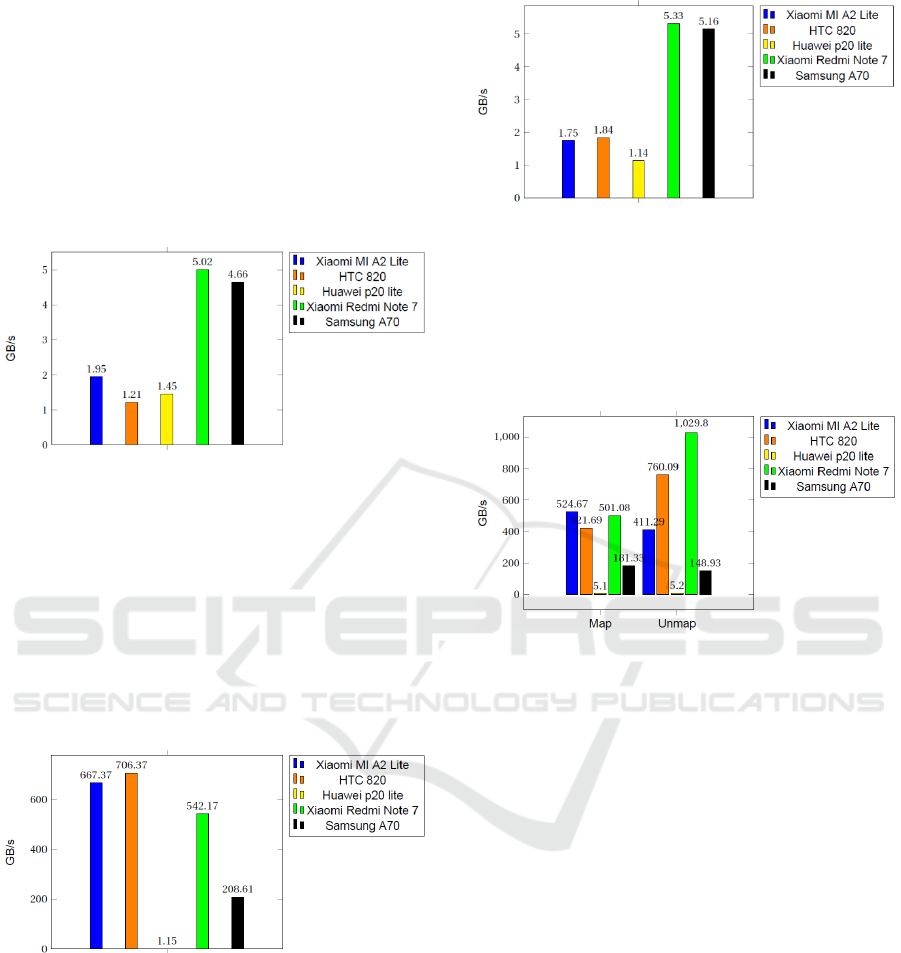

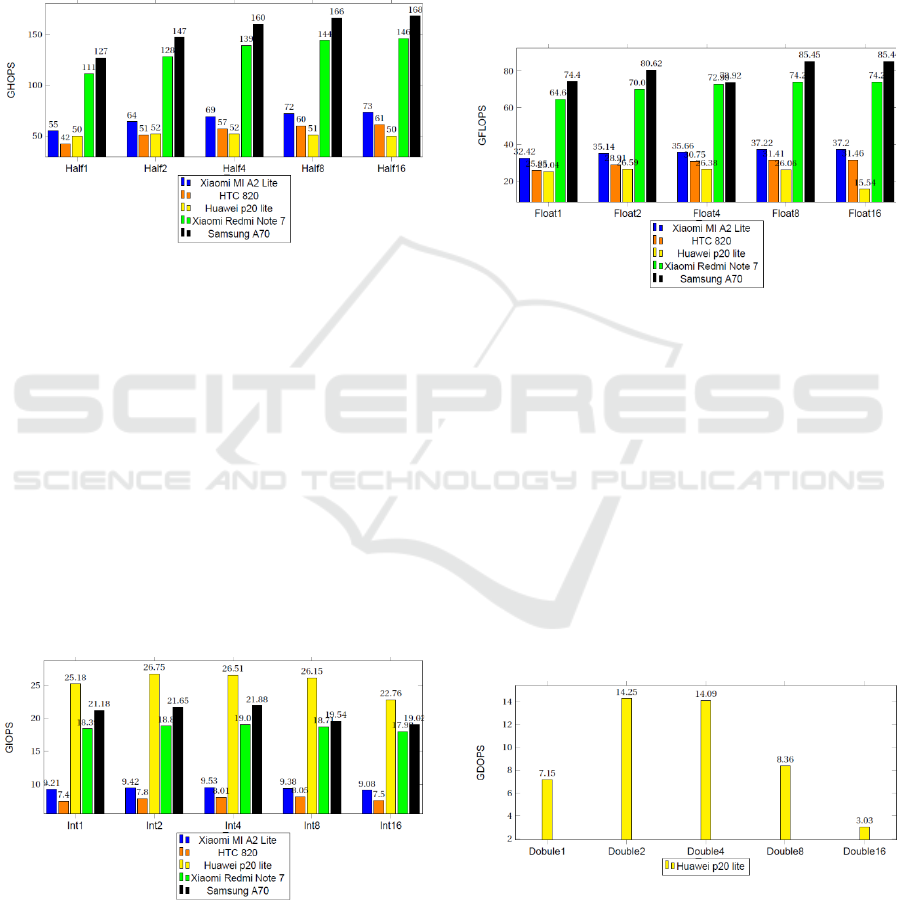

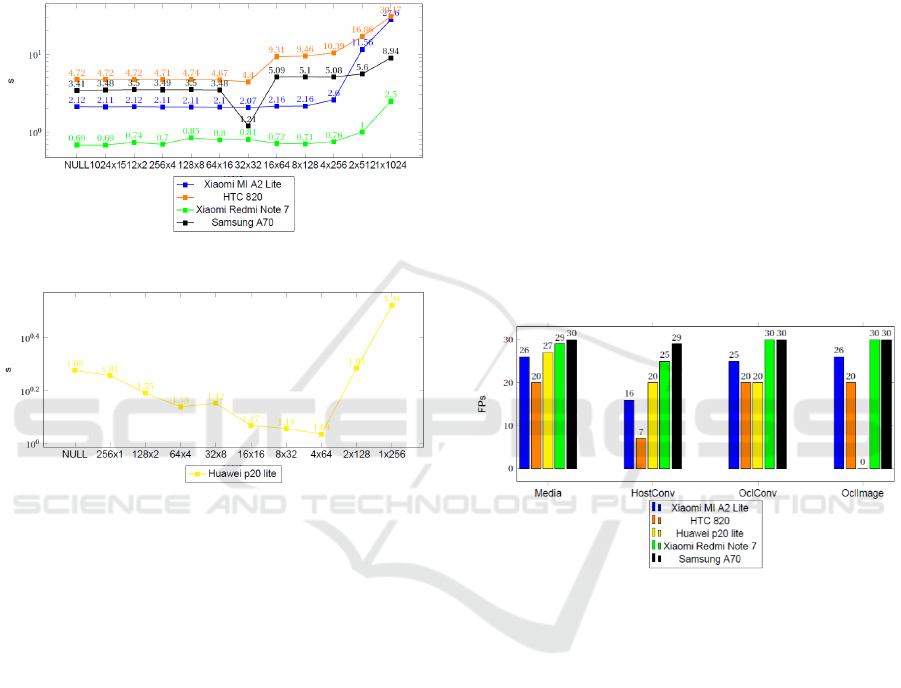

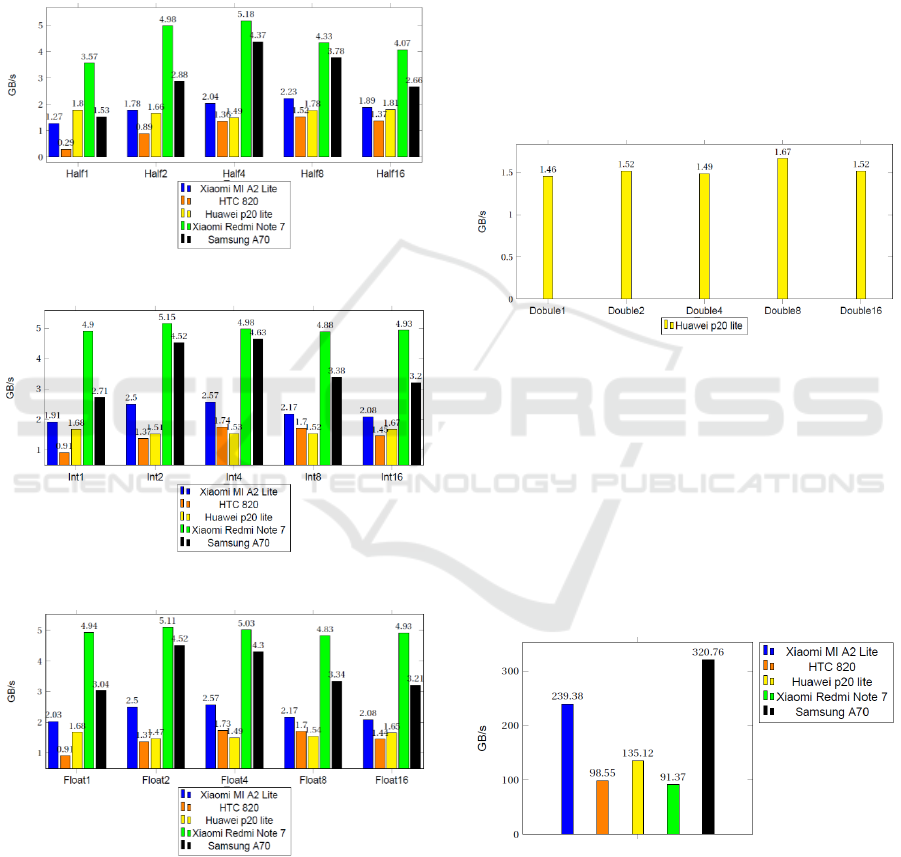

computing power, memory flow rate, speed of matrix multiplication and the possibility of processing the

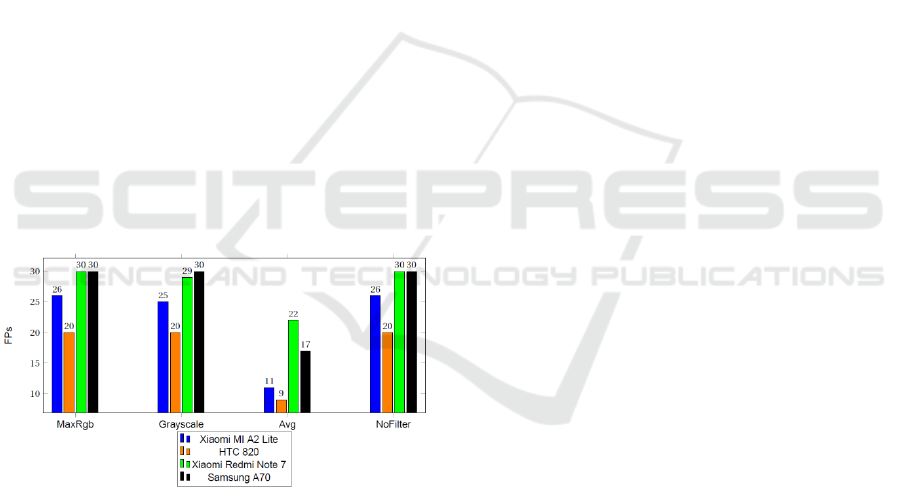

image from the camera in real-time. The obtained results were presented in graphical format, described and

commented. We also provide an insight on applications that use this API for teaching deep neural networks,

image processing, etc.

1 INTRODUCTION

OpenCL (Open Compute Language) is a standard

created by the Khronos group (Munshi, 2009), used

to write programs that can be executed on various

platforms such as CPU (Central Processing Unit),

GPU (Graphics Processing Unit) or FPGA (Field

Programmable Gate Array). The OpenCL

specification defines an interface in C++ that allows

an application to be programmed to execute specific

code on a selected device (Seo et al., 2011;

Jääskeläinen et al., 2015; Aydonat et al., 2017).

The OpenCL standard is mainly used for parallel

computations such as vector math and image

processing (Tay, 2013; Fang et al., 2020). The device

manufacturer is responsible for the implementation of

the driver that issues the API (Application

Programming Interface), according to the version

defined in the specification.

Due to the fact that the standard is open and most

manufacturers have its implementation, it is possible

to create a code that can be run regardless of the

architecture or manufacturer of the central or graphics

https://orcid.org/0000-0001-8920-696

processor. This is a major advantage compared to,

e.g., CUDA (Compute Unified Device Architecture),

which is an interface only implemented by NVidia

(Karimi et al., 2010; Fang et al., 2011). The OpenCL

standard is continuously developed and modified

(Keryell et al., 2015). As a result, the API is defined

in several versions.

While performing tests, the latest version of the

specification was version 3.0. Of course all versions

are backwards compatible. Additionally, there are

extensions, such as cl_khr_gl_sharing, defining the

API to share objects between OpenCL and OpenGL.

Such additional API is also specified by the Khonos

group within a specific OpenCL version, but this is

not obligatory.

There are also manufacturer specific API

extensions, such as cl_intel_mem_force_host_memory,

which are available on Intel devices, or

cl_qcom_android_native_buffer_host_ptr, available

on Qualcomm’s Android processors. Such additional

API complements the core, allowing the specification

to better match to particular hardware. OpenCL on the

Android platform (Gilski and Stefański, 2015) is

Falkowski-Gilski, P. and Plewka, M.

Performance Analysis of the OpenCL Environment on Mobile Platforms.

DOI: 10.5220/0011538900003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 455-465

ISBN: 978-989-758-613-2; ISSN: 2184-3252

455

available only from the native C++ library, whereas

on MacOS devices, this environment is not supported.

2 APPLICATIONS UNITIZING

OpenCL

OpenCL is a library that can certainly be utilized in

various Android applications. The lack of official API

support on Android means that the amount of

information about the possibilities of this library is

limited. Such feedback would be particularly

important for mobile developers. However, there are

some information available, describing several

possible applications (Wang et al., 2013; Ross et al.,

2014; Wang et al., 2016; Acosta et al., 2018).

2.1 Tensorflow

Tensorflow is a library used for ML (Machine

Learning) and related AI (Artificial Intelligence)

applications. This program is often used for DNN

(Deep Neural Network) training. The process of

training neural networks requires multiplication of

many matrices. The very use of a learned model is

also associated with the matrix multiplication

process. Tensorflow is a software that can use various

APIs used for calculations, such as: CUDA, SYCL or

OpenCL. In case of Android, the main API used by

Tensorflow is OpenCL. According to (Juhyun and

Raman, 2020), the OpenCL API can improve

performance by 100% compared to OpenGL. When

optimizing the program using OpenCL, the tools

provided by the GPU manufacturer Adreno proved to

be helpful. Since the OpenCL API is not officially

supported, the Tensorflow application polls the

device for library availability at startup. When this

library is not available, the engine running on the

basis of the OpenGL API is loaded.

2.2 OpenCV

OpenCV (Open Source Computer Vision Library) is

a library that implements many functionalities such as

machine learning and image processing. Many of the

algorithms provided by this library are performed on

GPUs. The API used by OpenCV to run algorithms

on the GPU is OpenCL. From (McIntosh-Smith,

2020) we learn that using OpenCVT API, which

utilizes OpenCL internally, improves the frame rate

when modifying the camera image. The results

achieved by the Sony Xperia Z3, when image

modification was done with C/C++ code, was equal

to 3-5 FPS. However, when using OpenCVT, the

frame rate increased to 1113.

2.3 Adobe

Adobe is a software developer, focused on image and

video processing. In case of Adobe products for

Windows-operating devices, the OpenCL API is

often used for GPU processing. In the case of

applications developed for Android, the utilized API

is Vulkan. However, according to (McIntosh-Smith,

2020), Adobe products on Android use OpenCL

C kernels. These kernels are compiled into

intermediate code called SPIR-V (Standard, Portable

Intermediate Representation – V) and then executed

using the Vulkana API.

2.4 Benchmarking Applications

Most applications that clearly declare using OpenCL

API are tests that measure performance of devices

and their integrated hardware components. These

programs are most often aimed at measuring

computing power or obtaining basic information

about a device, such as the number of execution units.

Such data only inform about the specificity of the

device under test.

3 LINKING OPENCL WITH THE

ANDROID PLATFORM

Applications usually do not link directly to a driver

having a complete API implementation. For this,

an additional library is used that looks for driver

implementations for all platforms on the device.

Thanks to the use of such a loading library,

the application can use any available platform

supporting this API and is not rigidly connected to

one driver in a specific version.

Unfortunately, an Android binary version of such

a library does not exist. One option is to link the

native library to the driver that comes with the device.

The disadvantage of this solution is the need to

download the binary file with the OpenCL

implementation and all its dependent drivers with

respect to a specific device. This solution means that

the compiled application will run only on the device

for which the libraries were downloaded. Another

solution is to download the sources with the code for

the loading library, build the library, and link it to the

application. The driver that will link the program with

the OpenCL implementation has default paths that

QQSS 2022 - Special Session on Quality of Service and Quality of Experience in Systems and Services

456

can contain the OpenCL library, as shown in Figure 1

(Ashbaugh, 2019).

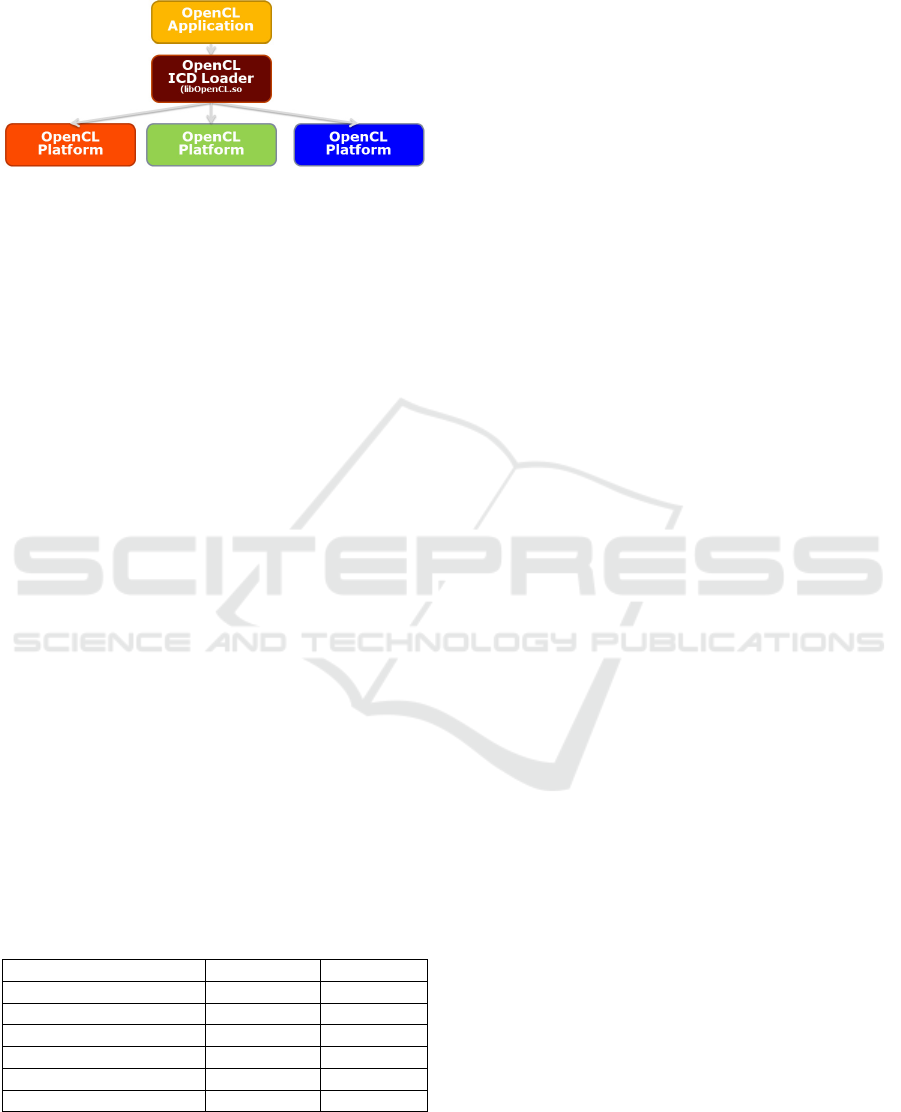

Figure 1: Linking the OpenCL library.

The application can query each device about its

properties, and then select the one on which the rest

of the application will run on. It is also possible to

define an environment variable having the location

from which we want the driver to be loaded. The

disadvantage of such a solution is the need to compile

such a library, but thanks to this, we can build an

application that will work on multiple devices.

4 ABOUT THE STUDY

Due to the constraints related to energy consumption,

mobile devices are rarely used for larger computing

tasks. Typically, the work of graphics processors is

mainly used to support graphics applications. GPUs

operate in a single instruction processing model of

several memory elements, so-called SIMDs (Single

Instruction, Multiple Data). As a result, one can

perform an operation with a single instruction at a

time, e.g., on several pixels from an image.

4.1 Comparing Mobile GPUs

The two main manufacturers of GPUs for mobile

platforms are Qualcomm, which makes the Adreno

chipset, and ARM, which produces a chipset called

Mali. A direct comparison of pros and cons of Adreno

and MAPI GPUs is described in Table 1.

Table 1: Pros and cons of Adreno and Mali GPUs.

Facto

Adreno Mali

efficienc

–

rice

–

API su

ort +

–

clock frequenc

–

rendering

–

heat dissi

ation +

–

The main pros and cons between those two can be

expressed as:

 Performance – Adreno devices achieve better

performance results in most cases, e.g., when

comparing the Adreno 660 and MaliG78 MP24

models, the former achieves 1486 GFLOPS,

while the latter only achieving 1076 GFLOPS.

 Price – Qualcomm imposes higher licensing

costs for its chipsets for device manufacturers.

As a result, Mali systems are more likely to be

found in cheaper devices.

 API support – older Adreno devices have

support for more APIs in newer versions.

The latest Mali GPU models support a similar

API list.

 Clock frequency – in most cases, Mali CPUs

run at higher clock rates than competitors,

e.g., the Mali G51 processor runs at 1 GHz,

whereas none of Adreno’s products achieves

this value.

 Rendering – Mali has a bigger advantage over

Adreno, e.g., the Adreno 660 is able to render

1524 million triangles per second, whereas the

competing Mali G78 MP24 can render 2463 at

the same time.

 Heat dissipation – as Mali chipsets run at a

higher clock speed, it may cause system

overheat. Thanks to the lower temperature,

Adreno chipsets may be considered as more

efficient.

As shown, users are quite limited, when it comes

to selecting a device with, e.g., both high clock

frequency and low heat production.

4.2 Tested Mobile Devices

The study involved a group of 5 mobile devices,

coming from different manufacturers, as described

in Table 2. The comparison of available build-in

GPUs is described in Table 3, whereas, the

comparison of supported APIs, in case of respective

chipsets, is shown in Table 4.

The HTC Desire 820 is definitely the device with

the weakest parameters. Xiaomi Mi A2 Lite and

Huawei P20 Lite have competitive parameters,

but they have build-in components from different

manufacturers. The most powerful are the Redmi

Note 7, which has the fastest memory and the fastest

working processor, and the Samsung Galaxy A70,

which has the latest graphics processor.

Performance Analysis of the OpenCL Environment on Mobile Platforms

457

Table 2: Principle technical specification of tested mobile

devices.

Device Release

date

CPU RAM GPU

Xiaomi

Mi A2

Lite

2018

8-core,

2 GHz,

Cortex-A53

3 GB Adreno

506

HTC

Desire

820

2014

4-core,

1.7 GHz

Cortex-A53

4-core,

1 GHz

Cortex-A53

2 GB Adreno

405

Huawei

P20

Lite

2018

4-core,

2.36 GHz,

Cortex-A53

4-core,

1,7 GHz

Cortex-A53

4 GB Mali

T830

MP2

Samsung

Galaxy

A70

2019

8-core,

2 GHz,

o 460

6 GB Adreno

612

Xiaomi

Redmi

Note 7

2019

8-core,

2.2 GHz

o 260

6 GB Adreno

512

Table 3: Tested integrated GPUs.

GPU Clock

fre

Memory Memory

Comput.

units

Adreno

506

650

MHz

128 kB

+ 8 kB

LPDDR3-

1866

933 MHz

7.4 GB/s

Adreno

405

550

MHz

256 kB LPDDR3-

1333

665.5 MHz

5.3 GB/s

Mali

T830

MP2

900

MHz

128 kB LPDDR3

933 MHz

2 x 32

Adreno

612

845

MHz

256 kB

+ 16 kB

LPDDR4X

-3732

1866 MHz

Dual

channel

16 bit

14.9 GB/s

128

Adreno

512

850

MHz

256 kB

+ 16 kB

LPDDR4-

3732

1866 MHz

Quad

channel

16 bit

29.8 GB/s

128

Table 4: Chipset compatibility with different APIs.

GPU Vulcan D3D O

enCL O

enGL

Adreno

506

1.0 DX11 2.0 3.2

Adreno

405

N/A DX11 1.2 3.2

Mali

T830

MP2

1.0 DX11 1.2 3.2

Adreno

612

1.1 DX12 2.0 3.2

Adreno

512

1.0 DX11 2.0 3.2

5 PERFORMANCE TESTS

The test procedure involved a number of parameters

and factors, that would serve as a good benchmark of

OpenCL capabilities on mobile devices.

5.1 Computational Power Measurement

It was performed with a test involving several kernels

and vector data. For each of these kernels, the number

of floating point operations performed should be the

same and equal to 4096 for a single work item.

For example, in the Float1 kernel, the mad operation

will be performed 2048 times. This function consists

of a single multiplication and addition. Similar

kernels will be used to test other data types such as

int, half and double, if these are supported by the

device under test.

The obtained results will be presented in the

FLOPS (Floating-Point Operations Per Second) unit.

In this test, the value in FLOPS will be obtained by

multiplying the number of global work items by the

number of floating-point operations performed in

each of them, and then dividing the obtained value by

the time in which they were performed.

5.2 Memory Flow

It describes how fast data is copied between different

memory areas. A simple kernel was used for testing.

In the executing kernel for a single item work,

one memory location was copied from the src buffer

to the dst buffer. The type of a single buffer element

is defined at the compilation stage. In this example,

it could be one of the vector versions of the float type.

Two buffers were created in the test. The first had

initial data and the second was empty. After executing

the kernel, the second buffer will contain data from

the first one. The collected time information from the

QQSS 2022 - Special Session on Quality of Service and Quality of Experience in Systems and Services

458

cl_event type object will allow to calculate the speed

in bytes per second of memory transfer. Similarly,

kernels using int, half or double data type memory

buffers will also be tested.

5.3 Kernel Execution Time

An exemplary kernel is started up/executed, after

which the values of

CL_PROFILING_COMMAND_QUEUED and

CL_PROFILING_COMMAND_START were read

and noted. Their difference defines the time it takes

to transfer the kernel to the device and start executing

it. The kernel will be executed several times and the

final result will be averaged.

5.4 Memory Transfer with Build-in

Functions

Designed to transfer data to and from the memory

buffer in OpenCL, we can use the following

functions:

 clEnqueueWriteBuffer – after executing this

function, the data from the indicated memory

will be written to the specified buffer, which

can then be used in the executed kernel.

 clEnqueueReadBuffer – copies the data

backwards from the buffer to the indicated

memory area, so we can read the data after

executing the kernels on the device.

 clEnqueueMapBuffer – the function returns a

pointer to the memory where the memory was

mapped from the buffer.

 clEnqueueUnmapMemObject – this function

will map the memory from the pointer

returned from clEnqueueMapBuffer or

clEnqueueMapImage to the indicated buffer or

image.

The above-mentioned functions will be performed

a certain number of times, and data on the execution

time will be collected from the event object. The

averaged result of the function execution will show in

what time the device is able to transfer data between

the memory on the application side and the memory

on the device side.

5.5 Matrix Multiplication

The product of matrices is a mathematical operation

that can be easily divided into parts that can run in

parallel. Each element of the result matrix can be

computed independently from one another. A test has

been implemented that enumerates each item in the

resulting matrix as a separate work item.

In the constructed test, the product of two matrices

with a size of 1024x1024 is performed, in which we

measure the time of multiplication. The operation will

be performed several times, and the final value will

be averaged. The experiment will be repeated for

several sizes of local work groups. Depending on the

properties of the device, the first embodiment will

have the maximum possible value of the local work

group in the X dimension. In the next embodiment,

the value in the X dimension will be reduced twice,

while in the Y dimension it will be increased twice.

In subsequent iterations, the procedure remains the

same until the group’s work size in the X dimension

becomes 1. This test will illustrate how can the

selection of work group’s size can affect the kernel

execution time.

5.6 Using OpenCL to Filter the Image

from CameraAPI

It involved using a custom-build application to

display an image from the camera on the screen of an

Android OS device that passes textures from OpenGL

to the camera object as previewTexture. The texture

passed to the camera will be updated every frame.

Refreshing the image object will cause a method to be

called, which will render the obtained image and

display it. This code will call the vertex shader and

then the fragment shader, so that two triangles will be

displayed filled with the image’s content.

This will make the image from the camera

displayed on the screen of the device. It will help

verify how much the OpenCL kernels that are being

executed, using the displayed image, will affect the

number of displayed frames per second.

Images will be processed in four different ways,

that is:

 convert camera image to RGB in the

application;

 max Rgb filter;

 grayscale preview;

 average filter.

Next, obtained results will be shown and

discussed.

6 RESULTS

This chapter describes the results of several tests,

carried out on 5 mobile devices.

Performance Analysis of the OpenCL Environment on Mobile Platforms

459

6.1 Computing Power

Figures 2-4 present the performance of the tested

devices in terms of the number of operations per

second, including different data types. Figure 2 shows

the number of possible calculations on half numbers

per second, expressed in GHOPS (Giga Half

Operations Per Second), for vector versions of this

type.

Figure 2: Processing power for type half.

According to obtained results, the Adreno

processors use vector types to increase the number of

operations per second. For these processors,

the results are listed according to their numbers.

The HTC 820 with the Adreno 405 is the worst,

and the Samsung A70 with the Adreno 612 is the best.

In the case of the Mali processor, regardless of the

size of the variable type, the number of operations

remains at the same level. For comparable models

Xiaomi Mi A2 Lite and Huawei P20 Lite, the device

fares better than Xiaomi.

Figure 3 presents the number of possible

operations on int numbers per second, expressed

in GIOPS (Giga Integer Operations Per Second),

for vector versions of this type.

Figure 3: Computing power for the int type.

In case of operations performed on integers,

the Mali processor is the best. Using vector types

slightly improves performance, which is around

26 GIOPS. In case of Adreno chipsets, similarly as

in Mali, the performance is significantly improved by

using the int2 and int4 types. However, when using

the int8 and int16 types, performance drops. In this

case also the order from worst to best goes according

to their numbers, preferably Adreno 612, worst

Adreno 405.

Figure 4 presents the number of possible

operations on float numbers per second, expressed in

GFLOPS (Giga Floating Point Operations Per

Second), for vector versions of this type.

Figure 4: Calculation power for float type.

In performance tests, the Mali T830 2MP chipset

proves to be by far the worst for single-precision float

operations. The performance of this GPU for vector

types is similar to that of a type with a single value.

However, it is weaker for the float16 type by 40%.

In the case of Adreno chipsets, the situation is similar

to the half type, the use of vector types increases

performance. For the float16 type, it can be seen that

the value of operations per second is approx. half less

than for the half16 type.

Figure 5 presents the number of possible

calculations of the half type, per second, expressed in

GDOPS (Giga Double Operations Per Second) for

vector versions of this type.

Figure 5: Processing power for the double type.

Huawei P20 Lite, as the only one of the tested

devices, has support for double-precision floating-

point types. Evidently, the use of vector types

double2 and double4 improves performance by 100%

QQSS 2022 - Special Session on Quality of Service and Quality of Experience in Systems and Services

460

compared to the double type. Operations on double8

type improve performance by 17% compared to

double, while operations on double16 type decrease

performance by 57% compared to double.

6.2 Memory Flow

Figures 6-8 present the memory flow of different data

types concerning tested devices.

Figure 6: Memory flow for half type.

Figure 7: Memory flow for type int.

Figure 8: Memory flow for float.

As in the case of testing computing power, when

examining the speed of data flow between allocations,

it can be seen that for the Mali chipset we do not see

much benefit from the use of vector types. For the types

hlaf1, half2 and half16, it achieves better results than

the Adreno 405 chipset. In other cases, it proved to be

the worst. Among devices with Adreno GPUs, it can

be seen that the worst results are obtained for the half

type, and the best for the half4 type.

Unlike computing power, the Adreno 512 chipset

performs best. Most likely, it achieves a higher result

by using a better type of memory. The data flow

results for the types float and int reach similar values

to those for the vector types half. Copying single

values of the half type is worse compared to 32-bit

types. The best results are achieved by the Xiaomi

Redmi Note 7, which has an Adreno 512 GPU and the

best memory type among all tested LPDDR4 devices,

with a frequency of 1866 MHz and a bandwidth of up

to 29.8 GB/s.

Figure 9: Memory flow for type double.

As shown in Figure 9, the memory transfer speed,

when using the double type, does not differ from the

types half int or float.

6.3 Waiting Time for Execution

Figure 10 present the waiting time for execution,

the average time from queuing to starting execution

on the GPU. The shorter the time obtained, the better

the achieved result.

Figure 10: Waiting time for execution.

Surprisingly, the Samsung Galaxy A70 is the

worst, which was tested on the latest OpenCL driver

among available devices. The second best result was

achieved by HTC Desire 820, the oldest device with

the oldest driver. The time measured in this test is the

period from placing the task in the OpenCL queue,

Performance Analysis of the OpenCL Environment on Mobile Platforms

461

by the system’s kernel driver, to the device on which

it will be executed. So it depends more on the

implementation of individual drivers or system kernel

than on the device itself.

6.4 Application-to-Device Memory

Transfer

Figure 11 shows the data transfer rate from the device

to the application.

Figure 11: ClEnqueueReadBuffer execution time.

This type of transfers are performed using

functions defined by the OpenCL library.

clEnqueueReadBuffer copies the exact number of

bytes, so the transfer is most likely done with the

8-bit data type. The graph shows the dependencies

analogous to the test with data flow inside the device.

Figure 12 presents the data writing speed for

allocation in OpenCL. In case of Adreno chipsets,

it shows values that are impossible to achieve in the

types of memory used in devices.

Figure 12: ClEnqueueWriteBuffer execution time.

The assumed maximum memory flow in case of

the Samsung Galaxy A70 is 14.9 GB/s. These values

were collected using clEvent objects. Evidently the

values collected during clEnqueueWriteBuffer,

shown in Figure 12, are wrong. To be sure, the test

was repeated, measuring the time with system

functions on the host side. The obtained results are

presented in Figure 13. The values are similar to those

obtained in previous tests with the memory flow

within the device.

Figure 13: ClEnqueueWriteBuffer execution time

Application time.

To be sure, the other tests using time measurement

on the application side were repeated. All times

coincided with those measured using clEvent objects.

Figure 14 shows the time it takes to map device-side

memory to application-side memory.

Figure 14: Map unMap execution time.

The values obtained for Adreno processors,

similarly to the previous test, seem to be incorrect,

but when repeated with the time measurement on the

application side, they returned similar results.

Adreno processors use shared system memory.

Most likely, the clEnqueueMapBuffer function

returns a direct pointer to the memory that is used by

the device when executing kernels. The time needed

for memory mapping and unmapping is the short time

for the driver to return a pointer to the memory used

by the OpenCL allocation. In the case of Huawei P20

Lite device with the Mali T830 MP chipset,

the memory is not shared. It is clear that the Mali GPU

maps memory much slower. Despite the lack of

sharing, the mapping process is much faster than

reading from the buffer with clEnqueueReadBuffer.

Probably the pointer to which the cache is mapped is

located in a more advantageous place of the physical

memory than the memory allocated to the application

by the system.

QQSS 2022 - Special Session on Quality of Service and Quality of Experience in Systems and Services

462

6.5 Matrix Multiplication

Figures 15 and 16 show the dependence of the size of

the local work group on the time in which two

matrices will be multiplied, in this case both of the

size of 1024x1024. It can be seen that the size of the

local work group affects the task execution time of

matrix multiplication.

Figure 15: Matrix multiplication (Max Lws 1024).

Figure 16: Matrix Multiplication (Max Lws 256).

All devices have their worst time when the local

group size on the X dimension is 1, and in the Y

dimension it has the maximum possible value for the

device. The poor result for this setup is most likely

due to reading distant memory cells within the work

group. A single row of the matrix takes 4 kB, so the

elements from the index (0,0) and (0,1) are separated

by 4 kB. In addition, 4 kB is the distance of the virtual

address, and physically depending on the size of the

memory pages. These items can be located in

different parts of the physical memory. The entire

matrix takes up 4 MB of memory, and 3 such matrices

are used when performing the multiplication. Mobile

GPUs do not have such a large dedicated memory,

and certainly not that much cache memory,

so reloading the memory each time for each element

of a local group is very expensive and extends the

execution of the kernel.

For devices with Adreno 405, 506 and 612

chipsets, the most optimal local work group size

seems to be 32x32. When we multiply matrix A by

matrix B, we are multiplying the row of the first

matrix by the column of the second matrix.

When accessing the memory of matrix B within a

single work group element, we also need to access

distant memory elements. Most likely, when the

group size of the Y dimension is equal to 32,

the memory used by a thread within the local group is

available in dedicated GPU memory.

Xiaomi Redmi Note 7 performed the matrix

multiplication the fastest, most likely due to the best

memory type among the tested phones. The costs of

accessing and reading the memory were the lowest.

The second fastest device was the Huawei P20 Lite

with a GPU from Mali. The test used an integer type

data matrix. As previously verified, this device can

perform the most operations of this type in a given

time.

6.6 OpenCL with CameraAPI

Figure 17 shows how the use of OpenCL to process

camera data in real-time affects the number of

displayed frames per second.

Figure 17: Conversion to RGB.

The first column (Media) in the graph shows the

FPS values that devices achieve when displaying

texture obtained from CameraAPI using the OpenGL

environment. This texture has an image encoded in

the NV21 media format.

Unfortunately, the OpenCL API allows sharing

resources from OpenGL only in the RGBA (Red

Green Blue Alpha) format, so it is impossible to split

the texture returned by CameraAPI. A transformation

from NV21 to RGBA is needed.

The second column of the graph shows how does

the FPS look like when the conversion to RGBA is

done on the application side. All devices are

negatively affected by such an operation. A clear drop

in the displayed frames per second in each case is

visible.

The third column describes a situation when the

conversion is performed in the OpenCL environment.

Performance Analysis of the OpenCL Environment on Mobile Platforms

463

This clearly improves performance on devices with

Adreno GPUs. These phones reach the values from

the first column, including the error of measurement.

A Huawei phone with a Mali chipset does not

improve the result. Most likely for this device the

time needed to copy data for allocation in OpenCL

and kernel processing is as expensive as the lack of

parallelization of conversion on the CPU side.

The last column shows the results for the case

where in the OpenCL kernel we save directly a shared

image, which is then displayed. This way we will save

time for two copies. First from OpenCL allocation to

application side memory and second from application

to OpenGL texture. The graph does not show that it had

any impact on the number of displayed frames. Most

likely, the other optimizations would not bring any

performance improvements. The bottleneck that

prevents a certain number of frames from being

exceeded is either on the CameraAPI side, which is not

able to deliver more frames per second, or the OpenGL

environment, which cannot display more frames.

Figure 18 shows the effect of filters executed in

OpenCL kernels on the number of displayed frames

per second. It can be seen that when using simple

filters such as max rgb or transforming to grayscale,

it does not affect the number of frames displayed,

possibly due to a bottleneck that occurs somewhere in

the time from collecting the camera preview to

displaying it.

Figure 18: Image filtering results.

On the other hand, the use of an averaging filter,

which accesses many pixels in the kernel, has a

significant impact on performance. In this case,

the phone with the Adreno 512 GPU, which uses the

best type of memory among the tested ones, fares the

best.

7 SUMMARY

The purpose of this work was to analyze the OpenCL

environment on mobile platforms. It has been verified

that among the most popular mobile systems,

only Android has the ability to support this API.

Several tests were designed and performed to check

the capabilities of Android devices together with the

OpenCL library in terms of performance and

cooperation with OpenGL, especially when

processing the image from the device’s camera.

The tests were performed with a set of 5 smartphones,

and included a custom-build software.

The lack of official support for OpenCL by the

Android system turned out to be a challenge in the

implementation part. Despite this fact, GPU

manufacturers for mobile devices continue to develop

software that implements the functionality of the

OpenCL API. In order to use a library, one must either

directly connect the application with a specific

dynamic library, or load it while the code is running.

In the case of the first solution, the application can be

run only on the device from which the library is

permanently connected with the program. In the latter

case, the library is dynamically loaded. The OpenCL

interface on the Android platform is available only

from the native code in C++. In order to use it in the

application code, it is necessary to execute the

OpenCL part of the native library or to utilize an

additional driver that will be an overlay for C++

functions.

As part of the tests, it was evaluated how much

computing power do individual devices have using

the OpenCL API. It was clearly observed that the

devices with integrated chipsets manufactured by

Adreno responded similarly to the change of data

type, and with the use of larger vector types, their

computing power increased. However, in case of Mali

chipsets, when using vector types, the computing

power remained at the same level. Mali GPUs ware

able to perform more calculations on integer types,

while Adreno ware better at operations on floating

point types. It was verified that the sizes of local work

groups significantly affect the time of performing

matrix multiplication, which requires reading

memory cells that are distant from each other.

Devices achieve their best times when the group sizes

in the X and Y dimensions are equal. In case of such

groups, when performing matrix multiplication,

threads within a local group could access elements

from the cache memory. In this case, costly cache

allocation transfers occur less frequently. In this test,

the key role is to access memory quickly, so the better

type of memory the devices had, the better they

handled this task.

As part of the work, the device’s capabilities for

modifying the view from the camera with OpenCL

were also checked. It turned out that the view from

QQSS 2022 - Special Session on Quality of Service and Quality of Experience in Systems and Services

464

the camera is delivered in the NV21 format, which the

OpenCL API does not define. Therefore, in order to

use the camera image in the executing kernel, it had

to be transformed to RGBA format. The conversion

significantly affected only the device with the Mali

GPU. In case of devices with the Adreno GPU,

the process of transforming the image to RGBA

format and entering it into the displayed texture did

not affect the number of displayed FPS.

After applying a set of filters, like grayscale

conversion or max rgb filter, the number of images

presented per second did not change. On the other

hand, the use of an averaging filter, in which it was

necessary to read and average the value of 25 pixels

to calculate the value of one pixel, significantly

reduced the number of displayed frames, for some

devices even by more than a half.

At the end, there is limited information on using

the OpenCL API in utility applications. Each of the

GPU manufacturers for Android devices has an

implementation of such a driver, which suggests that

it is more often used than just for testing the device’s

capabilities. The problem with finding information

about the use of this API by various applications is

most likely due to the fact that mobile developers

usually do not publish a list of all used APIs,

frameworks or versions of the programming

language. Future studies could involve checking how

to determine power consumption in case of kernel

execution. Another direction would be to evaluate

how would OpenCL perform on a variety of devices

with integrated Intel, AMD or NVidia GPUs.

REFERENCES

Acosta, A., Merino, C., Totz, J. (2018). Analysis of

OpenCL support for mobile GPUs on Android. In

IWOCL’18, Proceedings of the International Workshop

on OpenCL. ACM.

Ashbaugh, B. (2019). OpenCL on Linux.

https://bashbaug.github.io/opencl/2019/07/06/OpenCL

-On-Linux.html (access. 26.06.2022).

Aydonat, U., O’Connell, S., Capalija, D., Ling, A. C., Chiu,

G. R. (2017). An OpenCL deep learning accelerator on

Arria 10. In FPGA’17, Proceedings of the 2017

ACM/SIGDA International Symposium on Field-

Programmable Gate Arrays. ACM.

Fang, J., Huang, C., Tang, T., Wang, Z. (2020). Parallel

programming models for heterogeneous many-cores: a

comprehensive survey. CCF Transactions on High

Performance Computing, 2(4), 382-400.

Fang, J., Varbanescu, A. L., Sips, H. (2011). A

comprehensive performance comparison of CUDA and

OpenCL. In ICPP’11. 2011 International Conference

on Parallel Processing. IEEE.

Gilski, P., Stefański, J. (2015). Android OS: a review. Tem

Journal, 4(1), 116-120.

Jääskeläinen, P., de La Lama, C. S., Schnetter, E., Raiskila,

K., Takala, J., Berg, H. (2015). pocl: a performance-

portable OpenCL implementation. International

Journal of Parallel Programming, 43(5), 752-785.

Juhyun, L., Raman S. (2020). Even faster mobile GPU

inference with OpenCL. https://blog.tensorflow.org/

2020/08/faster-mobile-gpu-inference-with-opencl.html

(access: 26.06.2022).

Karimi, K., Dickson, N. G., Hamze, F. (2010). A

performance comparison of CUDA and OpenCL. arXiv

preprint, arXiv:1005.2581.

Keryell, R., Reyes, R., Howes, L. (2015). Khronos SYCL

for OpenCL: A tutorial. In IWOCL’15, Proceedings of

the 3rd International Workshop on OpenCL. ACM.

McIntosh-Smith, S. (2020). Catching up with Khronos:

Experts’ QA on OpenCL 3.0 and SYCL.

https://www.khronos.org/blog/catching-up-with-khronos

-experts-qa-on-opencl-3.0-and-sycl-2020 (access: 26.

06.2022).

Munshi, A. (2009). The OpenCL specification. In HCS’09,

2009 IEEE Hot Chips 21 Symposium. IEEE.

Ross, J. A., Richie, D. A., Park, S. J., Shires, D. R., Pollock,

L. L. (2014). A case study of OpenCL on an Android

mobile GPU. In HPEC’14, 2014 IEEE High

Performance Extreme Computing Conference. IEEE.

Seo, S., Jo, G., Lee, J. (2011). Performance characterization

of the NAS Parallel Benchmarks in OpenCL. In

IISWC’11, 2011 IEEE International Symposium on

Workload Characterization. IEEE.

Tay, R. (2013). OpenCL parallel programming development

cookbook. Birmingham: Packt Publishing.

Wang, K., Nurmi, J., Ahonen, T. (2016). Accelerating

computation on an Android phone with OpenCL

parallelism and optimizing workload distribution

between a phone and a cloud service. In

UIC/ATC/ScalCom/CBDCom/IoP/SmartWorld’16,

2016 Intl IEEE Conferences on Ubiquitous Intelligence

& Computing, Advanced and Trusted Computing,

Scalable Computing and Communications, Cloud and

Big Data Computing, Internet of People, and Smart

World Congress. IEEE.

Wang, G., Xiong, Y., Yun, J., Cavallaro, J. R. (2013).

Accelerating computer vision algorithms using

OpenCL framework on the mobile GPU – A case study.

In ICASSP’13, 2013 IEEE International Conference on

Acoustics, Speech and Signal Processing. IEEE.

Performance Analysis of the OpenCL Environment on Mobile Platforms

465
