AKIP Process Automation Platform: A Framework for the Development

of Process-Aware Web Applications

Ulisses Telemaco Neto

1 a

, Toacy Oliveira

2 b

, Raquel Pillat

2 c

, Paulo Alencar

Don Cowan

1 d

and Glaucia Melo

1 e

David R. Cheriton School of Computer Science, University of Waterloo, Waterloo, Canada

System Engineering and Computing Program, Federal University of Rio de Janeiro, Rio de Janeiro, Brazil

Keywords:

Business Process Automation, Code Generation, Process-Aware Information System, BPMN.

Abstract:

An increasing number of platforms for Business Process Automation (BPA) have been developed in recent

years, including open-source and proprietary solutions. However, there are still some unsolved problems and

limitations related to the adoption of these solutions, which include: vendor lock-in, limited UI/UX, limited

integration, outdated technology stack, and lack of support for non-process features. The framework presented

in this paper addresses these problems and limitations by providing an open-source platform to facilitate

the development of process-aware information systems (PAISs) based on code generation techniques. The

platform is capable of generating a functional process-aware Web application from a business process model

deﬁned in BPMN. To the best of our knowledge, there is no other software tool that generates fully functional

process-aware Web applications. The presented framework has been evaluated in the academy and industry

and used to develop dozens of non-proﬁt and commercial process-aware applications.

1 INTRODUCTION

Despite the huge amount of capital and effort that

has been invested in IT software solutions, the re-

ality is that, for many organizations, including for-

proﬁt companies, most of their critical business pro-

cesses are still being conducted without the support

of automated, agile, modern, and user-friendly soft-

ware systems. In many cases processes are conducted

through email exchanges, phone calls, and manual in-

tegration between systems. This scenario may lead to

several problems, including: Vendor Lock-in: One of

the main risks of adopting a proprietary platform is

being forced to continue using its product or service,

regardless of quality, cost or any other reason, because

it is not practical to switch away from that product

or service. Limited UI/UX: Despite claiming that the

systems provide features for building dynamic forms,

the forms produced by the BPA platforms are still

quite limited. In this way, the construction of com-

https://orcid.org/0000-0002-7258-2623

https://orcid.org/0000-0001-8184-2442

https://orcid.org/0000-0002-5420-6966

https://orcid.org/0000-0002-5373-8522

https://orcid.org/0000-0003-0092-2171

plex components (such as auto-complete input ﬁelds

or elements whose validation rule is more sophisti-

cated) becomes challenging and often unfeasible on

some low-code platforms. Limited Integration: Many

solutions for BPA provide extension mechanisms de-

signed to integrate the platform with existing systems

or third-party solutions. However, implementing such

integrations are still costly, not efﬁcient, and some-

times unfeasible. Outdated Technology Stack: Many

of the existing BPA solutions are based on outdated

techniques such as stateful (Dwyer, 2021) and server-

side rendering (Iskandar et al., 2020) applications.

Lack of support for non-process features: Another

limitation of BPA platforms is that they focus only

on process automation and often provide limited sup-

port for other features that are usually necessary for

process execution. For example, customized authenti-

cation mechanisms, CRUD

for domain entities, and

import/export data are typically features hard to de-

velop in BPA solutions. There is a need of solutions

that can support the automation of both process and

Web-related features.

We have just mentioned a few problems that may

happen in this scenario, but the list can be increased

Acronym for Create, Read, Update, and Delete

Neto, U., Oliveira, T., Pillat, R., Alencar, P., Cowan, D. and Melo, G.

AKIP Process Automation Platform: A Framework for the Development of Process-Aware Web Applications.

DOI: 10.5220/0011550000003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 64-74

ISBN: 978-989-758-613-2; ISSN: 2184-3252

with many other issues such as process tracking, or-

ganizational agility, team communication and process

redundancy. Because of the critical relevance of each

of the items, it is difﬁcult to identify the one that

affects organizations the most. We see these pain

points in almost every company that engaged with us

and we believe that the solution involves the system-

atic automation of their processes. In this context,

the adoption of Business Process Automation (BPA)

techniques for building Process-Aware Information

Systems (PAISs), i.e., systems whose requirements

are described using process models such as BPMN,

helps to address natively most of the problems just

mentioned (Dumas et al., 2005).

There are several solutions for BPA, including

open-source and proprietary platforms. These solu-

tions will be brieﬂy described in Section 3. The main

problems and limitations of these solutions are:

1. Vendor Lock-in: One of the main risks of adopting

a proprietary platform is being forced to continue

using its product or service, regardless of quality,

cost or any other reason, because it is not practical

to switch away from that product or service.

2. Limited UI/UX: Despite claiming that the systems

provide features for building dynamic forms, the

forms produced by the BPA platforms are still

quite limited. In this way, the construction of

complex components (such as auto-complete in-

put ﬁelds or elements whose validation rule is

more sophisticated) becomes challenging and of-

ten not feasible on some low-code platforms.

3. Limited Integration: Many solutions for BPA pro-

vide extension mechanisms designed to integrate

the platform with existing systems or third-party

solutions. However, implementing such integra-

tions are still costly, not efﬁcient, and sometimes

not feasible.

4. Outdated Technology Stack: Many of the existing

BPA solutions are based on outdated techniques

such as stateful (Dwyer, 2021) and server-side

rendering (Iskandar et al., 2020) applications.

5. Lack of support for non-process features: An-

other limitation of current BPA platforms is that

they focus only on process automation and of-

ten provide limited support for other features that

are usually necessary for process execution. For

example, customized authentication mechanisms,

CRUD

for domain entities, and import/export

data are typically features hard to develop in BPA

solutions. There is a need for solutions that can

Acronym for Create, Read, Update, and Delete

support the automation of both process and Web-

related features.

To mitigate these problems and limitations, one

approach is to develop a traditional web application

and integrate it with a process engine. This way, the

resulting software does not have the limitations of a

platform focused on BPA and has the beneﬁt of being

controlled by a process engine. The difﬁcult of man-

ually integrating a web application with a process en-

gine is that this integration is not straightforward and

can be very challenging and costly (Samland and Tut-

ing, 2019) (Straube and Horn, 2021) (Shan, 2022).

In this context, our solution ﬁlls the gap by pro-

viding an open-source platform to facilitate the devel-

opment of process-aware information systems based

on code generation techniques. The platform is ca-

pable of generating a functional process-aware web

application from a business process model deﬁned

in BPMN. To the best of our knowledge, there is

no other software tool that generates fully functional

process-aware web applications.

The framework was originally derived from an

academic research agenda conducted by the AgileKIP

Group

that focuses on Knowledge Intensive Pro-

cesses. In 2018, we released the ﬁrst version of the

platform and in 2019 we conducted the ﬁrst POC

(Proof of Concept) in industry. In 2020, we launched

the second version of the platform that has been used

to automate dozens of processes. The third version

of the platform was just released and, among the new

features are support for dashboards and modulariza-

tion. The platform has been used in academia and in-

dustry for development of several non-proﬁt and com-

mercial process-aware applications. To support the

demonstration of the proposed platform, we present

in this paper a case study from industry encompass-

ing the automation of three business processes in a

process-oriented application.

The remainder of this paper is organized as fol-

lows: Section 2 presents the background of this re-

search. The related work is brieﬂy described in Sec-

tion 3. The platform overview is presented in Sec-

tion 4. Sections 5 and 6 discuss, respectively, how to

use the platform and how to use a generated process-

aware application. Technical details are discussed in

Section 7 and a case study is presented in Section

8. Section 9 concludes the paper and presents future

work.

https://agilekip.com/

AKIP Process Automation Platform: A Framework for the Development of Process-Aware Web Applications

2 BACKGROUND

2.1 Business Process Model and

Notation (BPMN)

BPMN as an ISO (ISO, 2013) and OMG (OMG,

2013) standard is leading technology for modeling

business processes. Currently, BPMN is the busi-

ness process notation most used in practice (Harmon,

2016) and with the greatest number of available tools.

BPMN models can be interpreted and manipulated

by both technical and non-technical personnel, re-

ducing the likelihood of erroneous knowledge trans-

fer (OMG, 2013). Moreover, BPMN can also ex-

press executable models that can be interpreted by

process engines. In fact, systems such as Camunda,

Flowable, and BonitaSoft deliver an integrated envi-

ronment where users can design and execute BPMN

models.

2.2 Business Process Automation (BPA)

Business Process Automation (BPA) is deﬁned as

the automation of complex business processes and

functions beyond conventional data manipulation and

record-keeping activities, usually through the use of

advanced technologies(Kirchmer and Scheer, 2004).

BPA is based on three pillars: orchestration, integra-

tion, and dynamic automated process execution (Mo-

hapatra, 2009). Based on these pillars, BPA can be

enabled by developing a systematic solution support-

ing a given business process.

2.3 Process-Aware Information System

(PAIS)

A Process-Aware Information System (PAIS) is a

particular type of application that uses information

technology to manage and execute operational pro-

cesses involving people, applications, and informa-

tion sources (Dumas et al., 2005). PAIS require-

ments are described using process models such as

BPMN, where activities, resources, decisions, events,

and their relationships can be used to represent the

ﬂow of work.

2.4 Modern Process-Aware Information

Systems

Modern PAISs have been built as process-aware web

applications based on features that allow authorized

users to manage (e.g., execute, view, query, delegate)

their tasks and interact with the business processes

seamlessly. It is almost imperative that these appli-

cations provide rich user interfaces (light, fast, and

user-friendly) on top of a reliable and scalable soft-

ware architecture based on cutting-edge technologies,

focused on cloud-native distribution, and easy inte-

gration with third-party applications.

3 RELATED WORK

Considerable research has been conducted in the do-

main of Business Process Management (BPM) and

many tools have been proposed for different aspects

related to Business Process Automation (BPA). Be-

cause of the wide range of solutions, it is a challenge

to compare our platform with existing tools. How-

ever, we brieﬂy describe a set of platforms for BPA

that can be either a source of evaluation and/or in-

spiration for our framework. We divided those solu-

tions into two groups: proprietary and open-source

platforms.

The proprietary low-code solutions for BPA in-

clude Aris

(Scholz and Wagner, 2004), Bizagi

Heﬂo

, Nintex

, Pipefy

, Process Street

, Signavio

and SoftExpert BPM

. These solutions support

BPMN or provide modeling tools based on BPMN

that can be integrated with a low-code platform where

users can create processes and business rules, add

functional roles, create interfaces, customize forms,

and manage related content in an integrated way.

Among the open-source platforms, we mention

Camunda

, Bonita

, Flowable

, and jBPM

. The

Camunda Platform is an open-source workﬂow and

decision automation platform. The solution is com-

posed of tools that include a BPMN 2.0 process en-

gine, a modeler, a cockpit, and a task-list manager.

Together, these tools can be used for creating work-

ﬂow and decision models, operating deployed models

in production, and allowing users to execute workﬂow

tasks assigned to them. Bonita is an open-source busi-

ness process management and low-code development

platform for BPA. The platform is composed of ﬁve

https://www.softwareag.com/

https://www.bizagi.com/

https://www.heﬂo.com/

https://www.nintex.com/

https://www.pipefy.com/

https://www.process.st/

https://www.signavio.com/

https://www.softexpert.com/

https://www.camunda.org/

https://www.bonitasoft.com/

https://www.ﬂowable.com/

https://www.jbpm.org/

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

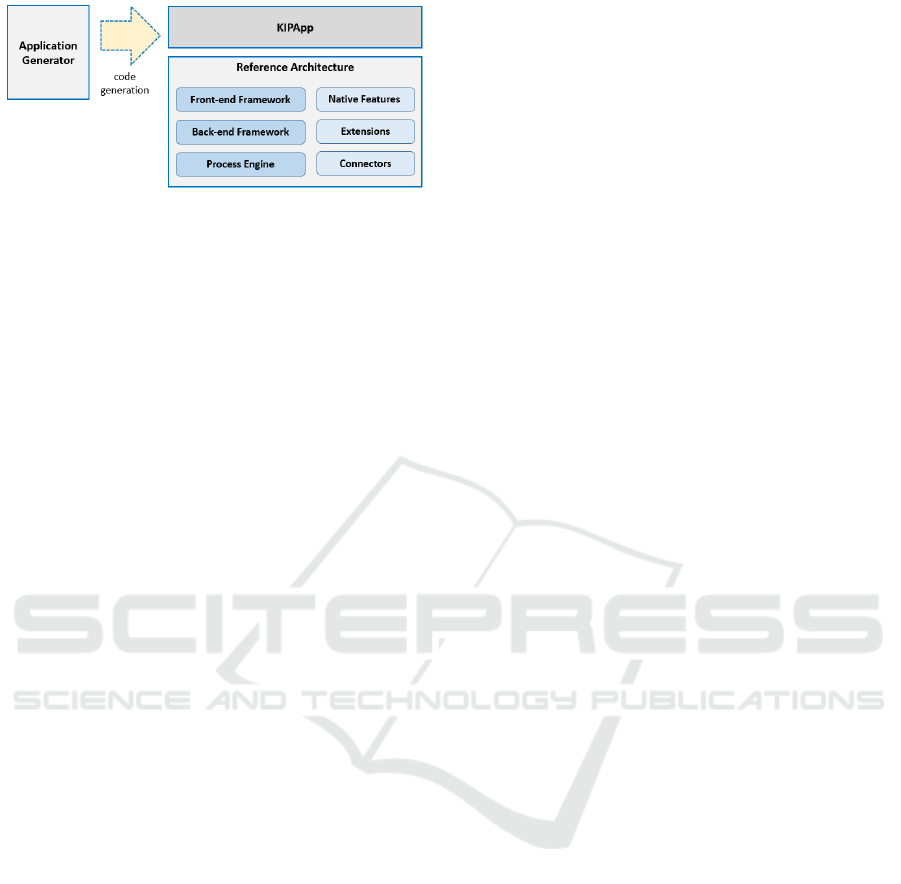

Figure 1: Platform overview.

main components: Bonita Studio, Bonita BPM En-

gine, Bonita Portal, Bonita UI Designer, and Bonita

Continuous Delivery. Flowable is a light-weight busi-

ness process engine written in Java. The platform sup-

ports the deployment of BPMN 2.0 and can be used

for creating process instances of those process deﬁ-

nitions, running queries, accessing active or histori-

cal process instances and related data. jBPM (Java

Business Process Model) is an open-source work-

ﬂow engine written in Java that can execute business

processes described in BPMN 2.0 (or in jPDL, its

own process deﬁnition language, in earlier versions).

jBPM is a toolkit for building business applications to

assist in automating business processes and decisions.

It is maintained by Red Hat Inc., part of the JBoss

community and closely related to the systems Drools

and OptaPlanner projects in the KIE group. It is re-

leased under the ASL (or LGPL in earlier versions)

by the JBoss company.

The limitations of these existing solutions were

described in Section 1, and, as a reminder, are

listed here as well: (1) Vendor Lock-in; (2) Limited

UI/UX; (3) Limited integration; (4) Outdated technol-

ogy stack; and (5) Lack of support for non-process

features.

4 PLATFORM OVERVIEW

AKIP Process Automation Platform is an open-source

project devoted to facilitate process automation initia-

tives based on code generation techniques. The plat-

form was built by developers and researchers aiming

to disseminate the use and development of process-

aware information systems, more speciﬁcally mod-

ern web applications that we call KIPApps. Figure

1 presents an overview of the platform. It consists of

two components supporting KIPApp development: an

Application Generator and a Reference Architecture.

4.1 KIPApp

In our solution, we call KIPApp (which stands for

Knowledge Intensive Process Applications) a mod-

ern process-aware web application (such as described

in Section 2.4) that executes on the top of an open-

source process engine. In short, a KIPApp provides

the following main features:

• Web Application Management: This includes

the management of users, conﬁguration proper-

ties, health checks, logs, and application metrics.

• Process Management: It includes the manage-

ment of domain entities, deployed processes, ten-

ants, and process instances.

• Task List: It provides an updated user tasks list

showing tasks completed, assigned, and waiting

to execute.

4.2 Application Generator

The application generator is a tool to generate, de-

velop, and deploy KIPApps quickly. It generates code

for the base reference architecture of the AKIP plat-

form.

The generator is a key tool in our solution because

it accelerates the development process by scaffolding

a huge amount of code that, without the generator,

would have to be coded manually.

4.3 Reference Architecture

The reference architecture represents the backbone

of a KIPApp. It is composed of front and back-end

frameworks, a process engine, native features, exten-

sions, and connectors. Details on technologies used

for front and back-end frameworks and the process

engine are presented in Section 7. The process en-

gine is the tool used in our solution to orchestrate the

process workﬂow from an executable BPMN model.

Next, we depict the remaining three elements of the

reference architecture:

• Native Features are common features already

provided by the reference architecture, meaning

there is no need to repeat the code of these fea-

tures in each KIPApp. Examples of native fea-

tures include Advanced Tasks List, Start-Process,

Process-Instances Dashboard, Management of

Deployed Processes, and User Management.

• Extensions are components that allow seamless

integration of the KIPApp with the process en-

gine.

AKIP Process Automation Platform: A Framework for the Development of Process-Aware Web Applications

Figure 2: Main steps to use the platform.

• Connectors are components that allow the appli-

cation to integrate quickly with the external world.

Examples of connectors include an Email Con-

nector used to send email automatically through-

out the process execution, RestAPI Connector

to integrate with other systems through Rest

APIs, JMS Connector to carry out communica-

tion through messaging, and AWS Connectors that

allow integration with main AWS services. The

main idea behind these elements is to reuse the

most common integration components through a

sophisticated and highly conﬁgurable set of con-

nectors.

5 PLATFORM WALK-THROUGH

Using the platform involves three main steps (Figure

2):

1. Generation of a KIPApp based on the Reference

Architecture.

2. Technical implementation of one or more business

processes.

3. Deployment of the business process(es) into the

KIPApp.

We brieﬂy explain below how these general steps

can be performed. Details on how to install and use

the platform can be found in the Github project public

repository.

5.1 Generating a KIPApp

Our application generator was designed so that the

user only needs to execute a single command and an-

swer some questions related to the application con-

ﬁguration from a wizard to get your web application

running with several features already installed. For

more details, check out the platform’s Github public

documentation.

5.2 Implementing a Business Process

In this section, we will focus on the development of

an illustrative process named Travel Plan Process. In

https://agilekip.github.io/pap-documentation

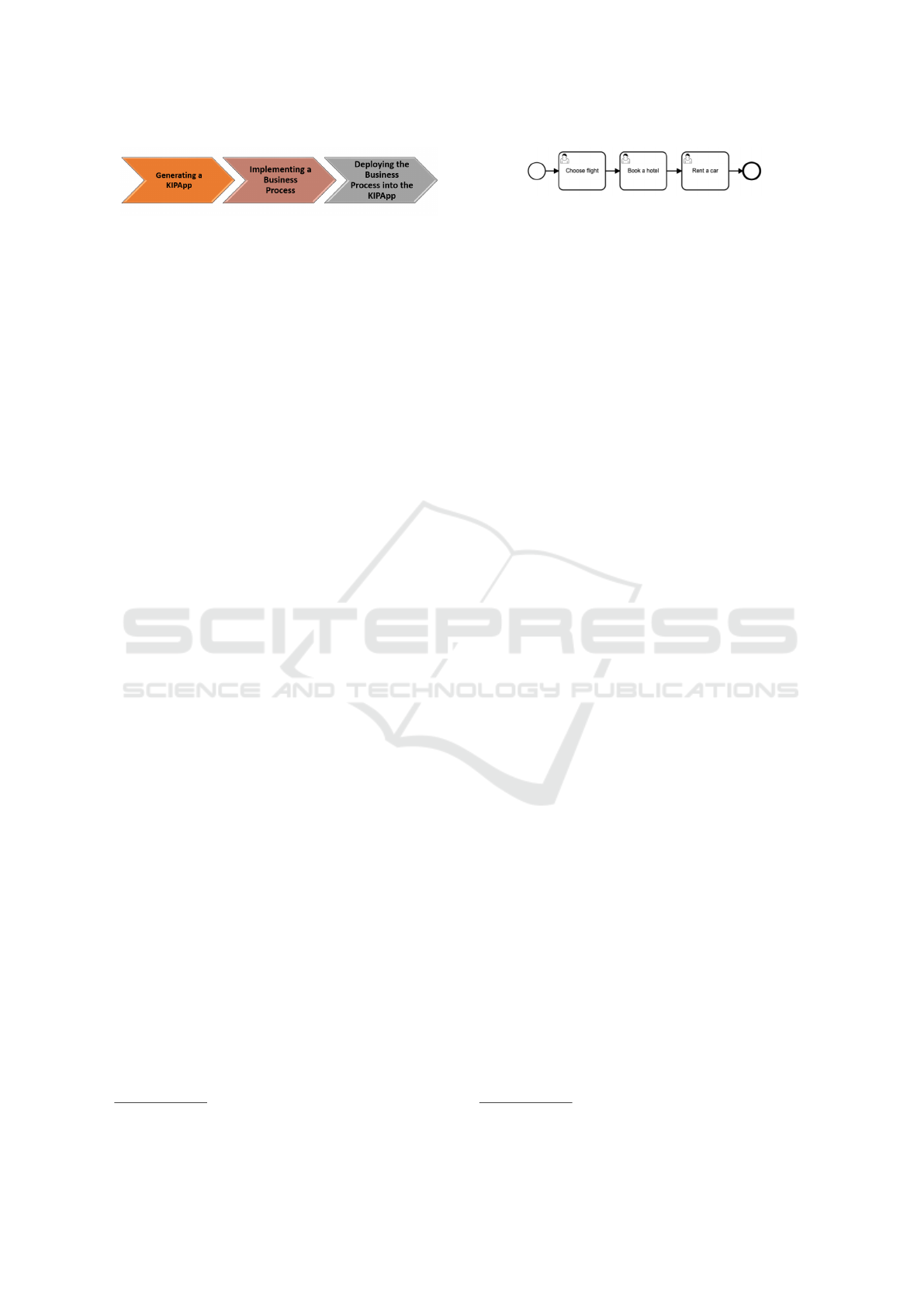

Figure 3: Travel Plan Process - a running example.

a nutshell, this process has steps that users execute

when planning a trip. Therefore, our goal is to de-

velop a process-aware web application that aids a user

planning a trip. For illustrative purposes, we will use

a very simple version of this process, composed of

only three user tasks, as shown in Figure 3:

To implement this business process, we should

perform the following steps:

1. Deﬁne the business process model;

2. Deﬁne the domain model;

3. Generate domain entities;

4. Generate process entities; and

5. Customize the generated code.

5.2.1 Deﬁning the Business Process Model

The business process model should be speciﬁed in

BPMN

and contain only typical tasks (usually User,

Service, or Message Tasks) as illustrated by the pro-

cess model in Figure 3. Moreover, the process should

have an associated identiﬁer (id) and be deﬁned as ex-

ecutable. Optionally, we can also specify a descrip-

tion for the process using markdown notation. This

description will be shown in the application when a

new process instance is initiated.

5.2.2 Deﬁning the Domain Model

A domain model (e.g., in UML notation) should be

created in order to help identify domain entities that

the business process (supported by the KIPApp) needs

to handle. To keep our running example simple, the

domain model is represented by a single entity named

TravelPlan that has a few properties as shown in Fig-

ure 4. This entity represents the data that are handled

by the process.

It will serve as a guide artifact for the next steps

(related to entity generation). However, the domain

model itself is not an input artifact for the AKIP plat-

form. In fact, it uses domain speciﬁcations in JSON

(JavaScript Object Notation) format, which is a stan-

dard data interchange format for the Web. JSON ﬁles

are lightweight, text-based, human-readable, and can

be edited using a text editor. Figure 5 presents the

metadata of the TravelPlan domain entity in JSON

format. The fields element describes primitive

types of the entity and the relationships element

For now, only Camunda Modeler is supported.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

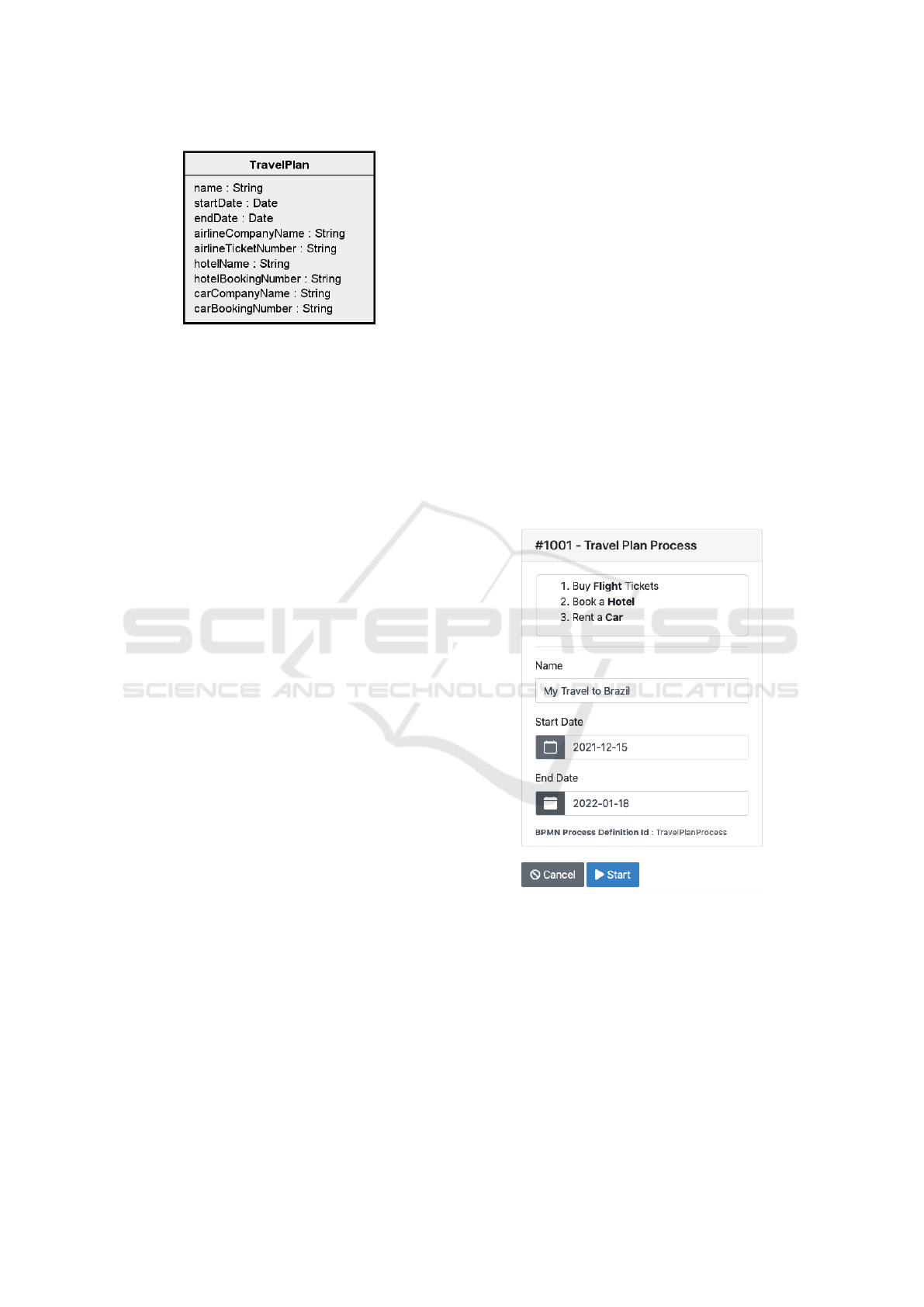

Figure 4: Simpliﬁed domain model.

{ "fields": [

{ "fieldName": "name",

"fieldType": "String" },

{ "fieldName": "startDate",

"fieldType": "LocalDate" },

{ "fieldName": "endDate",

"fieldType": "LocalDate" },

{ "fieldName": "airlineCompanyName",

"fieldType": "String" },

{ "fieldName": "airlineTicketNumber",

"fieldType": "String" },

{ "fieldName": "hotelName",

"fieldType": "String" },

{ "fieldName": "hotelBookingNumber",

"fieldType": "String" },

{ "fieldName": "carCompanyName",

"fieldType": "String" },

{ "fieldName": "carBookingNumber",

"fieldType": "String" }

"relationships": [],

"entityType": "domain",

"service": "serviceClass",

"dto": "mapstruct",

"jpaMetamodelFiltering": false,

"readOnly": true,

"pagination": "no",

"name": "TravelPlan",

"skipFakeData": true

}

Figure 5: TravelPlan domain entity metadata.

should describe its relationships (when they exist)

with other domain entities.

"entityType": "process-binding",

"processBpmnId": "TravelPlanProcess",

"domainEntityName": "TravelPlan",

"name": "TravelPlanProcess",

Figure 6: Fragment of the TravelPlanProcess process-

binding entity metadata.

{ "fields": [

{ "fieldName": "name",

"fieldType": "String" },

{ "fieldName": "startDate",

"fieldType": "LocalDate" },

{ "fieldName": "endDate",

"fieldType": "LocalDate" }

"relationships": [],

"entityType": "start-form",

"processBpmnId": "TravelPlanProcess",

"processEntityName": "TravelPlanProcess",

"domainEntityName": "TravelPlan",

"service": "serviceClass",

"dto": "mapstruct",

"jpaMetamodelFiltering": false,

"readOnly": false,

"pagination": "no",

"name": "TravelPlanStartForm",

"skipFakeData": true

}

Figure 7: TravelPlanStartForm start-form entity metadata.

Figure 8: KIPApp’s UI form used to start a Travel Plan

process instance.

5.2.3 Generating Domain Entities

Once we have speciﬁed the TravelPlan domain entity

in a JSON ﬁle (such as illustrated in Figure 5), we

can generate all the ﬁles supporting the manipulation

of this entity in the Web application (KIPApp). The

“entity” sub-generator of the AKIP platform will cre-

ate all the necessary application ﬁles (including the

database table, the controller of basic CRUD opera-

AKIP Process Automation Platform: A Framework for the Development of Process-Aware Web Applications

tions, and services) and provide a CRUD front-end

for each generated entity. The CRUD support, how-

ever, will only be provided if the readOnly property

of the JSON entity speciﬁcation is set to false. In the

case of our running example, as the TravelPlan do-

main entity is read-only (see Figure 5), it will only be

possible to view its instances (created from the Travel

Plan Process). To view or handle instances of domain

entities, we need to use the Entities application menu.

5.2.4 Generating Process Entities

In this step, we need to generate the KIPApp’s entities

related to the process support. Each process entity

type plays a different role in the application:

• Process-binding Entity: This entity represents

the binding between a business process (BPMN

model) and its corresponding domain entity. In

other words, the aim of this entity is to indicate

the domain entity associated with the process.

• Start-form Entity: This entity is used to generate

the User Interface (UI) form which starts a process

instance.

• User-task Entity This entity is used to generate

the UI form for a speciﬁc user task present in the

process.

As in the case of domain entities, process enti-

ties also need to be speciﬁed as JSON ﬁles. In our

example, the process-binding entity is named Trav-

elPlanProcess. Its JSON speciﬁcation is very simi-

lar to the TravelPlan domain entity presented in Fig-

ure 5. For this reason, we will not show here its

complete speciﬁcation, but only some of its details.

TravelPlanProcess differs from the TravelPlan entity

only in relation to the properties presented in Figure

6. Speciﬁcally, we highlight the processBpmnId and

domainEntityName properties. The ﬁrst one should

match the process Id deﬁned in the BPMN process

model (as mentioned in Section 5.2.1). The second

one (domainEntityName) should match the domain

entity previously created (i.e., TravelPlan).

Concerning the start-form entity, Figure 7

presents its JSON speciﬁcation for our running exam-

ple. The fields element describes the ﬁelds from

the domain entity that should be present in the pro-

cess start UI form whereas the relationships el-

ement describes the relationships from the domain

entity that should be included in this form. The

entityType property is start-form; processBpmnId

matches the process id deﬁned in the BPMN model;

processEntityName matches the process-binding

entity previously created; and domainEntityName

matches the domain entity previously created. Fig-

ure 8 shows the KIPApp’s UI form generated from

the TravelPlanStartForm entity (Figure 7) by using

the “entity” sub-generator of the AKIP platform. This

UI form will be used to start a Travel Plan process in-

stance in the Web application.

A user-task entity should be created for each user

task present in the business process model. In the case

of our example, we need to create three user-task enti-

ties (named TaskFlight, TaskHotel, and TaskCar), be-

cause the Travel Plan process contains three user tasks

(see Figure 3). Owing to space limitations, we will

not present here the JSON speciﬁcations for these en-

tities, but they can be found in the platform’s online

tutorial. However, they are very similar to the start-

form entity speciﬁcation previously created (Figure

7), as both entity types (user-task and start-form) are

used to generate UI forms of the resulting KIPApp.

In a user-task entity, the entityType property should

be user-task-form and the fields element should

contain the ﬁelds from the domain entity that should

appear in the KIPApp’s UI form used to execute the

process’s user task. Additionally, it should contain

the taskBpmnId property matching the correspond-

ing task id deﬁned in the BPMN model ﬁle.

All entities mentioned above (i.e., the domain and

process ones) can be generated at the same time to

build the KIPApp by using the “entity” sub-generator

of the AKIP platform. This generator will create all

the necessary application ﬁles to support such entities.

5.2.5 Customizing the Generated Code

In a real scenario, once the application code has been

generated, it usually still needs some customizations

performed by developers. The most common cus-

tomizations we have identiﬁed in practice are the ad-

dition of support for business rules and adjustments in

UI form ﬁelds.

5.3 Deploying a Business Process into a

KIPApp

Finally, the KIPApp is ready and all entities support-

ing the execution of the Travel Plan business process

were generated and customized. Next, we need to ex-

plicitly deploy this process into the KIPApp.

To do that, it is necessary to log into the applica-

tion using an account with admin privileges, access

the Process Deﬁnitions Management feature (Figure

9), click on the Deploy a Process button, and choose

the business process model ﬁle (BPMN) correspond-

ing to the Travel Plan Process (detailed in Section

5.2.1). The bottom of Figure 9 shows the Travel Plan

process already deployed.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

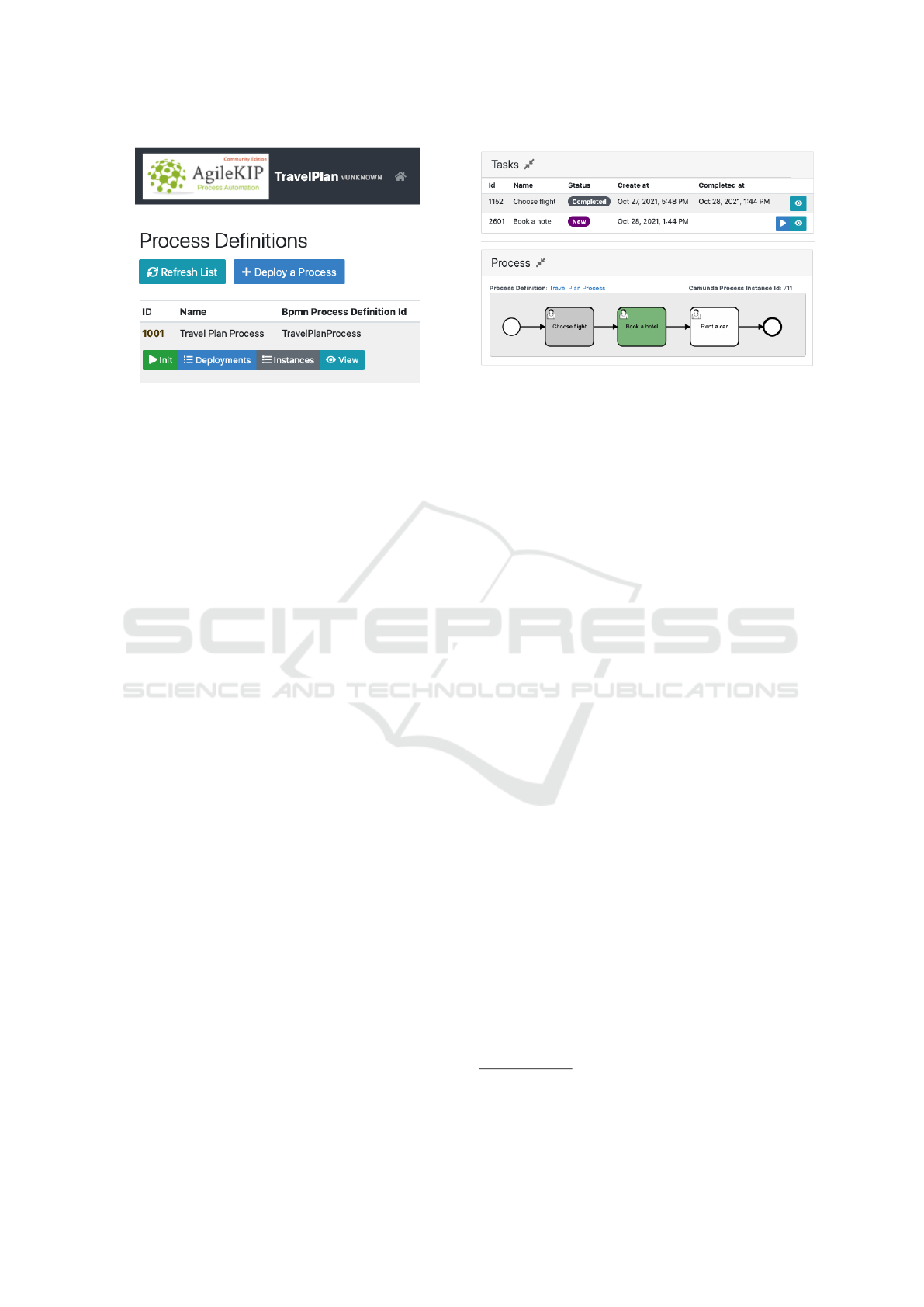

Figure 9: KIPApp screen showing a deployed business pro-

cess.

6 USING A KIPApp

This section brieﬂy presents how to use a KIPApp to

execute a business process. Owing to space limita-

tions, we will not present other functions provided by

the application.

Enacting a business process involves at least (1)

starting a new process instance, and (2) executing user

tasks from this instance. The following subsections

describe how these activities can be performed within

a KipApp.

6.1 Starting a Process Instance

Once the Travel Plan process has been deployed, we

can start the process by clicking on the Init button

from the app screen shown in Figure 9. The start form

of this process (shown in Figure 8) contains the ﬁelds

we deﬁned previously in the TravelPlanStartForm en-

tity metadata (Figure 7). The process description (in

this case, three enumerated steps) came from the doc-

umentation element of the BPMN process model. The

process instance will actually start when we click on

the Start button at the bottom of the form (Figure 8).

To see the instances of the process already created,

we click on the Instances button from the screen in

Figure 9.

6.2 Executing User Tasks from a

Process Instance

A KIPApp user can see the updated process tasks list

from the My Tasks app menu. In the case of the Travel

Plan process, its tasks are available for any authen-

ticated user. Figure 10 shows the user tasks screen

where one can note the Choose ﬂight task has already

Figure 10: User tasks from a process instance.

been completed (owing to its status) and the Book a

hotel task is enabled for execution (the BPMN pro-

cess model in this screen shows in green the current

task waiting to be executed). To execute it, we only

need to click on the Play button on the right side of

the task. A process instance will be concluded after

all its tasks have completed.

7 TECHNICAL NOTES

This section provides some information about the

platform’s implementation concerning its support

technologies. A KIPApp is a single web page appli-

cation generated by the AKIP platform, running on

top of a process engine. Our Application Generator is

an extension of the JHipster

generator (technically

it is a JHipster blueprint) that overrides many sub-

generators and provides its own templates and func-

tions. Our Reference Architecture is based on one of

the most modern tool stacks in the software indus-

try. Currently, we use VueJS

as a front-end frame-

work, Spring Boot

as a back-end framework, and

Camunda Platform as a process engine.

8 CASE STUDY

The AKIP platform is used in practice within a soft-

ware development company as a support tool to build

process-aware web applications (KIPApps). This sec-

tion presents data on a case study conducted in the

context of this enterprise. The following subsections

present the goal of our study (8.1), data about the

company and the automated business processes (8.2),

https://www.jhipster.tech/

https://www.vuejs.org/

https://spring.io/projects/spring-boot

AKIP Process Automation Platform: A Framework for the Development of Process-Aware Web Applications

the procedure that was followed (8.3), the results of

the case study (8.4) and, ﬁnally, some considerations

about the case study (8.5).

8.1 Goal

Our goal with this study was to assess the feasibility

and usability of the AKIP platform. In other words,

we intended to verify its effectiveness to generate

process-aware web applications in practice in the con-

text of a software development company. Speciﬁ-

cally, the study aimed to answer the following re-

search question (RQ):

RQ: Is the AKIP platform able to generate

process-aware web applications (KIPApps) from real-

world business process models?

8.2 Subject Data

This case study was conducted in the context of a

Brazilian software development company (with ap-

proximately 30 employees), located in the city of Rio

de Janeiro. Its focus is on the development of IT so-

lutions for the logistics and port sectors.

The case study was conducted using one of the

company’s projects, named the Process Automation

project, which is automating and integrating business

processes from a client company by providing a cus-

tomized process-aware web application. The project

has a team composed of a project manager, a prod-

uct owner, a process analyst, a software analyst, and

two developers. The project follows a Scrum-based

agile development process that delivers an automated

business process at each iteration (sprint).

We evaluated three business processes automated

in this project, which are from the logistics and sea-

port domains. However, as these processes are pro-

prietary and conﬁdential, we will only present gen-

eral information about their models, without present-

ing any details of the process model itself.

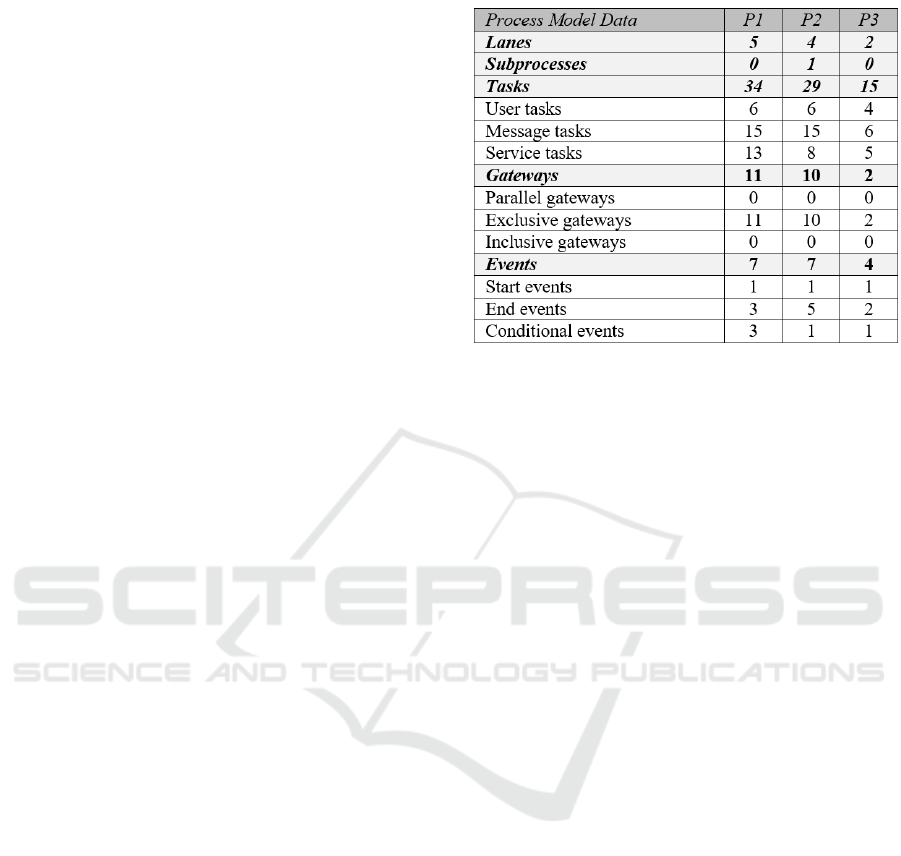

Table 1 shows the size of the BPMN process mod-

els automatically generated with the AKIP platform

(identiﬁed by P1, P2, and P3) in terms of number of

tasks, subprocesses, gateways, events and lanes, and

provides information about the complexity of these

models.

8.3 Procedure

First of all, the software architect generated the

KIPApp for the client company using the AKIP plat-

form. Afterwards, at each project’s development pro-

cess iteration (sprint), the team followed the sequence

Table 1: Data on case study business process models.

of steps presented in Section 5.2 for implementing a

business process:

1. The BPMN business process model was built by

the process analyst, interacting with the product

owner and users of the process.

2. The domain model was created by the software

analyst with the participation of the process ana-

lyst.

3. The domain and process entities metadata were

speciﬁed by the developers in JSON and used by

the AKIP platform that generated the code base

for the given process.

4. The generated app’s code was customized by de-

velopers (including support for business rules and

integrations) and UI forms (screens) were cus-

tomized by the software analyst.

5. Finally, the business process was deployed in

the KIPApp and the application was available for

client validation.

8.4 Results

As shown in Table 1, business processes considered

in this case study are composed of gateways, events,

and different types of BPMN tasks (User, Message,

and Service tasks) that allow us to evaluate advanced

code-generation resources of the AKIP platform. We

could not present such advanced resources in this pa-

per owing to space limitations, but they are covered in

the platform’s online tutorial. Moreover, all business

processes considered in this study could be success-

fully automated through the generated KIPApp. Code

customizations are always necessary, but even so, the

platform contributes to the automatic generation of a

large volume of application code, which would have

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

to be developed manually without the platform. The

project team where the platform has been used re-

ported to us that it is very useful in streamlining the

work of application development.

Finally, we conclude this section by answering

the research question that motivated this case study:

Is the AKIP platform able to generate process-aware

web applications (KIPApps) from real-world business

process models? The evaluation that was conducted

allowed us to conclude that the AKIP platform was

effective in generating a Web application supporting

the business processes implemented in the context of

the evaluated company’s project. Based on the cases

we evaluated in this practical study, we can claim that

the AKIP platform satisfactorily generates useful and

modern application code supporting business process

execution. However, more case studies should be an-

alyzed to extend the platform’s evaluation and consol-

idate its validation.

8.5 Discussion

The AKIP Process Automation Platform has been

used in several realistic and academic scenarios by

different teams to support developing process-aware

Web applications, and in this paper we present a case

study to demonstrate the feasibility of the platform.

In future work, we intend to conduct a survey with

members of the project’s development team in order

to evaluate speciﬁc aspects about the use of the AKIP

Process Automation Platform.

It is important to mention that the business pro-

cesses considered in this evaluation come from a sin-

gle enterprise’s project and may not be representative

of those occurring in other realistic settings. Different

software development processes, domains and orga-

nizations may lead to different results. Thus, our plat-

form should be tested further on business process au-

tomation scenarios from other organizations and do-

mains.

As can be seen in Table 1, the process models

considered in the case study include only one type of

BPMN gateway (exclusive gateway) and one type of

non-essential event (conditional event). Thus, the ef-

fectiveness of the AKIP platform in automating pro-

cesses with different types of BPMN gateways is

not evaluated in this study. Other BPMN process

elements have not yet been tested using the plat-

form, such as transactions, compensation activities,

and business rule tasks. In future work, we intend to

address this limitation.

In addition, we want to point out that the case

study (as well as our experience automating business

processes with the platform) shows the AKIP Process

Automation Platform can be used successfully in con-

junction with an agile software development process

such as Scrum to aim the development of process-

aware information systems. The project team that

participated in the case study reported that the plat-

form helps them to achieve more agility in imple-

menting business processes.

In summary, our results are promising, as demon-

strated by several independent uses, and we are still

working to improve the platform in order to support

more BPMN elements and include features directed

toward the low-code movement.

9 CONCLUSIONS AND FUTURE

WORK

In this paper we have introduced the AKIP Process

Automation Platform, an open-source project devoted

to facilitate business process automation initiatives

based on code generation techniques. The platform

is capable of generating a functional process-aware

Web application, which we call KIPApp, from an ex-

ecutable business process model deﬁned in BPMN.

To the best of our knowledge, there is no other

software tool that generates fully functional process-

aware Web applications. Our solution is different in

that the generated application runs on top of a process

engine responsible for orchestrating the execution of

business processes and the generated Web applica-

tion’s architecture is based on modern technologies

currently used by the software industry.

In addition, we have presented a real-world case

study in which the AKIP platform has been evaluated.

The results of this study showed that it was effective

in generating a Web application supporting the busi-

ness processes implemented in the evaluated study. In

future work, we intend to conduct other case studies,

evaluating the tool in new business domains, in order

to broaden its validation.

We are also working on the development of a new

component for the AKIP platform. This component

consists of a software development process based on

agile practices, which we call SCRUB4PA (SCRUB

for Process Automation), and deﬁnes in detail how a

KIPApp should be built. This process will encompass

phases, tasks, roles, artifacts, templates, and tools

used throughout the development of a KIPApp.

REFERENCES

Dumas, M., Van der Aalst, W. M., and Ter Hofstede, A. H.

(2005). Process-aware information systems: bridging

AKIP Process Automation Platform: A Framework for the Development of Process-Aware Web Applications

people and software through process technology. John

Wiley & Sons.

Dwyer, G. (2021). Stateful vs state-

less architecture: Why stateless won.

https://www.virtasant.com/blog/stateful-vs-stateless-

architecture-why-stateless-won.

Harmon, P. (2016). The state of business process manage-

ment 2016. Technical report.

Iskandar, T. F., Lubis, M., Kusumasari, T. F., and Lubis,

A. R. (2020). Comparison between client-side and

server-side rendering in the web development. In IOP

Conference Series: Materials Science and Engineer-

ing, volume 801, page 012136. IOP Publishing.

ISO (2013). ISO/IEC 19510:2013: Information technology

– Object Management Group Business Process Model

and Notation. Technical report, Organization for Stan-

dardization.

Kirchmer, M. and Scheer, A.-W. (2004). Business process

automation—combining best and next practices. In

Business Process Automation, pages 1–15. Springer.

Mohapatra, S. (2009). Business process automation. PHI

Learning Pvt. Ltd.

OMG (2013). Business Process Model and Notation

(BPMN), Version 2.0.2. Technical report, Object

Management Group.

Samland, F. and Tuting, W. (2019). Monolith to mi-

croservice, waterfall to agile, success with camunda.

https://camunda.com/customer/deutsche-telekom/.

Scholz, T. and Wagner, K. (2004). Aris process platform tm

and sap netweaver tm: Next generation business pro-

cess management. In Business Process Automation,

pages 29–37. Springer.

Shan, D. (2022). Finance back-ofﬁce billing engine using

camunda. https://camunda.com/customer/atlassian/.

Straube, C. and Horn, D. (2021). Scaling process

automation with a modular open source platform.

https://camunda.com/customer/city-of-munich/.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies
