Debunking the Stereotypical Ontology Development Process

Achim Reiz

and Kurt Sandkuhl

Rostock University, 18051 Rostock, Germany

Keywords: Ontology Metrics, NEOntometrics, Ontology Evolution, Ontology Evaluation, OWL, RDF.

Abstract: Ontologies facilitate meaning between human and computational actors. On the one hand, the underlying

technology can be considered mature. It has a standardized language, established tools for editing and sharing,

and broad adoption in practice and research. On the other hand, we still know little about how these artifacts

evolve over their lifetime, even though knowledge of the development process could influence quality control.

It would enable us to give knowledge engineers better modeling or selection guidelines. This paper examines

the evolution of computational ontologies using ontology metrics. First, we gathered hypotheses on the

ontology development process. We assume that groups of ontologies follow a similar development pattern

and that a stereotypical development process exists. Afterward, these hypotheses are tested against historical

metric data from 7053 versions from 69 dormant ontologies. We will show that ontology development

processes are highly heterogeneous. While the made hypotheses are partly true for a slight majority of

ontologies, concluding the bigger picture of ontology development down to the individual ontologies is mostly

not possible.

1 INTRODUCTION

Change in software over time is inevitable and vital

for successful applications. As customer

requirements and needs change over time, so does the

software. Computational ontologies are no different

in this regard. Noy and Klein identified three main

reasons for ontology evolution: (1) A change in the

domain (in the world the ontology captures), (2) a

change in the conceptualization, implying a changing

view on the modeled domain, and (3) a change in the

explicit specification, thus changes in the underlying

ontology representation (Noy & Klein, 2004).

The changes in the domain or the

conceptualization occur regularly and force the

development and evolution of the corresponding

electronic representations. While the intensity of

changes fluctuates, an ontology shall evolve to at least

some degree. A dormant artifact most likely does not

conform to the evolved requirements and can prevent

progress in the domain (Malone & Stevens, 2013).

Detecting the absence of development activity to

notice dormant ontologies is reasonably simple by

analyzing the publishing dates of new versions. While

https://orcid.org/0000-0003-1446-9670

https://orcid.org/0000-0002-7431-8412

identifying inactivity already helps, knowing the

lifecycle stages prior to the end of life of an ontology

could aid the knowledge engineers in making better

development decisions and the developers that

implement an ontology in selecting the correct artifact

that fits their needs. Several papers proposed stages

that shall occur in the lifecycle of an ontology,

starting from the early development until the end of

service.

This work tests whether we can identify these

stages using ontology metrics on OWL and RDF

ontologies. We first formulate hypotheses based on

proposed life cycle stages. At the center is the

assumption that ontologies have a stereotypical

development process. The assumptions are then

numerically tested using large quantities of historical

metric data.

The work falls into a broader research project

researching ontology quality based on evolutional

data (Reiz, 2020). Our goal is to understand how

ontologies evolve, to later guide developing and

reusing decisions. Knowing in which phase an

ontology currently is would allow us to recommend

the next developing steps and support the knowledge

Reiz, A. and Sandkuhl, K.

Debunking the Stereotypical Ontology Development Process.

DOI: 10.5220/0011573600003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 82-91

ISBN: 978-989-758-614-9; ISSN: 2184-3228

engineer in need of reusing an existing ontology in

neither picking an initial, unstable, or dormant

artifact. It would enable us to compare an ontology

against the stereotypical development process and

base quality control on comparing it to other, highly

similar ontologies. In this regard, this research

examines whether the assumption of a stereotypical

development is supported by empirical evidence.

This paper is structured as follows: The next

section gathers the relevant state of the art in ontology

evolution research. Afterward, we derive hypotheses

for ontology evolution, followed by the presentation

of the dataset and the applied preprocessing. Section

5 then tests the hypotheses, followed by a discussion

and conclusion of the research.

2 RELATED WORK

Ontology evolution is mainly understood as

managing changes throughout the ontology's lifetime.

In this regard, Stojanovic defines ontology evolution

as the "…timely adaptation of an ontology to the

arisen changes and the consistent propagation of

these changes to dependent artifacts" (Stojanovic,

2004). Many papers have considered the

identification changes and their impacts using various

methods and granularity levels. (Zablith et al., 2015)

conducted an extensive literature review on the

various views of ontology evolution and change,

starting with detecting a need for change, followed by

its implementation and assessment.

Our research is less interested in managing the

fine granular modifications that occur regularly while

developing ontologies but in the bigger picture of the

ontology life cycle. We, thus, are especially interested

in papers that research a (stereotypical) ontology

evolution process from the formulation of the first

axioms to reaching the end of the lifespan and

becoming dormant.

(Mihindukulasooriya et al., 2017) examined the

evolution of the vocabularies FOAF, PROV-O,

DBPedia, and Schema.org with a research focus on

the numerical developments of classes and properties

for every published version. Key takeaways are the

increasing size of all the ontologies and the missing

adherence to formal theoretical evolution

frameworks.

(Ashraf et al., 2015) proposed an analysis

framework for measuring ontology usage (Table 1).

His ontology development lifecycle includes the

phases: Engineering, evaluation, population,

evolution, and usage analysis. The stages evaluation,

population, and evolution overlap and allow for

reiteration. This paper primarily uses the

development cycle to motivate their presented usage

analysis.

Table 1: The ontology development cycle according to

(Ashraf et al., 2015).

#Stage Descrip

ion

A.1 Engineering Ontology is developed from

scratch according to the

iven requirements.

A.2 Evaluation Assessment of how well the

ontolo

fits the purpose.

A.3 Population Population of the ontology.

A.4 Evolution Adoption to changes.

A.5 Usage

Anal

sis

Ontology usage analysis.

(Malone & Stevens, 2013) assessed change

activities in bio-ontologies. These change activities

are measured through adding, deleting, or changing

classes. They see the ontology lifecycle as a five-way

step: initial, expanding, refining, optimizing/mature,

and dormant. Based on an analysis of 43 ontologies,

the authors derived recommendations for managing

community-led development efforts.

Table 2: Ontology lifecycle according to (Malone &

Stevens, 2013).

#Sta

e Description

B.1 Initial State of flux. Hierarchy is not

yet settled, coverage not yet

sufficient. Many additions,

chan

es, and deletions.

B.2 Expanding Expanding of the domain of

interest. Heavy adding of new

classes, fairly high level of

deletions.

B.3 Refining Low levels of addition and

deletion, high level of

chan

es.

B.4 Mature Very low or no level of

deletion, some addition or

chan

es.

B.5 Dorman

Little or no recent activity.

One possible view of computational ontologies is

to regard them as pieces of software. While ontology-

specific lifecycle research is scarce, the field of

software evolution has seen much activity in the past

years. Two papers had an especially significant

impact: (Rajlich & Bennett, 2000) proposed the

staged model for the software lifecycle, which is very

close in its assumption to the one proposed by Malone

and Stevens. It also has five stages with decreasing

Debunking the Stereotypical Ontology Development Process

change activity and rising maturity. A stark difference

is the inclusion of a release cycle: New versions of the

same software can trigger a new iteration of the

lifecycle.

Table 3: Staged model for software lifecycle by (Rajlich &

Bennett, 2000).

# Sta

e Description

C.1 Initial First functional version.

C.2 Evolution Extend capabilities to meet

users' needs.

C.3 Servicing Simple functional changes

and minor defect repairs.

C.4 Phaseou

o more servicing, still

eneratin

revenue.

C.5 Closedown Withdrawing the system from

the market.

Table 4: Lehman's laws of software evolution (newest

version, from (Cook et al., 2006)).

# Stage Description

D.I Continuing change Systems must adapt

continuously to remain

satisfactory.

D.II Increasing

complexity

As systems evolve, the

complexity increases –

unless work is done to

maintain or reduce it.

D.III Self-regulation The software evolution

process is self-regulating

regarding its attributes, with

a distribution that is close to

normal.

D.IV Conversation and

organiz. stability

The average effective

activity rate is invariant

over the lifetime of the

product.

D.V Conservation of

familiarity

During the active life of a

system, the average content

remains invariant.

D.VI Continuing growth The functional content must

continually increase over

the lifetime to maintain user

satisfaction.

D.VII Declining quality Unless rigorously adapted to

changes in the operational

environment, the quality will

appear to be declining.

D.VIII Feedback system Evolution is a multilevel,

multiloop, multiagent

feedback system.

Lehmann probably had the most impact on this

research area by formulating the laws of software

evolution. First published in 1974 and continuously

refined over the past years, it contains today eight

fundamentals on the evolutionary behavior of

software that depend or interact with the real world

(Cook et al., 2006).

The staged model and Lehmann's laws were

developed along with sizeable commercial software

projects. (Herraiz et al., 2013) collected nine studies

regarding the validity of the laws for open source

software and revealed controversy in the research

community. While laws D.I and D.VI were

confirmed, others were mainly invalidated, especially

laws D.II and D.IV. The other laws fall in the middle,

with some rejection and acceptance.

3 HYPOTHESES ON ONTOLOGY

EVOLUTION

The previous section reviewed relevant research for

ontology and software evolution. We gathered four

research endeavors with assumptions on how

software artifacts or ontologies evolve during their

lifetime. As a next step, we now transfer these

lifecycle assumptions to the hypotheses shown in

Table 5 that we will test on our dataset. This step also

includes the connection of hypotheses to ontology

metrics.

The first hypothesis (H1) states that ontologies

grow during their lifetime. They tend to get bigger

and incorporate a more detailed and broader view of

the domain they capture. This relatively simple

statement is measured through the development of the

number of axioms.

Hypothesis two (H2) states that the change

activity decreases, the more mature an ontology gets.

While it is supported by B, C, and also implicitly by

A, it contradicts D.IV. We expect to see this change

in activity in two measurements: At first, we measure

the number of commits overall. Less activity should,

thus, be visible in fewer commits at the end of the

lifecycle. However, we will also consider the size of

new versions, thus, how much change in these

versions occurred. In this case, we measure change

using the percental development of axioms.

The third hypothesis (H3) is not concerned with

the end of life in an ontology but with the beginning.

It states that knowledge engineers first develop the

ontology structure, measured through sub-classes and

properties on classes, and afterward populate the

classes (thus introducing individuals).

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

Table 5: Hypotheses on ontology evolution.

# Hypothesis Supported

Measured

H1 Ontologies

grow during

their lifetime.

B, C.2,

D.VI

Axioms

H2 The level of

change

decreases over

time,

(A), B.3-

5, C.3-5

Commits,

Axioms

H3 The instances

(or individuals)

are introduced

after the initial

design.

A.3 Subclasses,

Individuals,

Property

Assertions

H4 Ontology

complexity

increases with

risin

maturit

(B.III),

D.II

Complexity

Measures,

Relationship

Diversit

H5 A stereotypical

development

lifecycle can be

identified.

A, B, C Diverse

Hypothesis four (H4) states that ontologies tend

to get more complex. However, complexity from the

viewpoint of ontologies is different to define: Yang et

al. developed two complexity metrics for the gene

ontology: The average relationships per concept and

the average paths per concept. Here, we select the

latter as the results are more widespread throughout

the measured ontologies. However, the gene ontology

is heavily built on hierarchical relationships, and

Yang et al. only regard relationships as such that

incorporate hierarchical meaning (Yang et al., 2006).

We, thus, further consider the relationship diversity

proposed by the OntoQA framework (Tartir &

Arpinar, 2007), which measures the ratio of non-

inheritance and inheritance relationships. Arguably,

there are still many more aspects that constitute

complexity that one can measure, like general

concept inclusions or object property characteristics

(e.g., functional, symmetric). However, the focus on

these more generalistic attributes should be visible in

more repositories than other, more specific

measurements that are only used by a smaller number

of knowledge engineers.

All the hypotheses assume a standard

development process for ontologies and thus a

stereotypical development behavior. The last

hypothesis (H5) now tests whether we can identify a

joint development over time in an ontology or group

of ontologies. So while the former hypothesis

http://neontometrics.com

generates assumptions out of the lifecycle, H5

generalizes the findings and looks at the bigger

picture. It takes a variety of data into account, which

is described in the corresponding section 5.5

4 DATASET PREPARATION AND

ANALYSIS

The metric data for this analysis originates from the

NEOntometrics application

, developed by the same

authors as this paper. It allows the analysis of

ontology evolvement using git-based ontology

repositories and measures several structural

attributes. They include simple ones, like the depth of

the graph, the number of classes, or the count of

disjoint object properties. However, we also

implemented various metrics based on frameworks

proposed in the literature. Examples are the OntoQA

framework by (Tartir et al., 2005) or the OQual

measurements by (Gangemi et al., 2005), which are

also used in this paper. The application webpage

provides further reads on the capabilities and

architecture of the metric calculation software.

Figure 1 depicts the data pipeline. It begins with

the metric data access using the GraphQL endpoint of

NEOntometrics (1), followed by an initial check for

validity. Ontologies without logical axioms were not

further considered (2). That filtered out empty

ontologies, as well as such that merely contained

annotations or a fully custom vocabulary.

The query and validity check resulted in 159 git-

based ontology repositories containing 6,764

ontology files and 56,263 ontology commits (thus,

ontology versions).

In the next step, we applied several filters, starting

with conditions for our specific research questions

(3). As we are especially interested in the

development process of ontologies over the whole

lifetime, we need artifacts at the end of their lifecycle.

We considered ontologies without activity in the last

200 days as dormant (result: 6,016 ontology files,

31,439 versions).

Further, as this research focuses on the evolutional

aspects of ontology development, only such with a

rich history can be considered relevant. In this regard,

we set the threshold value for the minimum number

of versions to 40 (result: 77 ontology files, 11,998

versions).

Further not relevant are isolated or "toy"

ontologies that do not have a significant user base.

Here, we considered only ontologies that have at least

Debunking the Stereotypical Ontology Development Process

two authors (result: 69 ontology files, 10,810

versions).

The last step of filtering is the removal of reversed

commits (4). At times, the data show that metrics are

being reversed (changeOfCommit0 ==

changeOfCommit 1 + changeOfCommit2 AND

changeOfCommit0 = changeOfCommit2). For

instance, these can occur if one reverses the new

commit and recommits the old one. However, this

kind of behavior also occurs during merging

operations. After this last filter (4), the resulting data

set ready for analysis consisted of 69 ontologies with

7053 versions out of 30 repositories.

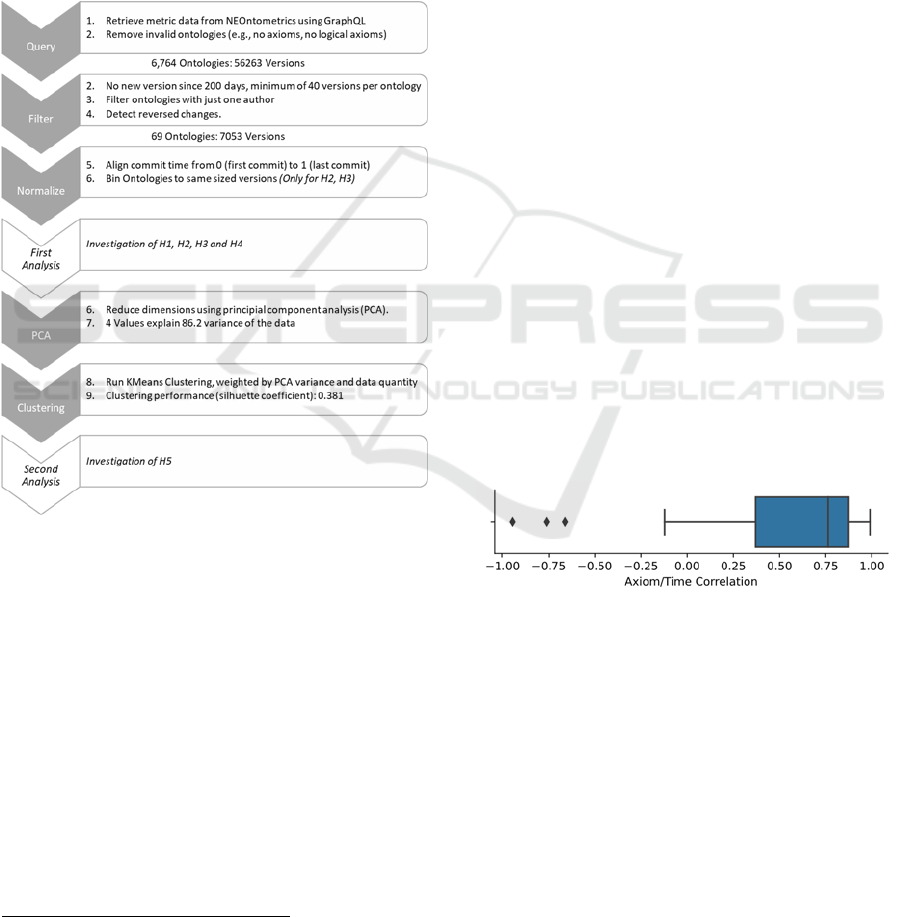

Figure 1: Data preparation and processing pipeline.

The actual dates of the ontology commits differ

widely. While some have been developed just

recently, others are older, without activity for some

years. To align the varying time frames, we

normalized the dates (5.) to a numerical value from 0

(first commit) to 1 (the last commit of the ontology).

At last, two of the analysis use the number of

commits and the commit time during the ontology

lifetime (H2, H3). To prevent the disproportionate

presence of ontologies with rich version history, we

proportionally thinned the commit times to around 40

for these hypotheses to ensure all ontologies are

represented equally (6.).

https://doi.org/10.5281/zenodo.7084705

With this last data preparation step, the data

preprocessing is completed for the answering of H1 –

H4. The processing steps for H5 are depicted in the

corresponding subsection 5.5. The analysis is based

on Jupyter notebooks. The corresponding source code

and ontology metric data are available online for

further investigation

The data used in this analysis covers manifold

application domains. Dormant ontologies from the

biomedical domain like the cell ontology or

obophenotype are included, as well as the food

ontology, ontologies about agriculture, Italian

cultural heritage or an information processing

ontology for robots.

5 EMPIRICAL ASSESSMENT OF

HYPOTHESES

Based on the hypotheses and the associated metrics

formulated in section three, we will now look at the

ontology metric data and assess whether the stated

assumptions can be empirically confirmed.

5.1 Ontologies Grow during Their

Lifetime (H1)

The first hypothesis states that ontologies get larger

over time. Our data supports this statement for a

majority of the ontologies. When comparing the

median of the first half of the ontologies' life to the

second half, 86,9 % have become larger and 13 %

smaller.

Figure 2: Distribution of correlation of axioms and time

(Pearson) of the ontology files.

The boxplot in Figure 2 shows the distribution of

measured correlation of the ontology axioms with the

normalized commit time. Half of the ontologies have

a strong positive correlation between axiom growth

and time. For the second half, however, this

correlation is less prominent. Three of the ontologies

even have strong negative growth.

As a result, we cannot confirm H1 to the full

extent. While most ontologies support the assumption

and consistently grow during their lifespan, 30,4 % of

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

the ontologies have a Pearson correlation value of

below 0.5. While most ontologies get more extensive

as a rule of thumb, this is not a generally applicable

rule.

5.2 The Level of Change Decreases

over Time (H2)

The statement (H2) assumes that rising ontology

maturity is associated with a decreasing change

activity. This assumption is tested by analyzing the

timely occurrence of commits and their commit size.

Figure 3: Development of axioms over the ontology

lifetime in percentage (log scale).

The violin plot at the top of Figure 3 displays the

change activity. The width of the violin graph

indicates the number of commits at a given lifecycle

stage. As the plot shows, most commits occur at the

beginning of the ontology lifecycle. Inside the violin

plot is a little boxplot. It indicates that more than half

of the ontology changes occur before 40 % of their

lifetime.

However, the size of the changes does not vary as

greatly. Underneath the boxplot is a bivariate

histogram plot. The darker the color, the more

commits occurred with the given percentage of axiom

increase or decrease. The graph shows first that the

size of changes varies widely, and secondly, that there

is not much difference in the size of the changes

throughout the ontology lifetime.

A closer look at the ontology files reveals that the

data is too heterogenous to validate the hypothesis as

a general rule. Of the 69 measured ontologies, 34

have more changes in the last third of their lifetime

compared to the first or second third. Applying the

same comparison to the mean change, 48 ontologies

have larger changes in the last third than in the first or

second third.

As a result, like with H1, we cannot confirm H2

to the full extent. While the data indeed shows that

the most and the most extensive changes occur during

the beginning of the ontology development process,

the rest of their lifetime is less distinguishable.

5.3 The Instances are Introduced after

the Initial Design (H3)

The third hypothesis (H3) makes assumptions

specifically for the development process. It states that

the structure of the ontology is developed first, and

instances are introduced later.

Figure 4: Change activity of ontology metrics over time.

Figure 4 shows the number of change activities

(not the intensity of the change) regarding sub-

classes and the addition or deletion of object

properties on classes and individuals. At first, it is

evident that the hypothesis of different phases of

adding structure and instances is not valid. It is quite

the opposite: At the beginning, there is a lot of

change activity and instability overall, with many

additions and deletions for all metrics, including the

individuals. However, after the first phase of

instability, the activity regarding instances decreases

overall. With increasing maturity, more commits

populate the ontology, and the deletions of

individuals decrease. The little boxplot inside the

violin graph shows that the median of commits

concerning individuals comes shortly after the

median of the other structural metrics; the difference,

however, is relatively small.

In conclusion, we cannot confirm H3 for ontology

development. Even though the end of the ontology

Debunking the Stereotypical Ontology Development Process

lifecycle comes with an increase of instances, the

development of structure and instances does not

happen separately but jointly.

5.4 Ontology Complexity Increases

with Rising Maturity (H4)

Hypothesis four (H4) states that, with rising maturity,

ontologies get more interconnected and complex.

This paper considers complexity as the average paths

per concept (thus assessing how many multi-

inheritance relationships are in the ontology) and the

ratio of inheritance and non-inheritance relationships.

Both variables are plotted in their development over

time in Figure 5, where every line represents one

ontology.

This first visualization for H4 (Figure 5)

incorporates several findings: At first, some

ontologies fluctuate widely in their structural

complexity, while others remain relatively consistent.

This fluctuation is especially evident in the bottom

graph: Many ontologies show significant variations

of their inheritance to non-inheritance relation ratios.

While there is a slight tendency for rising complexity

(a rise of average paths and relationship diversity)

visible, it cannot be derived as a general rule. Instead

of constant metrics change, the measures seem to

progress rather volatile, and many ontologies show

heavy swings in their measured complexity in both

directions.

The second diagram visualizes the Pearson

correlation of the complexity measures and time for

the analyzed ontologies. It, thus, analyses whether the

ontologies rise steadily in their complexity.

In this case, its distribution looks somewhat

similar to the analysis of H1. Most ontology files

show a positive correlation, thus getting more

complex over time. However, a common rule cannot

be established, as there is too much heterogeneity in

the data, including ontologies with no apparent

correlation or even a stringent complexity decrease.

The result of H4 is similar to the previously tested

hypothesis. While there are indicators that the

majority of ontologies indeed get more complex with

rising maturity, there is still too much contradictory

evidence for acceptance of the hypothesis.

5.5 A Stereotypical Development

Lifecycle Can Be Identified (H5)

The last hypothesis is not concerned with the

development of isolated aspects of ontologies

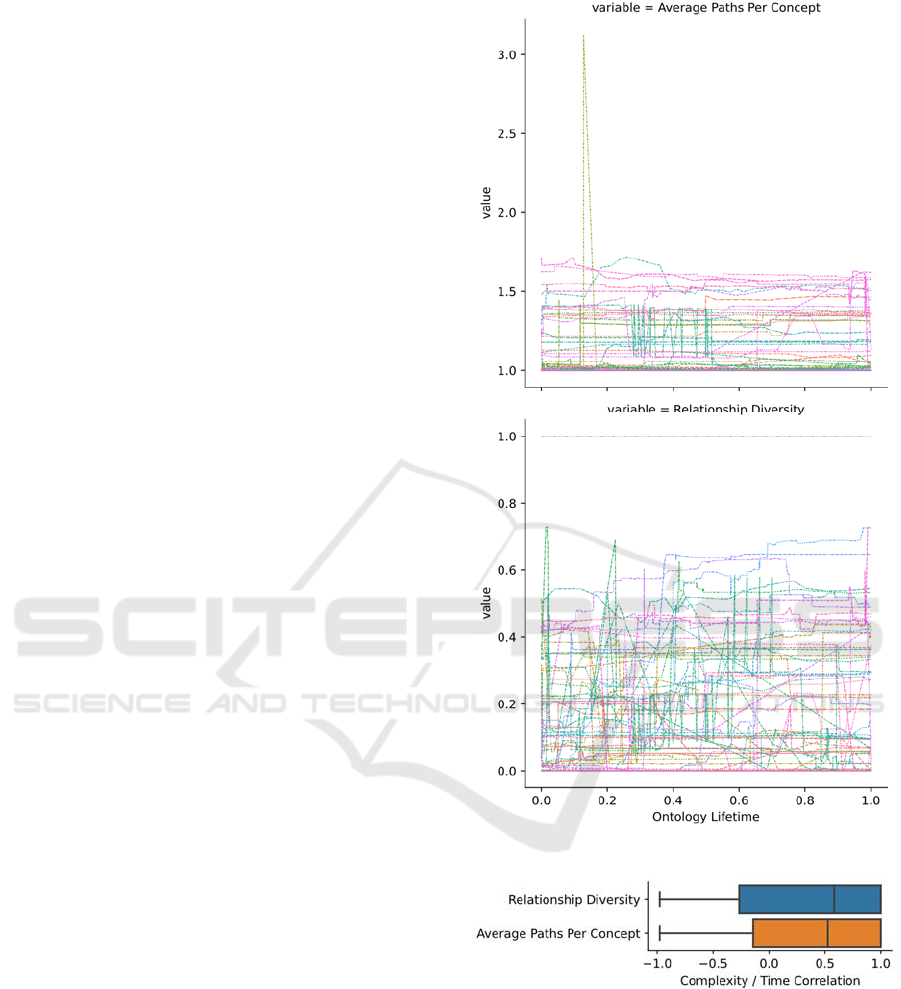

Figure 5: Ontology complexity development over time.

Figure 6: Distribution of the ontology complexity in

correlation with their lifetime.

but consolidates the findings into a generalized

hypothesis. Central is the question of whether there is

something like a joint, stereotypical development

process for ontologies. The assessment of this

hypothesis is now not based merely on a single metric

but takes into account eleven compositional measures

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

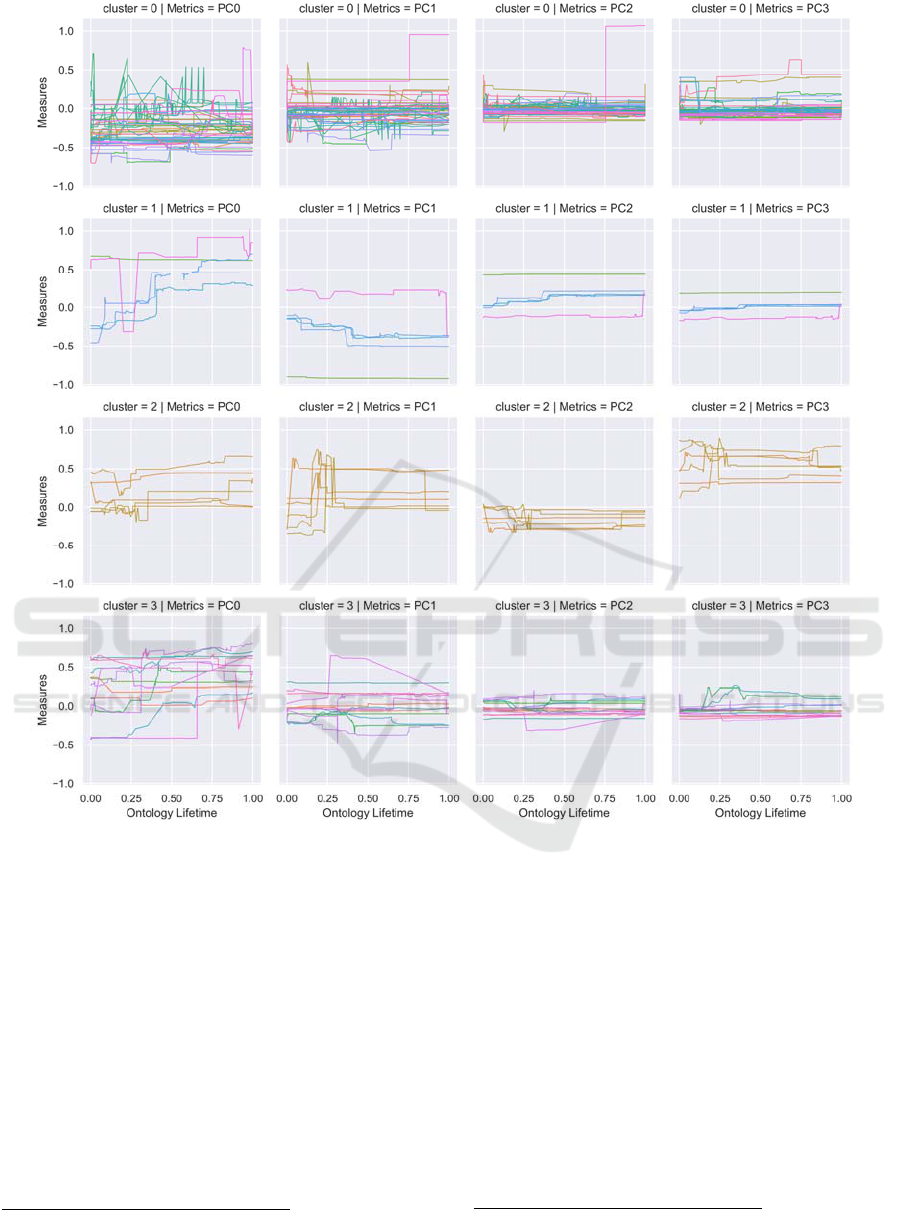

Figure 7: Clustering based on principal component analysis (PCA) for the ontologies.

proposed in the OQual

(Gangemi et al., 2005) and

OntoQA

(Tartir et al., 2005) framework. The

compositional values set metrics in relation to each

other. Thus, they allow a better comparison of

ontologies with varying sizes as count-related

measurements like the number of axioms or classes.

However, eleven metrics are still too numerous for

efficient visual comprehension. A principal

component analysis (PCA) based on the normalized

metric values (0:1) allows the reduction to four

principal components (PCs), which explain 86.2%

variance in the data. Figure 8 shows how the PCs

explain the variance of the given metrics.

Anonymous classes ratio, average Sibling fan outness,

axiom class ratio, class relation ratio, inverse relations ratio

The selected measurements are much more specific

than the metrics used for the previous analysis. Thus,

we do not expect to see a commonly accepted

development process applicable to all kinds of

ontologies. However, we argue that if there is

something like a stereotypical development process, we

shall expect groups of ontologies that develop similarly.

The calculated PCs are the input for an

unsupervised machine learning algorithm. Our goal is

to identify similar ontologies using the clustering

algorithm KMeans. While (as the previous analysis

has shown) a universal development process seems

unrealistic, clustering has the potential to reveal

Cohesion, relationship richness, relationship diversity, class

inheritance richness, attribute richness, schema deepness

Debunking the Stereotypical Ontology Development Process

hidden relations between the ontologies and find

typical development processes. The input data are

weighted for the PC's explained variance and the

number of input versions. The latter ensures that all

ontologies have the same impact on the clustering,

regardless of the number of available versions.

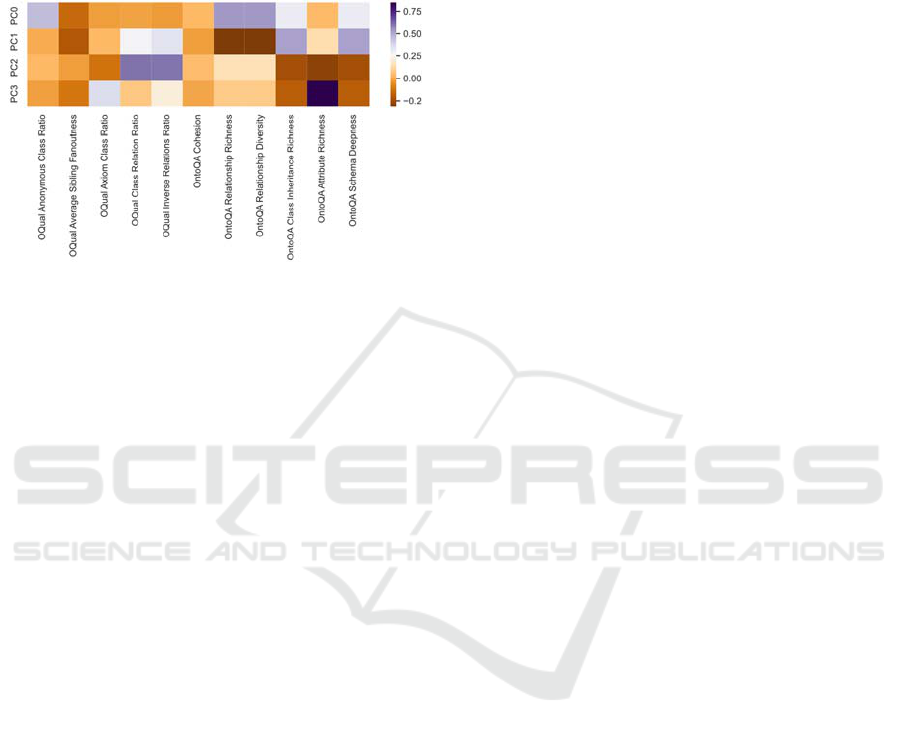

Figure 8: Explained variance of PCs.

The number of clusters is a required input

parameter for the algorithm. To identify the ideal

number of clusters, we ran multiple iterations of the

algorithm and evaluated the results using the

silhouette coefficient (Rousseeuw, 1987). The

coefficient rates the quality of the clusters from -1

(wrong clusters) to 1 (perfect clusters). Values around

0 indicate overlapping. For the ontology dataset, the

coefficient indicated four as the recommended

number of clusters with a silhouette coefficient of

0.381. However, it has to be noted that the clustering

is somewhat unstable and varies in each run.

Afterward, the ontologies are assigned with the

cluster calculated most throughout their versions.

These four clusters now represent groups of

ontologies where we assume a similar development

process.

Figure 7 reveals minimal evidence that groups of

ontologies share a typical development over their

lifetime. Conversely, ontologies that show a shared

modeling behavior, like in cluster 0, mostly have just

little overall activity. Additionally, the graphs

seldomly show gradual changes as we would expect

from progressively improving, evolving ontologies.

In this way, it supports the findings made by the

previous subsections: The data does not seem to show

a stereotypical development process that ontologies

in general or groups of ontologies share. This

heterogeneity in the data is also a possible

explanation for the unstable clusters overall.

Another conspicuousness visible in the graphs is

the spikes that indicate heavy restructuring, similar to

the spikes of H4. Instead of gradual development, the

ontologies often remain relatively constant for a long

time and then change drastically. These spikes are

present in all clusters and further hinder the grouping

of ontologies.

6 CONCLUSION

It is intriguing to think of ontologies as computational

artifacts that follow stereotypical development

processes. Such developing cycles could help to

advise the knowledge engineers on subsequent

recommended development steps and enable the

developers that need to select an ontology for

integration to make better-informed decisions. In this

regard, we set up five hypotheses on how ontologies

evolve during their lifecycle, grounded in knowledge

and software engineering research, and tested them

against a large body of metric ontology data.

The data does not support the existence of

standard ontology development processes. While

there are indeed indications for some hypotheses, like

the increase in size (H1), complexity (H4), or the

decrease in development activity (H2), too many

ontologies contradict the given assumptions. We

further found no conclusive evidence for hypothesis

two (H2), that the ontology population follows

schema development, or the last hypothesis and

analysis (H5), which looked at the bigger picture and

examined whether common development processes

between groups of ontologies exist.

While we found no support for the given

hypotheses in the data, particularly H4 and H5

revealed an exciting finding: Often, the ontologies

have few heavy change events during their lifetime

and otherwise stay relatively consistent. While these

disruptive commits hinder the identification of the

stereotypical development process, they are an

essential finding and are worth investigating further.

Thus our following research will consider these

change events: Their origins, their implications for

the ontology development process, and the selection

of ontologies in general.

Rule-based artificial intelligence is developed and

used in various communities with different

backgrounds, needs, and application scenarios. As we

have shown, the resulting ontologies reflect this

heterogeneity. While they all use the same underlying

technology, their way of developing these artifacts

differs widely. As a result, commonly existing rules

for ontology development, like they are prevalent in

software engineering, seem not to fit the knowledge

engineering context.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

REFERENCES

Ashraf, J., chang, E., Hussain, O. K., & Hussain, F. K.

(2015). Ontology Usage Analysis in the Ontology

Lifecycle: A State-of-the-Art Review. Knowledge-

based systems, 80, 34–47. Https://doi.org/10.1016/j.

knosys.2015.02.026

Cook, S., Harrison, R., Lehman, M. M., & Wernick, P.

(2006). Evolution in software systems: foundations of

the SPE classification scheme. Journal of Software

Maintenance and Evolution: Research and Practice,

18(1), 1–35. https://doi.org/10.1002/smr.314

Gangemi, A., Catena, C., Ciaramita, M., & Lehmann, J.

(2005). A theoretical framework for ontology

evaluation and validation. In P. Bouquet & G.

Tummarello (Eds.), Semantic Web Applications and

Perspectives. CEUR. http://ceur-ws.org/Vol-166/

Herraiz, I., Rodriguez, D., Robles, G., & Gonzalez-

Barahona, J. M. (2013). The evolution of the laws of

software evolution. ACM Computing Surveys, 46(2),

1–28. https://doi.org/10.1145/2543581.2543595

Malone, J., & Stevens, R. (2013). Measuring the level of

activity in community built bio-ontologies. Journal of

Biomedical Informatics, 46(1), 5–14. https://doi.org/

10.1016/j.jbi.2012.04.002

Mihindukulasooriya, N., Poveda-Villalón, M., García-

Castro, R., & Gómez-Pérez, A. (2017). Collaborative

Ontology Evolution and Data Quality - An Empirical

Analysis. In M. Dragoni, M. Poveda-Villalón, & E.

Jimenez-Ruiz (Eds.), Lecture notes in computer

science: Vol. 10161, Owl: Experiences and directions -

reasoner evaluation: 13th International Workshop,

OWLED 2016 and 5th International Workshop, ORE

2016, Bologna, Italy, November 20, 2016 : Revised

selected papers (pp. 95–114). Springer.

https://doi.org/10.1007/978-3-319-54627-8_8

Noy, N., & Klein, M. (2004). Ontology Evolution: Not the

Same as Schema Evolution. Knowledge and

Information Systems, 6(4), 428–440. https://doi.org/

10.1007/s10115-003-0137-2

Rajlich, V. T., & Bennett, K. H. (2000). A staged model for

the software life cycle. Computer, 33(7), 66–71.

https://doi.org/10.1109/2.869374

Reiz, A. (2020). An Evolutional Based Data-Driven

Quality Model for Ontologies. In H. Alani & E. Simperl

(Chairs), ISWC-DC, Athens, Greece/online.

http://ceur-ws.org/Vol-2798/paper1.pdf

Rousseeuw, P. J. (1987). Silhouettes: A graphical aid to the

interpretation and validation of cluster analysis. Journal

of Computational and Applied Mathematics, 20, 53–65.

https://doi.org/10.1016/0377-0427(87)90125-7

Stojanovic, L. (2004). Methods and tools for onology

evolution [Ph.D.]. Universitaet Fridericiana, Karlsuhe.

Tartir, S., & Arpinar, I. B. (2007). Ontology Evaluation and

Ranking using OntoQA. In International Conference on

Semantic Computing, 2007: Icsc 2007 ; 17 - 19 Sept.

2007, Irvine, California ; proceedings ; [held in

conjunction with] the First International Workshop on

Semantic Computing and Multimedia Systems (IEEE-

SCMS 2007) (pp. 185–192). IEEE Computer Society.

https://doi.org/10.1109/ICSC.2007.19

Tartir, S., Arpinar, I. B., Moore, M., Sheth, A. P., &

Aleman-Meza, B. (2005). OntoQA: Metric-Based

Ontology Quality Analysis. In D. Caragea, V. Honavar,

I. Muslea, & R. Ramakrishnan (Chairs), IEEE

Workshop on Knowledge Acquisition from

Distributed, Autonomous, Semantically Heterogeneous

Data and Knowledge Sources, Houston.

Yang, Z., Zhang, D., & Ye, C. (2006). Ontology Analysis

on Complexity and Evolution Based on Conceptual

Model. In U. Leser (Ed.), Lecture notes in computer

science Lecture notes in bioinformatics: Vol. 4075.

Data integration in the life sciences: Third international

workshop, DILS 2006, Hinxton, UK, July 20 - 22, 2006

; proceedings (Vol. 4075, pp. 216–223). Springer.

https://doi.org/10.1007/11799511_19

Zablith, F., Antoniou, G., d'Aquin, M., FLOURIS, G.,

Kondylakis, H., Motta, E., PLEXOUSAKIS, D., &

Sabou, M. (2015). Ontology Evolution: A Process-

Centric Survey. The Knowledge Engineering

Review, 30(1), 45–75. https://doi.org/10.1017/

S0269888913000349.

Debunking the Stereotypical Ontology Development Process
