Characterizing Open Government Data Available on the Web from the

Quality Perspective: A Systematic Mapping Study

Rafael Chiaradia Almeida

, Glauco de Figueiredo Carneiro

and Edward David Moreno

Programa de P

os-Graduac¸

ao em Ci

enc¸ia da Computac¸

ao (PROCC), Federal University of Sergipe (UFS),

Sao Cristovao, Sergipe, Brazil

Keywords:

Open Government Data, Systematic Mapping, Data Quality Evaluation.

Abstract:

Context: Data openness can create opportunities for new and disruptive digital services on the web that has

the potential to beneﬁt the whole society. However, the quality of those data is a crucial factor for the success

of any endeavor based on information made available by the government. Objective: Analyze the current

state of the art of quality evaluation of open government data available on the web from the perspective of

discoverability, accessibility, and usability. Methods: We performed a systematic mapping review of the

published peer-reviewed literature from 2011 to 2021 to gather evidence on how practitioners and researchers

evaluate the quality of open government data. Results: Out of 792 records, we selected 21 articles from the

literature. Findings suggest no consensus regarding the quality evaluation of open government data. Most

studies did not mention the dataset´s application domain, and the preferred data analysis approach mainly

relies on human observation. Of the non-conformities cited, data discoverability and usability outstand from

the others. Conclusions: There is also no consensus regarding the dimensions to be included in the evaluation.

None of the selected articles reported the use of machine learning algorithms for this end.

1 INTRODUCTION

With the evolution of digital technology, a large

amount of data has been publicly available (Uta-

machant and Anutariya, 2018). Among those data

is the open data, as the name reveals, is open to the

public (Yi, 2019) and can be freely used, modiﬁed,

and shared by anyone for any purpose (Vetr

o et al.,

2016). According to Open Data Barometer, open data

plays a relevant role in ensuring effective institutions

and securing public access to government information

(Brandusescu et al., 2018). Open government data

(OGD) refers to data provided to the public by gov-

ernment institutions (Kassen, 2013). Despite the sig-

niﬁcant proliferation of platforms to make these data

available, quality issues are a crucial factor (Ku

cera

et al., 2013a) for the success of OGD initiatives (Bel-

hiah and Bounabat, 2017). For example, the discrep-

ancy in the terms and data types negatively affects

reuse and its effective use (Zuiderwijk et al., 2016).

Discovering the relevant data is a prerequisite

(Ku

cera et al., 2013a) for a user to be able to use

https://orcid.org/0000-0001-8349-8294

https://orcid.org/0000-0001-6241-1612

https://orcid.org/0000-0002-4786-9243

open data. When a dataset is publicly online, users

must access it without barriers (Dander, 2014), either

through a ﬁle download, a portal query, or API ac-

cess, among other possibilities. Moreover, datasets

with non-conformities like missing values, outdated

information, and inappropriate metadata, may not ﬁt

the user needs (M

achov

a and Ln

eni

cka, 2017). For

those reasons, discoverability, accessibility, and us-

ability are essential dimensions for the quality evalu-

ation of open government data.

This Systematic Mapping is part of a larger joint

project whose goal is to propose a roadmap for open

government data quality evaluation. As the ﬁrst step

of this project, we endeavor to analyze the current

state of the art in open government data quality eval-

uation. The Research Question (RQ) of this System-

atic Mapping is as follows: ”What techniques, frame-

works, and machine learning algorithms have re-

searchers and stakeholders used to evaluate the qual-

ity of open government data regarding its discover-

ability, accessibility, and usability”? This research

question is in line with the goal of this review. Re-

searchers have conducted several studies to evaluate

the quality of OGD (Oliveira et al., 2016) but, accord-

ing to Sadiq and Indulska (2017), there is still a gap

214

Almeida, R., Carneiro, G. and Moreno, E.

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study.

DOI: 10.5220/0011585300003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 214-225

ISBN: 978-989-758-613-2; ISSN: 2184-3252

in the evaluation of data quality dimensions.

To answer the proposed research question a Sys-

tematic Mapping Study (SMS) has been carried out

to gather evidence provided by papers published in

peer-reviewed conferences and journals from 2011 to

2021. We initially found 792 papers as a result of the

applied search strings in speciﬁc electronic databases

and the execution of snowballing procedure (Wohlin,

2014), from which we considered 21 studies as rele-

vant. Findings suggest that there is no standardization

in data quality evaluation, but some dimensions have

been more used in studies. We also found that there

are dimensions with different names but with related

quality evaluation purposes, and that’s the reason we

decided to create dimension groups. Those groups

can have different inﬂuences on the three main di-

mensions: discoverability, accessibility, and usability.

Regarding the data sources used in open government

data quality evaluation studies, most did not mention

the application domain of datasets used in the analy-

sis. The approach used by most of the articles in data

analysis was human observation. And most of the

non-conformities cited by the selected articles were

related to data discoverability and usability.

The remainder of this paper is organized as fol-

lows. Section 2 presents the design we adopted to

conduct this systematic mapping study. Section 3

presents the key ﬁndings to the stated research ques-

tion and Section 4 concludes this work.

2 RESEARCH DESIGN

We performed a systematic mapping review of the

published peer-reviewed literature, from 2011 to

2021, to gather existing evidence of the techniques,

frameworks, or machine learning algorithms that have

been used to evaluate the quality of open government

data (OGD). Systematic mapping is a type of sec-

ondary study that has the goal to describe the extent

of the research in a ﬁeld and identify gaps in the re-

search base. It identiﬁes gaps in the research where

further primary research is needed, and areas where

no systematic reviews have been conducted and there

is scope for future review work (Clapton et al., 2009).

Systematic mapping provides descriptive infor-

mation about the state of the art of a topic and a sum-

mary of the research conducted in a speciﬁc period

(Clapton et al., 2009). The overall process for the se-

lection of relevant studies is presented in Table 1 and

described in more detail in the following subsections.

Table 1: Steps for the selection process.

2.1 Planning

We conducted this SMS based on a protocol com-

prised of objectives, research questions, selected elec-

tronic databases, search strings, and selection proce-

dures comprised of exclusion, inclusion, and quality

criteria to select studies from which we aim to answer

the stated research questions (Wohlin et al., 2012).

The goal of this study is presented in Table 2 ac-

cording to the Goal Question Metric (GQM) approach

(Basili and Rombach, 1988).

Table 2: The goal of this SMS according to the GQM ap-

proach.

The Research Question (RQ) is ”What techniques,

frameworks, and machine learning algorithms have

researchers and stakeholders used to evaluate the

quality of open government data regarding its dis-

coverability, accessibility, and usability”? The mo-

tivation behind RQ is justiﬁed by the fact that high-

quality data can be used by many institutions (public

or private) to improve business processes, make smart

decisions and create strategic advantages (Behkamal

et al., 2014). On the other hand, a government that

publishes data with low quality, such as missing meta-

data or duplicated ﬁelds, can create a bad reputation

among its citizens (Kubler et al., 2018a).

The speciﬁc research questions have the goal to

gather evidence to support the answer to the stated

RQ. This research question is in line with the goal

of this review and has been derived into four spe-

ciﬁc research questions, as follows. Speciﬁc Research

Question 1 (SRQ1): What are the key quality dimen-

sions adopted by researchers to evaluate the quality

of open government data? Data quality is a multidi-

mensional construct and can be analyzed under dif-

ferent perspectives, it is important to understand how

researchers are taking into consideration those differ-

ent angles of analysis. Speciﬁc Research Question 2

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study

215

(SRQ2): What kind of data sources are used in open

government data quality evaluation studies? The

data sources are a crucial component of any research

project from which information can be extracted to

unveil trends and patterns that otherwise would not

be known by the research community. Speciﬁc Re-

search Question 3 (SRQ3): What is the approach used

in data analysis? Understanding how the data are

being evaluated in practice is critical and will enrich

the research. Speciﬁc Research Question 4 (SRQ4):

What are the data quality non-conformities found by

researchers? It is essential to know the existing prob-

lems so that interested parties can take steps to resolve

them.

We considered the PICO criteria (Stone, 2002) to

deﬁne the search string, as shown in Table 3. The

search strings are based on this criteria for the selec-

tive process of papers for this review. The steps to

build a search string to identify studies in the target

repositories are shown in Table 4 and 5. The Table 4

refers to major terms for the research objectives. We

also considered the use of alternative terms and syn-

onyms for these major terms. For example, the term

machine learning can be associated with terms such as

artiﬁcial intelligence and deep learning. These alter-

native terms, as shown in Table 5, can be also included

in the search string. We built the ﬁnal search string

by joining the major terms with the Boolean ”AND”

and joining the alternative terms to the main terms

with the Boolean ”OR”. The focus of the formed

search string is to identify studies targeting the re-

search question of this systematic mapping.

Table 3: PICO criteria for search strings.

Table 4: Major terms for the research objectives.

Table 6 presents the electronic databases from

which we retrieved the papers along with the respec-

tive search strings used in that process. The target

databases were ACM Digital Library, IEEE Digital

Library, and Scopus. All searches were performed on

October 10, 2021.

Table 5: Alternative terms from major terms.

Table 6: Electronic databases selected for this Systematic

Mapping.

Table 7 presents the criteria for exclusion, in-

clusion, and quality evaluation of papers in this re-

view. The OR connective used in the exclusion crite-

ria means that the exclusion criteria are independent,

i.e., meeting only one criterion is enough to exclude

the paper. On the other hand, the AND connective

in the inclusion criteria means that all inclusion cri-

teria must be met to select the paper under analysis.

Table 7 also presents the quality criteria used for this

review represented as questions adjusted from their

original version from Dyba and Dingsoyr (Dyb

a and

Dingsøyr, 2008). We evaluated all the remaining pa-

pers that passed the exclusion and inclusion criteria

using the quality criteria presented in the same table.

All these criteria must be met (i.e., the answer must

be YES for each one) to permanently select the paper,

otherwise, the paper must be excluded. The exclu-

sion, inclusion, and quality criteria were used in the

steps for the selection process as already presented in

Table 1. According to Table 8, at the end of the selec-

tion process, all the retrieved papers were classiﬁed in

one of the three options: Excluded, Not Selected and

Selected.

2.2 Execution

The quantitative evolution of the selection process ex-

ecution is summarized in Figure 1.

The ﬁgure uses the PRISMA ﬂow diagram (Mo-

her et al., 2009) and shows the performed steps and

the respective number of papers for each phase of the

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

216

Table 7: Exclusion, inclusion and quality criteria.

Table 8: Classiﬁcation options for each retrieved paper.

systematic mapping.

According to Table 1, as a result of the execution

of Step 1 (execution of the search string), we retrieved

from the three selected repositories a total of 792

papers (Identiﬁcation Phase of Figure 1). Consider-

ing that 55 papers were duplicated, we evaluated 737

regarding the alignment of their titles and abstracts

to the stated speciﬁc research questions (Screening

Phase of Figure 1).

The result of this evaluation was the exclusion of

652 papers and the inclusion of 85 papers, following

the exclusion and inclusion criteria respectively al-

ready presented in Table 7. In the Eligibility Phase of

Figure 1, we evaluated 85 papers to decide that 64 pa-

pers should not have been selected due to not meeting

the quality criterion presented in Table 7. The ﬁnal set

of studies to answer the speciﬁc research questions is

comprised of 21 papers (Included Phase of Figure 1).

Table 9 presents the effectiveness of the search

strings considering the 792 retrieved papers. The

repository database that most contributed to selected

Figure 1: Phases of the selection process in numbers (ad-

justed from Moher et al. (2009)).

studies was the Scopus with 12 papers, correspond-

ing to search effectiveness of 2,36%. The 21 selected

studies represented 2,65% of all 792 papers retrieved

by the search string.

Table 9: Effectiveness of the search strings.

3 RESULTS

All the relevant information that was extracted from

the 21 selected articles to answer the four speciﬁc re-

search questions (SRQ1, SRQ2, SRQ3, and SRQ4)

are presented in a form of a complete table that can

be downloaded in an Excell format through Zenodo

(https://doi.org/10.5281/zenodo.7015916). Figure 2

summarizes the evidence where each branch has the

associated SRQ. The total amount of references for

each of the four branches of Figure 2 does not corre-

spond to the total of 21 analyzed articles. The reason

for this difference is that most of the studies fall into

more than one of the available groups. The branch

named Quality Dimensions Analyzed (SRQ1) indi-

cates not only the quality dimensions that were pre-

sented in each article but also if that dimension is used

to analyze data and/or metadata which is represented

by a letter D (data) and/or M (metadata) beside each

dimension name. Also, in that same branch, the di-

mension that has different names but has the same

quality evaluation objective were placed together in

a branch.

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study

217

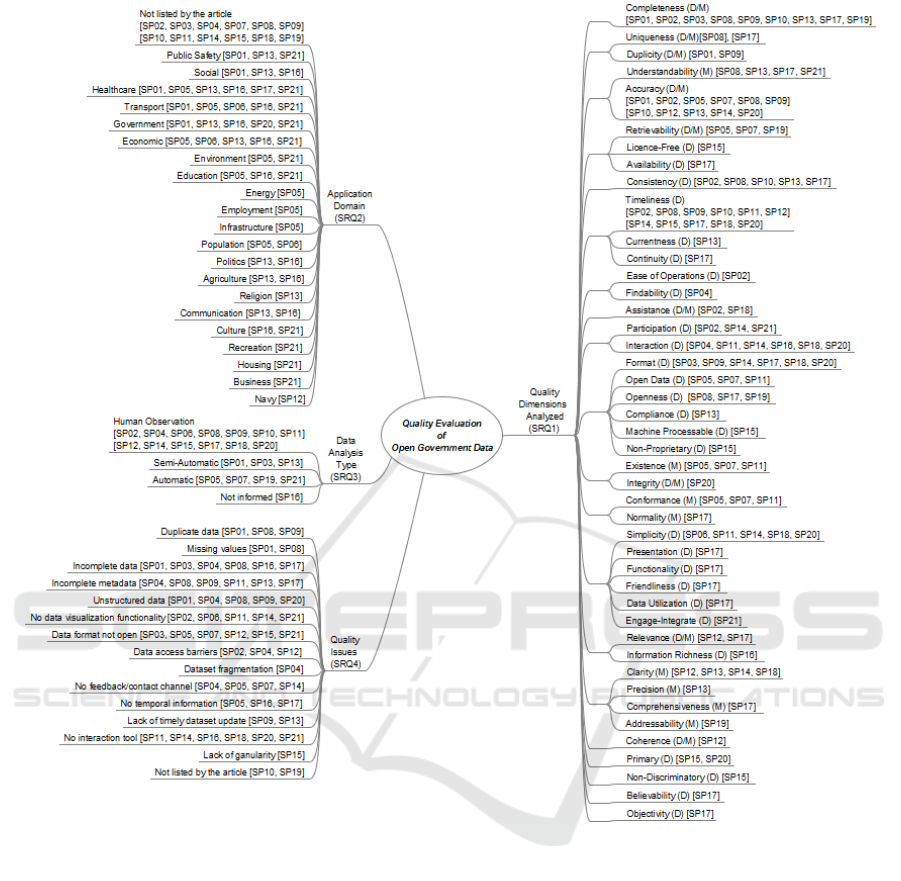

Figure 2: Evidence from the literature to answer speciﬁc research questions.

In this section we will discuss in detail those gath-

ered information and present our ﬁndings. With the

purpose to make it in a clearer and more comprehen-

sive way, we divided this section into four, each one

representing a speciﬁc research question.

3.1 SRQ1 - What Are the Key Quality

Dimensions Adopted by Researches

to Evaluate the Quality of Open

Government Data?

During the SMS we noticed that different dimensions

were being used no analyse datasets and, sometimes,

with different nomenclature but the same quality eval-

uation objective. That ﬁnding was also reported by

some of the selected articles. Sadiq and Indulska

(2017), for example, quoted that one of the challenges

in open data quality management is a common under-

standing of the data quality dimension. According to

Str

zyna et al. (2018) there is no consensus among

academics regarding an approach to the assessment

of data quality.

This lack of pattern impairs the data quality anal-

ysis, but, on the other hand, it is difﬁcult to create a

standard that embrace every scenario. Neumaier et al.

(2016) states that the selection of a proper set of qual-

ity dimensions to evaluate datasets is highly context

speciﬁc since their purposing is testing the ﬁtness for

use of data for a speciﬁc task; and that’s the reason

why quality dimensions differ among the data quality

methodologies (Batini et al., 2009).

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

218

Figure 2 plots in its right side data related to the

Quality Dimensions Analyzed (SRQ1). We identi-

ﬁed 49 different names for the quality dimensions,

but 5 of them were excluded because they are broader

terms, that is, they can not be measure without analyz-

ing other dimensions. These are: Accessibility, Us-

ability, Discoverability, Structuredness and Trust. Of

the remainder dimensions, 24 has the same data qual-

ity evaluation objective of others and for that reason

they were placed together in a branch. Eight dimen-

sions branch were cited only 3 times or less and for

that reason they were not considered relevant. These

branches and their frequency of appearance are: Rel-

evance and Information Richness (3 studies - 14%),

Primary (2 studies - 10%), Ease of Operations and

Findability (2 studies - 10%), Assistance (2 studies -

10%), Coherence (1 study - 5%), Non-Discriminatory

(1 study - 5%), Believability (1 study - 5%) and Ob-

jectivity (1 study - 5%). We ended up with 12 quality

dimensions group, each one containing one or more

related dimensions. Table 10 presents those groups in

order of most appearance in the articles.

It is important to report that 5 articles (SP09,

SP11, SP14, SP18, SP20) analyzed characteristics of

the data (or metadata) without mentioning the name

of the dimension. In that case we had to convert them

into dimensions according to the aspects that were

evaluated. Also, 5 articles (SP02, SP06, SP11, SP20,

SP21) used dimensions and metrics to evaluate gen-

eral characteristics of the open data portal, but those

were not considered because our work is about data

quality evaluation and not portal quality evaluation.

In terms of number of dimensions evaluated, all

the articles together analysed 127 dimensions, an av-

erage of 6 dimensions per article. Only one article

evaluated more than 10 dimensions (SP17 - 21 di-

mensions) and only 3 articles analysed 3 or less di-

mensions (SP01 - 3 dimensions, SP03 - 2 dimensions,

SP06 - 1 dimension).

When a dataset is being evaluated in terms of its

quality, the data itself can be the target of the analysis,

or the metadata, or both. In the selected studies, 27

dimensions used data as a primary source of analysis,

8 dimensions used metadata and 9 dimensions used

both. This happens because for some dimensions the

metadata, for example, will not give any quality infor-

mation, or vice-versa. Take Timeliness as an example,

the importance here is to analyze if the data is up to

date. But for some dimensions both data and meta-

data will be an important source of information. In

the case of Accuracy analysis, it is important to have

a data that is precise and also a metadata that correctly

describe the data that is being published.

Table 10: Dimensions groups found in the articles.

Dimension Group Frequency

Accuracy 13 studies - 62%

Understandability

Timeliness 12 studies - 57%

Currentness

Continuity

Format 11 studies - 52%

Open Data

Openness

Compliance

Machine Processable

Non-Proprietary

Completeness 9 studies - 43%

Participation 8 studies - 38%

Interaction

Simplicity 7 studies - 33%

Presentation

Functionality

Friendliness

Data Utilization

Engage-Integrate

Clarity 6 studies - 29%

Precision

Comprehensiveness

Addressability

Retrievability 5 studies - 24%

Licence-Free

Availability

Consistency 5 studies - 24%

Duplicity 4 studies - 19%

Uniqueness

Existence 4 studies - 19%

Integrity

Conformance 4 studies - 19%

Normality

We will now present the deﬁnition of the dimen-

sions presented in Table 10. Even though the dimen-

sions Accessibility, Usability, Discoverability, Struc-

turedness and Trust were not considered part of any

quality dimension group, we decided to present the

concept of those constructs and explain the reasons

behind our decision of exclusion.

Accessibility was cited by 8 articles (SP02, SP04,

SP12, SP13, SP15, SP17, SP20, SP21) and is de-

ﬁned by Str

zyna et al. (2018) as the the possibility

to retrieve data from a source. When an user ﬁnd a

database, he should be able to access it without bar-

riers. Other dimensions can affect the data accessi-

bility, such as the format in which data are published,

the search tool used, and the metadata of the dataset

(Maali et al., 2010).

Usability appeared in 4 articles (SP04, SP16,

SP17, SP19). According to Magalh

aes and Roseira

(2016), this dimension can take many forms. Even

though access to the data is not an issue, users can,

for example, be partially or completely unable to ex-

plore the datasets available due to lack of necessary

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study

219

resources or computational skills. That is the reason

we decided to not consider it as part of any quality

dimension group, because for a data (or metadata) to

meet the usability criteria, it has ﬁrst to attend others

dimensions criteria, such as accessibility, format and

completeness.

Discoverability appeared in only one article

(SP16). At this research, Dahbi et al. (2018) high-

lights that an OGD is only really open if it can be eas-

ily discoverable, that is, users should be able to search

and access relevant data in a simple and efﬁcient way.

The same way as Usability, to promote data Discov-

erability datasets must have other characteristics such

as structured, complete and accurate metadata, which

are other quality dimensions.

The last two broader dimensions that appeared

on the selected articles are Structuredness (1 article

- SP17) and Trust (1 article - SP21). According to

Wu et al. (2021), Structuredness indicates the degree

of organization of the dataset, and Zhu and Freeman

(2019) developed a framework where the Trust di-

mension includes criteria such as completeness, cur-

rentness, availability, granularity and relevance.

The quality dimensions group presented on Ta-

ble 10 were formed considering the quality evalua-

tion objective of each dimension. When similarities

or complementarities between those objectives were

found, the dimensions were considered as related and,

therefore, part of the same group. We will now con-

ceptualize each one of the 12 groups and the deﬁnition

of the dimensions itself will be sufﬁcient to under-

stand their relationship. As our research question is

to analyse the dimensions used to evaluate the quality

of open government data regarding its discoverabil-

ity, accessibility and usability, it is fundamental to de-

scribe how the dimension groups affect those artefacts

and that will be discussed along with their deﬁnition.

Accuracy (11 articles) is the extent to which a

selected set of speciﬁc metadata keys accurately de-

scribe the resource (Sanabria et al., 2018), and its re-

lated dimension Understandability (4 articles) is at-

tended by a dataset, according to Li et al. (2018),

when the meaning of each column of data is clear.

If you have correct and precise metadata within the

data, it will positively affect the discoverability of

the dataset. Not only by an ordinary user that make

a search at a data portal or a search engine like

Google, but also by an expert that will use an API or a

SPARQL endpoint to ﬁnd data. Usability will also be

positively affected because the name and the mean-

ing of each column, for example, is very important

to understand and correctly make use of those data.

Accessibility will not be affected.

Timeliness (11 articles) is achieved when data is

made available to the public as soon as possible after

the actual data is created, in order to preserve its value

(Wang and Shepherd, 2020), and it has two related

dimensions: Currentness (1 article), whose metrics

of evaluation chosen by Utamachant and Anutariya

(2018) were the timeliness after expiration (period be-

tween the publication of a dataset after the expira-

tion of its previous versions) and the timeliness in a

publication (period between the moment in which the

dataset is available and its publication in the portal);

and Continuity (1 article), that indicates whether there

is continuity in the release of datasets on the same

topic (Wu et al., 2021). When you have an updated

dataset it will positively affect its usability. That’s be-

cause citizens, organizations and researchers that are

using those information in their projects depend on

data that is made available in a continuous and timely

manner, otherwise the information value is compro-

mised. Discoverability can also be affected because

if you are searching for an information of the current

year, for example, and the dataset is two years out of

date, you may have problems ﬁnding it. Accessibility

will not be affected.

Format (6 articles) is a quality aspect that is at-

tended when, according to Group (2007), the data

available is machine-readable, provided in a conve-

nient form, and offered without technological barri-

ers for data consumers. Open Data (3 articles) di-

mension checks if the ﬁle format is based on an open

standard, is machine readable and has an open license

(Neumaier et al., 2016). Openness (3 articles) has the

exactly the same deﬁnition of Open Data at Li et al.

(2018). Compliance (1 article) appeared only at Neu-

maier et al. (2016) and it is a value (1-5) depending on

dataset’s ﬁle format according to Tim Berners-Lee’s

5-star open data scheme. Machine Processable (1 ar-

ticle) and Non-Proprietary (1 article) appeared in the

same work. The ﬁrst is achieved when data is pub-

lished in a structured manner to allow automated pro-

cessing and the second when data is published in a

format which is not controlled exclusively by a single

entity. A data that is in a format that is not machine

readable, pdf for an example, will not have associated

metadata and that will make it difﬁcult to be discov-

ered. Using that same example, it is not an easy task

to extract conclusions from data in a pdf format, that

is, you will have problems to make simple statistics

tasks such as calculating maximum, minimum or me-

dian of a dataset column, affecting both its accessibil-

ity and its usability.

Completeness (9 articles) is described by Kubler

et al. (2016) as the extent to which the used data (or

metadata) are non empty, that is, contain information,

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

220

as said by Sanabria et al. (2018). As in the Accu-

racy dimension, metadata is very important not only

to explain the content of the dataset but also to make

it easier to be found. So, the lack of metadata will

affect dataset’s discoverability and usability. Accessi-

bility is not affected.

Interaction (6 articles) is measured by Chu and

Tseng (2016) using the following indicators: discus-

sion - if datasets has mechanisms such as forums or

feedback; score and rank - if users are able to score or

rank the data and the possibility to visualize the num-

ber of downloads of the dataset. It has a related di-

mension called Participation (3 articles) that analyze,

according to Zhu and Freeman (2019), criteria such

as the possibility to comment, discuss, rate, share and

make suggestions to the dataset. When users inter-

act in some way with the database, it generates infor-

mation that enhances the probability of ﬁnding this

dataset by search engines. So, discoverability is af-

fected by this group of dimension. Usability is also

affected because the participation of the users is a very

good opportunity to improve the dataset and make it

more suited to the needs of its users. Accessibility is

not affected.

Simplicity (5 articles) is a measurement of how

simple are the analysis task and the presentation of

analysis outputs (Osagie et al., 2017). It has ﬁve re-

lated dimensions: Presentation (1 article), Function-

ality (1 article), Friendliness (1 article), Data Utiliza-

tion (1 article) and Engage-Integrate (1 article). They

were all cited only once and the ﬁrst four appeared

in the same article (SP17). In that work the authors

decided to divide the evaluation of the data analysis

task in more than one dimension where Presentation

indicates the type of presentation data, such as ta-

bles, images and text; Functionality indicates the de-

gree of completeness of the functionality associated

with the dataset; Friendliness indicates whether the

interface design is friendly; and Data Utilization indi-

cates whether data-related applications and interfaces

are provided. And ﬁnally, Engage-Integrate, cited by

Zhu and Freeman (2019), verify if the datasets can

be downloaded, visualized in other format such as

maps, graphics or others, and printed. It is evident

that the usability is highly affected by this group of

dimension, specially for ordinary users that may have

difﬁcult understanding data in a raw format. Dis-

coverability will beneﬁt with the presence of other

forms of data representation, because a data interac-

tion tool can generate web trafﬁc that will improve

dataset’s search capabilities. Accessibility will also

be affected, because potential users may have inter-

est in only access data in a graphic format rather than

download a ﬁle, for example.

Clarity (4 articles) is a dimension whose concerns

are the conditions and modalities by which users can

obtain, use and interpret data (Str

zyna et al., 2018).

Precision (1 article) was found only in Utamachant

and Anutariya (2018) and it states that the scope and

coverage to the content should be clear. Compre-

hensiveness (1 article) indicates the richness of the

dataset’s topics (Wu et al., 2021). Addressability (1

article) description by Kubler et al. (2016) is the ex-

tent to which the data publisher provides contact in-

formation via ’URL’and ’email’. Discoverability will

beneﬁt from a dataset that is clear, precise and ﬁlled

with important information that can be useful while

performing a search. Data usability is also improved

because users will comprehend better the meaning of

each dataset column and line. Accessibility will not

be affected.

Retrievability (3 articles) is, according to Kubler

et al. (2018b), the extent to which the described

dataset can be retrieved by an agent. Licence-Free (1

article) and Availability (1 article) are the other two

related terms and they´re achieved when data is not

subject to any limitation on its use due to copyright,

patent, trademark or trade secret regulations (Wang

and Shepherd, 2020) and when data are available and

have attributes that enable them to be retrieved by au-

thorized users and/or applications (Wu et al., 2021),

respectively. It is evident that accessibility will be

highly affected by this group. Discoverability and us-

ability won´t be inﬂuenced.

Consistency (5 articles) dimension is attended by

a dataset, according to Li et al. (2018), when the for-

mat of a column of data is consistent, such as date

format, null expression format, etc. This dimension

will affect data usability because null values, for ex-

ample, are harmful to data analysis and must be cor-

rectly treated. Discoverability and accessibility will

not be affected.

Duplicity (2 articles) metrics used by Sanabria

et al. (2018) are the percentage of record with du-

plicate records and Uniqueness (2 articles) dimension

cited by Li et al. (2018) evaluate if data records are

unique and not repeated. As well as null or miss-

ing values, duplicate data also needs to be corrected

handled, otherwise they can harm data analysis and,

consequently, its usability. Discoverability and acces-

sibility will not be affected.

Existence (3 articles) is the extent to which infor-

mation about dataset´s license, format, size, update

frequency, owner is provided (Kubler et al., 2018b).

Integrity (1 article) is achieved by a dataset, accord-

ing to Chu and Tseng (2016), when there are enough

data content and metadata. The more metadata you

have, better are the chances to ﬁnd data, improving its

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study

221

discoverability. Usability is also improved when there

are more information about the dataset. Accessibility

is not affected.

Conformance (3 articles) is a dimension that an-

alyzes if the information available in the dataset are

valid and adhere to a certain format (Neumaier et al.,

2016). Normality (1 article), cited only by Wu et al.

(2021), indicates whether the metadata values are

standardized and consistent. When a dataset contains

metadata in a certain standard it will make it easier to

be found during a search, therefore affecting its dis-

coverability. Usability is also improved because users

can better understand the meaning and the content of

a dataset column, for example, if it has a name that is

self explanatory or that follows a recognized standard.

Accessibility is not affected.

Figure 3 presents the three broad dimensions ob-

ject of this study (discoverability, accessibility and us-

ability) in a mathematical representation of sets and

the 12 group of dimensions placed according to their

inﬂuence on them. We decided to use only one dimen-

sion representing each group in order to do not pollute

the image. The group that have more than one dimen-

sion, we choose as the representative of the group the

dimension that was most cited by the selected arti-

cles, or randomly, if they were cited equal times. The

groups that affect the three broad dimensions are in

the middle of the ﬁgure, in the area of intersection of

the three sets. When the group affect only two dimen-

sions it is placed in the intersection of those two sets.

And if it affect only one dimension it is placed in the

area that has no intersection with other set.

Figure 3: Dimension groups and their inﬂuence on the Dis-

coverability, Accessibility and Usability.

Figure 3 shows that only retrievability group do

not affect data usability, all of the remaining 11

groups of dimensions have some inﬂuence on the us-

ability of the dataset. Most of the dimensions groups

(7) inﬂuence both discoverability and usability, and

2 dimensions affect discoverability, accessibility and

usability.

3.2 SRQ2 - What Kind of Data Sources

Are Used in Open Government Data

Quality Evaluation Studies?

Most of the articles (12 articles - 57%) did not men-

tion the application domain of the dataset used on the

analysis. Healthcare data were the most used (6 ar-

ticles). Transport, Government and Economic data

were analysed by 5 articles each. Datasets includ-

ing Public Safety, Social and Education information

were used by 3 articles each. Environment, Popula-

tion, Politics, Agriculture, Communication and Cul-

ture data appeared only in 2 articles. Energy, Employ-

ment, Infrastructure, Religion, Recreation, Housing,

Business and Navy data were evaluated by 1 article

each.

We believe that the reason because most of the

articles did not cite the type of data that were being

evaluated was the fact that the main concern of these

studies are the evaluation of open government data in

general. So, when the researches selected a portal to

extract datasets, they´re ﬁrst concern was not the ap-

plication domain of those data but its quality aspects

according to the chosen dimensions. And that is also

reﬂected on the title and introduction of most of the

articles where there is no direct quote to a certain gov-

ernment area. Only two of the selected articles (SP12

and SP17) presented an application domain of inter-

est that guided the selection of the datasets that were

analyzed.

3.3 SRQ3 - What Is the Approach Used

in Data Analysis?

Human Observation is the approach used by most of

the articles (13 articles - 62%). 3 articles chose a

Semi-Automatic data analysis type and 4 articles used

an Automatic approach. Only 1 article did not men-

tion the way datasets were evaluated.

In the data analysis type that we called human ob-

servation, researchers used participants to perform a

predeﬁned set of tasks within the dataset and then an-

swer a questionnaire that was used to evaluate data

quality. Some works selected ordinary users to par-

ticipate, others chose users with IT background and

there were also a mixed selection of participants. In

the semi-automatic approach there were at least one

automatic stage in the data quality evaluation process.

This automatic stage may be at the data collection step

(SP03) or at the quality assessment stage (SP01 and

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

222

SP13). An automatic approach is the one who has

no human intervention all over the data quality eval-

uation process, since the data download through the

quality metrics analysis of those data and ﬁnally ag-

gregating and presenting the results in a friendly form.

3.4 SRQ4 - What Are the Data Quality

Non Conformities Found by

Researchers?

There were 14 main quality issues reported by the se-

lected articles. Only 2 articles did not mention the

problems found in the data quality evaluation. Incom-

plete Data, Incomplete Metadata, Data Format Not

Open, No Interaction Tool were problems reported by

6 articles each. Unstructured Data and No Data Vi-

sualization Functionality were found by 5 articles. 4

articles cited No Feedback/Contact Channel as a qual-

ity concern. Duplicated Data, Data Access Barriers

and No Temporal Information appeared in 3 articles.

Missing Values and Lack of Timely Dataset Update

was cited by 2 articles. Dataset Fragmentation and

Lack of Granularity were quality issues found in only

1 article.

Incomplete data/metadata is related with the di-

mension group of Completeness which will affect

data discoverability and usability. A dataset that is

published in a not open format will affect the dimen-

sion group of Format and therefore harm data discov-

erability, accessibility and usability. When dataset has

no interaction tool it is prejudicial for the quality di-

mension of Interaction and will negatively affect data

discoverability and usability.

Unstructured data is intimately related with the di-

mension group represented by Consistency and will

affect data usability. The absence of a data visualiza-

tion functionality may difﬁcult the analysis task af-

fecting the Simplicity dimension which is not good

for data discoverability, accessibility and usability.

No feedback/contact channel represents a lack of

Interaction, which is a dimension that is directly re-

lated with data discoverability and usability.

Duplicated data is quality metric of the dimen-

sion Duplicity and can inﬂuence data usability. Data

access barriers impacts the dimension called Non-

Discriminatory, affecting data accessibility. And data

with no temporal information is measured by the di-

mension group represented by Timeliness and will af-

fect data discoverability and usability.

Missing Values affects data Completeness which

is related with data discoverability and usability. A

lack of timely dataset update affects data quality di-

mension represented by Timeliness which has a neg-

ative inﬂuence on data discoverability and usability.

Dataset fragmentation and lack of granularity are

a concern of the quality dimension called Primary that

affects both data discoverability and usability.

Figure 4 presents the three broad dimensions ob-

ject of this study (discoverability, accessibility and us-

ability) in a mathematical representation of sets and

the data quality non conformities found on the se-

lected articles, placed according to their inﬂuence on

the 3 broad dimensions.

Figure 4: Data quality non conformities and their inﬂuence

on the Discoverability, Accessibility and Usability.

4 CONCLUSIONS

An effective use of open government data requires

minimum quality standards. The evaluation of such

requirements is not a trivial task. Several dimensions

have been used by authors to evaluate data quality, but

three of them cover all the aspects needed for trans-

forming a dataset into value by any stakeholder in-

volved. First, Discoverability, the user must be able

to ﬁnd these dataset on the internet; second, Acces-

sibility, once found it must be accessed without bar-

riers; and ﬁnally, Usability, the user must be able to

understand and make use of this information.

Even though those three broad dimensions repre-

sent all the important aspects of data quality, to evalu-

ate them requires many others dimensions depending

on the context or the depth level required by the study.

This paper, through a systematic mapping, aimed to

describe the different dimensions used by the selected

articles to evaluate data quality regarding it´s discov-

erability, accessibility and usability, and, as already

quoted by other authors, we found that there is still no

standard or consent about the dimensions that shall be

used. And also, some dimensions are used with differ-

ent nomenclature but with related quality evaluation

objectives. For that reason we decided to group these

related dimensions and analyse how those dimension

groups affect the three broad dimensions object of this

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study

223

study. This may serve as a tool for a future standard-

ization in the ﬁeld of data quality evaluation.

The evidence provided by the selected studies also

showed that the author´s main concern while doing a

data quality evaluation of a dataset is not the appli-

cation domain of those information but the analysis

itself according to the dimensions that are being used.

We also noticed that Human Observation is the ap-

proach used by most of the articles, and we believe

that´s why this approach is effective and easiest than

a semi-automatic or automatic data analysis. None

of the selected articles reported the use of a machine

learning algorithm while analysing the datasets. Data

non conformities that were cited was related most

with data discoverability and usability. Dimensions

related with the form which data is presented to the

user (Simplicity) and how the user can interact with

the dataset (Interaction) were cited by most of the ar-

ticles and should be considered while making an open

government data available to the public.

There are some threats to validity in our study.

First, our research questions may not encompass a

full study of the current state of the art of quality

evaluation of open government data available on the

web. We use the GQM approach to better deﬁne the

study objective and research questions. It is possible

that the search strings we use do not allow the iden-

tiﬁcation of all studies in the area. We mitigate this

threat by expanding the number of electronic reposi-

tories searched to three. All repositories used are spe-

ciﬁc of the area of Computing. We cannot guarantee

that all relevant primary studies available in electronic

repositories have been identiﬁed. Some relevant stud-

ies may not have been covered by search strings. We

mitigate this threat by using alternative search terms

and synonyms of major terms in search strings. Each

searched electronic repository has its own search pro-

cess and we don’t know how they work or if they

work identically. We mitigate this by adapting the

search string for each electronic repository and as-

sume that equivalent logical expressions work con-

sistently across all electronic repositories used. The

studies were selected according to the deﬁned inclu-

sion, exclusion and quality criteria, but under our

judgment. Thus, some studies may have been selected

or not selected incorrectly.

REFERENCES

Basili, V. R. and Rombach, H. D. (1988). The tame

project: Towards improvement-oriented software en-

vironments. IEEE Transactions on software engineer-

ing, 14(6).

Batini, C., Cappiello, C., and Francalanci (2009). Method-

ologies for data quality assessment and improvement.

ACM computing surveys (CSUR), 41(3).

Behkamal, B., Kahani, M., Bagheri, E., and Jeremic, Z.

(2014). A metrics-driven approach for quality assess-

ment of linked open data. Journal of theoretical and

applied electronic commerce research, 9.

Belhiah, M. and Bounabat, B. (2017). A user-centered

model for assessing and improving open government

data quality.

Brandusescu, A., Iglesias, C., Robinson, K., Alonso, J. M.,

Fagan, C., Jellema, A., and Mann, D. (2018). Open

data barometer: global report.

Chu, P.-Y. and Tseng, H.-L. (2016). A theoretical frame-

work for evaluating government open data platform.

In Proceedings of the International Conference on

Electronic Governance and Open Society: Challenges

in Eurasia.

Clapton, J., Rutter, D., and Sharif, N. (2009). Scie system-

atic mapping guidance. London: SCIE.

Dahbi, K. Y., Lamharhar, H., and Chiadmi, D. (2018). Ex-

ploring dimensions inﬂuencing the usage of open gov-

ernment data portals. In Proceedings of the 12th Inter-

national Conference on Intelligent Systems: Theories

and Applications.

Dander, V. (2014). How to gain knowledge when data are

shared? open government data from a media pedagog-

ical perspective. In Seminar. net, volume 10.

Dyb

a, T. and Dingsøyr, T. (2008). Empirical studies of agile

software development: A systematic review. Informa-

tion and Software Technology, 50(9).

Group, O. G. W. (2007). Eight principles of open govern-

ment data. https://opengovdata.org/. Accessed in 20-

March-2022.

Kassen, M. (2013). A promising phenomenon of open data:

A case study of the chicago open data project. Gov-

ernment information quarterly, 30(4).

Kubler, S., Robert, J., Neumaier, S., Umbrich, J., and

Le Traon, Y. (2018a). Comparison of metadata qual-

ity in open data portals using the Analytic Hierarchy

Process. Government Information Quarterly, 35(1).

Kubler, S., Robert, J., Neumaier, S., Umbrich, J., and

Le Traon, Y. (2018b). Comparison of metadata qual-

ity in open data portals using the analytic hierarchy

process. Government Information Quarterly, 35(1).

Kubler, S., Robert, Y., Umbrich, J., and Neumaier, S.

(2016). Open data portal quality comparison using

ahp. In Proceedings of the 17th international digi-

tal government research conference on digital govern-

ment research.

cera, J., Chlapek, D., and Ne

cask

y, M. (2013a). Open

government data catalogs: Current approaches and

quality perspective. In International conference on

electronic government and the information systems

perspective. Springer.

cera, J., Chlapek, D., and Ne

cask

y, M. (2013b). Open

government data catalogs: Current approaches and

quality perspective. In International conference on

electronic government and the information systems

perspective. Springer.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

224

Li, X.-T., Zhai, J., Zheng, G.-F., and Yuan, C.-F. (2018).

Quality assessment for open government data in

china. In Proceedings of the 2018 10th International

Conference on Information Management and Engi-

neering.

Maali, F., Cyganiak, R., and Peristeras, V. (2010). Enabling

interoperability of government data catalogues. In

International Conference on Electronic Government.

Springer.

achov

a, R., Hub, M., and Lnenicka, M. (2018). Usabil-

ity evaluation of open data portals: Evaluating data

discoverability, accessibility, and reusability from a

stakeholders’ perspective. Aslib Journal of Informa-

tion Management.

achov

a, R. and Ln

eni

cka, M. (2017). Evaluating the qual-

ity of open data portals on the national level. Jour-

nal of theoretical and applied electronic commerce re-

search, 12(1).

Magalh

aes, G. and Roseira, C. (2016). Exploring the bar-

riers in the commercial use of open government data.

In Proceedings of the 9th International Conference on

Theory and Practice of Electronic Governance.

Moher, D., Liberati, A., Tetzlaff, J., Altman, D. G., and

Group, P. (2009). Preferred reporting items for sys-

tematic reviews and meta-analyses: the prisma state-

ment. PLoS medicine, 6(7).

Neumaier, S., Umbrich, J., and Polleres, A. (2016). Au-

tomated quality assessment of metadata across open

data portals. Journal of Data and Information Quality

(JDIQ), 8(1).

Nikiforova, A. and McBride, K. (2021). Open government

data portal usability: A user-centred usability analysis

of 41 open government data portals. Telematics and

Informatics, 58.

Oliveira, M. I. S., de Oliveira, H. R., Oliveira, L. A., and

oscio, B. F. (2016). Open government data portals

analysis: the brazilian case. In Proceedings of the 17th

international digital government research conference

on digital government research.

Osagie, E., Waqar, M., Adebayo, S., Stasiewicz, A., Por-

wol, L., and Ojo, A. (2017). Usability evaluation of

an open data platform. In Proceedings of the 18th An-

nual International Conference on Digital Government

Research.

Sadiq, S. and Indulska, M. (2017). Open data: Quality over

quantity. International Journal of Information Man-

agement, 37(3).

Sanabria, M. A. O., Fern

andez, F. O. A., and Zabala, M.

P. G. (2018). Colombian case study for the analysis

of open data government: A data quality approach. In

11th International Conference on Theory and Practice

of Electronic Governance, ICEGOV ’18, New York,

NY, USA. Association for Computing Machinery.

Stone, P. (2002). Popping the (pico) question in research

and evidence-based practice. Nurs Res, 15(3).

Str

zyna, M., Eiden, G., Abramowicz, W., Filipiak, D.,

Małyszko, J., and We¸cel, K. (2018). A framework

for the quality-based selection and retrieval of open

data-a use case from the maritime domain. Electronic

Markets, 28(2).

Utamachant, P. and Anutariya, C. (2018). An analysis of

high-value datasets: a case study of thailand’s open

government data. In 2018 15th international joint con-

ference on computer science and software engineering

(JCSSE). IEEE.

Vetr

o, A., Canova, L., Torchiano, M., and Minotas (2016).

Open data quality measurement framework: Deﬁni-

tion and application to open government data. Gov-

ernment Information Quarterly, 33(2).

Wang, D., Richards, D., Bilgin, A., and Chen, C. (2021).

Advancing open government data portals: a compara-

tive usability evaluation study. Library Hi Tech.

Wang, V. and Shepherd, D. (2020). Exploring the extent of

openness of open government data–a critique of open

government datasets in the uk. Government Informa-

tion Quarterly, 37(1).

Wohlin, C. (2014). Guidelines for snowballing in system-

atic literature studies and a replication in software en-

gineering. 18th international conference on evalua-

tion and assessment in software engineering.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

software engineering. Springer Science & Business

Media.

Wu, D., Xu, H., Yongyi, W., and Zhu, H. (2021). Qual-

ity of government health data in covid-19: deﬁnition

and testing of an open government health data quality

evaluation framework. Library Hi Tech.

Yi, M. (2019). Exploring the quality of government open

data: Comparison study of the uk, the usa and korea.

The Electronic Library.

Zhu, X. and Freeman, M. A. (2019). An evaluation of us

municipal open data portals: A user interaction frame-

work. Journal of the Association for Information Sci-

ence and Technology, 70(1).

Zuiderwijk, A., Janssen, M., and Susha, I. (2016). Improv-

ing the speed and ease of open data use through meta-

data, interaction mechanisms, and quality indicators.

Journal of Organizational Computing and Electronic

Commerce, 26(1-2).

Characterizing Open Government Data Available on the Web from the Quality Perspective: A Systematic Mapping Study

225
