GLUON: A Reasoning-based and Natural Language Generation-based

System to Explicit Ontology Design Choices

Zakaria Mejdoul

and Ga

elle Lortal

Thales Research & Technology, Palaiseau, France

Keywords:

Ontology, Reasoner, Controlled Natural Language, Verbalization, Sentences Generation.

Abstract:

The Semantic Web (SW) is an enhancement to the World Wide Web (WWW). It allows Humans to ﬁnd, share

and integrate information more easily. One of the Knowledge Representation technologies related to the

SW standards is the ontology, which is an inventory of knowledge deﬁning a universal or speciﬁc domain.

Ontology construction requires expertise related to logics and to the expert domain the SW application is

applied to. We aim to enable ontology wide adoption by bringing the end-users closer to their own ontology

building choices, providing them with the possibility to build their ontology, to validate its consistency and

to formally represent their knowledge without formal methods knowledge. In this paper, we detail our tool

architecture combining SW technologies and Natural Language Generation (NLG) to support users in creating

consistent ontologies.

1 INTRODUCTION

Knowledge sharing is key to support intelligent pro-

cess automation and collaborative problem solving

(Gruber, 1995) in large organizations. THALES, a

Worldwide company, needs efﬁcient critical data and

knowledge management to support daily business

applications in Air Trafﬁc Management (ATM) and

Avionics. An efﬁcient tool to explicit information and

allow its sharing (Wankhade and Raut, 2021) is ontol-

ogy. Thus, the solution we consider to improve busi-

ness application is ontology-based application appro-

priately managing domain knowledge (e.g. (Wu et al.,

2020)). This process involves knowledge modeling as

a ontology (Shimizu et al., 2020).

Despite, ontologies are expected to be widely used

in SW applications to bridge the gap among machines

and humans, their acceptance and use is hampered by

their complexity and the need of skilled knowledge

engineers to develop them. The human interaction as-

pects of these formalisms (ease of learning, reading,

writing) have received little attention. Ontology ed-

itors such as Prot

e (Musen, 2015), Neon (Su

arez-

Figueroa et al., 2015), etc. still require knowledge

and training in ontology and formal logics domains,

as well as a good grasp of the editor’s plugins and

https://orcid.org/0000-0003-4341-2139

https://orcid.org/0000-0001-5374-6584

widgets, which makes the handling of these software

difﬁcult. Likewise, keeping track of the ontology

design decisions is another missing aspect, blurring

design rationale consequences and disorienting non-

ontology-experts.

In section 2, we present the Air Mission domain

we want to improve. In section 3, we present the

use cases and the main scenarios we considered to

evaluate the solution. In section 4, we detail existing

systems of ontology, reasoners and verbalizers, then

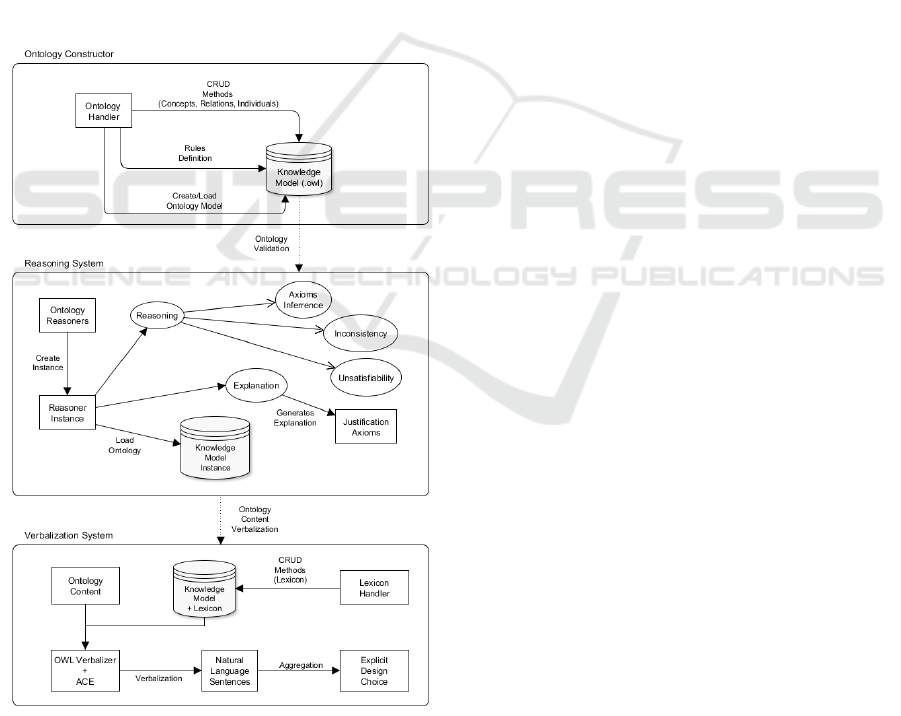

in section 5, the technical architecture including our

conceptual design. Section 6 covers results of vali-

dation scenarios simulation as described in section 3.

Then, we conclude and state the future work.

2 CONTEXT

With increasing airspace trafﬁc congestion, ATM and

Avionics need more advances in massive data pro-

cessing, sophisticated edge avionics (coordination

with weather updates, estimation of multiple uncer-

tainty types,...). The complexity of the situation over-

whelms the skills of pilots or ATM controllers. In

order to provide automatic and Artiﬁcial Intelligence

(AI) decision assistance for Air Missions, ontologies

are an attractive knowledge technology. Air domains

information management systems must be efﬁcient

with larger amounts of data, effective in combining

228

Mejdoul, Z. and Lortal, G.

GLUON: A Reasoning-based and Natural Language Generation-based System to Explicit Ontology Design Choices.

DOI: 10.5220/0011587900003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 228-236

ISBN: 978-989-758-614-9; ISSN: 2184-3228

information from different sources, and relevant in

reducing uncertainty in decision support systems (In-

saurralde and Blasch, 2018).

An attractive approach to supporting decision

making in advanced Air Mission systems is the imple-

mentation of ontologies for avionics systems (Pala-

cios et al., 2016), (Palacios et al., 2018). Ontolo-

gies are intended to model cognitive processes by

representing and reasoning about knowledge. In air

Mission ﬁeld, two ontologies are widely used: AT-

MONTO

(The NASA Air Trafﬁc Management On-

tology) which describes classes, properties and rela-

tionships related to ATM domain and represents in-

formation about a large and diverse set of interacting

components in the U.S. and global airspace; AIRM

(ATM Information Reference Model) which is an

OWL ontology derived from Air Trafﬁc Management

(ATM) and was developed in the framework of the

BEST project of the Single European Sky ATM Re-

search (SESAR) program (Standar, 2012).

To set up SW applications in air Mission ﬁeld, we

built scenarios answering realistic Air Mission use-

cases (UCs) thanks to these two open-source ontolo-

gies (ATMONTO and AIRM). Our scenarios cover

events that can occur during an air mission as: a

weather event, a destination diversion, a systematic

failure.

Table 1: Ontologies metrics extracted from Prot

Ontologies ATMONTO AIRM

Metrics

axiom 1644946 34576

logical axiom count 1386774 15735

declaration axioms count 2768 9605

class count 2461 1177

object property count 127 2727

data property count 189 1972

individual count 226516 3727

loading time (ms) 18966 837

The table 1 shows the ontologies metrics AT-

MONTO and AIRM which are composed of domains

and concepts similar to our working context (air mis-

sion management). These ontologies metrics come

from the Prot

e ontology editor, giving a schema on

the richness and density of the two: ATMONTO (with

a total of 1644946 axioms) is richer and more com-

plex compared to AIRM.

https://data.nasa.gov/ontologies/atmonto/index.html

https://airm-o.github.io/airm-o/

3 USE-CASES

3.1 Purposes

To bring end-users closer to their ontology building

choices and to provide them with formalization and

validation means depends on end-users experience.

We consider three main interaction levels in a SW ap-

plication to ﬁt with our end-users interaction needs:

• Average users with no computer science back-

ground, who want to contribute to the SW

with knowledge about their domains of interest

(Berners-Lee et al., 2001).

• Domain experts, who create formalized knowl-

edge to be used in a SW application. Tradi-

tionally, these ontologies are created by ontol-

ogy engineers, who interview domain experts in

an iterative process. Allowing domain experts to

create initial versions of these ontologies them-

selves lower the costs compared to the traditional

method.

• Ontology engineers using our approach to rapid

ontology prototyping.

We want to achieve our goal of increasing the

ontology acceptance by enabling end-users to han-

dle with full transparency the formalisms required to

build them. As our aim is to support users, we will

ﬁrst propose the most widely used format of ontol-

ogy to our users, namely OWL2. The bridge we build

is between the OWL logical and formal format and

an easy and natural interaction means: Natural Lan-

guage. These end-users act in a domain and for our

works we gathered Air Mission needs. In the next

section, we present our scenarios to test the use of on-

tologies.

3.2 Description of UCs

To be able to evaluate the usability and performances

of our solution, we set up validation scenarios, based

on various UCs given by Air Mission experts. The

identiﬁed UCs are represented in our air mission on-

tology and are:

• System failure scenario;

• Diversion due to arrival runway closed scenario;

• Meteorological event scenario.

They are formally described below. Each scenario re-

ﬂects an incident, which can occur during a ﬂight or

as we call it, air mission.

GLUON: A Reasoning-based and Natural Language Generation-based System to Explicit Ontology Design Choices

229

3.2.1 System Failure Scenario

This system failure UC, due to an air mission oper-

ated with an aircraft having a low fuel level (value of

the level is equal to 0.0) can trigger an emergency. An

emergency mission implies that the mission is unsat-

isﬁable, therefore, the mission is classiﬁed as unsatis-

ﬁable mission, by semantic rules (‘SWRL’ rule). This

System Failure scenario is represented as follows:

Property Assertions:

Individual: MissionSMAScenarioA

MissionSMAScenarioA Type Mission

MissionSMAScenarioA isFlownWith F-DEV1

F-DEV1 hasFuel FDEV1CurrentFuel

FDEV1CurrentFuel Type Fuel

FDEV1CurrentFuel hasFuelValue ’0.0’

Mission DisjointWith UnsatisfiableMission

LowFuel SWRL Rule:

Mission(?m) ˆ Fuel(?fcv) ˆ IsFlownWith(?m, ?a)

hasFuel(?a, ?fcv) ˆ hasFuelValue(?fcv, 0.0)

-> hasUrgency(?m, "3")

Urgency SWRL Rule:

Mission(?m) ˆ hasUrgency(?m, ?urg) ->

UnsatisfiableMission(?m)

Explanation: F-DEV1 has fuel with fuel value 0.0

Implies: MissionSMAScenarioA Type UnsatisﬁableMis-

sion

3.2.2 Diversion Due to Arrival Runway Closed

Scenario

It reﬂects a diversion of the aircraft’s destination dur-

ing a mission, due to a closure of the runway intended

for the destination, which also implies that the current

mission is unsatisﬁable, by an implication semantic

rule. This Diversion scenario is represented as fol-

lows:

Property Assertions:

Individual: MissionSMAScenarioB

MissionSMAScenarioB Type Mission

MissionSMAScenarioB hasActiveAirportDeparture

LFPB

MissionSMAScenarioB hasActiveAirportArrival

KTEB

MissionSMAScenarioB hasActiveArrivalRunway

KTEB19

KTEB19 isOpen 0

Mission DisjointWith UnsatisfiableMission

ArrivalRunwayAvailability SWRL Rule:

Mission(?m) ˆ hasActiveArrivalRunway(?m, ?arw)

ˆ isOpen(?arw, 0) -> UnsatisfiableMission(?m)

Explanation: KTEB19 is not open

Implies: MissionSMAScenarioB Type UnsatisﬁableMis-

sion

3.2.3 Meteorological Event Scenario

It describes an air mission failure due to a weather

event that can endanger the mission aircraft during its

landing on its destination runway: the wind speed of

the destination runway exceeds the speed limit that

the aircraft can tolerate, which also trigger a pre-

landing condition alert. This event classiﬁes an air

mission as unsatisﬁable mission by a rule containing

a conditional form (swrlb:greaterThan) and then a di-

rect implication. The meteorological event scenario is

represented as follows:

Property Assertions:

Individual: MissionSMAScenarioC

MissionSMAScenarioC Type Mission

MissionSMAScenarioC hasActiveArrivalRunway KTEB06

MissionSMAScenarioC isFlownWith F-DEV1

F-DEV1 hasLandingCapacity F-DEV1LandingCapacity

F-DEV1LandingCapacity hasCrosswindLimitation ’5.0’

KTEB06 hasWeather Weather_Crosswind_KTEB

Weather_Crosswind_KTEB hasWindMagnitude ’20.0’

Mission DisjointWith UnsatisfiableMission

CrosswindSatisﬁability SWRL Rule:

Mission(?m) ˆ IsFlownWith(?m, ?a) ˆ

hasLandingCapacity(?a, ?lc) ˆ

hasCrosswindLimitation(?lc, ?xwindLim) ˆ

hasActiveArrivalRunway(?m, ?arw) ˆ

hasWeather(?arw, ?w) ˆ Crosswind(?w) ˆ

hasWindMagnitude(?w, ?xwm) ˆ

swrlb:greaterThan(?xwm, ?xwindLim) ->

UnsatisfiableMission(?m)

Explanation: KTEB06 has wind magnitude 20.0 greater

than F-DEV1 limitation 5.0

Implies: MissionSMAScenarioC Type UnsatisﬁableMis-

sion

The proposed scenarios lead to classify a mission

into ”missions that cannot be accomplished”, through

inconsistencies detection in the air missions ontology

and declaring also an expert intervention. The incon-

sistency is triggered by a disjoint relation between

the concepts ”Mission” and ”UnsatisﬁableMission”.

For this function, we developed a solution, on which

we can test scenarios based on the main UCs of air

mission applications. Nevertheless, several solutions

close to our needs exist. The next section presents

them.

4 RELATED WORKS

Our basic needs are to 1. Create ontology, 2. En-

sure users their modeling actions are consistent and 3.

Ensure users their modeling actions answer their de-

sign choices. Existing systems answer partially these

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

230

needs using Ontologies engines, Semantic Reasoners

and Verbaliser. We present a review below.

4.1 Ontology and Semantic Reasoning

Ontology Overview. In less than thirty years, the

term ”ontology” has gained considerable popularity

in the ﬁeld of computer science and information sys-

tems. This popularity is due to the ability of ontolo-

gies to achieve interoperability among multiple rep-

resentations of reality (e.g., data or business process

models) residing in computer systems, and among

these representations and reality, i.e., human users

and their perception of the domain. Surprisingly for a

tool, which aims at reconcialiting people from various

communities, the term ontology has different, even

incompatible, deﬁnitions. It is something of a para-

dox that the starting term of a research ﬁeld, which

aims to reduce ambiguity about the meaning of sym-

bols, is understood and used so inconsistently. From

the early years of ontology research, Guarino and Gi-

aretta (Guarino et al., 1995) were concerned about the

inconsistent use of the term ”ontology”. They found

at least seven different notions attributed to the term.

We consider this general deﬁnition for our works: An

ontology is a structured set of insights in a particular

domain of knowledge (Guarino et al., 1995). We also

consider the use of a W3C recommendation as OWL2

(Hitzler et al., 2012) to ensure interoperability base on

a valid and shared syntax and hence semantics.

To encapsulate OWL possibilities in a new appli-

cation, the use of OWL API seems inescapable despite

some lacks. Most of reasoners are accessible via the

OWL API, which is advantageous for applications that

want to access multiple reasoners via the same inter-

face. The use of the OWL API greatly facilitated the

execution of our experiments. The design of the OWL

API is directly based on the OWL2 structural speciﬁ-

cation described in (Motik and al., 2008).

Other Ontology Frameworks. A number of other

similar developments have been initiated to provide

application interfaces for OWL: Jena toolkit (Car-

roll and al., 2004) provides practical ontological in-

terfaces around RDF interfaces. Comparisons of the

OWL API and Jena’s triplet-based approach for some

tasks are discussed in (Bechhofer and Carroll, 2004);

The KAON toolkit (Bozsak and al., 2002) is an open

source ontology management system for commercial

applications. The KAON toolkit includes an API

for RDF graph processing and differs from the OWL

API in that KAON doesn’t offer support for process-

ing OWL ontologies, and the OWL API doesn’t pro-

vide direct support for processing RDF graphs. Thus,

OWL API is a good candidate for our works, yet our

system needs a reasoner to ensure consistency and ex-

plain users their modeling actions.

Reasoner Overview. A ”reasoner” is a program that

performs reasoning on an ontology or a knowledge

base (KB). It relies on the KB, as well as on the set of

rules of the ontology to infer (logically deduce) new

knowledge updating the KB content.

However, rules, common to all reasoners, may not

be sufﬁcient for all application cases. Moreover, it is

possible to deﬁne rules speciﬁc to a given application,

in a language like SWRL (Semantic Web Rule Lan-

guage). In this case, the reasoner assimilates these

new rules and applies them to the KB in the same

way they pre-established rules. Advanced veriﬁcation

techniques are imperative to have a consistent ontol-

ogy. The reasoner then composes the core of the func-

tional validation module.

The logics we rely on is Description Logics in

general to ensure OWL adequacy with reasoning as

well as termination of valid inferences. Description

logics (DLs) are a family of knowledge representa-

tion formalisms based on classes (concepts). They

are characterized by the use of various constructors to

build complex concepts from simpler concepts, by the

decidability of key reasoning tasks, and by providing

correct, complete and feasible reasoning. DLs have

been used in a range of applications, for example con-

ﬁguration and reasoning about schemas and database

queries (Toman and Weddell, 2022).

Reasoners Benchmark. To specify the reasoners,

we relied on a benchmark based on reasoning fea-

tures: Reasoning Algorithm, Expressivity, Rule Sup-

port, Justiﬁcation (provides explanations for inconsis-

tencies that exist in ontologies) and ABox reasoning

task support (reasoning with individuals for instance

checking, answering queries and ABox consistency

checking), the benchmark is also based on usability

features: support for OWL API and reasoner license

(open source/commercial).

Table 2: Reasoner Benchmark (HermiT, Pellet and ELK).

HermiT Pellet ELK

Format OWL2 OWL2 OWL2

DL DL/EL EL

Reasoning Hyper- Tableau CB

Algorithm Tableau

Expressivity SROIQ (D) SROIQ (D) EL

Rule Support SWRL SWRL Own

rule format

Justiﬁcations - + +

Abox + + -

Reasoning (SPARQL)

OWL API + + +

License Open- Open- Open-

source source source

+ stands for yes and - for no.

GLUON: A Reasoning-based and Natural Language Generation-based System to Explicit Ontology Design Choices

231

After a detailed study of ontological reasoners and

our benchmark results, the table 2 shows us a good

compromise among speed, expressivity and precision:

Pellet, based on the Tableau algorithm and supporting

OWL2 DL. Nevertheless, for unit tests we use also

ELK based on the Consequence-based algorithm, al-

though it supports a less expressive proﬁle of OWL,

OWL2 EL. Now we set a reasoner to ”understand”,

users should be able to understand too. We checked

the different verbalizers and Controlled Natural Lan-

guages (CNLs) systems.

4.2 Verbalizers

Overview. Natural language is very expressive and

doesn’t require additional learning effort to present

Human knowledge. To represent knowledge in com-

puters, people use formal languages (Fuchs et al.,

2008) as CNLs. To make ontologies easier to un-

derstand, several ontology verbalizers have been de-

veloped (Schwitter, 2010). The verbalizers typically

translate the ontology axioms (here the OWL state-

ments) one by one into CNLs statements. Often not

quite ﬂuent, they generally don’t pay attention to the

resulting texts consistency. There are different syn-

tax possibilities to express a speciﬁc OWL axiom in

CNL.

Several works were led to develop CNLs, mainly

from English, which can be used as alternative OWL

syntaxes (Khabarov et al., 2019). Sydney OWL Syn-

tax (sos) (Cregan et al., 2007) is an English-like CNL

with a bidirectional mapping to and from OWL syn-

tax; sos is based on peng (Schwitter, 2010). A similar

bidirectional mapping has been deﬁned for ACE ”At-

tempto Controlled English” (Fuchs et al., 2008).

The verbalization approach proposed by (Vidan-

age et al., 2021) gave good results and verbalized be-

yond the level of the CNL. Its free conﬁguration, be-

ing domain and schema independent and its overall

accuracy results, close to 82%, is interesting. How-

ever, Semantic Level Reﬁnement (Venugopal and Ku-

mar, 2021), aiming at transforming knowledge repre-

sented as a combination of low expressive (and non-

speciﬁc) logical expressions into high expressive and

speciﬁc expressions is more precise. This technique

uses a predeﬁned set of rules that are repeatedly ap-

plied to the restrictions associated with individuals

(and concepts) to obtain a reﬁned set of restrictions.

These reﬁned restrictions sets are then verbalized to

obtain concise descriptions of the ontology’s enti-

ties. Nevertheless, SLR is not particularly adpated to

OWL2 and needs heavy preprocessing.

ACE is particularly, well adapted to the verbal-

ization of OWL ontologies, because the axioms are

expressed in compact ready-made sentences, which,

besides, do not offer the user the possibility to ex-

press variable patterns that OWL would not be able

to express. In other words, ACE makes explicit the

sentences that are compatible with the expressivity of

OWL and those that are not. ACE is formally de-

scribed by a Deﬁnite Clause Grammar (DCG) which

also provides a mapping of ACE to (a part of) OWL

which can be a set of axioms (Fuchs et al., 2008). The

main focus is on the transition from CNL to OWL.

Evaluation of existing systems. This section

presents a comparison between existing systems and

OWL verbalisation libraries.

Table 3: Comparisons of OWL-based verbalizers.

System Tbox Abox Cove- Aggre- Lexi- Dom-

rage gation con ain

ACE + + OWL2 - Auto Gen

SWOOP + - OWL - Auto Gen

MIAKT - + RDF + Hand- Spec

crafted Spec

Natural- + + OWL + User- Spec

OWL DL deﬁned

SWAT + + OWL2 + Auto Gen

+ stands for yes and - for no. Auto stands for automatic. Gen

and Spec stands respectively for Generic and Speciﬁc.

The table 3 shows a comparison of the different

OWL verbalizers, according to several axes: ’TBox’

and ’ABox’. The coverage is approximate: for ex-

ample, ACE and SWAT cover almost all of OWL2.

The lexicon indicates the source of lexical entries for

atomic entities. ’Domain’ is generic if the system can

produce text for any ontology (of the indicated OWL

coverage) with English names, and speciﬁc if hand-

crafted lexical entries or grammar rules are needed.

ACE (Fuchs et al., 2008), SWAT (Power, 2012)

and SWOOP (Narasimha et al., 2022) are suitable

for generic domains as lexicons are created automati-

cally, which is good for a larger ontology with a gen-

eral domain. Compared to MIAKT (Bontcheva and

Wilks, 2004), ’TBox’ is not supported, which is a cru-

cial factor when generating text from an ontology.

Then, both NaturalOWL and ACE could be used

for our UCs as they provide more functionality and

are relevant for our topic. The exception is the in-

tegrability and the fact that both systems offer APIs

exploitable by our system and adequate with the ar-

chitecture and ﬂows of our solution. For technical

reasons, then, we chose the ACE-based OWL verbal-

izer.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

232

5 SOLUTION ARCHITECTURE

This section discusses the proposed solution of

GLUON (Generation of Links Unifying an ONtol-

ogy) and in ﬁgure 1 shows the high level architecture

of GLUON.

To solve this problematic, we have developed a

module named GLUON which is the acronym of

”Generation of Links Unifying an ONtology”, a user-

friendly ontology design and creation methodology

assisted by software components, each one dedicated

to a task of the scenario of iterative ontology creation

and evaluation, with the aim of making ontologies us-

able by non-experts. We want to make everyone in-

terested in ontology creation understand that ontol-

ogy design does not have to be complex and that by

using our guide-assisted methodology, the user will

be more productive than with existing methodologies

and tools. The novelty of the solution resides in the

Figure 1: High level architecture of GLUON.

integration of an OWL verbalizer and in the fact that

informative sentences are generated with the ontology

itself by the system equipped with an ontology con-

structor, a reasoning system and a natural language

generator or verbalizer.

5.1 Components

5.1.1 Ontology Constructor

This component allows to create an ontology from

scratch or to load an already designed ontology via

the ontology handler, which is a group of instructions

from an ontology engine.

This block allows the creation of concepts, rela-

tions and individuals to be added to the ontology in

question, or even to apply CRUD (Create, Read, Up-

date, Delete) operations on ontology’s content to en-

sure what we can call persistence of ontology data

(mechanism responsible for the backup and restora-

tion of the ontology’s data or content). The user also

has the possibility to add rules (e.g. SWRL rules)

to his ontology by adapting them to the domain and

the business logic that organize his ﬁeld of expertise.

About ontology engine, we opted for OWL API as an

ontology manipulation library. This module is present

in many uses and has a large community that uses it,

so documentation and references can also complete

our need when using it.

5.1.2 Reasoning System

This sub-module is a set of subsystems allowing the

use of a standalone reasoner or several parallel rea-

soning processes. In addition to reasoning on an on-

tology (inferences, detection of inconsistencies and

unsatisﬁabilities), this module also includes the func-

tion of generating explanations in the form of justi-

ﬁcations expressed in axioms (OWL axioms). This

module also provides a function that manages the rea-

soner in use by using the ontology deﬁned by the

ontology constructor module and checks its consis-

tency after each operation or change that the user ap-

plies to the ontology in use. Explanation is a func-

tion that also extends this module and generates ex-

planations in the form of an owl axiom or a list of

OWL axioms after each operation applied on the cur-

rent ontology, also using the default reasoner (possi-

bility to use more than one reasoner, e.g. Pellet, ELK,

...) for the generation of explanations. For the se-

lection of reasoners, two reasoners were chosen that

are aligned with two different types of ontology for-

mats and reasoning algorithms: Pellet based on the

Tableau algorithm and supports OWL2 DL and ELK

based on the Consequence-based algorithm and sup-

ports OWL2 EL. This choice allows us to cover both

DLs and ELs formats and also allows justiﬁcation,

GLUON: A Reasoning-based and Natural Language Generation-based System to Explicit Ontology Design Choices

233

SWRL rules support, Abox reasoning and the use of

OWL API as part of reasoning processes.

5.1.3 Verbalisation System

The verbalization system is an integral component of

the system where sentences are generated from this

module with the content of the ontology in question.

In view of the ﬂexibility of creating NL resources in

NaturalOWL, it is more appropriate to create an NLG

system for small domains. Since the user has to de-

ﬁne the NL resources, this type of library is not suit-

able for large-scale ontologies, where the author will

have extra work to generate the texts. Furthermore,

this library does not provide any support for integra-

tion with other systems. Considering a potential com-

parison, NaturalOWL and ACE could be used for our

case because they provide more functionalities and

are relevant for our subject. The exception is the in-

tegrability and the fact that both systems offer APIs

that can be used by GLUON and that are adequate for

the architecture and ﬂow of our solution, technically

viewed. In this project, we chose OWL Verbalizer as

the ACE-based OWL verbalizer. For this project, we

used the verbalizer as an HTTP server and at the same

time exploited the module’s Java methods for hybrid

verbalization. The lexicons can either be generated

from the names associated to concepts, relations and

individuals (e.g. #Aircraft, #ﬂownWith, #MissionA

.etc) or can be deﬁned by the user through the lexicon

handler module by adapting it to the different gram-

matical forms it can take (singular form, plural form,

past participle form for verbs .etc). Nouns, adjectives

and verbs must be deﬁned for better form of genera-

tion or have the possibility to import a predeﬁned NL

resource thanks to lexicon handler methods. The ben-

eﬁts of OWL Verbalizer include: expressing the con-

tent of OWL ontologies in a natural way; naturally

adapts to expressing the content of rules and business

queries; textualizing an OWL ontology in concise, un-

derstandable English, on condition to adopt a speciﬁc

naming style for OWL individuals, classes and prop-

erties; allows people with no formal logic background

to read and understand ontologies written by others,

provided the readers are experts in the domain de-

scribed by the ontology; uses the syntax of the ACE

controlled sub-language; Provides interfaces (APIs)

that can be used in other software. On disadvantages:

difﬁculty in aggregating sentences in the case of ver-

balizing a list of axioms; generic and non-customized

lexicon ( ﬁxed with the lexicon handler).

6 EVALUATION

GLUON enables the outputs in CNL from OWL ax-

ioms presented below. Our evaluation plan is in two-

folds. The ﬁrst part is unit test for consistence check-

ing of the scenarios based on avionics experts needs.

Here we present the Alpha scenario i.e. the consistent

ontology and then the 3 scenarios revealing failures.

The second part will be to set up a full scenario for

avionics experts, who will play an ontology building

according to a new mission (as Sick Passenger On-

board).

6.1 Scenario Alpha (Consistent

Ontology)

Consistent Ontology Verbalization:

F-DEV1 is an Aircraft.

F-DEV1 has fuel FDEV1 current fuel.

FDEV1 current fuel is a fuel.

FDEV1 current fuel have fuel value 0.0.

KTEB is an airport.

KTEB06 is an operational runway.

LFPB is an airport.

Mission SMA A is a mission.

Mission SMA A has active airport arrival KTEB.

...

6.2 Scenario A (System Failure)

System Failure Inconsistency Explanation: You

know that Mission SMA A is ﬂown with F-DEV1 and

FDEV1 current fuel has fuel value 0.0 and Mission

SMA A is a mission and No mission is an unsatis-

ﬁable mission and F-DEV1 has fuel FDEV1 current

fuel and FDEV1 current fuel is a fuel.

6.3 Scenario B (Diversion for Closure)

Diversion Inconsistency Explanation: You know

that KTEB19 is open 0 and Mission SMA B has active

arrival runway KTEB19 and No mission is an unsat-

isﬁable mission and Mission SMA B is a mission.

6.4 Scenario C (Meteorological Event)

Meteorological Event Inconsistency Explanation:

You know that Mission SMA C has active arrival run-

way KTEB06 and Mission SMA C is ﬂown with F-

DEV1 and KTEB06 has weather weather-crosswind

of KTEB and F-DEV1 has landing capacity F-DEV1

landing-capacity and No mission is an unsatisﬁable

mission and weather-crosswind of KTEB has wind

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

234

magnitude 20.0 and Mission SMA C is a mission and

F-DEV1 landing-capacity has crosswind limitation

5.0.

6.5 Discussion

The results show that despite the simplicity of most

axioms in real-world ontologies, these ontologies can

contain very complex axioms. Only a few of these

axioms are so complex that the verbalization method

proposed by OWL Verbalizer cannot handle them, the

rest, however, can be presented in a way that is more

readable than the standard syntax of the description

logic and its variants.

By feeding the verbalizer a lexicon of morpho-

logical correspondences, we can further improve the

verbalization. Note also that we have presented each

verbalization as a simple sequence of words. Finally,

we note that the integration of the verbalizer is easy

to adapt to GLUON and can translate large currently

available OWL ontologies in seconds.

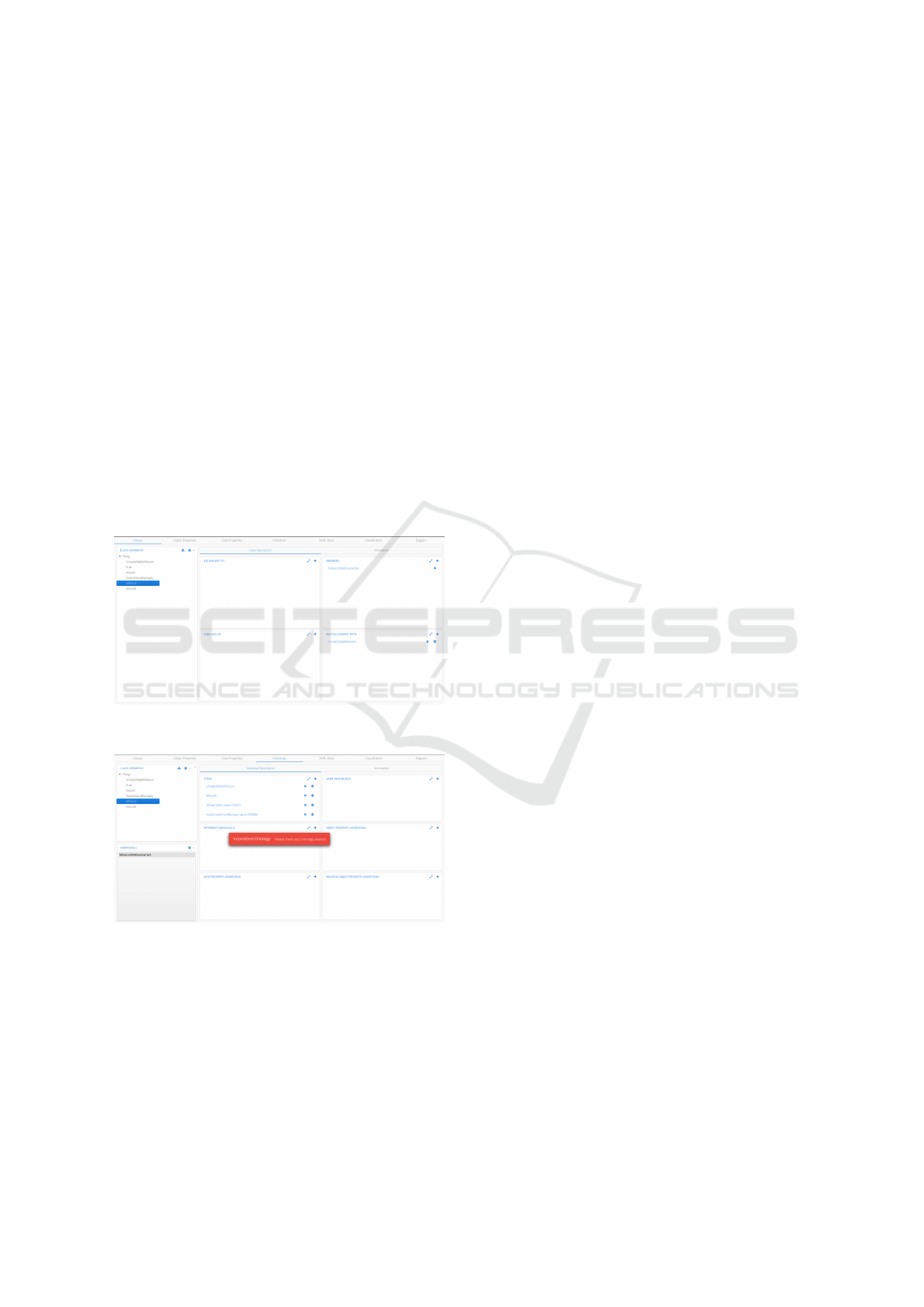

Figure 2: GLUON UI Prototype (Ontology construction).

Figure 3: GLUON UI Prototype (Inconsistency check).

The semantics of the sentences that composes the

generated text is identically ﬁne-grained and related

to the main causes of inconsistencies that the three

scenarios from the aerial missions domain declare.

A ﬁrst GUI of GLUON (Figure 2 and 3) has been

developed to support the user in the ontology creation,

what remains to be done is to adapt this interface to

the ontology validation events through the verbaliza-

tion methods of GLUON, developed and tested

with the deﬁned aeromission scenarios.

7 CONCLUSIONS

In this paper, we promoted ontology broad acceptance

by bringing the various formats closer to end-users,

who may have no knowledge of formal methods. On

the one hand, our tool allows user to create SW ap-

plication backbone, i.e. ontology, in a user-friendly

way. On the other hand, it provides an unambiguous

language to explain (verbalize) the content of exist-

ing ontologies in CNL. In order to support ontology

creation and to formally represent the consequences

of each step of ontology design in a CNL, GLUON

(Generation of Links Unifying ONtology) has been

developed. The GLUON system, which supports the

creation of ontologies and more speciﬁcally the ver-

balization of inferences in the ontology, is a system

presenting a methodology for the creation of ontolo-

gies, a set of components necessary to ontology build-

ing and a principle for the validation of the ontology

created. It has been evaluated through Air Mission

UCs given by Air Mission experts. As future work,

we intend to improve the developed GLUON HMI of

section 6.5 to adapt it to scenarios of ontology cre-

ation and clariﬁcation of user’s design choices. Such

a graphical interface should answer interaction lev-

els and be integrated with the methods developed in

GLUON, in order to be able to identify the reasons

for inconsistencies or invalid actions, and to justify

them in verbalized texts.

REFERENCES

Bechhofer, S. and Carroll, J. J. (2004). Parsing owl dl: trees

or triples? In WWW ’04.

Berners-Lee, T., Hendler, J. A., and Lassila, O. (2001). The

semantic web” in scientiﬁc american.

Bontcheva, K. and Wilks, Y. (2004). Automatic report

generation from ontologies: The miakt approach. In

NLDB.

Bozsak, E. and al. (2002). Kaon - towards a large scale

semantic web. In EC-Web.

Carroll, J. J. and al. (2004). Jena: implementing the seman-

tic web recommendations. In WWW Alt. ’04.

Cregan, A., Schwitter, R., and al. (2007). Sydney owl syn-

tax - towards a controlled natural language syntax for

owl 1.1. In OWLED.

Fuchs, N. E., Kaljurand, K., and Kuhn, T. (2008). Attempto

controlled english for knowledge representation. In

Reasoning Web.

GLUON: A Reasoning-based and Natural Language Generation-based System to Explicit Ontology Design Choices

235

Gruber, T. R. (1995). Toward principles for the design of

ontologies used for knowledge sharing? Int. J. Hum.

Comput. Stud., 43:907–928.

Guarino, N., Uniti, S., and Giaretta, P. (1995). Ontologies

and knowledge bases. towards a terminological clari-

ﬁcation.

Hitzler, P., Kr

otzsch, M., Parsia, B., Patel-Schneider, P. F.,

and Rudolph, S. (2012). Owl 2 web ontology language

primer (second edition).

Insaurralde, C. C. and Blasch, E. P. (2018). Uncertainty in

avionics analytics ontology for decision-making sup-

port. Journal of Advances in Information Fusion, 13.

Khabarov, V., Stepanov, I., and Serenko, A. (2019). Con-

trolled natural language for ontology editing. Science

Bulletin of the Novosibirsk State Technical University.

Motik, B. and al. (2008). Owl 2 web ontology language:

structural speciﬁcation and functional-style syntax.

Musen, M. A. (2015). The prot

e project: a look back and

a look forward. AI matters, 1 4:4–12.

Narasimha, V. B., Sujatha, B. M., and al. (2022). An open-

source web-based owl ontology editing and browsing

tool: Swoop. The Role of IoT and Blockchain.

Palacios, L., Lortal, G., and al. (2016). Avionics mainte-

nance ontology building for failure diagnosis support.

In International Conference on Knowledge Engineer-

ing and Ontology Development, volume 3, pages 204–

209. SCITEPRESS.

Palacios, L., Lortal, G., and al. (2018). Knowledge dis-

covery for avionics maintenance support. In 2018

IEEE/AIAA 37th Digital Avionics Systems Conference

(DASC), pages 1–8. IEEE.

Power, R. J. D. (2012). Owl simpliﬁed english: A ﬁnite-

state language for ontology editing. In CNL.

Schwitter, R. (2010). Controlled natural languages for

knowledge representation. In COLING.

Shimizu, C., Hitzler, P., and al. (2020). Modular ontology

modeling: A tutorial. In Applications and Practices

in Ontology Design, Extraction, and Reasoning.

Standar, M. (2012). Sesar and the european atm master plan

- cooperation with the us/nextgen. In ICNS 2012.

arez-Figueroa, M. C., G

omez-P

erez, A., and al. (2015).

The neon methodology framework: A scenario-based

methodology for ontology development. Appl. Ontol-

ogy, 10:107–145.

Toman, D. and Weddell, G. E. (2022). First order rewritabil-

ity in ontology-mediated querying in horn description

logics. In AAAI.

Venugopal, V. E. and Kumar, P. S. (2021). Verbalizing but

not just verbatim translations of ontology axioms. In

BNAIC/BENELEARN.

Vidanage, K., Mohemad, R., and al. (2021). Fully auto-

mated ontology increment‘s user guide generation.

Wankhade, S. R. and Raut, A. B. (2021). A review on

ontology-based semantic web information retrieval:

Techniques, weight functions. Algorithms for Intel-

ligent Systems.

Wu, Z., Shen, Y., and al. (2020). An ontology-based frame-

work for heterogeneous data management and its ap-

plication for urban ﬂood disasters. Earth Science In-

formatics, 13:377–390.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

236
