Search Reliability Comparison of Two Text-based Search Algorithms

in an Online Literature Database for Integrative Medicine:

A Technical Report on a 32-Bit to 64-Bit Migration

Sebastian Unger

, Christa K. Raak

and Thomas Ostermann

Department for Psychology and Psychotherapy, Faculty of Health, Witten/Herdecke University, Witten, Germany

Center for Integrative Medicine, Faculty of Health, Witten/Herdecke University, Witten, Germany

Keywords: Evaluation, Search Engine, Information Storage and Retrieval, Sentence-Pair Regression, Semantic

Similarity,.Online Publications.

Abstract: Although there is a steady increase of scientific publications in integrative medicine, it is still difficult to get

a valid overview of published evidence. The open accessible bibliographical database CAMbase 3.0 (available

at https://cambase.de) hosted by Witten/Herdecke University is one of such established databases in this field.

In 2020, CAMbase 2.0 was migrated to a newer 64-bit operating systems, resulting in a variety of issues. A

promising solution of keeping and accessing the data of CAMbase 2.0 was to replace the business logic with

the open-source platform Solr, which uses a score ranking algorithm instead of a semantic-syntactic

interpretation of search queries as in CAMbase 2.0. As a result, the before-after analysis with T-tests showed

mainly no significant differences in the equality of the queried titles after applying SBERT, not even in the

number of search hits (t = 1.43, df = 35, p = 0.17), but in query times (t = 4.2, df = 35, p < 0.01). While

search hits remained stable as the speed increases, the approach with Solr is more efficient, making this

technical report a possible blueprint for similar bibliography-based databases projects.

1 INTRODUCTION

1.1 Background

Evidence based practice, according to the early

definition of Haynes (1997), is defined as “the

conscientious, explicit, and judicious use of current

best evidence in making decisions about the care of

individuals”. In line with this definition, Integrative

medicine is often referred to as an approach that

“emphasizes the therapeutic relationship between

practitioner and patient, is informed by evidence, and

makes use of all appropriate therapies” (Ostermann et

al., 2013), including complementary therapies.

Despite the development of complementary therapies

in the last decades and the steady increase of scientific

publications in integrative medicine, e.g., the 45

databases presented by Boehm et al. (2010), it is still

difficult to get a valid overview of published

evidence, especially on older publications. Thus,

CAMbase v2.0, an open accessible bibliographical

database, was launched in 2007 by a team of

Witten/Herdecke University (Ostermann et al., 2007),

using CiXbase, a semantic search algorithm

(Ostermann et al., 2009), to assist the user in its online

research.

In the meantime, operating systems (OS) have

changed and are more commonly used with a 64-bit

architecture instead of a 32-bit system as in CAMbase

v2.0. To avoid becoming an easy target for various

network attacks, e.g., exploits based on discovered

vulnerabilities (Alhazmi and Malaiya, 2008) the

underlying and outdated 32-bit OS of CAMbase v2.0

had to be replaced with a newer one in order to keep

CAMbase v2.0 still accessible for the public without

disposing any threats. Unfortunately, the semantic

search algorithm did not run stable afterwards. Thus,

it was decided to replace it with an existing score-

based search algorithm, however by ensuring the

search reliability and query speed.

The resulting hypothesis thus is that the newly

implemented score-based search algorithms

statistically does not show significant differences

compared to the formerly implemented semantic

search algorithm. Especially with respect to the

search results, we aimed at answering the question:

To what extent do the former semantic search results

differ? Secondly, we wanted to explore if those

changes had an impact with respect to performance

148

Unger, S., Raak, C. and Ostermann, T.

Search Reliability Comparison of Two Text-based Search Algorithms in an Online Literature Database for Integrative Medicine: A Technical Report on a 32-bit to 64-bit Migration.

DOI: 10.5220/0011589300003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 1: KDIR, pages 148-157

ISBN: 978-989-758-614-9; ISSN: 2184-3228

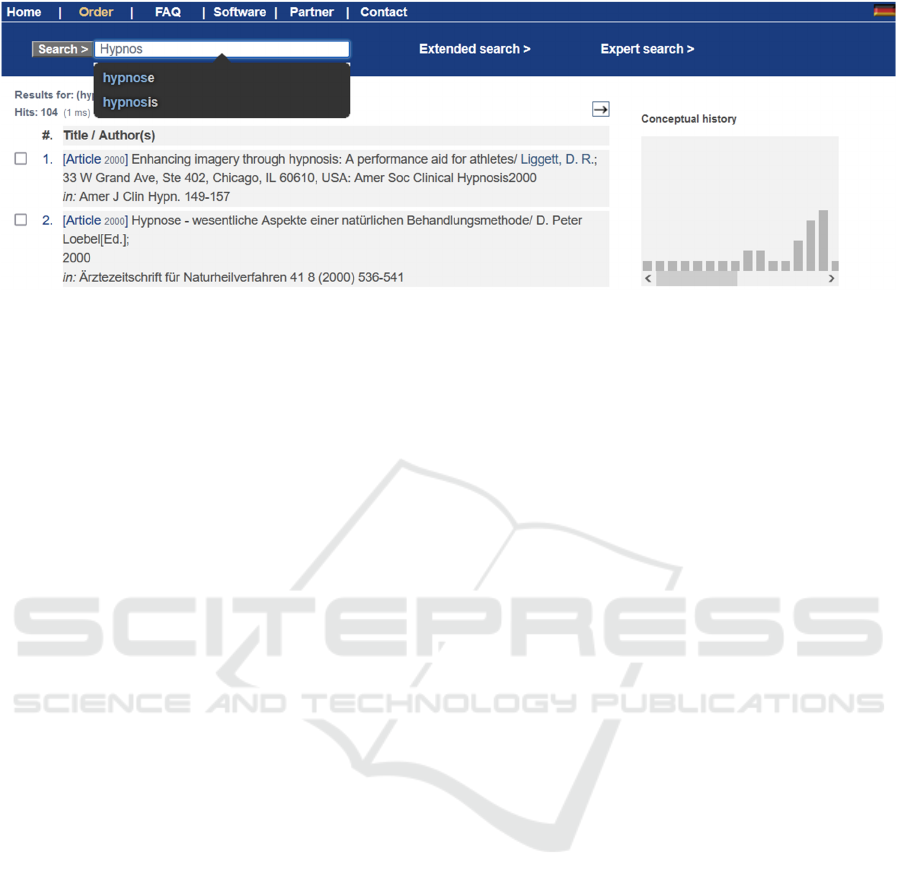

Figure 1: Screenshot of the GUI while typing the word “Hypnosis”.

times. Ideally, the new system is not noticeably

different from the legacy system.

1.2 Requirements

With the migration of CAMbase v2.0, the necessary

effort of keeping a running database should be as

minimal as possible during the process and

afterwards. This also includes some specific

restrictions. First, the design of the GUI (Graphical

User Interface) is like that of the legacy system (see

Figure 1). Second, the XML-based (Extensible

Markup Language) approach for a client-side

construction described in (Ostermann et al., 2004)

should also be retained to relieve the server. Third,

the modular construction principle for a flexible

modification and manageable system maintenance is

retained. And finally, which is most important for the

field of integrative medicine, the unique data

collected over the years can still be accessed by the

users.

2 STATE OF THE ART

2.1 Cambase V2.0

After an OS was set up in relation to the internal

regulations of Witten/Herdecke University, there was

a one-to-one migration of CAMbase v2.0 from the 32-

bit platform to the new 64-bit platform in 2020.

The original CiXBase search algorithm uses a

semantic-syntactic analysis method to interpret text

phrases, which went far beyond simple stemming

methods at the time of development. In addition to

bibliographic data, full lexical texts can be analyzed

and indexed (Ostermann et al., 2015), making the

method easily adaptable to other contexts. For that, it

processes multilingual database queries in a natural

language, using relevant methods of semantic

information processing (error-sensitive syntactic

parsing, morphology, composite decomposition). The

recognized syntactic-semantic connections are not

lost through a reduction to Boolean links. Hence, the

system can differentiate between similar text phrases,

e.g., “teaching in hospitals” and “hospitals in

teaching” (Ostermann et al., 2009; Haake et al.,

2015). A specially developed ranking algorithm

weights, evaluates and relates the query results

according to topics, restrictions, and modifications.

Although most requirements were met with the

one-to-one migration, it resulted in a variety of issues

in search queries in a pre-run, and, in accordance to

published experiences (Wressnegger et al., 2017), led

to a massive decrease in usability. These issues

consist of interpreting umlauts correctly in both

search queries and search hits. Further issues

occurred in the display of search results, i.e., warning

messages that overlapped with elements of the GUI,

and HTML coding that could not be rendered

correctly. One type of warning message stated that the

search could not find some data parts. This could be

due to the change from 32-bit to 64-bit system

libraries or their handled data, which was stored in a

text format with values separated by vertical bars. The

file structure can be excluded as reason, as it

remained the same during the migration.

Changing the underlying data or linking some

libraries to 32-bit versions could not solve the issues,

so that the reason for the issues must lie in the

algorithm itself. Unfortunately, the files of the search

algorithm were stored in binary format on the 32-bit

system without its source code. This prohibits a full

insight into the program’s code and thus a simple

rework of the algorithm was no option. Although, the

unique search algorithm of CAMbase v2.0 could be

retained with this one-to-one migration, the steadily

occurring issues and the failing attempts to solve

these issues forced a complete revision of CAMbase

v2.0 to maintain a positive user acceptance.

Search Reliability Comparison of Two Text-based Search Algorithms in an Online Literature Database for Integrative Medicine: A

Technical Report on a 32-bit to 64-bit Migration

149

2.2 Search Engine Solutions

Since the development of CAMbase v2.0, advanced

open-source search engines such as Apache Lucene or

those based on it such as Elasticsearch and Apache

Solr were established. All offer indexing algorithms

and ranking processes and are available in many

variations in the literature (Hansen et al., 2018;

Turnbull & Berryman, 2016). Other search engines

offer a completely pre-built GUI like Open Semantic

Search, minimalizing the effort of building an online

database even more. Therefore, five of the most

preferred search engines with a brief overview of their

key features are presented in the following sections.

2.2.1 Apache Lucene

One of the first search engine projects developed by

the Apache Software Foundation (ASF) is Apache

Lucene written completely in Java (“Apache Lucene

- Welcome to Apache Lucene”, 2021). Lucene is

designed for full text searches, while search terms can

be customized, e.g., with the use of wildcards, ranges

of years, or text phrases. Search results are ranked

with a best-comes-first approach, which uses the

implemented powerful retrieval model.

2.2.2 Apache Solr

Another search engine managed by the ASF is Solr.

This Lucene-based search engine is fast, open-source,

and, like its predecessor, offers a wide range of

customization (“Welcome to Apache Solr - Apache

Solr”, 2021). This includes scalable indexing,

faceting, and hit highlighting, to name just a few. In

contrast to the search of CAMbase v2.0, the search is

based on a scoring algorithm (Kumar, 2015). Its score

value involves a number of factors such as word

frequency within a database entry or field length used

for the search. However, the configuration allows a

lot of flexibility with advanced analysis and

tokenization features, e.g., separating terms by

alphanumeric signs or using different types of

stemming and phonetic methods.

2.2.3 Elasticsearch

Elasticsearch is a second search engine based on

Apache Lucene. It is part of the Elastic Stack (ELK

Stack) that features machine learning, security, and

reporting, in addition to a set of use cases for

analyzing and searching data (“Free and Open

Search: The Creators of Elasticsearch, ELK & Kibana

| Elastic”, 2021). Elasticsearch allows to search,

analyze, and visualize data of any type and size in real

time. Although, it offers better data analytics with the

integration in the ELK stack in comparison to Solr,

both systems can be considered as equal in most use

cases (Luburić & Ivanović, 2016).

2.2.4 Meilisearch

An alternative to the mentioned search engines, but

not less inefficient, is MeiliSearch. This open-source

solution was designed to be easily accessible and to

meet most use cases, even specific ones

(“MeiliSearch”, 2021). Therefore, the installation

requires little or no configuration, but leaves enough

room for the experienced administrator of the engine

to customize. To the most relevant features of

MeiliSearch belong a response time of less than 50

ms (milliseconds), a search in a typo tolerant and

natural language, and the use of synonyms to avoid

limiting a search to specific words.

2.2.5 Open Semantic Search

An open-source search engine with an advanced GUI

for simplifying configurations such as managing lists

of synonyms or hyponyms is Open Semantic Search.

It is based on Apache Solr or Elasticsearch and can

be installed on a Debian or Ubuntu based Linux

server (“Open Semantic Search: Your own search

engine for documents, images, tables, files, intranet &

news”, 2021). A search is possible in full text data that

is distributed over different data sources or file

formats. Powerful search operators can also be used

here to increase search hits. A major advantage of

Open Semantic Search is that the GUI is already pre-

built for the end-user, which drastically reduces the

effort required for the development of a whole

system. However, there is currently no possibility to

redesign the GUI as an end-user itself.

3 CONCEPT

3.1 System Architecture

The original architecture of CAMbase v2.0 can be

divided into three main layers (see Figure 2), so that

it is easy to develop a new database in principle by

replacing one of the layers. On top, there is the

presentation layer. It includes an XML-based GUI

created on the client side to relieve the server. In the

middle, there is the core element. This business layer

interprets search queries semantically and

syntactically far beyond simple stemming methods

developed simultaneously. The database is located at

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

150

the bottom of the architecture. The bibliographical

data recorded after the migration to the new server

includes a total of 115355 bibliographical datasets as

evidence of integrative medicine from 1906 onwards.

The promising alternative of keeping the data and

making CAMbase v2.0 still usable was to use one of

the already existing search engines of chapter 2.2.

This search engine must have the option to import the

old data, so that the revision effort remains

manageable

After reviewing these search engines,

Apache Solr was chosen as it is well documented and

there are library solutions for the communication

available, which work with the underlying OS.

According to the requirements of chapter 1.2, this

kind of change would satisfy everything except the

original semantic search algorithm.

3.2 Critical Issues

When the data records were transferred to the Solr

database system, it turned out that there were some

duplicate or incomplete publication references. In

addition, fields in the database were represented

multiple times for the same entry because the data

were collected from different sources that had

different labels, e.g., literature title or journal title.

Other fields did not match in their type, e.g., in some

sources the page number was used as an exact

numerical value, while in others the range was given.

Instead of transferring the complete data, those

references were removed or corrected. Moreover, the

data was stored in the ISO-8859-1 standard, so that

various characters were not available as plain text but

coded. Corrections were also made here so that the

text was generally available in the UTF-8 standard.

The changes inevitably lead to small differences

between the databases, but ensure clean data in

CAMbase v3.0.

4 IMPLEMENTATION

4.1 Layer Adjustment

In the first step, the binary files of the old search

algorithm were removed from the server for the

revision of CAMbase v3.0. This left the top and

bottom layer of the architectural model. Then, Solr

v8.9.0 was installed on the same server followed by

the import of the transformed and corrected data.

Since the GUI needs to communicate with the search

engine, another layer was added to the architecture as

shown in Figure 2. This layer is written in PHP (PHP:

Hypertext Preprocessor) in combination with an

extension of PECL (PHP Extension Community

Library) for Solr. The layer’s task is to interpret and

parse the input of users to the search engine and vice

versa without interfering the user experience.

The next step was the configuration of Solr. As

the search shall approximately equalize the semantic-

syntactic algorithm of CAMbase v2.0, a search query

is now interpreted and simplified by a light stemming

method. Essentially, this implementation shall cover

different spellings and result in a wide range of search

hits. The techniques provided by Solr, such as

searching for entire groups of words by narrowing

them down in execution characters, were also applied.

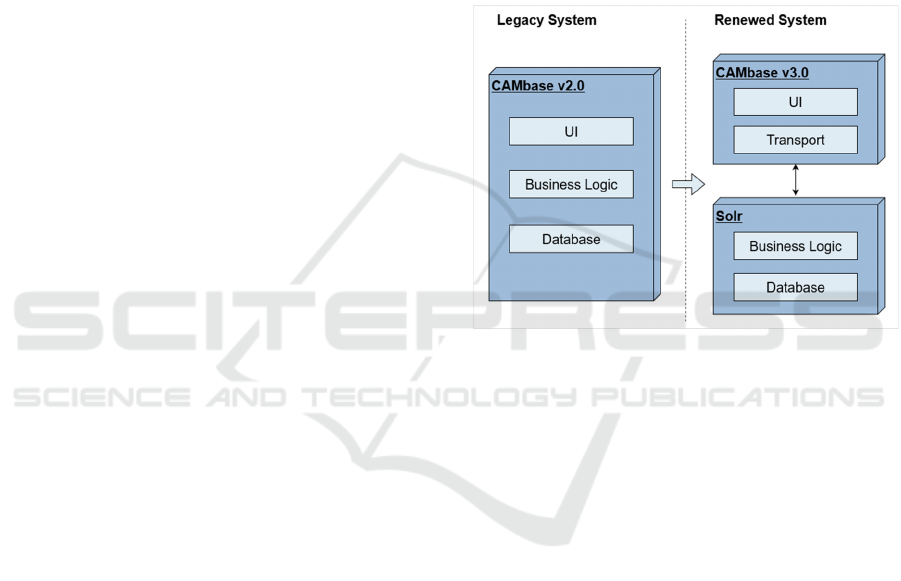

Figure 2: Main layers of the legacy (left) and the renewed

system (right) divided into two separate subsystems.

Furthermore, Solr’s default operator was set to

“AND” as this leads to an intersection of all search

hits produced by every single word of a search query,

expecting more relevant results. A semantical

interpretation with the use of synonyms were not

implemented as the effort for the creation and

maintenance of such a list of synonyms was

considered too costly.

4.2 Comparisons

The comparison of both databases is designed as a

before-after analysis with two time points in which

CAMbase v2.0 served as initial state of the system, in

which user inputs are still interpreted syntactically

and semantically. The completed migration and

revision of CAMbase v3.0 represents the second state.

Because Solr has replaced the business logic, a score

ranking search operated at this time. For multiple

words, an intersection is now returned by using the

“AND” operator. In the evaluation period, no further

changes or deletions of database entries were made.

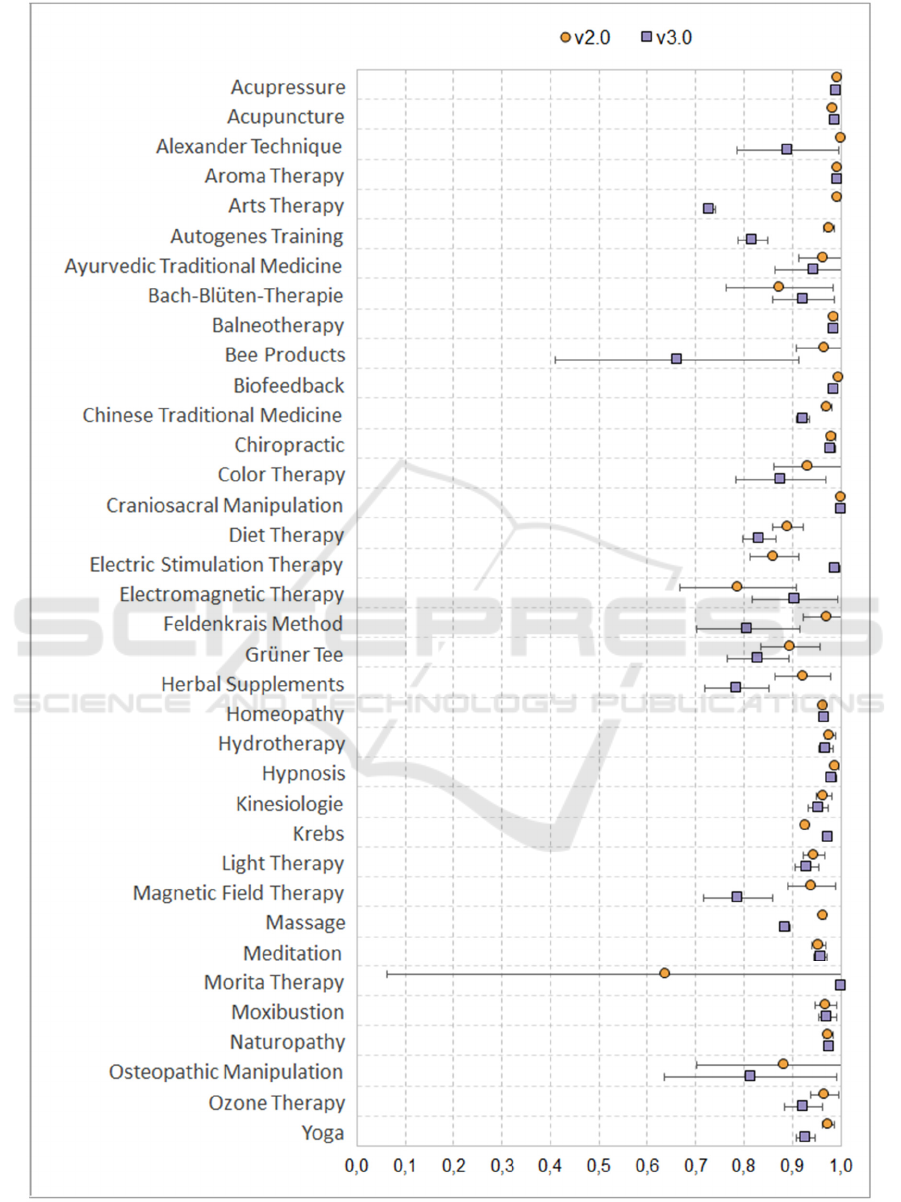

In order to evaluate both database systems, 36

common word groups (see Table 2 or Figure 4) from

Search Reliability Comparison of Two Text-based Search Algorithms in an Online Literature Database for Integrative Medicine: A

Technical Report on a 32-bit to 64-bit Migration

151

the field of integrative medicine were used as the

basis for the search. This list is derived from the list

of Wieland et al. (2011) and is supplemented with

additional German key terms suggested by experts

from the field. Identical queries then were carried out

in each system.

Additionally, each word group was used four

times to examine the search hits within four search

restrictions (“All words”, “Keywords”, “Abstract”,

“Title”). The query time, search hits, and all received

titles were taken from the GUI and manually

referenced in an Excel sheet for the data analysis.

In a first step of the analysis, the amount of search

hits as well as the processing speed produced by both

systems were compared for numerical equality. In a

second step, the received titles produced by both

systems were compared for syntactic equality. For

that, a general purpose model (all-MiniLM-L6-v2) of

SBERT (Sentence Bidirectional Encoder

Representations from Transformers; Reimers and

Gurevych, 2019) was used. SBERT is a derivation of

the pretrained BERT network (Devlin et al., 2018)

and produces semantically meaningful sentence

embeddings. For that, SBERT receives at least two

sentences, which are encoded and subsequently

compared based on cosine similarity. The result is a

value between -1 and 1. As values below 0 would

indicate an opposite correlation and are not expected,

this report uses for better representation only an

interval from 0 to 1 that can be expressed as equality,

i.e., the higher the value, the better the equality. As

SBERT can be considered as state-of-the-art in

various sentence classification and sentence-pair

regression tasks using an efficient similarity measure

method on modern hardware, it is optimal to compare

the tens of thousands of received titles of this

technical report. The comparison went both ways,

i.e., first it was checked whether the received titles of

CAMbase v2.0 occur in the hits of CAMbase v3.0 and

then again in the opposite direction.

All data was analyzed using t-test statistics with a

level of significance of 5 %. Comparison results thus

are displayed as means with 95 % confidence

intervals. Statistical analysis was performed with

functions of Microsoft EXCEL for Windows.

5 RESULTS

The top row of Table 1 shows that the intersection of

the search hits for the chosen common word groups

in CAMbase v3.0 is not statistically different to those

hits produced by the former semantic-syntactic

algorithm. However, an overall performance increase

could be observed. The T-test provided statistical

evidence of those differences between the systems for

nearly all search restrictions as stated in the bottom

row of Table 1. Only the restriction “Title” slightly

missed to be significant.

Table 1: Results of the paired T-test that compares the mean

query times and search hits of CAMbase v2.0 and CAMbase

v3.0, whereas the default operator used in CAMbase v3.0 is

“AND”.

Restriction t df p

Search hits All words 1.43 35 0.17

Abstract 0.45 35 0.66

Title 1.32 35 0.2

words 1.6 35 0.12

Quer

times All words 4.2 35 < 0.01

Abstract 3.78 33 < 0.01

Title 2.07 28 0.05

words 3.17 30 < 0.01

A graphical overview of the resulting means of

the search hits of the first step is shown in Figure 3.

On the one hand, the differences in the search hits of

CAMbase v3.0 compared to the legacy system are

minimal. The restriction “All words” even resulted in.

fewer titles with CAMbase v2.0 (x

= 193) than with

CAMbase v3.0 (x

= 210). Considering that CAMbase

v2.0 was equipped with a semantic-syntactic search

algorithm, the search for synonyms should increase

the hits. On the other hand, the search

Figure 3: Histograms of means for search hits (top) and

query time (bottom) grouped by restrictions. Error bars

denote the 95% confidence interval.

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

152

speed improves with the searching algorithm of the

new system. This is clearly visible in the decrease of

the bars displayed in the bottom histogram. It

demonstrates that the processing of queries via Solr is

more efficient in comparison to that of CAMbase v2.0

with the former syntactic-semantic search algorithm.

The analysis with SBERT generally showed a high

degree of agreement between the hits of the two

systems in both directions. None of the calculated

means was below 0.5. The best result was achieved

for the word group “Craniosacral Manipulation”.

Search hits were exactly the same in the opposing

systems, so that an equality of 1 (N = 2) was achieved

for both. The smallest equality achieved by the legacy

system was for the word group “Morita Therapy”

with 0.639 (N = 3) and by the new system for “Bee

Products” with 0.661 (N = 11). This small equality is

one-sided in each case. The explanation lies in the

small set of hits for these word groups, whereas the

system with the low equality had a few more hits that

obviously cannot be present in the other set of hits.

This becomes even clearer when looking in the other

direction, using the same word groups. The equality

is then 0.968 (N = 7, using “Bee Products”) with the

legacy system and even 1 (N = 2, using “Morita

Therapy”) with the new system.

Next to the smallest one-sided equality that were

found, further one-sided outliers can be explained by

too big gaps between the sets of hits, when there were

relatively high hits like in the word group “Arts

therapy”. For this word group, the equality is 0.995

(N = 409) with the legacy system and, in contrast,

only 0,727 (N = 1317) with the new system. In

general, the differences between the hits are getting

higher as the gap gets bigger, i.e., the higher the gap,

the more titles are missing in the opposite set of

search hits.

Despite outliers, a large proportion of the

achieved equality was still just under 1 even if the sets

of hits were equal on both sides. Here, the main

explanation lies in the slightly different text structure

in which the titles were stored. Among others, the

legacy system sometimes used a dot at the end of a

title or quotes for highlighting titles in data files

because data was collected from different sources as

described in chapter 3.2. Those textual special

characters are missing in the data of the new system,

so that two titles could be considered the same by

humans, but are slightly differentiated by SBERT.

Nevertheless, the most calculated means of both

systems for the respective word groups are close to

each other. A strong slope of the means at the right

side and their approximately equal positions to their

counterpart visualize these observations clearly in

Figure 4. The associated standard errors in the form

of error bars show also that the means do not differ

significantly to their counterpart in these cases despite

larger distances.

Table 2: Results of the T-test for independent samples. The

values of SBERT were averaged for each word group in

accordance with the system and used to calculate the shared

T-value, which, for simplification reasons, is considered as

significant if greater than or equal to 1.96.

Word

rou

Acupressure 0.145

Acu

uncture 0.986

Alexande

Technique 0.917

Aroma Thera

Arts Therap

10.626

Auto

enes Trainin

3.613

Ayurvedic Traditional Medicine 0.157

Bach-Blüten-Thera

ie 0.31

Balneotherap

0.009

Bee Products 1.165

Biofeedbac

0.823

Chinese Traditional Medicine 2.265

Chiropractic 0.077

Colo

Thera

0.458

Craniosacral Manipulation -

Diet Thera

1.179

Electric Stimulation Therap

1.717

Electroma

netic Thera

0.8

Feldenkrais Metho

1.006

Grüne

Tee 0.643

Herbal Supplements 1.503

Homeo

ath

0.105

Hydrotherap

0.259

nosis 0.351

Kinesiologie 0.292

Krebs 5.915

Light Therap

0.365

netic Fiel

Thera

1.579

Massa

e 4.862

Meditation 0.143

Morita Thera

0.677

Moxibustion 0.06

Naturo

ath

0.086

Osteopathic Manipulation 0.292

Ozone Thera

0.704

Yoga 1.341

A T-test for independent samples strengthened

the observations. The results were mostly not

significant, although differences exist as

demonstrated with SBERT. There is only significance

in the five common word groups “Arts Therapy” (t =

10.626), “Autogenes Training” (t = 3.613), “Chinese

Traditional Medicine” (t = 2.265), “Krebs” (t =

5.915), and “Massage” (t = 4.862). Overall, this

indicates a high level of agreement and thus equality

between the opposing systems CAMbase v2.0 and

CAMbase v3.0.

Search Reliability Comparison of Two Text-based Search Algorithms in an Online Literature Database for Integrative Medicine: A

Technical Report on a 32-bit to 64-bit Migration

153

Figure 4: Summery of the syntactic analysis of the received titles using SBERT. Circles (v2.0) and squares (v3.0) mark the

mean value of the calculated equality within the 36 common word phrases. Error bars denote the 95% confidence interval.

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

154

6 DISCUSSION

Quality management in the field of database

migration is an important issue, which might affect

usability in multiple dimensions, i.e., with respect to

data accessibility, search accuracy, and performance

(Zamzami et al., 2011). In particular, this is

challenging when bibliographical metadata is

concerned (Van Kleeck et al., 2016) and automated

methods have been suggested for calculating

metadata quality metrics (Zavalina et al., 2018).

In the adaption of Solr to CAMbase v3.0, the

important goal, making the historically grown

database accessible to the public, was satisfactorily

achieved. Quality management was performed on the

basis of a derivation of the BERT network, which

itself has been introduced as a noteworthy method for

detecting similarities in textual or bibliographical

data. The numerous projects, e.g., the comparative

evaluation of biomedical similar article

recommendation (Zhang et al., 2022), the evaluation

of similarity in clinical texts (Kades et al., 2021), or

the query matching (Xu et al., 2019) that is most

similar to our approach, can confirm this. Although

the model of SBERT used here was trained only with

English data, it could handle a mixture of English and

German titles including some umlauts, showing its

robustness. The use of one model was sufficient for

the purpose of this report, as a comparison of the sets

of search hits should be performed as a whole.

Nevertheless, it is recommended to use a

corresponding trained model for data of different

languages. Apart from the use of SBERT, our

approach described here also meets other

requirements from chapter 1.2 to a good degree. The

GUI, which is already comfortable for its users, and

the modular construction principle could be retained

next to the unique database. Furthermore, the

construction of the GUI for relieving the server

remains on the client side. Even if the search is no

longer semantic-syntactic, this approach is

preferable.

The results found in our analysis are in accordance

with some user statements. After a short

familiarization phase, users perceived the results as

very accurate and did not notice any changed content.

However, they stated that CAMbase v2.0 included the

option to narrow down the search results with a

thematic landscape mapping of “keywords”

(Ostermann et al., 2009), which was also

implemented in other bibliographical databases such

as ArtheData (Elbing et al., 2009). Although this

indeed was a very innovative tool for both researchers

and practitioners, it was only partially implemented.

Nevertheless, the new possibility to influence the

search by manually entering Boolean operators and

other modifications, which was not supported in

CAMbase v2.0, was well accepted by them.

Currently, there are many promising search

engine solutions that are open-source and freely

available. Some have been improved since the

development of CAMbase v2.0, others have been

newly added. A general statement about which of the

search engines is the best cannot be made without any

elaboration in this technical report, as this depends

too much on the purpose of the application and the

environment conditions. However, an advantage of

Solr is its great popularity, so there is a large

community behind it that drives development. It also

offers a lot of configuration opportunities, which can

be time costly, but increases flexibility in use cases.

Flexibility has been demonstrated in importing the

old data from a text format to a new but identical data

structure in this migration process. Additionally, the

preliminary queries could easily be parsed into a Solr-

understandable syntax with the help of the PECL

extension. However, some other search engines offer

these possibilities, too. The choice of a database

solution thus depends more on the administrator's

knowledge or specific aspects.

7 CONCLUSIONS

This article describes the analysis of search reliability

and query speed of the new architecture and the

content of CAMbase v3.0, an open accessible

bibliographical database on complementary therapies

hosted by Witten/Herdecke University. Its underlying

system architecture was completely renewed in 2020

and adapted to Solr, an open-source platform based

on Apache Lucene for score ranking searches. The

search results were evaluated in comparison to the

former semantic-search algorithm. A limitation of

this technical report is that the calculation of

sensitivity and precision of relevant and irrelevant

search hits suggested by Lefebvre et al. (2017) was

omitted. However, as this analysis does not address

such an evaluation of search hits, the limitation is

negligible, but worth mentioning for similar projects.

As the intention was an equal system, the

intersections of CAMbase v3.0 and the search hits of

the former algorithm were compared statistically,

syntactically, and with user experiences. On the one

hand, the T-test showed high equality in search hits

and SBERT’s sentence embeddings of the received

titles, which resulted in a consistent user experience

in this aspect. On the other hand, there was a

performance increase in CAMbase v3.0. The adaption

Search Reliability Comparison of Two Text-based Search Algorithms in an Online Literature Database for Integrative Medicine: A

Technical Report on a 32-bit to 64-bit Migration

155

of Solr into CAMbase v2.0 has therefore not

significantly changed the search results of a literature

database for integrative medicine but improved its

efficiency.

Although, the hits were generally stated as

accurate by users, they needed a certain time of

familiarization with the new features. To make it

easier, the provision of a tutorial for operating with

the new system and its added features is currently

prepared. We therefore intend to collect further

statements in a more systematic, qualitative study.

In a nutshell, the analysis applied in this technical

report may serve as a possible blueprint for quality

assurance of similar projects in the field of

bibliographical databases. This is not intended to be a

guarantee of success, but rather implies that SBERT

is a promising tool that should be used and explored

in further analyses.

ACKNOWLEDGEMENTS

We would like to thank all our colleagues who have

supported us with the migration and the subsequent

verification of the cleaned and transferred data.

REFERENCES

Alhazmi, O. H., & Malaiya, Y. K. (2008). Application of

vulnerability discovery models to major operating

systems. IEEE Transactions on Reliability, 57(1), 14–

22. https://doi.org/10.1109/TR.2008.916872

Apache Lucene - Welcome to Apache Lucene. (2021,

September 8). Retrieved from http://lucene.apache.org/

Free and Open Search: The Creators of Elasticsearch, ELK

& Kibana | Elastic. (2021, September 8). Retrieved

from https://www.elastic.co/

Boehm, K., Raak, C., Vollmar, H. C. & Ostermann, T.

(2010), An overview of 45 published database

resources for complementary and alternative medicine.

Health Information & Libraries Journal, 27, 93–105.

https://doi.org/10.1111/j.1471-1842.2010.00888.x

Elbing, U., Schulze, C., Zillmann, H., Raak, C. K., &

Ostermann, T. (2009). Arthedata—An online database

of scientific references on art therapy. European Journal

of Integrative Medicine, 1(1), 39-42.

https://doi.org/10.1016/j.eujim.2009.01.001

Devlin, J., Chang, M.-W., Lee, K., & Toutanova, K. (2018).

BERT: Pre-training of Deep Bidirectional

Transformers for Language Understanding.

https://doi.org/10.48550/arXiv.1810.04805

Haake, E., Blenkle, M., Ellis, R., & Zillmann, H. (2015).

Nur die ersten Drei zählen! Optimierung der

Rankingverfahren über Popularitätsfaktoren bei der

Elektronischen Bibliothek Bremen (E-LIB). o-bib. Das

offene Bibliotheksjournal, 2(2), 33–42.

https://doi.org/10.5282/o-bib/2015H2S33-42

Hansen, J., Porter, K., Shalaginov, A., & Franke, K. (2018).

Comparing Open Source Search Engine Functionality,

Efficiency and Effectiveness with Respect to Digital

Forensic Search. NISK Journal, 12(2019), 1893-6563.

https://ntnuopen.ntnu.no/ntnu-

xmlui/handle/11250/2584227

Haynes, B. R., Sackett, D. L., Richardson, S. W.,

Rosenberg, W., & Langley, R. G. (1997). Evidence-

based medicine: How to practice & teach EBM.

Canadian Medical Association. Journal (CMAJ),

157(6), 788. Conference Proceedings

Kades, K., Sellner, J., Koehler, G., Full, P. M., Lai, T. E.,

Kleesiek, J., & Maier-Hein, K. H. (2021). Adapting

bidirectional encoder representations from transformers

(BERT) to assess clinical semantic textual similarity:

algorithm development and validation study. JMIR

medical informatics, 9(2), e22795.

Kumar, J. (2015). Apache Solr Search Patterns.

Birmingham: Packt Publishing Ltd.

Lefebvre, C., Glanville, J., Beale, S., Boachie, C., Duffy,

S., Fraser, C., Harbour, J., McCool, R., & Smith, L.

(2017). Assessing the performance of methodological

search filters to improve the efficiency of evidence

information retrieval: five literature reviews and a

qualitative study. Health Technol Assess, 21(69).

https://doi.org/10.3310/hta21690

Luburić, N., & Ivanović, D. (2016). Comparing apache solr

and elasticsearch search servers. In M. Zdravković, M.

Trajanović & Z. Konjović (Eds.). 6th International

Conference on Information Society and Technology:

ICIST 2016 (pp. 287–291). http://www.eventiotic.com/

eventiotic/files/papers/url/icist2016_54.pdf

MeiliSearch. (2021, September 8). Retrieved from

https://www.meilisearch.com/

Open Semantic Search: Your own search engine for

documents, images, tables, files, intranet & news.

(2021, September 8). Retrieved from https://

www.opensemanticsearch.org/

Ostermann, T., Beer, A.-M., Bankova, V., & Michalsen, A.

(2013). Whole-Systems Research in Integrative

Inpatient Treatment. Evidence-Based Complementary

and Alternative Medicine (ECAM), 2013(962729).

https://doi.org/10.1155/2013/962729

Ostermann, T., Malik, M., & Raak, C. (2015). The Use of

Extensible Markup Language (XML) to Analyse

Medical Full Text Repositories: An Example from

Homeopathy. In M. Helfert (Ed.), Proceedings of the

4th International Conference on Data Management

Technologies and Applications (pp. 219–224).

SCITEPRESS.

https://doi.org/10.5220/0005484002190224

Ostermann, T., Raak, C. K., Matthiessen, P. F., Büssing, A.,

& Zillmann, H. (2009). Linguistic processing and

classification of semi structured bibliographic data on

complementary medicine. Cancer Informatics, 7, 159–

169. https://doi.org/10.4137/cin.s1182

Ostermann, T., Zillmann, H., & Matthiessen, P. F. (2004).

Cambase: The realisation of an xml-based

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

156

bibliographical database system for complementary and

alternative medicine. Zeitschrift fur Arztliche

Fortbildung und Qualitatssicherung, 98(6), 501–507.

https://europepmc.org/article/med/15527194

Ostermann, T., Zillmann, H., Raak, C. K., Buessing, A., &

Matthiessen, P. F. (2007). CAMbase: A XML-based

bibliographical database on Complementary and

Alternative Medicine (CAM). Biomedical Digital

Libraries, 4(2). https://doi.org/10.1186/1742-5581-4-2

Reimers, N., & Gurevych, I. (2019). Sentence-bert:

Sentence Embeddings using Siamese BERT-Networks.

arXiv preprint arXiv:1908.10084.

https://doi.org/10.48550/arXiv.1908.10084

Turnbull, D., & Berryman, J. (2016). Relevant search: With

applications for Solr and Elasticsearch. Retrieved from

http://proquest.tech.safaribooksonline.de/9781617292

774

Van Kleeck, D., Langford, G., Lundgren, J., Nakano, H.,

O'Dell, A. J., & Shelton, T. (2016). Managing

Bibliographic Data Quality in a Consortial Academic

Library: A Case Study. Cataloging & Classification

Quarterly, 54(7), 452-467. https://doi.orPg/10.1080/

01639374.2016.1210709

Welcome to Apache Solr - Apache Solr. (2021, September

8). Retrieved from https://solr.apache.org/

Wieland, L. S., Manheimer, E., & Berman, B. M. (2011).

Development and classification of an operational

definition of complementary and alternative medicine

for the cochrane collaboration. Alternative Therapies in

Health and Medicine, 17(2), 50–59.

Wressnegger, C., Yamaguchi, F., Maier, A., & Rieck, K.

(2017). 64-bit migration vulnerabilities. it - Information

Technology, 59(2), 73–81. https://doi.org/10.1515/itit-

2016-0041

Xu, Y., Liu, Q., Zhang, D., Li, S., & Zhou, G. (2019). Many

vs. many query matching with hierarchical bert and

transformer. In CCF International Conference on

Natural Language Processing and Chinese Computing

(pp. 155-167). Springer, Cham.

https://doi.org/10.1007/978-3-030-32233-5_13

Zamzami, I. F., Fatani, H. A. A., & Zammarah, N. A. H.

(2011, November). Data migration challenges: The

impact of data quality—Case study of University Putra

Malaysia UPM. In 2011 International Conference on

Research and Innovation in Information Systems (pp.

1-5). https://doi.org/10.1109/ICRIIS.2011.6125732

Zavalina, O. L., Shakeri, S., Kizhakkethil, P., & Phillips,

M. E. (2018). Uncovering Hidden Insights for

Information Management: Examination and Modeling

of Change in Digital Collection Metadata. In

International Conference on Information (pp. 645-651).

Springer, Cham. https://doi.org/10.1007/978-3-319-

78105-1_74

Zhang, L., Lu, W., Chen, H., Huang, Y., & Cheng, Q.

(2022). A comparative evaluation of biomedical similar

article recommendation. Journal of Biomedical

Informatics. https://doi.org/10.1016/j.jbi.2022.104106

Search Reliability Comparison of Two Text-based Search Algorithms in an Online Literature Database for Integrative Medicine: A

Technical Report on a 32-bit to 64-bit Migration

157
