How Textual Datasets Enhance the PADI-Web Tool?

Mathieu Roche

1,3 a

, Elena Arsevska

2,3 b

, Sarah Valentin

1,2,3,4,5 c

, Sylvain Falala

2,6

Julien Rabatel

7 d

and Renaud Lancelot

2,3 e

UMR TETIS (Land, Environment, Remote Sensing and Spatial Information), University of Montpellier, AgroParisTech,

CIRAD, CNRS, INRAE, Montpellier, France

UMR ASTRE (Unit for Animals, Health, Territories, Risks and Ecosystems), University of Montpellier, CIRAD, INRAE,

Montpellier, France

French Agricultural Research for Development (CIRAD), France

Department of Biology, University of Sherbrooke, Sherbrooke, Canada

Quebec Centre for Biodiversity Science, McGill University, Montreal, Canada

National Research Institute for Agriculture, Food and the Environment (INRAE), France

Freelance Data Scientist, Montpellier, France

Keywords:

Text Mining, Information Retrieval, Named Entity Recognition, Event-based Surveillance, Epidemic Intelli-

gence.

Abstract:

The ability to rapidly detect outbreaks of emerging infectious diseases is a health priority of global health

agencies. In this context, event-based surveillance (EBS) systems gather outbreak-related information from

heterogeneous data sources, including online news articles. EBS systems, thus, increasingly marshal text-

mining methods to alleviate the amount of manual curation of the freely available text. This paper documents

the use of datasets obtained through an EBS system, PADI-Web (Platform for Automated extraction of Disease

Information from the web), dedicated to digital outbreak detection in animal health. This paper describes the

datasets used for improving 3 important tasks related to PADI-Web, i.e., news classiﬁcation, information

extraction and dissemination.

1 INTRODUCTION

The ability to identify emerging and re-emerging dis-

eases is challenging for practitioners in the health

domain (WHO, 2014). In this context, event-based

surveillance (EBS) gathers information from hetero-

geneous data sources, including online news articles

(Barboza et al., 2013). EBS systems integrate text-

mining methods to deal with huge amounts of textual

data (Mutuvi et al., 2021). Text mining aims at dis-

covering new information from textual datasets (i.e.,

corpus) (Meng, 2021). Different text-mining meth-

ods associated with labeled textual datasets (i.e., news

data) are integrated into the main steps of EBS sys-

tems, these methods include data acquisition, infor-

mation retrieval (i.e., identiﬁcation of relevant texts),

https://orcid.org/0000-0003-3272-8568

https://orcid.org/0000-0002-6693-2316

https://orcid.org/0000-0002-9028-681X

https://orcid.org/0000-0002-4742-923X

https://orcid.org/0000-0002-5826-5242

epidemiological information extraction and locating

information to communicate to end-users.

This paper focuses on the use of datasets to mine

news data pertaining to the health domain. These data

science approaches are integrated into an EBS system

called PADI-Web (Platform for Automated extraction

of Disease Information from the web). PADI-Web is

dedicated to animal health surveillance and addresses

disease-based and symptom-based surveillance.

PADI-web collects news articles based on Google

News due to its international coverage and ﬂexible

RSS feeds. To detect news dealing with dedicated dis-

eases (e.g., avian inﬂuenza, West Nile virus, African

swine fever) or unknown diseases (i.e., Disease X),

the RSS feeds use speciﬁc keywords (e.g., disease

names, association of terms on hosts and symptoms).

The collected news items are automatically classiﬁed

as ”relevant” or ”irrelevant” using machine learning

techniques (Kowsari et al., 2019). The relevant news

corresponds to recent or current infectious animal

health events. Moreover, a more ﬁne-grained classi-

Roche, M., Arsevska, E., Valentin, S., Falala, S., Rabatel, J. and Lancelot, R.

How Textual Datasets Enhance the PADI-Web Tool?.

DOI: 10.5220/0011590400003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 327-331

ISBN: 978-989-758-613-2; ISSN: 2184-3252

327

ﬁcation using machine learning approaches has been

implemented to highlight more accurate topics. To

identify key pieces of epidemiological information in

the news (i.e., location and date of outbreaks, affected

hosts, their numbers and encountered clinical signs,

and so forth), PADI-web integrates information ex-

traction (IE) methods (Schmitt et al., 2019). Finally,

our system proposes automatic notiﬁcations to end-

users (see Figure 1). The outputs of the PADI-Web

system are accessible at https://padi-web.cirad.fr/en/

This paper is an overview of the datasets used and

produced to improve the modules of PADI-Web and

for its dissemination. The paper is structured as fol-

lows: In Section 2 we describe the datasets used for

improving PADI-Web (i.e., the classiﬁcation, extrac-

tion and dissemination tasks), while Section 3 pro-

poses a discussion of the future directions of this

work.

Figure 1: PADI-web notiﬁcation for West Nile virus (WN).

2 PADI-Web DATASETS

After a web-crawling approach is used to collect on-

line news texts, PADI-Web uses a classiﬁcation mod-

ule to identify the relevant texts and sentences that

describe outbreak-related events. The system extracts

epidemiological information, such as hosts, locations,

dates and symptoms, from the collected news text

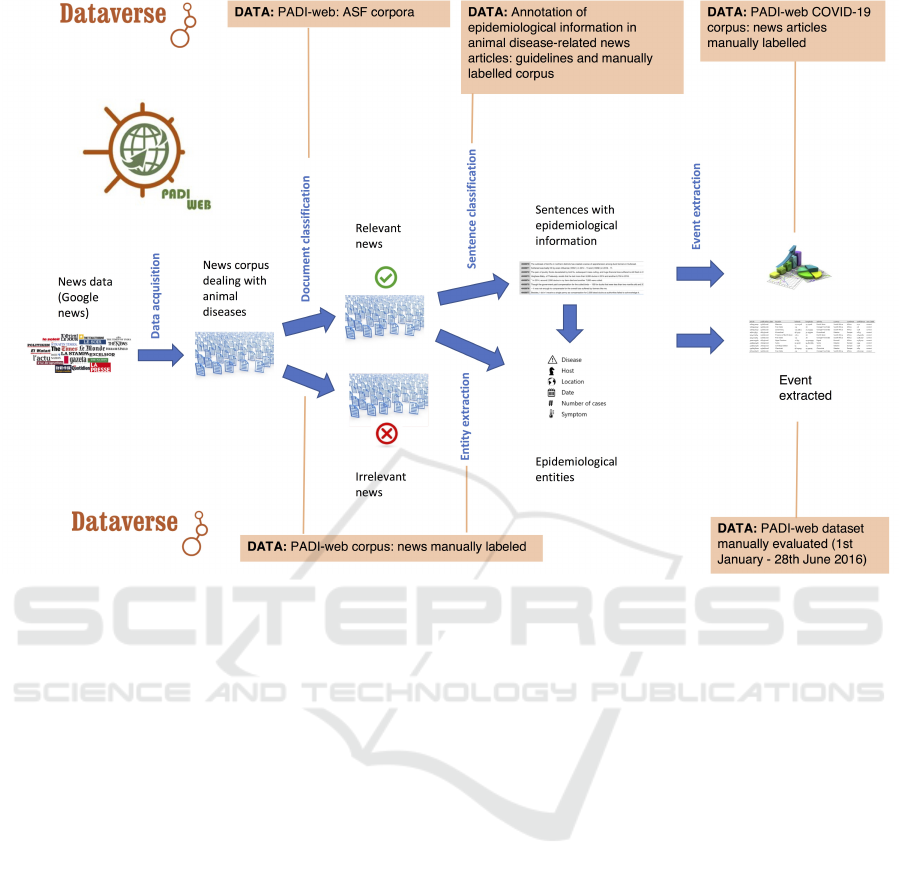

data. The PADI-Web pipeline summarized in Fig-

ure 3 and detailed in (Arsevska et al., 2018; Valentin

et al., 2020a; Valentin et al., 2021a) collected more

than 400,000 news items dealing with animal health

to extract the epidemiological events. Several datasets

have been built to test and validate the usefulness of

PADI-Web as an EBS system, as well as to create

new features (e.g., modules) in successive versions

of the tool. This paper summarizes the multiuse of

the PADI-Web datasets freely available on Dataverse

(Arsevska et al., 2017; Valentin et al., 2019; Rabatel

et al., 2017; Valentin et al., 2020b; Roche and Arse-

vska, 2018) for the different tasks summarized in the

following subsections.

2.1 Corpora for Improving

Classiﬁcation

In the second version of PADI-Web (Valentin et al.,

2020a), a dedicated module uses a supervised ma-

chine learning approach to predict if a news item is

relevant. Relevant news is text dealing with a new,

suspected or unknown outbreak. For this classiﬁca-

tion task, speciﬁc labeled data must be used. For

instance, a dataset of news can be used to learn a

model for classiﬁcation (Rabatel et al., 2017). Cur-

rently, the trained classiﬁcation models integrated into

PADI-web reach a mean accuracy score of 0.94 for

the article-level relevance task using a random forest

classiﬁer. Moreover, this corpus is used for the infor-

mation extraction process (see the following subsec-

tion).

In the third version of PADI-Web, a ﬁne-

grained classiﬁcation on a sentence level is proposed

(Valentin et al., 2021a). A dataset of sentences has

been manually labeled to train the model for sentence

classiﬁcation (Valentin et al., 2019). Each sentence

has two labels, an event label (e.g., current event, old

event, general information) and an information label

(e.g., descriptive epidemiology and distribution, pre-

ventive and control measures, economic and political

consequences).

Epidemiological information can be extracted

from relevant news and sentences as detailed in the

following subsection.

2.2 Corpora for Improving Extraction

To build a model for extracting information, epidemi-

ological entities (e.g., locations, diseases, hosts, dates,

number of cases) are also manually labeled in the

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

328

news (Rabatel et al., 2017). In the ﬁrst version of

PADI-Web (Arsevska et al., 2018), the information

extraction module consisted of two stages: (1) can-

didate identiﬁcation and (2) candidate veriﬁcation.

Candidate identiﬁcation aims to detect all the possi-

ble candidates for each type of epidemiological entity

extracted from the news data. Each candidate in the

labeled dataset is associated with elements that de-

scribe its context, e.g., its surrounding words. Rules

to identify a candidate based on its context are auto-

matically discovered using a data mining technique.

These rules represent the features of supervised ma-

chine learning approaches. A support vector machine

(SVM) model is trained on the labeled dataset to pre-

dict whether the candidates are relevant. To learn this

named entity recognition model, the labeled data (Ra-

batel et al., 2017) have been used (Arsevska et al.,

2018).

In the last version of PADI-Web (Valentin et al.,

2021a), a well-known named entity recognition tool,

spaCy, was integrated into the version. Classic mod-

els associated with this tool recognize generic named

entities, such as locations and organizations. More-

over, speciﬁc models for entity recognition related

to the animal disease surveillance domain are imple-

mented using the spaCy tool. The labeled dataset de-

scribed above (Rabatel et al., 2017) is used to enrich

the current spaCy models.

The epidemiological data that can be downloaded

(see Figure 2) are used in different studies summa-

rized in the following subsection.

Figure 2: PADI-web data to download.

2.3 Datasets for Analysis and

Dissemination

The relevant signals detected with PADI-Web for

African swine fever, foot-and-mouth disease, blue-

tongue and avian inﬂuenza in 2016 are manually la-

beled in (Arsevska et al., 2017). Each row represents

the collected news’s extracted epidemiological infor-

mation about a potential outbreak (a signal). Each

signal is constructed with one location automatically

detected as correct in the news, combined with all

other epidemiological information types detected in

the same news article. This enables us to conduct a

retrospective analysis highlighting the sensitivity of

PADI-Web to detect primary outbreaks. From Jan-

uary to June 2016, PADI-Web detected signals for

64% of all the primary outbreaks of African swine

fever, 53% of the avian inﬂuenza outbreaks, 25% of

the bluetongue outbreaks and 19% of the foot-and-

mouth disease outbreaks.

Another retrospective study proposed to evaluate

the capacity of the three EBS systems (i.e., ProMED,

HealthMap and PADI-Web) to detect early COVID-

19 emergence signals (Valentin et al., 2021b; Valentin

et al., 2020b). We discussed how an EBS system fo-

cusing on animal health (i.e., PADI-web) could detect

a newly emerging pathogen. This aspect is crucial in

a One Health context and for syndromic surveillance.

Finally, speciﬁc corpora are built for training and

dissemination (e.g., courses

, tutorials

, etc.). In this

context, the corpus dealing with African swine fever

disease called ”ASF corpora” (Roche and Arsevska,

2018) is used (i) for classiﬁcation tasks using ma-

chine learning algorithms with the Weka tool

and (ii)

for terminology extraction based on the BioTex soft-

ware

. This enables highlighting different directions

so the same corpus can be used as if dealing with an-

imal disease surveillance.

3 DISCUSSION

In this paper, we presented a summary of the datasets

used to improve some modules of PADI-Web. More

speciﬁcally, the datasets described in the previous

subsection are used to learn models to extract and

analyze epidemiological information in news articles.

These events are based on: (i) The classiﬁcation of

documents and sentences and; (ii) information extrac-

tion.

Based on these PADI-Web modules, end-users

could apply speciﬁc methods to extract events (i.e.,

the detection or suspicion of a disease at a speciﬁc

location and date). First, a ﬁne-grained classiﬁca-

tion enables highlighting texts dealing with ”Out-

break declaration” (i.e., document classiﬁcation). The

second step consists of extracting a group of epidemi-

ological information, such as locations, hosts and

https://agritrop.cirad.fr/600001/

https://agritrop.cirad.fr/597999/

http://old-www.cms.waikato.ac.nz/ml/weka

https://github.com/sifrproject/biotex

How Textual Datasets Enhance the PADI-Web Tool?

329

Figure 3: PADI-web process and datasets used.

symptoms, from these speciﬁc documents. The algo-

rithm implemented into PADI-Web consists of: (i) se-

lecting sentences with locations (pivot sentence); (ii)

extracting epidemiological information in a context of

3 sentences (i.e., pivot sentence + one sentence before

and after the pivot sentence). This type of extraction is

called ”location-based information” in the PADI-Web

system. An extension of this algorithm will be inte-

grated into our EBS system. In this extension, pivot

sentences will be sentences associated with the label

”Current event” (i.e., sentence classiﬁcation).

In summary, in the next extensions of PADI-Web,

ﬁve types of extractions will be proposed to end users:

• All events extracted in relevant articles based on

locations extracted with spaCy;

• All events extracted in relevant articles based on

locations extracted with spaCy learnt with labeled

data;

• All events extracted at the beginning of the arti-

cles;

• All events extracted in Outbreak articles (i.e.,

document-based classiﬁcation);

• All events extracted in Outbreak articles (i.e.,

document-based classiﬁcation) and Current event

sentences (i.e., sentence-based classiﬁcation).

End-users will be able to use and compare epi-

demiological information obtained with these ﬁve

strategies for surveillance.

ACKNOWLEDGEMENTS

This work was funded by the French General Di-

rectorate for Food (DGAL) and the French Agri-

cultural Research Centre for International Develop-

ment (CIRAD). This work was also supported by the

French National Research Agency under the Invest-

ments for the Future Program, referred to as ANR-

16-CONV-0004. This study was partially funded

by EU grant 874850 MOOD and is catalogued as

MOOD041. The contents of this publication are the

sole responsibility of the authors and do not necessar-

ily reﬂect the views of the European Commission.

REFERENCES

Arsevska, E., Valentin, S., Rabatel, J., de Go

er de Herv

J., Falala, S., Lancelot, R., and Roche, M. (2017).

PADI-web dataset manually evaluated (1st January -

28th June 2016) - CIRAD Dataverse.

Arsevska, E., Valentin, S., Rabatel, J., de Go

er de Herv

e, J.,

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

330

Falala, S., Lancelot, R., and Roche, M. (2018). Web

monitoring of emerging animal infectious diseases in-

tegrated in the French Animal Health Epidemic Intel-

ligence System. PLOS ONE, 13(8):e0199960.

Barboza, P., Vaillant, L., Mawudeku, A., Nelson, N. P.,

Hartley, D. M., Madoff, L. C., Linge, J. P., Collier, N.,

Brownstein, J. S., Yangarber, R., Astagneau, P., and

on behalf of the Early Alerting, Reporting Project of

the Global Health Security Initiative (2013). Evalua-

tion of epidemic intelligence systems integrated in the

Early Alerting and Reporting project for the detection

of A/H5N1 inﬂuenza events. PLoS ONE, 8(3):e57252.

Kowsari, K., Jafari Meimandi, K., Heidarysafa, M., Mendu,

S., Barnes, L., and Brown, D. (2019). Text classiﬁca-

tion algorithms: A survey. Information, 10(4).

Meng, X.-L. (2021). Enhancing (publications on) data

quality: Deeper data minding and fuller data confes-

sion. Journal of the Royal Statistical Society: Series

A (Statistics in Society), 184(4):1161–1175.

Mutuvi, S., Boros, E., Doucet, A., Lejeune, G., Jatowt, A.,

and Odeo, M. (2021). Multilingual epidemic event ex-

traction. In Ke, H., Lee, C. S., and Sugiyama, K., edi-

tors, Towards Open and Trustworthy Digital Societies

- 23rd International Conference on Asia-Paciﬁc Dig-

ital Libraries, ICADL 2021, Virtual Event, Decem-

ber 1-3, 2021, Proceedings, volume 13133 of Lecture

Notes in Computer Science, pages 139–156. Springer.

Rabatel, J., Arsevska, E., de Go

er de Herv

e, J., Falala, S.,

Lancelot, R., and Roche, M. (2017). PADI-web cor-

pus: news manually labeled - CIRAD Dataverse.

Roche, M. and Arsevska, E. (2018). PADI-web: ASF cor-

pora - CIRAD Dataverse.

Schmitt, X., Kubler, S., Robert, J., Papadakis, M., and Le-

Traon, Y. (2019). A replicable comparison study of

ner software: Stanfordnlp, nltk, opennlp, spacy, gate.

In 2019 Sixth International Conference on Social Net-

works Analysis, Management and Security (SNAMS),

pages 338–343.

Valentin, S., Arsevska, E., Falala, S., Go

er, J. D., Lancelot,

R., Mercier, A., Rabatel, J., and Roche, M. (2020a).

Padi-web: A multilingual event-based surveillance

system for monitoring animal infectious diseases.

Comput. Electron. Agric., 169:105163.

Valentin, S., Arsevska, E., Rabatel, J., Falala, S., Mercier,

A., Lancelot, R., and Roche, M. (2021a). PADI-web

3.0: A new framework for extracting and disseminat-

ing ﬁne-grained information from the news for animal

disease surveillance. One Health, 13:100357.

Valentin, S., De Waele, V., Vilain, A., Arsevska, E.,

Lancelot, R., and Roche, M. (2019). Annotation of

epidemiological information in animal disease-related

news articles: guidelines and manually labelled cor-

pus - CIRAD Dataverse.

Valentin, S., Mercier, A., Lancelot, R., Roche, M., and Ar-

sevska, E. (2020b). PADI-web COVID-19 corpus:

news articles manually labelled - CIRAD Dataverse.

Valentin, S., Mercier, A., Lancelot, R., Roche, M., and Ar-

sevska, E. (2021b). Monitoring online media reports

for early detection of unknown diseases: Insight from

a retrospective study of COVID-19 emergence. Trans-

boundary and emerging diseases, 68:981–986.

WHO (2014). Early detection, assessment and response to

acute public health events: implementation of early

warning and response with a focus on event-based

surveillance. WHO Press, Geneva: The Organization,

interim version edition.

How Textual Datasets Enhance the PADI-Web Tool?

331
