CORNUCOPIA: Tool Support for Selecting Machine Learning Lifecycle

Artifact Management Systems

Marius Schlegel

and Kai-Uwe Sattler

TU Ilmenau, Germany

Keywords:

Machine Learning Lifecycle, Artifact Management, Web Tool, Decision Support.

Abstract:

The explorative and iterative nature of developing and operating machine learning (ML) applications leads to

a variety of ML artifacts, such as datasets, models, hyperparameters, metrics, software, and conﬁgurations.

To enable comparability, traceability, and reproducibility of ML artifacts across the ML lifecycle steps and

iterations, platforms, frameworks, and tools have been developed to support their collection, storage, and

management. Selecting the best-suited ML artifact management systems (AMSs) for a particular use case

is often challenging and time-consuming due to the plethora of AMSs, their different focus, and imprecise

speciﬁcations of features and properties. Based on assessment criteria and their application to a representative

selection of more than 60 AMSs, this paper introduces an interactive web tool that enables the convenient and

time-efﬁcient exploration and comparison of ML AMSs.

1 INTRODUCTION

Machine learning (ML) approaches are well estab-

lished in a wide range of application domains. In

contrast to engineering traditional software, the de-

velopment of ML systems is different: requirements

engineering, data and feature preparation, model devel-

opment, and model operation tasks are integrated into

a uniﬁed lifecycle (see Fig. 1) which is often iterated

several times (Chaoji et al., 2016; Amershi et al., 2019;

Google, 2022). As a consequence, achieving compara-

bility, traceability, reproducibility, and explainability

of model and data artifacts across the lifecycle steps

and iterations is challenging.

An essential foundation to meet these requirements

is the collection, storage, and management of artifacts

created and used within the ML lifecycle, such as mod-

els, datasets, metadata, and software (Sculley et al.,

2015; Kumar et al., 2017; Polyzotis et al., 2018; Smith,

2018; Schelter et al., 2018). To support and simplify

ML artifact management activities, a variety of plat-

forms, systems, frameworks, and tools have been cre-

ated, focusing on different aspects, such as pipeline

management (Baylor et al., 2017; Schad et al., 2021;

Luo et al., 2021), experiment management (Weights &

Biases, 2022; Tsay et al., 2018; Greff et al., 2017), data

and feature management (Feast Authors, 2022; Log-

https://orcid.org/0000-0001-6596-2823

https://orcid.org/0000-0003-1608-7721

icalClocks, 2022), model management (Vartak et al.,

2016; Miao et al., 2017; Gharibi et al., 2019), as well

as holistic lifecycle management (Zaharia et al., 2018;

Allegro AI, 2022; Aguilar et al., 2021). We refer to

these collectively as ML artifact management systems

(ML AMSs).

The plethora of different ML AMSs makes it dif-

ﬁcult and time-consuming to identify optimal can-

didates for a speciﬁc use case. Moreover, func-

tional and non-functional properties are often not

precisely speciﬁed and not easily comparable due

to different terminology used in papers and docu-

mentations. Schlegel and Sattler developed a cat-

alog of criteria for the assessment of ML AMSs

and applied it to more than 60 ML AMSs from

academia and industry (Schlegel and Sattler, 2022).

However, there is no tool support that enables re-

searchers and practitioners to conveniently explore and

compare ML AMSs at criteria and subcriteria level.

This paper aims to close this gap and introduces

tool support for this purpose. Speciﬁcally, we make

the following contribution: Based on our assessment

criteria and its application to a comprehensive selec-

tion of AMSs (

2), we present CORNUCOPIA – an

interactive web tool for exploring and comparing ML

AMSs (§ 3).

1,2

The tool’s name is derived from the Latin name for

the horn of plenty because our tool provides a container

for the plethora of different ML AMSs and their individual

444

Schlegel, M. and Sattler, K.

Cornucopia: Tool Support for Selecting Machine Learning Lifecycle Artifact Management Systems.

DOI: 10.5220/0011591700003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 444-450

ISBN: 978-989-758-613-2; ISSN: 2184-3252

Requirements Stage Data-oriented Stage Model Development Stage Model Operations Stage

Requirements

Analysis

Data Collection

and Selection

Data Cleaning

Data Labeling

Feature Engineering

and Selection

Training

Initialization

Model

Training

Model

Aggregation

Model

Evaluation

Model Deployment

Model Monitoring

Figure 1: ML lifecycle based on (Chaoji et al., 2016; Amershi et al., 2019; Google, 2022).

2 ASSESSMENT FRAMEWORK

In this section, we outline the ML AMS assessment

framework that is the foundation for CORNUCOPIA.

Based on a systematic literature review investigating

state-of-the-art and state-of-the-pratice in ML artifact

collection, storage, and management, we extracted

a comprehensive catalog of categories, criteria (itali-

cized), and subcriteria (in square brackets) (see Tab. 1).

Categories group the assessment criteria, while subcri-

teria are used to subdivide criteria. In the following,

we focus on the level of categories and criteria; more

details can be taken from (Schlegel and Sattler, 2022).

Lifecycle Integration.

This category describes for

which parts of the ML lifecycle an ML AMS provides

artifact collection and management capabilities. The

stages form the criteria, with the steps assigned to each

stage forming the subcriteria (see also Fig. 1).

Artifact Support.

Orthogonal to the previous cate-

gory, this category indicates which types of artifacts

are supported and managed by an ML AMS. Based

on the different kinds of ML artifacts, we distinguish

between the criteria Data-related, Model, Metadata,

and Software Artifacts. The ﬁrst two criteria represent

core resources that are either input, output, or both

for a lifecycle step. Data-related Artifacts are datasets

(used for training, validation, and testing), annotations

properties and supports their structured investigation.

https://cornucopia-app.github.io

and labels, and features. Model Artifacts represent

trained models. The latter two criteria represent the

corresponding artifact types, that enable the compara-

bility and reproducibility of individual ML lifecycle

steps and their results. The criterion Metadata Arti-

facts covers different metadata types such as identi-

ﬁers, data-related metadata, model-related metadata

(such as inspectable model parameters, hyperparame-

ters, and metrics), experiment and project abstractions,

pipeline abstractions, and execution-related logs and

statistics. The criterion Software Artifacts comprises

source code and notebooks, e. g. for data processing,

experimentation and model training, and serving, as

well as conﬁgurations and execution-related environ-

ment dependencies and containers, e. g. Conda envi-

ronments, Docker containers, or virtual machines.

Operations.

This category indicates operations pro-

vided for handling and managing ML artifacts. The

criterion Logging & Versioning represents any opera-

tions for logging or capturing single artifacts, creating

checkpoints of a project comprising several artifacts,

and reverting or rolling back to an earlier committed

or snapshot version. Exploration includes any query,

comparison, lineage, provenance, and visualization

operations that help to gain concrete insights into ML

artifacts. The criterion Management characterizes op-

erations for handling and using stored artifacts, such

as modiﬁcation, deletion, execution (e. g. for the exe-

cution and orchestration of data processing or model

training experiments and pipelines), and deployment

(e. g. for ofﬂine (batch) and online (on-demand) model

Cornucopia: Tool Support for Selecting Machine Learning Lifecycle Artifact Management Systems

445

Table 1: Assessment categories, criteria, and subcriteria.

Category Criteria and Subcriteria

Lifecycle

Integration

Requirements Stage [Model Requirements Analysis]

Data-oriented Stage [Data Collection, Data Preparation & Cleaning, Data Labeling, Feature Engineering &

Selection]

Model-oriented Stage [Model Design, Model Training, Model Evaluation, Model Optimization]

Operations Stage [Model Deployment, Model Monitoring]

Artifact

Support

Data-related Artifacts [Dataset, Annotations & Labels, Features]

Model Artifacts [Model]

Metadata Artifacts [Identiﬁcation, Model Parameters, Model Hyperparameters, Model Metrics, Experiments

& Projects, Pipelines, Execution Logs & Statistics]

Software Artifacts [Source Code, Notebooks, Conﬁgurations, Environment]

Operations

Logging & Versioning [Log/Capture, Commit, Revert/Rollback]

Exploration [Query, Compare, Lineage, Provenance, Visualize]

Management [Modify, Delete, Execute & Run, Deploy]

Collaboration [Export & Import, Share]

Collection &

Storage

Collection Automation [Intrusive, Non-intrusive]

Storage Type [Filesystem, Database, Object/BLOB Storage, Repository]

Versioning [Repository, Snapshot]

Interface &

Integration

Interface [API/SDK, CLI, Web UI]

Language Support & Integration [Languages, Frameworks, Notebook]

Operation &

Licensing

Operation [Local, On-premise, Cloud]

License [Free, Non-free]

serving). Collaboration indicates the presence of ex-

port, import, and sharing functionality.

Collection & Storage.

This category describes the

artifact collection and storage model. The criterion

Collection Automation represents the degree of man-

ual effort required to collect and capture ML artifacts.

The collection of artifacts is intrusive, which requires

engineers to explicitly add instructions or API calls

within the source code, non-intrusive, which means

that no explicit manual actions are required and the

collection is performed automatically, or both. Stor-

age Type describes the type of storage used and sup-

ported by an AMS such as ﬁlesystems, databases, ob-

ject stores, and version-controlled repositories. The

criterion Versioning characterizes how versioning of

artifacts is accomplished, which can be either via a

version control system (managed by means of a repos-

itory as indicated by the corresponding storage type)

or via manually triggered snapshots of individually

selected ML artifacts.

Interface & Integration.

This category character-

izes the provided user interfaces and integration ca-

pabilities. The criterion Interface states the type of

provided interfaces that may be based on an API (e. g.

a REST API) or higher-level SDK, command line inter-

face (CLI), and/or web application. Language Support

& Integration distinguishes between the integration

into programming languages (e. g. into Python via pro-

vided libraries), frameworks providing functional inte-

gration for the steps of the ML lifecycle (e. g. data pro-

cessing with Apache Spark (Apache Software Founda-

tion, 2022), model training with TensorFlow (Google,

2022b), or model orchestration with Metaﬂow (Netﬂix,

Inc., 2022)), and/or notebook support (e. g. Jupyter

(Project Jupyter, 2022), Apache Zeppelin (Apache,

2022), or TensorBoard (Google, 2022a)).

Operation & Licensing.

The last category covers

two usage-related criteria. The criterion Operation

deﬁnes whether the operation of an ML AMS is local

(e. g. Python libraries), on-premise (e. g. server-based

systems) or by a dedicated cloud provider (e. g. hosted

services). License describes the type of license, which

is either classiﬁed as free (e. g. public domain, per-

missive, or copyleft licenses) or non-free (e. g. non-

commercial or proprietary licenses).

3 INTERACTIVE WEB TOOL

This section presents CORNUCOPIA – an interactive

web tool for exploring and comparing ML AMSs.

Based on an intuitive workﬂow (see Fig. 2), we ex-

plain the functionality and user interface (

3.1). Sub-

sequently, we describe the architecture design (

3.2)

and implementation (§ 3.3).

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

446

Filtering Exploration Comparison

apply ﬁlter

change ﬁlter

apply selection

change selection

change ﬁlter

Figure 2: CORNUCOPIA’s 3-step workﬂow.

3.1 Functionality and User Interface

CORNUCOPIA ﬁrst enables users to ﬁlter the set of

all ML AMSs according to their requirements and,

subsequently, to explore as well as to compare the

set of resulting candidates. CORNUCOPIA guides

users through a predeﬁned workﬂow consisting of

three steps (see Fig. 2): Filtering, Exploration, and

Comparison. These steps are consistently reﬂected

in the web interface.

Filtering.

The Filtering step aims at restricting the

total set of 64 ML AMSs to only those to be consid-

ered further and in more detail for a concrete use case.

The applicable ﬁlters correspond to the assessment

criteria and subcriteria (see also Tab. 1). In addition,

a restriction to speciﬁc AMSs can also be made here

already. Each ﬁlter is represented as a drop-down box

with a text ﬁeld and the already selected values (see

Fig. 3.(a)). Additional options allow to customize the

exploration visualization (e. g. sort selected criteria/

systems or show/hide tooltips).

Exploration.

In the Exploration step, the ML AMSs

and their assessments according to the ﬁlter criteria

are visualized below in the form of a heatmap (see

Fig. 3.(b)). For each ML AMS (x-axis) and each cri-

terion (y-axis), the proportion of fulﬁlled or present

subcriteria is normalized to the value range

[0, 1]

and

represented by a cell hue ranging from dark red (i. e.

not fulﬁlled/present) to dark green (i. e. completely

fulﬁlled/present).

If the fulﬁllment/presence of all

subcriteria of a criterion is unclear or not (exactly)

known, the corresponding cell’s hue is white.

That enables a simple yet effective exploration, ini-

tial comparison, and further selection of candidates.

Clicking on axis tick labels on the y-axis opens a side-

bar with explanations of the criteria and their corre-

sponding subcriteria. By clicking on axis tick labels

on the x-axis, descriptions and literature references are

The last criterion “License” is an exception due to its

binary character: The corresponding cell hue is either dark

red (“non-free”) or dark green (“free”).

displayed in the sidebar (see also Fig. 3.(b)). Further-

more, clicking on individual cells also opens the side-

bar, which then displays detailed information about the

respective assessment. Thus, it is possible to obtain a

more detailed overview and to trace back the basis on

which certain assessments have been made (sidebar).

To include either more or less ML AMSs, the ﬁlter cri-

teria can be either relaxed or tightened (which results

in a transition to the Filtering step).

Comparison.

Based on the further reﬁned and re-

stricted candidates set, the Comparison step facilitates

a tabular comparison (see Fig. 3.(c)) that lays the foun-

dation for the ﬁnal selection. The table contains all

assessments on subcriteria level and, thus, provides

the most ﬁne-grained view. If none of these ML AMSs

matches, the selection of candidates can be changed

(transition to the Exploration step) or restarted (transi-

tion to the Filtering step).

3.2 Architecture Design

CORNUCOPIA’s architecture is based on the Model-

View-ViewModel (MVVM) pattern (Gossman, 2005).

Basically, MVVM separates the representation from

the logic of the graphical user interface (GUI). The

Model represents the data access layer for the content

that is displayed to and manipulated by the user. For

this purpose, it notiﬁes about data changes and per-

forms validation of the data passed by the user. The

View represents all GUI elements. It binds to the prop-

erties of the ViewModel to display and manipulate

content and pass user input. The ViewModel contains

the UI logic and serves as a link between the View and

the Model. It exchanges information with the Model

via method or service calls. Moreover, it makes public

properties and functions available to the View. These

are bound by the view to controls in order to output

content or forward UI events. Compared to the classi-

cal Model-View-Controller pattern, MVVM improves

testability and reduces implementation effort, since no

separate controller instances are required.

Cornucopia: Tool Support for Selecting Machine Learning Lifecycle Artifact Management Systems

447

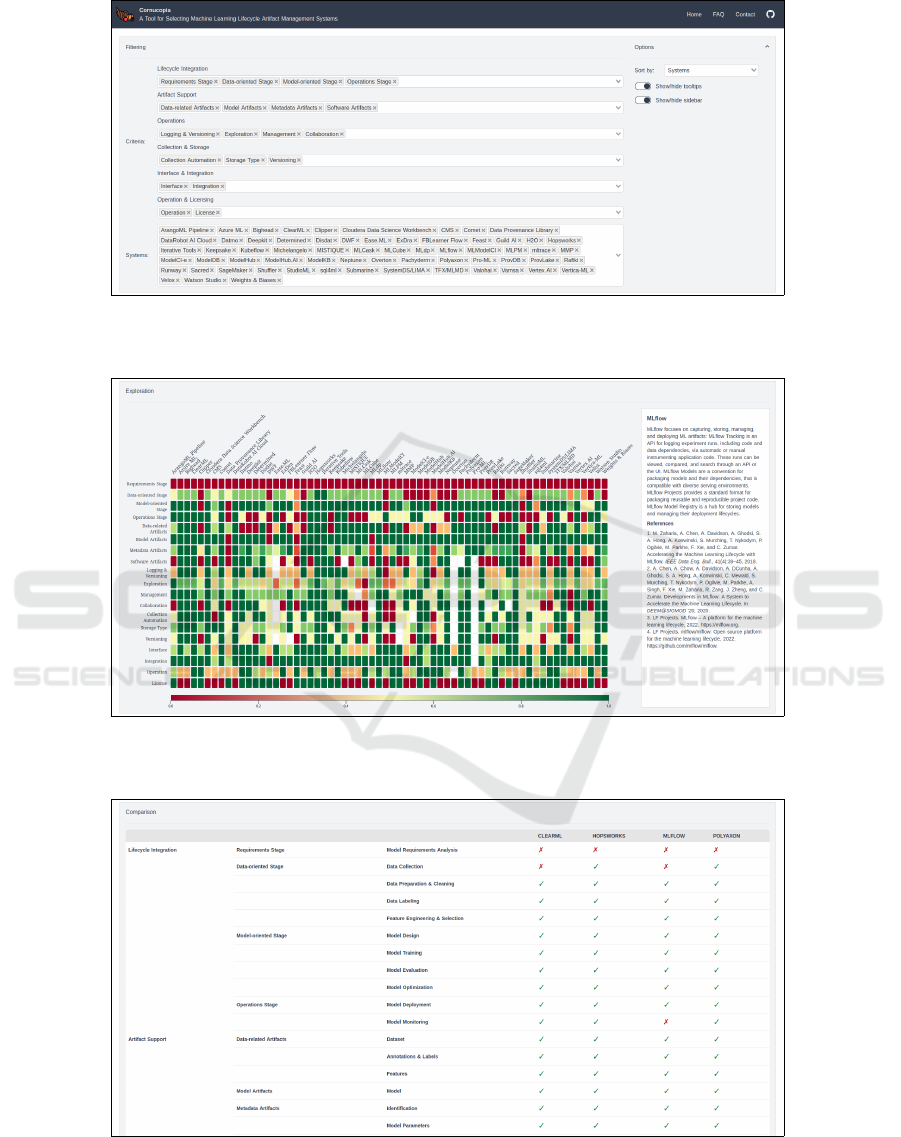

(a) Filtering step: Filters can be set via drop-down boxes which also show all already selected values. Additionally, options

enable customization of the visualization.

(b) Exploration step: The heatmap visualizes the proportion of fulﬁlled or present subcriteria for each criterion (y-axis) and ML

AMS (x-axis) (normalized to

[0, 1]

). The sidebar displays additional descriptions of criteria and AMSs, and assessment details.

(c) Comparison step: The ﬁne-grained tabular view of subcriteria level assessments enables the ﬁnal selection of one or more

complementary ML AMSs.

Figure 3: Screenshots of CORNUCOPIA’s user interface components.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

448

3.3 Implementation

CORNUCOPIA is realized as a single-page application

(SPA) (Mesbah and van Deursen, 2007). An SPA is

a JavaScript-driven web application that consists of a

single HTML document and whose content is dynam-

ically reloaded in response to user actions. This en-

ables a higher reactivity compared to multi-page web

applications (Fink and Flatow, 2014). The MVVM-

based software architecture is implemented by using

the Nuxt.js framework (NuxtLabs, 2022a; NuxtLabs,

2022b), which is built upon Vue.js (You, Evan, 2022;

The Vue.js Authors, 2022). In contrast to vanilla Vue,

Nuxt provides a predeﬁned environment and project

structure, automatic routing, different rendering modes

(such as server-side rendering, client-side rendering,

and static site generation), and integration with many

other frameworks (for UI, testing, etc.). The D3.js li-

brary (Bostock, Mike, 2022; The D3 Authors, 2022) is

used for visualizing data using modern web standards

and a data-driven approach to DOM manipulation.

4 CONCLUSION

This paper addresses the problem of the overwhelm-

ing and opaque landscape of tools, frameworks, and

platforms for managing ML lifecycle artifacts. Based

on the assessment of 64 ML AMSs, we present COR-

NUCOPIA – a web tool that enables researchers and

practitioners to conveniently explore and compare

ML AMSs.

CORNUCOPIA guides users through a

three-step workﬂow comprising the ﬁltering of the

assessed ML AMSs, the exploration of a ﬁltered set

of ML AMSs, and the comparison of a selection of

candidate ML AMSs.

CORNUCOPIA is under ongoing development.

Next, on-demand calculated statistics and drag-and-

drop features (such as for reordering of rows and/or

columns) are added. Moreover, many of the assessed

AMSs are also under continuous development. Thus,

the data basis of CORNUCOPIA reﬂects the current

state of the system landscape. To ensure that our tool

will remain valuable for the community in the future,

we will publish the source code on GitHub and invite

the submission of pull requests.

https://cornucopia-app.github.io

https://github.com/cornucopia-app

ACKNOWLEDGEMENTS

This work was partially funded by the Thuringian Min-

istry of Economic Affairs, Science and Digital Society

(grant 5575/10-3).

REFERENCES

Aguilar, L., Dao, D., Gan, S., G

urel, N. M., Hollenstein,

N., Jiang, J., Karlas, B., Lemmin, T., Li, T., Li, Y.,

Rao, X., Rausch, J., Renggli, C., Rimanic, L., Weber,

M., Zhang, S., Zhao, Z., Schawinski, K., Wu, W., and

Zhang, C. (2021). Ease.ML: A Lifecycle Management

System for Machine Learning. In Proceedings of the

11th Annual Conference on Innovative Data Systems

Research, CIDR ’21. www.cidrdb.org.

Allegro AI (2022). ClearML – MLOps for Data Science

Teams. https://clear.ml.

Amershi, S., Begel, A., Bird, C., DeLine, R., Gall, H.,

Kamar, E., Nagappan, N., Nushi, B., and Zimmer-

mann, T. (2019). Software Engineering for Machine

Learning: A Case Study. In Proceedings of the 2019

IEEE/ACM 41st International Conference on Soft-

ware Engineering: Software Engineering in Practice,

SEIP@ICSE ’19, pages 291–300. IEEE/ACM.

Apache (2022). Zeppelin. https://zeppelin.apache.org.

Apache Software Foundation (2022). Apache Spark –

Uniﬁed engine for large-scale data analytics. https:

//spark.apache.org.

Baylor, D., Breck, E., Cheng, H.-T., Fiedel, N., Foo, C. Y.,

Haque, Z., Haykal, S., Ispir, M., Jain, V., Koc, L., Koo,

C. Y., Lew, L., Mewald, C., Modi, A. N., Polyzotis,

N., Ramesh, S., Roy, S., Whang, S. E., Wicke, M.,

Wilkiewicz, J., Zhang, X., and Zinkevich, M. (2017).

TFX: A TensorFlow-Based Production-Scale Machine

Learning Platform. In Proceedings of the 23rd ACM

SIGKDD International Conference on Knowledge Dis-

covery and Data Mining, KDD ’17, pages 1387–1395.

ACM.

Bostock, Mike (2022). D3.js – Data-Driven Documents.

https://d3js.org.

Chaoji, V., Rastogi, R., and Roy, G. (2016). Machine Learn-

ing in the Real World. Proceedings of the VLDB En-

dowment, 9(13):1597–1600.

Feast Authors (2022). Feast: Feature Store for Machine

Learning. https://feast.dev.

Fink, G. and Flatow, I. (2014). Pro Single Page Application

Development. Apress.

Gharibi, G., Walunj, V., Rella, S., and Lee, Y. (2019). Mod-

elKB: Towards Automated Management of the Mod-

eling Lifecycle in Deep Learning. In Proceedings of

the 7th International Workshop on Realizing Artiﬁ-

cial Intelligence Synergies in Software Engineering,

RAISE@ICSE ’19, pages 28–34. IEEE/ACM.

Google (2022). Machine Learning Workﬂow. https://cloud.

google.com/ai-platform/docs/ml-solutions-overview.

Google (2022a). TensorBoard. https://www.tensorﬂow.org/

tensorboard.

Cornucopia: Tool Support for Selecting Machine Learning Lifecycle Artifact Management Systems

449

Google (2022b). TensorFlow. https://www.tensorﬂow.org.

Gossman, J. (2005). Introduction to

Model/View/ViewModel pattern for building WPF

apps. https://docs.microsoft.com/en-us/archive/blogs/j

ohngossman/introduction-to-modelviewviewmodel-

pattern-for-building-wpf-apps.

Greff, K., Klein, A., Chovanec, M., Hutter, F., and Schmid-

huber, J. (2017). The Sacred Infrastructure for Compu-

tational Research. In Proceedings of the 16th Python

in Science Conference, SciPy ’17, pages 49–56.

Kumar, A., Boehm, M., and Yang, J. (2017). Data Manage-

ment in Machine Learning: Challenges, Techniques,

and Systems. In Proceedings of the 2017 ACM In-

ternational Conference on Management of Data, SIG-

MOD ’17, pages 1717–1722. ACM.

LogicalClocks (2022). Hopsworks: Enterprise Feature Store

& End-to-End ML Pipeline. https://www.hopsworks.ai.

Luo, Z., Yeung, S. H., Zhang, M., Zheng, K., Zhu, L., Chen,

G., Fan, F., Lin, Q., Ngiam, K. Y., and Chin Ooi, B.

(2021). MLCask: Efﬁcient Management of Component

Evolution in Collaborative Data Analytics Pipelines.

In Proceedings of the 2021 IEEE 37th International

Conference on Data Engineering, ICDE ’21, pages

1655–1666. IEEE.

Mesbah, A. and van Deursen, A. (2007). Migrating Multi-

page Web Applications to Single-page AJAX Inter-

faces. In Proceedings of the 11th European Conference

on Software Maintenance and Reengineering, Soft-

ware Evolution in Complex Software Intensive Systems,

CSMR ’07, pages 181–190. IEEE.

Miao, H., Li, A., Davis, L. S., and Deshpande, A. (2017).

Towards Uniﬁed Data and Lifecycle Management for

Deep Learning. In Proceedings of the 2017 IEEE

33rd International Conference on Data Engineering,

ICDE ’17, pages 571–582. IEEE.

Netﬂix, Inc. (2022). Metaﬂow. https://metaﬂow.org.

NuxtLabs (2022a). Nuxt – The Intuitive Vue Framework.

https://nuxtjs.org.

NuxtLabs (2022b). nuxt/nuxt.js: The Intuitive Vue(2) Frame-

work. https://github.com/nuxt/nuxt.js/.

Polyzotis, N., Roy, S., Whang, S. E., and Zinkevich, M.

(2018). Data Lifecycle Challenges in Production Ma-

chine Learning: A Survey. ACM SIGMOD Record,

47(2):17–28.

Project Jupyter (2022). Project Jupyter. https://jupyter.org.

Schad, J., Sambasivan, R., and Woodward, C. (2021).

Arangopipe, a tool for machine learning meta-data

management. Data Science, 4(2):85–99.

Schelter, S., Bießmann, F., Januschowski, T., Salinas, D.,

Seufert, S., and Szarvas, G. (2018). On Challenges in

Machine Learning Model Management. IEEE Data

Engineering Bulletin, 41(4):5–15.

Schlegel, M. and Sattler, K.-U. (2022). Management of

Machine Learning Lifecycle Artifacts: A Survey. ACM

SIGMOD Record. To appear.

Sculley, D., Holt, G., Golovin, D., Davydov, E., Phillips,

T., Ebner, D., Chaudhary, V., Young, M., Crespo, J.-

F., and Dennison, D. (2015). Hidden Technical Debt

in Machine Learning Systems. In Advances in Neu-

ral Information Processing Systems, NIPS ’15, pages

2503–2511. Curran Associates, Inc.

Smith, J. (2018). Machine Learning Systems. Manning

Publications. ISBN 9781617293337.

The D3 Authors (2022). d3/d3: Bring data to life with SVG,

Canvas and HTML. https://github.com/d3/d3.

The Vue.js Authors (2022). vuejs/vue: Vue.js is a progres-

sive, incrementally-adoptable JavaScript framework

for building UI on the web. https://github.com/vuejs/v

ue.

Tsay, J., Mummert, T., Bobroff, N., Braz, A., Westerink,

P., and Hirzel, M. (2018). Runway: machine learning

model experiment management tool. In Proceedings of

the 1st Conference on Systems and Machine Learning,

SysML ’18.

Vartak, M., Subramanyam, H., Lee, W.-E., Viswanathan, S.,

Husnoo, S., Madden, S., and Zaharia, M. (2016). Mod-

elDB: A System for Machine Learning Model Man-

agement. In Proceedings of the Workshop on Human-

In-the-Loop Data Analytics, HILDA@SIGMOD ’16.

ACM.

Weights & Biases (2022). Weights & Biases – Developer

Tools for ML. https://wandb.ai.

You, Evan (2022). Vue.js – The Progressive JavaScript

Framework. https://vuejs.org.

Zaharia, M., Chen, A., Davidson, A., Ghodsi, A., Hong,

S. A., Konwinski, A., Murching, S., Nykodym, T.,

Ogilvie, P., Parkhe, M., Xie, F., and Zumar, C. (2018).

Accelerating the Machine Learning Lifecycle with

MLﬂow. IEEE Data Engineering Bulletin, 41(4):39–

45.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

450
