Warning of Target Attitude of Crowd in Closed Area Based on CNN

and Clustering Algorithm

Lianwen Lu, Yuhan Cui and Xinghua Lu

Institute of Computer Control Technology, Guangzhou Huali College, Guangzhou, China

Keywords: Human Posture Recognition, Security Warning, Cluster Analysis, Multi Label, Target Tracking, Target

Detection, Machine Learning.

Abstract: Human Activity Recognition (HAR) technology is a hotspot in the field of computer vision. There are still

many technical difficulties in the collaborative tracking of human and object. Based on the skeletal point

algorithm and target detection and tracking, this paper attempts to build a new cooperative tracking system

between people and objects in a relatively closed environment to manage small and medium-sized

populations. Label training is carried out for specific posture and specific dangerous goods, so as to realize

early warning ability by identifying multi person posture and dangerous goods. Using multi label

classification to mark a category can improve recognition efficiency and flexibility, and avoid absolute

interpretation in target detection. After multi label training, the specific target object and target pose can

improve the accuracy of interactive recognition between human pose and object in real scene. In this paper,

we use convolution neural network and clustering algorithm, C3d two stream, openpose human feature bone

point recognition model and yolov4 to realize the crowd target attitude early warning in closed area. The final

clustering test shows that the proposed method can improve the efficiency of machine learning, enhance the

robustness, and improve the accuracy of target attitude.

1 INTRODUCTION

The main function of video surveillance is to record

human social activities. At present, most video

surveillance systems are only used to record and save

views, and the society requires the monitoring

network to gradually develop towards a higher level

of human abnormal behavior recognition. Li Qi (Li,

Jiang, 2021) uses deep convolution neural network

(CNNs) and support vector machine (SVM) to

recognize other people's static space posture, and

applies it to the security system in the field of smart

home. However, it is not suitable for real-time

monitoring due to static limitations. Gao Xiang (Gao,

2018) uses vibe + algorithm and target tracking

algorithm to achieve abnormal behavior detection

through video frame extraction and image processing.

However, the environmental requirements are

relatively high, and the behavior model involved is

less. Similarly, Yang Yahu and others (Yang, Wang,

Chen, 2021) tend to use CNN to solve the problems of

occlusion, obscure and other recognition obstacles in

the video, so as to improve the accuracy of

recognition.

Considering the advantages and disadvantages of

the above research, this paper proposes an intelligent

surveillance camera system based on semi closed area,

which detects specific targets by training YOLOv4

andYPOLOv4-ting, and realizes specific attitude

detection by using human skeleton points combined

with CNN, and finally realizes real-time target attitude

early warning.

2 OVERALL COMPOSITION OF

THE SYSTEM

In this paper, through the image as the research

object, the skeletal point and posture, objects and

posture, objects and features are associated (Gao,

Wang, 2020). Train and extract their spatial

dimensions and relationship features (Figure. 1), and

the resulting data sets are used for clustering test and

real-time test respectively.

Lu, L., Cui, Y. and Lu, X.

Warning of Target Attitude of Crowd in Closed Area Based on CNN and Clustering Algorithm.

DOI: 10.5220/0011753700003607

In Proceedings of the 1st International Conference on Public Management, Digital Economy and Internet Technology (ICPDI 2022), pages 647-658

ISBN: 978-989-758-620-0

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

647

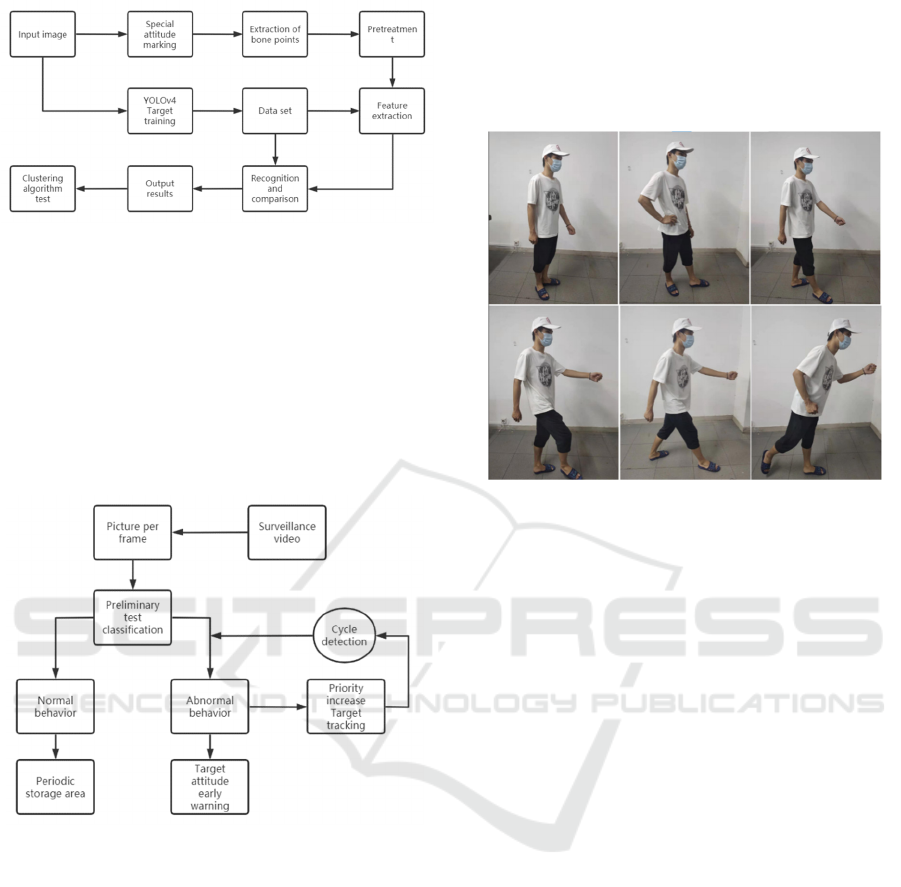

Figure 1: Target training process.

Real time test (Figure. 2) is to extract video frames

for recognition detection. If there is no abnormality,

it will be stored in the storage area, and the storage

area will be cleaned regularly. If there is an exception,

on the one hand, target tracking and continuous cycle

detection will be carried out, on the other hand,

feedback will be sent to the web end to warn the

administrator until the end of the exception or stop

reporting errors.

Figure 2: Real time identification process.

3 DATA SET MAKING

3.1 Principle and Making of Multi

Label Recognition

Different labels are used to label different objects and

attitudes, so as to realize the ability of early warning

for specific targets. The general classification label

recognition is only one category label for each frame

of target image, which is easy to be absolutely

interpreted in target recognition and detection (Yu,

2016). Multi label marking for each target can

improve efficiency and flexibility.

Figure 3: Process of posture change from walking to

running.

For example, in the process of posture change from

walking to running (Figure. 3), in fact the body posture

is gradually changing, such as walking, strolling,

jogging and sprinting. The range of changes in the

body posture of bones and limbs is gradually

increasing, and a single label (Xu, 2017) is prone to

blur, which is not conducive to target warning, so

multi label training is needed (Yu, 2016). For

example, jogging has changed from single label

"jogging" to multi label "walking, jogging and

sprinting".

The generalization of multi label learning (Figure.

6) for labels makes the pose adaptation operation and

measurement space expand exponentially, and the

data processing capacity and space-time complexity

are also optimized. The following is the multi label

learning method (Yu, 2016):

1) Decompose the attitude tags and label multiple

single tags simply.

2) Each pose is associated and distinguished

according to the approximate value of the bone points.

3) In addition to associated tags, each tag is also

evaluated, and the impact of the tag on the overall

proportion is analyzed.

ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology

648

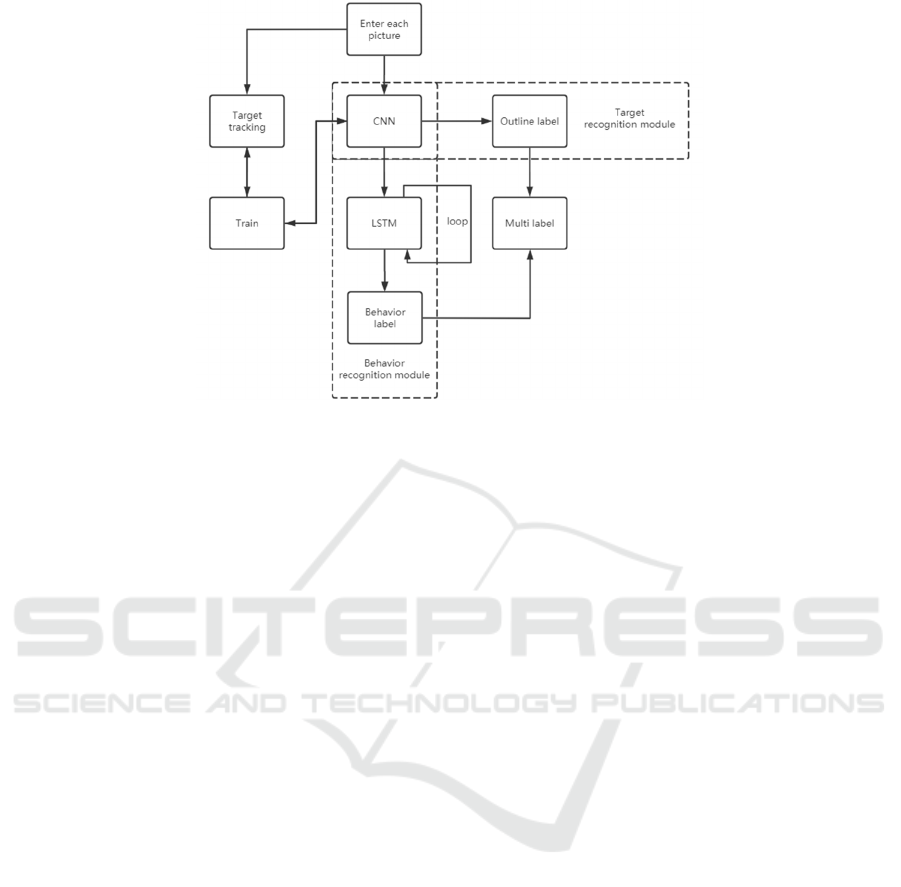

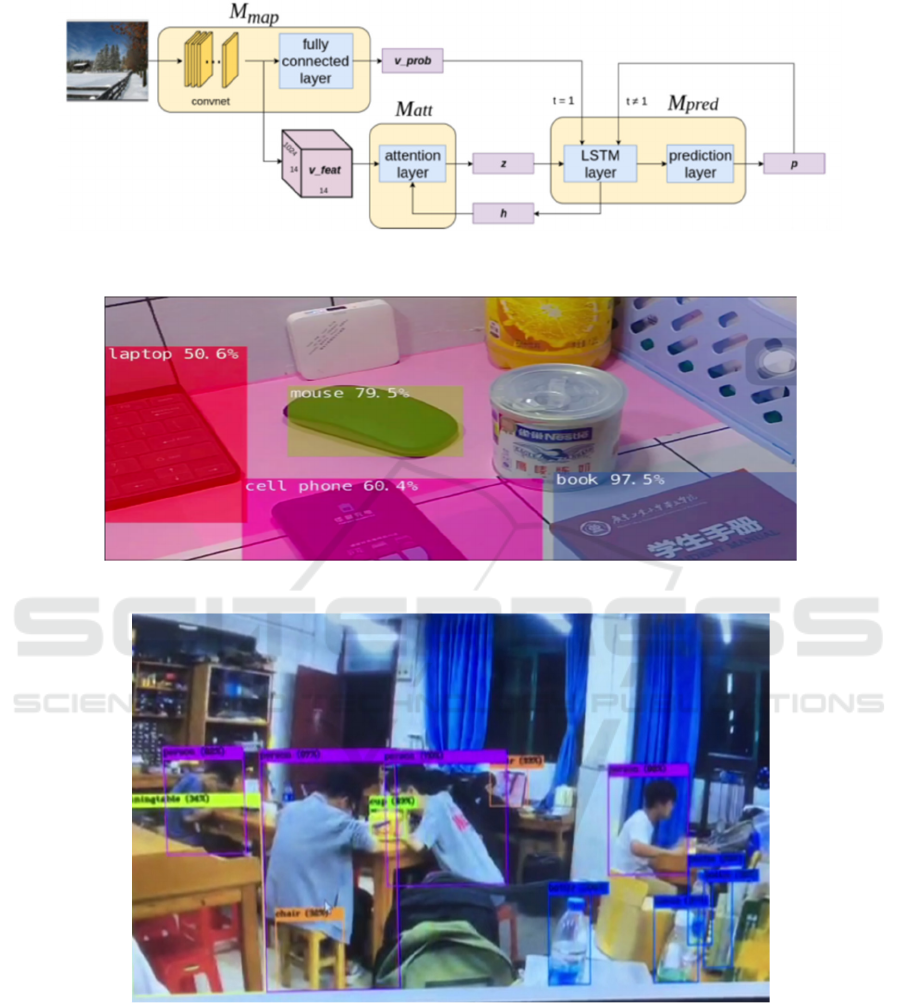

Figure 4: Multi label separation network architecture.

Figure 5: Single label marking.

Figure 6: Multi label marking.

The label architecture consists of feature mapping

layer (Mmap), attention layer (Matt) and label

prediction layer (Mpred) (Figure. 4). Through a set of

target frame pictures Vfeat obtained from Mmap, the

vector output vprob represents the first prediction of

Mmap, Z and H are the hidden states of vector and

LSTM (long short time memory network, which is

used to avoid long-term dependence in RNN and can

learn long-term dependence) respectively, and finally

P is the vprob with label percentage, which can update

the state regularly (Figure. 7).

Warning of Target Attitude of Crowd in Closed Area Based on CNN and Clustering Algorithm

649

Figure 7: Multi label processing of video frame.

3.2 Cross Validation of Data Sets

To reduce the impact of the randomness of the data set

on the recognition rate and prevent the data model

from over fitting, this paper will use the k-fold cross

validation method (Liu, 2017) to verify the average

accuracy as the result.

Firstly, the package is divided into k subsets, and

each specific posture is designed to be shot by 10

people in 5 environments (Liu, 2017). Plenty of

special pose image sets were recorded. There were 50

poses of each type in the image set, and group 1 to

group 10 were used to label the sample set. Then the

K-N is called for training, and the remaining N is used

for testing, that is, each time the training set of 8 Group

is used, and the remaining 2 Group is used as the test

set. In train 1, the training set intercepts group 1 to

group 8, and the test set intercepts group 9 and group

10; The training set of train 2 intercepts group 1 to

group 6, group 9 and group 10, and its test set

intercepts group 7 and group 8 (Liu, 2017). By

analogy, the final evaluation index is the average value

of the 10 evaluation indexes.

4 TWO-STREAM AND YOLOV4

BASED ON C3D

4.1 C3D Network and Two-Stream

The C3D network framework is used to train the

spatial network, extract the spatial coordinate

information of human posture in the video frame, train

the fine-tuning, train the classified network on

ImageNet, and try to initialize the network through

parameters (Chu, 2017). The time network is

processed based on Two-Stream merged data sets, and

the similarity between two data sets or data groups

within the set is calculated to remove the overlapped

part. A new data set is coordinated and the time

network is trained with relevant parameters. In

addition, k-fold cross validation method can be used

to effectively solve the problem of small number of

human actions and over fitting of training posture (Xu,

2017).

After the above steps, the data parameters of space

network and time network are obtained, and then they

are fused, so that C3D network and Two-Stream are

fused with mean processing and SVM respectively

(Chu, 2017). The training data obtained by adjusting

the parameters of the spatiotemporal network will be

obtained when it continues to run (Chu, 2017).

Two reasons for the spatiotemporal integration of

C3D network and Two-Stream (Chu, 2017):

1) Through 3D convolution and pooling, CNN is

used for operation, and temporal and spatial elements

are fused in the process of extracting target features.

2) When using 3D convolution and pooling

operation, it has little impact on the speed of video

frame processing and network framework. Try to run

it with processor, and it can reach about 600-700

frames per second.

4.2 Yolov4

The target pose detection is performed on the

processor for 15, 30 and 60 FPS video respectively.

UsingYOLOv4-CSP and Scaled-YOLOv4 to

understand the problems of Scaled-YOLOv4 in model

ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology

650

scaling (Wang, Bochkovskiy, Liao, 2021). It also

combines the upper and lower bound elements of

linear scaling model involved in YOLOv4-large and

YOLOv4-tiny algorithm to balance the speed and

accuracy of Scaled-YOLOv4 and improve the

operation efficiency. In this paper, we try to optimize

the operation redundancy of shallow convolutional

neural network, but the most important thing is to

balance and optimize the parameter allocation

between the YOLOv4-large and YOLOv4-tiny.

4.2.1 Yolov4-Tiny

YOLOv4-tiny is a simplified version of YOLOv4

(Wang, 2020). If the speed of YOLOv4-tiny is

between 20 and 25FPS, the general processor GPU

can also meet its operation requirements. Here, the

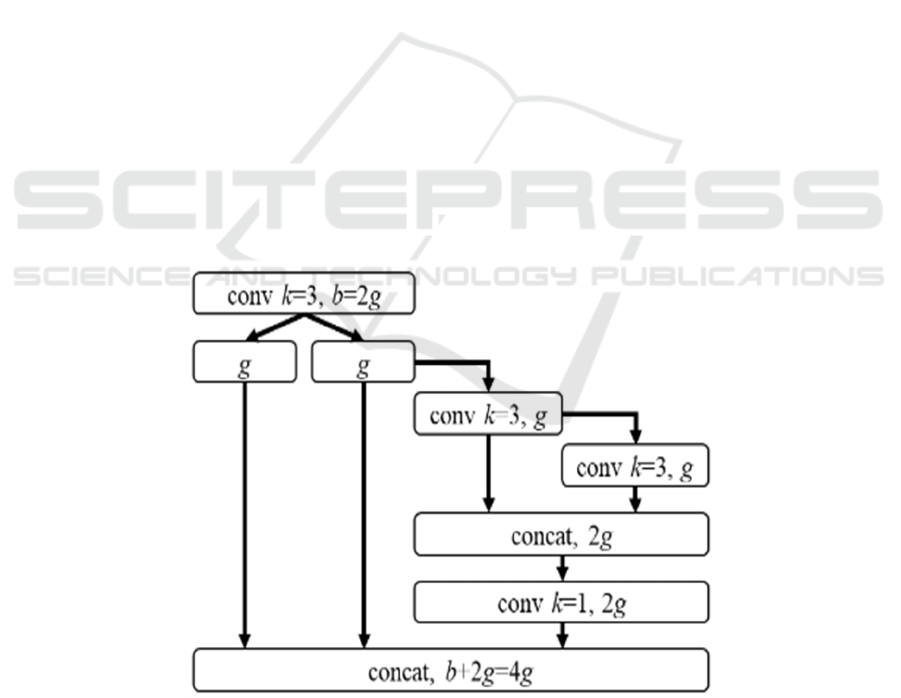

focus of YOLOv4 is composed of CSPOSANet

(Figure 8) to reduce the amount of calculation. The

main idea is to divide the feature map into two parts,

one part for convolution operation, and the other part

for concatenation with the convolution operation

results of the previous part. CSPOSANet also adopts

PCB architecture.

Assuming that the trunk is in the increasing state,

then the increasing frequency G is half of B, so that it

gradually increases to B / 2 + kg = 2bat, and finally a

value of K is 3 is obtained. The main operation process

is as shown in the figure. We use YOLOv4-tiny in the

number of channels and neck links in each phase of

YOLOv4.

4.2.2 Yolov4-Large

If the simplified version of tiny is an algorithm based

on processor GPU, thenYOLOv4-large is an

algorithm based on cloud GPU (Wang, Bochkovskiy,

Liao, 2021). Large can completely improve the

accuracy and efficiency of motion pose detection.

Through the algorithm model of CSP concurrent

programming, and then extended from P5 to P7

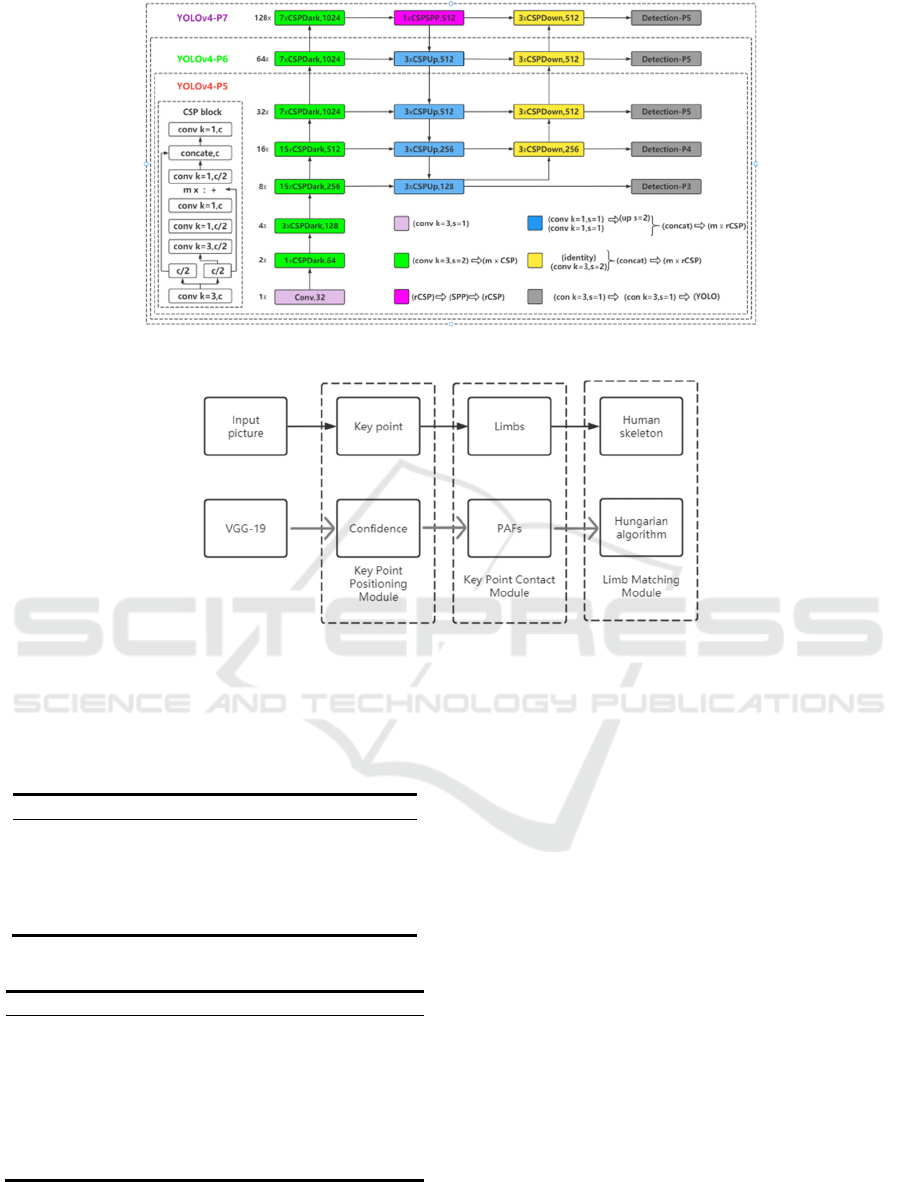

(Figure 9). In order to control the vector change of

one-stage network in running large, the multi-scale

model of deep learning in each loop is set to DS of 2_

I power. The parameter of DS is set to (Wang,

Bochkovskiy, Liao, 2021) [1, 3, 15, 15, 7, 7], and then

the additional width scaling of the target task is

constrained by setting the inference time as an

element. In the process of testing P6, when the extra

width scaling of the target task is set to 1 or close to 1,

the short delay detection efficiency can be improved

in the video with 30 frames per second. Using the

same steps to test P7, when the extra width scaling of

the target task is set to 1. 25 or close to 1. 25, it can

improve the detection efficiency of short delay in the

video with 15 frames per second.

Figure 8: CSPOSANet calculation.

Warning of Target Attitude of Crowd in Closed Area Based on CNN and Clustering Algorithm

651

Figure 9: YOLOv4-P5, P6, P7 structure.

Figure 10: Localization, Association, Matching.

For the large and tiny models in YOLOv4, ablation

tests were carried out.

Table 1: YOLOv4-tiny testing data.

Backbone FLOPs APval

tinyCD53s 7. 0B 22. 2%

COSA-1x3x 7. 6B 22. 5%

COSA-2x2x 6. 9B 22. 0%

COSA-3x1x 6. 3B 21. 2%

Table 2: YOLOv4-large testing data.

Model finetune APval

YOLOv4-P5 - 50. 5%

YOLOv4-P5 150 51. 2%

YOLOv4-P6 - 53. 4%

YOLOv4-P6 150 53. 9%

YOLOv4-P7 - 54. 6%

YOLOv4-P7 150 55. 0%

4.3 OpenPose Human Feature Points

and Skeleton Recognition Model

How to improve the recognition effect of human

posture features of YOLOv4, we design the OpenPose

human feature points and skeleton recognition model

based on Scaled-YOLOv4 (Wang, Li, 2019).

OpenPose human feature points and skeleton

recognition model are popular technologies. We can

detect objects by skeleton distribution. OpenPose is

mainly divided into three modules (Figure 10):

Localization module, Association module and

Matching module.

Localization refers to the skeleton key points,

which is mainly used to obtain the position and

confidence value of each type of candidate key points

from the video frame data. Association obtains the

candidate limbs and PAFS between each pair of

heterogeneous key points from the candidate key

points of Localization. Matching is based on the

Association candidate limb and Localization

candidate key points to match the suitable limb and

outline the whole key point skeleton.

ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology

652

The coordinate data of the human pose model is

obtained from the video frame, and the high-level

feature information of the target model is obtained

through the first 10 convolution layers (16

convolution layers and 3 fully connected layers) of

VGG-19. Through the convolution kernel in different

cases to multiply the previous special image on the

map after the original image, a variety of special

feature maps will be obtained. The data and Feature

map are combined with the model L (T) of human key

point detection classification and regression. NMS

outputs the local maximum through non maximum

suppression algorithm. NMS is mainly used to

determine the size and position of bounding boxes in

human posture recognition. Let m be the number of

bounding boxes and the front row of n be the

coordinates of each bounding box. Then the box is a

matrix of m * n. Of course, there are multiple boxes

obtained through multiple operations, and each box

will have different confidence level, and the

coordinates defined by them may overlap and cross.

Eliminate the low confidence boxes and select the box

with the highest confidence each time. The confidence

graph of each box is graphized, and the X, y two-

dimensional coordinates and the corresponding

coordinate information are established. Combining

XY to draw the vector p, then p represents the

confidence of each Localization candidate key point.

PAFS are used to link the pose of human body with

the object in the video frame, and the Association limb

and corresponding confidence map between different

skeletal points are obtained. For the pose of the target

in the video frame, the pair matching generated by

PAFS and the vector data of PAFS pose are obtained.

In formula (1), when the candidate key point is on

limb C, if and only if the confidence value of the

candidate key point is relative to the confidence value

of limb C, then the candidate key point is the unit

vector in the direction of limb C; When the point P is

not on the current limb, then the point P is vector 0.





𝑝





𝑣, 𝑃𝑜𝑖𝑛𝑡 𝑃 𝑖𝑠 𝑜𝑛 𝐿𝑖𝑚𝑏 𝐶

0, 𝑂𝑡ℎ𝑒𝑟

(1)

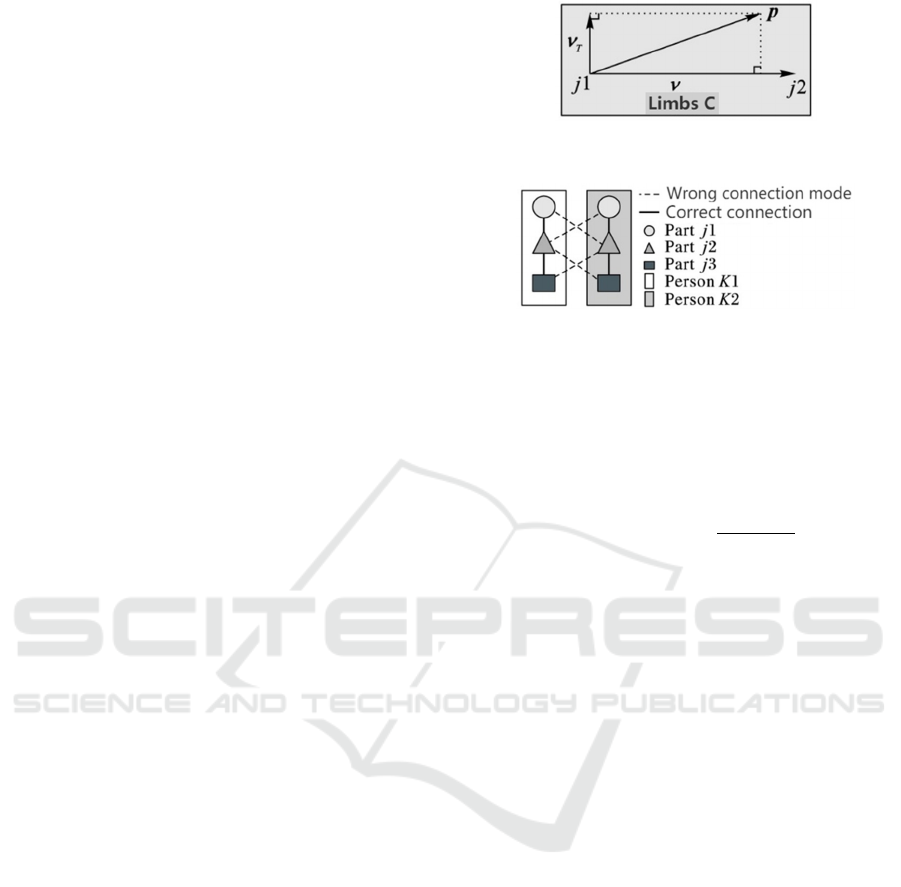

As shown in Figure 11, 12, the ν axis is from the

origin of j1 to j2, where j1 and j2 are two different

candidate key points, and | J1-J2 | is the absolute

distance between them. The vT axis is perpendicular

to the ν space vector of a vector. lc is the length of the

current limb C, σ C is the width, and xj1 represents the

spatial coordinate information of j1.

Figure 11: Position judgment method.

Figure 12: Maximum matching method.

Through definite integral, we can calculate all

Localization key points of limb C, Ec of limb c

calculated by current Association, and the unitization

of all points and limb confidence in limb C, which is

conducive to the subsequent calculation, such as

formula (2) ～ (3) (Wang, Li, 2019):







𝐴



𝑝𝑢∙























𝑑







(2)









1 u



∙𝑑



𝑢∙𝑑



(3)

j1 and j2 represent two different candidate key

points, |J1-J2| represents the absolute distance

between them, and P (U) represents any point (0 ≤ u ≤

1) in the existence of | J 1-J 2 | absolute distance.

Through formula (4), (5) (Wang, Li, 2019), each

candidate key point can only be matched with one of

the candidate key points in another type of key points,

so as to prevent the problem that the same node is

selected by multiple nodes in the maximum matching

and form multilateral intersection. Equations (4) and

(5) show that for the random candidate bone point m

from J1 on limb c, only the sum of the confidence

degree of one bone point of J2 can be matched with

the key point of M, and it needs to meet 0 ≤ u ≤ 1

(Wang, Li, 2019). Moreover, the number of matching

key points with M key points is not allowed to be more

than one. In the scheme with zero edge weight vector

between the bone points j1 and j2, the sum of the edge

weight and Ec = 0, and in the scheme with unit weight

vector, the sum of the edge weight and the edge weight

is the unit vector. Therefore, the maximum matching

algorithm obtains the best matching scheme with the

edge weight as the unit vector, and the matching

between the bone points J2 and J3 is the same as the

matching scheme with only the edge weight as the unit

vector.

∑

𝑧

,

,

∈



≤1; ∀𝑚∈𝐷



(4)

Warning of Target Attitude of Crowd in Closed Area Based on CNN and Clustering Algorithm

653

∑

𝑧

,

,

∈



≤1; ∀𝑛∈𝐷



(5)

𝑥













(6)

𝑦













(7)

In the same frame scene, multiple people's limbs

overlap and objects are covered, which may lead to

incomplete recognition and missing recognition. First,

we need to optimize the algorithm of bone key point

data (6), (7) (Li, Xu, Shi, Zhao, Li, 2021). x. Y is the

coordinate of the bone point, I is the serial number of

the key point, 2 ≤ I ≤ 35. It branches from the neck

bone point, connecting the hand limb, trunk limb and

leg limb, so the neck is an important bone point. If the

pose is incomplete and the data of neck bone points is

missing, the corresponding skeleton will be removed

to reduce the difficulty of overlapping pose

recognition. The number of people in the image will

be reconfirmed according to the adjacent multiple

frames. If the adjacent multiple frames are all missing

neck bone points, the pose skeleton can only be

discarded to improve the efficiency.

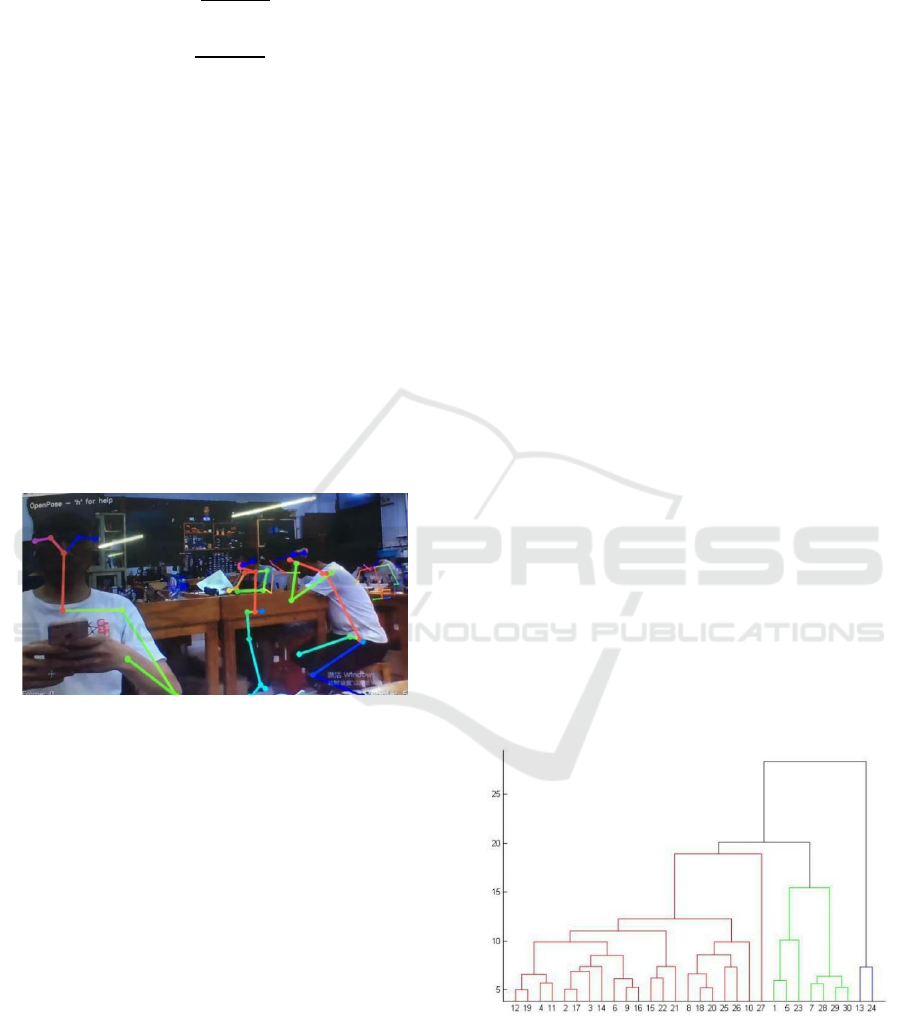

Figure 13: OpenPose Human feature points and skeleton

recognition model.

5 CLUSTER ANALYSIS

5.1 Clustering Algorithm

Clustering analysis plays an important role in

similarity judgment, spatiotemporal location

processing and anomaly class comparison. The

processing steps of most clustering methods are like

this, mainly including data set establishment,

comparison, common point extraction, distance

calculation, determination of data volume and testing

of clustering results. The clustering process of this

paper is as follows (Hou, 2018):

1) Data set building: preprocessing the image data

of human posture, the characteristics of the image data

tend to be the same and the data dimension reduction.

This paper makes a small test set, which mainly

includes standing, slow walking, jogging, sprinting

and a small amount of chaotic posture.

2) Feature selection: extract bone feature points

from different human posture features, and express the

changes of arm limb module and leg limb module in

vector form.

3) Feature extraction: in all kinds of target pose

features, the space coordinates and vector distance of

the limb module are adjusted to form a new feature

standard.

4) Determine the number of data groups: select the

same type of human posture feature for each data

point, compare the differences of data points, calculate

the similarity, and construct the data group by

comparison.

5) Result evaluation.

5.1.1 Hierarchical Clustering Algorithm

Hierarchical clustering is to analyze each layer of the

data in the data set. From small to large, some small

data groups are first combined and analyzed, and then

aggregated. Each time, two data groups with the

shortest similar distance are calculated, and then they

are combined into a large data group according to the

operation, until there is only one large data group

(Chen, Jiang, Wang, 2008)0. The mathematical

structure of the whole data group is like a tree structure

(Figure 14). However, hierarchical clustering requires

a lot of computation and high computing power, and

its results need to continuously cycle all data points.

The larger the data set is, the lower the efficiency of

hierarchical clustering is.

Figure 14: Tree structure data group.

Each data point is independent, and the so-called

similarity is to compare and calculate the point

features through the algorithm. And the data points

with high similarity form a data group by gradually

calculating and clustering. In this paper, the average-

ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology

654

linkage algorithm (Chen, Jiang, Wang, 2008) is used

to test the similar mean of two corresponding data

points in two data groups if and only if each point can

dock with only one data point. In addition to the

average-linkage algorithm, there are single-linkage

algorithm, complete-linkage algorithm and so on.

Among them, the average-linkage algorithm is

relatively efficient, which can divide the number of

data groups and the speed and accuracy of clustering

are relatively nice.

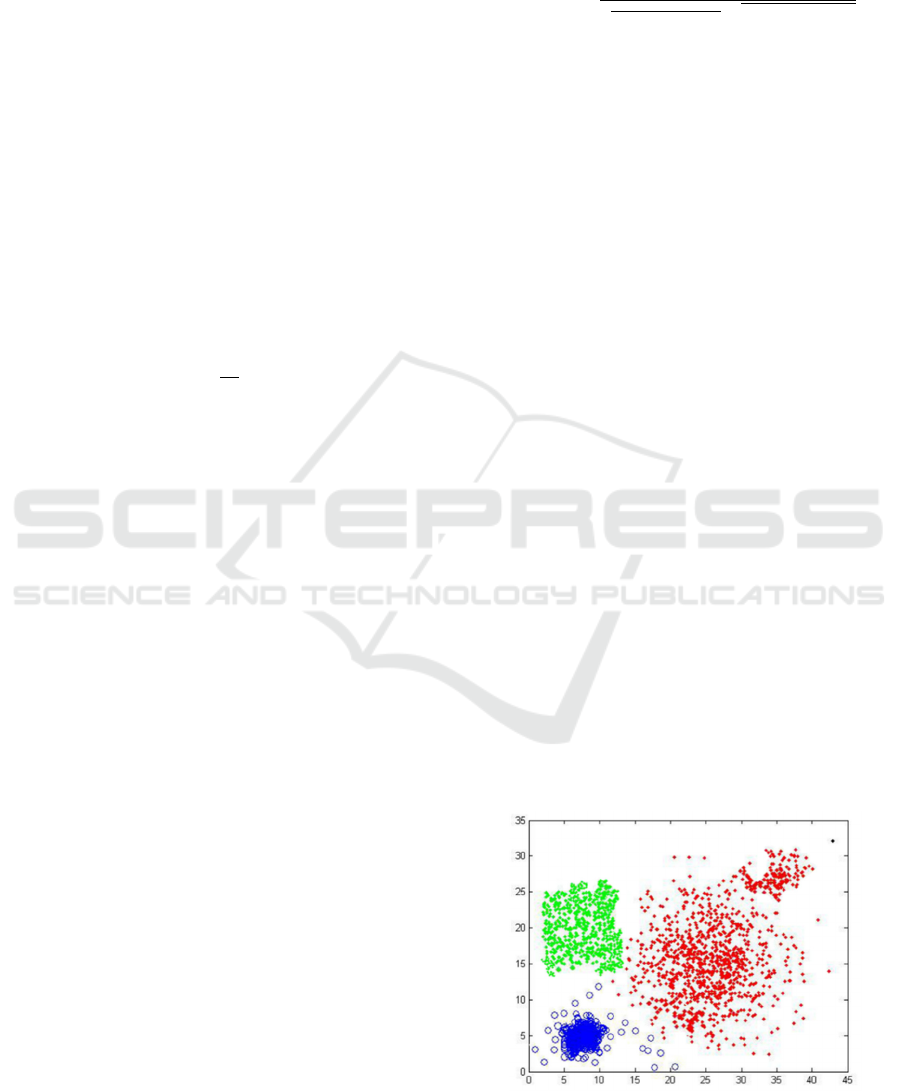

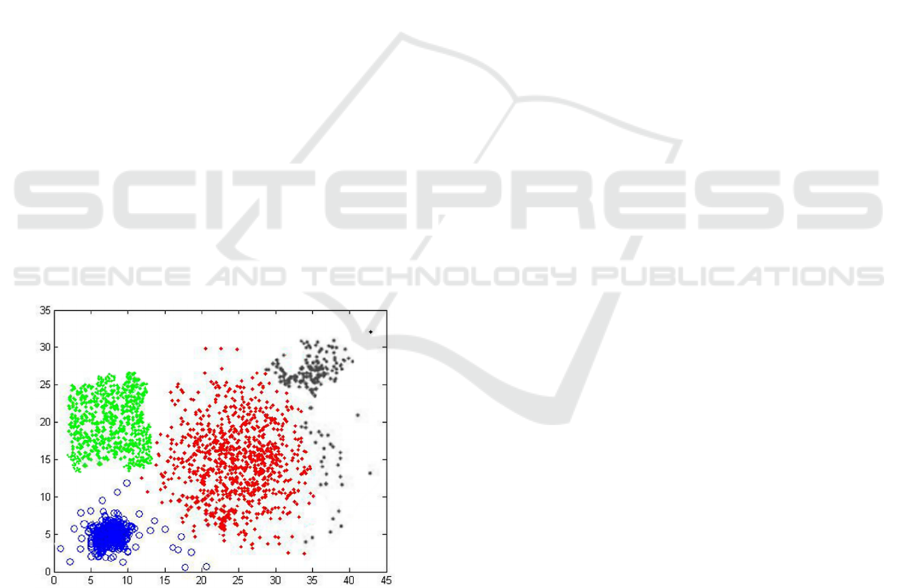

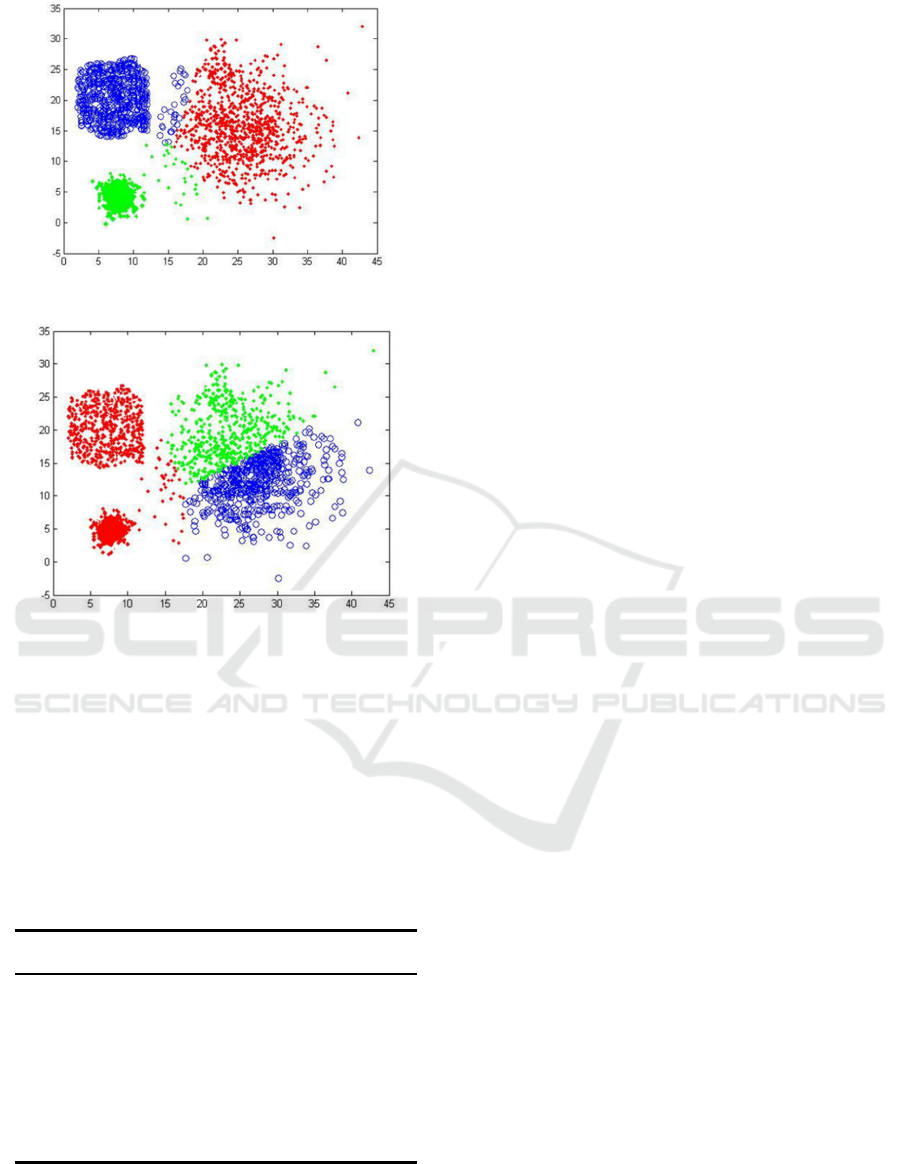

5.1.2 K-Means Clustering Algorithm

K-means clustering algorithm is a special EM

algorithm, which determines the location of data

points according to the expected value of data center

points, and optimizes the data group by clustering

operation (Jin, Liu, Jia, Liu, 2010). It has a very

prominent advantage: fast operation, K-means

algorithm in the T represents the number of iterations.

𝐶









∑

𝑥

∈



(8)

𝑆𝐸= 𝑃



𝐶















(9)

Part of K-means algorithm formulaFormula (8)

(Jin, Liu, Jia, Liu, 2010) is to calculate the i-th centroid

(mean value) of the data cluster: CI is the i-th cluster

in the data group, X is the data point of the cluster, Ci

is the i-mean value of Ci, and Ci is the number of

samples in the cluster Ci. Formula (9) ([J / OL].

Computer engineering and application:, 2021) is to

judge the sum of square errors of cluster data points,

where M represents the number of known clusters, and

I and j in Pij represent the i-th and j-th clusters

respectively. And N represents the amount of data, in

which the mean value of the particle center of the ci

data group is determined, and the K-means clustering

algorithm is used to require each data point in the n-th

data group to be as close as possible to the center of

the n-th data group to which they belong, and then the

minimization function is executed, and its time and

space complexity is O (n).

However, in the above clustering calculation, there

is a premise, that is, the element samples and attribute

categories of the data set are independent and

unrelated by default. In fact, in human posture, human

actions are coherent, and there is a necessary

connection between the front and back actions, that is,

they are not independent. Xiang Yixuan et al. ([J /

OL]. Computer engineering and application:, 2021)

proposed the second power processing through the

optimized Q-C-Kmeans algorithm 0, modified the

Pearson correlation coefficient, and obtained the

coupling relationship of the related attributes between

each two data points.

𝐶𝑂𝑅



𝑎



, 𝑎







∈







































∈

























∈





















(10)

𝑅



𝐶𝑂𝑅𝑎



, 𝑎



= 

𝐶𝑂𝑅



𝑎



, 𝑎





𝑝_𝑣𝑎𝑙𝑢𝑒0.05

0 𝑝_𝑣𝑎𝑙𝑢𝑒0.05

(11)

Formula (10) ([J / OL]. Computer engineering and

application:, 2021) is the Pearson correlation

coefficient calculation: u is the object sample in the

data group, ai and aj represent the corresponding

different attribute columns in the sample data, and the

corresponding μi j is used to represent the data mean

of I and j attribute columns. L is the total number of

data points, and fij (u) corresponds to all attribute

values of attribute I and attribute J in the sample data.

The condition P_ Value of formula (11) ([J / OL].

Computer engineering and application:, 2021)

represents the comparison of i and j data attributes.

5.2 Experiment And Analysis

Through the training of standing, slow walking,

jogging, sprinting and a small amount of chaotic

posture, a small data set with more than 2000 data

points is made as the sample group. In this paper, we

test the average join algorithm of the sample group.

Because the clustering distance of the same type of

attitude data points is similar, we start to merge the

two data points with the shortest distance from bottom

to top, and finally get a cluster, which is roughly the

aggregation form of this type. The training efficiency

of this method can be judged by the aggregation form.

Let the number of data groups be 3, that is, it is

estimated that three results can be obtained (Figure

15).

Figure 15: Hierarchical clustering average-linkage(k=3).

Warning of Target Attitude of Crowd in Closed Area Based on CNN and Clustering Algorithm

655

When k = 3, there are three clusters, but according

to the cluster shape and training data set, there are four

cluster centers. They correspond to standing, slow

walking, jogging, sprinting and a small amount of

chaotic posture.

Because of the poor density of the red data group

and the differentiation of the cluster centers, it shows

that the farthest data points in the data group have less

similarity, and two or more data groups are mixed

together. If k = 4, a new clustering center will be

segmented from the red data group, so as to obtain

more characteristic information of the data set.

The clustering results are basically consistent with

the training posture information. The green clustering

center is the standing posture, the blue is the slow

walking posture, the red is the jogging posture, and the

black is the sprint posture. The cluster centers of

standing, slow walking and sprint are relatively

concentrated, and the calculation of bone points is

clear. However, slow walking posture changes

greatly, which is similar to the skeletal points of

standing, slow walking and sprinting, so the clustering

is scattered. However, this method is combined with

multi label training, so it has little effect on recognition

efficiency. The scattered black data points below the

black data group are a small amount of chaotic posture

in the data set, so it is difficult to divide the specific K

value, so the main purpose of sharing the black

clustering group is to test the clustering recognition

rate.

Figure 16: Hierarchical clustering average-linkage(k=4).

The training efficiency of this method can be

tested through the test of the data set samples. If it is

necessary to test the local optimum and data centroid

of the data set, it needs to be tested through the K-

means clustering algorithm. Hierarchical clustering

processes data by similarity distance, while K-means

clustering algorithm calculates centroid by locating

data points, which is not necessarily an actual data

point. Speed and efficiency are great advantage of K-

means clustering algorithm. This clustering algorithm

uses the optimized Q-C-Kmeans ([J / OL]. Computer

engineering and application:, 2021) algorithm to

improve the coupling relationship of related attributes

between data points through the second power

processing, which is suitable for the test of low

similarity of different skeletal points. In this way, even

in the test of initial center fuzzification and center

deviation, the algorithm can still improve the internal

cluster structure optimization and the accuracy of data

group classification, and get the preliminary clustering

of data.

For the non-independent identically distributed

data points, the K value of the station, walking and

running attitude tags is tested by the sample group.

The total data points are divided into k = 3 data groups,

the initial centroid is fuzzy, the data points can cluster

by themselves through the distance calculation,

constantly screen and calculate the new centroid and

tend to converge, and finally get the expected optimal

center of a clustering. After several iterations, the

fuzzy result of the initial center of the test cluster is

obtained (Fig. 4). From the clustering results, we can

find that the clustering centers of "standing" and

"walking" posture data are concentrated, while the

centers of "running" are relatively diffuse. The main

reason is that "running" posture includes many kinds

of postures such as jogging and sprinting, and the limb

data gap of bone point calculation is relatively large,

so the center is relatively fuzzy.

The test result of the fuzzy initial center of the

cluster is relatively consistent with the data set.

Combined with the result, the center deviation of the

"running" attitude is tested to test the particle

convergence of the "running" attitude data. Through

the distance calculation of outliers, the centroid is

obtained, and then iteratively divided into "run"

clustering data group. The results show that the center

of outliers is evenly divided, and the segmentation line

is generated iteratively in the convergence region of

centroid. The centroid calculation is not necessarily an

actual data point, and the overall trend is good, which

shows that the center deviation of the data set trained

by this method is small.

ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology

656

Figure 17: Initial center obscure test.

Figure 18: Initial center deviation test.

In addition to the hierarchical clustering and K-

means clustering to test the proposed method, we also

make a simple comparison with other literature

methods, intercept part of CASIA data set, and carry

out the attitude recognition comparison experiment

between the algorithms in literature (Gao, 2018) and

(Xu, 2017) and the proposed method. After the test,

the attitude recognition rate is obtained, and the

comparison results are shown in table 3.

Table 3: Comparison of recognition results.

Method Test

cate

Total

number

Recognition

rate

literature

(Xu, 2017)

stan

150 92. 0%

wal

200 82. 5%

run 200 74. 5%

literature

(Gao, 2018)

stan

150 94. 7%

wal

200 89. 5%

run 200 77. 5%

this method stan

150 95. 4%

wal

200 91. 5%

run 200 88. 5%

It can be seen from table 3 that this method not

only improves the recognition efficiency of detecting

multiple poses, but also refines the relationship

between different poses by optimizing the label non

independent identically distributed attributes, which

lays a solid foundation for the application of human

pose and object interaction in actual scenes.

6 CONCLUSION

It is an important development direction of intelligent

security to recognize and speculate human posture

behavior. It has research value whether it is used in

public security applications or private space security

applications. But the method based on human posture

feature extraction needs more preparation, the most

important of which is to enrich and diversify the

human posture feature database. Therefore, we need

to improve the classification efficiency of human

behavior posture, the learning efficiency of machine

and robustness. Therefore, this paper combines

convolutional neural network and clustering

algorithm, C3D Two-Stream, OpenPose human

feature points and skeleton recognition model and

YOLOv4 to improve the efficiency of human pose

label classification, machine learning efficiency and

robustness, and improve the accuracy of target pose.

ACKNOWLEDGEMENT

This paper was supported Guangdong Province

Science and Technology Innovation Strategy Special

Fund Project. The project number: pdjh2020b0779;

And Thank you for the project's financial support for

this study, and thank you for the review of the

organizing committee.

REFERENCES

Chen lifeI, Jiang Qingshan, Wang Shengrui. Method for

determining optimal cluster number based on

hierarchical division [J]. Acta Sinica Sinica, 2008 (01):

62-72.

Chu Binbin. Research and implementation of human

behavior analysis technology based on deep learning

[D]. Southeast University, 2017.

Dong Jiale. Design and implementation of regional

pedestrian flow monitoring platform based on big data

[D]. Beijing Jiaotong University, 2018.

Gao Xiang. Analysis of abnormal behavior of pedestrians

in video surveillance [D]. University of Electronic

Science and technology, 2018.

Gao peitao, Wang Yinhe. New method of image

recognition based on structural balance network [J].

Software guide, 2020, 19 (03): 220-224.

Warning of Target Attitude of Crowd in Closed Area Based on CNN and Clustering Algorithm

657

Hou yuanshao. A new clustering algorithm based on deep

learning [J]. Journal of Xinxiang University, 2018, 35

(12): 21-24.

Jin Di, Liu Jie, Jia Zhengxue, Liu Dayou. Data clustering

algorithm based on K-nearest neighbor network [J].

Pattern recognition and artificial intelligence, 2010, 23

(04): 546-551.

[J / OL]. Computer engineering and application: 1-13

[2021-03-25].

Li Qi, Jiang Shasha. Fusion recognition method of attitude

and object for home security system [J / OL]. Chinese

scientific paper: 1-7 [2021-04-15].

Li Menghe, Xu Hongji, Shi Leixin, Zhao Wenjie, Li Juan.

Multi person behavior recognition based on bone key

point detection [J / OL]. Computer science: 1-8 [2021-

04-03].

Liu lulu. Research on human behavior recognition based on

convolutional neural network [D]. University of science

and technology of China, 2017.

Song Jianlin. Research on improvement of K-means

clustering algorithm [D]. Anhui University, 2016.

Wang C Y, Bochkovskiy A, Liao H Y M. Scaled-yolov4:

Scaling cross stage partial network[C]. Proceedings of

the IEEE/cvf conference on computer vision and

pattern recognition. 2021: 13029-13038.

Wang J B, Li Jun. detection method of human bone key

points based on openpose slim model [J]. Computer

applications, 2019, 39 (12): 3503-3509.

Wang Lin. research on improved object detection algorithm

based on Yolo [D]. Jiangnan University, 2020.

Xu Wentao. Research and implementation of key

algorithms for moving target tracking detection and

recognition [D]. Southeast University, 2017.

Yang Yahu, Wang Yu, Chen Tianhua. Remote video

surveillance abnormal image detection based on deep

learning [J]. Telecommunication technology, 2021, 61

(02): 203-210.

Yu Shengbo. Multi label transfer learning based on sample

differences [D]. Chongqing University, 2016.

ICPDI 2022 - International Conference on Public Management, Digital Economy and Internet Technology

658
