Chatbot-Based Student Information Service in Indonesian Language

I Wayan Suasnawa, I Komang Wiratama, I Ketut Gede Sudiartha, I Gusti Ngurah Bagus Caturbawa,

Anak Agung Ngurah Gde Sapteka and I Nyoman Eddy Indrayana

Department of Electrical Engineering, Politeknik Negeri Bali, Kampus Bukit Jimbaran, Badung, Indonesia

Keywords: Chatbot, Information Service, Rasa Framework, Academic Purpose.

Abstract: Academic services are the most important part in higher education. The services provided by the university

will be a picture of the quality of the institution. Service is said to be of high quality if it meets the needs of

its customers. The demands on higher education today are not only limited to the ability to produce good

graduates measured by academic achievement alone, but the entire service program of higher education

institutions, one of which is the academic services provided to students. Current technological developments

can help universities in making it easier for students to get academic information. To support the need for

accurate and up-to-date information related to academic information, it is possible to utilize an information

technology-based system that can properly summarize data and display the information to students. In this

study, chatbot development can be a solution in providing information and providing academic services.

Chatbot developed using Rasa Core is a chatbot framework or open source chat framework for handling

contextual conversations, used for machine learning-based conversation management. The results of the NLU

evaluation show that the chatbot can understand user questions. This is indicated by a precision value of 0.955,

a recall of 0.962 and an F1-Score of 0.962. Meanwhile, the evaluation of the model has an accuracy of 0.82,

a precision value of 0.85 and an F1-Score of 0.85. This is a benchmark for evaluating chatbot performance in

predicting a good response for users.

1 INTRODUCTION

Academic services are the most important part in

higher education. The services provided by the

university will be a picture of the quality of the

institution. Service is said to be of high quality if it

meets the needs of its customers. The demands on

higher education today are not only limited to the

ability to produce good graduates measured by

academic achievement alone, but the entire service

program of higher education institutions, one of

which is academic services provided to students.

Current technological developments can help

universities in making it easier for students to get

academic information. To support the need for

accurate and up-to-date information related to

academic information, an information technology-

based system is needed that can properly summarize

the data and display the information to students.

Chatbot development can be a solution in providing

information and providing academic services.

Chatbot is a computer program designed to

simulate an interactive conversation or

communication to customers (humans) through the

form of text, voice, and/or visuals. Conversations that

occur between computers and humans are a form of

response from programs that have been declared in

the program database on the computer (Mashud, et

al., 2019). In implementing a chatbot so that the

system can respond dynamically to user queries, the

use of Natural Language Processing plays a very

important role, namely understanding user queries in

natural language. Chatbot which is often known as

Artificial Conversational Entity bot or Chatterbox is

a computer program that is able to imitate human

conversations using the NLP method (Zuraiyah, et al.,

2019).

2 THEORY

2.1 Chatbot

Chatbot technology is one form of application with

Natural Language Processing (NLP), NLP itself is

one of the fields of Artificial Intelligence that studies

Suasnawa, I., Wiratama, I., Sudiartha, I., Caturbawa, I., Sapteka, A. and Indrayana, I.

Chatbot-Based Student Information Service in Indonesian Language.

DOI: 10.5220/0011753800003575

In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 223-227

ISBN: 978-989-758-619-4; ISSN: 2975-8246

223

communication between humans and computers

through natural language (Afrianto, et al., 2019 ).

This application is famous for its automated

conversational agents that run on computer

programming or some kind of Artificial Intelligence

(AI) interaction between the user and the machine

with the intervention of Natural Language

Processing. Chatbots have the potential to be called

the most promising and sophisticated form of human-

machine interaction (Battineni, et al., 2020). NLP has

many purposes that can assist human communication,

such as machine translation and assist human

machine communication, such as with conversational

agents and others (Aleedy, et al., 2019). Chatbot is a

technology whose main purpose is to interact with

human users by processing natural language input and

generating relative output through a rule-driven

machine or artificial intelligence engine (Indrayani, et

al., 2020). Natural language processing uses

tokenizing, filtering, and analysis stages and applies

the knuth morris prrat algorithm (Amrizal, et al.,

2019).

The use of artificial intelligence technology has

made chatbots more advanced, including natural

language processing and machine learning so as to

provide accurate results when interacting with bots

(Ayanouz, et al., 2020). The chatbot developed uses

natural language processing so that the system can

understand user queries in natural language

(Elcholiqi, et al., 2020). Chatbots are able to

communicate with website visitors and chatbots can

be optimized in communication (Herwin, et al.,

2019). From the results of this study it can be

concluded that NLP has unique features with an

excellent communication approach (Shruthi, et al.,

2020). Chatbot application to 10 examiners, the result

of the level of suitability of answers with user input is

84% (Khoirunisa et al., 2020). These findings suggest

that the NLP/ML method can be used to be able to

differentiate stroke features from big data groups for

clinical investigations and related research (Ong, et

al., 2020).

2.2 Natural Language Processing

Natural language processing (NLP) is a programming

technique where computers can understand and

provide output in the form of human language or

simply facilitate communication between humans

and machines. The purpose of NLP is to provide an

appropriate answer or response based on machine

understanding of the meaning of human language

(Herwin, 2019 - Ong, et al., 2007). The use of NLP

has been applied in various fields of human life. This

is because NLP is easier to use as a computer interface

than learning the language of computer commands.

Elements in natural language processing are parser,

lexicon, understander, knowledge base, and

generator. The parser is the part that identifies each

word. Lexicon is a collection of words recognized by

the program. The understander is the part that

determines the meaning of a sentence. Knowledge

base is a knowledge base that contains words and

phrases. Generator is the output that is generated

based on the input that has been processed.

2.3 Rasa.AI Framework

Rasa.ai is an open source machine learning

framework for text-based or spoken intelligent

conversation. Rasa.ai can understand user input, hold

conversations with users and connect with

communication platforms and APIs. Rasa.ai works on

two main components namely Rasa NLU and Rasa

Core. Rasa NLU is an open source natural language

processing tool, used for intent classification and

entity extraction in conversations, then using machine

learning to pick up patterns and generalize to invisible

sentences. Rasa Core is an open source chatbot

framework for handling contextual conversations,

used for machine learning-based conversational

management.

Rasa.ai is an open source machine learning

framework for building AI assistants and contextual

chats. Rasa.ai also has a user interface platform

namely Rasa X. Rasa X is a tool designed for use that

helps software developers to build, improve and

deploy AI assistants supported by the rasa

framework. Rasa.ai works on two main components

namely Rasa NLU and Rasa Core. Rasa Core is an

open source chatbots framework for handling

contextual conversations, used for dialog

management to hold conversations and decide what

to do next. Rasa NLU is an open source natural

language processing tool, used for intent

classification and entity extraction in conversations,

then using machine learning to pick up patterns and

generalize to invisible sentences.

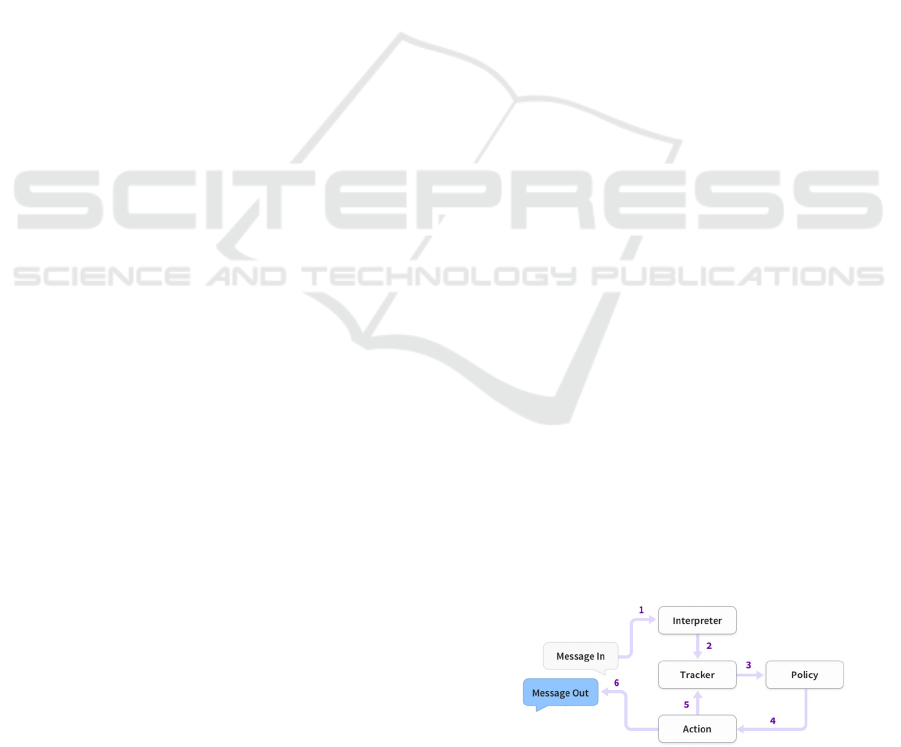

Figure 1: Architecture Message Handling of Rasa.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

224

3 RESEARCH METHODOLOGY

3.1 Data Collection

In this study, a chatbot was developed to provide

information related to questions that are often asked

by students to study program managers. The data

needed to build a chatbot in this study are sample

dialogs and intents. Frequently asked questions by

students are the datasets used to develop Chabot for

academic services. The data contains data on

questions that are often asked by students along with

answers from the study program manager. Before

entering the processing stage, the initial processing of

the question data is carried out, the intent and entity

definitions are carried out. The definition of intent

consists of identifying the name of the intent and

categorizing or labeling the question sentence based

on the name of the intent that has been defined, as

shown in Figure 2. Besides the NLU data as a dataset,

a list of responses or answers that can be given by the

chatbot is also prepared, as shown in Figure 3 .

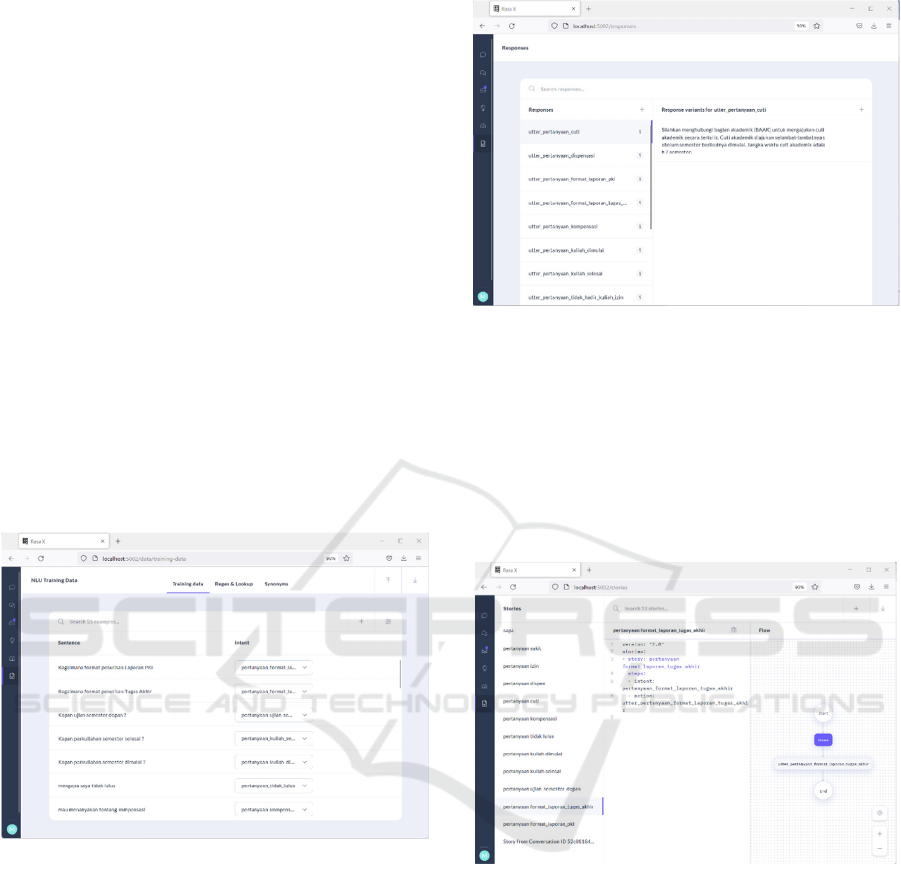

Figure 2: Data NLU.

3.2 Conversation Modeling

Chatbot development requires the preparation of

basic knowledge that represents the domain of the

chatbot. The domain is required as part of the learning

environment of the chatbot. This domain includes

intent types, actions, and sentence templates for

speech responses to user messages. At this stage, the

initial domain design is carried out based on data from

questions that are often asked by students. The

domain specifies the training data that will generate

Figure 3: Data Responses to build dialogs.

the model for the chatbot. The training data for the

chatbot consists of NLU training data and dialogue

training. The quality of this training data can be

continuously improved so as to produce a chatbot

model that can respond well to messages and

information needs from users. This Conversation

Modeling in the Rasa Framework is done by

formulating Rules and Stories.

Figure 4: Conversation Modeling using Stories.

3.3 Interactive Learning

The use of rules and stories provides knowledge for

chatbots to form the required conversation model. To

get more natural conversation results, interactive

learning can be done. With interactive learning will

provide the possibility of variations of questions that

can be given by students. From the variety of

questions, it is expected that the responses given by

the chatbot are also more in line with minimal errors.

This interactive learning process is as shown in

Figure 5.

Chatbot-Based Student Information Service in Indonesian Language

225

Figure 5: Conversation Modeling using Stories.

4 RESULTS AND DISCUSSION

The system chatbot is built according to the Sense

Open Source design and framework. In addition, at

this stage also use Rasa as a tool for developing

conversations with real users. The chatbot

development process on a local computer using Rasa

Open Source consists of the main processes, namely:

framework initialization and configuration, NLU data

definition, chatbot response definition, dialog data

definition, training and testing. The configuration

process involves defining the language type, pipeline

specifications and policies.

The training process uses machine learning

algorithms specified in the policies section. This

section defines the machine learning process that will

be used to process received text messages and

response text messages to users. The chatbot system

is built to serve messages from real users. To that end,

the implementation of the system interface uses Sense

X to assist with model implementation and test live

conversations with users. Users can directly interact

with the chatbot via a link created by the

administrator of Rasa X. Further implementation, the

chatbot system can be connected with other chat

applications such as Telegram and others. The

appearance of a chatbot that shows a human character

can also affect the quality of its implementation.

Before being used by end users, the implementation

of the chatbot should be tested in a local environment,

to ensure that the training process, the resulting model

and the implementation of the system are error free.

At this stage, training data validation is also carried

out to ensure the training data has the correct

structure.

The Open Source Flavor framework has provided

a feature to automatically evaluate the chatbot model.

The types of tests carried out include NLU testing,

dialogue testing and conversation testing by actual

users. The test data comes from conversational data

collected by Rasa and then validated by the system

developer. The conversation data captured by Rasa is

used as the test data needed to execute NLU tests and

dialogs automatically. The test results will generate

reports on the accuracy and precision of chatbot

conversations.

5 CONCLUSIONS

The conclusion of this study is that the creation of a

student information service chatbot has been made by

identifying questions that are often asked by students,

including questions about academic regulations,

lecture implementation, academic guidelines. The

chatbot has been able to work according to the

conversation flow that has been arranged, starting

with an opening message, then students can ask

questions and the chatbot will provide responses

based on the model that has been generated during

training. The results of the chatbot test are carried out

by evaluating the accuracy and precision, it is found

that the rules that have been run have been able to

provide a good response. The results of the NLU

evaluation show that the chatbot can understand user

questions. This is indicated by a precision value of

0.955, a recall of 0.962 and an F1-Score of 0.962.

Meanwhile, the evaluation model has an accuracy of

0.82, a precision value of 0.85 and an F1-Score of

0.85. This is a benchmark for evaluating chatbot

performance in predicting a good response for users.

REFERENCES

Mashud, M., & Wisda, W. (2019). Aplikasi Chatbot

Berbasis Website sebagai Virtual Personal Assistant

dalam Pemasaran Properti. Inspiration: Journal

Teknologi Informasi Dan Komunikasi, 9(2), 99.

Zuraiyah, T. A., Utami, D. K., & Herlambang, D. (2019).

Implementasi Chatbot pada Pendaftaran Mahasiswa

Baru Menggunakan Recurrent Neural Network. Journal

Ilmiah Teknologi Dan Rekayasa, 24(2), 91–101.

Afrianto, I., Irfan, M. F., & Atin, S. (2019). Aplikasi

Chatbot Speak English Media Pembelajaran Bahasa

Inggris Berbasis Android. Komputika: Jurnal Sistem

Komputer, 8(2), 99–109.

Battineni, G., Chintalapudi, N., & Amenta, F. (2020). AI

Chatbot Design during an Epidemic like the Novel

Coronavirus. Healthcare, 8(2), 154.

Aleedy, M., Shaiba, H., & Bezbradica, M. (2019).

Generating and Analyzing Chatbot Responses using

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

226

Natural Language Processing. International Journal of

Advanced Computer Science and Applications, 10(9).

Indrayani, L. ., Amalia, R. M., & Hakim, F. Z. M. (2020).

Emotive Expressions on Social Chatbot. Jurnal

Sosioteknologi, 18(3), 509.

Amrizal, V., Munandar, A., &Arini, A.-. (2019).

Identifikasi Matan Hadits Menggunakan Natural

Language Processing Dan Algoritma Knuth Morris

Pratt Berbasis Web. Journal CoreIT: Jurnal Hasil

Penelitian Ilmu Komputer Dan Teknologi Informasi,

5(2), 56.

Ayanouz, S., Abdelhakim, B. A., & Benhmed, M. (2020).

A Smart Chatbot Architecture based NLP and

Machine Learning for Health Care Assistance.

Proceedings of the 3rd International Conference on

Networking, Information Systems & Security.

Elcholiqi, A., & Musdholifah, A. (2020). Chatbot in

Bahasa Indonesia using NLP to Provide Banking

Information. IJCCS (Indonesian Journal of Computing

and Cybernetics Systems), 14(1), 91.

Herwin, H. H. (2019). Super Agent Chatbot “3S” Sebagai

Media Informasi Menggunakan Metoda Natural

Language Processing(NLP). Jurnal Teknologi Dan

Open Source, 2(1), 53–64.

Shruthi J., Suma Swamy. (2020). A prior case study of

natural language processing on different domain.

International Journal of Electrical and Computer

Engineering (IJECE), 10(5), 4928.., & Swamy, S.

(2020). A prior case study of natural language

processing on different domain. International Journal

of Electrical and Computer Engineering (IJECE),

10(5), 4928.

Khoirunisa, R. (2020). Penggunaan Natural Language

Processing Pada Chatbot Untuk Media Informasi

Pertanian. Indonesian Journal of Applied Informatics,

4(2), 55.

Ong , C. J., Orfanoudaki, A., Zhang, R., Caprasse, F.

P.M., Hutch, M., Ma, L., ... Bertsimas, D. (2020).

Machine learning and natural language processing

methods to identify ischemic stroke, acuity and

location from radiology reports. PLOS ONE, 15(6).

Chatbot-Based Student Information Service in Indonesian Language

227
