Construction of Art Network Training Platform Based on Streaming

Media Technology

Peng Zhang

Linyi Vocational College, Shandong Linyi, 276000, China

Keywords: Streaming Media, Ffmpeg, Network Training, Art Teaching.

Abstract: With the development of Internet communication technology, multimedia transmission technology is

becoming more and more mature, and streaming media technology is emerging. This paper makes use of the

characteristics of high flexibility and real-time of streaming media, and develops an art network training

platform based on streaming media technology. The streaming media function of the platform is developed

by ffmpeg software, which realizes the process of encoding, decapsulating, pushing flow, decoding and

pulling flow in the process of live broadcast. The architecture of Nginx+RTMP+Module is selected for the

construction of streaming media server, and Flash is used for the player. The platform is developed in JAVA

language, and SSH is used as the functional development framework. The key point of this system is that

students can study and practice interaction with teachers, with emphasis on practical operation. Streaming

media network training can avoid the limitation of time and space in theoretical courses after class or offline

studio exercises, and can also adapt to the education and teaching in the current epidemic environment.

https://orcid.org/0000-0002-8292-6696

1 INTRODUCTION

With the rapid development of network technology,

educational methods are changing with each passing

day. With the improvement of people's material

living standard, the promotion of art cultivation has

become a new pursuit of more and more people. Art

teaching also began to gradually increase the use of

network information technology for optimization

and reform. Students have a terminal for receiving

online information, and online art teaching has the

conditions to integrate into daily life and study. All

kinds of information of art resources are widely

spread on the Internet, but at the same time, there are

problems of clutter and fragmentation. Students'

access to art resources is prone to confusion, which

makes it difficult for students to form systematic and

structured cognition in art learning, and it is not

helpful to solve the problems encountered in art

learning. Moreover, the network resources are

intermingled and complicated, which makes students

easily fall into bad aesthetic information. It can be

seen that the knowledge absorption efficiency of

online art resources learning without professional

guidance is not high. (Wan, 2019)

In order to solve the above problems, the author

of this paper believes that an art network training

platform based on streaming media technology

should be developed. By using streaming media,

students' learning state can be improved, and with

real-time professional guidance, the most direct

answers can be given to the problems that are

difficult to solve. The system has an art resource

database and is carefully selected by professional

teachers, which avoids the uneven level of students'

selection of art resources and effectively improves

students' artistic aesthetic quality. After testing,

compared with the traditional streaming media

system, this system has the advantages of wide

application scenarios, low power consumption,

reliable transmission, etc. This system is effectively

applied in the art training industry, which can

improve the learning efficiency of students in

learning art knowledge and improve the teaching

quality of teachers.

408

Zhang, P.

Construction of Art Network Training Platform Based on Streaming Media Technology.

DOI: 10.5220/0011912900003613

In Proceedings of the 2nd International Conference on New Media Development and Modernized Education (NMDME 2022), pages 408-413

ISBN: 978-989-758-630-9

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2 TECHNICAL SUMMARY

2.1 Web

Web technology is the technology that enables

Internet users to browse web content in browser

window, and adopts the architecture of B/S

browser/server. Its realization is that the user sends

the operation instruction request to the server

through the browser on the computer system, then

the server responds to the customer's request, and

finally returns the request result to the web page

browsed by the user. Web architecture consists of

three parts, and the composition diagram is shown in

Figure 1. Web server refers to the storage point that

provides users with the resources needed to access

Web pages and provides related functions, which is

also called a website. The construction of a server

usually consists of front-end and back-end. The

front-end is usually built by VUE or this react

software, and the front-end development language is

a combination of HTML+CSS+JS. Back-end

development is Apache+tomcat to form a connector

and container. The connector and the client are

connected by HTTP protocol, and sometimes the

container needs the help of remote software to

provide related functions. Secondly, it needs a

database server to store the required data. The

second part refers to the client. Users need to access

web pages through the client. Currently, the most

commonly used clients on the market include

browsers, mobile apps and applets. The third part

refers to the communication protocol. The client and

the server need to communicate by the

communication protocol, such as HTTP Hypertext

Transfer Protocol, and HTTP is the cornerstone of

the communication between the browser and the

web server in the client. In addition to the three

parts, it is necessary to introduce a new concept, that

is, URL Uniform Resource Locator. URL is used to

represent server information, and the client can

connect to the corresponding server terminal through

URL. (Wang, 2019)

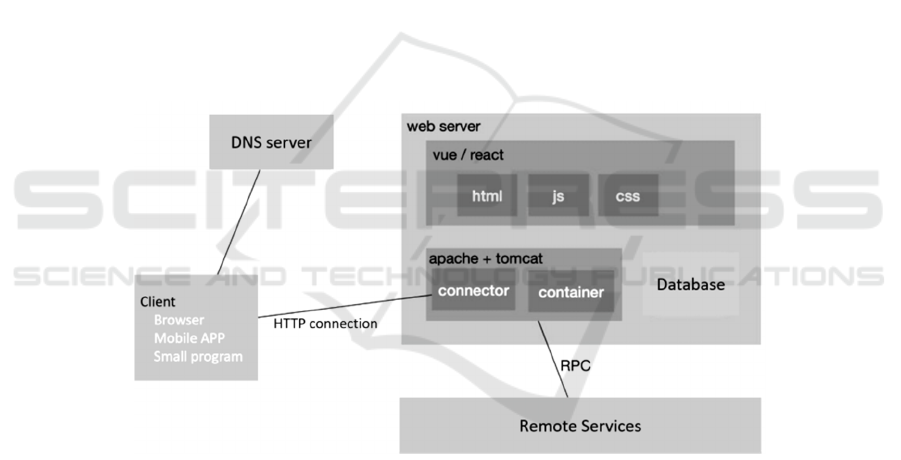

Figure 1: Web composition

2.2 FFmpeg

FFmpeg is an open-source application that is

specially designed to convert digital multimedia

audio and video files into data streams recognizable

by the server. It can not only encode and decode

audio and video files, but also be a suite for

developing audio and video decoding. Ffmpeg

provides a large number of audio and video calling

interfaces for streaming media developers. The main

workflow of Ffmpeg can be roughly divided into

four steps. The first step is to read the information of

the input source and parse the audio and video

encapsulation formats by calling libavformat

interface. The second step is to decode each frame of

audio and video files, which is provided by

libavcodec. The third step is to convert the

parameter coding of audio and video data of each

frame. The fourth step is to repackage the audio and

video data files and then output them to the target.

The main functional components used in this process

are shown in Table 1. (Zhao, 2021)

Construction of Art Network Training Platform Based on Streaming Media Technology

409

Table 1: Main functional components of FFMPEG

Name Function

libavformat It can generate and parse the packaging formats of various multimedia files, mainly composed

of demuxers video

arse

muxe

video generator.

libavcondec I

encodes an

decodes various audio an

video multimedia files.

libavutil It is a full-featured public tool library, such as the codec of base64, the encryption and

decryption device of DES.

libswscale Video format conversion, such as scene scale adjustment and color mapping adjustment, can

also conver

RGB to YUV format.

2.3 MySQL Database

MySQL is a database management system launched

by Apache Foundation, which has the characteristics

of small size, open source data, relational and so on.

It is these characteristics that make mysql widely

used in the development of various small and

medium-sized web by developers. Besides, it has the

characteristics of fast running, small size and low

cost, which are loved by developers. And the

community version of mysql can also be compatible

with other server software, so as to jointly form an

expandable development environment, which is

more conducive to the development and

maintenance of programs. The operating languages

of MySQL are C language and C++ language, and

different compilers can be used to test the system.

This function can greatly enhance the portability of

source code, so MySQL has the feasibility of

running under various operating systems, and also

provides an API for various software system

development languages. These programming

languages include Python, PHP, perl, Ruby, Java

and so on. MySQL can make full use of all kinds of

CPU resources and realize multi-thread operation.

Moreover, the SQL statements used in MySQL have

the functions of adding, deleting, modifying and

querying, and the algorithm is simple and easy to

use, which can greatly improve the efficiency of the

system query engine. The ways and means of

connecting MySQL with other system development

software also have diversified characteristics. JDBC

is the most commonly used interface, besides ODBC

and TCP/IP. MySQL supports diversified storage

engine modes. Even in the case of large databases,

MySQL can still successfully complete tasks such as

data optimization, inspection and management, and

has strong data processing capability. (Jiang, 2020)

2.4 Development Environment

The development environment of online art training

platform is divided into two aspects: streaming

media environment and web programming

environment. This system uses streaming media

technology to realize the live video function in the

training platform. The operating system of this

system is Linux cent os7 version. The streaming

media server is developed with the framework of

Nginx+RTMP+Module, and the development

software is FFmpeg. The version of Nginx is 1.7.3.

The audio and video sources are acquired by ffmpeg

and pushed to the server. RTMP module is deployed

on Nginx to realize the forwarding of streaming

media data. Then it is configured by the RTMP

server. The functions of the client use JWplayer and

build Flash player to complete streaming,

decapsulating video, decoding and completing

audio-video synchronization, so as to realize real-

time playback. The main steps to build the

Nginx+RTMP server are to download and install the

Nginx compressed package and the RTMP

compressed package first, then configure the

installation options of Nginx and compile Nginx. On

the basis of the default configuration of Nginx, add

the RTMP third-party module with the add-module

command and finally use it. /Nginx command to

start nginx. The code implementation is shown in

Figure 2. (Xiao, 2020)

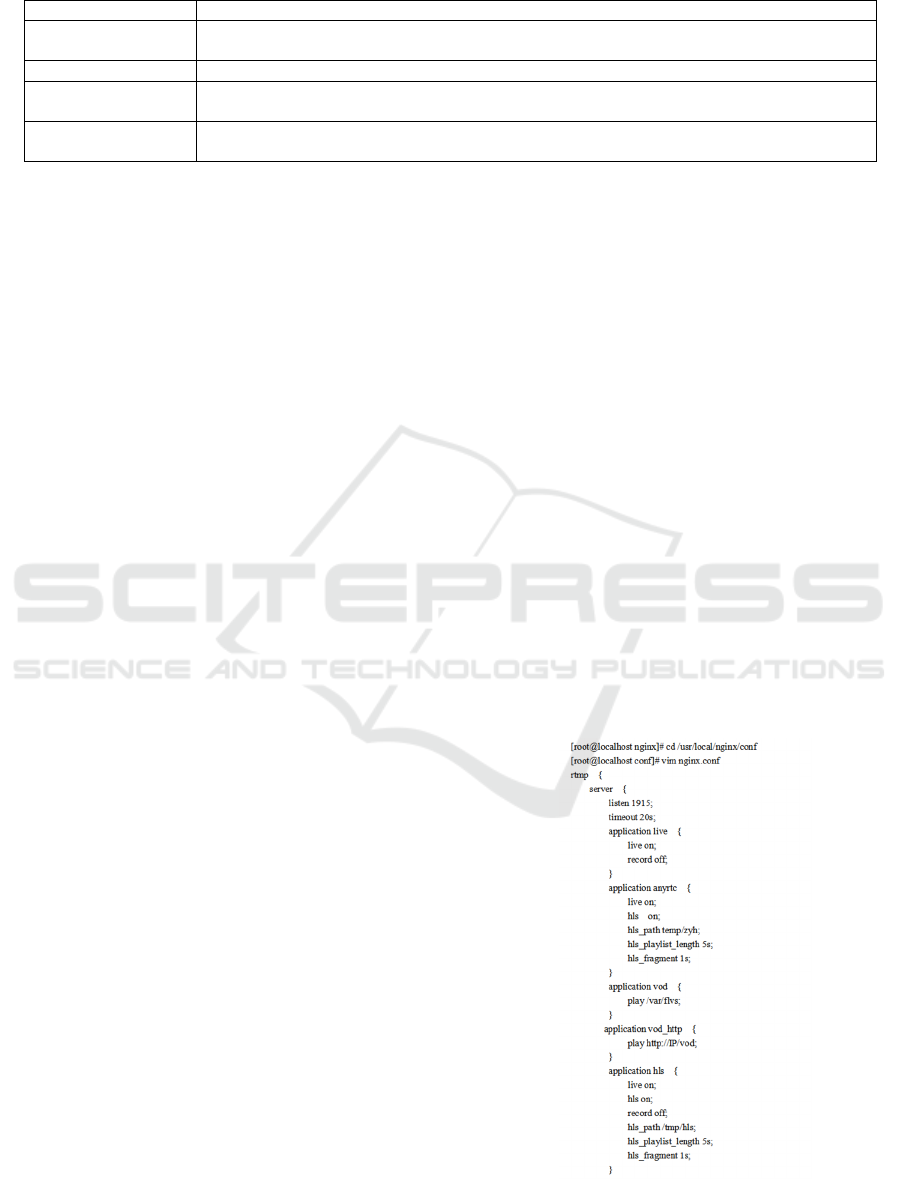

Figure 2: NGINX+RTMP server deployment code

NMDME 2022 - The International Conference on New Media Development and Modernized Education

410

The web application building environment of this

system is divided into front-end and back-end. The

front-end VUE.js tool is used for development, and

the front-end development language is a

combination of HTML+CSS+JS. Back-end

development is to use Apache tomcat to build a

server, the development tool is

struct2+spring+hibernate, and the development

language is Java. The database server chooses the

relational database MySQL to complete the

construction of dynamic web pages. Through the

introduction of the above key technical theories, the

overall environment of the system development, the

configuration of related software and tools are

determined, and the technical feasibility of the

overall project of the art network training platform

based on streaming media technology is also

clarified.

3 REQUIREMENT ANALYSIS

3.1 Function Requirement

According to the research on the target groups of art

teaching, this paper sets up two user ports: teacher's

client and student's client, according to the different

needs of different groups. The main functional

modules of the system include four key modules:

online live teaching, extracurricular supplement,

homework and teacher-student communication. In

this system, students can learn the prescribed tasks

in class, complete the homework reserved by

teachers, and submit the homework by uploading

scanned pictures. Teachers need to record the live

course content through the system combined with

external microphones, cameras and other hardware,

select appropriate multi-category art teaching video

courses such as Chinese painting, sketch and oil

painting and upload them to the extracurricular

supplementary modules of the system to help

students improve their art literacy and aesthetics.

Combined with the students' homework completion,

after-class Q&A and live classroom barrage,

teachers can judge students' learning efficiency and

situation, further adjust and optimize teaching

methods. (Lu, 2018)

3.2 Overall Design

The design of art network training platform based on

streaming media technology adopts B/S architecture

and Java network programming technology to

realize the control function of the system. The main

function of this system is the live teaching function,

which is designed in three aspects: coding end,

streaming media server end and player end. The

coding end mainly realizes the collection of audio

and video resources, encodes, compresses and

encapsulates the resources, and finally pushes the

packaged packets to the server to realize the coding

degree and the data interaction of the streaming

media server. At the coding end, the data is sent out

by using the related methods of FFMpeg

encapsulation, and the data packets are transmitted

in the form of RTP real-time data stream. The main

function of streaming media is to receive data

packets and distribute them to other clients, and to

complete the real-time transcoding in this process.

The player finishes streaming, decapsulating video,

decoding and completing audio-video

synchronization, so as to realize real-time playback,

which is displayed on the user's webpage. The

playback method uses the data stream playback

method in SDL library. The real-time transmission

and reception of streaming media data between

teachers and students is mainly realized by RTP

protocol and FFmpeg technology. The operation

instruction transmission between clients is realized

by the related methods of socket class. (Dai, 2018)

4 FUNCTION REALIZATION

The main functional modules of the art network

training platform system based on streaming media

technology include four key modules: online live

teaching, extracurricular supplement, after-class

homework and teacher-student communication. The

core function of the system is the live course

module. After students log in to the system through

their account numbers and passwords, they can see

the art teaching courses displayed by teachers in real

time when they enter the live class of the system

within the specified time. During the teaching

demonstration of teachers' art skills, students can

send barrage to express their views and questions in

real time, and teachers can directly answer questions

in live class. The workflow of the live broadcast

module of the system is shown in Figure 3. The RTP

protocol dialogue is established in the audio playing

interface and the video playing interface

respectively, and RTP is used to monitor the audio

and video data streams so as to receive them in time.

After receiving the audio and video data stream, the

player can obtain RTP audio and RTP video. The

client player needs to integrate audio and video

into audio and video data source, then clone this data

Construction of Art Network Training Platform Based on Streaming Media Technology

411

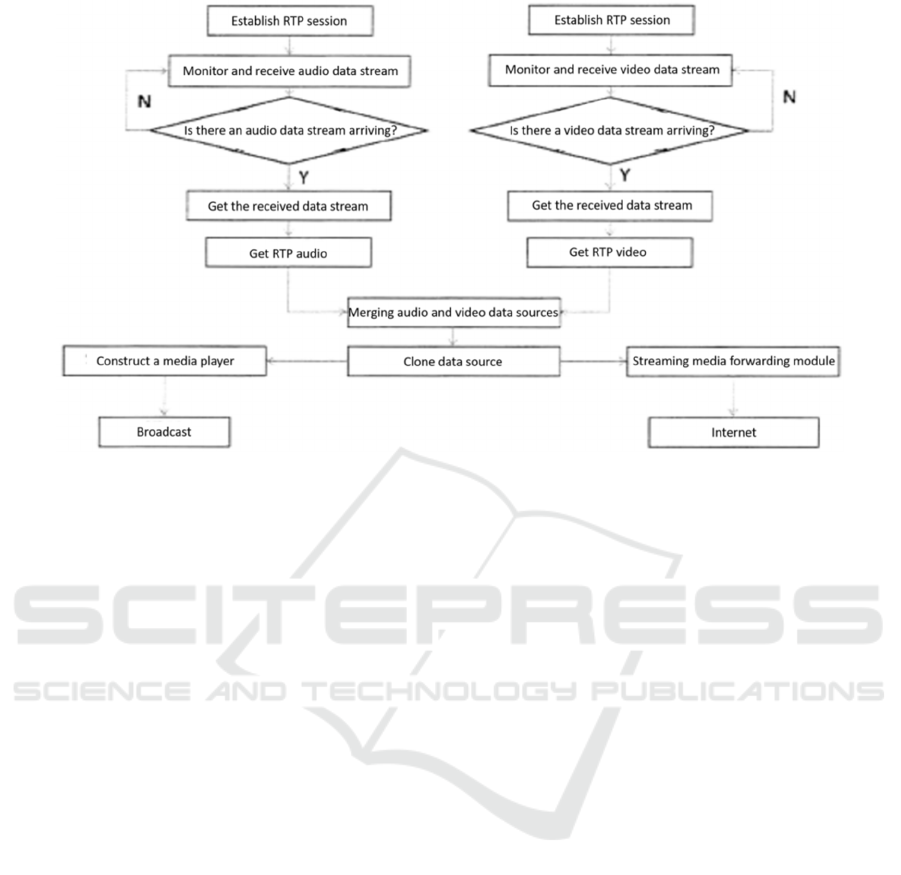

Figure 3: Workflow of streaming media live broadcast module

source, and play it through the streaming media

forwarding module to the Internet network. (Tao,

2021)

Teacher end can choose two ways to upload

some resources for extracurricular learning. One is

to upload the downloaded files to the system. The

other is to upload the link address of an external

website, but students will automatically jump to the

page where the link is located to watch it when

playing the video. The video upload function uses

the avformat open_ input function, which can

provide the path of file upload and determine the file

format, and then select the appropriate demuxer

package format. While the function for playing the

external chain video uses the avformat find_ stream_

info function. This function can fill in the metadata

information of all stream data and automatically find

the corresponding decoder. The read_packet ()

function is used for decoding. To improve the

efficiency of accessing external network resources,

three variables of this function can control the length

of decoded data to improve the efficiency, namely

probe size, max_ analyze_duration and fps.

_probe_size. (Tao, 2021)

5 CONCLUSIONS

This paper analyzes the web technology, ffmpeg

technology and database technology needed for the

design of the art online training platform based on

streaming media technology, and makes a detailed

and systematic introduction to the workflow of

ffmpeg in live streaming media system, and

elaborates the streaming media function of server

and client and the design and implementation of web

presentation respectively. Due to my lack of ability

and limited time and space, the system is still

lacking in function. It is hoped that related workers

will improve it and further promote the reform

process of the art online education industry.

REFERENCES

Dai Wenjiao (2018). Research on Stable Application

Layer Multicast Streaming Media Live Broadcast

System Based on FFMpeg. Central China Normal

University.04.

Jiang Qingyan (2020). Application of Information

Technology in Art Teaching in Primary Schools.

Information Technology Education.02.

Lu Jiarong (2018). Practical Research on the Application

of Network Information Resources in Art Classroom

Teaching. Fine Arts.07.

Lv Hao (2019). Design and Implementation of Embedded

Streaming Media System Based on RTMP Protocol.

Beijing University of Posts and

Telecommunications.06.

Tao Kuiyin (2021). Design and Implementation of Live

Education System Based on FFmpeg. Dalian

University of Technology.06.

Wang Shan (2019). Exploration of College Art Teaching

under the Information Environment. Fine Arts.06.

NMDME 2022 - The International Conference on New Media Development and Modernized Education

412

Wan Meifen (2019). Research on Teaching Application

and Importance of Streaming Media Technology in

College Campus Network. Wireless Internet

Technology.05.

Xiao Lijun (2020). Application of Mobile Internet

Platform in Art Teaching in Colleges and Universities.

Journal of Shaoyang University.05.

Zhao Jianshe (2021). Research on the Teaching Methods

of Art Education in Normal Universities under the

Background of Network Times. Journal of Qiqihar

Junior Teachers' College.06.

Construction of Art Network Training Platform Based on Streaming Media Technology

413
