TND-NAS: Towards Non-Differentiable Objectives in Differentiable

Neural Architecture Search

Bo Lyu

and Shiping Wen

School of Computer Science and Engineering, University of Electronic Science and Technology of China, Chengdu, China

Australian AI Institute, Faculty of Engineering and Information Technology, University of Technology Sydney,

Ultimo 2007, Australia

Keywords: Neural Architecture Search, Reinforcement Learning, Non-Differentiable, Supernetwork

Abstract: Differentiable architecture search has gradually become the mainstream research topic in the field of Neural

Architecture Search (NAS) for its high efficiency compared with the early heuristic NAS (EA-based, RL-

based) methods. Differentiable NAS improves the search efficiency, but no longer naturally capable of

tackling the non-differentiable objectives. Researches in the multi-objective NAS field target this point but

requires vast computational resources cause of the individual training of each candidate architecture. We

propose the TND-NAS, which discretely sample architectures based on architecture parameter α (without

sampling controller), and directly optimize α by policy gradient algorithm. Our representative experiment

takes two objectives (Parameters, Accuracy) as an example, we achieve a series of high-performance compact

architectures on CIFAR10 (1.09M/3.3%, 2.4M/2.95%, 9.57M/2.54%) and CIFAR100 (2.46M/18.3%,

5.46M/16.73%, 12.88M/15.20%) datasets.

1 INTRODUCTION

Neural Architecture Search (NAS) aims at alleviating

the tremendous labor of manual tuning on neural

network architectures, which has facilitated the

development of AutoML (Guo et al., 2021; Stamoulis

et al., 2020; He e t al., 2021). Recently, under the fast-

growing in this area, NAS models have surpassed

previous manually designed models in various

research fields. As an intuitive method,

Reinforcement Learning (RL) based NAS (Zoph and

Le, 2017) employs the RNN controller to sample the

architecture (represented by sequential indices), and

the validation accuracy of each candidate architecture

is viewed as the reward for policy gradient

optimization.

By continuous relaxation of the search space,

differentiable NAS researches make the loss function

differentiable w.r.t architecture weights, thus the

search can be processed directly by gradient-based

optimization. Even with high search efficiency,

differentiable NAS research rarely involves non-

https://orcid.org/0000-0003-1595-8361

https://orcid.org/0000-0001-8077-7001

differentiable objectives, e.g., energy, latency, or

memory consumption.

Parallel to the explosive development of the

differentiable NAS sub-field, the multi-objective

NAS methods (MnasNet (Tan et al., 2019), DPP-Net

(Dong et al., 2018)) dedicate to searching for the

neural architectures in discrete space with the

consideration of multi-dimensional metrics,

including differentiable and non- differentiable ones.

MNAS methods rely on the heuristic search strategy

such that the computational overhead is huge.

Our method relies on the differentiable NAS as

the main search framework, in which candidate

operations are progressively eliminated base on the

architecture parameters α after each stage of the

search, meanwhile, the depth of the model is

increased gradually (Chen et al., 2019), by which

means to tackle the “depth gap”. Our contributions

may be summarized as follows:

1)TND-NAS methods is capable to tackle the

non-differentiable objectives under the differentiable

search framework, that is, with the merits of high

Lyu, B. and Wen, S.

TND-NAS: Towards Non-Differentiable Objectives in Differentiable Neural Architecture Search.

DOI: 10.5220/0011917300003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 177-181

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

177

efficiency in differentiable NAS and the objective

compatibility of multi-objective NAS.

2)Through flexible and customized search

configurations, the visualization of architecture

evolving during the search process shows that our

method can reach the trade-off among differentiable

and non-differentiable metrics.

2 RELATED WORK

RL/EA-based NAS. Traditional architecture search

methods start from employing Evolutionary

Algorithm (EA) as the search strategy [8](Stanley and

R. Miikkulainen, 2002; Sun et al., 2019; Sun et al.,

2020; Real et al., 2019; Liu et al., 2017; Lu et al.,

2019; Han et al., 2021; Li et al., 2021) (Wang et al.,

2021). In these works, high-performing network

architectures are mutated, and less promising

architectures are discarded. Recently, the significant

success of RL- based NAS is first reported by (Zoph

and Le, 2017; Zoph et al., 2018). ENAS (Pham et al.,

2018) comes in the continuity of previous works

(Zoph and Le, 2017; Zoph et al., 2018), it proposes

the weight sharing strategy to significantly improve

the searching efficiency. Overall, the RL/EA-based

NAS methods heuristically search the architecture

over a discrete domain and suffer from the efficiency

issue.

Differentiable NAS. By continuous relaxation of the

search space, DARTS (Liu et al., 2019) constructs the

supernetwork by mixed-edge operation, the task of

architecture search is treated as learning a set of

continuous architecture parameters. DARTS and the

followed works also suffer from the high GPU-

memory overhead issue (Xu et al., 2021), which

grows linearly w.r.t. candidate-set size. As a result,

these works have to search with only a few blocks

(cells), but evaluate the architecture with more blocks

stacked, which undoubtedly brings in the “depth gap”

issue (Chen et al., 2019) (Xie et al., 2021).

3 METHODOLOGY

3.1 Preliminary

In differentiable NAS method, to make the search

space continuous, the operation in specified location

is characterized by all candidate operations:

𝑜̅

(,)

(𝑥) =

∑

∈𝒪









(,)



∑





∈𝒪











(,)



𝑜(𝑥) (1)

According to the customs, under the differentiable

supernetwork framework. Obviously, the task of

architecture search then is to learn a set of vectors.

Thus the search procedure is formulated as a bilevel

optimization problem as the upper-level variable and

weight parameter as the lower-level variable:

𝑚𝑖𝑛



ℒ

val

(

𝑤

∗

(𝛼),𝛼

)

s.t. 𝑤

∗

(𝛼) = arg 𝑚𝑖𝑛



ℒ

train

(𝜔,𝛼)

(2)

To effectively solve this bilevel optimization

problem, DARTS approximates the solution by

alternate optimization.

3.2 Search Method

Our evaluation acceleration scheme follows the

weight-sharing differentiable NAS, in which the sub-

networks inherit the weight from the supernetwork.

Importantly, the architecture parameters are not

directly trained by gradient descent with

differentiable loss function (cross-entropy loss), but

rather treat as the sampling policy, which is trained

by policy gradient algorithm (REINFORCE

(Williams et al., 1992)) in discrete space, which

follows the non-differentiable route. In terms of the

weight parameters training, weight parameter is

optimized by the gradient descent of cross- entropy

loss:

𝜔

∗

(𝛼) = arg𝑚𝑖𝑛



ℒ

train

(𝜔,𝛼) (3)

In terms of the architecture sampling, for each

index, the binary vector is sampled by multinominal

distribution by probability vector.

𝑝

(,)

=softmax 𝛼

(,)

 (4)

𝑔

(,)

∼Multi 𝑝

(,)

,1 (5)

the sub-network structured by inheriting the

supernetwork's weights:

𝑁



=𝒜

(

𝑔



)

(6)

where N stands for the sub-network.

ISAIC 2022 - International Symposium on Automation, Information and Computing

178

To optimize the policy architecture parameters,

we empirically resort to the policy gradient algorithm

(REINFORCE), the gradient of policy architecture

parameters is estimated based on the reward of

discretely sampled architectures, that is:

∇



𝒥

val

(𝛼) = 𝔼

∼



()



𝑅

val

(

𝜔

∗

,𝑁

)

∇



log

(

𝜋



(𝑁)

)



≈





∑





(

𝑅

val

(

𝜔

∗

,𝑁



)

−𝑏

)

∇



log 𝜋



(

𝑁



)



(7)

Apparently, in terms of performance, the most

common metric Accuracy can be directly employed

as a reward. Much more attention needs to be

addressed to the multi-objective scenario, in which

the reward function needs to be designed based on

real-world requirements. For example, resource-

constrained scenarios need the trade-off between

performance and efficiency, e.g., memory

consumption, or inference latency. Motivated by

Mnasnet[5], taking the Accuracy and Parameters as

the objectives, we make the reward be linearly w.r.t

Accuracy, but non-linearly w.r.t Parameters, which is

treated as a reward-penalty factor in the non-linearly

scalarization function:

𝑅= Acc ⋅

Params







(8)

Table 1: Hyper-parameters of search.

Table 2: Hyper-parameters of evaluation on CIFAR10 and

CIFAR100.

4 EXPERIMENTS

Our search processes are conducted on 2 popular

image classification datasets, CIFAR10 and

CIFAR100. During the search procedure, we keep the

training set split into two equal-size subsets, one for

weight parameters training and the other for

architecture parameter validation.

4.1 Architecture Search

The search experiment is performed with PyTorch 1.4

framework on 2 NVIDIA 1080Ti GPUs that each

with 11GB memory. Our search hyper-parameters are

presented in Table 1.

The visualization of our searched model

(CIFAR10-S, under compression configuration for

small-scale model) is shown in Fig.1(a), in which

normal cell is in Fig.1(a), and reduction cell is in

Fig.1(b). The nodes represent the feature maps (FMs),

and edges stand for the connection that implemented

by the searched operation.

Figure 1: The searched result (CIFAR10-S) of TND-NAS.

The Parameters of this architecture is 1.09M with 16 initial

channels.

4.2 Architecture Evaluation

To evaluate the searched architectures, we randomly

initialize its weights, train it from scratch, and report

its performance on the test set. To be notice that the

test set is blind for the architecture search or

architecture training.

TND-NAS: Towards Non-Differentiable Objectives in Differentiable Neural Architecture Search

179

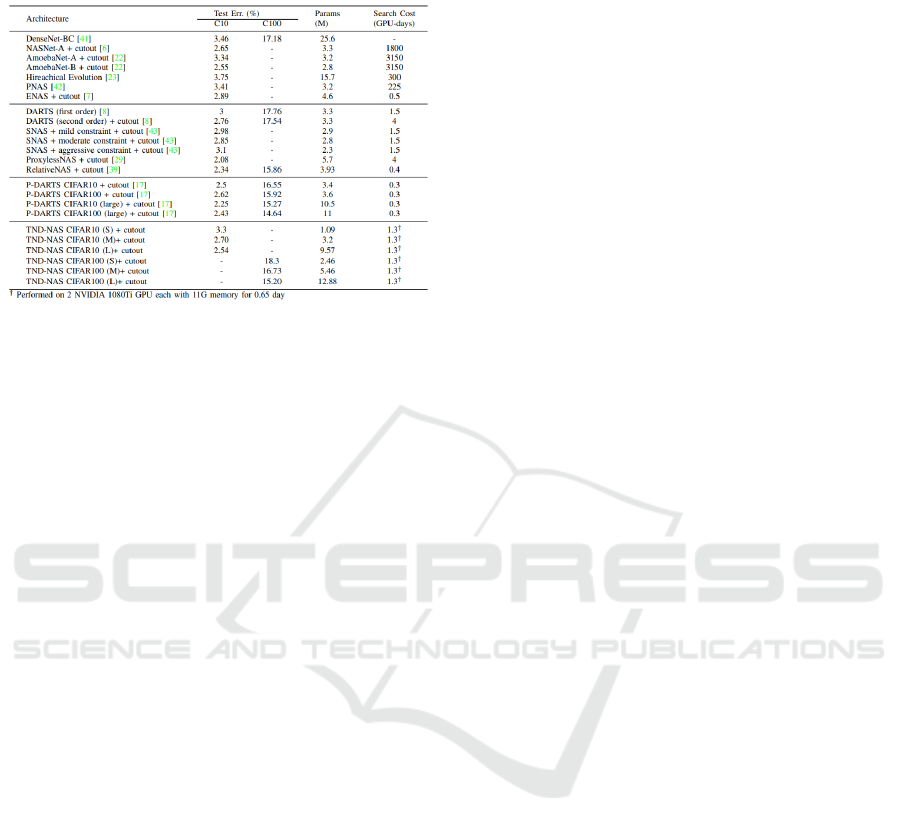

Table 3: Comparison of the evaluation results on CIFAR10

and CIFAR100.

Our evaluation on CIFAR10/CIFAR100 follow

the experimental training setting in P-DARTS,

hyperparameters setting is shown in Table 2.

For comparison, some state-of-the-art approaches

are reported in Table 3, including the manually

designed models and outstanding NAS models. Our

experiment reaches a series of models on CIFAR10:

extremely compact model (S) of 3.3% test error with

1.09M Parameters, moderate model (M) of 2.7% with

3.2M Parameters, and large model (L) of 2.54% with

9.57M Parameters, which has shown the flexibility of

TND-NAS. Our search experiment on CIFAR100

also achieves the promising results: 18.3% test error

with 2.46M Parameters (S), 16.73% with 5.46M

Parameters (M), 15.2% with 12.88M Parameters (L).

As demonstrated, TND-NAS is comparable with the

P-DARTS, but much more diversified in model scale.

4.3 Search Cost Comparison

TND-NAS costs merely 0.65 days on 2 NVIDIA

1080Ti GPUs, each with only 11G memory.

Compared with previous promising multi-objective

NAS methods, our method achieves a substantial

improvement in search resource cost, 1.3 GPU-days,

that is 1/6 of that in NSGA-Net(Lu et al., 2019).

5 CONCLUSIONS

This work incorporates the differentiable NAS

framework with the capability to handle non-

differentiable metrics and aims to reach the trade-off

between non-differentiable and differentiable

metrics.

Meanwhile, our method reconciles the merits of

multi-objective NAS and differentiable NAS, and it

is feasible to the applied in real-world NAS scenarios,

e.g., resource-constrained, and platform-specialized.

Taking the Parameters for instance, by multi-

objective search, we achieve a series of scalable

models (S, M, L) that are comparable to the state-of-

the-art NAS approaches on CIFAR10/CIFAR100

datasets. There also exist some limitation of our

method: First, our representative experiments do not

include some other non-differentiable metrics, e.g.,

Inference latency. Second, while the gaps and non-

differential metrics issues have been addressed, the

employed optimization approach that is based on

sampling in discrete space inevitably leads to a

greater computational cost than the pure

differentiable NAS method.

REFERENCES

Y. Guo, Y. Luo, Z. He, J. Huang, and J. Chen, “Hierarchical

neural architecture search for single image super-

resolution,” IEEE Signal Processing Letters, vol. 27,

pp. 1255–1259, 2020.

D. Stamoulis, R. Ding, D. Wang, D. Lymberopoulos, B.

Priyantha, J. Liu, and D. Marculescu, “Single-path

mobile automl: Efficient convnet design and nas

hyperparameter optimization,” IEEE Journal of

Selected Topics in Signal Processing, vol. 14, no. 4, pp.

609–622, 2020.

X. He, K. Zhao, and X. Chu, “Automl: A survey of the

state-of-the-art,” Knowledge-Based Systems, vol. 212,

p. 106622, 2021.

B. Zoph and Q. V. Le, “Neural architecture search with

reinforcement learning,” in International Conference on

Learning Representations, 2017, pp. 1–16.

M. Tan, B. Chen, R. Pang, V. K. Vasudevan, M. Sandler,

A. Howard, and Q. V. Le, “Mnasnet:platform-aware

neural architecture search for mobile,” in Proceedings

of the IEEE Conference on Computer Vision and

Pattern Recognition, 2019, pp. 2820–2828.

J.-D. Dong, A.-C. Cheng, D.-C. Juan, W. Wei, and M. Sun,

“Dpp-net: Device-aware progressive search for pareto-

optimal neural architectures,” in Proceedings of the

European Conference on Computer Vision, 2018, pp.

540–555.

X. Chen, L. Xie, J. Wu, and Q. Tian, “Progressive

differentiable architecture search: Bridging the depth

gap between search and evaluation,” in Proceedings of

the IEEE/CVF International Conference on Computer

Vision, 2019, pp. 1294–1303.

P. J. Angeline, G. M. Saunders, and J. B. Pollack, “An

evolutionary algorithm that constructs recurrent neural

networks,” IEEE transactions on Neural Networks, vol.

5, no. 1, pp. 54–65, 1994.

K. O. Stanley and R. Miikkulainen, “Evolving neural

networks through augmenting topologies,”

Evolutionary computation, vol. 10, no. 2, pp. 99–127,

2002.

ISAIC 2022 - International Symposium on Automation, Information and Computing

180

Y. Sun, B. Xue, M. Zhang, and G. G. Yen, “Evolving deep

convolutional neural networks for image classification,”

IEEE Transactions on Evolutionary Computation, vol.

24, no. 2, pp. 394–407, 2019.

Y. Sun, B. Xue, M. Zhang, G. G. Yen, and J. Lv,

“Automatically designing cnn architectures using the

genetic algorithm for image classification,” IEEE

transactions on cybernetics, vol. 50, no. 9, pp. 3840–

3854, 2020.

E. Real, A. Aggarwal, Y. Huang, and Q. V. Le,

“Regularized evolution for image classifier architecture

search,” in Proceedings of the aaai conference on

artificial intelligence, vol. 33, no. 01, 2019, pp. 4780–

4789.

H. Liu, K. Simonyan, O. Vinyals, C. Fernando, and K.

Kavukcuoglu, “Hierarchical representations for

efficient architecture search,” in International

Conference on Learning Representations, 2017, pp. 1–

13.

Z. Lu, I. Whalen, V. Boddeti, Y. Dhebar, K. Deb, E.

Goodman, and W. Banzhaf, “Nsga-net: neural

architecture search using multi-objective genetic

algorithm,” in Proceedings of the Genetic and

Evolutionary Computation Conference, 2019, pp. 419–

427.

T. Han, S. P. Nageshrao, D. Filev, K. Redmill, and O¨

zgu¨ner, “An online evolving method for a safe and fast

automated vehicle control system,” IEEE Transactions

on Systems, Man, and Cybernetics: Systems, pp. 1– 13,

2021.

C. Li, F. Liu, Y. Wang, and M. Buss, “Concurrent learning-

based adaptive control of an uncertain robot

manipulator with guaranteed safety and performance,”

IEEE Transactions on Systems, Man, and Cybernetics:

Systems, pp. 1–15, 2021.

J. Wang, Y. Song, and G. Wei, “Security-based resilient

robust model predictive control for polytopic uncertain

systems subject to deception attacks and rr protocol,”

IEEE Transactions on Systems, Man, and Cybernetics:

Systems, pp. 1–12, 2021.

B. Zoph, V. Vasudevan, J. Shlens, and Q. V. Le, “Learning

transferable architectures for scalable image

recognition,” in Proceedings of the IEEE conference on

computer vision and pattern recognition, 2018, pp.

8697– 8710.

H. Pham, M. Guan, B. Zoph, Q. Le, and J. Dean, “Efficient

neural architecture search via parameters sharing,” in

International conference on machine learning. PMLR,

2018, pp. 4095–4104.

H. Liu, K. Simonyan, and Y. Yang, “Darts: Differentiable

architecture search,” in International Conference on

Learning Representations, 2019, pp. 4561–4574.

Y. Xu, L. Xie, W. Dai, X. Zhang, X. Chen, G.-J. Qi, H.

Xiong, and Q. Tian, “Partially-connected neural

architecture search for reduced computational

redundancy,” IEEE Transactions on Pattern Analysis

and Machine Intelligence, 2021.

(Xie et al., 2021) L. Xie, X. Chen, K. Bi, L. Wei, Y. Xu,

L. Wang, Z. Chen, A. Xiao, J. Chang, X. Zhang et al.,

“Weight-sharing neural architecture search: A battle to

shrink the optimization gap,” ACM Computing Surveys

(CSUR), vol. 54, no. 9, pp. 1–37, 2021.

R. J. Williams, “Simple statistical gradient-following

algorithms for connectionist reinforcement learning,”

Machine Learning, vol. 8, no. 3, pp. 229–256, 1992.

S. Xie, H. Zheng, C. Liu, and L. Lin, “Snas: stochastic

neural architecture search,” arXiv preprint

arXiv:1812.09926, 2018.

H. Cai, L. Zhu, and S. Han, “Proxylessnas: Direct neural

architecture search on target task and hardware,” in

International Conference on Learning Representations,

2019, pp. 1–13.

H. Tan, R. Cheng, S. Huang, C. He, C. Qiu, F. Yang, and P.

Luo, “Relativenas: Relative neural architecture search

via slow-fast learning,” IEEE Transactions on Neural

Networks and Learning Systems, 2021.

TND-NAS: Towards Non-Differentiable Objectives in Differentiable Neural Architecture Search

181
