Unsupervised Keyword Extraction Algorithm Based on Bert Model

Shouhao Zhang

School of International Economics and Management,

Beijing Technology and Business University, Beijing 100048, China

Keywords: Keyword Extraction, BERT Model, Unsupervised.

Abstract: Aiming at the problem that traditional word segmentation and unsupervised text keyword extraction

methods ignore the context semantics, and the effect of candidate keyword extraction is limited, this paper

proposes an algorithm based on the Bidirectional Encoder Representation from Transformers (BERT)

model. In the word segmentation stage, the BERT model is used to segment the text to obtain candidate

keywords, and then the text is input into BERT to extract the vector of candidate keywords. The word

vector extracted in this paper is to reconstruct the hidden layer. According to the last four layers of the

neural network sum, and average the word vectors obtained, then obtain the word vectors of candidate

keywords, and finally score the similarity with sentence vectors combined with context semantics to obtain

keyword ranking.

1 INTRODUCTION

The keyword extraction task can automatically

summarize and extract the phrases of the core

content of the text, and the phrases express the most

critical information in the whole text, also known as

keywords. Keyword extraction methods are mainly

divided into unsupervised extraction methods and

supervised extraction methods, each of which has its

own advantages and disadvantages (

Sterckx et al.,

2016

). The supervised keyword extraction task needs

to manually label a large amount of corpus

information, and then use a neural network to

transform the keyword extraction task into a

two-class task. The difficulty of supervised

extraction method is that labeling corpus

information takes a lot of resources, and there is a

lack of large-scale keyword extraction data sets, so it

is difficult to obtain corpus (

Alzaidy et al., 2019).

Unsupervised keyword extraction is more widely

used in practical applications.

Extraction methods mainly include two aspects:

firstly, obtaining candidate keywords, and then

sorting the candidate keywords to select keywords

(

Wei et al., 2016). The disadvantage of unsupervised

keyword extraction is that the difference between

candidate keywords and text sequence length leads

to the mismatch of representation, which affects the

keyword extraction effect in long texts, and cannot

make full use of the contextual semantic relevance

of the pre-training model.

There are three subjects of unsupervised

keyword extraction, and keyword extraction

methods based on topic the model, statistical

features and the graph model. Unsupervised

algorithms based on the topic model (

Campos et al.,

2018) mainly include the LDA topic model, and on

the basis of LDA, there is an algorithm model of

LDA and TF-ID fusion. Topic models based on

statistical features mainly include YAKE (

Boudin,

2013

), TF-IDF and improved algorithm with TF-IDF

(Bordolin et al., 2020) as the core. In addition, in order

to make the TF-IDF method suitable for corpus of

different lengths Florescu and

Caragea (Florescu and

Caragea, 2017). Proposed to use the arithmetic mean

of words instead of the logarithmic calculation

method of IDF, and its effect was better than the

traditional TF-IDF method. The keyword extraction

method based on graph model mainly takes

TextRank (

Liu et al., 2009) as the main method, using

the Word2Vec model to vectorize candidate words

(

Gagliard and Artese, 2020), or using FastText to train

candidate word vectors, and using Sent2Vec and

Doc2Vec models to obtain the semantic vectors of

candidate words and full text.

These three unsupervised methods all have their

own main problems in keyword extraction. TF-IDF

algorithm can't reflect the position information of

words, and the words with the front position and the

words with the back position are regarded as the

306

Zhang, S.

Unsupervised Keyword Extraction Algorithm Based on Bert Model.

DOI: 10.5220/0011923800003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 306-309

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

same importance. The simple structure of TF-IDF

can't effectively reflect the importance of words and

the distribution of characteristic words, so it can't

adjust the weights well. Although TextRank takes

into account the relationship between words, it still

tends to use frequent words as keywords. Compared

with these models, BERT model has better effects,

which can achieve better results according to the

semantics of context, and can achieve better results

according to the semantics of context.

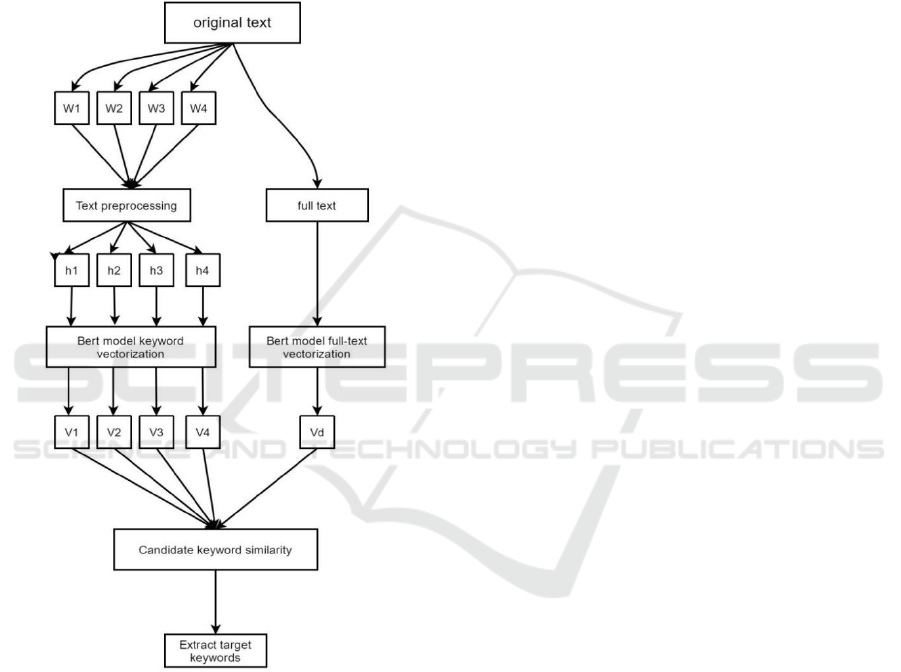

Figure 1: Schematic diagram of keyword extraction

model.

2 MODEL DESIGN

The keyword extraction model proposed in this

paper is shown in Figure 1, Where: Wi means the

crown word separated from the original text by

BERT toolkit; i=1, 2, 3, ..., indicating the position of

each word; hi represents the candidate words

generated after preprocessing Wi; Vi, a word vector

representing candidate words; V

full-text semantic

vector; m is the total number of candidate words

after preprocessing. The keyword extraction steps

are as follows: firstly, the original text is cut into

word sequences {Wi} of length n, and some words

are filtered out by text preprocessing to obtain m

candidate words h

; Then, the candidate words are

input into the BERT model to vectorize the words to

obtain the corresponding word vector V

; Finally, the

word vectors of words are averaged to get the

corresponding word vectors. At the same time, the

full-text semantic vector is obtained by the full-text

vectorization method of BERT model. Finally, the

similarity between the candidate keyword vectors

and the full-text semantic vectors is calculated, and

the target keywords are sorted and extracted to

complete the whole extraction process. The

advantage of this model is that the candidate word

vectors generated by the pre-training, model are

dynamic, and the full-text semantic information is

combined to screen keywords, at the same time, the

problem of word meaning repetition caused by using

similarity in keyword selection task is solved.

2.1 Experimental Environment and

Data

There is a lot of information in the text that affects

the experimental results, which needs to be

preprocessed. Firstly, the text that needs to be

preprocessed is segmented, then punctuation marks

and noise are removed, and then candidate keywords

of the text are extracted. The method of extracting

candidate keywords from the text uses the

unsupervised text segmentation method of BERT

model. Based on the relevance between the context

semantics of BERT model, the text is segmented,

and Euclidean distance is used to calculate. After

segmentation, candidate keywords are obtained.

The main process is to use BERT unsupervised

word segmentation to divide the original text into

word sequences: {W

, … ,W

}, the length of

which is n, and then remove the stop words,

punctuation and noise to get M candidate keywords:

,…,h

}. Then, the original text sequence D is

divided into T word sequences: {c

,…,c

}, and

the candidate words are set in the interval [a,b], so

that the word sequence is {c

a+1

, … ,c

}. Then,

according to the BERT model, the original text is

processed to obtain the word vector. The process is

to input the single word sequence obtained by BERT

into the BERT model to obtain the hidden layer

vector. Finally, the last four layers of the hidden

layer vector are summed to obtain the vector of each

Unsupervised Keyword Extraction Algorithm Based on Bert Model

307

single word. The process of obtaining the hidden

layer vector can be represented by (1):

{

𝑑



,𝑑



,...,𝑑



}=Bert_encode

({𝑐



,𝑐



,…,𝑐



})

(1)

After the hidden layer vector is obtained, the hidden

layer vectors of the last four layers are obtained

respectively, and finally the sum is obtained. Get the

word vector at the corresponding position of the

word sequence, get the word vector sequence

1,…,d

} corresponding to the candidate

words, and calculate the word vector V, the formula

of which is:

v=mean(𝑑



,𝑑



,…,𝑑



)

(2)

The formula (2) is to calculate the average vector of

the vector sequence to represent the composed word

vectors, and to ensure the dimensional unity of word

vectors with different lengths.

2.2 Full-Text Semantic Vector

First, add the "[CLS]" logo at the beginning of the

original text. The purpose of adding this logo is to

use this logo to obtain the full-text semantic vector.

Then input the original text D into the BERT word

breaker, that is:

{𝑐



,𝑐



,𝑐



…,𝑐



}=Tokenizer(D)

(3)

Then, the obtained single word sequence is input

into the hidden layer of BERT model, and the

hidden layer used is consistent with the hidden layer

of the word vector acquisition task, namely:

{𝑑



,𝑑



,…,𝑑



Bert_encoder({𝑐



,𝑐



,𝑐



…,𝑐



})

(4)

2.3 Similarity Calculation and Ranking

of Candidate Words

Because they are all vectors output through the same

hidden layer, this group of vectors is located in the

same two-dimensional space. We can use cosine

similarity and Euclidean distance and other distance

algorithms to calculate the semantic distance and

judge the similarity between them. In this paper,

cosine similarity is selected to calculate the

similarity between candidate keywords and full-text

semantic vectors.

3 EXPERIMENT AND RESULT

ANALYSIS

3.1 Experimental Environment and

Model

This paper selects the laboratory data, including the

business scope and content of logistics listed

companies. The keywords are segmented by BERT

model, then preprocessed, stop words are removed,

to obtain candidate keywords, and then the

keywords are extracted by Bert model according to

the context semantic information.

3.1.1 Experimental Environment

The experimental computer configuration and

environment are as follows: the CPU is Intel(R)

Core(TM) i7-7700HQ CPU, the main frequency is

2.8GiHz, the memory is 4 GiB, the GPU is NVIDIA

GeForce GTX 1050Ti, the system is Windows64-bit,

python version number is 3.6, and Python version

number is 1.7.0.

3.1.2 Pre-Training Model

The pre-training model adopts the

BERT-base-Chinese model published by Google,

which contains 12 layers of Transformer, and the

vector of the fourth hidden layer from the bottom is

used as the word vector.

4 DATA ANALYSIS AND

CONCLUSIONS

Through keyword extraction of three logistics

themes of China Railway Special Cargo Flow Co.,

Ltd., the corresponding keywords of each theme are

obtained. As shown in Figure 1, the top three

keyword phrases are extracted, and the top scores

are 0.5737, 0.5395 and 0.6565, respectively.

According to the length of the subject keyword, it is

found that the subject keyword is not a word, but a

phrase. By setting the length of different extracted

keywords, the keyword phrases are extracted.

Through the experimental comparison, Figure 2

shows that when the keyword phrase length is set to

2, the score is the highest, and the first scores are

0.6921, 0.7151 and 0.7797 respectively.

Through keyword extraction of three logistics

themes of China Railway Special Cargo Flow Co.,

Ltd., the corresponding keywords of each theme are

ISAIC 2022 - International Symposium on Automation, Information and Computing

308

obtained. As shown in Figure 1, the top three

keyword phrases are extracted, and the top scores

are 0.5737, 0.5395 and 0.6565, respectively.

According to the length of the subject keyword, it is

found that the subject keyword is not a word, but a

phrase. By setting the length of different extracted

keywords, the keyword phrases are extracted.

Through the experimental comparison, Figure 2

shows that when the keyword phrase length is set to

2, the score is the highest, and the first scores are

0.6921, 0.7151 and 0.7797 respectively.

Table 1: Extraction result with keyword set to 1

introduction to

logistics keywords

Keyword extraction

professional

logistics service

supply

(logistics, 0.5737)

(railway transportation, 0.5546)

(service provider, 0.549)

network

advantage

(logistics, 0.5395)

Railway, 0.5367)

(transport, 0.4916)

modern logistics

system

(logistics, 0.6565)

(railway transportation, 0.6275)

(railway, 0.5503)

Table 2: Extraction result with keyword set to 2

introduction to

logistics keywords

Keyword extraction

professional

logistics service

supply

(logistics service provider,

0.6921)

(enterprise logistics, 0.6807)

(Railway special goods, 0.651)

Network

advantage

(logistics network, 0.7151)

(railway resources, 0.7147)

(railway logistics, 0.7066)

modern logistics

system

(logistics system, 0.7797)

(logistics mode, 0.7319)

(railway logistics, 0.73)

According to the keywords and contents, we can

see that some key words are artificially summarized

and not completely included in the contents.

Therefore, if we process the data of the keywords

and remove the manual summary, we can see that

the experimental results are obviously better.

The unsupervised keyword extraction method used

in this experiment uses single text data, which is

limited. In the next step, we will learn to use

supervised method to extract keywords.

REFERENCES

STERCKX L, CARAGEA C, Demeester T, et al. (2016) .

Supervised keyphrase extraction as positive unlabeled

learning[C]//Proceedings of the 2016 Conference on

Empirical Methodsin Natural Language Processing,

Austin, Nov 1- 4..Stroudsburg: ACL, 2016:

1924-1929.

Alzaidy R, Caragea C, Giles C L. (2019). Bi-LSTM-CRF

sequence labeling for keyphrase extraction froms

scholarly scholarly documents [C] //The World Wide

Web Conferenceon-WWW’19.New York: ACM Press,

2019: 2551-2557.

WEI H X, GAO G L, SU X D. (2016). LDA-Based Word

Image Representation for Keyword Spotting on

Historical Mongolian Documents[C]//Neural

Information Processing(ICONIP).Springer, 2016:

432-441.

Campos R, Vitor M, Pasouali A, et al. (2018). YAKE!

Collection In dependent Automatic Keyword

Extractor[C]//In Advances in Information

Retrieval-40th European Conference on Information

Retrieval. Springer ECIR 2018, Lecture Notes in

Computer Science, Grenoble, France. Cham, 2018:

806-810.

Boudin F. (2013). A Comparison of Centrality Measures

for Graph-Based Keyphrase Extraction.

[C]//Proceedings of the 6th International Joint

Conference on Natural Language Processing. Nagoya:

Asian Federation of Natural Language Processing,

2013: 834-838.

Bordolin M, Chatterjee P C, Biswas S K, et al. (2020).

Keyword extraction using supervised cumulative

TextRank [J] . Multimedia Tools and Applications, 79

(41 / 42):31467-31496.

Florescu C, Caragea C. (2017). A New Scheme for

Scoring Phrases in Unsupervised Keyphrase

Extraction[C]//Proceedings of the Advances in

Information Retrieval-39thEuropean Conference on

Information Retrieval.ECIR 2017, Lecture Notes in

Computer Science Aberdeen, UK.

Liu Z Y, Li P, Zheng Y B, et al. (2009). Clustering to find

exemplar terms for keyphrase

extraction[C]//Proceedings of the 2009 Conference on

Empirical Methods in Natural Lan-guage Processing.

Singapor: ACL Press: 257-266.

Gagliard I , Artese M T. (2020). Semantic unsupervised

automatic keyphrases extraction by integrating word

embedding with clustering method [J].Multimoda

Technologies and Interaction, 4 (2): 30.

Unsupervised Keyword Extraction Algorithm Based on Bert Model

309
