BERT Semantic Context Model for Efficient Speech Recognition

Irina Illina and Dominique Fohr

Lorraine University, CNRS, Inria, LORIA, F-54000 Nancy, France

Keywords: Speech Recognition, Deep Neural Network, Semantic Model, Transformer Models.

Abstract: In this work, we propose to better represent the scores of the recognition system and to go beyond a simple

combination of scores. We propose a DNN-based revaluation model that re-evaluates by pair of hypotheses.

Each of these pairs is represented by feature vector including acoustic, linguistic and semantic information.

In our approach, semantic information is introduced using BERT representation. Proposed rescoring approach

can be particularly useful for noisy speech recognition.

1 INTRODUCTION

An automatic speech recognition system (ASR)

contains three main parts: an acoustic model, a

lexicon and a language model. ASR in noisy

environments is still a challenging goal. Indeed,

when training and/or testing conditions are corrupted

by noisy environments, the audio signal is distorted,

and the acoustic model may not be able to compensate

for this variability. A better language model gives

limited performance improvement, modelling mainly

local syntactic information.

In this paper, we propose

a semantic model to take into account the long-term

semantic context information and thus to reduce the

acoustic ambiguities of noisy conditions. Proposed

semantic model is based on deep neural networks

(DNN) and is aimed at selecting hypotheses that have

a better semantic consistency and therefore a lower

word error rate (WER). This model is applied during

the rescoring of N-best recognition hypotheses

As part of input features to our DNN semantic

model, we investigate a powerful representation:

dynamic contextual embeddings from Transformer-

based BERT model (Devlin et al., 2018). BERT

takes into account the semantic context of words and

has been shown to be effective for several natural

language processing tasks. The efficiency and the

semantic properties of BERT representations

motivate us to explore them for our task. Thus, our

ASR is supplemented by a semantic context analysis

module. This semantic module re-evaluates

(rescoring) the N-best transcription hypotheses and

can be seen as a form of dynamic adaptation in the

specific context of noisy data. Compared to (Ogawa

et al., 2019), we use a more powerful model with

several transformer layers.

2 PROPOSED METHODOLOGY

2.1 Introduction

An effective way to take into account semantic

information is to re-evaluate (rescore) the N-best

hypotheses of the ASR. For each sentence to be

recognized, the ASR system can give multiple

hypotheses (N-best list), ranked according to the

cumulated acoustic and linguistic scores. More

precisely, the recognition system provides for each

hypothesis h of the sentence to be recognized an

acoustic score 𝑃



(

ℎ

)

and a linguistic score 𝑃



(ℎ).

The best sentence is the one that maximizes the

probability:

𝑊



=𝑎𝑟𝑔𝑚𝑎𝑥







𝑃



(

ℎ



)



∗ 𝑃



(

ℎ



)



(1)

𝑊



is the recognized sentence; 𝐻 is the set of sentence

hypotheses; ℎ



is the i-th sentence hypothesis; α and

β represent the weights of the acoustic and language

models

We propose to add semantic information to guide

the recognition process. For this, we modify the

computation of the best sentence presented in (1) as

follows:

𝑊



=𝑎𝑟𝑔𝑚𝑎𝑥







𝑃



(

ℎ



)



∗𝑃



(

ℎ



)



∗𝑃



(

ℎ



)



(2)

Illina, I. and Fohr, D.

BERT Semantic Context Model for Efﬁcient Speech Recognition.

DOI: 10.5220/0011948200003622

In Proceedings of the 1st International Conference on Cognitive Aircraft Systems (ICCAS 2022), pages 20-23

ISBN: 978-989-758-657-6

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

We supplemented the formula (1) by the semantic

probability of the hypothesis h, 𝑃



(ℎ), weighted

by γ. We propose to estimate this semantic probability

by a DNN-based model.

We propose to go beyond a simple score

combination, like in eq. (2). We design a DNN-based

rescoring model estimating 𝑃



(ℎ) as follow: the

model takes acoustic, linguistic, and textual

information as input. We believe that the acoustic and

linguistic information should be trained together with

the semantic information to give an accurate

rescoring model.

2.2 N-best Rescoring Procedure

To keep a tractable size of the input vectors of the

rescoring DNN, the rescoring is based on the

comparison of ASR hypotheses, two per two. Then,

our proposed DNN model uses a pair of hypotheses.

For each hypothesis pair (h

, h

), the expected DNN

output v is: (a) 1, if the WER of h

is lower than the

WER of h

; (b) 0 otherwise.

The algorithm of the N-best list rescoring is as

follows. For a given sentence, for each hypothesis h

we want to compute the cumulated score score

sem

The obtained cumulated score score

sem

) is used as

a pseudo probability P

sem

) and combined with the

acoustic and linguistic likelihoods with the proper

weighting factor (to be optimized) according to eq.

(2). In the end, the hypothesis that obtains the best

score is chosen as the recognized sentence.

To compute the cumulated score score

sem

), for

each hypothesis pair (h

, h

) of the N-best list of this

sentence:

 we apply the DNN semantic model and obtain

the output value v

(between 0 and 1). A value

close to 1 means that h

is better than h

;

 we update the scores of both hypotheses as:

score

sem

) += v

; score

sem

) += 1-v

2.3 DNN-Based Semantic Model

The proposed model takes input as feature vectors

which include acoustic (likelihood given by the

acoustic model), linguistic (probability given by the

language model), and textual information (text of the

hypotheses). We hypothesize that training all this

information together is better than combining the

probabilities obtained by different models.

The text of the hypothesis pair is given to the

BERT model. Then, the token embeddings of BERT,

representing this pair, are given to a bi-LSTM layer,

followed by max pooling and average pooling, and

then by a fully connected layer (FC) with a ReLU

(Rectified Linear Unit) activation function. Finally,

the output of this FC is concatenated with the acoustic

and linguistic information of the hypothesis pair and

passed through the second FC layer followed by a

sigmoid activation function (to obtain a value

between 0 and 1). Finally, the output v

is obtained.

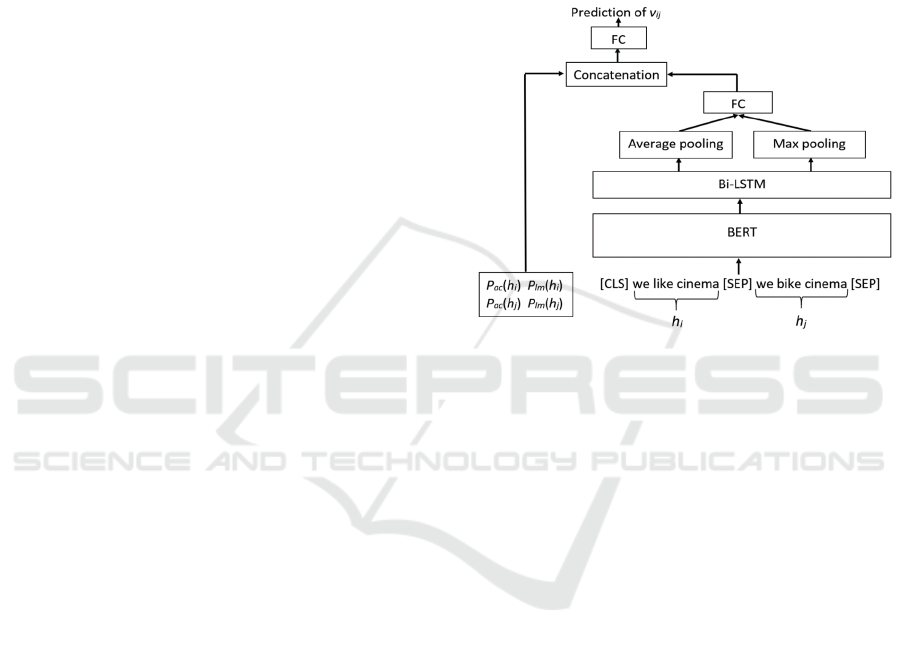

Figure 1 presents the architecture of the proposed

rescoring model.

Figure 1: Architecture of the proposed rescoring model.

3 EXPERIMENTAL CONDITIONS

3.1 Corpus Description

For this study, we use the publicly available TED-

LIUM corpus (Fernandez et al., 2018), which

contains recordings from TED conferences. Each

conference of the corpus is focused on a particular

subject. We chose this corpus because it contains

enough data to train a reliable acoustic model. We use

the train, development, and test partitions provided

within the TED-LIUM corpus: 2351 conferences for

training (452 hours), 8 conferences (1h36) for

development, and 11 conferences (2h27) for the test

set. We use the development set to choose the best

parameter configuration, and the test set to evaluate

the proposed methods with the best configuration. We

compute the WER to measure the performance.

This research work was carried out as part of an

industrial project, studying the recognition of speech

in noisy conditions, more precisely in fighter aircraft.

As it is very difficult to have an access to real data

recorded in a fighter aircraft, we add noise to the train,

development and test sets to get closer to the actual

BERT Semantic Context Model for Efﬁcient Speech Recognition

Table 1: ASR WER (%) on the TED-LIUM test sets, SNR of 10 and 5 dB, 20-best hypotheses, RNNLM (LSTM). “*” denotes

significantly different result compared to “GPT-2 comb. with ac. scores” configuration.

Methods/systems 5 dB 10 dB

No added

noise

Rando

stem 19.4 13.9 11.0

Baseline s

stem 17.1 10.9 7.4

GPT-2 comb. with ac. scores 15.3 9.6 6.7

BER

alsem

comb. with ac./RNNLM

cores 15.1 9.7 6.5

BER

alsem

comb. with ac./GP

-2

cores 14.7* 9.0* 6.0*

Oracle 11.3 6.1 3.6

conditions of an aircraft. For the train part, we add

different noises from NOISEX-92 (excluding F16

noise, used for development and test data) corpus at

SNR from 0 to 20 dB. For the development and test

sets, the noise is added at 10 dB and 5dB SNR (noise

of an F16 from the NOISEX-92 corpus (Varga and

Steeneken, 1993). We evaluate the proposed

approaches in clean and noisy conditions. Compared

to our previous work (Illina and Fohr, 2021), we train

the acoustic models using noisy data.

3.2 Recognition System Description

We use a recognition system based on the Kaldi voice

recognition toolbox (Povey et al., 2011). TDNN

triphone acoustic models are trained on the training

part (without noise) of TED-LIUM using sMBR

training (State-level Minimum Bayes Risk). The

lexicon and LM were provided in the TED-LIUM

distribution. The lexicon contains 150k words. The

LM has 2 million 4-grams and was estimated from a

textual corpus of 250 million words. We perform N-

best list generation using a RNNLM model (LSTM)

(Sundermeyer et al., 2012).

For all experiments, combination weights are:

α=1, β is between 8 and 10, and γ is between 80 and

100. For each model, the weight values performing

the best N-best rescoring performance for the

development data were selected as the optimal value

for the test data.

4 EXPERIMENTAL RESULTS

We report the WER for the test sets of TED-LIUM

with clean speech and in noise conditions at 10 and 5

dB SNR. In Table 1, the first line of results (Random

method), corresponds to the random selection of the

recognition result from the N-best hypotheses without

the use of the proposed rescoring model. The second

line of the Table (Baseline method), corresponds to

WER performance without using the rescoring model

(standard ASR). The last line of the Table (Oracle

method) represents the maximum performance that

can be obtained by searching in the N-best

hypotheses: we select the hypothesis, which

minimizes the WER for each sentence. The other

lines of the table give the performance of the

proposed approach, called BERT

alsem

. For this model,

rescoring is performed using a combination of the

BERT-based score, the acoustic score P

(h) and the

linguistic score P

(h) following eq. (2) (BERT

alsem

comb. with ac./x scores, in Table 1).

To fairly compare the proposed transformer-based

models to other state-of-the-art transformer-based

models introducing long-range context dependencies,

we experiment with a rescoring based on the GPT-2

model. For the BERT

alsem

model, we also use the

Generative Pre-trained Transformer Model (GPT-2)

score as a linguistic score to combine as described

above.

From Table 1 we can observe that for all

conditions and all evaluated rescoring models, the

proposed rescoring model outperforms the baseline

system. This shows that the proposed Transformer-

based rescoring model is efficient at capturing a

significant proportion of the semantic information.

For BERT-based results, all improvements are

significant compared to the baseline system.

Compared to the GPT-2 comb. with ac. scores, the

proposed BERT-based semantic model allows us to

obtain additional significant improvements.

Confidence interval at 5% significance level is

computed according to the matched-pairs test (Gillick

and Cox, 1998).

5 CONCLUSIONS

In this article, we focus on the task of improving

automatic speech recognition in clean and noisy

conditions. Our methodology is based on taking into

account semantics through powerful representations

ICCAS 2022 - International Conference on Cognitive Aircraft Systems

that capture the long-term relations of words and their

contexts. The semantic information of the utterance is

taken into account through a rescoring module on

ASR N-best hypotheses. The proposed approach uses

BERT-based DNN models trained using semantic,

acoustic, and linguistic information. On the corpus of

TED-LIUM conferences, the proposed system

achieves statistically significant improvement for all

evaluated (clean and noisy) conditions compared to

the baseline system. The proposed approach is

competitive compared to GPT-2 rescoring.

ACKNOWLEDGEMENTS

The authors would like to thank the DGA (Direction

Générale de l’Armement), Thales AVS and Dassault

Aviation which support the funding of this study and

the scientific program “Man-Machine Teaming” in

which this research project occurs.

REFERENCES

Devlin, J., Chang, M.-W., and Toutanova, K., 2019. BERT:

Pre-training of Deep Bidirectional Transformers for

Language Understanding. In Proceedings of NAACL-

HLT.

Fernandez, H. Nguyen, H., Ghannay, S., Tomashenko, N.

and Esteve, Y., 2018. TED-LIUM 3: Twice as Much

Data and Corpus Repartition for Experiments on

Speaker Adaptation. In Proceedings of SPECOM, pp.

18–22.

Gillick, L., and Cox, S., 1998. Some Statistical Issues in the

Comparison of Speech Recognition Algorithms. In

Proceedings of IEEE International Conference on

Acoustics, Speech and Signal Processing, ICASSP, v. 1,

pp. 532–535.

Illina, I. and Fohr, D., 2021. DNN-based semantic rescoring

models for speech recognition. In TSD 2021 - 24th

International Conference on Text, Speech and

Dialogue.

Ogawa, A., Delcroix, M., Karita, S., and Nakatani, T., 2019.

Improved Deep Duel Model for Rescoring N-best

Speech Recognition List Using Backward LSTMLM

and Ensemble Encoders. In Proceedings of Interspeech.

Povey, D., Ghoshal, A., Boulianne, G., Burget, L.,

Glembek, O., Goel, N., Hannemann, M., Motlicek, P.,

Qian, Y., Schwarz, P., Silovsky, J., Stemmer G., and

Vesely, K., 2011. The Kaldi Speech Recognition

Toolkit. In Proceedings of IEEE Workshop on

Automatic Speech Recognition and Understanding

(ASRU).

Sundermeyer, M., Schluter, R., and Ney, H., 2012. LSTM

Neural Networks for Language Modeling, Proceedings

of Interspeech.

Varga, A. and Steeneken, H., 1993. Assessment for

automatic speech recognition II. NOISEX-92: A

Database and an Experiment to Study the Effect of

Additive Noise on Speech Recognition Systems, In

Speech Communication, Volume 12, Issue 3, pp. 247-

251.

BERT Semantic Context Model for Efﬁcient Speech Recognition
