On Leveraging Cockpit Data to Extend Human Factors

Understanding on the Flight Deck

Camille Sigoillot

and Valentin Ligier

Dassault Aviation, Mérignac, France

Dassault Aviation, Saint-Cloud, France

Keywords: Human Factors, Data, Flight Deck, Cockpit.

Abstract: Aircraft design activity is evolving following recent regulation update concerning the level of scrutiny of the

Human Factors. As a stakeholder in the industry, responsible for cockpit design, Dassault Aviation is

committed to improve understanding of Human Factors and to improve its integration in the overall aircraft

design process. This paper introduces the objectives of a new cockpit data analysis activity, along with the

diversity of sources providing this data. Preliminary proofs of concept and identified challenges are also

presented. Finally, future work directions are given as a conclusion.

1 INTRODUCTION

While being taken into account in the aircraft design

process for a few decades, understanding Human

Factors on flight decks remain an open and active

research topic. Nowadays aircraft systems are

extensively monitored and any failure mode is

characterized and taken into account in the aircraft

design to guarantee safety of the aircraft operation.

Human Factors are of course also considered in the

aircraft design process (e.g. CS-25 §1302) but the

extent of knowledge and “human failure mode”

characterization (i.e. degraded human states),

especially live monitoring in operation, is far from

reaching the level of other aircraft systems.

Recent accidents (Bureau d’Enquêtes et

d’Analyses pour la sécurité de l’aviation civile, 2012

and The House Committee on Transportation &

Infrastructure, 2020) have shown that Human Factors

are still a contributor to aircraft accidents and

regulations tends to be more and more prescriptive on

this topic in a continuous improvement approach

(United States Congress, 2020).

In this context, Dassault Aviation, as an aircraft

manufacturer and more specifically a cockpit

designer, aims at improving the knowledge of these

factors with several end uses or development focus:

 Getting a better objective understanding of

cockpit operational use by flight crew to

improve future cockpit development;

 Introducing a crew state monitoring function:

identification of physiological, cognitive states

and interaction state (e.g. behavior);

 Collecting observable data on user evaluation of

a new design to provide detached assessment.

This extended abstract discuss the opportunities

offered by the analysis of collected data based on the

end use and the source to extend Human Factors

understanding on the flight deck. It relies on aircraft

cockpits, training simulators and development

simulators.

2 OBJECTIVES OF COCKPIT

DATA ANALYSIS

Dassault Aviation as for the cockpit design has

identified the following needs.

2.1 Gathering Feedback on an Existing

Deployed Design

Aircrafts with modern avionic systems compatible

with cockpit data collection have been in-service for

about 20 years with a substantial fleet of several

hundreds aircraft around the world. These figures

allow to compute statistics thanks to the large variety

of crew and operations.

This data could be analysed in order to provide

support to Human Factors engineers when designing

Sigoillot, C. and Ligier, V.

On Leveraging Cockpit Data to Extend Human Factors Understanding on the Flight Deck.

DOI: 10.5220/0011955000003622

In Proceedings of the 1st International Conference on Cognitive Aircraft Systems (ICCAS 2022), pages 34-37

ISBN: 978-989-758-657-6

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

cockpit. When used along with contextual data

(environment, active failure, etc.), insights derived

from this data can be for example:

 Recurrent error detection (due to poor design

choice, e.g. clockwise vs anticlockwise rotation

knob);

 Reaction time to alerts (mean and standard

deviation);

 Recurrent high workload tasks;

 Phase of flight with loss of vigilance of the

crew;

 Pattern detection and correlation to operating

procedures: workflow optimization.

Knowledge of the context and type of operation is

essential to really understand the meaning of the data,

hence it will be difficult to fully automate the

analysis.

2.2 Identifying Crew States

This objective require the use of a crew monitoring

system (e.g. camera, heart rate sensor, electro-

encephalograph…). Cockpit interaction data alone is

not sufficient to infer a multidimensional

comprehensive crew state.

Knowledge of the cognitive or physiological state

of a crew member can be used for example:

 In flight:

 To detect degraded states of the crew that

require a system or procedural counter-

measure to increase general flight safety;

 To adapt a Human-machine interface to

different collaboration states.

 On ground:

 To add an impartial source that detects

crew states to help investigations on

inflight incidents;

 To gather more feedback and context on

existing deployed design to support the

objective described in the previous

section.

Some states are hard to identify and ongoing

research is to be achieved before it can be deployed

and used in operation.

2.3 Evaluating a New Design in

Development Phase

During a cockpit development phase (either an

evolution or a complete new design from scratch),

new concepts or functions are considered and

prototyped to improve existing cockpits considered as

a baseline. However, today’s evaluations of these

concepts rely on subjective data expressed by test

subjects who have experience on the baseline design.

The idea is to leverage data that is collected from

these prototypes to derive more objective evaluations

of the new proposed concepts or functions.

A new design can be evaluated considering several

factors, e.g. its interface, utility and performance, as a

single function and as a part of a complex avionic

system. The crew monitoring system mentioned above

can be used for instance to detect an evolution of

workload after adding a new function in a cockpit.

On the short term, this objective enables to gather

impartial data to be used for the evaluation of a new

design by and with crews. On the long term, such a

feedback can also help create a baseline of knowledge

on a system’s performances in order to help

qualification and certification.

3 SEVERAL MEANS OF DATA

COLLECTION

3.1 Aircraft Cockpits

Real aircraft cockpits provide the most representative

data since flight crew is actually operating the aircraft

in real-time with real external conditions. This data is

extremely valuable for analytics.

Modern cockpit systems and especially avionic

systems make it possible to easily collect interaction

data (e.g. from physical controls on panels to soft

keys in avionic displays) thanks to a modular

architecture with data exchange across systems.

However, integration of a dedicated system to

existing aircraft design to collect additional

observables is difficult since most of the aircraft are

already deployed to customer home bases or in

mission. Standalone solution are an option but require

an additional step of post-recording synchronization

and a different data pipeline.

3.2 Training Simulators

Training simulators provide the best trade-off

between cost/access and representativeness. The data

quality depends a lot on the simulator quality. The

more representative the simulator, the more

representative the data. Quality of the simulated

external environment, quality of the sounds, the

movements of the simulator can help improve the

data representativeness.

On Leveraging Cockpit Data to Extend Human Factors Understanding on the Flight Deck

However, even with the best quality simulator,

there remain biases from training. Training simulators

are often used to help crews familiarize with a plane

or to help dealing with rare but critical situations.

Thus, training data will be representative of such

flights with repetitive exercises or scarce failures and

seldom of real operational ones.

Finally, training data will include a learning bias

that decreases data representativeness. Nevertheless,

carefully handled, this data can help identify issues in

the cockpit design that training would cover. Also,

repetitive training on a same situation with controlled

scope and with a large crew panel provides a good

opportunity to compute statistics on a controlled

environment.

3.3 Development Phase Simulators

Development simulators provide the most accessible

data. It is also the least representative of operational

data. Indeed, development simulators are part task

simulators that must be easily updated, adjusted and

executed; they also often lack an immersive

environment making the full involvement of operator

difficult to maintain.

Thus, development simulators can hardly provide

representative operational data.

Nevertheless, such simulators will enable the

evaluation of the integration of a new function in the

whole cockpit. It is then also possible to characterize,

for example, the new mental load of a crew with the

new function on a whole flight.

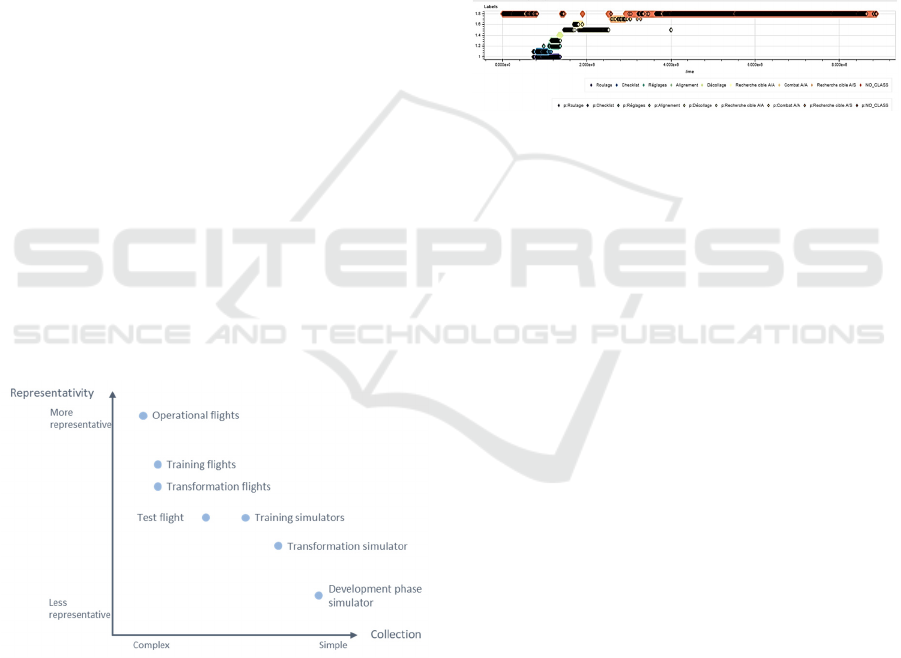

Figure 1: Data representativeness versus collection effort.

The core idea of the work is a reading grid for the

valorization of cockpit data based on the two axis:

different means of collection are used to benefit some

of the objectives depending on the strengths and

weaknesses of the means for the targeted interests

(see Figure 1).

4 COCKPIT DATA CHALLENGES

Dassault Aviation undertook some studies around

cockpit data collection and analysis (on ground and in

flight). The following challenges have been

emphasized during these projects.

4.1 The Problem of Data Valuation and

Contextualization

Besides basic statistical analysis, the potential of

cockpit data for learning purposes has been

considered. A task inference model has been derived

with the idea that in the end it could be used to provide

new adaptive functions to the crew.

Figure 2: Task inference based on learning on cockpit data

(small diamonds with black border are predictions while

larger borderless are ground truth samples).

The lessons learned from this project are: 1)

labeling is a very time-consuming task but mandatory

for supervised-learning applications; 2) context is

very important for the human analyst to fully

understand the situation going on in the flight deck at

any given time. Providing this context in an easy,

human-understandable format is challenging (video

and data cross-referencing).

4.2 The Problem of Cockpit

Constraints

Cockpits are a collection of embedded systems, they

usually are small and busy with knobs and

information. Adding systems in such spaces to collect

physiological crew data is a challenge. On one side,

the sensors must be miniaturized to avoid interfering

with the crews’ piloting. And on the other hand, it

must be very precise to detect information of interest,

e.g. which piece of information a crew member is

watching.

Gathering ocular data in a fighter’s cockpit also

proved complicated because of the crew’s wearing of

a helmet and snout. The helmet prevents the crew

from wearing glasses, and the snout prevents a system

to recognize and position a face and then eyes in space

with usual face recognition algorithms. The

combination of these elements makes the gathering of

ICCAS 2022 - International Conference on Cognitive Aircraft Systems

ocular data difficult before the addition of eye

trackers inside helmet mounted displays.

4.3 The Problem of Data Quality and

Certification

The use of learning technologies on the data led to the

question of the certification of such applications.

Authorities are pro-active and are publishing initial

guidelines (regularly updated and enriched) to

provide domain-wide guidance material for

industrials to rely on (European Union Aviation

Safety Agency, 2021).

The proposed guidelines introduce new design

activities. Noteworthy is the whole learning assurance

framework whose purpose is to compensate for the

incomplete coverage of learning applications by DO-

178. The goal is to guarantee appropriate system

operation in the pre-defined operational design

domain. The cornerstone of the process is the data

pipeline that shall ensure integrity and traceability all

along life-cycle: collection, labeling, set repartitions,

use for model training, validation and testing.

4.4 The Problem of Personal Data

Ethic

Some cockpit data is considered as personal data

since for instance a camera will record pilot’s face.

As such, the European Union General Data Protection

Regulation shall be complied with to make sure the

collected data is used accordingly to its intended use

(cockpit design improvement).

Initial guidelines mentioned in previous sub-

section are quite prescriptive on the ‘in operation’

data recording capability of machine learning

systems. It is justified by explainability requirements

(for monitoring and post-accident investigation) but

to ensure widespread deployment of such systems it

is important to address legitimate crew privacy

concerns by providing guarantees. Development of

machine learning explainability methods not relying

on full input recording is still to be addressed.

5 FUTURE WORK

Projects described above are still in their early phase.

If successful and deemed appropriate, the next step

will be the development of specific analysis tools,

their integration in the design process: leveraging for

design purposes, leveraging to support certification

activities and operational leveraging for the

improvement of flight safety.

One critical milestone to move onto the next step

and scale up is the development of an integrated data

flow that merges heterogeneous data coming from a

variety of sources and entities: training simulators,

development phase simulator, test and operation

aircraft. The unity offered by such framework will

allow efficient processing and cross-referencing to

support analyst task.

REFERENCES

United States Congress. 2020. Aircraft Safety and

Certification Reform Act of 2020. https://www.

congress.gov/bill/116th-congress/senate-bill/3969/text

#toc-ida1fb8f529afe4aea9f6edacd72646584.

Bureau d’Enquêtes et d’Analyses pour la sécurité de

l’aviation civile. 2012. Rapport final de l’accident

survenu le 1er juin 2009 à l’Airbus A330-203

immatriculé F-GZCP exploité par Air France vol AF

447 Rio de Janeiro – Paris. https://www.bea.

aero/docspa/2009/f-cp090601/pdf/f-cp090601.pdf.

The House Committee on Transportation & Infrastructure.

2020. Final committee report: The design, development

& certification of the Boeing 737 MAX. https://transpor

tation.house.gov/imo/media/doc/2020.09.15%20FINA

L%20737%20MAX%20Report%20for%20Public%20

Release.pdf.

European Union Aviation Safety Agency. 2021. EASA

Concept Paper: First usable guidance for Level 1

machine learning applications – Issue 01. https://www.

easa.europa.eu/downloads/134357/en

On Leveraging Cockpit Data to Extend Human Factors Understanding on the Flight Deck
