Guidelines of Maritime Cybersecurity for Ships in Indonesian

Waterways from a Classification Society Point of View

M. Rizqi

Hariadi and Rizky Prasetya Ade Nugroho

PT. Biro Klasifikasi Indonesia, Indonesia

Keywords: Cybersecurity, Guidelines, Assessments, Classification Society.

Abstract: Indonesia is ranked the 4th largest in the growth of internet users in the world. This growth brings positive

impact that is increasing Indonesia's opportunities in developing digital and internet technology. However,

this growth also subjected Indonesia to increasing digital threat. To combat this threat, cybersecurity is

implemented which consists of technologies, processes, and measures designed to protect networks, devices,

programs, and data from threat such as attack or unauthorized access. On maritime sector, cybersecurity is

one of element of safety that is regulated in ISM (International Safety Management) code and is therefore

mandatory to be fulfilled by ship owners. As Indonesia’s only national classification society, it is BKI’s

responsibility to ensure Indonesian ship’s safety, including their cybersecurity aspect. One of the ways to do

that is by providing guidelines that can be used by ship owners to implement cybersecurity in their respective

organization. This paper will explain the development process of BKI’s cybersecurity guidelines which

involves gap analysis of existing cybersecurity guidelines and their implementation in the context of maritime

sector. Subsequently, this paper will also briefly explain the content of the guidelines.

1 INTRODUCTION

Industry 4.0 brings big impact to industry sector, an

impact that also influences Indonesia as a country that

is ranked the 4

largest in the growth of internet users

in the world. This growth brings positive impact that

is increasing Indonesia's opportunities in developing

digital and internet technology. However, this growth

also subjected Indonesia to increasing digital threat.

Based on 2020 Global Cybersecurity Index by

International Telecommunication Union (ITU),

Indonesia’s global index is ranked the 24

from 182

countries in the world (ITU, 2021), while according

to annual report of BSSN (Badan Siber dan Sandi

Negara), there were 1.6 million cyber-attacks in

Indonesia in the period of time from 1 January to 31

December 2021. The BSSN annual report also shows

that 46.6% of the attack is Botnet type (Laptah, 2021)

which is a computer network that is infected with

malware and under the control of attacker.

Cybersecurity consists of technologies, processes,

and measures designed to protect networks, devices,

programs, and data from attack or unauthorized

access. Cybersecurity can also be thought as

information security technology. Cyber-attack

commonly consists of several stages, which are

collecting information from target

organization/entity, scanning to search for security

hole in a system, acquiring access illegally,

maintaining access to copy data or destroy the system

and covering tracks to avoid detection. In maritime

world, cyber-attacks can be categorized into two

category, cyber-attacks targeting the ship and cyber-

attack targeting sectors supporting maritime world,

for example ports. In the period of 1 year from 2010

to 2011, shipping companies in Greece had suffered

eleven pirate attack in Somalia, eight of which had

their voyage schedule and cargo data leaked to

unauthorized party through security hole in wi-fi

connection as a consequence of wireless lamp

installation (Chalermpong senarak, 2021). This case

indicates that while technological advancement can

bring many opportunities, it can also bring new kinds

of risks as well.

To combat this growing threat, cybersecurity

needs to be implemented. Cybersecurity consists of

technologies, processes, and measures designed to

protect networks, devices, programs, and data from

threat such as attack or unauthorized access. In

maritime world, International Maritime Organization

(IMO) has already made cybersecurity element

1012

Hariadi, M. and Nugroho, R.

Guidelines of Maritime Cybersecurity for Ships in Indonesian Waterways from a Classiﬁcation Society Point of View.

DOI: 10.5220/0012008500003575

In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 1012-1017

ISBN: 978-989-758-619-4; ISSN: 2975-8246

mandatory in International Safety Management

(ISM) code since 1 January 2021.

The ISM code itself is one of statutory matter

whose implementation depends on national

regulation where the ship is registered. To ensure that

the ships comply to ISM code and any other

regulation that may applicable, inspection is done

which is carried on by government agency. In

Indonesia’s case, this inspection is carried on by

Ministry of Transportation or other organization that

may represents Government of Indonesia to carry on

the inspection which is called Recognized

Organization (RO). One such organization is Biro

Klasifikasi Indonesia (BKI).

BKI is Indonesia’s only national classification

society. It is BKI’s responsibility to ensure

Indonesian ships follow standards that will increase

their safety. Since BKI also acts as Indonesia’s RO, it

may represent Government of Indonesia in inspecting

ships’ compliance with national regulations and

statutory matters including ISM code which in turn

also includes cybersecurity element. To help ship

owners comply with the cybersecurity requirements,

BKI has published guidelines to implement

cybersecurity named Guidelines for Maritime

Cybersecurity. The subsequent sections will explain

the methodology used to develop the guidelines and

also briefly explain the contents of Guidelines for

Maritime Cybersecurity.

2 METHODOLOGY

In developing the Guidelines for Maritime

Cybersecurity, BKI conducts gap analysis from

several references such as class partner guidelines and

international standards. After gap analysis is

performed, the standards are analyzed further to

determine which requirements are viable to be

implemented in Indonesia. The aspects considered are

notation, cybersecurity development methodology

and classification scope.

3 RESULTS AND DISCUSSION

As mentioned in previous section, gap analysis is

performed to several cybersecurity standards such as

class partners’ guidelines and international standards.

The standards reviewed are NIST Cybersecurity

Framework, IMO MSC-FAL.1/Circ.3 Guidelines on

Maritime Cyber Risk Management, and cybersecurity

guidelines from Det Norske Veritas (DNV), China

Classification Society (CCS), Indian Register (IRS),

Lloyd’s Register (LR Class) and American Bureau of

Shipping (ABS).

3.1 NIST Cybersecurity Framework

(2018)

This is a framework for implementing cybersecurity

on general system that is published by The National

Institute of Standards and Technology (NIST). The

core of this framework comprises of four elements

that is Functions, Categories, Subcategories and

Informative References. Functions, as the highest

level of the elements, defines the basic cybersecurity

activity and consist of:

 Identify

 Protect

 Detect

 Respond

 Recover

The framework also defines 4 tiers that

categorizes an organization implementation of the

framework. These tiers are Tier 1 – Partial, Tier 2 –

Risk Informed, Tier 3 – Repeatable and Tier 4 –

Adaptive. Although very detailed, this framework

targets general system and may need several

adjustments to be applied specifically in maritime

context.

3.2 IMO MSC-FAL.1/Circ.3

Guidelines on Maritime Cyber Risk

Management

This Guidelines is published by IMO to provide high

level recommendations on maritime cyber risk

management. As such, these guidelines do not

provide detailed requirements on how to implement

cybersecurity in ships or organizations. The user is

instead directed to other additional guidelines for

detailed implementation of cyber risk management.

At its core, these guidelines present the same

functional elements that is explained in NIST

framework, that is Identify, Protect, Detect, Respond

and Recover.

3.3 DNV (2016)

The Guidelines published by DNV is developed

based on references from BIMCO and IMO

guidelines. The aim of these guidelines is to provide

set of requirements that can be used by enterprise to

measure their cyber risk level, develop cybersecurity

Guidelines of Maritime Cybersecurity for Ships in Indonesian Waterways from a Classiﬁcation Society Point of View

1013

implementation and verify that the developed system

is running appropriately.

In these guidelines, assessment is divided into

three levels, high level assessment, focused

assessment and comprehensive assessment. High

level assessment is the first stage of improving

enterprise cybersecurity and conducted by senior

management. The focus of this stage is mainly

technical aspect, cybersecurity awareness, policy and

cybersecurity implementation. Output of this stage is

cyber risk matrix.

The second stage, focused assessment, is

conducted by staffs with knowledge of IT, industrial

control/automation and risk methodology. In this

stage, threat to system is identified, barrier to prevent

the attack is planned and means to minimize risk of

threat is defined. Afterwards, assessment is done to

measure the impact of barrier weakening and the

means to prevent such cases.

Comprehensive assessment is performed based

on ISO/IEC 27001. In this stage, consequence of

successful cyber-attack is assumed which focused on

confidentiality, integrity, availability and

authenticity. The output of this assessment is

improvement related to technical aspect and security

management.

3.4 CCS (2020)

These Guidelines mainly explains about

implementation of cybersecurity onboard ships.

Focus of these guidelines is construction, operation,

maintenance and survey process of ships that

implements cybersecurity. There are two kind of

notation assigned to ships that comply with the

requirements of these guidelines that is P and S. P

notation denotes the lowest level of requirement,

while S notation is given to ships that comply with

highest level of requirements in these guidelines. This

guidelines uses references from IACS UR E22, IEC

and CCS own rules. Types of survey for ships with

cybersecurity notation is the same with any other

ships that is annual, intermediate and special survey.

The scope of the surveys is inspection and

assessments regarding ship cybersecurity

requirements and their management.

3.5 IRS Class (2017)

The IRS guidelines focus on implementation of

cybersecurity on board the ship and shore-based

facility. Notations given to ships that comply with

these guidelines are divided into 3 categories, CyS-I,

CyS-II, dan CyS-III. The roman numeral denotes the

level or complexity of the requirements and their

corresponding inspection where roman numeral I is

the lowest level and III is the highest level. In these

guidelines, for ships that is assigned with CyS

notation, their corresponding shore-based facility can

be awarded similar notation with additional qualifier

as per owner request.

3.6 LR Class (2017)

The guidelines published by LR class also focus on

cybersecurity on board the ship. The subject of these

guidelines is type of ship that is categorized by these

guidelines as “cyber enabled” – ships with on board

IT and OT system which is controlled conventionally

by crew or autonomously without crew. Assignment

of ship notation in these guidelines is divided into two

broad categories as follows:

 Cyber Functionality

This notation is further divided into 4

categories as follows:

o Cyber safe: essential system in ship

operation that has remote access to

onboard ship operational data has proven

to be secure

o Cyber maintain: maintenance system in

ship that has remote access to onboard ship

operational data has proven to be secure

o Cyber perform: optimization system in

ship that has remote access to onboard ship

operational data has proven to be secure

o Cyber secure: remote access in ship has

proven to be secure

 Cyber Assessment

This notation is further divided into 6

categories as follows:

o AL 0: no cyber access, no assessment is

needed

o AL 1: manual cyber access, no assessment

is needed

o AL 2: cyber access is used only for

autonomous/remote monitoring

o AL 3: cyber access is used for

autonomous/remote monitoring and

control (onboard permission required)

o AL 4: cyber access is used for

autonomous/remote monitoring and

control where onboard permission is

required and onboard override is possible

o AL 5: cyber access is used for

autonomous/remote monitoring and

control where onboard permission is not

required and onboard override is not

possible

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

1014

3.7 ABS Vol. I dan II (2016)

ABS Guidelines is divided into 2 volumes where

volume I focuses on cybersecurity management,

while volume II deals with ship notations and their

respective inspection items. Generally, cybersecurity

management explained in these guidelines is similar

to other guidelines that has been reviewed. The

difference lies only on the terms used. Class notation

that assigned to the ship is divided into 3 types, CS 1

(basic cybersecurity), CS 2 (developed cybersecurity)

and CS 3 (adaptive cybersecurity). These notations

can be assigned flexibly, for example when a ship is

requested to be assigned with CS 1 notation but it is

able to satisfy some requirements of CS 2, the ship

will be awarded CS 1 notation with additional

requirement form CS 2.

3.8 Key Points

From the review of 7 guidelines, it can be concluded

that cybersecurity management can be implemented

by following the general steps as follows:

1) Enterprise cybersecurity design and planning

2) Implementation of the system

3) Review of cybersecurity performance

especially in withstanding cyber attack

4) Responding to cyber-attack or threat

according to design

5) Improving cybersecurity management, not

only in technical aspect but also in awareness

and human aspect

3.9 BKI Guidelines for Maritime

Cybersecurity

Based on analysis result, BKI has developed

Guidelines for Maritime Cybersecurity whose

outlines is shown in table 1.

Table 1: Outline of BKI Guidelines for Maritime

Cybersecurity.

Section Name

Section 1 General

Section 2 C

bersecurit

Pro

ram Develo

ment

Section 3 Cybersecurity Management System

Section 4 Requirement for cybersecurity syste

Section 5 Surveys and maintenance of class

Section 1 explains the scope of the guidelines.

This section also defines the target of these guidelines

that is ships and offshore facilities. Regarding the

ships, these guidelines is applicable to both new

building and existing ships. Class notation that will be

assigned to ships complying with requirements in

these guidelines also explained briefly and can be

seen in Table 2 Matrix of application.

Table 2: Matrix of application.

Object

Notations

(CS-1,

CS-2,

CS-3

)

CC CSC

Statement

of fact

Shore facilities X

Management

systems

(ship/offshore)

Ship or offshore

BKI classe

X X

Ship or offshore

non-BKI

classe

1 Including information of cybersecurity level applied

by the company (informed, advance, adaptive)

2 If the ship is found to comply with the CS notations,

the CSC will be given to the operating company.

3 The statement of fact and/or assessment report may

e issued b

BKI u

on re

uested b

owner.

Aside from class notation

(CS-1, CS-2, CS-3)

there are other outputs of this guidelines,

(

Cybersecurity Certificate) that will be given to shore

facilities and

CSC (Cybersecurity Ship Certificate)

that can be given to ship/offshore facilities or their

corresponding management system. Furthermore if

the owner does not request notation for the ships even

though the ship itself already comply with the

requirement of these guidelines

, Statement of Fact

can be issued by BKI, stating that the ship or facility

has already comply with the requirements in BKI

Guidelines for Maritime Cybersecurity

. The flow of

process from assessment request until issuance of

notation or statement of fact can be seen on figure 1.

It is shown on Fig.1 that assessment request can

come from ship owners, company or other related

parties. The first step of assessment is review of FSD

(Functional Specification Document) and CSMP

(Cybersecurity Management Plan). Afterwards, risk

assessment, cybersecurity management system

assessment and risk profile development will be

conducted. The last step of assessment process is

capability assessment. After all step has been

performed, the product can be issued, in the form of

notation, Statement of Fact, CSC, or CC.

Guidelines of Maritime Cybersecurity for Ships in Indonesian Waterways from a Classiﬁcation Society Point of View

1015

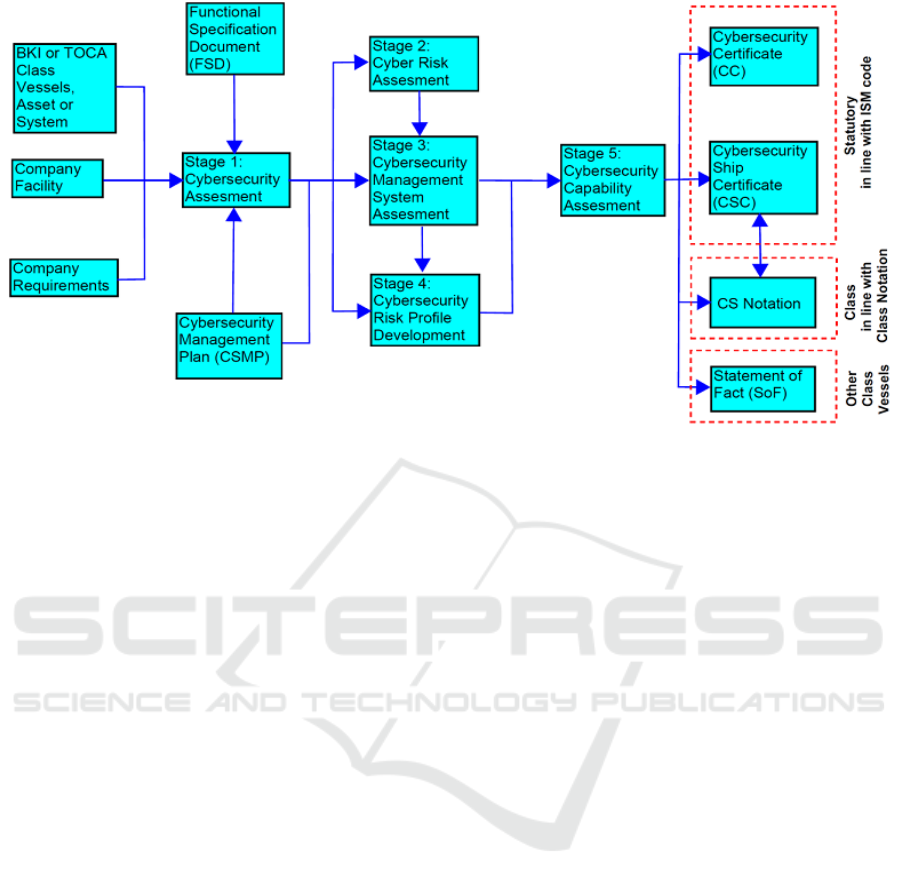

Figure 1: Cybersecurity admission flow of process (BKI Guidelines, 2021).

Section 2 Cybersecurity Program Development

discusses about development of cybersecurity in a

company. The main element of cybersecurity refers

to functional elements of NIST Framework, that is:

 Identify

Company must define key elements (personnel

roles and responsibilities, asset, data, and

capability), which expose company to high risk

when affected by cyber-attack

 Protect

Implementation of risk management and backup

plan in case of cyber-attacks

 Detect

Developing and implementing early detection of

cyber-attack periodically

 Respond

Establishing plans or measures to mitigate the risk

of cyber-attacks that can hinder the operation of

system/ship

 Recover

Establishing plan to restore data or assets in

case of successful cyber-attack

Section 3 Cybersecurity Management System

discusses about steps that must be taken by company

to maintain cybersecurity plan and development and

ensures it is running as planned.

The detailed explanation for notations assigned to

ship complying with these guidelines and their

respective requirements are discussed in Section 4

Requirements for Cybersecurity System. There are 4

notations that can be assigned to ships as follows:

 CS-1 (Informed Cybersecurity)

 CS-2 (Advanced Cybersecurity)

 CS-3 (Adaptive Cybersecurity)

where the CS-1 notation denotes the lowest level of

cybersecurity while CS-3 is the highest. To be

assigned with a notation, it is mandatory for the ship

to also comply with all the requirements of the

notation with lower level. For example, for a ship to

be assigned with CS-2 notation, it must also comply

with the requirements of CS-1 notation.

Consequently, the ship with CS-3 notation must

comply with all CS-1, CS-2 and CS-3 notations

requirements.

Finally, Section 5 Surveys and Maintenance of

Class discusses about the required surveys for class

with CS notation. Generally, survey activities for

these ships is the same with periodical survey of class

(annual, intermediate, or special). Testing and

inspection of cybersecurity functions can be done

onboard the ships or offshore facilities.

4 CONCLUSIONS

Ships owners whose aware to protect their assets from

cyber-attacks, can develop their own cybersecurity

management based on BKI Guidelines for maritime

cybersecurity, where divided into 3 level:

 CS-1 (Informed Cybersecurity)

 CS-2 (Advanced Cybersecurity)

 CS-3 (Adaptive Cybersecurity)

These guidelines not only covers cybersecurity

onboard ships but also cybersecurity for

organization/company.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

1016

REFERENCES

ITU Publications (2021), Global Security Index 2020

BSSN, Laporan Tahunan Monitoring Keamanan Siber

(2021)

ChalermpongSenarak (2021). The Asian Journal of

Shipping and Logistics, 37 2021 20-36

NIST (2018). Cybersecurity framework ver.1.1

IMO (2017). MSC-FAL.1/Circ.3 Guidelines on Maritime

Cyber Risk Management

DNV-GL (2016). RP-0496 Cyber security resilience

Management for ships and mobile offshore units in

Operation

CCS (2020). Guidelines for Requirement and Security

Assessment of Ship Cyber System

IRS Class (2017). Guidelines on Maritime Cyber Safety

ABS Vol.I (2016). The Application of Cybersecurity

Principles to Marine and Offshore Operations

ABS Vol.II (2016). Cybersecurity Implementation for The

Marine and Offshore Industries

BKI (2021). Guidelines for Maritime Cybersecurity

Guidelines of Maritime Cybersecurity for Ships in Indonesian Waterways from a Classiﬁcation Society Point of View

1017
