Design of Semantic Analysis Model System for Spatiotemporal

Information

Fan Yang

, Zhongwang Wu

and Jian Xu

2,3

Space Engineering University, Beijing, 101416, China

Tsinghua University, 100084, China

State Key Laboratory of Geo-Information Engineering, 710054, China

Keywords: Text Semantic Analysis, Image Semantic Analysis, Spatiotemporal Intelligence Mining.

Abstract: There is plenty social news on the Internet, and abundant event descriptions are given in the form of text and

images. The time, location, the type of events can be automatically obtained through semantic analysis of

spatiotemporal information from social news. Then it is possibel to analyze the rules of events and predict the

trend of events. This paper first designs a spatiotemporal intelligence semantic analysis model system, which

can obtain the event type, event time and event locations, as well as the time and location rules of events based

on the text semantic mining. And then the designed system can use the obtained text semantics to assist the

image semantic mining to obtain the spatiotemporal intelligence such as the target type, target model, target

location and action rules occurred in the event. This paper also implements the prototype system which proves

that both text semantic analysis and image semantic analysis can correctly obtain spatiotemporal information.

1 INTRODUCTION

In the age of big data, we can continuously obtain the

latest social news from Internet, which reports the

world's trends. Through text semantic analysis and

image semantic analysis, we can obtain the time,

locations and types of social events from massive

news, so as to analyze their rules and trends, which

can be used for situation prediction. The news reports

related to the same social event come from different

sources, which have the forms of both text reports and

images. With the progress of time, the events are also

evolving. The differences between text semantics and

image semantics can also assist with each other, and

more accurate and rich event rules can be mined.

This paper designs a spatiotemporal intelligence

semantic analysis model system, which can use the

massive social news obtained from the Internet to

generate the event type, time and locations, as well as

the time, locations rules of the event based on the text

semantic mining, and then use the obtained text

semantics to assist the image semantic mining to

obtain the type, model, location, time and space

information such as the action rules of targets. And

the prototype system is implemented in this paper,

which proves that both text semantic analysis and

image semantic analysis can correctly obtain

spatiotemporal information.

2 RESEARCH BACKGROUND

The existing technology combining text semantics

and image semantics has been applied in many fields,

including image retrieval (Xie 2008, Mu et al. 2009),

pathological diagnosis (Li 2009), emotion analysis

(Tian 2017, Zhang 2015), and points of interest

recommendation (Chen et al. 2020). Among them,

references (Xie 2008, Mu et al. 2009) use the content

extracted from the text semantics to retrieve the

corresponding image; reference (Li 2009)

comprehensively analyzes image and text semantics

to obtain more accurate pathological structure and

content description; references (Tian 2017) and

(Zhang 2015) are both used to classify emotions by

mining the semantics of Weibo Chinese text, and then

use images to filter the diversity of text semantics, so

as to improve the accuracy of emotion classification.

Reference (Chen et. al 2020) uses the semantics of the

comment text and the description of the interest

points by the image semantics to comprehensively

Yang, F., Wu, Z. and Xu, J.

Design of Semantic Analysis Model System for Spatiotemporal Information.

DOI: 10.5220/0012045800003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 745-750

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

745

recommend the interest points that match user

preferences.

There are also some studies (Malinowski 2021,

Chaudhury et al. 2020, Singh et al. 2022, Genc et al.

2019) that detect events based on text or image data.

For example, document (Malinowski 2021) converts

seismic waves into images, and then extracts

spatiotemporal patterns based on CNN classifier to

obtain seismic events; reference (Chaudhury et al.

2020) analyzes the time feature set in motion video to

determine which type of motion scene. The research

on image-based event detection is also limited to the

analysis of specific events, and the research on text-

based event detection is relatively richer. For

example, reference (Singh et al. 2022) uses a dual

network called Siam network to detect and classify

text data obtained in social media such as twitter, and

can process data streams with a faster speed.

Reference (Genc et al. 2019) is more inclined to

analyze the time information in social media data to

obtain time rules and cycle of detected events from

appearance to disappearance.

Therefore, if the rich space-time data contained in

the text and image data are comprehensively utilized,

it can be used to analyze the behavior rules and action

trends of targets or events. The use of text and image

semantics to obtain spatiotemporal information will

be conducive to dynamic tracking of social events,

predicting their future trend, and timely early warning

or intervention.

3 SYSTEM DESIGN

The system is to establish a semantic analysis model

for spatiotemporal data analysis, including basic text

processing, text semantic analysis and image

semantic analysis. In order to analyze and extract the

internal characteristics of spatiotemporal data, the

system builds a set of semantic labeling models based

on time, location and events for spatiotemporal data.

The time dimension includes but is not limited to

season, month, date and hour (60 minute granularity).

The spatial dimension includes but is not limited to

latitude and longitude and height. The event records

the events that occur in the corresponding time and

locations. The events recorded here need to be

defined in advance.

3.1 Structure Design

The system includes the following functional

modules: Web information extraction module, text

extraction module, image extraction module, text data

cleaning, keyword extraction module, text semantic

mining module, and image semantic extraction.

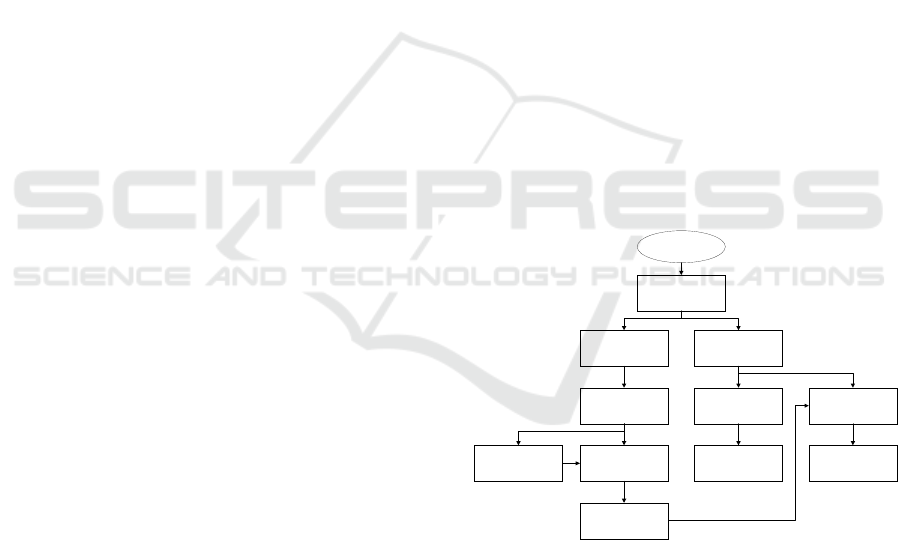

Fig.1 shows the system architecture. The system

can obtain web information and save it in local

computers, filter local noises of web pages through

the extraction of the text of web pages, and extract the

text information, including plain text documents and

pictures in the text. Among them, the pure text

document can obtain a language that can be

understood by the computer through natural language

processing technology, including word segmentation,

part of speech tagging and stop word filtering. The

results obtained by the keyword extraction module

after natural language processing can be displayed to

the user's main text content, which is convenient for

users to browse and process text. Through the

semantic map mining module, the semantic map

without annotation relationship can be obtained. After

the analysis of linked data, the semantic relationship

map with relation annotation can be obtained. At the

same time, the system supports manual import and

semantic analysis. On the other hand, the image

information can obtain the type and model

information of the object by using the method of

image object extraction. On the other hand, the

method of image semantic extraction is used to obtain

the target locations and its action rules based on the

results of text semantic mining.

Internet

Web information

extraction module

Text extraction

module

Image extraction

module

Text data cleaning

Keyword extraction

module

Text semantic

mining module

Image target

extraction

Image semantic

extraction

Time, locations,

event type and event

rules

Target Locations,

target action rules

Target type, target

model

Figure 1: System architecture.

3.2 Main Functions

The system is designed to meet the teaching

interaction between teachers and students, so that

students can actually operate the system and

understand the operation mechanism and

implementation principle of the system. The system

mainly has the following functions:

ISAIC 2022 - International Symposium on Automation, Information and Computing

746

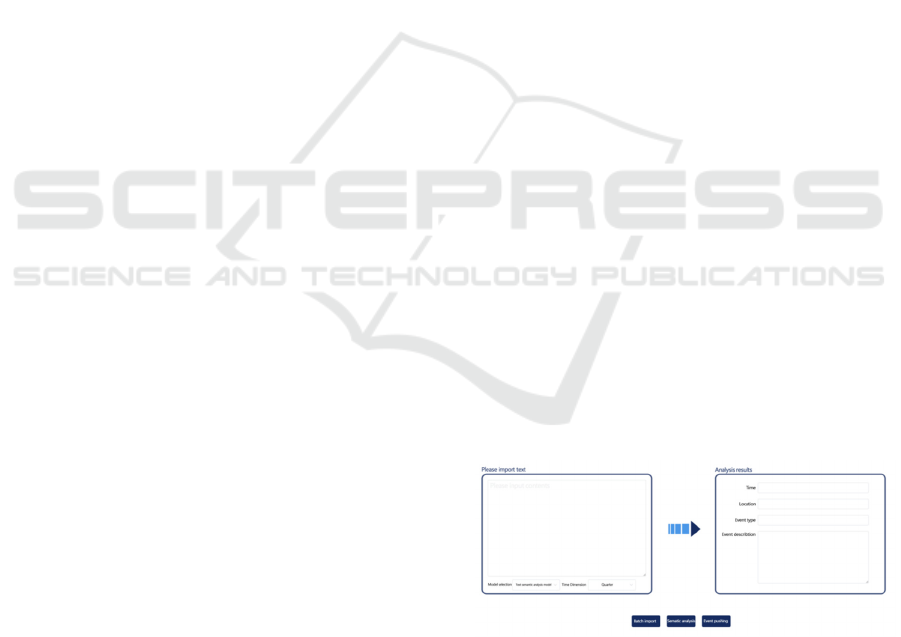

1) Text semantic analysis function

Text semantic analysis is mainly used to extract the

entity of text content, including time dimension,

space dimension and occurrence event (event type

and occurrence event), and supports three-

dimensional association analysis of time, locations

and events. This function supports batch import of

text data, model selection, and time dimension

selection (season, month, date, and time). Text import

supports modification and input of any text. The

results are analyzed and displayed by calling the text

semantic analysis model.

This function involves two operation areas:

parameter input and result output. Parameter input

includes batch import, model selection and time

dimension selection (season, month, date and time).

The result display includes: time, locations, event

type and event description.

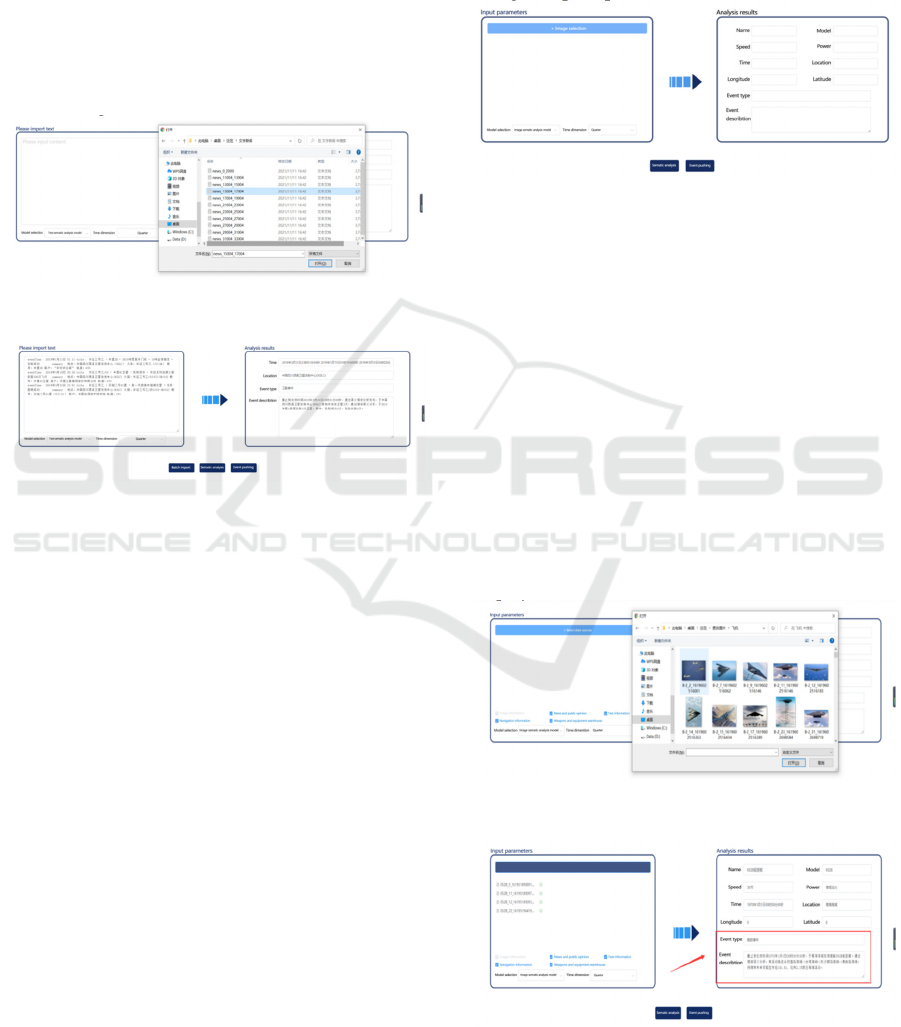

2) Image semantic analysis function

The semantic analysis of images is mainly to meet the

entity extraction of batch images, including time

dimension, space dimension and event (event type

and occurrence event). It supports three-dimensional

association analysis of time, locations and event. This

function supports batch import of images, model

selection, and time dimension selection (season,

month, date, and time). By calling the text semantic

analysis module, the results are analyzed and

displayed.

This function involves two operation areas:

parameter input and result output. The parameter

input includes: batch import of pictures, model

selection and time dimension selection (season,

month, date and time). The result display includes:

name, model, speed, type, time, location, longitude,

dimension, event type and event description.

3.3 Implementation Principle

3.3.1 Text Data Cleaning

Before text semantic analysis, it is often necessary to

clean the original text. Because the original text often

contains many meaningless data, such as symbols,

punctuation, or meaningless words such as "de" and

"le", it is necessary to clean the useless parts. This

system uses regular expressions and rules to clean the

text. Among them, regular expressions are used to

clear meaningless symbols and punctuation, and

dictionary based word segmentation algorithm is used

to clean meaningless words in the text.

(1) Regular expression (Stavros et al. 2021)

A regular expression, also known as Regex, is a

sequence of characters used to match string patterns

within certain text. After matching the patterns,

different functions can be applied to the patterns. For

example, values on a string can be replaced, and

according to the regular expression patterns, values

can be added or deleted in the text, and values can be

searched within the text.

(2) Dictionary based word segmentation

algorithm (

Ling 2020)

The algorithm matches the character string to be

matched with the words in an established large

enough dictionary according to a certain strategy. If

an entry is found, the matching is successful and the

word is recognized. Dictionary based word

segmentation algorithm is the most widely used and

the fastest. For a long time, researchers have been

optimizing based on the string matching methods,

such as the maximum length setting, string storage

and searching methods, and the organization structure

of the vocabulary, such as using TRIE index tree and

hash index.

3.3.2 Text Semantic Analysis

Text semantic analysis is mainly used to extract the

entity of text content, including time dimension,

location dimension and event (event type and

occurrence event), and supports three-dimensional

association analysis of time, locations and events. The

system adopts named entity recognition algorithm

(Ying et al. 2022) supplemented by rules, knowledge

base and other external knowledge to realize the

recognition and extraction of time, person name,

institution name, location name and other

spatiotemporal named entities in the text. And the

event extraction algorithm (Wu et al. 2021) is used to

identify and extract the event type, event trigger

words, event participants and other information.

Named Entity Recognition Algorithm. One of the

core tasks of this system is to effectively capture the

feature information of unstructured text. Because the

word segmentation task has many marked entity

boundaries that are the same as the named entity task,

and the corpus size of word segmentation is relatively

large, the system selects the word segmentation

corpus as the external knowledge and designs the

character vector

𝑒



for the word segmentation task

and the character vector

𝑒



for the named entity

recognition task as the input vector of the model.

𝑒



includes external knowledge and a certain

degree of noise that can provide a division basis for

boundary determination of the named entity

recognition task. 𝑒



can provide semantic features

that are unique to the named entity recognition. The

Design of Semantic Analysis Model System for Spatiotemporal Information

747

feature representations of these two types of

characters can be obtained by querying the

corresponding word vector matrix.

Because the bi-directional information in a

sentence is helpful for sequence modeling, which can

help to judge the named entity through the above and

the following, the Bi-LSTM network (Ying et al.

2022) that can capture the bi-directional information

of the text is used to extract the sentence context

features in this paper. Named entity recognition and

word segmentation are both sequence annotation

tasks, and there are strong constraints between

adjacent tags. Therefore, this paper uses CRF as the

decoding layer. CRF is composed of label probability

matrix

𝐸∈𝑅



and transition probability matrix

𝑇∈𝑅



, where n is the number of characters

in the sentence and tags is the number of tags.

Event Extraction Algorithm.

The event extraction

module extracts event information from unstructured

text data, including:

1) Event trigger words: core words indicating the

occurrence of events, mostly verbs or nouns;

2) Event types: ACE2005(Tan et al. 2021) defines 8

event types and 33 sub classes;

3) Event arguments: the participant of an event,

mainly composed of entity, value and time;

4) Argument roles: the role of an event argument in

an event.

The event extraction module uses the DMCNN

(Wu et al. 2021) method to extract the event

information from text data, providing a basis for text

data mining. As a convolutional neural network,

DMCNN also includes input layer, convolution layer

and pooling layer. In the input layer, the input layer

of DMCNN algorithm adopted by the system includes

three types of features: CWF, PF and EF, which

respectively represent word embedding, location

embedding and event type embedding. The results of

three embedding and splicing are used as the word

level features of a word. The position embedding here

actually expresses the position of each word relative

to the trigger word and the candidate argument, and

the event type is the type of the trigger word.

3.3.3 Image Semantic Analysis

The semantic analysis of images is mainly to meet the

entity extraction of batch images, including time

dimension, space dimension and occurrence event

(event type and occurrence event). It supports three-

dimensional association analysis of time, space and

event. The system uses algorithms such as object

detection and image event extraction to realize the

identification of the event subject and environment,

and the extraction of the contained events. The core

goal of image semantic analysis is to realize the event

detection module. The system adopts dual cycle

multi-modal model (DRMM) (Tong et al. 2020) to

realize image event detection. DRMM is used for

deep interaction between images and sentences to

aggregate modal features. DRMM uses pre-trained

BERT and ResNet to encode sentences and images,

and uses alternating double attention to select

information features for mutual enhancement.

4 SPATIOTEMPORAL

INFORMATION SEMANTIC

ANALYSIS MODEL SYSTEM

4.1 Text Semantic Analysis Function

4.1.1 Function Design

The text semantic analysis page is divided into three

areas: parameter selection area, analysis result display

area and button operation, as shown in Fig. 2. The

parameter selection area includes: text editing area,

selection model and time dimension. The text editing

area supports batch import and arbitrary text input.

The time dimension supports options such as quarter,

month, date and time. The system can analyze the

event rules according to different time resolutions.

The analysis result area includes: time, location, event

type and event description. Button operations include

batch import, semantic analysis and event pushing.

Event pushing is to push analysis results to another

system for subsequent processing by other systems.

After clicking the event pushing button, the system

will give a prompt of success or failure.

Figure 2: Text semantic analysis function interface.

4.1.2 Function Realization

This paper chooses the text semantic analysis model

to analyze, and gets the analysis results. The text

semantic analysis function can describe events in the

ISAIC 2022 - International Symposium on Automation, Information and Computing

748

text, classify event types, and extract entity attributes

such as time and locations.

The operation steps are as follows:

1) Click "spatiotemporal intelligence semantic

analysis system" to enter the training interface, as

shown in Fig. 2;

2) Click "batch import" in Fig. 2 and select the

required text file to import, as shown in Fig. 3;

Model selection: for text semantic analysis model,

first select time dimension by date, and then click

“semantic analysis” to get the analysis result, as

shown in Fig. 4.

Figure 3: Select text for importing text.

Figure 4: Analysis results of text semantic analysis.

It can be seen that according to the three different

pieces of news information in Fig.4, the time,

locations and event type information in the text are

extracted and displayed respectively, and the event

rules within a period of time can be summarized and

described, realizing the function of text semantic

analysis.

4.2 Image Semantic Analysis Function

4.2.1 Function Design

After the text analysis, the image semantic analysis is

performed using the results of the text analysis. The

picture semantic analysis page is also divided into

three areas: parameter selection area, analysis result

display area and button operation, as shown in Fig. 5.

The parameter selection area includes: image

selection, model selection, and time dimensions. The

image area supports batch import of images, and the

time dimension supports options such as quarter,

month, date and time. The system can analyze event

rules according to different time resolutions. The

analysis result area includes the name, model, speed,

type, time, location, longitude, dimension, event type

and event description of the target. Button operations

include semantic analysis and event pushing. Event

pushing is to push the analysis result to another

system for subsequent processing by other systems.

After clicking the event pushing button, the system

will give a prompt of success or failure.

Figure 5: Image semantic analysis function interface.

4.2.2 Function Realization

The image semantic analysis function supports

importing image files, selecting an image semantic

analysis model for analysis, classifying the objects in

the image, determining the model, determining the

target location, and displaying the event type and

event description results. The correspondence

between images and text is n:1, that is, there is one

text file extracted from a news release, and there are

N pictures extracted from the same news release.

Therefore, when multiple images are selected, the text

files corresponding to multiple images are also

selected, and the locations, time and event

information obtained by semantic analysis are also

displayed in the results.

Figure 6: Select images for importing image data.

Figure 7: Select model and time dimension to obtain

analysis results.

Design of Semantic Analysis Model System for Spatiotemporal Information

749

The operation steps are as follows:

1) Click "spatiotemporal intelligence semantic

analysis system" to enter the training interface;

2) Click "image selection" in Fig. 5 and select the

required picture to import, as shown in Fig.6;

3) Model selection: for image semantic analysis

model, first to select time dimension by quarter, and

then click semantic analysis to get the analysis result,

as shown in Fig. 7.

It can be found that the type and model of the

target are obtained according to the multiple images,

so as to match the speed, power and other intelligence

information of the target from the database. Using the

results of text semantic analysis, the type judgment

and event description of events, such as ship events,

can be obtained at the same time.

5 CONCLUSIONS

This paper designs a spatiotemporal intelligence

semantic analysis model system, which can extract

images and text information from the massive news

events obtained from the Internet, and conduct

semantic analysis on the texts and images

respectively to obtain the information about the time,

locations, types and rules of the events. The system

(1) supports the management of the text through the

quality requirements of the text data, retains the text

with analysis value, and removes the dirty data; (2) It

supports the establishment of semantic analysis

model and the extraction of text content, including

time dimension, space dimension and occurrence

event (event type and occurrence event); (3) It

supports time information to season, month, date,

time-sharing granularity (60 minutes, etc.), and

analyzes the intrinsic value of information in the time

dimension; (4) It supports the use of events (event

types and events) to classify texts, analyzes the

change rules of similar events in the two dimensions

of time and locations, mines the potential

characteristics of events, and provides guidance for

future decision-making. With the generated

spatiotemporal information and spatiotemporal

movement rules, it is possible for us to make

predictions on target intention as our future work.

REFERENCES

Chaudhury S, Kimura D, Vinayavekhin P, et al.

Unsupervised Temporal Feature Aggregation for Event

Detection in Unstructured Sports Videos[J]. 2020.

Chen Jianbing, Shen Jianfang, Chen Pinghua, Point of

Interest Recommendation Integrating Review and

Image Semantic Information [J], Computer

Engineering and Applications, 2020, 56(19): 160-167.

Genc, H., Yilmaz, B. (2019). Text-Based Event Detection:

Deciphering Date Information Using Graph

Embeddings. In: Ordonez, C., Song, IY., Anderst-

Kotsis, G., Tjoa, A., Khalil, I. (eds) Big Data Analytics

and Knowledge Discovery. DaWaK 2019. Lecture

Notes in Computer Science, vol 11708. Springer, Cham.

https://doi.org/10.1007/978-3-030-27520-4_19.

Li Bo, Analysis Model of Medical Text and Image based

on LDA and LSA and its Application [D], Jilin

University, 2012.

Ling Zhao, Ailian Zhang, Ying Liu, Hao Fei, “Encoding

multi-granularity structural information for joint

Chinese word segmentation and POS tagging”, Pattern

Recognition Letters, 138: 163-169, 2020.

Malinowski M. Automatic Image-Based Event Detection

for Large-N Seismic Arrays Using a Convolutional

Neural Network[J]. Remote Sensing, 2021, 13.

Mu Yakun, Feng Shengwei, Zhang Jin, Image Retrieval

Based on Text and Sematic Relevance Analysis [J],

Computer Engineering and Applications, 2009,

55(1):196-202.

Singh T , Kumari M , Gupta D S . Real-time event

detection and classification in social text steam using

embedding[J]. Cluster Computing, 2022:1-19.

Stavros Konstantinidis, Nelma, Moreira, Rogério Reis,

Partial derivatives of regular expressions over alphabet-

invariant and user-defined labels, Theoretical

Computer Science, Volume 870, 16 May 2021, Pages

103-120.

Xiaokao Tan, Guofeng Deng, Xiangjun Hu, Multi-

granularity context semantic fusion model for Chinese

event detection, ICICSE 2021: 2021 10th International

Conference on Internet Computing for Science and

Engineering, July 2021, pp: 1–7.

Tan Junxin, Research on Sentiment Classification for

Microblogging based on Multimodel Data [D], Nanjing

University, 2017.

Tong M , Wang S , Cao Y , et al. Image Enhanced Event

Detection in News Articles[J]. Proceedings of the AAAI

Conference on Artificial Intelligence, 2020,

34(5):9040-9047.

WU Fan, ZHU Peipei, WANG Zhongqing, LI Peifeng,

ZHU Qiaoming, Chinese Event Detection with Joint

Representation of Characters and Word, Computer

Science, 48(4), 2021.

Xie Lin, Integrating Textural Semantic and Visual Content

for Web Personal Image Retrieval [D], Beijing Jiaotong

University, 2008.

Ying An, Xianyun Xia, Xianlai Chen, Fang-Xiang Wu,

Jianxin Wang, “Chinese clinical named entity

recognition via multi-head self-attention based

BiLSTM-CRF”, Artificial Intelligence In Medicine,

127: 102282, 2022.

Zhang Yaowen, Research on Sentiment Classification for

Microblogging with Text and Image [D], Nanjing

University, 2015.

ISAIC 2022 - International Symposium on Automation, Information and Computing

750
