Online HTN Planning for Data Transfer and Utilization Considering

Legal and Ethical Norms: Case Study

∗

Hisashi Hayashi

and Ken Satoh

Advanced Institute of Industrial Technology, Tokyo, Japan

National Institute of Informatics, Tokyo, Japan

Keywords:

Data Transfer, Legal and Ethical Norms, Online HTN Planning, Logic Programming, Application of Planning.

Abstract:

Data transfer among servers is crucial for distributed data mining because many databases are distributed

around the world. However, as data privacy is becoming more legally and ethically protected, it is necessary to

abide by the laws and respect the ethical guidelines when transferring and utilizing data. Because information

affecting legal/ethical decision-making is often distributed, the data-transfer plan must be updated online when

new information is obtained while transferring data among servers. In this study, we propose a dynamic

hierarchical task network (HTN) planning method that considers legal and ethical norms while planning multi-

hop data transfers and data analyses/transformations. In our knowledge representation, we show that data-

transfer tasks can be represented by the task-decomposition rules of total-order HTN planning. We also show

that legal norms can be expressed as the preconditions of tasks and actions, and ethical norms can be expressed

as the costs of tasks and actions where legal norms cannot be violated, but ethical norms can be violated

if necessary following the ethical theory of utilitarianism. In the middle of the plan execution, the online

planner dynamically updates the plan based on new information obtained in accordance with laws and ethical

guidelines.

1 INTRODUCTION

Because data privacy is respected worldwide, many

laws and ethical guidelines governing the transfer and

usage of collected data have been established. Some

data can only be transferred within a country or a

company. Some data can only be used for speciﬁc

purposes.

Because the laws and ethical guidelines for col-

lected data are complicated and different in each

country, some researches have been conducted on the

automated compliance check of norms in data trans-

fers. In (Agarwal et al., 2018; Bonatti et al., 2020;

Palmirani et al., 2018; Vos et al., 2019; Taheri et al.,

2021), the policy presentation of European general

data protection regulation (GDPR) is studied to au-

tomate compliance checks.

Planning for data transfer in accordance with le-

gal/ethical norms is a new ﬁeld of research. In the

studies of (Satoh et al., 2021; Taheri et al., 2021),

data-transfer planners and legal/ethical checkers are

separate. These are good frameworks considering that

∗

An earlier version of this paper appeared as an infor-

mal workshop paper (Hayashi and Satoh, 2022).

the logic of legal/ethical checkers is complicated and

should be separated from the logic of planning. How-

ever, replanning was not achieved in these studies.

Considering real international data transfers

among distributed servers, replanning is crucial be-

cause the latest information necessary for planning is

also distributed and not available when initially plan-

ning. In other words, the data-transfer plan must be

dynamically checked and updated if necessary, even

in the middle of the plan execution when new infor-

mation is found on distributed servers, which may af-

fect the validity of the plan.

In this paper, we present a new knowledge for dy-

namic HTN planning on transferring and utilizing dis-

tributed data considering legal and ethical norms. We

use an extension of the Dynagent algorithm (Hayashi

et al., 2006) which is an online total-order HTN plan-

ner. Total-order HTN planning algorithms (Behnke

et al., 2018; Hayashi et al., 2006; Magnaguagno et al.,

2021; Nau et al., 1999; Schreiber, 2021) are simple,

easy to use, and used for representing the domain con-

trol heuristics by task-decomposition rules.

In our knowledge representation, we show that

data-transfer tasks can be represented by the task-

154

Hayashi, H. and Satoh, K.

Online HTN Planning for Data Transfer and Utilization Considering Legal and Ethical Norms: Case Study.

DOI: 10.5220/0011603000003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 1, pages 154-164

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

decomposition rules of total-order HTN planning. We

also show that legal norms can be expressed as the

preconditions of tasks and actions, and ethical norms

can be expressed as the costs of tasks and actions

where legal norms cannot be violated, but ethical

norms can be violated if necessary following the eth-

ical theory of utilitarianism. Using this knowledge

and an online HTN planning algorithm, the plan of

data transfer and utilization is dynamically adapted to

the new information obtained at local servers, abiding

by the laws and following the ethical guidelines. To

the best of our knowledge, there is no study on dy-

namic replanning for data transfer considering latest

legal and ethical norms. This technology will be cru-

cial for international data transfers in the era of data

privacy protection.

The rest of this paper is organized as follows: In

Section 2, related work is discussed. In Section 3, the

problem of data transfer and utilization is deﬁned. In

Section 4, the algorithm of online HTN planning is

explained. In Section 5, the knowledge representa-

tion method to solve the problem is shown as a case

study based on a speciﬁc scenario. In Section 6, the

knowledge representation presented in the case study

is discussed. In Section 7, the paper is summarized.

2 RELATED WORK

HTN planners create plans by decomposing abstract

tasks into more concrete subtasks. The ﬁrst HTN

planners were created in the late 1970s (Sacerdoti,

1977; Tate, 1977). Other previous HTN planners

were created around 1990 (Currie and Tate, 1991;

Wilkins, 1988).

The most popular and well-established HTN plan-

ner is simple hierarchical ordered planner (SHOP)

(Nau et al., 1999), which is a simple forward-chaining

total-order planner. This forward-chaining planner

decomposes the subtasks in the same order of exe-

cution. Domain control heuristics can be expressed

easily by the task-decomposition rules (methods) in a

manner similar to the Horn clauses of the Prolog pro-

gramming language, which are used for goal/literal

decomposition.

SHOP is still standard in HTN planning. For

example, HDDL (H

oller et al., 2020) was used in

the HTN planning track of the international plan-

ning competition held in 2020, however, a translator

from HDDL to (J)SHOP2 (Nau et al., 2001) was pro-

vided. (Note that SHOP2 is a partial-order-planner

version of SHOP, and that JSHOP2 is the Java ver-

sion of SHOP2.) SHOP-like total-order HTN plan-

ners are still being studied to improve computational

efﬁciency (Behnke et al., 2018; Magnaguagno et al.,

2021; Schreiber, 2021).

Dynagent (Hayashi et al., 2006) is a simple

SHOP-like total-order forward-chaining HTN plan-

ner. In contrast to SHOP, Dynagent is an online HTN

planner. When the current assumption is updated,

the Dynagent planner modiﬁes the plan, even in the

middle of plan execution. Dynagent was applied to

real robot manipulation, such as online path plan-

ning (Hayashi et al., 2009) and online pick-and-place

planning (arm manipulation) (Hayashi et al., 2013;

Hayashi et al., 2015). In this study, we adopted and

slightly modiﬁed the online HTN planning algorithm

of Dynagent.

Another interesting online forward-chaining

HTN-like planning is also studied in (Patra et al.,

2019; Patra et al., 2020). This online planner never

backtracks and cannot change the plan in the middle

of execution. However, it delays the subtask de-

composition until it becomes necessary and changes

the way to decompose the subtasks according to the

current situation. Interestingly, this planner conducts

Monte Carlo tree search, which is often used for

game tree search. This technique is known to be

effective when the search space is very large, such

as in chess or Go. This planner can also represent

complicated control processes such as “if-then” and

“repetition” as in standard procedural programming

languages.

In the studies (Satoh et al., 2021; Taheri et al.,

2021), the knowledge for data-transfer planning is

expressed by logic programs that represent the sim-

pliﬁed version (Shanahan, 1989) of the event calcu-

lus (Kowalski and Sergot, 1985). These planners are

implemented by the answer set programming (ASP

(Lifschitz, 2019)) solver, which makes stable mod-

els through forward reasoning. However, they are not

online planners. The idea of using the simpliﬁed ver-

sion of the event calculus for planning was ﬁrst intro-

duced in (Miller, 1997). A planner based on the event-

calculus was implemented in (Shanahan, 2000) using

the Prolog programming language. In (Berreby et al.,

2017; Berreby et al., 2018), event calculus is used for

representing causalities in computational ethics. An-

other work on ethical principles on planning is found

in (Lindner et al., 2020).

3 PROBLEM

In this section, we deﬁne the planning problem of

legally and ethically correct data transfer and utiliza-

tion.

Online HTN Planning for Data Transfer and Utilization Considering Legal and Ethical Norms: Case Study

155

Nodes (servers) are connected by arcs (network

lines). The data stored in the database at a node can

be retrieved from the same node. Data at a node can

be transferred to an adjacent node that is connected by

an arc. An analyzer at a node can analyze data for a

speciﬁc purpose at the same node. Analysis output

is also data and can be transferred to an adjacent node

connected by an arc.

There are legal and ethical norms for data trans-

fers. Some data can only be transferred within spe-

ciﬁc countries. Some data can only be transferred

within a company. Some data can only be analyzed

for speciﬁc purposes. Legal norms must be satisﬁed.

Ethical norms should be respected if possible.

The objective is to deliver the analysis output of

speciﬁed data to a speciﬁed node for a speciﬁc pur-

pose.

4 ONLINE HTN PLANNING

In this section, we deﬁne the syntax and sketch of

the algorithm of online total-order forward-chaining

HTN planning based on the algorithm of Dynagent

(Hayashi et al., 2006). Dynagent (Hayashi et al.,

2006) is similar to SHOP (Nau et al., 1999). However,

in contrast to SHOP, Dynagent is an online planner.

4.1 Syntax

In this subsection, we deﬁne the syntax of the belief

and planning knowledge that are used by the planner.

Because we implemented the algorithm in Prolog, the

syntax follows its representation.

In the following deﬁnition, ﬂuents (predicates

whose truth value can change) and belief rules (corre-

sponding to Horn clauses in Prolog) are deﬁned using

constants, variables, functions (=function symbols),

and predicates (=predicate symbols). As in Prolog,

constants, functions, and predicates, are represented

by alphanumeric characters starting with a lowercase

alphabet and Variables are represented by alphanu-

meric characters starting with an uppercase alphabet

or “ ”.

Deﬁnition 1. A term is one of the following: a con-

stant, a variable, or a complex term. A complex term

is of the following form: F(T

, ··· , T

) where n ≥ 0,

F is an n-ary function, and each T

(1 ≤ i ≤ n) is a

term. A ﬂuent is of the following form: P(T

, · ·· , T

)

where n ≥ 0, P is an n-ary predicate, and each T

(1 ≤ i ≤ n) is a term. When P is a 0-ary predicate, the

ﬂuent P() can be abbreviated to P. A ﬂuent is either

derived or primitive.

In the following deﬁnition, belief rules are deﬁned

in the same way as in Prolog. Fluents are used to

represent the states.

Deﬁnition 2. A belief rule is of the following form:

belief(F, [F

, · ·· , F

]) where n ≥ 0, F is a ﬂuent

called the head, each F

(1 ≤ i ≤ n) is a ﬂuent, and the

set of ﬂuents F

, · ·· , F

is called the body. (This be-

lief rule can be understood as F ⇐ F

, · ·· , F

.) When

n > 0, F is a derived ﬂuent. When n = 0, the belief rule

belief(F, []) can be expressed as belief(F) and F is

called a fact. The belief rule belief(F, [F

, · ·· , F

])

deﬁnes the ﬂuent G if F is uniﬁable with G. Fluent F

is regarded as dynamic iff it is declared as dy(F). The

belief rule belief(F) can be asserted to or retracted

from the belief after observation or action execution

iff F is dynamic.

We deﬁne the syntax of tasks, actions, and (total-

order) plans as follows: task symbols are represented

by alphanumeric characters starting with a lowercase

alphabet.

Deﬁnition 3. A task is of the following form:

T(X

, · ·· , X

) where n ≥ 0, T is an n-ary task sym-

bol, and each X

(1 ≤ i ≤ n) is a term. When T is a

0-ary task symbol, the task T() can be abbreviated to

T. A task is either abstract or primitive. An action is

a primitive task. The cost C of the task T, where C is

a number (real number or integer), is represented as

cost(T, C).

A plan is a list of tasks of the following form:

, · ·· , T

] where n ≥ 0 and each T

(1 ≤ i ≤ n) is

a task, which is called the i-th element of the plan.

The cost of the plan [T

, · ·· , T

] is the sum of each

cost of T

(1 ≤ i ≤ n).

To represent the effect of an action, we use the

following action rules.

Deﬁnition 4. An action rule is of the following form:

action(A, C, E), where A is an action, C is a list of

ﬂuents called preconditions, E is a list of effects, an

effect is either of the following forms: initiates(F)

or terminates(F), and F is a ﬂuent.

Intuitively, in the aforementioned deﬁnition,

initiates(F) (or terminates(F)) represents that

the truth value of F becomes true (respectively, false)

after the action execution, if all the preconditions

hold.

To represent a method to decompose a task into

subtasks, we use the following task-decomposition

rules. Note that task decomposition rules are called

methods in SHOP (Nau et al., 1999).

Deﬁnition 5. A task-decomposition rule is of the

following form: htn(H, C, B) where H is an abstract

task called the head, C is a list of ﬂuents called pre-

conditions, and B is a plan called the body.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

156

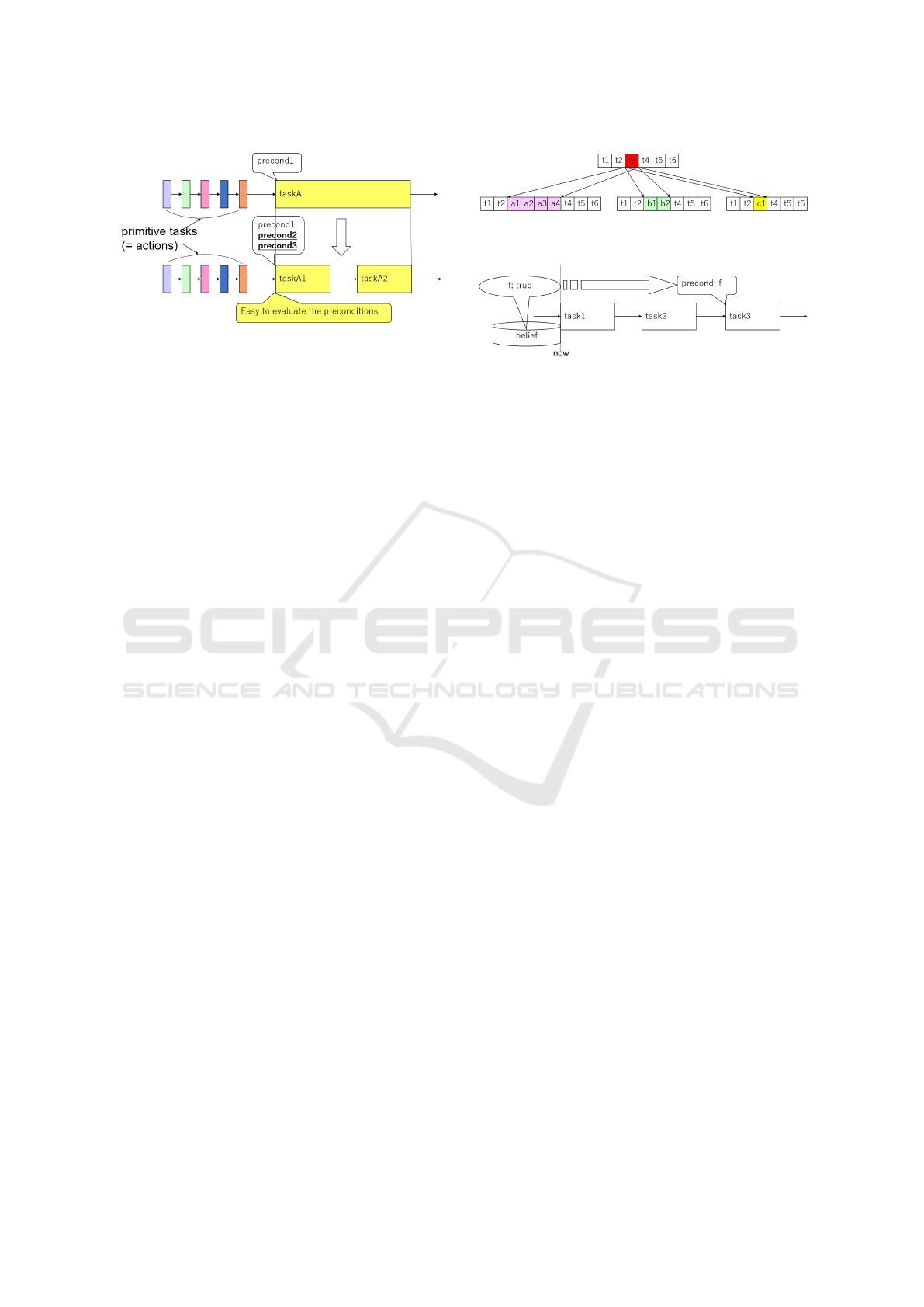

Figure 1: Task Decomposition.

The planning agent has belief and planning

knowledge, which are used for planning. Further-

more, belief represents the current state, whereas

planning knowledge represents the effects of actions

and the methods to decompose tasks into subtasks.

Deﬁnition 6. Belief is of the following form: ⟨D, S⟩

where D is a set of dynamic ﬂuents, and S is a set of

belief rules.

Planning knowledge is of the following form:

⟨AR, TDR, COST⟩ where AR is a set of action rules,

TDR is a set of task-decomposition rules, and COST

is a set of the cost of each task.

4.2 Sketch of the Algorithm

In this subsection, we show the sketch of the algo-

rithm we used in this study. We used the algorithm of

Dynagent, which is deﬁned in detail in (Hayashi et al.,

2006). However, the replanning method after cost up-

dates is not shown in (Hayashi et al., 2006). We mod-

iﬁed the algorithm to handle cost updates, which is

crucial for reﬂecting ethical norms in plan selection.

Because the algorithm is implemented in Prolog, it

can handle rules of predicate logic by uniﬁcation.

4.2.1 Initial Planning

The planning agent has the belief and planning knowl-

edge deﬁned in the previous subsection. Belief repre-

sents the current state (the truth value of each ﬂuent)

which the planning agent believes. Planning knowl-

edge includes action rules, task-decomposition rules,

and cost information of tasks.

The planner recursively decomposes the task into

subtasks that become primitive tasks (= actions) be-

fore execution. The HTN planning algorithm is

forward-chaining and the task decomposition is con-

ducted in the same order as task execution as shown

in Figure 1.

When a task taskA in a plan is decomposed, all

the previous tasks before the task taskA are primitive.

Therefore, it is easy to evaluate the truth value of ﬂu-

Figure 2: Multiple Subplans.

Figure 3: Protected Link.

ents in the state shortly before task execution. The

preconditions (precond2 and precond3) of the task de-

composition, which are added to the preconditions of

the ﬁrst subtask (taskA1), must be satisﬁed before the

task execution.

In general, there are several ways to decompose

a task. For example, in the case of the data trans-

fer problem, there are several routes for data transfer.

When decomposing a task in a plan, multiple plans

are created using multiple task-decomposition rules.

For example, in Figure 2, the task t3 in a plan is de-

composed into three subplans [a1, a2, a3, a4], [b1,

b2], and [c1]. Therefore, the search space of HTN

planning is an or-search-tree of plans.

When each task has the cost information, the best-

ﬁrst search can be conducted. In the algorithm of Dy-

nagent, to conduct the best-ﬁrst search, the planning

agent maintains frontiers (alternative plans) in the or-

search-tree of plans, sorts the plans in ascending order

of cost, and decomposes the ﬁrst abstract task in the

plan with the lowest cost. If the cost of a task is al-

ways lower than or equal to the cost of its primitive

subplans (subplans that have only actions), the ﬁrst

found plan has the lowest cost.

4.2.2 Replanning after Belief Deletion

In the planning algorithm of Dynagent, each precon-

dition (a dynamic ﬂuent) of a task in a plan is recorded

in association with the task in the plan if its truth value

is subject to change. As shown in Figure 3, this ﬂuent

recorded as a precondition of a task serves as a pro-

tected link which must be true before the execution of

the task.

Following a belief update, if the protected link in

a plan is violated, the plan becomes invalid. Then,

the invalid plan is removed from the frontiers of the

or-search tree. As shown in Figure 4, if the current

plan becomes invalid, the planning agent changes the

current plan to the plan with the next-lowest cost, and

Online HTN Planning for Data Transfer and Utilization Considering Legal and Ethical Norms: Case Study

157

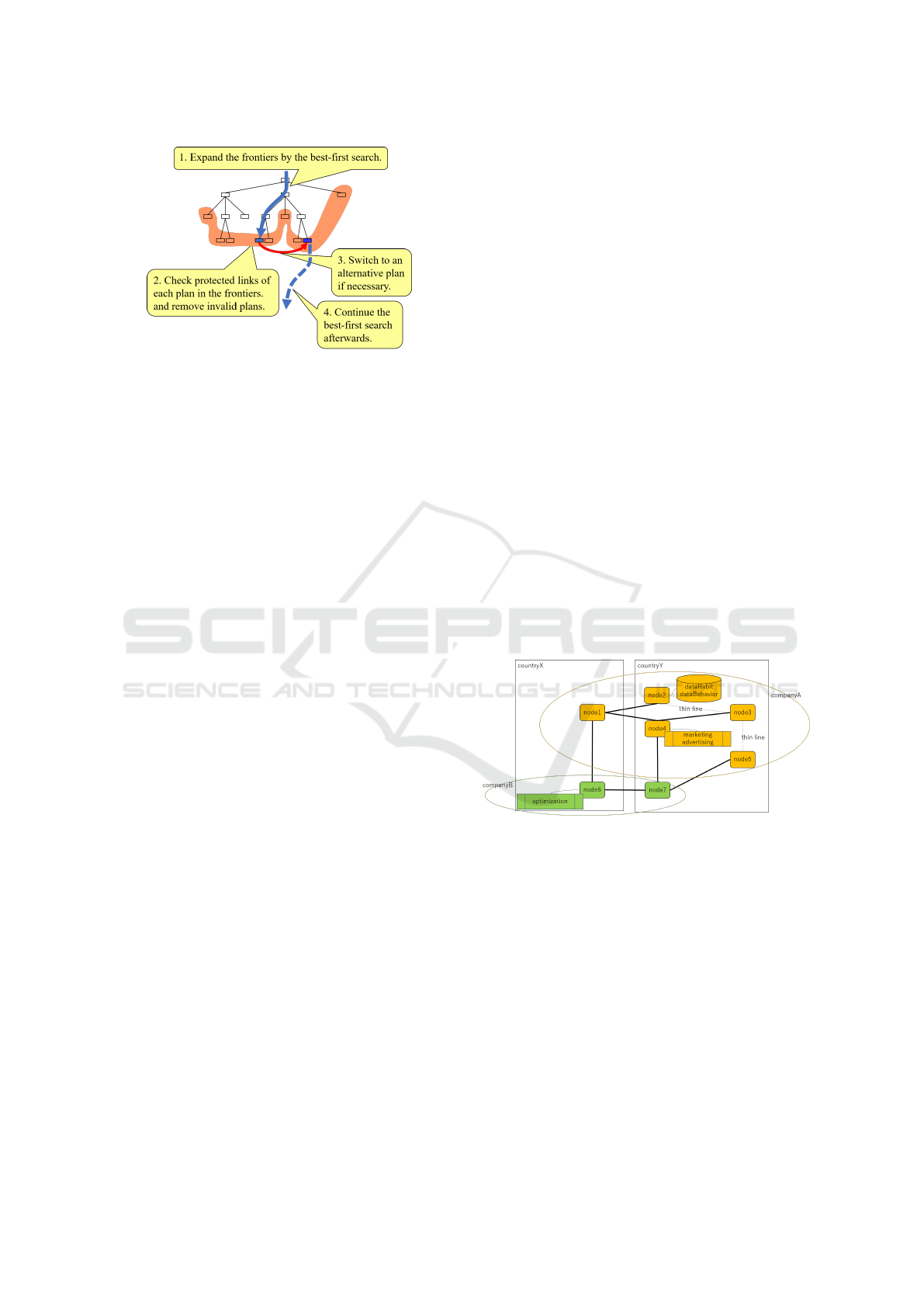

Figure 4: Switching to an Alternative Plan.

continues the best-ﬁrst search using the frontiers of

valid plans.

4.2.3 Replanning after Belief Addition

When evaluating a precondition of a task in a plan

in the planning algorithm of Dynagent, if the precon-

dition is a dynamic ﬂuent, the planning agent records

the plan separately from the frontiers even if the ﬂuent

is false. During the plan execution, if the belief is up-

dated and the precondition becomes true, the recorded

plan is asserted to the frontiers as a new valid plan.

Because the plans in frontiers are always sorted, if the

new plan has the lowest cost, the planning agent stops

the current plan execution, switches to the new plan,

and continues the best-ﬁrst search, which may lead to

a better plan.

4.2.4 Replanning after Cost Update

In the planning algorithm of Dynagent, replanning af-

ter a cost update is not explicitly shown. However,

this is crucial in our planning with an ethical checker

because the costs of unethical actions are dynami-

cally set higher after the ethical check. Therefore, we

added a new replanning procedure to the algorithm.

Following the cost update of an action (or a task),

we reevaluate the cost of each plan in the frontiers

and sort the plans in ascending order of cost. When

the current plan becomes less attractive in terms of

costs after the cost update, the planning agent stops

the plan execution, changes the plan, and continues

the best-ﬁrst search, which may lead to a better plan.

4.2.5 Replanning after Action Execution

Dynagent is an online planner that updates each plan

after execution of each action. It maintains all the al-

ternative plans so that any plan can be started from the

current state.

When the execution of an action succeeds, if the

executed action is uniﬁable with the ﬁrst action in a

plan, it is removed from the plan. Sometimes an ac-

tion execution in a plan invalidates other alternative

plans. Therefore, protected links are checked and in-

valid alternative plans are removed after a successful

action execution.

When the execution of an action fails, if the ex-

ecuted action is uniﬁable with the ﬁrst action in a

plan, the plan is removed from the alternative plans

recorded in the frontiers. In this case, the planning

agent stops the plan execution and restarts the best-

ﬁrst search using the valid plans in the frontiers until

it ﬁnds the plan.

5 CASE STUDY

In this section, we consider a speciﬁc network and

data transfer to study the feasibility of our dynamic

HTN planning framework for the planning problem

of legally and ethically correct data transfer and uti-

lization .

Figure 5 shows the whole network to be consid-

ered as a test case. This example is adopted and mod-

iﬁed from the example written in (Taheri et al., 2021).

In the following subsections, we explain the details of

Figure 5 while showing how to express the domain

knowledge, actions, and task decomposition rules.

Figure 5: Connection of Servers.

5.1 Domain Knowledge

In this subsection, we show how to represent the do-

main knowledge that is used as a belief by the plan-

ning agent. This domain knowledge includes node

connection, location of database, location of analyz-

ers, allowed purposes for data analysis, region of

nodes, allowed regions for data transfer and analy-

sis, owners of nodes, and allowed companies for data

transfer.

5.1.1 Node Connection

In Figure 5, there are seven nodes that represent

servers. The arcs that connect nodes represent the

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

158

network lines. These network connections are rep-

resented as follows:

belief(arc(node1,node2)). belief(arc(node1,node4)).

belief(arc(node1,node6)). belief(arc(node2,node3)).

belief(arc(node3,node4)). belief(arc(node3,node5)).

belief(arc(node4,node7)). belief(arc(node5,node7)).

belief(arc(node6,node7)).

To represent that each network connection is bidi-

rectional, we deﬁne the “connected” predicate as fol-

lows:

belief(connected(Node1,Node2),[arc(Node1,Node2)]).

belief(connected(Node1,Node2),[arc(Node2,Node1)]).

5.1.2 Location of Database and Retrieved Data

There is a database at node2 that contains data about the

habits and behaviors of people, which are represented

as follows:

belief(dbAt(dataHabit,node2)).

belief(dbAt(dataBehavior,node2)).

The location of the retrieved data from the

database is subject to change, which is represented as

follows:

dy(dataAt(_,_)).

5.1.3 Location of Analyzers

There are three analyzers of data on the habits and

behaviors of people. The analyzer at node6 is used for

optimization. The analyzer at node4 is used for market-

ing. Another analyzer at node4 is used for advertising.

This can be represented as follows:

belief(analyzableAt(dataHabit,marketing,node4)).

belief(analyzableAt(dataBehavior,marketing,node4)).

belief(analyzableAt(dataHabit,advertising,node4)).

belief(analyzableAt(dataBehavior,advertising,node4)).

belief(analyzableAt(dataHabit,optimizing,node6)).

belief(analyzableAt(dataBehavior,optimizing,node6)).

5.1.4 Allowed Purposes for Data Analysis

Initially, we assumed that all data were allowed to be

analyzed for any purpose. However, this assumption

is subject to change and may be corrected by the legal

checker. This is represented as follows:

dy(allowedPurpose(_,_)).

belief(allowedPurpose(dataHabit,marketing)).

belief(allowedPurpose(dataHabit,advertising)).

belief(allowedPurpose(dataHabit,optimizing)).

belief(allowedPurpose(dataBehavior,marketing)).

belief(allowedPurpose(dataBehavior,advertising)).

belief(allowedPurpose(dataBehavior,optimizing)).

5.1.5 Regions of Nodes

The region (country) of each node can be represented

as follows:

belief(nodeRegion(node1,countryX)).

belief(nodeRegion(node2,countryY)).

belief(nodeRegion(node3,countryY)).

belief(nodeRegion(node4,countryY)).

belief(nodeRegion(node5,countryY)).

belief(nodeRegion(node6,countryX)).

belief(nodeRegion(node7,countryY)).

5.1.6 Allowed Regions for Data Transfer

Initially, we assumed that all data were allowed to be

transferred in any region. However, this assumption

is subject to change and may be corrected by the le-

gal checker. Note that the analyzed data are also data.

This can be represented for the case of countryX as fol-

lows:

dy(allowedRegion(_,_)).

belief(allowedRegion(dataHabit,countryX)).

belief(allowedRegion(dataBehavior,countryX)).

belief(allowedRegion(

analysisOutput(dataHabit,marketing),

countryX)).

belief(allowedRegion(

analysisOutput(dataBehavior,marketing),

countryX)).

belief(allowedRegion(

analysisOutput(dataHabit,advertising),

countryX)).

belief(allowedRegion(

analysisOutput(dataBehavior,advertising),

countryX)).

belief(allowedRegion(

analysisOutput(dataHabit,optimizing)

countryX)).

belief(allowedRegion(

analysisOutput(dataBehavior,optimizing),

countryX).

The case of countryY is expressed in the same

way.

5.1.7 Owners of Nodes

The owner (company) of each node can be repre-

sented as follows:

belief(nodeOwnedBy(node1,companyA)).

belief(nodeOwnedBy(node2,companyA)).

belief(nodeOwnedBy(node3,companyA)).

belief(nodeOwnedBy(node4,companyA)).

belief(nodeOwnedBy(node5,companyA)).

belief(nodeOwnedBy(node6,companyB)).

belief(nodeOwnedBy(node7,companyB)).

5.1.8 Allowed Companies for Data Transfer

Initially, we assumed that all data were allowed to be

transferred in any company. However, this assump-

tion is subject to change and may be corrected by the

legal checker. Note that the analyzed data are also

data. This can be expressed for the case of companyA

as follows:

Online HTN Planning for Data Transfer and Utilization Considering Legal and Ethical Norms: Case Study

159

dy(allowedCompany(_,_)).

belief(allowedCompany(dataHabit,companyA)).

belief(allowedCompany(dataBehavior,companyA)).

belief(allowedCompany(

analysisOutput(dataHabit,marketing),

companyA)).

belief(allowedCompany(

analysisOutput(dataBehavior,marketing),

companyA)).

belief(allowedCompany(

analysisOutput(dataHabit,advertising),

companyA)).

belief(allowedCompany(

analysisOutput(dataBehavior,advertising),

companyA)).

belief(allowedCompany(

analysisOutput(dataHabit,optimizing),

companyA)).

belief(allowedCompany(

analysisOutput(dataBehavior,optimizing),

companyA)).

The case of companyB is expressed in the same

way.

5.2 Actions

The agent can execute three actions (primitive tasks):

one action is to retrieve the speciﬁed data from a

database, another action is to transfer the speciﬁed

data to the speciﬁed adjacent node, and the other ac-

tion is to analyze the speciﬁed data for the speciﬁed

purpose.

5.2.1 Data Retrieval from DB

The action getDataFromDB retrieves the speciﬁed data

from the DB at a node and store it at the same node.

Subsequently, the data can be transferred to another

node or analyzed for a speciﬁc purpose.

action(getDataFromDB(Data,Node),[

dbAt(Data,Node)],[initiates(dataAt(Data,Node))]).

The aforementioned rule speciﬁes that the precon-

dition of the action is that the database of Data is at Node,

and that it initiates dataAt(Data,Node).

5.2.2 Data Transfer to an Adjacent Node

The action transfer transfers the speciﬁed data to the

speciﬁed adjacent node.

action(transfer(Data,NodeFrom,NodeTo),[

dataAt(Data,NodeFrom),

connected(NodeFrom,NodeTo),

allowedTransfer(Data,NodeTo)

],[

initiates(dataAt(Data,NodeTo)),

terminates(dataAt(Data,NodeFrom))]).

The aforementioned rule speciﬁes that the pre-

conditions of the action are dataAt(Data,NodeFrom),

connected(NodeFrom,NodeTo), and allowedTransfer(Data,

NodeTo). It also speciﬁes that the effects of the action

are to initiate dataAt(Data,NodeTo) and to terminate

dataAt(Data,NodeFrom).

The last precondition is deﬁned as follows:

belief(allowedTransfer(Data,Node),[

nodeRegion(Node,Region),

allowedRegion(Data,Region),

nodeOwnedBy(Node,Company),

allowedCompany(Data,Company)]).

This indicates that the transfer of Data to Node is al-

lowed if the node is in an allowed region and is owned

by an allowed company.

5.2.3 Data Analysis

The action analyze analyzes the speciﬁed data at the

speciﬁed node for the speciﬁed purpose. The data

must be at the same location as the analyzer and the

purpose of the data analysis must be allowed. The

analysis output is obtained as new data after the data

analysis, and the original data is erased.

action(analyze(Data,Node,Purpose),[

analyzableAt(Data,Purpose,Node),

allowedPurpose(Data,Purpose),

dataAt(Data,Node)

],[

initiates(dataAt(analysisOutput(Data,Purpose),Node)),

terminates(dataAt(Data,Node))]).

The aforementioned rule speciﬁes that the precon-

ditions of the action are Data analyzable at Node for

Purpose, Data is allowed for Purpose, and Data is at Node.

It also speciﬁes that the effects of the action are to ini-

tiate dataAt(analysisOutput(Data,Purpose),Node), and to ter-

minate dataAt(Data,Node).

5.3 Task Decomposition

The agent needs two abstract tasks to recursively de-

compose to primitive tasks (actions) before execution.

One task is for transferring the speciﬁed data to the

speciﬁed node via multiple nodes. The other task is

the top-level task for delivering the analysis output of

the data for the speciﬁc purpose to the speciﬁed node.

5.3.1 Multi-Step Transfer

The task multiStepTransfer is a compound task for trans-

ferring data to another node via multiple nodes. This

task is recursively decomposed until the decomposed

subtasks include only the transfer actions.

htn(multiStepTransfer(Data,Node,Node),[

dataAt(Data,Node)],[]).

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

160

htn(multiStepTransfer(Data,NodeFrom,NodeTo),[

dataAt(Data,NodeFrom),

connected(NodeFrom,Node)

],[

transfer(Data,NodeFrom,Node),

multiStepTransfer(Data,Node,NodeTo)]).

The ﬁrst rule speciﬁes that no action is required

for the transfer task multiStepTransfer(Data,Node,Node)

when Data is already at the destination (dataAt(Data,

Node)). The second rule speciﬁes that when the data

is at NodeFrom and Node is an adjacent node, the trans-

fer task multiStepTransfer(Data,NodeFrom,NodeTo) can be ex-

ecuted by ﬁrst transferring Data to the adjacent Node,

then transferring Data to the destination NodeTo via mul-

tiple steps.

5.3.2 Delivery of Analytics

The task deliverAnalytics is the top-level task for ob-

taining the speciﬁed data from a DB at a node and

delivering the analysis output for a speciﬁc purpose

to the recipient at another node.

htn(deliverAnalytics(Data,NodeFrom,NodeTo,Purpose),[

dbAt(Data,NodeFrom)

],[

getDataFromDB(Data,NodeFrom),

multiStepTransfer(Data,NodeFrom,NodeAnalysis),

analyze(Data,NodeAnalysis,Purpose),

multiStepTransfer(

analysisOutput(Data,Purpose),

NodeAnalysis,NodeTo)]).

This rule speciﬁes that to deliver the analysis re-

sult of Data for Purpose to the destination (NodeTo), the

agent obtains Data from the DB at NodeFrom, transfers

the data to NodeAnalysis via multiple steps, analyzes the

data for the purpose, and transfer the analysis output

to the destination via multiple steps.

5.4 Costs of Tasks and Actions

We set a speciﬁc value for each task and cost. The

cost information is used for planning. The best-ﬁrst

search will always ﬁnd the lowest-cost plan if the cost

of each abstract task is less than or equal to the to-

tal cost of its primitive subtasks (actions), which we

obtain by task decomposition.

5.4.1 Static Cost

We assume that the costs of abstract tasks are static

and set at the minimum value of 1.

cost(deliverAnalysis(_,_,_,_),1).

cost(multiStepTransfer(_,_,_),1).

Furthermore, we assume the costs of the

getDataFromDB action and analyze action are static and the

values are set at 1.

cost(getDataFromDB(_,_),1).

cost(analyze(_,_,_),1).

5.4.2 Dynamic Cost

The data transfer costs are subject to change. We as-

sume that the agent is aware that the line between node2

and node3 and the line between node3 and node5 are nor-

mally slow. The data transfer costs become double if

these lines are used. These costs are set at 2.

cost(transfer(_,node2,node3),2).

cost(transfer(_,node3,node5),2).

cost(transfer(_,node3,node2),2).

cost(transfer(_,node5,node3),2).

The data transfer costs of the other lines are set at

1. This cost information is expressed in the same way.

5.5 Speciﬁc Task for Case Study

The speciﬁc task we consider in this case study is

deliverAnalytics(dataHabit,node2,node5,marketing). The ob-

jective of this task is to deliver the analysis output of

dataHabit, which is stored in the database at node2, to

node5. The purposed of the analysis is marketing.

5.6 Initial Planning

Considering the task, the planner creates the initial

plan as follows:

1. getDataFromDB(dataHabit,node2)

2. transfer(dataHabit,node2,node1)

3. transfer(dataHabit,node1,node4)

4. analyze(dataHabit,node4,marketing)

5. transfer(analysisOutput(dataHabit,marketing),node4,node7)

6. transfer(analysisOutput(dataHabit,marketing),node7,node5)

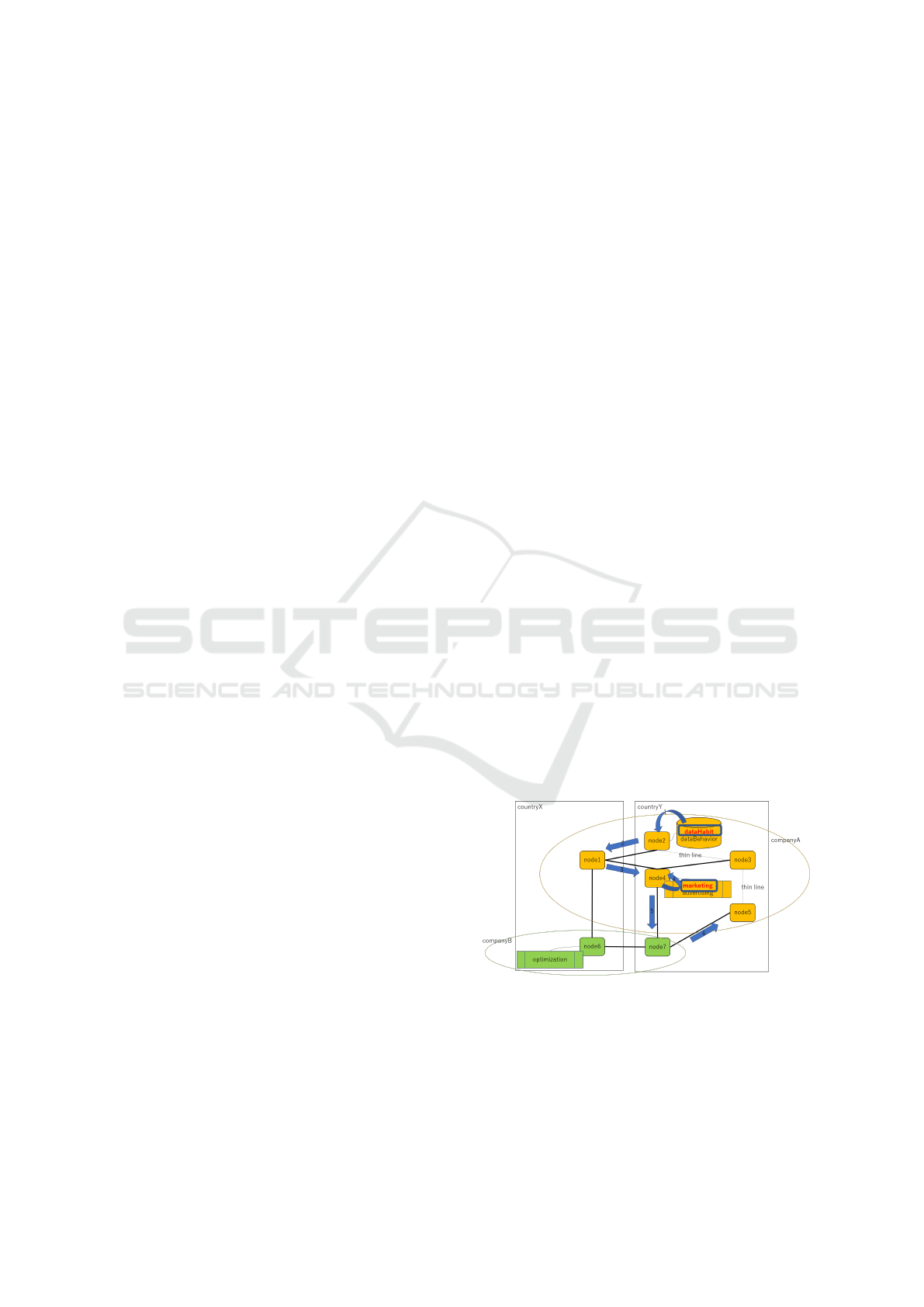

Figure 6: Initial Plan.

As shown in Figure 6, according to the aforemen-

tioned plan, dataHabit is retrieved from the database at

node2, transferred from node2 to node4 via node1, and an-

alyzed for the purpose of marketing at node4. The ana-

lyzed output is transferred from node4 to node5 via node3.

Online HTN Planning for Data Transfer and Utilization Considering Legal and Ethical Norms: Case Study

161

There are two data-transfer routes from node2 to

node4. Similarly, there are two data-transfer routes

from node4 to node5. The planner selects the route with

the lowest cost using the best-ﬁrst search. Note that

the data-transfer cost from node2 to node3 is set higher

because the transfer speed is slow.

5.7 Replanning after Legal Check

We assume that dataHabit has been retrieved from the

database at node2. The next action is to transfer the

data to node1. Then, the legal checker indicates that it

is illegal to transfer dataHabit to countryX. Subsequently,

the agent removes the following from its belief:

belief(allowedRegion(dataHabit,countryX)).

Because the precondition of the next action be-

comes false, the planner modiﬁes the plan as follows:

1. transfer(dataHabit,node2,node3)

2. transfer(dataHabit,node3,node4)

3. analyze(dataHabit,node4,marketing)

4. transfer(analysisOutput(dataHabit,marketing),node4,node7)

5. transfer(analysisOutput(dataHabit,marketing),node7,node5)

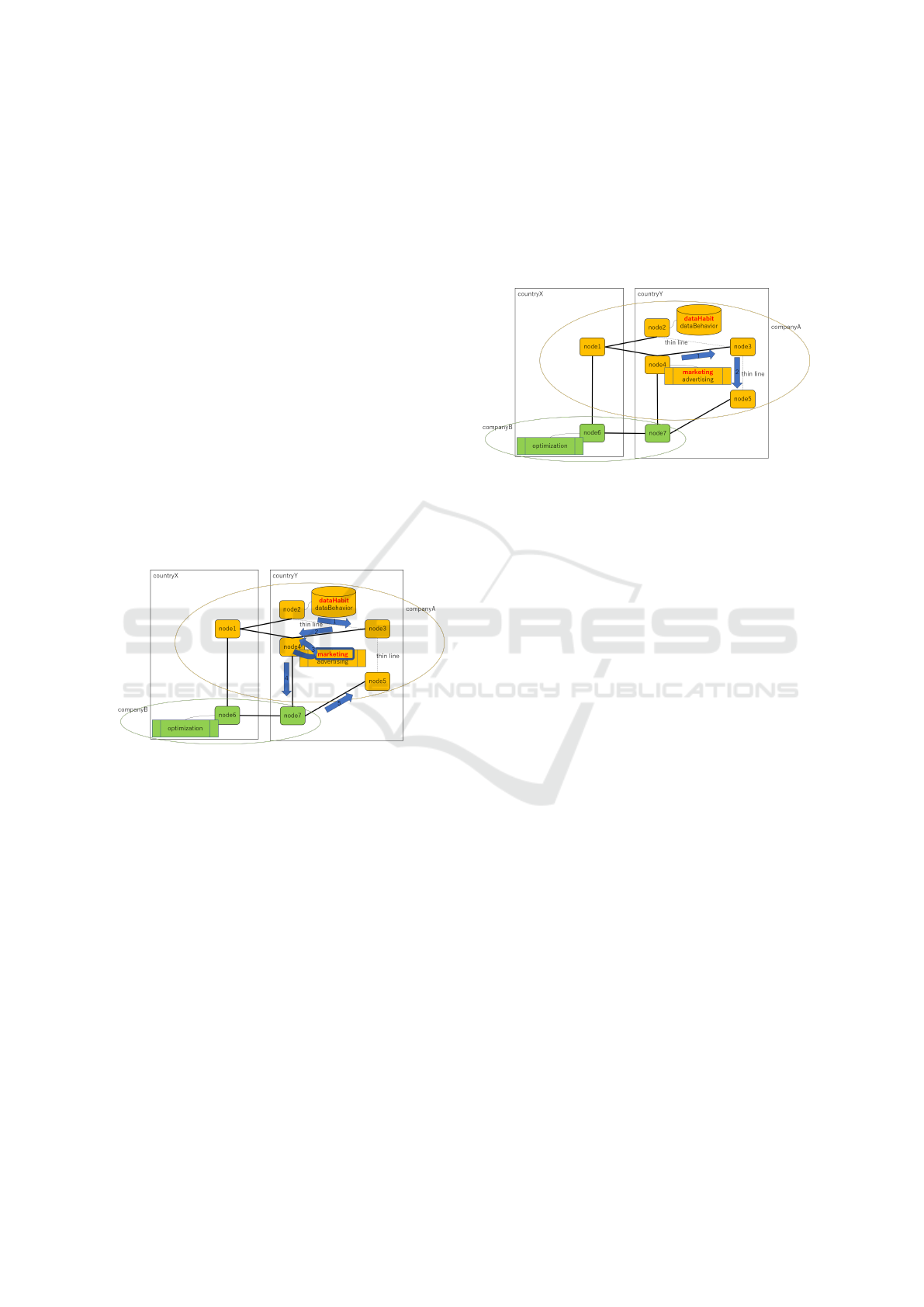

Figure 7: Legally Modiﬁed Plan.

The modiﬁed plan is shown in Figure 7. We

can conﬁrm that dataHabit is transferred only within

countryY, rather than via countryX. This indicates that

the legal norm is satisﬁed. Note that the action

getDataFromDB(dataHabit,node2) is erased from the plan be-

cause it has been executed.

5.8 Replanning after Ethical Check

We assume that dataHabit has been analyzed at node4 for

the purpose of marketing. The next action is to transfer

the analysis output to node7. We assume that the ethical

checker indicates that it is not ethical to transfer the

analysis output to companyB. Then, the agent takes the

position of utilitarianism and updates the cost of the

next action as follows:

cost(

transfer(analysisOutput(dataHabit,marketing),node4,node7),

10).

The cost of the next action is now set at 10. Be-

cause the cost of the next action has become much

higher, the planner dynamically modiﬁes the plan as

follows:

1. transfer(analysisOutput(dataHabit,marketing),node4,node3)

2. transfer(analysisOutput(dataHabit,marketing),node3,node5)

Figure 8: Ethically Modiﬁed Plan.

The modiﬁed plan is shown in Figure 8. We

can conﬁrm that the analysis output (analysisOutput(

dataHabit,marketing)) is transferred within companyA,

rather than via companyB, in the modiﬁed plan. This in-

dicates that the ethical norm is respected, although it

is not illegal to transfer it via companyB. Note that the

planning agent does not abandon the plan to transfer

the analysis output via companyB. It is maintained as an

alternative plan and will be used only if there are no

other options.

5.9 Evaluation on Computation Time

We implemented the planning agent, belief, and plan-

ning knowledge in SWI Prolog for Windows 64-bit,

version 8.2.4, which was installed on the Windows

10 Home PC equipped with Intel(R) Core(TM) i7-

1065G7 CPU and the 32GB of RAM. We measured

the CPU times for initial planning, replanning after

legal check, and replanning after ethical check ﬁve

times each, and the average CPU times were 0.003,

0.006, and 0.003 seconds, respectively. Therefore,

this planner is adequate for practical use for the test

case scenario in this study.

In future, we would like to evaluate the scalabil-

ity for different types and sizes of networks. One

way to tackle the scalability problem is to use strat-

iﬁed multi-agent HTN planning techniques (Hayashi,

2007; Hayashi et al., 2009) where the parent agent

ﬁrst tries to ﬁnd a rough data transfer route between

the regions, and then its child agent tries to ﬁnds a

detailed data transfer route inside the current region.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

162

5.10 Evaluation on Compliance with

Legal and Ethical Norms

In the test case scenario, in initial planning, nei-

ther legal norms nor ethical norms were ignored.

In other words, dataHabit was planned to be trans-

ferred to countryX, which is against the legal norm,

and analysisOutput(dataHabit,marketing) was planned to

be transferred to companyB, which is against the ethical

norm.

When the replanning algorithm was applied af-

ter legal check, dataHabit was planned to be trans-

ferred only within countryY. Therefore, the legal norm

was complied with. However, analysisOutput(dataHabit,

marketing) was still planned to be transferred to companyB,

which is against the ethical norm.

When the replanning algorithm was applied both

after legal check and ethical check, dataHabit was

planned to be transferred only within countryY, and

analysisOutput(dataHabit,marketing) was planned to be

transferred only within companyA. Therefore, not only

the legal norm was complied with but also the ethical

norm was respected.

6 DISCUSSION

From the case study, we can understand that the legal

norm of an action can be expressed as the precondi-

tion of the action. This indicates that the illegal action

cannot be executed because its legal norm (precondi-

tion) is not satisﬁed.

By contrast, the ethical norm of an action can be

expressed as the cost of the action. The higher the cost

is, the more unethical the action is. Even if an action

is unethical, it is still legal to execute the action. If

the planner can ﬁnd the lower-cost plan, the agent can

avoid unethical action execution if possible. However,

unethical actions can still be executed if there is no

other option. Even in that case, it is possible to stop

the action execution when its cost is too high, which

means that the action is too unethical.

It is not always possible to collect all the necessary

information at the time of initial planning, especially

when the latest information is distributed across mul-

tiple servers. In the case study scenario in this paper,

the planning agent obtains new information regarding

the next action shortly before its execution. Legal and

ethical norms are checked at this time. Therefore, it is

important to dynamically check and update the plan

while executing it. Therefore, an online planning al-

gorithm is used in this paper.

7 CONCLUSION

We have shown how to represent knowledge about

legal and ethical norms using an online total-order

forward-chaining HTN planning algorithm in the do-

main of data transfer and utilization in multiagent sys-

tems. The precondition of an action was used for

its legal check, however, the cost of an action was

used for its ethical check. Dynamic adaptation to le-

gal/ethical norms was achieved by replanning after

legal/ethical check. These techniques are extremely

important when the latest information, which may af-

fect legal/ethical norms, is distributed across multiple

servers. Experiment results conﬁrmed that this plan-

ner is adequate for practical use in terms of computa-

tion time in our case study.

ACKNOWLEDGEMENTS

This work was supported by JST, AIP Trilateral AI

Research, Grant No. JPMJCR20G4 and JSPS KAK-

ENHI, Grant No. JP19H05470 and JP21K12144.

REFERENCES

Agarwal, Steyskal, S., Antunovic, F., and Kirrane, S.

(2018). Legislative compliance assessment: Frame-

work, model and GDPR instantiation. In Annual Pri-

vacy Forum, pages 131–149.

Behnke, G., H

oller, D., and Biundo, S. (2018). totSAT —

totally-ordered hierarchical planning through SAT. In

International Conference on Autonomous Agents and

Multiagent Systems, pages 6110–6118.

Berreby, F., Bourgne, G., and Ganascia, J.-G. (2017). A

declarative modular framework for representing and

applying ethical principles. In International Confer-

ence on Autonomous Agents and Multiagent Systems,

page 96–104.

Berreby, F., Bourgne, G., and Ganascia, J.-G. (2018).

Event-based and scenario-based causality for compu-

tational ethics. In International Conference on Au-

tonomous Agents and Multiagent Systems, pages 147–

155.

Bonatti, P. A., Kirrane, S., Petrova, I. M., and Sauro, L.

(2020). Machine understandable policies and GDPR

compliance checking. KI - K

unstliche Intelligenz,

34(3):303–315.

Currie, K. and Tate, A. (1991). O-plan: The open planning

architecture. Artiﬁcial Intelligence, 52(1):49–86.

Hayashi, H. (2007). Stratiﬁed multi-agent htn planning in

dynamic environments. In KES International Sympo-

sium on Agent and Multi-Agent Systems: Technologies

and Applications, pages 189–198.

Online HTN Planning for Data Transfer and Utilization Considering Legal and Ethical Norms: Case Study

163

Hayashi, H., Ogawa, H., and Matsuhira, N. (2013). HTN

planning for pick-and-place manipulation. In Inter-

national Conference on Agents and Artiﬁcial Intelli-

gence, pages 383–388.

Hayashi, H., Ogawa, H., and Matsuhira, N. (2015). Com-

paring repair-task-allocation strategies in MAS. In In-

ternational Conference on Agents and Artiﬁcial Intel-

ligence, pages 17–27.

Hayashi, H. and Satoh, K. (2022). Towards legally and ethi-

cally correct online HTN planning for data transfer. In

International Workshop on Non-Monotonic Reason-

ing, pages 4–15.

Hayashi, H., Tokura, S., Hasegawa, T., and Ozaki, F.

(2006). Dynagent: An incremental forward-chaining

HTN planning agent in dynamic domains. In Declar-

ative Agent Languages and Technologies III, number

3904 in LNAI, pages 171–187. Springer.

Hayashi, H., Tokura, S., Ozaki, F., and Doi, M. (2009).

Background sensing control for planning agents work-

ing in the real world. International Journal of Intel-

ligent Information and Database Systems, 3(4):483–

501.

oller, D., Behnke, G., Bercher, P., Biundo, S., Fiorino,

H., Pellier, D., and Alford, R. (2020). HDDL: An ex-

tension to PDDL for expressing hierarchical planning

problems. In AAAI Conference on Artiﬁcial Intelli-

gence, pages 9883–9891.

Kowalski, R. and Sergot, M. (1985). A logic-based calculus

of events. New Generation Computing, 4(1):67–95.

Lifschitz, V. (2019). Answer Set Programming. Springer.

Lindner, F., Mattm

uller, R., and Nebel, B. (2020). Evalua-

tion of the moral permissibility of action plans. Artiﬁ-

cial Intelligence, 287(103350):1–14.

Magnaguagno, M. C., Meneguzzi, F., and Silva, L. (2021).

HyperTensioN: A three-stage compiler for planning.

In 10th International Planning Competition: Planner

and Domain Abstracts – Hierarchical Task Network

Planning Track, pages 5–8.

Miller, R. (1997). Notes on deductive and abductive plan-

ning in the event calculus. In AISB Workshop on Prac-

tical Reasoning and Rationality.

Nau, D., Cao, Y., Lotem, A., and M

unoz-Avila, H. (1999).

SHOP: simple hierarchical ordered planner. In Inter-

national Joint Conference on Artiﬁcial Intelligence,

pages 968–975.

Nau, D., M

unoz-Avila, H., Cao, Y., Lotem, A., and

Mitchell, S. (2001). Total-order planning with par-

tially ordered subtasks. In International Joint Confer-

ence on Artiﬁcial Intelligence, page 425–430.

Palmirani, M., Martoni, M., Rossi, A., Bartolini, C., and

Robaldo, L. (2018). Legal ontology for modelling

GDPR concepts and norms. Legal Knowledge and In-

formation Systems, pages 91–100.

Patra, S., Ghallab, M., Nau, D., and Traverso, P. (2019).

Acting and planning using operational models. In

AAAI Conference on Artiﬁcial Intelligence, pages

7691–7698.

Patra, S., Mason, J., Kumar, A., Ghallab, M., Traverso, P.,

and Nau, D. (2020). Integrating acting, planning, and

learning in hierarchical operational models. In In-

ternational Conference on Automated Planning and

Scheduling, pages 478–487.

Sacerdoti, E. (1977). A Structure for Plans and Behavior.

Elsevier.

Satoh, K., Ganascia, J.-G., Bourgne, G., and Paschke,

A. (2021). Overview of RECOMP project.

In International Workshop on Computational Ma-

chine Ethics, International Conference on Prin-

ciples of Knowledge Representation and Rea-

soning. https://www.cse.unsw.edu.au/

∼

cme2021/

CME2021 paper Satoh.pdf (Accessed on 07 Feb.

2022).

Schreiber, D. (2021). Lilotane: A lifted sat-based approach

to hierarchical planning. Journal of Artiﬁcial Intelli-

gence Research, 70:1117–1181.

Shanahan, M. (1989). Prediction is deduction but explana-

tion is abduction. In International Joint Conference

on Artiﬁcial Intelligence, pages 1055–1060.

Shanahan, M. (2000). An abductive event calculus planner.

The Journal of Logic Programming, 44:207–239.

Taheri, Y., Bourgne, G., and Ganascia, J.-G. (2021). A com-

pliance mechanism for planning in privacy domain

using policies. In International Workshop on Juris-

informatics, JSAI International Symposia on AI.

Tate, A. (1977). Generating project networks. In Inter-

national Joint Conference on Artiﬁcial Intelligence,

pages 888–893.

Vos, M. D., Kirrane, S., Padget, J., and Satoh, K. (2019).

ODRL policy modelling and compliance checking. In

International Joint Conference on Rules and Reason-

ing, pages 36–51.

Wilkins, D. (1988). Practical Planning. Morgan Kauf-

mann.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

164
