IVNPRO TECT: Isolable and Traceable Lightweight CAN-Bus

Kernel-Level Protection for Securing in-Vehicle Communication

Shuji Ohira

1 a

, Araya Kibrom Desta

1 b

, Ismail Arai

2 c

and Kazutoshi Fujikawa

2 d

Graduate School of Science and Technology, Nara Institute of Science and Technology, Ikoma 630-0192, Japan

Information Initiative Center, Nara Institute of Science and Technology, Ikoma 630-0192, Japan

Keywords:

Automotive Security, Controller Area Network, Intrusion Prevention System, Operation System Kernel,

Loadable Kernel Module.

Abstract:

Cyberattacks on In-Vehicle Networks (IVNs) are becoming the most urgent issue. The Controller Area Net-

work (CAN), one of the IVNs, is a standard protocol for automotive networks. Many researchers have tackled

the security issues of CAN, such as the vulnerability of Denial-of-Service (DoS) attacks and impersonation at-

tacks. Though existing methods can prevent DoS attacks, they have problems in deployment cost, isolability of

a compromised Electronic Control Unit (ECU), and traceability for the root cause of isolation. Thus, we tackle

to prevent DoS attacks on CAN. To solve these problems of the existing methods, we propose an isolable and

traceable CAN-bus kernel-level protection called IVNPROTECT. IVNPROTECT can be installed on an ECU,

which has a wireless interface, just by the software updating because it is implemented in the CAN-bus kernel

driver. We also conﬁrm that our IVNPROTECT can mitigate two types of DoS attacks without distinguishing

malicious/benign CAN identiﬁers. After mitigating DoS attacks, IVNPROTECT isolates a compromised ECU

with a security error state mechanism, which handles security errors in IVNPROTECT. And, we evaluate the

traceability that an ECU with IVNPROTECT can report warning messages to the other ECUs on the bus even

while being forced to send DoS attacks by an attacker. In addition, the overhead of IVNPROTECT is 9.049 µs,

so that IVNPROTECT can be installed on insecure ECUs with a slight side-effect.

1 INTRODUCTION

Recently, cyberattacks on In-Vehicle Networks

(IVNs) are becoming a severe problem (Nie et al.,

2017; Miller and Valasek, 2015). These attacks abuse

vulnerable Controller Area Network (CAN) (Robert-

Bosch-GmbH, 1991), one of the IVNs used to com-

municate among Electronic Control Units (ECUs),

which has been the de-facto standard. Also, ECU

is an in-vehicle embedded system to electronically

manipulate automotive functions (e.g., engine, gear,

steering). Nie et al. successfully controlled some au-

tomotive functions, exploiting the vulnerabilities in a

CAN and a web browser in the in-vehicle system im-

plemented by WebKit of the old version (Nie et al.,

2017). And, Miller and Valasek also successfully con-

trolled a variety of automotive functions through an

https://orcid.org/0000-0002-6966-0977

https://orcid.org/0000-0002-4363-8560

https://orcid.org/0000-0002-5353-2401

https://orcid.org/0000-0003-1055-5790

in-vehicle infotainment system with the QNX real-

time operating system (Miller and Valasek, 2015).

In addition, automotive manufacturers and suppli-

ers promote the use of open-source software such as

Automotive Grade Linux (AGL) (Linux-Foundation,

2019) in in-vehicle infotainment systems to enhance

the reusability of source codes. If the open-source

software has vulnerabilities, an attacker can launch

malware against the vulnerable systems on a large

scale. Therefore, cybersecurity countermeasures for

automobiles are urgently required.

Encryption and authentication (Pesé et al., 2021;

Kurachi et al., 2014) for CAN have been proposed to

prevent spooﬁng attacks from a compromised ECU.

However, encryption and authentication mechanisms

cannot deal with Denial-of-Service (DoS) attacks

since an attacker can ﬂood encrypted CAN-bus with

DoS using a high-priority identiﬁer (ID). Therefore, a

dedicated countermeasure is required to prevent DoS

attacks.

On the other hand, many automotive security re-

searchers have proposed intrusion detection systems

Ohira, S., Araya, K., Arai, I. and Fujikawa, K.

IVNPROTECT: Isolable and Traceable Lightweight CAN-Bus Kernel-Level Protection for Securing in-Vehicle Communication.

DOI: 10.5220/0011605300003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 17-28

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

(IDSs) based on various characteristics (e.g., fre-

quency (Song et al., 2016), entropy (Wu et al., 2018a),

ID sequence (Marchetti and Stabili, 2017), message

correlation (Müter et al., 2010; Ohira et al., 2020),

physical-layer ﬁngerprint (Kneib and Huth, 2018;

Kneib et al., 2020; Ohira et al., 2021)). These IDSs

achieved the detection of various attacks including

DoS attacks with high accuracy. However, these IDSs

do not provide any prevention mechanism. Therefore,

it is necessary to build a prevention mechanism with

features from attack detection to prevention.

Some countermeasures to disable DoS attacks on

CAN have been researched. The allowlist-based mit-

igation method (Elend and Adamson, 2017) has been

proposed as one of the countermeasures. This method

ﬁlters message transmission based on a predeﬁned al-

lowlist on a CAN-speciﬁc hardware. It can disable

DoS attacks with the highest priority CAN ID: 0x000;

in other words, it passes only allowlisted messages

permanently. Hence, it is ideal for mitigating and iso-

lating a DoS attacker who uses both malicious and

benign messages.

Moreover, this method requires additional hard-

ware; therefore, it also has a drawback in deployabil-

ity. On the other hand, a frame-corruption method

(Takada et al., 2019) conducts malicious frame-

corruption with error frames by a legitimate ECU with

IDS. This method transfers a compromised ECU to

bus-off state, which is a disconnected state of an ECU

from the CAN-bus (i.e., an ECU in the bus-off state

cannot send/receive CAN messages). Originally, the

bus-off state is designed to handle a fault in the ECUs,

so that the frame corruption method cannot distin-

guish whether the bus-off state occurred due to a fault

or a security incident. In consequence, if the bus-off

state of a compromised ECU occurs due to a security

incident, the other ECUs cannot conduct incident re-

sponse operations, such as switching to manual opera-

tion of the vehicle. In other words, if there is a protec-

tion method that can distinguish whether the bus-off

state occurred through a fault or a security incident,

the ECUs on the attacked vehicle can conduct some

operations to minimize the security risk. In summary,

these countermeasures have problems in terms of the

isolability of a compromised ECU, the deployability,

and the traceability of the root cause for isolation.

To solve these drawbacks, we propose an isolable

and traceable In-Vehicle Network bus kernel-level

Protection approach called IVNPROTECT. IVNPRO-

TECT can be installed on an ECU that has a wireless

interface with just a software update because it is im-

plemented in the CAN-bus kernel driver. We also con-

ﬁrm that our IVNPROTECT can mitigate two types of

DoS attacks without distinguishing malicious/benign

CAN IDs. After mitigating DoS attacks, IVNPRO-

TECT isolates a compromised ECU with a security er-

ror state mechanism, which handles the security er-

ror in IVNPROTECT. Furthermore, we evaluate the

traceability that an ECU with IVNPROTECT, which

can report warning messages to the other ECUs on the

bus even while being forced to send DoS attacks by an

attacker. In addition, we experimentally show that the

ECU installed IVNPROTECT can send the warning

messages with a 0 % of transmission loss rate. More-

over, the overhead of IVNPROTECT is 9.049 µs, so

that IVNPROTECT can be installed on insecure ECUs

with minimal side-effects. We release the source code

of our IVNPROTECT, which is available on a GitHub

repository

The main contributions of this paper can be sum-

marized as follows.

• We propose an isolable and traceable lightweight

CAN-bus protection called IVNPROTECT. IVN-

PROTECT is implemented to a CAN-bus kernel

driver on Linux. Hence, our IVNPROTECT can

deploy to an ECU by just software updating.

• We provide a new error state mechanism on IVN-

PROTECT for handling security incidents. IVN-

PROTECT mitigates DoS attacks and isolates a

compromised ECU based on this security error

state mechanism.

• We experimentally conﬁrm the traceability that

IVNPROTECT reports warning messages for le-

gitimate ECUs to distinguish whether the cause

of isolation is a fault or a security incident.

• We show the overhead caused by IVNPROTECT.

As a result, the overhead takes only 9.049 µs,

which means that a system with our IVNPRO-

TECT satisﬁes in-vehicle real-time demands.

2 PRELIMINARIES

2.1 Controller Area Network

CAN is one of the IVNs widely used to interconnect

among ECUs and has been a standard protocol. As

shown in Fig. 1, a CAN message has a maximum

data ﬁeld of 8 bytes, whose length is determined by

the Data Length Code (DLC) in the control ﬁeld. The

data ﬁeld delivers sensor data and control data such

as running speed, engine speed, and gear position.

The arbitration ﬁeld is assigned via a unique ID ex-

pressed from 0x000 to 0x7FF for each data. This ID is

called CAN ID, and it prioritizes the messages when

https://github.com/shuji-oh/ivnprotect

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

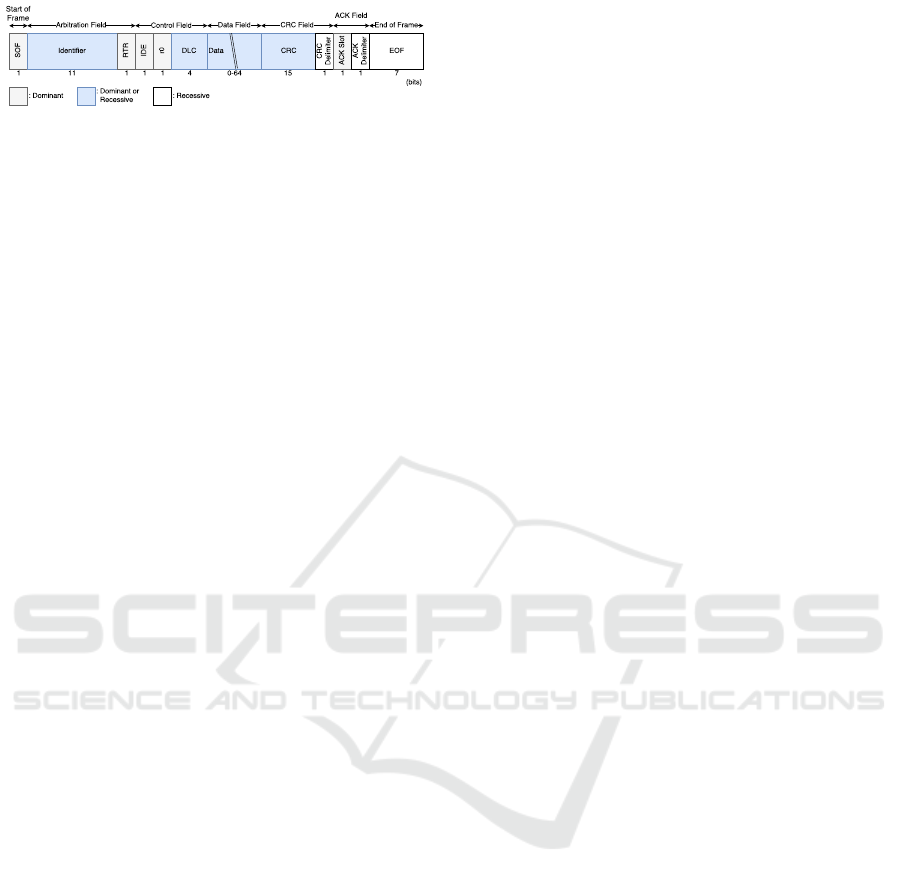

Figure 1: CAN data frame format.

multiple messages are being sent simultaneously from

ECUs. Lower CAN IDs have a higher priority. In

other words, 0x000 is the highest priority ID for CAN

protocol.

Next, we explain the error handling mechanism of

CAN. CAN has a fault error state mechanism for high

fault tolerance. The error state mechanism consists of

three states (error active state, error passive state, and

bus-off state). At ﬁrst, an ECU starts in the error ac-

tive state. Then if the ECU detects several errors (i.g.

a CRC error), it transits into the error passive state in

which the ECU cannot receive the messages on the

bus. Finally, suppose the ECU still detects several er-

rors in the error passive state. In that case, the ECU

will be at the bus-off state, which expresses the ECU

is logically isolated from the bus. Namely, the ECU

in bus-off state cannot send the messages to the bus

and receive the messages on the bus. To recover from

bus-off state, the ECU in bus-off state needs to reset

software or reboot.

2.2 Related Works

Various intrusion detection methods (e.g., arrival time

(Song et al., 2016), entropy (Wu et al., 2018a), and

voltage (Kneib and Huth, 2018)), and authentication

mechanisms (Pesé et al., 2021; Kurachi et al., 2014)

have been studied in order to secure IVNs. These in-

trusion detection methods focus on detecting spoof-

ing, replaying, and DoS attacks but do not provide

protection against the attacks. Conversely, the au-

thentication mechanisms focus on protecting spoof-

ing and replaying attacks. In other words, the existing

intrusion detection methods and authentication mech-

anisms cannot protect DoS attacks on CAN-bus.

In the rest of this section, we introduce some exist-

ing protection methods dedicated to preventing DoS

attacks.

2.2.1 Protections Implemented on a Bus

Wu et al. proposed an ID-hopping moving target de-

fense (Humayed and Luo, 2017; Woo et al., 2019; Wu

et al., 2018b) to protect a DoS attack against individ-

ual ECUs (called targeted DoS attacks) and reverse

engineering CAN messages. They implemented the

ID-hopping mechanism to the CAN controller, hard-

ware embedded on an ECU. The ID-hopping is car-

ried out in all ECUs on the CAN-bus, so it is required

to install the ID-hopping CAN controller to all ECUs.

While it can protect against targeted DoS attacks, but

it cannot protect against DoS attacks with the highest

priority CAN ID: 0x000.

A relays-based reactive defense called CANARY

(Groza et al., 2021) divides the bus by activat-

ing/deactivating some relays implemented on the bus.

To protect the bus against DoS attacks, CANARY di-

vides the bus by deactivating the relays surrounding

the compromised ECU. A CANARY-based bus also

has a Bus-Guardian node that detects attacks and ma-

nipulates relays. Thus, even in the isolation of the

compromised ECU, the others ECUs can trace the

root cause of isolation via the Bus-Guardian ECU.

However, since CANARY needs additional hardware

(relays, resistors, and wires), it has a drawback in de-

ployment cost. Moreover, the relay action has a neg-

ative aspect because it corrupts the benign message

sent during activating/deactivating relays.

2.2.2 IDS-side Protection

The frame corruption approach (Takada et al., 2019)

has been studied. This approach uses error frames

to forcibly transfer a targeted compromised ECU’s

state to the bus-off state. It is possible to send er-

ror frames with unmodiﬁed CAN controllers so that

the approach easily deploys ECUs through software

updates. However, because the frame corruption ap-

proach uses error frames, it is inherently difﬁcult to

distinguish whether the cause of isolation is a fault

or a security incident. Furthermore, the error frames

generated by this approach contaminate the commu-

nication of the bus, which negatively inﬂuences the

arrival time of some messages and busloads.

2.2.3 ECU-side Protections

Unlike the protections of IDS-side and on-bus, the

ECU-side protection has an advantage in unharm-

ing for messages on the bus when its protection is

triggered. Elend et al. developed a secure CAN

transceiver (Elend and Adamson, 2017) that ﬁlters

message transmission based on a predeﬁned allowlist

in the CAN transceiver. In other words, the secure

CAN transceiver protects a compromised ECU from

sending malicious ID messages. But an attacker who

compromised an ECU with this transceiver can trans-

mit some allowlisted messages permanently. There-

fore, it is necessary to deal with the ﬂooding with

malicious/benign ID. Moreover, the deployment cost

is high since it needs to replace the CAN transceiver

hardware.

The most relevant research to our IVNPROTECT

IVNPROTECT: Isolable and Traceable Lightweight CAN-Bus Kernel-Level Protection for Securing in-Vehicle Communication

is TEECheck (Mishra et al., 2020), proposed by

Mishra et al. TEECheck has advantages regarding

the complete isolation of a compromised ECU, trace-

ability of the root cause of the bus-off state, and un-

harming benign messages. This approach isolates

a malicious process in a compromised ECU using

TrustZone, a Trusted Execution Environment (TEE).

Namely, TEECheck does not carry out the discon-

nection at ECU-unit, such as the division of buses

using CANARY, because an attacker is isolated at

the processing unit. It means that TEECheck en-

sures traceability to the root cause of isolation since

an ECU with TEECheck only becomes the bus-off

state caused by fault incidents. On the other hand, the

vulnerabilities/bugs related to the implementation of

TrustZone have been reported (Machiry et al., 2017;

Guilbon, 2018). Therefore, an attacker possibly ex-

ploits the TEE’s vulnerabilities for ﬂooding the bus.

In addition, TEECheck can only deploy to ARM-

based ECUs, so it has the limited deployability.

Table 1 shows a comparison between the afore-

mentioned protections and our proposal. The exist-

ing protections have problems in incomplete isola-

tion, traceability on the cause of isolation, deploy-

ment cost, and side-effect against some benign mes-

sages of legitimate ECUs. Detailed comparisons of

ECU-side protections are discussed in section 6.1. To

solve these problems, we propose an isolable, trace-

able, and deployable kernel-level protection in the

next section.

3 CAN-Bus KERNEL-LEVEL

PROTECTION: IVNPROTECT

3.1 Threat Models

At ﬁrst, we describe the assumption of the threat

model. We assume that the attacker has privileged

access. But, the attacker cannot replace kernel mod-

ules because we suppose installed kernel modules are

signed by a trusted party. Moreover, the attacker also

does not disrupt its kernel since the attacker only has

the motivation to disrupt CAN-bus communication.

In other words, we assume that the attacker does not

shutdown attacks on the compromised system. In the

following section, we deﬁne two DoS attacks as threat

models.

3.1.1 Malicious ID DoS

Malicious ID DoS is the most critical threat to CAN-

bus communication. This attack uses the highest pri-

ority ID (0x000) on CAN to ﬁll the networks. It

brings unexpected vehicle behavior and stops some

functions (e.g., power steering).

3.1.2 Benign ID DoS

Benign ID DoS abuses the highest priority ID as-

signed to a compromised ECU. In other words, be-

nign ID DoS is a DoS attack using the highest priority

legitimate ID used by an actual ECU. It implies that

benign ID DoS is less aggressive than the aforemen-

tioned malicious ID DoS because it is expected that

some benign IDs are higher priority than the ID used

by benign ID DoS. However, benign ID DoS is still a

critical threat against some benign IDs that are lower

priority than the ID used by benign ID DoS.

3.2 Problem Statement

We design an isolable, traceable, and deployable

kernel-level protection (IVNPROTECT) that satisﬁes

the following statements.

3.2.1 P1: Prevent DoS Attacks (Malicious ID

DoS and Benign ID DoS)

An attacker tries to ﬂood the CAN bus by sending

numerous messages. To deal with the attacker, IVN-

PROTECT monitors the CAN IDs of transmitted mes-

sages in the compromised ECU. In case the CAN ID

of a transmitted message is not a benign ID (i.e., not

an allowlisted ID), IVNPROTECT cancels the mes-

sage transmission. In contrast, if the CAN ID of a

transmitted message is a benign ID, IVNPROTECT

also analyzes the context of the transmitted IDs and

then reduces the transmission rate if the context is an

anomaly.

3.2.2 P2: Isolate a Compromised ECU

To prevent the permanent malicious activity by an at-

tacker in a compromised ECU, our protection isolates

such compromised ECUs from the CAN-bus. How-

ever, it is important to determine when to isolate a

compromised ECU. Speciﬁcally, it is required that

IVNPROTECT should isolate the compromised ECU

after reporting some warning messages to the other

ECUs on the bus because the other ECUs can change

some operations to minimize the security risk after

receiving the warning messages. For instance, if the

attacked vehicle has autonomous functions, the other

ECUs can switch to manual operations to prevent ex-

ploiting autonomous functions.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

Table 1: Comparison among CAN-bus protections in Implementation Location (I.L.), Isolability, Traceability for Root-cause

of Isolation (T.R.I.), Deployment Cost (D.C.), Harm for Benign Messages of legitimate ECUs (H.B.M.).

CANARY ID-Hopping Frame Corruption Elend et al. TEECheck IVNPROTECT

I.L. Bus Bus IDS ECU ECU ECU

Isolability Complete Partial Complete Partial Complete Complete

T.R.I. Yes - No - Yes Yes

D.C. High High Low High Middle Low

H.B.M. Harmful Harmful Harmful Unharmful Unharmful Unharmful

3.2.3 P3: Report Warning Messages During DoS

As described in P2, IVNPROTECT must isolate the

compromised ECU after reporting some warning

messages. To ensure working this function, IVN-

PROTECT is required to satisfy the following require-

ments:

1. A benign transmission loss rate of 0% during DoS

activities

2. A worst arrival time of benign messages, less than

isolation time by IVNPROTECT

3. A higher priority of warning messages than the

others IDs

3.2.4 P4: Deploy IVNPROTECT with a Slight

Overhead

Due to deploying to resource-constrained ECUs, we

must minimize the overhead caused by running IVN-

PROTECT. Speciﬁcally, we deﬁne a requirement that

the IVNPROTECT’s overhead must be below 494 µs

which is the transmission overhead by TEECheck

(Mishra et al., 2020).

3.3 Overview of IVNPROTECT

IVNPROTECT consists of four stages, allowlist and

similarity analysis-based detection modules, security

error states, sending function and discarding function,

as shown in Fig. 2. In the allowlist and similarity

analysis-based detection modules stage, these mod-

ules detect malicious ID and benign ID DoS attacks.

In the security error states stage, the security error

such as DoS attacks is managed by the state in this

stage. Finally, IVNPROTECT determines whether to

send the CAN message or discard it based on the state

of security error states stage. Also, by installing IVN-

PROTECT to all ECU on CAN, it is possible to isolate

a compromised ECU no matter which compromised

ECU the attacker intrudes in.

Also, we assume that IVNProtect is installed on

Linux-based ECUs such as the AGL based in-vehicle

infotainment system (Sivakumar et al., 2020), be-

cause such ECUs with entry points to external net-

works have been compromised in the actual hacking

(Nie et al., 2017; Miller and Valasek, 2015). In the

following sections, we describe each stage in order.

3.4 Detection Modules

To solve P1, we provide two detection modules in

this section. Based on the results of these modules,

IVNPROTECT determines whether to conduct protec-

tion procedures (dropping messages or inserting a de-

lay). The ﬁrst is the allowlist-based detection module,

which is introduced to prevent malicious ID DoS. The

second one is the similarity analysis-based detection

module, which can detect benign ID DoS.

3.4.1 Allowlist-Based Detection Module

To disable malicious ID DoS, we add a module that

discards incoming messages based on an allowlist of

CAN IDs. We assume that this allowlist is pre-deﬁned

in the CAN-bus kernel driver before factory shipment

based on the CAN IDs that the ECU sends. There-

fore, if an attacker who intrudes on the ECU installing

IVNPROTECT and tries to modify the allowlist, the

attacker has to replace the CAN-bus kernel driver with

the attacker’s driver. We also suppose that the origi-

nal CAN-bus kernel driver is signed by a trusted party

such as automotive suppliers. It implies that the at-

tacker cannot replace the original CAN-bus kernel

driver with the attacker’s driver.

3.4.2 Similarity Analysis-Based Detection

Module

To prevent benign ID DoS, we provide the similar-

ity analysis-based detection module in this section.

This module uses a similarity analysis-based detec-

tion method (Ohira et al., 2020) to detect DoS attacks

quickly by a single ID or randomized IDs. This de-

tection method detects DoS attacks by calculating the

similarity (called Simpson coefﬁcient) between Win-

dow IDs (WIDs) and Criterion IDs (CIDs). The CIDs

are composed of the W number of benign CAN IDs,

which are pre-deﬁned before the detection-phase. The

IVNPROTECT: Isolable and Traceable Lightweight CAN-Bus Kernel-Level Protection for Securing in-Vehicle Communication

Benign

Process

CAN Controller

Allowlist-Based

Detection for

Malicious ID

Similarity-Based

Detection for

Benign ID

Security

Error States

Discarding

Function

Sending

Function

CAN Kernel Driver

with IVNProtect

kerneluser

Bengin

Message

0xB4.00…

Malicious

Benign

ID Data

0xB4.00…

Malicious

Message

0x6AF.FD…

Figure 2: Diagram of the proposed IVNProtect.

WIDs include the W number of the latest CAN IDs

of recently received CAN messages. CIDs and W

are pre-deﬁned by an optimization algorithm based

on Simulated Annealing (SA) before the detection-

phase. As one example, we show the pre-deﬁned pa-

rameters calculated from our evaluation dataset using

the SA-based algorithm (Ohira et al., 2020) as fol-

lows.

W =7,

=0.3414,

CIDs ={0x3b8, 0x3b9, 0x3ba, 0x3ba, 0x3bc, 0x3bd,

0x463}

where σ

is the deviation of benign similarity.

This method also requires deﬁning these pa-

rameters in the CAN-bus kernel driver as with the

allowlist-based detection module. These parameters

are calculated and pre-deﬁned before factory ship-

ment for each ECUs. Thus, as with the allowlist-

based detection module, these parameters related to

similarity analysis-based detection are protected from

the attacker’s modiﬁcation.

3.5 Security Error State Mechanism

To meet P2 and P3, we employ a security error state

mechanism (Fig. 3) for the isolation of a compro-

mised ECU, inspired by the fault error state mech-

anism speciﬁed in CAN. This section explains the

functions and the statements of transition in each

state.

3.5.1 Security Error Active State

Security error active state implies that there is no se-

curity incident so that IVNPROTECT does not execute

any functions in this state. As shown in Fig. 3 (a),

if a detection module (e.g., allowlist-based detection)

ﬁnds some malicious activity in this state, the ECU

immediately transfers to the following security error

passive state.

Sec. error

passive

Sec.

bus-off

Sec. error

active

detection counter ≥ 1

detection counter < 1

detection

counter > 255

Reset

(a) General security error states.

Sec. error

passive

Sec.

bus-off

Sec. error

active

ID violation error ≥ 1

ID violation error < 1

ID violation

error > 255

Reset

(b) Security error states for malicious ID DoS.

Sec. error

passive

Sec.

bus-off

Sec. error

active

Similarity error ≥ 1 OR

ID violation error ≥ 1

Similarity error < 1 AND

ID violation error < 1

Similarity error > 255 OR

ID violation error > 255

Reset

DoS.

Figure 3: Security (Sec.) error states on IVNPROTECT.

3.5.2 Security Error Passive State

Security error passive state expresses that DoS attack

activity has begun to be observed. For example, as

shown in Fig. 3 (b), this state is entered when an ID

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

outside the allowlist is sent (i.e., ID violation error).

The security error states for both malicious and be-

nign DoS attacks are shown in Fig. 3 (c). As the same

as Fig. 3 (b), this state is entered when an ID out-

side the allowlist is sent (i.e., ID violation error). In

addition, in the case of sending messages with malig-

nant similarity, this state also is entered. We deﬁne the

case of sending messages with malignant similarity as

similarity error.

Moreover, a compromised ECU reports a warn-

ing message for the other ECUs to change some op-

erations to minimize the security risk. For instance,

if the attacked vehicle has autonomous functions, the

not compromised ECUs can change to manual opera-

tions to prevent exploiting autonomous functions.

3.5.3 Security Bus-off State

Security bus-off state completely disables the abil-

ity to send and receive to isolate a compromised

ECU. This state can prevent an attacker from send-

ing benign ID messages permanently or spreading

the attacker’s infection with some software updating

scheme on CAN (e.g., ISO-TP).

This state is entered if either a lot of similarity er-

ror or an ID violation error increases. However, it is

important to determine when to isolate the compro-

mised ECU. The optimal threshold is deﬁned in Sec.

6.2.

4 IMPLEMENTATION

In this section, we describe the implementation of

IVNPROTECT. We implemented the procedures re-

lated to IVNPROTECT to the CAN-bus kernel driver

in Linux kernel v.5.10.

First, we explain the procedures of detection

modules. We add the allowlist- and similarity

analysis-based detection to the message transmis-

sion function mcp251x_tx_work_handler(). Al-

gorithm 1 provides the message transmission func-

tion including IVNPROTECT procedures. To im-

plement the allowlist-based discarding messages, we

used two Linux kernel functions, dev_kfree_skb()

(line 35), which frees a buffer for storing packet

data, and netif_wake_queue() (line 36), which wakes

up the currently stopped queue and asks the ker-

nel to resume sending messages. Speciﬁcally, in

case of transmission of malicious ID, our IVNPRO-

TECT executes dev_kfree_skb() to eliminate mali-

https://github.com/raspberrypi/linux/blob/

4a1f59200d36993f6b32742c03c154ae275bd89c/drivers/

net/can/spi/mcp251x.c

cious transmission and then netif_wake_queue() to

immediately resume next sending for benign mes-

sages. By the way, note that the other CAN ker-

nel driver also has the message transmission function

like mcp251x_tx_work_handler(). Therefore, IVN-

PROTECT can be implemented on various CAN pe-

ripherals.

Algorithm 1: CAN message transmission algorithm in a

kernel driver with IVNPROTECT.

Input: can_priv, W IDs, CIDs, W, allowlist

Output: None

1: function calc_similarity(set1, set2, set_size)

2: return

|set1∩set2|

set_size

3: end function

5: can_ f rame ⇐ can_priv->packet_data;

6: similarity ⇐ 0;

7: is_ID_violation_error ⇐ False;

8: is_similarity_error ⇐ False;

10: // calculate similarity

11: can_ f rame->can_id is added to W IDs

12: if ++window_idx ≥ W then

13: similarity ⇐ calc_similarity(W IDs, CIDs, W );

14: window_idx ⇐ 0;

15: memset(W IDs, 0, sizeof(W IDs)); // initialize W IDs

16: end if

17:

18: // validate CAN ID and similarity

19: mutex_lock(&can_priv)

20: if can_ f rame->can_id is not in allowlist then

21: can_priv->can_device_sec_stats-

>ID_violation_error++;

22: is_ID_violation_error ⇐ True;

23: update can_priv->sec_state

24: else if similarity exceeds a benign range deﬁned by σ

then

25: can_priv->can_device_sec_stats-

>similarity_error++;

26: is_similarity_error ⇐ True;

27: update can_priv->sec_state

28: end if

29:

30: // send CAN message

31: if can_priv->sec_state is security bus-off state then

32: free the packet data in can_priv with

dev_kfree_skb()

33: else if then

34: if is_ID_violation_error then

35: free the packet data in can_priv with

dev_kfree_skb()

36: wake up the CAN device with

netif_wake_queue()

37: else if is_similarity_error then

38: mdelay(10);

39: end if

40: send CAN message of can_priv->packet_data

41: end if

42: mutex_unlock(&can_priv)

IVNPROTECT: Isolable and Traceable Lightweight CAN-Bus Kernel-Level Protection for Securing in-Vehicle Communication

Next, we describe the detail of similarity analysis-

based detection. To implement the module, we added

a new similarity calculation function (line 1-3) and

some variants for the calculation. IVNPROTECT con-

ducts the similarity calculation per ﬁxed messages

(line 11-16). And, in case of malignant similarity,

IVNPROTECT executes delay function mdelay(10)

(line 38), which stops the sending procedure during

10 ms.

Finally, we explain the implementation of security

error states. At ﬁrst, we added two member variants,

enum sec_state and struct can_device_sec_stats

into struct can_priv which contains CAN common

private data such as error state, sending data, etc. The

sec_state expresses the current security error state of

the CAN interface; for example, if sec_state is 0, it

expresses that the current state is the security error

active state. The can_device_sec_stats contains the

detection counter, such as ID violation error for secu-

rity error states. Thus, if the detection module discov-

ers some malicious activities, the detection counter

in can_device_sec_stats increases. Then, IVNPRO-

TECT manages the security error states based on this

detection counter in can_device_sec_stats in our im-

plementation.

5 EVALUATION

5.1 Environment and Dataset

In this section, we explain our experimental envi-

ronment and the speciﬁcation of devices. At ﬁrst,

we set up the experimental CAN-bus in our labora-

tory. This CAN-bus includes three ECUs, (1) a Rasp-

berry Pi 3 Model B with IVNPROTECT, (2) an ac-

tual combination-meter ECU that automatically sends

CAN messages, (3) an experimental ECU which is

called ECUsim 2000 which supplies the power to the

bus.

To emulate the CAN messages sent by one

ECU, we logged 10090 messages from the actual

combination-meter ECU. Hereafter, we evaluated var-

ious metrics of our IVNPROTECT, such as transmis-

sion loss rate and transmission delay when a DoS at-

tack is performed while sending this 10090 message.

5.2 Prevention of DoS Attacks

At ﬁrst, we evaluate the ability of IVNPROTECT to

prevent DoS attacks. To evaluate this ability, we made

Raspberry Pi 3 Model B both with and without IVN-

PROTECT, which simultaneously sends 10090 benign

messages and DoS attacks. We show the comparison

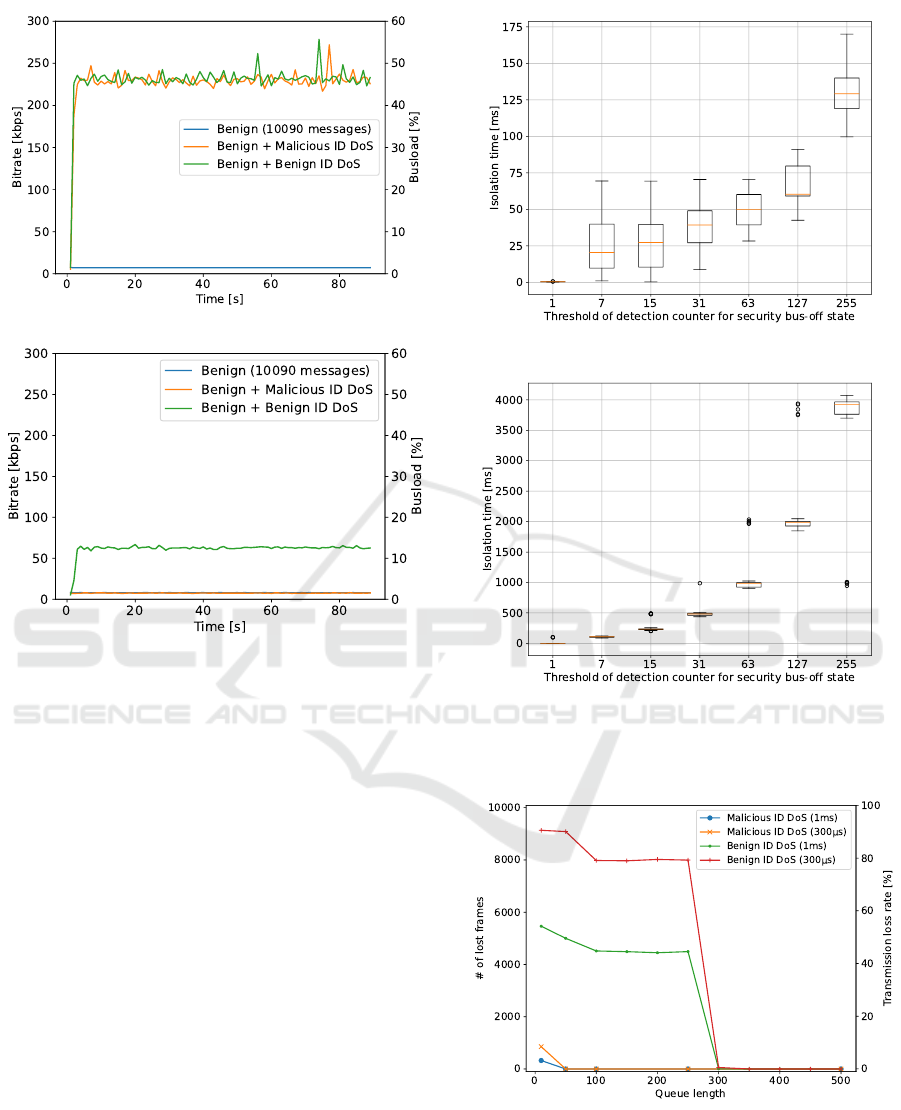

of busloads with and without IVNPROTECT in Fig.

4. As shown in Fig. 4 (a), in the case without IVN-

PROTECT, the busload reached over 45 % during DoS

attacks.

In contrast, as shown in Fig. 4 (b), we conﬁrmed

that IVNPROTECT mitigated DoS attacks. Specif-

ically, in the case of sending benign messages and

malicious ID DoS simultaneously, there was no in-

crease in busload. It means that the allowlist-based

message discarding works against malicious ID DoS

effectively. Next, we describe the case of sending

benign messages and benign ID DoS. Since the al-

lowlist of IVNPROTECT includes the benign ID used

by the benign ID DoS, benign ID DoS passes the

allowlist-based message discarding. However, due

to the malignant similarity of transmission messages,

IVNPROTECT inserts a delay to mitigate ﬂooding. As

shown in Fig. 4 (b), we conﬁrm that the busload is re-

duced to about 12 % by inserting the delay.

Considering the busload of only benign messages

is about 1 %, IVNPROTECT allows the benign ID

DoS to increase the busload by 11 %. In general, the

busloads of the real-world CAN-buses are limited to

about 20 % in order to avoid unacceptable delays for

low-priority messages. Thus, when an attacker exe-

cutes benign ID DoS, the busload of real CAN-bus in-

creases up to 31 %. From this result, we conclude that

an attacker cannot achieve DoS attacks on the bus be-

cause the ECUs can send benign messages normally

with a busload of about 31 %.

5.3 Isolation Time

Next, we evaluate the isolation time, which expresses

from starts from the DoS attacks to isolation by IVN-

PROTECT. Like the previous experiment, we had the

Raspberry Pi 3 Model B send 10090 benign messages

and DoS attacks simultaneously. In Fig. 5, we show

the isolation times with different thresholds of the de-

tection counter for transferring the security bus-off

state. As shown in Fig. 5 (a), we conﬁrm that the

maximum isolation time is 170 ms if the threshold is

255. And, as shown in Fig. 5 (b), we conﬁrm that

the maximum isolation time is 4.073 s if the thresh-

old is 255. In other words, we conclude that there is

the time (170 ms and 4.073 s) to report some warning

messages for malicious and benign ID DoS, respec-

tively.

5.4 Benign Transmission Loss Rate

Under DoS Attacks

To ensure that IVNPROTECT can report the warning

messages, we evaluate the transmission loss rate of

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

(a) Without IVNPROTECT.

(b) With IVNPROTECT.

Figure 4: Comparison of bitrate and busload between with

and without IVNPROTECT.

benign messages during DoS attacks. Fig. 6 shows

the benign transmission loss rate of IVNPROTECT

during DoS attacks.

The transmission loss rate is 0 % when the trans-

mission queue length is over 350. Thus, we set the

transmission queue length to 350 in the following

evaluations.

5.5 Benign Transmission Delay Under

DoS Attacks

To verify the number of messages that IVNPROTECT

can send during a DoS attack, we evaluate the trans-

mission delay of benign messages during DoS at-

tacks. Table 2 shows the arrival time of benign mes-

sages during various DoS attacks.

The benign trafﬁc in Table 2 expresses the ar-

rival time of benign messages without sending DoS

attacks. The benign + malicious ID DoS (1ms) repre-

sents the arrival time of benign messages during ma-

licious DoS attacks, which send messages per 1 ms.

Similarly, benign + malicious ID DoS (300 µs) repre-

sents the arrival time of benign messages during ma-

(a) Malicious ID DoS.

(b) Benign ID DoS.

Figure 5: Isolation time under different thresholds of detec-

tion counter for security bus-off state.

Figure 6: Benign transmission (10090 messages) loss rate

under different tx queue size during DoS attacks.

licious DoS attacks (300 µs), which is the maximum

transmission rate.

Comparing benign with benign + malicious ID

DoS in Table 2, we conﬁrm that IVNPROTECT does

IVNPROTECT: Isolable and Traceable Lightweight CAN-Bus Kernel-Level Protection for Securing in-Vehicle Communication

Table 2: Statistics of the arrival time of benign messages.

Trafﬁc Mean Stddev Max

[ms] [ms] [ms]

benign 99.977 4.916 111.085

benign+malicious

99.977 4.709 111.146

ID DoS (1ms)

benign+malicious

ID DoS (300µs)

99.977 5.055 110.976

benign+benign

100.040 75.665 199.989

ID DoS (1ms)

benign+benign

ID DoS (300µs)

99.989 115.637 333.057

not affect the arrival time of benign messages during

malicious ID DoS. In contrast, in benign ID DoS, the

maximum delay of benign messages is 199.989 ms

and 333.057 ms. In other words, if IVNPROTECT iso-

lates compromised ECU at 333.057 ms after the oc-

currence of DoS attacks, IVNPROTECT can send at

least one message. Based on this evaluation, we de-

termine the optimal threshold for transferring security

bus-off state in 6.2.

5.6 Overhead with IVNPROTECT

In this section, we evaluate the overhead with IVN-

PROTECT. To evaluate the overhead, we considered

two cases: the Raspberry Pi 3 Model B sends 1000

benign messages with and without IVNPROTECT.

Then, we measured the average time between start-

ing to send a benign message and ﬁnishing it. As a

result, we observed that in the case without IVNPRO-

TECT, the average time was 20.090 193 ms, while in

the case with IVNPROTECT, it was 20.099 242 ms.

The overhead with IVNPROTECT is 9.049 µs, which

is less than the TEECheck’s (494 µs), so we conﬁrm

that IVNPROTECT does not affect on benign mes-

sages.

6 DISCUSSION

6.1 Comparison Among Previous

Protections

In this section, we compare IVNPROTECT with previ-

ous protections. As described in Sec. 2.2, IVNPRO-

TECT has advantages in terms of unharming messages

on the bus when its protection is triggered unlike IDS-

side and on-bus protections.

Next, we compare IVNPROTECT with previous

ECU-side protections. Table 3 shows a comparison

among the ECU-side protections and IVNPROTECT.

As described in Sec. 2.2, the secure CAN transceiver

Table 3: Comparison among ECU-side protections in Isola-

bility, Traceability for Root-cause of Isolation (T.R.I.), De-

ployment Cost (D.C.), Harm for Benign Messages of legit-

imate ECUs (H.B.M.), Adaptation of Aperiodic Messages

(A.A.M.), benign Transmission Loss Rate during DoS at-

tacks (T.L.R.).

Elend et al. TEECheck IVNPROTECT

Isolability Partial Complete Complete

T.R.I. - Yes Yes

D.C. High Middle Low

H.B.M. Unharmful Unharmful Unharmful

A.A.M. Yes No Yes

T.L.R.

 0% 0% 0%

proposed by Elend et al. (Elend and Adamson, 2017)

can be bypassed using some allowlisted messages

so it is effective only against malicious ID DoS at-

tacks. In addition, the secure CAN transceiver uses

the leaky-bucket algorithm to manipulate the sending

rate of CAN messages. And, it causes the transmis-

sion loss rate of benign messages during DoS attacks

to increases. Therefore, the secure CAN transceiver

cannot report warning messages to others ECUs on

the bus while being forced to send DoS attacks by an

attacker.

TEECheck (Mishra et al., 2020) proposed by

Mishra et al. has advantages regarding the complete

isolation of a compromised ECU, traceability of the

root cause of the bus-off state, and benign messages

that are not harmful. However, TEECheck can deploy

only to ARM-based ECUs, so it has the limitation of

deployability. Moreover, Mishra et al. assume that

ECUs with TEECheck send only periodic messages

as a real-time task model. In other words, TEECheck

cannot be deployed to ECUs which carry out aperi-

odic tasks. In CAN-bus, aperiodic tasks are gener-

ally implemented in real-world ECUs, which these

tasks are used to implement event-triggered tasks

such as airbag control. Therefore, we conclude that

TEECheck has a severe limitation of deployment for

ECUs with aperiodic tasks.

In contrast, our IVNPROTECT allows the aperi-

odic tasks to send the messages because the similar-

ity analysis-based detection module does not detect

the aperiodic messages as malicious messages (Ohira

et al., 2020). In addition, IVNPROTECT can be in-

stalled to an ECU just by software updating without

the limitation of hardware such as requiring Trust-

Zone. From the above comparison, IVNPROTECT

has advantages in isolability, deployability, and adap-

tation to aperiodic tasks.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

6.2 Warning Response Using

IVNPROTECT

For P3 described in Sec. 3.2, IVNPROTECT must

isolate the compromised ECU after reporting some

warning messages. To ensure this function work,

IVNPROTECT is required to satisfy the following re-

quirements:

1. A benign transmission loss rate of 0% during DoS

activities

2. A worst arrival time of benign messages, less than

isolation time by IVNPROTECT

3. A higher priority of warning messages than the

others IDs

As described in Sec. 5.4, we conﬁrmed that IVN-

PROTECT satisﬁes the ﬁrst requirement that the be-

nign transmission loss rate during DoS activities is

0 %. The second requirement depends on the thresh-

olds of the detection counter for transferring the se-

curity bus-off state. Speciﬁcally, the worst arrival

time of benign messages is 0.110976s and 0.333057s

for malicious and benign DoS attacks, respectively.

Hence, for the second requirement, IVNPROTECT

must isolate the compromised ECU after these times

when starting attacks. From the evaluation of isola-

tion time (Sec. 5.3), IVNPROTECT can satisfy the

requirement if the thresholds of ID violation error

and similarity error are 255 and 31, respectively. Fi-

nally, we discuss the third requirement that the ID of

warning messages requires a higher priority than the

other IDs on the bus. To prevent conﬂicting the warn-

ing messages and the other messages, IVNPROTECT

must send the warning messages with the highest pri-

ority ID on the bus. Fortunately, we easily solve this

problem because such IDs generally exist in the real-

world CAN-bus. For example, since the highest ID of

our lab’s vehicle is 0x020, we can use the IDs over

0x020 as warning messages.

We conclude that IVNPROTECT can report the

warning messages during DoS attacks if the thresh-

olds of ID violation error and similarity error are 255

and 31 and the ID of warning messages is higher than

the other messages on the bus.

6.3 Limitation

In this section, we elaborate on the limitation of IVN-

PROTECT. IVNPROTECT can detect malicious ID

DoS and benign ID DoS by allowlist and similarity

analysis. The similarity analysis module detects the

DoS attacks if the similarity of CAN messages ex-

ceeds a benign range deﬁned by σ

. So, if an at-

tacker tries to manipulate the similarity of DoS attacks

without exceeding the benign range, IVNPROTECT

misses the DoS attacks to the CAN-bus. It causes a

high busload of the CAN-bus and unexpected vehi-

cle behavior (e.g., disabling power steering, blocking

ADAS function). We deﬁne this evasion DoS attack

against IVNPROTECT as similarity-manipulation at-

tacks.

Fortunately, we can mitigate this attack with a

well-architected assignment of the CAN IDs in prac-

tice. Speciﬁcally, we assign the low-priority CAN IDs

to an exploitable ECU that has a wireless connection

and IVNPROTECT. And, we assign the higher pri-

ority CAN ID than the exploitable ECU to the other

important ECUs. In consequence, an attacker can-

not deny the benign CAN messages using similarity-

manipulation attacks because the DoS attack con-

sists of the low-priority CAN IDs. However, to de-

ploy the well-architected assignment of CAN IDs

to real-world CAN-buses, automotive manufacturers

may have to change the existing assignment of CAN

IDs.

7 CONCLUSION

In this paper, we proposed isolable and traceable

lightweight CAN-bus kernel-level protection called

IVNPROTECT, which has advantages such as de-

ployability and slight overhead compared with previ-

ous CAN-bus protections. To allow the other ECUs

to trace the root cause of isolation of compromised

ECU, IVNPROTECT has a reporting function to send

warning messages while an attacker is compromising.

Moreover, we conﬁrmed that this reporting function

of IVNPROTECT works even during a DoS attack.

In our future work, we will try to implement a host-

based intrusion detection module to IVNPROTECT,

which IVNPROTECT can prevent the attacker’s activ-

ities before starting some attacks. Finally, since there

is not much research on protection for attacking CAN

yet, we hope that our kernel-level protection will en-

courage this research ﬁeld.

REFERENCES

Elend, B. and Adamson, T. (2017). Cyber Security Enhanc-

ing CAN Transceivers. In Proceedings of the 16th In-

ternational CAN Conference.

Groza, B., Popa, L., Murvay, P.-S., Elovici, Y., and Shabtai,

A. (2021). {CANARY}-A Reactive Defense Mech-

anism for Controller Area Networks based on Active

RelaYs. In Proceedings of the 30th USENIX Security

Symposium (USENIX Security 21), pages 1–18.

IVNPROTECT: Isolable and Traceable Lightweight CAN-Bus Kernel-Level Protection for Securing in-Vehicle Communication

Guilbon, J. (2018). Attacking the ARM’s TrustZone. https:

//blog.quarkslab.com/attacking-the-arms-trustzone.

html. (Accessed on 02/17/2022).

Humayed, A. and Luo, B. (2017). Using ID-Hopping to

Defend against Targeted DoS on CAN. In Proceed-

ings of the 1st International Workshop on Safe Control

of Connected and Autonomous Vehicles, pages 19–26.

ACM.

Kneib, M. and Huth, C. (2018). Scission: Signal

Characteristic-Based Sender Identiﬁcation and Intru-

sion Detection in Automotive Networks. In Proceed-

ings of the 2018 ACM SIGSAC Conference on Com-

puter and Communications Security (CCS), pages

787–800. ACM.

Kneib, M., Schell, O., and Huth, C. (2020). EASI: Edge-

Based Sender Identiﬁcation on Resource-Constrained

Platforms for Automotive Networks. In Proceedings

of the 27th Network and Distributed System Security

Symposium (NDSS), pages 1–16.

Kurachi, R., Matsubara, Y., Takada, H., Adachi, N.,

Miyashita, Y., and Horihata, S. (2014). CaCAN-

Centralized Authentication System in CAN (Con-

troller Area Network). In 14th Int. Conf. on Embedded

Security in Cars (ESCAR 2014).

Linux-Foundation (2019). Automotive Grade Linux.

https://www.automotivelinux.org/. (Accessed on

07/08/2019).

Machiry, A., Gustafson, E., Spensky, C., Salls, C.,

Stephens, N., Wang, R., Bianchi, A., Choe, Y. R.,

Kruegel, C., and Vigna, G. (2017). BOOMERANG:

Exploiting the Semantic Gap in Trusted Execution En-

vironments. In NDSS.

Marchetti, M. and Stabili, D. (2017). Anomaly Detection

of CAN Bus Messages through Analysis of ID Se-

quences. In 2017 IEEE Intelligent Vehicles Sympo-

sium (IV), pages 1577–1583. IEEE.

Miller, C. and Valasek, C. (2015). Remote Exploitation

of An Unaltered Passenger Vehicle. Black Hat USA,

2015:1–91.

Mishra, T., Chantem, T., and Gerdes, R. (2020).

TEECheck: Securing Intra-Vehicular Communication

Using Trusted Execution. In Proceedings of the 28th

International Conference on Real-Time Networks and

Systems (RTNS), pages 128–138.

Müter, M., Groll, A., and Freiling, F. C. (2010). A Struc-

tured Approach to Anomaly Detection for In-Vehicle

Networks. In 2010 Sixth International Conference on

Information Assurance and Security, pages 92–98.

Nie, S., Liu, L., and Du, Y. (2017). Free-Fall: Hacking

Tesla from Wireless to CAN Bus. Black Hat USA,

2017:1–16.

Ohira, S., Araya, K. D., Arai, I., and Fujikawa, K. (2021).

PLI-TDC: Super Fine Delay-Time Based Physical-

Layer Identiﬁcation with Time-to-Digital Converter

for In-Vehicle Networks. In Proceedings of the 2021

ACM Asia Conference on Computer and Communica-

tions Security (ASIACCS), pages 1–11. ACM.

Ohira, S., Araya, K. D., Arai, I., Inoue, H., and Fujikawa,

K. (2020). Normal and Malicious Sliding Windows

Similarity Analysis Method for Fast and Accurate IDS

against DoS Attacks on In-Vehicle Networks. IEEE

Access, 8:42422–42435.

Pesé, M. D., Schauer, J. W., Li, J., and Shin, K. G. (2021).

S2-CAN: Sufﬁciently Secure Controller Area Net-

work. In Proceedings of the 37th Annual Computer

Security Applications Conference (ACSAC), ACSAC,

page 425–438, New York, NY, USA. Association for

Computing Machinery.

Robert-Bosch-GmbH (1991). CAN Speciﬁcation Version

2.0. http://esd.cs.ucr.edu/webres/can20.pdf. (Ac-

cessed on 07/08/2019).

Sivakumar, P., Devi, R. S., Lakshmi, A. N., VinothKumar,

B., and Vinod, B. (2020). Automotive grade linux

software architecture for automotive infotainment sys-

tem. In 2020 International Conference on Inventive

Computation Technologies (ICICT), pages 391–395.

IEEE.

Song, H. M., Kim, H. R., and Kim, H. K. (2016). Intru-

sion Detection System Based on the Analysis of Time

Intervals of CAN Messages for In-Vehicle Network.

In 2016 international conference on information net-

working (ICOIN), pages 63–68. IEEE.

Takada, M., Osada, Y., and Morii, M. (2019). Counter At-

tack against the Bus-off Attack on CAN. In 2019 14th

Asia Joint Conference on Information Security (Asia-

JCIS), pages 96–102. IEEE.

Woo, S., Moon, D., Youn, T.-Y., Lee, Y., and Kim, Y.

(2019). CAN ID Shufﬂing Technique (CIST): Mov-

ing Target Defense Strategy for Protecting In-Vehicle

CAN. IEEE Access, 7:15521–15536.

Wu, W., Huang, Y., Kurachi, R., Zeng, G., Xie, G., Li, R.,

and Li, K. (2018a). Sliding Window Optimized Infor-

mation Entropy Analysis Method for Intrusion Detec-

tion on In-Vehicle Networks. IEEE Access, 6:45233–

45245.

Wu, W., Kurachi, R., Zeng, G., Matsubara, Y., Takada,

H., Li, R., and Li, K. (2018b). IDH-CAN: A

Hardware-Based ID Hopping CAN Mechanism With

Enhanced Security for Automotive Real-Time Appli-

cations. IEEE Access, 6:54607–54623.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy
