Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye

Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as

3D Gaze

Wolfgang Fuhl

1,∗

, Daniel Weber

and Shahram Eivazi

1,2

University T

ubingen, Sand 14, T

ubingen, Germany

FESTO, Ruiter Str. 82, Esslingen am Neckar, Germany

Keywords:

Eye Tracking, Pupil, Gaze, Eye Ball, Eye Opening, Iris.

Abstract:

This paper describes a feature extraction and gaze estimation software, named Pistol that can be used with

Pupil Invisible projects and other eye trackers (Dikablis, Emke GmbH, Look, Pupil, and many more). In ofﬂine

mode, our software extracts multiple features from the eye including, the pupil and iris ellipse, eye aperture,

pupil vector, iris vector, eye movement types from pupil and iris velocities, marker detection, marker distance,

2D gaze estimation for the pupil center, iris center, pupil vector, and iris vector using Levenberg Marquart

ﬁtting and neural networks. The gaze signal is computed in 2D for each eye and each feature separately and

for both eyes in 3D also for each feature separately. We hope this software helps other researchers to extract

state-of-the-art features for their research out of their recordings.

1 INTRODUCTION

Eye tracking has a variety of application areas as well

as research areas in today’s world. In human-machine

interaction it is used as a new input signal (Gardony

et al., 2020; Arslan et al., 2021), in computer graph-

ics as a constraint for the area to be rendered (Wal-

ton et al., 2021; Meng et al., 2020), in medicine us-

ing more eye features as data for self-diagnosis sys-

tems (Joseph and Murugesh, 2020; Snell et al., 2020;

Lev et al., 2020) or to measure the eyes (Nesarat-

nam et al., 2017; Economides et al., 2007), in the

ﬁeld of psychology it is used to detect neurological

diseases such as Alzheimer’s (Davis and Sikorskii,

2020; Pavisic et al., 2021), in behavioral research to

evaluate expertise as well as train students (Panchuk

et al., 2015; Jermann et al., 2010), and many more like

driver monitoring in autonomous driving (Liu et al.,

2019; Shinohara et al., 2017) etc. This wide range of

research and application areas requires that new eye

features as well as more robust algorithms be easily

and quickly deployable by everyone. As eye track-

ing itself is the focus of research and new more robust

or accurate algorithms are constantly being published

as well as new features, properties or signals such as

pupil dilation are added, it is necessary that everyone

Corresponding author

has quick access to it to improve their products or in-

tegrate it in their research.

This poses a problem for the industry, since it must

be determined long before the ﬁnal product which

functionalities and features will be integrated into the

software (Lepekhin et al., 2020). If new features are

added, this is usually postponed until the next gen-

eration of eye trackers. This is due to the fact that

the industry’s software must be very reliable and ev-

erything should be tested multiple times, as well as

automated test cases for the new parts of the software

must be integrated (Taylor et al., 2020). Further test-

ing must be done with other integrated components,

and the software must continue to be compatible with

external software components used or developed by

industry partners (Jiang et al., 2020). Another impor-

tant point for the industry is the software architecture

as well as also the quality of the source code. New

parts must adhere to the software architecture as well

as also be written in a clean and understandable way.

This also delays the integration of new components,

since the source code must also be checked.

Research groups themselves do not have these

problems, since the software architecture is usually

created and extended dynamically, which however

also leads to a poorer source code quality (Hassel-

bring et al., 2020). Likewise, research groups have

Fuhl, W., Weber, D. and Eivazi, S.

Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as 3D Gaze.

DOI: 10.5220/0011607200003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 2: HUCAPP, pages

27-38

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

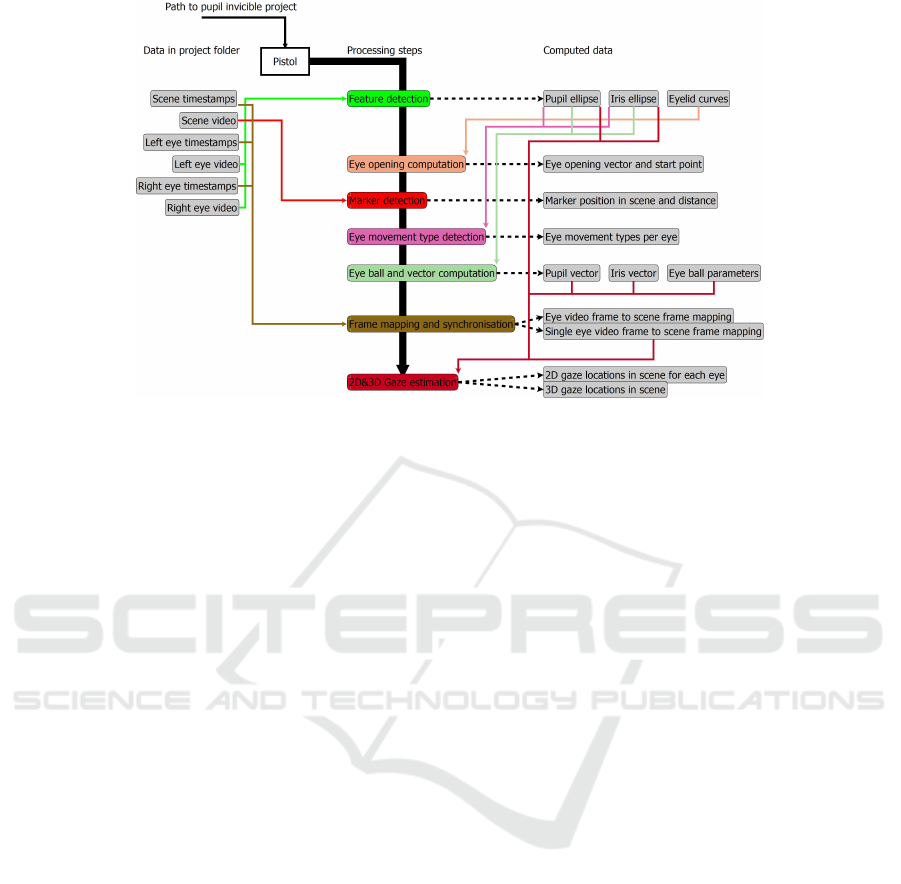

Figure 1: The workﬂow of Pistol. In gray are the data sources, and the single processing steps are in color. Each arrow

corresponding to a data dependency is colored in the same color as the processing step.

the possibility to accomplish theses for the advance-

ment of the software, whereby no costs develop. In

the case that a research group develops such software,

many new algorithms are already available in work-

ing form, which makes integration much easier and

faster. Also, research groups do not have contractual

partners, so they do not have to maintain the output

formats and integrated interfaces in the software in a

prescribed format for many years.

The Pistol tool presented in this paper extracts

a variety of eye features such as pupil ellipse, iris

ellipse, eyelids, eyeball, vision vectors, and eye-

opening degree. These are needed in many applica-

tions such as fatigue or attention determination or can

serve as new features in research, however these fea-

tures are not provided by every eye tracker manufac-

turer. In addition, to the extracted features, our soft-

ware offers the possibility to determine the eye gaze

by different methods and based on different data like

the iris or the pupil with the coordinates of the center

or with the vectors. This also offers new possibili-

ties in interaction and behavioral research. We hope

that this tool will be useful for scientists all over the

world and also help industry to integrate new features

into their software. The Pistol tool will continue to

be developed in the future, and we hope to be able to

integrate many scene analysis techniques.

Our contributions to the state of the art are:

1. A free to use tool to extract a plethora of eye fea-

tures for the pupil invisible ofﬂine.

2. 2D gaze estimation per eye with multiple opti-

mization algorithms, as well as for the pupil and

the iris separately.

3. 3D gaze estimation with both eyes using differ-

ent optimization algorithms and separately for the

pupil and the iris.

4. The eye trackers Dikablis, Emke GmbH, Look,

Pupil, and many more are also supported for eye

feature extraction and gaze estimation. But here

the dirct path to the videos has to be speciﬁed.

2 RELATED WORK

In the ﬁeld of eye tracking and feature extraction,

there is a wide range of related work. This is due, on

the one hand, to the industry, which provides a wide

range of eye trackers at different prices and with dif-

ferent features. On the other hand, it is due to the ever-

growing research community and the growing appli-

cation ﬁelds for eye tracking.

From the industry there are for example the man-

ufacturers Tobii (Tobii, 2021), ASL (ASL, 2021),

EyeTech (EyeTech, 2021), SR Research (SRRe-

search, 2021), Eyecomtec (eyecomtec, 2021), Er-

goneers (Ergoneers, 2021), Oculus (Oculus, 2021),

Pupil Labs (PupilLabs, 2021), iMotions (iMotions,

2021), VIVE (VIVE, 2021) and many more. The

eye trackers differ in frame rate and in the features

used for eye tracking, each having its advantages and

disadvantages. For a good overview of more details,

please refer to the manufacturer pages as well as sur-

vey papers that deal with this overview (Rakhmatulin,

2020; Duchowski, 2002; Park and Yim, 2021; Mao

et al., 2021).

Science itself, has of course produced some eye

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

trackers and systems for gaze calculation. The ﬁrst

one mentioned here is the EyeRec (Santini et al.,

2017) software, which can be used for online eye

tracking for worn systems. It has several built-in al-

gorithms and uses a polynomial ﬁtting to the optical

vector of the pupil. Another software dealing with

pupillometry is PupilEXT (Zandi et al., 2021). This

is a highly accurate extraction of the pupil shape,

which can also only be performed under severe limi-

tations and with high-resolution cameras. The soft-

ware OpenEyes (Li et al., 2006) offers a hardware

and software solution in combination. The algorithm

used for pupil detection is Starburst. For the Tobii

Glasses there is also a tool (Niehorster et al., 2020),

which allows analyzing the images ofﬂine and to ap-

ply algorithms from science to the data. For Mat-

lab there is also a freely available interface to use

Tobii Eye Tracker directly (Jones, 2018). For Tobii

there also exists a custom software to improve the

accuracy of the eye tracker (Phan, 2011). To dis-

tribute the data of a Gazepoint Eye Tracker over a net-

work, there is also a tool from science (Hale, 2019).

For studies with slide shows, there is the software

OGAMA (Voßk

uhler et al., 2008). This can be used

to record mouse movements and gaze signal and then

analyze them, as well as create visualizations. Gaze-

Code (Benjamins et al., 2018) is a software that al-

lows mapping eye movements to the stimulus image.

The software was developed to speed up the process-

ing time for mapping and to improve the usability

compared to commercial software like Tobii Pro Lab.

The distinguishing features of our software from

existing ones is that we output a variety of other fea-

tures such as pupil, iris, eyelids, eye-opening, pupil

vector, iris vector, eye movements and different meth-

ods for gaze estimation. Also, we determine the 3D

gaze point position and support a variety of eye track-

ers. Another important feature of our tool is, that each

feature is exported together with a video, which show-

cases the quality.

3 METHOD

Pistol is executed by calling the program with a path

to the Pupil Invisible project. Then you specify the

recording to be processed (psX or just X after the us-

age of the Pupil Player) and Pistol starts the detec-

tions and calculations. In addition, you can specify

the range of marker detection to be used for calibra-

tion (based on the scene video frames). If you do not

specify this range, all detected markers will be used.

Pistol also supports to specify a polynomial (or expo-

nential function) and neural newtork architectures for

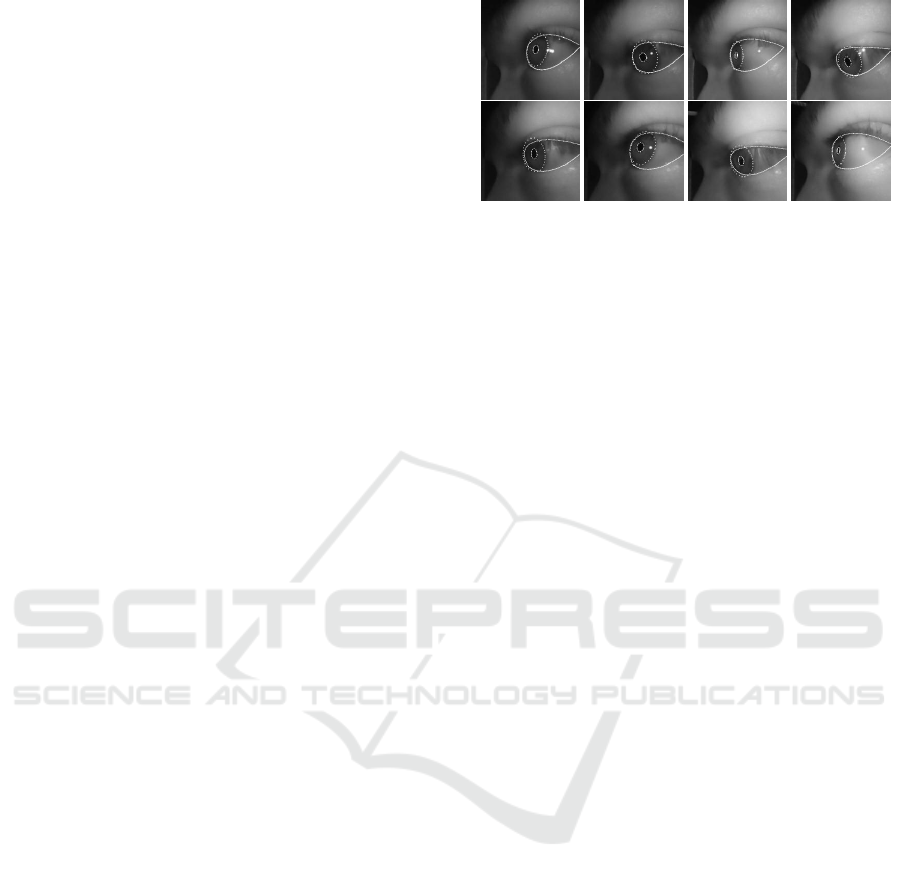

Figure 2: Exemplary detections of the pupil, iris, and eyelid

for one subject. The ﬁrst four images are from the left eye

and the last four images are from the right eye.

the gaze estimation. For the eye ball computation, the

window size to compute the eye ball can be speciﬁed

as well as two diffrent approaches can be usd (Direct

on one ellipse or the eye ball computation over multi-

ple ellipses). If pistol is not used together with Pupil

Invicible eye tracker recordings, the path to the videos

has to be selected (Eye and scene videos).

Figure 1 shows the processing ﬂow of Pistol and

the data dependencies of each step. The gray boxes

represent data that either exists in the project or was

generated by a calculation step. Each calculation step

in Figure 1 has a unique color, with which the data

dependencies are also marked. At the end of each

calculation step, the data is saved to a CSV ﬁle and a

debugging video is generated to check the result.

In the following, we describe each processing step

of our tool in detail. Some sections like the pupil, iris,

and eyelid detection are combined since the funda-

mental algorithmics are similar.

3.1 Pupil, Iris, and Eyelid Detection

In Figure 2 we show some results of pupil, iris, and

eyelid detection. For detection, we use small DNNs

with maximum instead of residual connections (Fuhl,

2021a) as well as tensor normalization and full dis-

tribution training (Fuhl, 2021b) to detect landmarks.

Using the maximum connections allows us to use

smaller DNNs with the same accuracy. The full distri-

bution training makes our DNNs more robust, and we

also need less annotated data to train them. Tensor

normalization increases accuracy and is more stable

than batch normalization. In addition, we use land-

mark validation as well as batch balancing from (Fuhl

and Kasneci, 2019) to evaluate the accuracy of the

landmarks at the pixel level and discard detections

if the inaccuracy is too high. To obtain the ellipses

for the pupil and iris from the landmarks, we use the

OpenCV (Bradski, 2000) ellipse ﬁt. The shape of the

upper and lower eyelid is approximated using cubic

splines. The architecture of our models as well as the

training details are in the supplementary material.

Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as

3D Gaze

Figure 3: Exemplary images for the left (ﬁrst 4) and right

(last 4) eye of one subject. We compute the maximal dis-

tance along the vector between the eye corners to compen-

sate for the off axial camera placement.

3.2 Eye Opening Estimation

Figure 3 shows some results of our eye-opening de-

gree calculation. The eye-opening is calculated us-

ing an optimization procedure and is always oriented

orthogonally to the vector between the eye corners.

Without the constraint of this orthogonality (simple

selection of the maximum over all minimum distances

of the points on the eyelid curves), the results are very

erratic, because due to the perspective of the camera,

parts of the eyelids are not completely visible. Also,

the orthogonality to the vector between the eye cor-

ners is what is expected in a frontal view of the eye.

Let P

be the set of points of the upper eyelid, P

be the set of points of the lower eyelid, and

−→

C be the

vector between the corners of the eye.

Opening(P

, P

−→

C ) = argmaxargmin|

−→

ud|,

u ∈ P

, d ∈ P

−→

ud ⊥

−→

(1)

Equation 1 shows our optimization to compute the

eyelid opening, where u and d are selected elements

of P

and P

with the side condition, that the vector

between the two is orthogonal to the vector between

the corners of the eye, i.e.

−→

ud ⊥

−→

C . For a frontal im-

age this additional side condition is usually not nec-

essary, but for the images from the pupil invisible the

results without this side condition are unstable and not

always oriented correctly regarding the eye.

3.3 Eye Ball, Pupil&Iris Vector

Estimation

To calculate the eyeball and the optical vectors, we

use the neural networks of (Fuhl et al., 2020a). Here,

several pupil ellipses are given into the neural network

from which the eyeball radius and the eyeball center

are calculated. As neural network, we used a network

with one hidden layer consisting of 100 neurons. To

calculate the optical vectors, we calculated the vector

Figure 4: Exemplary images for the eyeball as well as iris

and pupil vector. The eyeball is drawn in red, the iris vector

in blue, and the pupil vector in green.

Figure 5: Exemplary detections for all eye movement types,

Fixation, Saccade, Blink, and smooth pursuit. All images

are from the left eye of the subject. In addition, if no fea-

ture is detected or only the eyelids are valid, but the eye is

still open, the eye movement type will be marked as error.

The four smooth pursuit (SM) images are from four con-

secutive frames with a distance of 25 frames (Eye cameras

have 200FPS). The two saccade images are from two con-

secutive frames with a distance of 10 frames(Eye cameras

have 200FPS).

between the center and each of the pupil center and

the iris center and converted it to a unit vector.

Basically the eyeball can be computed continu-

ously in a window with this method where we sam-

ple only once over all ellipses and select the 100 most

different ones. The user of the software can specify

the window size which is used to compute the eye-

ball. We also integrated the second approch from

(Fuhl et al., 2020a), which allows computing an or-

thogonal vector from a single ellipse using a neural

network, which can then be used to continuously ad-

just the eyeball model. The choice of the method to be

used is selected via a parameter when calling Pistol.

3.4 Eye Movement Detection

For the detection of eye movements, we use the an-

gles between the pupils and iris vectors as well as the

difference of the eye-opening distance. For classiﬁca-

tion, we use a neural network with a hidden layer and

100 neurons, as well as the softmax loss. The network

was trained on the annotated data of 12 subjects. In

addition, we use the validity of the extracted eye fea-

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

Figure 6: Exemplary images of the marker detection. The

yellow dot is the estimated center. Zoom in to sea more

details.

tures to classify errors.

Pistol supports also the fully convolutional ap-

proach from (Fuhl et al., 2020b) to segment the

motion trajectories. This model is pretrained on

TEyeD (Fuhl et al., 2021) and can be used to com-

pute the eye movements for other eye trackers like

the Dikablis, Emke GmbH, Look, Pupil, and many

more, which are included in the TEyeD datset. This

is necessary because there are signiﬁcant differences

in the eye trackers due to different camera placement

and perspective distortion. We decided to provide a

small seperate neural network since with the Pupil In-

visible Eye Tracker, the classiﬁcation is not a linear

function, as eye movements near the nose have sig-

niﬁcantly smaller distances compared to areas of the

eyes that are much closer to the camera. This is due

to the different depth and of course the perspective

distortion of the camera lens.

3.5 Marker Detection

Figure 6 shows results of our marker detection, where

the center is shown as a yellow dot. Our marker detec-

tion must be able to detect the marker over different

distances and should calculate the center as accurately

as possible. To accomplish this in a reasonable time,

we decided to use two DNNs. The ﬁrst DNN gets the

whole image scaled to 400×400 pixel. From this, the

DNN generates a heatmap with a resolution of 50×50

pixel. The maxima in this heatmap are then used as

the starting position for the second DNN, which ex-

tracts a 120 × 120 pixel area from the original image

and performs landmark detection with validation from

(Fuhl and Kasneci, 2019) here. With the validation

signal, we again reject marker positions which are too

inaccurate. The architecture of our models as well as

the training details are in the supplementary material.

3.6 2 D & 3D Gaze Estimation

For the determination of the calibration function, we

use the Levenberg Marquart optimization and neural

Figure 7: Exemplary images of the 2D gaze estimation for

the left (ﬁrst 2) and right (second 2) eye, and exemplary im-

ages of the 3D gaze estimation for both eyes (last 4). The

iris center, pupil center, iris vector, and pupil vector with

neural networks and levenberg marquart polynomial ﬁtting

are drawn in different colors. In addition, each scene frame

as ≈ 6 gaze points based on the frame rate of the eye cam-

era. Zoom in to sea more details.

networks with two hidden layers (50 and 20 neurons).

The polyniomal and the neural network architecture

can be changed with additional parameters of Pistol.

It is also possible to use exponential functions instead

of the polyniomal. This is due to the fact that Pis-

tol supports different eye trackers, and both methods

are able to learn more complex functions than sim-

ple polynomials. An example of this can already be

found in the depth estimation, where the parameters

are in the exponent of the function and thus cannot be

determined via a direct computation method.

For the 2D eye tracking we ﬁt a neural net-

work and a polynomial with the Levenberg Marquart

method to the pupil center, iris center, pupil vector,

and iris vector. This is done separately and also for

each eye independently. This means that people with

an ocular incorrect eye position or only one function-

ing eye can also be measured. In the case of 3D eye

tracking, we use the data from both eyes simultane-

ously. This means that we ﬁt a neural network and

a polynomial with the Levenberg Marquart method

to both pupil centers, iris centers, pupil vectors, and

iris vectors. Overall, the program therefore computes

8 gaze point estimators per eye (Total 16) and addi-

tionally 8 for both eyes in combination. All of these

estimated gaze points can be used separately and are

written to the csv ﬁles.

The selection of the calibration data is done in

three steps. First, each scene image with a marker de-

tection is assigned only one eye image for each eye.

This assignment is done by the minimum distance of

the time stamps. In the second step, we check that

only scene images are used for which it is true that

there are 5 valid marker detections in the preceding

and following scene images. In the third step, we use

the Levenberg Marquart method together with a poly-

nomial. Based on the error of the gaze positions to

the marker position, the best 90% are selected and the

Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as

3D Gaze

Figure 8: Image of the marker area to depth estimation

recording (Flipped by 90 degree). The brown markers on

the ﬂoor have 50 cm distance to each other and the subject

had to stand in front of the line for one measurement sam-

ple.

remaining 10% are discarded.

The training parameters for the neural networks

are initial learning rate of 0.1, optimizer SGD, mo-

mentum 0.9, and weight decay 0.0005. Each network

is trained 4 times for 2000 epochs, with batch size

equal to all input data. After 2000 epochs, the learn-

ing rate is reduced by a factor of 10

−1

. For the Leve-

berg Marquart method, we use the delta stop strat-

egy with a factor of 1

−10

and a search radius of 10.0.

For the neural networks and the Leveberg Marquart

method, all data are normalized. This means that the

pupil and iris centers are divided by the resolution in

x and y direction, as well as the eyeball centers for

the pupil and iris vectors. The vectors themselves are

already unit vectors.

3.7 Depth Estimation

For the determination of the depth, we have consid-

ered several methods. One is the ﬁtting of polynomi-

als and complex functions to the vectors of the pupil

and the iris, as well as to the angle between both

vectors. Also, we tried to determine the depth geo-

metrically. In all cases there were signiﬁcant errors,

because the vectors are not linear to each other due

to the perspective distortion of the camera, the non-

linear deep distribution of the eye image and also due

to the head rotation. In the case of the head rotation, it

comes to the eye rotation around the z axis as well as it

also depends on the viewing angle to different eye po-

sitions comes, which are not linear to a straight view.

Since neither neural networks nor complex functions

worked for us, we decided to use the K nearest neigh-

bor method (KNN) with k = 2. This method gave the

best results in our experiments and a good accuracy

(except for a few centimeters).

In order to determine the marker depth and thus

obtain our calibration data for the KNN, we per-

formed trial measurements with the marker and two

people. The setup can be seen in Figure 8. The brown

strokes on the ﬂoor are plotted at 50 cm intervals, and

both subjects took measurements at each stroke. We

then used the Matlab curve ﬁtting toolbox to deter-

mine the best function and parameters for them.

d(A) = a ∗ A

+c (2)

The best function can be seen in the Equation 2,

where A is the area of the marker and d(A) is the

depth in centimeters. The ﬁrst thing to notice is that

the parameter b is in the exponent, which makes de-

termining the parameter not easy to solve directly.

The parameters we determined for the function are

a = 13550.0 f , b = −0.4656, and c = −18.02. We

use these parameters and function to determine the

depth of the marker from the marker area using the

ﬁne detector.

4 EVALUATION

In this section we evaluate the different processing

steps of the presented tool. If it was possible we com-

pared it to other state of the art approaches. For the

gaze estimation we compared to the Pupil Player but

we want to mention again, that our tool has to be seen

as an additional software to use with the Pupil Invisi-

ble and with other eye trackers too. It is not a compet-

ing product, nor do we wish to denigrate any software

here.

For the evaluation of the gaze, we recorded ﬁve

subjects who looked at the calibration marker at the

beginning of the recording. Subsequently, the sub-

jects moved freely inside and outside the university

and at the end the calibration marker was viewed

again. The observation of the calibration marker was

at the beginning that the subjects stood close to the

marker and then slowly moved away from the marker

with head rotations. For the evaluation data, sub-

jects were roughly ﬁve meters away initially and then

moved towards the marker with head rotations. By

doing this, we have depth information in the calibra-

tion as well as in the evaluation data (See section 3.7).

The head rotation caused the marker to move in the

scene image as well as eye rotations, making gaze de-

termination much more difﬁcult.

Each recording was approximately ﬁve minutes

long, and each subject took three recordings. One

shot could not be used because the subject had the

marker in the scene image for a while without look-

ing at it, resulting in a false calibration. Of course,

Pistol ﬁlters out a certain amount of false data via the

outlier selection, but this must not exceed 10% of the

images with markers in the calibration phase.

Our system for the evaluation consists of an

NVIDIA GTX 1050ti, an AMD Ryzen 9 3950X with

16 cores (where only one core was used in the evalua-

tion), and 64 GB DDR4 RAM. The operating system

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

Table 1: We evaluated the segmentation quality with the mean intersection over union as well as the average euclidean pupil

center error in comparison to other approaches from the literature on our annotated dataset (7 subjects for training and 5 for

evaluation). In addition, we evaluated the iris landmark RMSE also with the euclidean distance.

Method Pupil center RMSE (px) Pupil mIoU Iris LM RMSE (px) Iris mIoU Eyelid mIoU

Pistol 0.96 0.83 1.14 0.88 0.89

(Fuhl et al., 2016b) 8.92 0.49 - - -

(Fuhl et al., 2015) 11.13 0.35 - - -

(Fuhl et al., 2016a) - - - - 0.49

(Fuhl et al., 2017) - - - - 0.61

Table 2: Evaluation of the eye movement detection algorithm in pistol and compared to other state of the art approaches on

our annotated data set (7 subjects for training and 5 for evaluation).

Saccade Fixation Smooth Pursuit Blink

Method Accuracy mIoU Accuracy mIoU Accuracy mIoU Accuracy mIoU

Pistol 89% 0.81 96% 0.89 95% 0.89 86% 0.78

(Fuhl et al., 2018b) 90% 0.78 93% 0.85 90% 0.80 86% 0.77

(Fuhl et al., 2018a) 80% 0.69 89% 0.81 99% 0.85 66% 0.45

(Fuhl et al., 2020b) 92% 0.87 97% 0.90 97% 0.91 89% 0.83

is Windows 10 and the CUDA version used is 11.2, al-

though Pistol also works with CUDA versions 10.X,

11.1, and 11.3.

4.1 Pupil, Iris, and Eyelid Detection

The results of the pupil, iris, and eyelid extraction net-

works can be seen in Table 1. As can be seen, the re-

sults of Pistol are very good compared to other meth-

ods, but the other approaches do not require training

data. Of course, one could use much larger networks

with even better results, but Pistol should be usable by

everyone, so the resource consumption is also a very

important property of the models. In the runtime sec-

tion, you can see that our approach on an old GTX

1050ti with 4 GB Ram needs only 17.21 milliseconds

per frame (Table 8) and also uses only a fraction of

the GPU RAM. This makes it possible to use Pistol

on older hardware.

4.2 Eye Movement Detection

Table 2 shows the accuracy of our eye movement clas-

siﬁcation compared to other methods from the liter-

ature. The best result is given by the method from

(Fuhl et al., 2020b) which is also integrated in Pistol

but for other eye trackers and pretrained on TEyeD.

We did not select the model from (Fuhl et al., 2020b)

as standard approach since it requires more com-

putational ressources andthe fully convolutional ap-

proach is independent of the length of the input sig-

nal. Therefore, it can allocate a huge amount of ram,

which can only be controlled by seperating the input

vector, which would also impact the resulting accu-

racy. However, the current approach is better than

HOV (Fuhl et al., 2018a) and as well as more accurate

compared to threshold learning (Fuhl et al., 2018b) as

used in the classical algorithms.

4.3 2 D & 3D Gaze Estimation

As already described in the introduction in the section

Evaluation, we use different depths for calibration and

evaluation as well as there are head and eye rotations.

Table 3 shows the accuracy of our gaze determination

with the different methods. As can be seen, the neural

networks are signiﬁcantly worse than the Levenberg-

Marquardt ﬁtting, which we suspect is due to the for-

mulation of the individual neurons. These are single

linear functions which are combined to approximate

the seen area well and interpolate well between train-

ing data. However, in the case of extrapolation, neural

networks are very poor. This will be the task of future

research, and we hope to provide better networks in

the future. Compared to the Pupil Player, we are sig-

niﬁcantly better on average, but this is also due to the

fact that the Pupil Invisible Eye Tracker is only cali-

brated to one depth level and the software cannot use

our markers.

Table 4 shows the frequency of detected view-

points relative to all seen images from all shots. As

can be seen, it is possible to determine signiﬁcantly

more gaze points with the Pupil Invisible than is pro-

vided for in the Pupil Player software. This is due to

the fact that the eye cameras record 200 frames per

second and the scene camera records 30 frames per

second. Looking at the results, it is noticeable that the

3D gaze point can be calculated the least. This is due

Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as

3D Gaze

Table 3: The average gaze estimation accuracy in pixels for all methods of Pistol for the ﬁve participants. LM stands for

the Levenberg-Marquardt ﬁtting, NN for the neural network ﬁtting, PC for pupil center, IC for iris center, PV for the pupil

vector, and IV for the iris vector. Since the Pupil Player outputs only up to two gaze points per scene image, we evaluated

our approaches with all assigned gaze points to the scene image and only with the eye image with the lowest timestamp

difference. The result of 2D left+right is the average of both gaze estimations. Note: The Pupil Player uses only the one

time calibration for one depth and therefore, the evaluation is not entirely fair

Data Method Average Accuracy (px)

LMPC LMIC LMPV LMIV NNPC NNIC NNPV NNIV

≈6


Pistol 2D left 29.04 27.73 28.61 27.33 36.25 35.29 34.51 35.26

Pistol 2D right 32.20 33.21 34.25 35.18 47.44 44.82 37.78 38.60

Pistol 2D left+right 21.76 23.53 22.96 24.11 27.08 27.33 24.51 28.27

Pistol 3D 20.20 21.24 19.61 20.45 28.78 30.22 26.86 27.91


Pistol 2D left 24.84 23.61 24.42 23.26 32.68 31.51 30.53 31.34

Pistol 2D right 28.01 29.12 29.93 31.11 43.89 40.81 33.83 34.62

Pistol 2D left+right 18.54 20.21 19.62 20.88 24.22 24.54 21.66 25.23

Pistol 3D 18.11 19.24 17.43 18.56 27.54 29.14 25.18 26.25

≈2


PupilLabs 66.39

Table 4: Since the Pupil Player outputs only one or two gaze points per scene image, we evaluated the total valid gaze points of

all possible gaze points (Up to seven per scene image) as well as scene images with at least one gaze point both as percentage.

For the evaluation, we used all recordings from all ﬁve participants.

Source Left Right Left + Right 3D Pupil Player

Valid gaze points 90.63% 93.71% 93.78% 88.14% 23.07%

At least 1 valid gaze point per scene image 91.77% 94.80% 96.89% 89.66% 99.32%

to the fact that both eyes must be valid here. However,

due to the camera placement, the pupil is no longer

visible in one of the eyes when looking from the side.

If we calculate the relative gaze points per scene

image, i.e. that at least one viewpoint per scene image

is sufﬁcient, we see that here the Pupil Player deter-

mines signiﬁcantly more gaze points than Pistol. For

future versions of Pistol, this will be further improved,

and we will also integrate an appearance based gaze

estimation approach.

4.4 Pupil, Iris, and Eyelid Detection

The architecture of our models is described in ta-

ble 5. With the four by three maximum interconnec-

tion blocks, our networks are between ResNet-18 and

ResNet-34 (He et al., 2016) in size. For training, we

used the AdamW optimizer (Loshchilov and Hutter,

2018) with parameters ﬁrst momentum 0.9, second

momentum 0.999, and weight decay 0.0001. The ini-

tial learning rate was set to 10

−4

and reduced after

1000 epochs to 10

−5

in which we trained the mod-

els for an additional 1000 epochs with a batch size

of 10. We pretrained our model on the TEyeD (Fuhl

et al., 2021) dataset and used all stages up to 8 as

backbone model. Afterwards, we retrained the last

layer on 6,000 annotated images from the pupil invisi-

ble with 3,000 additional annotated images for valida-

tion. The annotated data set contains 12 subjects and

for the evaluation we split the training (7 subjects) and

testing (5 subjects) data so that there was no subject

from the training set in the testing set. For data aug-

mentation we used random noise (0 to 0.2 multiplied

by the amount of pixels), cropping (0.5 to 0.8 of the

resolution in each direction), zooming (0.7 to 1.3 of

the resolution in each direction), blur (1.0 to 1.2), in-

tensity shift (−50 to 50 added to all pixels), reﬂection

overlay (intensity: 0.4 to 0.8, blur: 1.0 to 1.2, shift:

−0.2 to 0.2), rotation (−0.2 to 0.2), shift (−0.2 to 0.2

of the resolution in each direction), and occlusion

blocks (Up to 10 occlusions and with size from 2 pix-

els up to 50 with a ﬁxed random value for all pixels or

random values for each pixel).

For other eye trackers (Dikablis, Emke GmbH,

Look, Pupil, and many more), Pistol support also the

feature extraction, if they are included in the TEyeD

dataset (Fuhl et al., 2021). This can be speciﬁed as

a parameter and the path to the videos of the eyes

have to be speciﬁed. For those eye trackers, Pistol

will use the last fully connected stage of the backbone

network.

4.5 Marker Detection

Table 6 shows the results of our marker detection in

the Euclidean distance to the marker landmarks, as

mean intersection over union, which is important for

the determination of the depth information, and the

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

Table 5: Shows the architecture of the DNNs used for pupil, iris, and eyelid landmark detection.

Level Layer

Input Gray scale image 192 × 192 Center cropp and rescale for other resolutions.

1 5 ×5 Convolution with depth 64

2 ReLu with tensor normalization

3 2 ×2 Max pooling

4 3 Maxium connection blocks with 64 layers and 2 ×2 average pooling integrated in the ﬁrst block.

5 3 Maxium connection blocks with 128 layers and 2 ×2 average pooling integrated in the ﬁrst block.

6 3 Maxium connection blocks with 256 layers and 2 ×2 average pooling integrated in the ﬁrst block.

7 3 Maxium connection blocks with 512 layers and 2 ×2 average pooling integrated in the ﬁrst block.

8 Fully connected with 1024 neurons and ReLu

Output Fully connected with 48, 96, or 198 output neurons for pupil, iris, or eyelid landmarks in the same order.

Table 6: Results of the marker detection. The accuracy and

the mean intersection over union is evaluated on our anno-

tated data set. Accuracy is measured as average euclidean

distance of the landmarks in pixel. The false detections are

evaluated over all recorded videos and divided by the sum

of all frames.

Method Average landmark Accuracy (px) mIoU False detections

Coarse 7.12 0.60 3.26%

Fine 0.87 0.92 0.0%

false detections over all videos. As can be seen, the

coarse detection of the markers is relatively error-

prone with a false detection rate of 3.26% as well as

very inaccurate. However, this is compensated by the

ﬁne detection, and it saves a lot of time to have to

check only a few positions with the ﬁne detection.

Table 7 shows the architectures of our DNNs.

Both DNNs use tensor normalization (Fuhl, 2021b).

The maximum connections (Fuhl, 2021a) and full

distribution training (Fuhl, 2021b) were also used in

the ﬁne detector. To train the DNNs we annotated

1,250 images (1,000 for training and 250 for valida-

tion) where the coarse DNN used the entire image

for training and the ﬁne DNN used only the region

of the marker in a 120×120 pixel area. The data set

of the markers was recorded in ﬁve different rooms

and on different walls. To ensure the generalization

of our approach we used four rooms for training and

one room for testing.

For data augmentation we used random noise

(0 to 0.2 multiplied by the amount of pixels), cropping

(0.5 to 0.8 of the resolution in each direction), zoom-

ing (0.7 to 1.3 of the resolution in each direction),

blur (1.0 to 1.2), intesity shift (−50 to 50 added to all

pixels), reﬂection overlay (intesity: 0.4 to 0.8, blur:

1.0 to 1.2, shift: −0.2 to 0.2), rotation (−0.2 to 0.2),

shift (−0.2 to 0.2 of the resolution in each direction),

and occlusion blocks (Up to 10 occlusions and with

size from 2 pixels up to 50% of the image with a

ﬁxed random value for all pixels or random values for

each pixel). This data augmentation was used for both

DNNs.

For training of the ﬁne detector, we used the

AdamW optimizer (Loshchilov and Hutter, 2018)

with parameters ﬁrst momentum 0.9, second momen-

tum 0.999, and weight decay 0.0001. The initial

learning rate was set to 10

−3

and reduced after 1000

epochs to 10

−4

in which we trained the models for an

additional 1000 epochs with a batch size of 10.

The coarse detector was trained with

SGD (Rumelhart et al., 1986) and the parame-

ter’s momentum 0.9 and weight decay 0.0005. The

initial learning rate was set to 10

−1

and reduced after

1000 epochs to 10

−2

in which we trained the models

for an additional 1000 epochs with a batch size of 10.

4.6 Depth Estimation

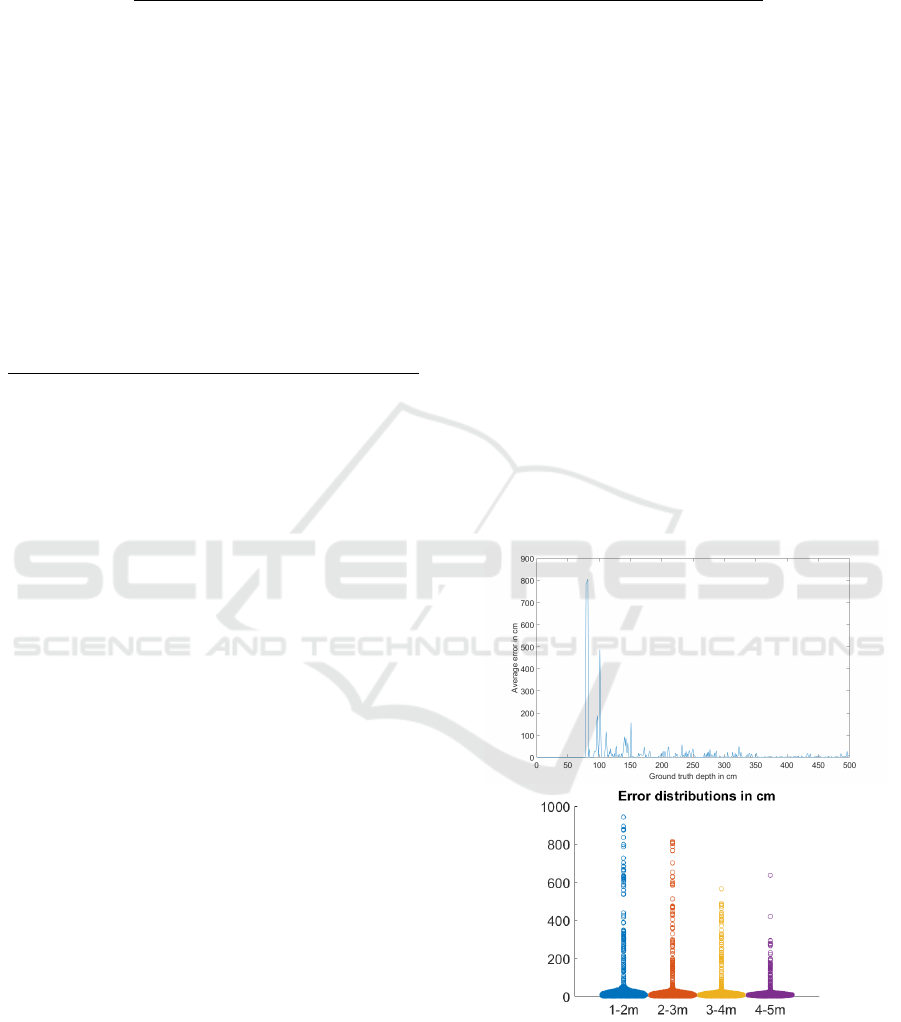

Figure 9: The average error per distance is shown on the

right in cm. The left plot is the distribution of errors for the

segments in 1 meter blocks. Both plots are computed on all

recordings.

Figure 9 shows the accuracy of our depth estimation.

On the left side, the mean values for all depths up to 5

meters are shown. As you can see, especially the near

Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as

3D Gaze

Table 7: Shows the architectures of the DNNs used for the marker detection.

Level Coarse detector Fine detector

Input Gray scale image 400 × 400 RGB image 120 × 120

1 5× 5 Convolution with depth 32 5 × 5 Convolution with depth 32

2 ReLu with tensor normalization ReLu with tensor normalization

3 2× 2 Max pooling 2 ×2 Max pooling

4 5× 5 Convolution with depth 64 1 Maxium connection block with 64 layers and 2 × 2 average pooling

5 ReLu with tensor normalization 1 Maxium connection block with 128 layers and 2 × 2 average pooling

6 3× 3 Convolution with depth 1 1 Maxium connection block with 256 layers and 2 × 2 average pooling

7 4× 4 Average pooling Fully connected with 512 neurons and ReLu

8 Fully connected with 48 output neurons for the landmarks

Table 8: Runtime of each step of Pistol in milliseconds per

image or one data instance, without the generation of the

debug information and debug video, as average over 1000

data instances. The used GPU is a GTX 1050Ti and the

CPU AMD Ryzen 9 3950X where only one core is used for

the evaluation.

Step Feat. Ball Open Move Sync Mark GazeLM GazeNN TrainLM TrainNN

time 17.21 0.22 0.18 0.49 0.01 57.35 0.14 0.27 2958 6107

areas are highly error-prone, which is due to the fact

that both eyes are very close to the nose, which makes

the perspective of the camera placement difﬁcult to

detect and distorts the vectors. On the right side, you

can see the frequencies in one meter blocks. Here

it is clear that there are some outliers, but the most

common estimates have an error below 50 cm. This

clearly shows that the depth estimation especially for

a lateral camera placement needs further research, and

we hope to improve it in future versions.

4.7 Runtime

Table 8 shows the runtime of the individual steps of

Pistol. The times are in milliseconds and include the

use of the GPU for marker detection and feature ex-

traction. In the ﬁrst update, the use of Pistol will also

be possible without GPU, and thus we can then also

provide a version for MacOSX. The training for the

gaze determination takes the most time, however, it

is not only a data instance, but the complete training

with all data. In the future, the marker detection will

be accelerated as well, since it currently still takes too

much time. However, it was important to us that the

marker detection is very accurate and robust.

5 CONCLUSION

In this paper we have described in detail our software

that allows to extract a variety of features from the eye

as well as to perform 2D and 3D gaze estimation. We

hope that the variety of extracted features will support

research in many areas and that the software will be

useful for many researchers. Future features of the

software will be gesture recognition, scene analysis as

well as scan path classiﬁcation, which will hopefully

make the software even more useful for research.

ACKNOWLEDGEMENTS

Daniel Weber is funded by the Deutsche Forschungs-

gemeinschaft (DFG, German Research Foundation)

under Germany’s Excellence Strategy – EXC number

2064/1 – Project number 390727645

REFERENCES

Arslan, O., Atik, O., and Kahraman, S. (2021). Eye tracking

in usability of electronic chart display and information

system. The Journal of Navigation, 74(3):594–604.

ASL (2021). Asl. https://est-kl.com/. [Online; accessed

04-November-2021].

Benjamins, J. S., Hessels, R. S., and Hooge, I. T. (2018).

Gazecode: Open-source software for manual mapping

of mobile eye-tracking data. In Proceedings of the

2018 ACM symposium on eye tracking research & ap-

plications, pages 1–4.

Bradski, G. (2000). The opencv library. Dr. Dobb’s Jour-

nal: Software Tools for the Professional Programmer,

25(11):120–123.

Davis, R. and Sikorskii, A. (2020). Eye tracking anal-

ysis of visual cues during wayﬁnding in early stage

alzheimer’s disease. Dementia and geriatric cognitive

disorders, 49(1):91–97.

Duchowski, A. T. (2002). A breadth-ﬁrst survey of eye-

tracking applications. Behavior Research Methods,

Instruments, & Computers, 34(4):455–470.

Economides, J. R., Adams, D. L., Jocson, C. M., and Hor-

ton, J. C. (2007). Ocular motor behavior in macaques

with surgical exotropia. Journal of neurophysiology,

98(6):3411–3422.

Ergoneers (2021). Ergoneers. https://www.ergoneers.com.

[Online; accessed 04-November-2021].

eyecomtec (2021). eyecomtec. https://eyecomtec.com.

[Online; accessed 04-November-2021].

EyeTech (2021). Eyetech. http://www.eyetec.com/. [On-

line; accessed 04-November-2021].

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

Fuhl, W. (2021a). Maximum and leaky maximum propaga-

tion. arXiv preprint arXiv:2105.10277.

Fuhl, W. (2021b). Tensor normalization and full distribution

training. arXiv preprint arXiv:2109.02345.

Fuhl, W., Castner, N., and Kasneci, E. (2018a). Histogram

of oriented velocities for eye movement detection. In

International Conference on Multimodal Interaction

Workshops, ICMIW.

Fuhl, W., Castner, N., and Kasneci, E. (2018b). Rule based

learning for eye movement type detection. In Inter-

national Conference on Multimodal Interaction Work-

shops, ICMIW.

Fuhl, W., Gao, H., and Kasneci, E. (2020a). Neural net-

works for optical vector and eye ball parameter es-

timation. In ACM Symposium on Eye Tracking Re-

search & Applications, ETRA 2020. ACM.

Fuhl, W. and Kasneci, E. (2019). Learning to validate the

quality of detected landmarks. In International Con-

ference on Machine Vision, ICMV.

Fuhl, W., Kasneci, G., and Kasneci, E. (2021). Teyed: Over

20 million real-world eye images with pupil, eyelid,

and iris 2d and 3d segmentations, 2d and 3d land-

marks, 3d eyeball, gaze vector, and eye movement

types. In 2021 IEEE International Symposium on

Mixed and Augmented Reality (ISMAR), pages 367–

375. IEEE.

Fuhl, W., K

ubler, T. C., Sippel, K., Rosenstiel, W., and

Kasneci, E. (2015). Excuse: Robust pupil detection

in real-world scenarios. In 16th International Con-

ference on Computer Analysis of Images and Patterns

(CAIP 2015).

Fuhl, W., Rong, Y., and Enkelejda, K. (2020b). Fully con-

volutional neural networks for raw eye tracking data

segmentation, generation, and reconstruction. In Pro-

ceedings of the International Conference on Pattern

Recognition, pages 0–0.

Fuhl, W., Santini, T., Geisler, D., K

ubler, T. C., Rosenstiel,

W., and Kasneci, E. (2016a). Eyes wide open? eye-

lid location and eye aperture estimation for pervasive

eye tracking in real-world scenarios. In ACM Interna-

tional Joint Conference on Pervasive and Ubiquitous

Computing: Adjunct publication – PETMEI 2016.

Fuhl, W., Santini, T., and Kasneci, E. (2017). Fast and

robust eyelid outline and aperture detection in real-

world scenarios. In IEEE Winter Conference on Ap-

plications of Computer Vision (WACV 2017).

Fuhl, W., Santini, T., K

ubler, T. C., and Kasneci, E. (2016b).

Else: Ellipse selection for robust pupil detection in

real-world environments. In Proceedings of the Ninth

Biennial ACM Symposium on Eye Tracking Research

& Applications (ETRA), pages 123–130.

Gardony, A. L., Lindeman, R. W., and Bruny

e, T. T.

(2020). Eye-tracking for human-centered mixed re-

ality: promises and challenges. In Optical Architec-

tures for Displays and Sensing in Augmented, Virtual,

and Mixed Reality (AR, VR, MR), volume 11310, page

113100T. International Society for Optics and Photon-

ics.

Hale, M. L. (2019). Eyestream: An open websocket-based

middleware for serializing and streaming eye tracker

event data from gazepoint gp3 hd research hardware.

Journal of Open Source Software, 4(43):1620.

Hasselbring, W., Carr, L., Hettrick, S., Packer, H., and

Tiropanis, T. (2020). Open source research software.

Computer, 53(8):84–88.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

iMotions (2021). imotions. https://imotions.com/. [Online;

accessed 04-November-2021].

Jermann, P., N

ussli, M.-A., and Li, W. (2010). Using dual

eye-tracking to unveil coordination and expertise in

collaborative tetris. Proceedings of HCI 2010 24,

pages 36–44.

Jiang, Z., Chang, Y., and Liu, X. (2020). Design of

software-deﬁned gateway for industrial interconnec-

tion. Journal of Industrial Information Integration,

18:100130.

Jones, P. R. (2018). Myex: a matlab interface for the tobii

eyex eye-tracker. Journal of Open Research Software,

6(1).

Joseph, A. W. and Murugesh, R. (2020). Potential eye track-

ing metrics and indicators to measure cognitive load in

human-computer interaction research. Journal of Sci-

entiﬁc Research, 64(1).

Lepekhin, A., Capo, D., Levina, A., Borremans, A., and

Khasheva, Z. (2020). Adoption of industrie 4.0

technologies in the manufacturing companies in rus-

sia. In Proceedings of the International Scientiﬁc

Conference-Digital Transformation on Manufactur-

ing, Infrastructure and Service, pages 1–6.

Lev, A., Braw, Y., Elbaum, T., Wagner, M., and Rassovsky,

Y. (2020). Eye tracking during a continuous perfor-

mance test: Utility for assessing adhd patients. Jour-

nal of Attention Disorders, page 1087054720972786.

Li, D., Babcock, J., and Parkhurst, D. J. (2006). openeyes: a

low-cost head-mounted eye-tracking solution. In Pro-

ceedings of the 2006 symposium on Eye tracking re-

search & applications, pages 95–100.

Liu, C., Chen, Y., Tai, L., Ye, H., Liu, M., and Shi, B. E.

(2019). A gaze model improves autonomous driving.

In Proceedings of the 11th ACM symposium on eye

tracking research & applications, pages 1–5.

Loshchilov, I. and Hutter, F. (2018). Fixing weight decay

regularization in adam.

Mao, R., Li, G., Hildre, H. P., and Zhang, H. (2021). A sur-

vey of eye tracking in automobile and aviation studies:

Implications for eye-tracking studies in marine oper-

ations. IEEE Transactions on Human-Machine Sys-

tems, 51(2):87–98.

Meng, X., Du, R., and Varshney, A. (2020). Eye-

dominance-guided foveated rendering. IEEE trans-

actions on visualization and computer graphics,

26(5):1972–1980.

Nesaratnam, N., Thomas, P., and Vivian, A. (2017). Step-

ping into the virtual unknown: feasibility study of a

virtual reality-based test of ocular misalignment. Eye,

31(10):1503–1506.

Pistol: PUpil INvisible SUpportive TOOl to Extract Pupil, Iris, Eye Opening, Eye Movements, Pupil and Iris Gaze Vector, and 2D as Well as

3D Gaze

Niehorster, D. C., Hessels, R. S., and Benjamins, J. S.

(2020). Glassesviewer: Open-source software for

viewing and analyzing data from the tobii pro

glasses 2 eye tracker. Behavior Research Methods,

52(3):1244–1253.

Oculus (2021). Oculus. https://www.oculus.com. [Online;

accessed 04-November-2021].

Panchuk, D., Vine, S., and Vickers, J. N. (2015). Eye track-

ing methods in sport expertise. In Routledge handbook

of sport expertise, pages 176–187. Routledge.

Park, J. and Yim, K. (2021). Technical survey on the real

time eye-tracking pointing device as a smart medical

equipment. Smart Media Journal, 10(1):9–15.

Pavisic, I. M., Pertzov, Y., Nicholas, J. M., O’Connor, A.,

Lu, K., Yong, K. X., Husain, M., Fox, N. C., and

Crutch, S. J. (2021). Eye-tracking indices of im-

paired encoding of visual short-term memory in famil-

ial alzheimer’s disease. Scientiﬁc reports, 11(1):1–14.

Phan, T. V. (2011). Development of a custom application

for the Tobii Eye Tracker. PhD thesis, Hochschule f

angewandte Wissenschaften Hamburg.

PupilLabs (2021). Pupillabs. https://pupil-labs.com/. [On-

line; accessed 04-November-2021].

Rakhmatulin, I. (2020). A review of the low-cost eye-

tracking systems for 2010-2020. arXiv preprint

arXiv:2010.05480.

Rumelhart, D. E., Hinton, G. E., and Williams, R. J. (1986).

Learning representations by back-propagating errors.

nature, 323(6088):533–536.

Santini, T., Fuhl, W., Geisler, D., and Kasneci, E. (2017).

Eyerectoo: Open-source software for real-time perva-

sive head-mounted eye tracking. In VISIGRAPP (6:

VISAPP), pages 96–101.

Shinohara, Y., Currano, R., Ju, W., and Nishizaki, Y. (2017).

Visual attention during simulated autonomous driving

in the us and japan. In Proceedings of the 9th Interna-

tional Conference on Automotive User Interfaces and

Interactive Vehicular Applications, pages 144–153.

Snell, S., Bontempo, D., Celine, G., and Anthonappa, R.

(2020). Assessment of medical practitioners’ knowl-

edge about paediatric oral diagnosis and gaze patterns

using eye tracking technology. International Journal

of Paediatric Dentistry.

SRResearch (2021). Srresearch. https://www.sr-

research.com/. [Online; accessed 04-November-

2021].

Taylor, M. P., Boxall, P., Chen, J. J., Xu, X., Liew, A., and

Adeniji, A. (2020). Operator 4.0 or maker 1.0? ex-

ploring the implications of industrie 4.0 for innova-

tion, safety and quality of work in small economies

and enterprises. Computers & industrial engineering,

139:105486.

Tobii (2021). Tobii. https://www.tobii.com/. [Online; ac-

cessed 04-November-2021].

VIVE (2021). Vive. https://www.vive.com/. [Online; ac-

cessed 04-November-2021].

Voßk

uhler, A., Nordmeier, V., Kuchinke, L., and Jacobs,

A. M. (2008). Ogama (open gaze and mouse ana-

lyzer): open-source software designed to analyze eye

and mouse movements in slideshow study designs.

Behavior research methods, 40(4):1150–1162.

Walton, D. R., Anjos, R. K. D., Friston, S., Swapp, D.,

Aks¸it, K., Steed, A., and Ritschel, T. (2021). Beyond

blur: Real-time ventral metamers for foveated render-

ing. ACM Transactions on Graphics (TOG), 40(4):1–

14.

Zandi, B., Lode, M., Herzog, A., Sakas, G., and Khanh,

T. Q. (2021). Pupilext: Flexible open-source platform

for high-resolution pupillometry in vision research.

Frontiers in neuroscience, 15.

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications
