An End-to-End Encrypted Cache System with Time-Dependent Access

Control

Keita Emura

and Masato Yoshimi

National Institute of Information and Communications Technology (NICT), Japan

TIS Inc., Japan

Keywords:

Encrypted Cache System, Time-Dependent Access Control, Naor-Naor-Lotspiech Framework,

Implementation.

Abstract:

Due to the increasing use of encrypted communication, such as Transport Layer Security (TLS), encrypted

cache systems are a promising approach for providing communication efﬁciency and privacy. Cache-22 is an

encrypted cache system (Emura et al. ISITA 2020) that makes it possible to signiﬁcantly reduce communica-

tion between a cache server and a service provider. In the ﬁnal procedure of Cache-22, the service provider

sends the corresponding decryption key to the user via TLS and this procedure allows the service provider

to control which users can access the contents. For example, if a user has downloaded ciphertexts of several

episodes of a show, the service provider can decide to provide some of the contents (e.g., the ﬁrst episode)

available for free while requiring a fee for the remaining contents. However, no concrete access control method

has been implemented in the original Cache-22 system. In this paper, we add a scalable access control protocol

to Cache-22. Speciﬁcally, we propose a time-dependent access control that requires a communication cost of

O(logT

max

) where T

max

is the maximum time period. Although the protocol is stateful, we can provide time-

dependent access control with scalability at the expense of this key management. We present experimental

results and demonstrate that the modiﬁed system is effective for controlling access rights. We also observe a

relationship between cache capacity and network trafﬁc because the number of duplicated contents is higher

than that in the original Cache-22 system, due to time-dependent access control.

1 INTRODUCTION

Cache systems are vital to reduce communication

overhead on the Internet. However, it is not triv-

ial to provide cache systems over encrypted commu-

nications because a cache server (CS) must verify

whether it has a copy of a particular encrypted con-

tent, although information about the content is not re-

vealed due to encryption. Thus, due to the increasing

use of encrypted communication, such as Transport

Layer Security (TLS), encrypted cache systems are a

promising approach for providing communication ef-

ﬁciency and privacy.

Leguay et al. (Leguay et al., 2017) proposed an en-

crypted cache system called CryptoCache. Although

the contents are encrypted, CryptoCache allows users

requesting the same content to be linked. Thus,

Leguay et al. proposed an extension that prevents

this linkability by employing a public key encryption

https://orcid.org/0000-0002-8969-3581

(PKE) scheme. Emura et al. (Emura et al., 2020b;

Emura et al., 2022) further extended CryptoCache by

proposing an encrypted cache system called Cache-

22. The Cache-22 system not only provides unlink-

ability without employing PKE, but also presents a

formal security deﬁnition in a cryptographic manner.

The Cache-22 system is brieﬂy explained as fol-

lows and illustrated in Figure 1 in Section 2.1. It is as-

sumed that all communications are protected by TLS.

A tag is assigned to each content, and it is assumed

that no information about the content is revealed by

the tag (e.g., it can be generated using hash-based

message authentication code (HMAC), because it is

a pseudorandom function (Bellare, 2015)). The ser-

vice provider (SP) encrypts content and stores the ci-

phertext and corresponding tag on a CS. When a user

requests the content, the user sends a request to the

SP. Then, the SP sends the corresponding tag back to

the user. The user then sends the tag to the CS. If the

tag is stored on the CS, the CS sends the correspond-

ing ciphertext to the user and the user information to

Emura, K. and Yoshimi, M.

An End-to-End Encrypted Cache System with Time-Dependent Access Control.

DOI: 10.5220/0011617900003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 321-328

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

321

the SP. Finally, the SP sends the corresponding de-

cryption key to the user. Because the size of the tag is

much smaller than the size of the content (ciphertext),

the Cache-22 system makes it possible to signiﬁcantly

reduce communications between a CS and the SP. Be-

cause the Cache-22 system can employ any cipher

suite, seven cipher suites, including National Institute

of Standards and Technology (NIST) Post-Quantum

Cryptography (PQC) candidates (Aragon et al., 2018;

Bos et al., 2018; Chen et al., ; D’Anvers et al., ) are

employed.

Adding Access Control to Cache-22: In the ﬁnal

procedure of the Cache-22 system, the SP sends the

corresponding decryption key to the user. Emura et

al. (Emura et al., 2020b; Emura et al., 2022) claimed

that this procedure allows the SP to control which

users can access the contents. For example, if a user

has downloaded ciphertexts of several episodes of a

show, the SP can allow some of the contents (e.g., the

ﬁrst episode) to be available for free while requiring a

fee for the remaining contents. However, the authors

did not provide a concrete access control method.

A naive solution is to add an authentication pro-

tocol, such as classical ID/password authentication,

before the SP sends the corresponding decryption key

to the user. This method is effective; however,it is not

scalable. That is, the SP must send the decryption key

individually for N users, which leads to a communi-

cation cost of O(N).

1.1 Our Contribution

In this paper, we add a scalable access control pro-

tocol to the Cache-22 system. Speciﬁcally, we pro-

pose time-dependent access control, which requires

a communication cost of O(logT

max

) using the Naor–

Naor–Lotspiech (NNL) framework (Naor et al., 2001)

where T

max

is the maximum time period. In the orig-

inal NNL framework, each user is assigned to a leaf

node of a binary tree which provides broadcast en-

cryption in which the encryptor speciﬁes who can de-

crypt the ciphertext. In our proposed protocol, each

time period is assigned to a leaf node (multiple users

are assigned to the same node if they have the same

access rights). Brieﬂy, let TI = [1, T

max

] be a time in-

terval where T

max

∈ N and assume that T

max

= 2

for

some m ∈ N. Then, each time t ∈ TI is assigned to a

leaf node of a binary tree that has 2

leaves. This time

period indicates how long the content is available. For

example, t can represent a day, a week, a month, and

so on. The SP encrypts each content according to the

time it is available. This NNL-based time-dependent

control technique has been employed in other cryp-

tographic primitives, such as attribute-based encryp-

tion for range attributes (Attrapadung et al., 2016) and

group signatures with time-bound keys (Emura et al.,

2020a). However, to the best of our knowledge, no

encrypted cache system with this technique has been

proposed so far.

2 PRELIMINARIES

2.1 Cache-22 System

In this section, we introduce the Cache-22 system.

A tag is assigned to each content, and it is as-

sumed that no information about the content is re-

vealed by the tag. The SP encrypts the content and

stores a tag and ciphertext pair on the CS. In the

implementation proposed by (Emura et al., 2020b;

Emura et al., 2022), there are multiple CSs due to

the color-based cooperative cache system (Nakajima

et al., 2017). For the sake of simplicity, we con-

sider the case of a single CS. We assume that all

communications between a user, CS, and SP are en-

crypted with TLS. Let (Enc, Dec) be a IND-CPA se-

cure SKE scheme, where for a key k ∈ K and a

message M ∈ M , Dec

Enc

(M), K is the key space, and M is the message

space. Here, IND-CPA stands for indistinguishability

under chosen-plaintext attack. The upper-order 128

bits of tag are used as the initial vector (IV) for AES-

GCM (Iwata and Seurin, 2017). Then, IV is not reused

for other encryption since the tag is pseudorandom.

Let CacheTbl be the cache table managed by the

CS which has the structure CacheTbl = {(tag

, C

)},

and is initiated as

0. Although we simply denote

CacheTbl = {(tag

, C

)} here, we can employ any

cache system. We also assume that a user knows the

content name c

name, and that the SP can decide the

corresponding content content

∈ M from c name.

The ﬂow of the Cache-22 system is illustrated in

Figure 1, and the formal description of the system

is provided as follows. The Cache-22 system con-

sists of (GenTable, ContentRequest, SendContent,

CacheRequest, SendKey, ObtainContent). It should

be noted that the SP sends the corresponding decryp-

tion key to a user via the SendKey algorithm. Because

the SP needs to know the destination, each user sends

own identity ID to the CP in the SendContent proto-

col.

• GenTable(1

, 1

, SetOfContents): The table gen-

eration algorithm (run by the SP) takes as in-

put security parameters κ, λ ∈ N and a set of

contents SetOfContents = {content

}

i=1

. Ran-

domly choose k

c,i

← K and compute tag

←

HMAC

hmac

(content

) for each content

∈ M .

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

322

Figure 1: Cache-22 System (Emura et al., 2020b; Emura et al., 2022).

Retrieve IV from tag

, and encrypt content

such

that C

← Enc

c,i

(IV, content

). Output a table

ConTbl = {(content

, tag

, C

, k

c,i

)}.

• ContentRequest(User(c name, ID), SP(ConTbl)):

The ContentRequest protocol between a user and

the SP takes as input a content name c

name and

the user identity ID from the user, and takes as

input ConTbl from the SP.

1. The user sends (c

name, ID) to the SP via a se-

cure channel.

2. The SP decides content

from c

name,

and retrieves the corresponding

(content

, tag

, C

, k

c,i

) from ConTbl.

3. The SP sends tag

to the user via the secure

channel.

• SendContent(User(tag

, ID), CS(CacheTbl)):

The content sending protocol between a user and

the CS takes as input (tag

, ID) from the user, and

takes as input CacheTbl from the CS.

1. The user sends a request (tag

, ID) to the CS

via a secure channel.

2. The CS checks whether tag

is stored in

CacheTbl.

– If yes, the CS retrieves (tag

, C

) from

CacheTbl by using tag

, sends C

to the user

via the secure channel, and sends (tag

, ID) to

the SP via the secure channel.

– If no, the CS runs the CacheRequest protocol

with the SP (which is deﬁned later), obtains

, stores (tag

, C

) to CacheTbl, and sends C

to the user via the secure channel.

• CacheRequest(CS(tag

, ID), SP(ConTbl)): The

cache request protocol between the CS and the SP

takes as input (tag

, ID) from the CS, and takes as

input ConTbl from the SP.

1. The CS sends (tag

, ID) to the SP via the secure

channel.

2. The SP retrieves (content

, tag

, C

, k

c,i

) from

ConTbl by using tag

, and sends C

to the CS

via the secure channel.

• SendKey(ID, k

c,i

): The key sending algorithm run

by the SP takes as input (ID, k

c,i

). Send k

c,i

to the

user whose identity is ID via the secure channel.

• ObtainContent(tag

, C

, k

c,i

)): The content ob-

taining algorithm run by a user takes as input

(tag

, C

, k

c,i

). Retrieve IV from tag

. Output

content

← Dec

c,i

(IV, C

As mentioned in the introduction, there is room for

adding an access control system before running the

SendKey algorithm.

2.2 NNL Framework

In this section, we introduce the NNL framework

which is called the complete subtree method. Let BT

be a binary tree with N leaves. For a leaf node i, let

Path(i) be the set of nodes from the leaf to the root.

Let RSet be the set of revoked leaves. For non leaf

node x, let x

left

be the left child of x and x

right

be the

right child of x.

1. Initialize X, Y ←

2. For all i ∈ RSet, add Path(i) to X.

3. For all x ∈ X, if x

left

6∈ X then add x

left

to Y. If

right

6∈ X then add x

right

to Y.

4. If |Rset| = 0 then add the root node to Y.

5. Output Y.

An End-to-End Encrypted Cache System with Time-Dependent Access Control

323

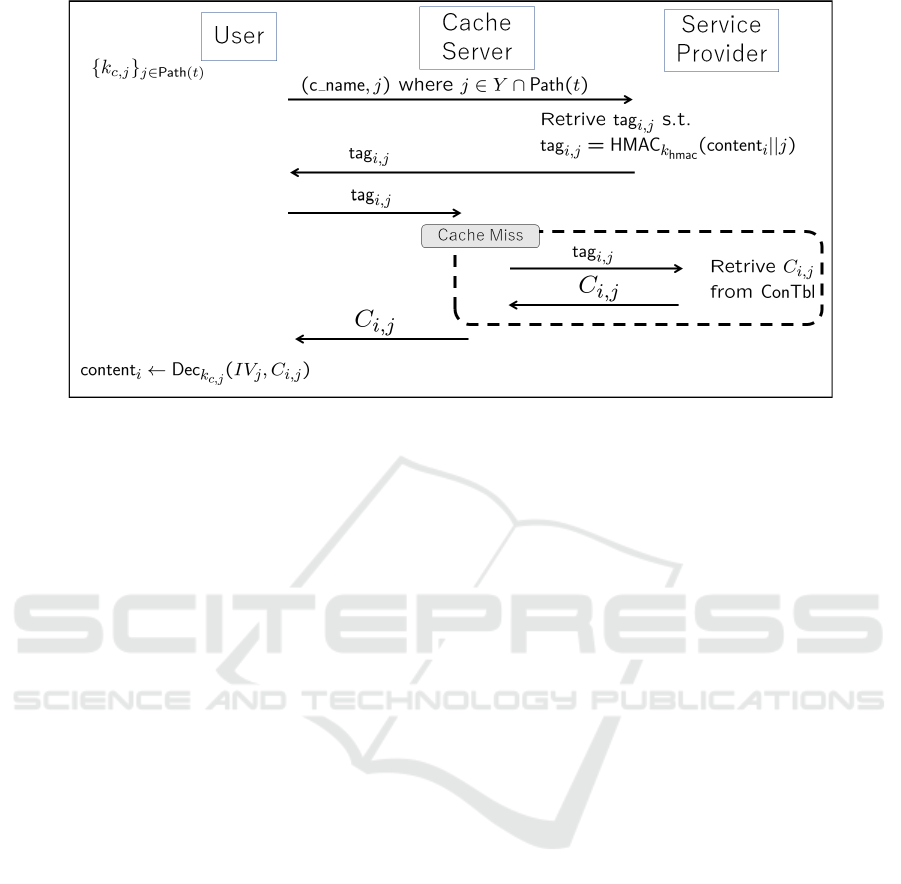

Figure 2: Cache-22 System with Time-Dependent Access Control.

We denote Y ← CompSubTree(BT, RSet). In the

proposed time-dependent access control, a time pe-

riod is assigned to a leaf, although each user is as-

signed to a leaf node in the original complete subtree

method. Moreover, each leaf is sequentially revoked

from the leftmost node. Then, the size of Y is esti-

mated as |Y| = O(logN) where N := T

max

in our pro-

tocol, which is scalable regardless of the number of

revoked users in the system.

3 CACHE SYSTEM WITH

TIME-DEPENDENT ACCESS

CONTROL

In this section, we present our proposed protocol with

time-dependent access control. Each content is en-

crypted with a time period t, and if a user is assigned

to a time period t

′

, then that user is allowed to ob-

tain contents encrypted with t, where t ≤ t

′

. For the

sake of simplicity, we assume that the access rights of

all users are determined in advance. As a remark, we

may be able to assume that all contents are encrypted

and the SP stores all ciphertexts to the CS regardless

of whether they are requested by a user or not. Then, a

request sent by a user will always be successful (cache

hits). However, this situation is unrealistic because

the storage size of the CS will drastically increase.

Thus, the SP adds new contents after receiving a user

request.

Let T

max

be the maximum time period where

max

∈ N and assume that T

max

= 2

for some m ∈ N.

Each time period t ∈ TI = [1, T

max

] is assigned to a leaf

node. If a user is assigned to a time period t, Path(t)

denotes the set of nodes from the leaf node (which

is assigned to t) to the root node. Let CacheTbl be

initialized as

0. In the original Cache-22 system,

each tag is generated by the corresponding content

such as tag

← HMAC

hmac

(content

). In our pro-

posed system, one content is multiply encrypted due

to the NNL framework. To clarify which ciphertext

should be sent to a user, each tag is generated by

both the corresponding content and the correspond-

ing index (determined by the NNL framework) such

as tag

i, j

← HMAC

hmac

(content

|| j).

The proposed Cache-22 system with

time-dependent access control consists of

(KeyGen, SendKey, GenTable, ContentRequest,

CacheRequest, SendContent, ObtainContent) as il-

lustrated in Figure 2. Unlike to the original Cache-22

system, in the proposed system, all keys are generated

in advance, i.e., they are independent of the contents.

Thus, we add the KeyGen algorithm. Moreover,

for a user with identity ID, the SP sends keys in

accordance with the user’s access rights. Thus, we

run the SendKey algorithm before the GenTable

algorithm.

• KeyGen(1

): The key generation algorithm takes

as a security parameter m ∈ N. For j =

1, 2, . . . , 2

m+1

− 1, randomly choose k

c, j

← K and

output {k

c, j

}

m+1

−1

j=1

• SendKey(ID, t, {k

c, j

}

m+1

j=1

): The key sending

algorithm run by the SP takes as input (ID, t,

c, j

}

m+1

j=1

). For all j ∈ Path(t), send k

c, j

to the

user with identity ID via a secure channel.

• GenTable(1

, 1

, {k

c, j

}

m+1

j=1

, SetOfContents):

The table generation algorithm (run by the SP)

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

324

takes as input security parameters κ, λ ∈ N,

a set of keys {k

c, j

}

m+1

j=1

, and a set of con-

tents SetOfContents = {content

}

i=1

. For

i = 1, 2, . . . , n, let t

∈ [1, T

max

] be the time

period of content

. For all j ∈ Path(t

compute tag

i, j

← HMAC

hmac

(content

|| j), re-

trieve IV

from tag

i, j

, and encrypt content

such that C

i, j

← Enc

c, j

(IV

, content

Output a table ConTbl = {(content

{(tag

i, j

, C

i, j

, k

c, j

)}

j∈Path(t

)

)}.

• ContentRequest(User(c

name, t, t

curr

SP(ConTbl)): The ContentRequest proto-

col between a user and the SP takes as input a

content name c

name, the time period of the user

t, and the current time period t

curr

from the user,

and takes as input ConTbl from the SP.

1. The user runs Y ←

CompSubTree(BT, [1, t

curr

− 1]) where BT is a

binary tree with 2

leaves. If Y ∩ Path(t) =

then abort.

2. The user chooses j ∈ Y ∩ Path(t).

3. The user sends (c

name, j) to the SP via a se-

cure channel.

4. The SP decides content

from

name and retrieves the correspond-

ing (tag

i, j

, C

i, j

) from ConTbl where

tag

i, j

← HMAC

hmac

(content

|| j).

5. The SP sends tag

i, j

to the user via the secure

channel. If there is no such entry, then return

error.

• SendContent(User(tag

i, j

), CS(CacheTbl)): The

content sending protocol between a user and the

CS takes as input tag

i, j

from the user, and takes

as input CacheTbl from the CS.

1. The user sends a request tag

i, j

to the CS via a

secure channel.

2. The CS checks whether tag

i, j

is stored on

CacheTbl.

– If yes, the CS retrieves (tag

i, j

, C

i, j

) from

CacheTbl by using tag

i, j

, sendsC

i, j

to the user

via the secure channel.

– If no, the CS runs the CacheRequest proto-

col with the SP (which is deﬁned later), ob-

tains C

i, j

, stores (tag

i, j

, C

i, j

) to CacheTbl, and

sends C

i, j

to the user via the secure channel.

• CacheRequest(CS(tag

i, j

), SP(ConTbl)): The

cache request protocol between the CS and the

SP takes as input tag

i, j

from the CS, and takes as

input ConTbl from the SP.

1. The CS sends tag

i, j

to the SP via the secure

channel.

2. The SP retrieves the corresponding (tag

i, j

, C

i, j

)

from ConTbl by using tag

i, j

, and sends C

i, j

the CS via the secure channel.

• ObtainContent(tag

i, j

, C

i, j

, k

c, j

)): The content ob-

taining algorithm run by a user takes as input

(tag

i, j

, C

i, j

, k

c, j

). Retrieve IV

from tag

i, j

. Out-

put content

← Dec

c, j

(IV

, C

i, j

As a side effect, users do not need to send their iden-

tity to the CS in the proposed system. In contrast, in

the original Cache-22 system, users must send their

identity to the CS because the SP must send the cor-

respondingdecryption key to the user, and the CS thus

needs to forward the identity to the SP to provide the

destination. The proposed system can thus help hide

the user’s identity from the CS and preserve privacy.

4 IMPLEMENTATION AND

RESULTS

4.1 Cipher Suite

First, we decide the underlying cipher suite as

•

TLS Kyber ECDSA WITH AES 256 GCM SHA256

We employed Kyber (Crystals-Kyber) (Bos et al.,

2018) which was selected for NIST PQC standardiza-

tion in July 2022. Kyber (Crystals-Kyber) is a lattice-

based scheme and is secure under the MLWE assump-

tion where MLWE stands for the module learning

with errors. In our implementation, we employed Ky-

ber512 to provide 128-bit security. Speciﬁcally, we

installed the X25519Kyber512Draft00key agreement

in our experiment. As in the original Cache-22 sys-

tem, the proposed system can employ other PQC such

as BIKE (Aragon et al., 2018), NTRU (Chen et al., ),

and SABER (D’Anvers et al., ).

We also considered the underlying SKE scheme

and hash function to be secure against the Grover al-

gorithm (Grover, 1998), we expanded the key length

twice and employed AES256 (speciﬁcally, AES-

GCM-256) and SHA256. As a remark, as in the orig-

inal Cache-22 implementation, we did not consider

post-quantum authentication.

We refer the comment by Alkim et al. (Alkim et al.,

2016), “the protection of stored transcripts against future

decryption using quantum computers is much more urgent

than post-quantum authentication. Authenticity will most

likely be achievable in the foreseeable future using proven

pre-quantum signatures and attacks on the signature will

not compromise previous communication”.

An End-to-End Encrypted Cache System with Time-Dependent Access Control

325

Table 1: Libraries included in the modules.

Version Description

Go go1.18.6-devel-cf Custom Go language (github.com/cloudﬂare/go, 2022)

CIRCL v1.2.0 Collection of PQC primitives

labstack/echo v4.9.0 WebAPI Framework

syndtr/goleveldb v1.0.0 Non-volatile key-value store to conﬁgure LRU cache

math/rand Standard Zipf function to generate content requests by user

Table 2: Host conﬁguration.

Speciﬁcations Description

Instance type c5.4xlarge up to 0.856 [USD/hour]

vCPU [Core] 16 Intel Xeon Platinum 8275CL @ 3.00GHz

Memory [GiB] 32

Network [Gbps] up to 10

Operating system Amazon Linux 2 Kernel 5.10.135-122.509

Number of hosts 3 for CS, SP, and User

Table 3: Experimental Setup.

Number of SPs 1

Number of CSs 1

Number of users

2,048

(We uniformly assigned users to

each effective leaf node deﬁned by

CompSubTree)

Number of requests in each t 2

= 131, 072 (each user requests 64 contents)

Number of contents 65,535

Cache capacity in CS 4,096, 8,192 and 16,384

(Maximum number of stored contents)

Size of each content [MB] 1

Popularity of content

Zipf function in Go standard library math/rand

with arguments s = 3, v = 3, 000.

The arguments are determined

by the cache hit ratio when it becomes 75%

of the cache capacity 4, 096.

max

16 (depth of the binary tree is 5)

4.2 Implementing Components

To evaluate the cache system with the mechanism

described in Section 3, we experimentally imple-

mented a cache system that provides time-dependent

access control. The cache system is an extended ver-

sion of the Cache-22 system to enable the encryp-

tion and decryption of contents with multiple keys.

Three types of program code sets were implemented,

namely, SP, CS, and User, which correspond to the

components in Figure 2. All modules in these com-

ponents were written in the Go language using several

libraries, as described in Table 1. We employed a cus-

tom Go language (github.com/cloudﬂare/go, 2022)

that used CIRCL (Faz-Hern´andez and Kwiatkowski,

2019) patched by Cloudﬂare to introduce PQC primi-

tives in addition to conventional TLS algorithms such

as ECDSA and RSA.

We implemented the SP as a web server which

received requests from users to obtain tag

i, j

via

name, j) as illustrated in Figure 2. We also im-

plemented the CS as a web server to forward user re-

quests to the SP or to return cached encrypted con-

tents to users according to tag

i, j

. User was a simula-

tion program to emulate many users to get encrypted

contents from the CS and decrypting them when they

had the corresponding decryptionkey. Although users

send requests for various contents, the popularity fol-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

326

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Number of keys assigned to users

Cache Hit Rate

Time

Cache Capacity 4,096 Cache Capacity 8,192 Cache Capacity16,384

Figure 3: Time Series of Cache Hit Ratio for Three Cache Capacities in CS.

lows a characteristic trend, such as Zipf’s law and

gamma distribution, especially in the case of video-

on-demand services (Cheng et al., 2013). Although

all components were parameterized to adapt to vari-

ous situations, we set up the experimental conditions

as presented in Table 3 for reasonable discussion.

As the underlying cache system, we employed the

Least Recently Used (LRU) cache system. That is,

ciphertexts generated in the past were unavailable at

the current time and were erased from the cache table

CacheTbl.

We set up several virtual machines on Amazon

Elastic Compute Cloud (EC2) with a uniform conﬁg-

uration, as displayed in Table 2. Each host ran SP and

CS processes. Many user processes were also run on

EC2 with the same conﬁguration to emulate multiple

users sending requests to obtain contents from the CS.

4.3 Change in Network Trafﬁc by

Introducing Time-Dependent

Access Control

A cache system is helpful to reduce trafﬁc in a more

upstream network, such as that between the CS and

SP. There were two evaluation perspectives: (i) reduc-

tion in network trafﬁc due to the cache system and (ii)

increase in network trafﬁc due to the time-dependent

access control protocol. Figure 3 presents the time

series of the cache hit ratio for each cache capacity.

The three lines demonstrate that the cache capacity

explicitly contributed to the reduction in network traf-

ﬁc. The condition of the popularity distribution in the

experiment is presented in Table 3.

At t

, all users had k

(which was assigned to the

root node) and could obtain all contents encrypted by

. This signiﬁes that a user could always decrypt a

ciphertext that was stored due to a previous request

by another user. The cache hit ratio in this situation

was that same as that in a cache system without time-

dependent access control. The cache hit ratio was

greater than 70% in all cases, which demonstrates that

the network trafﬁc was reduced due to the cache sys-

tem. The reduction in network trafﬁc was approxi-

mately 50% when the cache capacity was 4, 096 MB

(since the size of each content is 1 MB in our experi-

ment) which contained 6.25% of all contents. It could

be increased to over 70% when the cache capacity

was increased, such as to 8, 192 MB and 16, 384 MB,

which contained 12.5% and 25% of all contents, re-

spectively. This indicates that the network trafﬁc can

be further reduced when time-dependent access con-

trol is employed.

Next, we discuss how the cache capacity affects

the hit ratio when employing time-dependent access

control. Due to time-dependent access control, for

every content, multiple encrypted data are generated

with different encryption keys. The number of keys

assigned to each content increases the number of du-

plicated contents. This situation may reduce the cache

hit ratio because a user may not be able to decrypt a

ciphertext that was stored due to a previous request by

another user. The cache hit ratio is increased when the

probability that the corresponding ciphertext is stored

on the CS increases. Thus, when a relatively large

number of keys are used for encryption, the low cache

An End-to-End Encrypted Cache System with Time-Dependent Access Control

327

capacity of the CS may cause an increase in the cache

miss rate, which increases the amount of trafﬁc. The

cache capacity represents the effectiveness when em-

ploying time-dependent access control. This prompts

us to carefully select T

max

because it depends on the

depth of the binary tree and the number of keys used

for encryption, although it provides more ﬁne-grained

access control.

5 CONCLUSION

In this paper, we add a time-dependent access control

protocol to the Cache-22 system and provide experi-

mental results. Due to the proposed time-dependent

access control, the number of duplicated contents is

higher than that in the original Cache-22 system. That

is, the proposed protocol is not only effective for con-

trolling access rights, but it also affects the relation-

ship between the cache capacity and network trafﬁc.

The prototype implementation of the origi-

nal Cache-22 system considered multiple CSs and

employed the color-based cooperative cache sys-

tem (Nakajima et al., 2017), which associates servers

and caches through a color tag. In the Cache-22 sys-

tem with time-dependent access control, a key associ-

ated with a higher node (i.e., a node closer to the root)

is assigned to more users than a key associated with

a lower node (i.e., a node closer to a leaf). That is,

it should be effective to introduce multiple CSs that

store ciphertexts encrypted by keys associated with a

higher node. Conﬁrming the effectiveness of intro-

ducing multiple CSs is left for future work.

ACKNOWLEDGEMENTS

This work was partially supported by JSPS KAK-

ENHI Grant Number JP21K11897.

REFERENCES

Alkim, E., Ducas, L., P¨oppelmann, T., and Schwabe, P.

(2016). Post-quantum key exchange - A new hope.

In USENIX Security, pages 327–343.

Aragon, N., Barreto, P. S. L. M., Bettaieb, S., Bidoux,

L., Blazy, O., Deneuville, J.-C., Gaborit, P., Gueron,

S., G¨uneysu, T., Melchor, C. A., Misoczki, R., Per-

sichetti, E., Sendrier, N., Tillich, J.-P., and Z´emor,

G. (2018). BIKE: Bit ﬂipping key encapsulation.

https://bikesuite.org/ﬁles/BIKE.pdf.

Attrapadung, N., Hanaoka, G., Ogawa, K., Ohtake, G.,

Watanabe, H., and Yamada, S. (2016). Attribute-based

encryption for range attributes. In Security and Cryp-

tography for Networks, pages 42–61.

Bellare, M. (2015). New proofs for NMAC and HMAC:

security without collision resistance. J. Cryptology,

28(4):844–878.

Bos, J. W., Ducas, L., Kiltz, E., Lepoint, T., Lyubashevsky,

V., Schanck, J. M., Schwabe, P., Seiler, G., and Stehl´e,

D. (2018). CRYSTALS - kyber: A CCA-secure

module-lattice-based KEM. In IEEE EuroS&P, pages

353–367. IEEE.

Chen, C., Danba, O., Hoffstein, J., Hulsing, A., Rijneveld,

J., Schanck, J. M., Schwabe, P., Whyte, W., Zhang,

Z., Saito, T., Yamakawa, T., and Xagawa, K. NTRU.

https://ntru.org/.

Cheng, X., Liu, J., and Dale, C. (2013). Understanding

the characteristics of internet short video sharing: A

youtube-based measurement study. IEEE Transac-

tions on Multimedia, 15(5):1184–1194.

D’Anvers, J.-P., Karmakar, A., Roy, S. S., and Vercauteren,

F. SABER. https://www.esat.kuleuven.be/cosic/

pqcrypto/saber/.

Emura, K., Hayashi, T., and Ishida, A. (2020a). Group

signatures with time-bound keys revisited: A new

model, an efﬁcient construction, and its implementa-

tion. IEEE Transactions on Dependable and Secure

Computing, 17(2):292–305.

Emura, K., Moriai, S., Nakajima, T., and Yoshimi, M.

(2020b). Cache-22: A highly deployable encrypted

cache system. In ISITA, pages 465–469. IEEE.

Emura, K., Moriai, S., Nakajima, T., and Yoshimi, M.

(2022). Cache-22: A highly deployable end-to-end

encrypted cache system with post-quantum security.

IACR Cryptology ePrint Archive, 220.

Faz-Hern´andez, A. and Kwiatkowski, K. (2019). Intro-

ducing CIRCL: An Advanced Cryptographic Library.

Cloudﬂare. Available at https://github.com/cloudﬂare/

circl. v1.2.0 Accessed Jun 2022.

github.com/cloudﬂare/go (2022). https://github.com/

cloudﬂare/go.

Grover, L. K. (1998). A framework for fast quantum me-

chanical algorithms. In ACM STOC, pages 53–62.

Iwata, T. and Seurin, Y. (2017). Reconsidering the secu-

rity bound of AES-GCM-SIV. IACR Trans. Symmet-

ric Cryptol., 2017(4):240–267.

Leguay, J., Paschos, G. S., Quaglia, E. A., and Smyth, B.

(2017). CryptoCache: Network caching with conﬁ-

dentiality. In IEEE ICC, pages 1–6.

Nakajima, T., Yoshimi, M., Wu, C., and Yoshinaga, T.

(2017). Color-based cooperative cache and its rout-

ing scheme for telco-CDNs. IEICE Transactions on

Information and Systems, 100-D(12):2847–2856.

Naor, D., Naor, M., and Lotspiech, J. (2001). Revoca-

tion and tracing schemes for stateless receivers. In

CRYPTO, pages 41–62.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

328
