Lightweight Software Language Processing Using Antlr and CGTL

Kevin Lano

and Qiaomu Xue

King’s College London, London, U.K.

Keywords:

MDE, MDE Usability, Language Engineering.

Abstract:

Software complexity has become a signiﬁcant social problem, which MDE endeavours to alleviate, however

MDE approaches and tools often introduce additional complexity which prevents general software practition-

ers from beneﬁting from MDE solutions. In this paper we present an alternative approach for MDE in the

domain of language processing, using lightweight tools (Antlr and CGTL) suitable for general industrial use.

We evaluate the approach on tasks of DSL deﬁnition, software abstraction, and program translation, based on

our experience with industrial applications of MDE.

1 INTRODUCTION

The agility and ﬂexibility of MDE tools and meth-

ods has been identiﬁed as a key issue in improving

the uptake of MDE by industry (Abrahao et al., 2017;

Bucchiarone et al., 2020; Whittle et al., 2017), how-

ever the principal emphasis of MDE tools has been

on providing powerful functionality, and they often

depend upon substantial technology stacks and have

complex GUIs. They have been orientated towards

use by researchers, rather than by practitioners (Clark

and Muller, 2012). In some cases there has been no

formal usability testing of the tools. From an indus-

try perspective, such tools can involve signiﬁcant risk,

because they require a high degree of specialised ex-

pertise to use, and their long-term support may be

uncertain. In our experience of working with MDE

adopters in the ﬁnance industry, this sustainability is-

sue has been a key consideration which led compa-

nies to prefer simpler tooling which would be usable

by general software practitioners.

Software language processing tasks are essential

activities in MDE, and include: (i) deﬁnition of spe-

cialised domain-speciﬁc languages (DSLs) together

with supporting tools; (ii) abstraction of software in

3GLs to models; (iii) code generation of program-

ming language code from models; (iv) translation

from one software language to another.

From experience with industrial cases of DSL def-

inition and program translation we have evolved a

pragmatic language processing approach which is fo-

cussed on software language grammars and the pro-

cessing of parse trees from these grammars. An estab-

https://orcid.org/0000-0002-9706-1410

lished tool for building grammars and parsers is Antlr

(Antlr, 2022a). This is a lightweight tool usable by

general software practitioners. There are Antlr gram-

mars for over 230 source languages, including all the

main 3GLs

. To process the parse trees produced by

Antlr, we use a special-purpose DSL, termed Con-

crete Grammar Transformation Language (CGTL).

This is a text-to-text transformation language based

on the CSTL code generator language of (Lano and

Xue, 2020), but has been generalised to process the

parse trees of any software language. CGTL is based

on concepts of language grammar and can be used

by developers without high software modelling ex-

pertise. We consider two principal use cases for the

combination of Antlr and CGTL: (i) the deﬁnition of

textual DSLs and tools to produce documentation or

code from DSL models; (ii) translation of programs

from one 3GL to another. Both tasks involve trans-

lating one software language L

to another, L

, by

successive steps of parsing and processing (Figure 1).

We also investigate the application of the approach

for performing model transformations such as refac-

torings.

We address the following research questions:

RQ1. Can the Antlr and CGTL software language

processing approach be effectively used for DSL

deﬁnition and tooling?

RQ2. Can the approach be effectively applied to sup-

port program translation between 3GLs?

Section 2 describes our experience of the barri-

ers to introducing MDE in industry. Section 3 in-

troduces CGTL, Section 4 describes the use of Antlr

https://github.com/antlr/grammars-v4

Lano, K. and Xue, Q.

Lightweight Software Language Processing Using Antlr and CGTL.

DOI: 10.5220/0011623000003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 19-30

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

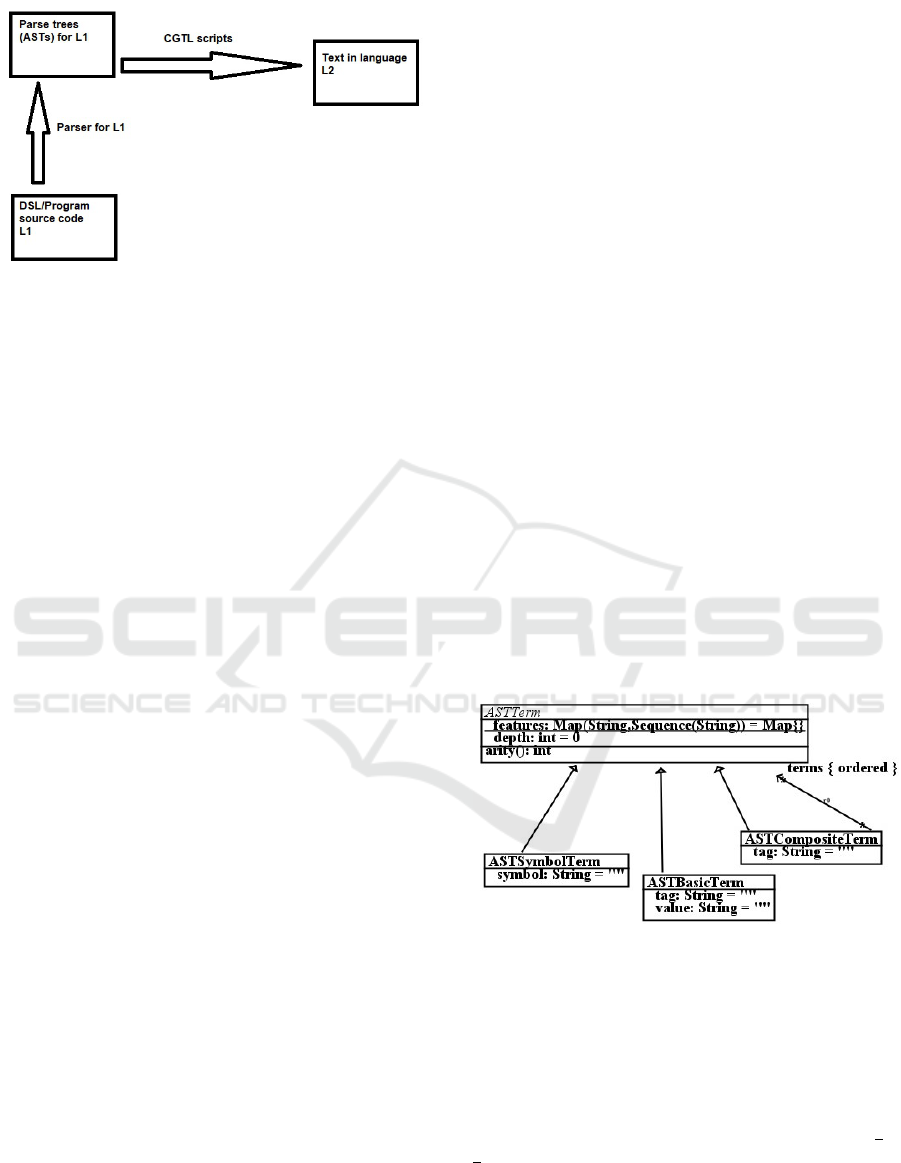

Figure 1: Antlr/CGTL language processing process.

and CGTL for DSL deﬁnition and tooling, and Sec-

tions 5, 6 describe the use of Antlr and CGTL for pro-

gram abstraction and translation. Section 7 discusses

the use of Antlr/CGTL for general model transforma-

tion. Section 8 gives an evaluation, Section 9 com-

pares our approach with other related work, Section

10 discusses limitations and future work, Section 11

considers threats to validity, and Section 12 gives con-

clusions. The Appendix gives details of CGTL se-

mantics.

2 BARRIERS TO MDE

ADOPTION

Between 2019 and 2022 we advised a major ﬁnan-

cial services corporation on the adoption of MDE to

improve their software development and maintenance

processes. There appeared to be a strong business

case to support the adoption, in terms of rationalisa-

tion of assets and reduced time-to-market of products,

however there were substantial barriers: (i) lack of ex-

perience with MDE and lack of MDE skills; (ii) the

need for long-term support of MDE tooling; (iii) dis-

ruption of existing practices and organisational rela-

tionships.

To address these barriers, an approach was

evolved which used lightweight tooling (principally

Antlr) and simple DSLs, which could be used by gen-

eral software practitioners without advanced MDE

skills. The process was essentially the same as in

Figure 1. Based on this experience, we formalised

the CGTL language, and identiﬁed how this could be

used to support multiple MDE language processing

tasks.

3 CGTL AND CSTL

CSTL was created in order to provide a rapid means

of writing code generators from UML/OCL speciﬁ-

cations to 3GLs (Lano and Xue, 2020). Our experi-

ence with writing large code generators in Java, OCL

(Lano et al., 2017) and EGL motivated the deﬁnition

of a simple and concise language to express code pro-

duction from models. Some example CSTL rules for

mapping binary expressions to Java are:

BinaryExpression::

_1 & _2 |-->_1 && _2

_1 or _2 |-->_1 || _2

Execution is based on pattern matching of source ele-

ments with the LHS of rules, and text substitution of

mapped target elements into the RHS of rules.

CGTL retains the same syntax and concepts as

CSTL, but instead of operating on UML/OCL model

data, it processes the parse trees or abstract syntax

trees (ASTs) of software languages – in principle for

any source language that has a grammar. The meta-

model of AST terms which we use to represent parse

trees is shown in Figure 2. The features map of

ASTTerm records information about the language ele-

ments represented by terms, such as their type. This

information can be set by CGTL actions and read by

CGTL conditions. Composite terms with tag tg and n

subterms are written as (tg t

... t

). Basic terms with

tag tg and value v are represented as (tg v).

Figure 2: Metamodel of parse trees.

The style of CGTL rules is closely related to the

form of standard BNF grammar productions. For ex-

ample, a CGTL rule to process the ASTs produced by

an Antlr grammar rule

parameterDecln:

type identifier;

would have a LHS consisting of two metavariables 1,

2 corresponding to the declaration type and identiﬁer

parts. A complete CGTL rule could be:

_1 _2 |--> _2 : _1

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

This would transform a declaration int x into x :

int if there were no rules for types or identiﬁers. The

rule would be in a ruleset for parameterDecln:

parameterDecln::

_1 _2 |--> _2 : _1

Other alternative productions for parameterDecln

would be processed by other rules in the same rule-

set. For example, there could be a further production

to deﬁne default parameter values:

parameterDecln:

type identifier (’=’ expression)?;

This extended deﬁnition would be handled by two

rules:

parameterDecln::

_1 _2 = _3 |--> _2 : _1 := _3

_1 _2 |--> _2 : _1

More details of CGTL syntax and semantics are

given in the Appendix.

CGTL incorporates several extensions to CSTL:

(i) pattern-matching of a single variable against mul-

tiple subchildren of a parse tree; (ii) recursive appli-

cation of a ruleset; (iii) script parameters; (iv) nested

rule/script invocation in rule conditions; (v) dynamic

loading of scripts.

These changes, together with rule actions, mean

that CGTL is a Turing-complete language, thus it can

carry out more powerful language processing than

the original CSTL or other assignment-free languages

such as Antlr’s StringTemplate (Antlr, 2022b).

Dynamic loading means that when a script g is

invoked in a rule RHS as i‘g, the script g is loaded

from the cg directory, if it is not already in memory.

4 DEFINITION OF DSLs

DSLs have been widely used to specify specialised

software functionalities or categories of software ap-

plications, for example machine learning systems

(Zucker and D‘Leeuwen, 2020) and text processing

(Desai et al., 2016). Well-known notations such as

regular expressions and SQL can also be regarded as

DSLs. Use of a DSL to specify software reduces (in

principle) the effort required to analyse models and

generate code, compared to the use of more general-

purpose notations such as UML and OCL. However,

DSLs need careful design to ensure that their con-

structs are appropriate for the intended domain, and

can be used by the intended end users. A DSL often

needs to evolve, eg., to add new features or constructs.

While DSLs can be represented as metamodels, an-

other effective means for deﬁning a textual DSL is

by a language grammar. Tools to process DSL mod-

els (expressed as texts conforming to the DSL gram-

mar) can operate on the parsed DSL syntax trees pro-

duced by a parser. In some cases it is possible to per-

form processing during parsing by attaching actions

to the production rules of the grammar. For example,

Antlr provides an action notation to perform process-

ing during parsing, however this approach has limited

functionality, and results in the execution order of ac-

tions being tied closely to that of parsing.

In order to decouple parsing and processing, we

deﬁned the dedicated CGTL language and associated

tools to process parse trees of any language, and to

produce text in a wide range of formats, including

documentation, HTML, XML or programming lan-

guage code. The structure of the CGTL scripts for a

language L will generally follow the structure of the

grammar for L. Each grammar category r of L will

have a corresponding ruleset r:: in a script for L, to

process L ASTs with tag r. Each grammar produc-

tion p of r should have a corresponding rule of r::

which can process L elements parsed using p. Us-

ing the antlr2cstl script, given an Antlr grammar ﬁle

LParser.g4 for L, an outline CGTL script can be auto-

matically produced with the appropriate rulesets and

rule LHSs to process trees produced by LParser.g4

The DSL tool designer then needs to complete the rule

deﬁnitions to achieve the required transformation.

5 LANGUAGE TRANSLATION

The management and maintenance of software, es-

pecially of legacy software, has become a signiﬁ-

cant social problem (Agarwal et al., 2022) which

costs increasing human and ﬁnancial resources to

tackle. Critical software systems exist in antiquated

languages such as COBOL or old versions of C, and

need to be modernised in order that they can be ef-

fectively used and maintained. The costs and time

required for manual software modernisation can be

prodigious. For example, migration of 35 million

lines of a critical banking system written in Python

2.7 to Python 3 took over 3 years of effort at JP Mor-

gan (Sanders, 2019). Automated program transla-

tion is therefore an attractive alternative to manual

translation or redevelopment of software assets. To

support such capabilities we used CGTL to imple-

ment abstraction transformations from Java, C, Visual

Basic 6 (VB6), Cobol85 and JavaScript programs to

UML/OCL.

To translate programs of source language L

Antlr’s grammar is itself deﬁned by an Antlr grammar.

Lightweight Software Language Processing Using Antlr and CGTL

programs of target language L

, we use an Antlr

parser for L

to produce parse trees, which are then

input to an abstraction transformation for L

, written

using CGTL. The output is a UML/OCL speciﬁca-

tion in textual form, consisting of class speciﬁcations

with data features and operations, and use cases deﬁn-

ing global processing, such as application initialisa-

tion. The speciﬁcation may utilise the operations of

OCL libraries. We have provided additional libraries

to represent program semantics for aspects such as

ﬁles, dates, exceptions and iterators, which are not

present in standard OCL (Section 6). Forward engi-

neering using CGTL code generators or other MDE

code generation techniques is then employed to map

the abstracted speciﬁcation to the target language L

We use the AgileUML (Eclipse Agile UML

project, 2022) and Eclipse OCL (Eclipse, 2022) ver-

sions of OCL to represent program semantics. To de-

ﬁne program executable behaviour, we adopt the Ag-

ileUML textual notation for UML structured activi-

ties. This is similar to the extended OCL of (Buttner

and Gogolla, 2014), and observes a strict hierarchi-

cal relation between expressions and statements, ie.,

statements cannot occur as subparts of expressions.

5.1 Abstraction of Expressions and

Statements

Programming language expressions can be abstracted

to OCL expressions using a CGTL script. In many

cases there are direct translations from program con-

structs to corresponding OCL expressions, for exam-

ple, C and Java array accesses and bitwise negation

operator expressions translate directly to OCL equiv-

alents:

expression::

_1 [ _2 ] |-->_1->at(_2 + 1)

˜ _1 |-->-(_1 + 1)

However in some cases it is necessary to interpret

the source language elements using further semantic

details, if there is no exact equivalent of the source

element in OCL. For example, the isalpha and isdigit

C functions on characters can be interpreted as:

isalpha ( _1 ) |-->

(_1)->byte2char()->isMatch("[a-zA-Z]")

isdigit ( _1 ) |-->

(_1)->byte2char()->isMatch("[0-9]")

The main forms of programming language state-

ments also translate directly into the pseudocode no-

tation of UML activities used in AgileUML, eg., for

C we have:

selectionStatement::

if ( _1 ) _2 |-->

if _1\n then\n _2\n

else skip ;\n

if ( _1 ) _2 else _3 |-->

if _1\n

then\n _2\n

else\n (_3)\n

However, statements with unstructured control ﬂow,

such as goto, labelled break/continue, and switch

statements, need to be transformed into structured

forms via the abstraction process.

5.2 Abstraction of Features and Classes

Application-speciﬁc classes deﬁned in a program are

mapped to corresponding classes in the UML/OCL

representation, with their data features and meth-

ods mapped to attributes and operations in UML. C

structs, VB6 and Cobol85 records and JavaScript con-

structor functions are also abstracted as UML classes.

Enum deﬁnitions are abstracted as enumerated types.

The CGTL rules to perform this abstraction for C in-

clude:

structOrUnionSpecifier::

struct _1 { _2 } |-->class _1\n{_2\n}\n\n

union _1 { _2 } |-->class _1\n{_2\n}\n\n

struct _1 |-->_1

union _1 |-->_1

structDeclarationList::

_* |-->_*

_1 |-->_1

enumSpecifier::

enum _1 { _2 } |-->enumeration _1\n{_2\n}\n\n

enum _1 |-->_1

enumeratorList::

_1 |-->_1

_* |-->_*

enumerator::

_1 = _2 |-->_1

_1 |-->_1

enumerationConstant::

_1 |--> literal _1;\n

These rules preserve the structure of the source

program in the abstracted representation, facilitating

traceability.

In the case of C, VB6, Cobol85 and JavaScript

there may be data and operations with a global scope.

These are represented as features of a new class rep-

resenting the entire program.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

6 OCL EXTENSION LIBRARIES

OCL extensions and libraries are provided in order to

represent common programming language aspects as

follows (Lano et al., 2022):

• First-class function types Function(S, T) are

added, together with λ-abstraction expressions

lambda x : T in expr and application operator

f →apply(x).

• Library component OclDate is added to represent

dates and times.

• Facilities for byte processing and number for-

mat conversions are added in library component

MathLib. MathLib also supports random number

generation and bitwise and/or/xor operations.

• OclType is extended to enable inspection of the

data and behaviour features of each OclType in-

stance.

• Exception handling is represented by

try catch ﬁnally statements and a class

OclException of exceptions, together with

subclasses for more specialised forms of excep-

tion, such as IndexingException.

• A library class OclIterator is deﬁned which sup-

ports the creation of iterators for collections. This

is also used to represent generator functions and

database result sets.

• A library class OclFile to represent ﬁles and

streams.

• OclProcess supports the creation of threads and

OS processes and querying the environment.

• OclDatasource models SQL databases, TCP

sockets and HTTP connections.

7 MODEL TRANSFORMATIONS

General model transformation (MT) tasks include

mapping from models of one language L

to mod-

els of another, L

, or refactoring (updating in-place)

a model of a single language. The usability of MT

languages such as ATL, QVTr and ETL has been

questioned (Burgueno et al., 2019b), and the level of

industrial adoption of these languages remains low.

Effective use of an MT language requires detailed

knowledge of the structure of models for the source

and target languages involved, ie., knowledge of their

metamodels. Model data is typically a graph struc-

ture, with intricately interlinked elements. MT rules

need to navigate and assemble such links in the cor-

rect way.

CGTL could be applied to MT tasks by: (i) pro-

ducing an AST from a source language model; (ii)

processing the AST using CGTL rules; (iii) pars-

ing the text result into the target language using a

parser/model assembler which creates a target model

from target language text.

The advantage of this scheme is that the CGTL

rules can express the key idea of the transformation,

without needing to navigate or assemble models. The

rules do not depend on the metamodel features. The

task of ensuring consistent target model structure is

delegated to the model assembler. The disadvantage

is the additional processing cost of AST production

and target language parsing.

An example of a simple refactoring transforma-

tion is expression simpliﬁcation/normalisation, which

can be expressed for OCL expressions by the CGTL

rules:

OclBasicExpression::

_1 |-->_1

OclBinaryExpression::

0 + _1 |-->_1

_1 + 0 |-->_1

_1 + _1 |-->(_1 * 2)

_1 + _2 |-->(_1 + _2)

_1 - 0 |-->_1

_1 - _1 |-->0

_1 - _2 |-->(_1 - _2)

1 * _1 |-->_1

_1 * 1 |-->_1

_1 * _1 |-->(_1)->sqr()

_1 * _2 |-->(_1 * _2)

This transforms an input expression such as x ∗ x +x ∗

x into ((x)→sqr() ∗ 2).

To express this as a model refactoring in a MT

language such as ATL, ETL or QVTr would be

non-trivial, because the pattern matching and re-

arrangement of links between elements would need to

be handled explicitly. For example, the rule replacing

1 ∗ 1 by ( 1)→sqr() could be deﬁned in ATL as:

rule ReplaceMultBySqr {

from be : IN!OclBinaryExpression (

be.operator = ’*’ and

be.left.toString() = be.right.toString())

to be1 : OUT!OclUnaryExpression (

operator <- ’->sqr’,

argument <- be.left,

argument.hasBracket <- true,

container <- be.container

) }

Knowledge of the exact names, types and multiplic-

ities of metamodel features is necessary in order to

write such rules. Indeed this tight dependence of

Lightweight Software Language Processing Using Antlr and CGTL

transformation rules on the metamodel could lead to

high maintenance costs if the metamodel changes.

In terms of expressiveness, CGTL is only able to

inspect local data of one AST and its subparts, and

cannot search global data, such as all instances of a

metaclass. Thus model transformation rules which

depend upon two or more input parameters, or which

need to refer to E.allInstances() for a metaclass E

could not be expressed as CGTL rules.

8 EVALUATION

In this section we evaluate our approach with re-

spect to the research questions of Section 1. All

artefacts used in this evaluation are provided at zen-

odo.org/record/7414171.

8.1 RQ1: DSL Deﬁnition and Support

We evaluate the approach by deﬁning two DSLs: (i)

for natural language processing (NLP) in require-

ments formalisation (RF); (ii) for mobile app speci-

ﬁcation.

8.1.1 Natural Language Processing for

Requirements Formalisation

NLP is a key technique for many applications which

process or produce natural language text or speech. In

particular, NLP has been used for the formalisation of

software requirements expressed in natural language

documents (Burgueno et al., 2021; Zaki-Ismail et al.,

2022; Zhao et al., 2020). Based on a systematic sur-

vey of NLP research in this area, we identiﬁed pro-

cessing steps, actions and data which are widely used

in NLP for RF, and codiﬁed these as a simple DSL

with a syntax based on SQL.

NLP activities operate on datasets of elements

such as texts or ASTs, and can be categorised as:

• Dataset loading and saving, or checkpoint cre-

ation and saving during a protracted process.

• Applying a transformation to each dataset element

to produce a new dataset, eg., to tokenise raw text

elements into sequences of sentences or words, or

to apply part-of-speech (POS) tagging to words.

• Filtering a dataset to remove elements that fail to

satisfy a criterion, eg., to remove items that do not

have a correct grammatical structure to be valid

sentences.

• Analysing the accuracy of some classiﬁcation

procedure on a dataset, wrt a reference classiﬁ-

cation.

Processing pipelines including these activities can be

deﬁned in our DSL by a sequence of SQL-like state-

ments.

For example, to apply POS-tagging to a set of sen-

tences dset extracted from a text ﬁle, and select the

sentences containing a verb, we could write:

create temporary table wdset as

select x, pos_tag(x) from dset ;

create temporary table vbset as

select sq from wdset

where hasVerb(sq) ;

A subset of the SQLite.g4 Antlr grammar (857

LOC) is used for the NLP DSL. A CGTL script

nlp.cstl is deﬁned to translate DSL speciﬁcations to

Python (with NLTK used for NLP process steps).

This consists of 112 lines of CGTL code and took 2

person days to develop and test.

The CGTL rules to process the DSL statements

and translate them to Python include:

select_stmt::

_1 |-->_1

simple_select_stmt::

_1 |-->_1

select_core::

select _1 , _2 from _3 |-->

[_2 for _1 in _3]

select distinct _1 from _2 where _3 |-->

set({_1 for _1 in _2 if _3})

select _1 from _2 where _3 |-->

[_1 for _1 in _2 if _3]

For the above example, the result of executing the

CGTL script is:

wdset = [pos_tag(x) for x in dset]

vbset = [sq for sq in wdset if hasVerb(sq)]

The DSL has been tested with a wide range of

NLP pipelines including POS-tagging, chunking, en-

tity extraction and the derivation of UML use cases

from informal user stories. Table 1 shows the Python

code generation time for the test cases of DSL mod-

els. The generated code size is 4KB in each case.

An alternative OCL-based NLP grammar (379

LOC) has also been developed

, together with a

CGTL ﬁle nlp1.cstl (89 LOC).

8.1.2 Mobile App Speciﬁcation

This DSL provides facilities for deﬁning classes with

attributes, and stereotypes identifying the location

Using the OCL grammar at https://github.com/antlr/

grammars-v4/tree/master/ocl

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

Table 1: CGTL performance on NLP cases.

Case Model size Generation time

NLP Pipeline 1 12 LOC 0.3s

NLP Pipeline 2 17 LOC 0.4s

Use case derivation 22 LOC 0.3s

Entity extraction 22 LOC 0.3s

NLP Pipeline 5 24 LOC 1s

NLP Pipeline 6 24 LOC 2.8s

NLP Pipeline 7 12 LOC 0.85s

Regex matching 10 LOC 0.1s

Fuzzy similarity 12 LOC 0.7s

Average 17.3 LOC 0.75s

(remote or local) and persistence of the class data.

Global functionalities of the system are deﬁned as

use cases. The DSL tools speciﬁed in CGTL scripts

map the class deﬁnitions to SQLite databases (for lo-

cal persistent classes) or to Firebase cloud datastores

(for remote persistent classes) and data access objects

to interface to these implementations. The use case

deﬁnitions become operations of a business tier fa-

cade component, and are also used to produce Swif-

tUI views (screens) that trigger the business tier op-

erations. Value objects are used to transfer business

data between tiers. The DSL grammar is deﬁned by

the Antlr 4 grammar Mobile.g4 (274 LOC), and took

2 person days to write and test. The CGTL scripts

consist of 15 separate scripts with a total of 1870

LOC and took 8 person days to write and test. The

scripts are organised on the basis of the different tar-

get ﬁles which are generated: each script produces a

speciﬁc component within the app architecture, such

as a model facade, value object class, database in-

terface or UI screen. To avoid duplication of com-

mon script tasks, such as mapping OCL expressions

to Swift code, these are factored out into a separate

script called from the component production scripts.

The DSL and tools were tested with a wide range

of mobile app speciﬁcations including ﬁnance and

health apps. Table 2 gives the size and code gener-

ation time for the test cases.

In comparison, a similar DSL deﬁnition using

Xtext and Xtend took over 2 person months to de-

velop, due to the high complexity involved in writ-

ing correct Xtext grammars, which combine parsing

and semantic analysis. From a DSL grammar, Xtext

produces a metamodel for the DSL, together with a

DSL parser, however this dual interpretation of an

Xtext grammar has deﬁciencies in terms of the quality

of the metamodel and the reusability of the grammar

(Izquierdo and Molina, 2014).

Overall we can conclude for RQ1 that the com-

bination of Antlr and CGTL is effective for deﬁning

text-based tools for DSL processing, since the effort

required for writing grammars and CGTL scripts is

Table 2: CGTL performance on mobile app cases.

Case Model size Generated CG

(LOC) code size time

Person app 1 32 28KB 0.8s

Student app 60 39KB 1.47s

Person app 2 40 29KB 1s

Person app 3 46 30KB 1.2s

BMI app 15 14KB 1.1s

Health app 40 22KB 1.96s

Bond app 120 23KB 23.6s

Person DB app 34 32KB 6.6s

Student DB app 60 60KB 15.2s

Student app 60 50KB 7.5s

cloud + DB

Average 50.7 32.7KB 6.05s

relatively low, and the efﬁciency of script execution is

satisfactory for practical use. The expertise required

to deﬁne CGTL scripts is (i) understanding of the

source language grammar structure; (ii) understand-

ing of the target platform syntax and semantics; (iii)

knowledge of the CGTL syntax. There is no need to

understand the metamodels of the source or target lan-

guages.

8.2 RQ2: Program Translation

To answer RQ2 we develop and evaluate example ab-

straction translations from Java 6/7, JavaScript, C,

Cobol85 and Visual Basic 6 to UML/OCL. These are

then applied to over 400 examples, including real-

world programs from ﬁnance applications.

8.2.1 Translation Accuracy

We apply the Java 6/7 to UML/OCL abstraction

mapping to 100 Java cases, consisting of 61 exam-

ples of Java library facilities (from java.io, java.lang,

java.math and java.util), 34 examples of Java lan-

guage features, and 5 cases of complete Java appli-

cations, including three cases taken from a package

of ﬁnancial software (bond valuation: Bondapp; yield

curve computation: NSapp; CDO risk evaluation:

CDOapp). We also applied the C to UML/OCL ab-

straction to 70 C examples, consisting of 14 statement

examples, 36 declaration/type examples and 20 exam-

ples exercising the full range of standard C libraries.

We applied the VB6 to UML/OCL abstraction to 100

VB6/VBA examples, including extracts from a large

suite of bond pricing functions executed within Excel.

We applied the Cobol85 abstraction to 85 cases, 64

concerning statements and 21 other language aspects.

Finally, we applied the JavaScript to UML/OCL ab-

straction mapping to 85 JavaScript cases, consisting

Lightweight Software Language Processing Using Antlr and CGTL

of 49 language construct examples and 36 data struc-

ture examples.

From the abstractions we then performed forward

engineering to Python, Swift, C#, C++, Java 8, C and

Go (in the case of the Java 6/7 examples), to Swift,

C# and Go (for the C examples), to Python (for the

JavaScript and VB6 examples) and Java (for Cobol85

cases).

To evaluate the correctness of the translations, we

run equivalent tests on the original source program

and translated target for each case, and compute the

percentage of test results which agree. The same test

values/parameters are used for both source and target

programs. The test agreement percentage is shown in

the cells of Table 3. There are a total of 439 tests for

the Java 6/7 cases, 147 for the C cases, 197 for the

VB6 cases, 183 for Cobol85 and 162 for JavaScript

(JS). This measure of accuracy is the same as the com-

putational accuracy measure used by (Lachaux et al.,

2020).

Table 3: Evaluation cases: accuracy.

Target Source language

lang. Java C JS VB6 Cobol

Python 93% – 95% 82% –

Swift 96% 84% – – –

C# 96% 90% – – –

Go 90% 91% – – –

Java 8 98% – – – 88%

C++ 93% – – – –

C 86% – – – –

Averages 93% 88% 95% 82% 88%

It can be seen that translations involving a large se-

mantic distance between the source and target (such

as C to Swift) are generally less accurate than those

between similar languages (such as Java to C#). Nev-

ertheless the accuracy is quite high, and for the in-

dustrial cases all numerical computations were trans-

lated without error. In contrast to these results, the

java2python tool only achieves an accuracy of 38.3%

on the Java to Python examples of (Lachaux et al.,

2020), and transcoder achieves 68.7% accuracy, us-

ing 463 tests.

In terms of the efﬁciency of the translation pro-

cess, the abstraction stage is comparable to code gen-

eration. Table 4 shows the time taken for this step, and

for code generation, for the Java application cases.

The Swift and J8 code generators use CSTL. The

Python code generator is written in OCL.

8.2.2 Completeness

Completeness of the translation approach can be

measured in terms of the percentage of the Java,

Table 4: CGTL performance on Java 6/7 application cases.

Case Abstraction CG Time (ms)

Time (ms) Python Swift J8

Bondapp 964 0 2032 256

app6 353 5 2783 219

NSapp 641 3 2022 220

CDOapp 1338 7 3683 1515

CorrCalc 4079 0 2443 198

Average 1475 3 2593 481.6

JavaScript, VB6, Cobol85 and C grammar rules, in-

cluding rule variants, which have corresponding ab-

straction rules in our reverse-engineering scripts.

Table 5 shows the percentages of Antlr Java

parser grammar rules which have corresponding ab-

straction rules, for each of the main syntactic di-

visions of Java. For C, 138 of the 153 grammar

rules/cases of (Kernighan and Ritchie, 1988) are cov-

ered (90%), and 158 of 179 library operations (88%).

For JavaScript, 258 of 324 grammar rules/rule options

are covered (80%), and 39 of 53 library components.

For VB6, 197 (86%) of the 229 statements, opera-

tions, functions and types of VB6 are represented. For

Cobol85, 31 of 35 core statement kinds are covered

(88%).

Table 5: Grammar rule coverage: Java.

Category Grammar Abstraction Coverage

cases rules

Types 33 31 94%

Expressions 101 82 81%

Statements 76 72 95%

Declarations 176 160 91%

Total 386 345 89%

Overall we can conclude for RQ2 that the accu-

racy of the translation is high compared with other

translation approaches, and that the computational ef-

ﬁciency is satisfactory. The completeness for each

source language can be improved in principle by ex-

tending the coverage of language features and li-

braries. This may require the addition/extension of

OCL libraries, such as the deﬁnition of a component

to represent Excel functions and data in a platform-

independent manner.

9 RELATED WORK

MDE usability issues have been highlighted by sev-

eral studies of MDE in practice (Abrahao et al., 2017;

Whittle et al., 2017). In response to these identiﬁed

problems, different processes for using MDE have

been proposed, such as the combination of agile meth-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

ods with MDE (Alfraihi and Lano, 2017). Automated

assistance for MDE processes, using AI techniques,

has also been proposed (Burgueno et al., 2021). In

particular, a promising approach for improving the us-

ability of MDE is modelling by-example (Burgueno

et al., 2019a; Lano et al., 2021; Lano and Xue, 2022).

Applied to DSL engineering, this concept includes the

automated learning of natural language to DSL map-

pings (Desai et al., 2016), and applied to model trans-

formation and code generator synthesis, it enables the

derivation of transformation/generator rules from rel-

atively small datasets of examples (Lano et al., 2021;

Lano and Xue, 2022). In the case of DSL tooling, the

example-based process has the drawback that there

may be ambiguous results for learnt mappings, which

must be resolved by the user (Desai et al., 2016). For

MT/code generator synthesis, there are limitations on

the form of rules which can be learnt: in particular,

CSTL rules involving actions cannot be learnt by the

process of (Lano and Xue, 2022).

A transformation language related to CGTL is

the Gra2MoL text-to-model language (Izquierdo and

Molina, 2014). This provides a facility to search and

extract information from ASTs, with beneﬁts in terms

of conciseness and clarity compared to conventional

MT languages. CGTL can also deﬁne queries to nav-

igate deeply into AST terms, using called functions as

i‘f to test or extract information from a term bound

to i. This approach is heavily used in the mobile app

DSL (Section 8.1.2). Otherwise, GraMoL involves

model manipulation in the style of ATL rules, and

hence requires knowledge of the target metamodel.

Our program translation approach is related to re-

verse and re-engineering approaches which use a for-

mal intermediate language, such as (Bowen et al.,

1993; Liu et al., 1997). However, we use UML/OCL

as the intermediate representation, instead of a formal

speciﬁcation language. This has the advantage of be-

ing more widely understood by software practitioners,

and more widely supported by tools.

10 LIMITATIONS AND FUTURE

WORK

The pattern-matching facilities of CGTL (on the LHS

of rules) are limited to the immediate subterms of the

input term. This could be extended, but would result

in increased execution time.

With regard to DSL deﬁnition and processing, we

restrict attention to textual DSLs. Currently our ap-

proach is geared to work with Antlr, but in principle

other parsing technologies could be used.

Modern programming languages such as Java

have extensive libraries and hence in these cases it is

infeasible to model the semantics of the complete lan-

guage including the libraries. Users of our translation

tools may extend the CGTL abstraction scripts as re-

quired to add semantics for speciﬁc program libraries.

Likewise, for COBOL, speciﬁc installations may use

local extensions of COBOL facilities, for which a cus-

tomised translation will need to be created.

An interesting area to pursue is the combination of

symbolic and non-symbolic machine learning to learn

program or language translations. Non-symbolic ML

could be more effective than symbolic ML in learning

large-scale translations involving thousands of special

cases (eg., abstractions of Java library operations).

11 THREATS TO VALIDITY

Threats to validity include bias in the construction of

the evaluation, inability to generalise the results, in-

appropriate constructs and inappropriate measures.

11.1 Threats to Internal Validity

11.1.1 Instrumental Bias

This concerns the consistency of measures over the

course of the analysis. To ensure consistency, all anal-

ysis and measurement was carried out in the same

manner by a single individual (the ﬁrst author) on all

cases. The comparison with the results of (Lachaux

et al., 2020) used the same accuracy measure and a

similar test-based evaluation approach to the evalua-

tion in (Lachaux et al., 2020). Analysis and measure-

ment for the results of Tables 1, 2 were repeated in

order to ensure the consistency of the results.

11.1.2 Selection Bias

We chose mobile app speciﬁcation and NLP spec-

iﬁcation as typical of the DSL modelling scenarios

that arise in practice. The evaluation cases were de-

signed to exercise all the signiﬁcant choice points

within the CGTL scripts. With regard to program

translation, Java to C and JavaScript to Python are

commonly requested translations (eg., on stackover-

ﬂow.com). COBOL to Java translation is of high sig-

niﬁcance to business. We selected example cases for

evaluation of translation based on the grammars of the

source languages, in order to cover the widest pos-

sible range of grammar constructs and options. As

in (Lachaux et al., 2020), the translation examples

are mainly cases involving single methods/functions,

however some complete classes and complete real-

world applications have also been analysed.

Lightweight Software Language Processing Using Antlr and CGTL

11.2 Threats to External Validity

11.2.1 Generalisation to Different Samples

As discussed above, our approach is restricted to tex-

tual DSLs and text-based processing, thus it is not di-

rectly applicable to graphical DSLs. We considered

examples of the three main 3GL categories in our pro-

gram translation work: Java represents the category of

classical object-oriented languages, C, Cobol85 and

VB6 represent the category of procedural languages,

and JavaScript is representative of prototype-based

languages with implicit typing. Thus a wide spectrum

of programming languages has been considered, facil-

itating the generalisation of our work to other source

languages in these categories, such as C# and Python.

Other parsing tools could be used to produce ASTs,

and other MDE tools such as Papyrus (Papyrus, 2022)

used for forward engineering.

11.3 Threats to Construct Validity

11.3.1 Inexact Characterisation of Constructs

Our concepts of DSL processing and program transla-

tion are aligned to widely-used concepts in language

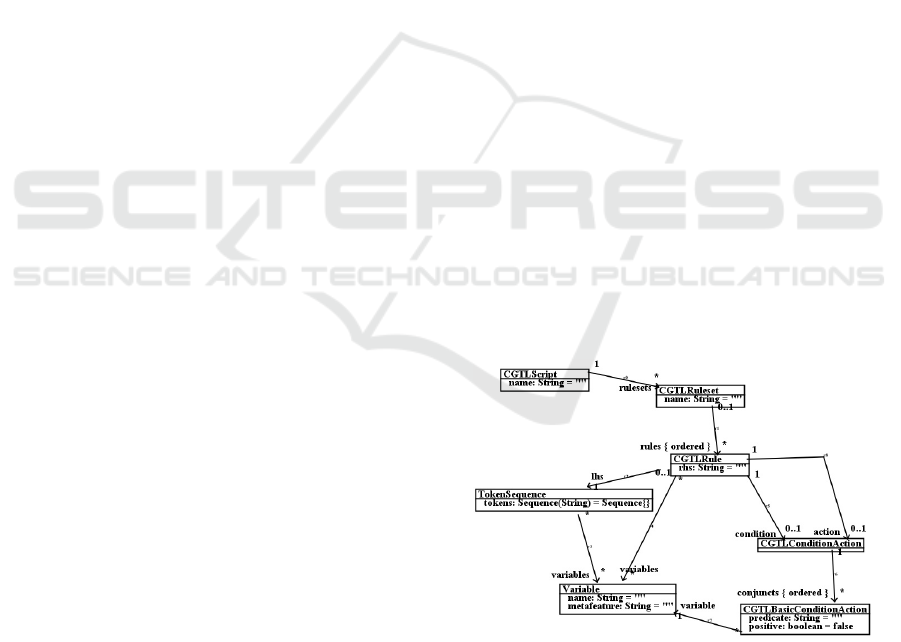

engineering. We have given a precise characterisation

of ASTs and CGTL via metamodels (Figures 2 and

3), and a detailed semantics of CGTL (Appendix).

11.4 Threats to Content Validity

11.4.1 Relevance

The Antlr and CGTL approach has been shown to

be applicable to the processing of typical textual

DSLs based on UML/OCL subsets or SQL-like no-

tations, and to the processing of programming lan-

guage source code for a range of languages, which

include three of the most-popular programming lan-

guages according to the TIOBE index. Thus the ap-

proach should be relevant to other similar tasks in

these domains.

In terms of usability, Antlr has an established his-

tory of use by numerous users over 15 years, and is

actively maintained. AgileUML has been used for

20 years (prior to 2019 it was called UML-RSDS) in

a wide range of educational, research and industrial

applications, by users with varied skill levels. Thus

there is evidence that these technologies are relevant

to improving MDE usability.

Our experience with MDE adoption in industry

(Section 2) indicated that grammar-based tools and

simple DSLs were more acceptable and relevant to

new adopters of MDE compared to metamodel-based

tools and mathematical languages such as OCL.

11.4.2 Representativeness

The 3GL code translation tasks we have examined

(translation of Java, C, VB6, Cobol85 and JavaScript)

are representative of typical program translation tasks

for 3GLs. Synthesis of executable code from DSL

speciﬁcations is also a representative task for DSL

processing.

11.5 Threats to Conclusion Validity

We used the concept of computational accuracy to

measure the quality of program translations. This

measure is also used by (Lachaux et al., 2020) and

appears to be more appropriate to software transla-

tion than measures such as the BLEU score, used in

machine translation of natural languages.

12 CONCLUSIONS

We have deﬁned MDE techniques for DSL support

and program translation which should be usable by

general software practitioners. We have shown that

the techniques can be combined to effectively perform

typical language processing tasks such as generating

code from DSL models and abstracting information

from source code. We have also shown that certain

kinds of model transformation rule can be expressed

in CGTL.

The described approaches utilise lightweight tools

(Antlr and AgileUML) which have low resource util-

isation, and hence low environmental impact.

REFERENCES

Abrahao, S., Bourdeleau, F., Cheng, B., Kokaly, S., Paige,

R., Stoerrle, H., and Whittle, J. (2017). User experi-

ence for MDE. In MODELS 2017.

Agarwal, M., Talamadupula, K., Martinez, F., Houde, S.,

Muller, M., Richards, J., Ross, S. I., and Weisz, J. D.

(2022). Using document similarity methods to create

parallel datasets for code translation.

Alfraihi, H. and Lano, K. (2017). The integration of agile

development and MDE: a systematic literature review.

In Modelsward 2017.

Antlr (2022a). https://www.antlr.org.

Antlr (2022b). Antlr StringTemplate,

https://www.stringtemplate.org/about.html.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

Bowen, J., Breuer, P., and Lano, K. (1993). A com-

pendium of formal techniques for software main-

tenance. IEE/BCS Software Engineering Journal,

8(5):253 – 262.

Bucchiarone, A., Cabot, J., Paige, R., and Pierantonio, A.

(2020). Grand challenges in MDE: an analysis of the

state of the research. SoSyM, 19:5–13.

Burgueno, L., Cabot, J., and Gerard, S. (2019a). An LSTM-

based neural network architecture for model transfor-

mations. In MODELS ’19, pages 294–299.

Burgueno, L., Cabot, J., and Gerard, S. (2019b). The future

of model transformation languages: an open commu-

nity discussion. JOT, 18(3).

Burgueno, L., Clariso, R., Gerard, S., Li, S., and Cabot,

J. (2021). An NLP-based architecture for the auto-

completion of partial domain models. In CAiSE 2021,

pages 91–106. Springer.

Buttner, F. and Gogolla, M. (2014). On ocl-based imper-

ative languages. Science of Computer Programming,

92:162–178.

Clark, T. and Muller, P. (2012). Exploiting model-driven

technology: a tale of two startups. SoSyM, 11:481–

493.

Desai, A., Gulwani, S., Hingorani, V., Jain, N., Karkare, A.,

Marron, M., Sailesh, R., and Roy, S. (2016). Program

synthesis using natural language. In ICSE 2016, pages

345–356.

Eclipse (2022). Eclipse OCL Version 6.4.0,

https://projects.eclipse.org/projects/modeling.mdt.ocl.

Eclipse Agile UML project (2022).

projects.eclipse.org/projects/modeling.agileuml,

accessed 18.5.2022.

Izquierdo, J. C. and Molina, J. G. (2014). Extracting models

from source code in software modernization. Software

Systems Modelling, 13:713–734.

Kernighan, B. and Ritchie, D. (1988). The C Programming

Language. Prentice Hall, 2nd edition.

Lachaux, M.-A., Roziere, B., Chanussot, L., and Lample,

G. (2020). Unsupervised translation of programming

languages. arXiv:2006.03511v3.

Lano, K., Kolahdouz-Rahimi, S., and Fang, S. (2021).

Model Transformation Development using Auto-

mated Requirements Analysis, Metamodel Match-

ing and Transformation By-Example. ACM TOSEM,

31(2):1–71.

Lano, K., Kolahdouz-Rahimi, S., and Jin, K. (2022). OCL

libraries for software speciﬁcation and representation.

In OCL 2022, MODELS 2022 Companion Proceed-

ings.

Lano, K. and Xue, Q. (2020). Agile speciﬁcation of code

generators for model-driven engineering. In 2020

15th International Conference on Software Engineer-

ing Advances (ICSEA), pages 9–15.

Lano, K. and Xue, Q. (2022). Code generation by example.

In Proceedings of the 10th International Conference

on Model-Driven Engineering and Software Develop-

ment (MODELSWARD), pages 84–92.

Lano, K., Yassipour-Tehrani, S., Alfraihi, H., and

Kolahdouz-Rahimi, S. (2017). Translating from

UML-RSDS OCL to ANSI C. In OCL 2017, STAF

2017, pages 317–330.

Liu, X., Yang, H., and Zedan, H. (1997). Formal meth-

ods for the re-engineering of computing systems. In

Compsac ‘97.

Papyrus, E. (2022). Papyrus toolset,

https://www.eclipse.org/papyrus.

Sanders, J. (2019). https://www.techrepublic.com/article/

jpmorgans-athena-has- 35- million- lines-of-python-

code-and-wont-be-updated-to-python-3-in-time.

Whittle, J., Hutchinson, J., Rounceﬁeld, M., Burden, H.,

and Heldal, R. (2017). A taxonomy of tool-related

issues affecting the adoption of MDE. Sosym, 16:313–

331.

Zaki-Ismail, A., Osama, M., Abdelrazek, M., Grundy,

J., and Ibrahim, A. (2022). Rcm-extractor: an au-

tomated nlp-based approach for extracting a semi-

formal representation model from natural language re-

quirements. AUSE, 29(1):1–33.

Zhao, L. et al. (2020). Natural language processing for re-

quirements engineering: a systematic mapping study.

ACM Computing Surveys.

Zucker, J. and D‘Leeuwen, M. (2020). Arbiter: a domain-

speciﬁc language for ethical machine learning. In

AIES ‘20.

APPENDIX

A CGTL script for processing a language L consists

of a group of rulesets, each ruleset has a name and

an associated sequence of rules, and processes syntax

trees with the same tag as the ruleset name. Figure 3

shows the metamodel of CGTL, adapted from that of

CSTL (Lano and Xue, 2020).

Figure 3: CGTL metamodel.

Ruleset names are usually the same as the source

language syntax categories deﬁned in the L grammar.

A ruleset has the format:

rulesetName::

(rule\n)+

Lightweight Software Language Processing Using Antlr and CGTL

Individual rules in CGTL have one of the four

forms:

lhs |-->rhs

lhs |-->rhs<when> Conditions

lhs |-->rhs<action> Actions

lhs |-->rhs<when> Conditions <action> Actions

Conditions can test the syntactic category of elements

stored in CGTL variables, and other properties of

these elements. They have the syntax

(variable value,)* variable value

where a variable is i for integer i or i‘f for identiﬁer

f . The value is an identiﬁer p or a negated predicate:

not p.

The left hand side (LHS) of a rule is a schematic

representation of textual concrete syntax in the source

language L

, e.g., in a DSL or 3GL, and the right hand

side (RHS) is the corresponding concrete syntax in

the target language L

which the LHS should translate

to. The LHS represents a parse tree t of L

elements,

with its tokens corresponding to t.terms for compos-

ite t, or to t.value for basic t. Apart from literal text

concrete syntax items, the LHS may contain variable

terms 1, 2, etc, representing direct child subtrees of

the tree (the properties of these elements can be con-

strained by the optional rule condition), and the RHS

refers to the translation of these child elements also

by 1, 2, etc. The special variable ∗ denotes a list of

syntactic elements, and $ represents a script param-

eter. Specialised rules are listed before more general

rules. If no rule LHS matches a source parse tree then

the tree content is copied to the output, this can be

useful for debugging scripts.

One script g can be invoked from another, f , by

the notation i‘g in a rule of f . Control is transferred

to script g. In addition, the same notation can be in-

voked to apply a speciﬁc ruleset g within the same

script to i. These facilities enable modularisation of

CGTL code. Metafeatures such as the unparsed tex-

tual form of an element, or its inferred type, can also

be referred to via i‘rawText or i‘type. In comparison

with Xtend, EGL or other template-based languages,

there are no delimiters separating literal target lan-

guage text from template language text. An <action>

clause can be added to rules, to attach information

to elements (eg., inferred types of elements) that can

be read by subsequent rule applications. The action

clause has the same syntax as the conditions clause.

CGTL semantics is based on text matching and

substitution. The semantics deﬁnes the result cgtl(s, t)

of applying a CGTL script s to a composite or basic

AST term t:

cgtl(s, t) = cgtl(s, tg, t)

if t.tag = tg and s contains a ruleset tg::, otherwise

cgtl(s, t) = t. For a ruleset name tg of s,

cgtl(s, tg, t) = rhs[t

′

, ...,t

′

]

where t.tag = tg, each t

′

is cgtl(s, t

), and the rule

lhs[_1,...,_n] |-->rhs[_1,...,_n]<when>

Conditions[_1,...,_n]

of tg:: is the ﬁrst whose lhs matches t and whose

Conditions are true. If there is no such matching rule

then cgtl(s, tg, t) = t.

t matches lhs if t’s subterms t.terms match suc-

cessive tokens of lhs: symbol terms of t must equal

corresponding tokens of lhs, and non-symbol terms t

are bound to corresponding variables i in the token

list of lhs. A variable ∗ binds to a list of successive

terms which occur between speciﬁc symbol terms. r

is then applicable to t if Conditions[t

, ...,t

] also hold.

In this case, the script s is applied to each of the t

produce t

′

= cgtl(s, t

) if i occurs as a simple vari-

able expression on the RHS. However, if it occurs as

i‘f for ruleset name f , then t

′

= cgtl(s, f , t

), and in

the case of a script name g: t

′

= cgtl(g, t

A variable ∗ is replaced in rhs by the string

concatenation of the t

′

of the terms bound to

it. Various built-in functions such as recurse and

ﬁrst have speciﬁc denotations. Other metafea-

tures i‘f are evaluated as ASTTerm.features[t

””]→select(x | x→hasPreﬁx(f + ” = ”))→collect(y |

y→after(” = ”))→any(), in both the rhs and condi-

tions.

If a rule with actions Actions[ 1, ..., n] matches

term t, then the Actions are executed on the subterms

of t bound to the i. An action i p adds p to

ASTTerm.features[t

+ ””] and an action i not p re-

moves p from ASTTerm.features[t

+ ””]. An action

i‘f p adds f + ” = ” + p to ASTTerm.features[t

+ ””]

and an action i‘f not p removes f + ” = ” + p from

ASTTerm.features[t

+ ””].

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering
