Features Normalisation and Standardisation (FNS): An Unsupervised

Approach for Detecting Adversarial Attacks for Medical Images

Sreenivasan Mohandas and Naresh Manwani

Machine Learning Lab, International Institute of Information Technology, Hyderabad, India

Keywords:

Adversarial Attacks, Adversarial Defenses, Multivariate Gaussian Models, Medical Applications, Features

Normalization, and Standardization.

Abstract:

Deep learning systems have shown state-of-the-art performance in clinical prediction tasks. However, current

research suggests that cleverly produced hostile images can trick these systems. Deep learning-based medical

image classiﬁcation algorithms have been questioned regarding their practical deployment. To address this

problem, we provide an unsupervised learning technique for detecting adversarial attacks on medical images.

Without identifying the attackers or reducing classiﬁcation performance, our suggested strategy FNS (Features

Normalization and Standardization), can detect adversarial attacks more effectively than earlier methods.

1 INTRODUCTION

Deep learning-based medical imaging systems have

signiﬁcantly improved the accuracy and efﬁciency of

clinical prediction tasks, thanks to the development of

deep learning algorithms and the availability of high-

quality labeled medical imaging datasets. For exam-

ple, (Daniels and Metaxas, 2019) extracts features

from X-rays for lung disease categorization, (Shafﬁe

et al., 2019) uses computed tomography (CT) scans to

detect lung cancer, and (Reda et al., 2018) uses mag-

netic resonance imaging (MRI) scans to establish an

early diagnosis of prostate cancer. Several healthcare

start-ups, including Zebra Medical Vision and Aidoc

have recently secured FDA certiﬁcations for their AI

medical imaging systems. According to these FDA

clearances, deep learning-based medical imaging sys-

tems could shortly be used for clinical diagnosis.

Parallel to advancements in deep learning-based

medical imaging systems, so-called adversarial im-

ages have shown ﬂaws in these systems in various

clinical areas (Finlayson et al., 2019). Adversarial im-

ages are purposely generated inputs to deep learning

models to deceive image categorization. The method

falsely labels ”Pleural Thickening” as ”Pneumotho-

rax” when only minor perturbations are added to a

clean X-ray image. As a result, users of such sys-

tems may be exposed to unforeseen harmful scenar-

ios, such as diagnostic errors, medical reimbursement

fraud, and so on, if sufﬁcient safeguards are not in

place. As a result, an adequate defense strategy must

be devised to deploy these devices securely.

Several defensive strategies have been offered in

response to the threat. Adversarial training, which

enlarges the training dataset with adversarial images

to improve the resilience of the trained Convolutional

Neural Network (CNN) model, is a standard method

in the natural imaging domain. Many diverse ad-

versarial images are included in the training dataset,

which can dramatically reduce classiﬁcation accu-

racy. (Ma et al., 2021) develops a logistic regres-

sion classiﬁer based on characteristics extracted from

a trained CNN model to distinguish adversarial im-

ages from clean images. However, the usefulness of

this approach is limited to a set of predeﬁned attack

methods. These issues are addressed in the following

way.

(Taghanaki et al., 2018) adds a radial basis map-

ping kernel to CNN models, which translates data

onto a linearly well-separated manifold to improve

class separation and lessen the impact of perturba-

tions. Global dependencies and contextual informa-

tion can be leveraged to strengthen resilience, accord-

ing to (He et al., 2019). To guard against adversar-

ial attacks, they suggest a non-local context encoder

in medical picture segmentation systems. Although

both strategies improve robustness by changing the

network design, the trade-off between accuracy and

robustness (Zhang et al., 2019) may degrade system

performance in practice.

This paper proposes a robust adversarial image

detection technique that effectively counters adver-

140

Mohandas, S. and Manwani, N.

Features Normalisation and Standardisation (FNS): An Unsupervised Approach for Detecting Adversarial Attacks for Medical Images.

DOI: 10.5220/0011624000003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 3, pages 140-145

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

sarial attacks on deep learning-based medical image

classiﬁcation systems. We focus on unsupervised

anomalous detection utilizing features retrieved from

a trained CNN classiﬁer, as inspired by (Zheng and

Hong, 2018) and (Li and Zhu, 2020). Our method

successfully detects adversarial images and can effec-

tively defend against unseen attacks, whether white-

box or black-box, because it makes no assumptions

about prior attack method knowledge. To demonstrate

the success of our suggested defense strategy, we con-

duct extensive experiments using a publicly available

X-ray dataset. We have considered the X-ray dataset

to validate our algorithm. As per (Shi et al., 2022),

X-ray and color fundus photographs are common di-

agnostic and prognostic imaging modalities in patient

care.

2 BACKGROUND

In this section, we provide background information

and a review of related studies on adversarial attack

and defense mechanisms. Let X ⊆ R

be the instance

space and Y = {+1,−1} be the label space. Let

x ∈ X be an example and y be its actual label. Let clas-

siﬁer f : X → Y is such that f (x) = y. The purpose of

adversarial attacks is to ﬁnd an example x

∗

∈ X in the

neighborhood of x that is misclassiﬁed by the classi-

ﬁer f (i.e., f (x

∗

) ̸= y). There are two types of hos-

tile examples: non-targeted and targeted examples. A

non-targeted adversarial example x

∗

is produced by

adding minor noise to x without changing the label,

yet misleads the classiﬁer as f (x

∗

) ̸= y. A targeted

adversarial example tries to trick the classiﬁer by pro-

ducing a speciﬁc label as f (x

∗

) = y

∗

, where y

∗

̸= y

is the adversary’s target label. In most circumstances,

the adversarial noise’s L

norm must be less than a

∥x

∗

− x∥

≤ ε for some ε > 0, and p ∈ {0,1,2, ...}.

We will now discuss different adversarial attacks con-

sidered in our experimental analysis.

2.1 Fast Gradient Sign Method (FGSM)

To demonstrate that the high-dimensional linearity

of deep neural networks causes adversarial cases to

emerge, Goodfellow (Goodfellow et al., 2015) de-

vised the Fast Gradient Sign Method (FGSM) tech-

nique. The fundamental idea behind the approach

is to produce adversarial perturbations following the

deep learning model’s maximum gradient change di-

rection, then add the perturbations to the image to cre-

ate adversarial examples.

adv

= x + ε ∗ sign(∇

L(x,y))

This strategy can be seen as a straightforward one-

step method for maximizing the inner portion of the

saddle point formulation. The FGSM algorithm’s

beneﬁt is that it is a single-step attack with a quick

attack speed. Still, the attack success rate is lesser

than iterative attack algorithms like PGD and BIM.

2.2 Project Gradient Descent (PGD)

A more strong adversary is the multi-step variation,

which is projected gradient descent (PGD) on the neg-

ative loss function. PGD (Madry et al., 2018) perturbs

a clean data x for T steps with smaller step sizes. Af-

ter each step of perturbation, PGD projects the ad-

versarial example back onto the ε-ball of x if it goes

beyond:

= x

i−1

+ α ∗ sign (∇

L(x

i−1

,y))

where α is the step size, and x

is the adversar-

ial example at the i-th step (x

= x). The step size

is usually set to ε/T ≤ α < ε for overall T steps of

perturbations.

2.3 Basic Iterative Method (BIM)

Basic iterative method (Kurakin et al., 2017) is an ex-

tension of FGSM. It applies FGSM multiple times

with a small step size α while clipping it to keep in

the constraint budget. It initializes adversarial exam-

ple with x

= x

= Clip[x

i−1

+ α.sign (∇

L(x

i−1

,y))]

where i denotes the iteration number for iterative at-

tack and the Clip function clips all the values between

0 and 1.

2.4 Momentum Iterative Fast Gradient

Sign Method (MIM)

MIM (Akhtar and Mian, 2018) improves the con-

vergence of the PGD algorithm by using momen-

tum. MIM generates adversarial examples by using

the momentum-based iterative algorithm. Applying

momentum gradient and providing techniques to es-

cape from the poor local maximum during iterations.

The momentum gradient m can be calculated as:

i+1

= µ ∗ m

(∇

L( f

+ δ),y

))

∥(∇

L( f

+ δ),y

))∥

where ∇

shows the gradient function and µ is the de-

cay factor. Initially, x

i−1

is the original input and m

set to previous iteration value (Mohandas et al., 2022).

In each iteration, x

is updated as

= x

i−1

+ ε ∗ sign (m

i+1

)

Features Normalisation and Standardisation (FNS): An Unsupervised Approach for Detecting Adversarial Attacks for Medical Images

141

The adversarial disturbance produced by the Deep-

Fool assault is relatively minor when compared to

FGSM, and other attacks (Liang et al., 2022). We

restricted our scope to iterative methods as they have

high success rates than others.

The adversarial image is created by subtly altering

the original image; as a result, the perturbations ap-

pear as noise at the pixel level, obstructing human de-

tection. On the other hand, such noise is visible at the

feature level of CNN models. According to (Huang

et al., 2017), adversarial perturbations are difﬁcult to

detect by human eyes, resulting in signiﬁcant noise

at the feature level. Furthermore, the convolution-

pooling techniques performed in CNN models during

forward propagation might increase this” noise,” re-

sulting in misclassiﬁcation. On the other hand, be-

cause the size of perturbations rises layer by layer,

high-level characteristics can easily distinguish be-

tween clean and adversarial images (Xie et al., 2019).

3 PROPOSED METHOD -

FEATURES NORMALISATION

AND STANDARDISATION (FNS)

We propose a new adversarial image detection mod-

ule for the medical image classiﬁcation system, in-

dependent of the attacker’s method, and doesn’t re-

quire model retraining. Figure 1 shows the pro-

posed method where a Multivariate Gaussian Model

(MGM) is created with the extracted features of clean

(original) images just before the classiﬁcation layer

of DenseNet-121 (Huang et al., 2017). We have con-

sidered the output of the last Dense block for model-

ing MGM as the high-level characteristics can be dis-

tinguished easily between clean and adversarial im-

ages as per (Xie et al., 2019). As mentioned in Fig-

ure 1, these extracted features were normalized and

standardized before the creation of MGM. Once the

model is created, it is used to identify the clean and

adversarial images during the testing phase, as shown

in Figure 2. Only clean images are passed to the clas-

siﬁcation layer of DensetNet-121 for disease classiﬁ-

cation.

Before being modeled using MGM: y ∼ N (µ,Σ),

where y = H(x) represents the feature extracted us-

ing the ﬁnal fully connected layer given a clean in-

put image x, the high-level feature distribution of

clean images is normalized and standardized. The

µ ∈ R

and Σ ∈ R

d×d

are mean vector and covariance

matrix, where d represents the dimension of MGM.

Considering features extracted from clean training

images Y = {y

,...,y

}, estimate µ =





∑

i=1

and

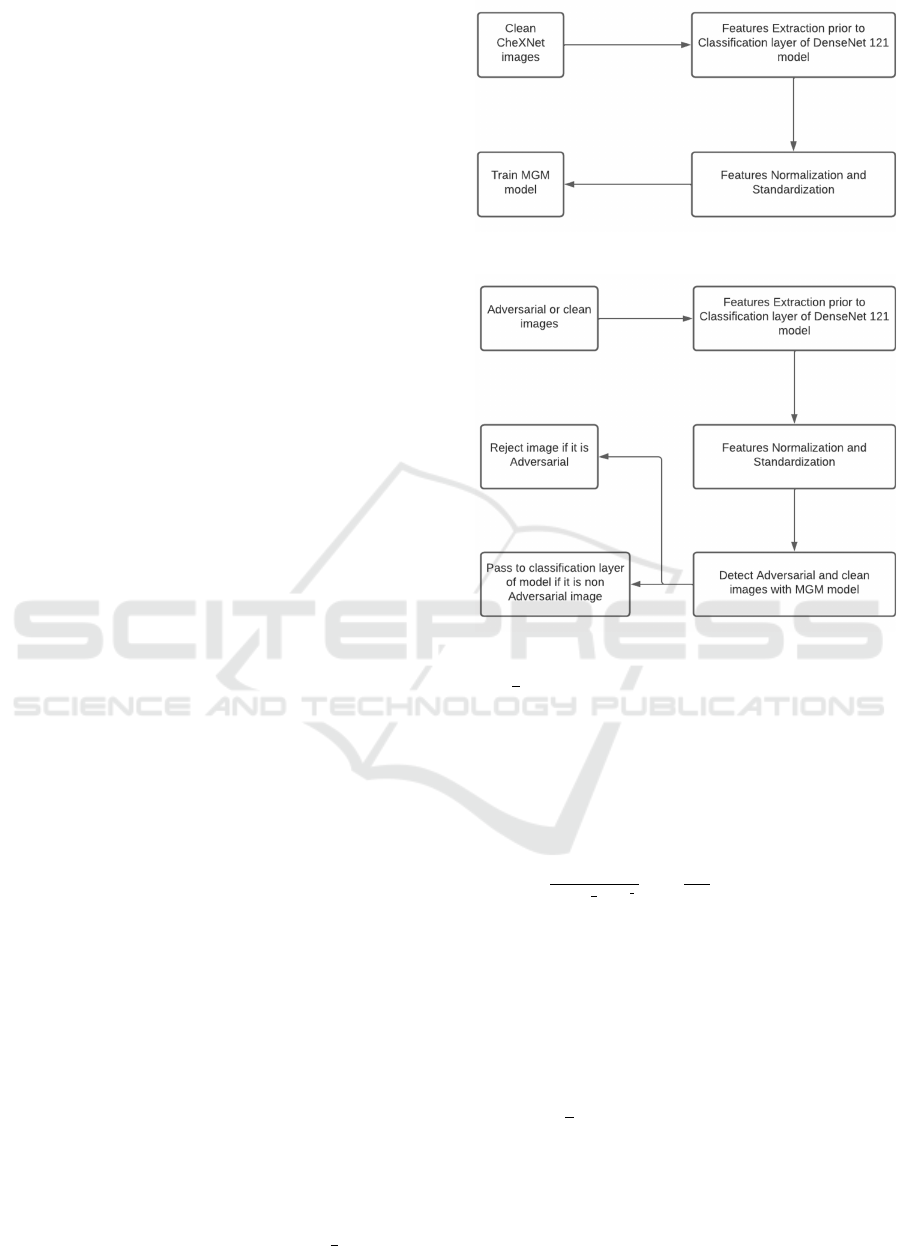

Figure 1: Proposed model for training MGM.

Figure 2: Testing phase.

Σ =

∑

i=1

− µ)

− µ) + λI, where λI is the non-

negative regularization added to the diagonal of the

covariance matrix and n is the number of input sam-

ples. After modeling MGM, for a given image (can

be clean or adversarial), compute the probability of

∗

= H(x

∗

) belonging to the clean image distribution

p(y

∗

) =

(2π)

|Σ|

exp(

−1

− µ)

−1

− µ)).

However, in reality, p(y

∗

) is computationally ex-

pensive due to the high dimension (d = 1024) and be-

cause its value is so near to zero, arithmetic underﬂow

results. We re-parameterize the covariance matrix us-

ing Cholesky decomposition to get around these tech-

nical challenges, i.e., Σ = RR

and rewrite the proba-

bility density function into log form:

log p(y

∗

) =

[2 × (

∑

i=1

) + ∥R

−1

∗

− µ)||

+ d log2π]].

Finally, as shown in Figure 2, x

∗

will be detected

as an adversarial image and rejected if log p(y

∗

) is

lower than a threshold. The threshold value is deter-

mined by considering 95% clean images during train-

ing.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

142

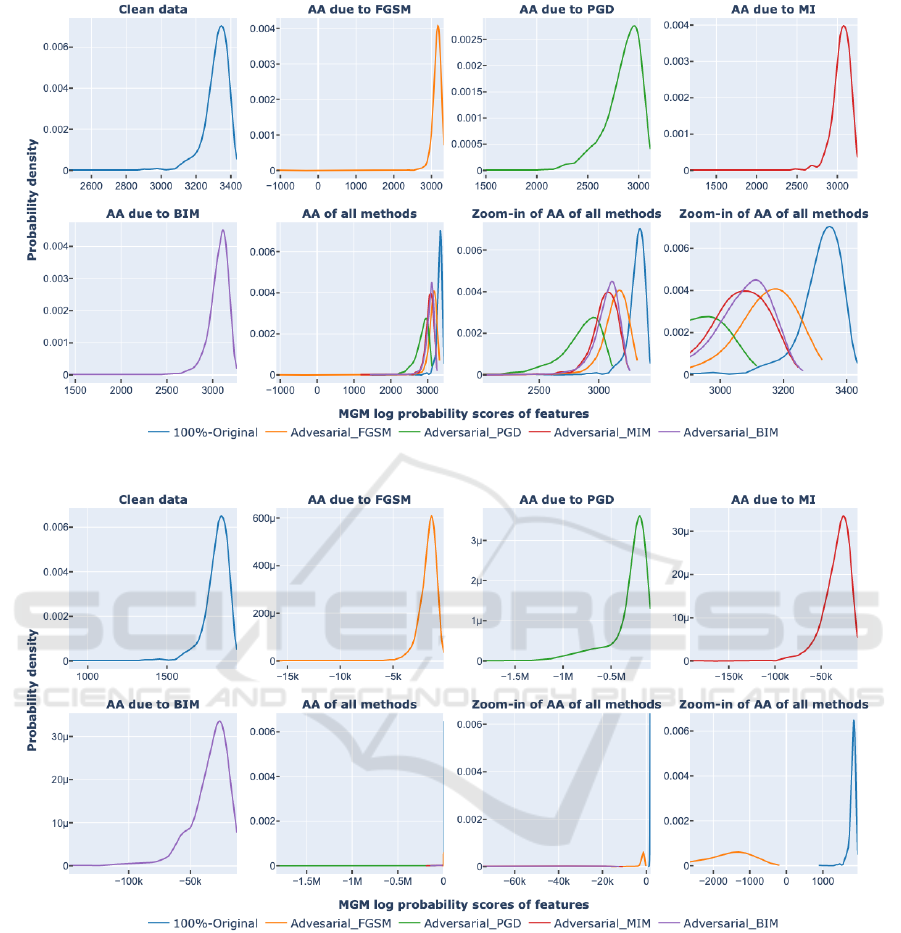

Figure 3: MGM model trained without FNS using 95% clean data (AA - Adversarial Attack) on X-ray dataset.

Figure 4: MGM model trained with FNS using 95% clean data (AA - Adversarial Attack) on X-ray dataset.

4 EXPERIMENTS

We verify the performance of our proposed defense

approach by conducting experiments on a large pub-

lic chest X-ray dataset. The NIH ChestX-ray14

(Goodfellow et al., 2015) contains 112,120 frontal-

view chest X-rays taken from 30,805 patients, where

around 46% images are labeled with at least one of 14

pathologies. The features extracted from the complete

clean training and validation datasets are used for

training and validating our proposed detection mod-

ule. We created an MGM (detection model) with the

features of 95% clean images and extracted the fea-

tures of FGSM, BIM, PGD, and MIM-based adver-

sarial attack images for the whole dataset. For gen-

erating PGD and BIM adversarial attack images, we

ran the iteration count of 7 (7 PGD steps). For gener-

ation MIM adversarial attack images, we considered

a decay factor of 0.1 and an iteration count of 3 (Mo-

handas et al., 2022).

Features Normalisation and Standardisation (FNS): An Unsupervised Approach for Detecting Adversarial Attacks for Medical Images

143

Table 1: F1 score in detecting Adversarial image for X-ray dataset, * refers the results captured from (Li and Zhu, 2020).

Approach Threshold value FGSM PGD MIM BIM

MGM without feature normalization 3260 88.5 92.18 92.13 92.18

MGM with feature normalization (our method) 882 100 100 100 100

Isolation Forest* - 83.8 87.4 87.4 87.4

One class Support Vector Machine* - 87 93.1 93.1 93.1

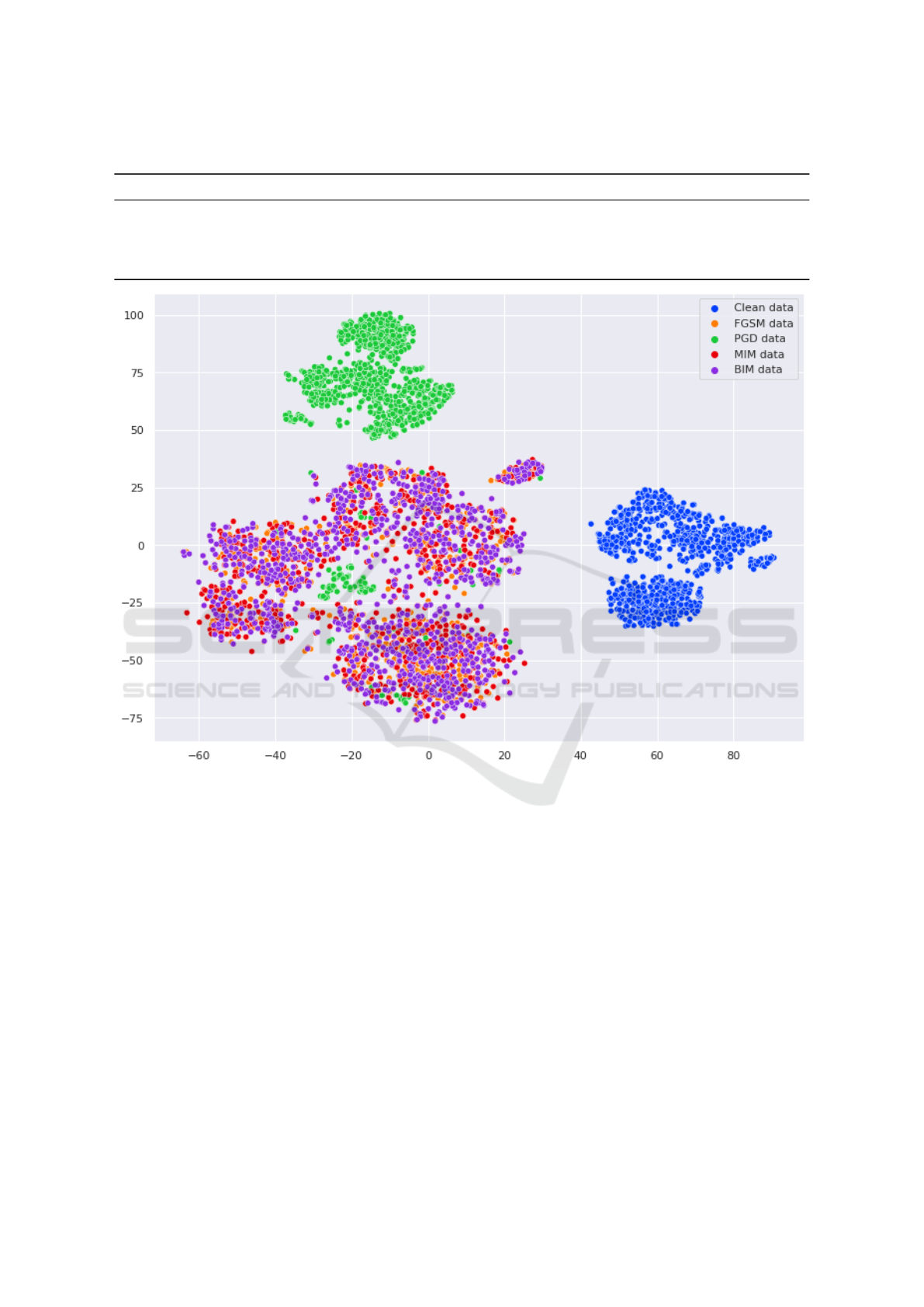

Figure 5: 2D t-SNE visualization of features X-ray images.

Figure 3 shows the distribution of log probability

scores of MGM (trained on the features of 95% clean

images) for the features from clean (100 % originals)

images, FGSM, BIM, MIM, and PGD-based adver-

sarial images. The zoomed-in version of images gives

more clarity about the interference of adversarial at-

tacks on original images. Figure 5 shows the visual-

ization of features extracted before the classiﬁcation

layer of Densenet-121 for Original images, FGSM,

PGD, BIM, and MIM adversarial attacks.

To the best of our knowledge, data normaliza-

tion and standardization are applied at the input level

(layer 0) or the intermediate layer but not on the fea-

tures extracted before the classiﬁcation layer of a neu-

ral network. We extracted the features (1000 features)

just before the classiﬁcation layer of the DenseNet-

121 and performed normalization and standardization

of the features before generating an MGM. In our pro-

posed method, an MGM model is created with the

above normalized and standardized features with 95%

of clean images and randomly tested with 1000 clean

images, FGSM, BIM, MIM, and PGD adversarial at-

tack images. Figure 4 shows the distribution of log

probability scores of above MGM on clean images,

FGSM, BIM, PGD, and MIM attack images. From

the zoomed-in version of the images, it can noticed

that there is no interference of adversarial attack im-

ages on the original images. With a proper threshold

value, we can identify the adversarial images 100%,

as shown in Table 1. All the above experiments are

performed on an Nvidia T4 machine with CUDA Ver-

sion 11.2.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

144

5 CONCLUSIONS

This paper proposes a Feature Normalisation and

Standardisation unsupervised approach for detecting

adversarial images. This is very useful in real-life sce-

narios where it doesn’t require the attacker’s method

or retraining the model. We provide an experimen-

tal comparison of the iterative adversarial attack algo-

rithms on the X-ray dataset. The results show that our

proposed algorithm accurately determines adversarial

images. This can be extended for other medical im-

age datasets where one can use different models than

GMM to model the extracted features.

REFERENCES

Akhtar, N. and Mian, A. S. (2018). Threat of adversarial

attacks on deep learning in computer vision: A survey.

IEEE Access, 6:14410–14430.

Daniels, Z. A. and Metaxas, D. N. (2019). Exploiting visual

and report-based information for chest x-ray analysis

by jointly learning visual classiﬁers and topic models.

Finlayson, S. G., Bowers, J., Ito, J., Zittrain, J., Beam, A.,

and Kohane, I. S. (2019). Adversarial attacks on med-

ical machine learning.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2015). Ex-

plaining and harnessing adversarial examples. CoRR,

abs/1412.6572.

He, X., Yang, S., Li, G., Li, H., Chang, H., and Yu, Y.

(2019). Non-local context encoder: Robust biomedi-

cal image segmentation against adversarial attacks. In

AAAI.

Huang, G., Liu, Z., and Weinberger, K. Q. (2017). Densely

connected convolutional networks. 2017 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 2261–2269.

Kurakin, A., Goodfellow, I. J., and Bengio, S. (2017).

Adversarial machine learning at scale. ArXiv,

abs/1611.01236.

Li, X. and Zhu, D. (2020). Robust detection of adversarial

attacks on medical images. 2020 IEEE 17th Inter-

national Symposium on Biomedical Imaging (ISBI),

pages 1154–1158.

Liang, H., He, E., Zhao, Y., Jia, Z., and Li, H. (2022). Ad-

versarial attack and defense: A survey. Electronics.

Ma, X., Niu, Y., Gu, L., Wang, Y., Zhao, Y., Bailey, J., and

Lu, F. (2021). Understanding adversarial attacks on

deep learning based medical image analysis systems.

Madry, A., Makelov, A., Schmidt, L., Tsipras, D., and

Vladu, A. (2018). Towards deep learning models re-

sistant to adversarial attacks. ArXiv, abs/1706.06083.

Mohandas, S., Manwani, N., and Dhulipudi, D. P. (2022).

Momentum iterative gradient sign method outper-

forms pgd attacks. In ICAART.

Reda, I., Ayinde, B. O., Elmogy, M. M., Shalaby, A. M.,

El-Melegy, M. T., El-Ghar, M. A., El-Fetouh, A. A.,

Ghazal, M., and El-Baz, A. S. (2018). A new cnn-

based system for early diagnosis of prostate cancer.

Shafﬁe, A., Soliman, A., Khalifeh, H. A., Ghazal, M.,

Taher, F., Elmaghraby, A. S., Keynton, R. S., and El-

Baz, A. S. (2019). Radiomic-based framework for

early diagnosis of lung cancer.

Shi, X., Peng, Y., Chen, Q., Keenan, T. D. L., Thavikulwat,

A. T., Lee, S., Tang, Y., Chew, E. Y., Summers, R. M.,

and Lu, Z. (2022). Robust convolutional neural net-

works against adversarial attacks on medical images.

Pattern Recognit., 132:108923.

Taghanaki, S. A., Das, A., and Hamarneh, G. (2018).

Vulnerability analysis of chest x-ray image

classiﬁcation against adversarial attacks. In

MLCN/DLF/iMIMIC@MICCAI.

Xie, C., Wu, Y., van der Maaten, L., Yuille, A. L., and He,

K. (2019). Feature denoising for improving adversar-

ial robustness. 2019 IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

501–509.

Zhang, H. R., Yu, Y., Jiao, J., Xing, E. P., Ghaoui, L. E.,

and Jordan, M. I. (2019). Theoretically principled

trade-off between robustness and accuracy. ArXiv,

abs/1901.08573.

Zheng, Z. and Hong, P. (2018). Robust detection of adver-

sarial attacks by modeling the intrinsic properties of

deep neural networks. In NeurIPS.

Features Normalisation and Standardisation (FNS): An Unsupervised Approach for Detecting Adversarial Attacks for Medical Images

145
