Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer

Yuki Saito

, Hideo Saito

and Vincent Fr

emont

Faculty of Science and Technology, Keio University, Yokohama, Kanagawa, Japan

CNRS, LS2N, Nantes Universite, Ecole Central de Nantes, UMR 6004, F-44000 Nantes, France

Keywords:

Monocular Depth Estimation, Tilted Images, Gravity Prediction, Convolutional Neural Network.

Abstract:

Monocular depth estimation is a challenging task in computer vision. Although many approaches using Con-

volutional neural networks (CNNs) have been proposed, most of them are trained on large-scale datasets

mainly composed of gravity-aligned images. Therefore, conventional approaches fail to predict reliable depth

for tilted images containing large pitch and roll camera rotations. To tackle this problem, we propose a novel

reﬁning method based on the distribution of gravity directions in the training sets. We designed a gravity

rectiﬁer that is learned to transform the gravity direction of a tilted image into a rectiﬁed one that matches

the gravity-aligned training data distribution. For the evaluation, we employed public datasets and also cre-

ated our own dataset composed of large pitch and roll camera movements. Our experiments showed that our

approach successfully rectiﬁed the camera rotation and outperformed our baselines, which achieved 29% im-

provement in abs rel over the vanilla model. Additionally, our method had competitive accuracy comparable

to state-of-the-art monocular depth prediction approaches considering camera rotation.

1 INTRODUCTION

Monocular depth estimation, i.e., predicting a dense

depth map from a single RGB image, is an essential

task that is widely employed in many robotics and au-

tonomous system tasks, such as ego-motion estima-

tion (Tateno et al., 2017; Czarnowski et al., 2020),

robot navigation systems (Yang et al., 2019; Marcu

et al., 2018; Zhang et al., 2019), and augmented re-

ality (Wang et al., 2018; Luo et al., 2020). Re-

cently, depth prediction based on convolutional neural

networks (CNNs) has demonstrated successful per-

formance on many benchmark scores and predicted

plausible depth appearance (Eigen et al., 2014; Laina

et al., 2016; Fu et al., 2018; Godard et al., 2019).

Depth prediction approaches with CNN are gen-

erally trained with large-scale image datasets, which

contain millions of RGB-D image pairs for various

indoor and outdoor scenes (Dai et al., 2017; Silber-

man et al., 2012; Sturm et al., 2012; Geiger et al.,

2013). However, these images are mainly captured

under certain camera motions, which leads to biased

camera pose distributions in the training set.

As a result, conventional depth prediction ap-

proaches fail to estimate reliable depth maps on im-

ages captured under uncommon camera poses, such

as tilted inputs, which include large roll and pitch ro-

tations (Saito et al., 2020; Zhao et al., 2021). For

illustration, Figure 1 shows the distribution of camera

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.000

0.100

0.200

0.300

0.400

0.500

-80 -60 -40 -20 0 20 40 60 80

roll (degrees)

(a) (b)

(a)

(b)

Input

Ground truth Baseline

Ours

Baseline

Pred.error

Figure 1: Distribution bias of camera rotation between the

training set and test set. The horizontal axis shows the roll

rotation angle of the camera (degree), and the vertical axis

shows absolute relative error. The training set distribution

is shown in gray, and the test set distribution is shown in

orange.(a) shows the predicted depth in the upright scene,

and (b) shows the predicted depth in tilted scenes.

rotation along roll directions in the ScanNet dataset

(Dai et al., 2017). The distribution in the train-

ing set is gathered around 0

◦

, and tilted scenes with

large roll rotation are not equally represented in deep

neural networks. Therefore, compared with gravity-

Saito, Y., Saito, H. and Frémont, V.

Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer.

DOI: 10.5220/0011624600003417

In Proceedings of the 18th Inter national Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 5: VISAPP, pages

453-463

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

453

aligned scenes (a), the conventional depth prediction

approach (Baseline) was unable to predict a reliable

depth map on tilted scenes (b), and its prediction er-

ror signiﬁcantly increased. This performance degra-

dation causes a crucial problem in applications for

which body-/robot-mounted cameras are employed

and tilted images are easily captured under unex-

pected control, e.g., mobile AR (Luo et al., 2020) and

UAV (Marcu et al., 2018; Zhang et al., 2019).

To tackle this problem, several works have re-

cently been proposed for monocular depth estima-

tion by introducing camera pose as prior information.

Saito et al. (Saito et al., 2020) and Sartipi et al. (Sar-

tipi et al., 2020) proposed a method to rectify the

in-plane rotation of images with Visual-SLAM (Mur-

Artal and Tard

os, 2017), which enabled more accurate

depth prediction. Also, Zhao et al. (Zhao et al., 2021)

proposed a method to incorporate 2D maps encoded

from camera poses with RGB input as prior knowl-

edge of depth prediction. However, these methods

heavily relied on ofﬂine pose estimation systems or

external sensors, which required high computational

costs or additional equipment, like an inertial mea-

surement unit (IMU).

In this paper, we addressed this challenging task

for depth estimation with tilted inputs leveraging only

RGB information. We hypothesized that gravity di-

rection is an indicator of the global orientation of the

scene, which is a strong prior to depth estimation with

CNNs (Saito et al., 2020; Mi et al., 2022; Do et al.,

2020). We considered that gravity alignment between

the training set and the test set can minimize the do-

main gap between the test set composed of tilted im-

ages and the training set composed of upright images.

To this end, we proposed a gravity rectiﬁer net-

work to learn transformation that warps tilted input

to an upright image so that its gravity direction can

be matched to the dominant direction, where most of

the gravity vectors in the training set are densely dis-

tributed.

Different from previous approaches, our method

does not need highly functional sensors like IMUs or

other back-end systems for camera pose prediction.

Furthermore, as our method does not rely on a par-

ticular backbone of depth estimation network and is

computationally efﬁcient, it can be easily integrated

into a real-time application for scene understanding

(Jiang et al., 2018; Chen et al., 2019) or scene re-

construction (Wang et al., 2018; Laidlow et al., 2019;

Tateno et al., 2017).

For the experiments, we employed not only Scan-

Net (Dai et al., 2017) and NYUv2 (Silberman et al.,

2012) datasets but also recorded a new dataset with

a large roll or pitch camera movement for various in-

door scenes. We evaluated our approach with three

baseline methods, including data augmentation base-

line, and veriﬁed that our gravity rectiﬁer signiﬁcantly

improved depth prediction accuracy qualitatively and

quantitatively. Moreover, we compared our method

with state-of-the-art approaches with camera pose pri-

ors and achieved highly competitive accuracy with

only RGB information.

In summary, our contributions are as follows: (1)

We proposed a gravity rectiﬁer that enables better per-

formance by synthesizing gravity-aligned images for

monocular depth estimation leveraging only RGB in-

formation without any external systems or sensors.

(2) We created a new dataset including large cam-

era rotation along with roll and pitch directions un-

der various indoor scenes. (3) Our proposed method

outperformed our baselines (which achieved 38% im-

provement in abs rel over the vanilla model) and had

comparable accuracy compared with state-of-the-art

approaches.

2 RELATED WORK

2.1 Monocular Depth Estimation

Inferring depth from a single RGB image is an ill-

posed problem as 3D points from multiple depth

planes are projected to the same pixel on the im-

age plane. Conventional approaches originally relied

on stereo vision (Agarwal et al., 2009; Sinz et al.,

2004) or different shading conditions (Zhang et al.,

1999; Suwajanakorn et al., 2015). Recently, CNN-

based depth prediction trained on large-scale datasets

demonstrated promising results and enabled the pro-

duction of reasonable depth maps (Eigen et al., 2014;

Laina et al., 2016; Fu et al., 2018).

Nevertheless, they still have difﬁculties obtaining

accurate depth under extreme circumstances. One

of the main issues is the pure-rotation of the camera

at inference time. Previous work (Dijk and Croon,

2019) analyzed CNN-based depth prediction, which

performed poorly on images captured under unusual

camera poses not included in the training data. To

address this problem, we propose a novel depth pre-

diction technique by reﬁning camera poses to ﬁll the

gap between camera pose distribution in the training

set and test set.

2.2 Gravity Estimation

Predicting gravity direction, i.e., estimating global

scene orientation, is a fundamental task in computer

vision. Conventional works (Lee and Yoon, 2015;

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

454

Mirzaei and Roumeliotis, 2011) have leveraged visual

cues such as vanishing points in indoor scenes to esti-

mate gravity without external sensors like IMUs. Re-

cently, learning-based approaches with deep regres-

sion models have been proposed by employing rich

geometric representations extracted from an RGB im-

age (Olmschenk et al., 2017; Xian et al., 2019). How-

ever, they have relied on the sophisticated network ar-

chitecture of CNN or non-linear geometric optimiza-

tion, which would be difﬁcult for online gravity esti-

mation.

Furthermore, the idea of predicting gravity from

Visual SLAM has been proposed (Saito et al., 2020;

Sartipi et al., 2020; Fei et al., 2019), which has en-

abled more accurate monocular depth estimation or

surface normal estimation. Nevertheless, these meth-

ods require highly functional sensors like IMUs or of-

ﬂine pose estimation backbones.

Unlike previous methods that rely on external sen-

sors or ofﬂine gravity estimation, we propose here

a gravity rectiﬁer network that directly regresses the

gravity direction and can be trained with a depth es-

timation network in an end-to-end manner. Inspired

by the spatial transformer network (Jaderberg et al.,

2015), our network transforms a tilted image with ho-

mography warping induced from 3D rotation parame-

terized by gravity direction, improving the prediction

accuracy of a depth map.

2.3 Rotation-Aware Prediction

Conventional CNN models fail in dense prediction

tasks on images captured in uncommon camera poses,

like tilted inputs. This is mainly caused by distri-

bution bias with the training set and test set, e.g.,

training examples might be collected with minimal

roll and pitch rotations, but the testing environment

where users can control body-/robot-mounted cam-

eras freely might capture images containing large roll

and pitch rotations.

To overcome this issue, Saito et al. (Saito et al.,

2020) and Sartipi et al. (Sartipi et al., 2020) proposed

rectifying roll rotation of tilted images with camera

poses from Visual-SLAM. Also, Zhao et al. (Zhao

et al., 2021) incorporated encoded camera poses from

IMUs into the depth prediction network directly. Nev-

ertheless, they heavily relied on ofﬂine pose estima-

tion systems (SLAM) or external sensors (IMUs),

resulting in high computational costs or additional

equipment.

Moreover, Do et al. (Do et al., 2020) proposed

a new reﬁnement method for tilted images in single-

view surface normal prediction. They transformed

the tilted images to rectiﬁed ones so that their surface

normal distributions could be matched to those of the

gravity-aligned images in the training data.

In this paper, we explore the beneﬁt of spatial

transformation to align tilted images to upright ones.

Our proposed gravity rectiﬁer, which can be trained

in an end-to-end fashion only employed RGB infor-

mation and corrected roll and pitch rotations with ho-

mography warping.

3 PROPOSED METHOD

Figure 2 shows the overview of our proposed net-

works. First, we input tilted images into a gravity es-

timator and predict gravity directions. Second, input

images are warped with a gravity rectiﬁer so that the

estimated gravity directions is matched to the domi-

nant direction of the gravity in the training set. Third,

the rectiﬁed images are input into the depth prediction

network. Finally, we re-warp the output depth map to

the inverse direction so that the predicted depth map

has the same resolution of the original image.

3.1 Gravity Rectiﬁer

Given a tilted image I , we compute the gravity di-

rection via a gravity predictor network formulated as

a regression problem to produce gravity-aligned im-

ages I through a gravity rectiﬁer.

The Gravity prediction network takes as input q ∈

R (I ) and outputs its gravity direction g ∈ R

. Then,

the gravity-aligned image is expressed as Eq.1

I (q) = I (W

(q)) (1)

where W

is the gravity rectiﬁer that warps a tilted

image I to the rectiﬁed image I . Suppose now that K

is the camera intrinsic matrix so the gravity rectiﬁer

is expressed as a homography induced by the camera

rotation like Eq.2.

= KR

−1

(2)

Here, camera rotation R

maps gravity direction g

to dominant direction a ∈ R

, written as Eq.3.

= I

+ [g × a]

1 + a

(3)

is 3 × 3 the identity matrix, and [g × a]

is a

skew-symmetric matrix of g × a. Here, we deﬁne the

dominant direction a = [0, 1, 0]

as a unit vector along

the vertical axis of the camera, where the distribution

of ground truth gravity directions in the training set is

most densely distributed.

Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer

455

Gravity Rectifier 𝒉

𝜽

Rectified image Rectified depthmap Output depthmap

𝑾

𝒈

Warping

Depth Estimation Network 𝒇

∅

Inverse Warping

input image

𝑾

𝒈

"𝟏

Figure 2: The overview of our proposed method. The gravity rectiﬁer h

is learned to predict gravity direction g in the tilted

image. This allows us to warp the tilted image to the rectiﬁed image whose gravity direction matches the gravity distribution

of the training data. The gravity estimation network f

is used to predict the rectiﬁed depth maps and warp back to the tilted

depth maps.

3.2 Network Architecture

We summarized the network architecture of both

gravity rectiﬁer h

and depth estimation network f

in Figure 3.

The gravity rectiﬁer network h

predicts the grav-

ity direction g ∈ R

from tilted image q ∈ R (I ) as in

Eq.4.

(q;I ) = g

(4)

The architecture is built upon Resnet-18 (He et al.,

2016). The last fully connected layer and softmax

function, which was part of the original architec-

ture, are replaced with our novel multilayer percep-

tron (MLP). The MLP is composed of two fully con-

nected layers (128, 3 output channels each) and recti-

ﬁed linear units (ReLU) activation functions, yielding

an output of 3 × 1 gravity vector.

Then, the depth estimation network f

takes

gravity-aligned image q ∈ R (I ) as input and pre-

dicts its corresponding depth map. Our ﬁnal depth

∈ R is obtained by applying an inverse warping of

the gravity rectiﬁer to the predicted depth map, as in

Eq.5.

= v

−1

(q);I

−1

(5)

where R

and W

are deﬁned in section 3.1, and

v = [0, 0, 1]

. We employ U-Net style architecture

(Ronneberger et al., 2015) based on Resnet-50 (He

et al., 2016) for the encoder part. We replaced the

last average pooling and fully connected layers of the

original Resnet-50 architecture with a convolutional

layer and Batch Normalization instead, yielding a fea-

ture map with 1024 output channels. This feature

map is then fed to a decoder part composed of succes-

sive series of bi-linear upsampling and convolutional

layers with their skip connections. The convolution

layer in our decoder applies to the concatenation of

the block after bi-linear upsampling and the block in

the encoder with the same spatial size.

64 × 120 × 160

64 × 60 × 80

256 × 60 × 80

512 × 30 × 40

2048 × 15 × 20

Upsampling layer with bi-linear upsampling

Residual block with Conv2d + Batch Norm + ReLU

MaxPooling + Dropout layer

Rectified image

Rectified depth

64 × 120 × 160

Avg pooling Layer

Input image

graviry dir

512 × 1 × 1

Fully Connected Layer + ReLU

FC 128

FC 3

64 × 60 × 80

𝒈

Gravity Rectifier 𝒉

𝜽

Depth Estimation Network 𝒇

∅

64 × 60 × 80

256 × 15 × 20

512 × 8 × 10

128 × 30 × 40

240 × 320 × 3

240 × 320 × 3 240 × 320 × 3

3 × 1

Figure 3: The architecture of our gravity rectiﬁer and depth

estimation network.

3.3 Loss Function

We learn the parameters of our total networks (φ and

θ) by minimizing the following loss:

L(φ, θ) =

∑

q∈R (I )

) + λL

g) (6)

where

is a ground truth depth map of tilted input

I and

g is a ground truth gravity vector of I . λ is a

scalar parameter balancing both the gravity prediction

network and the depth prediction network.

For gravity predictor network loss L

, we employ

truncated angular loss as proposed in (Do et al., 2020)

to avoid a vanishing gradient around the small angular

error as follows:

g) =







0 (1 − ε ≤ g

cos

−1

g) (0 ≤ g

g < 1 − ε)

− g

g (g

g < 0)

(7)

,where ε = 10

−6

For the depth prediction network loss L

, we

adopt the loss function proposed by (Alhashim and

Wonka, 2018) composed of mean absolute error

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

456

(MAE) and structural similarity (SSIM) (Wang et al.,

2004) loss:

) = γL

MAE

) + L

SSIM

) (8)

where

MAE

) =

∑

−

| (9)

SSIM

) =

1 − SSIM(d

)

(10)

n is the total number of pixels of depth map d

and γ

is a scalar parameter for the MAE term which is set

as γ = 0.1.

4 EXPERIMENTS

4.1 Evaluation Dataset

To evaluate our proposed method, we employed pub-

licly available RGB-D datasets of ScanNet (Dai et al.,

2017) and NYUv2 (Silberman et al., 2012) that are

almost composed of upright scenes. However, these

datasets are not sufﬁcient for evaluating the robust-

ness of our method since they are captured under lim-

ited camera motions containing minimal pitch and roll

rotations. Therefore, we recorded a new dataset com-

posed of tilted scenes at various indoor scenes with

Kinect Azure.

ScanNet (Dai et al., 2017): an RGB-D video dataset

containing a large variety of indoor scenes. We used

the 20,942 images from their standard testing split.

For the ground truth gravity vector, we calculated the

ground plane’s normal direction from semantic labels

and its point cloud.

NYUv2 (Silberman et al., 2012): an RGB-D dataset

captured with MS Kinect V1. We employed a labeled

sequence for testing, which contains 654 image pairs.

We employed accelerometer data in the dataset for the

ground truth gravity vector.

OurDataset: We collected a new free-hand dataset

with Kinect Azure that included 12 different scenes.

Each RGB-D image pair was recorded in the resolu-

tion of 480×640 and ground truth gravity vector from

IMU with 30 frames per second (FPS). Two types of

scenes are collected. (i) Roll-rotated scenes: We ap-

plied strong roll rotation of the camera ranging from

-90

◦

to 90

◦

. We captured 1,520 images composed of

six sequences. (ii) Pitch-rotated scenes: We also cap-

tured images with pitch rotation from -45

◦

to 45

◦

. We

captured 1,717 images composed of six sequences. In

each scene, roll and pitch angles are uniformly dis-

tributed.

4.2 Network Training

We trained our model with a standard train-

ing/validation split of ScanNet (Dai et al., 2017):

189,916 images for training, 53,193 images for vali-

dation. We employed a batch size of 32 and optimized

using Adam (Kingma and Ba, 2015) with a learn-

ing rate of 1.0 × 10

−4

. The model converged after

40 epochs, which takes about 30 hours on a GeForce

RTX 3090 GPU (24 GB of memory). All frames

were resized into resolution 240 × 320. For our loss

function of Eq.6, we used λ = 0.01. The weights of

Resnet-18 and Resnet-50 (He et al., 2016) in both the

gravity prediction network and depth prediction net-

work were initialized with the pre-trained ImageNet

(Deng et al., 2009). Our code, dataset are available

on GitHub

4.3 Evaluation Details

We evaluated our method with baselines quantita-

tively and qualitatively. We set our own baselines:

• ResnetUnet. We trained the depth prediction net-

work described in Section 3.2 without any data

augmentation or pose rectiﬁcation.

• ResnetUnet+AUG. We trained the depth predic-

tion network with data augmentation (AUG) by

synthesizing tilted images with random camera

rotation around the roll and pitch directions. We

applied random roll rotation from -90

◦

to 90

◦

and

pitch rotation from -45

◦

to 45

◦

. Note that this

model does not take rectiﬁed images as input.

• ResnetUnet+IMU. We trained the depth pre-

diction network with gravity-aligned images us-

ing ground truth gravity vectors. We employed

ground plane normal direction as gravity vectors

in ScanNet (Dai et al., 2017).

• ResnetUnet+GR (Ours). We trained the depth

prediction network with gravity rectiﬁer (GR) de-

scribed in Section 3.1.

We also compared our approach with state-of-the-

art methods of monocular depth estimation with cam-

era pose priors.

• Saito et al. (Saito et al., 2020): A training-

free depth prediction approach for roll-rotated

scenes with ofﬂine pose estimation from RGB-

SLAM. For the depth prediction network, we in-

put gravity-aligned images warped from tilted in-

puts with afﬁne transformation. We employed the

https://github.com/WeLoveKiraboshi/DeepTiltedDep

thEstimation

Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer

457

Roll/Seq1

Roll/Seq2

Roll/Seq3

Pitch/Seq4

Pitch/Seq5

Pitch/Seq6

Input

ResnetUnet

Ground truth

ResnetUnet+AUG ResnetUnet+IMU ResnetUnet+GR

1.0

8.0

4.5

2.0

9.0

5.5

1.0

5.5

3.3

1.0

9.0

5.0

1.5

9.5

5.5

0.5

4.0

2.3

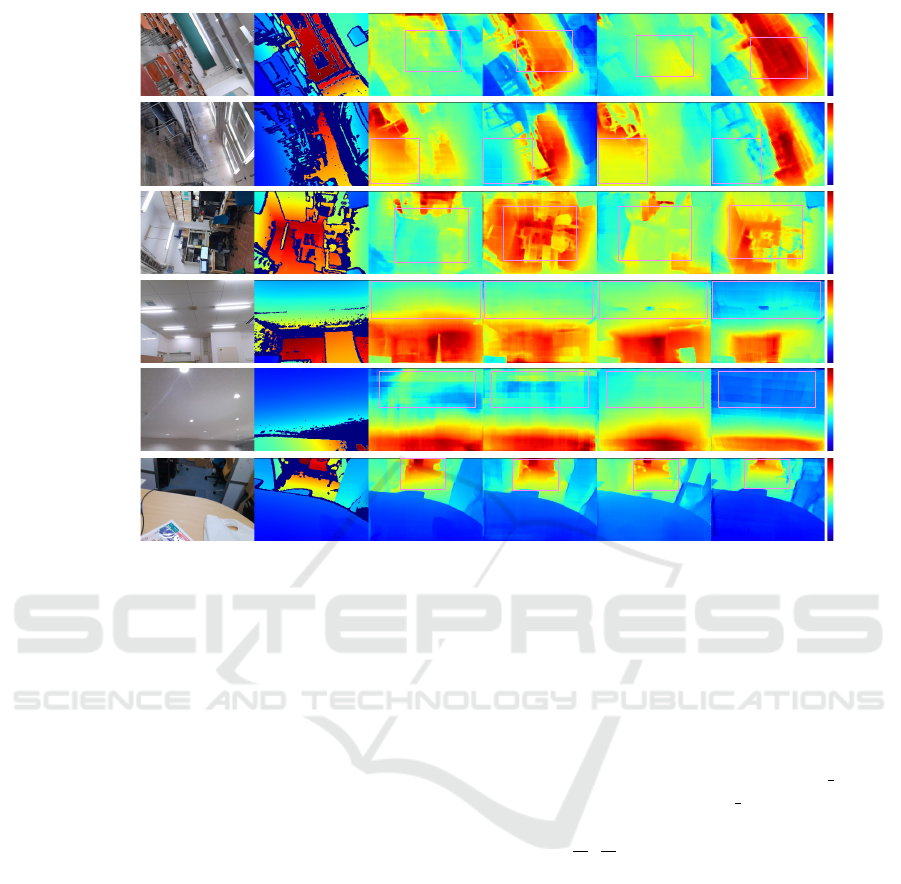

Figure 4: Qualitative results on our test dataset compared with our baseline methods: ResnetUnet, ResnetUnet+AUG, Resne-

tUnet+IMU. Note that the depth pixel colored in red shows that the depth is a large value, and the pixel colored in blue shows

that the depth is a small value.

weight of ResnetUnet trained without any data

augmentation and pose rectiﬁcation.

• Zhao et al.(CPP) (Zhao et al., 2021): A method

to estimate depth from concatenated images of

RGB input and a 2D map encoded from a ground

truth camera pose. We calculated ground truth

pitch angle, roll, angle, and camera height from

the ground plane in ScanNet (Dai et al., 2017).

• Zhao et al.(CPP

pred

) (Zhao et al., 2021): A

method to estimate depth with a 2D map encoded

from a predicted camera pose of CNN. For the

pose prediction network, we employed the same

architecture of our gravity rectiﬁer with Resnet-

18 backbone (He et al., 2016). We initialized the

network weight with ImageNet pre-trained (Deng

et al., 2009). We also applied random augmen-

tation for input: roll rotation ranging from -90

◦

and pitch rotation ranging from -45

◦

to 45

◦

• Zhao et al.(CPP + PDA) (Zhao et al., 2021): A

method to estimate depth with a CPP map and

data augmentation by synthesizing tilted images

with random camera rotation (PDA). We applied

roll rotation ranging from -90

◦

to 90

◦

and pitch ro-

tation ranging from -45

◦

to 45

◦

for augmentation.

4.4 Evaluation Metrics

We evaluated the accuracy of predicted depth

maps with the standard four metrics used in prior

works(Eigen et al., 2014; Alhashim and Wonka,

2018): (a) mean absolute relative error (abs rel), (b)

mean squared relative error (sq rel), (c) root mean

squared error (rmse), (d) threshold accuracy (δ

) for

which max(

) < 1.25

(i = 1, 2, 3), where d

the predicted depths and

is the ground truth depths.

5 RESULTS

5.1 Qualitative Evaluation

Figure 4 shows the qualitative results of our pre-

dicted depth map tested on our test dataset com-

pared with our own baselines (ResnetUnet, Resne-

tUnet+AUG, ResnetUnet+IMU). Although some of

our baselines (ResnetUnet, ResnetUnet+IMU) failed

to estimate a reasonable depth map, especially in

roll-rotated scenes, our predicted depth map (Resne-

tUnet+GR) had a more plausible appearance to

ground truth depth, as well as an augmented model

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

458

Roll/Seq4

Roll/Seq5

Pitch/Seq1

Pitch/Seq2

Input Saito et al.Ground truth CPP CPP+PDA ResnetUnet+GR

Roll/Seq6

Pitch/Seq3

1.5

9.0

5.3

1.5

6.5

4.0

1.5

8.5

5.0

0.5

4.5

2.5

1.0

3.0

1.5

7.5

4.5

Figure 5: Qualitative results on our test dataset compared with state-of-the-art methods: Saito et al. (Saito et al., 2020) and

Zhao et al. (Zhao et al., 2021). Note that the depth pixel colored in red shows that the depth is a large value, and the pixel

colored in blue shows that the depth is a small value.

Table 1: The quantitative results of our method with all baselines on gravity-aligned scenes from test sequences of ScanNet

and NYUv2.

Method

ScanNet NYUv2

abs rel ↓ sq rel ↓ rmse ↓ δ

↑ δ

↑ abs rel ↓ sq rel ↓ rmse ↓ δ

↑ δ

↑

ResnetUnet 0.133 0.068 0.317 0.814 0.951 0.986 0.179 0.154 0.648 0.711 0.917 0.973

ResnetUnet+AUG 0.145 0.078 0.348 0.787 0.943 0.983 0.196 0.180 0.707 0.661 0.891 0.966

ResnetUnet+IMU 0.211 0.134 0.419 0.695 0.900 0.968 0.197 0.176 0.692 0.682 0.904 0.972

ResnetUnet+GR (Ours) 0.132 0.068 0.313 0.818 0.951 0.987 0.171 0.147 0.619 0.734 0.920 0.976

Zhao et al. (CPP) 0.114 0.059 0.274 0.855 0.957 0.986 0.205 0.178 0.686 0.663 0.900 0.971

Zhao et al. (CPP

pred

) 0.136 0.073 0.309 0.824 0.950 0.984 0.176 0.151 0.633 0.725 0.915 0.974

Zhao et al. (CPP + PDA) 0.135 0.073 0.330 0.811 0.947 0.983 0.199 0.186 0.709 0.665 0.897 0.969

(ResnetUnet+AUG). This performance degradation is

caused by a domain gap between the training set and

the test set, i.e., the training set is mainly composed of

gravity-aligned images while the testing tilted images

have large roll and pitch angles.

We also summarized the qualitative results com-

pared with state-of-the-art methods with camera pose

priors tested on our test dataset in Figure 5. Saito

et al. (Saito et al., 2020) which rectify tilted inputs

with RGB-SLAM, seemed to make erroneous pre-

dictions in large pitch-rotated scenes since they only

considered the rectiﬁcation of roll rotation with 2D

afﬁne transformation. On the other hand, Zhao et

al. (CPP, CPP+PDA) (Zhao et al., 2021) seemed to

predict a more reliable depth map in both roll- and

pitch- rotated scenes due to its strong prior of ground

truth camera poses. While these prior works com-

pletely relied on external sensors or systems like IMU

and SLAM, our proposed method (ResnetUnet+GR)

successfully produced visually improved results even

though we only employed RGB information for pre-

diction.

5.2 Quantitative Evaluation

Table 1 shows the quantitative results of our proposed

method evaluated on gravity-aligned scenes from test

sequences of ScanNet (Dai et al., 2017) and NYUv2

(Silberman et al., 2012) datasets. We observed that

all networks performed excellently on unseen gravity-

aligned frames in ScanNet, as the dataset contains

sufﬁcient scene diversity. Our proposed method

(ResnetUnet+GR) slightly underperformed compared

to Zhao et al. (CPP) due to the lack of ground truth

Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer

459

Scannet (train)

OurDataset Roll rotated scenes (test)

Scannet (train)

OurDataset Pitch rotated scenes (test)

0.5

1.5

0.1

0.2

0.3

0.4

0.5

-80 -60 -40 -20 0 20 40 60 80

abs_rel

Roll angle (degree)

ResnetUnet+GR(Ours) ResnetUnet ResnetUnet+AUG ResnetUnet+IMU

0.3

0.6

0.9

1.2

-80 -60 -40 -20 0 20 40 60 80

abs_rel

Pitch angle (degree)

ResnetUnet+GR(Ours) ResnetUnet ResnetUnet+AUG ResnetUnet+IMU

0.5

1.5

0.1

0.2

0.3

0.4

0.5

-80 -60 -40 -20 0 20 40 60 80

abs_rel

Roll angle (degree)

ResnetUnet+GR(Ours) Saito et al. Zhao et al. (CPP) Zhao et al. (CPP+PDA)

0.3

0.6

-80 -60 -40 -20 0 20 40 60 80

abs_rel

Pitch angle (degree)

ResnetUnet+GR(Ours) Saito et al. Zhao et al.(CPP) Zhao et al.(CPP+PDA)

Figure 6: The correlation between the rotation angle of the camera pose and absolute relative error (abs rel) was evaluated

on our test dataset. The horizontal axis shows the ground truth camera rotation angle (roll/pitch), and the vertical axis shows

the abs rel value. Camera pose distribution in the training set is shown in gray, and the distribution in the test set is shown in

orange.

camera pose information and suffering from a predic-

tion on the feature-less part of the scene, e.g., ﬂoor

and walls. Nevertheless, our method outperformed

all baselines in NYUv2. Since the scenes in NYUv2

contained rich geometric features rather than Scan-

Net, our depth prediction network realized reasonable

prediction.

For tilted scenes, we summarized the quantitative

results of our proposed method evaluated on our test

dataset in Table 2. Our proposed method shows excel-

lent performances compared to our baselines on both

roll- and pitch-rotated scenes with unseen large cam-

era rotation, e.g., the percentage drop in abs rel for

ResnetUnet (by 29%), ResnetUnet+AUG (by 15%),

ResnetUnet+IMU (by 33%). Our method also sig-

niﬁcantly outperformed other state-of-the-art meth-

ods (Saito et al., 2020; Zhao et al., 2021) on roll-

rotated scenes, though these methods heavily relied

on ground truth camera poses from IMU or ofﬂine

camera pose estimation like SLAM. In pitch-rotated

scenes, our proposed method achieved on-par perfor-

mance with Zhao et al.(CPP, CPP+PDA) (Zhao et al.,

2021). There are two main explanations for this fact:

First, the distribution gap between the pitch rotation

of the training set and the test set was less dissoci-

ated than for roll-rotated scenes. Second, Zhao et

al. (Zhao et al., 2021) employed ground truth cam-

era poses for their prediction while we only leveraged

image frames with RGB information.

We also summarized the relationship between

camera rotation angle and the error rate on roll- and

pitch- rotated scenes from our dataset in Figure 6. As

can be seen in the left column of Figure 6, the errors

around where the training set distribution is densely

populated do not show any difference between our

method vs. the baselines. However, in larger rota-

tion angles, even though the errors of the baselines

increased, the error of our proposed method does not

depend on rotation angles, which shows the effective-

ness of our proposed method.

5.3 Network Efﬁciency

We ﬁnally compared our proposed method (Resne-

tUnet+GR) with other baselines in terms of the num-

ber of parameters, actual memory consumption, num-

ber of ﬂoating operations (FLOPS), and inference

time as summarized in Table 3. Although our pro-

posed method performed 1.3x larger memory con-

sumption with the vanilla model (ResnetUnet), due

to the additional network parameter of gravity recti-

ﬁer, we achieved 66.8 FPS for our prediction, which

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

460

Table 2: The quantitative results of our method with all baselines on our test dataset on roll- and pitch-rotated scenes.

Method

Roll-rotated scenes

rgb imu SLAM abs rel ↓ sq rel ↓ rmse ↓ δ

↑ δ

↑

ResnetUnet X 0.317 0.976 2.266 0.476 0.584 0.661

ResnetUnet+AUG X 0.216 0.476 1.563 0.551 0.731 0.871

ResnetUnet+IMU X 0.299 0.881 2.219 0.481 0.582 0.673

ResnetUnet+GR (Ours) X 0.166 0.286 1.101 0.698 0.885 0.955

Saito et al. X X 0.262 0.622 1.663 0.568 0.567 0.567

Zhao et al. (CPP) X X 0.299 0.877 2.136 0.472 0.602 0.688

Zhao et al. (CPP

pred

) X 0.290 0.856 2.098 0.507 0.617 0.696

Zhao et al. (CPP + PDA) X X 0.219 0.424 1.495 0.551 0.748 0.883

Method

Pitch-rotated scenes

rgb imu SLAM abs rel ↓ sq rel ↓ rmse ↓ δ

↑ δ

↑

ResnetUnet X 0.217 0.364 1.265 0.568 0.770 0.905

ResnetUnet+AUG X 0.230 0.398 1.308 0.561 0.743 0.872

ResnetUnet+IMU X 0.267 0.430 1.360 0.502 0.719 0.885

ResnetUnet+GR (Ours) X 0.213 0.334 1.195 0.571 0.783 0.934

Saito et al. X X 0.320 0.616 1.580 0.431 0.432 0.433

Zhao et al. (CPP) X X 0.202 0.346 1.222 0.594 0.780 0.903

Zhao et al. (CPP

pred

) X 0.232 0.379 1.271 0.551 0.722 0.899

Zhao et al. (CPP + PDA) X X 0.200 0.330 1.165 0.582 0.770 0.907

Table 3: Network efﬁciency of our proposed method with all baselines in terms of the number of parameters, memory

consumption, FLOPS, and inference time (FPS with batch size 1). We employed our test dataset including both roll- and

pitch- rotated scenes.

Network Backbone Params Memory (MB) FLOPS(GB) FPS

ResnetUnet+GR (Ours) Resnet-50+Resnet-18 47.5M 190.1 39.5 66.8

ResnetUnet Resnet-50 36.3M 145.1 36.7 94.9

Saito et al. Resnet-50 36.3M 145.1 36.7 53.5

Zhao et al. (CPP) Resnet-50 36.3M 145.2 36.8 73.9

Zhao et al. (CPP

pred

) Resnet-50+Resnet-18 47.5M 190.1 39.6 63.3

is highly sufﬁcient for real-time applications like real

robot navigation systems. Since we did not em-

ploy ofﬂine pose prediction systems like SLAM in

the back-end, we successfully realized our speed-up

(1.25x faster than Saito et al. (Saito et al., 2020)).

5.4 Application to SLAM

To complement our results, we demonstrated the ef-

fectiveness of our proposed depth prediction within

the SLAM applications. We integrated our depth pre-

diction into a CNN-MonoFusion (Wang et al., 2018),

which reconstructed dense 3D maps by integrating

monocular depth estimation with CNN into conven-

tional camera-tracking systems like ORB-SLAM2

(Mur-Artal and Tard

os, 2017).

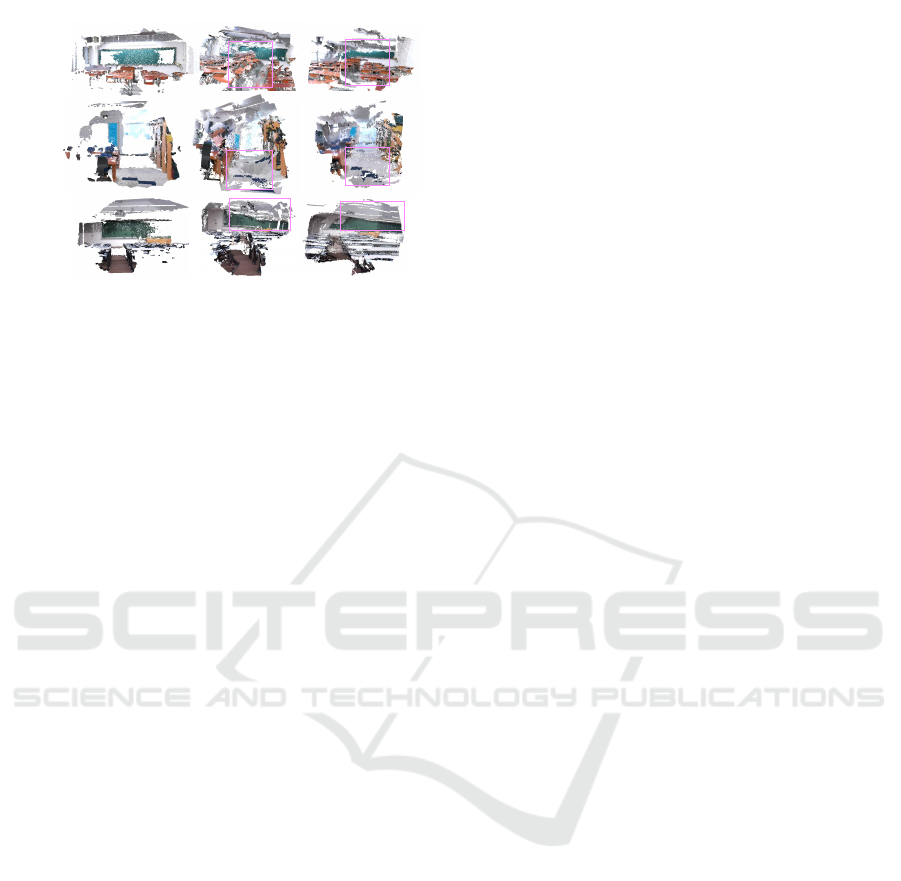

Figure 7 shows the reconstruction result of our

proposed method and other baseline methods tested

on our dataset with roll- and pitch- rotated scenes.

As it can be seen, our proposed model (Resne-

tUnet+GR) successfully yielded more accurate recon-

struction of the scene, compared to the vanilla model

which failed to reconstruct reasonable scene geome-

try (e.g., there is some misalignment in parts of the

ﬂoor in Roll/seq4). The improved accuracy of depth

prediction with our gravity rectiﬁer is not only obvi-

ous in Figure 4, but also in real-time applications like

SLAM. We ﬁgured out our proposed method provide

a more robust system for AR and robotics applica-

tions where users manipulate the device freely and

can cause signiﬁcant camera orientation.

6 CONCLUSION

In this paper, we proposed a gravity rectiﬁer, a novel

rectiﬁcation approach to improve the accuracy of

monocular depth estimation for tilted images, lever-

aging only RGB information. Our gravity rectiﬁer

is learned to transform a tilted image into a gravity-

aligned image and can be trained jointly with the

depth estimation network in an end-to-end fashion.

To show the effectiveness of our method, we evalu-

ated our method both qualitatively and quantitatively

using our own dataset with large roll and pitch cam-

era rotations. The results showed that our approach

signiﬁcantly outperformed baselines, including data

augmentation, and has competitive accuracy as well

Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer

461

Roll/seq1

Roll/seq4

Ground truth ResnetUnet ResnetUnet+GR(Ours)

Pitch/seq1

Figure 7: Dense reconstruction result of CNN-MonoFusion

(Wang et al., 2018) evaluated on our test dataset. From left

to right: result with ground truth depth, predicted depth

from ResnetUnet, predicted depth from ResnetUnet+GR

(Ours).

as state-of-the-art methods with external sensor or of-

ﬂine pose estimation systems.

ACKNOWLEDGEMENT

This work was conducted on JEMARO (Japan-

Europe Master on Advanced Robotics), supported by

IUEP EU-Japan, MEXT and Erasmus+ programme.

REFERENCES

Agarwal, S., Furukawa, Y., Snavely, N., Simon, I., Curless,

B., Seitz, S. M., and Szeliski, R. (2009). Building

rome in a day. In IEEE International Conference on

Computer Vision, pages 72–79. IEEE.

Alhashim, I. and Wonka, P. (2018). High quality monoc-

ular depth estimation via transfer learning. In arXiv

preprint arXiv:1812.11941.

Chen, P.-Y., Liu, A. H., Liu, Y.-C., and Wang, Y.-

C. F. (2019). Towards scene understanding: Unsu-

pervised monocular depth estimation with semantic-

aware representation. In IEEE International Confer-

ence on Computer Vision and Pattern Recognition,

pages 2624–2632. IEEE.

Czarnowski, J., Laidlow, T., Clark, R., and Davison, A. J.

(2020). Deepfactors: Real-time probabilistic dense

monocular slam. IEEE Robotics and Automation Let-

ters, 5(2):721–728.

Dai, A., X. Chang, A., Savva, M., Halber, M.,

A. Funkhouser, T., and Nießner, M. (2017). Scannet:

Richly-annotated 3d reconstructions of indoor scenes.

In IEEE International Conference on Computer Vision

and Pattern Recognition, pages 5828–5839. IEEE.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In IEEE International Conference on

Computer Vision and Pattern Recognition, pages 248–

255. IEEE.

Dijk, T. V. and Croon, G. D. (2019). How do neural net-

works see depth in single images? In IEEE Interna-

tional Conference on Computer Vision, pages 2183–

2191. IEEE.

Do, T., Vuong, K., Roumeliotis, S. I., and Park, H. S.

(2020). Surface normal estimation of tilted images via

spatial rectiﬁer. In European Conference on Computer

Vision, pages 265–280. Springer.

Eigen, D., Puhrsch, C., and Fergus, R. (2014). Depth map

prediction from a single image using a multi-scale

deep network. In Advances in Neural Information

Processing Systems, volume 27, pages 2366–2374.

Neural information processing systems foundation.

Fei, X., Wong, A., and Soatto, S. (2019). Geo-supervised

visual depth prediction. IEEE Robotics and Automa-

tion Letters, 4(2):1661–1668.

Fu, H., Gong, M., Wang, C., Batmanghelich, K., and

Tao, D. (2018). Deep ordinal regression network for

monocular depth estimation. In IEEE International

Conference on Computer Vision and Pattern Recogni-

tion, pages 2002–2011. IEEE.

Geiger, A., Lenz, P., Stiller, C., and Urtasun, R. (2013).

Vision meets robotics: The kitti dataset. The Inter-

national Journal of Robotics Research, 32(11):1231–

1237.

Godard, C., Mac Aodha, O., Firman, M., and Brostow,

G. J. (2019). Digging into self-supervised monocular

depth estimation. In IEEE International Conference

on Computer Vision, pages 3828–3838. IEEE.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In IEEE Inter-

national Conference on Computer Vision and Pattern

Recognition, pages 770–778. IEEE.

Jaderberg, M., Simonyan, K., Zisserman, A., et al. (2015).

Spatial transformer networks. In Advances in Neu-

ral Information Processing Systems, volume 28, pages

2017–2025. Neural information processing systems

foundation.

Jiang, H., Larsson, G., Shakhnarovich, M. M. G., and

Learned-Miller, E. (2018). Self-supervised relative

depth learning for urban scene understanding. In Eu-

ropean Conference on Computer Vision, pages 19–35.

IEEE.

Kingma, D. P. and Ba, J. (2015). Adam: A method

for stochastic optimization. In IEEE International

Conference on Learning Representations, pages 1–15.

IEEE.

Laidlow, T., Czarnowski, J., and Leutenegger, S. (2019).

Deepfusion: Real-time dense 3d reconstruction for

monocular slam using single-view depth and gradi-

ent predictions. In IEEE International Conference on

Robotics and Automation, pages 4068–4074. IEEE.

Laina, I., Rupprecht, C., Belagiannis, V., Tombari, F., and

Navab, N. (2016). Deeper depth prediction with

fully convolutional residual networks. In IEEE In-

ternational Conference on 3D Vision, pages 239–248.

IEEE.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

462

Lee, J.-K. and Yoon, K.-J. (2015). Real-time joint estima-

tion of camera orientation and vanishing points. In

IEEE International Conference on Computer Vision

and Pattern Recognition, pages 1866–1874. IEEE.

Luo, X., Huang, J.-B., Szeliski, R., Matzen, K., and Kopf,

J. (2020). Consistent video depth estimation. ACM

Transactions on Graphics, 39(4):156–167.

Marcu, A., Costea, D., Licaret, V., P

ırvu, M., Slusanschi,

E., and Leordeanu, M. (2018). Safeuav: Learning to

estimate depth and safe landing areas for uavs from

synthetic data. In European Conference on Computer

Vision Workshops, pages 43–58. IEEE.

Mi, L., Wang, H., Tian, Y., He, H., and Shavit, N. N. (2022).

Training-free uncertainty estimation for dense regres-

sion: Sensitivity as a surrogate. In AAAI Conference

on Artiﬁcial Intelligence. AAAI Press.

Mirzaei, F. M. and Roumeliotis, S. I. (2011). Optimal esti-

mation of vanishing points in a manhattan world. In

IEEE International Conference on Computer Vision,

pages 2454–2461. IEEE.

Mur-Artal, R. and Tard

os, J. D. (2017). Orb-slam2:

An open-source slam system for monocular, stereo,

and rgb-d cameras. IEEE Transactions on Robotics,

33(5):1255–1262.

Olmschenk, G., Tang, H., and Zhu, Z. (2017). Pitch and roll

camera orientation from a single 2d image using con-

volutional neural networks. In IEEE Canadian Con-

ference on Computer and Robot Vision, pages 261–

268. IEEE.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In Medical Image Computing and

Computer-Assisted Intervention, volume 9351, pages

234–241. Springer.

Saito, Y., Hachiuma, R., Yamaguchi, M., and Saito, H.

(2020). In-plane rotation-aware monocular depth

estimation using slam. In International Workshop

on Frontiers of Computer Vision, pages 305–317.

Springer.

Sartipi, K., Do, T., Ke, T., Vuong, K., and Roumeliotis, S. I.

(2020). Deep depth estimation from visual-inertial

slam. In IEEE International Conference on Intelligent

Robots and Systems, pages 10038–10045. IEEE.

Silberman, N., Hoiem, D., Kohli, P., and Fergus, R. (2012).

Indoor segmentation and support inference from rgbd

images. In European Conference on Computer Vision,

pages 746–760. Springer.

Sinz, F. H., Candela, J. Q., Bakır, G. H., Rasmussen, C. E.,

and Franz, M. O. (2004). Learning depth from stereo.

In Joint Pattern Recognition Symposium, pages 245–

252. Springer.

Sturm, J., Engelhard, N., Endres, F., Burgard, W., and Cre-

mers, D. (2012). A benchmark for the evaluation of

rgb-d slam systems. In IEEE International Conference

on Intelligent Robot Systems, pages 573–580. IEEE.

Suwajanakorn, S., Hernandez, C., and Seitz, S. M. (2015).

Depth from focus with your mobile phone. In IEEE

International Conference on Computer Vision and

Pattern Recognition, pages 3497–3506. IEEE.

Tateno, K., Tombari, F., Laina, I., and Navab, N. (2017).

Cnn-slam: Real-time dense monocular slam with

learned depth prediction. In IEEE International Con-

ference on Computer Vision and Pattern Recognition,

pages 6243–6252. IEEE.

Wang, J., Liu, H., Cong, L., Xiahou, Z., and Wang, L.

(2018). Cnn-monofusion: Online monocular dense

reconstruction using learned depth from single view.

In IEEE International Symposium on Mixed and Aug-

mented Reality Adjunct, pages 57–62. IEEE.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P.

(2004). Image quality assessment: from error visibil-

ity to structural similarity. IEEE Transaction on Image

Processing, 13(4):600–612.

Xian, W., Li, Z., Fisher, M., Eisenmann, J., Shechtman, E.,

and Snavely, N. (2019). Uprightnet: Geometry-aware

camera orientation estimation from single images. In

IEEE International Conference on Computer Vision,

pages 9974–9983. IEEE.

Yang, X., Chen, J., Dang, Y., Luo, H., Tang, Y., Liao, C.,

Chen, P., and Cheng, K.-T. (2019). Fast depth predic-

tion and obstacle avoidance on a monocular drone us-

ing probabilistic convolutional neural network. IEEE

Transactions on Intelligent Transportation Systems,

22(1):156–167.

Zhang, R., Tsai, P.-S., Cryer, J. E., and Shah, M. (1999).

Shape-from-shading: A survey. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

21(8):690–706.

Zhang, Z., Xiong, M., and Xiong, H. (2019). Monocu-

lar depth estimation for uav obstacle avoidance. In

IEEE International Conference on Cloud Computing

and Internet of Things, pages 43–47. IEEE.

Zhao, Y., Kong, S., and Fowlkes, C. (2021). Camera pose

matters: Improving depth prediction by mitigating

pose distribution bias. In IEEE International Con-

ference on Computer Vision and Pattern Recognition,

pages 15759–15768. IEEE.

Monocular Depth Estimation for Tilted Images via Gravity Rectiﬁer

463
