Veto: Prohibit Outdated Edge System Software from Booting

Jonas R

ockl

, Adam Wagenh

auser

and Tilo M

uller

FAU Erlangen-N

urnberg, Germany

Hof University of Applied Sciences, Germany

Keywords:

Trusted Execution Environment, Full Disk Encryption, Remote Attestation, Edge Computing.

Abstract:

Edge computing emerges as a trend, forming a link between the Internet of Things and cloud-based services.

Large-scale edge deployments are already in place today in the context of communication network providers

that ofﬂoad more and more tasks to the edge to ensure high ﬂexibility and low latencies. By relying on remote

attestation and disk encryption techniques, we design a novel system architecture that protects conﬁdential

data on edge nodes in the case of device theft. Recent vulnerabilities like Ripple20 and Amnesia:33 show the

consequences and costs of critical security bugs stemming from outdated system software. Thus, we design

our system in a way that a node can derive its decryption key if and only if a trusted remote party (e.g., a

network operator) can verify that it is running the latest software. This is a security feature that prevalent

implementations like Linux’s dm-crypt lack. To secure the early-boot communication, we rely on a trusted

execution environment, hardware ofﬂoading, and Rust device drivers. We prototype our system on two recent

ARMv8 devices and show that the performance overhead (≈ 2%) and the boot delay (1s) are low. Thus, we

believe that our concept is a meaningful step towards more secure future edge devices.

1 INTRODUCTION

Driven by broad applications like home automation,

energy metering, health monitoring, and large-scale

industrial systems, the Internet of Things (IoT) grows

every day. The constantly increasing demand for high

bandwidth, low latencies, and strong privacy fosters

location-aware edge computing models, forming a

link between IoT devices and a cloud service. Edge

computing differs from traditional cloud computing

in the sense that it performs computing at the edge of

the network (e.g., cell towers or distributed “micro”

data centers), closer to the source of the data like IoT

devices (Cao et al., 2020). Large edge computing de-

ployments are in place already today in the context of

communication network providers that deploy more

and more intelligent network elements and ofﬂoad a

variety of tasks to the edge of the network. Edge

nodes process and also store potentially sensitive data

from a growing number of stakeholders (R

ockl et al.,

2021). In the future, a wide variety of data is expected

to be processed on the edge, including but not limited

to data from health monitoring systems, GPS data,

CCTV surveillance streams, autonomous driving sys-

tems, and multiple more.

In contrast to highly-protected cloud data centers,

physical attacks on edge nodes are a realistic sce-

nario because access cannot be limited to authorized

personnel only due to geographic dispersion (Busch

et al., 2019). This results in attack vectors to network

infrastructure like device theft, threatening the data on

edge devices.

The recently published sets of vulnerabilities

named Ripple20 and Amnesia:33 expose a plethora

of critical bugs in widely-used network stacks, with

some of them enabling remote code execution (Kol

and Oberman, 2020; Forescout Research Labs, 2020).

For example, CVE-2020-11901 allows remote code

execution with a forged DNS response. Those inci-

dents clearly show the consequences and costs of crit-

ical vulnerabilities in outdated system software. Most

strikingly, some of the affected devices do not include

an update mechanism to patch the vulnerabilities, ex-

posing the device and, thus, potentially conﬁdential

data to an adversary indeﬁnitely.

While there is research on disk encryption for

user-facing devices like smartphones (Groß et al.,

2021), Full Disk Encryption (FDE) for edge nodes

is rarely dealt with. One challenge is that edge de-

vices need to boot without actively entering a pass-

word during boot. To tackle that challenge, existing

techniques like Microsoft’s Bitlocker, Apple’s File-

Röckl, J., Wagenhäuser, A. and Müller, T.

Veto: Prohibit Outdated Edge System Software from Booting.

DOI: 10.5220/0011627700003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 46-57

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Vault, and Linux’s dm-crypt can rely on a secret pro-

tected by hardware (e.g., by a TPM). Still, an attacker

can steal the device and indeﬁnitely boot the device.

With the stolen device, the attacker has enough time to

try to break into the system via software (jailbreak) or

hardware vulnerabilities and to exﬁltrate conﬁdential

data. For example, the attacker might be able to ex-

ploit a bug in the booted Operating System (OS) via

a logical communication channel (e.g., a serial con-

sole) that was not or not sufﬁciently secured. Even

if the vulnerabilities are ﬁxed by the vendor, there is

no way to ensure that the updates are installed on the

stolen device. Thus, novel anti-theft techniques for

edge infrastructure are to be developed.

Contributions. We design a novel system architec-

ture that protects conﬁdential data on edge nodes in

the case of device theft. A trusted remote party (e.g., a

network operator) can actively decide if a device with

a given software state is allowed to boot the OS.

If the trusted remote party deems the device se-

cure (e.g., by verifying that all recent software up-

dates are installed), the trusted party sends a token

that is required to derive the key for the FDE. This

way, outdated and potentially vulnerable system soft-

ware is not able to derive the FDE key, mitigating data

breaches on stolen edge computing nodes. In sum-

mary, we make the following contributions:

• We design a novel system architecture that binds

booting the OS on edge nodes to the most up-to-

date system software.

• We develop a protocol to securely retrieve a to-

ken from a trusted party during the boot process,

which is used to derive the FDE key.

• We propose and implement several strategies

to isolate an early-boot communication channel

from system resources including key material.

• We prototype our system on two ARMv8-A de-

vices. We evaluate the size of the Trusted Com-

puting Base (TCB) and discuss security.

• We measure the CPU overhead and the boot delay.

2 THREAT MODEL

In our work, we focus on the conﬁdentiality of the

data on edge devices. We require that the communi-

cation interfaces of the device (e.g., PCI, serial con-

sole, and JTAG) are either disabled or protected via

appropriate authentication mechanisms. We assume

that these mechanisms are strong enough to hinder the

adversary from conducting runtime attacks directly at

the site of deployment (e.g., brute-forcing the creden-

tials for a local serial console). We instead focus on

an attacker that steals the device and conducts boot-

time attacks. We identify threats (Ts). In the attacker-

controlled environment, the adversary can read (T1)

and write blocks (T2) by using the storage device’s

interfaces (e.g., a SATA cable or the exposed pins of

an eMMC). The attacker can also mount downgrade

attacks (T3) to the storage. Moreover, the adversary

can conduct cold-boot attacks on external RAM as

well as Direct Memory Access (DMA) attacks (T4).

The adversary can emulate network trafﬁc from and to

the device (T5) and can connect additional peripher-

als (T6). The attacker may also exploit bugs in early-

boot software (T7) akin to jailbreaks (axi0mX, 2019).

However, we assume that the attacker can neither

access on-chip RAM nor extract hardware-protected

secrets by relying on, for example, focused ion

beams (Selmke et al., 2016). These attacks are ex-

pected to be highly intrusive, dependent on the hard-

ware, and costly. Hardware side-channel attacks are

out of scope and we presume that the cryptography

primitives are secure. We assume that the hardware

works according to the corresponding speciﬁcation.

This includes the eMMC Replay-Protected Memory

Block (RPMB) which must never allow access with-

out a valid Message Authentication Code (MAC).

Securing the trusted remote party is out of scope.

We assume a cloud-based server and, thus, a wide

range of existing protection techniques are available.

3 ARM TrustZone

The ARM TrustZone is a Trusted Execution Envi-

ronment (TEE) available on most modern ARMv8-A

CPUs. Two isolated computing domains, the Normal

World (NW) and the Secure World (SW) are intro-

duced (Pinto and Santos, 2019). The NW is also re-

ferred to as Rich Execution Environment (REE). A

CPU status bit, the so-called Non-Secure (NS) bit, en-

codes the world a core currently executes in. The SW

can access resources from the NW but not vice versa.

The NS bit is passed down to the RAM and the periph-

eral buses. A dedicated peripheral, the TrustZone Pro-

tection Controller (TZPC) assigns memory-mapped

peripherals to the SW or the NW. The TrustZone Ad-

dress Space Controller (TZASC) allows partitioning

DRAM into secure and non-secure partitions.

The hardware privilege levels of the CPU are

called Exception Levels (ELs). EL0 is typically used

for applications, EL1 for an OS, and EL2 provides

hardware support for virtualization. Whereas EL0-

EL2 exist in both worlds, EL3, the level with the

highest privilege, only exists in the SW. The so-

called secure monitor runs in EL3, which manages

Veto: Prohibit Outdated Edge System Software from Booting

context switches from and to the SW (ARM Lim-

ited, a), coordinates the power state of the CPU, and

handles ﬁrmware updates (ARM Limited, b). More-

over, it includes a True Random Number Generator

(TRNG) and a trusted boot process with a Chain of

Trust (CoT). Typically, the Root of Trust (RoT) is

stemmed from hardware. The secure monitor runs

on on-chip memory to mitigate cold-boot attacks and

DMA attacks.

The ARM TrustZone with a software stack like

OP-TEE (Linaro Limited, 2022) does neither provide

full disk encryption nor does it allow early-boot re-

mote attestation for autonomously booting systems.

4 DESIGN

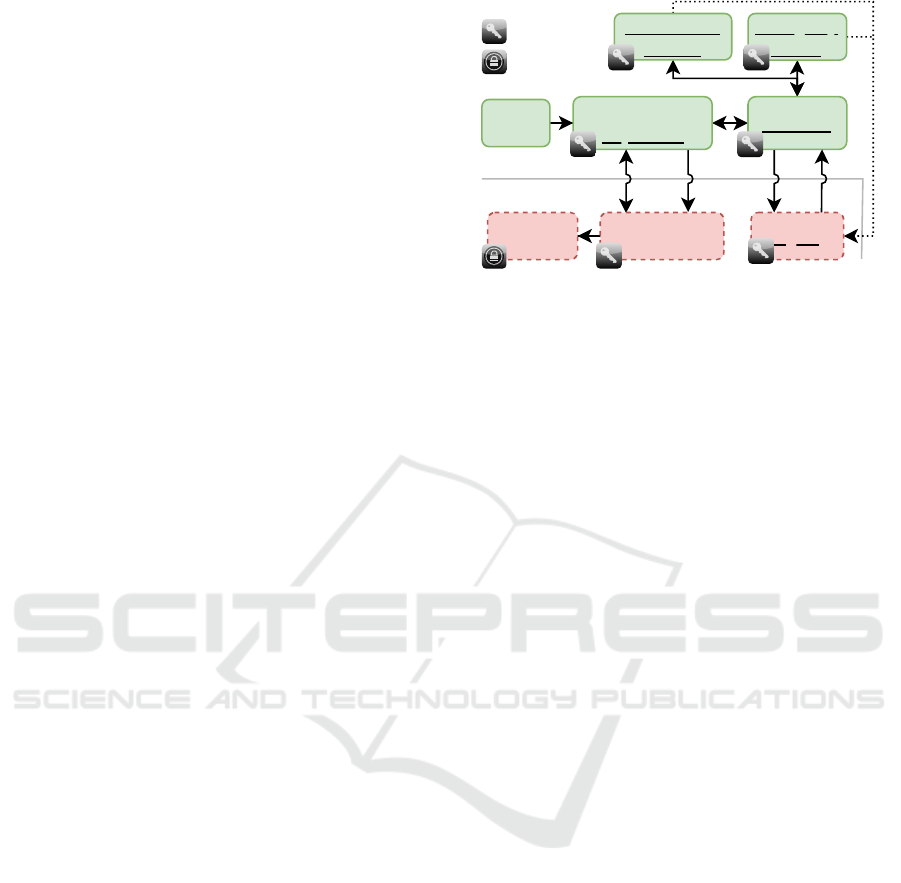

Fig. 1 illustrates the boot process of an edge de-

vice. The underlined components are extensions to

the original boot ﬂow that are gradually explained in

this section. On ARMv8-A, the device boots up in the

TEE. Typically, some vendor-provided software in a

Read-Only Memory (ROM) runs after a device reset

(1). The boot ROM loads and executes some sort of

ﬁrmware (1). Any component after the boot ROM is

signed and only executed after verifying the signature

(secure boot). The signatures can be stored alongside

the components. The hardware is required to support

an RoT that allows storing a public key to verify the

signatures. The public key must be protected from

modiﬁcations. For this reason, some devices support

blowing eFuses to pin the public key. The correspond-

ing private key remains at the trusted remote party.

On a system without our proposed modiﬁcations,

the ﬁrmware directly passes control to the REE (8)

and loads the kernel or a second-stage boot loader. A

kernel binary can include a small ﬁle system (initfs),

which can set up dm-crypt to decrypt the actual root

ﬁle system (rootfs). The REE’s root ﬁle system is en-

crypted with an FDE key. On a conventional system,

this key is derived from a passphrase that needs to be

manually entered before the system boots.

We, however, carefully alter the boot process so

that the device receives a token from a trusted party

during the boot process which is used to derive the

FDE key. We add the following lightweight compo-

nents as an extension to the ﬁrmware:

Governor. The governor is responsible for the coor-

dination of the altered boot process. It is called by the

ﬁrmware (2) and returns to it after execution (7). The

governor supervises the retrieval of a token from the

trusted remote party and derives the FDE key. The

REE can only boot if the rootfs is decrypted. This

depends on deriving the FDE key, which is only pos-

ROM

Firmware +

Key Shield

Kernel +

initfs

rootfs

Governor

Emergency

Switch

Conﬁnement

Module

Agent

REE

TEE

1 2/7

3/6

encrypted

signed

restricts

Figure 1: The boot process. Green components with solid

border are trusted. Red components with dashed border are

untrusted. Underlined components extend the original boot

process. The numbers show the boot order.

sible with the token. Subsidiaries to the governor are

the emergency switch, the conﬁnement module, and

the agent. They are dealt with in the following.

Emergency Switch. A security functionality that pre-

vents an attack on the agent from indeﬁnitely monop-

olizing the device. The emergency switch ensures that

the control ﬂow is passed back to the governor in the

TEE even if the system behaves unexpectedly. One

option to implement the emergency switch is a hard-

ware timer interrupt. Likewise, hardware watchdogs

are widely available (Xu et al., 2019). As a require-

ment, the interrupt may not be prevented by the agent.

Modern TEEs can assign the interrupt or the watch-

dog to the TEE only.

Conﬁnement Module. While the emergency switch

isolates the agent in a temporal fashion, the con-

ﬁnement module does so in a spatial manner. The

conﬁnement module uses hardware-based protection

techniques to securely restrict the agent to certain re-

gions of memory and peripherals.

Agent. The governor activates the emergency switch

and the conﬁnement module (3) before the agent is

called (4). This is because the agent is exposed to a

network-facing attacker and, thus, is considered un-

trusted. The agent communicates with the trusted

party to receive the token. To do so, the agent sets

up a network connection. In this work, we rely on

an external hardware network stack connected to the

edge device (Sec. 5). Subsequently, the agent submits

the token to the governor (5). The governor disables

the conﬁnement module and the emergency switch

again (6). The governor can access a local device se-

cret derived from the RoT of the device. Based on the

local device secret and the token, the governor derives

an FDE key. Finally, the governor passes the FDE key

to the key shield.

Key Shield. In addition to boot ﬂow modiﬁcations,

we add a runtime component called the key shield to

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

the ﬁrmware. We refer to it as a runtime component,

since the REE software can use it after it has booted.

The key shield is similar to a trusted key store (An-

droid, 2022). In contrast, one cannot dynamically add

and remove keys. During the boot process, the key

shield receives the FDE key from the governor. After

initialization, the REE can ask the key shield to con-

duct encryption and decryption with this key (9). Yet,

the key is never directly exposed to the REE.

Trusted Remote Party. Following the edge comput-

ing model (Cao et al., 2020), we assume a trusted re-

mote party (e.g., the network operator) to operate a

cloud-based server that decides whether an edge de-

vice with an attested software state is allowed to de-

crypt the rootfs and boot the REE.

4.1 Remote Attestation

We use static remote attestation similar to related

works (R

ockl et al., 2021; Huber et al., 2020; Xu

et al., 2019). The ﬁrmware calculates an attestation

value A = H(M

||M

||...||M

) where M

, M

, ... M

are measurements of the early-boot software compo-

nents. The attestation value covers the ﬁrmware with

the key shield, the governor, the emergency switch,

the conﬁnement module, the agent, and the kernel bi-

nary including the initfs. We attest the state to prevent

outdated system software from successfully receiving

the token and booting the REE. We do not attest the

state of the encrypted ﬁle system during early boot.

If the use case requires it, one can rely on existing

kernel features like dm-verity to attest the ﬁle system

state after one has booted the REE kernel.

4.2 Key Derivation Protocol

We design a lightweight protocol so that a device D

can retrieve a token T from a trusted remote party P.

The token T is used to derive an FDE key. The design

goals for the protocol are as follows: The protocol

is required to

 ensure the conﬁdentiality of T ,



check the authenticity of D and P, and

 be resistant

to replay attacks. Moreover,

 the protocol needs to

last one Round Trip Time (RTT). This is because the

governor can then prepare a request and pass it to the

agent. Afterward, the agent returns the response to the

governor for veriﬁcation. This way, no cryptography

is needed in the REE. Finally,

 the protocol needs

to add a low amount of code to the TCB. We intro-

duce the following notations. A key pair (K

, K

−1

) of

entity Y consists of a public key K

and a private key

−1

. M

−1

is a message M, signed by Y .

Based on a hardware device secret X, D derives

= H(X||“token”) and X

= H(X||“counter”).

Moreover, D derives a key pair (K

, K

−1

) from

the value H(X||“cert”). P has a unique key pair

, K

−1

) for each device to communicate with. Dur-

ing provisioning, which is assumed to take part in a

safe environment, D gets to know K

. In return, P

receives K

and X

When deployed, the device conducts the following

steps during the boot process:

1. D sends a request req = (A, C, N)

−1

. The term

A is the attestation value that statically remote

attests the state of D (Sec. 4.1). C is a non-

volatile boot counter. We require that C can only

be incremented if one knows X

. We use an

eMMC RPMB (Western Digital, 2017), which is a

hardware-protected partition that only allows au-

thenticated reads and writes. We set the RPMB

key to X

. One can do this only once. N is a

nonce, randomly generated for each req.

2. P veriﬁes the signature of req and decides on

whether D is allowed to decrypt the disk and, thus,

boot the REE. P can base the decision on the soft-

ware state A. Furthermore, P can take the device’s

behavior into account, depending on the speciﬁc

use case. For example, rolling restarts (as indi-

cated by C) might be a sign of tampering. Simi-

larly, a validly signed request from an unexpected

source IP address may indicate a stolen device.

We note that the actual detection of theft could be

improved via sensors and means of surveillance.

This is a research ﬁeld orthogonal to our system.

3. If a device theft (or another form of irregular

behavior) is detected, P does not hand out the

token any longer. The communication aborts

at this point. If the software state A is dep-

recated and, thus, an update mechanism is to

be triggered, P answers with an error err =

(C, N, “deprecated”)

−1

. To permit the boot, P

derives a symmetric key K

from the secret X

Then, P responds with resp = (C, N, E)

−1

. The

encrypted payload E = (T )

consists of the to-

ken T , symmetrically encrypted with K

4. D receives resp or err and veriﬁes both the signa-

ture and the correctness of C and N. In the case of

err, an update mechanism is triggered (Sec. 4.3)

and the protocol concludes at this point. In the

case of resp, D derives K

and decrypts E to re-

trieve the token T .

5. D derives the FDE key as K = H(T ||L) where L =

H(X||“ f de”). The latter binds the FDE key to the

device which is also referred to as sealing.

We sketch reasoning on why the protocol fulﬁlls its

design goals. T is encrypted by K

, which is derived

Veto: Prohibit Outdated Edge System Software from Booting

from X

. Only P and D know X

. On D, X

and X

never leave the TEE, and P is trusted. Thus,

 holds.

Every message is signed by K

−1

or K

−1

. The private

keys are only known to P and D. On D, K

−1

never

leaves the TEE, nor does X. Thus,

 holds.

In terms of replay attacks, one needs to distinguish

between (a) injecting a previous or foreign message to

a protocol run and (b) delaying a message, i.e., the in-

tended party receives the unaltered message later than

usual (Syverson, 1994).

We ﬁrst analyze (a). Messages from or to one de-

vice cannot be replayed to another because each de-

vice has a unique key pair and P has a unique key pair

for each device. Moreover, replaying a req from a for-

mer boot cycle of the device to P is not possible. This

is because P stores the last value of C. A req with a C

lower than the remembered is dropped. While replay-

ing a req from the current boot cycle to P is possible

technically, the net effect does not change. P has al-

ready decided on a req with these particular values

of A and C in the past and returns the same resp or

err. Replaying resp or err to D is not possible. This

is because the internal value of N changes as soon as

a response is received. A replayed resp has a depre-

cated N and does not pass the check in the governor.

Delaying a message (b) includes intercepting, re-

pressing the original communication, and sending the

unaltered message later on. We distinguish between

an attack that involves device theft and one without.

Delaying a req or resp without a device theft can

lead to a Denial of Service (DoS) which we deal with

in Sec. 4.4. Including device theft, an attacker can

intercept a req and suppress further communication.

Subsequently, the adversary steals the device and for-

wards req to P in the attacker-controlled environment,

trying to receive a valid resp. However, this is only

possible if the governor’s internal values of C and

N do not change during the theft. In other words,

the device must not reboot while being stolen. If it

does, however, C is increased and N is regenerated. A

resp with a lower value of C or a differing nonce is

not accepted. This work focuses on boot-time attacks

(Sec. 2). Stealing a device without rebooting is seen

as a runtime attack, which is out of scope. In light of

this analysis, we conclude that the protocol is resistant

to replay attacks (

).

An integer wrap-around of C allows attacking the

protocol. The adversary steals the device and reboots

it until the counter equals the value that was last ac-

cepted by P. Subsequently, D sends a valid req, an-

swered with a valid resp. Since the counter is only

increased during a reboot, the increment is tied to a

certain duration. We propose to use a counter of a size

so that rebooting the device until the counter wraps

around takes longer than the life span of the device

(e.g., hundreds of years). In Sec. 5, we show that a

64-bit counter is sufﬁcient in our case.

We rely on the shared secret X

and symmetric

cryptography to encrypt T . This is because we want

to keep the TCB small. The key shield already gives

us symmetric encryption. Further, an asymmetric sig-

nature algorithm is required. Generally speaking, one

cannot use asymmetric encryption and signatures in-

terchangeably. To prevent also adding asymmetric en-

cryption, we use the symmetric encryption already in

the TCB. In Sec. 6, we quantify the TCB.

One alternative is not to rely on a token but to de-

rive the FDE key from a device secret only. We de-

liberately refrain from this option. This is because we

rather base the conﬁdentiality guarantees on cryptog-

raphy only instead of the whole TCB incl. cryptog-

raphy. If P decides to prohibit the boot of D from

a point in time onwards (e.g., because a device theft

was detected), even vulnerabilities in the TCB (excl.

cryptography) do not threaten conﬁdentiality. This is

because the required information to derive the FDE

key is simply not physically available on the device.

4.3 Software Update

The trusted party can answer with err, indicating that

the software in state A is deprecated (Sec. 4.2). To

update the early-boot system software, one can rely

on an existing early-boot update mechanism. These

are dealt with extensively in related literature and do

not require a booted OS (Xu et al., 2019; Huber et al.,

2020; R

ockl et al., 2021). Typically, the works imple-

ment a two-phase approach. First, an early-boot net-

work stack retrieves a software update image. During

the execution of the networking stack, other system

components need to be protected. For example, Xu et

al. rely on storage write protection to limit the con-

sequences of early-boot breaches (Xu et al., 2019),

while we propose to use a hardware network stack,

TEE isolation techniques, and memory-safe and type-

safe device drivers to secure the agent (Sec. 5). After

the download, a dedicated component veriﬁes and in-

stalls the update image. They also include some sort

of update trigger to force the reset of fully-booted de-

vices, limiting the time the device can run on depre-

cated system software. We carefully design our archi-

tecture in a way that the mentioned existing early-boot

update mechanisms can be integrated.

4.4 Denial of Service

D may not receive a response from the trusted party if

the communication between D and P is disrupted. In

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

that case, D tries to receive a response from P period-

ically with some reasonable frequency depending on

the use case (e.g., once every minute). If a device theft

has been detected, P rejects further boot processes of

D by aborting the communication.

This might enable a DoS attack for a network-

facing attacker. By hindering the communication be-

tween D and P, the device cannot receive the token

and, thus, cannot boot the REE. While we recognize

that the protocol is not suited for every deployment,

we argue that this is justiﬁable in the domain of large-

scale edge computing. This is for the following rea-

sons. First, we assume that long-standing network-

level attacks and outages can be mitigated directly at

the infrastructure level. This is a valid strategy already

established widely in the literature (Xu et al., 2019;

Huber et al., 2020; R

ockl et al., 2021; Suzaki et al.,

2020). Being close to the network edge (or even at

the network’s edge) fosters a global view of the trafﬁc

and, thus, enables targeted (D)DoS mitigation already

available today (Cloudﬂare Inc., 2022).

In addition to that, the edge computing paradigm

inherently introduces redundancy, mitigating (D)DoS

attacks to the complete system. The edge comput-

ing paradigm relies on failover techniques to ensure

that another device takes over temporarily if one edge

device fails (Yu et al., 2018; Harchol et al., 2020).

Symantec discovered that less than one percent of

the network-based (D)DoS attacks last more than 24

hours (Symantec, 2016; Xu et al., 2019). In light of

this, we deem a temporary failover plausible.

Due to targeted (D)DoS mitigation techniques at

the edge of the network and the inherent redundancy

of the edge computing model, we argue that it is un-

realistic that an attacker is able to attack a signiﬁcant

amount of the available edge devices in large deploy-

ments simultaneously.

5 IMPLEMENTATION

We prototype our approach on a Nitrogen8M develop-

ment board from Boundary Devices with an ARMv8-

A Cortex-A53 CPU, 2GB of external RAM, an 8GB

eMMC with RPMB, and a secure boot implementa-

tion based on eFuses. Due to a missing expansion

card (chip shortage) for the Nitrogen8M, we have not

been able to implement the agent on the Nitrogen8M.

Thus, the agent (Sec. 4) is implemented on a Rasp-

berry Pi 4B with an ARMv8-A Cortex-A72 CPU and

8GB of RAM. With the expansion card, porting the

agent is a pure engineering effort. We use Trusted

Firmware-A (TFA), version 2.2, as an EL3 ﬁrmware.

TFA is a widely deployed reference implementation.

We rely on Linux in the NW. The emergency switch

is implemented with a secure hardware watchdog.

Currently, we do not yet use a hardware-protected

device secret (X, Sec. 4.2) but rely on a hard-coded

value. Yet, a unique chip identiﬁer in an eFuse is

available in hardware on the Nitrogen8M (NXP Semi-

conductors, 2022).

Implementing the Governor. We implement the

governor in C as part of TFA. The conﬁnement mod-

ule and the emergency switch are object ﬁles linked to

the governor. We port the Ed25519 asymmetric sig-

nature algorithm implementation from HACL*, a for-

mally veriﬁed cryptography library, to TFA (Zinzin-

dohou

e et al., 2017). The Nitrogen8M supports the

ARMv8-A instruction set extensions for AES opera-

tions. We port the Linux drivers, mostly written in as-

sembler, for the ARMv8-A AES hardware extensions

to TFA on the Nitrogen8M.

We modify U-Boot SPL, a small component run-

ning after the boot ROM and before the TFA on

the Nitrogen8M, to read and increase a counter (C,

Sec. 4.2) on eMMC RPMB storage with every boot.

As U-Boot SPL uses the eMMC to load the subse-

quent boot stages, only small additions for the RPMB

are required. We use the existing RPMB code in U-

Boot and link it to U-Boot SPL.

The counter C is an unsigned 64-bit value. To

verify that the system is resistant to practical wrap-

around attacks (Sec. 4.2), we evaluate the time the

system needs from device reset to incrementing the

counter. We use the system timer (CNTPCT EL0) to

quantify the execution time of U-Boot SPL and mea-

sure the interval from the initialization of the console

to the increment of the boot counter. This is a lower

bound since neither the boot ROM nor the time be-

fore console initialization is considered. Rebooting

the device 16 times, we measure an average duration

of 0.40492s. Thus, a complete wrap-around takes at

least 23.7 · 10

years, which is practically infeasible.

Implementing the Key Shield. The key shield is im-

plemented as a service in TFA, which offers decryp-

tion and encryption to the NW via Secure Monitor

Calls (SMCs). We rely on minimal-intrusive changes

to the existing AES-XTS implementation in the Linux

kernel. Whenever a so-called alias key is used for an

AES-XTS operation, we do not execute the default

Linux version, but trigger a context switch to the key

shield via an SMC. The key shield operates with the

actual key and returns to the NW. The alias key is not

a secret. This way, we can re-use existing interfaces,

i.e., dm-crypt and LUKS, without further modiﬁca-

tions. On the contrary, we break cryptography if the

alias key equals the actual key by coincidence. We

consider the risk as neglectable in practice.

Veto: Prohibit Outdated Edge System Software from Booting

Implementing the Conﬁnement Module. The agent

is exposed to the NW and, thus, considered untrusted.

Without any further measures, a compromised agent

can take over the NW and interact with every non-

secure peripheral. To prevent this, we grant the agent

access to as few system resources and peripherals as

possible. TFA already initializes the hardware to run

a bare-metal application in the NW. Before the agent

runs, the conﬁnement module conﬁgures the TZPC

(Sec. 3) to deny the NW from accessing any periph-

eral except a hardware network stack. Moreover, the

TZASC restricts the agent to its region in NW RAM.

When the agent returns, the previous conﬁguration is

restored. We implement the conﬁnement module in C

as an extension to TFA.

Implementing the Agent. The conﬁnement module

isolates the agent from the TEE. This section deals

with the strategies on how to reduce the attack surface

from the agent’s perspective.

Network Stack Hardware Ofﬂoading. Software net-

work stacks are complex and error-prone (Kol and

Oberman, 2020; Forescout Research Labs, 2020). To

counter, we deploy a Wiznet W5500 Ethernet shield

as a hardware network stack, connected to the Rasp-

berry Pi via Serial Peripheral Interface (SPI). These

connect Ethernet to a signiﬁcantly less complex logi-

cal communication protocol. While for low-end em-

bedded devices ($3-10) the cost of such a peripheral

might be higher than for the device itself, we argue

that for edge devices ($100+) such a peripheral is rea-

sonable economically. Importantly, they already pro-

vide on-chip implementations of IP, UDP, and TCP.

This means that the network state machines, header

parsing, and fragmentation logic are implemented on

the peripheral. The SPI interface does not carry pack-

ages or datagrams, but payloads only (and some com-

parably simple control messages). We use UDP. This

way, the peripheral does not need to maintain a TCP

state internally, narrowing down the attack surface. If

a network message is dropped, we just resend it after

some time. The hardware network stack adds another

level of isolation to the system. Even if the peripheral

is vulnerable, an attacker still needs to expand their

privileges to the edge device.

Memory-Safe and Type-Safe Agent. To impede the

attacker from expanding their privileges from a po-

tentially vulnerable network stack to the device, the

agent is a bare-metal application written in pure

Rust. Besides the application logic, the agent contains

stripped-down drivers for the SPI controller, the GPIO

controller, and the Ethernet shield. We need GPIO to

conﬁgure and enable the SPI pins initially. A small

subset of the drivers cannot be realized in a memory-

safe fashion. This is because raw pointer access is

Table 1: Evaluation of the TCB Size.

Software Component LoC [N] Binary [B] Relative [%]

U-Boot SPL 46884 64470 70.95

Trusted Firmware-A 12374 98008 18.73

RPMB Driver 354 3226 0.54

Non-Volatile Boot Counter 44 702 0.07

AES-XTS Crypto Ext. 402 3102 0.61

Key Shield 140 794 0.21

Conﬁnement Module 30 220 0.05

Emergency Switch 68 569 0.10

HACL* Ed25519 5609 30112 8.49

Governor 173 1320 0.26

Total 66078 178213 100.00

necessary to communicate with memory-mapped pe-

ripherals. Still, the remaining parts can proﬁt from

memory-safe and type-safe programming, eradicating

memory-corruption vulnerabilities. We use a custom

library to wrap memory-mapped SPI controller regis-

ters to type-safe and memory-safe abstractions. Be-

fore the agent starts, the governor stores req in NW

RAM. Subsequently, the agent transmits req to the

trusted party and receives resp. The agent stores resp

in NW RAM and returns it to the governor via an

SMC. We restrict the SPI communication via pat-

tern matching with the Rust match keyword to those

control messages and payloads that are required. Any

other message is denied. Because of the simple SPI

protocol (especially when compared to IP), we argue

that this makes it more difﬁcult for an adversary to ex-

pand the privileges from the peripheral to the device.

6 SECURITY DISCUSSION

We evaluate the size of TCB and discuss the security.

6.1 Trusted Computing Base

The components of the TCB are listed in Tab. 1. As

a baseline (ﬁrst block), we choose U-Boot SPL and

TFA which are the default software for the Nitro-

gen8M. For determining the Lines of Code (LoC), we

ﬁrst compile the software with debug symbols. Us-

ing readelf (version 2.34), we retrieve the contents

of the .debug line section. This way, we can get

the name of any source code ﬁle that resulted in code

in the binary. We use cloc (version 1.82) to count

the LoC of the ﬁles. For highly-conﬁgurable multi-

platform software like U-Boot and TFA, we deem that

this is a much more appropriate estimation of the lines

in the TCB than counting the LoC of all ﬁles. For de-

termining the binary size, we use size (version 2.34).

To quantify the additions to the TCB (second block),

we use cloc on the source ﬁles of the added compo-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

nent. Moreover, we use size on the added object ﬁle

as an approximation for the binary additions of a com-

ponent. The last row lists the LoC and the binary size

including all extensions. The last column calculates

the relative share based on LoCs.

Although the size of Ed25519 is not neglectable,

HACL* is formally veriﬁed for correctness and mem-

ory safety and is resistant to some types of side-

channel attacks. Therefore, we argue that an expan-

sion of the TCB does not lead to a higher security risk

in that case. In summary, we only add 1211 (1.83%)

unveriﬁed LoC and 5609 (8.49%) formally veriﬁed

LoC to the TCB.

6.2 Attacks and Countermeasures

We summarize potential attacks on our system.

Reading Data (T1). By external access, an attacker

can read out the eMMC. She can access the unen-

crypted binaries of the boot components, i.e., the

boot ROM, the ﬁrmware, the governor, the conﬁne-

ment module, the emergency switch, the agent, and

the kernel binary including the initfs. This does not

pose a threat since no secrets are at risk. She cannot

read the boot counter from the RPMB. This requires

(Sec. 4.2) which we assume to be stored in se-

cure TEE RAM. While she can access the encrypted

rootfs, she cannot decrypt it. The key is either not

physically available on the device or stored in on-chip

TEE RAM. The device secret X (Sec. 4.2) is stored

by specialized hardware (e.g., eFuses), which we as-

sume to withstand an attacker. During runtime, X and

its derivatives like X

are only stored in secure RAM.

Thus, the attacker is not able to derive the encryption

key and no conﬁdential data is leaked.

Writing Data (T2). Secure boot detects modiﬁca-

tions to the early-boot software on eMMC storage.

According to the threat model, changing the RoT is

not possible because it is physically burnt to the de-

vice. While AES XTS is, theoretically, susceptible to

manipulations of the ciphertext, one can additionally

rely on integrity measures like dm-verity or ﬁle sys-

tems with checksums (e.g., ZFS). Thus, overwriting

the ciphertext of the rootfs is not promising. More-

over, the attacker is not able to forge boot counter val-

ues on the RPMB. This is because writing requires

, which never leaves the on-chip TEE RAM.

Downgrade (T3). Downgrading the early-boot soft-

ware to a previous but legitimate state is detected.

This is because we include the attestation value A in

our key derivation protocol (Sec. 4.2). As a conse-

quence, the trusted party can hinder the REE from

booting. Downgrade attacks to the boot counter are

not possible. We require the hardware to work as

speciﬁed (Sec. 2). Thus, one cannot change the boot

counter on the RPMB without knowing X

. Further-

more, replaying previous but legitimate requests to

the RPMB controller is not promising. This is be-

cause every write request and read request also de-

pends on the current state of the RPMB (Western

Digital, 2017). The latter is important since one

could rely on an eMMC sniffer (Tim Hummel, 2017)

to maliciously modify the boot counter otherwise.

This would allow setting the boot counter to the last

value that caused the remote party to hand out the to-

ken and, thus, re-issuing a request to boot into the

REE. The encrypted rootfs is not attested during early

boot (Sec. 4.1). Thus, in the current implementation,

downgrades of the encrypted rootfs are possible. Still,

one can rely on existing features like dm-verity to at-

test the rootfs after one has booted the REE kernel,

and, thus, prevent downgrades to the rootfs.

Memory-Based Attacks (T4). With a cold-boot at-

tack, the adversary can only extract NW fragments

from external RAM. This is because every trusted

component runs on on-chip SW RAM. Still, the at-

tacker can try to mount cold-boot attacks on the agent.

The only secret the agent has indirect access to is the

encrypted token E (Sec. 4.2). The encryption is based

on K

which is never exposed to the NW. DMA at-

tacks are a further possible attack vector. However,

recent ARMv8-A boards can conﬁgure DMA con-

trollers to only allow NW DMA transfers.

Network-Based Attacks (T5). In Sec. 4.2, we ana-

lyze the key derivation protocol regarding the conﬁ-

dentiality of the token, the authenticity of the device

and the trusted party, and the protocol’s resistance to

replay attacks. Besides the protocol, the hardware

network stack might be vulnerable. Exploiting a vul-

nerability (or even replacing the peripheral), an ad-

versary can try to send arbitrary SPI messages to the

CPU. By comparing with a list of allowed SPI mes-

sage patterns, we block unintended communication.

We argue that this makes it difﬁcult for an attacker to

expand their privileges from the SPI peripheral to the

device. But even if the attacker manages to do so, the

agent is still isolated and has no access to secrets. The

interface to the governor accepts only the response as

a ﬁxed-sized parameter, which makes vulnerabilities

at this interface unlikely.

Logical Communication Attacks (T6 − T7). We ar-

gue that it is unlikely for an attacker to hijack the

boot behavior via a logical communication interface

that was not initialized by a driver before. We re-

move drivers that are not strictly required (e.g., USB)

from the TCB. Our stripped-down version of U-Boot

SPL has drivers for UART, I2C, and GPIO. TFA in-

cludes drivers for UART. The serial console prints

Veto: Prohibit Outdated Edge System Software from Booting

logs during boot. However, it only accepts input af-

ter the REE has booted. Thus, we assume that mali-

cious boot-time input is not possible. Both I2C and

GPIO are required to set up the DRAM on the Nitro-

gen8M. We carefully read the code and verify that no

user-provided input is read. Without input, we deem

a modiﬁcation of the boot ﬂow unlikely. Special at-

tention has to be paid to hardware-based debugging

interfaces like JTAG, allowing full access to the hard-

ware including the TEE RAM. At the site of deploy-

ment, we require debugging interfaces to be perma-

nently disabled. Contemporary hardware like the Ni-

trogen8M provides the means to do so.

6.3 Real World Attacks

Cold-boot attacks on keys in RAM are possible (Hal-

derman et al., 2008; Gruhn and M

uller, 2013). For

example, File-Based Encryption (FBE) on Android

was vulnerable (Groß et al., 2021). To mitigate this,

one can store the keys in CPU registers (M

uller et al.,

2011; Simmons, 2011) or use on-chip RAM as we do.

According to CVEDetails, there are currently

2,839 CVEs in the Linux kernel, 34 in U-Boot, and

2 in TFA. Large-scale attacks like Mirai (Anton-

akakis et al., 2017) and Hajime (Herwig et al., 2019)

show that outdated software is a threat to IoT and

edge deployments. Moreover, IoT ransomware has

gained momentum (Xu et al., 2019), showing that at-

tackers increasingly target data on IoT and edge de-

vices. Unfortunately, physical attacks (e.g., device

theft) on large-scale existing edge deployments like

one of communication network providers are hardly

publicly known due to their critical nature. There-

fore, we compare it with jailbreaking smartphones.

Over the last decade, several critical vulnerabilities

enabled jailbreaks. Without claiming completeness, a

few current are CVE-2021-1782, CVE-2021-30883,

CVE-2020-0069, CVE-2019-9467, CVE-2019-9436,

and CVE-2019-8900 (axi0mX, 2019). The latter two

demonstrate the extensive capabilities of vulnerabili-

ties in early-boot software in combination with physi-

cal access. Security bugs in fastboot (a ﬂashing tool

for Android) allowed data exﬁltration (Hay, 2017)

and novel techniques to ﬁnd vulnerabilities in boot-

loaders resulted in several new CVEs (Redini et al.,

2017). While we do not remove vulnerabilities, our

system helps to ensure the conﬁdentiality of the data

after theft and even in presence of said vulnerabili-

ties. As soon as a software state is marked as out-

dated by the trusted party (e.g., because a vulnera-

bility has become public), the REE cannot boot any

longer. Even data exﬁltration by exploiting bootROM

vulnerabilities like Checkm8 (axi0mX, 2019) can be

Table 2: Evaluation of the Crypto Performance.

Experiment Enc. [MiB/s] Dec. [MiB/s]

Linux AES 221.46 ± 3.52 222.12 ± 3.71

Key Shield 218.67 ± 4.26 219.11 ± 4.40

Serpent 31.86 ± 0.07 34.49 ± 0.09

Twoﬁsh 48.93 ± 0.20 50.24 ± 0.19

Adiantum 79.23 ± 0.38 79.24 ± 0.36

mitigated as soon a device theft has been detected and

as long as the cryptography holds. This is because the

trusted party can refuse to hand out the token from

that point in time onward. Thus, the key material is

just not physically available on the device. We antic-

ipate more data-oriented attacks (incl. physical ones)

in the future and argue that our system is a meaningful

step toward a more secure edge infrastructure.

7 EVALUATION

We evaluate the performance costs of the components.

Cryptography Performance. We compare the key

shield to the default Linux AES-XTS-512 implemen-

tation. Tab. 2 shows the results. The overhead of the

key shield consists of trapping to TFA before a cryp-

tography operation and exchanging the key with an

alias key (Sec. 5). The AES-XTS-512 implementa-

tion is ported from Linux. We execute cryptsetup

benchmark (version 2.3.4) on the Nitrogen8M 32

times and calculate the mean and the standard devia-

tion. The benchmark performs the encryption and de-

cryption on 4096-byte blocks directly on RAM, with

no actual storage peripherals involved. The ﬁrst block

shows that the key shield slightly decreases the per-

formance by 1.26 % (encryption) and 1.36 % (decryp-

tion).

The AES-XTS-512 algorithm relies on ARMv8-

A hardware extensions for improved performance,

which is visible when looking at pure software im-

plementations of Serpent, Twoﬁsh, and Adiantum in

the Linux kernel (second block). In light of this, an

overhead of below 2% seems justiﬁable.

Boot Time. We implement the agent on a Raspberry

Pi 4 (Sec. 5). In addition to that, we port the emer-

gency switch and the governor as well. We measure

the boot time to evaluate the costs of retrieving the

token from the trusted party. We use a system timer

(CNTPCT EL0) to measure the time between the start

of the TFA to the execution of the init process of the

initfs (Sec. 4). Our baseline is a system that does nei-

ther retrieve a token nor derive an FDE key. We mea-

sure the retrieval of the token from the same LAN and

on the internet. We boot the device 50 times each and

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

calculate the mean and the standard deviation. In the

same LAN, we determine an overhead of 1.238s on

average. Receiving the token from the internet leads

to 1.253s of average additional boot time. The stan-

dard deviation is ≈ 1.5ms in both cases. Note that the

boot time evaluation does not account for the conﬁne-

ment module. This is because the Raspberry Pi does

neither have a TZASC nor a TZPC. The conﬁnement

module mostly consists of writes to memory-mapped

registers. We assume that it does not signiﬁcantly af-

fect our network-focused evaluation. To verify, we

measure the conﬁnement module’s runtime on the Ni-

trogen8M using the same system timer. Setting up

and tearing down the conﬁnement takes 0.015s each

on average (16 samples), with an insigniﬁcant stan-

dard deviation. We conclude that ≈ 1.3s additional

boot time in total is a realistic approximation. Relying

on the redundancy of the edge computing paradigm,

we deem this boot time increase acceptable.

8 RELATED WORK

There are several streams of related work.

Full Disk Encryption. FDE keys in external RAM

are typically susceptible to cold-boot attacks (Halder-

man et al., 2008; G

otzfried and M

uller, 2013; Gruhn

and M

uller, 2013). M

uller et al. and Simmons im-

plement FDE without relying on external RAM as a

mitigation (M

uller et al., 2011; Simmons, 2011). In

contrast, we use on-chip memory and a TEE to protect

key material. Commercial OSs like Linux (dm-crypt),

Microsoft Windows (Bitlocker), and Apple macOS

(FileVault) support FDE.

File-Based Encryption. Recently, FBE has emerged

as an alternative to FDE (Galindo et al., 2021). Be-

ing able to execute certain functions without a pass-

word (e.g., emergency calls on smartphones) is one

of the main advantages. Groß et al. show that widely-

available implementations leak metadata and key ma-

terial (Groß et al., 2019; Groß et al., 2021). For this

reason, we choose FDE in this paper.

Modiﬁcations to the Boot Process. A stream of work

focusing on system resiliency and secure updates is

most closely related. Xu et al. design a system that

allows remotely recovering from a system compro-

mise (Xu et al., 2019). They rely on a software net-

work stack and storage devices that support hardware

write protection. While Xu et al. assume a remote

adversary, we deal with physical device theft. Huber

et al. design a recovery system for low-end IoT de-

vices (Huber et al., 2020). Quite similar to us, they

use a hardware network stack. They propose software

handlers in the SW as a proxy for critical peripher-

als. We disallow access to critical peripherals during

early boot completely. Suzaki et al. propose a Linux-

based network bootloader to download ﬁle system im-

ages (Suzaki et al., 2020). In contrast, we design our

system to keep the attack surface small. We use a

hardware network stack and design a lightweight pro-

tocol based on UDP. We focus on boot-time attacks

and bind FDE to the most up-to-date system software.

TrustZone-Based Isolation Techniques. The re-

search community proposed several new ways to uti-

lize TEEs for software isolation and protection (Azab

et al., 2014; Guan et al., 2017; Brasser et al., 2019).

While those works focus on runtime isolation of

software components, we adjust the boot process to

achieve remote attestation and FDE key derivation.

Similar to our work, Guan et al. use the TZASC to re-

strict access to RAM regions temporarily (Guan et al.,

2017). We extend this concept to peripherals.

Remote Attestation. Remote attestation is a research

ﬁeld on its own (Kuang et al., 2022). We do not aim to

develop new attestation techniques. Instead, we rely

on existing techniques based on a hardware RoT.

9 LIMITATIONS

Our approach is limited to a boot-time attacker that

steals the device. We assume that the adversary re-

frains from mounting runtime attacks at the site of

deployment. If this does not hold, further attacks are

possible. For example, she can try to take over the

system while the REE runs. Intrusion detection sys-

tems are tailored for that scenario. However, those

are research ﬁelds on their own and are considered

orthogonal to our approach (R

ockl et al., 2021; Liao

et al., 2013). As already dealt with in Sec. 4.4, an

early-boot network stack might hinder availability.

However, being close to the network edge, the device

can be protected by a wide range of existing (D)DoS

defensive techniques (Cloudﬂare Inc., 2022).

10 CONCLUSION

We design a novel system architecture that protects

data on stolen edge nodes. If a theft has been de-

tected, the data on the device remains conﬁdential

as long as the cryptography is secure. We combine

remote attestation and FDE in a way that a trusted

party can ﬁrst assert that the system software on

the device is up-to-date and, second, actively decide

whether the device is allowed to boot. This way, dep-

recated and potentially vulnerable early-boot system

software cannot decrypt the disk - a feature that exist-

Veto: Prohibit Outdated Edge System Software from Booting

ing and widely distributed FDE implementations like

Microsoft’s BitLocker and Linux’s dm-crypt lack.

We implement a prototype of our concept on two

recent ARMv8-A devices. Our evaluation shows that

the overhead is almost neglectable in practice, while

we only add a low amount of unveriﬁed code to the

TCB. Therefore, we believe that our architecture is a

meaningful step towards future edge infrastructure.

ACKNOWLEDGEMENTS

This research was supported by the German Fed-

eral Ministry of Education and Research (BMBF)

as part of the CELTIC-NEXT project AI-NET-

ANTILLAS (“Automated Network Telecom Infras-

tructure with inteLLigent Autonomous Systems”,

orderkennzeichen “16KIS1314”).

REFERENCES

Android (2022). Android Keystore System. https://

developer.android.com/training/articles/keystore. Ac-

cessed 2022-02-06.

Antonakakis, M., April, T., Bailey, M., Bernhard, M.,

Bursztein, E., Cochran, J., Durumeric, Z., Halderman,

J. A., Invernizzi, L., Kallitsis, M., Kumar, D., Lever,

C., Ma, Z., Mason, J., Menscher, D., Seaman, C., Sul-

livan, N., Thomas, K., and Zhou, Y. (2017). Under-

standing the mirai botnet. In Kirda, E. and Risten-

part, T., editors, 26th USENIX Security Symposium,

USENIX Security 2017, Vancouver, BC, Canada, Au-

gust 16-18, 2017, pages 1093–1110. USENIX Asso-

ciation.

ARM Limited. SMC Calling Convention System Soft-

ware on ARM Platforms. https://developer.arm.com/

documentation/den0028/a/. Accessed 2022-02-02.

ARM Limited. Trusted Board Boot Requirements Client

(TBBR-CLIENT) Armv8-A. https://developer.arm.

com/documentation/den0006/latest. Accessed 2022-

02-03.

axi0mX (2019). Open-source jailbreaking tool for many

iOS devices. https://github.com/axi0mX/ipwndfu.

Accessed 2022-03-01.

Azab, A. M., Ning, P., Shah, J., Chen, Q., Bhutkar, R.,

Ganesh, G., Ma, J., and Shen, W. (2014). Hypervi-

sion across worlds: Real-time kernel protection from

the ARM trustzone secure world. In Ahn, G., Yung,

M., and Li, N., editors, Proceedings of the 2014 ACM

SIGSAC Conference on Computer and Communica-

tions Security, Scottsdale, AZ, USA, November 3-7,

2014, pages 90–102. ACM.

Brasser, F., Gens, D., Jauernig, P., Sadeghi, A., and Stapf,

E. (2019). SANCTUARY: arming trustzone with user-

space enclaves. In 26th Annual Network and Dis-

tributed System Security Symposium, NDSS 2019, San

Diego, California, USA, February 24-27, 2019. The

Internet Society.

Busch, M., Schlenk, R., and Heckel, H. (2019). Teemo:

Trusted peripheral monitoring for optical networks

and beyond. In Proceedings of the 4th Workshop on

System Software for Trusted Execution - SysTEX '19.

ACM Press.

Cao, K., Liu, Y., Meng, G., and Sun, Q. (2020). An

overview on edge computing research. IEEE Access,

8:85714–85728.

Cloudﬂare Inc. (2022). Cloudﬂare DDoS Protec-

tion. https://www.cloudﬂare.com/en-au/ddos-de/. Ac-

cessed 2022-04-25.

Forescout Research Labs (2020). How TCP/IP Stacks

Breed Critical Vulnerabilities in IoT, OT and IT

Devices. https://www.forescout.com/company/

resources/amnesia33-how-tcp-ip-stacks-breed-

critical-vulnerabilities-in-iot-ot-and-it-devices/.

Accessed 2022-02-05.

Galindo, D., Liu, J., Stone, C. M., and Ordean, M. (2021).

SoK: Untangling File-based Encryption on Mobile

Devices. arXiv.

otzfried, J. and M

uller, T. (2013). ARMORED: Cpu-

bound encryption for android-driven ARM devices.

In 2013 International Conference on Availability, Re-

liability and Security, ARES 2013, Regensburg, Ger-

many, September 2-6, 2013, pages 161–168. IEEE

Computer Society.

Groß, T., Busch, M., and M

uller, T. (2021). One key to

rule them all: Recovering the master key from ram to

break android’s ﬁle-based encryption. Forensic Sci-

ence International: Digital Investigation, 36:301113.

DFRWS 2021 EU - Selected Papers and Extended Ab-

stracts of the Eighth Annual DFRWS Europe Confer-

ence.

Groß, T., Ahmadova, M., and M

uller, T. (2019). Analyzing

android’s ﬁle-based encryption: Information leakage

through unencrypted metadata. In Proceedings of the

14th International Conference on Availability, Relia-

bility and Security, ARES ’19, New York, NY, USA.

Association for Computing Machinery.

Gruhn, M. and M

uller, T. (2013). On the practicability of

cold boot attacks. In 2013 International Conference

on Availability, Reliability and Security, ARES 2013,

Regensburg, Germany, September 2-6, 2013, pages

390–397. IEEE Computer Society.

Guan, L., Liu, P., Xing, X., Ge, X., Zhang, S., Yu, M.,

and Jaeger, T. (2017). Trustshadow: Secure execution

of unmodiﬁed applications with ARM trustzone. In

Choudhury, T., Ko, S. Y., Campbell, A., and Ganesan,

D., editors, Proceedings of the 15th Annual Interna-

tional Conference on Mobile Systems, Applications,

and Services, MobiSys’17, Niagara Falls, NY, USA,

June 19-23, 2017, pages 488–501. ACM.

Halderman, J. A., Schoen, S. D., Heninger, N., Clarkson,

W., Paul, W., Calandrino, J. A., Feldman, A. J., Ap-

pelbaum, J., and Felten, E. W. (2008). Lest we re-

member: Cold boot attacks on encryption keys. In

van Oorschot, P. C., editor, Proceedings of the 17th

USENIX Security Symposium, July 28-August 1, 2008,

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

San Jose, CA, USA, pages 45–60. USENIX Associa-

tion.

Harchol, Y., Mushtaq, A., Fang, V., McCauley, J., Panda,

A., and Shenker, S. (2020). Making edge-computing

resilient. In Proceedings of the 11th ACM Symposium

on Cloud Computing, SoCC ’20, page 253–266, New

York, NY, USA. Association for Computing Machin-

ery.

Hay, R. (2017). fastboot oem vuln: Android bootloader

vulnerabilities in vendor customizations. In Enck, W.

and Mulliner, C., editors, 11th USENIX Workshop on

Offensive Technologies, WOOT 2017, Vancouver, BC,

Canada, August 14-15, 2017. USENIX Association.

Herwig, S., Harvey, K., Hughey, G., Roberts, R., and Levin,

D. (2019). Measurement and analysis of hajime, a

peer-to-peer iot botnet. In 26th Annual Network and

Distributed System Security Symposium, NDSS 2019,

San Diego, California, USA, February 24-27, 2019.

The Internet Society.

Huber, M., Hristozov, S., Ott, S., Sarafov, V., and Peinado,

M. (2020). The lazarus effect: Healing compromised

devices in the internet of small things. In Sun, H.,

Shieh, S., Gu, G., and Ateniese, G., editors, ASIA CCS

’20: The 15th ACM Asia Conference on Computer and

Communications Security, Taipei, Taiwan, October 5-

9, 2020, pages 6–19. ACM.

Kol, M. and Oberman, S. (2020). Ripple20. https:

//www.jsof-tech.com/wp-content/uploads/2020/06/

JSOF Ripple20 Technical Whitepaper June20.pdf.

Accessed 2022-03-01.

Kuang, B., Fu, A., Susilo, W., Yu, S., and Gao, Y. (2022). A

survey of remote attestation in internet of things: At-

tacks, countermeasures, and prospects. Comput. Se-

cur., 112:102498.

Liao, H.-J., Richard Lin, C.-H., Lin, Y.-C., and Tung, K.-Y.

(2013). Intrusion detection system: A comprehensive

review. Journal of Network and Computer Applica-

tions, 36(1):16–24.

Linaro Limited (2022). Open Portable Trusted Execu-

tion Environment. https://www.op-tee.org/. Accessed

2022-08-17.

uller, T., Freiling, F. C., and Dewald, A. (2011). TRE-

SOR runs encryption securely outside RAM. In 20th

USENIX Security Symposium, San Francisco, CA,

USA, August 8-12, 2011, Proceedings. USENIX As-

sociation.

NXP Semiconductors (2022). Security Reference

Manual for i.MX 8M Dual/8M QuadLite/8M

Quad. https://www.nxp.com/webapp/Download?

colCode=IMX8MDQLQSRM\&appType=

moderatedWithoutFAE.

Pinto, S. and Santos, N. (2019). Demystifying arm trust-

zone: A comprehensive survey. ACM Comput. Surv.,

51(6):130:1–130:36.

Redini, N., Machiry, A., Das, D., Fratantonio, Y., Bianchi,

A., Gustafson, E., Shoshitaishvili, Y., Kruegel, C., and

Vigna, G. (2017). Bootstomp: On the security of boot-

loaders in mobile devices. In Kirda, E. and Risten-

part, T., editors, 26th USENIX Security Symposium,

USENIX Security 2017, Vancouver, BC, Canada, Au-

gust 16-18, 2017, pages 781–798. USENIX Associa-

tion.

ockl, J., Protsenko, M., Huber, M., M

uller, T., and Freil-

ing, F. C. (2021). Advanced system resiliency based

on virtualization techniques for iot devices. In ACSAC

’21: Annual Computer Security Applications Confer-

ence, Virtual Event, USA, December 6 - 10, 2021,

pages 455–467. ACM.

Selmke, B., Heyszl, J., and Sigl, G. (2016). Attack on a

DFA protected AES by simultaneous laser fault injec-

tions. In 2016 Workshop on Fault Diagnosis and Tol-

erance in Cryptography, FDTC 2016, Santa Barbara,

CA, USA, August 16, 2016, pages 36–46. IEEE Com-

puter Society.

Simmons, P. (2011). Security through amnesia: a software-

based solution to the cold boot attack on disk encryp-

tion. In Zakon, R. H., McDermott, J. P., and Lo-

casto, M. E., editors, Twenty-Seventh Annual Com-

puter Security Applications Conference, ACSAC 2011,

Orlando, FL, USA, 5-9 December 2011, pages 73–82.

ACM.

Suzaki, K., Tsukamoto, A., Green, A., and Mannan, M.

(2020). Reboot-oriented iot: Life cycle management

in trusted execution environment for disposable iot

devices. In ACSAC ’20: Annual Computer Security

Applications Conference, Virtual Event / Austin, TX,

USA, 7-11 December, 2020, pages 428–441. ACM.

Symantec (2016). Internet Security Threat Report.

https://docs.broadcom.com/doc/istr-16-april-volume-

21-en. Accessed 2020-05-11.

Syverson, P. F. (1994). A taxonomy of replay attacks. In

Seventh IEEE Computer Security Foundations Work-

shop - CSFW’94, Franconia, New Hampshire, USA,

June 14-16, 1994, Proceedings, pages 187–191. IEEE

Computer Society.

Tim Hummel (2017). FPGA eMMC Reader/Sniffer.

https://timhummel.com/portfolio/fpga

emmc reader

sniffer/. Accessed 2022-08-12.

Western Digital (2017). e.MMC Security Methods. https:

//documents.westerndigital.com/content/dam/doc-

library/en us/assets/public/western-digital/collateral/

white-paper/white-paper-emmc-security.pdf. Ac-

cessed 2022-08-12.

Xu, M., Huber, M., Sun, Z., England, P., Peinado, M., Lee,

S., Marochko, A., Mattoon, D., Spiger, R., and Thom,

S. (2019). Dominance as a new trusted computing

primitive for the internet of things. In 2019 IEEE Sym-

posium on Security and Privacy, SP 2019, San Fran-

cisco, CA, USA, May 19-23, 2019, pages 1415–1430.

IEEE.

Yu, W., Liang, F., He, X., Hatcher, W. G., Lu, C., Lin, J.,

and Yang, X. (2018). A survey on the edge computing

for the internet of things. IEEE Access, 6:6900–6919.

Zinzindohou

e, J. K., Bhargavan, K., Protzenko, J., and

Beurdouche, B. (2017). Hacl*: A veriﬁed modern

cryptographic library. In Thuraisingham, B., Evans,

D., Malkin, T., and Xu, D., editors, Proceedings

of the 2017 ACM SIGSAC Conference on Computer

and Communications Security, CCS 2017, Dallas, TX,

USA, October 30 - November 03, 2017, pages 1789–

1806. ACM.

Veto: Prohibit Outdated Edge System Software from Booting
