Generation of Facial Images Reﬂecting Speaker Attributes and Emotions

Based on Voice Input

Kotaro Koseki, Yuichi Sei

, Yasuyuki Tahara

and Akihiko Ohsuga

The University of Electro-Communications, Tokyo, Japan

Keywords:

Multimodal Learning, Deep Learning Machine Learning, CNN, VAE.

Abstract:

The task of “face generation from voice” will bring about a signiﬁcant change in the way voice calls are made.

Voice calls create a psychological gap compared to face to face communication because the other party’s

face is not visible. Generating a face from voice can alleviate this psychological gap and contribute to more

efﬁcient communication. Multimodal learning is a machine learning method that uses different data (e.g.,

voice and face images) and is being studied to combine various types of information such as text, images, and

voice, as in google’s imagen(Saharia et al., 2022). In this study, we perform multimodal learning of speech

and face images using a CNN convolutional speech encoder and a face image variational autoencoder (VAE:

Variational Autoencoder) to create models that can represent speech and face images of different modalities

in the same latent space. Focusing on the emotional information of speech, we also built a model that can

generate face images that reﬂect the speaker’s emotions and attributes in response to input speech. As a result,

we were able to generate face images that reﬂect rough emotions and attributes, although there are variations

in the emotions depending on the type of emotion.

1 INTRODUCTION

The telephone experience will greatly evolve when it

becomes possible to recognize a person’s face and fa-

cial expressions through voice alone. Currently, video

calling tools such as ZOOM and TEAMS are widely

used in business and academic settings in the wake

of the coronavirus. Thus, video calls are more infor-

mative than voice calls and are effective for quickly

and accurately ascertaining the other party’s inten-

tions. On the other hand, however, video calls are not

used as much as voice calls in everyday situations,

such as a quick phone call with an acquaintance or a

sales call.

One of the reasons why video calls are not rou-

tinely used is that senders ﬁnd it inconvenient or

uncomfortable to have their faces reﬂected in the

camera. To address these obstacles to the use of

video calls, this study proposes a model that gener-

ates face images that reﬂect the speaker’s emotions

from audio information. This model uses a speech en-

coder and a Variational AutoEncoder (VAE)(Kingma

https://orcid.org/0000-0002-2552-6717

https://orcid.org/0000-0002-1939-4455

https://orcid.org/0000-0001-6717-7028

and Welling, 2013) to learn the relationship between

speech and the speaker’s face image, and generates

a face image from speech. Speciﬁcally, the VAE is

ﬁrst trained with the face image as input and output,

and the speech encoder section is trained so that the

features obtained when the speaker’s voice is input to

the speech encoder are similar to the features obtained

from the VAE encoder section when the speaker’s

face image is input to the VAE. By replacing the voice

encoder trained in this way with the encoder part of

the VAE, a face image is generated using the voice

as input. In addition, emotion label information was

added to the features obtained from the face images

by the encoder during VAE training in order to reﬂect

emotion information more strongly in the generated

images. This made it possible to manipulate the facial

expressions in the VAE reconstructed images accord-

ing to the emotion information and generate facial im-

ages that more closely resemble the facial expressions

of the speaker during speech. The task of generat-

ing facial images and facial expressions of a speaker

from speech information has already been realized us-

ing CNN-based models(Zhou et al., 2020)(Oh et al.,

2019)(Ji et al., 2021). However, existing research re-

sults do not include a method to generate a face im-

age that includes the speaker’s attributes and facial ex-

Koseki, K., Sei, Y., Tahara, Y. and Ohsuga, A.

Generation of Facial Images Reﬂecting Speaker Attributes and Emotions Based on Voice Input.

DOI: 10.5220/0011630200003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 2, pages 99-105

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

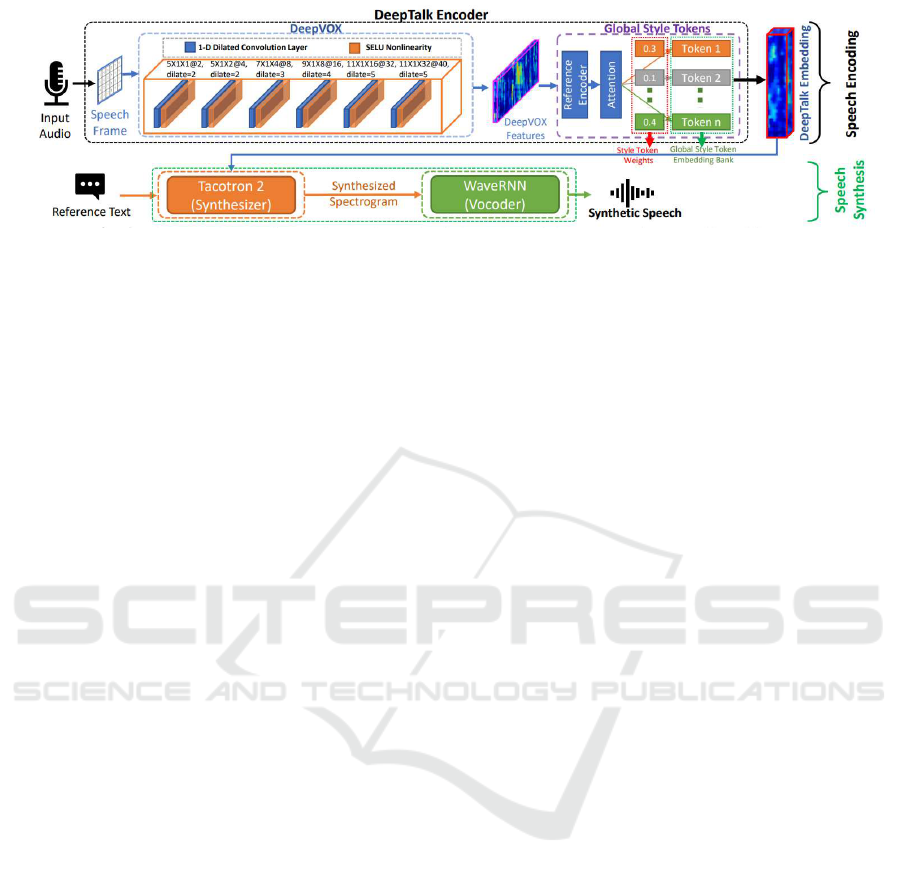

Figure 1: DeepTalk Model Quote from (Chowdhury et al., 2021).

pressions from speech alone, although some of them

generate an average face image of the speaker or gen-

erate facial expressions by predicting landmarks of fa-

cial parts without generating the image itself. There-

fore, the results of this research will enable the real-

ization of a simulated video call experience in which

the receiver can unilaterally check the facial image

including the other party’s facial expressions only by

his/her own will, even if the other party does not ac-

tivate the camera, thereby improving the convenience

of video calls and the quality of the telephone experi-

ence.

This paper is organized as follows. Thereafter,

Section 2 of this paper describes related research, Sec-

tion 3 describes the proposed method, Section 4 de-

scribes the experiments, Section 5 discusses the re-

sults, and ﬁnally Section 6 summarizes the conclu-

sions of this paper and describes future prospects.

2 RELATED WORK

2.1 DeepTalk

DeepTalk(Chowdhury et al., 2021) is a deep learn-

ing speaker recognition and speech synthesis model

presented by Anurag Chowdhury et al. The speech

input to the model is encoded by a CNN and Multi-

Head Attention to obtain speaker-speciﬁc speech fea-

tures such as speaker pitch, voice color, and speaking

habits. The speech features extracted by the encoder

successfully improve the robustness and accuracy of

the speaker recognition task. They are also used for

tasks such as generating synthesized speech using the

speech features. A schematic diagram of the model is

shown in Figure 1.

2.2 Variational AutoEncoder

Variational AutoEncoder (VAE)(Kingma and

Welling, 2013) is a model that incorporates the

idea of using random variables calculated from the

distribution of the latent space as an intermediate

representation of AutoEncoder. While general

AutoEncoders often use convolutionally processed

features of input data as latent variables, VAE cal-

culates mean µ and variance σ

for convolutionally

processed features, and latent variable z is obtained

from mean µ and variance σ

. Since the mean µ

and variance σ

are parameters of the distribution of

the latent space z, sampling is necessary to obtain

the latent variable z in VAE. However, sampling

would prevent error back propagation. Therefore,

in VAE, the latent variable z is deﬁned by the fol-

lowing equation, assuming that ε follows a normal

distribution.

z = µ +εσ (1)

ε ∼ N (0, 1) (2)

This makes it possible to pseudo-sample the latent

variable z from its distribution in the latent space and

to perform error back propagation because the latent

variable z is differentiable. In general, the following

equation is used for the loss function.

VAE

(z|X)] = E

qϕ

[logp

(X|z)] − KL[q

(z|X)kp(z)]

(3)

In Equation 3, the ﬁrst term on the right-hand side

is the term used to maximize the log-likelihood of re-

turning the latent variable z to the input image X. In

this study, it was replaced by the mean-square error

to account for semantic similarity. The second term

represents the KL divergence distance from the prior

distribution to the posterior distribution.

3 METHOD

3.1 Overview

First, a schematic diagram of the model for generat-

ing face images from input speech using VAE and a

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

100

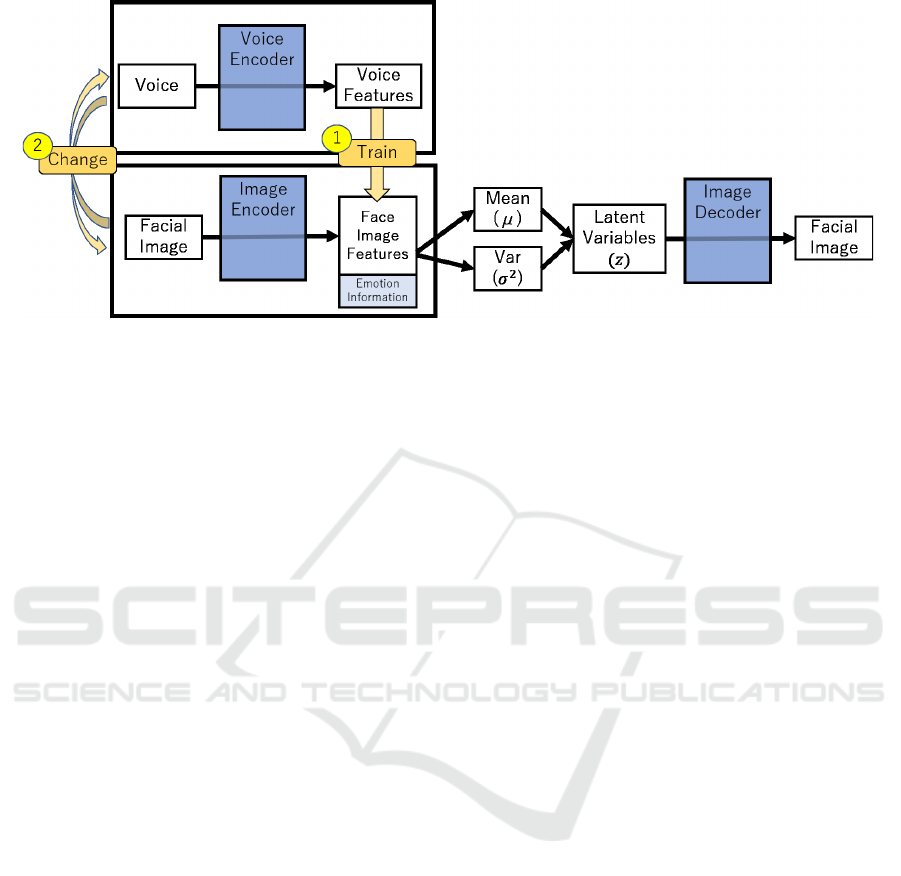

Figure 2: Overall diagram of the proposed method.

voice encoder is shown in Figure 2. In this study, we

ﬁrst create a VAE model that can reconstruct the same

face image as the input face image. Next, the voice

encoder is trained to be able to extract the same fea-

ture values for the face features output by the encoder

of the VAE model when the voice corresponding to

the face image is input. This means that the voice

features obtained when a speaker’s voice is input to

the voice encoder are similar to the facial features ob-

tained when the speaker’s face image is input to the

encoder of the VAE model. Therefore, by calculating

the latent variable z from the output of the voice en-

coder and decoding it using the decoder of the VAE

model, a face image of the speaker corresponding to

the input voice can be generated. The following sec-

tions 3.2 and 3.3 describe the structure of the VAE

and voice encoder models used and the advantages of

using each model, while section 3.4 describes the la-

beling process used to strongly express the emotional

information in the reconstructed images.

3.2 VAE

VAE and Generative Adversarial Network

(GAN)(Goodfellow et al., 2020) are the main

models that output images in response to input. In

this study, we used VAE among image generation

models, focusing on the property of AutoEncoder

(AE)(Hinton and Salakhutdinov, 2006) that it can

reconstruct the input image. Unlike ordinary AE,

latent variables in VAE are based on a probability

distribution and are learned using the following

equation 3 generally. Therefore, compared to AE, the

latent space to be learned is continuous. Since it is

impossible to learn all human voices and faces, it is

not always possible to perfectly reproduce a speaker’s

face in response to input speech, but we used VAE

because we expected that this feature of VAE would

allow us to generate a face that is comfortable in

response to input speech.

3.3 Voice Encoder

The DeepTalk model described in 2.1 shows excel-

lent accuracy for the speaker recognition task. In the

speaker recognition task, it is more important to learn

tonal features such as pitch and accentuation well than

the content of each speaker’s speech. In this study,

the encoder part of the DeepTalk model is used as

a speech encoder because learning tonal features is

more important than the content of speech. The spe-

ciﬁc model structure is shown in Table 1. In this

model, the audio waveform is ﬁrst convolved, then the

temporal waveform is convolved, and ﬁnally multiple

attachments are computed and combined by Multi-

HeadAttention to obtain features of the same dimen-

sion as those extracted by the encoder of the VAE

model. By learning between the audio features ob-

tained by this operation and the face image features

output from the VAE encoder, it is possible to learn to

match the output from the VAE encoder of the corre-

sponding face image with the output from the audio

encoder.

3.4 Emotion Label Addition

The purpose of this study is to generate face images

with facial expressions that are not expressionless, but

rather in accordance with the emotional information

in the input audio. Therefore, when training VAE, we

added the emotional information of the input image

to the convolutional features before ﬁnding the latent

variable z. Four emotion labels, Angry, Sad, Happy,

and Neutral, were added to the convolutional features

as 8-dimensional information as shown below.

Generation of Facial Images Reﬂecting Speaker Attributes and Emotions Based on Voice Input

101

• Angry: 00000011

• Sad: 00001100

• Happy: 00110000

• Neutral:11000000

Although the four types of information can be

added with a minimum of two digits, eight digits of

information were added in this study. The reason for

this is that 2-digit information has little effect on the

reconstructed image when emotional information is

added, and through experiments, we conﬁrmed that 8-

digit information is optimal considering the trade-off

between the quality of the reconstructed image and

the effect of the emotional label.

Table 1: VoiceEncoder Model.

Input: (batchsize(32) × 1 × 160 × 200)

type kernel size stride dilation output shape

Conv2d 5 × 1 1 × 1 2 × 1 32×2×152×200

SELU 32×2×152×200

Conv2d 5 × 1 1 × 1 2 × 1 32×4×144×200

SELU 32×4×144×200

Conv2d 7 × 1 1 × 1 3 × 1 32×8×126×200

SELU 32×8×126×200

Conv2d 9 × 1 1 × 1 4 × 1 32×16×94×200

SELU 32×16×94×200

Conv2d 11 × 1 1 × 1 5 × 1 32×32×44×200

SELU 32×32×44×200

ZeroPad2d 32×32×51×200

Conv2d 11 × 1 1 × 1 5 × 1 32×40×1×200

SELU 32×40×1×200

type kernel size stride padding output shape

Conv2d 3 × 3 2 × 2 1 × 1 32×32×100×20

BatchNorm2d 32×32×100×20

Conv2d 3 × 3 2 × 2 1 × 1 32×32×50×10

BatchNorm2d 32×32×50×10

Conv2d 3 × 3 2 × 2 1 × 1 32×64×25×5

BatchNorm2d 32×64×25×5

Conv2d 3 × 3 2 × 2 1 × 1 32×64×13×3

BatchNorm2d 32×64×13×3

Conv2d 3 × 3 2 × 2 1 × 1 32×128×7×2

BatchNorm2d 32×128×7×2

Conv2d 3 × 3 2 × 2 1 × 1 32×128×4×1

BatchNorm2d 32×128×4×1

GRU 32×4×200

MultiHeadAttention 32×1×256

Output: (batchsize(32) × 1 × 256

4 EXPERIMENTS

4.1 Dataset

For training data, a dataset consisting of human face

images and corresponding speech utterances is re-

quired. Therefore, we used the Crema-D(Crowd-

sourced Emotional Multimodal Actors Dataset)(Cao

et al., 2014), which is an emotion-labeled actor’s

speech video dataset, composed as follows.

• Number of Speakers : 91

• Male:Female = 48:43

• race : African American, Asian, Caucasian, His-

panic

• Age : 20∼74

• Number of clips : 7442

The following preprocessing was performed on

the video and audio data, since the data required for

this project is not video and audio but a data set of

image and audio. The training and test data were split

at a ratio of 8:2 and used for training.

4.1.1 Video Preprocessing

One face image of the speaker is used for each speech

video. Therefore, it is necessary to select a speciﬁc

frame from the speech video as the face image of

the speaker. Crema-D is a dataset with emotional in-

formation. Therefore, the proposed method selects

the frame in the video that most strongly expresses

the emotion assigned as a label, and adopts it as the

speaker’s face image. The python library dlib(King,

2009) was used to crop each face image so that only

the face area is within the contour, and grayscale

transformation, resizing, and normalization were per-

formed.

4.1.2 Voice Preprocessing

The sampling frequency of the voice ﬁles was set

to 8000 Hz. In addition, the proposed method re-

moves silent intervals of one second or longer from

the speech data, since the purpose of this study is to

learn features such as voice tone, not speech content.

In order to match the length of the audio data, the

data length of all data was iterated to be 3.67 sec-

onds, matching the length of the longest data among

the data with the deleted silent segments.

4.2 VAE Training and Generation

Experiment

Based on the proposed method, VAEs were trained in

the following settings.

• Epoch:300

• Learning Rate:0.001

• Input Size: 64*64 pixel

• Optimizer:Adam

• Batch Size:32

The training curve during training and the face images

reconstructed by inputting face images for the trained

VAE are shown in Figures 3 and 4, respectively.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

102

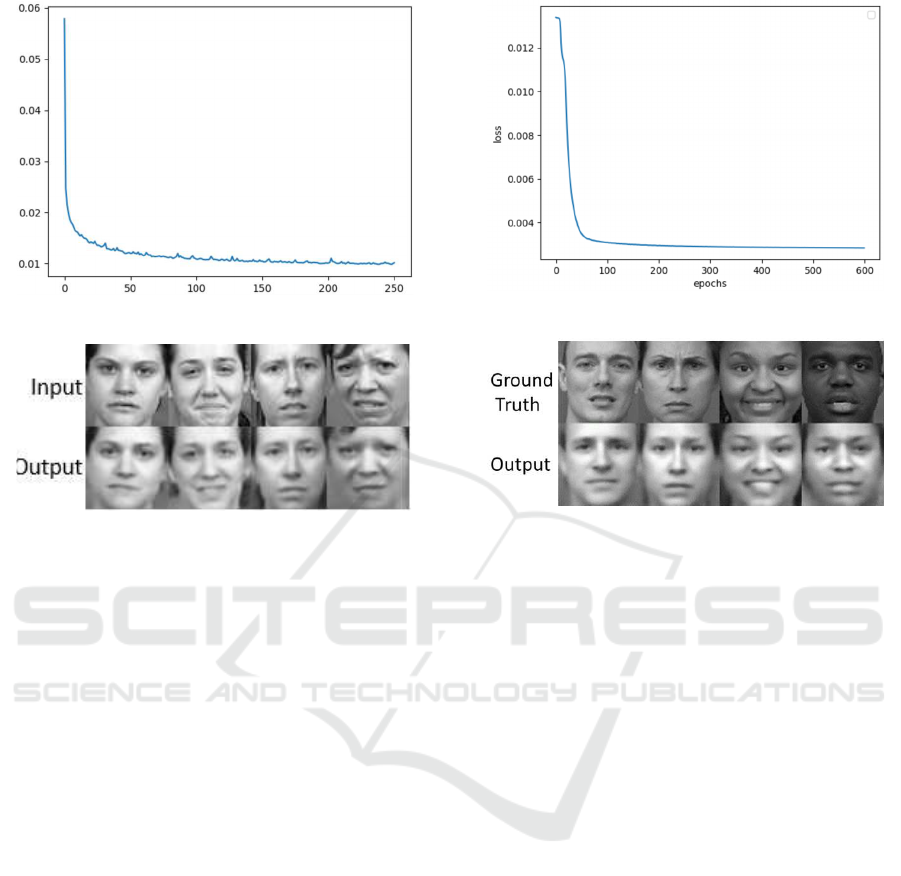

Figure 3: VAE Train Loss.

Figure 4: Generated Results by VAE.

4.3 Voice Encoder Training and

Generation Experiment

The Voice Encoder was trained in the following set-

tings.

• Epoch:600

• Learning Rate:0.0001

• Loss Function:MSE

• Optimizer:Adam

• Batch Size:32

Figure 6 and Figure 7 show the learning curve during

training and the results of generating face images by

connecting the trained voice encoder to the VAE as

shown in Figure 3, respectively.

5 DISCUSSION

5.1 VAE Training and Generation

Experiment

Figures 3 and 4 show that VAE learning is successful

without any problems. In particular, Figure 4 shows

that the output image faithfully reproduces the at-

tributes of the input image. In addition, as can be seen

from the fact that the second row of Figure 5 shows

Figure 5: Voice Encoder Train Loss.

Figure 6: Generated Results by Voice Encoder.

an open-mouth smile instead of a closed-mouth smile,

it can be conﬁrmed that the emotional information it-

self is conveyed even if the facial expressions in the

reconstructed images are not exactly the same as those

in the input images.

5.2 Effects of Emotion Label Addition

As shown in Section 3.4, in this study, emotion labels

are assigned to VAEs when they are learned. From

4.2, we have conﬁrmed that VAE is able to learn emo-

tional information as well, but in this section, we dis-

cuss the effect of adding emotional labels on the gen-

erated results.

Figure 7 shows the results of reconstructing im-

ages by assigning “Angry”, “Sad”, “Happy”, and

“Neutral” labels to the convolutional features of the

input face images, ignoring the original emotion la-

bels in the input face images. The ﬁrst row shows the

input image for each row, and the second and subse-

quent rows show the reconstructed images with the

respective emotion labels. Figure 8 shows that the

“happy” image is successfully converted for all input

images, even when the input image clearly expresses

negative emotions, since it is possible to generate an

image with raised corners of the mouth. On the other

hand, the other three emotions showed differences in

facial expressions depending on the emotion labels,

and although the negative-positive level produced rea-

sonable facial images for all emotion labels, the dif-

Generation of Facial Images Reﬂecting Speaker Attributes and Emotions Based on Voice Input

103

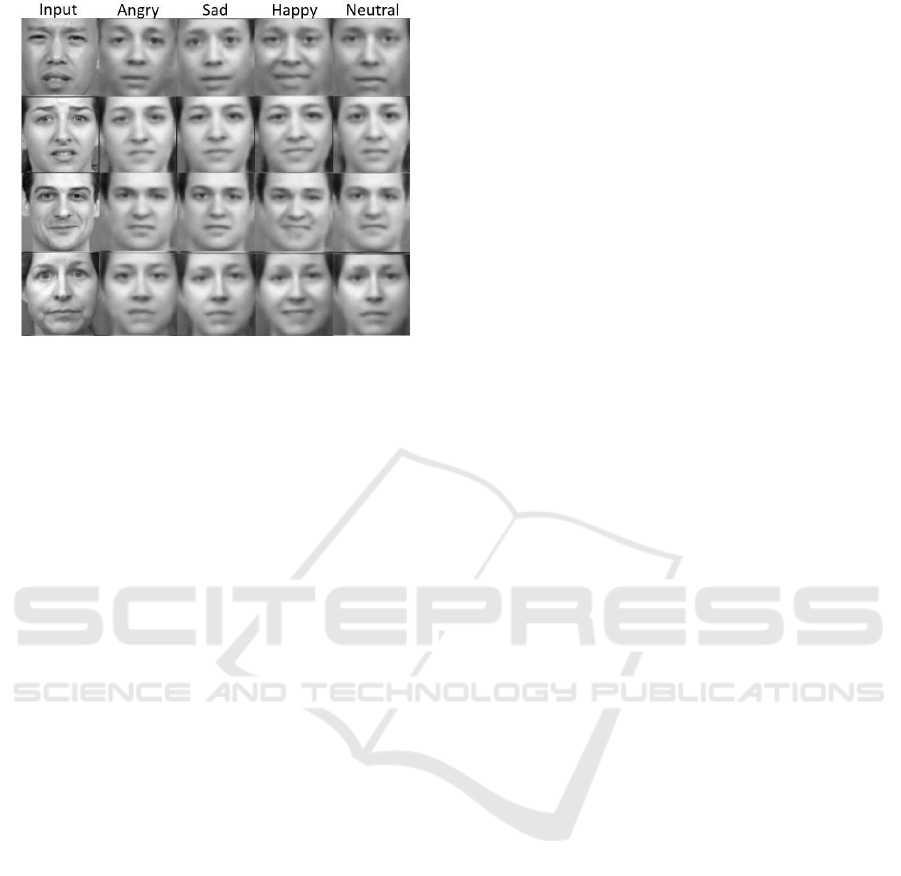

Figure 7: Result of replacing labels.

ferences were not as clear as for the “happy”.

The reason for this is assumed to be that there is

a wide range of emotions in “angry” and “sad”. For

example, there are many types of facial expressions

that are expressed depending on the type of angery,

such as “cross,” “annoyed,” and “irritated,” and it is

possible that sad and neutral faces were included in

the angery-labeled images, which may have nega-

tively affected learning. On the contrary, “happy” is

the only positive emotion, and although there are dif-

ferent types such as “smile,” “laugh,” and “grin,” it

has the common feature of raising the corners of the

mouth, and we assume that it was learned successfully

with low learning difﬁculty.

5.3 Voice Encoder Training and

Generation Experiment

First, from Figure 6, it can be conﬁrmed that the voice

encoder was successfully trained with the ImageEn-

coder features of VAE. Next, the trained voice en-

coder is integrated into VAE as shown in Figure 3,

and the results of face image generation from voice

are conﬁrmed. Figure 7 shows that the general char-

acteristics of the face, such as gender, were captured.

Although there are some differences in details such

as the size of the eyes and the depth of the moat, the

accuracy is sufﬁcient for one of the purposes of this

study, which is “to understand the face of an unknown

person from voice alone”. As in 5.2, signiﬁcant re-

sults were obtained for the facial expression “happi-

ness”, but for the other emotions, the accuracy was

only as good as the identiﬁcation of positive and neg-

ative emotions. We assume that this is also due to the

fact that a wide range of emotions are included, as

was the case in the VAE training.

6 CONCLUSION

In this paper, we proposed a method for generating

face images that reﬂect the attributes and emotions of

the speaker based on voice input for the purpose of

conducting a simulated video call using only voice.

As a result, the proposed method was not able to learn

facial expressions well when negative emotions such

as “angry” and “sad” had similar facial expressions,

but it was able to reﬂect emotional information well

for emotions with monotonous facial expression fea-

tures such as “happy”. In addition, we were able to

generate a face image from the input speech that re-

ﬂected the attributes of the speaker’s face image.

7 FUTURE WORK

This paper does not quantitatively evaluate the gen-

eration results using speciﬁc indicators. Therefore,

it is necessary to quantitatively evaluate the gener-

ation results of this model using speciﬁc numerical

values in the future. In addition, since the purpose

of this research is to understand the face and facial

expression of an unknown speaker during telephone

communication, it is more important to generate the

most plausible face image for the input voice than to

generate the exact face of the speaker. Therefore, in

addition to quantitative evaluation, qualitative evalu-

ation is also an important evaluation item and should

be conducted. As a future challenge, we would like

to expand the training data to a larger dataset to im-

prove the robustness of the model to all types of input

speech, since it cannot be said that we have acquired

sufﬁcient speaker diversity with the dataset used in

this study.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Numbers JP21H03496, JP22K12157.

REFERENCES

Cao, H., Cooper, D. G., Keutmann, M. K., Gur, R. C.,

Nenkova, A., and Verma, R. (2014). Crema-d: Crowd-

sourced emotional multimodal actors dataset. IEEE

transactions on affective computing, 5(4):377–390.

Chowdhury, A., Ross, A., and David, P. (2021). Deeptalk:

Vocal style encoding for speaker recognition and

speech synthesis. In ICASSP 2021-2021 IEEE Inter-

national Conference on Acoustics, Speech and Signal

Processing (ICASSP), pages 6189–6193. IEEE.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

104

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2020). Generative adversarial networks. Com-

munications of the ACM, 63(11):139–144.

Hinton, G. E. and Salakhutdinov, R. R. (2006). Reducing

the dimensionality of data with neural networks. sci-

ence, 313(5786):504–507.

Ji, X., Zhou, H., Wang, K., Wu, W., Loy, C. C., Cao, X., and

Xu, F. (2021). Audio-driven emotional video portraits.

In Proceedings of the IEEE/CVF conference on com-

puter vision and pattern recognition, pages 14080–

14089.

King, D. E. (2009). Dlib-ml: A machine learning toolkit.

The Journal of Machine Learning Research, 10:1755–

1758.

Kingma, D. P. and Welling, M. (2013). Auto-encoding vari-

ational bayes. arXiv preprint arXiv:1312.6114.

Oh, T.-H., Dekel, T., Kim, C., Mosseri, I., Freeman,

W. T., Rubinstein, M., and Matusik, W. (2019).

Speech2face: Learning the face behind a voice. In

Proceedings of the IEEE/CVF conference on com-

puter vision and pattern recognition, pages 7539–

7548.

Saharia, C., Chan, W., Saxena, S., Li, L., Whang, J., Den-

ton, E., Ghasemipour, S. K. S., Ayan, B. K., Mahdavi,

S. S., Lopes, R. G., et al. (2022). Photorealistic text-

to-image diffusion models with deep language under-

standing. arXiv preprint arXiv:2205.11487.

Zhou, Y., Han, X., Shechtman, E., Echevarria, J., Kaloger-

akis, E., and Li, D. (2020). Makelttalk: speaker-aware

talking-head animation. ACM Transactions on Graph-

ics (TOG), 39(6):1–15.

Generation of Facial Images Reﬂecting Speaker Attributes and Emotions Based on Voice Input

105
