Supporting Disconnected Operation of Stateful Services Using an

Envoy Enabled Dynamic Microservices Approach

Tim Farnham

Bristol Research and Innovation Lab., Toshiba Europe Ltd, Bristol, U.K.

Keywords: Dynamic Microservices, Service Mesh, Kubernetes, Stateful Services, Envoy, Edge, Cloud, Hybrid

Deployment, Continuous and Disconnected Operation.

Abstract: Dynamic microservice and service mesh approaches provide many benefits and flexibility for deploying

services and setting policies for access control, throttling, load balancing, retry, circuit breaker or shadow

mirror configurations. This paper examines extending this to support continuous operation of stateful

microservices in hybrid cloud / edge deployment, without loss of data, by permitting disconnected operation

and resynchronisation. These are important considerations for critical applications which must continue to

operate even during prolonged cloud disconnection and node or client failure. Such service requirements are

typical of retail and other scenarios in which services must run continuously, while maintaining a consistent

state between cloud and edge service instances. The approach taken and evaluated in this paper exploits a

lightweight Envoy proxy within Choreo connect microgateways and Consul service mesh sidecars. Envoy

proxies are able to efficiently perform shadow mirroring of requests and support graceful failover, but requires

additional functionality to support resynchronisation and recovery from failure that are examined in this paper.

1 INTRODUCTION

The use of dynamic microservice architecture and

service meshes provide resilience to failures. This is

by virtue of the replication of individual service

instances across different resources, or availability

zones, in a flexible manner, without needing the

services themselves to be aware of this. However, in

hybrid edge/cloud deployments this raises additional

challenges for stateful services due to the need to

constantly maintain synchronisation of replicas over

the Internet connections. There are two main

approaches to achieve this synchronisation, firstly, by

replicating the file or database systems supporting the

services and secondly by using service shadowing.

The latter approach is preferred when there is a need

to support services across hybrid environments as

there is no need to rely on certain network

performance or to restrict what persistent storage and

database mechanisms are employed to support the

various different services. This is also attractive from

the point of view of combining load balancing with

failover and tailoring the level of resilience when the

requirements and resources change over time.

https://orcid.org/0000-0002-5355-3982

Recent analysis in (Sampaio, 2019) and

(Mendonca, 2020) indicates that using properly

configured retry and circuit breaker functionality for

stateless microservices can greatly improve

performance under transient error and overload

conditions. This analysis also helps to define optimal

placement and scaling for resource usage. However,

little prior research has considered the optimisation of

failover for stateful services under prolonged failures.

Some prior investigations show that service outage

can be reduced when using Kubernetes stateful set

controllers with hot-standby services (Vayghan,

2019) and switching the standby to the active state

when failure occurs. However, they still result in

service outage and do not consider the prolonged

node or network failure scenarios which result in

disconnected operation and how to resynchronise the

state back to the replicated services during recovery

without service disruption.

In addition, investigations of optimal placement

of microservices (Sampaio, 2019) show that the

affinity between services is a vital factor for

determining optimal placement but do not consider

the failure resilience performance and disconnected

Farnham, T.

Supporting Disconnected Operation of Stateful Services Using an Envoy Enabled Dynamic Microservices Approach.

DOI: 10.5220/0011644100003488

In Proceedings of the 13th International Conference on Cloud Computing and Services Science (CLOSER 2023), pages 115-122

ISBN: 978-989-758-650-7; ISSN: 2184-5042

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

115

operation support which require replication and

resynchronisation of these service clusters. There

have also been prior proposals for edge-cloud

computing that does not need to compute optimal

placement a-priori (Wang, 2021). This approach

mirrors services at the edge and in the cloud and uses

the first responses to achieve high performance, but

do not consider failure and recovery.

In this paper we address the solution to providing

failure resilience and disconnected operation support

for stateful microservices using the commonly used

Envoy proxy, within API microgateways and service

meshes in a dynamic microservice architecture. In

particular, the focus is on transactional client

application support, which is typical in retail

scenarios, such as in-store Point Of Sales (POS). In

this use-case, the state information for each

application session is independent of other

application sessions.

1.1 Dynamic Microservices

Dynamic microservices aim to provide resilience

through edge/cloud flexibility by permitting

microservices to be seamlessly distributed across

different environments. One example is in retail

services, such as transaction services, where the

storing of state information in the applications is not

possible as transfer of sessions between different

application clients or end devices is needed. Centrally

storing the state would also prevent disconnected

operation and present a performance bottleneck.

Therefore, storing service state in a distributed

manner, but not within the application clients, is a

fundamental requirement to support tolerance to

client device and application failures as well as edge

disconnected operation. In such a case replicated

stateful services store the state information and permit

dynamic transfer of sessions to other client devices

without loss of data.

In addition, tolerance to service or node and

network failures necessitates replicating service

instances between edge and cloud resources. In such

a situation the state information needs to be kept in

synchronisation as it must not be permitted to have

inconsistent state information to facilitate failover

and continued operation. Stateful service replication

must be considered carefully as the normal load

balancing and failover approaches supported in

existing dynamic microservices frameworks, such as

in Baboi (2019), do not address this specific problem.

1.1.1 Service Mesh

Service mesh approaches provide a common means

to control and route access to services in the so-called

east-west interactions, that are service to service. In

most service mesh solutions the proxy sidecars permit

dynamic load balancing and failover support to

ensure continued operation, using end-point health

metrics, without considering the state data embedded

within the service instances. However, when the

service instances are stateful, consideration of state

limits failover to a subset of shadow service instances

that contain the most recent state. Also, to provide

resilience against network failures it is necessary that

state is distributed and replicated widely, but this then

presents a challenge for keeping the state information

synchronised. In the extreme case of prolonged

disconnected operation, the most recent state may

only be stored in one instance and then

resynchronised with other instances on reconnection.

Traditional load balancing and failover logic becomes

less appropriate in these cases as they tend to assume

a pool of load balancing and failover endpoints. For

instance, within stateless service meshes it would be

sufficient to balance load and retry or failover based

only on the number of healthy and unhealthy

endpoints and treating all end points equally, but with

stateful services consideration must be given to the

replication and resynchronisation of service state as

the top priority.

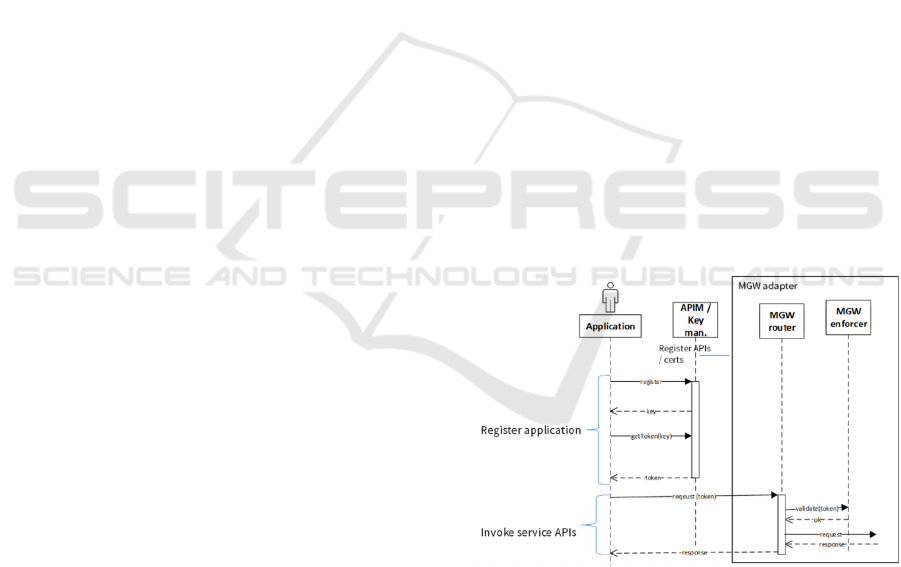

Figure 1: Microgateway operation sequence.

1.1.2 API Gateway

API gateways provide the ingress point for

applications to the service meshes for the so-called

north-south interactions with services. They primarily

act to authorise access to the service meshes but also

to manage the ingress traffic through throttling based

on quotas and usage policies using the policy

enforcement function (see Figure 1). Hence, API

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

116

gateways are aware of the individual application

sessions. It is also advantageous for reducing

overhead that the same proxy implementation is used

for both API gateways and service mesh sidecars. By

exploiting the implicit or explicit information relating

to application session embedded in the access tokens

it is possible to route ingress requests based on this

authorization bearer token header information. In this

manner handover of user sessions from one end

device to another can be performed in a transparent

manner. Typically, the authorization bearer tokens

are in JSON Web Token (JWT) format and can

contain subject, audience, issuer, and client claim or

consumer key (azp/aud) related information as well

as scope and expiry information.

Microgateways are API gateways that target a

distributed lightweight distirbuted deployment

paradigm. In this way many gateway instances are

used rather than centralised gateway solutions. They

support cloud or edge environments and provide the

API ingress points that can be integrated within

Kubernetes distributed processing environments to

provide ease of deployment and management. This

can be either as an ingress controller or mesh proxy

gateway.

2 SERVICE REPLICATION AND

RECOVERY

2.1 Shadow Mirror

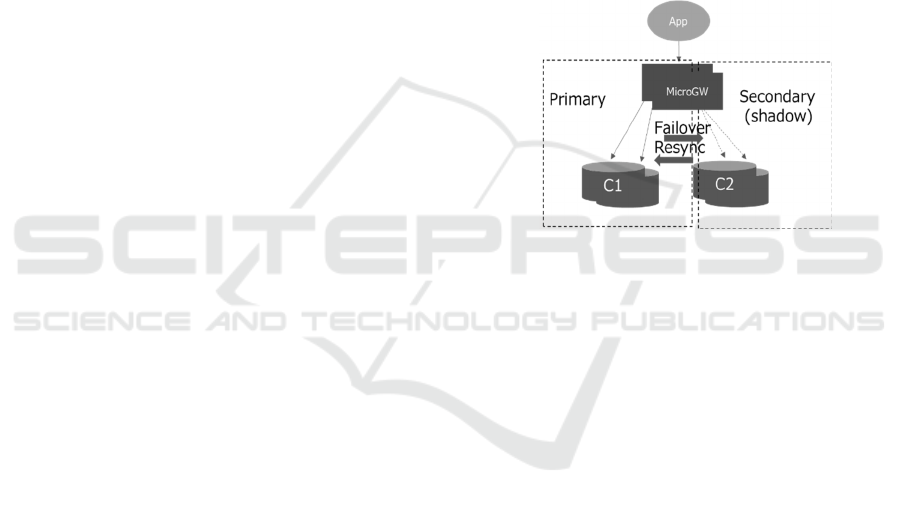

Service shadow mirroring can be performed within

microgateway or service mesh proxies to duplicate all

incoming requests towards a shadow endpoint or

cluster (see Figure 3). This capability has historically

been used for background testing prior to canary

rollout of new versions of services rather than to

replicate service state across different instances.

However, for data manipulation using REST write

operations, such as PUT, POST and DELETE then

the shadowing of requests can replicate the service

state. Envoy proxies can permit very efficient shadow

mirroring, based on a fire-and-forget approach rather

than handling responses. An alternative approach for

shadow mirroring is duplicate two or more identical

request paths towards different service endpoints and

discard the responses from all the endpoints that are

slower than the first to respond. This is similar to the

proposed approach in (Wang, 2021), which claims to

provide performance benefits if the processing can

also be aborted on the slower endpoints. However, in

our case the processing must continue for reliably

replicating the session state. Therefore, our proposed

approach is to set the primary path to the most likely

path to fail in order that the secondary path has the

state already available prior to the failover.

In comparison, data replication techniques that

operate on the database or file system level can be

used. However, when operating over the cloud/edge

boundary the likelihood of disconnection or

performance bottleneck is high. Therefore, the local

edge environment is often treated as a separate cluster

to the cloud environment. The disconnected

operation creates a challenge when the number of

replicas is low, which is our scenario of interest. In

this case the use of two out of three or four out of six

quorum techniques are not possible, which are typical

in high performance state replication solutions.

Figure 2: Endpoint clusters for primary and secondary.

2.1.1 Resynchronisation

Resynchronisation occurs to recover state following

failure of the network, nodes, applications or services.

In the approach in which requests are cached and

replayed the process is an identical repeat of the initial

application write (i.e. REST based POST, PUT,

DELETE) requests. Hence, the main criteria are that

the order of requests are maintained and no duplicate

requests are made towards the same service instance

or cluster and no requests are lost. If these conditions

are fulfilled the state will be recovered. An alternative

approach to achieve the same goal is to use a

replicated database middleware such as Middle-R and

C-JDBC or file system solution such as AWS

DataSync. However, in such approaches the support

for disconnected operation across the edge/cloud

boundary relies on capabilities within the specific

database technology or file system Persistent Volume

(PV) storage classes such as NFS, Lustre, AWS EFS

or S3. At present there are at least 124 Container

Storage Interface (CSI) drivers supported by

Kubernetes, each having different capabilities and

implementations. This makes file system specific

approaches complex to support. Also, cross-

Supporting Disconnected Operation of Stateful Services Using an Envoy Enabled Dynamic Microservices Approach

117

edge/cloud approaches such as AWS DataSync only

support a few CSI with certain limitations, e.g. within

snowball edge devices there is no support for

symbolic links and files must not be modified during

the synchronisation process. In addition, the transfers

must be periodically scheduled and so can remain out

of sync for long periods. This limits the performance

and prevents continuous operation of the services as

updates would be lost during local node failure and

services would need to be suspended during backup

and resynchronisation.

2.2 Envoy Proxy

The Envoy proxy is a popular and efficient

lightweight implementation written in C++ and

configured via yaml files or a gRPC control plane. It

provides flexible L4 and L7 filtering capabilities that

permit customised handling of traffic. The main

advantages of the Envoy approach are that it is self-

contained and high performance with a small memory

footprint, it has first class support for HTTP/2 and

gRPC for both incoming and outgoing connections. It

is a transparent HTTP/1.1 to HTTP/2 proxy and

supports advanced load balancing features including

automatic retries, circuit breaking, global rate

limiting, request shadowing, zone local load

balancing.

The Envoy proxy is used in many service mesh

solutions, such as istio, Kong mesh, Consul and also

within API microgateways such as Choreo connect,

Apigee edge, Kusk gateway, Ambassador edge stack

or Kong within the recent Envoy Gateway initiative,

which is aiming to standardise an API for the

configuration of Envoy based microgateways.

Therefore, it is a logical choice for supporting stateful

microservice resilience. However, it does not

currently support the necessary caching and

resynchronisation functions to permit resilience to

prolonged failure. This is an intentional omission as

it is a very high performance and lightweight proxy

solution which would be sacrificed if it were to

support these features. Hence, our proposed solution

approach is to combine Envoy with an external

caching capability for failover endpoints in order to

support resynchronisation without compromising

performance.

2.2.1 Failover and Load Balancing

The Envoy proxy supports graceful failover based on

the proportion of healthy endpoints within a cluster

using an overprovisioning factor. Endpoint health is

monitored using active probing in a fully

decentralised manner. This provides a means to

balance load across healthy endpoints and also

support failover at the same time. Such probabilistic

failover can be compatible with stateful services if the

endpoint clusters do not have common cross-session

state information and sticky session load balancing

policies used, such as ring hash and maglev (Eisenbud,

2016). Alternatively, a cluster-wide shared PV can be

used in which all services in a cluster share the same

or a replicated persistent storage resource, such as a

distributed file system. Then, a round robin, least

request or random load balancing about those

instances can be performed. State replication between

the edge and cloud is still required for resilience to

network failures and so request shadowing between

edge and cloud is a simpler solution compared with

implementing a shared PV across the edge-cloud

boundary that can support disconnected operation.

Endpoints should also be replicated in different

clusters and availability zones to avoid site or

network faults causing a single point of failure.

2.3 External Caching

The main aim of the caching proxy functionality is to

provide a means to store service requests in order to

perform resynchronisation of service state when

endpoints recover or become available again.

Therefore, it is only required in the failover chain

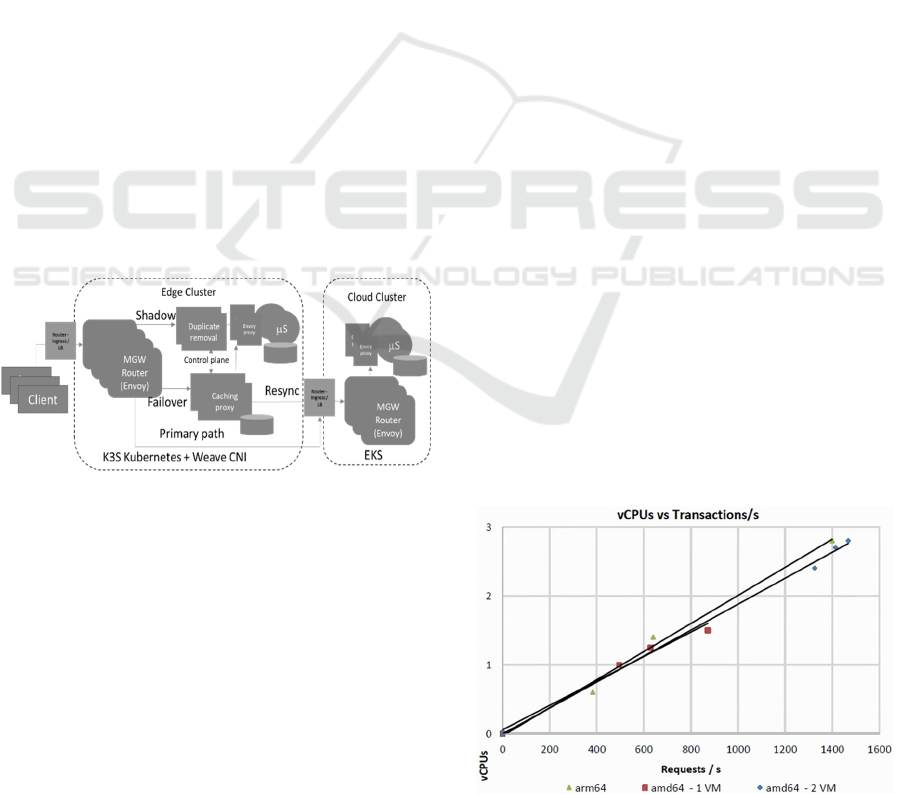

(cluster) endpoints (see Figure 4). The solution used

for supporting caching is with a local postgres

database. As postgres can support an efficient, high

performance and resilient solution it is an ideal

candidate even for relatively lightweight edge nodes.

At present only the POST, DELETE and PUT REST

based API requests are cached as these correspond to

the stateful write operations. However, to support

other APIs such as websocket or streaming APIs it

would be necessary to develop corresponding and

more suitable caching approaches. The advantage of

focussing on REST based APIs is that the caching

solution is very simple. The postgres table used to

store the requests consists of two elements, namely

the HTTP request header and the payload request

body. Hence, when replaying the requests the table is

retrieved in sequence and converted back into HTTP

requests.

2.4 Duplicate Removal

An important issue that arises from the proposed

approach (as shown in Figure 4) results from the

duplication of requests. As the shadow and the

failover endpoints are towards the same service

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

118

instances, during failover the same requests are sent

to an endpoint via the two different routes. This

would be unacceptable in situations in which the

service is not able to detect duplication, so to avoid

this a duplicate removal function is inserted. Ideally

this would be embedded within the Envoy router

itself and a solution based on using the aggregate

cluster feature of Envoy was explored, but currently

this feature is not security hardened and requires

trusted upstream and downstream endpoints.

Therefore, to avoid increasing the Envoy complexity

and need to store state within the proxy an external

function was created. The way in which the duplicate

requests are removed is by exploiting additional

header information inserted by the Envoy router

within the Choreo connect MGW. The header

parameters used for detecting duplicate requests are:

• x-wso2-cluster-header - primary cluster

• x-envoy-internal - true if in shadow chain

• x-trace-key - unique id for request

The way in which the data is distributed is by

using an additional shared control plane which shares

this information between the caching proxy instances

and duplicate removal functions (see Figure 3). A

circular buffer containing these header parameters is

maintained in each duplicate removal function which

is checked for each incoming request to determine

whether to route it. The control plane used for sharing

the request header information is based on the Object

Management Group (OMG) real-time publish

subscribe Data Distribution Service (DDS) protocol.

This is a fully decentralised UDP based protocol that

permits efficient distribution across the various

duplicate removal and cache instances within the

clusters. The OpenSplice community edition

implementation of DDS was selected for this purpose

due to the lightweight and high-performance

implementation. The performance of different

approaches for supporting DDS are compared by

(Kang, 2021) and show that for multi-subscriber use

cases, DDS security produces better throughput

performance than security provided by virtual

networks. The reason is that DDS security only

ciphers the data once when transmitting samples to

multiple recipients. Hence, DDS multicast is a good

choice for the shared control plane. We selected to

use the WeaveNet Container Network Interface

(CNI) plugin approach to support the DDS reliable

multicast on the edge cluster. This is because it uses

an encapsulated multicast to unicast approach which

makes transmission over wireless or heterogeneous

edge networks such as WiFi/Ethernet more suitable

and efficient with reliability QoS class.

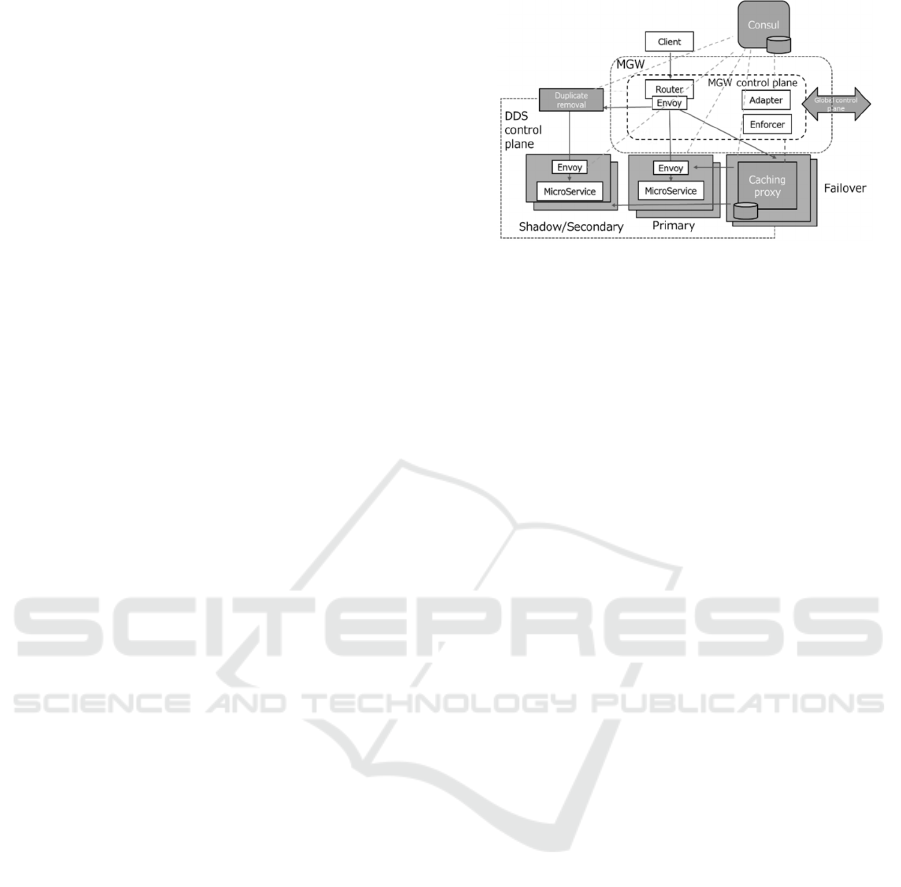

Figure 3: Control and data planes with MGW and Consul.

3 IMPLEMENTATION AND

EVALUATION

In order to evaluate the proposed approach to stateful

service resilience a test environment was setup within

AWS VPCs and edge environments. The setup

consists of three Kubernetes clusters with a K3S

cluster within the edge and two EKS clusters for the

cloud data centre services spread across 3 availability

zones. A federated consul service mesh is configured

across the Kubernetes data centre clusters,

representing the edge and cloud, using the proxy

default local mode. In this manner the interaction

between the edge and the cloud is directed via mesh

gateways. The Envoy based Choreo connect

Microgateway is used with load balancer as the

ingress for application requests.

The Choreo connect Envoy microgateway router

deployments provide the ingress point for client

application requests. WSO2 API managers (v4.1.0)

are used to configure the microgateway routers via

adapters that are located in the edge cluster along with

policy enforcers. A global AMQP based control plane

between adapters and enforcers with the API manager

is used for this together with a local gRPC based

control plane between the adapter and enforcers and

the routers. In this manner the overheads are

minimised, while at the same time maintaining high

tolerance to individual node failures in order to

support continuous operation. Enforcers can cache

subscription and access token related information

locally to support fault tolerance and improve

performance. It is also necessary to have at least 2

adapter and enforcer instances to provide this

tolerance to individual node failures.

3.1 MGW Configuration

The Envoy router is configured via the local Choreo

connect MGW xDS / gRPC control plane from the

Supporting Disconnected Operation of Stateful Services Using an Envoy Enabled Dynamic Microservices Approach

119

adapter. The adapter retrieves the API definitions

from the API manager and consul server using the

corresponding REST APIs and creates the

configurations for the routers. Each router is

configured identically for each instance. For each

incoming request the header authorisation bearer

token is verified using the Choreo connect enforcer

over the gRPC control plane. The enforcer retrieves

the subscription information relating to the token

claim from the API manager. The subscription

information contains the accessible APIs as well as

corresponding quota and scope related information.

This permits the enforcer to decide whether to permit

routing of the request. The API usage data is recorded

by the enforcer and is updated globally with all

enforcer instances via the API manager and to the

optional Choreo analytics service.

In addition, the Choreo connect adapter has been

updated to include the shadow mirror policy

configurations. This permits the transparent

shadowing of requests towards the shadow endpoints,

which is via the duplicate removal function instances.

The adapters also configure the graceful failover

cluster policies based on the default overprovisioning

factor of 1.4. The primary endpoints being the priority

level 0 and the secondary being priority level 1. The

HTTP based health checking option is configured for

each cluster. In this manner the failover from primary

to secondary starts when there is less than 72% of

endpoints in the P0 cluster in a healthy state.

Figure 4: Configuration of edge / cloud cluster routing.

3.2 Caching Proxy and Duplicate

Removal

The caching proxy used for the failover path is an

asynchronous streaming reverse proxy

implementation based on the Apache non-blocking

NIO libraries. This is a high-performance solution

that can scale to support massive parallel session

handling. It also permits access to the request header

information necessary for passing to the duplicate

removal function and to the complete request body

for request caching. It is integrated with a postgres

database in the same pod in order to provide the local

cache storage which uses a local PV for resilience to

service or node failures and restarts. The cache

solution also performs the resynchronisation to the

remote endpoint when they return to the healthy state.

The same approach is used for the duplicate

removal function implementation, but without the

caching of requests. As the shadow mirroring

performed by the Envoy proxy is fire-and-forget,

upstream issues in the shadow chain are only detected

by health check probes.

3.4 Performance Evaluation

3.4.1 Microgateway

The enforcer within the microgateway is the most

computationally intensive element of the proposed

approach. It provides the entry point for authorising

application requests and to secure the interactions

within the service mesh. The shadow mirroring itself is

a low overhead approach with negligible additional

latency to the primary path. The performance of the

Choreo connect microgateway is summarised in Figure

and indicates that around 500 requests per second can

be handled per vCPU instance. In this configuration the

API invocations utilise two levels of load balancing.

The first is the K3S or EKS service load balancer

followed by the Envoy router load balancer, which also

performs authorisation bearer token validation, but no

rate limits are placed on individual applications or

APIs in the test configuration. There is a linear scaling

in resource utilisation until the xDS control plane limits

performance. This is shown in Figure and indicates that

around 12 router instances can handle almost 4000

requests/s from 3200 parallel client sessions.

These results are also consistent with observation

by (Johansson, 2022), which indicates that Envoy

performs well with up to ~300 parallel sessions

per

instance. Beyond this level other load balancing

Figure 5: CPU utilisation of Choreo connect microgateway.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

120

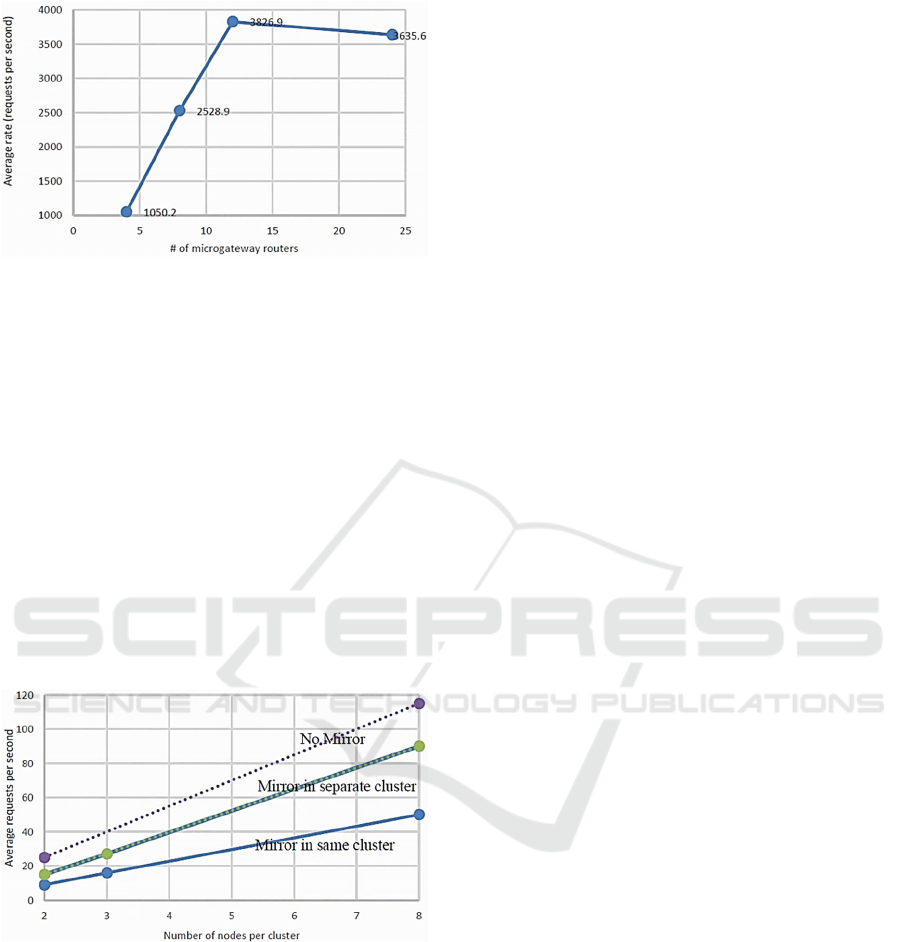

Figure 6: Microgateway throughput with round robin LB.

solution approaches, such as NGINX and HAProxy

can perform better. Therefore, the two-level load

balancing is preferable.

3.4.2 Service Mirroring

In terms of end-to-end performance of the mirrored

services it is possible to see from Figure that there is

a linear relationship between number of nodes in each

cluster and the requests per second that can be

handled. When mirroring is performed in a separate

cluster the performance is reduced due to the

duplicate removal and processing of shadow path

requests in the mirror chains. This results in a 17%

reduction for request throughput per node compared

to the no mirror case.

Figure 7: Mirror performance for large REST POST

requests (7kByte request + 35kByte response).

However, if mirroring occurs within the same

cluster, then the performance reduction is around

55% due to doubling of the number of service

requests handled per node in the same cluster as well

as duplicate removal checking.

3.4.3 Service State Recovery

The recovery resynchronisation processes using file

system or database replication ensure consistency

with ACID transaction handling mechanisms. This

involves complex transaction commit and consensus

procedures such as the classical quorum replication

approaches, such as the minimal two out of three

selection. This can allow for disconnected operation

but impacts on performance of all updates, when

using synchronous replication, and in the case of

lightweight edge deployments can be too complex

and resource intensive. It is therefore common that

only the master replica instance performs write

operations and the replicas receive the updates from

the elected master. When failure of the master or

network partitioning occurs it is important that a new

master is elected but can lead to an outage period.

Also, during recovery all replicas synchronise with

the new master, but this may not be possible if

network partitions each contain a master replica node.

For instance, during disconnected operation when

both the edge and cloud environments contain a

master replica node. In this situation there is a

potential for conflicting state and to prevent this it is

necessary to ensure that this situation cannot happen.

Two issues can arise from this, the first is that the

requests may have succeeded after the failover to the

secondary. Secondly, the replay of the requests occurs

at a later point in time and so if the services have a

time dependent processing behaviour the result

applied in the database may be different. These issues

can be avoided if the request duplicate detection

mechanisms are implemented in both the shadow and

failover paths, within the caching proxies, to remove

duplicate requests. Secondly, primary path responses

codes can be cached, near to the services, in addition

to requests and cross-checked for request duplication

and the service times dynamically adjusted to emulate

the time of the original requests during replay.

The recovery performance is an important

consideration for the viability of the approach. To

evaluate this both network disconnection and node

rebooting tests were used. Replication middleware

methods for databases, such as Middle-R and C-

JDBC are most similar to the proposed approach, but

suffer from a prolonged increase in response times

when failure occurs even under modest (i.e. < 50%)

loads. In contract request failover is at the API

microgateway level only relies on a request or health

check timeout to the service endpoint. This leads to a

faster failover and recovery process. For instance,

Middle-R requires 60 seconds and C-JDBC around

180 seconds (Dhamane, 2014). In contrast the API

microgateway failover timeouts can be typically

configured to respond in <2 seconds and immediately

have the same prior performance. A 20 millisecond

Supporting Disconnected Operation of Stateful Services Using an Envoy Enabled Dynamic Microservices Approach

121

delay is inserted into the shadow chain to permit

duplicate request removal.

The resynchronisation recovery process has been

evaluated. In the case of link disconnect the time of

failure is 10 seconds and the recovery occurs at 95ms

per request with overall throughput of 13.1 requests

per second over a one minute test duration. The

maximum request latency is 1.7s in this case. For the

node reboot failure case the recovery time is

marginally faster than the network disconnection, but

fewer requests need to be buffered and the

corresponding request replay time is longer at 235ms.

This is due to the node taking some time to return to

normal operation state. The maximum latency is also

1.7s in this case.

4 CONCLUSIONS

In hybrid edge/cloud microservice deployment it is

necessary to consider the resilience of stateful

services carefully in order to fully support continuous

operation without performance degradation. The

proposed approach, using Envoy based proxies, is a

promising method of permitting replication and

recovery of service state, by using shadowing,

without requiring performance limiting distributed

file system storage or database replication solutions

across the edge cloud boundary. The approach

proposed and evaluated within this paper has many

advantages as it does not require services or

underlying storage solutions to be modified and does

not impact significantly on throughput and latency

performance. For instance, 17% reduction in

throughput was observed for large update requests

and negligible additional latency is introduced in the

primary request paths. However, it is evident that

some limitations arise and have been mostly

overcome or avoided. In particular, the independence

between different client application sessions is

assumed. In which case, the use of sticky session load

balancing such as Maglev or hash tables can avoid the

need for a cluster-wide shared PV storage which can

be difficult or undesirable to support. Also, avoiding

the use of cross-session and service state that would

create conflicts between parallel sessions leading to

complex state synchronisation. In addition, it is

necessary that updates do not have time dependent

logic (or the original time of request need to be

emulated in the service). This approach has been

evaluated in the context of retail services which

support transaction handling, inventory management

and promotion services. These require consistent and

replicated service state data, across the edge/cloud,

without loss to permit continuous operation, with low

overhead, even under node failure and cloud network

disconnect events.

Further work is needed to evaluate the

improvements that are possible by integrating the

duplicate removal and caching functionality into the

Envoy proxies, rather than keeping them separate.

REFERENCES

Sampaio, A., Rubin, J., Beschastnikh, I. and Rosa, N.

(2019) Improving microservice-based applications with

runtime placement adaptation. J Internet Serv Appl 10,

4 (2019). https://doi.org/10.1186/s13174-019-0104-0

Vayghan, A. L., Saied, M., Toeroe, M. and Khendek, F.,

(2019) Microservice Based Architecture: Towards

High-Availability for Stateful Applications with

Kubernetes, 2019 IEEE 19th International Conference

on Software Quality, Reliability and Security (QRS),

2019, pp. 176-185, doi: 10.1109/QRS.2019.00034

Mendonca, N., Aderaldo, C., Camara, J. and Garlan, D.

(2020) Model-Based Analysis of Microservice

Resiliency Patterns, In 2020 IEEE International

Conference on Software Architecture (ICSA), 2020, pp.

114-124, doi: 10.1109/ICSA47634.2020.00019.

Wang, Y., Xia, Y., Zhang, Y., Melissourgos, D., Odegbile,

J., Chen, S. (2021) A Full Mirror Computation Model

for Edge-Cloud Computing, In IC3 '21: 2021

Thirteenth International Conference on Contemporary

Computing (IC3-2021) August 2021 Pages 132–139

https://doi.org/10.1145/3474124.3474142

Baboi, M., Iftene, A., Gîfu, D. (2019). Dynamic

Microservices to Create Scalable and Fault Tolerance

Architecture. In Procedia Computer Science, Volume

159, 2019, Pages 1035-1044, ISSN 1877-0509

Dhamane, R., Patino, M., Valerio, M., Peris, R. (2014)

Performance Evaluation of Database Replication

Systems. In Proceedings of the 18th International

Database Engineering & Applications Symposium

IDEAS, July 2014 Pages 288–293 https://doi.org/

10.1145/2628194.2628214

Kang, Z., An, K., Gokhale, A., Pazandak, P. (2021). A

Comprehensive Performance Evaluation of Different

Kubernetes CNI Plugins for Edge-based and

Containerized Publish/Subscribe Applications.

Conference: 9th IEEE International Conference on

Cloud Engineering 10.1109/IC2E52221.2021.00017.

Johansson, A. (2022). HTTP Load Balancing Performance

Evaluation of HAProxy, NGINX, Traefik and Envoy

with the Round-Robin Algorithm (Dissertation).

Retrieved from: http://urn.kb.se/resolve?urn=urn:nbn:

se:his:diva-21475

Eisenbud, D. E., Yi, C., Contavalli C., Smith, C., Kononov,

R., Mann-Hielscher, E., Cilingiroglu, A., Cheyney, B.,

Shang, W., Hosein, J. D., (2016) Maglev: A Fast and

Reliable Software Network Load Balancer, In 13th

USENIX Symposium on Networked Systems Design and

Implementation (NSDI 16), USENIX Association, Santa

Clara, CA (2016), pp. 523-535.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

122
