An Easy-to-Use and Robust Approach for the Differentially Private

De-Identiﬁcation of Clinical Textual Documents

Yakini Tchouka, Jean-Franc¸ois Couchot and David Laiymani

Femto-ST Institute, Univ. Bourg. Franche-Comt

e, CNRS, France

Keywords:

De-Identiﬁcation, Differential Privacy, Deep Learning, Natural Language Processing, Clinical Textual

Document.

Abstract:

Unstructured textual data is at the heart of healthcare systems. For obvious privacy reasons, these documents

are not accessible to researchers as long as they contain personally identiﬁable information. One way to share

this data while respecting the legislative framework (notably GDPR or HIPAA) is, within the medical struc-

tures, to de-identify it, i.e. to detect the personal information of a person through a Named Entity Recognition

(NER) system and then replacing it to make it very difﬁcult to associate the document with the person. The

challenge is having reliable NER and substitution tools without compromising conﬁdentiality and consistency

in the document. Most of the conducted research focuses on English medical documents with coarse substitu-

tions by not beneﬁting from advances in privacy. This paper shows how an efﬁcient and differentially private

de-identiﬁcation approach can be achieved by strengthening the less robust de-identiﬁcation method and by

adapting state-of-the-art differentially private mechanisms for substitution purposes. The result is an approach

for de-identifying clinical documents in French language, but also generalizable to other languages and whose

robustness is mathematically proven.

1 INTRODUCTION

Unstructured textual data is at the heart of healthcare

systems. The details included in these documents

allow us to clearly and precisely describe patients’

diseases and medical procedures, and to efﬁciently

manage and study their pathologies. These textual

documents can be analyzed by Artiﬁcial Intelligence,

given the impressive advances in Natural Language

Processing techniques in recent years (Kersloot et al.,

2020; Velupillai et al., 2018).

However, on the one hand, these AI-based tech-

nologies are currently only accessible to computer re-

searchers and not to medical staff, who have access

to medical data. On the other hand and for obvious

privacy reasons, these medical documents are not ac-

cessible to researchers as long as they contain person-

ally identiﬁable information. Medical managers are

therefore faced with a familiar dilemma: should they

share this medical data and compromise privacy and

medical secrecy to allow patients to beneﬁt from the

latest medical advances available thanks to the artiﬁ-

cial intelligence implemented on this data?

The GDPR does, however, allow researchers to

work on this type of data, provided that it has

been anonymized beforehand (EU, 2016, Recital 26).

GPDR is the European legal framework, on the US

side we have the Health Insurance Portability and Ac-

countability Act (HIPAA) (Cohen and Mello, 2018)

which deﬁnes 18 categories of so-called personal in-

formation (PHI) that must be removed from a medical

document before it can be shared. To comply with this

legal framework, it is therefore sufﬁcient for medical

authorities to provide researchers with de-identiﬁed

documents. Such a document is a document where the

medical information is present but where all personal

data (names, dates, locations, for example) have been

modiﬁed to make any identiﬁcation very difﬁcult.

Practically, this can be done in two steps. De-

identiﬁcation consists of ﬁrst, applying a Named

Entity Recognition (NER) task revealing words

that would allow the document to be re-associated

with a particular person. Then, these entities are

replaced with alternative words making it very

difﬁcult to associate the document with its patient

while preserving the utility of the document. The

challenging aspect in this work is implementing

a system that reliably detects identifying enti-

ties and substitute these recognized ones without

compromising privacy. The following is our guiding

example that will be developed throughout the article.

Thread Example. Consider the following ﬁctional

sentence. It is typical of what can be present in a

Tchouka, Y., Couchot, J. and Laiymani, D.

An Easy-to-Use and Robust Approach for the Differentially Private De-Identiﬁcation of Clinical Textual Documents.

DOI: 10.5220/0011646600003414

In Proceedings of the 16th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2023) - Volume 5: HEALTHINF, pages 94-104

ISBN: 978-989-758-631-6; ISSN: 2184-4305

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

medical text document of a hospital. ”Mr. Durand

born in Dijon, 40 years old, was admitted to the hos-

pital from 12/02/2020 to February 26, 2020 following

a road accident in Dijon”.

To date, the most efﬁcient methods in terms of

Named Entity Recognition are those based on the at-

tention concept, BERT (Devlin et al., 2018) for Bidi-

rectional Encoder Representations from Transformers

and its derivatives (Le et al., 2019; Huang et al., 2019;

Lee et al., 2019). To achieve detection scores where

precision and recall are very high, they require pre-

viously labeled datasets for training. This kind of la-

beled dataset exists in English language (Sun et al.,

2013; Johnson et al., 2016). However, it is severely

lacking in other languages, especially French. This

labeled learning dataset doesn’t need to be perfectly

coherent from a medical point of view. What is im-

portant is the format encountered and the context. It

then seems relevant to make use of an existing de-

identiﬁcation algorithm, even if imperfect, to provide

this new dataset to be labeled afterward.

This article ﬁrst shows how the utilization of a

French dataset anonymized using a recent but not

perfect de-identiﬁcation algorithm followed by its

manual annotation, allowed the implementation of a

transformer-based NER approach. The precision and

recall results exceed all existing approaches in French

and are at the level of those in English.

After this NER phase, the following step is to sub-

stitute the detected sensitive entities. This step is often

neglected in research work because it is not consid-

ered relevant. This is indeed the case for entities such

as phone numbers or email addresses that can be re-

placed by any random number or email address. The

same is not true for dates or locations. Indeed, the

chronology of medical events is essential in detecting

correlations between them for example. Date substi-

tution methods exist but are not satisfactory. It has

indeed been shown (Tchouka et al., 2022) that apply-

ing a uniform shift between dates allows guaranteeing

the chronology but does not protect in any way a re-

identiﬁcation of the document. One could think of

applying methods based on differential conﬁdential-

ity (Duchi et al., 2013), the only method to date pro-

viding a metric for the level of data leakage. Applied

to temporal elements (date, age), it strongly protects

privacy by making the original date indistinguishable

from a published date. However, it signiﬁcantly de-

grades the usefulness of the data because of the mag-

nitude of the interval in which the algebraic choice of

the date to be published is made. This article shows

how d-privacy brings a concrete answer to this prob-

lem of amplitude.

Finally, the location elements of textual medical

records must be treated with great care. Randomly

substituting a name of a city with another effectively

protects privacy but this is done at the detriment of the

medical context of the city. There was possibly radon

in this one at the origin of cancers, and pollution at

the origin of respiratory disorders. An approach based

on geo-indistiguishability (Bordenabe et al., 2014) is

not the most relevant since it only takes into account

the geographical position and not the medical and/or

statistical data associated with the city. We present in

this paper an innovative approach based on d-privacy.

The result is a global approach to de-identiﬁcation

of medical documents dedicated to French textual

documents but which could be generalized to any

other language. This approach is ﬁrst of all reliable

in the detection of identifying entities. Based on dif-

ferential privacy, substitution is robust to attacks by

deﬁnition. Moreover, they are optimized to preserve

data utility in the context of further processing by ma-

chine learning.

Our contributions in this paper can be summarized

as follows:

1. We provide a model identifying sensitive infor-

mation according to HIPAA categories in clinical

textual documents. This one manages to detect

all the categories we want to detect, as well as to

compete with the English detection models.

2. We provide a robust surrogate generation ap-

proach based on advances in differential privacy

that combines security and utility.

3. An open-source implementation of the surrogate

generation approaches proposed in this paper is

available on GitHub

This article is organized as follows. The follow-

ing section summarizes the state of the art regarding

NER as well as the substitution of sensitive elements

for de-identiﬁcation purposes. Section 3 shows how

the NER task can be strengthened thanks to the con-

struction of an annotated dataset on the one hand, and

thanks to a deep learning-based model taking into ac-

count the context on the other hand. Section 4 ﬁnally

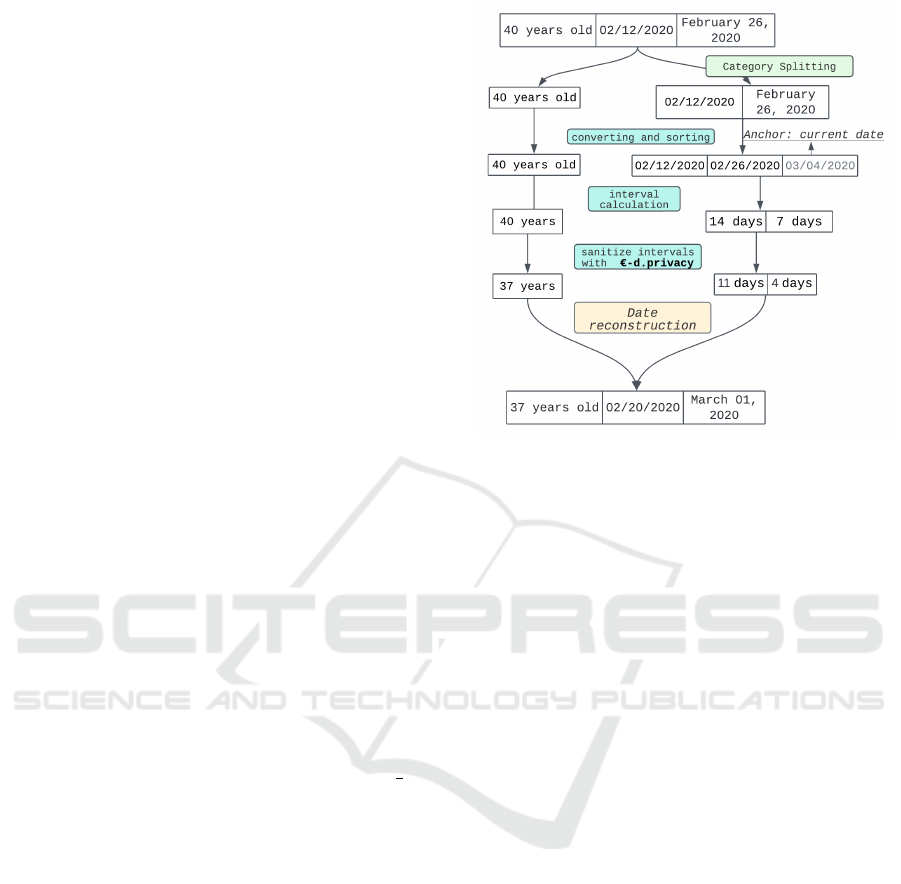

shows how to ﬁnely substitute temporal (age and date)

and location entities without compromising the conﬁ-

dentiality of the data. Finally, the last section presents

a conclusion and future work.

2 RELATED WORK

This section summarizes the state of the art of de-

identiﬁcation methods applied to the textual medical

https://github.com/healthinf/

Surrogate-generation-Strategies-in-De-identiﬁcation

An Easy-to-Use and Robust Approach for the Differentially Private De-Identiﬁcation of Clinical Textual Documents

document. The ﬁrst section is dedicated to NER step

whereas the second one focuses on the surrogate gen-

eration.

2.1 Named Entity Recognition

For the NER phase (English dataset), several works

have experimented machine learning models such as

SVM, Decision trees, or Condition Random Field

(CRF) (Lafferty et al., 2001). With the emergence

of neural networks, researchers (Dernoncourt et al.,

2016; Liu et al., 2017) have proposed the ﬁrst neu-

ral network-based model. Recurrent neural networks

(RNNs) of Dernoncourt et al (Dernoncourt et al.,

2016) lead to F

-scores of 97.85% and 99.23% on

i2b2 (Sun et al., 2013) and MIMIC (Johnson et al.,

2016) datasets respectively representing the state of

the art in de-identiﬁcation. Some papers have ob-

tained results almost as accurate as those of Der-

noncourt by combining the machine learning method

(CRF) and the neural recurrent network method

(RNN). Following the recent advance of NLP with

the emergence of transformers (Vaswani et al., 2017)

and BERT (Devlin et al., 2018) which are the state

of the art in a contextualized text representation, it

has been proven that the most accurate models for

NER are those based on transformers. Among the

abundant works in this ﬁeld, we can cite (Hanslo,

2021) and (Polignano et al., 2021). Research on

the de-identiﬁcation of French medical documents

is mainly done by C. Grouin (Grouin et al., 2015)

with a machine learning model (CRF reaching 80%

in F

-score). A recent work (Bourdois et al., 2021)

is dedicated to de-identiﬁcation of French emergency

medical records. It is based on a twofold approach.

First, FlauBERT (Le et al., 2019) assigns a label to

documents which require de-identiﬁcation. Next a

combination of rules-based techniques and LSTM,

via Flair (Akbik et al., 2019) is implemented. Un-

fortunately, there is no dataset like MIMIC or i2b2

in the French language. This forced the authors

in (Tchouka et al., 2022) to combine the machine

learning method (CRF done by C. Grouin) and the

neural network method based on transformers on

WikiNER dataset (Nothman et al., 2013) to integrate

all the attributes to be detected. This hybrid system

reaches 94.7% in F

-score which serves as the base-

line in this work.

2.2 Surrogate Generation

The complexity of the substitution phase (Sweeney,

1996) depends on the analysis of the documents. The

most direct way is to delete the detected informa-

tion or replace it with its entity name (Durand by

NAME e.g.). This method protects privacy, but de-

grades the readability of the document and reduces

the usefulness of the data. To preserve the struc-

ture of the document, several authors have tried other

methods. The work of these papers (Douglass et al.,

2004; Levine, 2003; Uzuner et al., 2007; Douglass

et al., 2004; Deleger et al., 2014) has led to the

following strategy: Names are replaced by a ran-

dom name from a pre-established list, alphanumeric

strings are replaced by a randomly generated string,

and for dates, a uniform shift of days is performed

while keeping the format. As for ages, they have

been capped at 89 years, whereas locations are re-

placed randomly from a pre-established list. The most

used system in recent research is the system devel-

oped by Stubbs et al. (Stubbs et al., 2015). This one

combines the strategies of the previously described

work. This system has been used to build the 2014

i2b2 (Kumar et al., 2015) dataset for example. The

Stubbs method (Stubbs et al., 2015) which consists

in making a uniform shift of the dates of a docu-

ment is easily attackable. Since the interval between

the substituted dates remains unchanged, an attacker

only needs to know one date in ﬁle to reconstruct the

others. In (Tchouka et al., 2022) the authors have

shown that the system proposed by Stubbs on dates

and ages is easily attackable, thus compromising pri-

vacy in a medical context. Furthermore, for locations,

this random method signiﬁcantly degrades the level

of information. The goal is to protect privacy while

keeping as much information as possible. To do so,

in (Tchouka et al., 2022) it was proposed to substi-

tute dates and ages through the Local Differential Pri-

vacy (LDP) (Duchi et al., 2013) with the bounded

Laplace mechanism (Dwork et al., 2006) and to sub-

stitute locations by a geo-indistinguishability (Bor-

denabe et al., 2014) algorithm. The problem with

LDP on dates or ages is that we cannot precisely con-

trol the noise added on two distant or close dates,

which sometimes leads to inconsistencies in the doc-

ument (e.g. the duration of a stay). The geo-

indistinguishability method gives a coherent result but

is not relevant in a medical context.

3 STRENGTHENING NAMED

ENTITY RECOGNITION

This section starts with our thread example. The

ﬁrst section starts with the motivation for the need

to strengthen the NER stage. The second one shows

how we obtained a new labeled medical dataset.

Thirdly, the new machine learning-based NER

HEALTHINF 2023 - 16th International Conference on Health Informatics

approach is presented. Its evaluation on a medical

dataset is ﬁnally presented in the fourth section.

Thread Example. Figure 1 illustrates the result of

a perfect detection (NER) process applied to the

threaded example. HIPAA labels (Cohen and Mello,

2018) with their descriptions are summarized in Ta-

ble 1.

Figure 1: Perfect NER of PHI entities on thread example.

Table 1: Description of HIPAA labels.

Label Description

PER All names of persons

DATE All date sequences in all formats

LOC All geographical locations and zip codes

ORG Organizational entities

AGE Ages

TEL Phone Numbers

REF All references related to individuals

QID Any ID sequence

3.1 Motivation and Global Overview

Getting near-perfect scores in the NER is an absolute

necessity for successful de-identiﬁcation. Undetected

sensitive information is a risk for re-identiﬁcation of

the document. The NER task is a problem-dependent

task. This means that we often don’t have the right

dataset for our problem. The best results of NER

in de-identiﬁcation in the literature are the ones ob-

tained by implementing English models (consistent

and complete domain-speciﬁc English datasets). In

French, such a dataset is rare and, to our knowledge,

does not exist in the medical domain. It is, there-

fore, necessary to build a sufﬁcient dataset adapted to

the context of our application, i.e. a medical corpus,

which includes all the identifying attributes to detect.

With such a dataset, we are then able to apply a Trans-

former based NER method which is the state of the art

in NER.

3.2 Building a Labelled Dataset

As mentioned, the most difﬁcult step is ﬁnding a

dataset that is large enough for the implementation

of an accurate model, that includes all the categories

of sensitive information, and ﬁnally, that is adapted

to the medical corpus. Such a dataset (in French)

is not available at the moment, at least not accessi-

ble to everyone. In (Tchouka et al., 2022) the au-

thors used WikiNER dataset which includes only a

few tags with a very general vocabulary. This re-

quires them to combine several methods so that all

categories could be integrated into a de-identiﬁcation

tool. In this current work, as part of our collaboration

with a French public hospital, we have access (on-

site) to a large set of unlabeled medical notes. We

propose that hospital members semi-manually anno-

tate a subset of these notes. As this dataset will be

exported from the hospital afterward, we ask them to

apply the existing de-identiﬁcation method (Tchouka

et al., 2022) on them to obtain new de-identiﬁed docu-

ments. Then we ask them to manually label all the de-

identiﬁed documents. To facilitate this manual task,

the NER step of the same tool (Tchouka et al., 2022)

has been used. The process is illustrated in Figure 2.

The obtained dataset, further denoted as to French-

HospitalNER is partially de-identiﬁed, according to

the (Tchouka et al., 2022) approach, and labeled. This

annotation step required 25 hours of work for one

person (1 minute per ﬁle). The FrenchHospitalNER

Dataset contains 14925 sentences.

Figure 2: FrenchHospitalNER Dataset Construction.

An Easy-to-Use and Robust Approach for the Differentially Private De-Identiﬁcation of Clinical Textual Documents

3.3 Supervised Learning on a Dedicated

Labelled Dataset

This part starts by the presentation of the architec-

ture of our model. Then we describe how supervised

learning was implemented. Finally, an evaluation of

our model is presented in parallel with existing de-

identiﬁcation models.

3.3.1 Model Architecture: Transformer Based

Approach

Due to the the availability of FlauBERT which is a

BERT-based pre-trained French models, such a trans-

former is easily accessible This decision is strength-

ened by the fact that it has been shown in (Polignano

et al., 2021) that a language speciﬁcally dedicated to

the French language model like FlauBERT, improves

the results compared to multilingual BERT models.

3.3.2 Finetuning Transformer Model

Starting from a pre-trained model such as FlauBERT,

what is left is ﬁnetuning it on a smaller and more

specialized dataset. Instead of starting from scratch

to build our text classiﬁcation or feature detection

model, we will start from the pre-trained BERT and

add a dense layer or a classiﬁcation layer to build the

model as described in Figure 3.

3.3.3 Training

The learning process has been implemented with the

previously described dataset using a deep learning-

based NLP model.

• the Learning Rate controls the size of the update

steps along the gradient. Usually, a very small

value is set (10

−4

in this work), so that the weights

are less modiﬁed at each iteration, which avoids

missing the optimal values of the error function

• the Dropout is a regularization technique for re-

ducing overﬁtting in neural networks. It is set to

0.1 in this work, which means that 10% of se-

lected neurons are ignored during training

• the Training Batch Size is the number of train-

ing samples to work through before the model’s

internal parameters are updated.

• the Maximum Length deﬁnes the maximum

number of words in the sentences

• the Number of Epochs is the number of complete

passes through the training dataset.

The NER is a multi-class classiﬁcation model

(taking tags as classes). The CrossEntropy er-

ror function is well adapted for this task. As

an optimizer (backpropagation function), we use

the adamW(Loshchilov and Hutter, 2017) algorithm

which is one of the latest evolutions of optimizers

and is proven to be better in neural network learning.

The dataset (FrenchHospitalNER) is randomly split

into training and test sets (90/10). The validation set

is provided by the HNFC hospital and contains over

6000 sentences.

In machine learning, the question remains: how

to select the optimal values of the hyperparameters

to obtain the most accurate results? There are sev-

eral methods of hyper-parameter optimization such

as Grid Search, Random Search, and model-based

Bayesian method. Studies (Bergstra et al., 2013)

on hyper-parameter optimization show that Bayesian

methods give largely more accurate results. In this

paper, for hyper-parameter optimization, we used

the Tree-structured Parzen Estimator (Bergstra et al.,

2011) which is a classical Bayesian optimization al-

gorithm sufﬁcient for a classiﬁcation model as in our

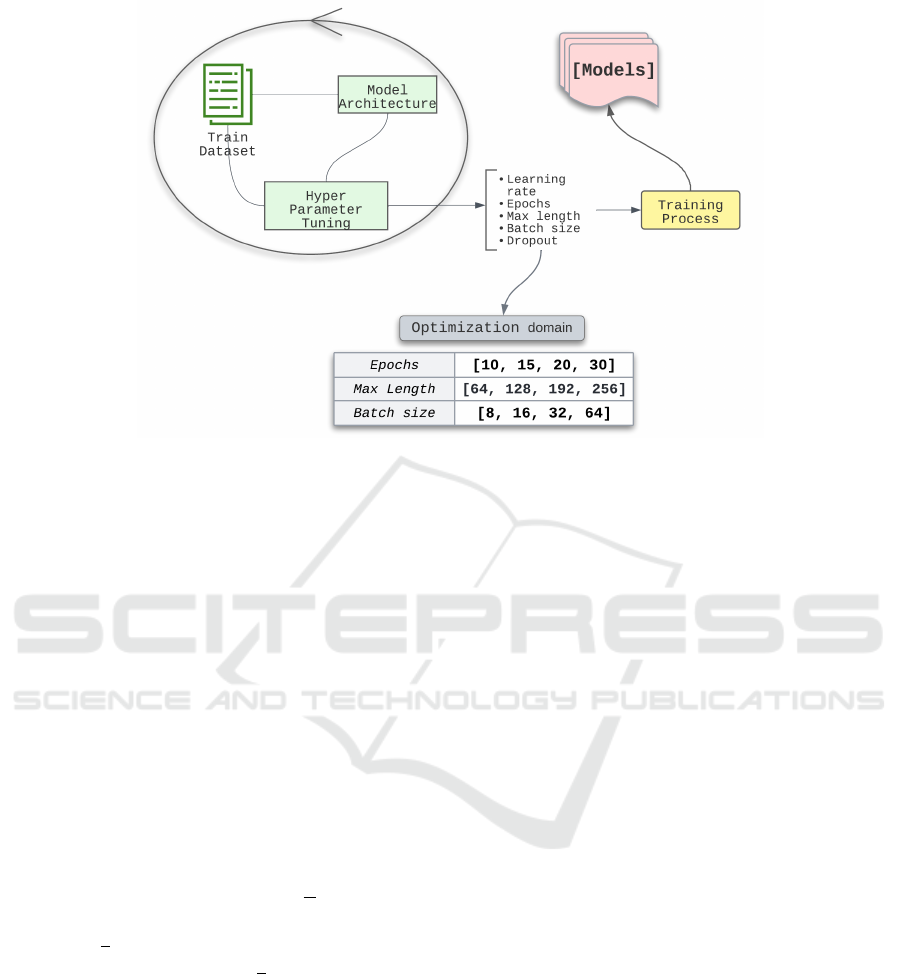

case. We have experimented with different combina-

tions of parameters according to the Tree-structured

Parzen Estimator algorithm as illustrated in Figure 4.

The optimization during training was performed

on three hyper-parameters: the number of epochs, the

maximum length, and the batch size. At the end of

the training, the model with the highest F

score is se-

lected with the following hyper-parameters: number

of epochs = 20, maximum length = 128, batch size =

64.

It is this model that is used in the Evaluation sec-

tion below.

3.4 Evaluation

To evaluate our model we used the classical metrics

Precision (P), Recall (R), and F

-score. To get a sense

of the overall performance of the system, we use the

micro-average of Accuracy of the labeling process is

evaluated across precision, recall, and F

-score met-

rics.

Table 2: NER results on the evaluation dataset.

Methods (Tchouka et al., 2022) PROPOSAL (Dernoncourt et al., 2016)

Dataset HNFC i2b2

Metrics P R F

P R F

PER 96.3 99.8 98 97.2 98.9 98 98.2 99.1 98.6

ORG 41.1 57.3 47.8 90 51 65.6 92.9 71.4 80.7

LOC 88.4 95.8 92 99.4 94.4 96.9 95.9 95.7 95.8

DATE 97.7 86.7 91.9 99.2 95.7 97.4 99 99.5 99.2

AGE 91.5 66.9 77.3 98.2 91.8 95 98.9 97.6 98.2

TEL 99.5 97.9 98.7 99.4 99.8 99.6 98.7 99.7 99.2

REF - 96.1 79.5 87 -

QID - 77.2 32 45.3 99.2 98.7 99

Overall 94.6 94.9 94.7 98.5 96.4 97.4 98.3 98.53 98.4

HEALTHINF 2023 - 16th International Conference on Health Informatics

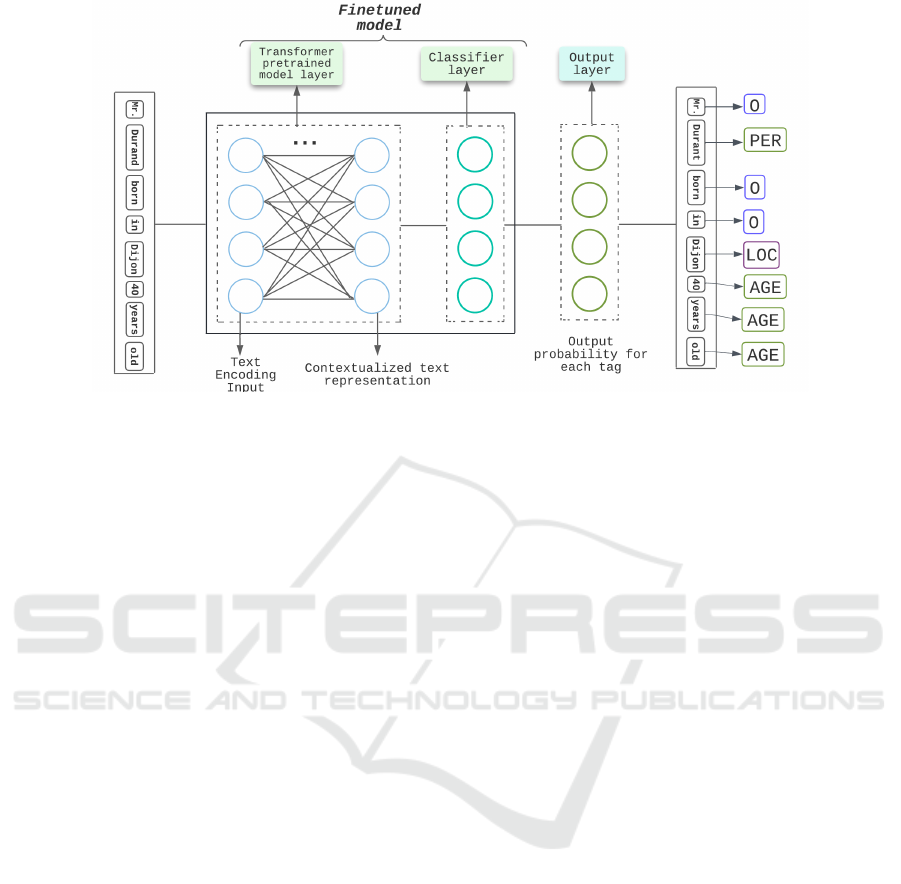

Figure 3: Deep Learning Model Architecture for NER.

To be fair with (Tchouka et al., 2022), we asked

the HNFC hospital to evaluate the NER step of this

approach on their HNFC-dataset. The results are de-

tailed in Table 2. This proposal largely surpasses re-

sults obtained in (Tchouka et al., 2022) in several cat-

egories (DATE, AGE. . . ). This is due to the BERT-

based layer which allows us to have a precise con-

textualization of the sequence. Our low score on

the organization level compared to the i2b2 model

is explained by the fact that they are structured in-

formally in the medical documents (abbreviation, iso-

lated word. . . ). Increasing the dataset will help solve

these types of problems and generally improve the

scores in the different categories.

The next step is substituting the detected entities,

as described in the next section.

4 SURROGATE GENERATION

STRATEGIES

The challenge here is to substitute personal informa-

tion detected by NER with relevant surrogates regard-

ing medical content whilst preserving privacy.

As argued in (Tchouka et al., 2022; Stubbs et al.,

2015), not all entities have the same level of criticality

or importance. A random strategy may be chosen for

instance for replacing names, phone numbers. . .

Moreover, to avoid averaging attacks and for

consistency in the document, memoization has been

implemented as in (Erlingsson et al., 2019; Arcolezi

et al., 2022). This consists in using the same substi-

tute for given sensitive information in the document.

Thread Example. In the thread example, Durand

could be replaced by any name, Julien for instance.

In contrast, temporal and location data inherently

carries information that is both medically important

and highly identiﬁable. In (Tchouka et al., 2022), for

temporal entities, the authors opted for local differen-

tial privacy with bounds in time categories (recalled

hereafter) to calibrate the added noise. About geo-

graphical locations, geo-indistinguishability (Borden-

abe et al., 2014) was retained as a direct mechanism to

provide a location close to the original one and whose

privacy leak is measured by ε − d privacy. These two

approaches allow the aforementioned method to re-

spect privacy. However, the relevance of substitutions

in this speciﬁc context of medical data has some lim-

its which will be detailed in following two sections.

4.1 Date & Age: Substitution Strategy

Beyond the fact that a date is identifying in a medical

document, we can not afford to randomly substitute

them. Providing an algorithm that respects privacy

means accepting that only the patient is allowed to

modify his or her data in such a way that given two

sanitized data of two patients, it is difﬁcult (from

a probabilistic point of view) to reassign one to the

ﬁrst and the other to the second. Local Differential

Privacy (Duchi et al., 2013) (LDP) formalizes the

algorithm robustness and its deﬁnition is recalled

hereafter.

Deﬁnition 1 (ε-local differential privacy). A random

mechanism A satisﬁes ε-local differential privacy if,

for any pair of input values v

, v

∈ Domaine(A ) and

An Easy-to-Use and Robust Approach for the Differentially Private De-Identiﬁcation of Clinical Textual Documents

Figure 4: FineTuning Process.

any possible output y of A:

Pr[A(v

) = y] ≤ e

· Pr[A(v

) = y]. (1)

LDP mechanisms (Holohan et al., 2017) are

tuned with respect to the data types they handle (real,

integer, . . . ), and to their usefulness. Here, the focus

is on temporal data. As each of them can be seen as a

number (number of days elapsed between the date to

be cleaned and the current date), in (Tchouka et al.,

2022) the authors have focused on the Laplacian

mechanism recalled below.

Deﬁnition 2 (Laplacian mechanism in an interval of

amplitude ∆). In the Laplacian mechanism, a nu-

merical value v is sanitized into a numerical value

Lap

(v, ∆, ε) with

Lap

(v, ∆, ε) = v + Lap



∆



(2)

where Lap



∆



is the Laplace distribution centered in

0 and whose scale parameter is

∆

In (Tchouka et al., 2022), the authors reached the

conclusion that segmenting a set of dates into 3 cat-

egories (less than 2 months, less than 2 years, more

than two years) was necessary to minimize ∆, i.e. the

introduced noise. Indeed, within these intervals (of

range ∆), the generated dates did not allow us to infer

what their preimages were. However, in the larger cat-

egory, the introduced noise is still too important since

it is necessary to make indistinguishable the cleaning

of two dates like 3 years and 80 years.

It is thus necessary to further segment the space

much more or, equivalently, allow distinguishing

certain dates from others. Two dates that are initially

far apart should not necessarily be made identical by

a differential privacy mechanism. The underlying

idea is therefore privacy depending on the distance

between the values of the elements to be protected.

We ﬁnd here the notion of ε.d-privacy (Alvim et al.,

2018) recalled below.

Deﬁnition 3 (ε.d-privacy). A randomized algorithm

(A satisﬁes the epsilon.d-privacy if, for any possible

output y of A and for any pair of input values v

, v

∈

Domain(A), domain with a metric d.

Pr[A(v

) = y] ≤ e

ε.d(v

)

· Pr[A(v

) = y]. (3)

Intuitively, the ε.d-privacy protects the precision

of the secret: if we add a metric in the date space, it al-

lows us to distinguish between an old date (of birth for

example) and a recent date (of operation last week).

On the other hand, it guarantees that two very recent

dates (v

and v

) at a very small distance will generate

the same output y with a very high probability.

Without going into further details, this version

of ε.d-privacy generalizes both the ε-local differen-

tial privacy and ε-differential privacy and has the

same properties in terms of composition and post-

processing (Fernandes, 2021).

The question then arises of implementing a mech-

anism that guarantees this ε.d-privacy property for

temporal events.

In (Tchouka et al., 2022), to respect the chronol-

ogy of events each temporal event d (a date, an

age,. . . ) is converted into a duration v in days between

the current date and d. The input domain is thus R

HEALTHINF 2023 - 16th International Conference on Health Informatics

100

with the absolute value as distance. Easy to imple-

ment, it would be detrimental to privacy. Indeed, in

the context of ε-LDP, the ∆-amplitude of this mecha-

nism would be equal to 1 day instead of the amplitude

of each category (100 × 365 days for the largest cat-

egory). A precise date such as birth or intervention

will probably be modiﬁed. On the other hand, an age

of a few decades will very probably not be modiﬁed,

which is not satisfactory.

Moreover, in a medical document which contains

”10 years ago”, what is actually meant is ”about 10

years ago”, and not ”the same day, 10 years be-

fore”. This approximation is also found when tem-

poral events are expressed in months or weeks. The

metric that we will consider will be unit dependent.

It will be in years (in months, weeks . . . resp.) for

events expressed in years (in months, weeks . . . resp.).

With this adaptation, an age (in years) will probably

be modiﬁed by a few years, for example.

The Laplacian mechanism (recalled in deﬁni-

tion 2) adds noise following a Laplace-centered distri-

bution of parameter ε

−1

. It is not difﬁcult to demon-

strate (Fernandes, 2021) that this mechanism has the

ε.d-privacy property given by the equation (3).

Notice that, as in a classical differential privacy

approach, the privacy global ε budget is shared

between all the elements to be substituted. This

sharing here can be uniform or not. Without any a

priori, we consider that it is here.

Thread Example. In our thread example, there are 2

detected dates (expressed in days), 1 age expressed in

years, and 1 location (2 times duplicated), i.e. 4 ele-

ments to substitute. Each element will consume

the privacy budget, the last quarter is dedicated to san-

itizing location. The date substitution process for this

example is detailed in Figure 5. Thus, 40 years be-

comes 37 years, 02/12/2020 and February 26, 2020

respectively lead to 02/20/2020 and March 01, 2020.

4.2 Geographic Locations: Substitution

Strategy

Geo-indistinguishability (Bordenabe et al., 2014) has

been accepted de facto as the gold standard to pre-

serve location privacy (Xiao and Xiong, 2015; Fawaz

and Shin, 2014; Bordenabe et al., 2014). This mech-

anism instantiates ε.d-privacy (as recalled in deﬁni-

tion 3) in the context of locations which are (x, y)

coordinates inside R

. In the de-identiﬁcation con-

text, the authors of (Tchouka et al., 2022) use geo-

indistinguishability to randomly add noise to the co-

ordinates (x, y) of the location to be sanitized leading

to the new tuple (x

′

, y

′

). Thus, they re-associate the

Figure 5: Example of date substitution process on the thread

example.

location which is the closest one to this new tuple.

This method effectively protects privacy and provides

a consistent substitute in the document. However, we

argue that it does not effectively answer the question

of the document’s utility in a medical context. Indeed,

two places relatively close to each other geographi-

cally can be far from each other from a health point

of view. Our motivation here is to have a system that

integrates not only the distance but also some health

criteria that can impact the health of the population.

In this substitution of locations, it seems desirable

to choose randomly among locations that are close not

only in a geographical sense but also in a statistical

(e.g., number of inhabitants) and medical (e.g., the in-

cidence rate of all cancers, the number of strokes, air

pollution, radon level. . . ) sense. Everything depends

on the fact that we can express a distance between

locations that would integrate statistical and medical

characteristics. Many institutional websites freely of-

fer this local information. Figure 6 gives an extract

for some cities of the Bourgogne Franche-comt

e, a re-

gion of France. With such features for each location,

it is not hard to compute the distance between them

(for instance the euclidean one) and to apply any LDP

mechanism capable of capturing this distance.

For instance, let us consider a public database

of N locations where each location i is a vector

, y

, c

, . . . , c

) where (x

, y

) is the geographical lo-

cation and (c

, . . . , c

) the features, further considered

to be normalized, i.e. in [0, 1]. Let d

be the vector of

feature differences between locations j and i.

Let v

= [(1, d

), (2, d

), . . . ( j, 0), . . . , (N, d

)]

An Easy-to-Use and Robust Approach for the Differentially Private De-Identiﬁcation of Clinical Textual Documents

101

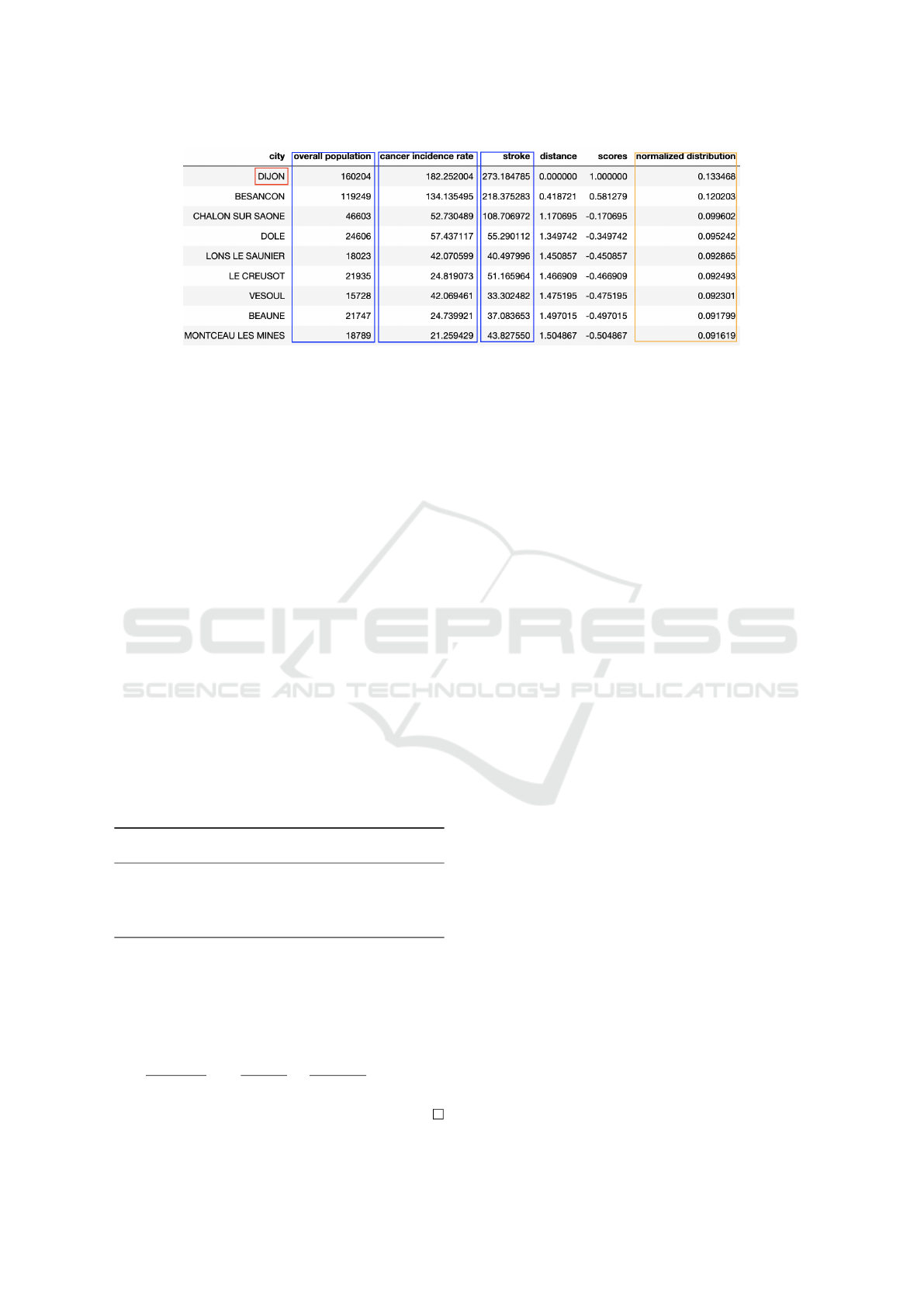

Figure 6: Example of exponential mechanism applied on sanitizing Dijon city.

be the sequence of all distances between j and oth-

ers. In a practical situation, this sequence can be re-

duced to the location distances (i, d

) s.t. both the

geographical distance between i and j is lower than

a given threshold and to the k smallest values of the

distances, and where values are sorted in ascending

order according to d. v

′

is the result and consti-

tutes the possible substitutes of the city j. This leads

to v

′

= [(i

, d

), . . . (i

, d

)], with (i

, d

) = ( j, 0)

since the smallest distance is 0 between j and j. The

score function U may be deﬁned by U( j, i) = 1 − d

for each i ∈ {i

, . . . , i

} and −∞ elsewhere. This func-

tion is public and is not based on any private data. The

probability distribution function is thus as follows:

= [a.e

εU( j,i

)

, . . . , a.e

εU( j,i

)

, 0, . . . , 0] (4)

where a =



∑

i=1

εU( j,i



−1

is the normalization fac-

tor. Notice this mechanism is an adaptation of the cen-

tralized exponential mechanism with public data, i.e.,

without sensitivity. Cities can thus be sanitized ac-

cording to the mechanism given in algorithm 1. This

mechanism is based on a distance. The next section

shows it veriﬁes ε.d-privacy.

Algorithm 1: Local exponential mechanism applied to the

city j.

➔ Let the probability distribution P

deﬁned as in (4)

➔ Y

= [y

, . . . , y

] the k possible output cities

➔ the substitute l of the city j is l = Random[Y

]

with Random[Y

]

random draw according to the distribution P

Property 1. The mechanism deﬁned in Algorithm 1

veriﬁes ε.d-privacy.

Proof. According to the deﬁnition 3, for any y whose

probability distribution deﬁnition is not null we suc-

cessively have

Pr[A(v

)=y]

Pr[A (v

)=y]

εU(v

,y)

εU(v

,y)

ε(1−d(v1,y))

ε(1−d(v2,y))

= e

ε(d(v

,y)−d(v

,y))

≤ e

ε.d(v

)

Clearly, the features to be integrated for this step

should be deﬁned upstream in concert between the

medical teams (who know the data) and the technical

teams.

Thread Example. Using our example with the loca-

tion ”Dijon”. Considering the features: overall pop-

ulation, cancer incidence rate, and strokes, shown in

blue in Figure 6. The columns (’distance’ & ’scores’)

represent respectively the vector distance (Euclidean

distance with normalized features) and the results of

the score function deﬁned in Algorithm 1, from Dijon

to k = 10 ’nearby’ cities (according to features). After

applying the probability distribution function previ-

ously detailed, we obtain the normalized distribution

illustrated in orange in Figure 6. The random draw

thus follows this distribution.

According to the memoization, all occurrences of

the location Dijon can be replaced by Besanc¸on and

the ﬁnal result of the substitution step would be: ”Mr.

Julien born in Besanc¸on, 37 years old, was admitted

to the hospital from 02/20/2020 to March 01, 2020

following a road accident in Besanc¸on.”

5 CONCLUSION

This paper detailed a complete accurate differen-

tially private de-identiﬁcation method. Regarding the

NER step, an existing comprehensive but ﬂawed de-

identiﬁcation approach was taken to internally build

a new and substantial medical dataset that was then

labeled by hand. Using this new labeled and large

dataset, deep learning was implemented taking into

account the context. NER results we obtained in

French are equivalent to the most accurate results in

the English language, ﬁlling the gap between these

two languages. Regarding substitutions of sensi-

tive data, we pointed out the limitations of exist-

ing approaches, especially for temporal and location

data. We believe we have provided the most privacy-

HEALTHINF 2023 - 16th International Conference on Health Informatics

102

friendly method to date and location (since it is based

on differential privacy) that retains sufﬁcient medical

information for further processing. For the NER part,

our future works will focus on the use of multilingual

models such as XLM-RoBERTa and their ability to

enable zero-shot cross-lingual transfer. We will fur-

thermore study how the introduction of a translation

step and the associated English language NER task

can improve our NER approach as in (Sch

afer et al.,

2022) The idea is to tune a such model on an English

NER medical dataset and to study its behavior on a

French evaluation dataset. With the same goal of an-

alyzing medical documents while preserving privacy,

in addition to the anonymization method detailed in

this paper, we will try the methods of perturbing the

training dataset in the word embedding vocabulary

(BERT-based model) by metric-based differential pri-

vacy (Feyisetan et al., 2020; Zhao and Chen, 2022).

ACKNOWLEDGEMENTS

This work was partially supported by the EIPHI-

BFC Graduate School (contract ”ANR-17-EURE-

0002”). All computations have been performed on

the ”M

esocentre de Calcul de Franche-Comt

e”.

REFERENCES

Akbik, A., Bergmann, T., Blythe, D. A. J., Rasul, K.,

Schweter, S., and Vollgraf, R. (2019). Flair: An easy-

to-use framework for state-of-the-art nlp. In NAACL.

Alvim, M. S., Chatzikokolakis, K., Palamidessi, C., and

Pazii, A. (2018). Metric-based local differential

privacy for statistical applications. arXiv preprint

arXiv:1805.01456.

Arcolezi, H. H., Couchot, J.-F., Al Bouna, B., and Xiao,

X. (2022). Improving the utility of locally differen-

tially private protocols for longitudinal and multidi-

mensional frequency estimates. Digital Communica-

tions and Networks.

Bergstra, J., Bardenet, R., Bengio, Y., and K

egl, B. (2011).

Algorithms for hyper-parameter optimization. Ad-

vances in neural information processing systems, 24.

Bergstra, J., Yamins, D., and Cox, D. (2013). Making a sci-

ence of model search: Hyperparameter optimization

in hundreds of dimensions for vision architectures. In

International conference on machine learning, pages

115–123. PMLR.

Bordenabe, N. E., Chatzikokolakis, K., and Palamidessi, C.

(2014). Optimal geo-indistinguishable mechanisms

for location privacy. In Proceedings of the 2014 ACM

SIGSAC conference on computer and communications

security, pages 251–262.

Bourdois, L., Avalos, M., Chenais, G., Thiessard, F.,

Revel, P., Gil-Jardin

e, C., and Lagarde, E. (2021).

De-identiﬁcation of Emergency Medical Records in

French: Survey and Comparison of State-of-the-Art

Automated Systems, volume 34. LibraryPress@UF.

Cohen, I. G. and Mello, M. M. (2018). Hipaa and pro-

tecting health information in the 21st century. Jama,

320(3):231–232.

Deleger, L., Lingren, T., Ni, Y., Kaiser, M., Stoutenbor-

ough, L., Marsolo, K., Kouril, M., Molnar, K., and

Solti, I. (2014). Preparing an annotated gold standard

corpus to share with extramural investigators for de-

identiﬁcation research. Journal of biomedical infor-

matics, 50:173–183.

Dernoncourt, F., Lee, J., Uzuner, O., and Szolovits, P.

(2016). De-identiﬁcation of patient notes with recur-

rent neural networks. Journal of the American Medi-

cal Informatics Association : JAMIA, 24.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2018).

BERT: pre-training of deep bidirectional transformers

for language understanding. CoRR, abs/1810.04805.

Douglass, M., Clifford, G. D., Reisner, A., Moody, G. B.,

and Mark, R. G. (2004). Computer-assisted de-

identiﬁcation of free text in the mimic ii database.

In Computers in Cardiology, 2004, pages 341–344.

IEEE.

Duchi, J. C., Jordan, M. I., and Wainwright, M. J. (2013).

Local privacy and statistical minimax rates. In 2013

IEEE 54th Annual Symposium on Foundations of

Computer Science, pages 429–438. IEEE.

Dwork, C., McSherry, F., Nissim, K., and Smith, A. (2006).

Calibrating noise to sensitivity in private data analy-

sis. In Theory of cryptography conference, pages 265–

284. Springer.

Erlingsson,

U., Feldman, V., Mironov, I., Raghunathan, A.,

Talwar, K., and Thakurta, A. (2019). Ampliﬁcation

by shufﬂing: From local to central differential privacy

via anonymity. In Proceedings of the Thirtieth An-

nual ACM-SIAM Symposium on Discrete Algorithms,

pages 2468–2479. SIAM.

EU (2016). Regulation (eu) 2016/679 of the european par-

liament and of the council of 27 april 2016 on the

protection of natural persons with regard to the pro-

cessing of personal data and on the free movement of

such data, and repealing directive 95/46/ec (general

data protection regulation) (text with eea relevance).

Fawaz, K. and Shin, K. G. (2014). Location privacy protec-

tion for smartphone users. In Proceedings of the 2014

ACM SIGSAC Conference on Computer and Commu-

nications Security, pages 239–250.

Fernandes, N. (2021). Differential privacy for metric

spaces: information-theoretic models for privacy and

utility with new applications to metric domains. PhD

thesis,

Ecole Polytechnique Paris; Macquarie Univer-

sity.

Feyisetan, O., Balle, B., Drake, T., and Diethe, T. (2020).

Privacy-and utility-preserving textual analysis via cal-

ibrated multivariate perturbations. In Proceedings of

the 13th International Conference on Web Search and

Data Mining, pages 178–186.

Grouin, C., Griffon, N., and N

eol, A. (2015). Is it pos-

sible to recover personal health information from an

An Easy-to-Use and Robust Approach for the Differentially Private De-Identiﬁcation of Clinical Textual Documents

103

automatically de-identiﬁed corpus of french ehrs? In

Proceedings of the Sixth International Workshop on

Health Text Mining and Information Analysis, pages

31–39.

Hanslo, R. (2021). Deep learning transformer archi-

tecture for named entity recognition on low re-

sourced languages: State of the art results. CoRR,

abs/2111.00830.

Holohan, N., Leith, D. J., and Mason, O. (2017). Optimal

differentially private mechanisms for randomised re-

sponse. IEEE Transactions on Information Forensics

and Security, 12(11):2726–2735.

Huang, K., Altosaar, J., and Ranganath, R. (2019). Clinical-

bert: Modeling clinical notes and predicting hospital

readmission. arXiv preprint arXiv:1904.05342.

Johnson, A. E., Pollard, T. J., Shen, L., Lehman, L.-w. H.,

Feng, M., Ghassemi, M., Moody, B., Szolovits, P.,

Anthony Celi, L., and Mark, R. G. (2016). Mimic-

iii, a freely accessible critical care database. Scientiﬁc

data, 3(1):1–9.

Kersloot, M. G., van Putten, F. J., Abu-Hanna, A., Cornet,

R., and Arts, D. L. (2020). Natural language pro-

cessing algorithms for mapping clinical text fragments

onto ontology concepts: a systematic review and rec-

ommendations for future studies. Journal of biomedi-

cal semantics, 11(1):1–21.

Kumar, V., Stubbs, A., Shaw, S., and Uzuner,

O. (2015).

Creation of a new longitudinal corpus of clinical nar-

ratives. Journal of biomedical informatics, 58:S6–

S10.

Lafferty, J. D., McCallum, A., and Pereira, F. C. N. (2001).

Conditional random ﬁelds: Probabilistic models for

segmenting and labeling sequence data. In Proceed-

ings of the Eighteenth International Conference on

Machine Learning, ICML ’01, pages 282–289, San

Francisco, CA, USA. Morgan Kaufmann Publishers

Inc.

Le, H., Vial, L., Frej, J., Segonne, V., Coavoux, M., Lecou-

teux, B., Allauzen, A., Crabb

e, B., Besacier, L., and

Schwab, D. (2019). Flaubert: Unsupervised lan-

guage model pre-training for french. arXiv preprint

arXiv:1912.05372.

Lee, J., Yoon, W., Kim, S., Kim, D., Kim, S., So, C. H.,

and Kang, J. (2019). Biobert: a pre-trained biomedi-

cal language representation model for biomedical text

mining. Bioinformatics.

Levine, J. M. (2003). De-identiﬁcation of ICU patient

records. PhD thesis, Massachusetts Institute of Tech-

nology.

Liu, Z., Tang, B., Wang, X., and Chen, Q. (2017). De-

identiﬁcation of clinical notes via recurrent neural

network and conditional random ﬁeld. Journal of

Biomedical Informatics, 75.

Loshchilov, I. and Hutter, F. (2017). Decoupled weight de-

cay regularization. arXiv preprint arXiv:1711.05101.

Nothman, J., Ringland, N., Radford, W., Murphy, T.,

and Curran, J. R. (2013). Learning multilingual

named entity recognition from wikipedia. Artiﬁcial

Intelligence, 194:151–175. Artiﬁcial Intelligence,

Wikipedia and Semi-Structured Resources.

Polignano, M., de Gemmis, M., and Semeraro, G. (2021).

Comparing transformer-based NER approaches for

analysing textual medical diagnoses. In Faggioli,

G., Ferro, N., Joly, A., Maistro, M., and Piroi, F.,

editors, Proceedings of the Working Notes of CLEF

2021 - Conference and Labs of the Evaluation Forum,

Bucharest, Romania, September 21st - to - 24th, 2021,

volume 2936 of CEUR Workshop Proceedings, pages

818–833. CEUR-WS.org.

Sch

afer, H., Idrissi-Yaghir, A., Horn, P., and Friedrich, C.

(2022). Cross-language transfer of high-quality anno-

tations: Combining neural machine translation with

cross-linguistic span alignment to apply NER to clini-

cal texts in a low-resource language. In Proceedings of

the 4th Clinical Natural Language Processing Work-

shop, pages 53–62, Seattle, WA. Association for Com-

putational Linguistics.

Stubbs, A., Kotﬁla, C., and Uzuner,

O. (2015). Auto-

mated systems for the de-identiﬁcation of longitudinal

clinical narratives: Overview of 2014 i2b2/uthealth

shared task track 1. Journal of biomedical informatics,

58:S11–S19.

Sun, W., Rumshisky, A., and Uzuner, O. (2013). Evaluat-

ing temporal relations in clinical text: 2012 i2b2 chal-

lenge. Journal of the American Medical Informatics

Association, 20(5):806–813.

Sweeney, L. (1996). Replacing personally-identifying in-

formation in medical records, the scrub system. In

Proceedings of the AMIA annual fall symposium, page

333. American Medical Informatics Association.

Tchouka, Y., Couchot, J., Coulmeau, M., Laiymani, D.,

Selles, P., Rahmani, A., and Guyeux, C. (2022). De-

identiﬁcation of french unstructured clinical notes for

machine learning tasks. CoRR, abs/2209.09631.

Uzuner,

O., Luo, Y., and Szolovits, P. (2007). Evaluating the

state-of-the-art in automatic de-identiﬁcation. Jour-

nal of the American Medical Informatics Association,

14(5):550–563.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I.

(2017). Attention is all you need. Advances in neural

information processing systems, 30.

Velupillai, S., Suominen, H., Liakata, M., Roberts, A.,

Shah, A. D., Morley, K., Osborn, D., Hayes, J., Stew-

art, R., Downs, J., et al. (2018). Using clinical natu-

ral language processing for health outcomes research:

overview and actionable suggestions for future ad-

vances. Journal of biomedical informatics, 88:11–19.

Xiao, Y. and Xiong, L. (2015). Protecting locations with

differential privacy under temporal correlations. In

Proceedings of the 22nd ACM SIGSAC Conference

on Computer and Communications Security, pages

1298–1309.

Zhao, Y. and Chen, J. (2022). A survey on differential pri-

vacy for unstructured data content. ACM Computing

Surveys (CSUR).

HEALTHINF 2023 - 16th International Conference on Health Informatics

104
