Towards Enhanced Guiding Mechanisms in VR Training Through

Process Mining

Enes Yigitbas, Sebastian Krois, Sebastian Gottschalk and Gregor Engels

Institute of Computer Science, Paderborn University, Zukuntsmeile 2, Paderborn, Germany

ﬁ

Keywords:

Virtual Reality, Process Mining, Usability Evaluation.

Abstract:

Virtual Reality (VR) provides the capability to train individuals to deal with new, complex, or dangerous

situations by immersing them in a virtual environment and enabling them to learn by doing. In this virtual

environment, the users usually train a sequence of different tasks. With that, most VR trainings have an

underlying process that is given implicitly or explicitly. Although some training approaches provide basic

guidance features, when analyzing the execution of the training, the process itself is often not considered,

even if the process is one of the primary aspects to train in many cases. In this paper, we present VR-ProM,

a framework that enables to use process mining techniques by supporting logging, analysis of execution logs

of training sessions, and provision of guiding mechanisms to enhance VR training applications. To evaluate

our framework and to investigate whether the integration of process mining techniques enables us to support

the enhancement of VR-based training applications, we performed a two-staged user study based on a VR

warehouse management training application. To analyze the effectiveness and subjective usability of the VR

training, we performed two rounds of user studies and compared the results before and after we integrated the

guiding mechanisms driven by process mining. Initial usability evaluation results show that with the help of

VR-ProM the trainees made 40% fewer mistakes in the example VR training application and that the overall

user satisfaction could be increased.

1 INTRODUCTION

Recent advances in Virtual Reality (VR) technology

and the increased availability of VR-equipped de-

vices enable a wide range of applications in various

domains such as medicine (Gurusamy et al., 2009),

robotics (Yigitbas et al., 2021), or marketing (Alca

niz

et al., 2019). This work focuses on the use of VR for

training which is deﬁned as the provision of knowl-

edge and skills in an interactive manner (Antona-

copoulou, 2001). In this context, VR provides the

capability to train individuals to deal with new, com-

plex, or dangerous situations by immersing them in

a virtual environment and enabling them to learn by

doing.

While VR-based trainings usually rely on a pro-

cess model which is given implicitly or explicitly for

the task to learn, none of the existing VR-based train-

ing approaches make use of this process knowledge

to improve the guidance of the training application

by applying process mining techniques. As a con-

sequence of this, the users of such VR-based train-

ings have to face a ”one-size-ﬁts-all” training with

ﬁxed guidance or a freestyle training approach with

no guidance. However, due to learning style and ex-

perience level differences as well as task needs, it is

important to consider the underlying processes and

analyze their execution logs for engineering effective

and user-friendly VR-based training applications. For

this purpose, Process Mining can be seen as a promis-

ing technique to enhance the guiding mechanisms in

VR-based trainings. However, the integration of pro-

cess mining techniques and their implication for VR-

based training applications have not been broadly re-

searched so far. Although process mining has a big

potential to analyze and optimize training processes,

a systematic method how to integrate process mining

techniques for VR-based trainings is missing. In ad-

dition to that, it is important to investigate whether

process mining techniques are beneﬁcial to enhance

the guiding mechanisms in VR-based trainings. To

the best of our knowledge, there is no approach ex-

isting that deals with the application of process min-

ing to enhance VR-based training applications. This

together leads to the research question of our work:

”How can we use process mining techniques to en-

152

Yigitbas, E., Krois, S., Gottschalk, S. and Engels, G.

Towards Enhanced Guiding Mechanisms in VR Training Through Process Mining.

DOI: 10.5220/0011651600003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 2: HUCAPP, pages

152-159

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

hance the guiding mechanisms in VR-based train-

ings?”

To answer this question, our work contains the

following contributions. Firstly, we have developed

a conceptual solution for the integration of process

mining techniques in VR-based training applications.

Secondly, we have implemented the conceptual so-

lution as a framework, called VR-ProM, for Unity

projects to show its functionality in action. To eval-

uate our process mining solution approach, we have

used an example VR-based training application from

the domain of warehouse management and conducted

a two-staged user study.

The rest of the paper is structured as follows. In

Section 2, we present and discuss the related work.

In Section 3, we describe the conceptual solution and

implementation of our process mining approach for

VR-based training applications. In Section 4, we

present the user study and discuss the main results of

the usability evaluation. In Section 5, we conclude the

paper and give an outlook for future work.

2 RELATED WORK

Virtual Reality-based training applications have been

discussed in the past for various application domains.

In the following, we brieﬂy draw on prior research

into Virtual Reality Trainings, Execution and Interac-

tion Logging as well as Process Mining for Training

Scenarios.

2.1 Virtual Reality Trainings

Virtual Reality trainings have been used for several

years now. For example, Liang et al. (Liang et al.,

2019) developed a training game for miners, which

teaches them how to spot loose rocks in underground

mines to decrease rock-related hazards. Another ex-

ample is given by Shen et al. (Shen et al., 2019) who

simulated a marine ship to train marine engineers to

work on a real ship. Furthermore, Wang et al. (Wang

et al., 2017) created a surgeon training for medical

students. Based on this approach, they can train surg-

eries in virtual reality before they start operating on a

living patient.

While the above-mentioned VR-based training ap-

plications support the training process for a speciﬁc

domain-relevant task, they do not make use of data

logging or even if they record data, the results are not

used to improve the training application by adjusting

the guiding mechanisms.

www.unity.com

2.2 Execution and Interaction Logging

In (Vidani and Chittaro, 2009), Vidani et al. present

an approach where the combined use of task models

and logs of user interactions are investigated to ana-

lyze the training process of serious games for emer-

gency medical procedures.

Furthermore, Harms (Harms, 2019) presents an

automated usability evaluation approach for VR ap-

plications. To enable logging, he presents a tool that

crawls through the objects placed in a scene of the VR

application to evaluate and automatically detect rele-

vant log actions performed by the user.

A further approach where monitoring of execu-

tion logs of VR applications is considered is presented

by Zahabi et al. (Zahabi and Abdul Razak, 2020).

Here, the authors argue that VR trainings should be

adapted based on the user’s capabilities, performance,

and needs. For this purpose, they provide a system-

atic literature review and a framework for adaptive

VR-based training including performance measures,

adaptive logic, and adaptive variables.

While the above-mentioned approaches enable

conformance checking by taking a process or inter-

action log and comparing it to an existing process or

task model, they do not support process discovery and

enhancement which is possible using process mining.

2.3 Process Mining for Training

Scenarios

Dolak et al. (Dolak, 2019) took the logs of the on-

line education platform MOODLE

to analyze the

students’ behavior following an online course.

In the context of warehouse management,

Paszkiewicz and Zbigniew (Paszkiewicz, 2013) ana-

lyzed the product management process of a mattress-

producing company. The process describes how to

treat pallets with freshly produced mattresses until

they are shipped to the customer.

Fern

andez-Gallego et al. (Fern

andez-Gallego

et al., 2013) present a learning analytics framework

for 3D educational virtual worlds that focus on dis-

covering learning ﬂows and checking their confor-

mance through process mining techniques. The core

of this framework is an Opensim-based virtual world

platform that has the ability of monitoring and regis-

tering the events generated by students and teachers.

Furthermore, Cerezo et al. (Cerezo et al.,

2020) introduce a process mining approach for self-

regulated learning assessment in the context of e-

learning.

https://moodle.com/

Towards Enhanced Guiding Mechanisms in VR Training Through Process Mining

153

One approach where VR and process mining are

combined is presented by Rold

an et al. (Rold

an et al.,

2019). In this approach, the authors describe a train-

ing system for Industry 4.0 operators in complex as-

semblies based on VR and process mining. While the

main idea of this approach is similar to ours, they are

not focusing on the improvement of the VR interface

by adjusting the guiding mechanisms to the needs of

the end-users.

3 CONCEPT AND

IMPLEMENTATION

To answer our research question and to integrate pro-

cess mining techniques for the analysis of VR-based

trainings, we have developed a VR process mining

analysis framework called VR-ProM. A high-level ar-

chitectural overview of VR-ProM is shown in Figure

VR Application

Task Objects

Gateway Objects

Guiding

Component

Logger

Component

Performs

action

Reports

action

Check

condition

status

Activate

help

Report action

to log

VR-Prom Framework

Process

Model

Log

Process Mining

Analysis

Produces

Updates

Relies on

Used for

analysis

Creates/Updates

VR End-User

Figure 1: Architectural Overview.

In VR-ProM, we assume that there is already an

existing VR-based training denoted as VR Application

which relies on an explicit Process Model. The VR

End-User performs an action in the VR-based train-

ing that is forwarded to the Guiding Component and

logged by the Logger Component. In addition to this,

the action is evaluated. Therefore, the Guiding Com-

ponent needs to know where in the process the user

is. To determine that, every application needs cus-

tom Check condition status operations which deter-

mine which path the user has to follow. When the user

executed the right task, the Guiding Component also

needs to check if the task was executed completely. If

one of these conditions does not hold, the help mecha-

nism can be activated. For every application, the help

mechanisms need to be implemented individually. It

also needs to be deﬁned, when the help is to be ac-

tivated (i.e. which preconditions need to hold before

showing the help). That can be based on Process Min-

ing Analysis, e.g. by determining how many mistakes

may happen before the help is activated.

The Logger Component allows developers to cap-

ture the users’ behavior in a format that can be used

directly for Process Mining Analysis. The Guiding

Component takes a process model as input. Then, it

supervises if the user acts according to the speciﬁed

process model. Additionally, the opportunity to eas-

ily implement guiding mechanisms into a VR Applica-

tion is possible. Which guiding mechanisms are used

and at what point they are applied can be based on

the results of a Process Mining Analysis. The user’s

behavior can be continuously logged so that we can it-

eratively use process mining to successively improve

the guiding. In the following sections, each compo-

nent of the architectural overview will be described in

more detail.

3.1 VR Application - Warehouse

Management Training

For an illustration of the main concepts of the VR-

ProM framework, we ﬁrstly describe the VR applica-

tion that serves as a basis and motivational real-world

example for our solution idea. In our case, we take

an existing VR application from the domain of ware-

house management training. In the area of logistics,

warehouse management involves a complex process

that consists of different order picking tasks. Due to

this complex process, stock discrepancies and mis-

placed wares are typical problems that often occur.

To overcome this problem, we have developed a VR

training application that integrates an existing ware-

house management system and trains typical order

picking processes. In the following, the main func-

tionality and structure of this VR-based training ap-

plication will be brieﬂy described to guarantee a bet-

ter understanding of the forthcoming concepts con-

cerning the integration of process mining. First of all,

Figure 2 shows how the warehouse is structured.

The core objects in a warehouse are the items

stored in the warehouse. There are different types of

items. To limit the possible item types, we decided

there should be Small Items and Big Items. With that,

we have two item categories that need to be treated

differently. The small items can be grabbed and car-

ried by hand. We also use a Carrying Robot in which

the user can put small items, and which can follow

them through the warehouse. The robot allows each

user to collect multiple small items at the same time,

so they do not have to walk the same way again for ev-

ery item. Small items can be fragile or robust. These

attributes do not change their behavior but need to be

considered when putting them into the Picking Cart

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

154

6 6 6

888

VR-End User

Order Display

Small Items

Carrying Robot

Picking Cart

Big Items (Pallets)

Forklift

Pallet Places

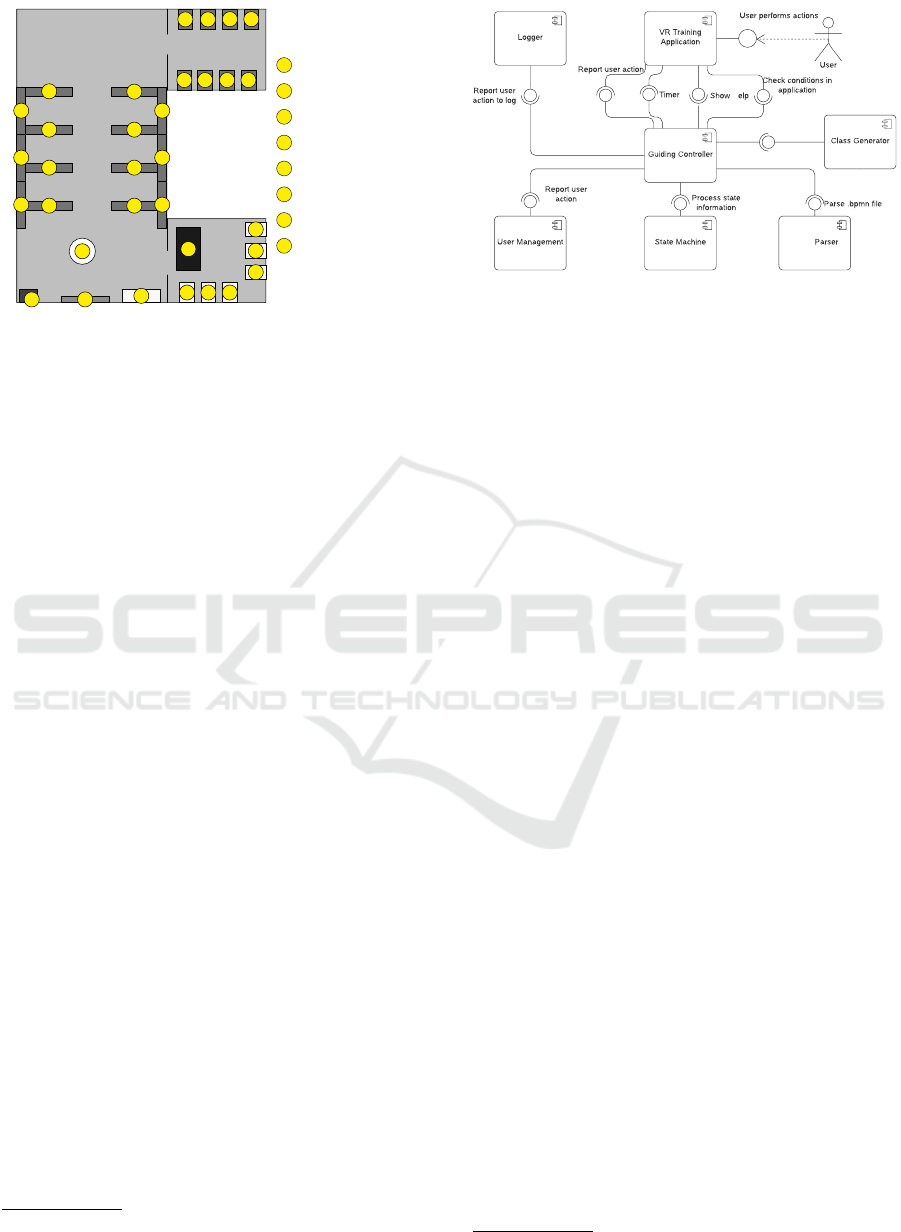

Figure 2: Floor Plan of the Warehouse Building.

for shipping. The picking carts are boxes, in which

the user puts items ready to be shipped. To keep it

neat, there is one picking cart for every order. A pick-

ing cart itself is divided into two sections, one for

fragile items and one for robust ones. When placing

items in the picking cart, the user has to place them

according to their attributes. Big items are too heavy

to carry by hand. They are placed on a pallet which

requires the player to use a Forklift for moving them.

To increase the immersion, the Forklift is controlled

by the user’s movement, not by pushing buttons on

the controller. Therefore, it has a handle that can be

grabbed. By moving the handle, the user can move

the Forklift. The Forklift additionally needs two but-

tons to enable the up and down lifting of its forks to

carry the pallets. For shipping, the pallets need to be

placed in designated Pallet Places.

3.2 VR-ProM Framework

In the following, we describe our novel VR-ProM

framework

in more detail by focusing on its two

main components Logger and Guiding.

3.2.1 Logger Component

For analyzing the user’s behavior and training per-

formance we can log the events occurring during the

training. The Logger Component produces a log that

conforms to the XES standard

, so we can use it with

most of the existing process mining tools. To be able

to easily combine traces from multiple computers into

one log, the Logger Component writes down every

playthrough in its own ﬁle and combines them to the

actual log before ending the application. With that,

we can use multiple traces and combine them into a

https://github.com/Quegg/VR-Prom

https://xes-standard.org

BPMN

Generate class stubs

Figure 3: Component Overview.

single log later. To be able to use the Logger Compo-

nent outside this application example, it is indepen-

dent of the application. First, we need the Logger

Component itself, which can be called to perform the

logging. To ensure the last requirement, only one in-

stance of the logger may be running at the same time.

It needs at least three functions. One for initializing

the logger and opening a new trace, one to close the

log, and ﬁnally one for logging itself. The last one

gets the event and logs it accordingly. Every event

needs its own class where the class attributes are the

attributes occurring in the log. Therefore, all events

are an XesEvent. Every public ﬁeld which imple-

ments the XesAttribute interface in the event class will

be logged as an XesAttribute or XesExtension (when

possible). We support primitive types and collections

such as lists to also allow nested attributes.

3.2.2 Guiding Component at Design-Time

Besides the logging functionality described above,

our VR-ProM framework provides a Guiding Com-

ponent that enables assistance mechanisms in a VR-

based training application to better help and assist the

trainees. It is realized with the GuidingController

script in the framework. It consists of two groups

of functionalities. The ﬁrst group includes features

needed in the Unity editor while developing the VR-

based training application. The second handles the

guiding at runtime. Before integrating help mecha-

nisms, we need to know the process we want to teach.

Many tools allow the speciﬁcation of process mod-

els. In the current version of the VR-ProM frame-

work, we support process models saved as .bpmn ﬁle

(e.g. created by the Camunda Modeler

). The process

may contain tasks, exclusive gateways, start, and end

events. To load the process model from the .bpmn

ﬁle, we need a BPMN Parser which is used in both

functionality groups.

https://camunda.com/download/modeler/

Towards Enhanced Guiding Mechanisms in VR Training Through Process Mining

155

Figure 3 shows the top-level components of the

Guiding Component and the very basics of their com-

munication. The Guiding Controller uses the BPMN

Parser to get the process as input. Then, it creates

an empty stub ﬁle for the following elements of the

reference training process.

• Task: For every task, we need an event to log and

an object which is loaded in the VR Application to

actually interact with the trainee and all objects in

the warehouse. This object will later contain the

guiding mechanisms for its task.

• Gateway: Since a gateway is not an event that can

be logged, we do not need a logging event. But we

do need an object which is loaded in the scene,

just like the task does. This is necessary, as the

gateways have to check the state of their condi-

tions to determine the next task to execute.

• Error Events: Error events are not parsed from the

process. They can be added manually afterward.

When adding an error event, we create a logging

event and a class to be loaded in the VR Applica-

tion as well.

After that, the developers can adjust the stubs, so they

ﬁt into their application. The core class of this project

is the GuidingController. It handles the generation of

all class stubs and manages the whole guiding during

the simulation. To activate the GuidingController, the

corresponding script needs to be added to a GameOb-

ject. In Unity, a GameObject is the most basic compo-

nent which can be seen as a container holding every-

thing being present in a scene ranging from visible 3D

models to invisible scripts performing some action.

3.2.3 Guiding Component at Run-Time

In addition to the components we described above, we

implemented a very lightweight State Machine (see

Figure 3). It holds the information about the whole

process and knows the task the user is currently work-

ing on. It does not need to execute anything but it

has to know the current state and provide some util-

ity functions on the process, e.g. getting all possible

tasks following the current one.

Here, we ﬁrst check the simplest case of the next

element being a task. In that case, we do not need

to check any conditions and simply return to the next

task. If the next element is a gateway, we check its

conditions implemented by the developers. A gate-

way provides a method to CheckConditions. It re-

ceives a list of all possible next elements and returns

the name of the correct one. To use that, we ﬁrst re-

trieve the names of all the following elements from

the State Machine. Then, we pass this list to the gate-

way and use the returned object. If it is a task, we

return this task. Otherwise, we check the conditions

of the next gateway the same way until we eventually

reach a task.

User management is optional and can be used to

assign the playthrough results to user IDs to group or

compare them later.

To show help to the user, the developers can im-

plement custom help features (navigation arrows, ob-

ject highlighting, etc.) for every task and error. If

no custom help is provided, we provide generic help

as a fallback. This generic help will be based on the

given process and shows a simpliﬁed part of the pro-

cess model depicting where the user currently is, what

are the possible next tasks, and which of the next tasks

is the right one. Figure 4 shows what this looks like

in the simulation.

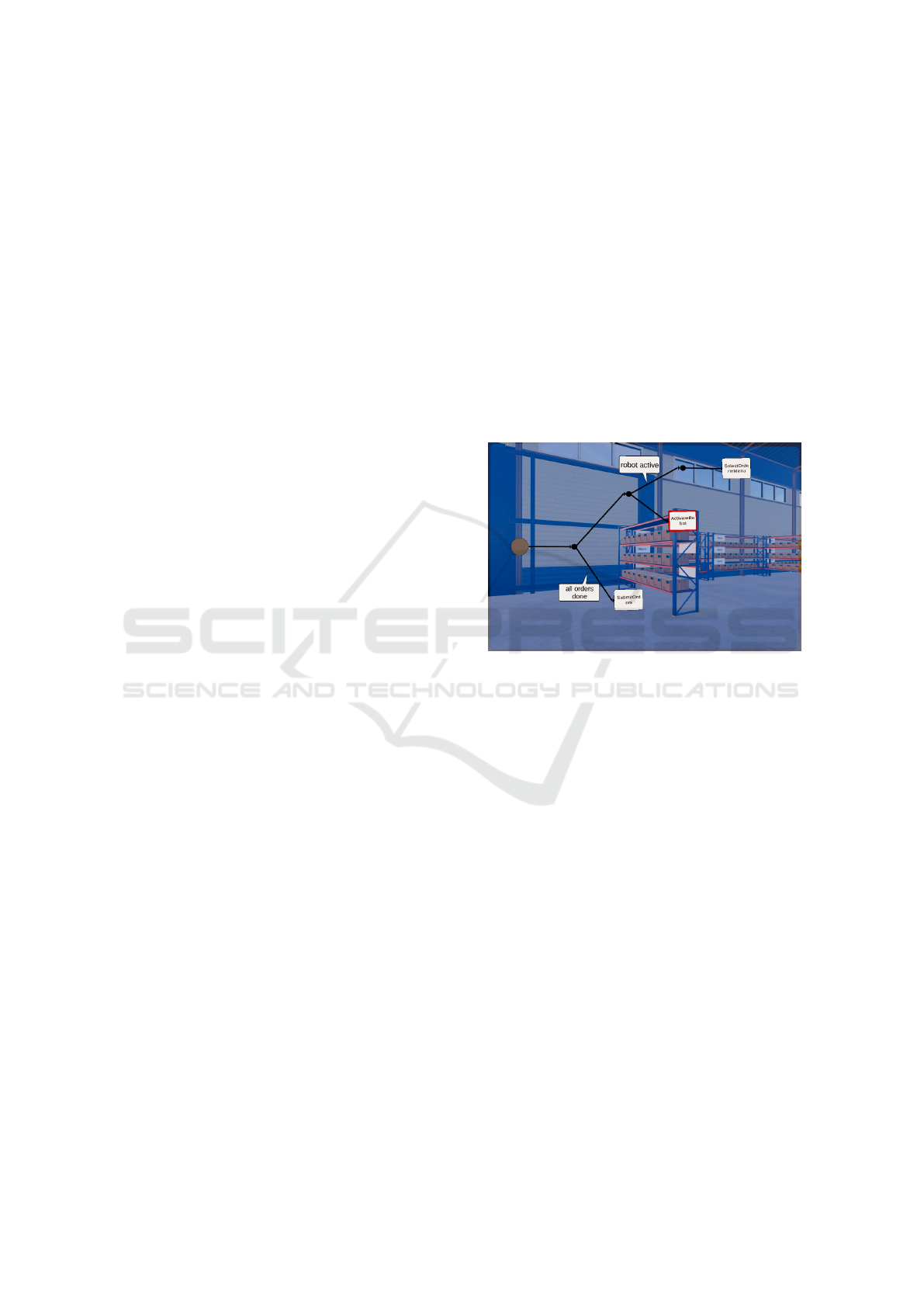

Figure 4: Exemplary Tasks to Execute During the Training

Process.

To generate this view, we take the last executed

task as input and display all possible next tasks to-

gether with the paths leading to them. We show the

exclusive gateways as black circles which divide the

path. If a path has a condition, it is shown using a

speech bubble. To help the user orientate in this view,

we added a red outline on the current task to execute.

3.3 Process Mining Analysis

With all the concepts described above, we almost have

all parts together to integrate process mining results

into VR trainings. The only thing missing is the pro-

cess mining analysis itself. Using process mining, we

have three different techniques at hand. The ﬁrst tech-

nique, we can use, is process discovery, to see how the

process is executed in real life. This is a generaliza-

tion of all recorded paths in this log. So we can see,

how a general user executes the process. With that,

we can ﬁnd out where problems occur, or the correct

order is not clear to the user. The second technique

is conformance checking. As its purpose is to show

where the execution in the log deviates from the de-

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

156

sired log, this seems to be suitable for our approach.

As, in our case, the process executions strongly de-

viate from each other and the given process, we can

see 0% accordance of the log to the process. These

results do not help to detect problems, so we will not

use conformance checking in our analysis. The third

technique, enhancement, is used to enhance the dis-

covered process map, so we can also consider the tim-

ing and frequency of event occurrences. To perform

the process mining analysis, we use the academic ver-

sion of Disco (G

unther and Rozinat, 2012). The de-

rived results of the process mining analysis will be de-

scribed in the next section which deals with the eval-

uation of our VR-ProM framework.

4 EVALUATION

To evaluate our framework VR-ProM and to investi-

gate whether the integration of process mining tech-

niques supports the enhancement of VR-based train-

ing applications, we performed an initial user study

based on the described warehouse management train-

ing application. In the following, ﬁrst, we describe the

evaluation setup of our user study. Then, we describe

the guiding mechanisms that were determined based

on the application of process mining. Those guiding

mechanisms were then integrated into the VR-based

training to increase its efﬁciency, effectiveness, and

user satisfaction. To check this, a second user study

took place.

4.1 Evaluation Setup

To evaluate the beneﬁt of VR-ProM, we have con-

ducted a two-staged user study based on the VR ware-

house management training application. In the ﬁrst

stage, the users performed the training where no guid-

ing mechanisms were integrated. They needed to

ﬁgure everything out on their own. The application

logged the user’s behavior, and we used these event

logs to determine the values for the KPIs. Those KPIs

were Efﬁciency (how long needs a user to complete

the training), Error Rate (how often does the user do

anything wrong), and the Subjective Usability (what

is the SUS score the user gave for the training). Then,

we analyzed the generated process map to identify

problems and determine guiding mechanisms to avoid

them. As soon as the integration was ﬁnished, a sec-

ond group of users performed the training, but this

time there were guiding mechanisms available. Due

to the COVID-19 pandemic, we decided to perform

the evaluation in a remote setting.

Due to the short-term conversion into remote eval-

uations, ﬁve participants completed the training in the

ﬁrst evaluation. They were aged between 18-46 years,

two were female and three were male. They had dif-

ferent levels of technical knowledge concerning VR

technology. In the second evaluation, 12 participants

completed the training. Four were female and eight

were male. They were aged between 16-56 years and

had also different levels of technical knowledge about

VR technology.

4.2 Guiding Mechanisms

To identify bottlenecks in the training process and

thus determine possible guiding mechanisms, we per-

formed a frequency analysis in Disco. In the follow-

ing, exemplary remarkable cases are listed and will be

shortly discussed.

• Some items were removed from the picking cart.

One reason for that is that the users placed the

wrong items into the picking cart and had to re-

vert this for completing the order. Another reason

could be that the users had to grab the item to scan

it as they forgot it before.

• There were more items placed in the robot than re-

moved. All the users completed the training with

correct results (i.e. they placed all needed items

in the picking carts). This means they collected

some items they did not need at all. Reasons for

this could be that the users did not know which

item to collect or how many of them, so they took

it anyway.

• The users let some items fall on the ground. This

can have many reasons. For example, they did

not fully understand the controls so an item falls

down, or they picked the wrong item.

• The forklift’s barcode was rarely scanned by the

users. So the users either did not realize they need

to scan it, or they forgot it.

• Often, the forklift hit an object. It is expected,

that users with no or little experience in VR con-

trols/forklift driving will hit some objects. But in

ﬁve playthroughs, the users hit objects 220 times.

Most likely, the users did not understand well

enough how to control the forklift properly.

Concluding the insights gathered above, there are

the following problems. First of all, it is not clear

which items the user has to collect. Furthermore, the

barcode scanner is not used properly or many bar-

codes are not scanned. In addition to that, when plac-

ing items in the picking cart, it is hard to distinguish

between fragile and robust items. Finally, it could be

observed that the forklift’s main controls are not clear

to the users.

Towards Enhanced Guiding Mechanisms in VR Training Through Process Mining

157

The most obvious problem is, that the tasks are not

executed in the correct order. Considering these prob-

lems, we came up with the following guiding mecha-

nisms.

• Outline the items to pick up/the objects to interact

with

• Outline the barcode scanner and show the buttons

to activate it

• Outline the barcodes to scan

• Show the way the user has to go/drive

• Show the forklift’s controls

• Show where and how to place the small items

(fragile or robust) in the picking cart

When showing help, the framework will additionally

show where in the process the user is, what tasks pos-

sibly follow the last one, and which one of them is the

right one to execute.

4.3 Result Comparison

As our goal was to analyze whether our framework

VR-ProM indeed enhanced the VR training applica-

tion, we had to check if the users achieved better re-

sults in the second evaluation. To do so, we ﬁrst need

to clarify what better results mean. Regarding Efﬁ-

ciency and the Error Rate, we consider lower values

as better values. These two KPIs can be summarized

as the users’ Performance. So a better Efﬁciency and

Error Rate result in a better Performance. For the

Subjective Usability, we use the SUS scale. Hence,

a higher value corresponds to a better Subjective Us-

ability.

First, we compare the duration shown in Figure

5. We see that in the second evaluation the users

took 10% longer to complete the training, on aver-

age. However, we see that the second results vary

in a broader range, as some users can take more ad-

vantage of the guiding mechanisms than others. The

single dots in Figure 5 denote single values which are

far apart from the others. All in all, this means, that

the Efﬁciency was slightly worse in the second evalu-

ation.

The second value to consider is Subjective Usabil-

ity. For this, every user ﬁlled out the SUS question-

naire. With that, we determine the values shown in

Figure 6. Here, we see that the maximum rating is

equal. But there are fewer low ratings and the ratings

overall vary less. The average SUS score increased

by 6%. This growth itself is not very expressive. But

with also comparing the distribution, we can conclude

the Subjective Usability slightly increased.

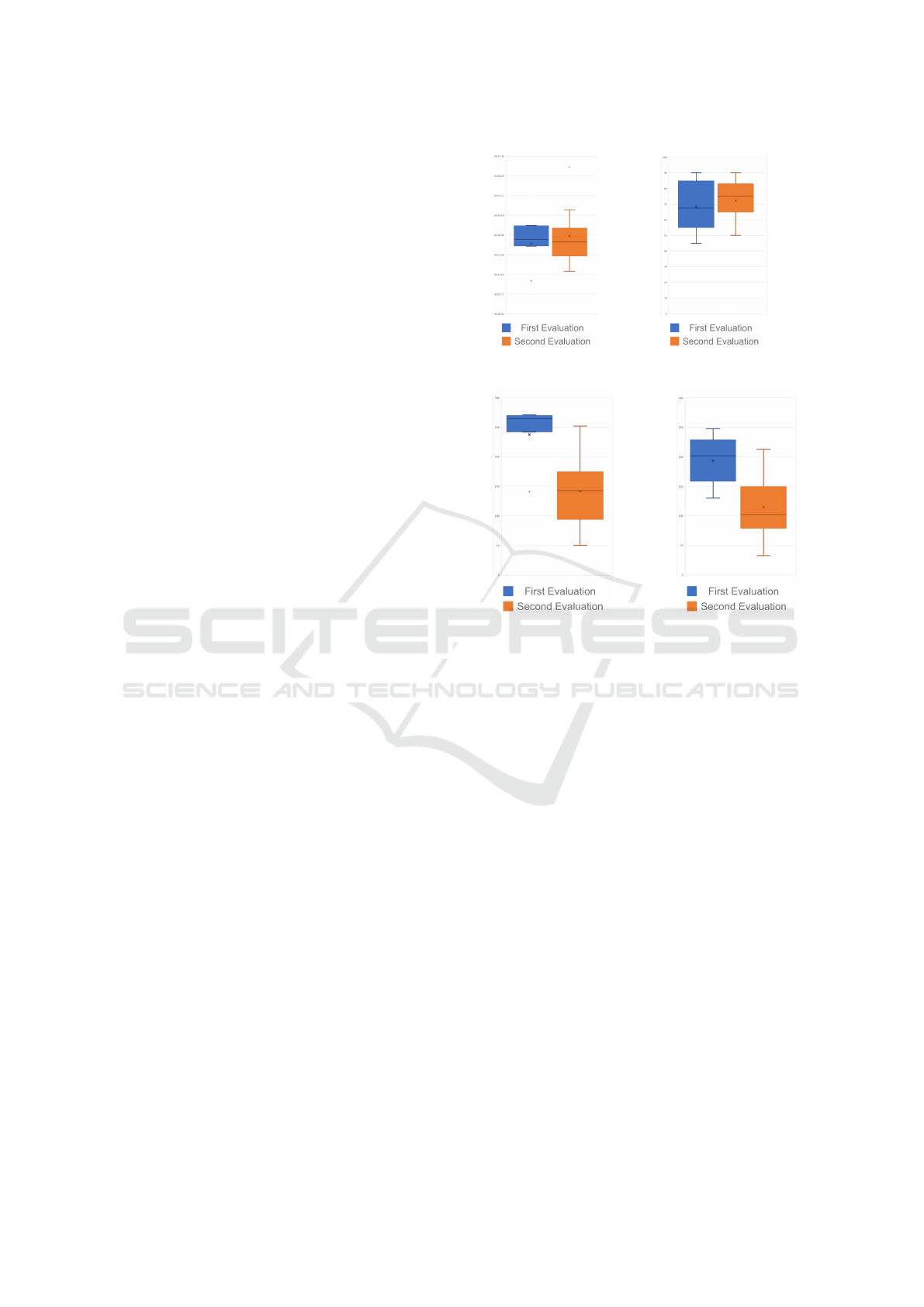

Figure 5: Duration. Figure 6: SUS Score.

Figure 7: Error Rate Full. Figure 8: Error Rate.

Now, we compare the Error Rate. For our evalua-

tion, there were two different error rates. Basically, an

error occurs when the user did something that was not

meant to do. This can be an error event (something

that should never happen) as well as a normal task ex-

ecution but of a task which should not be executed at

the current time. Error Rate Full contains all these

events. We excluded the ForkLiftHitsObject Event for

our main Error Rate. The forklift’s movement was

very hard to control for the players. They often expe-

rienced motion sickness and could not concentrate on

steering properly. Additionally, in a real-world ware-

house, the employees are familiar with controlling the

forklift. We do not want to train driving a forklift but

help the user learn the process. For completeness,

we provide both datasets here. We see that in both

datasets, the minimum, maximum, and average error

rate is much smaller in the second evaluation. For ex-

ample, the average amount of errors for the main Er-

ror Rate decreased by 40%. However, the results of

the second evaluation have a higher standard devia-

tion in both datasets. So we can say, that we achieved

a better Error Rate in the second evaluation.

HUCAPP 2023 - 7th International Conference on Human Computer Interaction Theory and Applications

158

4.4 Discussion and Threats to Validity

To summarize the main results of our usability eval-

uation, Regarding Efﬁciency, we found out, that the

users needed on average 10% longer to complete the

training with the integrated help. However, consid-

ering the Error Rate, we can see improvements when

providing help during the training. The Error Rate de-

creased by 40% in the second playthrough compared

with the ﬁrst. The Usability, measured with the SUS

scale, improved by 6%. This is only a minor change,

but we can see that, in general, there were fewer low

scores.

However, an important threat is the limited num-

ber of participants. Here, we need larger experiments

with more heterogeneous groups to derive statistically

representative results that help us to generalize our

ideas for various application domains.

5 CONCLUSION AND OUTLOOK

In this paper, we have introduced the VR-ProM

framework that supports the logging of VR-based

training applications and produces log data in stan-

dardized XES format that can be analyzed based on

existing process mining tools. Furthermore, VR-

ProM provides generic and ﬂexible guiding mecha-

nisms to improve the help and guiding mechanisms

in VR-based training applications based on the pro-

cess mining results. Based on an initial evaluation we

have shown the beneﬁt of our VR-ProM framework

by applying it to a VR warehouse management train-

ing application.

While this shows the potential of process mining

for VR-based training applications, further steps are

needed to establish the application of process min-

ing techniques for VR technology. First of all, larger

evaluations with more participants are required. Fur-

thermore, to see the full potential of our solution ide,

the help mechanisms need to be iteratively adjusted

and evaluated. Finally, it would be beneﬁcial to have

a process mining solution that works out of the box

and supports an automated integration in various VR-

based training applications.

REFERENCES

Alca

niz, M., Bign

e, E., and Guixeres, J. (2019). Virtual re-

ality in marketing: a framework, review, and research

agenda. Frontiers in psychology, page 1530.

Antonacopoulou, E. P. (2001). The paradoxical nature of

the relationship between training and learning. Jour-

nal of Management Studies, 38(3):327–350.

Cerezo, R., Bogar

ın, A., Esteban, M., and Romero, C.

(2020). Process mining for self-regulated learning

assessment in e-learning. Journal of Computing in

Higher Education, 32(1):74–88.

Dolak, R. (2019). Using process mining techniques to dis-

cover student’s activities, navigation paths, and behav-

ior in LMS moodle. In Rønningsbakk, L., Wu, T.,

Sandnes, F. E., and Huang, Y., editors, ICITL, volume

11937 of LNCS, pages 129–138. Springer.

Fern

andez-Gallego, B., Lama, M., Vidal, J. C., and Mu-

cientes, M. (2013). Learning analytics framework for

educational virtual worlds. Procedia Computer Sci-

ence, 25:443–447.

unther, C. W. and Rozinat, A. (2012). Disco: Discover

your processes. 940:40–44.

Gurusamy, K. S., Aggarwal, R., Palanivelu, L., and David-

son, B. R. (2009). Virtual reality training for surgical

trainees in laparoscopic surgery. Cochrane database

of systematic reviews, (1).

Harms, P. (2019). Automated usability evaluation of vir-

tual reality applications. ACM Trans. Comput. Hum.

Interact., 26(3):14:1–14:36.

Liang, Z., Zhou, K., and Gao, K. (2019). Develop-

ment of virtual reality serious game for underground

rock-related hazards safety training. IEEE Access,

7:118639–118649.

Paszkiewicz, Z. (2013). Process mining techniques in con-

formance testing of inventory processes: an industrial

application. In Int. Conf. on Business Information Sys-

tems, pages 302–313. Springer.

Rold

an, J. J., Crespo, E., Mart

ın-Barrio, A., Pe

na-Tapia,

E., and Barrientos, A. (2019). A training system for

industry 4.0 operators in complex assemblies based

on virtual reality and process mining. Robotics and

computer-integrated manufacturing, 59:305–316.

Shen, H., Zhang, J., Yang, B., and Jia, B. (2019). Develop-

ment of an educational virtual reality training system

for marine engineers. Comp. Applic. in Engineering

Education, 27(3):580–602.

Vidani, A. C. and Chittaro, L. (2009). Using a task model-

ing formalism in the design of serious games for emer-

gency medical procedures. In Rebolledo-Mendez, G.,

Liarokapis, F., and de Freitas, S., editors, Conf. in

Games and Virtual Worlds for Serious Applications,

pages 95–102. IEEE Computer Society.

Wang, R., Yao, J., Wang, L., Liu, X., Wang, H., and Zheng,

L. (2017). A surgical training system for four medical

punctures based on virtual reality and haptic feedback.

In IEEE Symp. on 3D User Interfaces, pages 215–216.

Yigitbas, E., Karakaya, K., Jovanovikj, I., and Engels, G.

(2021). Enhancing human-in-the-loop adaptive sys-

tems through digital twins and VR interfaces. In 16th

Int. Symp. on Software Engineering for Adaptive and

Self-Managing Systems, pages 30–40. IEEE.

Zahabi, M. and Abdul Razak, A. M. (2020). Adaptive vir-

tual reality-based training: a systematic literature re-

view and framework. Virtual Reality, 24(4).

Towards Enhanced Guiding Mechanisms in VR Training Through Process Mining

159
