Automatic Subjective Answer Evaluation

Vijay Kumari, Prachi Godbole and Yashvardhan Sharma

Birla Institute of Technology and Science, Pilani, Rajasthan, India

Keywords:

Natural Language Processing, Machine Learning, Subjective Answer Evaluation, Learning Assessments.

Abstract:

The evaluation of answer scripts is vital for assessing a student’s performance. The manual evaluation of

the answers can sometimes be biased. The assessment depends on various factors, including the evaluator’s

mental state, their relationship with the student, and their level of expertise in the subject matter. These

factors make evaluating descriptive answers a very tedious and time-consuming task. Automatic scoring

approaches can be utilized to simplify the evaluation process. This paper presents an automated answer script

evaluation model that intends to reduce the need for human intervention, minimize bias brought on by evaluator

psychological changes, save time, maintain track of evaluations, and simplify extraction. The proposed method

can automatically weigh the assessing element and produce results nearly identical to an instructor’s. We

compared the model’s grades to the grades of the teacher, as well as the results of several keyword matching

and similarity check techniques, in order to evaluate the developed model.

1 INTRODUCTION

Exam questions can be broadly categorized as either

Objective or Subjective. Objective questions con-

sist of selecting a response from a list of alternatives

or providing a word or brief sentence. These types

of questions have only one correct answer and can

easily be graded automatically by an online assess-

ment platform. On the other hand, Subjective ques-

tions require answers in the form of explanations. Es-

say questions, short answers, deﬁnitions, scenarios,

and opinion questions are among them. It is vital

to include human knowledge of the concepts when

grading these detailed answers using Artiﬁcial Intelli-

gence techniques, as well as to take into account lin-

guistic factors like vocabulary, sentence structure, and

syntax.

Due to the ongoing pandemic, education has un-

dergone a signiﬁcant transformation that has rapidly

increased online learning, where instruction is deliv-

ered remotely via digital platforms and online class-

rooms. As the teaching-learning sessions have be-

come virtual, online descriptive tests and assessments

can be the best carriers of skills and personality en-

hancement. Students can learn better and experiment

with their writing patterns by working on spontaneous

thoughts regarding the subject. Descriptive questions

help students develop a deeper engagement with the

electronic content provided to them regularly. Stu-

dents must adhere to the rules of content, syntax, and

punctuation while submitting subjective answers, and

they must explain their reasoning by giving examples,

writing ﬁgures, or even sketching an illustration. The

subjective content is more alluring and remarkable as

a result of all these factors.

The proposed system’s goal is to assist the evalu-

ators in assigning grades to the answers by applying

automatic grammar checks, a scan for the existence of

important keywords or key phrases, and various sim-

ilarity measures. The weights for the evaluation pa-

rameters are automatically assigned by the developed

model.

The signiﬁcant contributions of the paper are as

follows:

1. Developed a model for evaluating answer scripts

by taking the question, expected answer, and the

student’s answer as the input. The proposed

model has been trained to weigh the evaluation

components automatically. The questions can be

weighted, and the student’s response can be eval-

uated based on the question it has the most simi-

larity.

2. A subset of a few students’ answers can be

tested to ﬁnd the optimal combination of keyword

extraction, summarization, and similarity check

methods, and the rest of the answers can be eval-

uated accordingly.

Kumari, V., Godbole, P. and Sharma, Y.

Automatic Subjective Answer Evaluation.

DOI: 10.5220/0011656000003411

In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 289-295

ISBN: 978-989-758-626-2; ISSN: 2184-4313

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

289

3. Instead of only one model answer (expected an-

swer), a set of multiple answers can be provided

for each question.

The content of the paper is organized as follows. Sec-

tion 2 explains the literature review of the automatic

answer evaluation methods. Section 3 describes the

proposed method for evaluating the descriptive an-

swer. Section 4 presents the experiments and results.

Section 5 provides the conclusion and recommenda-

tions for future work.

2 RELATED WORK

For the automatic evaluation of subjective answers,

several techniques have been developed. Some of

them are mentioned as follows:

Assessment of Answers in Online Subjective Ex-

amination. The following categories of ques-

tions were used to classify the questions: Deﬁne,

Describe/Illustrate, Differentiate/Distinguish, Dis-

cuss/Explain, Enumerate / List / Identity / Outline,

Interpret, Justify / Prove with considering answer in

one sentence. The paragraph indexing module re-

ceives a set of query words from the question process-

ing module, which it utilizes to carry out the informa-

tion retrieval. For the answer, part-of-speech tagger

(e.g., Python POS tagger), shallow parsing was per-

formed to extract only the relevant word or phrase.

Lexical resources like WordNet (Synonyms) for cor-

rectness were used. Paraphrasing (synonym based,

lexical/structural-based, alteration based) was done to

focus more on the answer intention. Semantic analy-

sis was carried out using a word net dictionary, which

determines the density of each word in a given se-

quence; if more than 50 % of the words in a sentence

matched, the sentence was termed as correct. The

overall performance of the system was found to be

70%. The major constraint of the system was that the

questions, which included mathematical formulas, di-

agrams, and examples, were not considered (Dhokrat

et al., 2012).

Artiﬁcial Intelligence-Based Online Descriptive

Answer Veriﬁcation System. The Cosine Similarity

module and Text Gears Grammar API were two in-

dependent modules that made up the Answer Veriﬁer

Unit. Text Gears grammar API allows the integration

of language processing methods. If the grammar is

ﬂawless, the API outputs 1, whereas if there are any

errors in the sentence, the API outputs 0. The three at-

tributes that made up the Result Set Unit were: Gram-

mar, keywords, and QST (Question Speciﬁc Terms).

Keywords had a value from 1 to 6, with 1 denoting

excellent and 6 denoting poor. The grammar attribute

has values between 0 and 1, with 1 denoting correct

usage. Class values varied from 1 to 9, with 1 be-

ing the best and 9 representing the worst. The two

main components of the system were the Information

Extraction module and the Weighing Module. The

system’s main strength was its use of Cosine Sim-

ilarity to match keywords. Fuzzy Wuzzy, a Python

module, was utilized to determine an answer’s grade

(Jagadamba et al., 2020).

Machine Learning-Based Subjective Answer Eval-

uation. The system used Wordnet, Part of Speech

Tagging, Lemmatization, and Tokenization of words

and sentences to analyze the subjective answers. Data

from the scanned images have been appropriately re-

trieved and organized. The examiner provides the in-

put, which consists of the keywords and model re-

sponse sets. Using machine learning techniques, sen-

tences in the model answer have been clustered ac-

cording to the ontology concepts and combined with

the ontology map. The words in the model answer

were merged with Ontology concepts once the words

were fetched from the Ontology. The score for every

keyword was determined by dividing the number of

times each word appeared in the student’s answers by

the total number of words in their responses. (Bashir

et al., 2021).

Evaluation of Descriptive Responses Using Seman-

tic Relational Features. The model utilizes text pat-

terns taken from the responses to be categorized into

the answers. The Naive Bayes classiﬁer was used to

classify the questions into factual, inductive, and an-

alytical categories. Retrieval of facts from the ques-

tion is required for the factual questions. Who, where,

when, how, what, or which inquiry categories were

used to identify these queries. By using named en-

tity recognition or stemming to separate the question’s

phrase or tag from the question, it was possible to in-

fer the answer’s emphasis. The categories for provid-

ing answers included explanation, comparison, cause

and effect, sequence, and problem and solution. Co-

sine similarity and Jaccard matrices are used to ob-

tain the similarity score. The total score is calculated

by adding the value of the similarity score and the

number of keywords. As a result of the various ways

students may choose to represent the answer, further

improvements in vocabulary are required. Addition-

ally, grammatical analysis and ﬁngerprinting can be

used for evaluation to examine the meaning provided

in responses (Nandini and Uma Maheswari, 2020).

Automatic Answer Script Evaluation Using NLP.

For measuring similarities, various techniques like

cosine similarity, Jaccard similarity, bigram similar-

ity, and synonym similarity were utilized. Another

strategy involved multiplying the parameter value and

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

290

weight value after giving each parameter a weight

value depending on relevance. The text in the im-

age has been extracted using the Python module

pytesseract. To provide an automatic summary of

the lengthy text, lemmatization and tokenization tech-

niques were used. Based on the different types of

questions, different weight values were given to each

parameter. When assessing the answer script, the

synonym parameter was given a higher weight than

the grammar-checking parameter. The automatically

awarded scores were very similar to the manually

awarded scores when the student’s answer and the

correct answer have more structural and synonym

similarities. In contrast, there was a sharp difference

between the automated and manually scored marks

when the student’s answer and the correct answer had

more Jaccard and Cosine similarity than structural

similarity. The machine learning algorithms that can

be trained by various determined parameters to fore-

cast the marks of that answer script can be used for

further improvements (Rahman et al., 2020).

3 PROPOSED SYSTEM

The techniques and methods work differently based

on the type of question asked; the proposed model

allows for multiple method combinations to achieve

the optimal grade. For assessing the answers, not ev-

ery evaluation criterion has to be given equal weight.

As a result, the proposed method enables the marks in

accordance with the weightage of the evaluation crite-

ria. The proposed model has the following evaluation

criteria:

1. Keywords Matching. Check for the presence of

important keywords.

2. Similarity Check. Find the sentence similarity

between the student’s and model’s responses.

3. Grammar/Language Check. Language score is

determined by examining spelling and grammati-

cal errors.

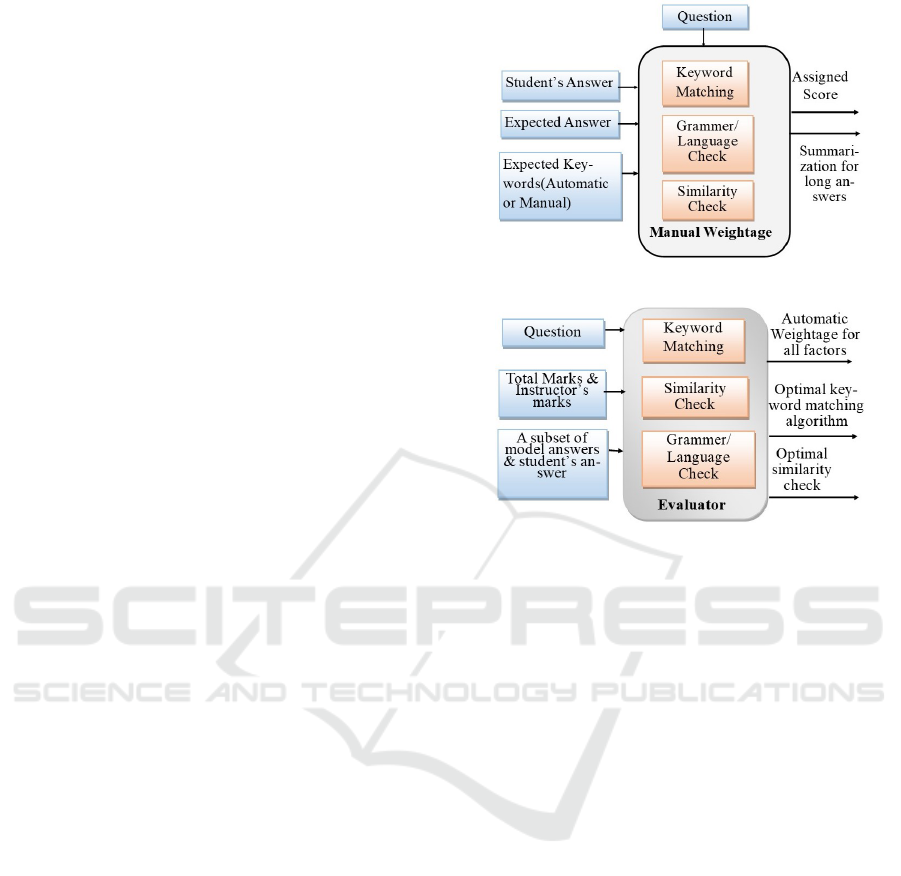

The developed model, as presented in Figure 1, con-

sists of two parts: one is for the evaluation of answers

(Checker), and another is for ﬁnding the optimal com-

bination of evaluation techniques that can be used

to evaluate answers to a particular question (Evalu-

ator). The sum of the similarity, language/grammar,

and keyword scores determines the ﬁnal score.

3.1 Evaluator

A sample of the student’s responses can be tested to

ﬁnd the most effective method combination for key-

(a) Checker Module

(b) Evaluator Module

Figure 1: Architecture of the proposed automated answer

script evaluation model. A question, student answer, ex-

pected answer, and expected keywords (optional) are pro-

vided to the checker. The checker module matches the

important keywords, grammar, and similarity with the ex-

pected answer and gives the ﬁnal score assigned to the an-

swer. The evaluator module will ﬁnd the automatic weights

for the evaluation criteria, optimal keyword matching, and

optimal similarity check algorithm from the different com-

binations.

word extraction, summarization, and similarity check.

The remaining responses can then be evaluated in ac-

cordance with the results.

The user needs to input a question, model answers,

student’s answer, total marks, and marks awarded by

the instructor for a set of answers. Weightage of

grammar, keyword matches, and similarity checks are

optional inputs. The model then computes the opti-

mal combination of keyword, similarity, and grammar

evaluation methods. The weighted sum of evaluation

factors becomes the total marks that the model has

awarded. If weights are not mentioned, each evalu-

ation criterion is assigned a weight automatically by

doing a similarity check between the input question

and a list of previously evaluated questions. This is

done by maintaining a CSV ﬁle (as shown in Figure

2) of previously evaluated questions. According to

the evaluation of the questions, the CSV ﬁle is auto-

matically updated. If the question is not present in

the dataset, then the question and weights get added;

Automatic Subjective Answer Evaluation

291

hence, the weights previously assigned to the most

similar question are used for the new question.

3.2 Checker

The implemented system offers the user a choice of

techniques for sentence similarity analysis, keyword

extraction, and summarization. The combination ob-

tained by an evaluator can be used in this part, or the

user can try their own combinations. The system is

implemented as a web application using Flask that

takes a question with up to three model answers (Ex-

pected Answers), a student’s answer, and total marks

as user input.

For the manual option, the user must enter the de-

sired keywords, separated by commas, and for the

automatic option, the user must provide the desired

number of keywords. Additionally, a selection for the

keyword-matching technique is provided. In case the

student’s response is too lengthy, the user can then se-

lect a technique to summarise it. The maximum num-

ber of grammatical mistakes that may appear in the

response can be speciﬁed. When comparing expected

and student replies, the user has a choice of meth-

ods. The user must enter the percentage weighting

of grammar, keyword matches, and similarity checks

in order to calculate the ﬁnal marks.

The process of extracting keywords involves se-

lecting the most pertinent words and phrases from the

text. Both the Manual and Automatic options are pro-

vided for keyword extraction. For the manual method,

an input of comma-separated keywords is required.

Methods used for automatic keyword extraction are:

1. Term Frequency- Inverse Document Fre-

quency (TF-IDF). It is a statistical method for de-

termining how pertinent a word is to a document

within a group of documents. To accomplish this,

the frequency of a word within a document and its

inverse document frequency across a collection of

documents are multiplied (Ramos et al., 2003).

2. CountVectorizer. It is a utility offered by the

Python scikit-learn package that turns a given text

into a vector based on the frequency of each word

that appears across the full-text (Cou, n.d.).

3. SpaCy. It is a Python and Cython programming-

based open-source natural language processing li-

brary. For trainable features such as named entity

recognition, part-of-speech tagging, dependency

parsing, text classiﬁcation, and entity linking, it

has built-in support. It segments the paragraph

into pieces, and keywords can be identiﬁed by us-

ing parts of speech tagging and noun extraction

(spa, n.d.).

4. Rapid Automatic Keyword Extraction Algo-

rithm (RAKE). To identify the signiﬁcant words

or phrases in a document’s text, it employs a set

of stopwords and phrase delimiters (rak, n.d.).

5. Yet Another Keyword Extractor (YAKE). It is

a simple unsupervised automatic keyword extrac-

tion technique that chooses the most signiﬁcant

keywords from a text by using statistical text fea-

tures acquired from individual documents. (yak,

n.d.).

3.2.1 Methods Used for Keyword Matching

For keyword matching, the RAKE and YAKE ap-

proaches are utilized, with the optimum strategy cho-

sen based on the needs. The extracted keywords of the

model answers are compared with the keywords of the

student’s response. The keywords are also matched

with the synonyms of the keywords that were ex-

tracted from the model answer if the check synonym

option is chosen.

3.2.2 Summarization Method

Summarization can be deﬁned as the task of produc-

ing a concise and ﬂuent summary while preserving es-

sential information and overall meaning. If a student’s

answer is lengthy, summarization will help the eval-

uator to understand the answer’s gist and determine

the student’s level of subject understanding. Methods

used for summarization are:

1. Cosine Similarity. It is a Natural Language Pro-

cessing method used for measuring the text simi-

larity between two documents regardless of their

size. The similarity between each pair of sen-

tences in a paragraph is calculated and ranked.

The highest-ranked sentences are used in sum-

mary (Rahutomo et al., 2012).

2. BM25 Okpi. BM is an abbreviation for best

matching. It’s a ranking algorithm that assigns a

bunch of documents a ranking based on the search

phrases that exist in each one of them, indepen-

dent of how a document’s search phrases relate to

each other. (Robertson et al., 2009).

3. BM25L. It is an extension of BM25, which was

developed to overcome the previous model’s un-

fair preference for shorter documents over longer

ones (Lv and Zhai, 2011). We observed that

the BLEU (bilingual evaluation understudy) score

and ROUGE (Recall-Oriented Understudy for

Gisting Evaluation) score for BM25L were the

best among other summarization methods.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

292

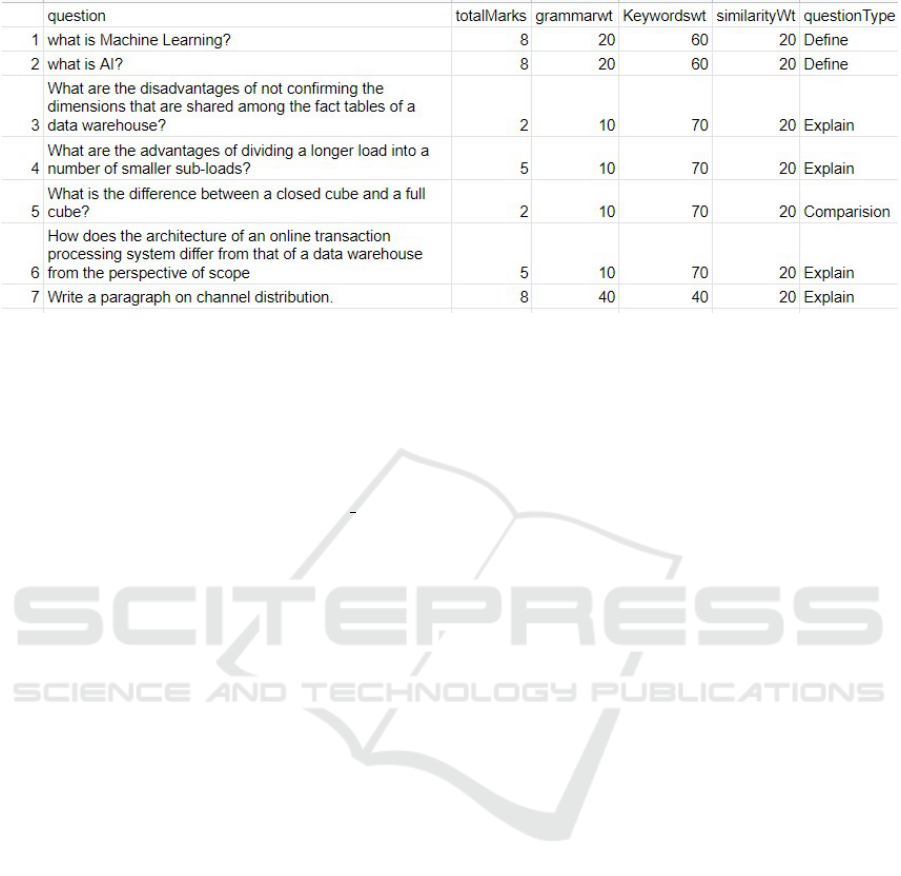

Figure 2: A snapshot of the CSV is as follows (weightage given in percentage).

3.2.3 Grammar Method

Grammar is the structural foundation of one’s abil-

ity to express oneself. It can help foster precision,

detect ambiguity, and exploit the richness of expres-

sion available in the language. Automated grammar

check is implemented using the Language check li-

brary of Python, which speciﬁes the mistakes along

with the document’s Rule Id, Message, Suggestion,

and line number. The user can choose the maximum

number of errors permitted as a cutoff point at which

the grammar marks can be deducted.

3.2.4 Similarity Check

The similarity between the student’s and model’s an-

swers is checked to determine how closely the stu-

dent’s response corresponds to the model’s response.

Methods used for checking similarity are:

1. FuzzyWuzzy. It is a Python library for string

matching that uses Levenshtein distance to de-

termine the differences between sequences. The

Levenshtein distance between two words is the

smallest number of insertions, deletions, or char-

acter swaps (single-character changes) required to

change one word into another. (Fuz, n.d.).

2. Jaccard Similarity. Also known as the Jaccard

index and Intersection over Union. It is a metric

used to determine the similarity between two text

documents by ﬁnding common words that exist

over total words (Bag et al., 2019).

3. TF-IDF. It displays a word’s frequency in a docu-

ment as well as its inverse document frequency for

a collection of documents (Ramos et al., 2003).

4. BERT. Bidirectional Encoder Representations

from Transformers (BERT) is a transformer-based

model to measure the semantic similarity between

sentences. It converts all the sentences into a vec-

tor form and then determines the sentences that

are closest in proximity to one another in respect

of Euclidean distance or cosine similarity. (Devlin

et al., 2018).

3.3 Weightage of Evaluation

Components

There are different kinds of questions that can be

asked, such as direct answers, conceptual explana-

tions, deﬁnitions, and others. In terms of grammar,

keyword matching, and similarity to the model an-

swer, all of these questions cannot be assigned the

same weighting. As a result, the developed system

has the option of giving each component a variable

weight. The marks calculated are based on the per-

centages assigned to each component.

4 EXPERIMENTS AND RESULTS

The end-to-end model is implemented using Python

programming, Flask, HTML, and CSS on the front

end. For an introductory computer science course, the

assessment model has been tested with more than 20

questions and responses from 14 students.

The expected answer and student responses are

compared to determine the similarity score. The key-

words, grammar, and semantics of words are checked

to ensure that the response is accurate. The evalua-

tor module determines the best approach for similar-

ity checking, or it can also be selected manually.

The total score is the sum of the similarity, gram-

mar/ language, and keyword scores. According to Ta-

ble 1, the student with ID8 does remarkably well. In

order to evaluate how effectively the developed model

performed, we compared the model’s grades to the

Automatic Subjective Answer Evaluation

293

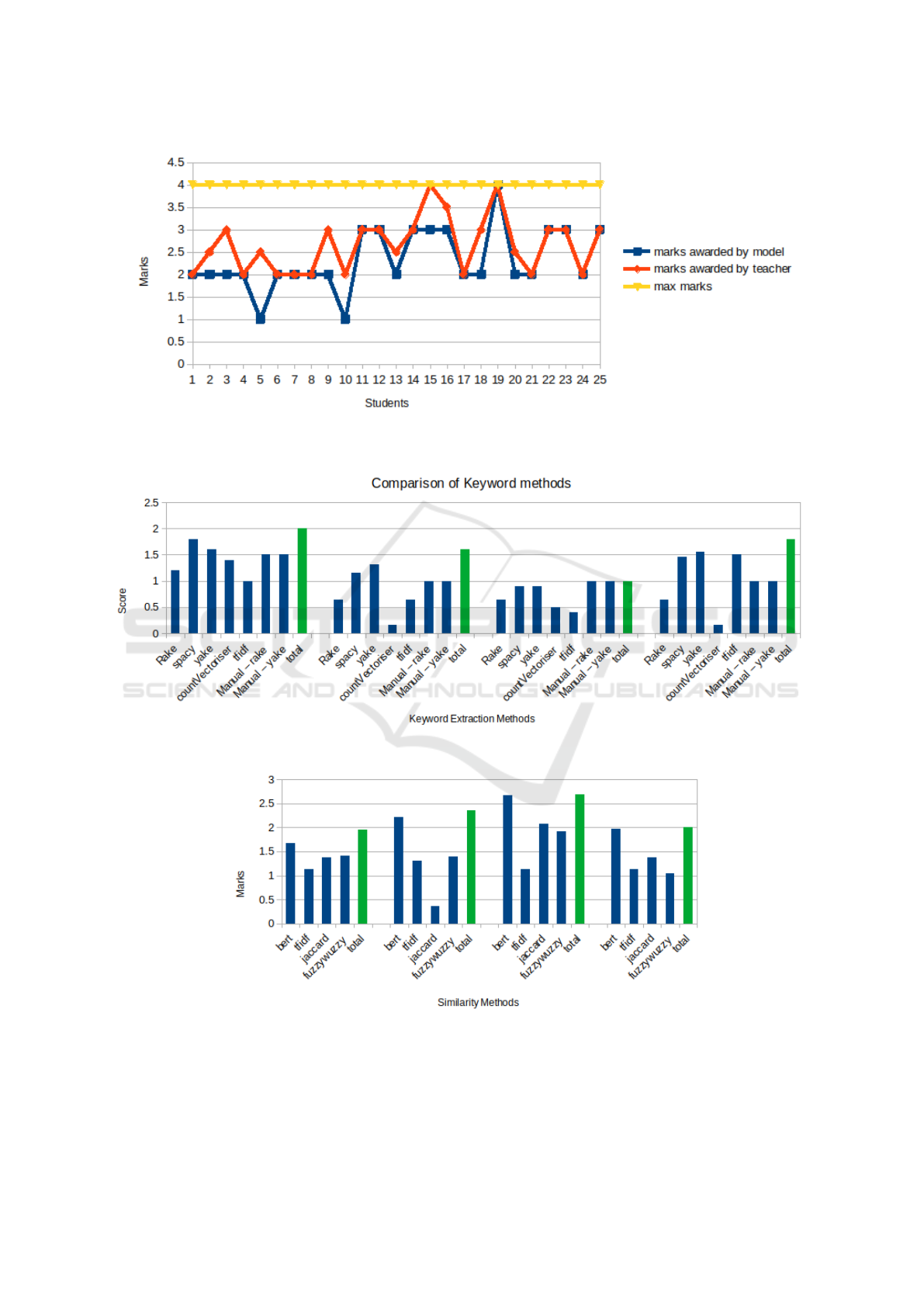

Figure 3: A comparison of the ﬁnal score obtained by the students using the proposed model and marks awarded by the

teacher.

Figure 4: A comparison of the marks obtained by the students using various keyword-matching methods.

Figure 5: A comparison of the marks obtained by the students using various similarity methods.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

294

Table 1: Scores obtained by the students in Q1.

Ques

Student

Marks awarded

by model

Total marks

Q1 id1 2 4

Q1 id2 2 4

Q1 id3 3 4

Q1 id4 1 4

Q1 id5 2 4

Q1 id6 3 4

Q1 id7 2 4

Q1 id8 4 4

teacher’s grades, and the results are shown in Figure

3. Figures 4 and 5 compare the scores given by dif-

ferent keyword matching and similarity check algo-

rithms.

5 CONCLUSION AND FUTURE

WORK

The grading of student responses is more difﬁcult un-

der the existing evaluation procedure. The evalua-

tion scheme has signiﬁcant issues that require a lot of

human resources, time, and expertise. To overcome

these challenges, this work developed a mechanism

for automatically assessing answer scripts that use the

question, the expected answer, and the student’s re-

sponse as an input. The proposed model is trained to

categorize questions according to marks, which can

assist in automatically assigning weights to compo-

nents. The proposed method does not consider an-

swers that include non-textual information like equa-

tions, graphs, and tables, which could be the direction

of future research. Additionally, batch processing of

all students’ responses is a viable alternative to ac-

cessing a question at a time.

REFERENCES

CountVectorizer. https://scikit-learn.org/stable/modules/ge

nerated/sklearn.feature extraction.text.CountVectoriz

er.html.

Fuzzywuzzy. https://pypi.org/project/fuzzywuzzy/.

Rapid Keyword Extraction (RAKE). https://www.analyticsv

idhya.com/blog/2021/10/rapid-keyword-extraction-r

ake-algorithm.

spaCy. https://spacy.io/.

yake. https://github.com/LIAAD/yake.

Bag, S., Kumar, S. K., and Tiwari, M. K. (2019). An ef-

ﬁcient recommendation generation using relevant jac-

card similarity. Information Sciences, 483:53–64.

Bashir, M. F., Arshad, H., Javed, A. R., Kryvinska, N., and

Band, S. S. (2021). Subjective answers evaluation us-

ing machine learning and natural language processing.

IEEE Access, 9:158972–158983.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Dhokrat, A., Gite, H., and Mahender, C. N. (2012). Assess-

ment of answers: Online subjective examination. In

Proceedings of the workshop on question answering

for complex domains, pages 47–56.

Jagadamba, G. et al. (2020). Online subjective answer ver-

ifying system using artiﬁcial intelligence. In 2020

Fourth International Conference on I-SMAC (IoT in

Social, Mobile, Analytics and Cloud)(I-SMAC), pages

1023–1027. IEEE.

Lv, Y. and Zhai, C. (2011). When documents are very long,

bm25 fails! In Proceedings of the 34th international

ACM SIGIR conference on Research and development

in Information Retrieval, pages 1103–1104.

Nandini, V. and Uma Maheswari, P. (2020). Automatic as-

sessment of descriptive answers in online examination

system using semantic relational features. The Journal

of Supercomputing, 76(6):4430–4448.

Rahman, M., Siddiqui, F. H., et al. (2020). NLP-based au-

tomatic answer script evaluation. PhD thesis, DUET

Journal.

Rahutomo, F., Kitasuka, T., and Aritsugi, M. (2012). Se-

mantic cosine similarity. In The 7th international stu-

dent conference on advanced science and technology

ICAST, volume 4, page 1.

Ramos, J. et al. (2003). Using tf-idf to determine word rele-

vance in document queries. In Proceedings of the ﬁrst

instructional conference on machine learning, volume

242, pages 29–48. Citeseer.

Robertson, S., Zaragoza, H., et al. (2009). The probabilis-

tic relevance framework: Bm25 and beyond. Founda-

tions and Trends® in Information Retrieval, 3(4):333–

389.

Automatic Subjective Answer Evaluation

295
