Subcaterpillar Isomorphism Between Caterpillars:

Subtree Isomorphism Restricted Text and Pattern Trees to Caterpillars

Tomoya Miyazaki and Kouich Hirata

Kyushu Institute of Technology, Kawazu 680-4, Iizuka 820-8502, Japan

Keywords:

Subcaterpillar Isomorphism Between Caterpillars, Subcaterpillar Isomorphism, Subtree Isomorphism. Rooted

Labeled Caterpillar, Rooted Labeled Unordered Tree, Caterpillar Inclusion.

Abstract:

In this paper, as a pattern matching for rooted labeled caterpillars (caterpillars, for short), we discuss a

subcaterpillar isomorphism between caterpillars whether or not a pattern caterpillar is a subcaterpillar of a

text caterpillar. Then, we design the algorithms to solve it by simplifying the algorithms for subcaterpillar

isomorphism (between a caterpillar and a tree) when a pattern caterpillar is a subcaterpillar of a text tree

h is the height of a pattern caterpillar, H is the height of a text caterpillar and σ is the number of labels

in the caterpillars. Finally, we give experimental results of computing these algorithms by comparing with

subcaterpillar isomorphism and caterpillar inclusion.

1 INTRODUCTION

The pattern matching for tree-structured data such as

HTML and XML documents for web mining or DNA

and glycan data for bioinformatics is one of the fun-

damental tasks for information retrieval or query pro-

cessing. As such pattern matching for rooted labeled

unordered trees (a tree, for short), a subtree isomor-

phism is the problem of determining, for a pattern

tree P and a text tree T , whether or not there ex-

ists a subtree of T which is isomorphic to P. It is

known that the subtree isomorphism can be solved in

O(p

1.5

t/ log p) time (Shamir and Tsur, 1999), where

p is the number of vertices in P and t is the num-

ber of vertices in T . On the other hand, it cannot be

solved in O(t

2−ε

) time for every ε (0 < ε < 1) under

SETH (Abboud et al., 2018).

Recently, by focusing on a rooted labeled cater-

pillar (a caterpillar, for short) (cf., (Gallian, 2007))

as the restriction of trees, Miyazaki and Hirata have

discussed the subcaterpillar isomorphism when a pat-

tern tree is a caterpillar (Miyazaki and Hirata, 2022).

Then, they have designed the algorithms of the sub-

caterpillar isomorphism running in (i) O(tDhσ) time

and O(Dh) space and (ii) O(tDσ) time and O(D(h +

H)) space, respectively

. Here, h is the height of P,

H is the height of T, D is the degree of T and σ is the

In this paper, we ignore the time complexity of the ini-

tialization of storing structures by traversing data, as same

as (Miyazaki et al., 2022).

number of alphabets for labels in a pattern and a text.

Note that these algorithms return all of the positions

in T where P is a subcaterpillar of T .

As another pattern matching for tree-structured

data, it is known the inclusion problem of determining

whether or not a text tree T achieves to a pattern tree P

by deleting vertices in T is NP-complete (Kilpel

ainen

and Mannila, 1995). This statement also holds even

if P is a caterpillar (Kilpel

ainen and Mannila, 1995).

On the other hand, Miyazaki et al. (Miyazaki et al.,

2022) have shown that, if both P and T are cater-

pillars, then we can solve the inclusion problem in

O((h + H)σ) time. We call this problem a caterpillar

inclusion. Note that this algorithm returns “yes” if a

patter caterpillar P is included in a text caterpillar T

and “no” otherwise.

In this paper, we investigate a subcaterpillar iso-

morphism between caterpillars that is a subcaterpillar

isomorphism when both a pattern tree P and a text tree

T are caterpillars. The subcaterpillar isomorphism be-

tween caterpillars is the special problem of not only

the subcaterpillar isomorphism but also the caterpil-

lar inclusion, because it is regarded as a caterpillar

inclusion that T achieves P by deleting leaves or the

roots in T .

In this paper, by simplifying the algorithms (i) and

(ii) for subcaterpillar isomorphism, we design two

algorithms CATCATISO and CATCATISO2 for sub-

caterpillar isomorphism between caterpillars. Then,

both CATCATISO and CATCATISO2 run in O(hHσ)

Miyazaki, T. and Hirata, K.

Subcaterpillar Isomorphism Between Caterpillars: Subtree Isomorphism Restricted Text and Pattern Trees to Caterpillars.

DOI: 10.5220/0011659600003411

In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 89-94

ISBN: 978-989-758-626-2; ISSN: 2184-4313

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

time and O(h) space. Furthermore, we give experi-

mental results of computing CATCATISO and CAT-

CATISO2, by comparing with subcaterpillar isomor-

phism between a caterpillar and a tree (Miyazaki

and Hirata, 2022) and caterpillar inclusion (Miyazaki

et al., 2022).

2 PRELIMINARIES

A tree is a connected graph without cycles. For a tree

T = (V,E), we denote V and E by V (T ) and E(T ).

We sometimes denote v ∈ V (T ) by v ∈ T . A rooted

tree is a tree with one vertex r chosen as its root,

which we denote by r(T ).

For each vertex v in a rooted tree with the root r,

let UP

(v) be the unique path from v to r. The parent

of v(̸= r), which we denote by par(v), is its adjacent

vertex on UP

(v) and the ancestors of v(̸= r) are the

vertices on UP

(v) \ {v}. We denote u < v if v is an

ancestor of u, and we denote u ≤ v if either u < v

or u = v. The parent and the ancestors of the root r

are undeﬁned. We say that u is a child of v if v is

the parent of u, and u is a descendant of v if v is an

ancestor of u. We denote the set of all children of v by

ch(v). Two vertices with the same parent are called

siblings. A leaf is a vertex having no children and we

denote the set of all the leaves in T by lv(T ). We call

a vertex that is not a leaf an internal vertex.

For a rooted tree T = (V,E) and a vertex v ∈ T ,

the complete subtree of T at v, denoted by T (v), is a

rooted tree S = (V

′

) such that r(S ) = v, V

′

= {w ∈

V | w ≤ v} and E

′

= {(u,w) ∈ E | u, w ∈ V

′

The height h(v) of a vertex v is deﬁned as

|UP

(v)| − 1 and the height h(T ) of T is the maxi-

mum height for every vertex v ∈ T . The degree d(v)

of a vertex v is the number of the children of v, and

the degree d(T ) of T is the maximum degree for every

vertex in T .

We say that a rooted tree is ordered if a left-to-

right order among siblings is given; Unordered other-

wise. For a ﬁxed ﬁnite alphabet Σ, we say that a tree

is labeled over Σ if each vertex is assigned a symbol

from Σ. We denote the label of a vertex v by l(v), and

sometimes identify v with l(v). In this paper, we call

a rooted labeled unordered tree over Σ a tree, simply.

Deﬁnition 1. Let T and S be trees.

1. We say that T is a subtree of S, denoted by T ⪯ S,

if T is a tree such that V (T ) ⊆ V (S) and E(T ) =

{(v,w) ∈ E(S) | v,w ∈ V (T )}.

2. We say that T and S are isomorphic, denoted by

T ≃ S, if T ⪯ S and S ⪯ T .

3. We say that T is a subtree isomorphism of S, de-

noted by T ⊴ S, if there exists a tree S

′

⪯ S such

that T ≃ S

′

In this paper, we deal with a subtree isomorphism

problem of P for T whether or not P ⊴ T for trees

P and T . We call P a pattern tree and T a text tree.

Then, the following theorem holds.

Theorem 1. (Shamir and Tsur, 1999) Let P and T be

trees where p = |P| and t = |T |. Then, the problem

of determining whether or not P ⊴ T is solvable in

O(p

1.5

t/ log p) time.

As the restricted form of trees, we introduce a

rooted labeled caterpillar (a caterpillar, for short) as

follows.

Deﬁnition 2. We say that a tree is a caterpil-

lar (cf. (Gallian, 2007)) if it is transformed to a rooted

path after removing all the leaves in it. For a caterpil-

lar C, we call the remained rooted path a backbone of

C and denote it by bb(C).

It is obvious that r(C) = r(bb(C)) and V (C) =

V (bb(C))∪lv(C) for a caterpillar C, that is, every ver-

tex in a caterpillar is either a leaf or an element of the

backbone.

We call a subtree isomorphism when P is a cater-

pillar, that is, the problem of determining whether or

not P ⊴ T , a subcaterpillar isomorphism. Then, the

following theorem holds.

Theorem 2. (Miyazaki and Hirata, 2022) Let P be

a caterpillar and T a tree, where t = |T |, h = h(P),

H = h(T ), D = d(T ) and σ = |Σ|. Then, the problem

of determining whether or not P ⊴ T is solvable (i)

in O(tDhσ) time and O(Dh) space and (ii) in O(tDσ)

time and O(D(h + H)) space.

We refer the algorithm of (i) (resp., (ii)) in Theo-

rem 2 to CATTREEISO (resp., CATTREEISO2). Note

that both CATTREEISO and CATTREEISO2 return all

of the positions in T where P is a subcaterpillar of T .

Finally, we introduce a tree inclusion and a cater-

pillar inclusion. For a tree T and a vertex v ∈ T , the

deletion of v in T is to delete a non-root vertex v in

T with a parent v

′

, making the children of v become

the children of v

′

that are inserted in the place of v as

a subset of the children of v

′

. We denote the result of

the deletion of v in T by delete(T,v). See Figure 1.

Deﬁnition 3. Let P and T be trees. Then, we say that

P is an inclusion of T, denoted by P ⊑ T , if either P ≃

T or there exists a sequence of vertices v

,...,v

in T

such that T

≃ T , T

≃ P and T

i+1

≃ delete(T

i+1

)

(0 ≤ i ≤ k − 1).

For trees P and T , if P ⊴ T then P ⊑ T , because

T achieves P by deleting leaves or roots in T . On the

other hand, the converse does not hold in general.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

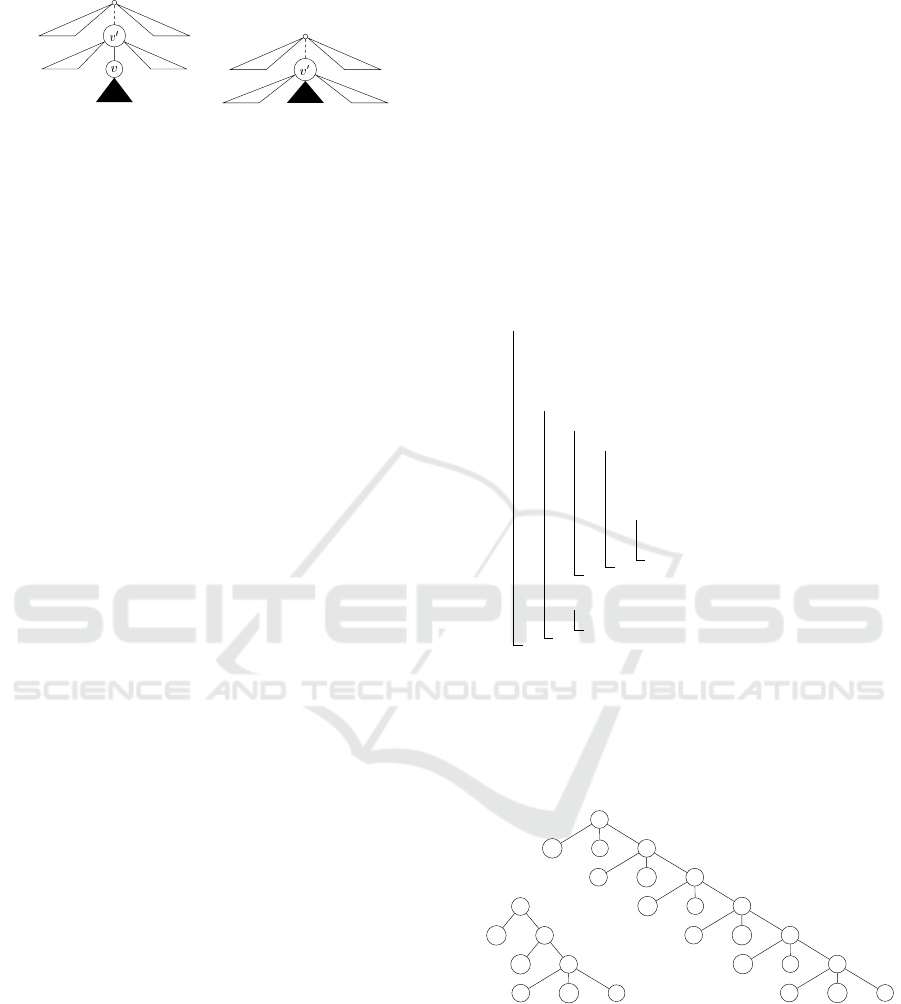

T delete(T,v)

Figure 1: delete(T,v).

We call the tree inclusion when both P and T are

caterpillars a caterpillar inclusion. Then, the follow-

ing theorems hold.

Theorem 3. (Kilpel

ainen and Mannila, 1995) For

trees P and T , the problem of determining whether or

not P ⊑ T is NP-complete. This statement also holds

even if the maximum height of T is at most 3.

Theorem 4. (Miyazaki et al., 2022) Let P and T be

caterpillars, where h = h(P), H = h(T ) and σ = |Σ|.

Then, the problem of determining whether or not P ⊑

T is solvable in O((h + H)σ) time.

We refer the algorithm in Theorem 4 to CATCAT-

INC. Note that CATCATINC returns “yes” if P ⊑ T

and “no” otherwise.

3 SUBCATERPILLAR

ISOMORPHISM BETWEEN

CATERPILLARS

In this paper, we focus on a subcaterpillar isomor-

phism between caterpillars that is a subcaterpillar iso-

morphism when both P and T are caterpillars. In

other words, we focus on the problem of whether or

not P ⊴ T for caterpillars P and T . We call P and T a

pattern caterpillar and a text caterpillar, respectively.

Throughout of this section, we refer p = |P|, t = |T |,

h = h(P), H = h(T ), D = d(T ) and σ = |Σ|.

For a pattern caterpillar P, we refer the backbone

of P to a sequence ⟨v

,...,v

⟩ such that (v

i+1

) ∈

E(P) and v

= r(P). We denote the children of v

by ch(v

). For a text caterpillar T , we refer the

backbone of T to a sequence ⟨w

,...,w

⟩ such that

j+1

) ∈ E(T ) and w

= r(T ). We denote the

children of w

by ch(w

Suppose that P ⊴ T and let P

′

⪯ T be a subcater-

pillar in T such that P ≃ P

′

and bb(P

′

) = ⟨v

′

,...,v

′

⟩,

where v

′

= r(P

′

). Then, we call the index j such that

′

= w

in T a matching position of P in T .

As same as the algorithms of CATTREEISO and

CATTREEISO2, we use a multiset of labels in order

to compare two sets of vertices. A multiset on Σ is

a mapping S : Σ → N. For two multisets S

and S

⊆ S

if S

(a) ≤ S

(a) for every a ∈ Σ.

For a set V of vertices, we denote the multiset of

labels occurring in V by

V . Then, it is necessary for

the subcaterpillar isomorphism to check whether or

not

ch(v

) ⊆

ch(w

) for v

∈ bb(P) and w

∈ bb(T ). It

is realized to check



ch(v

)



(a) ≤



ch(w

)



(a) for

every a ∈ Σ in O(σ) time (cf. (Muraka et al., 2019)).

By simplifying the algorithm CATTREEISO in

Theorem 2 (i), we design the algorithm CATCATISO

in Algorithm 1 to determine whether or not P ⊴ T

and to output all of the matching positions if P ⊴ T .

Here, the table match(i) stores j such that v

∈ bb(P)

is corresponding to w

∈ bb(T ).

procedure CATCATISO(P, T )

/* P : caterpillar, bb(P) = ⟨v

,. . .,v

⟩ */

/* T : caterpillar, bb(T) = ⟨w

,. . .,w

⟩ */

for i = 1 to n − 1 do match(i) ← 0;1

for j = 1 to m do2

for i = n − 1 downto 1 do3

if match(i) ̸= 0 then4

k ← match(i); match(i) ← 0;5

if l(v

i+1

) = l(w

) and6

ch(v

i+1

) ⊆

ch(w

) then

if i + 1 = n then output k;7

else match(i + 1) ← k;8

if l(v

) = l(w

) and

ch(v

) ⊆

ch(w

) then9

match(1) ← j;10

Algorithm 1: CATCATISO.

Example 1. Consider the pattern caterpillar P and

the text caterpillar T in Figure 2. Here, bb(P) =

⟨v

⟩ and bb(T ) = ⟨w

⟩, so it

holds that n = 3 and m = 6.

c a

P T

Figure 2: A pattern caterpillar P and a text caterpillar T in

Example 1.

For P and T , the algorithm CATCATISO(P,T )

stores the values of match(i) and outputs the match-

ing positions as Table 1 Then, the matching positions

of P in T are 1, 2 and 4.

On the other hand, by simplifying the algorithm

CATTREEISO2 in Theorem 2 (ii), we design another

Subcaterpillar Isomorphism Between Caterpillars: Subtree Isomorphism Restricted Text and Pattern Trees to Caterpillars

Table 1: The execution of the algorithm CATCATISO(P, T ).

j 1 2 3 4 5 6

match(1) 1 2 0 4 0 6

match(2) 0 1 2 0 4 0

output 1 2 4

algorithm CATCATISO2 in Algorithm 2. The differ-

ence between CATCATISO2 and CATCATISO is that

CATCATISO2 does not always access all the values of

match(i) for 1 ≤ i ≤ n − 1 but just access the values

of match(i) such that i ∈ CHK.

procedure CATCATISO2(P, T )

/* P : caterpillar, bb(P) = [v

,. . .,v

] */

/* T : caterpillar, bb(T) = [w

,. . .,w

] */

CHK ←

0;1

for i = 1 to n − 1 do match(i) ← 0;2

for j = 1 to m do3

foreach i ∈ CHK do4

k ← match(i); match(i) ← 0;5

CHK ← CHK \ {i};

if l(v

i+1

) = l(w

) and6

ch(v

i+1

) ⊆

ch(w

) then

if i + 1 = n then output k;7

else match(i + 1) ← k;8

CHK ← CHK ∪ {i + 1};

if l(v

) = l(w

) and

ch(v

) ⊆

ch(w

) then9

match(1) ← j; CHK ← CHK ∪ {1};10

Algorithm 2: CATCATISO2.

Example 2. Consider the pattern caterpillar P and

the text caterpillar T in Example 1 (Figure 2). Then,

the algorithm CATCATISO2(P,T ) stores the values of

match(i) and outputs the matching positions, and ad-

ditionally updates the set of CHK as Table 2. Hence,

the matching positions of P in T are 1, 2 and 4.

Table 2: The execution of the algorithm CAT-

CATISO2(P,T ).

j 1 2 3 4 5 6

match(1) 1 2 0 4 0 6

match(2) 0 1 2 0 4 0

output 1 2 4

CHK 1 1, 2 2 1 2 1

For subcaterpillar isomorphism between caterpil-

lars, the following theorem holds.

Theorem 5. Let P and T be caterpillars, where h =

h(P), H = h(T ) and σ = |Σ|. Then, the algorithms of

CATCATISO(P,T ) and CATCATISO2(P,T ) output all

the matching positions of P in T correctly in O(hHσ)

time and O(h) space.

Proof. The following proof of the correctness is sim-

ilar as (Miyazaki and Hirata, 2022).

The algorithm CATCATISO ﬁrst stores the candi-

date j of the matching point corresponding to v

match(1) if l(v

) = l(w

) and

ch(v

) ⊆

ch(w

) (line

9). Then, for the current j, the algorithm CATCATISO

removes the candidate k from match(i) and stores k to

match(i+1) if l(v

i+1

) = l(w

ch(v

i+1

) ⊆

ch(w

) and

i + 1 < n (lines 6 and 8). If i + 1 = n, then the algo-

rithm CATCATISO outputs k (line 7).

Hence, every output k at line 7 satisﬁes that l(v

) =

l(par

i−1

)) and

ch(v

) =

ch(par

i−1

)) for every

i (1 ≤ i ≤ n), where par

(v) = v and par

i+1

(v) =

par(par

(v)). As a result, the algorithm SUBCATISO

outputs all of the matching points of P in T .

On the other hand, the difference between the al-

gorithms CATCATISO and CATCATISO2 is the us-

ages of the set CHK, which is stored to all the indices

i such that match(i) ̸= 0 for 1 ≤ i ≤ n − 1. Hence, the

algorithm CATCATISO2 can access all the values of

match(i) such that match(i) ̸= 0 for every 1 ≤ j ≤ m,

which implies the correctness of the algorithm CAT-

CATISO2.

Next, consider the computational complexity of

the algorithms.

For the algorithm CATCATISO, we can check the

lines 6 and 9 in O(σ) time. Also, the for-loop in line

3 is repeated at h − 1 times and the for-loop in line 2

is repeated at H times. Then, the total running time

of CATCATISO is O(hHσ) time. Also the space is the

size of the table match, which is O(h).

On the other hand, for the algorithm CAT-

CATISO2, the foreach-loop in line 3 is repeated at

most h − 1 times. Then, the total running time of

CATCATISO2 is O(hHσ) time. Also the space is the

sizes of the table match and the set CHK, which is

O(h + h) = O(h).

4 EXPERIMENTAL RESULTS

In this section, we give the experimental results of

computing CATCATISO and CATCATISO2. Here, the

computer environment is that OS is Ubuntu 18.04.4,

CPU is Intel Xeon E5-1650 v3(3.50GHz) and RAM

is 3.8GB.

We deal with caterpillars for N-glycans and all-

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

glycans from KEGG

, CSLOGS

, the largest 51,395

caterpillars (1%) in dblp

(refer to dblp

) and Swis-

sProt from UW XML Repository

. Also we deal

with non-isomorphic caterpillars obtained by deleting

the root in Nasa (refer to NASA

−

◦

), Protein (refer to

Protein

−

◦

) and University (refer to University

−

◦

) from

UW XML Repository. Table 3 illustrates the infor-

mation of such caterpillars. Here, #, n, d, h, λ and β

are the number of caterpillars, the average number of

vertices, the average degree, the average height, the

average number of leaves and the average number of

labels.

Table 3: The information of caterpillars.

data # n d h λ β

N-glycans 513 6.40 1.84 4.22 2.19 3.24

all-glycans 7,984 4.74 1.49 3.02 1.72 2.84

CSLOGS 41,592 5.84 3.05 2.20 3.64 5.18

dblp

51,395 21.29 20.21 1.04 20.25 9.73

SwissProt 6,804 35.10 24.96 2.00 33.10 16.79

Nasa

−

◦

33 7.27 5.15 1.64 5.64 3.18

Protein

−

◦

5,150 4,97 3.63 1.16 3.81 4.57

University

−

◦

26 1.35 0.35 0.19 1.15 1.35

We compare all the pairs (P, T ) in the caterpillars

in Table 3. The number of pairs is # × (# − 1), and

Table 4 summarizes such number as #pairs.

Table 4: The number (#pairs) of all the pairs in caterpillars

in Table 3.

data #pairs

N-glycans 262,656

all-glycans 63,736,272

CSLOGS 1,729,852,872

dblp

2,641,394,630

data #pairs

SwissProt 46,287,612

Nasa

−

◦

1,056

Protein

−

◦

26,517,350

University

−

◦

650

First, we compare the running time of the al-

gorithms CATCATISO and CATCATISO2 in Sec-

tion 3 with the algorithms of CATTREEISO and CAT-

TREEISO2 (Miyazaki and Hirata, 2022).

Then, Table 5 illustrates the total and average run-

ning time of computing P ⊴ T for all the data by

CATCATISO and CATCATISO2. Here, the bold faces

present the smaller total running time.

Table 5 shows that, whereas CATCATISO is faster

than CATCATISO2 for N-glycans, dblp

, Nasa

−

◦

and University

−

◦

, CATCATISO2 is faster than CAT-

Kyoto Encyclopedia of Genes and Genomes,

http://www.kegg.jp/

http://www.cs.rpi.edu/

∼

zaki/www-new/pmwiki.php/

Software/Software

http://dblp.uni-trier.de/

http://aiweb.cs.washington.edu/research/projects/xmlt

k/xmldata/www/repository.html

Table 5: The total and average running time (msec.) of

computing P ⊴ T for all the data by CATCATISO and CAT-

CATISO2.

CATCATISO CATCATISO2

data total ave. total ave.

N-glycans 4,719 0.02 4,753 0.02

all-glycans 617,932 0.01 616,863 0.01

CSLOGS 13,703,530 0.01 13,636,908 0.01

dblp

73,453,734 0.03 73,637,350 0.01

SwissProt 3,706,628 0.08 3,696,157 0.08

Nasa

−

◦

12 0.01 17 0.02

Protein

−

◦

166,717 0.01 170,123 0.01

University

−

◦

1 0.00 4 0.01

CATISO for all-glycans, CSLOGS and SwissProt. On

the other hand, since the difference of the computa-

tion time between CATCATISO and CATCATISO2 is

not large, the usage of the set CHK in CATCATISO2

is not effective for our experimental data.

Table 6 illustrates the total and average running

time of computing P ⊴ T for all the data by CAT-

TREEISO and CATTREEISO2.

Table 6: The total and average running time (msec.) of com-

puting P ⊴ T for all the data by CATTREEISO and CAT-

TREEISO2.

CATTREEISO CATTREEISO2

data total ave. total ave.

N-glycans 6,315 0.02 6,325 0.02

all-glycans 726,173 0.01 855,131 0.01

CSLOGS 15,444,331 0.01 19,242,569 0.01

dblp

78,063,181 0.03 80,077,842 0.01

SwissProt 3,790,730 0.08 3,934,301 0.09

Nasa

−

◦

17 0.02 14 0.01

Protein

−

◦

174,212 0.01 213,539 0.01

University

−

◦

4 0.00 4 0.01

Tables 5 and 6 show that the algorithms of CAT-

CATISO and CATCATISO2 are faster than the algo-

rithms of CATTREEISO and CATTREEISO2. The

reason is that, whereas CATTREEISO and CAT-

TREEISO2 are necessary to traverse a whole text

caterpillar, CATCATISO and CATCATISO2 just tra-

verse the backbone of a text caterpillar.

Next, we compare the algorithms CATCATISO

and CATCATISO2 with CATCATINC. Note that CAT-

INC is a decision algorithm to return just “yes” or

“no.” Then, we use the decision versions of the algo-

rithms of CATCATISO and CATCATISO2, designed

by changing line 7 as follows and by adding the fol-

lowing line 11 to the last of the algorithms.

line 7 if i + 1 = n then output “yes”; halt;

line 11 output “no”;

We refer the decision versions of CATCATISO and

CATCATISO2 to CATCATISO* and CATCATISO2*.

Subcaterpillar Isomorphism Between Caterpillars: Subtree Isomorphism Restricted Text and Pattern Trees to Caterpillars

Then, Table 7 illustrates the total and average run-

ning time (msec.) of determining whether or not

P ⊴ T by CATCATISO* and CATCATISO2* and of

determining whether or not P ⊑ T by CATCATINC.

Table 7: The total and average running time (msec.) of de-

termining whether or not P ⊴ T by CATCATISO* and CAT-

CATISO2* and of determining whether or not P ⊑ T by

CATCATINC.

CATCATISO*/ISO2* CATCATINC

data total ave. total ave.

N-glycans 4,788/4,721 0.02 16,075 0.06

all-glycans 611,103/603,052 0.01 2,221,026 0.04

CSLOGS 13,211,929/13,497,908 0.01 83,129,368 0.05

dblp

73,315,987/73,548,291 0.03 143,584,440 0.05

SwissProt 3,706,628/3,696,157 0.08 7,291.159 0.16

Nasa

−

◦

11/11 0.01 29 0.03

Protein

−

◦

164,107/164,240 0.01 596,332 0.02

University

−

◦

1/1 0.00 9 0.01

As stated in the previous sections, the algorithm

CATCATINC runs in O((h + H)σ) time (Theorem 4)

and the algorithms CATCATISO* and CATCATISO2*

run in O(hHσ) time (Theorem 5). On the other hand,

Table 7 shows that the algorithms CATCATISO* and

CATCATISO2* are much faster than the algorithm

CATCATINC. One of the reasons is that, whereas

the main loop in the algorithm CATCATINC is re-

peated at near to h + H times, the for-loop in the

algorithms CATCATISO* and CATCATISO2* are re-

peated at much smaller than H times.

Furthermore, Table 8 illustrates the number

(#pairs) of pairs (P,T ) such that P ⊴ T and P ⊑

T (Miyazaki et al., 2022) with its ratio (%) in all the

pairs.

Table 8: The number (#pairs) of pairs (P,T ) such that P ⊴ T

and P ⊑ T with its ratio (%) in all the pairs.

P ⊴ T P ⊑ T

data #pairs % #pairs %

N-glycans 17,505 6.67 21,919 8.35

all-glycans 646,170 1.01 907,776 1.42

CSLOGS 1,979,560 0.11 2,277,568 0.13

dblp

364,182,693 13.79 364,184,642 13.79

SwissProt 1,400,455 3.03 1,400,455 3.03

Nasa

−

◦

108 10.23 108 10.23

Protein

−

◦

3,701 0.01 3,701 0.01

University

−

◦

1 0.15 1 0.15

Table 8 shows that, whereas #pairs such that P ⊴ T

is smaller than #pair such that P ⊑ T for N-glycans,

all-glycans, CSLOGS and dblp

, the former is equal

to the latter for SwissProt, Nasa

−

◦

, Protein

−

◦

and

University

−

◦

; Nevertheless, for these data, we can de-

termine P ⊴ T faster than P ⊑ T shown in Table 7.

5 CONCLUSION

In this paper, we have designed the algorithms of

CATCATISO and CATCATISO2 to solve the subcater-

pillar isomorphism between caterpillars and given the

experimental results of comparing them with the sub-

caterpillar isomorphism algorithms of CATTREEISO

and CATTREEISO2 and the caterpillar inclusion al-

gorithm CATCATINC.

Then, the algorithms of CATCATISO and CAT-

CATISO2 are faster than the algorithms of CAT-

TREEISO and CATTREEISO2 for subcaterpillar iso-

morphism between caterpillars. Also, whereas the al-

gorithm CATCATINC is faster than the decision ver-

sions CATCATISO* and CATCATISO2* in theoreti-

cal, the latter is faster than the former in experimental.

Since Theorem 1 for the subtree isomorphism also

holds for unrooted trees, it is a future work to extend

the algorithms in this paper to unrooted subcaterpil-

lar isomorphism between caterpillars. In particular,

it is necessary to investigate whether or not the un-

rooted subcaterpillar isomorphism between caterpil-

lars can avoid to the SETH-hardness of subtree iso-

morphism (Abboud et al., 2018).

REFERENCES

Abboud, A., Backurs, A., Hansen, T. D., v. Williams, V.,

and Zamir, O. (2018). Subtree isomorphism revisited.

ACM Trans. Algo., 14:27.

Gallian, J. A. (2007). A dynamic survey of graph labeling.

Electorn. J. Combin., 14:DS6.

Kilpel

ainen, P. and Mannila, H. (1995). Ordered and un-

ordered tree inclusion. SIAM J. Comput., 24:340–356.

Miyazaki, T., Hagihara, M., and Hirata, K. (2022). Cater-

pillar inclusion: Inclusion problem for rooted labeled

caterpillars. In Proc. ICPRAM ’22, pages 280–287.

Miyazaki, T. and Hirata, K. (2022). Subcaterpillar isomor-

phism: Subtree isomorphism restricted pattern trees to

caterpillars. In Proc. FedCSIS ’22, pages 351–356.

Muraka, K., Yoshino, T., and Hirata, K. (2019). Vertical

and horizontal distances to approximate edit distance

for rooted labeled caterpillars. In Proc. ICPRAM’19,

pages 590–597.

Shamir, R. and Tsur, D. (1999). Faster subtree isomor-

phism. Algorithmica, 33:267–280.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods
