Two-Model-Based Online Hand Gesture Recognition from Skeleton Data

Zorana Do

zdor

, Tomislav Hrka

and Zoran Kalafati

University of Zagreb, Faculty of Electrical Engineering and Computing, Unska 3, 10000 Zagreb, Croatia

Keywords:

Recurrent Neural Network, Gated Recurrent Unit, Online Gesture Recognition, Hand Skeleton, Sliding

Window.

Abstract:

Hand gesture recognition from skeleton data has recently gained popularity due to the broad areas of ap-

plication and availability of adequate input devices. However, before utilising this technology in real-world

conditions there are still many challenges left to overcome. A major challenge is robust gesture localization –

estimating the beginning and the end of a gesture in online conditions. We propose an online gesture detec-

tion system based on two models – one for gesture localization and the other for gesture classiﬁcation. This

approach is tested and compared against the one-model approach, often found in literature. The system is

evaluated on the recent SHREC challenge which offers datasets for online gesture detection. Results show the

beneﬁts of distributing the tasks of localization and recognition instead of using one model for both tasks. The

proposed system obtains state-of-the-art results on SHREC gesture detection dataset.

1 INTRODUCTION

In recent years, hand gesture recognition has become

an important part of human-computer interaction with

a growing ﬁeld of application, such as the video-

game industry, medicine, sign language translation,

automotive industry etc. Advancement of input de-

vices has allowed scientists to develop methods for

different input modalities, such as RGB, depth and

hand skeleton data as well as different multimodal ap-

proaches.

Hand keypoints are easily obtained from sen-

sors available in modern virtual reality devices (e.g.

Leap Motion Controller, HoloLens 2), or alterna-

tively using standard RGB input processed by a

lightweight convolutional model such as MediaPipe

Hands (Zhang et al., 2020). This allows for a variety

of interaction mechanisms in virtual and mixed real-

ity, making us rethink standard human-computer in-

teraction. This inspired us to create an online gesture

recognition system based solely on 3D hand skeleton

coordinates.

The online gesture recognition (or detection) in-

cludes both the temporal localization of a gesture and

its subsequent classiﬁcation. However, up to this

point a majority of research and datasets were fo-

cused on classiﬁcation of already segmented gestures.

https://orcid.org/0000-0002-9194-4589

https://orcid.org/0000-0002-4362-2489

https://orcid.org/0000-0001-8918-9070

Although this is an important part of online gesture

recognition, it is less challenging than gesture extrac-

tion and recognition from continuous input data. Con-

sequently, developed online systems were often appli-

cation and/or dataset speciﬁc, and therefore not robust

enough for general real world use.

There are several challenges regarding online ges-

ture recognition in the real world systems. The system

latency should be very low to give a feeling of an in-

stant response. Also, the system should not have too

many false positives; however, it should have a high

detection rate, which often becomes a trade-off. Fi-

nally, the models should often be lightweight to be

appropriate for real time use on embedded hardware.

A crucial part of online gesture recognition is ges-

ture localization – estimating the beginning and end

of each gesture. There are two possible approaches

to this problem. In one approach, continuous input

data is fed to the model by a (temporal) sliding win-

dow technique where the model labels each incoming

input frame with one (or none) of the known gesture

classes. Final gesture boundaries are then determined

by different postprocessing strategies (Maghoumi and

LaViola, 2019), (Emporio et al., 2021). Another ap-

proach ﬁrst determines gesture boundaries (using of-

ten complex and time latent heuristics (Caputo et al.,

2022), (Caputo et al., 2021)) and then classiﬁes the

segmented data into gesture classes.

We believe the latter is a more prudent approach

because gestures lengths vary drastically, both within

and between classes, which the former approach

838

Doždor, Z., Hrka

c, T. and Kalafati

c, Z.

Two-Model-Based Online Hand Gesture Recognition from Skeleton Data.

DOI: 10.5220/0011663200003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

838-845

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

struggles to handle. In this work, we propose a similar

system; however, instead of using a complex heuris-

tic for gesture localization, we propose training a re-

current model for this task. This results in a system

comprised of two recurrent lightweight models – one

for gesture localization and another for gesture classi-

ﬁcation.

Our contribution is as follows:

• a novel hand gesture recognition approach that

uses two lightweight, easy to implement models;

• a hand gesture localization model based on

trained recurrent network instead of using com-

plex heuristics.

The proposed system achieves state-of-the-art results

on SHREC gesture detection dataset.

2 RELATED WORK

Much of the published work in gesture recognition

utilizes traditional computer vision methods where

features are hand-crafted. However, deep learning

methods have recently come to the forefront.

Gesture recognition methods differ based on the

utilized input modalities, as they indicate the shape of

the data upon which the algorithms are based. Out of

the several prominent input modalities (RGB, depth,

skeleton, segmentation mask), our work focuses on

gesture recognition from hand skeleton data.

As for gesture localization, there has not been

much research or datasets for temporal gesture lo-

calization from continuous skeleton data – something

which this work aims to build upon.

2.1 Skeleton-Based Hand Gesture

Classiﬁcation

In skeleton-based hand gesture classiﬁcation, the in-

put rarely consists of just raw 3D hand skeleton points

(Maghoumi and LaViola, 2019). Deﬁning additional

features based on 3D points can signiﬁcantly improve

model performance. Various features extracted from

the hand-skeleton have been proposed, based on joint

velocity, acceleration, joint-to-joint distances, angles

between selected joints, etc.

Recurrent networks are one of the dominant ap-

proaches in gesture recognition because of their abil-

ity to extract important temporal information from se-

quential data. Still, they underperform when it comes

to extracting spatial features. To aid this, convolu-

tional neural networks (CNNs) are often utilised.

In (Maghoumi and LaViola, 2019), a deep recur-

rent network with an attention module is proposed for

skeleton-data gesture recognition. The main building

blocks of the model are stacked gated recurrent units

(GRUs). (Shin and Kim, 2020) also use GRU archi-

tecture, but they divide the input features into multi-

ple parts to reduce the number of network parameters

needed for optimization. In (Song et al., 2017), a re-

current network is constructed with LSTM units with

spatial and temporal attention subnetworks. (Chen

et al., 2017) also utilizes an LSTM network, but in

addition to skeleton sequence input they construct a

set of ﬁnger and global motion features to describe

hand movement and improve classiﬁcation accuracy.

As for the CNN, a simple convolutional network

inspired by DDNet architecture (Yang et al., 2019) is

proposed in (Emporio et al., 2021). Instead of using

raw data, the authors constructed ﬁve different input

features from the input skeleton: the Euclidian dis-

tances between pairs of joints, the palm orientation,

the orientations of selected joint pairs and the joint

speeds. In (Devineau et al., 2018) a CNN with par-

allel branches for feature extraction is presented. In

(Hou et al., 2019), an end-to-end attention residual

temporal convolutional network is proposed, tracking

both spatial and temporal features.

A combination of CNN and LSTM is presented in

nez et al., 2018), with CNN being used as encoder

part of the network, while LSTM is used for gesture

classiﬁcation. For that approach, a two-stage training

strategy is presented, ﬁrstly adjusting the weights of

the CNN, then training the combination of CNN and

LSTM.

Additionally, there have been some attempts in

creating an image representation of skeleton trajec-

tories. In (Lupinetti et al., 2020) and (Caputo et al.,

2020), color intensity is used to represent temporal

information, and the ﬁnal 2D image is created by pro-

jecting the 3D points onto a view plane. Images are

then classiﬁed by a CNN. Similarly, in (Wang et al.,

2016), hue, saturation, and brightness are used to

represent spatial-temporal motion information. Joint

trajectory maps are constructed for three orthogonal

planes and processed by a CNN, then fused for the

ﬁnal result.

2.2 Temporal Gesture Localization

There has been a lot of work done on temporal local-

ization in videos. However, localization for skeleton-

based continuous data is yet to be researched. To the

authors knowledge, the only non-segmented skeleton-

based hand gesture recognition datasets have been

proposed by Caputo et al. as a part of the SHape Re-

trieval Contest (SHREC).

Two-Model-Based Online Hand Gesture Recognition from Skeleton Data

839

The SHREC 2019 (Caputo et al., 2019) dataset

contains only 5 dynamic gestures described by a hand

trajectory. In SHREC 2021 (Caputo et al., 2021),

there were 18 gesture classes divided into static, dy-

namic and ﬁne dynamic gestures. Finally, the third

dataset, SHREC 2022 (Caputo et al., 2022) was cre-

ated to alleviate some of the problems of the previous

datasets. These challenges resulted in several meth-

ods for gesture localization and recognition proposed

by the contestants.

The results of four research groups participating in

SHREC 2021 contest are presented in (Caputo et al.,

2021). One group proposed a transformer-based ar-

chitecture for gesture classiﬁcation. The model makes

predictions for every time step of the input and then

a ﬁnite state machine is utilised for localisation of

the gestures. Another group proposed an energy-

based detection module for gesture localisation. With

a sliding window approach, they calculated the en-

ergy for several consecutive windows and selected the

ones with the minimum of energy as candidate ges-

tures. Similar work was done in SHREC 2022, where

one group applied an energy-based proposal module

with the addition of a gesture localisation branch in

the classiﬁcation model for more precise localisation.

Another group presented a method based on tempo-

ral convolutional network (TCN), where the model is

fed with windows of length n, and the ﬁnal per-frame

prediction is made by a voting strategy with n votes

for each frame. An additional post-processing strat-

egy is applied to determine the gesture start and end

from the per-frame predictions.

3 PROPOSED SYSTEM

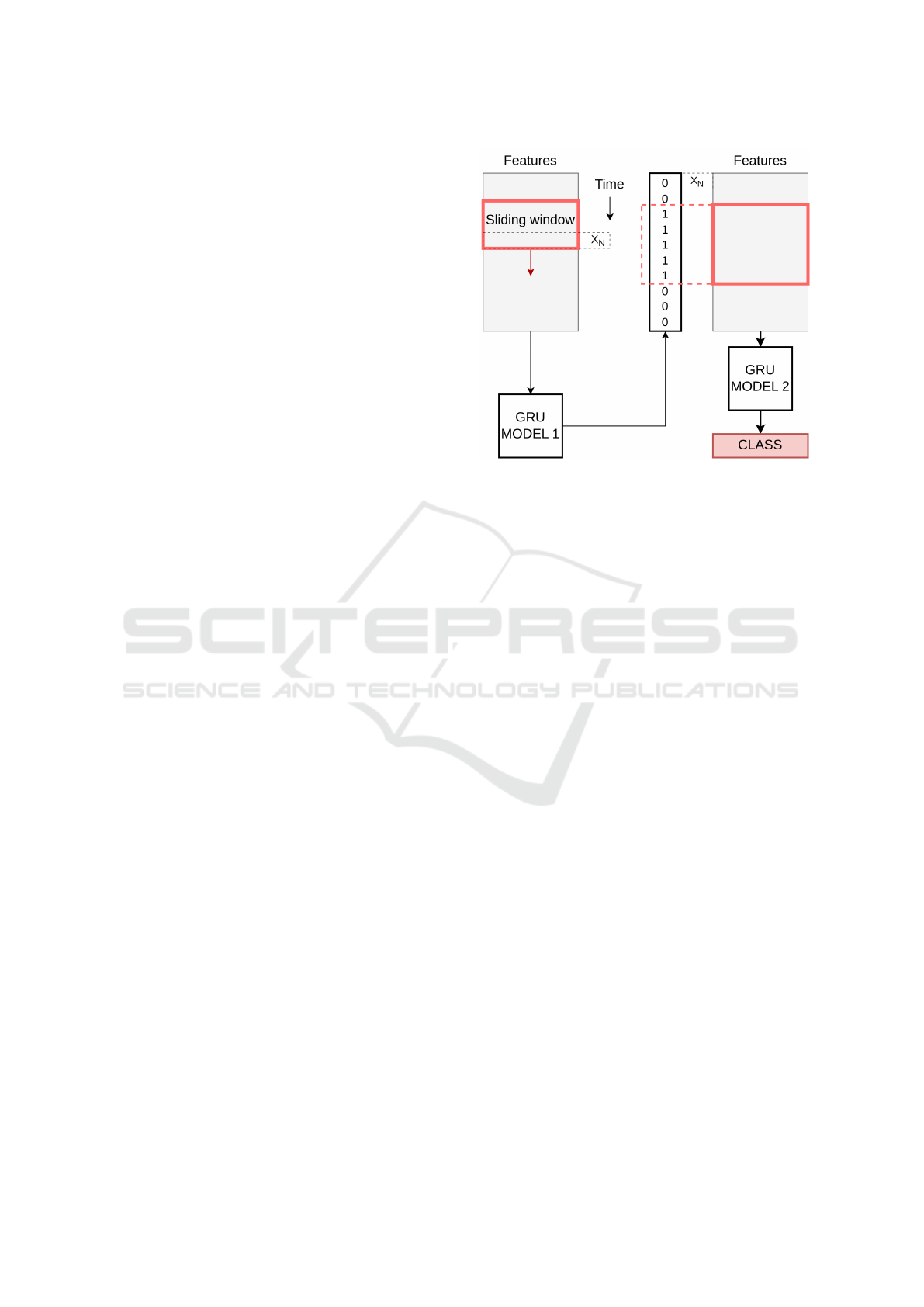

Figure 1 shows the general ﬂow of the proposed two-

model system. The ﬁrst model (gesture localizer) is a

binary classiﬁer, predicting whether a gesture is hap-

pening, for every time step of input data. The input is

constructed by a temporal sliding window, where the

classiﬁer makes its prediction for the last time step of

the input window. The model outputs a binary predic-

tion: 1 if a gesture is detected, and 0 otherwise.

Based on the sequence of predictions from the lo-

calizer, segments which contain gestures are extracted

from the data, resampled to a ﬁxed length, and pro-

vided as input to the second model (gesture recog-

nizer). The second model then classiﬁes the segments

into one of the known gesture classes, or the non-

gesture class. The purpose of the non-gesture class

is to ﬁlter out any gesture segments that do not ac-

tually contain a gesture, i.e. the false positives of the

localizer.

Figure 1: General ﬂow of the system. Using a sliding win-

dow approach, the gesture localization model (GRU model

1) extracts gesture segments, while the gesture classiﬁcation

model (GRU model 2) classiﬁes them into gesture classes.

3.1 Input Preprocessing

The input for both models is preprocessed as follows:

ﬁrst, for each input sample, the per-axis coordinates

are normalized to have zero mean and unit variance;

then, additional features are derived from the coordi-

nates and added to the input – joint velocity and pair-

wise Manhattan distance. The ﬁnal feature vector for

each time step is obtained by ﬂattening and concate-

nating the aforementioned features.

Velocity is important as different gestures and dif-

ferent parts of the same gesture are made with varying

speeds. For time step t and joint i, per-axis velocity is

calculated as the ﬁrst derivative of the joint’s positions

approximated by ﬁnite differences:

i,x

= x

i,t

− x

i,t−1

, (1a)

i,y

= y

i,t

− y

i,t−1

, (1b)

i,z

= z

i,t

− z

i,t−1

. (1c)

Pairwise Manhattan distance is introduced to add

spatial information. We chose Manhattan distance in-

stead of the more popular Euclidian because exper-

imental results have shown better performance. For

joint pair i and j, Manhattan distance for time step t is

calculated as follows:

i, j,t

= |x

i,t

− x

j,t

| + |y

i,t

− y

j,t

| + |z

i,t

− z

j,t

|. (2)

3.2 Architectures of the Models

Figure 2 shows the architectures of the recurrent mod-

els used. The encoder part of both architectures is

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

840

essentially the same: it consists of a fully connected

layer for reduction of feature dimensionality, fol-

lowed by two gated recurrent unit (GRU) layers with

hyperbolic tangent activation. The only differences

are that in the second model batch normalization is

added after the fully connected layer, and dropout

with the probability of 0.2 is applied after each GRU

layer, to reduce overﬁtting. Inspired by (Maghoumi

and LaViola, 2019) we selected GRU as a building

block of the encoder because it has less training pa-

rameters than LSTM, and still performs well for se-

quences that are not very long. We found experimen-

tally that stacking just two GRU layers is enough for

our application.

For time step t, based on the input vector x

and

the previous hidden state h

t−1

, the hidden output for

the GRU unit is calculated as follows:

= σ(W

uxh

uhh

(t−1)

+ b

), (3)

= σ(W

rxh

rhh

(t−1)

+ b

), (4)

= tanh(W

⊙ h

(t−1)

) + b

), (5)

h = u

⊙ h

(t−1)

+ (1 − u

) ⊙

, (6)

where u and r are update and reset gates, respectively,

while

h and h represent intermediate hidden state and

output hidden state, respectively. Weights and bi-

ases are denoted as W and b, while σ denotes the

sigmoid function. Symbol ⊙ represents the element-

wise product, know as the Hadamard product.

The classiﬁcation part for the ﬁrst model consists

of only one fully connected layer with a sigmoid ac-

tivation function. The second model has three fully

connected layers: two with ReLu activation, and the

last one with softmax activation, where the number

of units is equal to the number of classes, plus one

for the non-gesture class. The hyperparameters of the

models are chosen experimentally.

4 EXPERIMENTS

The proposed system is trained and evaluated on two

similar datasets: the SHREC 2021 and SHREC 2022

online gesture detection benchmarks.

SHREC 2021 dataset consist of 16 gestures di-

vided into static (one, two, three, four, ok, menu),

dynamic (left, right, circle, v, cross) and ﬁne-grained

dynamic (grab, pinch, tap, knob, expand) gestures.

Hand skeleton data consisting of 20 joints was col-

lected by a Leap Motion sensor at 50 fps. Total of

180 sequences is divided into train and test, with 108

and 72 sequences respectively. The sequences contain

variable number of gestures (3-5), and the gestures are

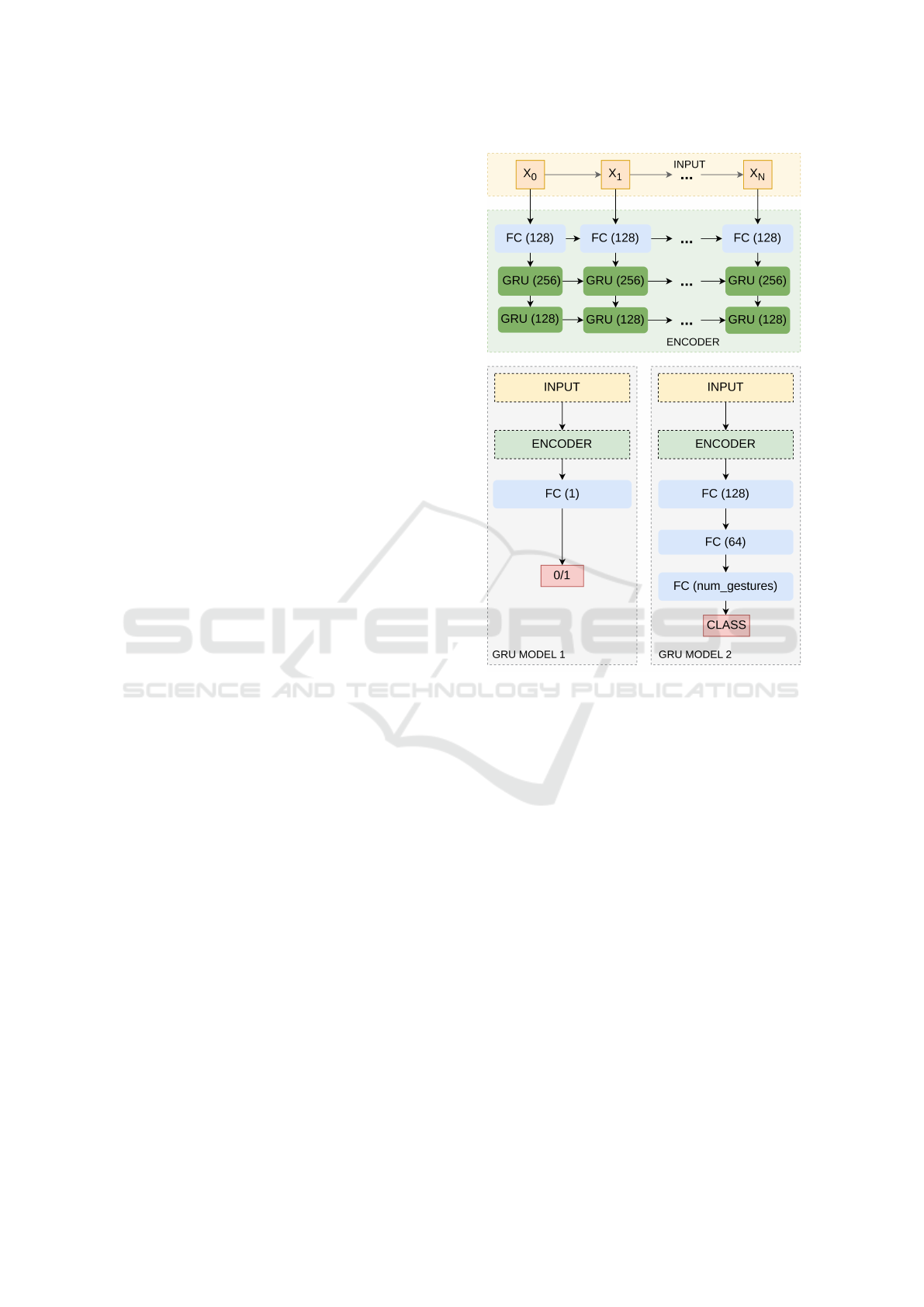

Figure 2: Architecture of the gesture localization model

(GRU model 1) and the gesture classiﬁcation model (GRU

model 2). The models share the same encoder structure

while they differ in the classiﬁer architecture.

interleaved with other hand movements. The begin-

ning and the end of each gesture is annotated, as well

as the gesture class.

SHREC 2022 consists of 16 gestures divided into

four classes: static (one, two, three, four, ok, menu),

dynamic (left, right, circle, v, cross), ﬁne-grained dy-

namic (grab, pinch), and dynamic periodic gestures

(deny, wave, knob), as illustrated in Figure 3. The

dataset has a total of 288 sequences divided evenly

into training and test set. For each time step the co-

ordinates (x,y,z) of 26 hand joints are captured by a

HoloLens 2 device. The gesture dictionary is slightly

changed compared to SHREC 2021 to avoid some

ambiguities that were noticed.

The evaluation considers several measures: the

detection rate, the number of false positives, the de-

tection latency, and the Jaccard Index.

• Detection rate (DR): A gesture is considered cor-

rectly detected if the overlap between the ground

truth gesture temporal boundaries and the predic-

Two-Model-Based Online Hand Gesture Recognition from Skeleton Data

841

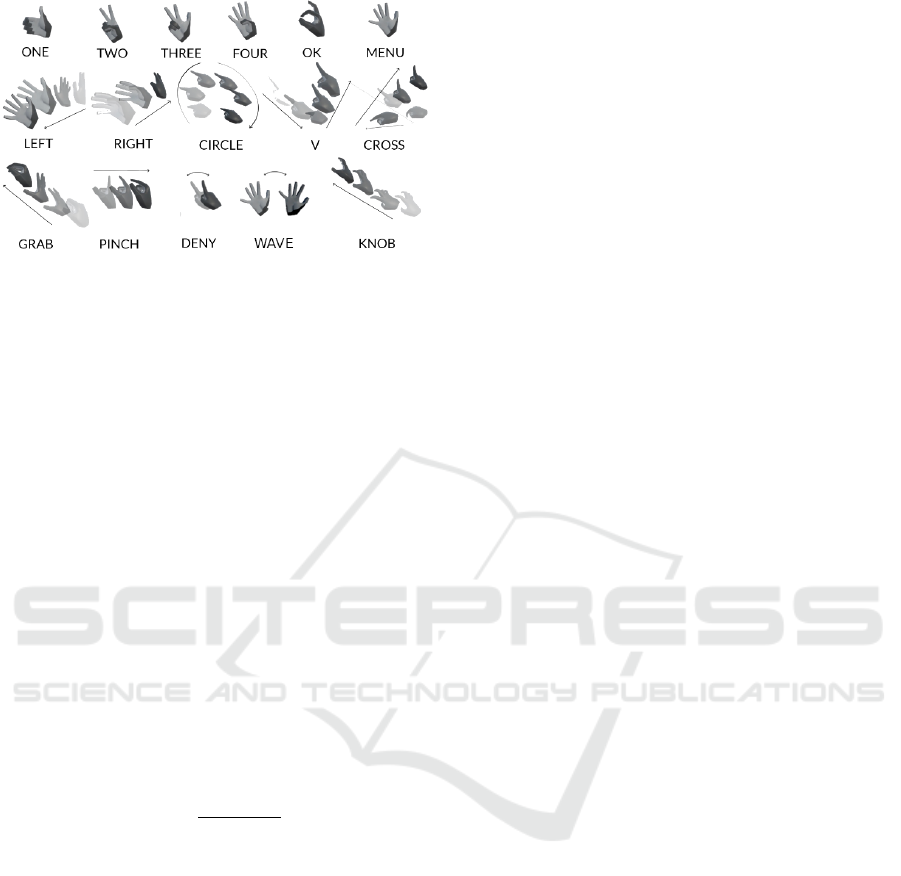

Figure 3: SHREC 2022 gestures (ﬁrst row - static, second

row - dynamic coarse, third row left - dynamic ﬁne, third

row right - periodic)(Caputo et al., 2022).

tion boundaries is larger than a predeﬁned thresh-

old (usually 50%), and the predicted class label

is correct. The detection rate is the percentage of

the ground truth gestures (of some class) that are

correctly detected and classiﬁed.

• False positive rate (FP): False positives include

segments detected as gestures, not overlapping

with any of the ground truth gestures, as well as

the misclassiﬁed gestures. The false positive rate

is the ratio between the number of false positives

and the number of gestures in the test set.

• Detection latency (DL): expresses the difference

between the predicted gesture start and the last

time step used for that prediction.

• Jaccard Index (JI): measures the relative overlap

between the ground truth and the predicted ges-

tures.

The Jaccard Index is given by the expression:

s,i

∩ P

s,i

∪ P

s,i

, (7)

where GT

s,i

and P

s,i

are ground truth and prediction

binary vectors for sequence s. Vector components as-

sume values one or zero, based on the timesteps where

the i-th gesture is being performed.

We used both SHREC’21 and SHREC’22 datasets

to test the beneﬁts of our two-model approach. Addi-

tionally, we compared the obtained results with the

published state-of-the-art results for the SHREC’22

dataset (Caputo et al., 2022). We omit the compari-

son with the SHREC’21 results from (Caputo et al.,

2021) due to the recent modiﬁcation of the labels.

4.1 Training

Models were trained with the Adam optimizer and a

learning rate of 0.001 for 200 epochs. Reduction of

learning rate on plateau is applied with patience of 20

epochs. First model is optimised with the binary cross

entropy loss, while for the second model the categor-

ical cross entropy is used.

Training data for both models was split into train-

ing and validation in the ratio of 80:20 by a stratiﬁed

split. The length of sliding window for the ﬁrst model

is set to 40. The positive data for the second model

are the extracted gesture segments, while negative ex-

amples are randomly sampled with a variable length

from the non-gesture segments of the sequences. All

extracted segments are resampled to a length of 20.

Data augmentation was applied for the training of

both models. For each axis (x,y,z) of the input sam-

ple, with 10% probability, a random number between

-0.1 and 0.1 is added to the joint coordinates in a ran-

domly chosen segment of the sequence. The length of

the segment is determined randomly, ranging from 0

to 25% of the input length. The position of the mod-

iﬁed segment in the input sequence is also selected

randomly.

4.2 Online Gesture Detection

When using the proposed system in an online setting,

the boundaries of the candidate gestures sent to the

second model are determined as follows: the begin-

ning of the gesture is detected if 5 consecutive time

steps are labelled as a gesture, while the end of the

gesture is determined when 10 consecutive time steps

are labelled as a non-gesture. That means, the sys-

tem has a delay of 10 time steps between the end of

the gesture and making the ﬁnal gesture classiﬁcation.

Detection latency is 5 time steps, because decision

about the start time step is made after 5 consecutive

gesture predictions. The output of the ﬁrst model, p,

is a number between 0 and 1 because of the sigmoid

activation function. We select time steps with p > 0.5

as frames that contain a gesture.

A single processing step for the ﬁrst model in-

cludes sliding window data preprocessing and clas-

siﬁcation, while for the second model it consists of

extracted gesture segment resampling and classiﬁca-

tion. For both models the measured execution time

for a single processing step is approximately 20 ms.

The experiments were conducted on a single GPU,

Nvidia GeForce RTX 2060 SUPER (8GB) with an In-

tel Core i9 (8 cores) CPU. The system can process

about 50 fps and, therefore, is appropriate for real-

time applications.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

842

Table 1: Comparison of one-model and two-model approaches on SHREC’21 and SHREC’22 gesture recognition challenges.

Dataset Method DR FP JI

SHREC’21 One model 0.7279 0.1728 0.6570

SHREC’21 Two models 0.7831 0.0919 0.7371

SHREC’22 One model 0.8524 0.1528 0.7519

SHREC’22 Two models 0.8542 0.0920 0.7881

Table 2: Comparison of our results with state-of-the-art on SHREC’22 gesture recognition challenge.

Method DR FP JI DL (fr)

Stronger 0.7188 0.3299 0.5915 14.79

2ST-GCN 5F 0.7378 0.1042 0.6720 13.28

Causal TCN 0.8003 0.2552 0.6845 19.00

TN-FSM+JD 0.7708 0.1823 0.6582 10.00

Ours 0.8542 0.0920 0.7881 5.00

4.3 One-Model and Two-Model

Approach Comparison

To validate the beneﬁts of our two-model approach,

an experiment has been conducted comparing a typi-

cal one-model approach to our own.

First, we trained only the gesture classiﬁcation

model from our system (GRU model 2) to make pre-

dictions based on sliding window input instead of the

already extracted gestures. The model predicts one of

the gesture classes (or a non-gesture), for every time

step. All of the post-processing and training strategies

are the same as explained above.

Then, we trained the proposed system, where the

ﬁrst model predicts gesture segments based on slid-

ing window input, and the second model classiﬁes the

extracted segments. We trained and tested both ap-

proaches on SHREC’22 and SHREC’21 datasets. The

detection rate, the number of false positives and the

Jaccard Index are shown in Table 1 and are calculated

as a mean of per class results.

For the SHREC’22 dataset the detection rate is ap-

proximately the same for both approaches, while the

Jaccard Index is better for the two-model approach.

The number of false positives is lower for the two-

model approach by 6%. We also compared the num-

ber of false positives across all examples. For the two-

model approach the total number of false positives is

9%: 3% are misclassiﬁed examples, and 6% are real

false positives. For the one-model approach the total

number of false positives is 16%: 4% are misclassi-

ﬁed examples, and 12% are real false positives. This

suggests that the two-model approach has 50% less

false positives.

While in the SHREC’22 the results are mostly

similar, for the SHREC’21 dataset the two-model ap-

proach shows better results across all measures. We

suppose that this is due to the fact that SHREC’21

dataset labels for start and end of gestures are nois-

ier, and gestures differ more in length so that the gen-

eralization properties of the two-model approach are

more pronounced. Figure 4 shows the detection rate

(which includes both correct localization and classiﬁ-

cation) in relation to the chosen threshold on overlap

ratio between the predictions and the ground truth for

both approaches on SHREC’21. The two-model ap-

proach is consistently better. The graph shows that

both approaches have much higher detection rate for

lower overlap ratio values. This indicates that gesture

classiﬁcation is usually successful even with poor lo-

calization.

Figure 4: Detection rate in relation to overlap ratio thresh-

old on SHREC’21 test set for one-model and two-model

approach.

4.4 Comparison with SHREC 2022

Challenge State-of-the-Art Results

Our results are compared to the best runs of the

SHREC’22 challenge participants. Table 2 shows the

results. Participant results reported here differ a lit-

tle from (Caputo et al., 2022) because the evalua-

tion script has been ﬁxed by the contestant organis-

ers since the publishing of the results. Our system has

the highest detection rate and Jaccard Index, while the

number of false positives is slightly lower than the

Two-Model-Based Online Hand Gesture Recognition from Skeleton Data

843

(a) Detection rate.

(b) False positive rate.

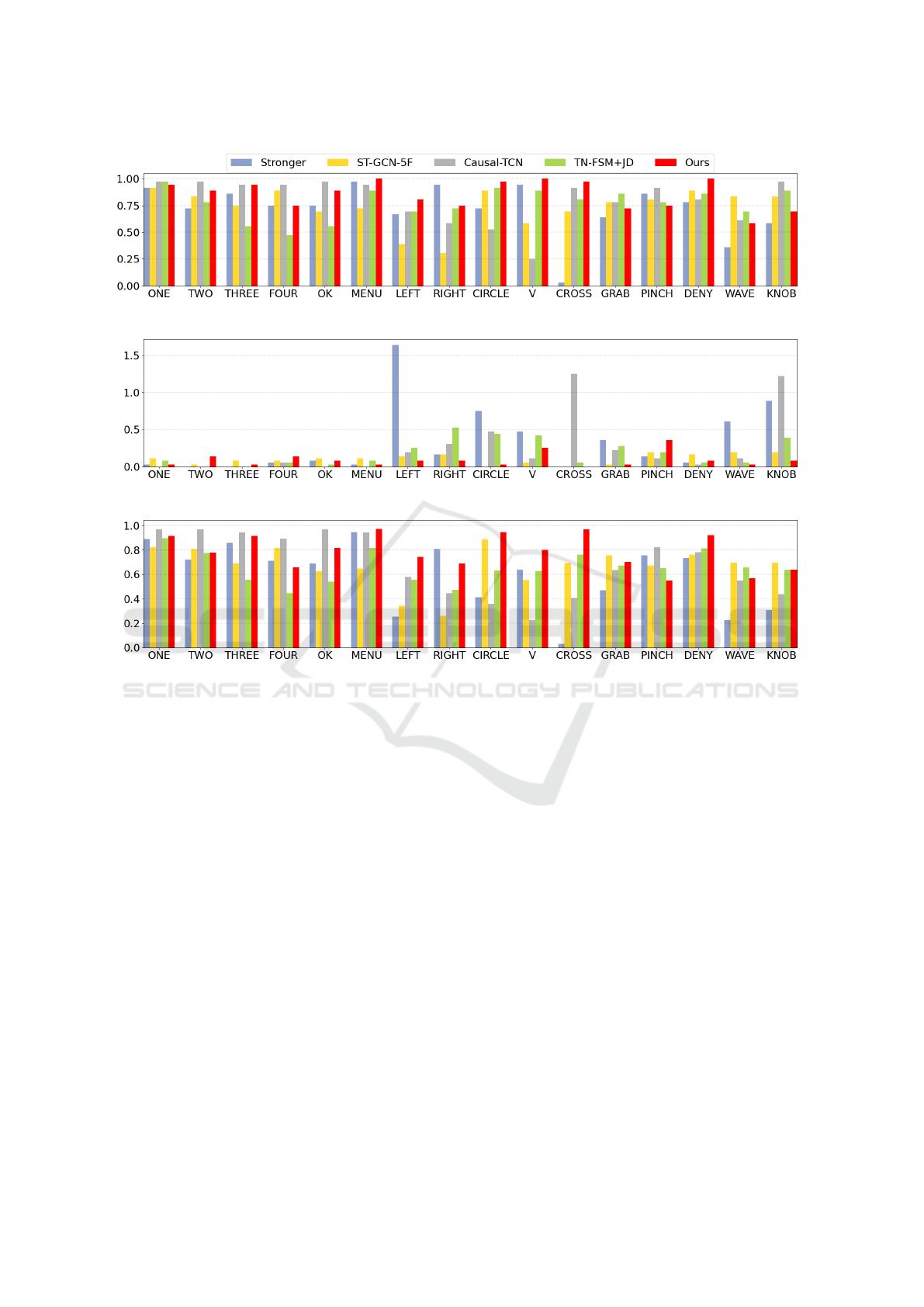

Figure 5: Comparison of per class (a) detection rate (b) false positive rate and (c) Jaccard Index with state-of-the-art of SHREC

2022 gesture recognition challenge.

best result in the contest.

Figure 5 shows per class detection rates, false pos-

itive rates, and Jaccard Indexes compared to the chal-

lenge contestants. As visible in ﬁgure 5a, we have the

best detection rate results for most of the gestures in

the dynamic category (left, circle, v, cross), and com-

parable results for the rest of the categories. Other

methods usually have inconsistent results across ges-

ture categories. For instance, Causal-TCN is the best

in the static category (one, two, three, four, ok, menu),

but their performance in dynamic category is signiﬁ-

cantly lower. For our system, these differences are far

less emphasized.

As for the Jaccard Index in 5c, it is also the best

for dynamic category and comparable with the best

results for other categories, which is to be expected as

it is correlated with the detection rate.

Lastly, ﬁgure 5b shows the number of false pos-

itives. It can be observed that out model has consis-

tently low false positive rate across all gesture classes.

This is important because some of the other methods,

like Stronger or Causal-TCN, have spikes with high

number of false positives for certain gesture classes.

These spikes are in some cases even larger than one,

meaning that the number of false positives exceeds

the number of samples for that class.

5 CONCLUSION

In this work we proposed a method for gesture lo-

calization and recognition from hand skeleton data in

an online environment. The presented results demon-

strate the beneﬁts of distributing the tasks of ges-

ture localization and recognition between two mod-

els, rather than training just one model for both. The

two-model approach reduces the number of false pos-

itives and can improve generalization when gestures

are considerably diverse in length, or when the dataset

labels are noisy.

Although our results are better than those of the

SHREC 2022 challenge contestants, they should be

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

844

further improved for real-word use. With the detec-

tion rate of 85% and 9% of false positives, the system

is still not robust enough. The number of false posi-

tives should be close to zero because every response

activated by a false gesture detection would deterio-

rate the user experience. As shown, using two models

slightly alleviates this problem, but further improve-

ments are needed to enable smooth system usage.

There are several directions future work can take

to further improve our results. Firstly, our models are

trained independently. We believe they could beneﬁt

from end-to-end training. The accuracy of the second

model is dependent on the output of the ﬁrst model,

however, higher accuracy of the ﬁrst model alone does

not necessarily lead to the better overall performance.

Secondly, the choice of hand-crafted features de-

rived from hand skeleton has a large inﬂuence on

model performance. We believe it should be further

explored to fully utilize model capacity.

Lastly, we selected the models’ parameters based

on single stratiﬁed split. Although time consuming, it

could prove beneﬁcial to do grid search in combina-

tion with k-fold cross validation for the selection of

parameters.

ACKNOWLEDGEMENTS

This work was supported by the ”Development of an

advanced electric bicycles charging station for a smart

city” project co-funded under the Operational Pro-

gram from the European Structural and Investment

Funds.

REFERENCES

Caputo, A., Emporio, M., Giachetti, A., Cristani, M.,

Borghi, G., D’Eusanio, A., Le, M.-Q., Nguyen, H.-

D., Tran, M.-T., Ambellan, F., Hanik, M., Navayaz-

dani, E., and von Tycowicz, C. (2022). SHREC 2022

track on online detection of heterogeneous gestures.

Computers & Graphics, 107.

Caputo, A., Giachetti, A., Giannini, F., Lupinetti, K., Monti,

M., Pegoraro, M., and Ranieri, A. (2020). SFINGE

3D: A novel benchmark for online detection and

recognition of heterogeneous hand gestures from 3d

ﬁngers’ trajectories. Comput. Graph., 91:232–242.

Caputo, A., Giachetti, A., Soso, S., Pintani, D., D’Eusanio,

A., Pini, S., Borghi, G., Simoni, A., Vezzani, R.,

Cucchiara, R., Ranieri, A., Giannini, F., Lupinetti,

K., Monti, M., Maghoumi, M., Jr, J., Le, M.-Q.,

Nguyen, H.-D., and Tran, M.-T. (2021). SHREC

2021: Skeleton-based hand gesture recognition in the

wild. Computers & Graphics, 99.

Caputo, F. M., Burato, S., Pavan, G., Voillemin, T., Wan-

nous, H., Vandeborre, J.-P., Maghoumi, M., Taranta,

E. M., A., Razmjoo, LaViola, J. J., Manganaro, F.,

Pini, S., Borghi, G., Vezzani, R., Cucchiara, R.,

Nguyen, H., Tran, M.-T., and Giachetti, A. (2019).

SHREC 2019 track: Online gesture recognition. In

Eurographics Workshop on 3D Object Retrieval.

Chen, X., Guo, H., Wang, G., and Zhang, L. (2017). Mo-

tion feature augmented recurrent neural network for

skeleton-based dynamic hand gesture recognition. In

IEEE International Conference on Image Processing

(ICIP), pages 2881–2885.

Devineau, G., Moutarde, F., Xi, W., and Yang, J. (2018).

Deep learning for hand gesture recognition on skele-

tal data. In 2018 13th IEEE International Conference

on Automatic Face & Gesture Recognition (FG 2018),

pages 106–113.

Emporio, M., Caputo, A., and Giachetti, A. (2021).

STRONGER: Simple TRajectory-based ONline GEs-

ture Recognizer. In Smart Tools and Apps for Graph-

ics - Eurographics Italian Chapter Conference. The

Eurographics Association.

Hou, J., Wang, G., Chen, X., Xue, J.-H., Zhu, R., and

Yang, H. (2019). Spatial-temporal attention res-tcn

for skeleton-based dynamic hand gesture recognition.

In Leal-Taix

e, L. and Roth, S., editors, Computer Vi-

sion – ECCV 2018 Workshops, pages 273–286, Cham.

Springer International Publishing.

Lupinetti, K., Ranieri, A., Giannini, F., and Monti, M.

(2020). 3d dynamic hand gestures recognition us-

ing the leap motion sensor and convolutional neural

networks. In De Paolis, L. T. and Bourdot, P., ed-

itors, Augmented Reality, Virtual Reality, and Com-

puter Graphics, pages 420–439, Cham. Springer In-

ternational Publishing.

Maghoumi, M. and LaViola, J. J. (2019). DeepGRU: Deep

gesture recognition utility. In ISVC.

nez, J. C., Cabido, R., Pantrigo, J. J., Montemayor, A. S.,

and V

elez, J. F. (2018). Convolutional neural net-

works and long short-term memory for skeleton-based

human activity and hand gesture recognition. Pattern

Recognit., 76:80–94.

Shin, S. and Kim, W.-Y. (2020). Skeleton-based dy-

namic hand gesture recognition using a part-based

GRU-RNN for gesture-based interface. IEEE Access,

8:50236–50243.

Song, S., Lan, C., Xing, J., Zeng, W., and Liu, J. (2017). An

end-to-end spatio-temporal attention model for human

action recognition from skeleton data. In AAAI.

Wang, P., Li, Z., Hou, Y., and Li, W. (2016). Action recog-

nition based on joint trajectory maps using convolu-

tional neural networks. Proceedings of the 24th ACM

international conference on Multimedia.

Yang, F., Sakti, S., Wu, Y., and Nakamura, S. (2019). Make

skeleton-based action recognition model smaller,

faster and better. In ACM International Conference

on Multimedia in Asia.

Zhang, F., Bazarevsky, V., Vakunov, A., Tkachenka, A.,

Sung, G., Chang, C., and Grundmann, M. (2020).

Mediapipe hands: On-device real-time hand tracking.

CoRR, abs/2006.10214.

Two-Model-Based Online Hand Gesture Recognition from Skeleton Data

845
