Fast Exact String to D-Texts Alignments

Njagi Moses Mwaniki

1 a

, Erik Garrison

2 b

and Nadia Pisanti

1 c

University of Pisa, Italy

University of Tennessee Health Science Center, U.S.A.

Keywords:

D-string, Pangenome, Pattern Matching.

Abstract:

A D-strings is a degenerate string representing similar and aligned strings by collapsing common fragments

and highlighting variants. D-strings can represent a MSA or a pan-genome. In this paper we propose a new,

fast and exact method to align a string to a D-string. In recent years, aligning a sequence to a pangenome has

become a central problem in computational genomics and pangenomics. A fast and accurate solution to this

problem can serve as a toolkit to many crucial tasks such as read-correction, Multiple Sequences Alignment

(MSA), genome assemblies, and variant calling, just to name a few. An implementation of our tool is publicly

available on github at https://github.com/urbanslug/dsa.

1 INTRODUCTION

In recent years, aligning a sequence to a pangenome

has become a central problem in computational ge-

nomics and pangenomics (CPC, 2018). This problem

has often been addressed with the purpose of align-

ing sequencing reads to a complex structure such as a

degenerate string or a more general graph structure

(E.Garrison et al., 2018; J.M.Eizenga et al., 2021;

C.A.Darby et al., 2020; M.Rautiainen et al., 2019;

M.Rautiainen and T.Marschall, 2020; H.Li et al.,

2020; E.Birmel

e et al., 2012), and possibly assum-

ing the query string to be considerably shorter than

the pangenome (E.Garrison et al., 2018; J.M.Eizenga

et al., 2021; A.Cisłak et al., 2018; C.A.Darby et al.,

2020). As sequencing data is now offering longer

sequences with high accuracy, the attention has re-

cently been moved towards the problem of aligning to

a graph-like structure a string which is approximately

as long. A fast and accurate solution to this problem

would serve as a toolkit to many crucial tasks such as

Multiple Sequences Alignment (MSA), genome as-

sembly, and variant calling, just to name a few. The

requirement of an alignment being at the same time

exact and accurate raises computational challenges:

current exact methods that perform alignments to long

strings would have a time complexity quadratic in the

https://orcid.org/0000-0002-4858-2375

https://orcid.org/0000-0003-3821-631X

https://orcid.org/0000-0003-3915-7665

strings size.

Consider the following MSA of three closely-

related sequences

GCAATCGGGTATT

GCAATCGGGAATT

GCACGCTGGATTT

and its degenerate string (D-string) compact rep-

resentation

T = GCA[AT/CG]C [G/T]GG[TA/AA/AT]TT

A D-string (or D-text)

T contains both determinis-

tic (shown in bold) and non-deterministic (alternative

variants) segments. Formally,

T is a sequence of n

sets of strings where the i

set contains strings of the

same length `

(possibly = 1 in the deterministic case)

but this length can vary between different sets.

A great deal of research has been conducted in the

bioinformatics literature on a special case of D-strings

where all the alternative variants are single letters.

These are equivalent to a sequence written in the

IUPAC notation (IUPAC-IUB Commission on Bio-

chemical Nomenclature, 1970) to represent a posi-

tion in a DNA sequence that can possibly have mul-

tiple alternatives (H.Soldano et al., 1995; N.Pisanti

et al., 2005; N.Pisanti et al., 2009; K.Abrahamson,

1987; M.Crochemore et al., 2017; C.S.Iliopoulos and

J.Radoszewski, 2016). These are commonly used to

encode the consensus of a population of sequences

in a MSA (P.Peterlongo et al., 2008; CPC, 2018;

M.Alzamel et al., 2018; M.Alzamel et al., 2020;

P.Gawrychowski et al., 2020).

The more general notion of ED-strings (Elastic D-

string, where variants can have different sizes within

a degenerate position), and over them the short read

Mwaniki, N., Garrison, E. and Pisanti, N.

Fast Exact String to D-Texts Alignments.

DOI: 10.5220/0011666900003414

In Proceedings of the 16th Inter national Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2023) - Volume 3: BIOINFORMATICS, pages 70-79

ISBN: 978-989-758-631-6; ISSN: 2184-4305

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

matching problem Elastic-Degenerate String Match-

ing (EDSM) problem has attracted some attention in

the combinatorial pattern matching community. Since

its introduction in 2017 (C.S.Iliopoulos et al., 2017),

a series of results have been published both for the ex-

act (R.Grossi et al., 2017; G.Bernardini et al., 2019;

K.Aoyama et al., 2018; G.Bernardini et al., 2022)

as well as for the approximate (G.Bernardini et al.,

2020; G.Bernardini et al., 2017; N.M.Mwaniki and

N.Pisanti, 2022) version of the problem. Even if they

are designed and optimised for short read matching,

some of the algorithms above would also work for

long reads, but failing to be efﬁcient. In particular,

when rather than matching the task is ﬁnding an opti-

mal alignment (that is, computing the edit distance)

of a query sequence and the pangenome, then the

heuristic-free method of (G.Bernardini et al., 2020;

G.Bernardini et al., 2017) would require O(d

W G +

dN) time, where d is the computed edit distance, W

is the length of the query string, and N and G are the

total size and the total number of strings of the degen-

erate string.

In this paper we propose a new, fast and exact method

to align a string to a D-string, the latter possibly

representing an MSA or a pan-genome. Ours is a

base-level heuristic-free alignment method that al-

lows afﬁne gap penalty score functions and the use

of arbitrary scores as well as weights. D-strings are

one out of many others possible pan-genome repre-

sentation (V.Carletti et al., 2019). Our algorithm ex-

ploits the assumption that the similarity the alignment

must detect is high enough to suitably adapt the sem-

inal idea of (E.W.Myers, 1986) to D-strings, combin-

ing at the same time partial order alignments (C.Lee

et al., 2002) and the wavefront paradigm (S.Marco-

Sola et al., 2021) managing to work with afﬁne gap

penalty function to score gaps, which is a desirable

property when the target of the alignment is to ac-

count for INDELs variant events.

This paper is organised as follows: Section 2 gives

some preliminary deﬁnitions on D-strings and notions

of partial order and wavefront alignment, Section 3

describes our algorithm, and Section 4 the experimen-

tal validation of the resulting tool we realized.

The implementation of DSA is publicly avail-

able at https://github.com/urbanslug/dsa, and our

D-strings random generator can be found at

https://github.com/urbanslug/simed/.

2 PRELIMINARY NOTIONS

2.1 D-strings

A string X is a sequence of elements on an alphabet

Σ, where Σ is a non-empty ﬁnite set (of size |Σ|) of

letters. The set of all ﬁnite strings over an alphabet

Σ, including the empty string ε of length 0, is denoted

by Σ

∗

, while Σ

denotes the set Σ

∗

\ {ε}. The set of

all strings of length k > 0 over Σ is denoted by Σ

For any string X, we denote by X [i, j] the substring

of X that starts at position i and ends at position j.

In particular, X[0, j] is the preﬁx

of X that ends at

position j, and X [i,|X|] is the sufﬁx of X that starts at

position i, where |X| denotes the length of X .

We deﬁne a Degenerate String (D-string)

S =

S{1}

S{2}...

S{n} of length n over an alphabet Σ as

a ﬁnite sequence of n degenerate letters

S{i}. Each

degenerate letter

S{i} has width `

> 0 and is a ﬁnite

non-empty set of |

S{i}| strings of the same length `

(i.e.

S{i}[1],... ,

S{i}[|

S{i}|] ∈ Σ

For any 1 ≤ i ≤ n, we remark that a degenerate

letter

S{i} with |

S{i}| = `

= 1 is just a simple letter

of Σ. Whenever this happens, we will say that i is a

solid position of

S. We now deﬁne some parameters

that measure the degeneracy of a D-string.

The total size N and total width w(

T ) = W of a D-

string

S are respectively deﬁned as N =

∑

i=1

S{i}|·`

and W =

∑

i=1

In our running example of D-string

T =

GCA[AT/CG]C[G/T]GG[TA/AA/AT]TT, `

= `

= 2

while all other `

’s are 1, and |

S{4}| = |

S{6}| = 2,

S{9}| = 3 while all the other |

S{i}|’s are 1; ﬁnally,

the solid positions of

T are 1, 2,3,5,7, 8,10,11.

A D-string of width W actually represents a set

of linear strings of length W, corresponding to all the

strings that can be read by making any choice at a

degenerate positions. Formally, given a D-string

T of

width W , and a string T with |T | = W being any string

in such set, we say that T belongs to

T (T ∈

T ).

For example, the strings GCACGCTGGAATT

and GCAATCTGGTATT are two of the twelve

strings that belong to the D-string

T =

GCA[AT/CG]C[G/T]GG[TA/AA/AT]TT.

The i

position

S{i} (1≤i ≤ n) of

S should not be

confused with its i

width

S[i] (1 ≤i≤W ):

For any D-string

S, its i

width (for 1 ≤ i ≤ W )

S[i] is the letter, or the set of alternative letters, that

can appear in T [i] for string T ∈

T . For any D-string

S, we denote by

S[i

] the D-substring of

S that starts

at width i

and ends at width i

with 1 ≤ i

≤ i

≤ W .

We start from position 0 as we will need to consider

the empty preﬁx X[0,0] for the dynamic programming.

Fast Exact String to D-Texts Alignments

We will also use the notation s

for both |

S{i}| and

S[i]|.

For example, the D-string

T =

GCA[AT/CG]C[G/T]GG[TA/AA/AT]TT has length

n=11, size N= 20, and width W =13. We have that

at width, say, 3 there is a solid position A =

S[3], and

at width 4 there is [A/C]=

S[4]. The D-substring

S[3,7] is A[AT/CG]C[G/T]. We show below positions

and widths for the D-string C[AT/CG]C[G/T] having

length 4, width 5, and size 8.

D-string C [A T / C G] C [G / T]

width 1 2 3 2 3 4 5 5

position 1 2 3 4

2.2 Partial Order Alignment

The use of Partial Order (graphs) for sequence Align-

ments (POA) was introduced in (C.Lee et al., 2002)

with the purpose of improving the iterative step of

progressive (D.-F.Feng and Doolittle, 1987) multiple

sequence alignments (MSA), that is the step where

a new sequence is added to an MSA (starting MSA).

Traditionally, this was performed by ﬁrst reducing the

starting MSA to a linear proﬁle, and then aligning it

to the new sequence in order to obtain a new MSA

(resulting MSA), with the downside that the reduction

of the starting MSA to a linear proﬁle might carry and

propagate alignment errors. The idea behind POA is

to perform a direct pairwise dynamic programming

alignment between the new sequence and a suitable

graph representation of the starting MSA (thus re-

placing the somewhat lossy linear proﬁle representa-

tion), with the outcome of maintaining, in the result-

ing MSA, the optimal alignment of the new sequence

with respect to each one of those of the starting MSA.

Such graph representation, the partial order

graph, basically replaces the linear MSA proﬁle with

a DAG whose edges represent a partial order between

the letters of the MSA to be used as an alternative to

the traditional total order of the rows of an alignment.

2.3 WFA with Afﬁne Gap Penalty

In (E.W.Myers, 1986), Gene Myers introduced the

linear time and space dynamic programming (DP)

alignment for similar strings: when aligning two

strings of size N whose distance is known to be upper-

bounded by D, rather than computing the whole ta-

ble of size N

, only a stripe of O (D) diagonals are

computed, as their similarity guarantees their optimal

alignment to lay therein. The result is a O(DN) algo-

rithm replacing the quadratic one, and an algorithm

that, rather than ﬁlling in a matrix row by row, pro-

ceeds with wave-fronts along diagonals (WFA: Wave

Front Alignment).

The Afﬁne Gap Penalty function to score the cost of

gaps in alignments evaluates a series of k consecutive

gaps as w(k) = o +k ·e (where o is the cost of opening

the gap, and e that of extending it), rather than the sum

of k single gap’s costs. Using such gap penalty score

is almost mandatory in genomic sequences analysis as

this forces the optimal alignment to detect and high-

light INDELs variations that typically involve several

consecutive nucleotides. In order to restore the opti-

mal substructure of the alignment problem when us-

ing afﬁne gap penalty score funcion, the DP algorithm

requires three alignment tables instead of one: matri-

ces I,D,M that store the score of the best alignments

ending - respectively - with an Insertions, a Deletions,

or a (Mis)Match.

In (S.Marco-Sola et al., 2021), the linear time and

space optimization of Myers was extended to the ex-

act computation of an optimal pairwise alignment of

strings using the afﬁne gap penalty score function.

Roughly, for the alignment of two strings of size N

and M, the three matrices I,D,M of size N ×M are re-

placed by wave front records I

d,k

that store,

for each score/distance d and diagonal k, the furthest-

reaching offset in k that scores d. The dynamic pro-

gramming recurrence is then operated on increasing

values of d and adjacent diagonals k, up to the ﬁnal

distance: the one whose wave front reaches the end of

both input strings.

3 THE DSA ALGORITHM

Let us ﬁrst formally state the problem we solve:

[StoDS] Given a D-string

T of width W and size

N, a pattern P of length m, and penalty scores a,x,o,e,

ﬁnd an optimal alignment between P and

T using

scores a for match, x for mismatch, o for gap open-

ing, and e for gap extension.

In the problem statement above, by optimal align-

ment we mean the alignment between P and a string

T ∈

T (see Section 2.1) that minimizes the distance

computed by scoring a for a match, x for a mismatch,

and gap afﬁne penalty function with o for gap opening

and e for gap extension.

In this section we describe our algorithm DSA that

optimally solves STODS. We start with Section 3.1

where we show how we adapted the Partial Order

Alignment (POA) framework to work with alignment

to D-strings. Then, in Section 3.2 we describe our ex-

tension of Wave Front Alignment (WFA) to D-strings

and show how we merge the two techniques into our

algorithm DSA and analyse its complexity.

BIOINFORMATICS 2023 - 14th International Conference on Bioinformatics Models, Methods and Algorithms

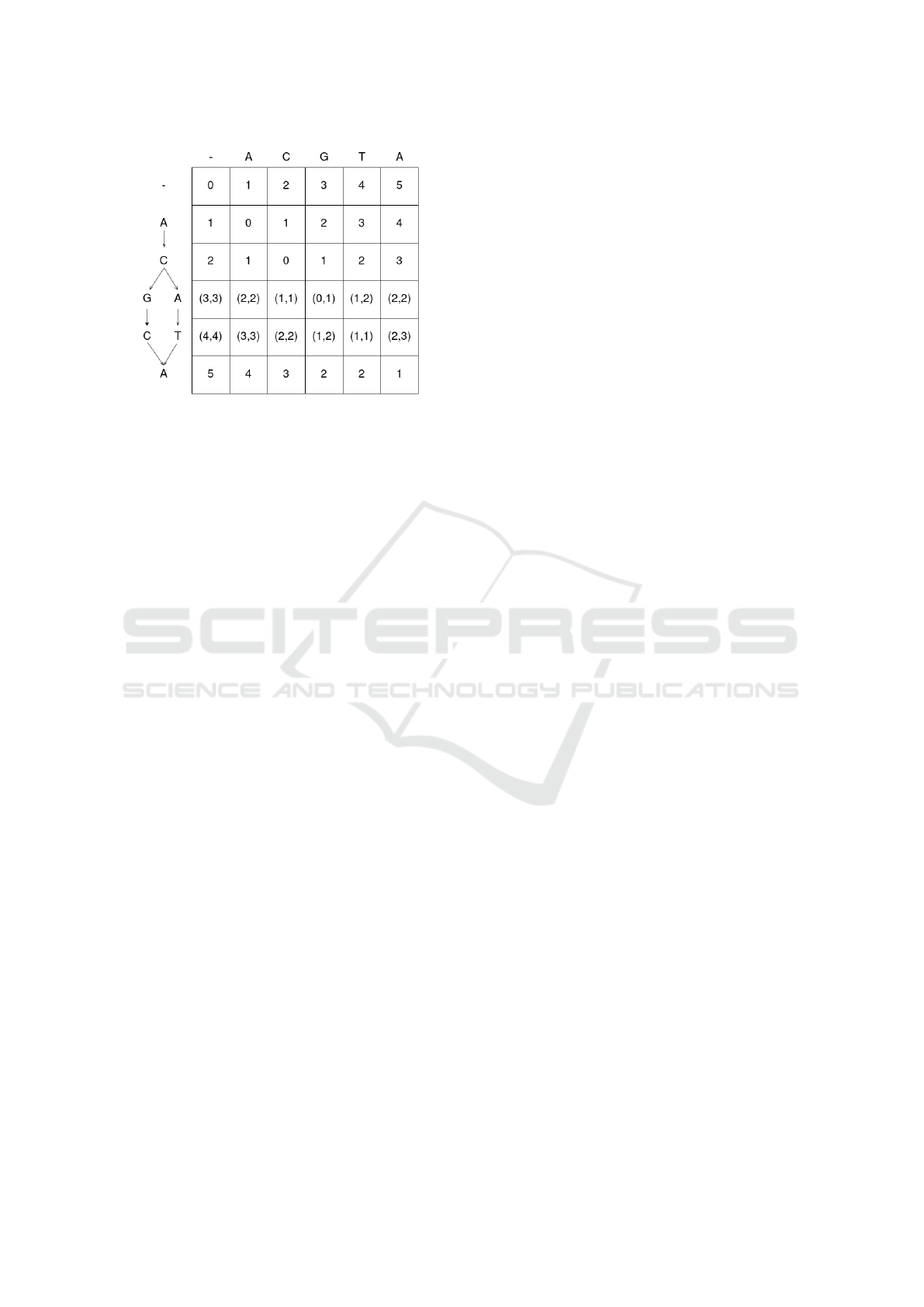

Figure 1: Dynamic Programming table for the POA of the

string ACGTA against the D-string AC[GC/AT]A partially or-

dered as shown by oriented edges, and using scores: 0 for

match, 1 for mismatch, and 2 for gap.

3.1 POA with D-strings

In this section, we show how to use partial order align-

ment to be able to perform base level alignments with

D-strings. Without loss of generality, for the sake of

simplifying the notation, within this section we will

not use the gap afﬁne penalty score (whose imple-

mentation with D-strings will be described in the next

section), but rather account a cost g to any gap.

Given a D-string

T of width W and pattern P of

length m, we build a (W + 1) × (m + 1) DP table M

having a row i for each i

width of

T , and a column

for each letter of P (plus the usual ﬁrst row and ﬁrst

column for their empty preﬁxes), and that will store

in M[i, j] the best score of aligning P[1, j] to

T [1,i]

(an example is shown in Figure 1). When a row falls

within a non-solid position having s strings of length

`, then that row is not associated with a simple let-

ter, but rather with s variants. The entries of these

rows will thus contain a tuple of size s: if row i has

letters a

i,1

,.. .,a

i,h

,.. .,a

i,s

, then M[i, j] is a tuple of

s values < M[i, j]

,.. .,M[i, j]

> where,

for each 1 ≤ h ≤ s, a match is accounted if and only

if a

i,h

= P[ j].

On top of this tuple representation, a partial order

is assumed for the N letters of the D-string: within

solid positions, the usual order of sequences applies;

in a degenerate position, instead, distinct letters in the

same tuple are not comparable, and nor is letter a

i,h

tuple a

i,1

,.. .,a

i,h

,.. .,a

i,s

at row i comparable with

the other letters of all the ` adjacent rows composing

the same degenerate position, except for the ` other

letters a

that are also the h

letter in their tuples.

Within all comparable letters, the order corresponds

to that of the rows of M.

We use this partial order to drive the alignment

along the D-string: wherever the traditional dynamic

programming alignment algorithm refers to the previ-

ous row and/or previous column, here we refer only to

entries that - instead - are preceding according to the

partial order deﬁned above. For example, the partial

order of AC[GC/AT]A is deﬁned by the graph shown

on the letters at the rows of the DP table of Figure 1.

We now formalize with dynamic programming

recurrence relations the way we apply the ideas

sketched above. For any two letters σ

,σ

∈ Σ, we

deﬁne a function m(σ

,σ

) as equal to a if σ

= σ

and equal to x otherwise. Denoting with s

the size of

the tuple at row i, we compute M[i, j] for all 1 ≤ j ≤ m

distinguishing the following cases:

i−1

= s

= 1. In this case no degeneracy is encoun-

tered and the traditional dynamic programming

alignment framework applies.

i−1

= 1 and s

= s > 1. In this case, row i corre-

sponds to the opening of a degenerate position of

strings of length `, this row (like the next ` − 1

rows) represents s

alternative letters a

i,1

,.. .,a

i,s

and each entry M[i, j] will contain tuples of size s

computed as follows for 1 ≤ h ≤ s

M[i, j]

= min

(

M[i − 1, j − 1]+ m(P[ j], a

i,h

)

M[i − 1, j]+ g

M[i, j − 1]

+ g

(1)

i−1

= s

= s > 1 and rows i −1,i fall within the

same degenerate position. In this case, this row

still represents s alternative letters a

i,1

,.. .,a

i,s

and each entry M[i, j] will contain tuples of size

computed as follows for 1 ≤ h ≤ s

M[i, j]

= min

(

M[i − 1, j − 1]

+ m(P[ j], a

i,h

)

M[i − 1, j]

+ g

M[i, j − 1]

+ g

(2)

i−1

= s > 1 and s

= 1. In this case, row i − 1 was

the last letter of a degenerate position, and row i

is a solid position representing a single letter

T [i].

The entry M[i, j] will contain a value computed as

follows:

M[i, j] = min











M[i − 1, j − 1]

+ m(P[ j],

T [i])

... ... ...

M[i − 1, j − 1]

i−1

+ m(P[ j],

T [i])

M[i − 1, j]

+ g

... ...

M[i − 1, j]

i−1

+ g

M[i, j − 1] + g

(3)

i−1

> 1 and s

= s > 1 and rows i−1,i fall within

the same degenerate position. In this case, row

Fast Exact String to D-Texts Alignments

i − 1 was the last letter of a degenerate position

and row i is the ﬁrst of a new different degenerate

position. This row represents s alternative letters

i,1

,.. .,a

i,s

and each entry M[i, j] will contain tu-

ples of size s

computed as follows for 1 ≤ h ≤ s

M[i, j]

= min











M[i − 1, j − 1]

+ m(P[ j], a

i,h

)

... ... ...

M[i − 1, j − 1]

i−1

+ m(P[ j], a

i,h

)

M[i − 1, j]

+ g

... ...

M[i − 1, j]

i−1

+ g

M[i, j − 1]

+ g

(4)

For example, Figure 1 shows the DP table for the

alignment of the D-string AC[GC/AT]A against ACGTA.

3.2 WFA with D-strings

In this section we show how to perform Wave Front

Alignment of Partially Ordered D-Strings with afﬁne

gap penalty score in almost linear time using a D-

strings customization of Wave Front Alignment.

Similarly to (S.Marco-Sola et al., 2021), we re-

place the three afﬁne gap penalty dynamic program-

ming matrices I,D,M of size W × m each (W being

the width of

T and m the length of P) with as many

wave front records

starting with an initial

distance d = 0. The value of d can thus only increase

along the computation, and for each partial score d,

the records

(resp.

) store the following val-

ues:

(i) the values lo

and hi

that deﬁne the range of di-

agonals that allow to reach alignment score d;

(ii) for each diagonal k in such range: tuple o f f

d,k

for

offsets, and tuple abd

d,k

for abandoned.

Indeed, the values lo

,hi

deﬁne the span of W F

Initially, lo

= hi

= 0 and the only single starting di-

agonal is the main diagonal k=W −m. For each partial

distance d and diagonal k, o f f

d,k

stores the furthest-

reaching offset in diagonal k that scores d, while the

boolean tuple abd

d,k

tells us whether, for having that

distance d along that diagonal k, we should abandon

a speciﬁc variant of the tuple. We will use the generic

notation o f f

d,k

as well as the more speciﬁc notation

o f f

d,k

(resp. o f f

d,k

, o f f

d,k

) to speciﬁcally mean the

offsets in

(resp.

With the wave-front, there is no need to spend a

quadratic W × m space to store the matrices, nor to

spend a quadratic time to ﬁll them in. Observe, how-

ever, that d, k, and o f f

d,k

, actually identify a speciﬁc

diagonal and how far you can go down along it while

keeping score d, and therefore k and o f f

d,k

actually

deﬁne a cell in what would have been the matrices

D,I and M. Let us name u the row and v the col-

umn of the entry deﬁned by o f f

d,k

. Now, if

T [u] is a

single/solid letter, then the offset o f f

d,k

, o f f

d,k

, and

o f f

d,k

are a single value, and else they are a tuple of

size s

: a wave front for each variant in

T [u].

Starting with initial distance d = 0 and the sole cen-

tral diagonal, we compute the wavefront for grow-

ing values of d until the bottom right cell has been

reached by the wavefront. The value of d is in-

creased, and new offsets are computed, when the bor-

ders of the wave front have been reached: no fur-

ther match is possible, and either a mismatch score

x must be accounted (and new offset computed along

the same diagonal k for distance d + x), or a gap must

be accounted and therefore new diagonals must be ex-

plored (and new offset computed for distance that has

increased according to the gap penalty function). This

is done according to the formulae (5),(6), and (7) be-

low that formalize the recurrence relations that show

how to update the offsets information; these are ba-

sically those of (S.Marco-Sola et al., 2021) with the

tuple information added.

Formula (5) computes the new offsets for

d,k

, as-

suming the general case in which the entry on which

we do the recurrence contains a tuple.

o f f

d,k

=1+max

(

1+max in tuple o f f

d−o−e,k−1

1+max in tuple o f f

d−e,k−1

(5)

When computing

d,k

we are assuming that the last

event has been an insertion, in which case the previ-

ous event could either have been (i) a (mis)match, in

which case a new gap is being opened, or (ii) another

insertion, in which case an existing gap is being ex-

tended. In case (i) the new offset is that of

d−o−e

because the distance is increased by o + e, while in

case (ii) the new offset is that of

d−e

because the dis-

tance is only increased by the gap extension e. In both

cases, the new offset has to be picked from the preced-

ing diagonal k − 1.

Dually, the following formula computes the new

offsets for

d,k

assuming the general case in which

the entry on which we do the recurrence contains a

tuple:

o f f

d,k

= max

(

1+max in tuple o f f

d−o−e,k+1

1+max in tuple o f f

d−e,k+1

(6)

Since

d,k

is computed assuming that the last

event has been a deletion, the previous event could ei-

ther have been a (mis)match, in which case a new gap

is being opened, or another deletion, in which case an

existing gap is being extended. The new offset is then

BIOINFORMATICS 2023 - 14th International Conference on Bioinformatics Models, Methods and Algorithms

either in

d−o−e

or in

d−e

, and in both cases the new

offset has to be picked from the next diagonal k − 1.

Finally, we show how to compute the new offsets

for

d,k

o f f

d,k

= max

(

o f f

d,k

(Insertion)

o f f

d,k

(Deletion)

1+max in tuple o f f

d−x,k

(Mismatch)

(7)

The wavefront boundaries for

d,k

are computed

assuming that the last event has been a (mis)match,

in which case we stay in the same diagonal k, and

the previous event could either have been another

(mis)match, or an insertion or deletion. The new off-

set is then either in

d−x

or in

. In the lat-

ter formula, the case of a match is not taken into ac-

count because these offsets are recomputed only when

a match is not available.

Notice that, among possible values, the maximum

is always sought here because the distance is a ﬁxed

parameter d in

d,k

, and we want to go as

far as possible along k keeping that distance (that can

only increase otherwise), whatever alignment event

must be assumed. In this way, we eventually min-

imize the ﬁnal d whose W F

will reach the bottom

right ﬁnal entry of the matrix. In all formulae above,

whenever incurring in a gap and increasing or de-

creasing the diagonal number, then this has to be in-

tended as updating lo

or hi

The pseudocode of our algorithm is shown in Ap-

pendix A. The main function, DWF ALIGN, calls

DWF EXTEND to extend the wavefront for all diag-

onals k between lo

and hi

by means of the func-

tion DWF ROLL, which is the core of DSA as this

is where the offsets of

d,k

are actually increased be-

cause at least one match in the tuple takes place, mak-

ing W F

roll along diagonal k. When this happens,

then the function DWF ROLL:

(i) Possibly updates the width of the offset tuple with

that of the current row and resets its content to account

for the case in which we extend a wavefront from row

i to row i + 1 such that |

T [i]| 6= |

T [i + 1]| (the size of

the tuple changes) or we are anyhow stepping into a

different degenerate letter.

(ii) It checks, for each possible variant, whether there

is a match and it has not been abandoned, in which

case the offset is incremented. Else, it sets the variant

as abandoned.

When DWF ROLL cannot extend further the W F

by means of matches, then the lead gets back to

DWF ALIGN which increases d and calls the func-

tion DWF NEXT that sets the offsets according to

formulae (5),(6), and (7) to update the borders of the

wavefront.

The ﬁnal result we have obtained is an exact algo-

rithm that computes the edit distance (or any distance

accounting for insertions, deletions, and substitutions

with any desired score, including afﬁne gap penalty

score), between a string and a D-string in time and

space proportional to D·N, where N is the size of the

D-string, and D is the ﬁnal edit distance. This is re-

gardless of the alphabet size.

We remark that both the dynamic programming

solution we suggested can naturally make use of

weights associated to single letters or positions to be

included in the optimization distance function.

We implemented our algorithm in a prototype tool

DSA that computes the edit distance and an optimal

alignment (thus keeping all the information needed

for tracing back the optimal path).

4 PRELIMINARY

EXPERIMENTAL VALIDATION

To the best of our knowledge, there is no published

software tool implementing an algorithm speciﬁcally

designed for a global alignment of a linear string and

a D-text. Some algorithm are designed for semiglobal

alignment, that is with the pattern being (substan-

tially) shorter than the D-string (E.Garrison et al.,

2018; J.M.Eizenga et al., 2021; A.Cisłak et al., 2018;

A.Cisłak and S.Grabowski, 2020; M.Federico and

N.Pisanti, 2009; C.A.Darby et al., 2020); some are

designed for more general purposes, such as align-

ing a linear string to a graph structure that general-

izes D-strings (E.Garrison et al., 2018; J.M.Eizenga

et al., 2021; C.A.Darby et al., 2020; M.Rautiainen

et al., 2019; M.Rautiainen and T.Marschall, 2020;

H.Li et al., 2020). Some of these and other tools are

not exact and hence do not guarantee to ﬁnd the op-

timal alignment or solution (e.g (M.Rautiainen and

T.Marschall, 2020; M.Rautiainen et al., 2019; H.Li

et al., 2020; H.Li, 2016; H.Li, 2018; H.Li, 2021). Fi-

nally, some algorithms that basically solve a very sim-

ilar problem, actually do not compute any distance or

alignment, but rather output a consensus string that

suitably merges the input strings (Y.Gao et al., 2021;

P.Ivanov et al., 2020; P.Ivanov et al., 2022b; P.Ivanov

et al., 2022a).

The Variation Graph Toolkit VG suite (E.Garrison

et al., 2018; J.M.Eizenga et al., 2021) contains a tool

that can solve STODS aligning a string to a more gen-

eral data structure than D-strings (Variation Graphs

indeed), but this is speciﬁcally designed to map reads

that are shorter than the graph/text, rather than making

a global alignment, and therefore a comparison would

not be fair. The same holds for VARGAS (C.A.Darby

Fast Exact String to D-Texts Alignments

et al., 2020) as well as for SOPANG and SOPANG2

(A.Cisłak et al., 2018; A.Cisłak and S.Grabowski,

2020) that, moreover, only detect exact matches with-

out allowing gaps nor mismatches. We thus consid-

ered the tool abPOA (Y.Gao et al., 2021), a C library

tool to align a sequence to a directed acyclic graph

that also uses partial order alignment and supports

global alignment, and which is the state of the art as

of base-level exact alignments, but it cannot handle

sequences as long as 100,000b. The same holds for

the tool Astarix (P.Ivanov et al., 2020; P.Ivanov et al.,

2022b; P.Ivanov et al., 2022a).

We therefore compared our DSA with

GRAPHALIGNER (M.Rautiainen and T.Marschall,

2020; M.Rautiainen et al., 2019) and MINIGRAPH

(H.Li et al., 2020; H.Li, 2016; H.Li, 2018; H.Li,

2021) on solving STODS. Both of them are designed

to align strings on a more general graph structure

than D-strings and therefore the comparison we

show below should be viewed as a validation of

the performance of DSA in solving STODS, and

not as claiming that DSA is in general a better

tool than any of the other two. GRAPHALIGNER

uses a seed and extend method and the bitvector

alignment extension algorithm of (M.Rautiainen

et al., 2019). MINIGRAPH is a well maintained and

highly optimized software tool that uses minimizers

to ﬁnd strong colinear chains as starting point to

build the alignment (H.Li et al., 2020; H.Li, 2016;

H.Li, 2018; H.Li, 2021). Therefore, out of DSA,

GRAPHALIGNER, and MINIGRAPH, our DSA is the

only one which does base-level exact alignments.

D-strings generation. We randomly generated a

D-string of width W =100,000b by ﬁrst generating a

random string of length W on {A,C,G,T }, and then

inserting

therein deg (input parameter given as a

percentage of W ) degenerate non-solid positions as

follows: for each such position we pick at random

a value for its size between 1 and S (another input

parameter), and a randomly chosen length between

1 and L (input parameter again). We generated

D-strings using width W = 100,000b in all tests,

degeneracy frequencies values deg = 1%,10%, max-

imum variance values S = 2,5, and maximum variant

lengths L=1,4. As a consequence the width of tested

D-strings will always be W = 100,000b, while its to-

tal size N will depend from input parameters deg,S,L.

Pattern generation. From the obtained synthetic D-

string

T , we extracted a ground truth exact pattern P

of size W (that is, a string P ∈

T that thus matches

T with distance 0), and we (possibly) modiﬁed P

The insertion was done forcing the width to remain W .

into the actual input query P with different possible

divergences using real .vcf ﬁles

. The divergences we

tested were to insert (i) no divergence at all, (ii) 0,1%

SNPs, (iii) 1% SNPs, (iv) 0,1% INDELs; (percent-

ages are on W ). Hence, the size m = |P| of the query

string will be in Θ(W ) and so will the distance d be-

tween P and

T .

We have run experiments for all values deg,S,L

mentioned above in D-string generation paragraph,

resulting in D-strings of size ranging from N =

101,000 (for deg = 1, S = 2, L = 1) to N = 160,327

(for deg = 10,S = 5,L = 4). All tests were ran on

a laptop (single threaded) Intel® Core™ i7-11800H

× 16 with 16.0 GiB RAM. Space and time was mea-

sured using /usr/bin/time -f"%S\t%M" to extract

system time (seconds) and maximum resident set size

(kbytes). Time was reported 0 when < 0.001s. In

all tests we used alignment scores a = 0, x = 1,o =

2,e = 1. For space reasons, we only report results for

two parameters’ sets that sample the comparative re-

sults. Table 1 shows results with a D-string of size

N = 106,147 generated with deg = 1% of degener-

ate positions with up to S = 5 variants of length up

to L = 4 (little frequency of highly degenerated posi-

tions). Table 2 shows results with a D-string of size

N = 110, 000 generated with deg = 10% of degener-

ate positions with up to S = 2 variants of length up to

L = 1 (high frequency of little degenerated positions).

We report time and memory peak, as well as

the number of detected events on optimal alignment:

number = for matches, X for mismatches, I for inser-

tions, and D for deletions. With no pattern divergence,

then for a correct alignment it must be I = D = X =0

and 100,000 matches. When the pattern divergence is

only SNPs, then it must be I = D = 0, and X should

be approximately equal to the number of SNPs (as

by chance the divergence may not change the DNA

base). For the experiments involving INDELs diver-

gence in the pattern, we also report the number G of

gaps that are opened: with W = 100,000b and 0.1%

INDELs, in a correct alignment it must be G = 100.

For accuracy evaluation, for each experiment the last

line shows the ground truth.

In all experiments, and for all tools, time was be-

low 0.2 seconds. For both data sets (Tables 1, 2), in

the ﬁrst experiment (no pattern divergence) for an ex-

act match, DSA always ﬁnds (also in those not shown

here) the exact solution with 100000 matches, 0 mis-

matches, and 0 gaps (like GRAPHALIGNER does) tak-

ing less memory than MINIGRAPH and much less

than GRAPHALIGNER. In the second and third exper-

The .vcf ﬁle format is the standard in bioinformatics

to encode variants such as SNPs (letter substitutions) and

INDELs.

BIOINFORMATICS 2023 - 14th International Conference on Bioinformatics Models, Methods and Algorithms

Table 1: D-string of size N =106,147 with degeneracy deg =1%,S = 5,L = 4.

Tool Pattern Peak memory Time Alignment

divergence (kbytes) (seconds) events

DSA none 3188 0 100,000= 0X 0I 0D

GRAPHALIGNER ” 7418 0 100,000= 0X 0I 0D

MINIGRAPH ” 5585 0 99989= 0X 0I 0D

Ground truth —> —> 100000= 0X 0I 0D

DSA 0.1 % SNPs 44096 0.005 99900= 100X 0I 0D

GRAPHALIGNER ” 26799 0.004 99901= 99X 0I 0D

MINIGRAPH ” 8038 0 99889= 100X 0I 0D

Ground truth —> —> 99900= 100X 0I 0D

DSA 1 % SNPs 475668 0.120 99007= 993X 0I 0D

GRAPHALIGNER ” 26682 0.005 99005= 993X 2I 2D

MINIGRAPH ” 7910 0.001 98989= 1000X 0I 0D

Ground truth —> —> 99007= 993X 0I 0D

DSA 0.1 % INDELs 131311 0.018 99813= 0X 135I 174D 100G

GRAPHALIGNER ” 26816 0.003 99717= 109X 135I 174D 145G

MINIGRAPH ” 8213 0.001 99813= 1X 136I 175D 100G

Ground truth —> —> 99813= 0X 135I 174D 100G

Table 2: D-string of size N =110,000 with degeneracy deg =10%,S = 2,L = 1.

Tool Pattern Peak memory Time Alignment

divergence (kbytes) (seconds) events

DSA none 3174 0 100,000= 0X 0I 0D

GRAPHALIGNER ” 16405 0 100,000= 0X 0I 0D

MINIGRAPH ” 5609 0 99994= 0X 0I 0D

Ground truth —> —> 100000= 0X 0I 0D

DSA 0.1 % SNPs 46942 0.005 99900= 100X 0I 0D

GRAPHALIGNER ” 50386 0.004 99903= 97X 0I 0D

MINIGRAPH ” 8078 0 99903= 97X 0I 0D

Ground truth —> —> 99900= 100X 0I 0D

DSA 1 % SNPs 456316 0.120 99022= 978X 0I 0D

GRAPHALIGNER ” 50250 0.005 99020= 976X 4I 0D

MINIGRAPH ” 7934 0.001 98947= 997X 0I 0D

Ground truth —> —> 99022= 978X 0I 0D

DSA 0.1 % INDELs 105904 0.018 99817= 0X 183I 171D 100G

GRAPHALIGNER ” 50223 0.003 99708= 109X 183I 171D 160G

MINIGRAPH ” 8145 0.001 99806= 0X 183I 171D 100G

Ground truth —> —> 99817= 0X 183I 171D 100G

iments we introduced SNPs (in 0.1% and 1% of the

positions, respectively): DSA is the only one which

is exact at a cost of higher memory consumption. Fi-

nally, with INDELs, our prototype is always exact

(and MINIGRAPH almost is). GRAPHALIGNER is not

accurate as it is not designed for afﬁne gap penalty

function.

Summing up, DSA (I) outperforms both MINIGRAPH

and GRAPHALIGNER on exact match, (II) outper-

forms accuracy of MINIGRAPH with SNPs, and (III)

outperforms accuracy of GRAPHALIGNER with IN-

DELs.

5 CONCLUSIONS AND FURTHER

WORK

As mentioned above, at the moment our implementa-

tion of DSA is just a promising prototype. We plan

to improve its memory consumption using the ideas of

(J.M.Eizenga and B.Paten, 2022). Also, we are work-

ing on improve its speed (as well as consequent mem-

ory use) by removing hopeless diagonals sufﬁxes that

are currently being kept in the range.

Finally, we remark that with our dynamic program-

ming method, it is very natural to add weights to let-

Fast Exact String to D-Texts Alignments

ters and to use a sum of weights modiﬁcation of the

actual score as objective function, in order to account

for possible useful metadata such as conﬁdence level

in the query string or D-strings bases, or abundance in

the MSA represented by the D-string.

ACKNOWLEDGEMENTS

This paper is part of a project ALPACA (ALgorithms

for PAngenome Computational Analysis) that has

received funding from the European Union’s Hori-

zon 2020 research and innovation programme un-

der the Marie Skłodowska-Curie grant agreement No

956229. Co-ﬁnanced by the Connecting Europe Fa-

cility of the European Union.

REFERENCES

A.Cisłak, S.Grabowski, and J.Holub (2018). SOPanG: on-

line text searching over a pan-genome. Bioinformat-

ics, 34(24):4290–4292.

A.Cisłak and S.Grabowski, S. (2020). SOPanG 2: online

searching over a pan-genome without false positives.

arXiv:2004.03033.

C.A.Darby, R.Gaddipati, M.C.Schatz, and B.Langmead

(2020). Vargas: heuristic-free alignment for assess-

ing linear and graph read aligners. Bioinformatics,

36(12):3712–3718.

C.Lee, C.Grasso, and M.F.Sharlow (2002). Multiple Se-

quence Alignment Using Partial Order Graphs. Bioin-

formatics, 18(3):452–464.

CPC, T. C. P.-G. C. (2018). Computational Pan-Genomics:

Status, Promises and Challenges. Brieﬁngs in Bioin-

formatics, 19(1):118–135.

C.S.Iliopoulos and J.Radoszewski (2016). Truly

Subquadratic-Time Extension Queries and Peri-

odicity Detection in Strings with Uncertainties. In

27th Annual Symposium on Combinatorial Pattern

Matching (CPM), volume 54 of LIPIcs, pages

8:1–8:12.

C.S.Iliopoulos, R.Kundu, and S.P.Pissis (2017). Efﬁcient

Pattern Matching in Elastic-Degenerate Texts. In 11th

International Conference on Language and Automata

Theory and Applications (LATA), volume 10168 of

Springer LNCS, pages 131–142.

D.-F.Feng and Doolittle, R. (1987). Progressive se-

quence alignment as a prerequisite to correct phy-

logenetic trees. Journal of Molecular Evolution,

25(4):351–360.

E.Birmel

e, P.Crescenzi, R.A.Ferreira, R.Grossi, V.Lacroix,

A.Marino, N.Pisanti, G.A.T.Sacomoto, and M.-

F.Sagot (2012). Efﬁcient bubble enumeration in di-

rected graphs. In 19th International Symposium on

String Processing and Information Retrieval (SPIRE),

volume 7608 of Springer LNCS, pages 118–129.

E.Garrison, J.Sir

en, A.M.Novak, G.Hickey, J.M.Eizenga,

E.T.Dawson, W.Jones, S.Garg, C.Markello, M.F.Lin,

B.Paten, and R.Durbin (2018). Variation Graph

Toolkit Improves Read Mapping by Representing Ge-

netic Variation in the Reference. Nature Biotechnol-

ogy, 36(9):875–879.

E.W.Myers (1986). An O(ND) difference algorithm and its

variations. Algorithmica, 1(2):251–266.

G.Bernardini, N.Pisanti, S.P.Pissis, and G.Rosone (2017).

Pattern matching on elastic-degenerate text with er-

rors. In 24th International Symposium on String Pro-

cessing and Information Retrieval (SPIRE), volume

10508 of Springer LNCS, pages 74–90.

G.Bernardini, N.Pisanti, S.P.Pissis, and G.Rosone (2020).

Approximate pattern matching on elastic-degenerate

text. Theoretical Computer Science, 812:109–122.

G.Bernardini, P.Gawrychowski, N.Pisanti, S.P.Pissis, and

G.Rosone (2019). Even Faster Elastic-Degenerate

String Matching via Fast Matrix Multiplication. In

46th International Colloquium on Automata, Lan-

guages, and Programming (ICALP), volume 132 of

LIPIcs, pages 21:1–21:15.

G.Bernardini, P.Gawrychowski, N.Pisanti, S.P.Pissis, and

G.Rosone (2022). Elastic-Degenerate String Match-

ing via Fast Matrix Multiplication. SIAM Journal of

Computing, 51(3):549–576.

H.Li (2016). Minimap and Miniasm: Fast Mapping and de

Novo Assembly for Noisy Long Sequences. Bioinfor-

matics, 32(14):2103–2110.

H.Li (2018). Minimap2: Pairwise Alignment for Nu-

cleotide Sequences. Bioinformatics, 34(18):3094–

3100.

H.Li (2021). New strategies to improve minimap2 align-

ment accuracy. Bioinformatics, 37(23):4572–4574.

H.Li, X.Feng, and C.Chu (2020). The Design and Construc-

tion of Reference Pangenome Graphs with Minigraph.

Genome Biology, 21(265).

H.Soldano, A.Viari, and M.Champesme (1995). Search-

ing for ﬂexible repeated patterns using a non-transitive

similarity relation. Pattern Recognition Letters,

16(3):233–246.

IUPAC-IUB Commission on Biochemical Nomenclature

(1970). Abbreviations and symbols for nucleic acids,

polynucleotides, and their constituents. Biochemistry,

9(20):4022–4027.

J.M.Eizenga, A.M.Novak, E.Kobayashi, F.Villani, C.Cisar,

S.Heumos, G.Hickey, V.Colonna, B.Paten, and

E.Garrison (2021). Efﬁcient dynamic variation

graphs. Bioinformatics, 36(21):5139–5144.

J.M.Eizenga and B.Paten (2022). Improving the time and

space complexity of the wfa algorithm and generaliz-

ing its scoring. bioRxiv.

K.Abrahamson (1987). Generalized string matching. SIAM

Journal of Computing, 16(6):1039–1051.

K.Aoyama, Y.Nakashima, T.I, S.Inenaga, H.Bannai, and

M.Takeda (2018). Faster Online Elastic Degenerate

String Matching. In 29th Annual Symposium on Com-

binatorial Pattern Matching (CPM), volume 105 of

LIPIcs, pages 9:1–9:10.

BIOINFORMATICS 2023 - 14th International Conference on Bioinformatics Models, Methods and Algorithms

M.Alzamel, L.A.K.Ayad, G.Bernardini, R.Grossi,

C.S.Iliopoulos, N.Pisanti, S.P.Pissis, and G.Rosone

(2018). Degenerate String Comparison and Applica-

tions. In 18th International Workshop on Algorithms

in Bioinformatics (WABI), volume 113 of LIPIcs,

pages 21:1–21:14.

M.Alzamel, L.A.K.Ayad, G.Bernardini, R.Grossi,

C.S.Iliopoulos, N.Pisanti, S.P.Pissis, and G.Rosone

(2020). Comparing Degenerate Strings. Fundamenta

Informaticae, 175(1-4):41–58.

M.Crochemore, C.S.Iliopoulos, T.Kociumaka,

J.Radoszewski, W.Rytter, and T.Walen (2017).

Covering problems for partial words and for inde-

terminate strings. Theoretical Computer Science,

698:25–39.

M.Federico and N.Pisanti (2009). Sufﬁx tree characteriza-

tion of maximal motifs in biological sequences. The-

oretical Computer Science, 410(43):4391–4401.

M.Rautiainen and T.Marschall (2020). Graphaligner: rapid

and versatile sequence-to-graph alignment. Genome

Biology, 21(253).

M.Rautiainen, V.M

akinen, and T.Marschall (2019). Bit-

parallel sequence-to-graph alignment. Bioinformatics,

35(19):3599–3607.

N.M.Mwaniki and N.Pisanti (2022). Optimal sequence

alignment to ED-strings. In 18th International Sym-

posium on Bioinformatics Research and Applications

(ISBRA), volume 13760 of Springer LNCS.

N.Pisanti, H.Soldano, and M.Carpentier (2005). Incremen-

tal inference of relational motifs with a degenerate al-

phabet. In 16th Annual Symposium on Combinatorial

Pattern Matching (CPM), volume 3537 of Springer

LNCS, pages 229–240.

N.Pisanti, H.Soldano, M.Carpentier, and J.Pothier (2009).

A relational extension of the notion of motifs: Appli-

cation to the common 3d protein substructures search-

ing problem. Journal of Computational Biology,

16(12):1635–1660.

P.Gawrychowski, S.Ghazawi, and G.M.Landau (2020). On

indeterminate strings matching. In 31st Annual Sym-

posium on Combinatorial Pattern Matching (CPM),

volume 161 of LIPIcs, pages 14:1–14:14.

P.Ivanov, B.Bichsel, H.Mustafa, A.Kahles, G.R

atsch, and

M.T.Vechev (2020). Astarix: Fast and optimal

sequence-to-graph alignment. In 24th Annual Inter-

national Conference on Research in Computational

Molecular Biology (RECOMB), volume 12074 of

Springer LNCS, pages 104–119.

P.Ivanov, B.Bichsel, and M.T.Vechev (2022a). Fast and op-

timal sequence-to-graph alignment guided by seeds.

In 26th Annual International Conference on Research

in Computational Molecular Biology (RECOMB),

Springer LNCS In Press.

P.Ivanov, B.Bichsel, and M.Vechev (2022b). Fast and op-

timal sequence-to-graph alignment guided by seeds.

bioRxiv.

P.Peterlongo, N.Pisanti, F.Boyer, do Lago, A., and M.-

F.Sagot (2008). Lossless ﬁlter for multiple repetitions

with hamming distance. Journal of Discrete Algo-

rithms, 6(3):497–509.

R.Grossi, C.S.Iliopoulos, C.Liu, N.Pisanti, S.P.Pissis,

A.Retha, G.Rosone, F.Vayani, and L.Versari (2017).

On-Line Pattern Matching on Similar Texts. In 28th

Annual Symposium on Combinatorial Pattern Match-

ing (CPM), volume 78 of LIPIcs, pages 9:1–9:14.

S.Marco-Sola, J.C.Moure, M.Moreto, and A.Espinosa

(2021). Fast Gap-Afﬁne Pairwise Alignment Using

the Wavefront Algorithm. Bioinformatics, 37(4):456–

463.

V.Carletti, P.Foggia, E.Garrison, L.Greco, P.Ritrovato, and

M.Vento (2019). Graph-based representations for

supporting genome data analysis and visualization:

Opportunities and challenges. In 12th International

Workshop on Graph-Based Representations in Pat-

tern Recognition (GbRPR), volume 11510 of Springer

LNCS, pages 237–246.

Y.Gao, Y.Liu, Y.Ma, B.Liu, Y.Wang, and Y.Xing (2021).

abPOA: an SIMD-based C library for fast partial or-

der alignment using adaptive band. Bioinformatics,

37(15):2209–2211.

Fast Exact String to D-Texts Alignments
