Data-Efﬁcient Transformer-Based 3D Object Detection

Aidana Nurakhmetova

, Jean Lahoud

and Hisham Cholakkal

Department of Computer Vision, Mohamed bin Zayed University of Artiﬁcial Intelligence, Masdar City, Abu Dhabi, U.A.E.

Keywords:

3D Point Clouds, Data-Efﬁcient Transformer, 3D Object Detection.

Abstract:

Recent 3D detection models rely on Transformer architecture due to its natural ability to abstract global context

features. One is the 3DETR network - a pure transformer-based model designed to generate 3D boxes on

indoor dataset scans. It is generally known that transformers are data-hungry. However, data collection and

annotation in 3D are more challenging than in 2D. Thus, our goal is to study the data-hungriness of the

3DETR-m model and propose a solution for its data efﬁciency. Our methodology is based on the observation

that PointNet++ provides more locally aggregated features that can be useful to support 3DETR-m prediction

on small dataset problem. We suggest three methods of backbone fusion that are based on addition (Fusion I),

concatenation (Fusion II), and replacement (Fusion III). We utilize pre-trained weights from the Group-free

model trained on the SUN RGB-D dataset. The proposed 3DETR-m outperforms the original model in all data

proportions (10%, 25%, 50%, 75%, and 100%). We improve 3DETR-m paper results by 1.46% and 2.46% in

mAP@25 and mAP@50 on the full dataset. Hence, we believe our research efforts can provide new insights

into the data-hungriness issue of 3D transformer detectors and inspire the usage of pre-trained models in 3D

as one way towards data efﬁciency.

1 INTRODUCTION

It has not been long since 3D point cloud analysis be-

came one of the crucial areas of research. 3D object

detection on point clouds is concerned with generat-

ing bounding boxes tightly surrounding the objects

in a 3D scene, thus, it recognizes and localizes ob-

jects simultaneously. 3D object detection has many

applications in real-world such as autonomous driv-

ing, robotics, healthcare, and augmented reality. 3D

point cloud object detection is a challenging computer

vision task, since 3D point cloud data is sparse, or-

derless and irregular. Due to such properties, various

methods of treating the 3D point cloud data were born

in the research community. Hence, there are three key

reasons for the motivation behind the deeper study of

3D point clouds among computer vision researchers:

• Emergence of readily available 3D scanning sen-

sors

• Presence of richly labeled datasets

• Development of 3D deep learning methods

Various large-scale 3D datasets were accumulated

and annotated due to the emergence of the latest point

https://orcid.org/0000-0001-6308-9397

https://orcid.org/0000-0003-0315-6484

https://orcid.org/0000-0002-8230-9065

Figure 1: Supervised pre-training and ﬁne-tuning of

3DETR-m model.

processing technologies such as LiDAR and RGB-D

sensors that can effectively scan the 3D environment.

Many works in 3D vision utilize deep learning for

3D shape classiﬁcation (Su et al., 2015) (Qi et al.,

2016), 3D object detection (Qi et al., 2017a) (Chen

et al., 2019) and tracking (Giancola et al., 2019) (Qi

et al., 2020), 3D point cloud segmentation (Landrieu

and Simonovsky, 2017) (Graham et al., 2017).

Previous deep learning methods in 3D relied on

convolutional neural networks (ConvNet) and multi-

layer perceptrons (MLPs). Inspired by the success

Nurakhmetova, A., Lahoud, J. and Cholakkal, H.

Data-Efﬁcient Transformer-Based 3D Object Detection.

DOI: 10.5220/0011673200003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

615-623

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

615

of ConvNet, which is due to the ability to capture

ﬁner features at local levels, PointNet++ (Qi et al.,

2017b) was designed to hierarchically process raw

point cloud input to extract features at multiple scales.

Many object detection models are built upon this

backbone which has proven to be effective in learn-

ing 3D representations of the point cloud input.

Recently, Transformers has made a breakthrough

in 3D scene understanding. Transformer architecture

(Vaswani et al., 2017) initially was designed for Nat-

ural Language Processing (NLP) tasks, which inher-

ently suits sparse and orderless input. Most impor-

tantly, it can capture long-range dependencies vital

for perceiving contextual patterns in the scenes. Due

to such amenities, Transformers and the self-attention

operation offered more accurate detections on point

clouds. Nevertheless, unlike non-transformer models,

pure transformer-based ones require more data sam-

ples to train the network.

This paper aims to study the robustness of 3D de-

tection models towards limited dataset condition. De-

pending on various reasons, data might not always be

available, and the robust model trained on fewer data

can save resources such as time and computational

overhead on the network. In this work, we compare

four different models with four different architec-

tures with the purpose of preliminary study and anal-

ysis, which are: 1) Group-free 3D (Liu et al., 2021)

(hybrid model with transformer decoder and Point-

net++ backbone); 2) MLCVNet (Xie et al., 2020a)

(point-based model with a combination of MLPs

and attention); 3) 3DETR (Misra et al., 2021) (pure

transformer with the encoder-decoder); 4) 3DETR-

m (Misra et al., 2021) is another version of 3DETR

which uses 2 set abstraction layers from PointNet++,

where a masked encoder is used for local feature ag-

gregation. All models were trained on the ScanNetv2

benchmark dataset under four settings: 10%, 25%,

50%, and 75% of the original dataset.

The contributions from our research efforts are

outlined below:

• We design a novel architecture by integrating the

PointNet++ backbone into 3DETR-m via simple

fusion methods such as addition, concatenation,

and replacement.

• We use SUN RBG-D pre-trained model of Group-

free 3D network to initialize backbone with more

meaningful weights, thus, yielding higher per-

formance in all dataset proportions (10%, 25%,

50%, and 75%). By improving over the baseline

3DETR-m models, we make purely transformer-

based architecture more data efﬁcient. We im-

prove 3DETR-m paper results by 1.46% and

2.46% in mAP@25 and mAP@50 on the full

dataset.

• We are the ﬁrst to explore the data-hungriness of

a transformer-based 3D object detector to the best

of our knowledge.

2 RELATED WORKS

Point-Based Approaches. PointRCNN (Shi et al.,

2018) is a two-stage 3D object detector similar to the

FasterRCNN method in 2D object detection, which

exploits the PointNet backbone to extract useful fea-

tures and generate 3D object proposals. KP-Conv

(Thomas et al., 2019) is a point convolution-based

approach where any number of kernels can be used,

making it a more ﬂexible technique than grid convo-

lutions. MLCVNet (Xie et al., 2020a) is a multi-level

context VoteNet (Qi et al., 2019) extracting features

at multiple levels such as at patch, object and global

levels.

Projection/Voxel-Based Approaches. Previous

works focused on the traditional convolution ap-

proach after the irregular shape of 3D input data

was transformed into 2D/3D grids. These meth-

ods PIXOR (Yang et al., 2019), AVOD (Ku et al.,

2017) project point cloud to 2D planes/bird’s eye view

(BEV) and convert them into 2D grids to apply 2D

ConvNets, which can learn features and output 3D

bounding boxes. A number of methods VoxNet (Mat-

urana and Scherer, 2015), MV3D (Chen et al., 2016),

FCAF3D (Rukhovich et al., 2021) depend on vox-

elization, which ﬁrst maps point cloud input to a vol-

umetric 3D grid (voxels) so that 3D ConvNets can be

utilized to compute features and predict 3D bounding

boxes.

Transformer Based Approaches. Authors of Point

Cloud Transformer (Guo et al., 2021) design a solely

transformer-based network for learning global con-

text through a self-attention mechanism. Pointformer

(Pan et al., 2020) paper is a pure transformer U-net

like architecture that relies on the ability of Trans-

formers to capture long-range dependencies. It is built

with three different transformers: Local Transformer,

Local-Global Transformer, and a Global Transformer.

The authors of (Zhao et al., 2020) propose Point

Transformer layer to effectively process raw point

cloud igniting a permutation-invariant property.

2.1 Training with Limited Data

In 3D deep learning, there are few works that have

used pre-training for 3D point cloud data. PointCon-

trast (Xie et al., 2020b) framework enables unsuper-

vised pre-training for the ﬁrst time in high-level 3D

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

616

scene understanding that provided promising results

in segmentation and detection tasks with six bench-

mark indoor and outdoor datasets. Yamada et al. (Ya-

mada et al., 2022) suggest using pre-training to ini-

tialize weights from a model trained on a synthetic

dataset and ﬁne-tune on a smaller dataset with real

scans. The authors developed a new fractal geomet-

ric database called PC-FractalDB, on which source

networks were pre-trained. In the 2D domain, a re-

cent work (Wang et al., 2022) focused on pushing

the performance of DETR (Carion et al., 2020) and

Deformable-DETR (Zhu et al., 2020) and could beat

original models with much less data on subsampled

COCO 2017 and small-sized CityScapes datasets. For

COCO 2017, smaller training data was created by

sampling 0.1, 0.05, 0.02, and 0.01 from the full train-

ing examples, whereas the evaluation set is kept the

same.

Summary. Current 3D object detection transformers

demonstrate competitive performance and simple de-

sign compared to point-based or grid-based methods.

Nevertheless, it is not clear whether transformer mod-

els can keep high accuracy with smaller training data.

The recent study in 2D (Wang et al., 2022) shows

that with smaller training samples, detection trans-

formers suffer from performance drop, which proves

that transformers are data-hungry networks. Hence,

motivated by an existing gap, we aim to study the

data-hungriness of 3D detection transformers by eval-

uating the 3DETR-m model on smaller sets of Scan-

Net dataset and present a novel 3DETR design that

achieves better performance than the baseline scores.

As object detection on point clouds is still in its in-

fancy, the existing 3D detectors do not utilize any

transfer learning. Hence, we are the ﬁrst to use an

off-the-shelf pre-trained model on the detection trans-

former network.

3 APPROACH

3.1 Leveraging 3DETR-m Model with

PointNet++ Backbone

First we will provide an overview of 3DETR (Misra

et al., 2021) model architecture focusing on the

Masked Encoder and Decoder of the transformer.

Masked Encoder. The masked encoder of 3DETR-

m consists of three layers of self-attention and MLP.

The attention matrix of size (N

′

N) in each layer

is multiplied by a binary mask matrix M of the same

shape. Any M

entry of M is set to 1 if i and j points

are located within a radius r distance with each other.

3DETR-m uses 2 Set Abstraction layers from Point-

(a) PointNet++ (b) 3DETR-m encoder

Figure 2: t-SNE visualization of feature distribution.

Net++. The ﬁrst set abstraction layer is used to down-

sample initial scene points to 2048 points, and later to

1024 points by the second set abstraction layer with

a radius of 0.4. The second stage of subsampling and

set aggregation is named interim downsampling that

is used for the masking stage and is applied to the en-

coder self-attention output.

Decoder. The transformer decoder receives an input

of (N

′

×d) from the encoder and (B×256) query em-

beddings, where B = 256 query points sampled by fps

from N

′

points. Fourier positional embedding is ap-

plied to include positional information, as the decoder

does not have knowledge about initial positions. The

decoder is used to produce ﬁnal (B × d) boxes with

d = 256 box features. There are eight decoder layers

and four heads in each MHA. Cross-attention in the

decoder computes the relation between query embed-

dings and encoder features, while self-attention in the

decoder computes the relation between query embed-

dings.

3.2 Analysing Feature Distribution

In order to understand the feature scales, a dimen-

sionality reduction technique t-distributed stochastic

neighbor embedding (t-SNE) was used. The 256-

dimensional feature vector of the PointNet++ features

and 3DETR-m encoder features were projected to di-

mension 50 using truncatedSVD for sparse matrices.

Using t-SNE plots to visualize feature dimensions

helped better understand the feature scales and data

distribution. Differences in data distribution mean

some normalization techniques need to be used prior

to fusion. The plots in Figure 2 showcase the features

reduced to 3D space for one of the batch data samples.

Fusion I: Addition. To mitigate the data-hungriness

of 3DETR, we used backbone features from Point-

Net++. We added the backbone features with the en-

coder features, where encoder features were normal-

ized between the [0, 1] range. A detailed scheme of

the modiﬁcation can be seen in Figure 3. For the nor-

Data-Efﬁcient Transformer-Based 3D Object Detection

617

malization, MinMaxScaler was applied according to

equations below:

std

x − x

min

max

− x

min

(1)

scaled

= x

std

∗ (max − min) + min (2)

where x

min

is a minimum value and x

max

is a max-

imum value in feature space, while x is the feature of

current point in a cluster. The range to which normal-

ization has been applied is given by min, max vari-

ables. In the below equation, the fusion method is

shown with a simple addition operation, where F(x, y)

is the new fused features, x

scaled

is the normalized en-

coder features, and y is the backbone features.

F(x, y) = x

scaled

+ y (3)

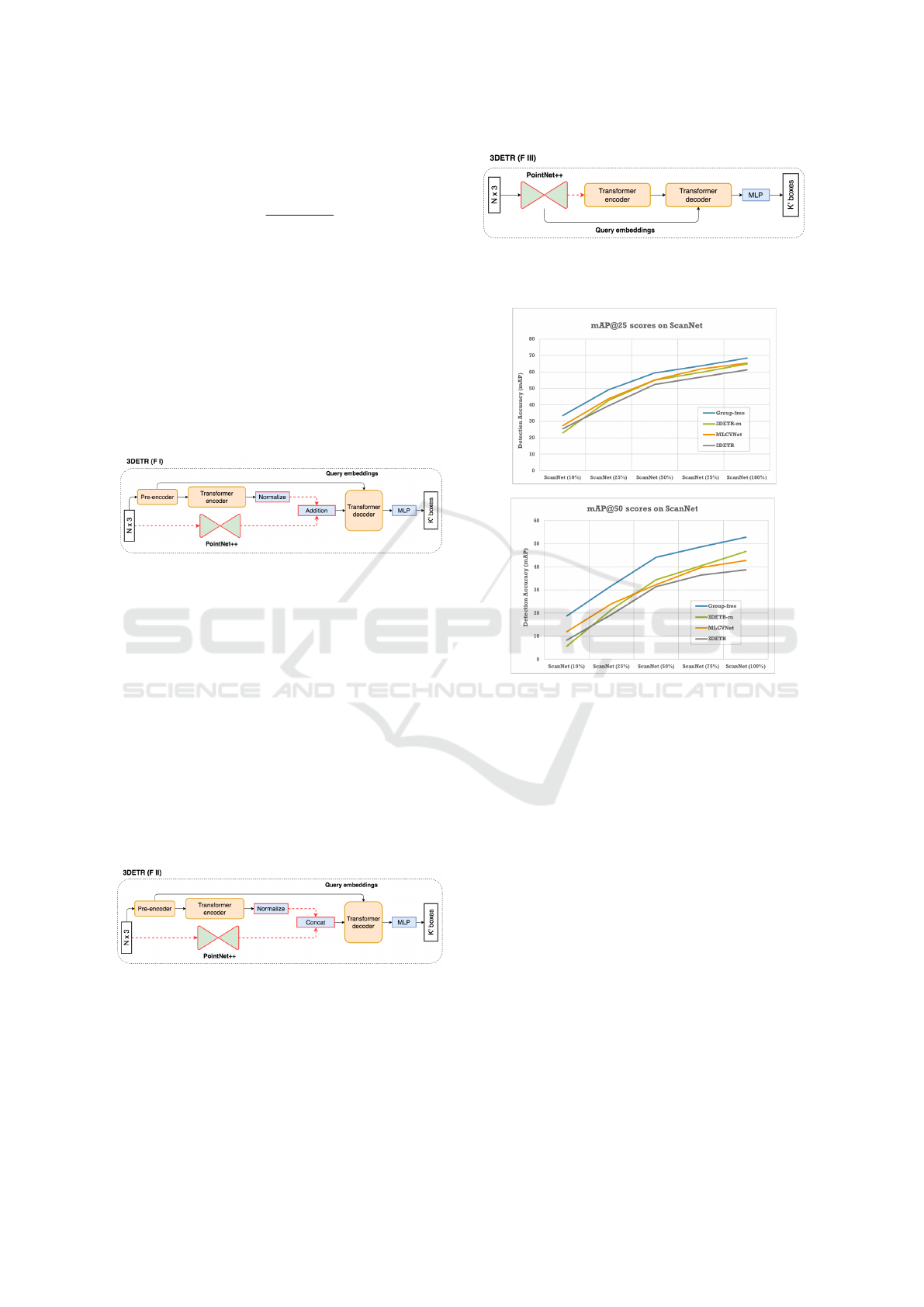

Figure 3: Architecture of proposed model 3DETR-m-F1

with backbone fusion on 3DETR-m (Fusion I). The red

lines represent our modiﬁcations on the original 3DETR.

Fusion II: Concatenation. We utilized concatena-

tion method to preserve original features from the

backbone. The architecture sketch can be seen in Fig-

ure 4.

F(x, y) = ReLU (γ(Concat(x

scaled

, y))) (4)

where γ is MLP network with hidden dimension of

128. Concat(x

scaled

, y) is performed across feature

axis, giving in total 512 output features, which is pro-

jected by the MLP back to 256 dimension. ReLU non-

linearity is used as an activation function. The en-

coder features were normalized between [0, 1] based

on Equation 2.

Figure 4: Architecture of proposed model 3DETR-m-F2

with backbone fusion on 3DETR-m (Fusion II). The red

lines represent our modiﬁcations on the original 3DETR.

Fusion III: Replacement. In this fusion technique,

the pre-encoder is fully replaced by the backbone or,

in other words, extended by two more set abstraction

layers followed by two feature propagation layers as

in PointNet++ (see Figure 5).

Figure 5: Architecture of proposed model 3DETR-m-F3

with backbone fusion on 3DETR (Fusion III). The red lines

represent our modiﬁcations on the original 3DETR.

Figure 6: Comparison of Group-free, 3DETR-m, ML-

CVNet and 3DETR vanilla models.

4 DATA-EFFICIENT 3DETR-m

WITH SUPERVISED

PRE-TRAINING

In this section we explain how we improved 3DETR-

m by utilizing the transfer learning technique. Group-

free model (Liu et al., 2021) was selected as a source

pre-training model as it is partially transformer-

based architecture and it has competitive perfor-

mance. Hence, in order to support the fused back-

bone, we initialized its weights with SUN RBG-D

pre-trained Group-free model weights from the same

backbone while eliminating the rest of the architec-

ture layers. As we are interested in increasing the

performance of 3DETR-m in all data proportions, we

strove to take advantage of the pre-trained backbone

from the Group-free model (GF3D). For the base-

line models in all data proportions, we use 10 de-

coder layers instead of original 8 layers and refer to

it as 3DETR-m-10L. Since the features from a source

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

618

dataset are different from the target dataset, thus, it

may need additional layers to be reﬁned.

As depicted in Figure 1, the weights of a pre-

trained GF3D model are transferred to 3DETR-m to

initialize the backbone with meaningful values rather

than just random numbers. Therefore, only the Point-

Net++ feature weights from GF3D are implanted into

the same backbone in 3DETR-m. GF3D is an end-to-

end network that optimizes backbone features based

on downstream detection task, which perfectly suits

our goal - to make maximum use of the PointNet++

backbone. In addition, SUN RBG-D is also an indoor

dataset that can, at the same time, supply diverse fea-

tures together with features extracted from ScanNet.

SUN RBG-D pre-trained GF3D model with 6 lay-

ers, 256 object candidates, and width 1 of the back-

bone was downloaded from an ofﬁcial GitHub repos-

itory. We created an instance of the GF3D model in

3DETR code to have access to a state dictionary and

model parameters. After the pre-trained model weight

was loaded, a new state dictionary was created, pro-

viding all source model parameters.

5 EXPERIMENTS

Dataset and Metrics. ScanNetv2 (Dai et al., 2017)

is an indoor dataset built from richly annotated 3D re-

constructions comprising 1513 indoor scenes and 18

object categories. 3D bounding box annotations, as

well as per-point instance semantic labels, are pro-

vided. The standard mean Average Precision (mAP)

protocol is followed under IoU thresholds of 0.25 and

0.5, eliminating the oriented bounding boxes. The

dataset was split into a training set consisting of 1201

scenes and 312 test set for validation.

Source Dataset. SUN RBG-D (Song et al., 2015) is

a single-view RBG-D dataset of indoor environments

with 3D bounding box annotations. It contains 10,335

RGB-D image frames labeled with amodal and ori-

ented bounding boxes with 37 class categories. Abid-

ing by a standard evaluation protocol, only 10 classes

are used during training and validation. The training

set has 5285 frames, and the test set has 5050 frames.

Training Details. The training conﬁgurations for the

experimental models were kept as provided in the

original papers and GitHub repositories. The base-

line models were all trained on cluster GPUs pro-

vided by the university. MLCVNet and 3DETR used

a single GPU, while GF3D utilized 4 GPU resources.

The code is written in the PyTorch framework. Both

3DETR and GF3D use AdamW optimizer, while ML-

CVNet uses Adam. Initial learning rates for 3DETR,

GF3D and MLCVNet are 0.0005, 0.006 and 0.01, re-

spectively. All three models are trained end-to-end

with a batch size of 8. We also trained the 3DETR-

m version of vanilla 3DETR, which uses 2 set ab-

straction layers and a masked encoder with interim

downsampling. 3DETR-m has the same settings as

3DETR except for a few differences, such as an en-

coder dropout of 0.3 is used and masking is enabled.

The models trained under limited data condition used

the same conﬁgurations as the baseline ones with

100% of the dataset.

We run the experiments on 10%, 25%, 50%, and

75% subsets of ScanNet dataset. All the pre-trained

3DETR-m were trained for 1080 epochs as the origi-

nal model. It is important to note that GF3D trained

on SUN RBG-D uses a width of 1 for the backbone.

Therefore, we modiﬁed the PointNet++ width 2 in

3DETR-m models to width 1 for consistency. Base

learning rate of 0.0005 is used in all experiments. The

models were trained using a batch size of 8 on a single

NVIDIA GPU.

6 RESULTS AND DISCUSSION

In order to better understand behavior of 3D models

with limited data, we selected four detection mod-

els which are Group-free (Liu et al., 2021), ML-

CVNet (Xie et al., 2020a), vanilla 3DETR (Misra

et al., 2021) and 3DETR-m (Misra et al., 2021).

The reason for choosing Group-free and MLCVNet

along with 3DETR models is because both Group-

free and MLCVNet rely on PointNet++ backbone and

are not full transformer networks as 3DETR. Our

study explores the data-hungriness of transformer-

based model 3DETR; therefore, we consider it crucial

to compare against non-transformer architectures. We

evaluated our models on ScanNetV2 3D object detec-

tion benchmark dataset.

The overall trend for baseline models is reason-

able (see Figure 6): with more data, the models per-

form better, and the mAP range between the models is

preserved for all settings, except 10% and 25% Scan-

Net training on 3DETR-m. Compared with 3DETR

vanilla, which has lower mAP scores on full dataset

and other proportions than 3DETR-m, at 10% and

25% ScanNet 3DETR-m fails to reach the same per-

formance trend. This may imply that 3DETR-m is

more data-hungry than 3DETR. Noticing this behav-

ior, we wondered whether it is possible to improve

over 3DETR-m (at 10% and 25%). Hence, as a

ﬁrst step, it was logical to try utilizing PointNet++

backbone features along with the encoder features

since both Group-free and MLCVNet, which pos-

sess higher scores than 3DETR, rely on the backbone

Data-Efﬁcient Transformer-Based 3D Object Detection

619

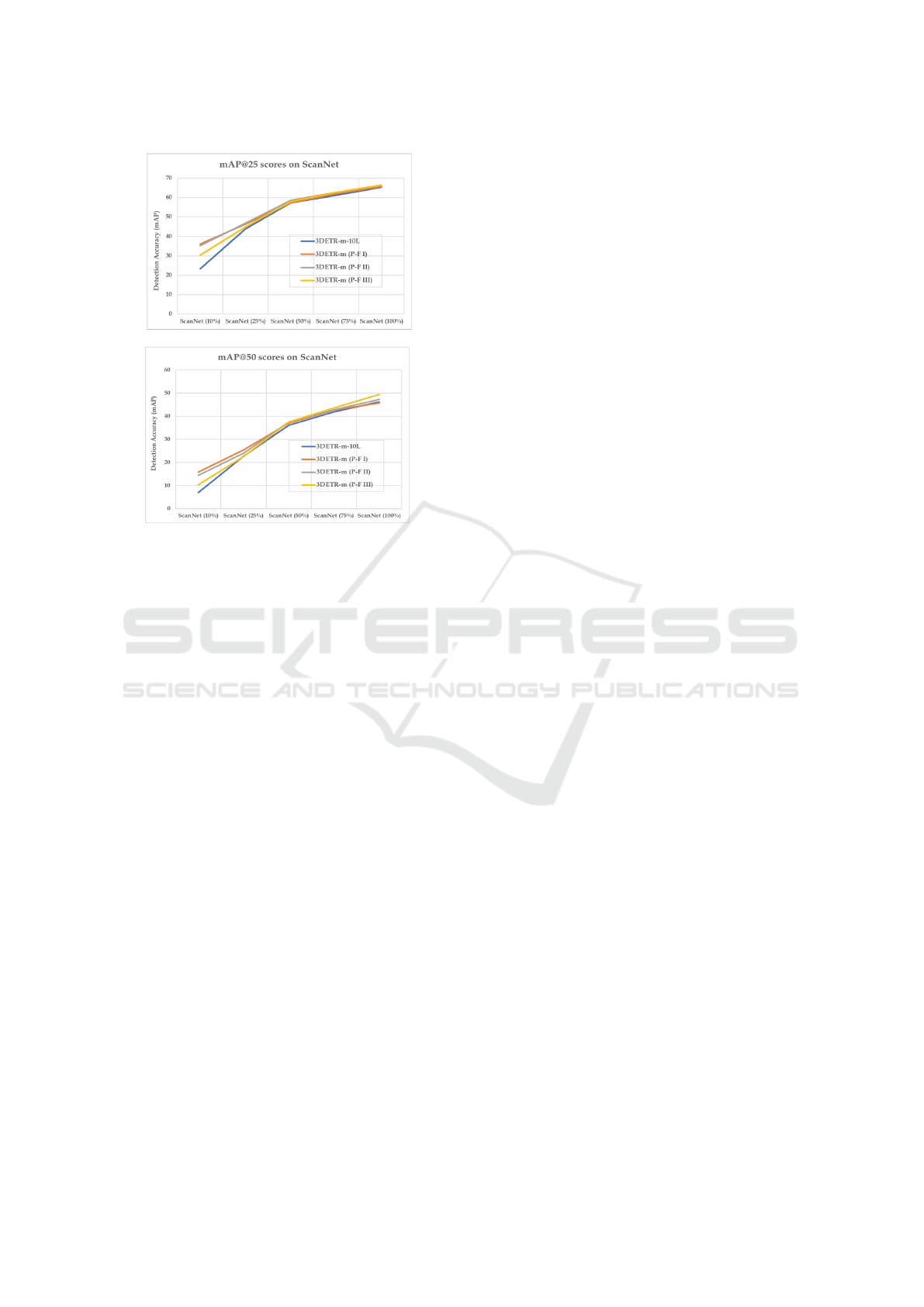

Figure 7: 3DETR-m (P-Fusion I, II, III) performance com-

parison on ScanNet.

for feature generation. In contrast, 3DETR is a pure

transformer-based network only using a single set ab-

straction layer from the PointNet++ backbone for the

purpose of down-scaling.

Models with all fusion techniques 3DETR-m (P-

Fusion I, II and III) have increased detection accuracy

results compared to 3DETR-m-10L baseline in all

data proportions (10%, 25%, 50%, and 75%), as de-

picted in Figure 7 and Table 1. Note that the 3DETR-

m-10L baseline is the exact 3DETR-m model with

10 decoder layers. On 10% ScanNetV2, 3DETR-m

(P-Fusion I) with SUN RGB-D pre-trained weights

signiﬁcantly improves on top of our 3DETR-m-10L

baseline by 12.74% accuracy gain in mAP@25 and

by 8.88% gain in mAP@50. While 3DETR-m (P-

Fusion II) outperform the baseline scores by 11.93%

mAP@25 and 6.97% mAP@50. It is worth men-

tioning that mAP@25 scores of 3DETR-m (P-Fusion

I) and 3DETR-m (P-Fusion II) are higher than the

Group-free and MLCVNet baseline scores on 10%

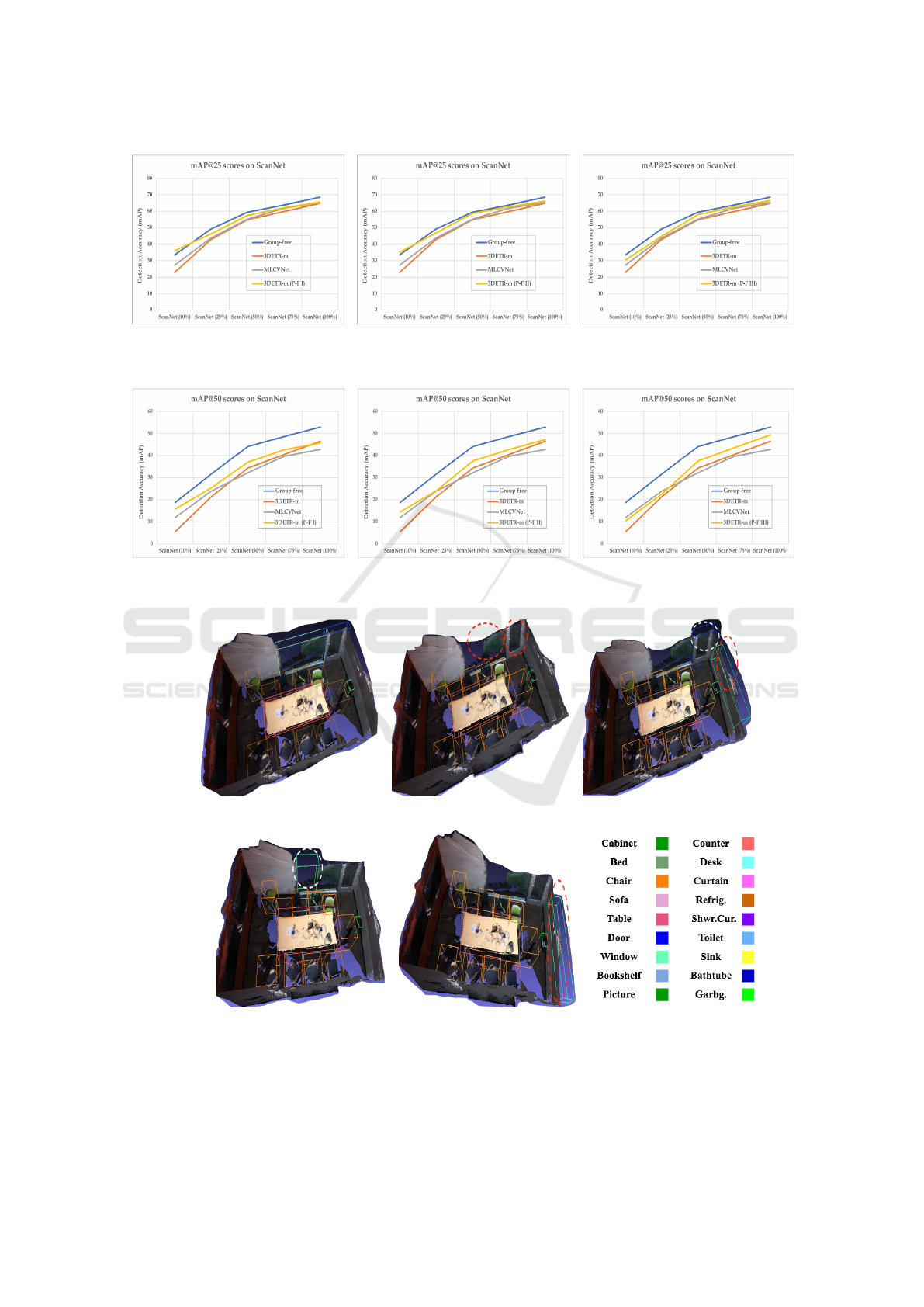

ScanNetV2 (see Figure 8 and 9). On the other hand,

3DETR-m (P-Fusion III) has higher mAP@25 scores

than the MLCVNet. This proves that our proposed

models can perform on par with the non-transformer

models on the small-scale dataset.

While for the 100% ScanNetV2, Fusion II (Con-

catenation) and Fusion III demonstrated the best

mAP outcomes. As reported in Table 1, 3DETR-

m (P-Fusion II) performance on the full dataset

yielded high results in both mAPs reaching 66.24%

and 47.25%, while 3DETR paper reports 65.0%

and 47.0%. Table 3 illustrates per-class outputs in

mAP@25: 3DETR-m (P-Fusion II) increases the ac-

curacy of 13 object categories, except the chair, book-

shelf, toilet, sink, and bath. Interestingly, the ﬁrst two

and last three classes are all related objects, meaning

the model understands the relationship between the

objects. The model has signiﬁcant gains in the detec-

tion of some objects. For example, for the challenging

picture object, it provides 0.85% gain, for the window

7.45%, and the counter 7.53%. 3DETR-m (P-Fusion

III) has the highest mAP@25 and mAP@50 results

reaching 66.46% and 49.46% which provides with

1.46% and 2.46% gains as compared to original pa-

per 3DETR-m scores. Although 3DETR-m (P-Fusion

III) has the best overall score, class-wise it improves

the performance of only 9 object categories (see Ta-

ble 3). Similarly, 3DETR-m (P-Fusion I) improves

the performance over 10 classes and overall it has the

lowest mAP scores. Table 2 compares our modiﬁed

models with the rest of the state-of-the-art model per-

formances.

Regarding the qualitative outputs (Figure 10),

3DETR-m-10L baseline misses the window and door

objects, while our 3DETR-m (P-Fusion I) success-

fully detected the door and 3DETR-m (P-Fusion II)

correctly recognized the window. This proves that

our proposed models are more efﬁcient at capturing

the global context. Among three fusion techniques

(P-F I, P-F II and P-F III), 3DETR-m (P-Fusion II)

does not capture redundant object, whereas 3DETR-

m (P-Fusion I) and 3DETR-m (P-Fusion III) have

false positives for another window object. In addi-

tion, 3DETR-m (P-Fusion III) has misses too. Hence,

3DETR-m (P-Fusion II) is the best model.

7 CONCLUSIONS

To summarize, this work focused on exploring the ro-

bustness of 3D detector models toward small dataset

problem. Seeing the gap between PointNet++ based

models (Group-free, MLCVNet) and pure trans-

former models (3DETR, 3DETR-m), we aimed to

push the potential of 3DETR further by leveraging

the architecture with the backbone features. Al-

though transformer self-attention is good at capturing

long-range dependencies in the scene, it may lack in

forming a local shape geometry from grouped clus-

ter points. Hence, we showed that the performance

could be increased by fusing locally aggregated fea-

tures from PointNet++ to 3DETR.

Future Research. As our target was 3D object de-

tection, our research efforts can be extended to other

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

620

(a) 3DETR-m (P-Fusion I) (b) 3DETR-m (P-Fusion II) (c) 3DETR-m (P-Fusion III)

Figure 8: Performance comparison with state-of-the-art on ScanNet at mAP@25.

(a) 3DETR-m (P-Fusion I) (b) 3DETR-m (P-Fusion II) (c) 3DETR-m (P-Fusion III)

Figure 9: Performance comparison with state-of-the-art on ScanNet at mAP50.

(a) GT annotation (b) 3DETR-m-10L (c) 3DETR-m (P-F I)

(d) 3DETR-m (P-F II) (e) 3DETR-m (P-F III) (f) Color reference

Figure 10: Qualitative results comparison between (b) 3DETR-m-10L baseline and our proposed models (c), (d), and (e). P-F

I, P-F II, and P-F III stand for P-Fusion I, II, and III, which are the pre-trained models with the Fusion (I, II, or III) technique.

The objects detected correctly are labeled with a white dashed circle, whereas wrong or missed object detections are shown

with a red dashed circle. The bounding box colors used in visualization images are given in (f). Ground truth (GT) annotation

is depicted in (a). 3DETR-m (PF-1) detects a door object and 3DETR-m (PF-2) detects a window object, while the baseline

fails to detect either of these.

Data-Efﬁcient Transformer-Based 3D Object Detection

621

Table 1: Mean Average Precision (mAP) results on ScanNetv2 validation set with pre-trained weights. Numbers outside

brackets represent the best epoch results, while those inside are the last epoch results. P-Fusion implies a pre-trained model

with the Fusion (I, II, or III) technique. Our proposed models have improvements (highlighted in bold) in all percentage sets

(10%, 25%, 50%, 75%, and 100%) as compared to 3DETR-m baselines.

Architecture Set Backbone mAP@0.25 mAP@0.5

3DETR-m (baseline) 10% - 23.0 (22.99) 5.58 (6.24)

3DETR-m-10L (baseline) 10% - 23.31 (22.21) 6.99 (5.66)

3DETR-m (P-Fusion I) 10% PointNet++ 36.05 (35.03) 15.87 (14.6)

3DETR-m (P-Fusion II) 10% PointNet++ 35.24 (34.41) 13.96 (14.43)

3DETR-m (P-Fusion III) 10% PointNet++ 30.4 (28.98) 10.41 (10.13)

3DETR-m (baseline) 25% - 43.3 (42.76) 21.56 (21.45)

3DETR-m-10L (baseline) 25% - 43.86 (43.51) 22.84 (22.66)

3DETR-m (P-Fusion I) 25% PointNet++ 46.36 (45.49) 25.36 (25.46)

3DETR-m (P-Fusion II) 25% PointNet++ 46.84 (45.82) 22.76 (24.10)

3DETR-m (P-Fusion III) 25% PointNet++ 44.83 (43.18) 20.35 (22.65)

3DETR-m (baseline) 50% - 56.37 (56.05) 35.22 (35.18)

3DETR-m-10L (baseline) 50% - 57.34 (55.84) 34.5 (36.07)

3DETR-m (P-Fusion I) 50% PointNet++ 57.32 (56.08) 37.0 (35.44)

3DETR-m (P-Fusion II) 50% PointNet++ 58.66 (57.27) 35.87 (37.52)

3DETR-m (P-Fusion III) 50% PointNet++ 58.0 (57.17) 33.7 (37.59)

3DETR-m (baseline) 75% - 60.41 (59.76) 41.2 (40.49)

3DETR-m-10L (baseline) 75% - 61.29 (60.48) 41.15 (41.84)

3DETR-m (P-Fusion I) 75% PointNet++ 62.1 (59.94) 39.89 (42.64)

3DETR-m (P-Fusion II) 75% PointNet++ 62.69 (61.06) 42.78 (41.35)

3DETR-m (P-Fusion III) 75% PointNet++ 62.68 (61.20) 42.24 (43.56)

3DETR-m (paper) 100% - 65.0 47.0

3DETR-m (baseline) 100% - 63.93 (62.55) 45.43 (45.52)

3DETR-m-10L (baseline) 100% - 65.34 (64.16) 44.72 (46.22)

3DETR-m (P-Fusion I) 100% PointNet++ 65.68 (64.73) 45.69 (45.6)

3DETR-m (P-Fusion II) 100% PointNet++ 66.24 (65.23) 47.25 (47.0)

3DETR-m (P-Fusion III) 100% PointNet++ 66.46 (65.5) 45.17 (49.46)

Table 2: Mean Average Precision (mAP) performance comparison with the state-of-the-art models trained on ScanNetv2

dataset. PointNet++w2 means the backbone has width of 2 in MLP networks. P-Fusion implies a pre-trained model with

the Fusion (I, II or III) technique. Our proposed model 3DETR-m (P-Fusion III) demonstrates competitive scores as with

Group-free (L6, O256) result.

Architecture Backbone mAP@25 mAP@50

VoteNet Pointnet++ 62.9 39.9

MLCVNet Pointnet++ 64.5 41.4

Group-Free (L6, O256) Pointnet++w2 × 67.3 (66.2) 48.9 (48.4)

Group-Free (L12, O512) Pointnet++w2 × 69.1 (68.6) 52.8 (51.8)

3DETR - 62.7 37.5

3DETR-m - 65.0 47.0

3DETR-m (P-Fusion I) (ours) PointNet++ 65.68 45.69

3DETR-m (P-Fusion II) (ours) PointNet++ 66.24 47.25

3DETR-m (P-Fusion III) (ours) PointNet++ 66.46 49.46

Table 3: Per-class evaluation of 3DETR-m (SUN RBG-D pre-trained) on validation-set on 100% ScanNetV2 at AP@25 IoU.

Numbers in bold show increases with our modiﬁcation in 3DETR-m (P-Fusion II) as compared to 3DETR-m (paper) results.

Method cab bed chair sofa tabl door windw bkshf pic contr desk curtn frdge showr toilt sink bath grbin mAP

3DETR-m (paper) 49.4 83.6 90.9 89.8 67.6 52.4 39.6 56.4 15.2 55.9 79.2 58.3 57.6 67.6 97.2 70.6 92.2 53.0 65.0

3DETR-m (baseline) 52.71 80.71 89.75 89.92 66.04 54.91 38.14 51.48 13.52 58.76 75.08 47.09 56.6 62.86 94.34 70.17 85.96 51.42 64.88

3DETR-m-10L (baseline) 52.39 82.81 89.25 91.37 67.73 54.32 42.57 46.67 15.56 57.19 74.85 63.76 56.63 73.77 99.53 67.63 89.54 50.61 65.34

3DETR-m (P-Fusion I) 48.04 83.08 91.88 88.89 70.04 56.39 40.44 47.86 14.31 57.39 75.52 62.15 56.19 69.49 99.52 73.05 95.26 52.76 65.68

3DETR-m (P-Fusion II) 51.17 85.48 90.71 90.78 71.21 55.07 47.05 47.49 16.05 63.43 80.59 59 58.52 69.65 95.99 68.36 88.43 53.42 66.24

3DETR-m (P-Fusion III) 47.1 83.35 91.56 89.2 73.24 52.3 46.28 55.54 15.43 56.48 77.69 62.26 58.59 71.72 96.32 75.63 92.11 51.4 66.46

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

622

computer vision tasks such as classiﬁcation and seg-

mentation.

REFERENCES

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers.

Chen, X., Ma, H., Wan, J., Li, B., and Xia, T. (2016). Multi-

view 3d object detection network for autonomous

driving.

Chen, Y., Liu, S., Shen, X., and Jia, J. (2019). Fast point

r-cnn.

Dai, A., Chang, A. X., Savva, M., Halber, M., Funkhouser,

T., and Nießner, M. (2017). Scannet: Richly-

annotated 3d reconstructions of indoor scenes. In

Proc. Computer Vision and Pattern Recognition

(CVPR), IEEE.

Giancola, S., Zarzar, J., and Ghanem, B. (2019). Leveraging

shape completion for 3d siamese tracking.

Graham, B., Engelcke, M., and van der Maaten, L. (2017).

3d semantic segmentation with submanifold sparse

convolutional networks.

Guo, M.-H., Cai, J.-X., Liu, Z.-N., Mu, T.-J., Martin, R. R.,

and Hu, S.-M. (2021). PCT: Point cloud transformer.

Computational Visual Media, 7(2):187–199.

Ku, J., Moziﬁan, M., Lee, J., Harakeh, A., and Waslander,

S. (2017). Joint 3d proposal generation and object de-

tection from view aggregation.

Landrieu, L. and Simonovsky, M. (2017). Large-scale point

cloud semantic segmentation with superpoint graphs.

Liu, Z., Zhang, Z., Cao, Y., Hu, H., and Tong, X. (2021).

Group-free 3d object detection via transformers.

Maturana, D. and Scherer, S. (2015). Voxnet: A 3d convolu-

tional neural network for real-time object recognition.

In 2015 IEEE/RSJ International Conference on Intel-

ligent Robots and Systems (IROS), pages 922–928.

Misra, I., Girdhar, R., and Joulin, A. (2021). An end-to-end

transformer model for 3d object detection.

Pan, X., Xia, Z., Song, S., Li, L. E., and Huang, G. (2020).

3d object detection with pointformer.

Qi, C. R., Litany, O., He, K., and Guibas, L. J. (2019). Deep

hough voting for 3d object detection in point clouds.

Qi, C. R., Liu, W., Wu, C., Su, H., and Guibas, L. J. (2017a).

Frustum pointnets for 3d object detection from rgb-d

data.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2016). Pointnet:

Deep learning on point sets for 3d classiﬁcation and

segmentation.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). Point-

net++: Deep hierarchical feature learning on point sets

in a metric space.

Qi, H., Feng, C., Cao, Z., Zhao, F., and Xiao, Y. (2020).

P2b: Point-to-box network for 3d object tracking in

point clouds.

Rukhovich, D., Vorontsova, A., and Konushin, A. (2021).

Fcaf3d: Fully convolutional anchor-free 3d object de-

tection.

Shi, S., Wang, X., and Li, H. (2018). Pointrcnn: 3d object

proposal generation and detection from point cloud.

Song, S., Lichtenberg, S. P., and Xiao, J. (2015). Sun rgb-

d: A rgb-d scene understanding benchmark suite. In

2015 IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 567–576.

Su, H., Maji, S., Kalogerakis, E., and Learned-Miller, E.

(2015). Multi-view convolutional neural networks for

3d shape recognition.

Thomas, H., Qi, C. R., Deschaud, J.-E., Marcotegui, B.,

Goulette, F., and Guibas, L. J. (2019). Kpconv: Flexi-

ble and deformable convolution for point clouds.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need.

Wang, W., Zhang, J., Cao, Y., Shen, Y., and Tao, D. (2022).

Towards data-efﬁcient detection transformers.

Xie, Q., Lai, Y.-K., Wu, J., Wang, Z., Zhang, Y., Xu, K.,

and Wang, J. (2020a). Mlcvnet: Multi-level context

votenet for 3d object detection.

Xie, S., Gu, J., Guo, D., Qi, C. R., Guibas, L. J., and Litany,

O. (2020b). Pointcontrast: Unsupervised pre-training

for 3d point cloud understanding.

Yamada, R., Kataoka, H., Chiba, N., Domae, Y., and Ogata,

T. (2022). Point cloud pre-training with natural 3d

structures. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 21283–21293.

Yang, B., Luo, W., and Urtasun, R. (2019). Pixor: Real-time

3d object detection from point clouds.

Zhao, H., Jiang, L., Jia, J., Torr, P., and Koltun, V. (2020).

Point transformer.

Zhu, X., Su, W., Lu, L., Li, B., Wang, X., and Dai, J. (2020).

Deformable detr: Deformable transformers for end-

to-end object detection.

Data-Efﬁcient Transformer-Based 3D Object Detection

623
